Hydraulic crane for agricultural tractor EL-500
DELEKS® EL-500: Unpacking by Alberto
DETAILS

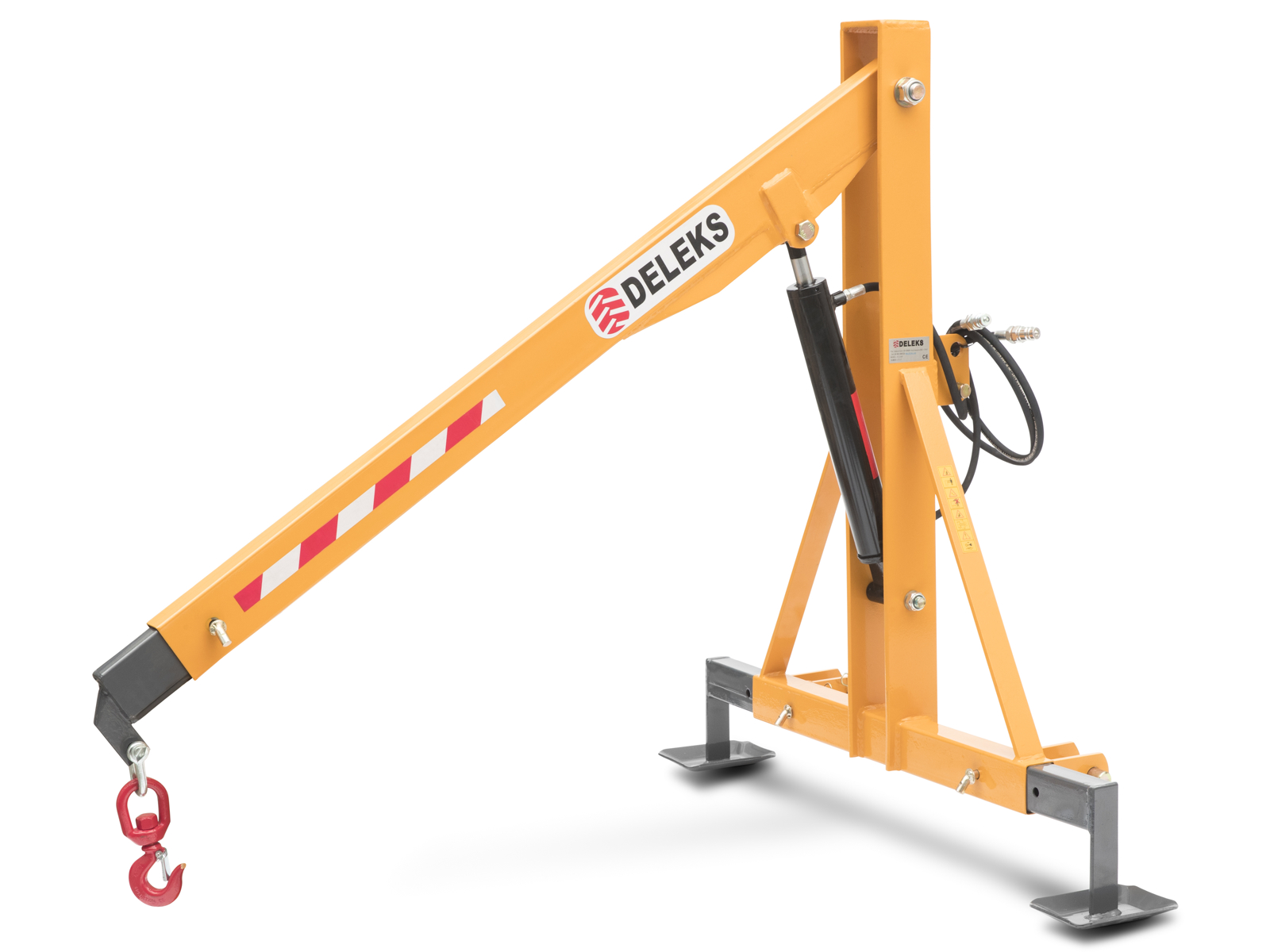

Hydraulic Crane For Compact Tractors - DELEKS® - Arm can be extended in three steps.
OVERVIEW

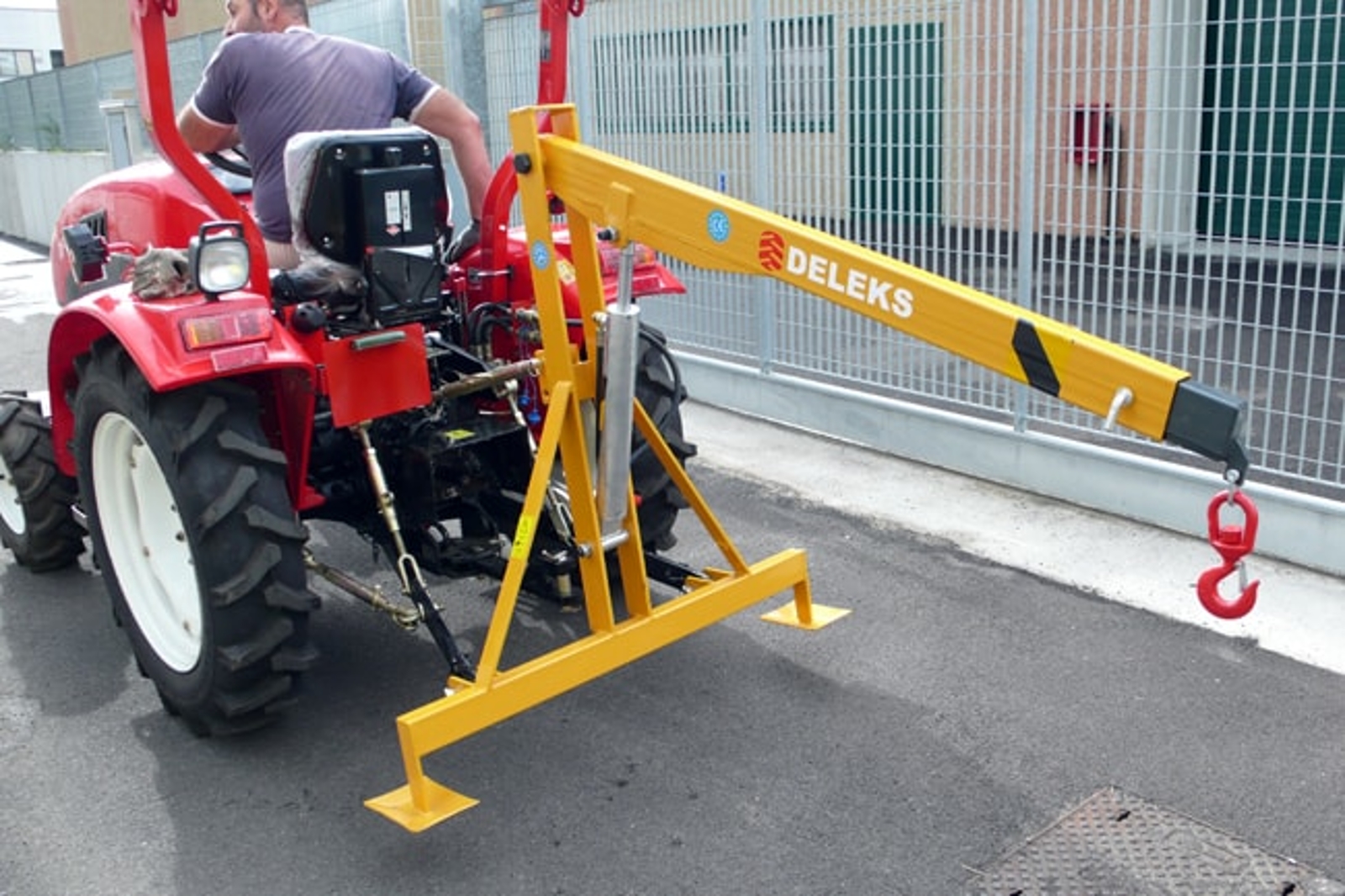

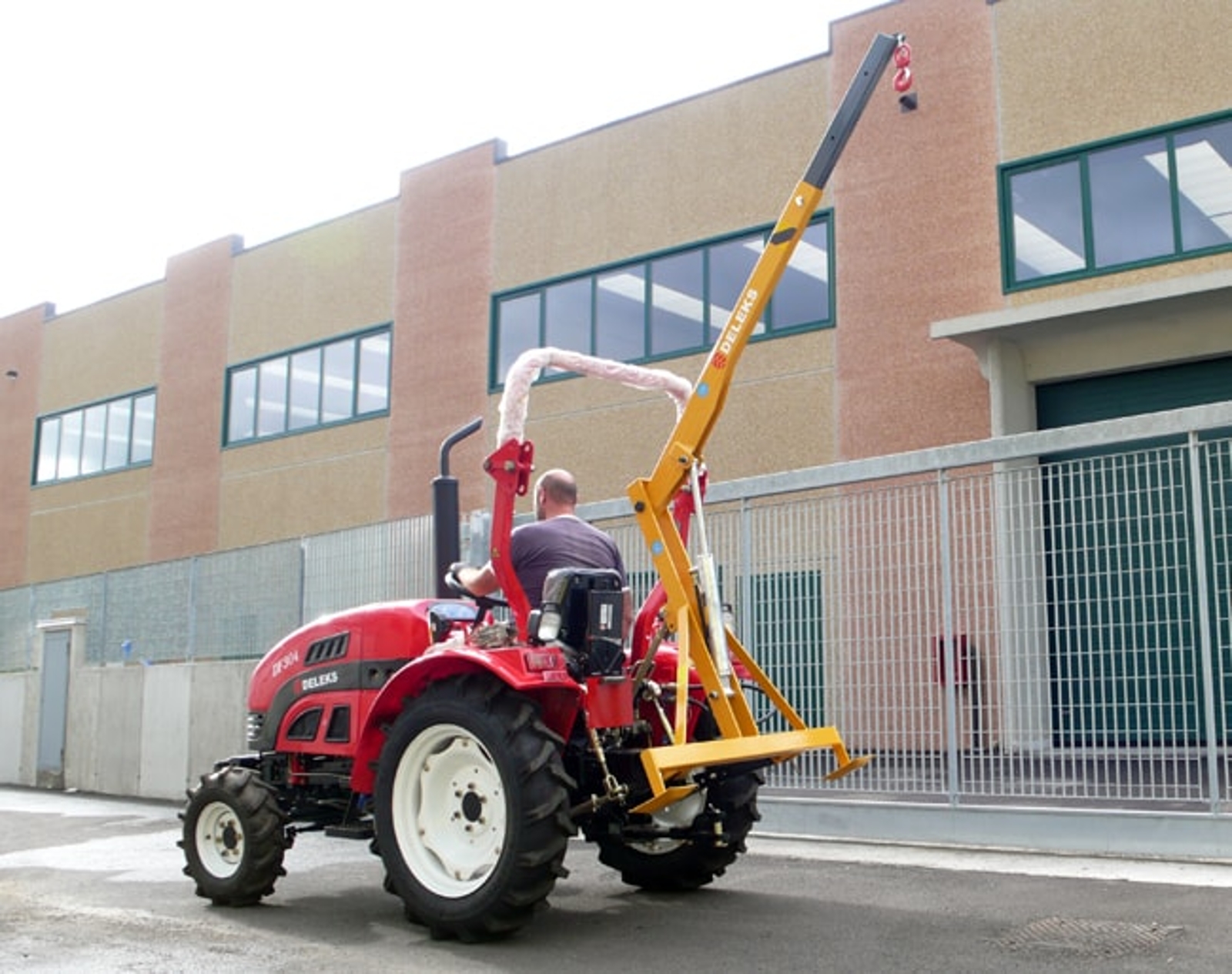

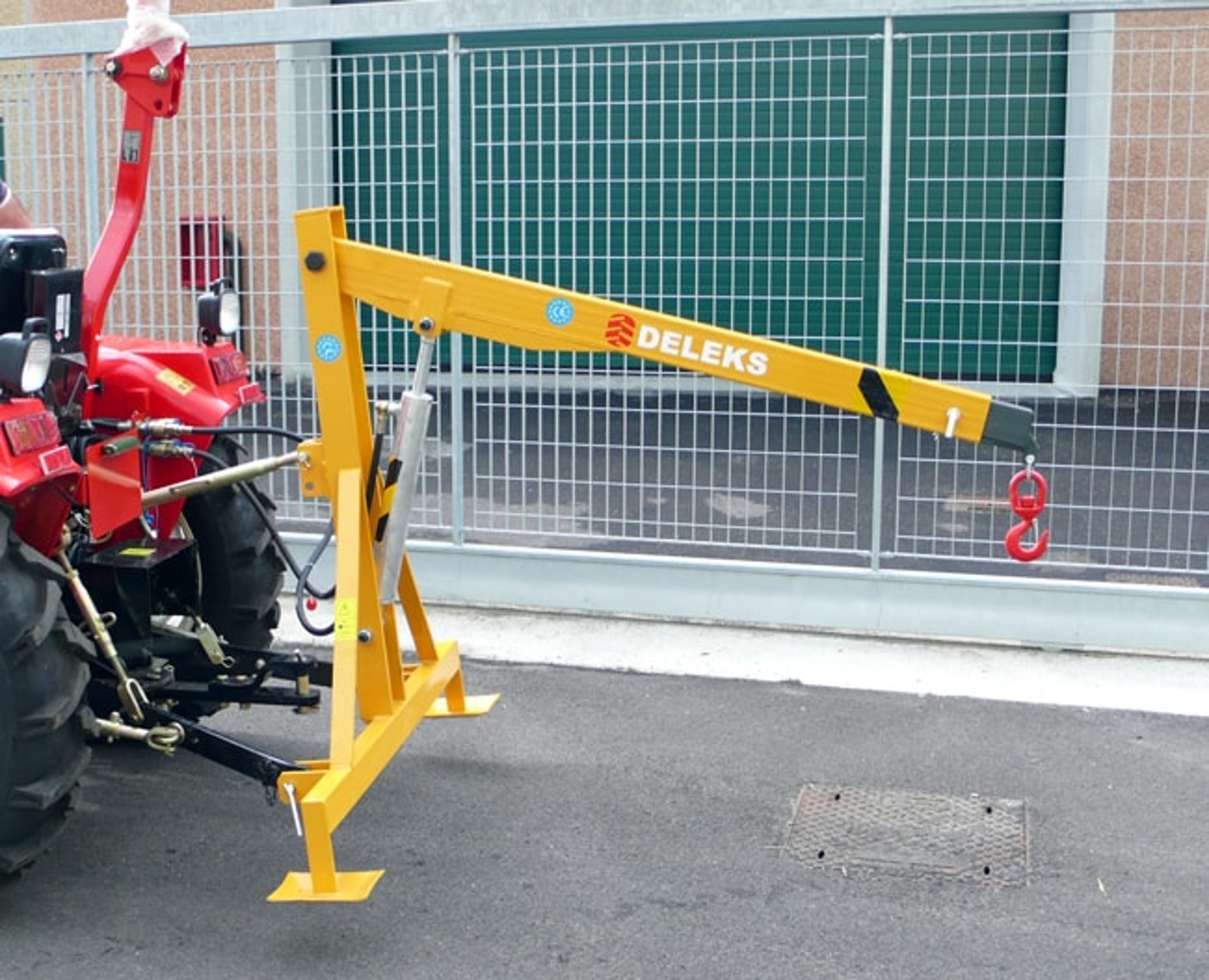

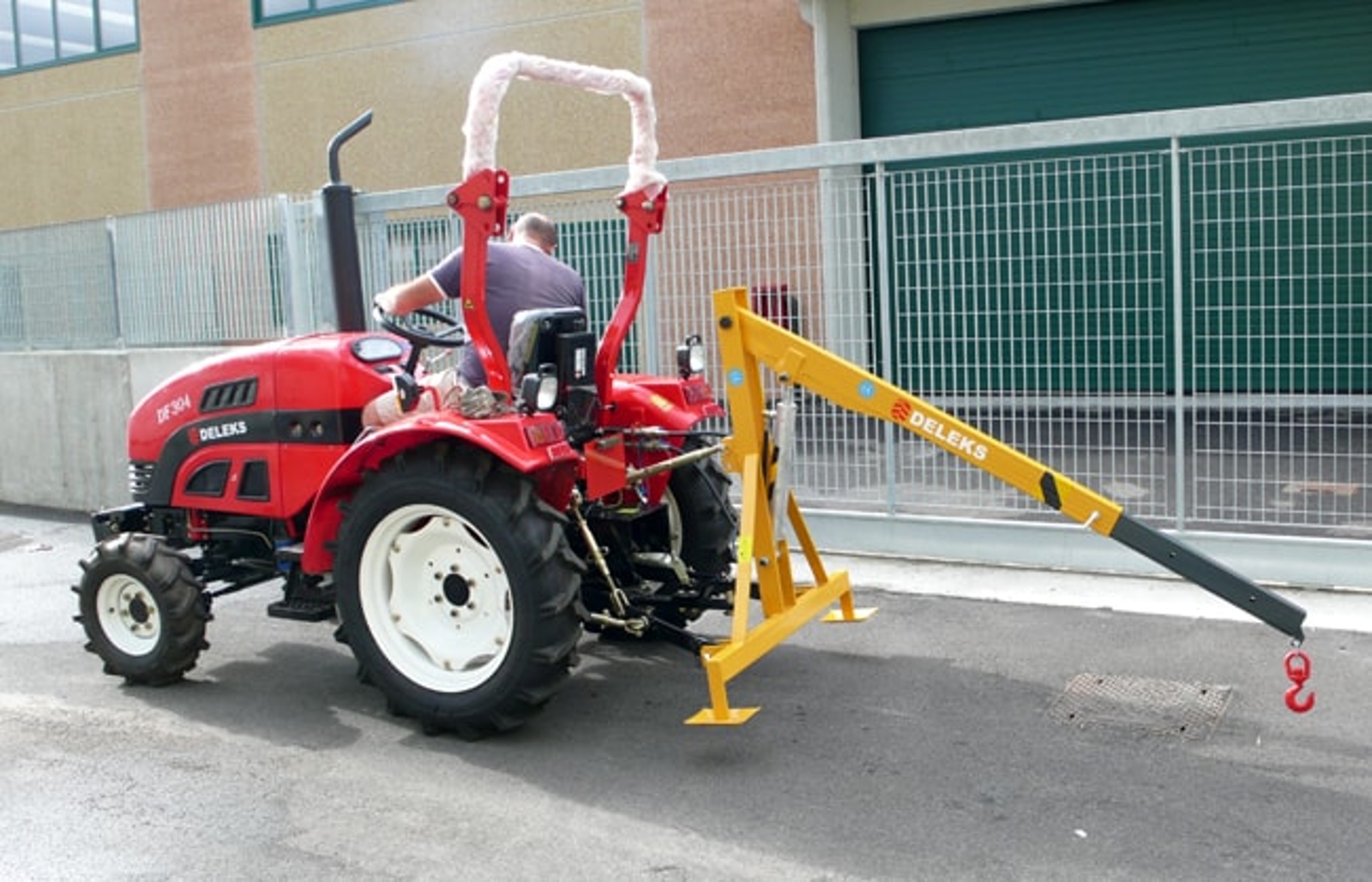

The EL-500 hydraulic Crane has a robust and durable steel construction. Ideal for hydraulically operated lifting at the rear of the tractor. Designed to fit most Cat 1-2 tractors e.g New Holland T3030, T4F, John Deere 4-5 Series, Landini Mistral, Lamborghini Ego 45-55, McCormick, Kubota L, Same Solaris, CASE, Deutz-Fahr, etc. EC Conformity, 2 Year warranty.
BENEFITS & FEATURES

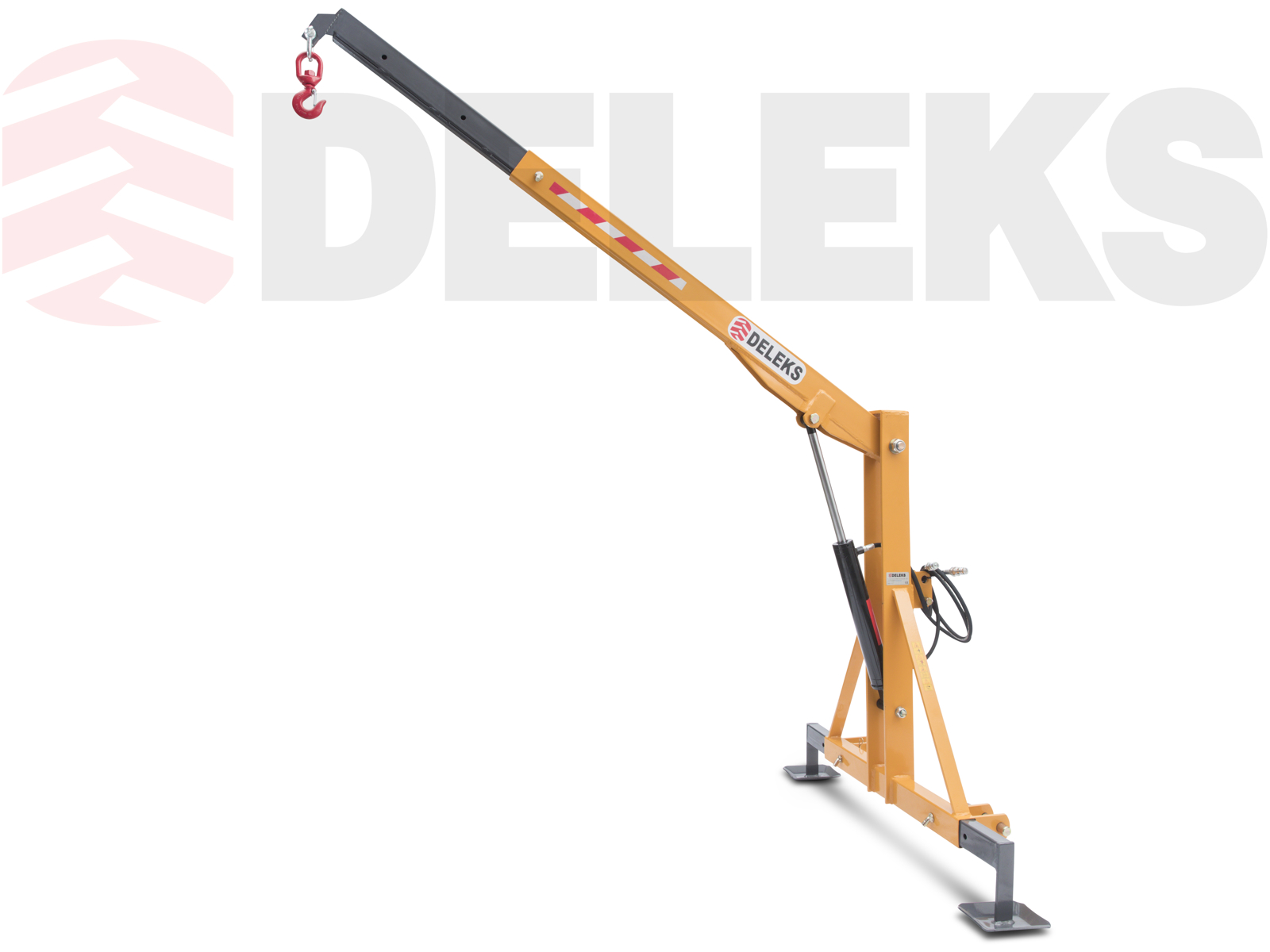

Arm can be extended in three steps.
Simple to use and can be easily stored when not in use.
Reinforced at all stress points.
Lateral reinforcement to withstand heavy loading.
The clamp hook tip provides extra security.
The support feet offer more stability.
Also available with wheels for easy maneuverability.

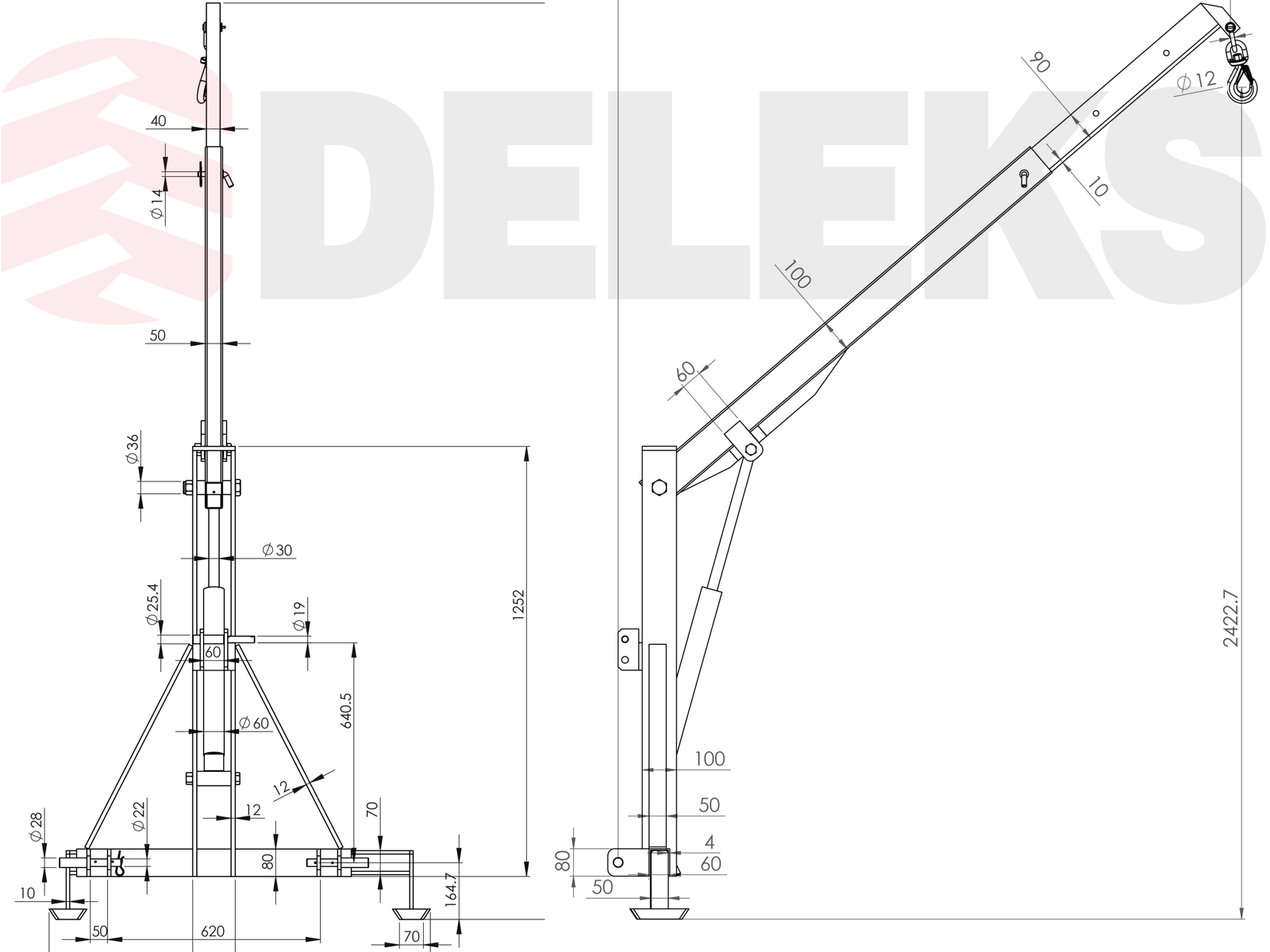

CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Overall width | 980.0 - 1380.0 mm | 38.60 - 54.33 in |
| Weight | 81.0 kg | 178.50 lb |
| Tractor Power Range | 30 - 70 Hp | 30 - 70 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Spacing between the 2 lower points | 470.0 - 735.0 mm | 18.50 - 28.95 in |

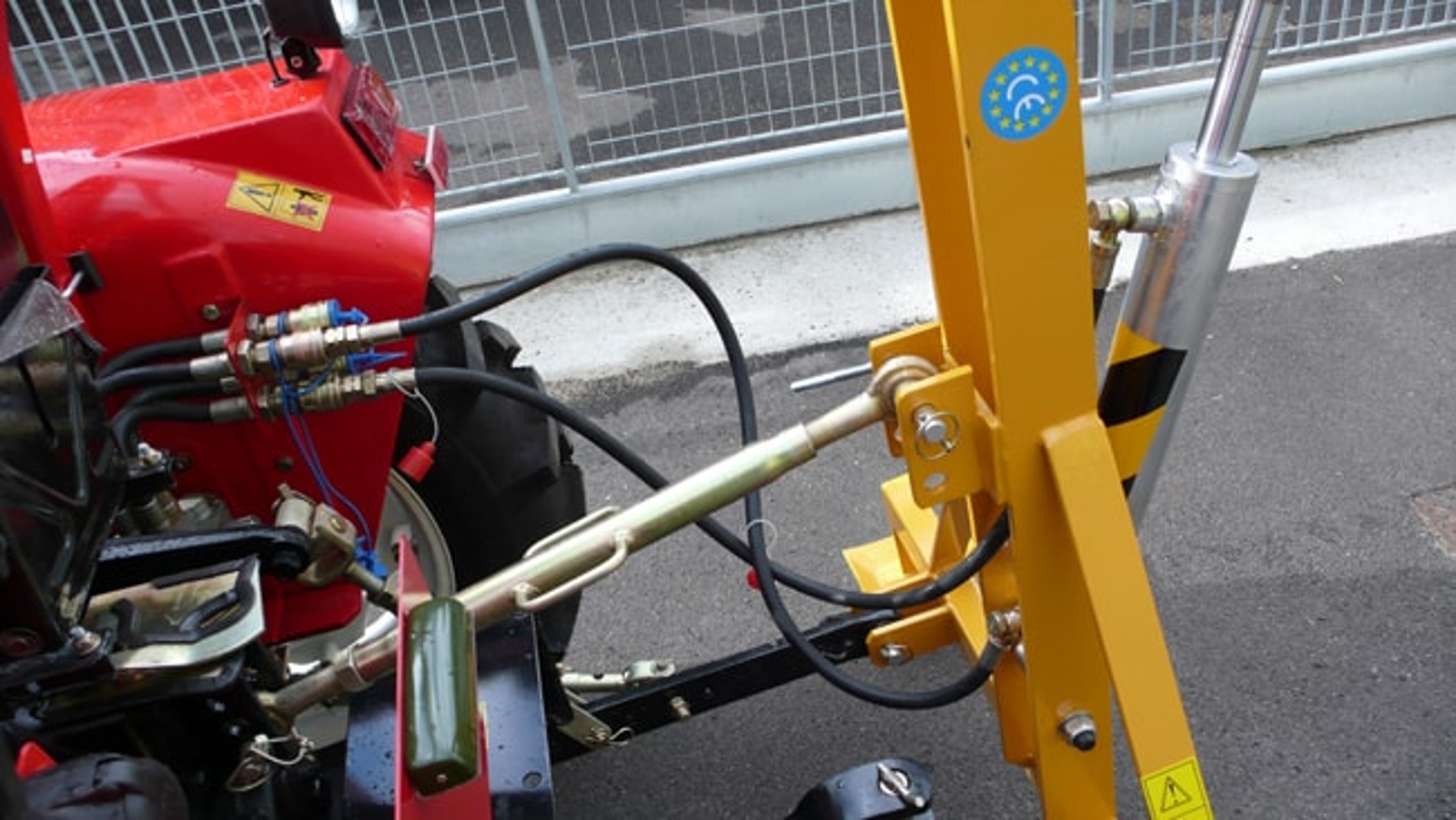

| Hydraulic Pipes (2) | 1500.0 mm / connections 1.2" AGRI, WP-400 bar | 60.0 in / connections 1.2" AGRI, WP-400 bar |

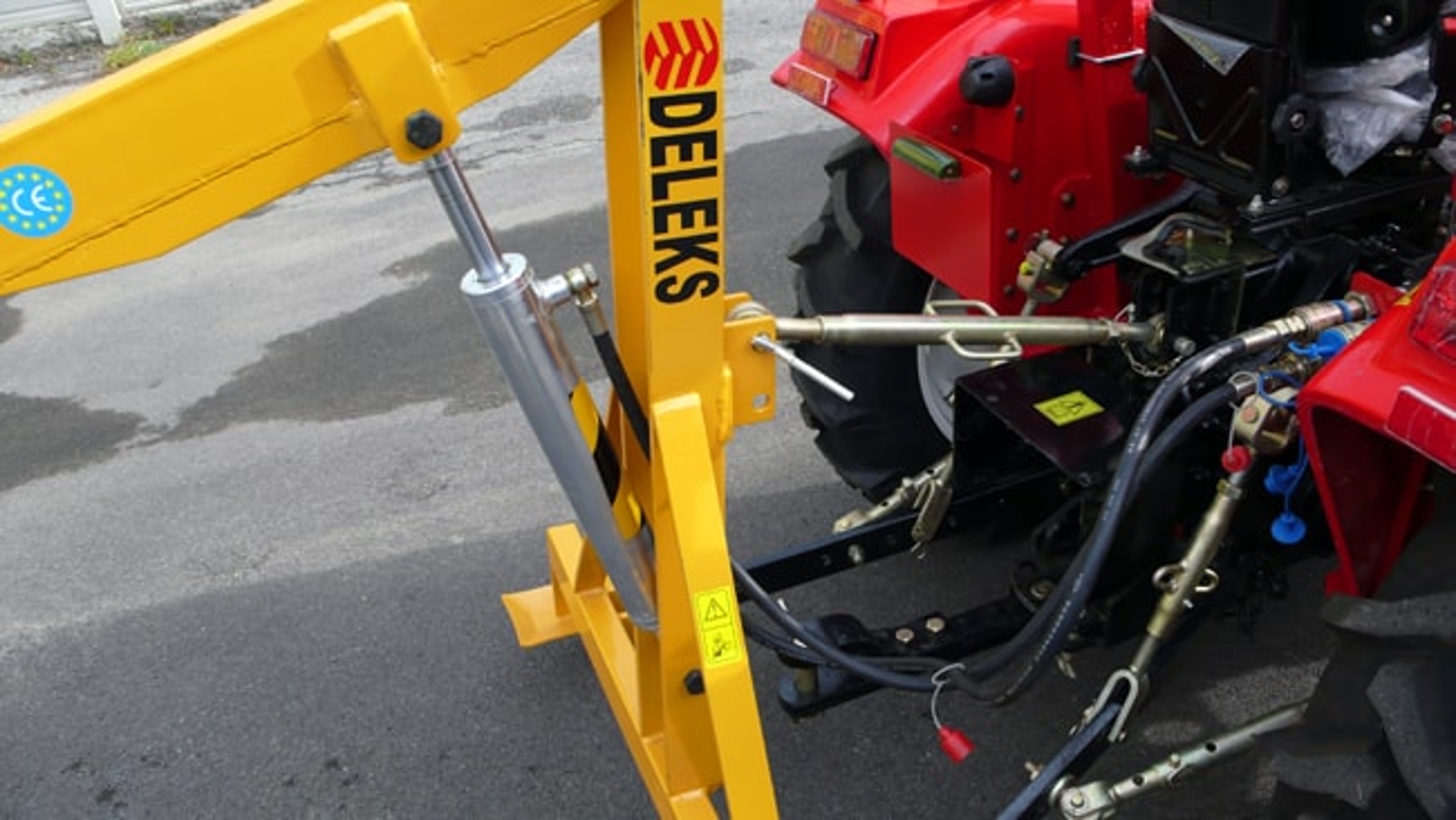

| Hydraulic cylinder ø | 70.0 - 30.0 mm | 2.75 - 1.18 in |
| 3 point Linckage Thickness | 10.0 mm | 0.40 in |
| Max Load Rating | 200.0 kg* | 441.0 lb* |
| Max height lift | 2220 mm + tractor lift | 87.00 in + tractor lift |
| Extended Length | 2150.0 mm | 84.65 in |
| Retracted Length | 1510.0 mm | 59.45 in |
| Number of Arm-Adjustments | 3 | 3 |
| Distance Between Arm-Adjustments | 270.0 mm | 10.63 in |
| Overall Height (Arm down) | 1350.0 mm | 53.15 in |
| External arm sizes | 100.0*50.0 mm | 3.94*1.97 in |
| External arm thickness | 3.0 mm + support 5.0 mm | 0.12 in + support 0.20 in |
| Internal arm thickness | 3.0 mm + support 10.0 mm | 0.12 in + support 0.40 in |
| Min./Max. Relief Pressure | 80 - 120 bar | 80 - 120 bar |
| Min./Max. Flow | 18 - 22 l/min | 18 - 22 l/min |
| Packing sizes | 1250*800.0*400.0 mm | 4.10*2.62*1.32 ft |
