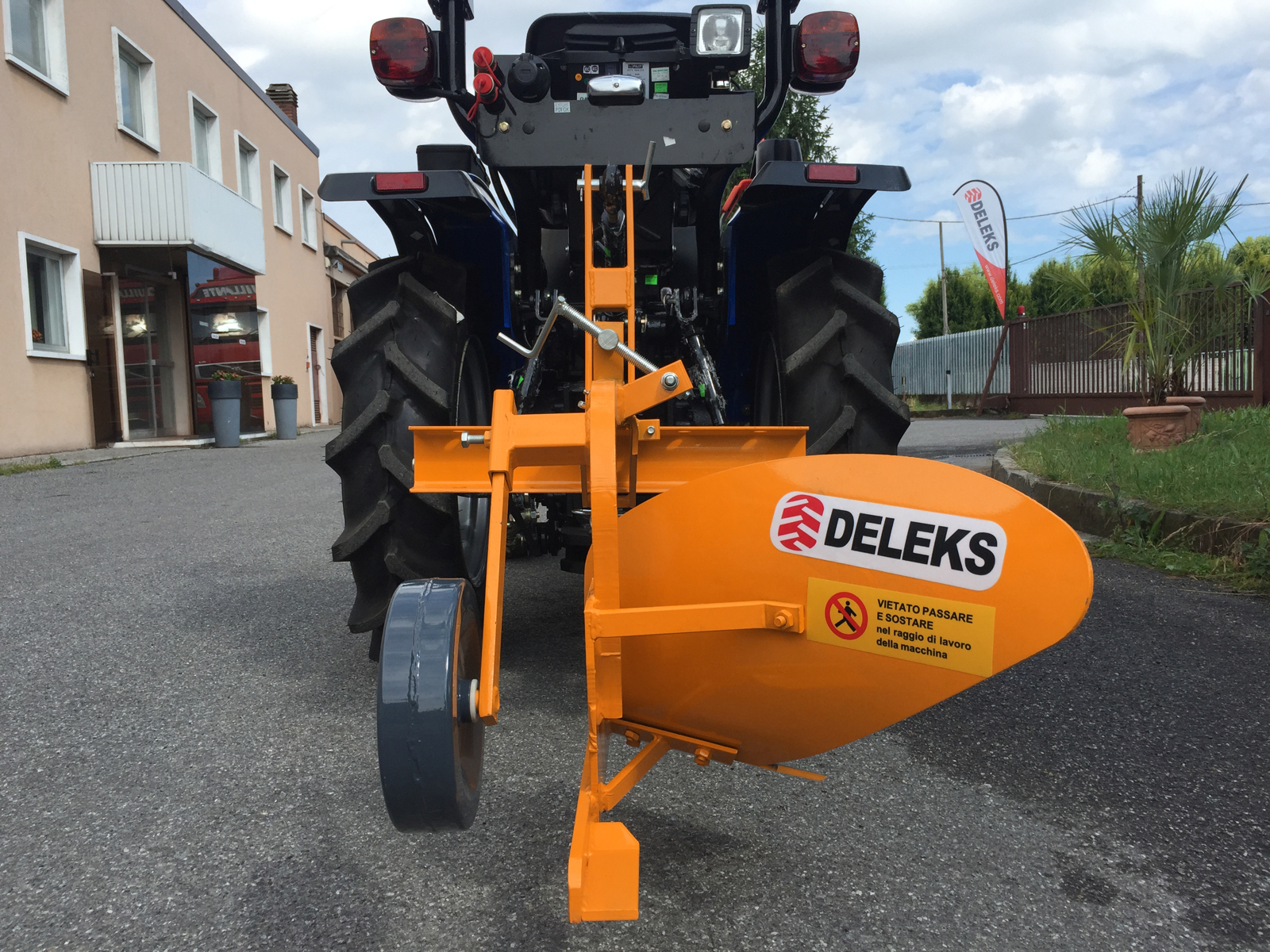

Single plough for tractors as Iseki, Kubota DP-18

Trustpilot
4.4

298 reviews

Not available Notify me
Code DP18
EAN 8053470230011
View all details.

PAY IN 3 INSTALLMENTS
TOTAL
428,00€VAT incl.
Free shipping
REQUEST MORE INFORMATION
> PLOUGHS > Single plough for tractors as Iseki, Kubota DP-18
VIDEO
DELEKS® DP-18: Unpacking by Alberto
DELEKS® DP-18: Unpacking by Alberto
DELEKS® DP-18: Field test
DELEKS® DP-18: Field test

DETAILS

Single Furrow Plough for 12-30 HP for Japanese Tractors or compact John Deere | DELEKS® DP-18


APPLICATION

DP-18 designed for cultivating clay or sandy soils, it fits most common compact tractor brands (no larger than 1250.0 mm):  Japanese tractors Kubota, Kioti, Iseki, Pasquali, Yanmar, Solis, Mahindra, and narrow tractors like New Holland Boomer 25, John Deere, Pasquali, Ferrari etc. Universal 3 point linkage Cat. 1. EC Declaration of Conformity.



BENEFITS & FEATURES

Short arm with additional welded frame strengthening parts to reinforce stress points.

The DP18 arm is wider (25.0 mm) than the DP16.

The plough's tilt and depth can be adjusted easily.

Its small dimensions allow the plough to be used on low-power tractors.

The 3 point linkage determines the position of the plough. It can be used also as multi-use bar.

Detachable and replaceable coulter.

Gauge wheel that allows you to adjust depth and maximize usage.


CHARACTERISTICS

Characteristic Units metric Units US
Overall width 640.0 mm 2.10 ft
Weight 50.0 kg 110.0 lb
Overall height 800.0 mm 2.62 ft
Tractor Power Range 12 - 30 Hp 12 - 30 Hp
3 point linkage Cat. 1 (ø 19.0-22.0mm) Cat. 1 (ø 19.0-22.0mm)
Spacing between the 2 lower points 360.0 - 580.0 mm 14.17 - 22.83 in
Overall length 950.0 mm 3.12 ft
Number of Furrow 1 1
Furrow diagonal 800.0 mm 2.62 ft
Width of cut 295.0 mm 11.62 in
Other sizes See pictures See pictures
Effective Displacement 460.0 mm 18.11 in
Thickness of the arm 25.0*50.0 mm 1.0*2.0 in
Cutting Edge Lenght 345.0 mm 13.60 in
Cutting Edge Thickness 10.0 mm 0.40 in
3 point Linkage tube sizes 100.0*80.0 mm 3.94*3.15 in
Depth adjustment Wheel sizes ø 22.0*6.0 mm ø 0.87*0.24 in
Working Depth 160.0 - 220.0 mm 6.30 - 8.66 in
Packing sizes 600.0*800.0*500.0 mm 1.97*2.62*1.64 ft

Optional

spare blade dp 18
Spare blade DP-18
56,05€VAT incl.
Available

DP-18

spare pins cat 1 b
Spare pins cat. 1-B
51,30€VAT incl.
Available

ø 19.0/22.0 mm
