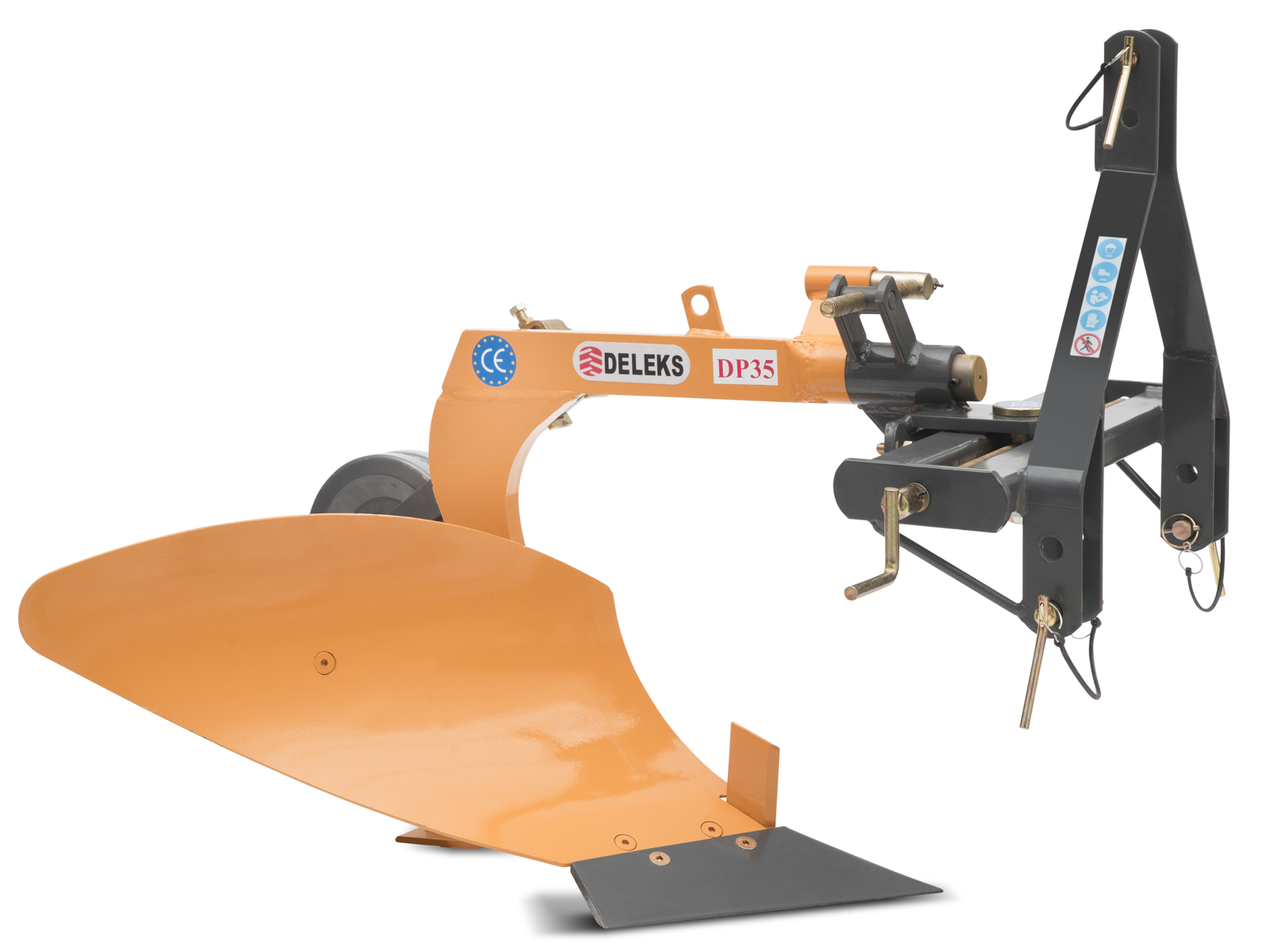

Single furrow plough with wheel for narrow tractors DP-35
Field test
DETAILS
Single Furrow Plough For 25-40HP compact Tractors John Deere, New Holland, Kubota | DELEKS® DP-35
APPLICATION
Designed for cultivating clay or sandy soils, it fits most common compact tractor brands (no larger than 1400.0 mm, max weight 1800 kg): John Deere, New Holland T3000, Carraro, Goldoni, McCormick, Kubota, etc. Universal 3 point linkage Cat.1. EC Declaration of Conformity.
Not suitable for crawler tractors.
BENEFITS & FEATURES
It's 85kg structure allows for use on 25-40Hp tractors.
It's treated steel blade ensure a reliable performance.
Additional welded frame strengthening parts on the arm to reinforce stress points.

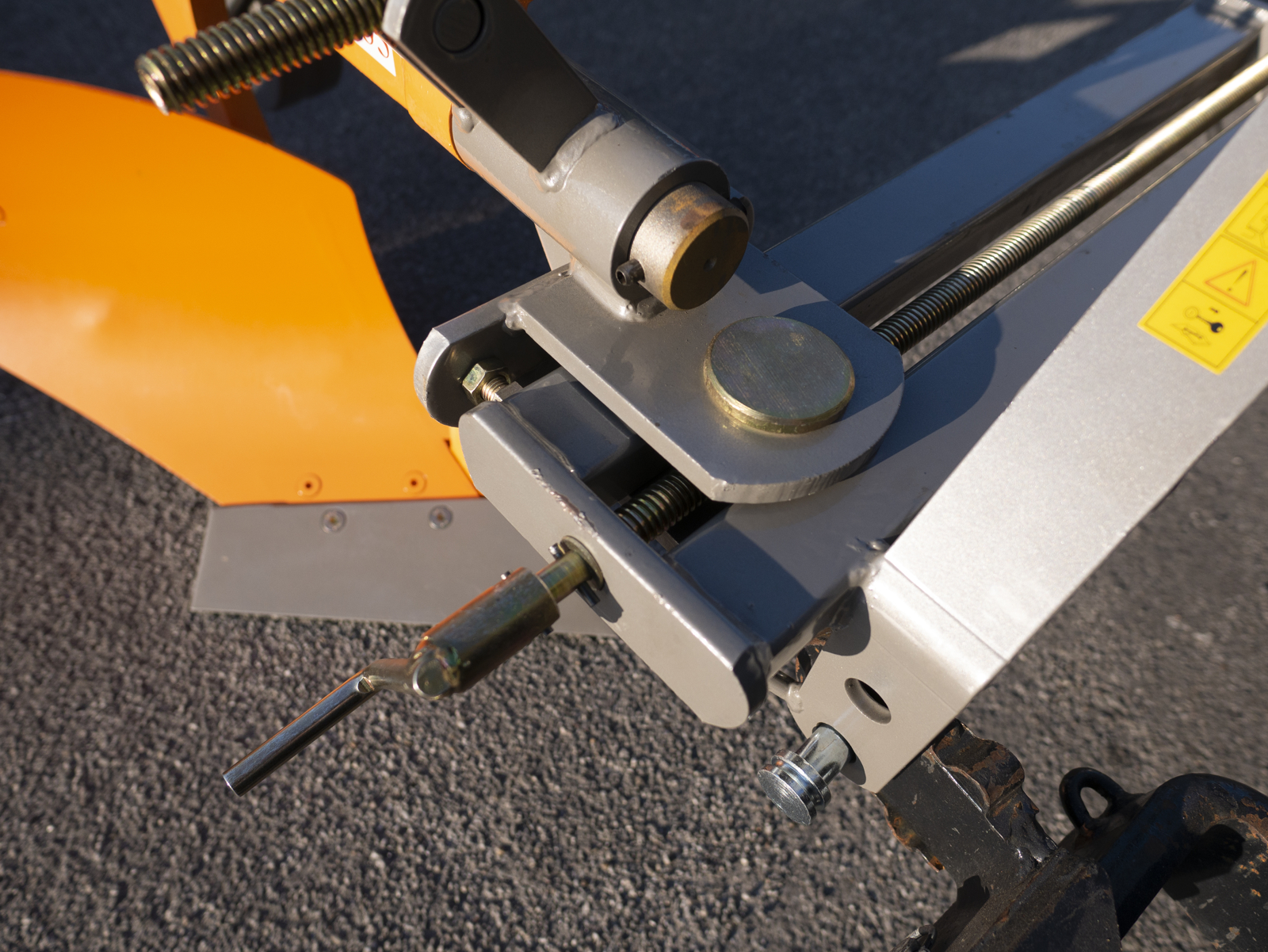

Inclination and position of the plough can be easily adjusted by a manual lever.
Detachable and replaceable coulter.

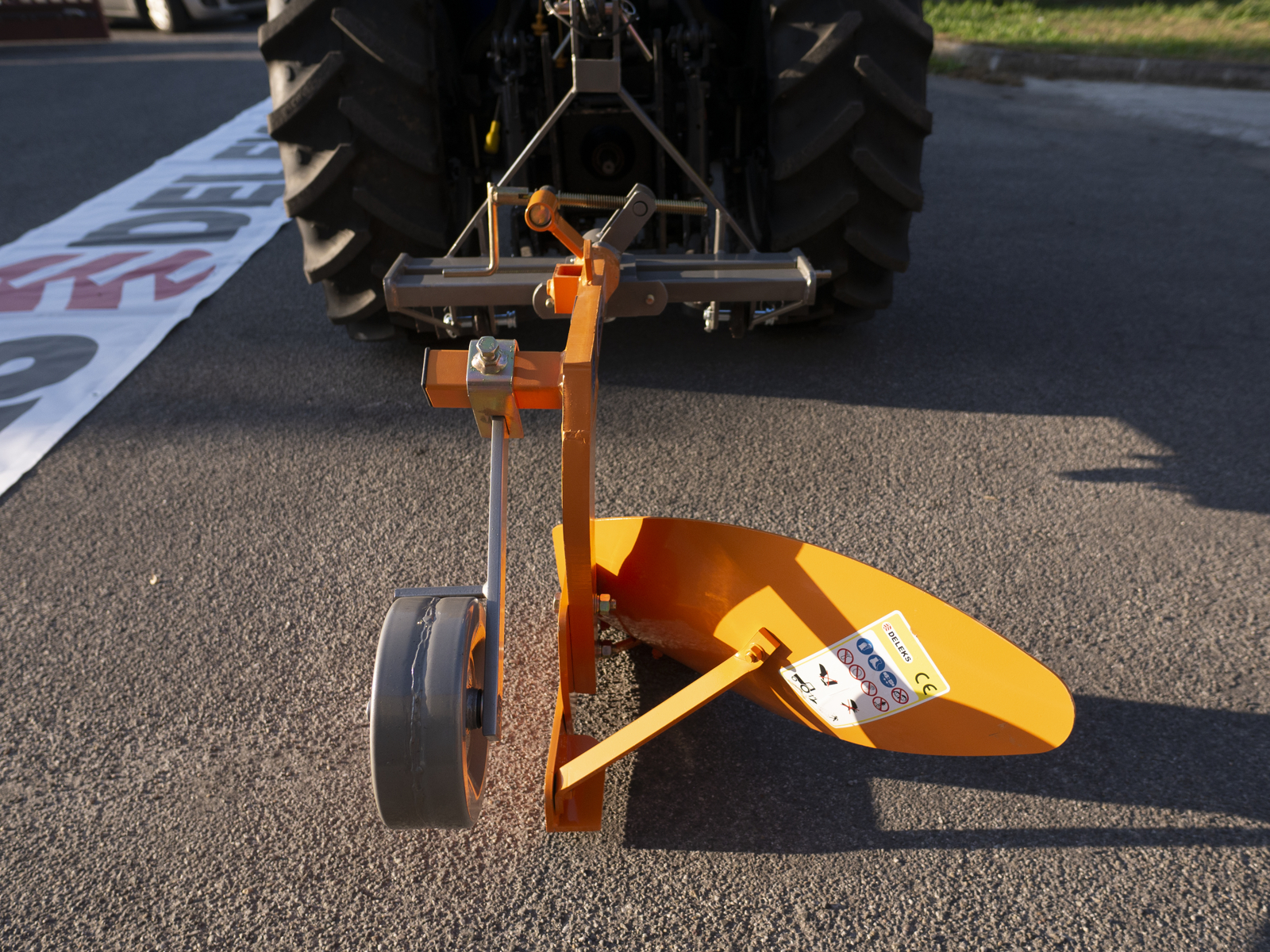

Gauge wheel that allows you to adjust depth and maximize usage.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Overall width | 800.0 mm | 2.65 ft |
| Weight | 85.0 kg | 187.5 lb |
| Overall height | 900.0 mm | 2.99 ft |
| Tractor Power Range | 25 - 40 Hp | 25 - 40 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) | Cat. 1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 445.0 - 565.0 mm | 17.52 - 22.25 in |
| Overall length | 1300.0 mm | 4.26 ft |
| Number of Furrow | 1 | 1 |
| Furrow diagonal | 1020.0 mm | 3.35 ft |
| Width of cut | 360.0 mm | 14.17 in |
| Other sizes | See pictures | See pictures |

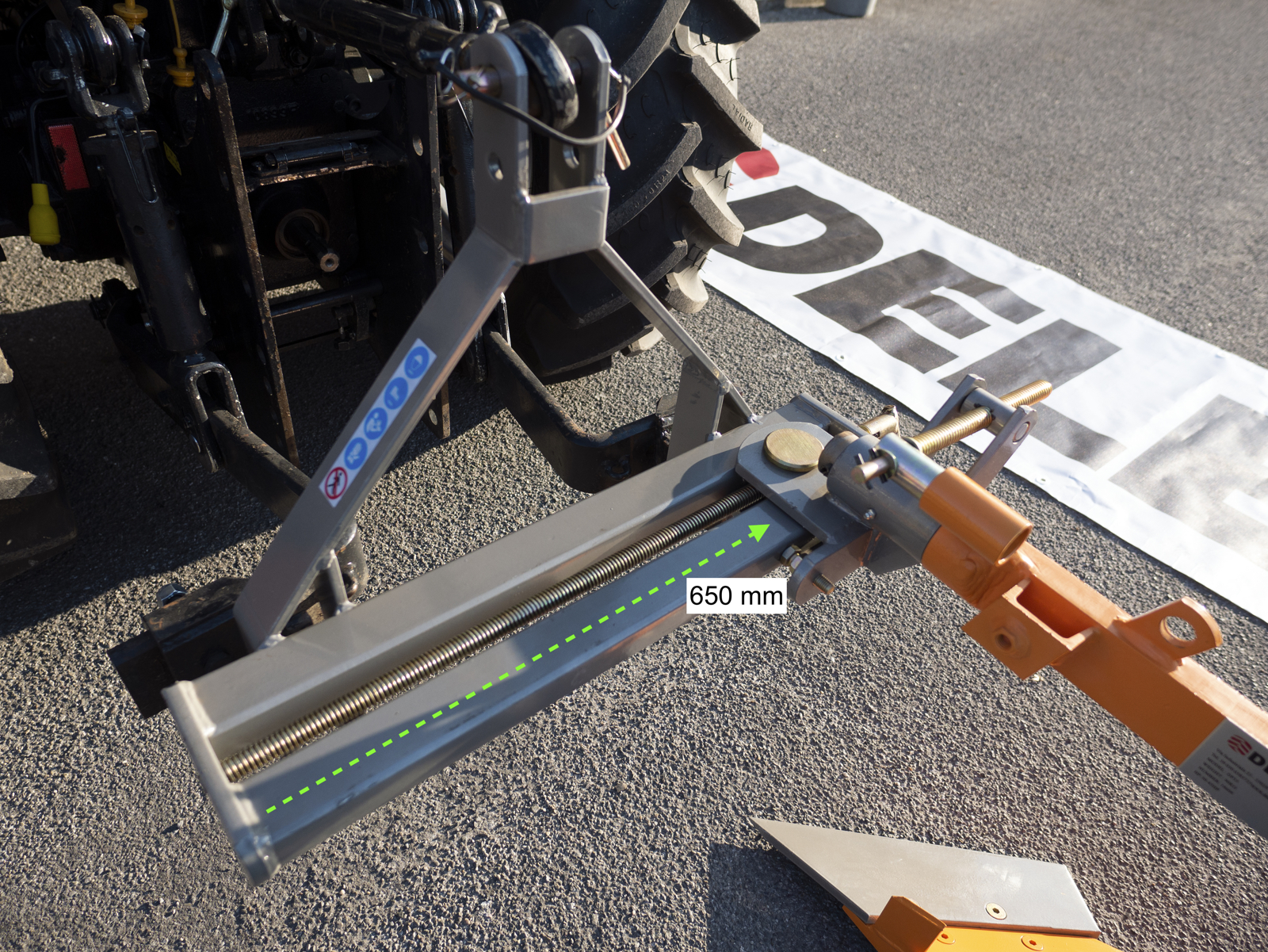

| Effective Displacement | 650.0 mm | 25.60 in |
| Thickness of the arm | 30.0*70.0 mm | 1.18*2.75 in |
| Cutting Edge Lenght | 450.0 mm | 17.70 in |
| Cutting Edge Thickness | 15.0 mm | 0.60 in |
| 3 point Linkage tube sizes | 170.0*40.0 mm | 6.70*1.57 in |
| Depth adjustment Wheel sizes | ø 23.0 * 8.0 mm | ø 9.0 * 3.15 in |
| Working Depth | 180.0 - 280.0 mm | 7.08 -11.00 in |
| Packing sizes | 600.0*1110.0*600.0 mm | 1.97*3.64*1.97 ft |
