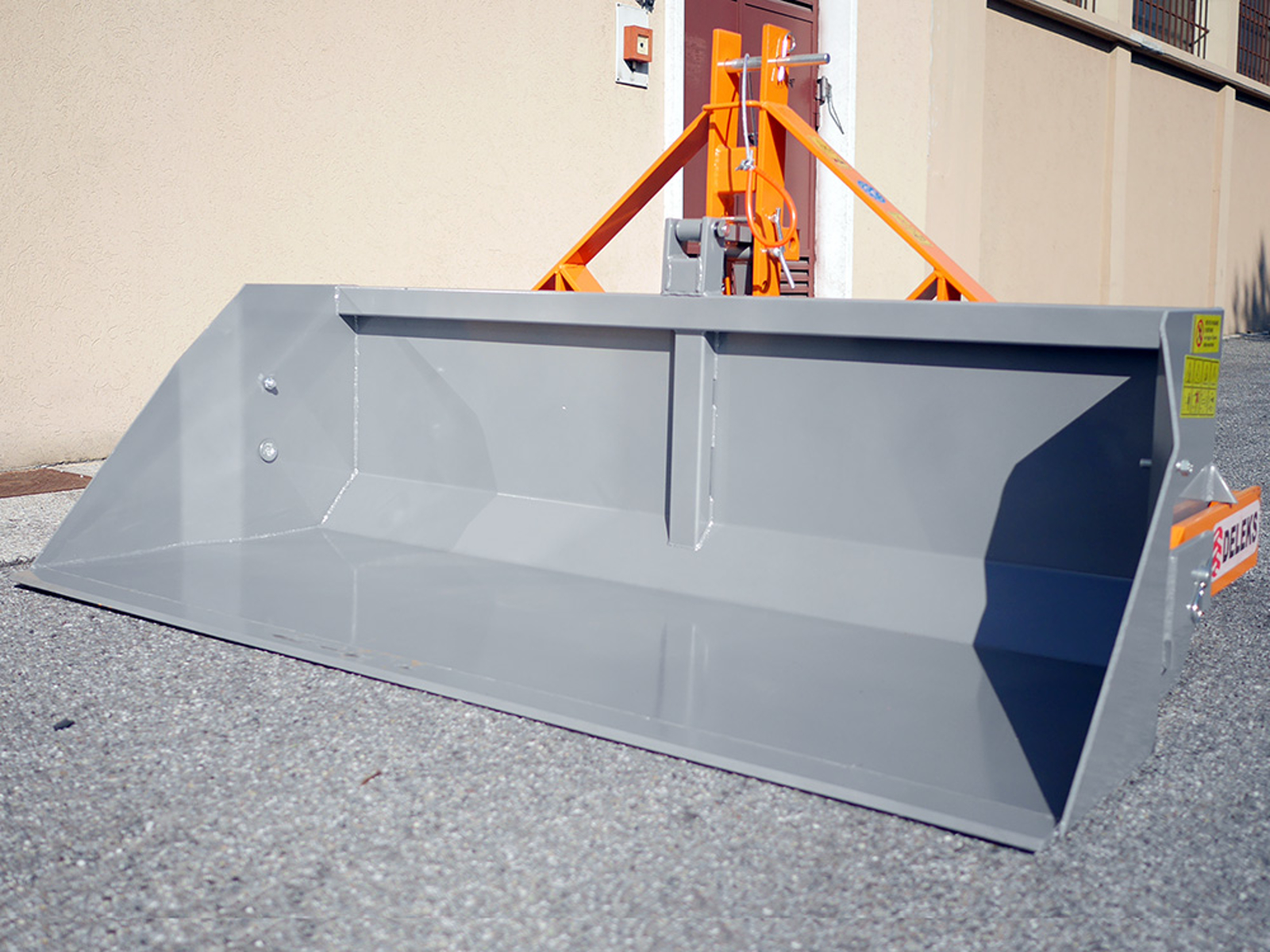

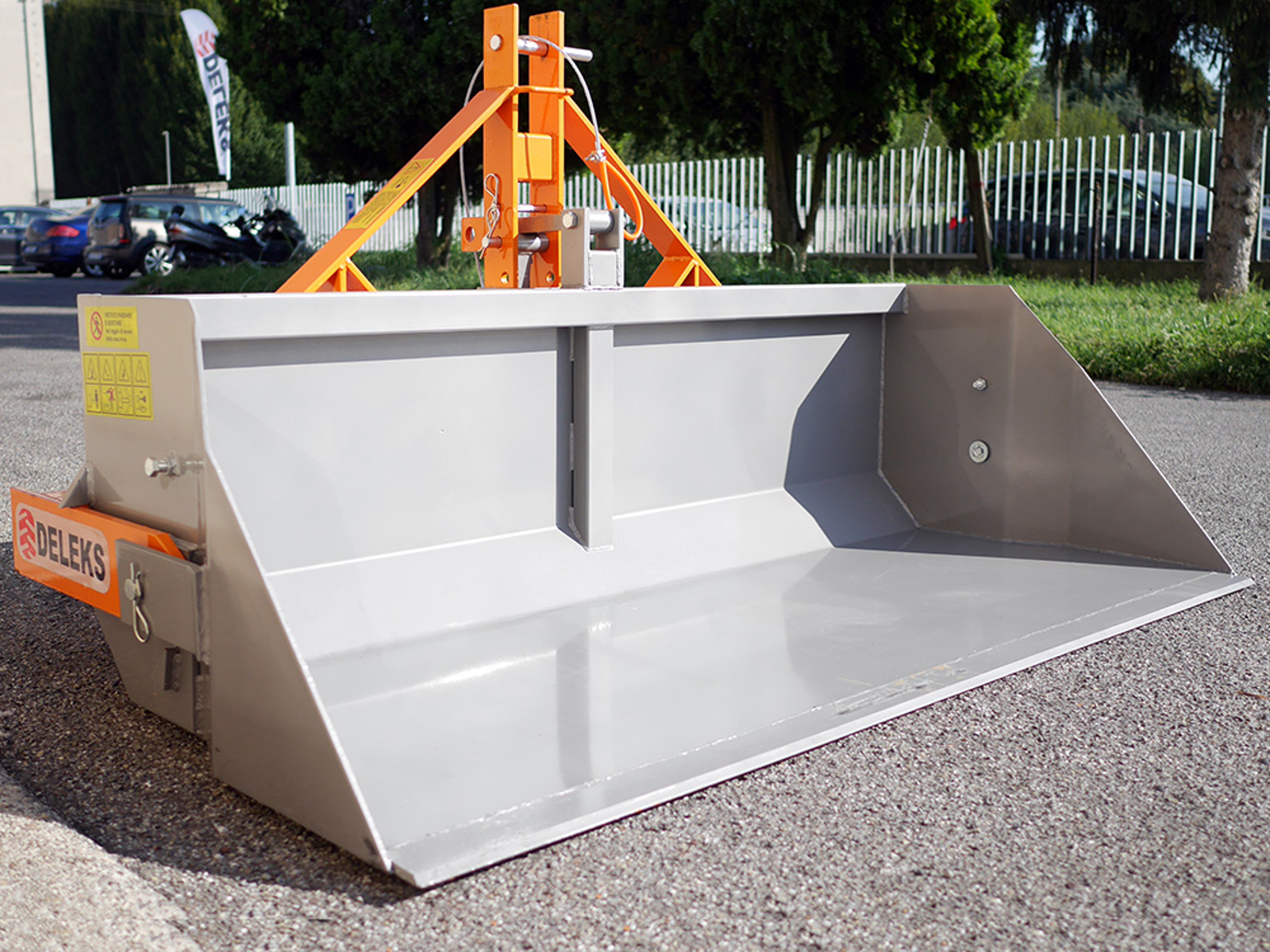

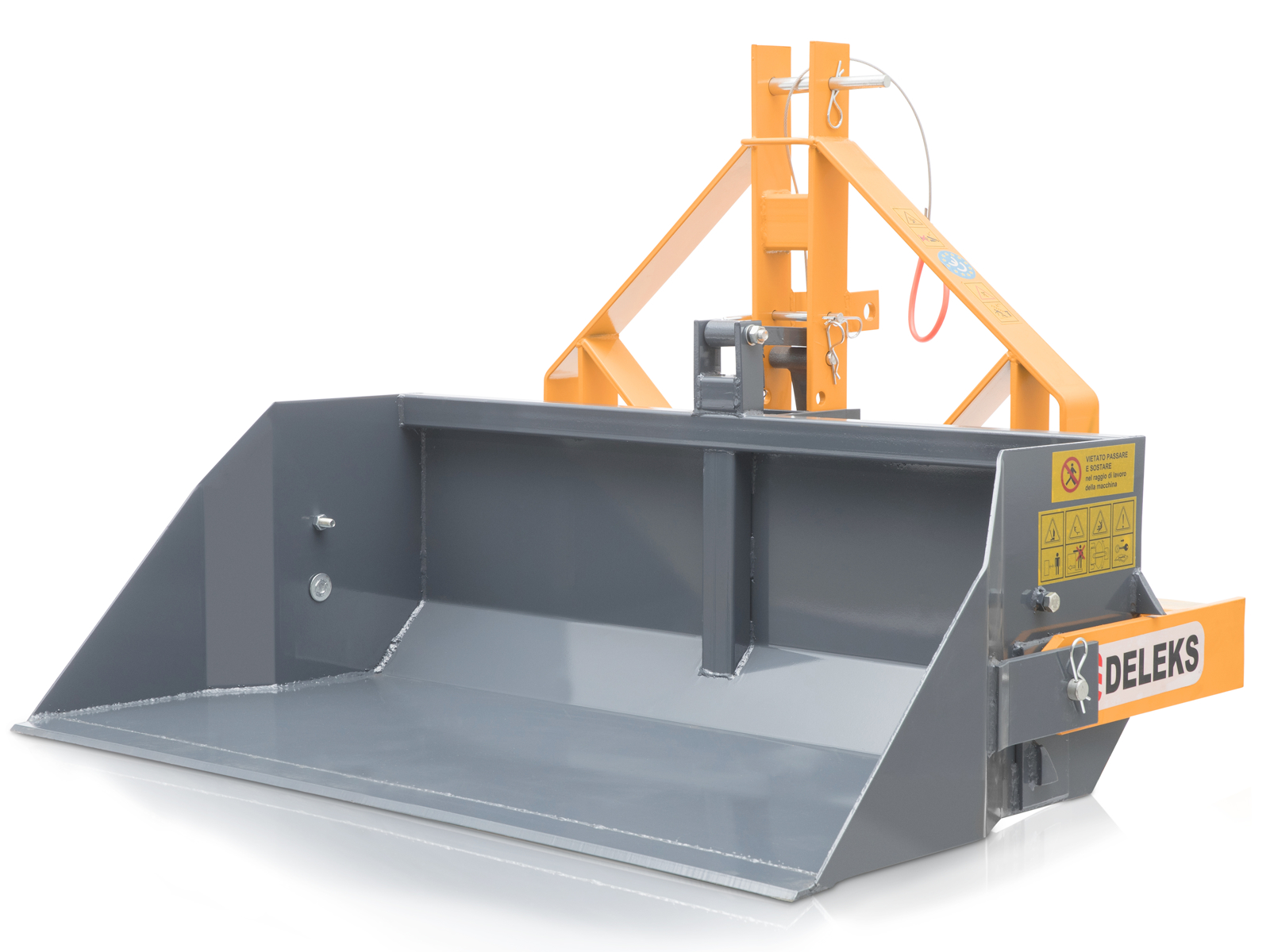

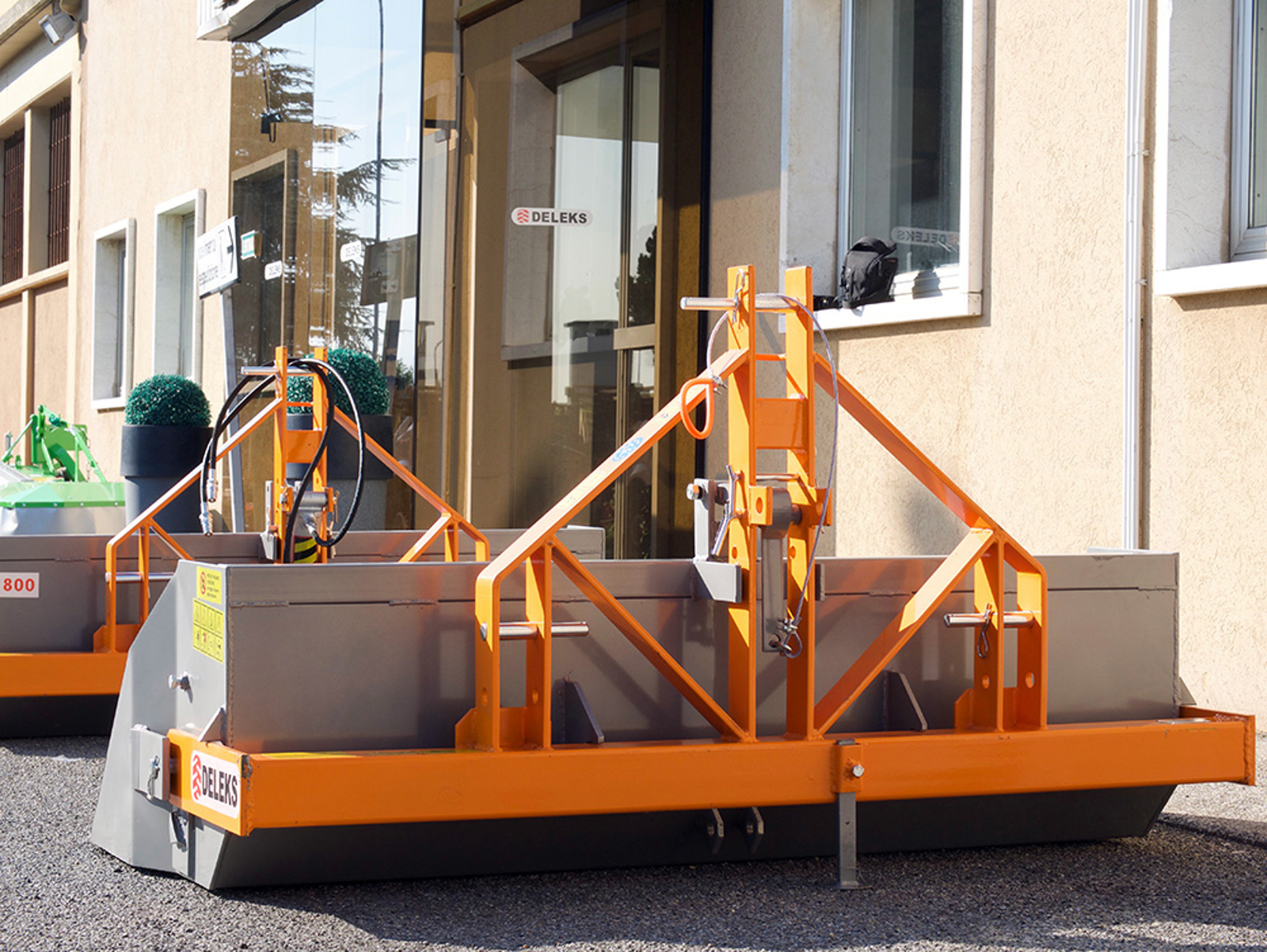

Tipping Transportbox 200cm DELEKS® - max load 700kg - for compact tractor - 1.0 cm hardened steel base.
PRM-200-H heavy multiple use transport box is made from reinforced steel so can handle loading and transporting everything from sand to snow and Ice. It can also be used for digging, levelling, grading and dumping a variety of applications and materials. Pull chord manual tipping. Suitable for 60-90HP tractors e.g Ford, FIAT, New Holland T4, T5,John Deere 4-5 Series, Kubota L-M, McCormick, Goldoni, CASE, Deutz-Fahr, Lamborghini Ego 55, etc. EC Conformity, 2 Year warranty.
BENEFITS & FEATURES
Heavy design allows loading up to 700kg.

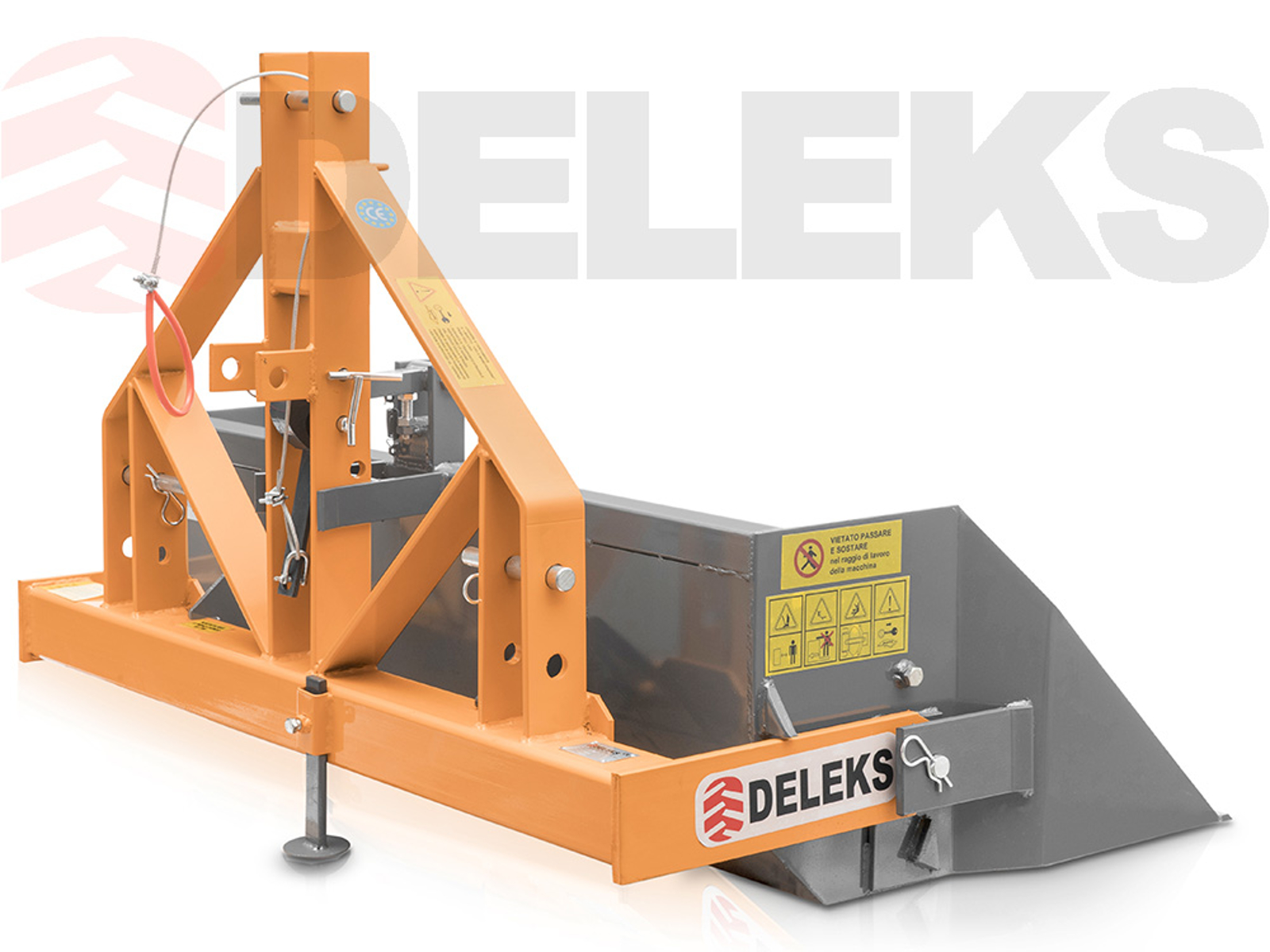

Effective pull-chord trip mechanism means seamless tipping and loading in one motion, ready for the next load.

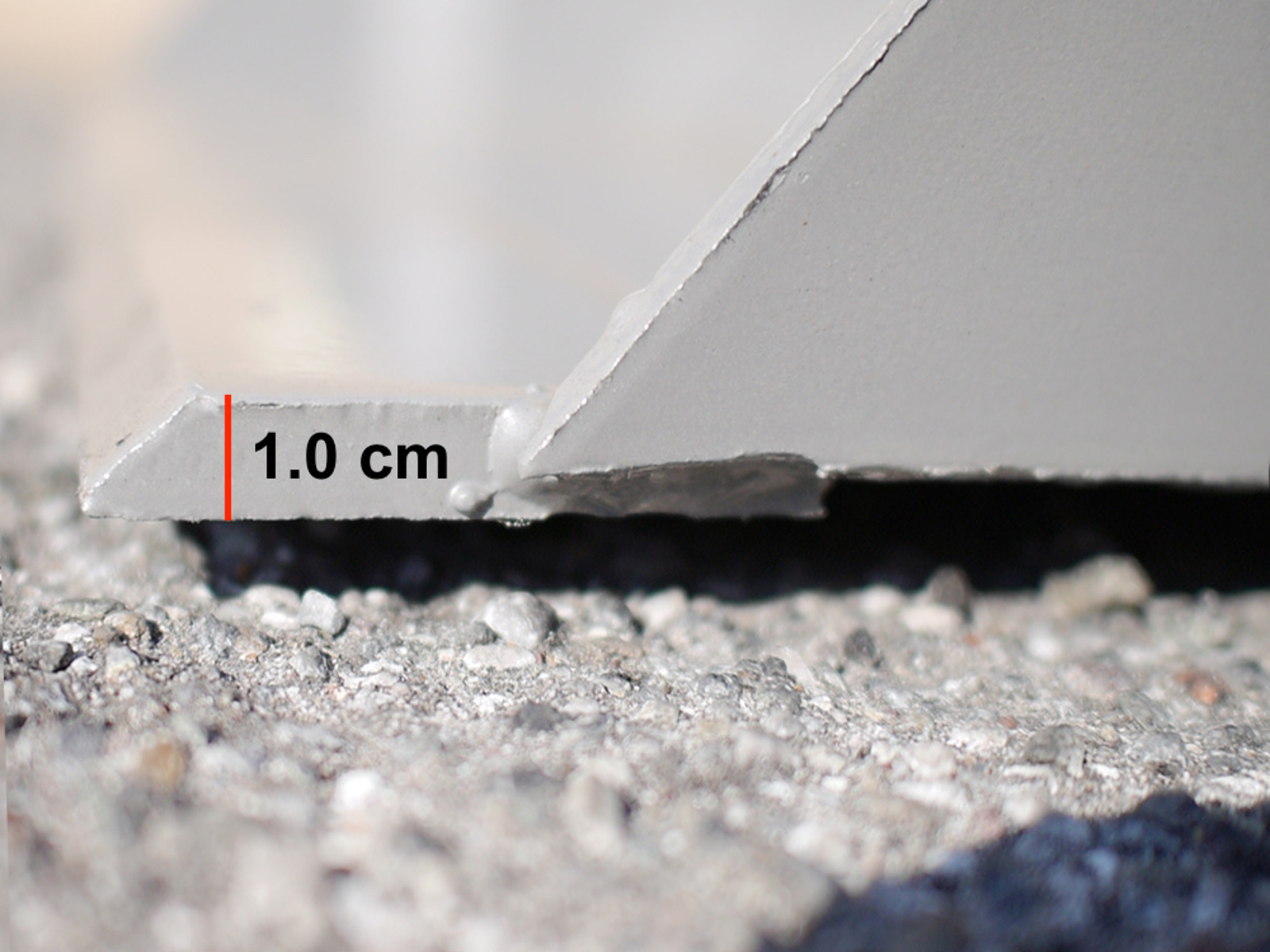

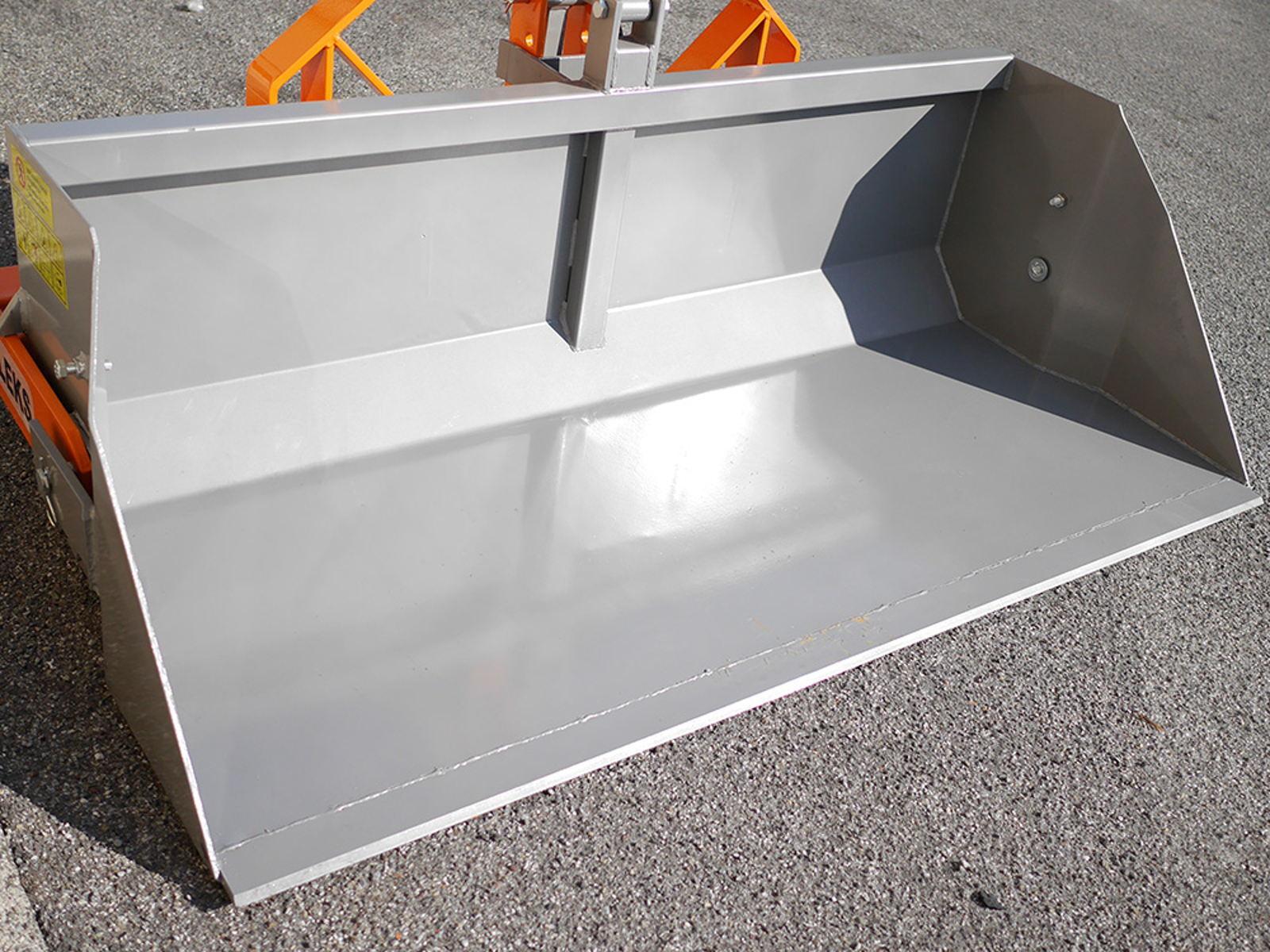

1.0 cm hardened steel base and side cutting edges provide excellent penetration and durability.

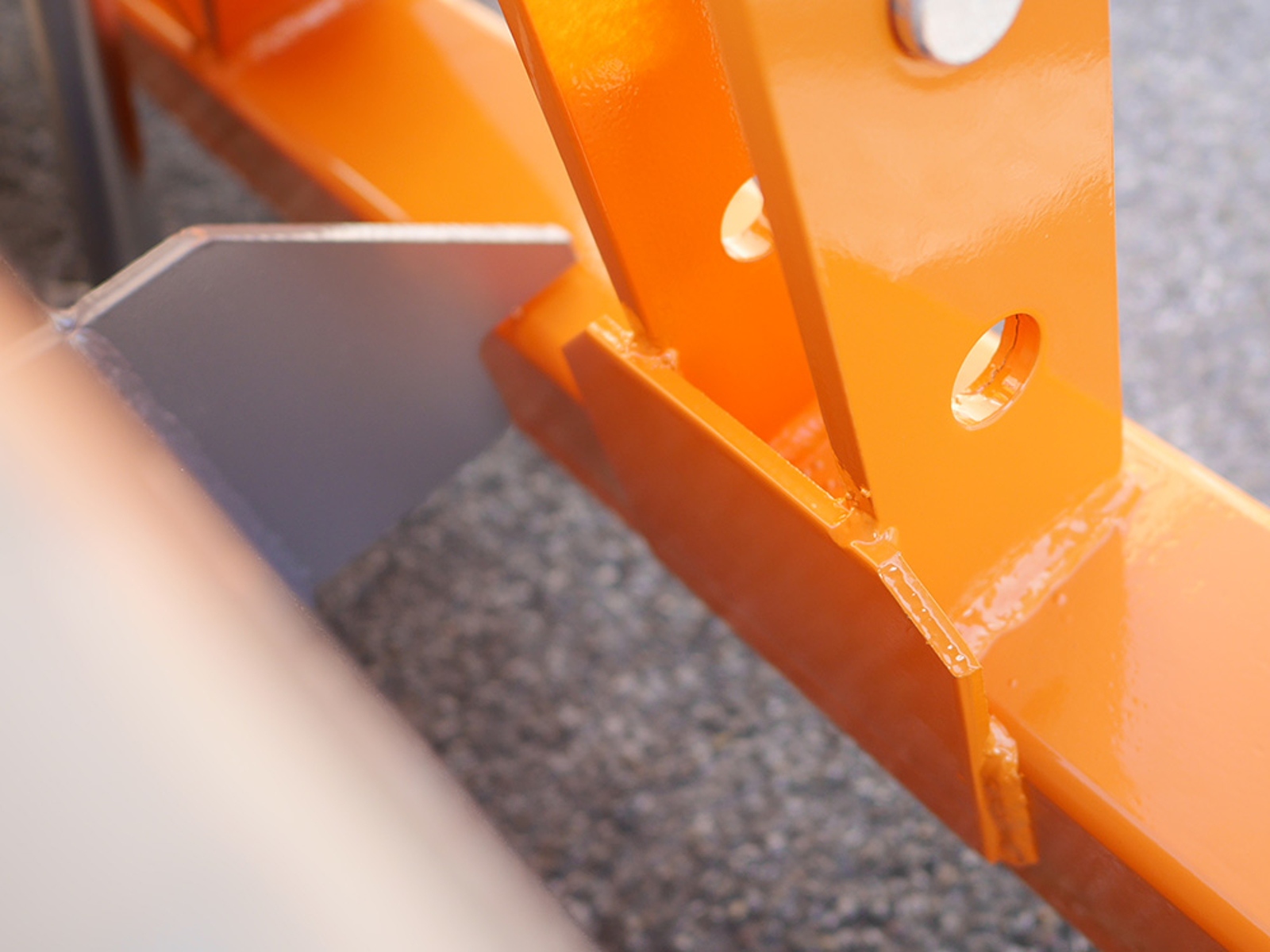

DELEKS® innovative weight distribution design lifts the box for the middle rather than the rear decreasing stress placed on the box. It does not need to be lifted as high for goods to be tipped, simplifying the job and giving the box longevity.

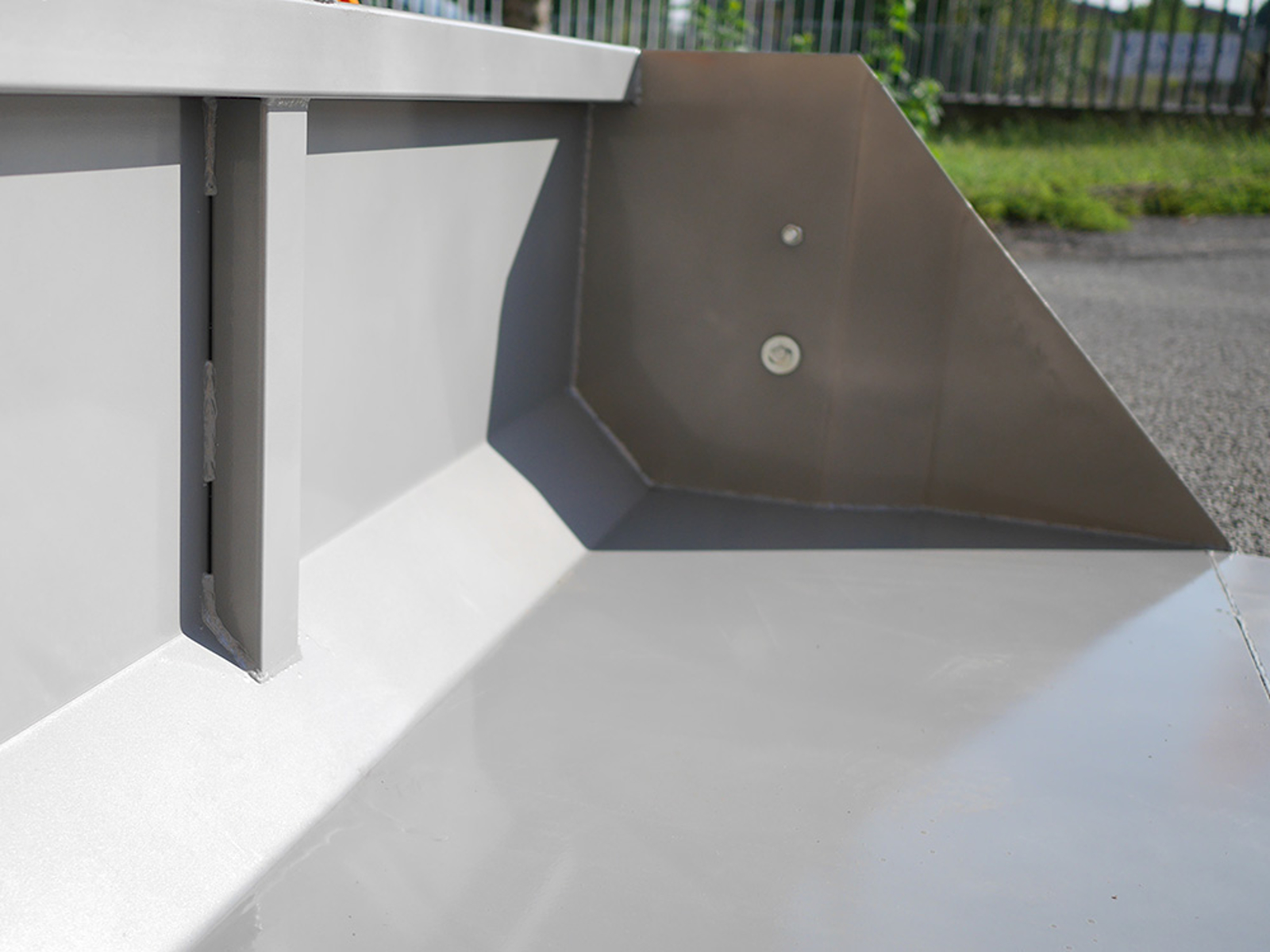

The lack of external attachments promotes the bucket fill for greater productivity as there are no addition edges that can catch.

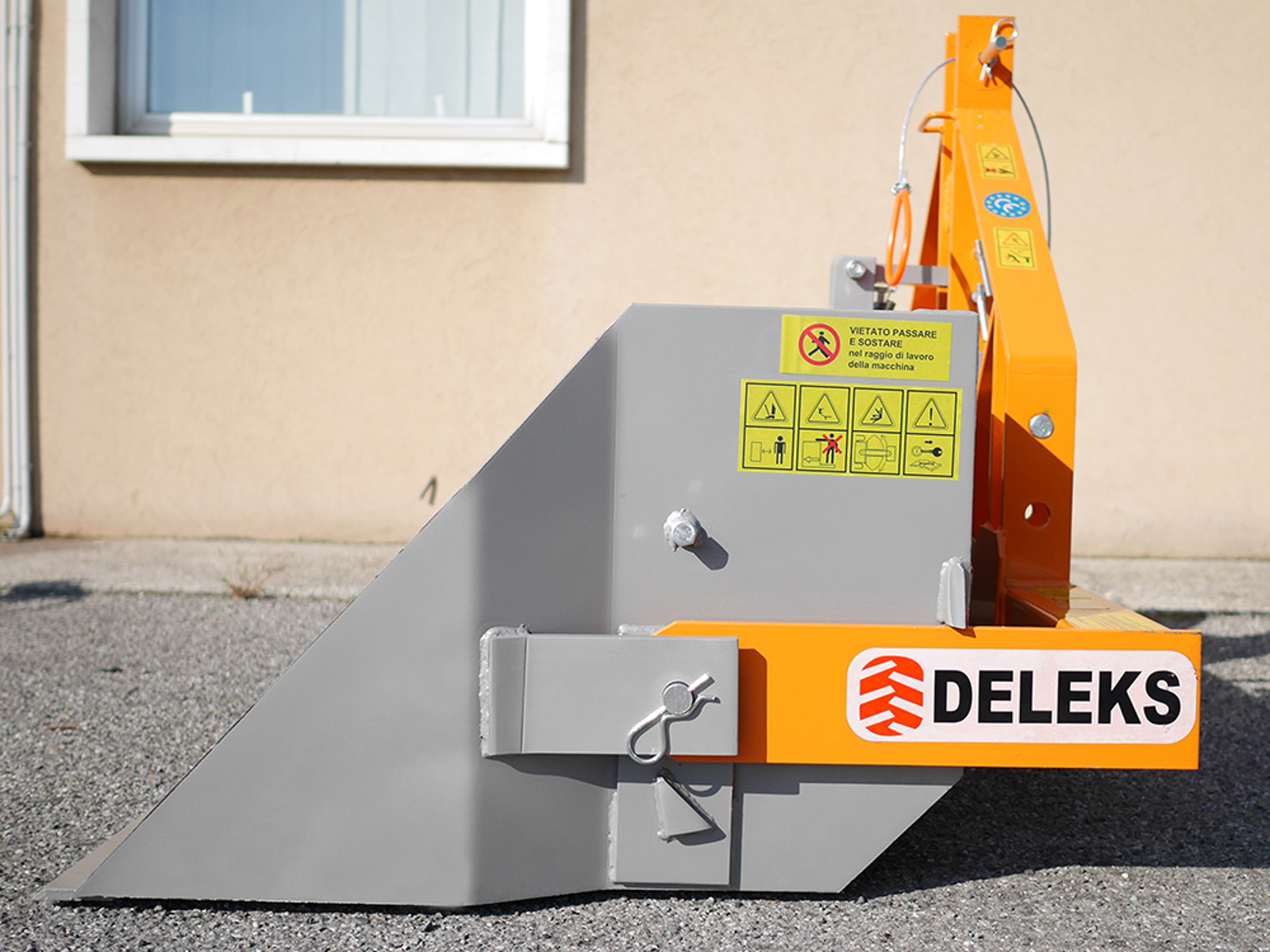

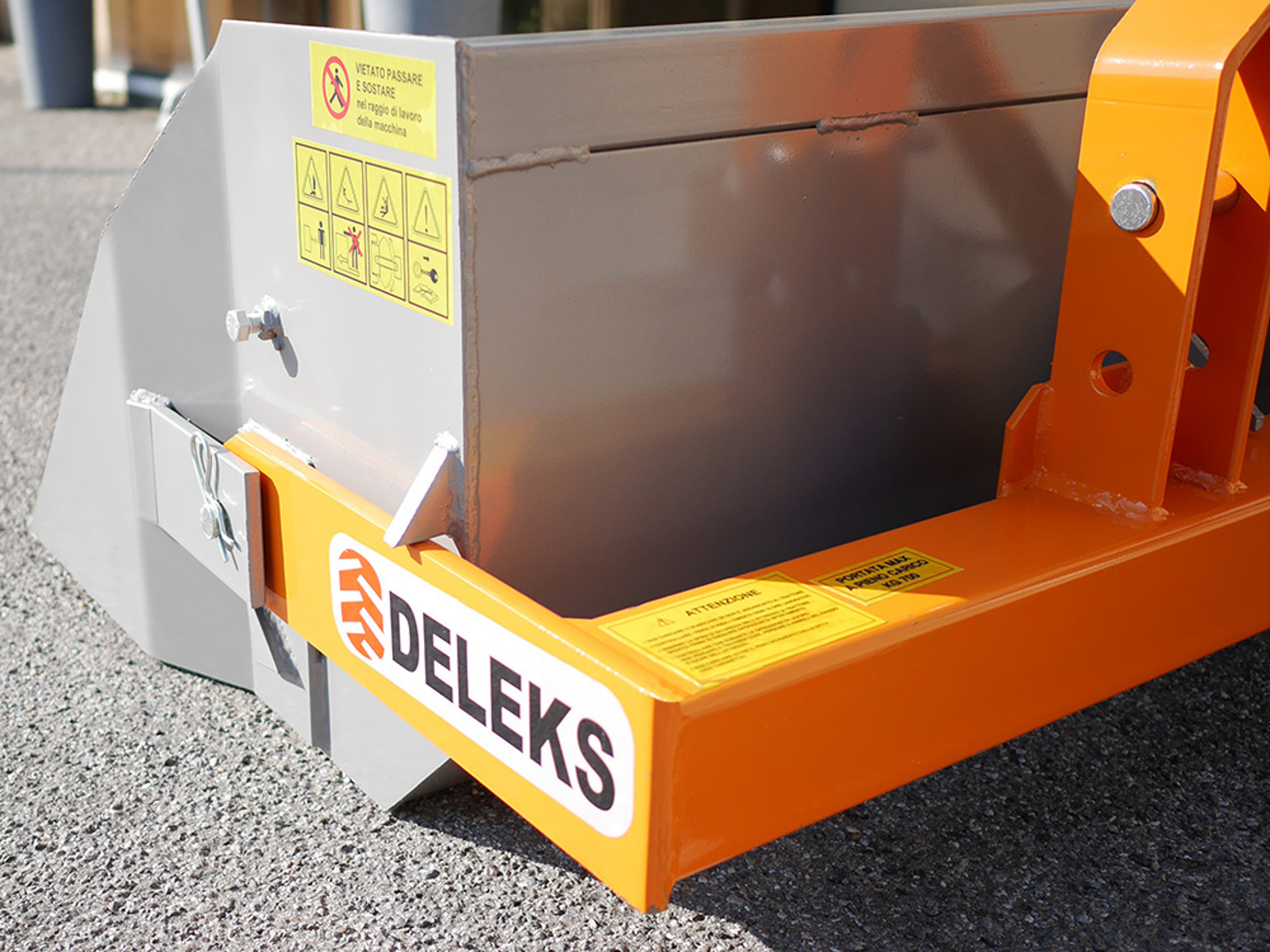

Safety pin facility to avoid tipping out contents unintentionally while on the road.

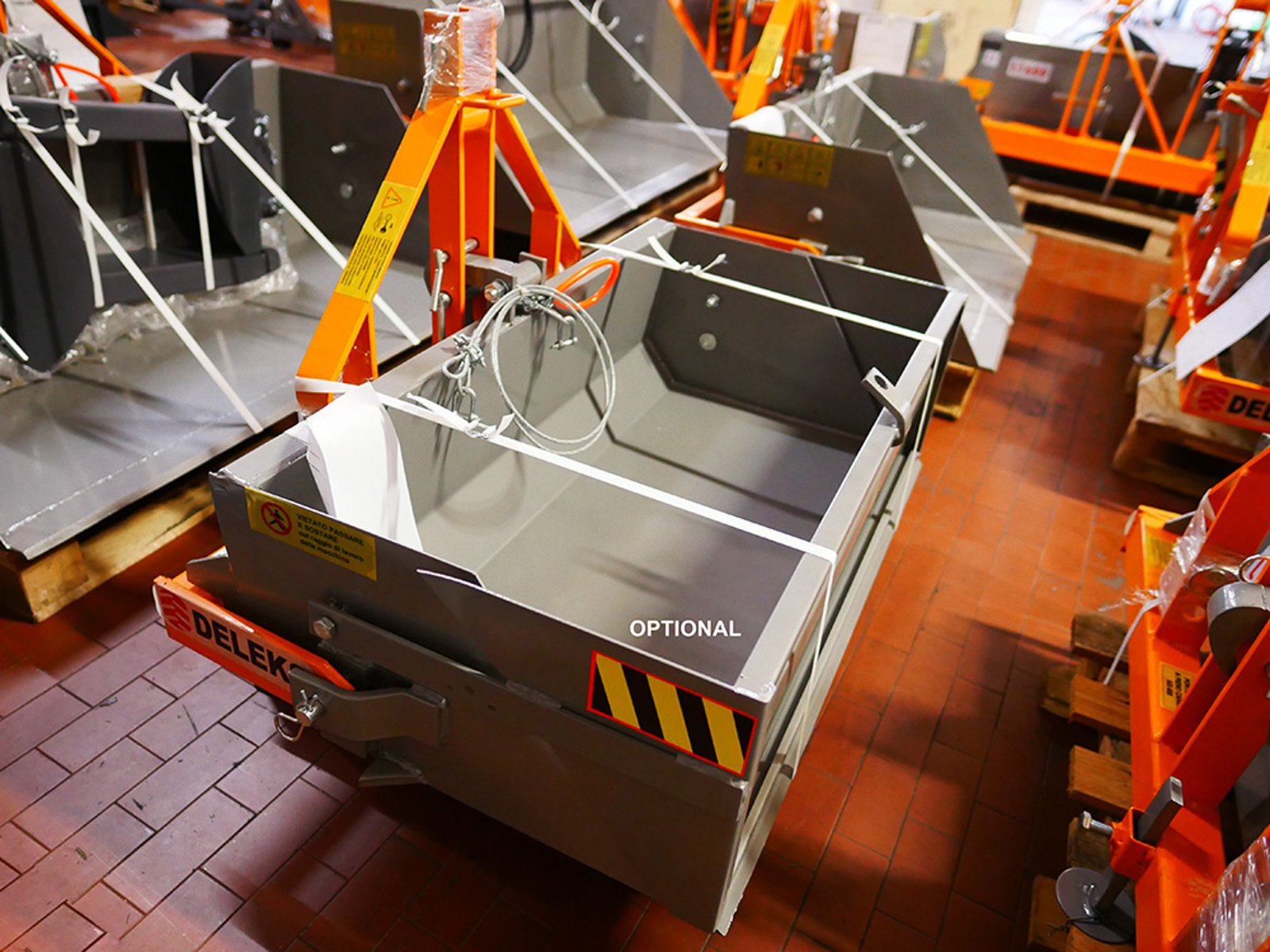

+ 30 to 50% increased load volume capacity with the addition of a rear panel and upper net.
|Characteristic||Units metric||Units US|
|Overall width||2020.0 mm||6.63 ft|
|Weight||250.0 kg||562.0 lb|
|Overall height||935.0 mm||3.70 ft|
|Tractor Power Range||60 - 90 Hp||60 - 90 Hp|
|3 point linkage||Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0 mm)||Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0 mm)|
|Bucket Width||2000.0 mm||6.56 ft|
|Load capacity||700.0 Kg||1543.0 lb|
|Rated bucket Capacity||0.62 m3||24.40 in3|
|Cutting Edge Thickness||10.0 mm||0.40 in|
|Base Edge Thickness||6.0 mm||0.23 in|
|Bucket Height||520.0 mm||1.70 ft|
|Bucket Length||800.0 mm||2.62 ft|
|Overall Length||1000.0 mm||3.28 ft|
|3 point linkage Thickness||13.0 mm||0.51 in|
|Spacing between the 2 lower points||660.0 - 935.0 mm||26.0 - 36.8 in|
|Packing sizes||2030.0*1100.0*1070.0 mm||6.66*3.60*3.51 ft|
