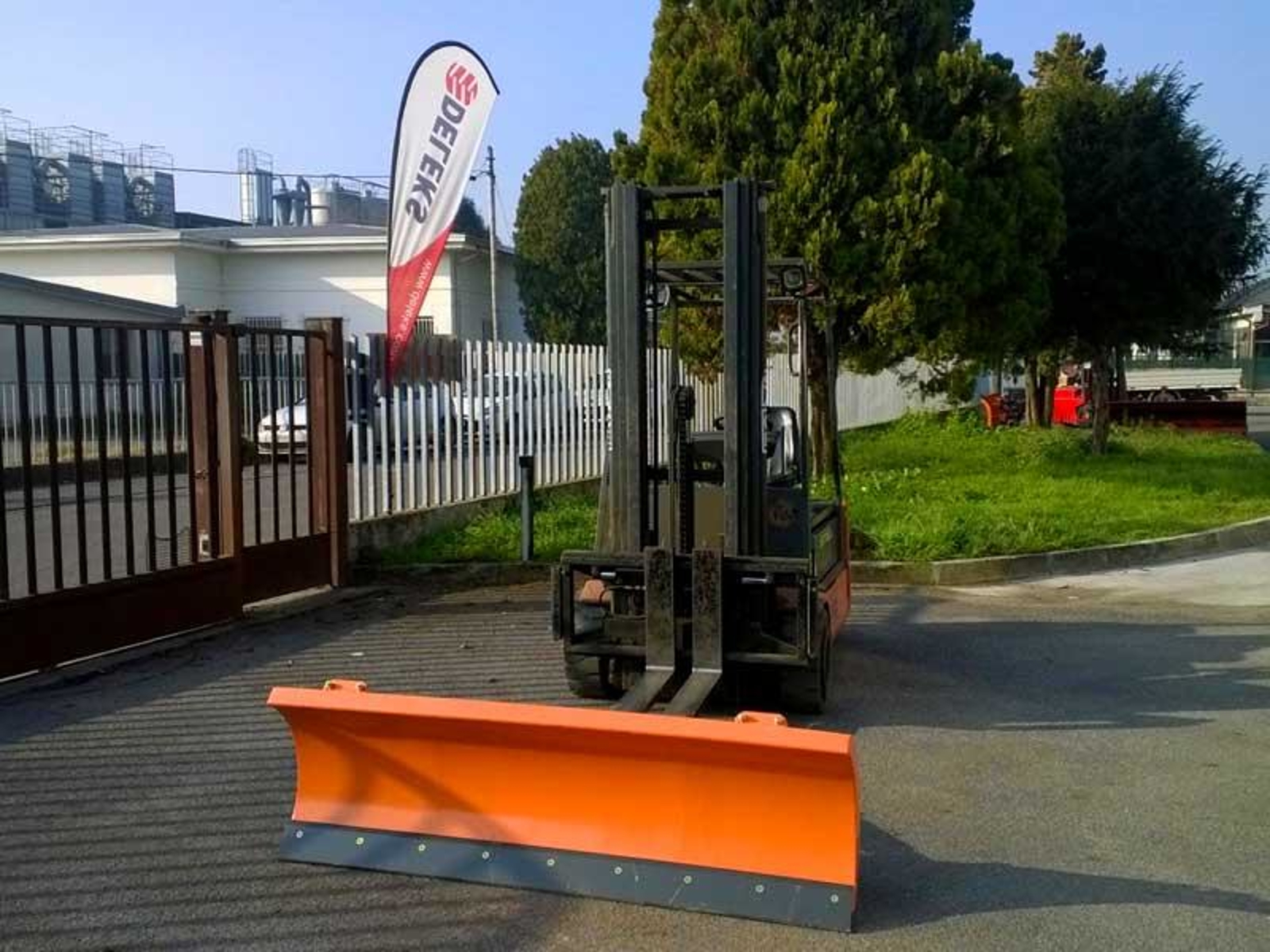

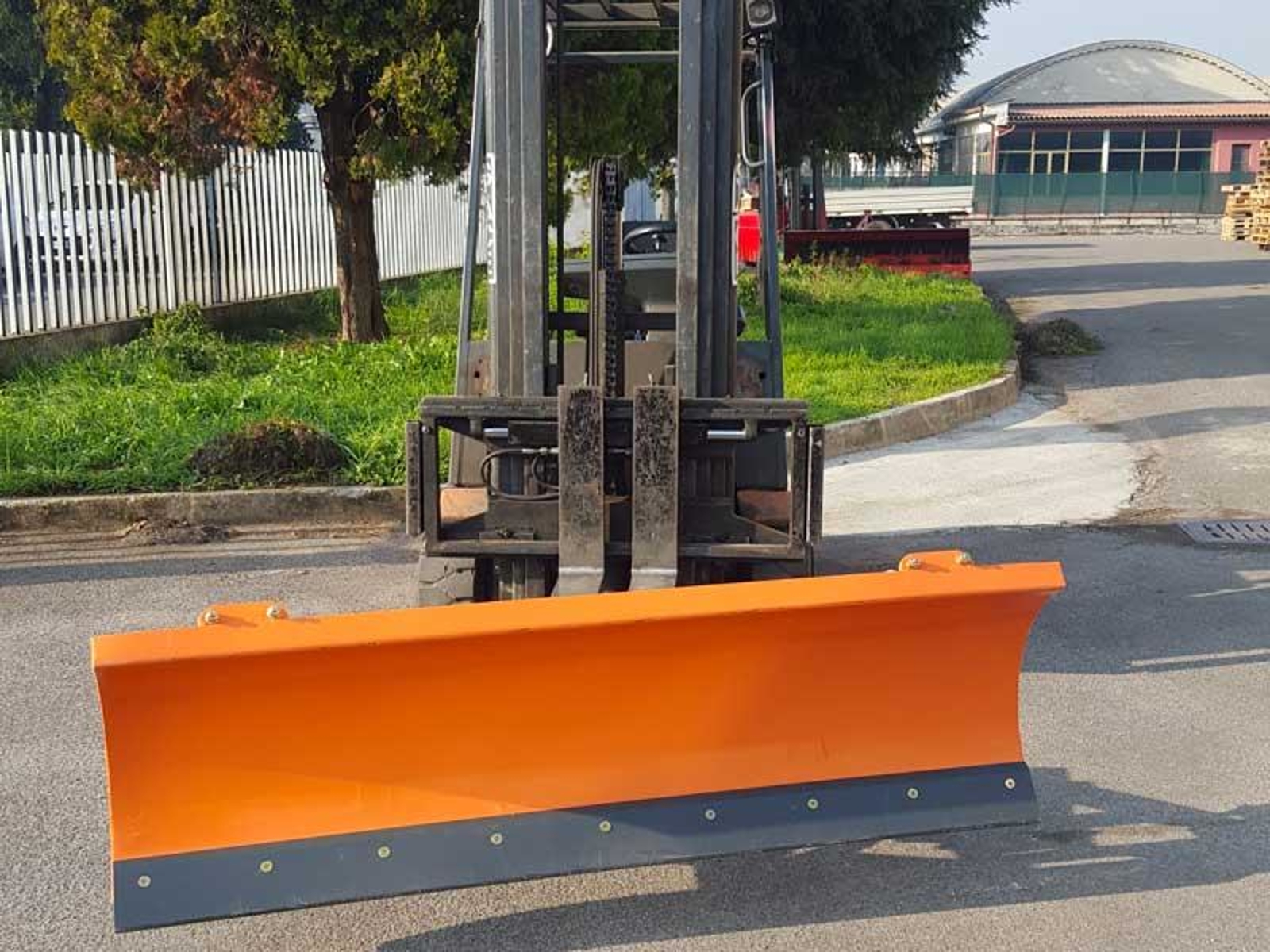

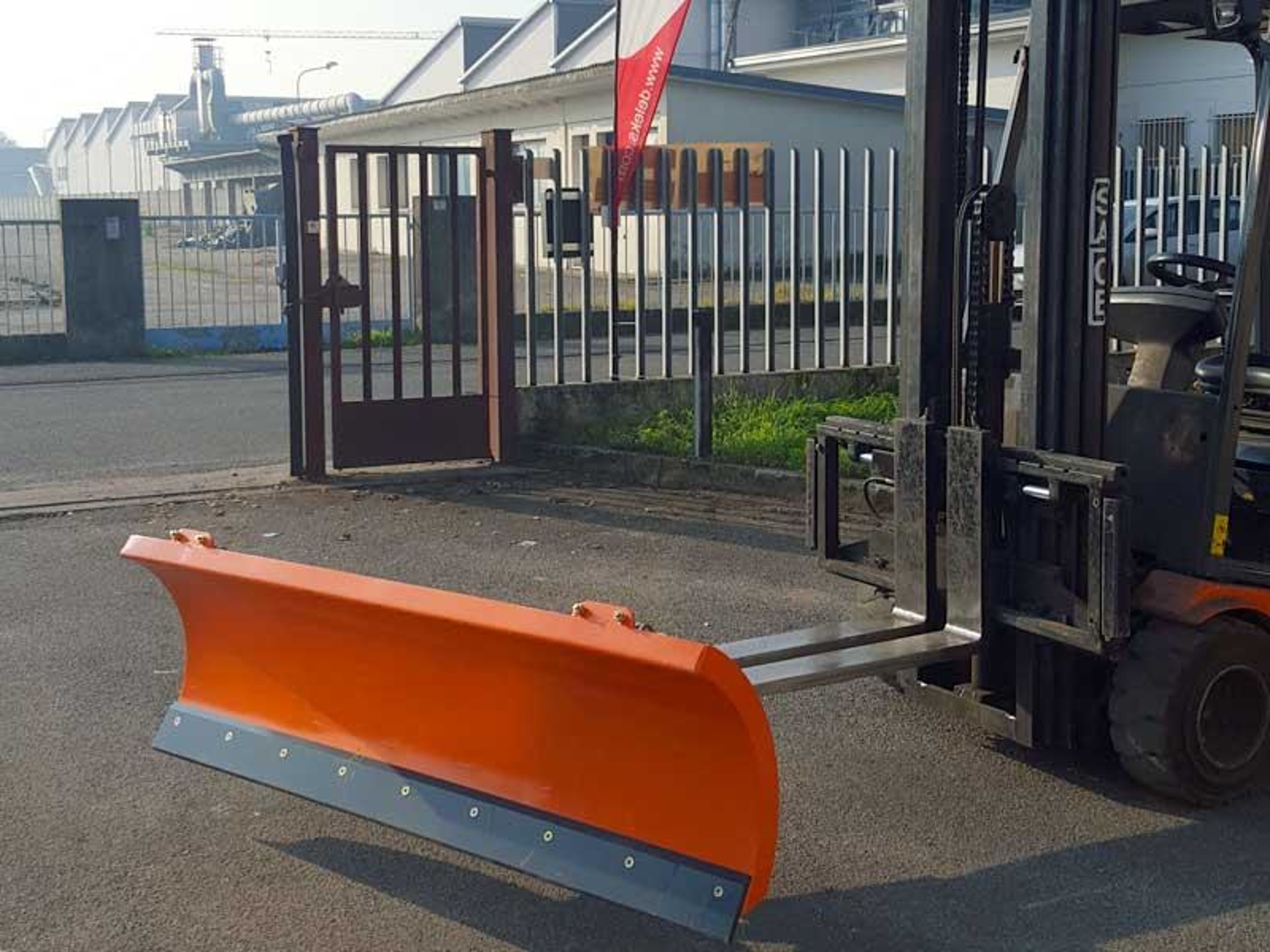

Light snow plow for Forklift, LNS-190-F

Available
CodeLNS190F
EAN 8053470236020
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

Light snow plow 190cm - DELEKS®- with universal attachment for forklifts.


OVERVIEW

DELEKS® lightweight, agile snowplow for forklifts. Compatible with all common brands e.g Bobcat, JCB, Caterpillar, etc. Conforms to the EC Machinery Directive. 2 years guarantee.



BENEFITS AND FEATURES

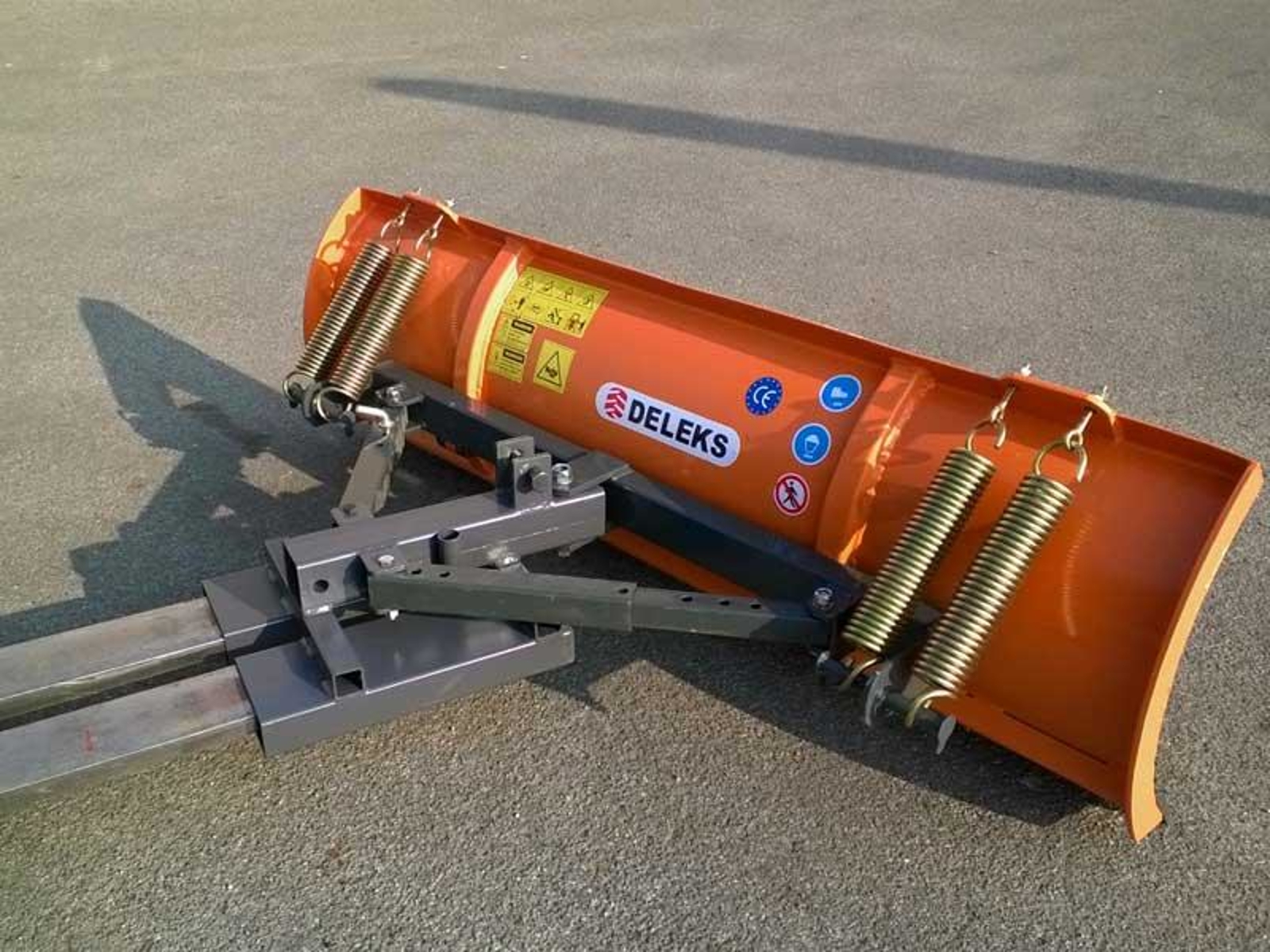

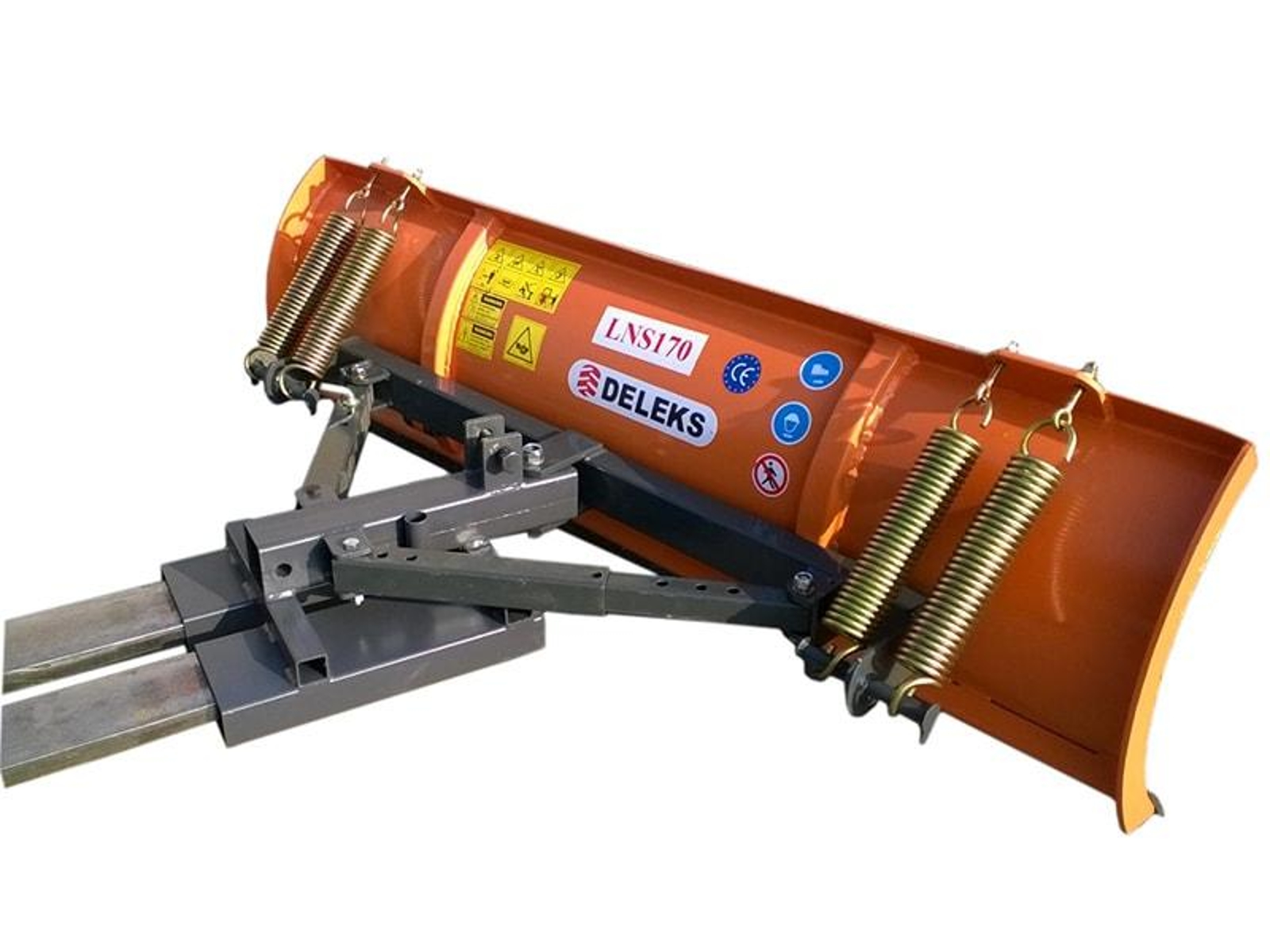

Anti-shock system with 4 shock absorbing springs to operate in maximum safety.

Extreme ease of assembly and use.

Sharp replaceable steel blade. On request we customize the plow with a softer Rubber blade.

The fitting plate is removable and replaceable meaning it can be used on tractors or other attachments.



CARACTERISTICS

Caracteristic Units metric Units US
Weight 136.0 kg 300.0 lb
Overall height 525.0 mm 1.72 ft
Overall Length 760.0 mm 2.50 ft
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Interface Universal for Forklifts Universal for Forklifts
Angling (left/right) 28° 28°
Float +/- 2° +/- 2°
Blade Height 525.0 mm 1.72 ft
Side edge thickness 8.0 mm 0.31 in
Shock absorbers 4 4
Cutting Edge Steel or Rubber Steel or Rubber
Cutting Edge Height 120.0 mm 4.72 in
Cutting Edge Thickness 14.0 mm 0.55 in
Trip Edge Quantity 1 1
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights x x
Removable Skid Shoes x x

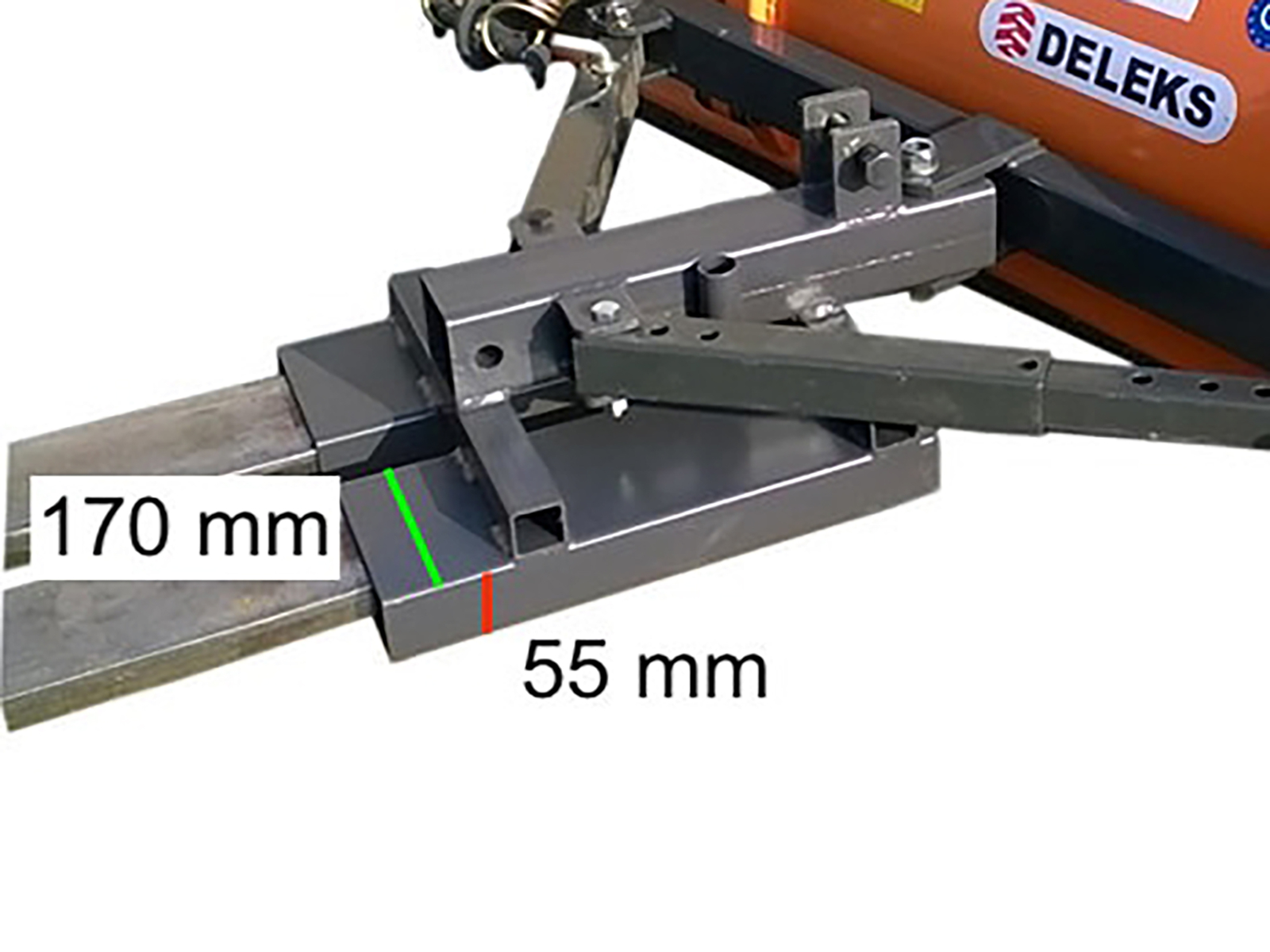

Universal attachment sizes See pictures See pictures
Working width (angled) 1520.0 mm 3.75 ft
Hydraulic Hoses (optional) 2 x 3000.0 mm / WP-400 bar (Optional) 2 x 9.84 ft / connections 1.2", WP 400 bar
Overall width 1916.0 mm 6.28 ft
Main frame thickness 4.0 mm 0.15 in
Hydraulic cylinder/s ø (Optional) 50.0 / 25.0 mm (optional) 1.96 / 1.0 in
Packing sizes 1916.0*800.0*800.0 mm 6.28*2.62*2.62 ft
