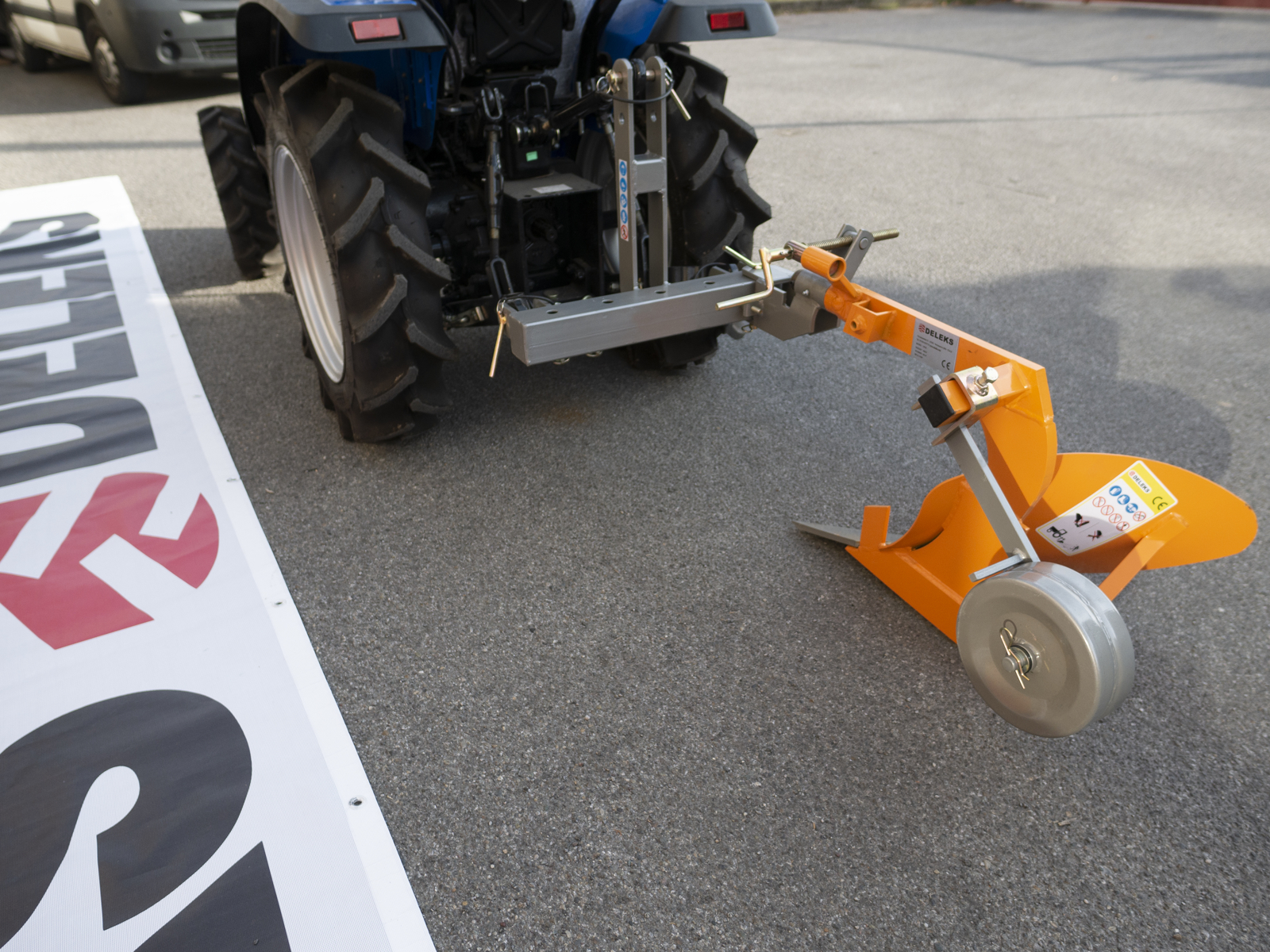

Single furrow plough with Gauge wheel for tractors like Yanmar, Iseki DP-20

4.5

192 reviews

Available
Code DP20
EAN 8053470230028
View all details.
TOTAL
500,00VAT incl.
Free shipping

VIDEO
Field test
Field test

DETAILS

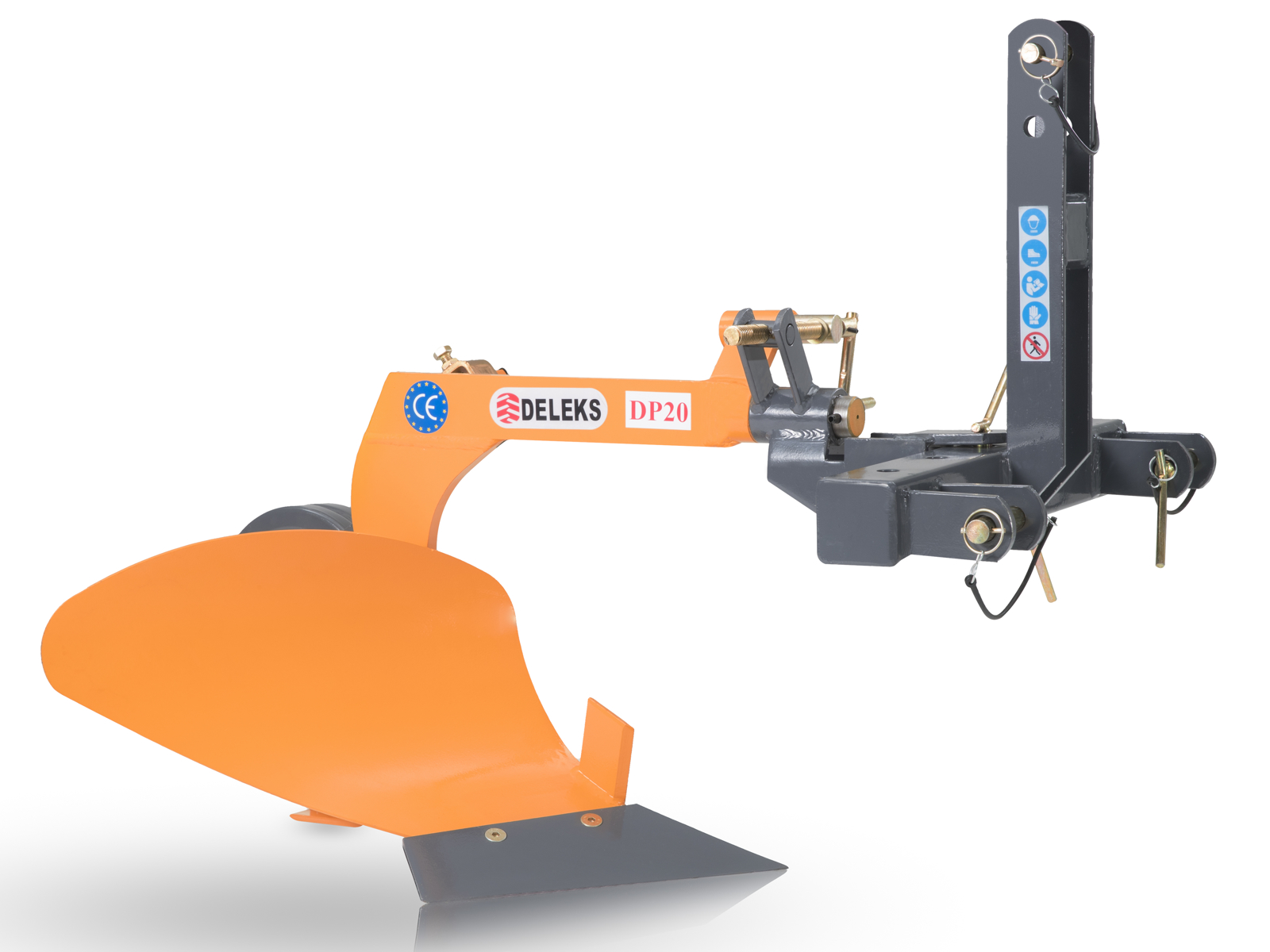

Single Furrow Plough for 25-35HP Tractors, Japanese tractors, Compact tractors like New Holland and John Deere | DELEKS® DP-20


APPLICATION

DP-20 designed for cultivating clay or sandy soils, it fits most common compact tractor brands (no larger than 1300.0 mm):  Japanese tractors: Kubota, Kioti, Iseki, Yanmar, Mahindra, and compact tractors: John Deere, McCormick, New Holland Boomer 25-30 etc. Universal 3 point linkage Cat. 1. EC Declaration of Conformity.



BENEFITS & FEATURES

10kg heavier than the D16 and DP18 and fits 20-35HP tractors.

Additional welded frame strengthening parts on the arm to reinforce stress points.

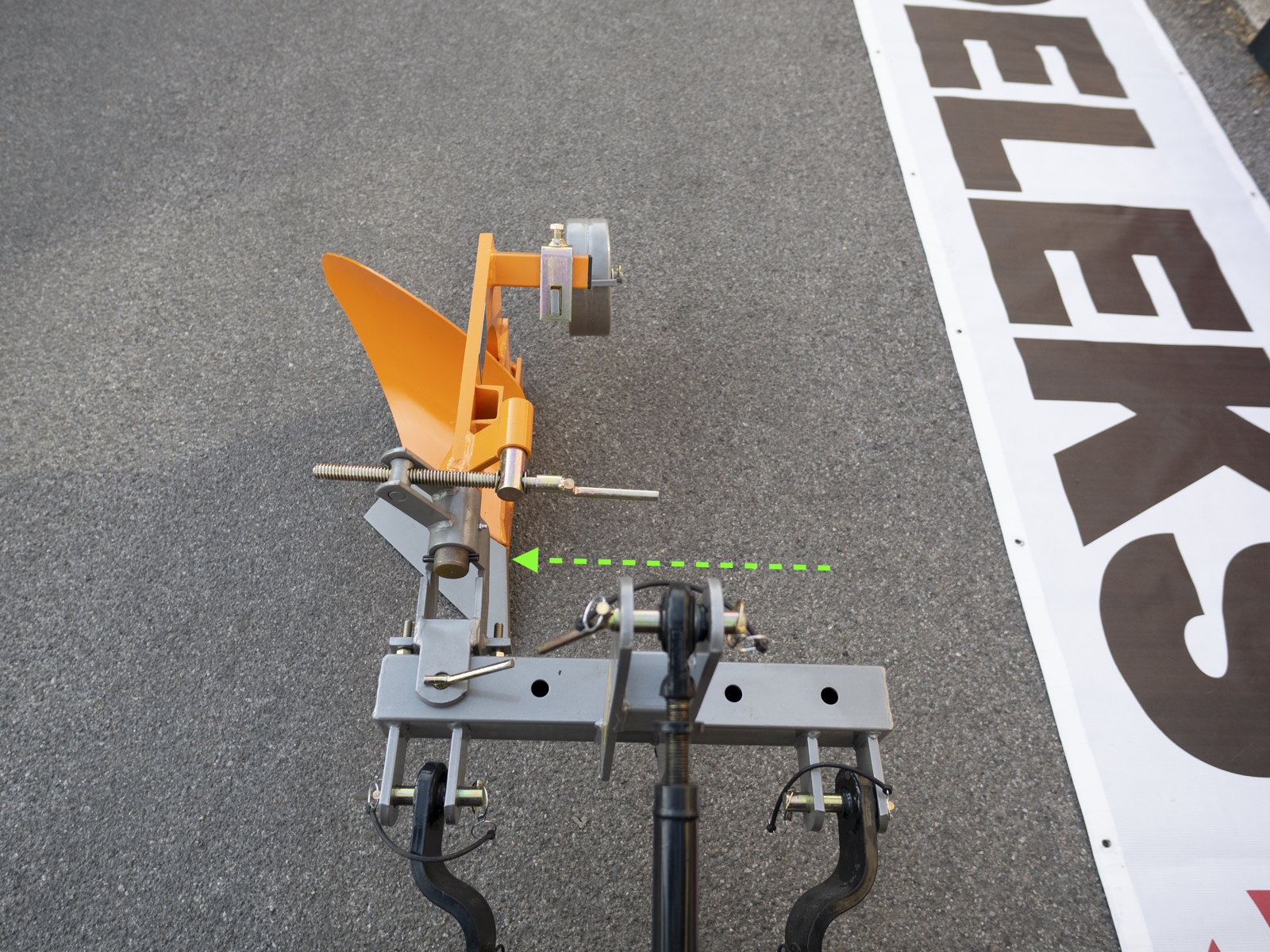

The plough's tilt and depth can be adjusted easily.

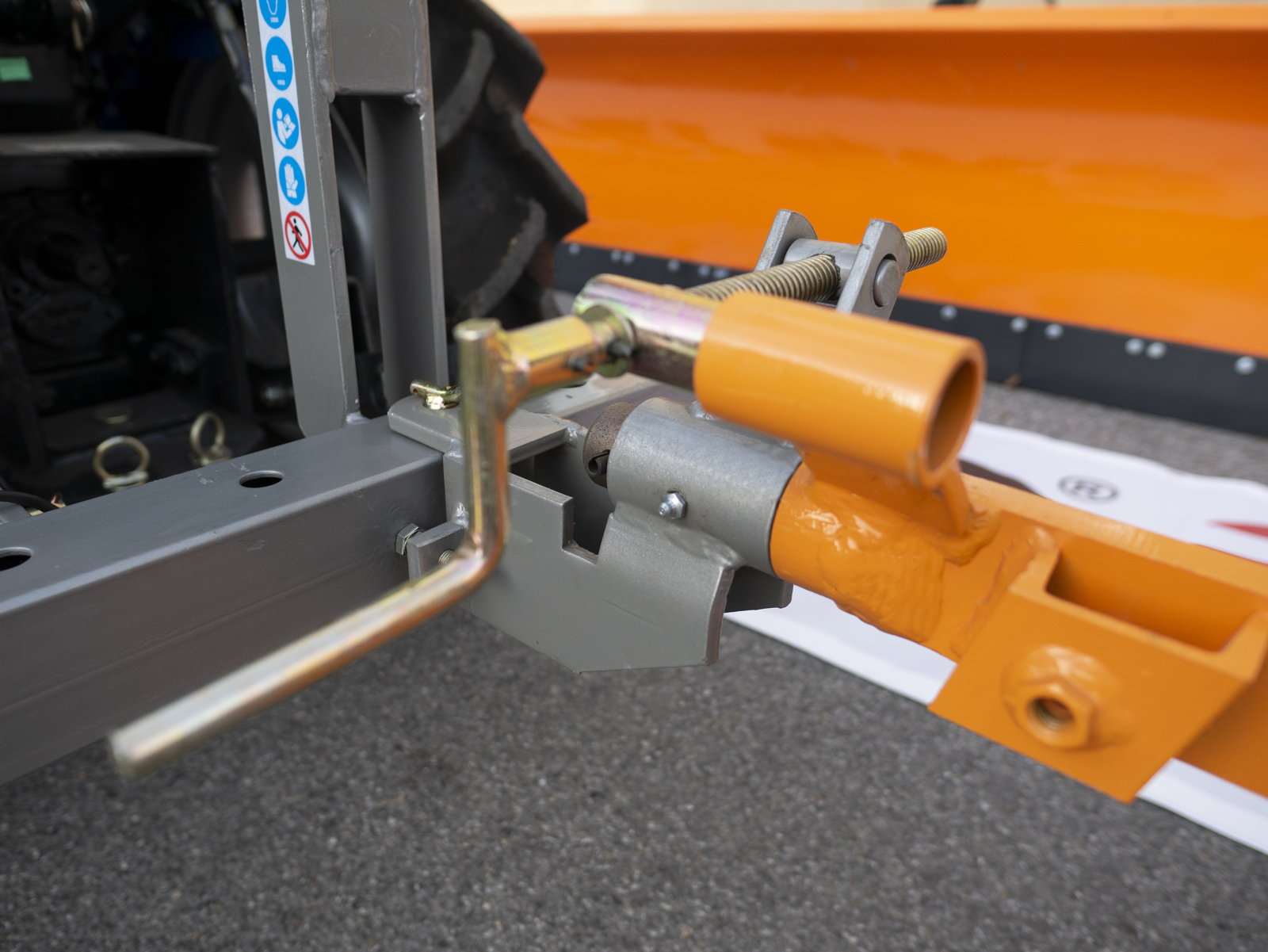

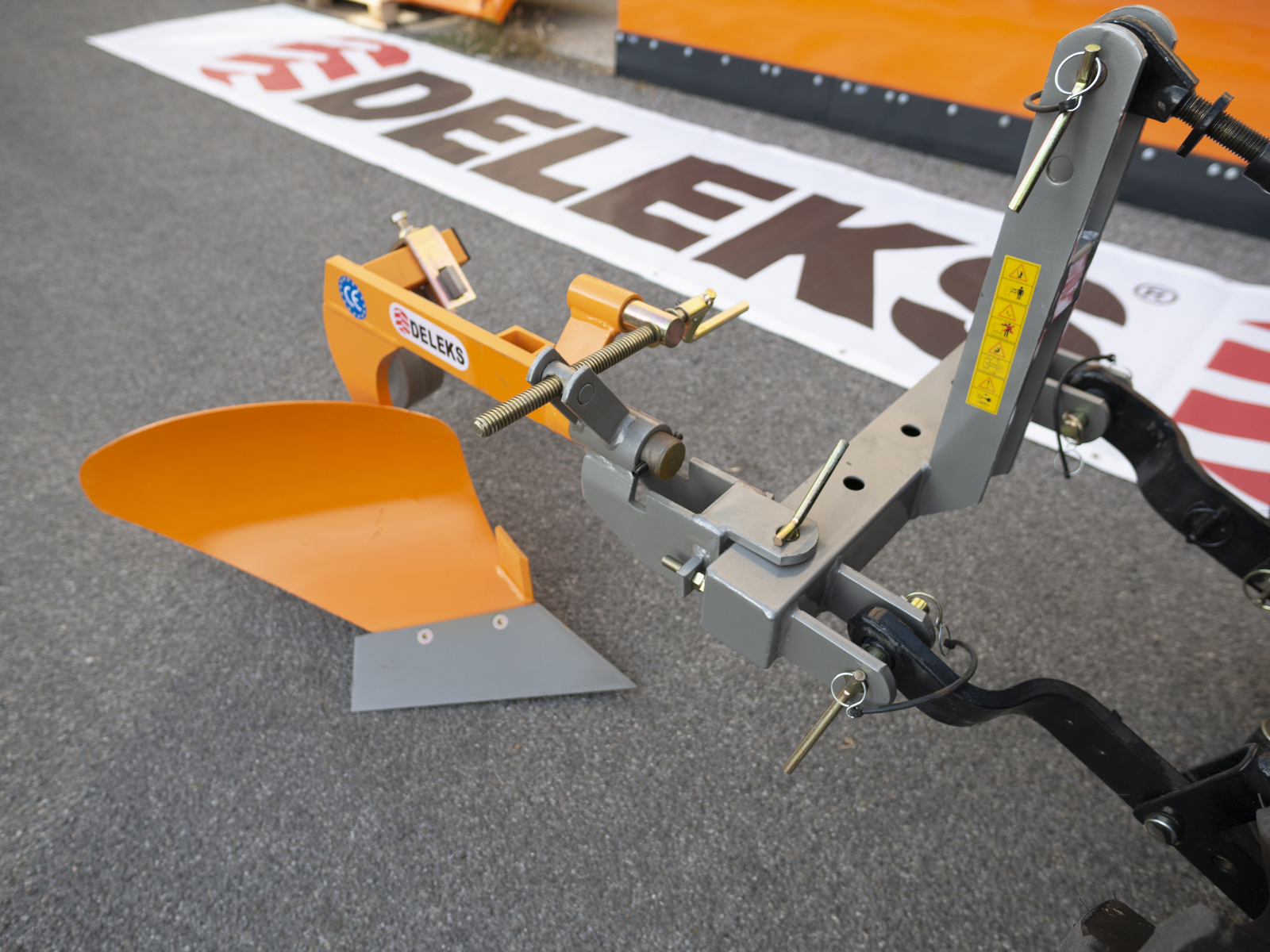

The 3 point linkage determines the position of the plough. It can be used also as multi-use bar.

Detachable and replaceable coulter.

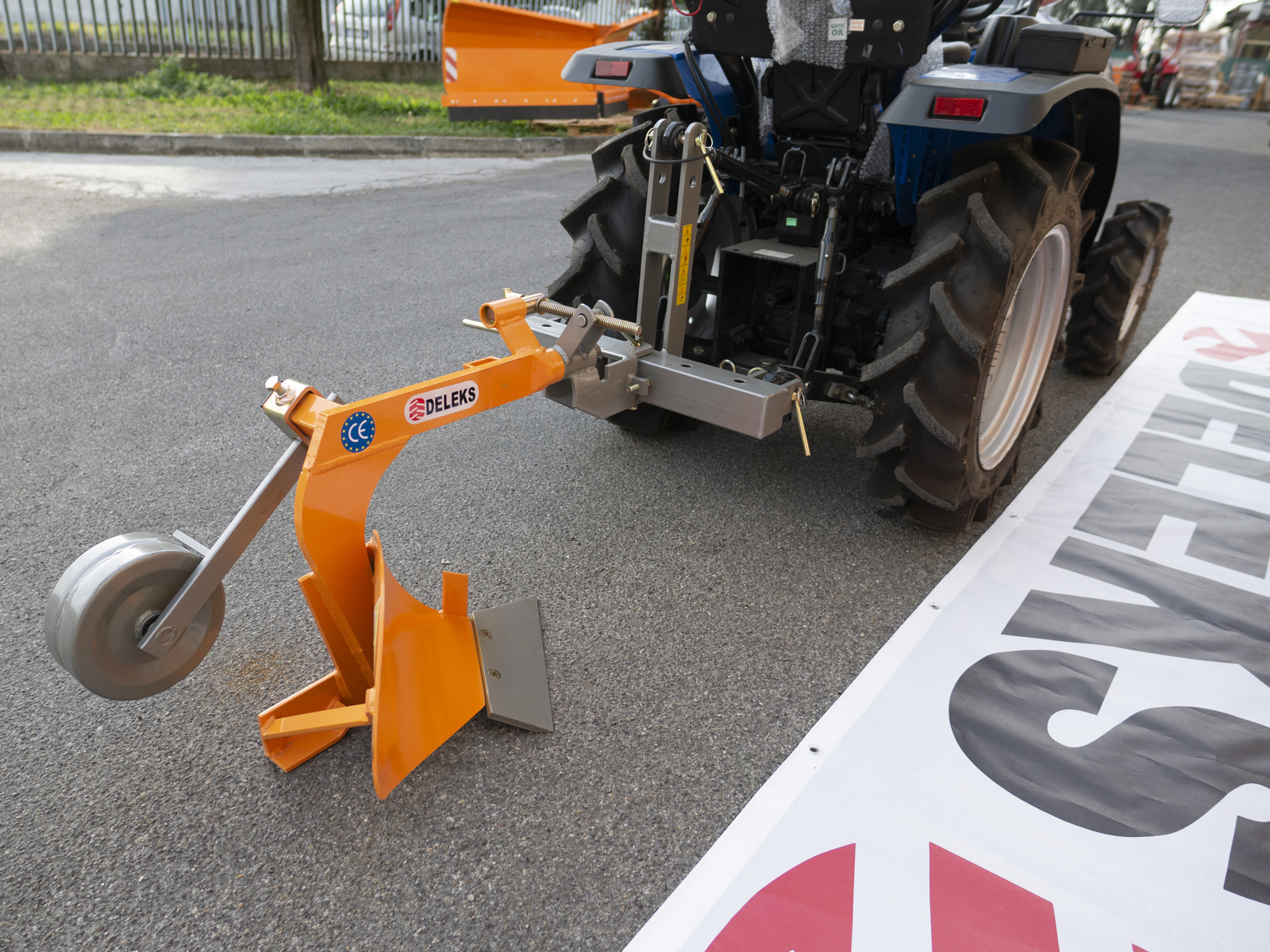

Gauge wheel that allows you to adjust depth and maximize usage.


CHARACTERISTICS

Characteristic Units metric Units US
Overall width 610.0 mm 2.00 ft
Weight 61.0 kg 134.0 lb
Overall height 910.0 mm 2.98 ft
Tractor Power Range 20 - 35 Hp 20 - 35 Hp

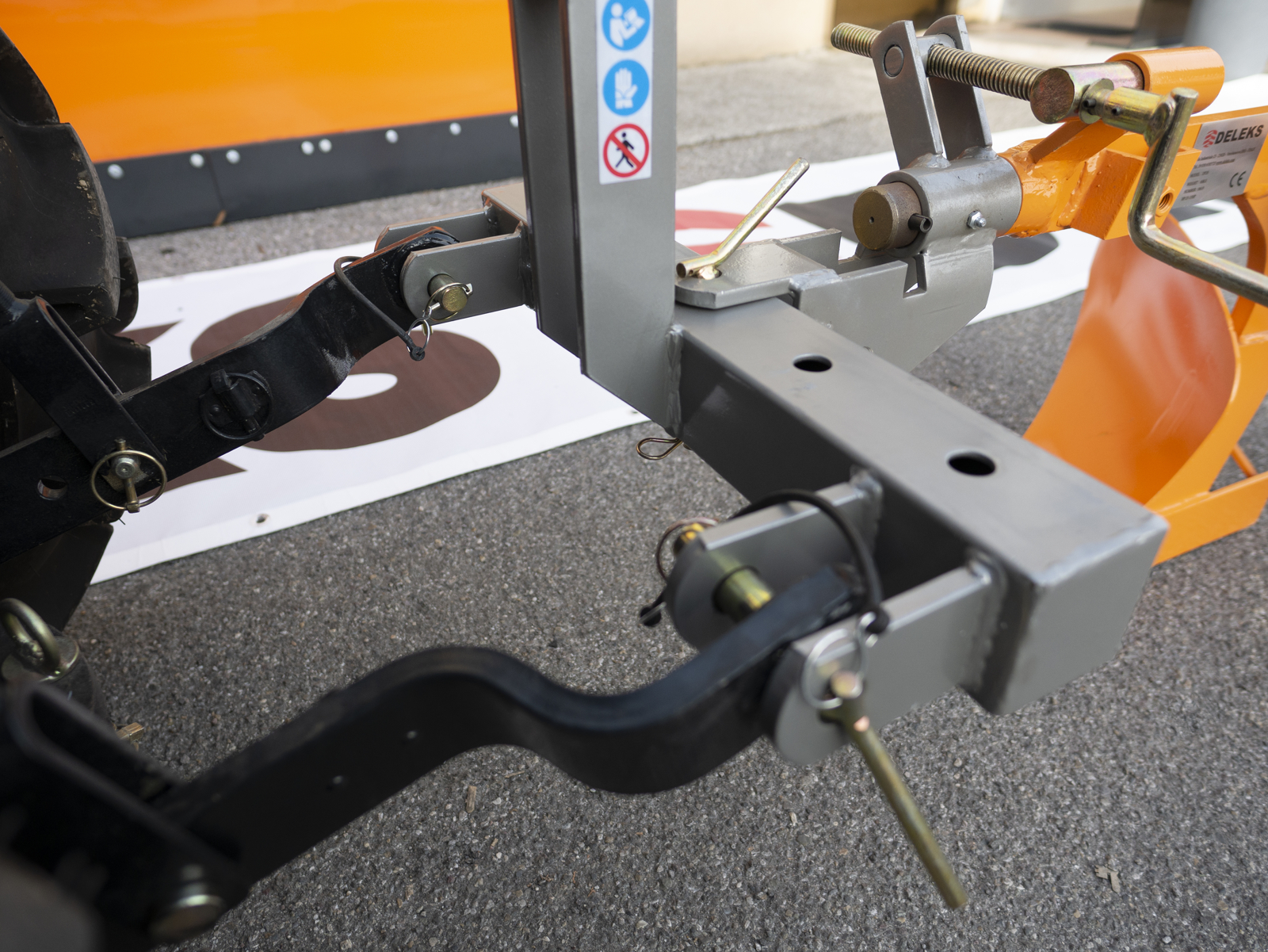

3 point linkage Cat. 1 (ø 19.0-22.0mm) Cat. 1 (ø 19.0-22.0mm)

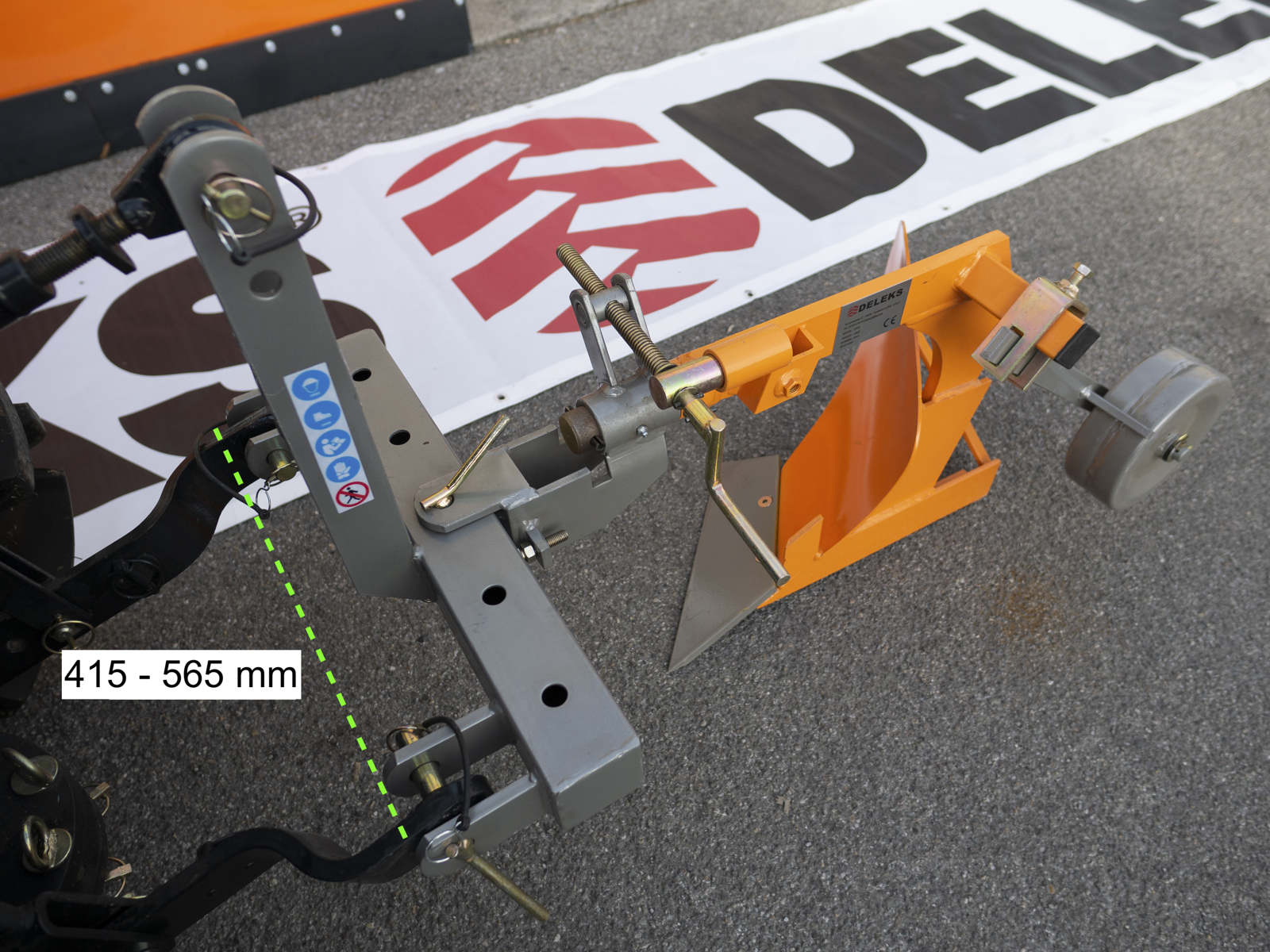

Spacing between the 2 lower points 415.0 - 565.0 mm 16.34 - 22.25 in
Overall length 1070.0 mm 3.51 ft
Number of Furrow 1 1
Furrow diagonal 835.0 mm 2.74 ft
Width of cut 310.0 mm 12.20 in

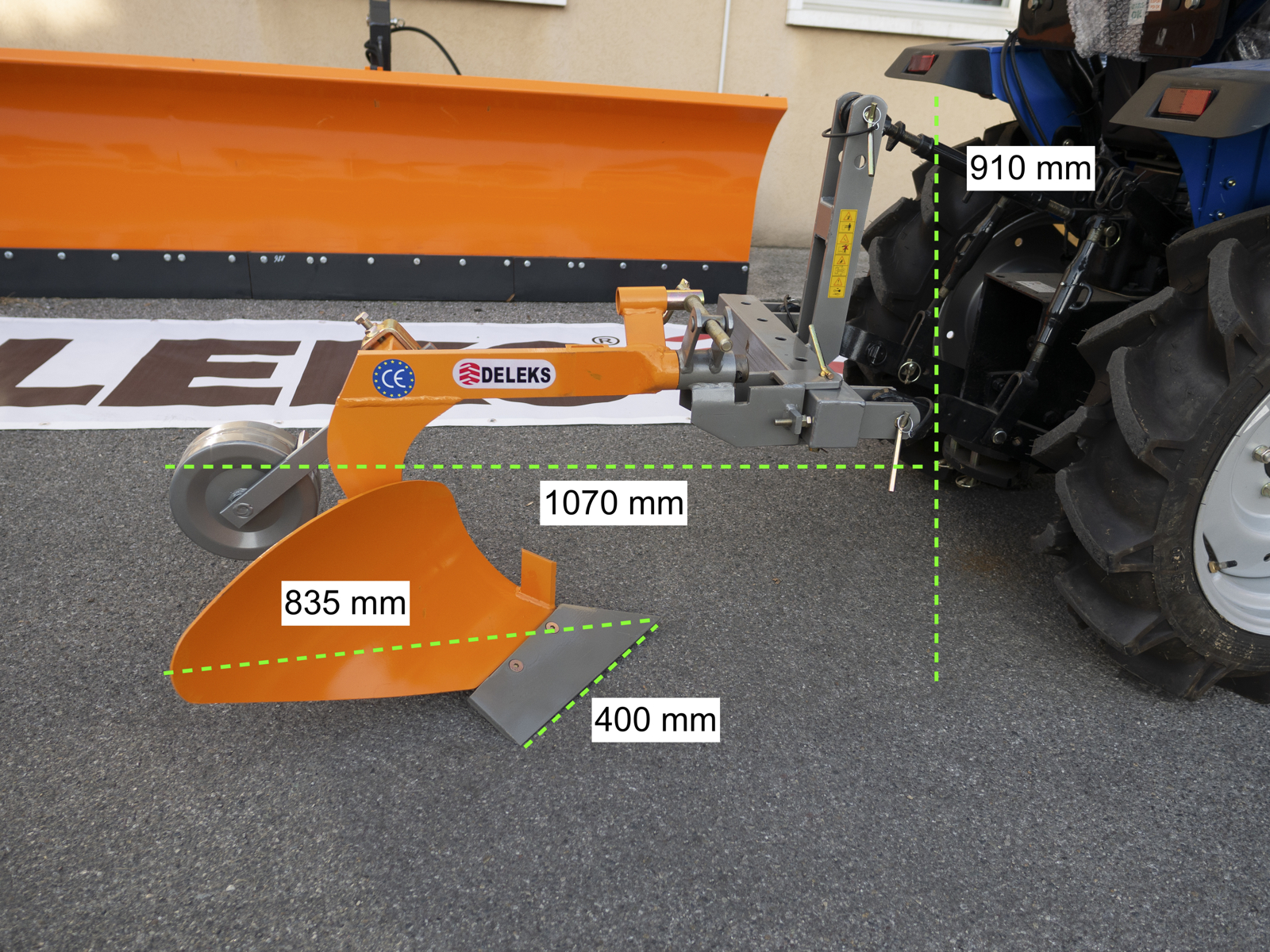

Other sizes See pictures See pictures
Effective Displacement 460.0 mm 18.11 in
Thickness of the arm 20.0*70.0 mm 0.79*2.75 in
Cutting Edge Lenght 400.0 mm 15.75 in
Cutting Edge Thickness 15.0 mm 0.60 in
3 point Linkage tube sizes 80.0*80.0 mm 3.15*3.15 in
Depth adjustment Wheel sizes ø 25.0 * 10.0 mm ø 1.0 * 0.40 in
Working Depth Range 160.0 - 250.0 mm 6.30 - 9.84 in
Packing sizes 600.0*800.0*500.0 mm 1.97*2.62*1.64 ft

Optional

spare blade dp 20
Spare blade DP-20
69,00VAT incl.
Available

DP-20

spare pins cat 1 a
Spare pins Cat. 1 A
53,00VAT incl.
Available

ø 19.0/22.0 mm
