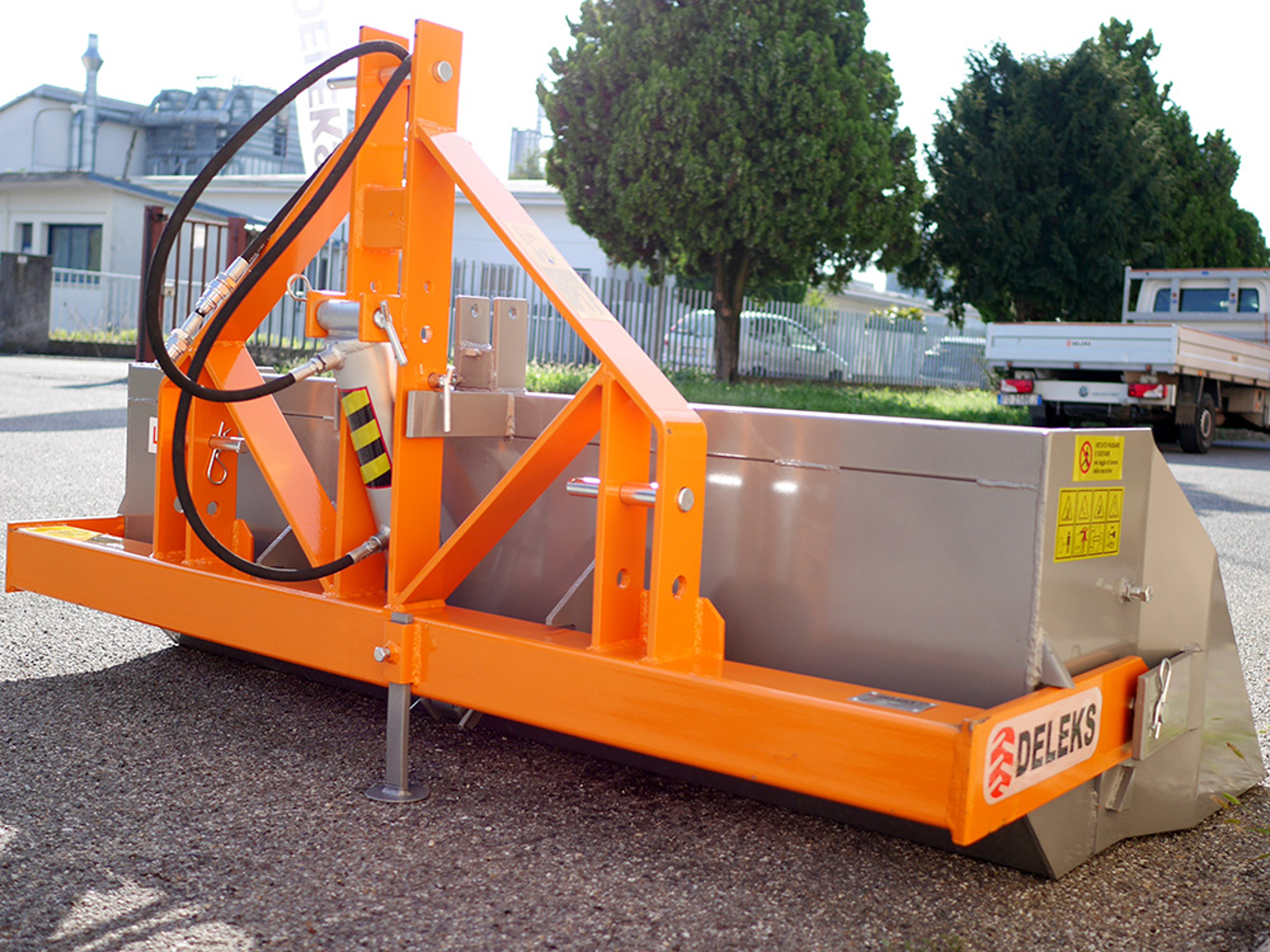

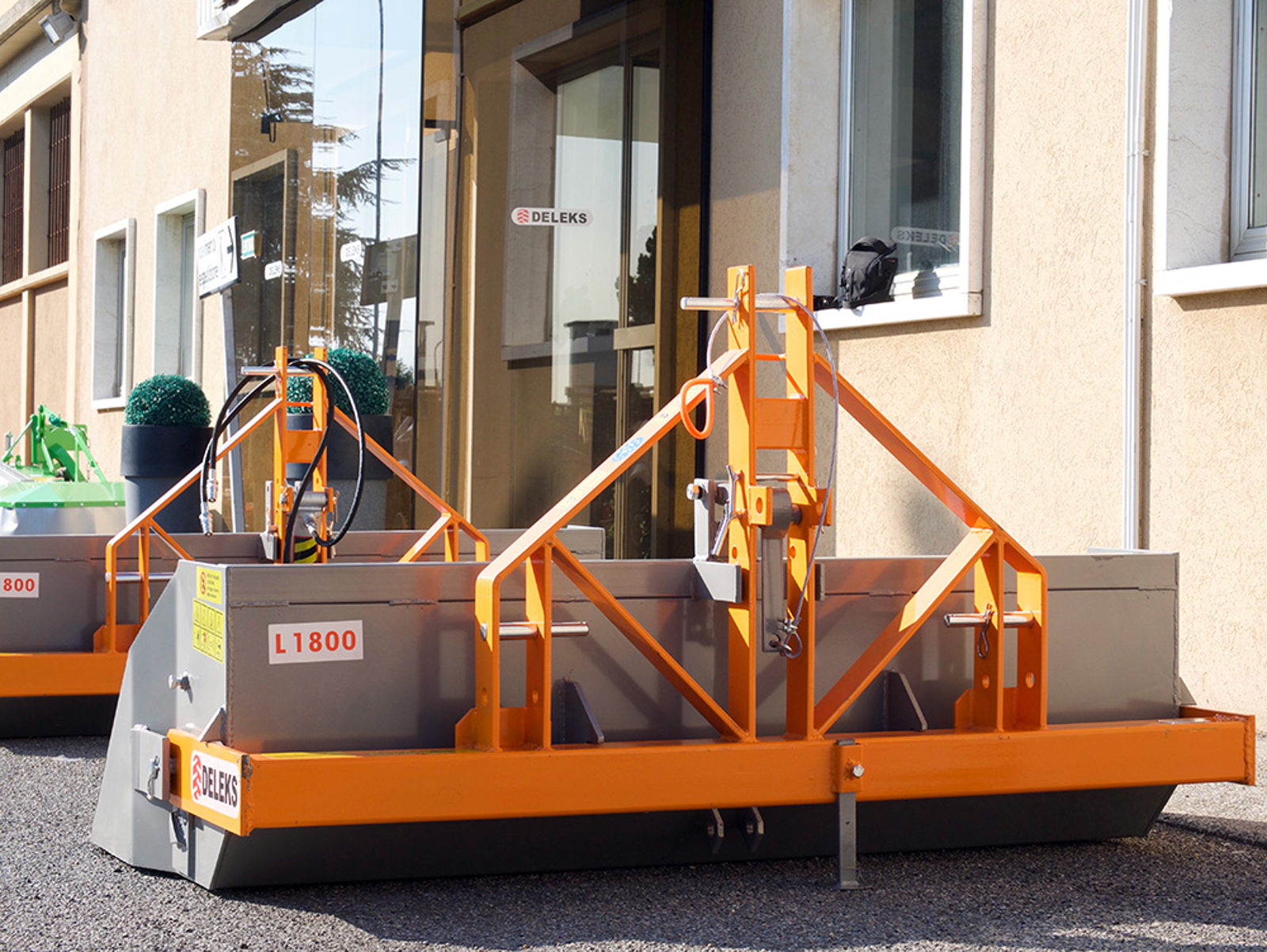

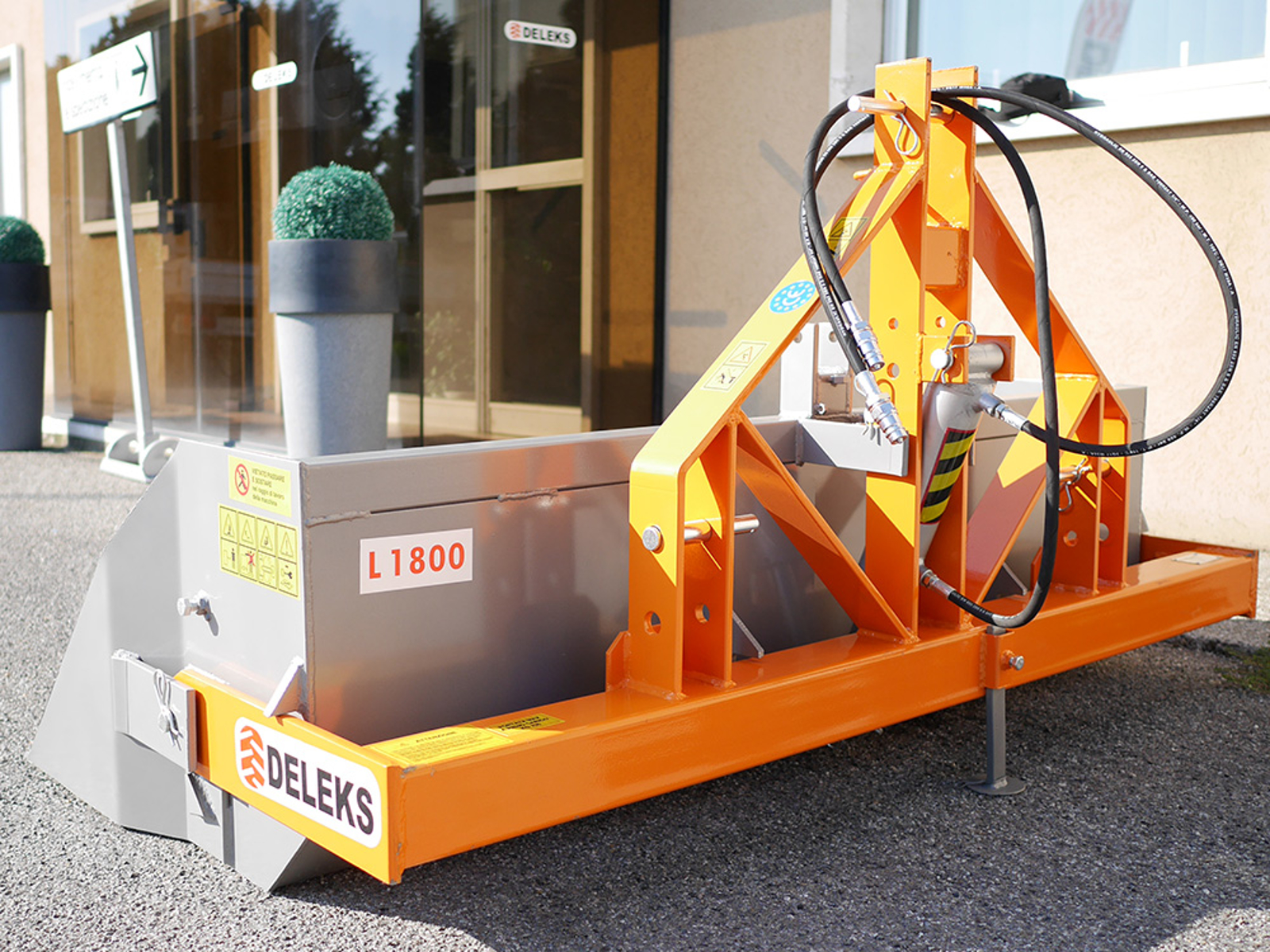

Heavy hydraulic Transport Box for tractor - PRI-180-H

Available
Code PRI180H
EAN 8053470230509
****
TOTAL
1.110,00VAT incl.
Free shipping

VIDEO
Field test
Field test

DETAILS

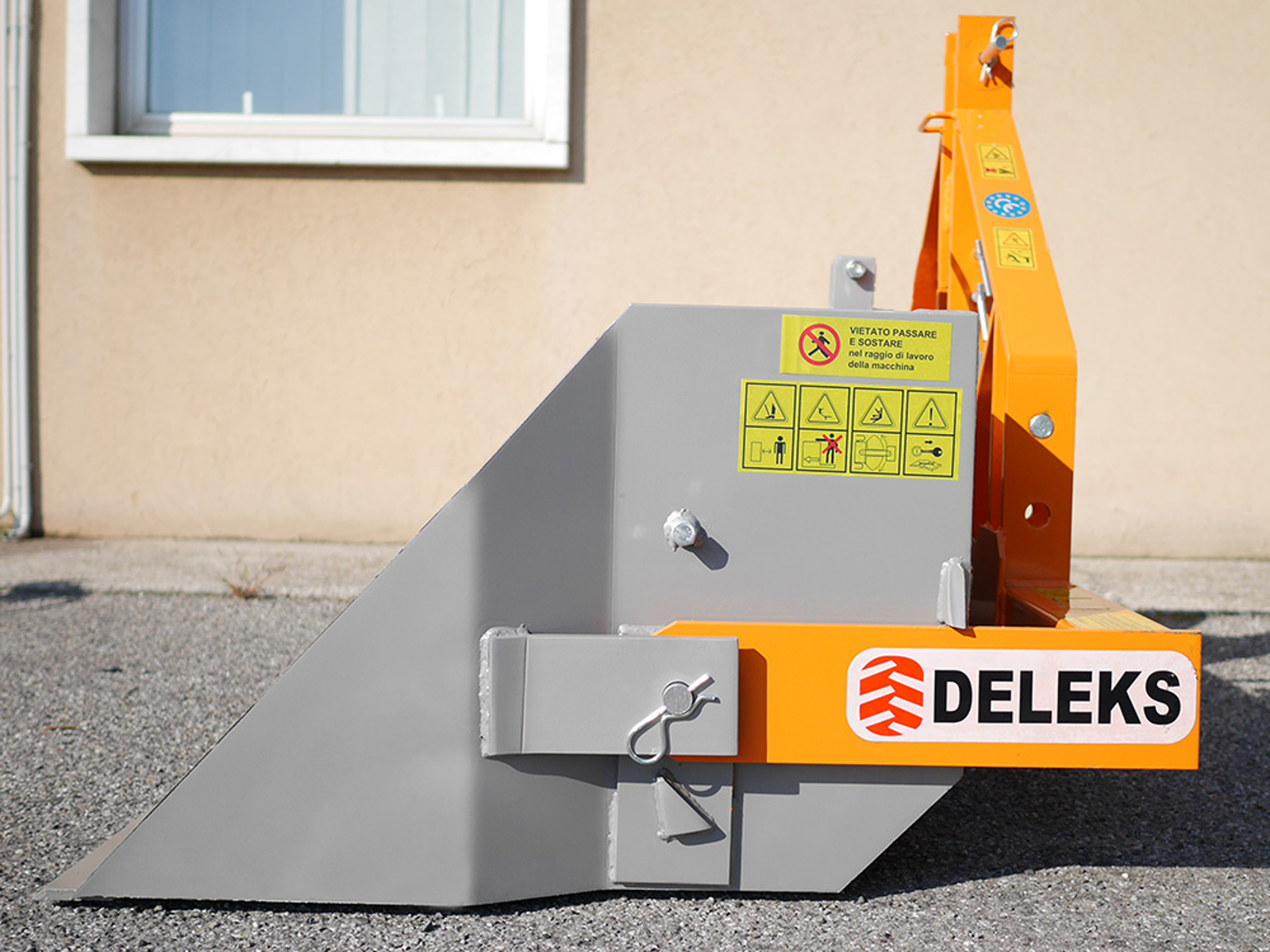

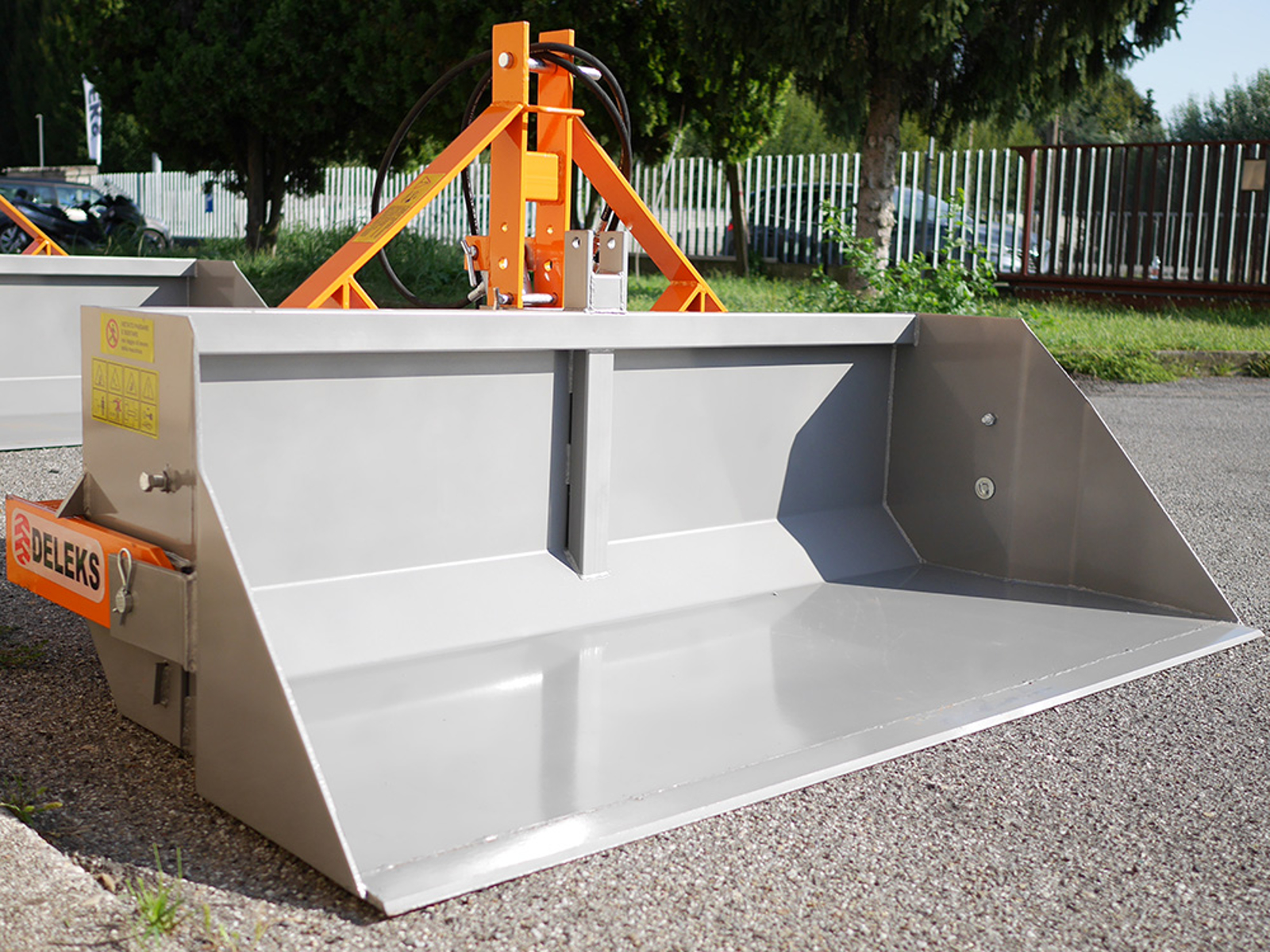

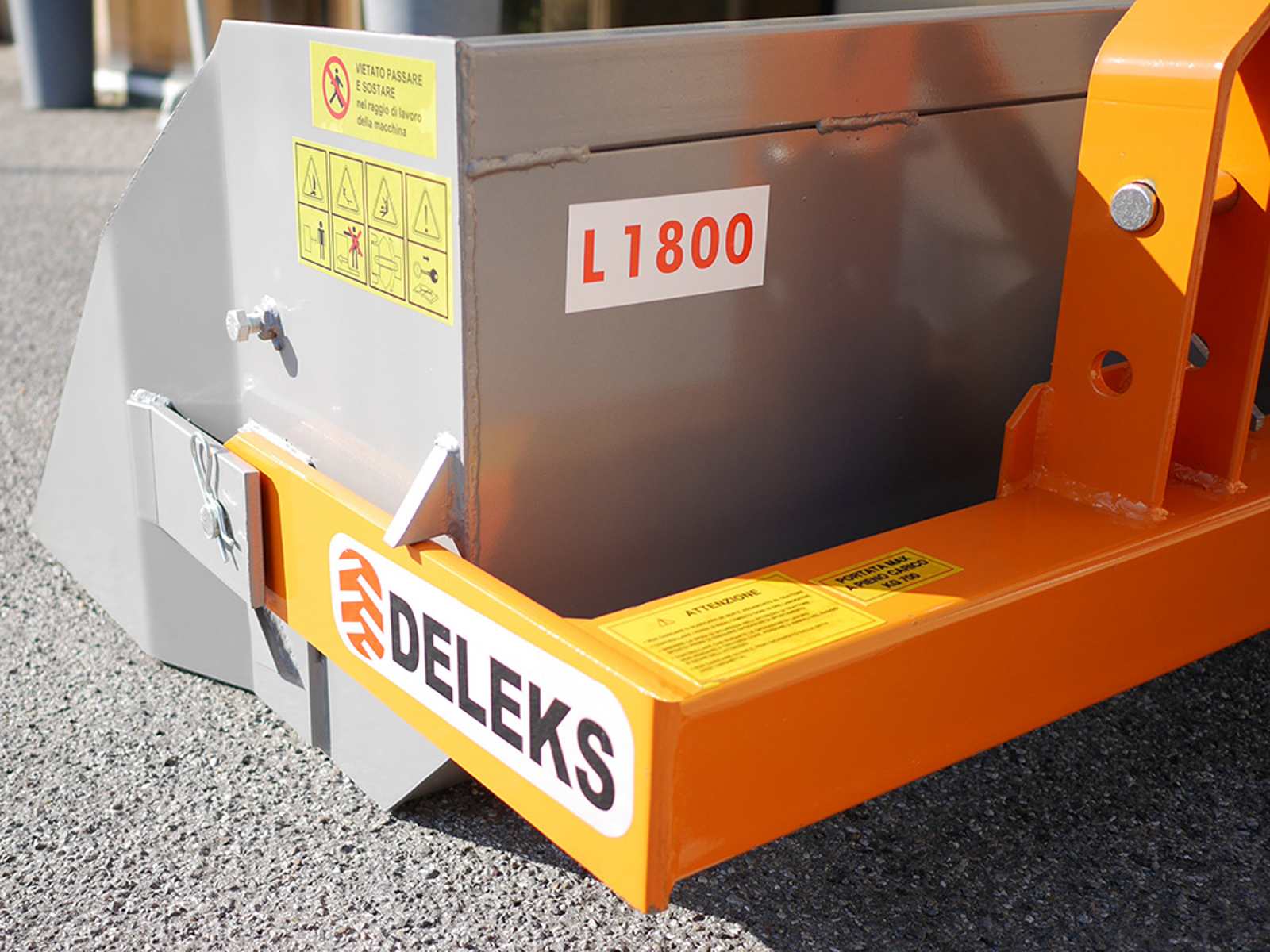

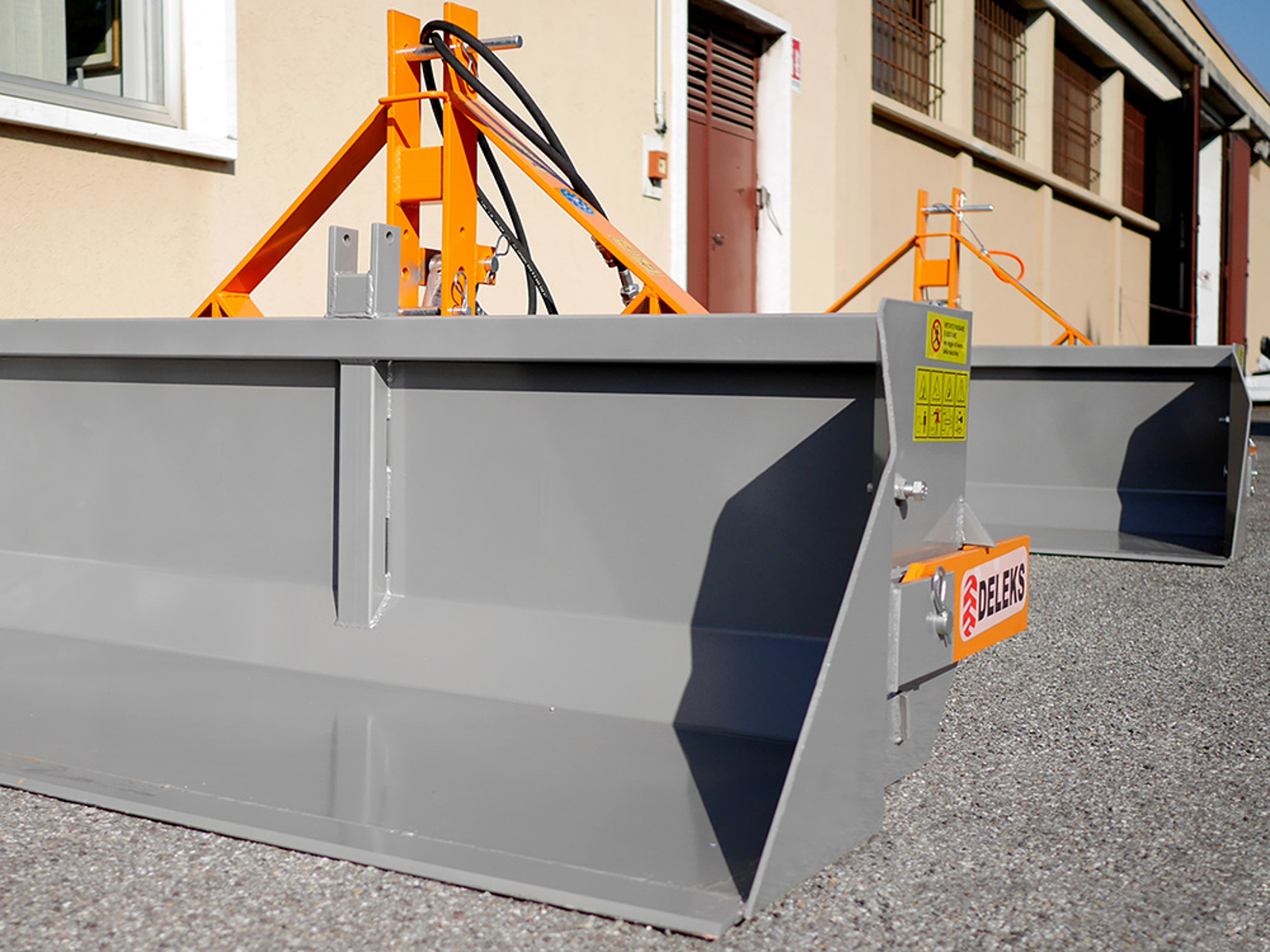

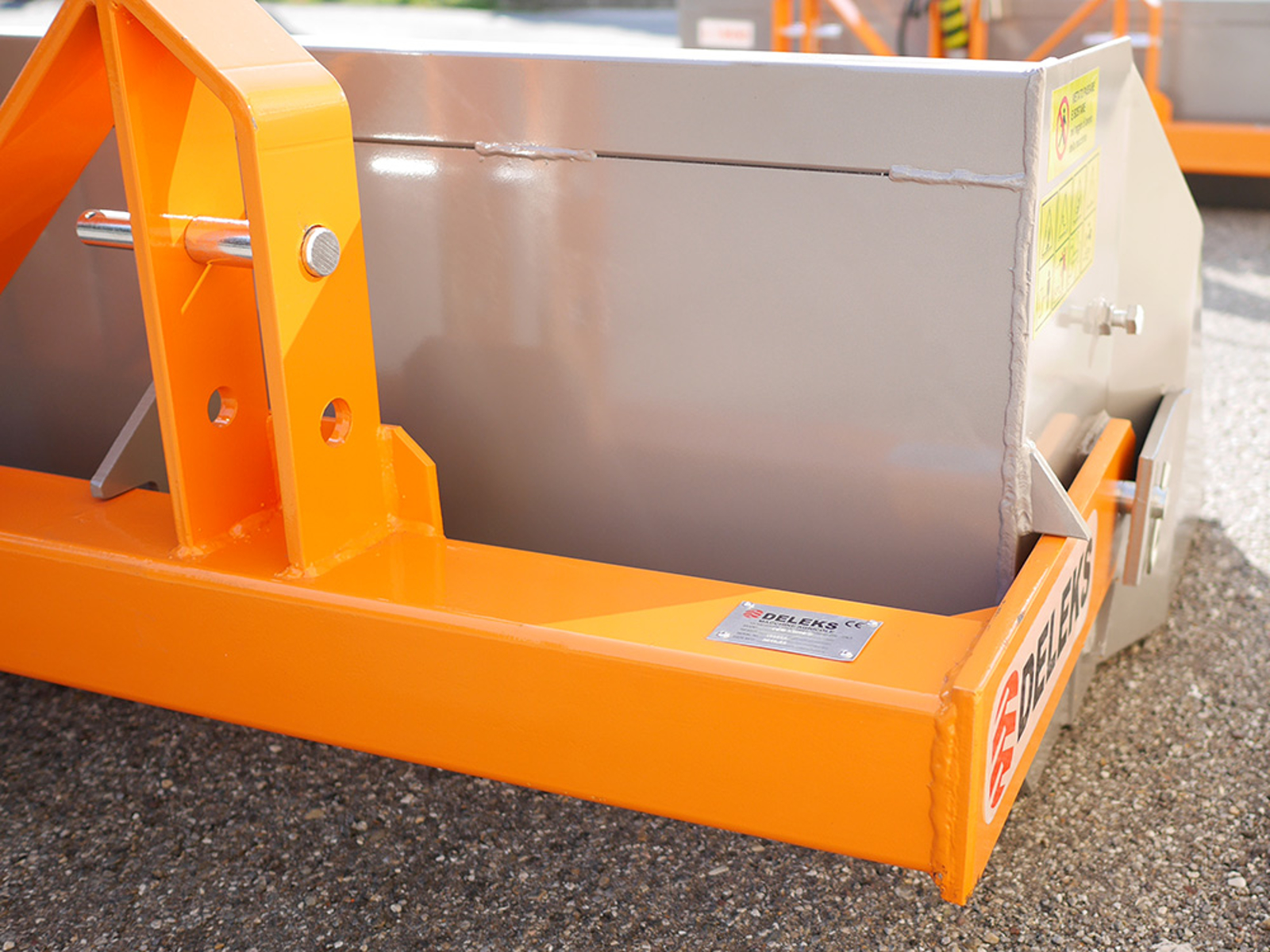

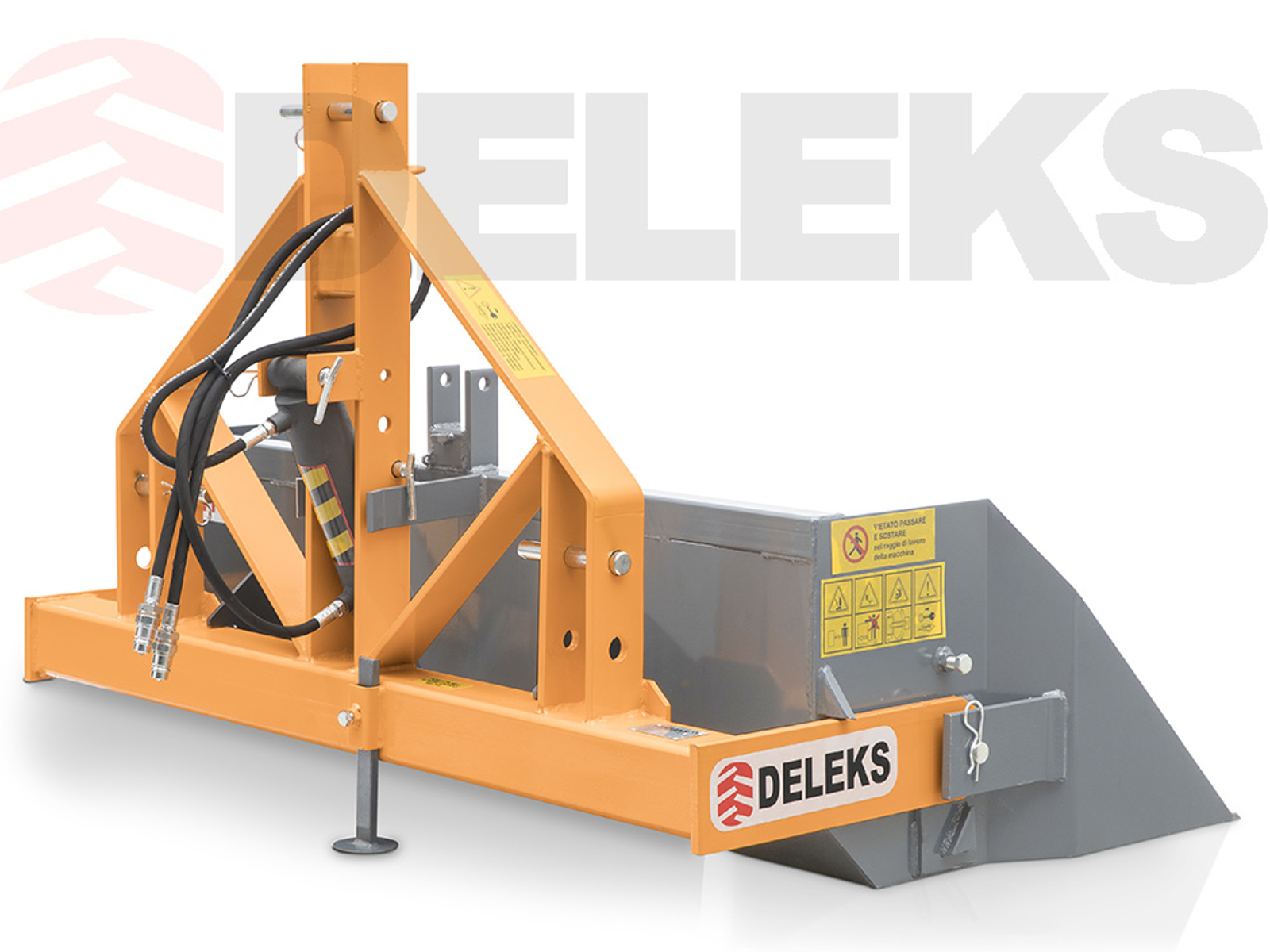

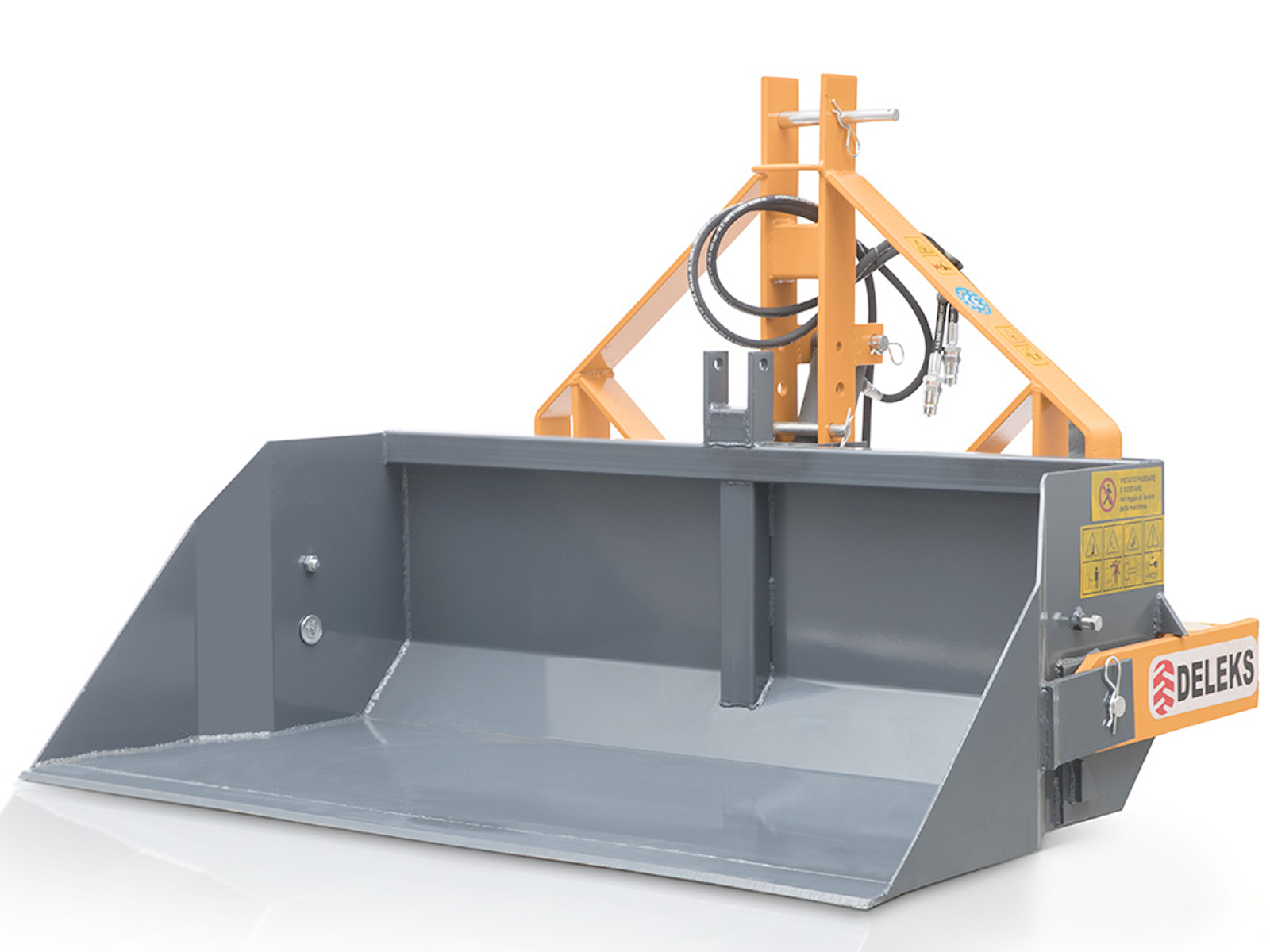

Hydraulic Transport Box 180cm DELEKS® for tractors - Heavy design allows loading up to 700kg - hydraulic tipping system - 1.0 cm hardened steel base.


OVERVIEW

PRI-180-H heavy multiple use transport box is made from reinforced steel so can handle loading and transporting everything from sand to snow and Ice. It can also be used for digging, leveling, grading and dumping a variety of applications and materials. Hydraulic tipping mechanism operated from the cabin of the tractor. Suitable for 50-90HP tractors e.g Ford, FIAT, New Holland T4, T5,John Deere 4-5 Series, Kubota L-M, McCormick, Goldoni, CASE, Deutz-Fahr, Lamborghini Ego 55, etc. EC Conformity, 2 Year warranty.



BENEFITS & FEATURES

Heavy design allows loading up to 700kg.

Thanks to the hydraulic tipping system, the box can be tilted to any angle, so it can be used as a shovel or for scattering material.

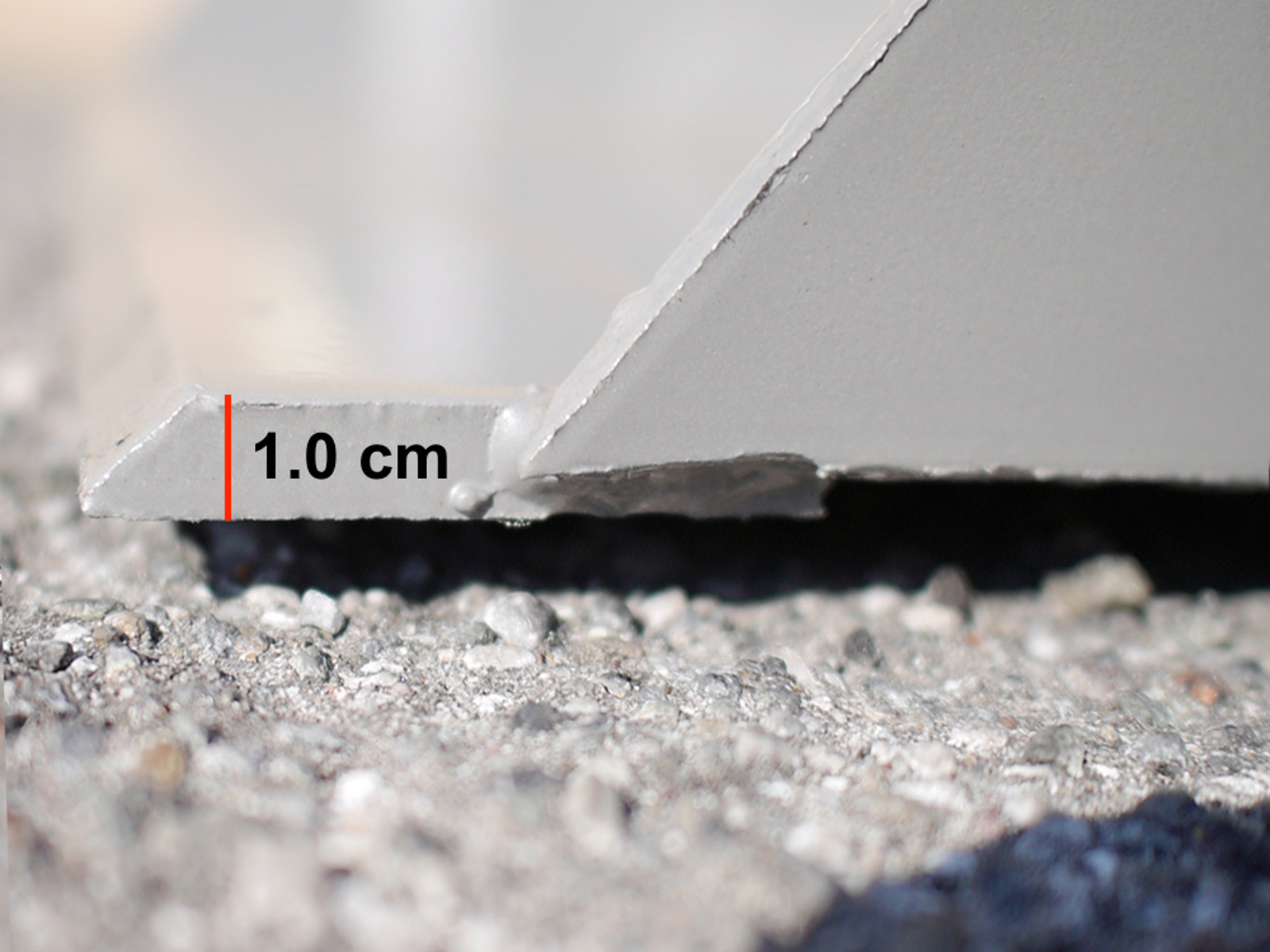

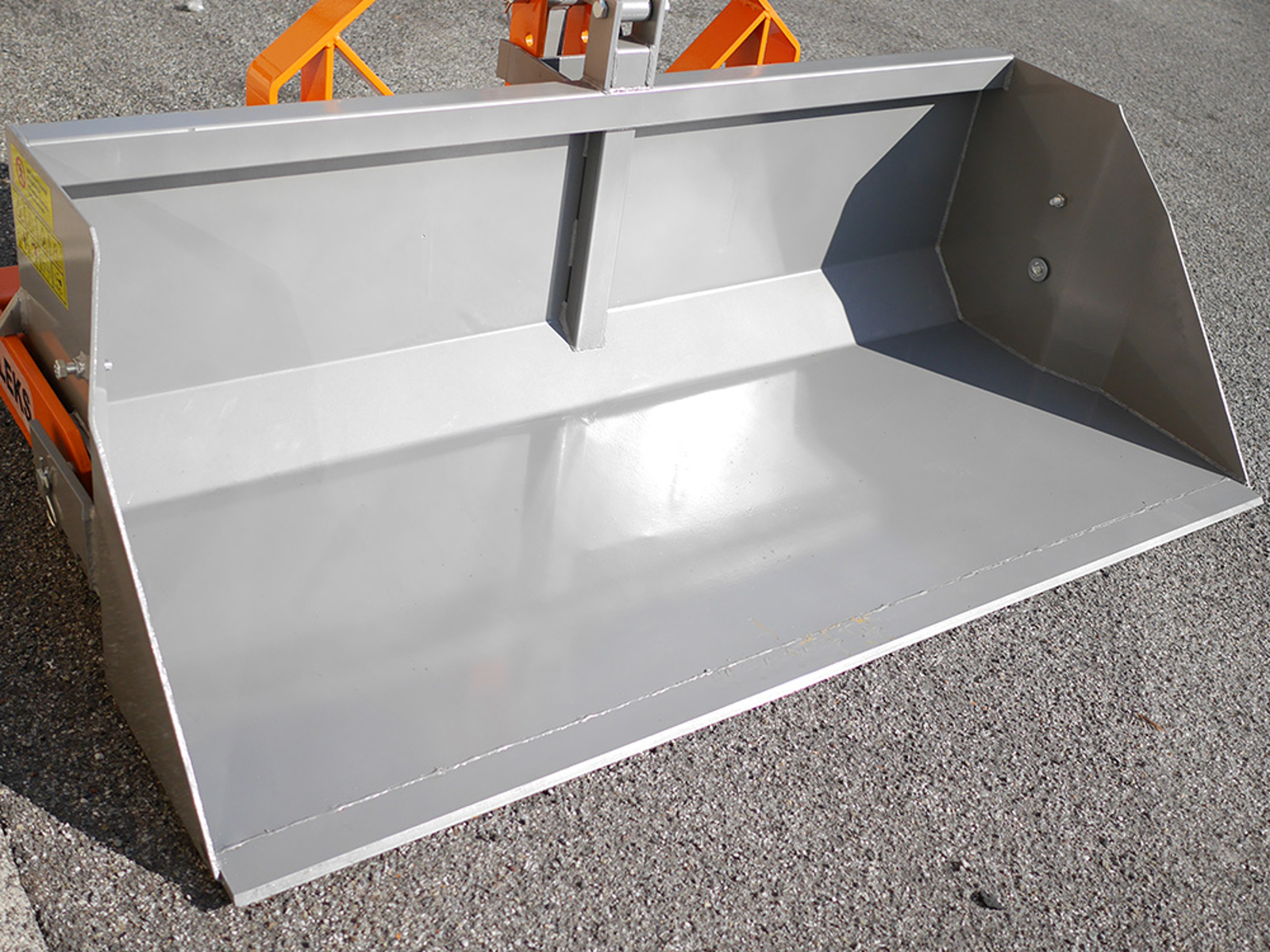

1.0 cm hardened steel base and side cutting edges provide excellent penetration and durability.

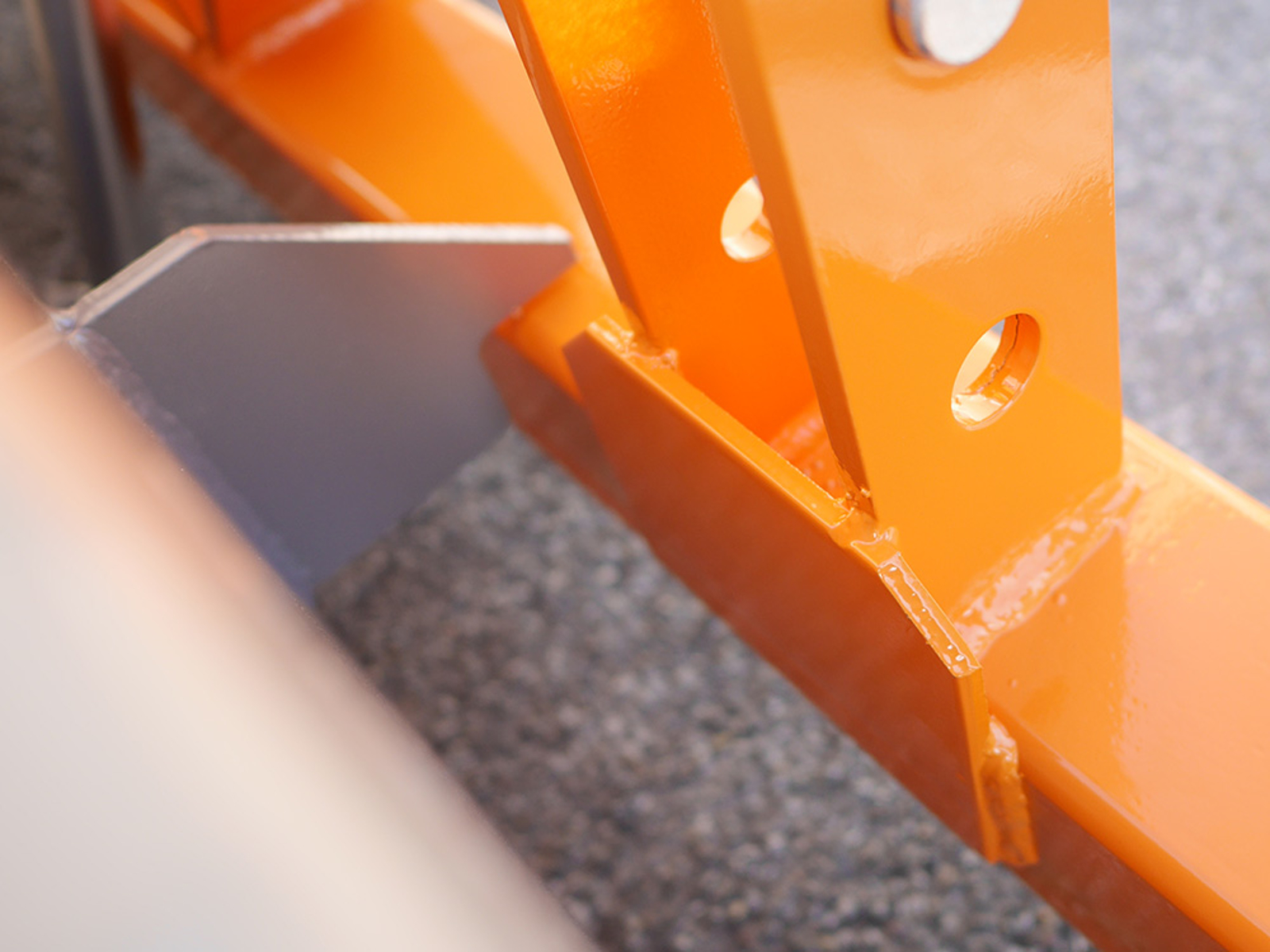

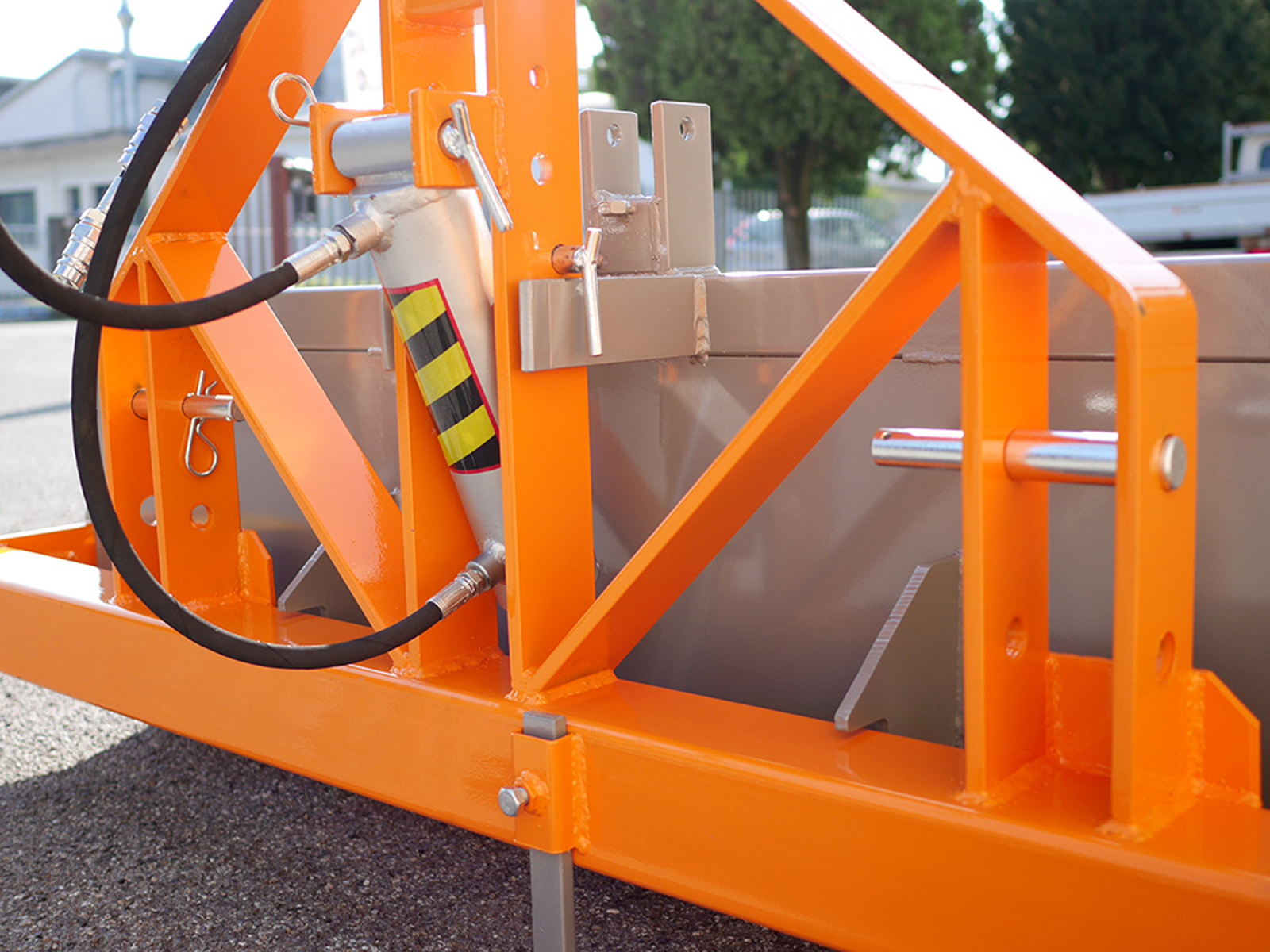

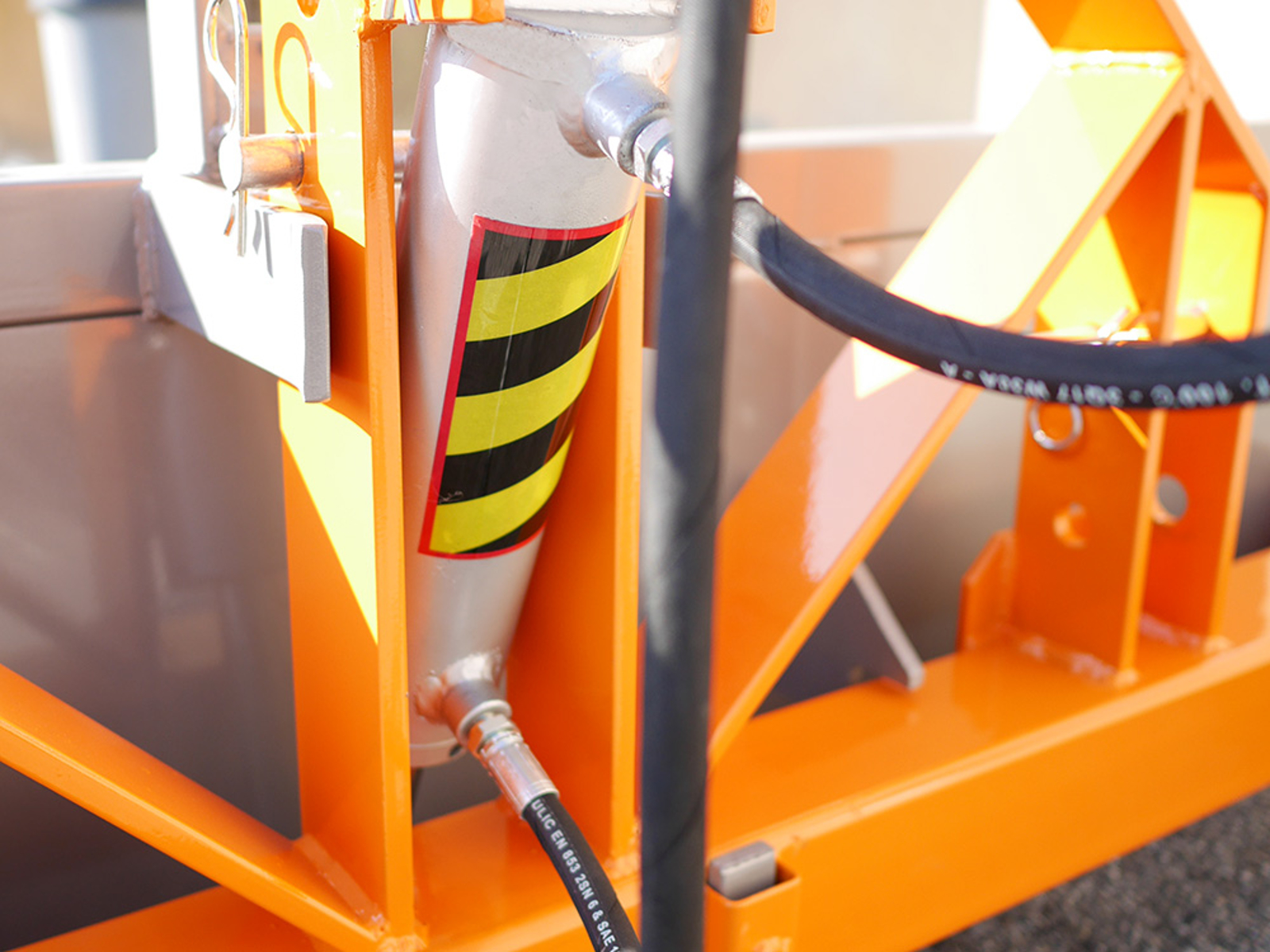

DELEKS® innovative weight distribution design lifts the box from the middle rather than the rear, meaning it does place unnecessary stress on the hydraulic cylinder.

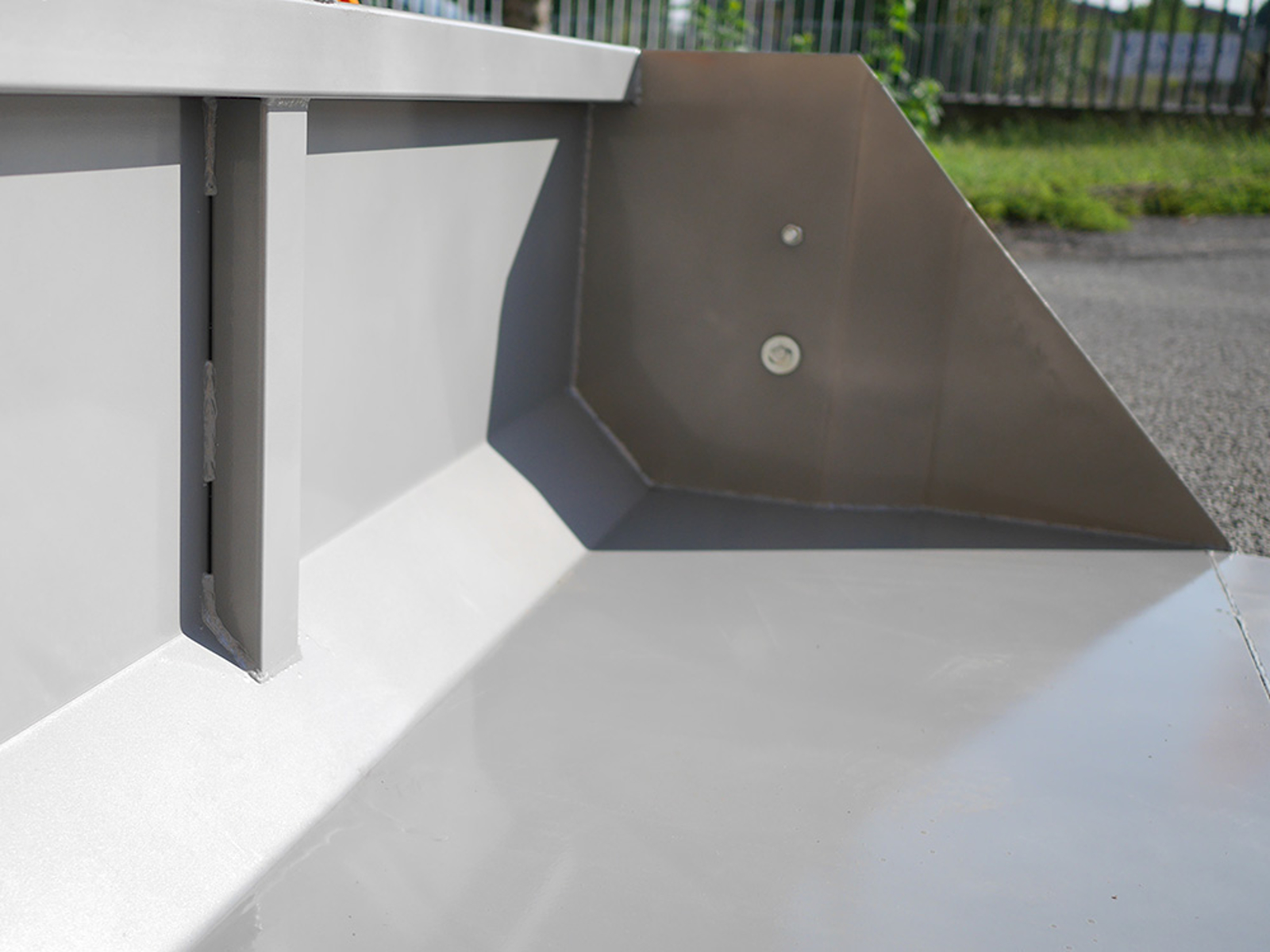

The lack of external attachments promotes the bucket fill for greater productivity as there are no addition edges that can catch.

+ 30 to 50% increased load volume capacity with the addition of a rear panel and upper net.

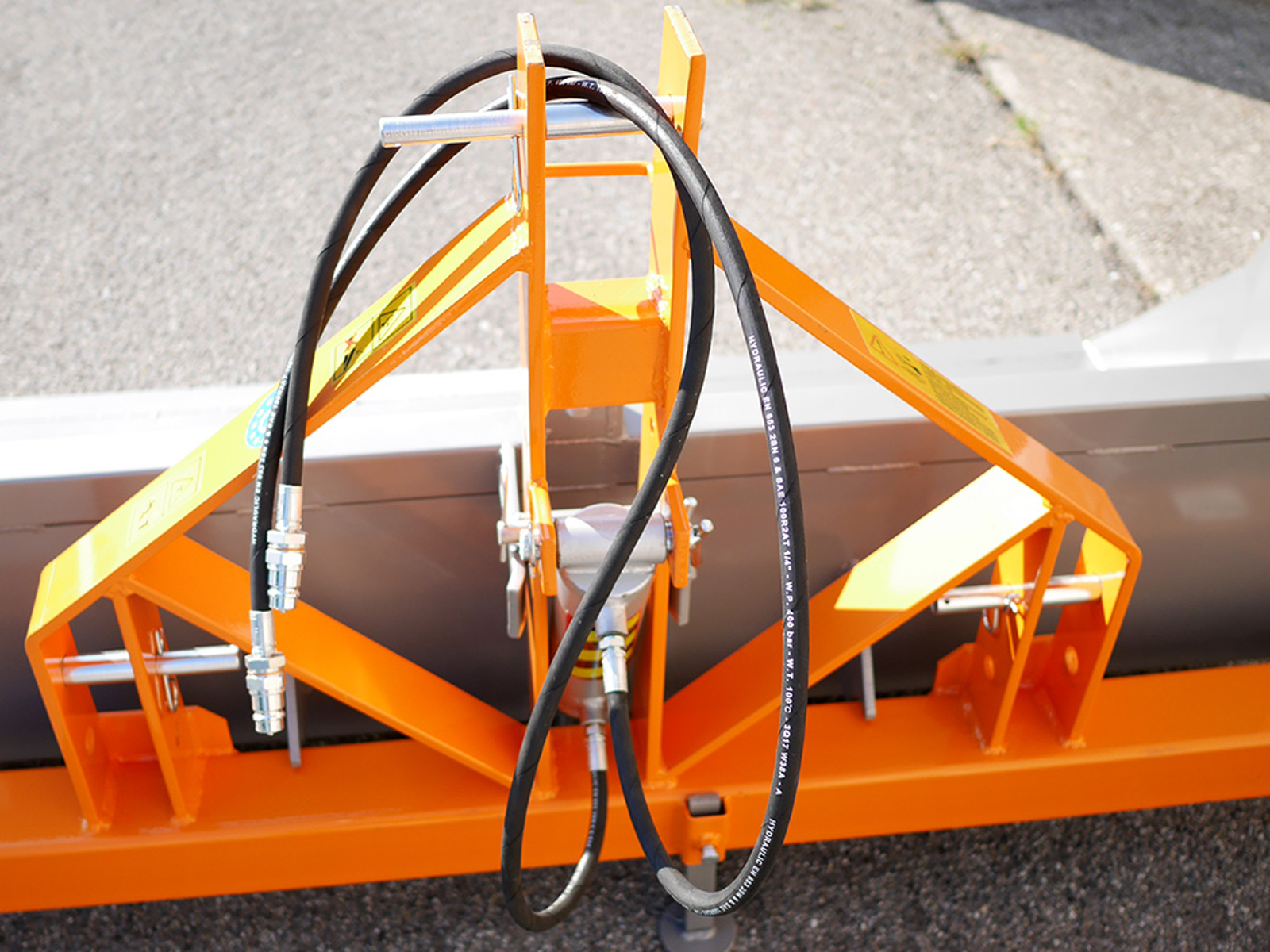

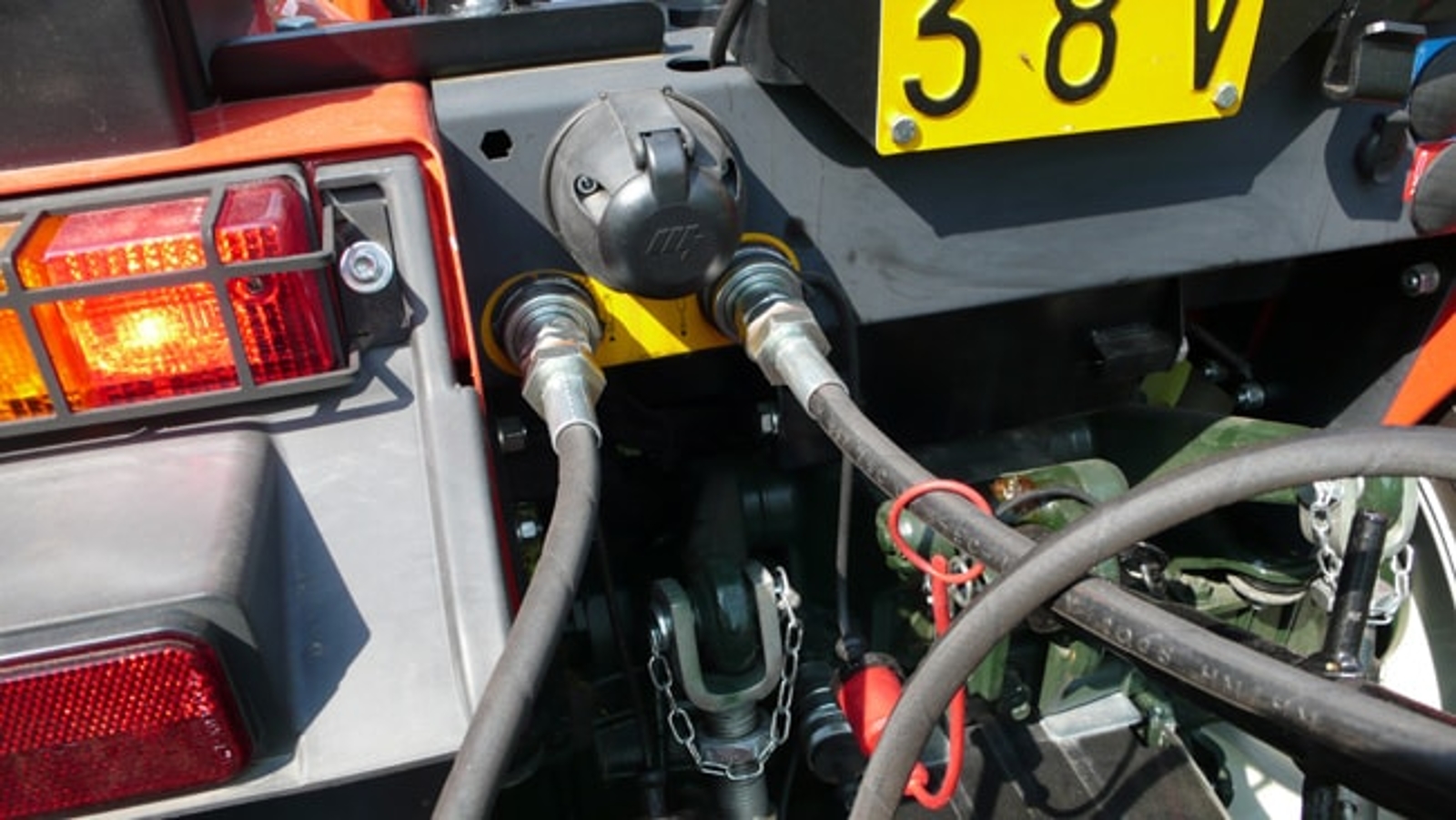

Standard hydraulic cylinder + 2 hydraulic pipes 1,50m with connections 1/2”.

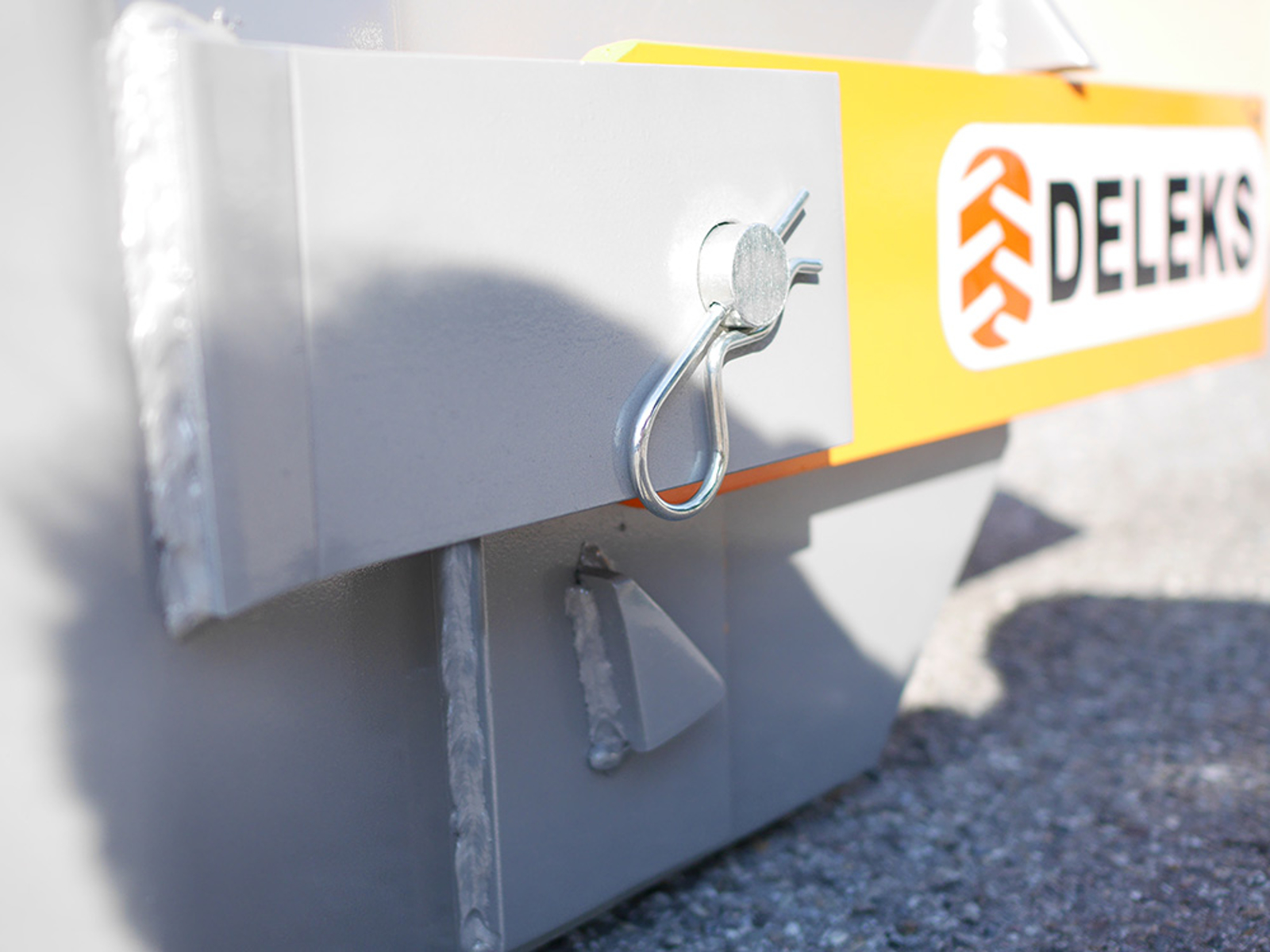

Safety pin facility to avoid tipping out contents unintentionally while on the road.



CHARACTERISTICS

Characteristic Units metric Units US
Overall width 1820.0 mm 5.97 ft
Weight 238.0 kg 524.0 lb
Overall height 935.0 mm 3.70 ft
Tractor Power Range 50 - 90 Hp 50 - 90 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0 mm) Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0 mm)
Bucket Width 1800.0 mm 5.90 ft
Load capacity 700.0 Kg 1543.0 lb
Rated bucket Capacity 0.56 m3 22.05 in3
Cutting Edge Thickness 10.0 mm 0.40 in
Base Edge Thickness 6.0 mm 0.23 in
Bucket Height 520.0 mm 1.70 ft
Bucket Length 800.0 mm 2.62 ft
Overall Length 1000.0 mm 3.28 ft
3 point linkage Thickness 13.0 mm 0.51 in
Spacing between the 2 lower points 660.0 - 935.0 mm 26.0 - 36.8 in
Hydraulic Pipes (2) 1500.0 mm / connections 1.2" AGRI, WP-400 bar 60.0 in / connections 1.2" AGRI, WP-400 bar
Hydraulic cylinder ø 80.0/30.0 mm 3.15/1.18 in
Dumping Hydraulic Hydraulic
Tipping degrees 80° 80°
Min./Max. Relief Pressure 120 - 150 bar 120 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Packing sizes 1830.0*1100.0*1070.0 mm 6.00*3.60*3.51 ft
