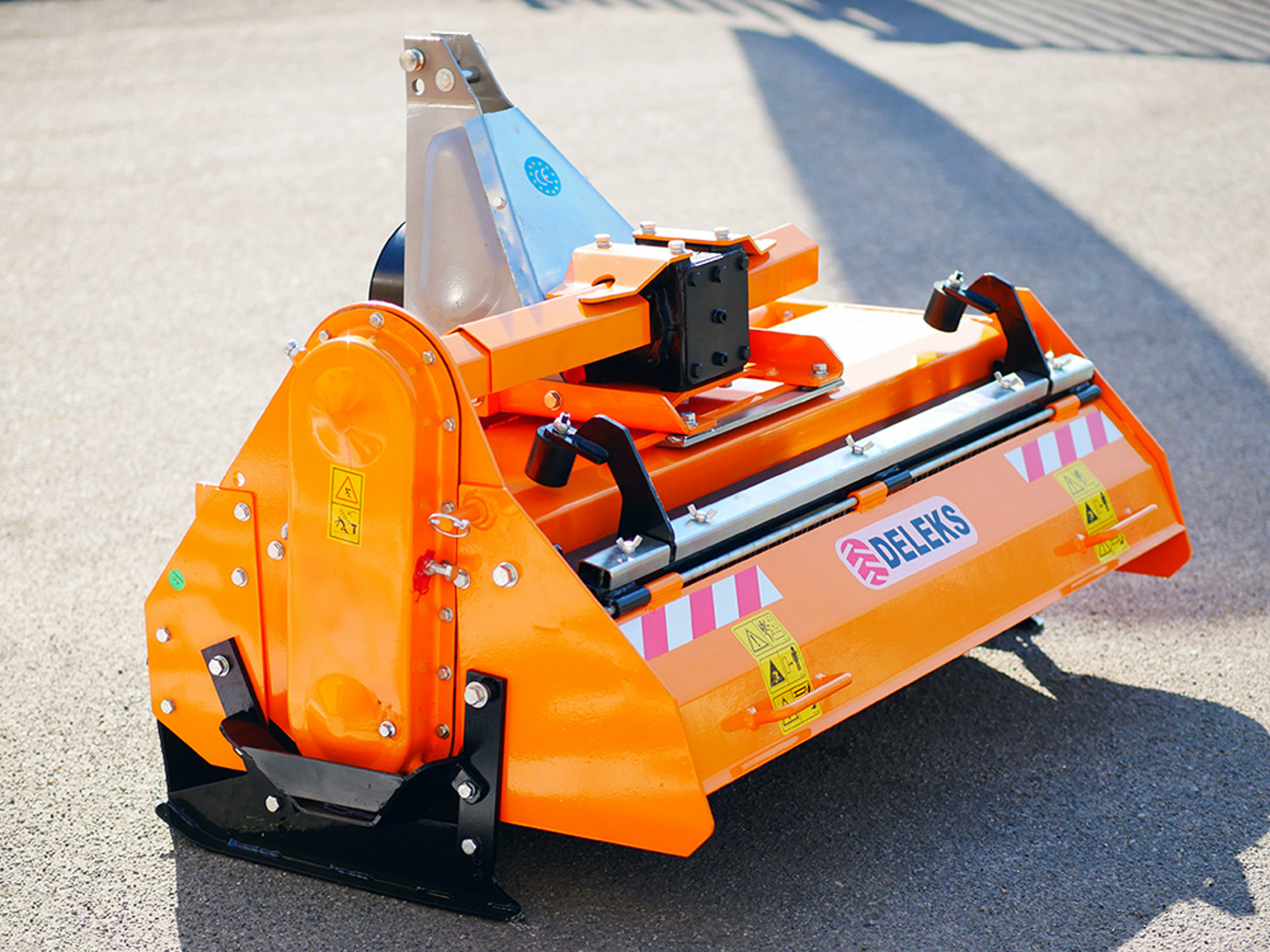

Shatter milling machine - mixture - facing bedding for poultry farms, mod. PAVO-140

Available
CodePAVO140
EAN 8053470235320
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

Shatter milling machine - mixture - facing bedding for poultry farms - 135cm - DELEKS - Innovative mixing machine for chickens and turkeys.


OVERVIEW

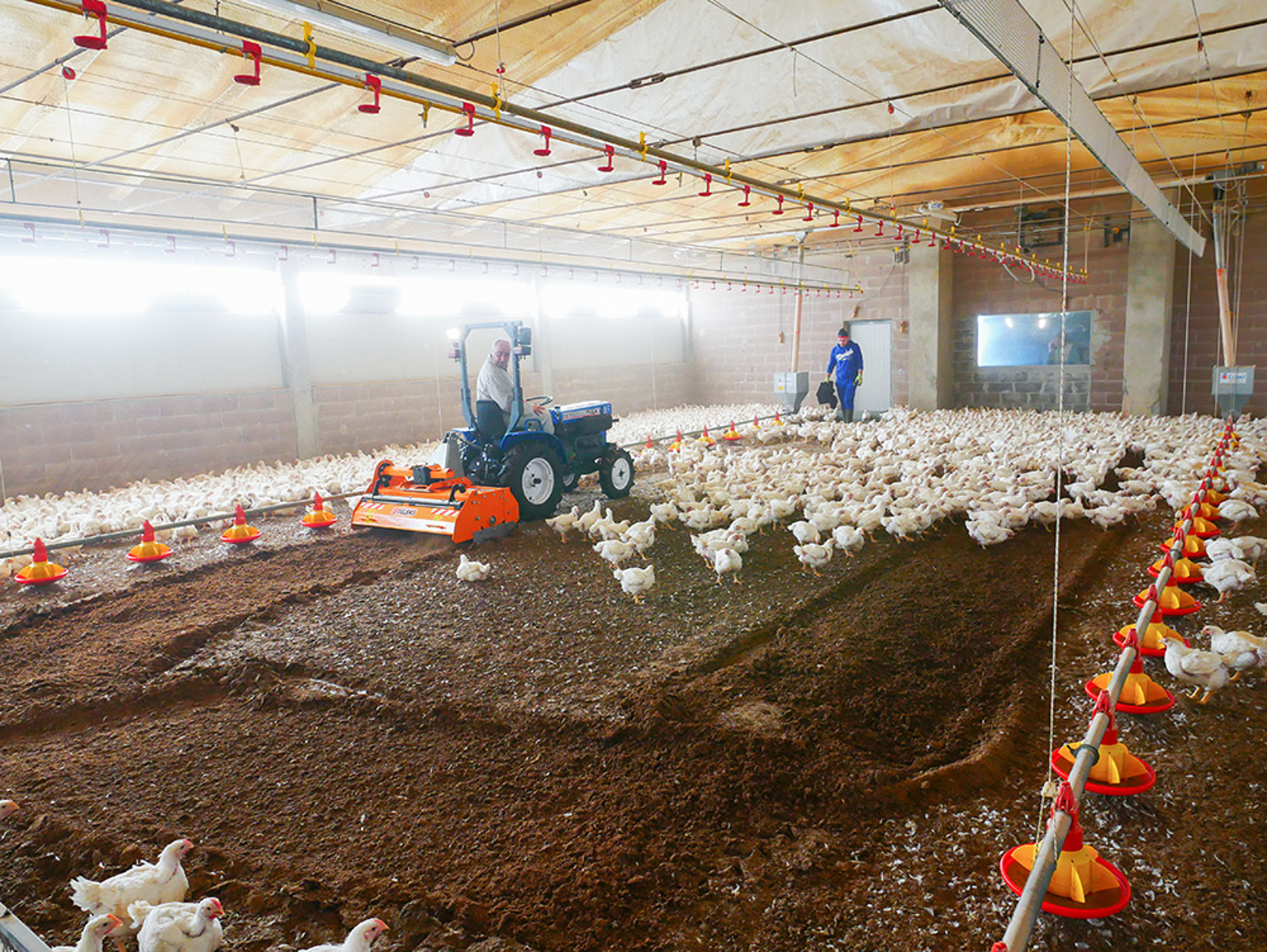

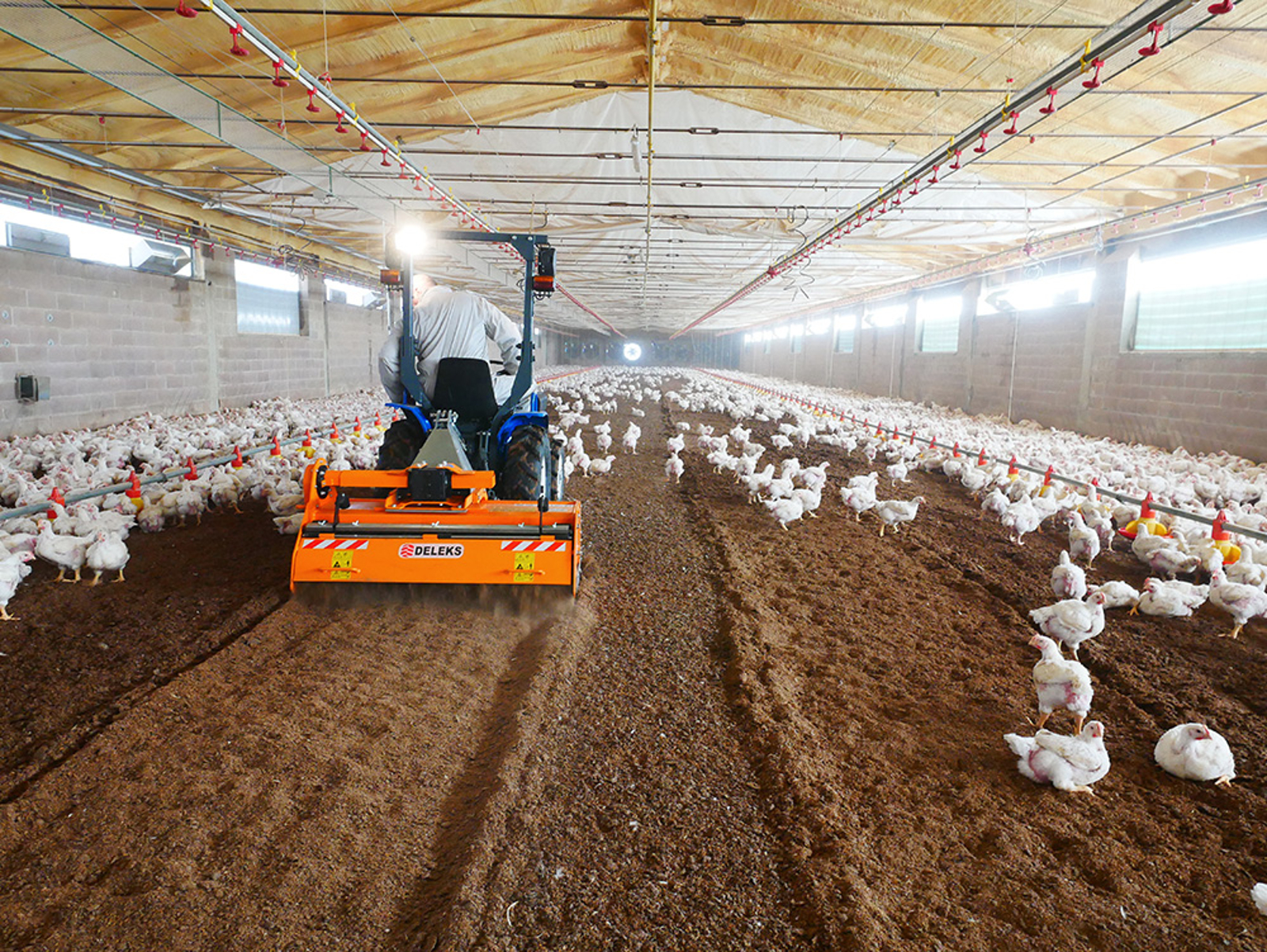

PAVO keeps the bedding clean, soft, airy and quickly renewed.

Prevents the formation of pavement crusting : detaches, raises and shatters the hardest and most dry part of the litter attached to the ground.

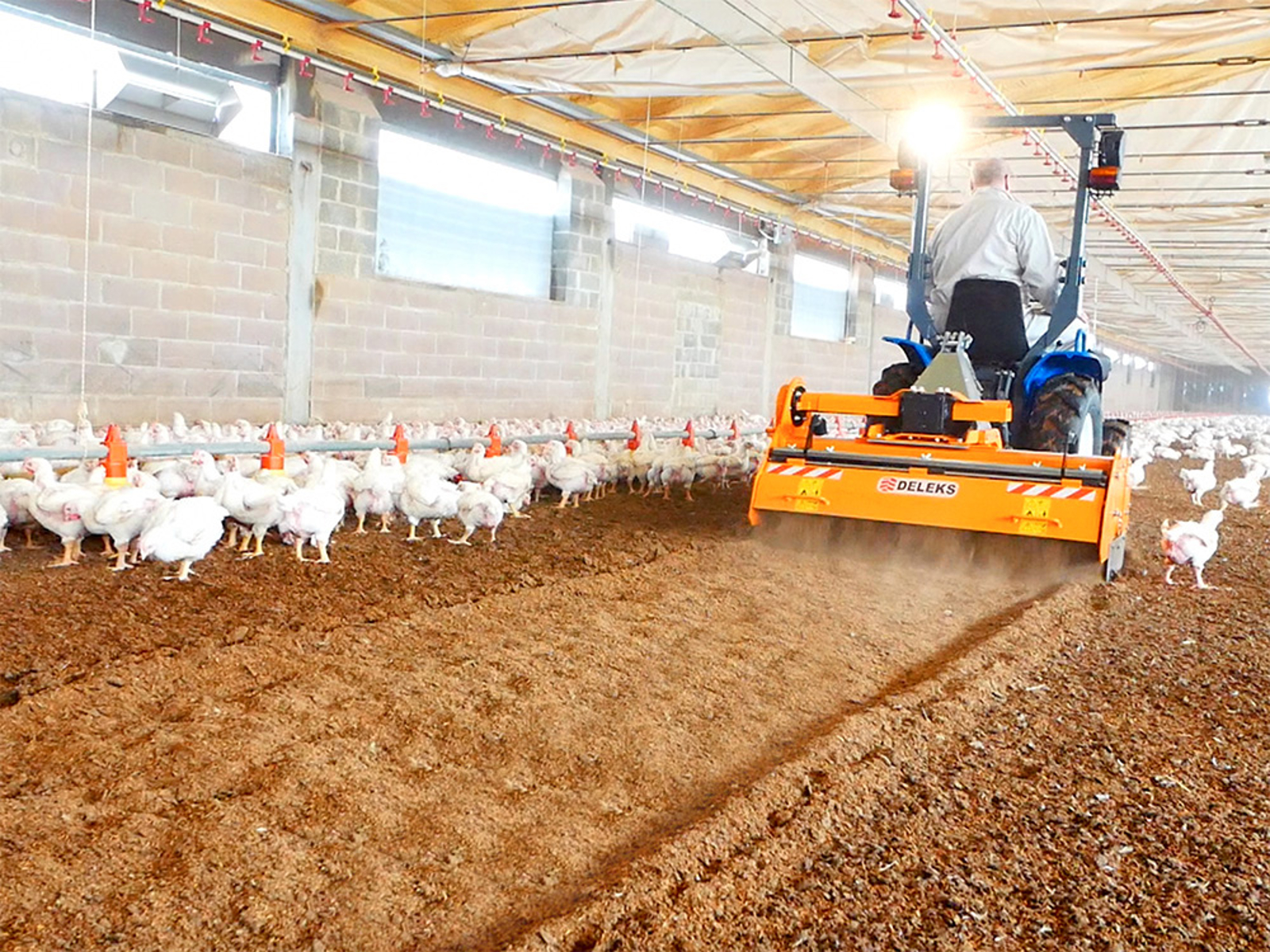

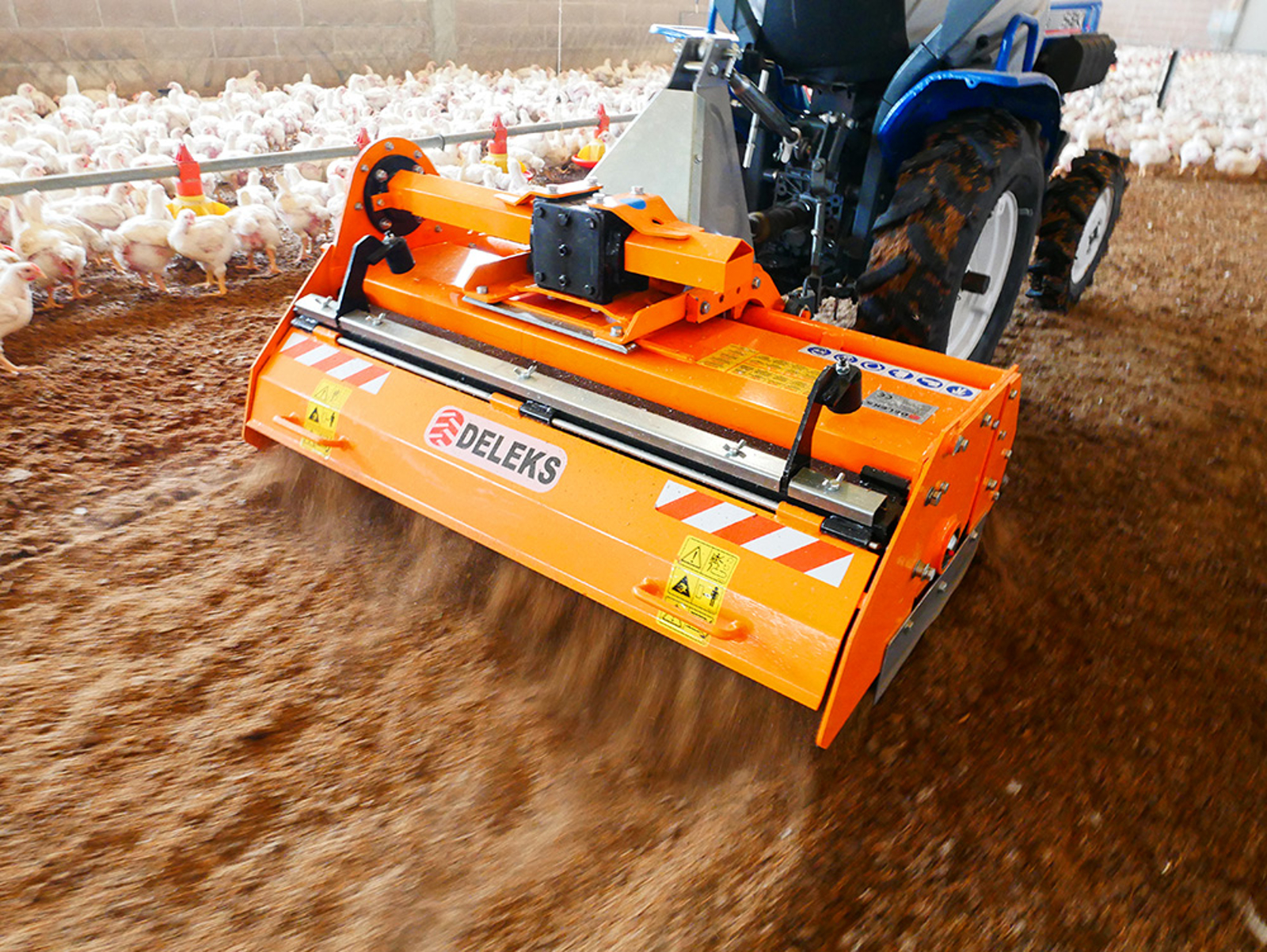

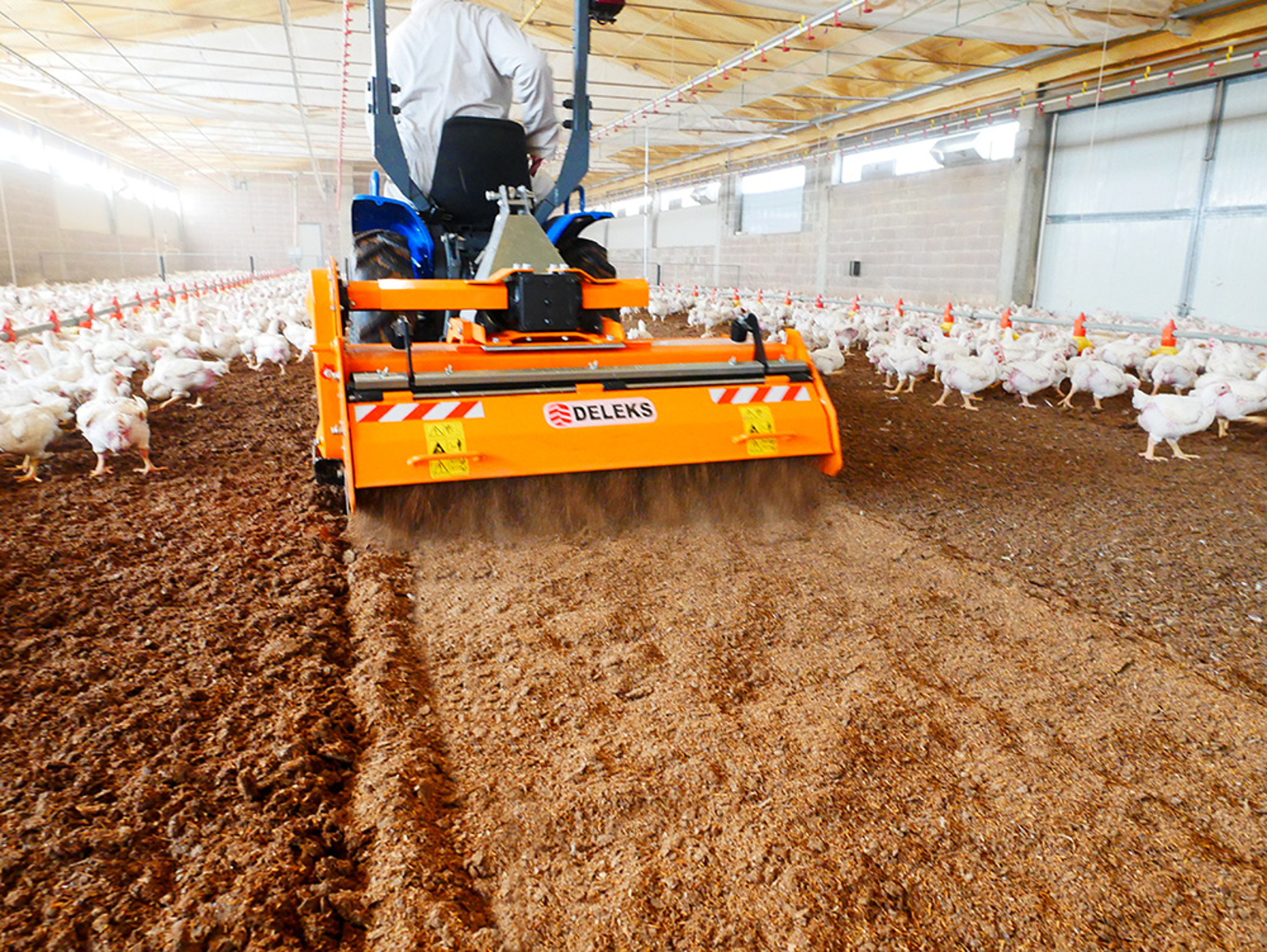

The machines hoes mix and turn all the layers of the litter and distribute the dry chips on the surface.

The humid part is mixed and, due to the effect of the greater weight, falls to the ground first, and then covered by the dryer and lighter part.

This greatly reduces the formation of odors, the presence of insects, and the strong smell of ammonia.


The speed of intervention allows the complete reverse of the litter during the day. The advancement speed is on average 3-4 km / h, but depends on the type of materials, the compactness of the surface crust and the working depth.

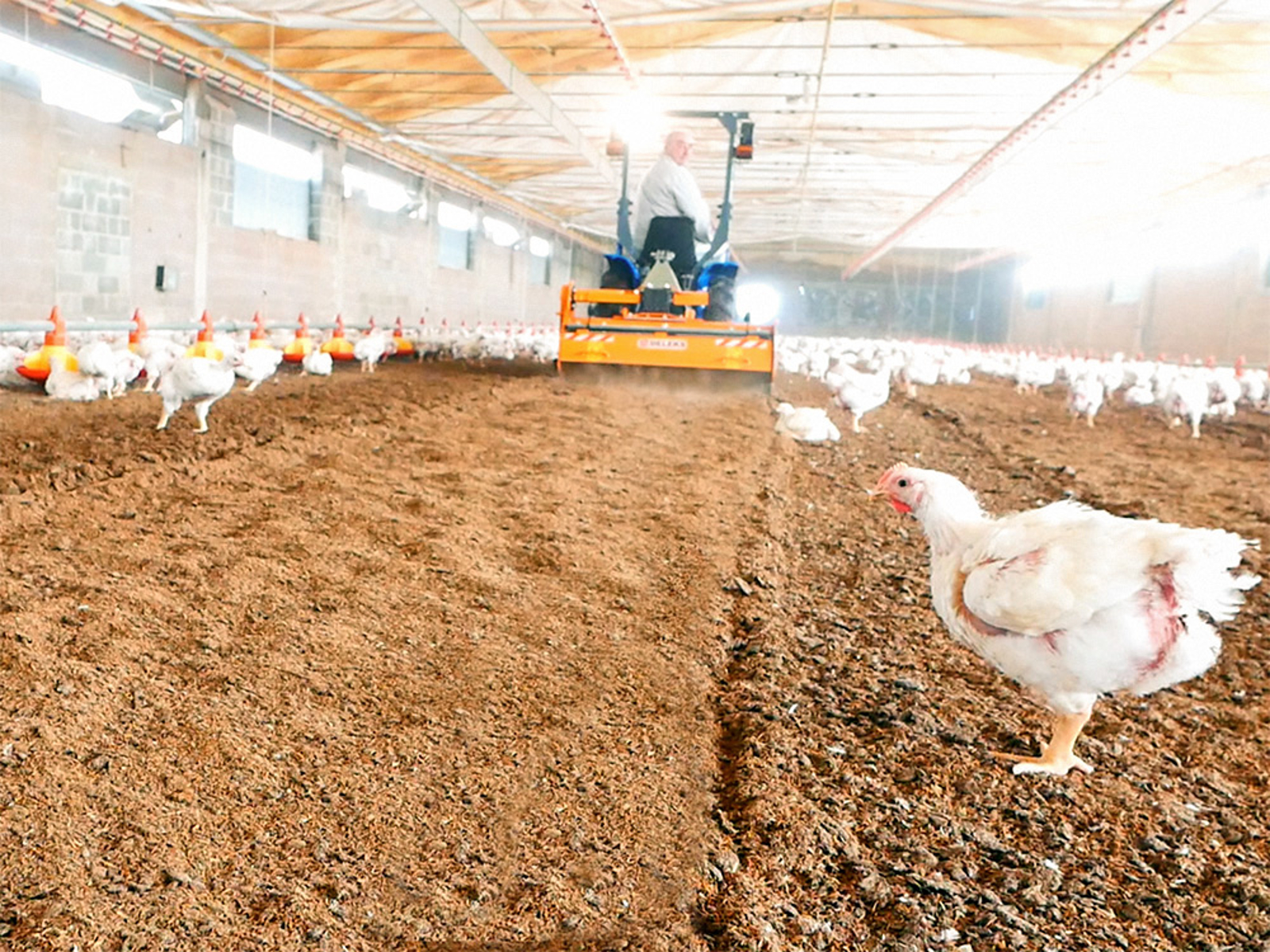

Thus, the animal comes to live in a dry and clean environment, with few unpleasant odors and with great benefit for the breeder in terms of:

Quality of production cycle management

Lower risk of infections

Well-being for operators working inside the warehouses

Economic performance of the farm





EQUIPMENT

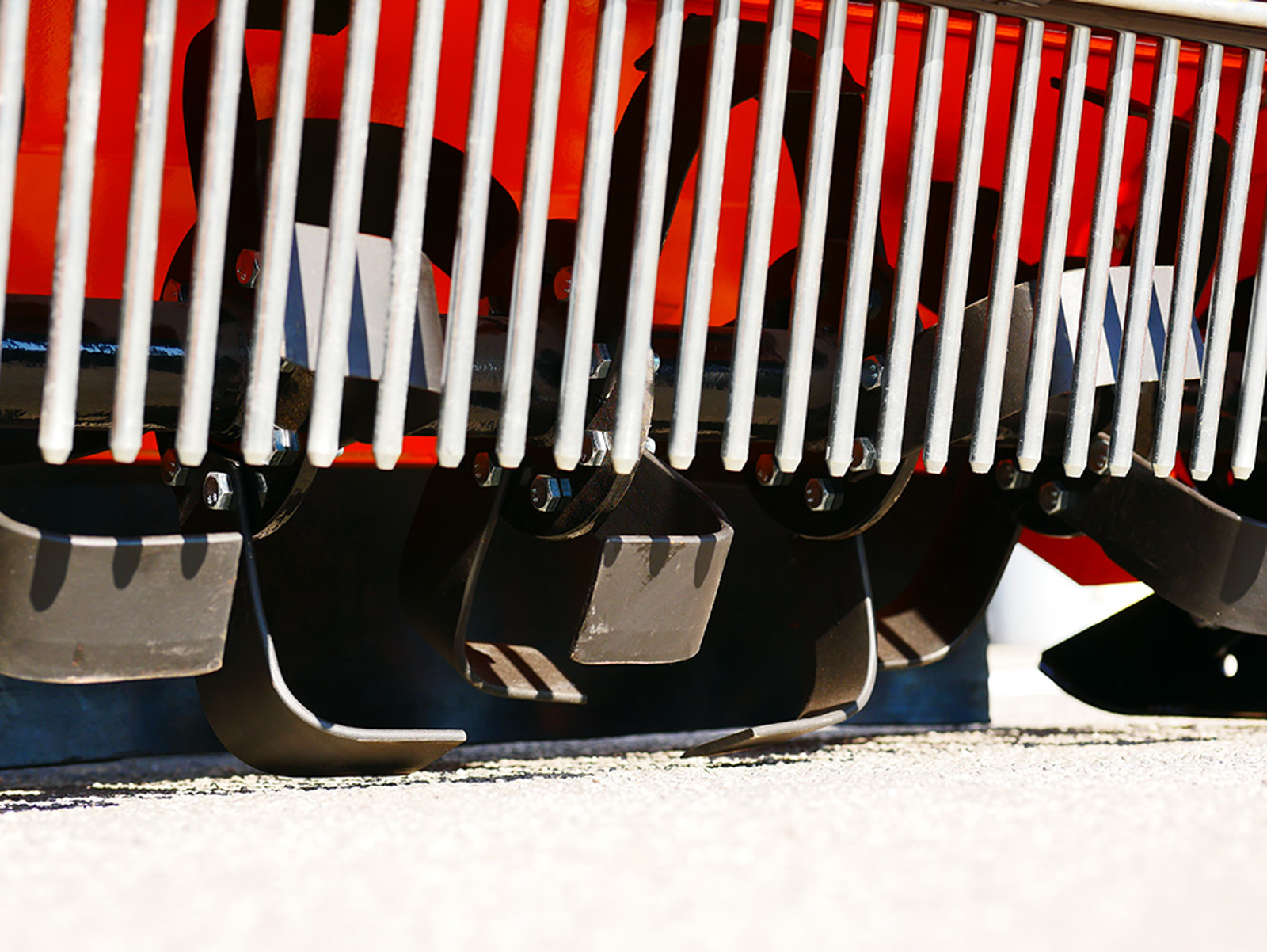

Counter-rotating rotor with flanges with 4 right-angle blades

Pair of slides adjustable in height, which place the hoes a few millimeters from the bottom, allowing a complete chip overturning

Side chain transmission in oil bath

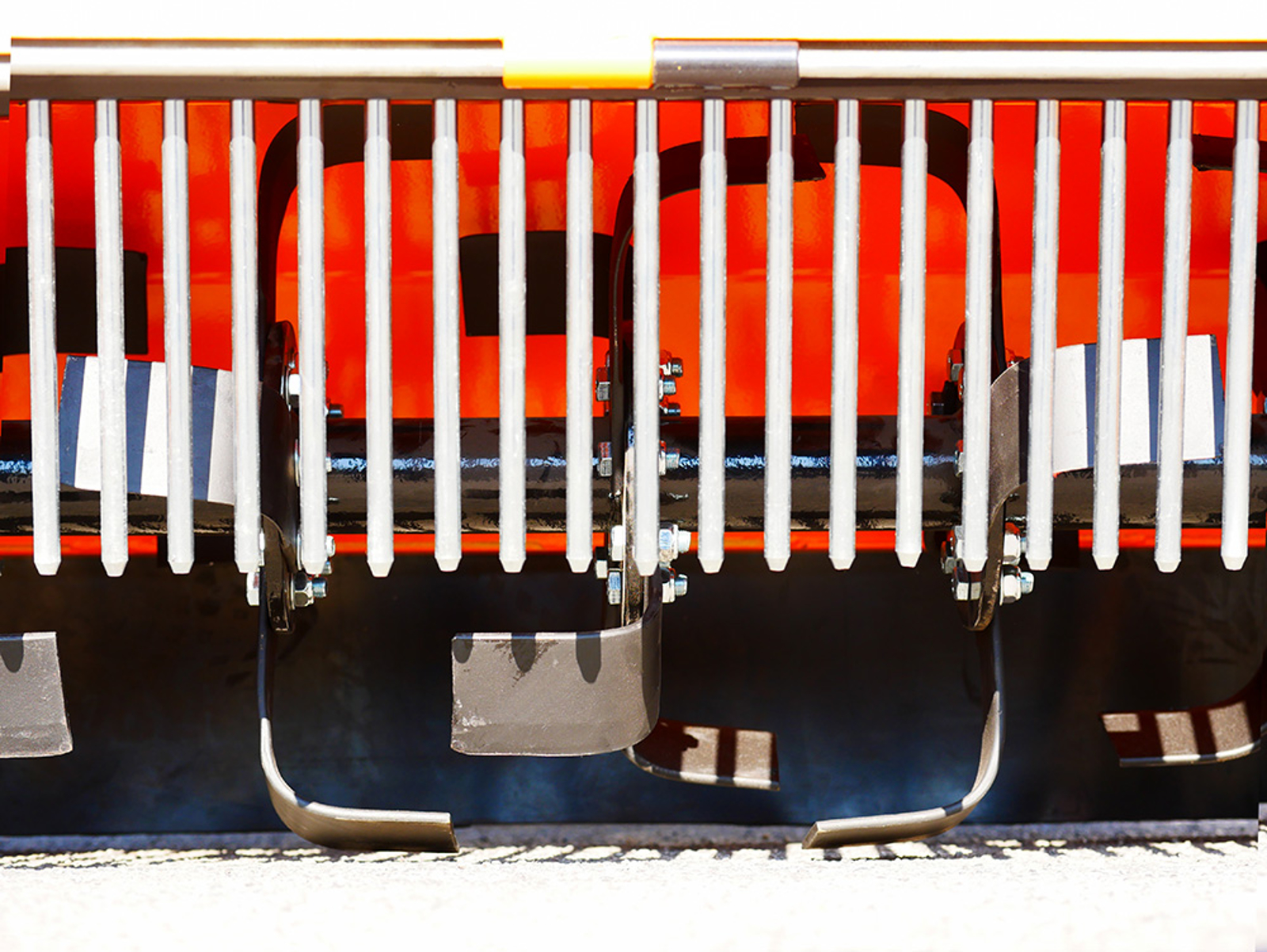

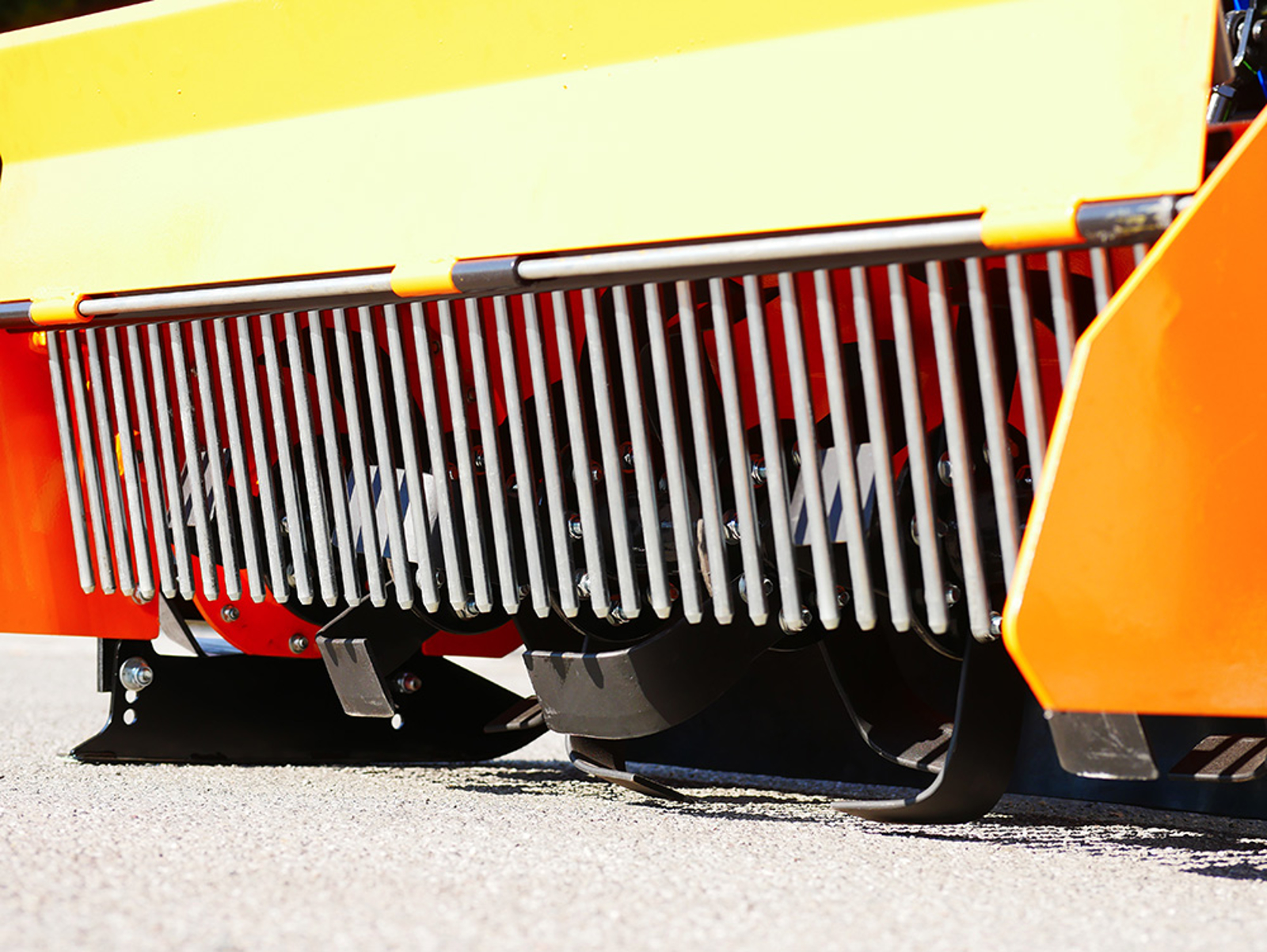

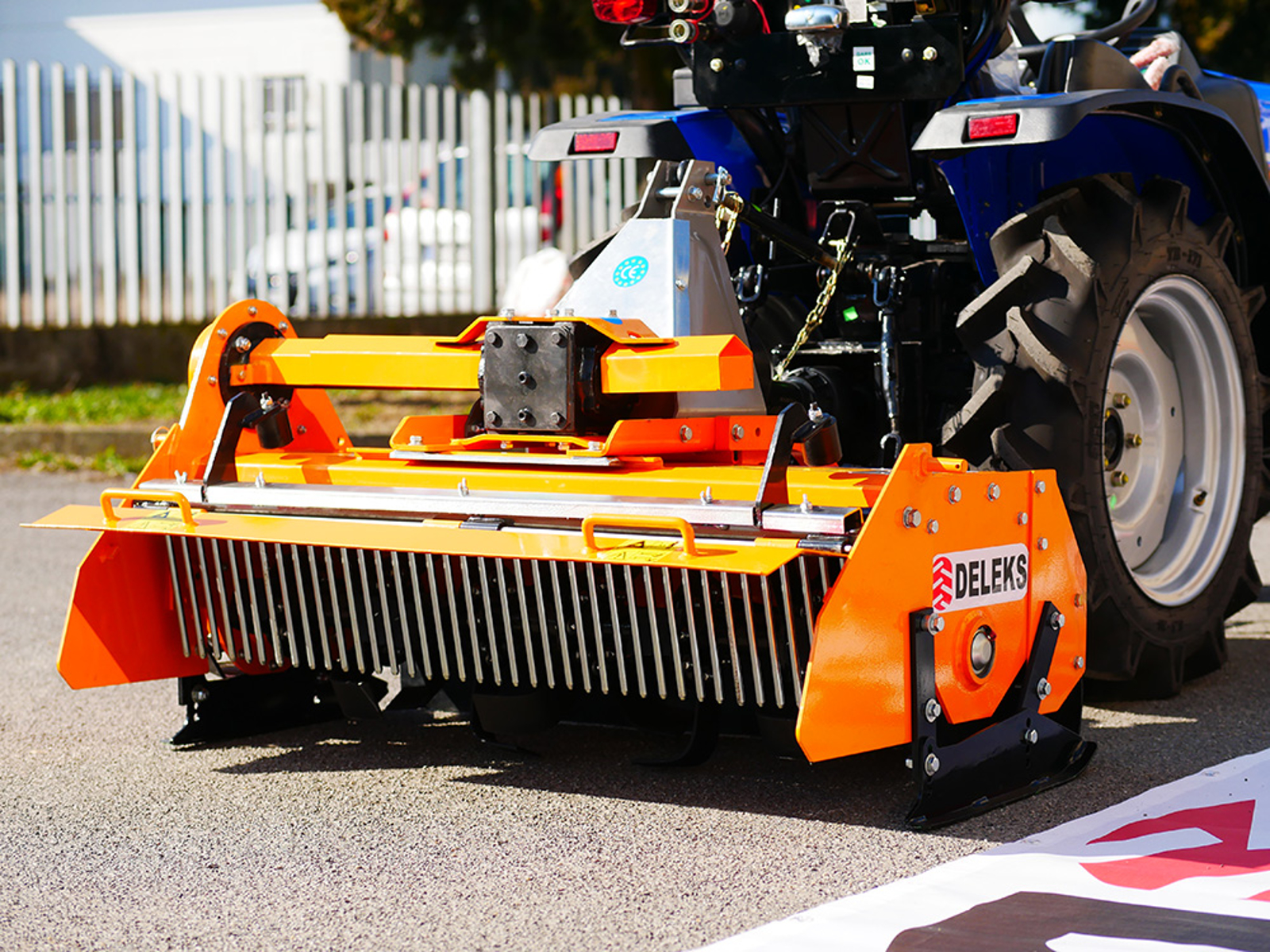

Rear rake to even the mixed material and improve the burial of the humid fraction.

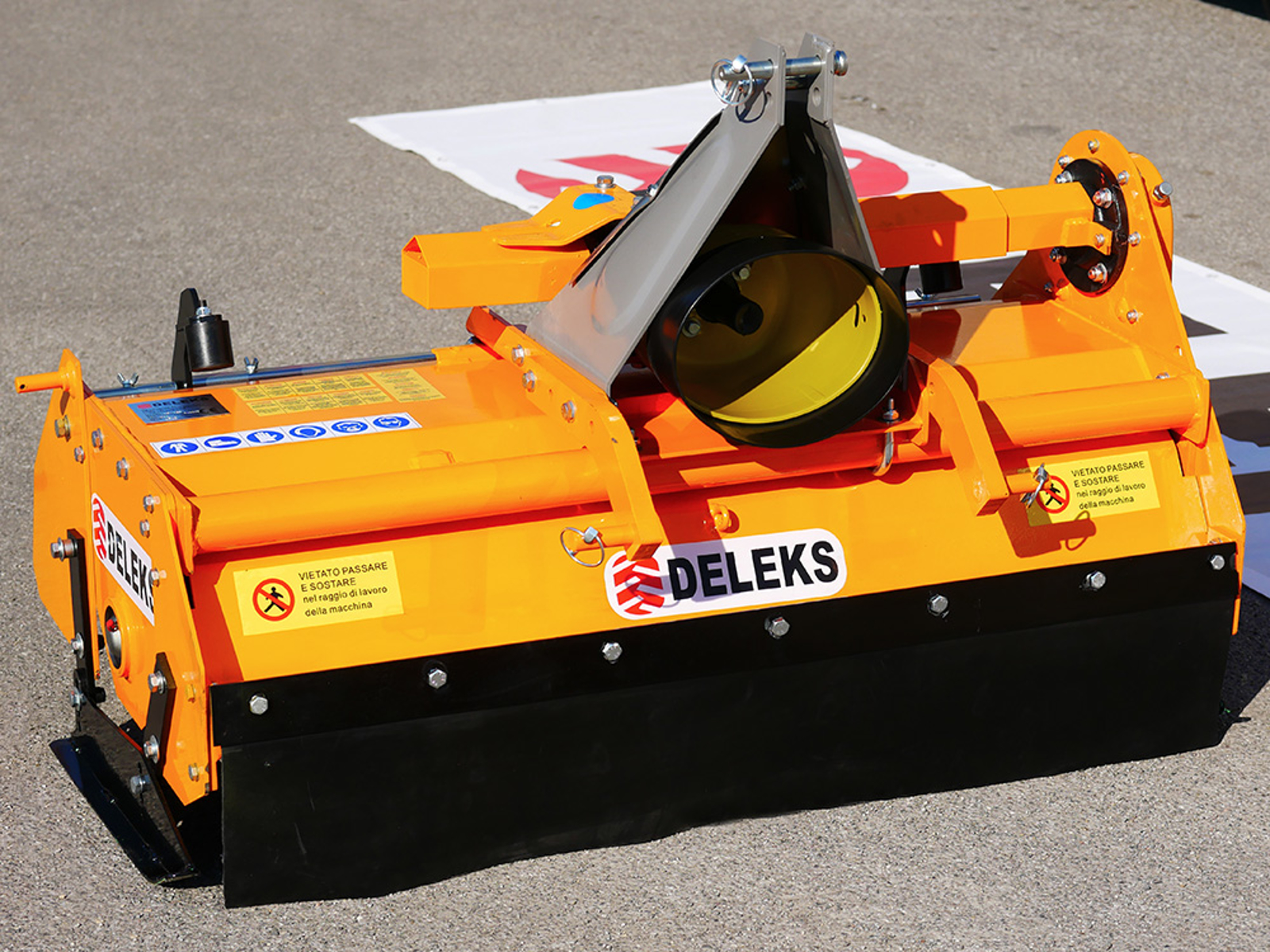

Front curtain protection in thick rubber to avoid the contact of hoes with poultry

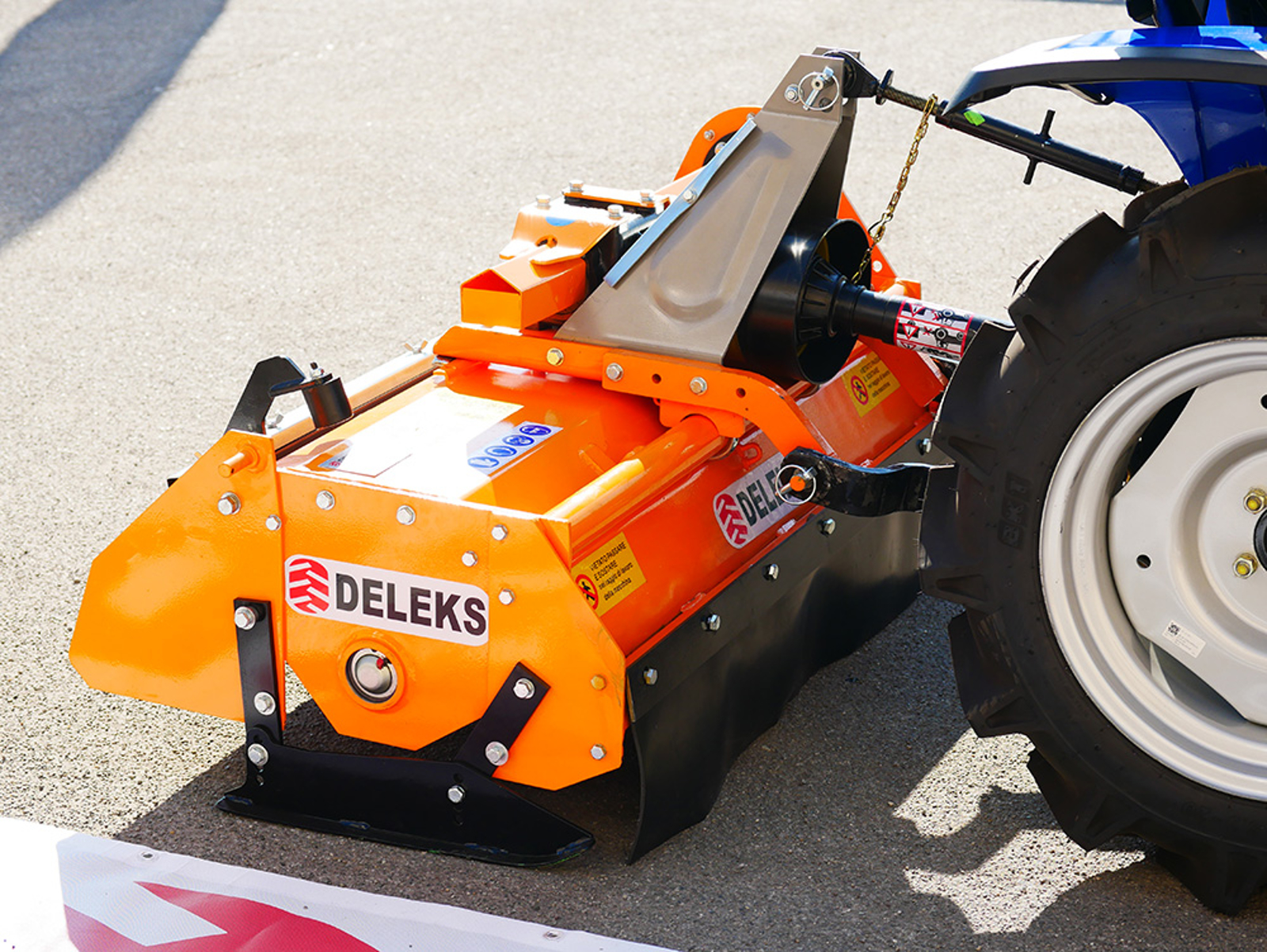

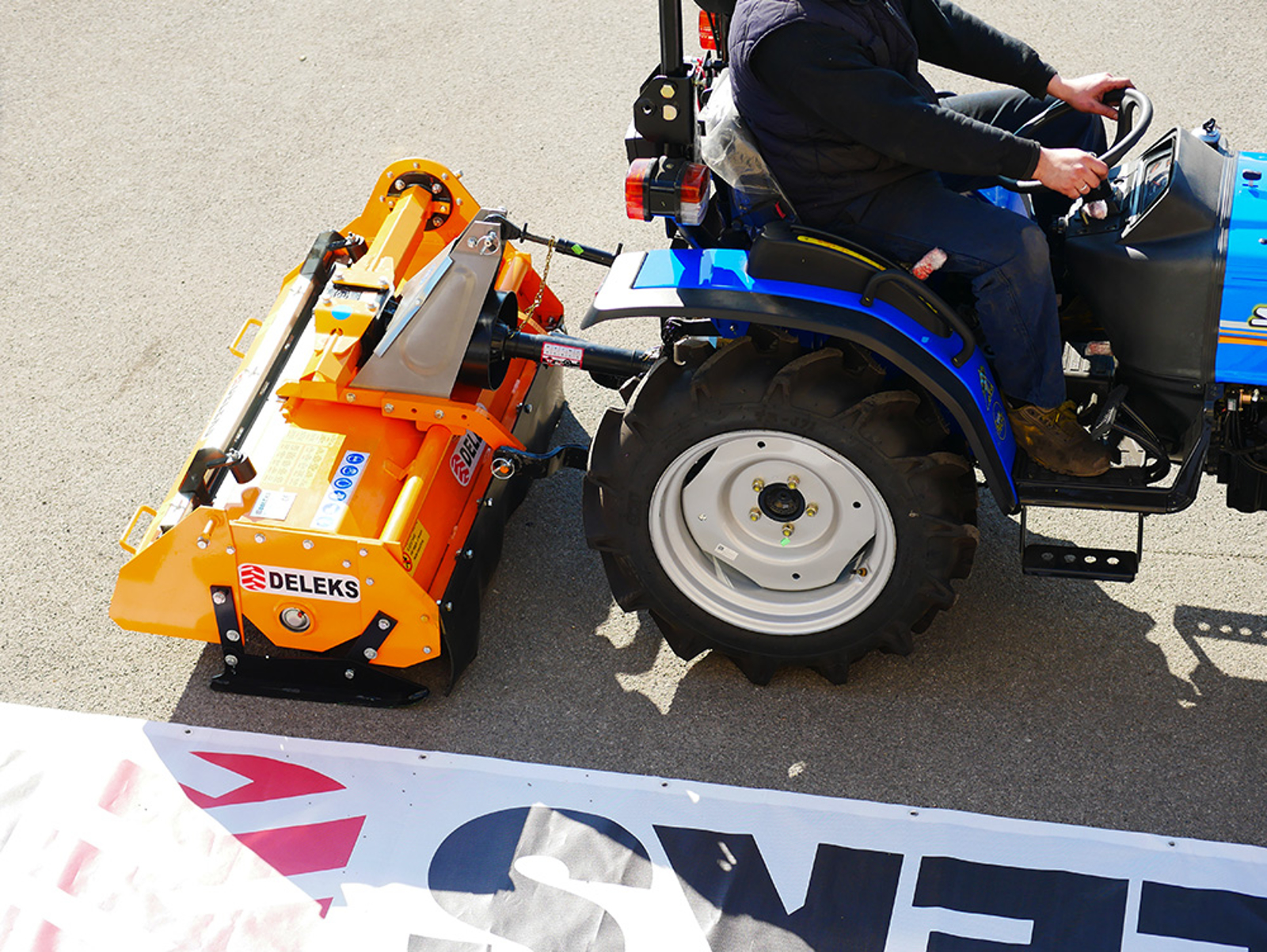

Mechanical sideshift (120 mm) of the 3-point attachment Cat. 1

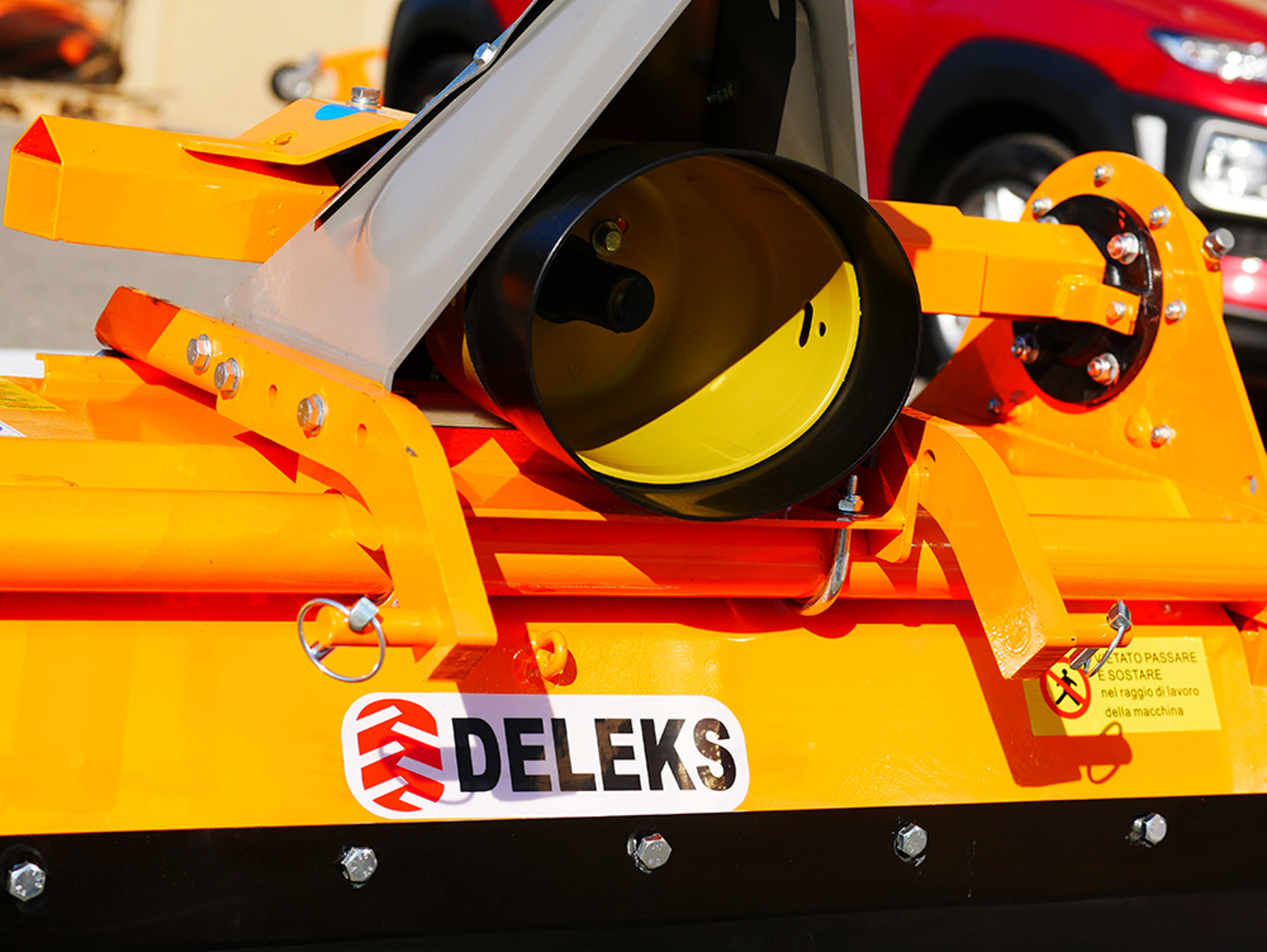

Multiplier 540 r/min

Rear panel openable

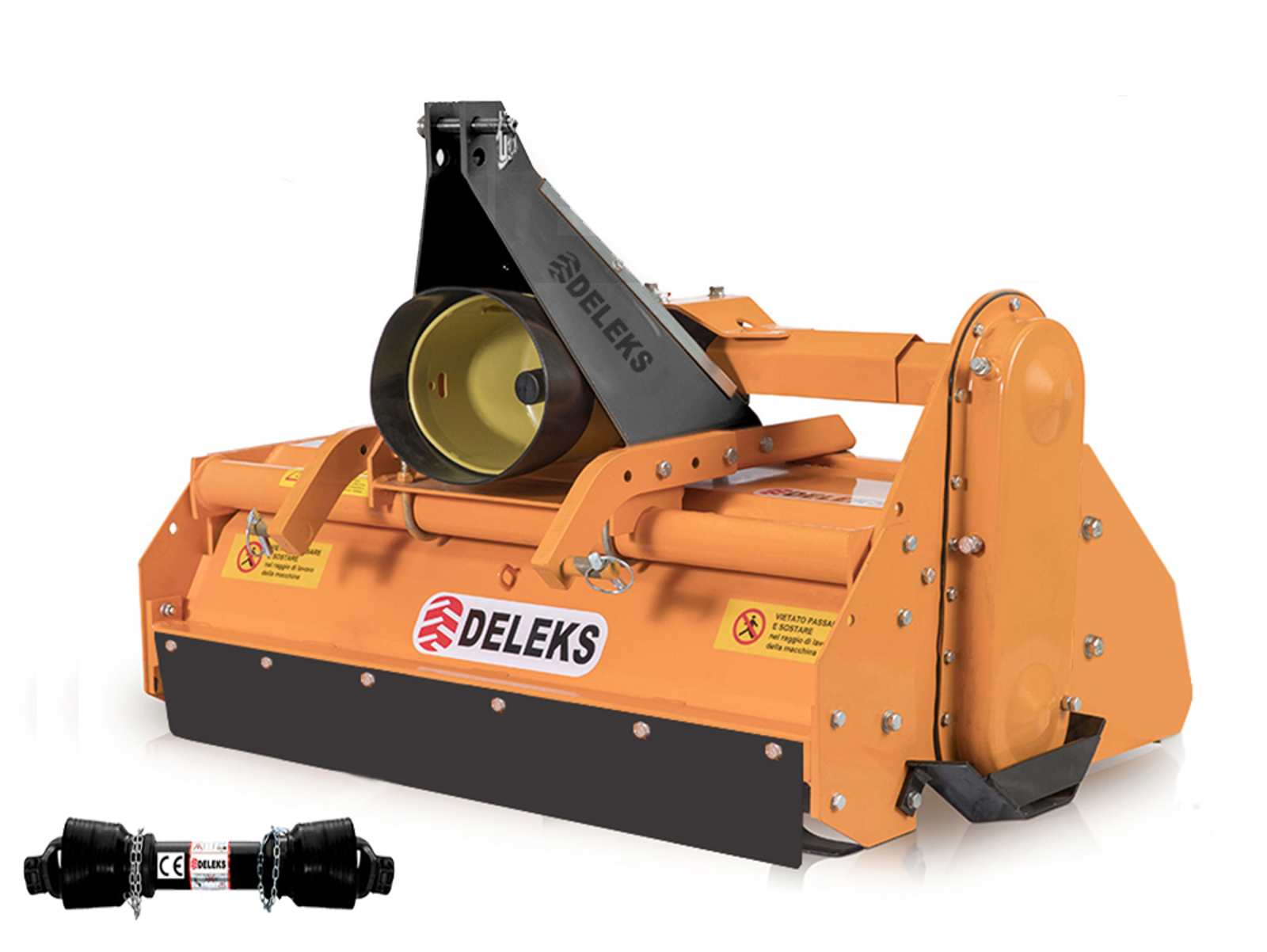

Cardan shaft CE cat. 4 x 700 mm.


VIDEO

CARACTERISTICS

Caracteristic Units metric Units US
Overall width 1450.0 mm 4.75 ft
Weight 280.0 kg 617.0 lb
Overall height 900.0 mm 2.95 ft
Tractor Power Range 30 - 50 Hp 30 - 50 Hp
3 point linkage Cat. 1 (ø 19.0-22.0mm) Cat. 1 (ø 19.0-22.0mm)
Position of the gearbox Central Central
Spacing between the 2 lower points 400.0 - 540.0 mm 15.75 - 21.26 in
Overall length 800.0 mm 2.60 ft
Rotor: diameter 64.0 mm 2.52 in
Rotor: sheet thickness 10.0 mm 0.40 in
Transmission Chain Chain
Effective Working width 1350.0 mm 4.43 ft
Working Depth Range - -
Distance between pto attachment and base 470.0 mm 18.50 in
Pto shaft CE 4x700 mm CE 4x700 mm
Rotor: diameter with blades 415.0 mm 16.34 in
Rotor: bearings type and sizes "GB276-6306(R) GB276-6209(L)" "GB276-6306(R) GB276-6209(L)"
Rotor: flanges 8 8
Number of Blades per flange 4 4
Blades: quantity 28 28
Blades: height/width 170.0 / 65.0 mm 6.70 / 2.56 in
Blades: curve length 255.0 mm 10.04 in
Blades: distance between holes 45.0 mm 1.77 in
Blades: diameter of the holes 13.0 mm 0.51 in
Blades: thickness 6.0 mm 0.24 in
Gearbox Lombarda Ingranaggi 540 r/min (3 year warranty) Lombarda Ingranaggi 540 r/min (3 year warranty)
Effective Displacement 120.0 mm manual 4.73 in
Rotation of gearbox Right side Right side
RPM Rotor speed 216 rpm 216 rpm
Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Blades: weight 770.0 g 27.20 oz
Packing sizes 1000.0*1650.0*900.0 mm 3.28*5.41*2.95 ft
