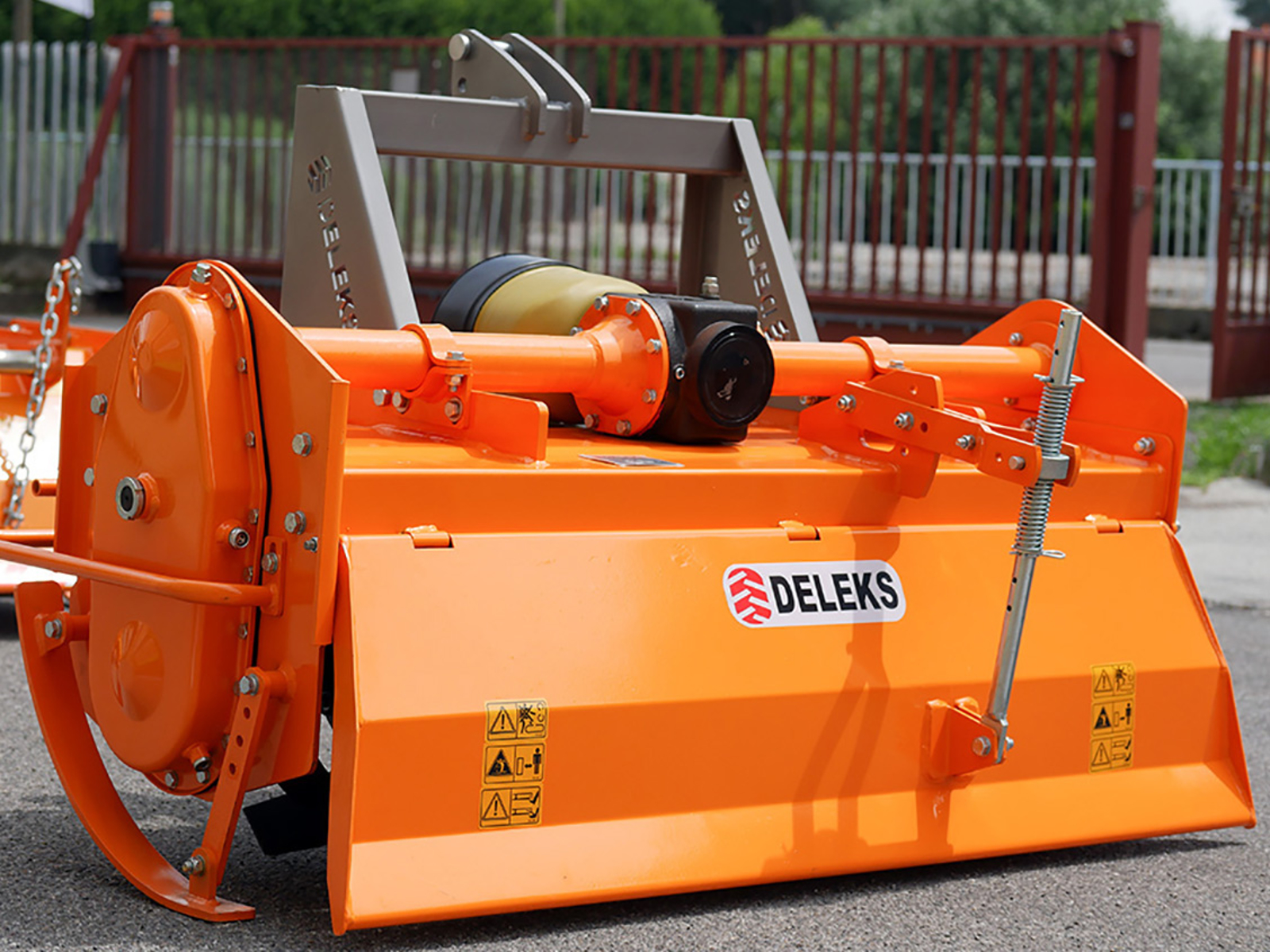

Rotavator tiller for heavy tractors, crawler tractors - working width 135cm - mod. DFH-135

4.5

192 reviews

Available
Code DFH135PTO
EAN 8053470230783
View all details.
TOTAL
1.953,00VAT incl.
Free shipping

VIDEO

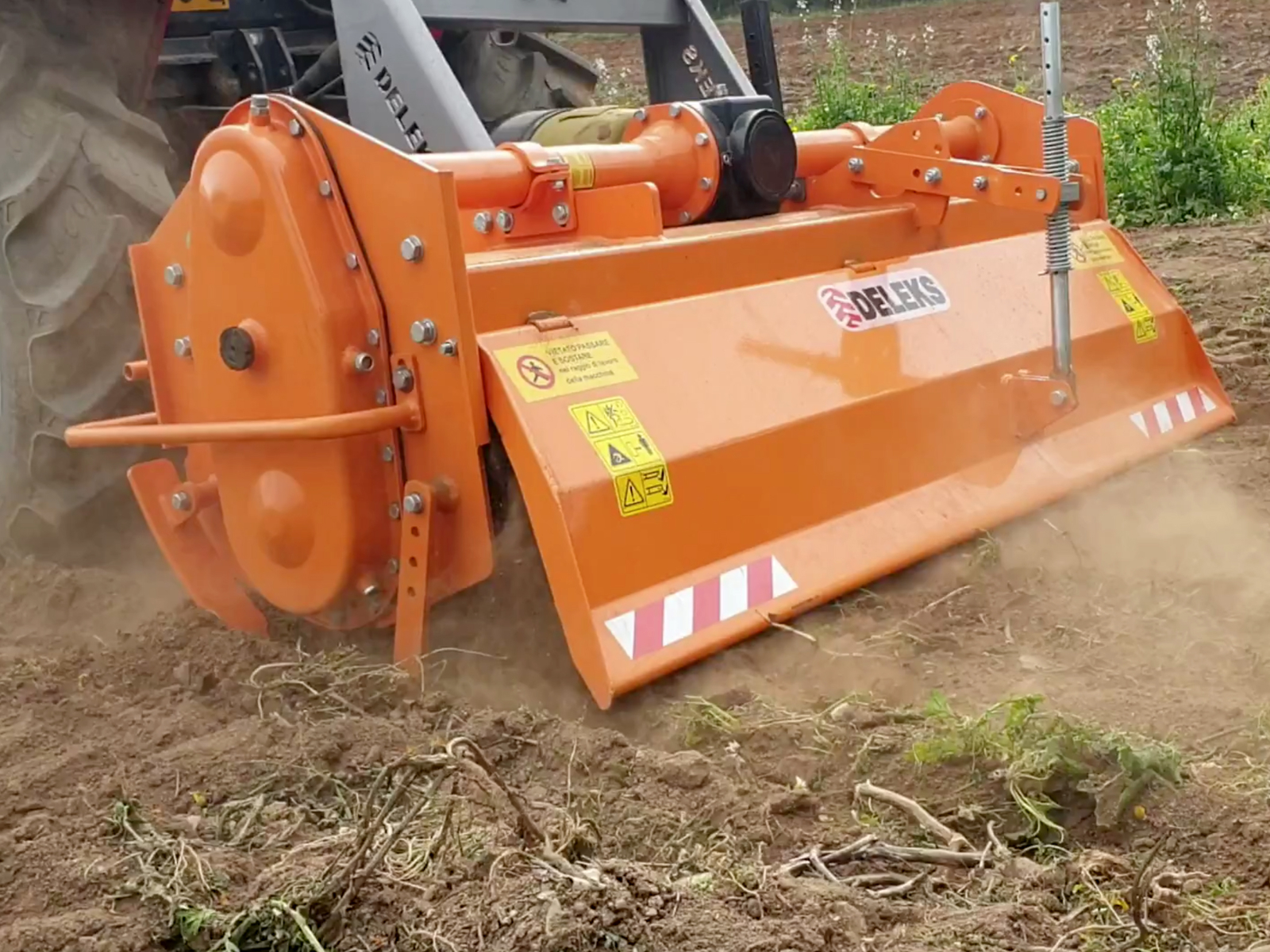

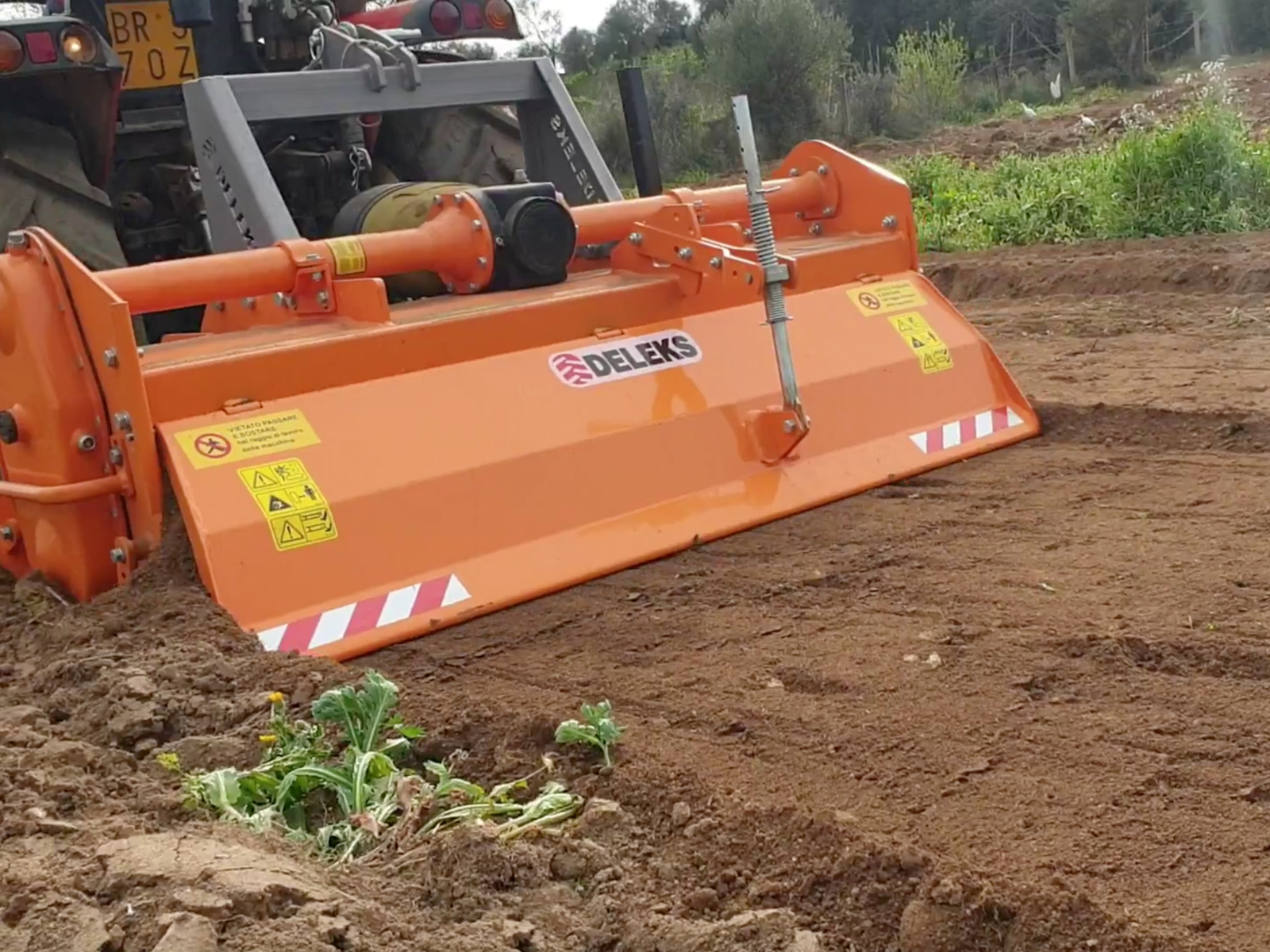

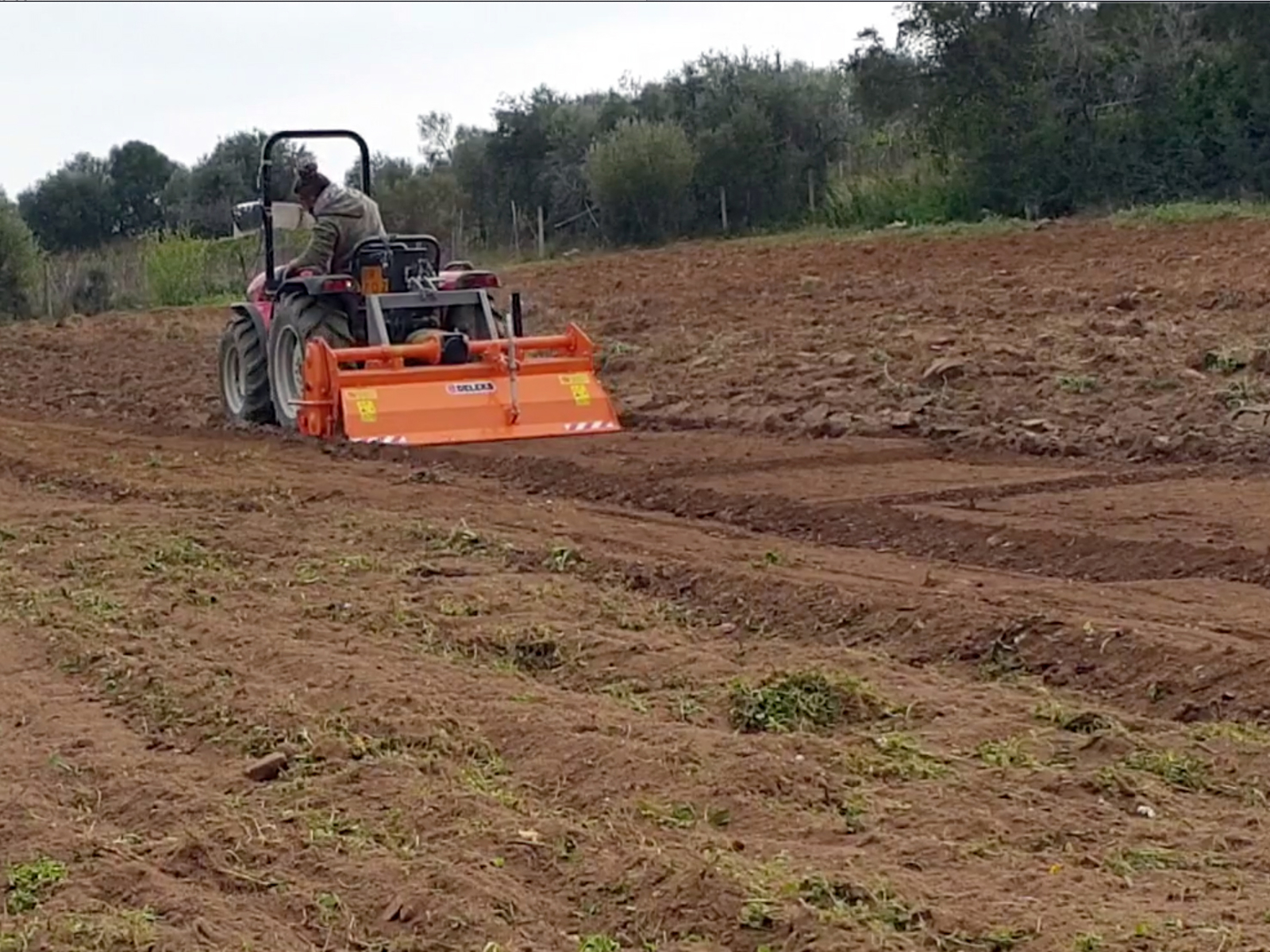

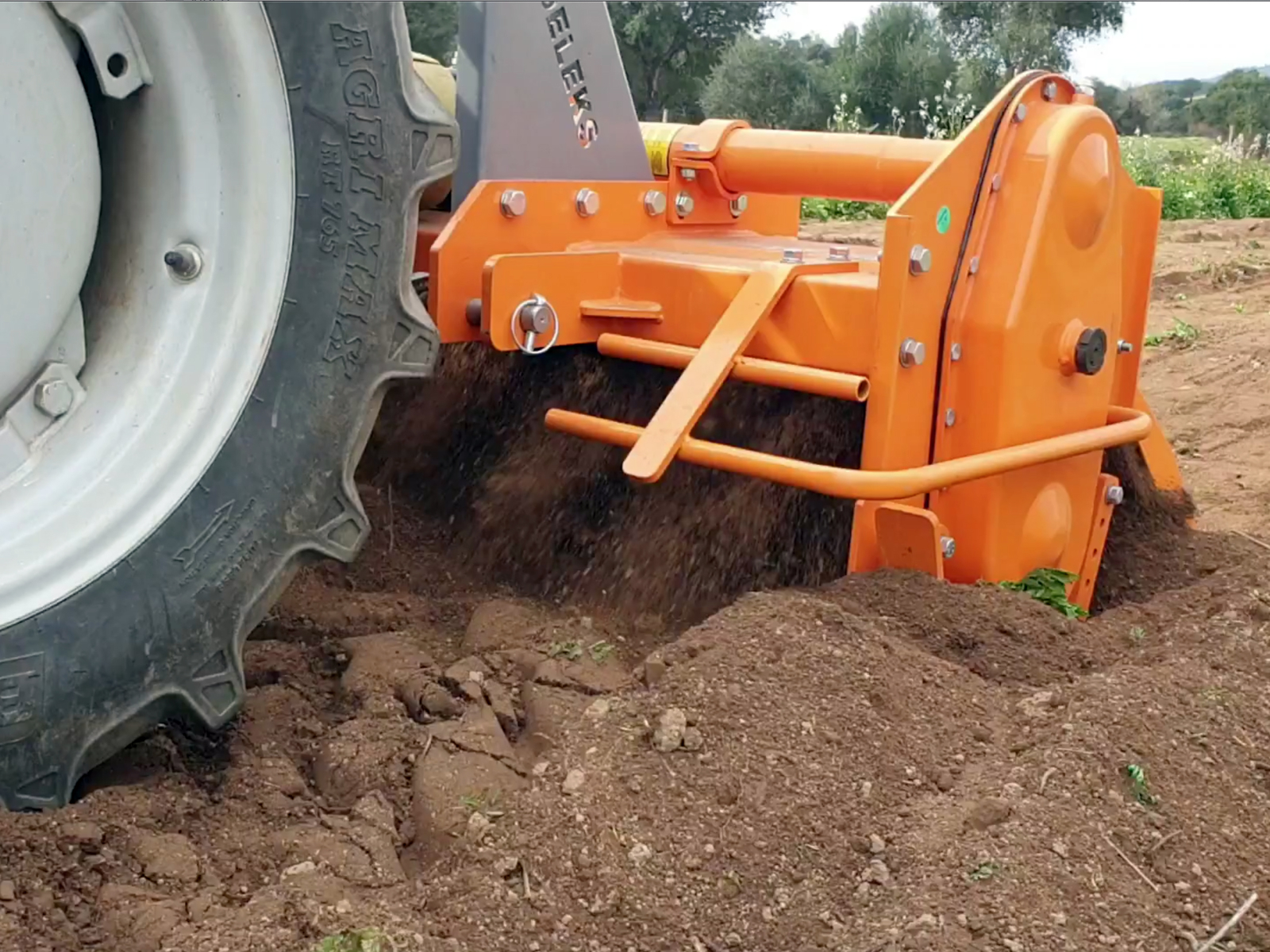

Field test
Field test

DETAILS

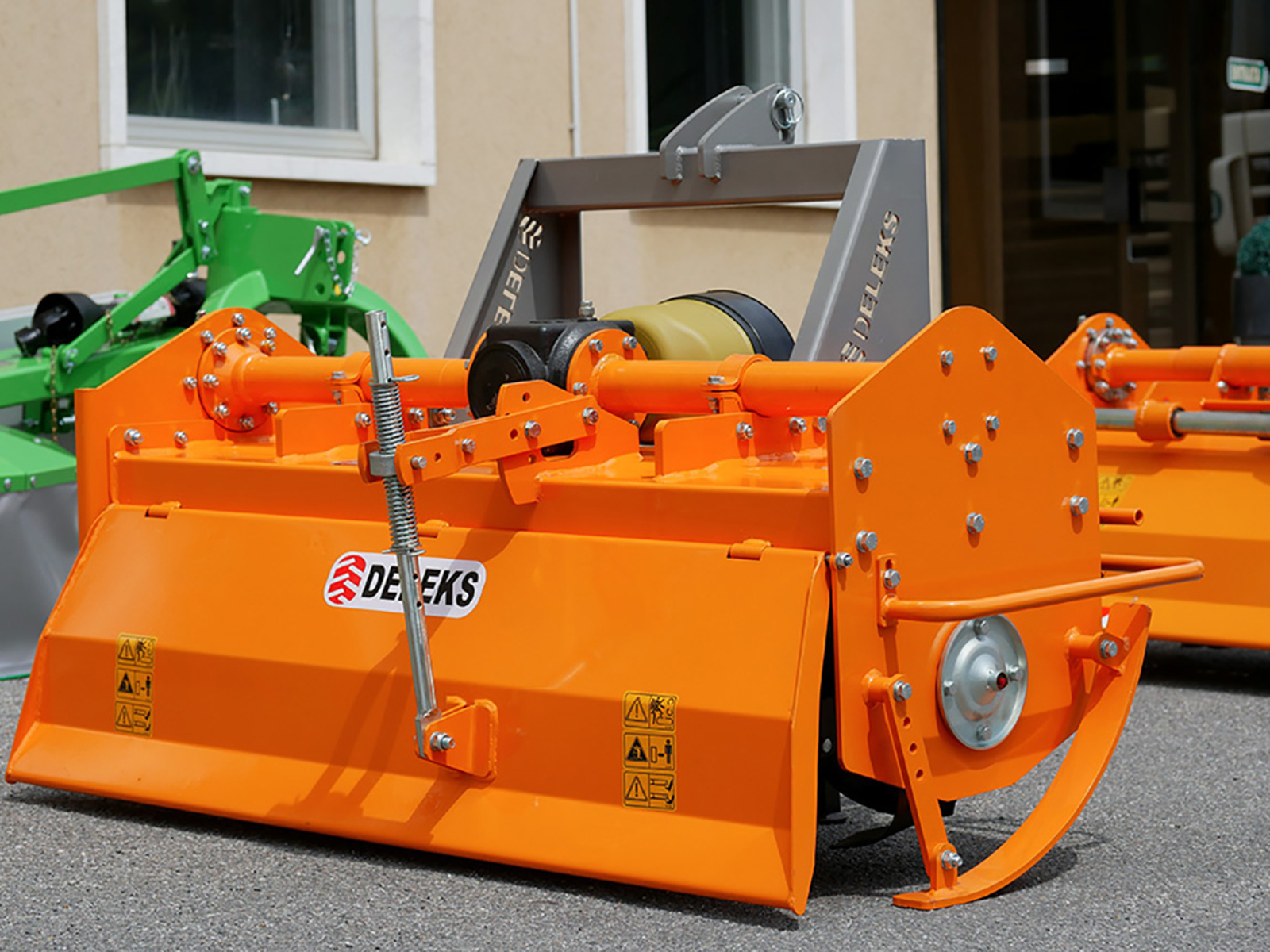

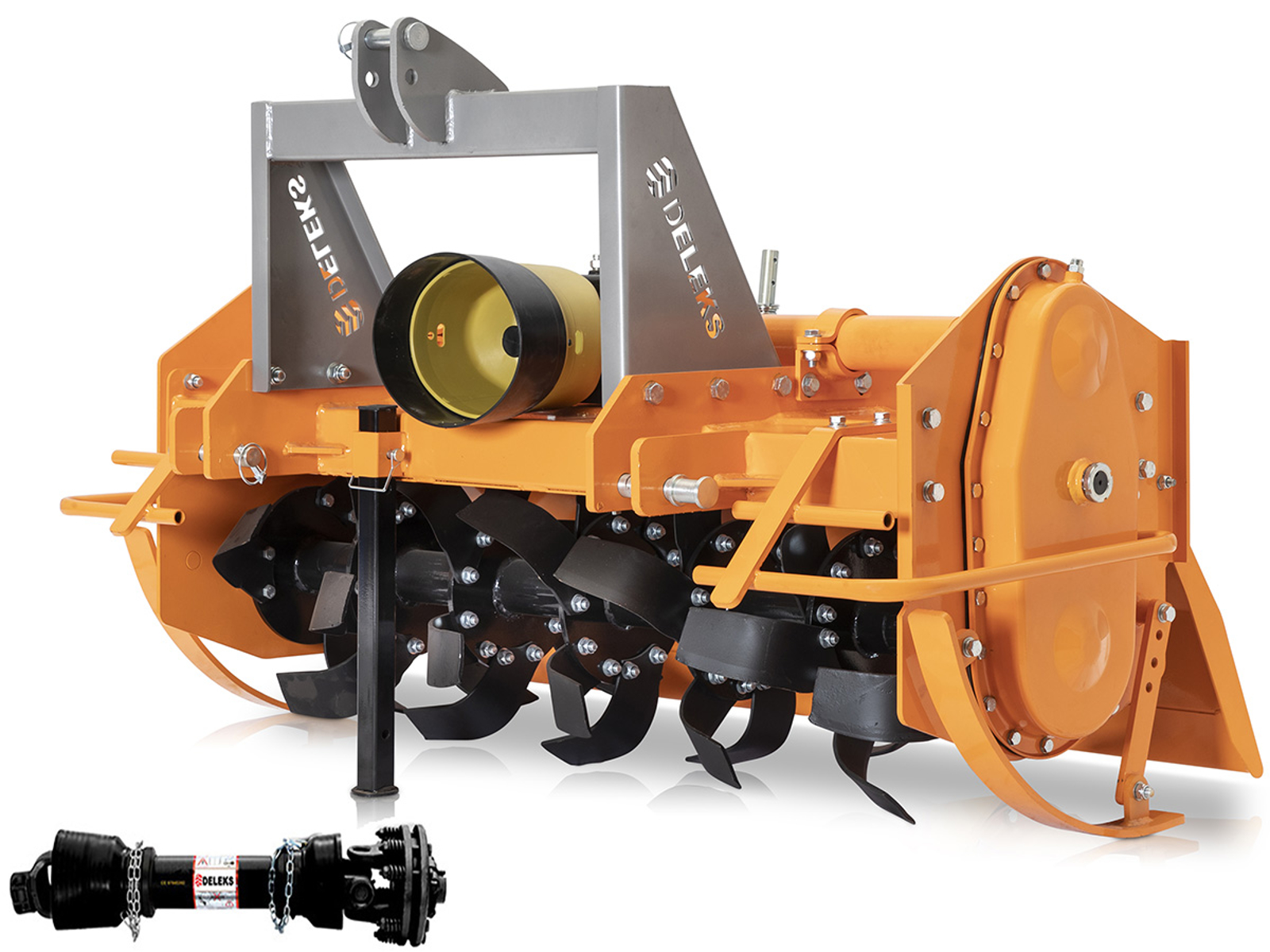

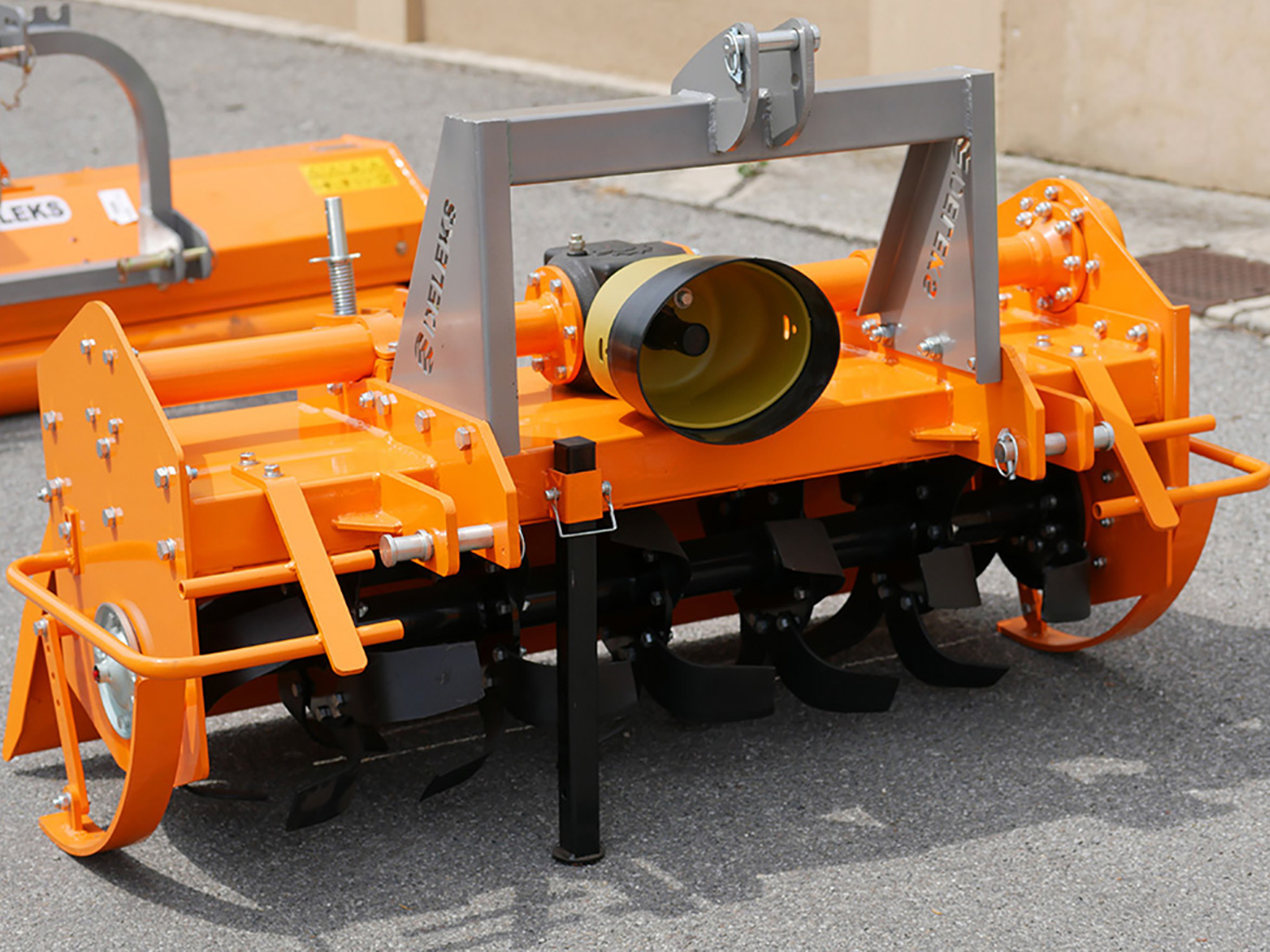

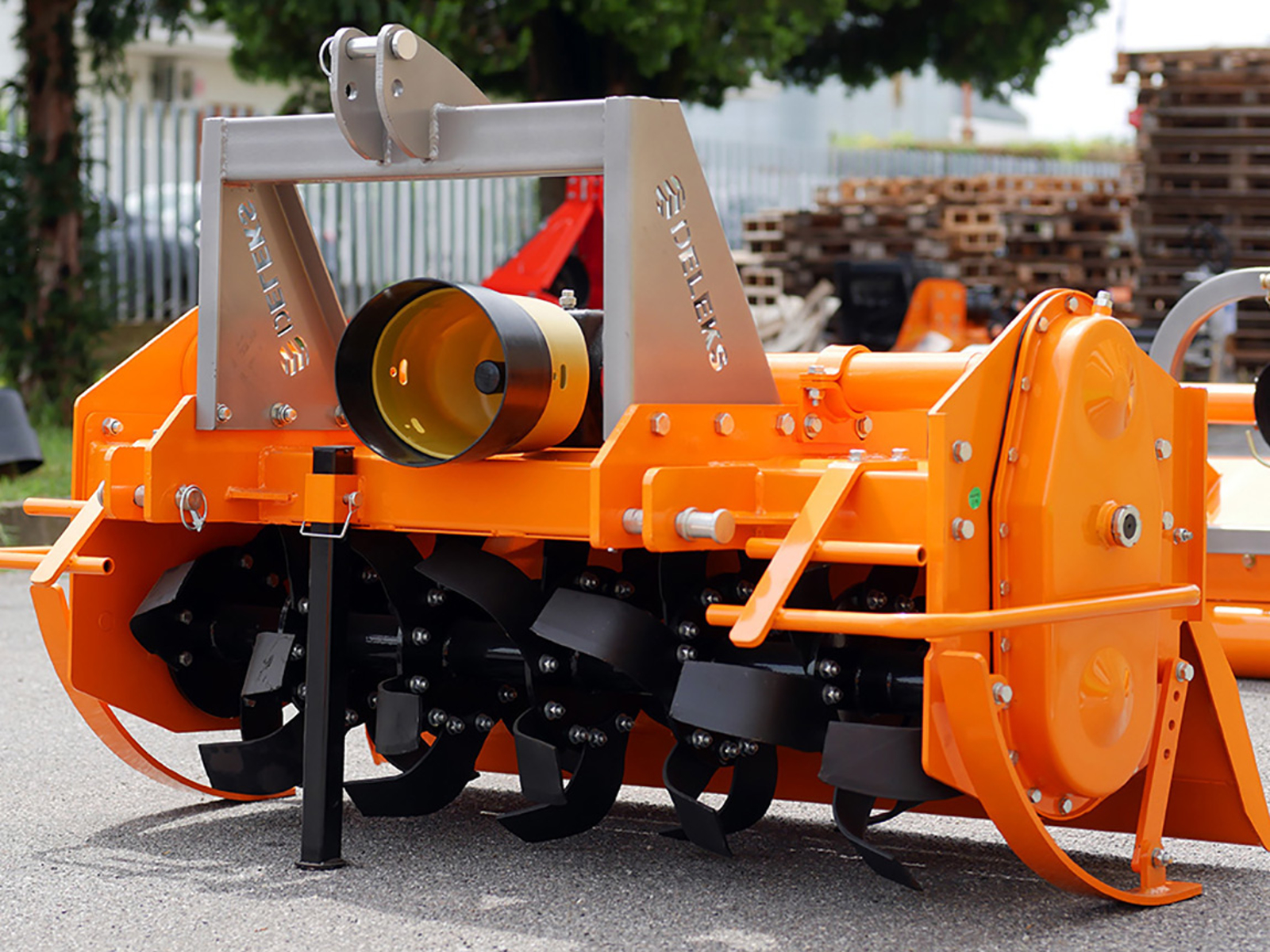

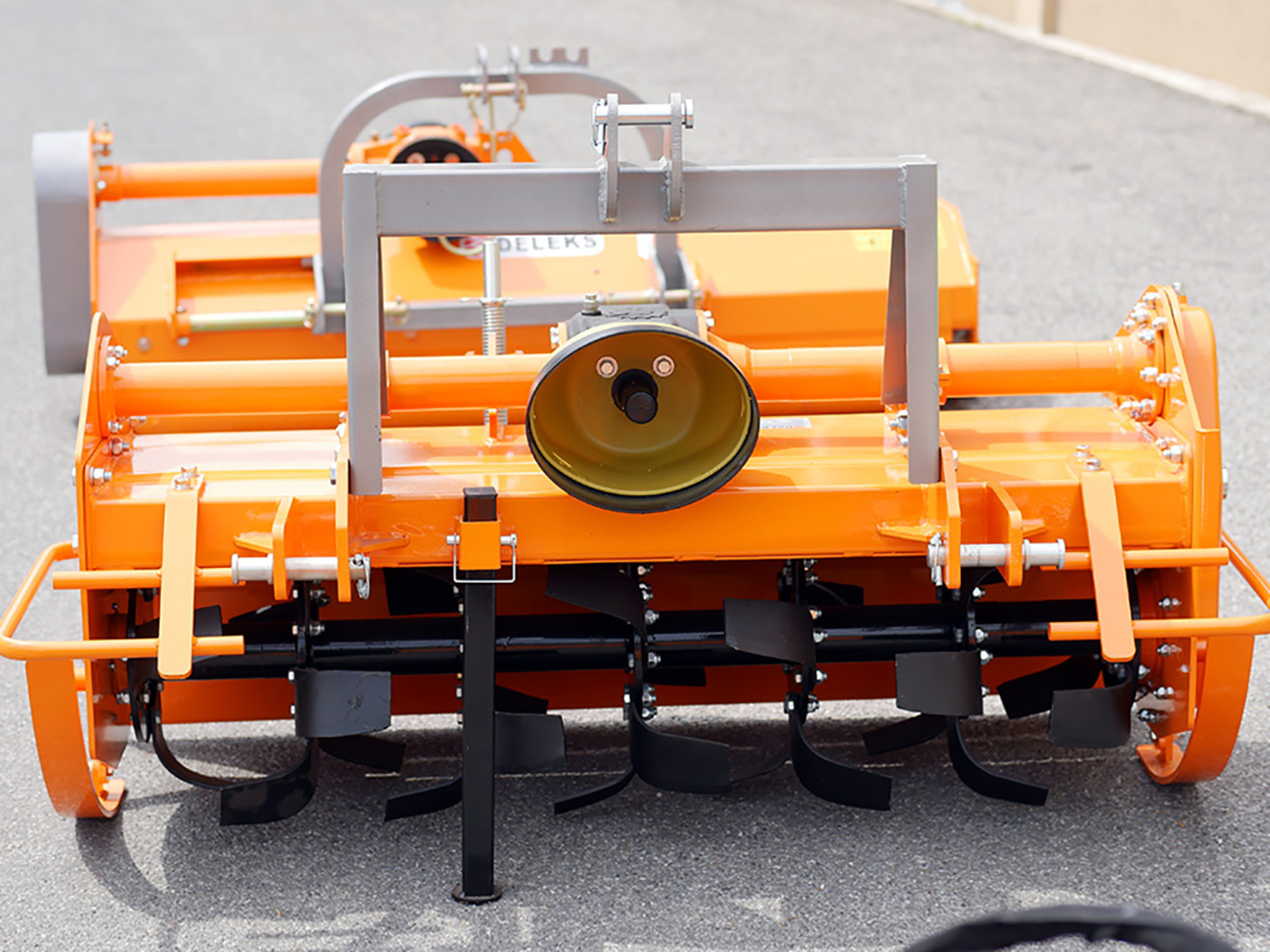

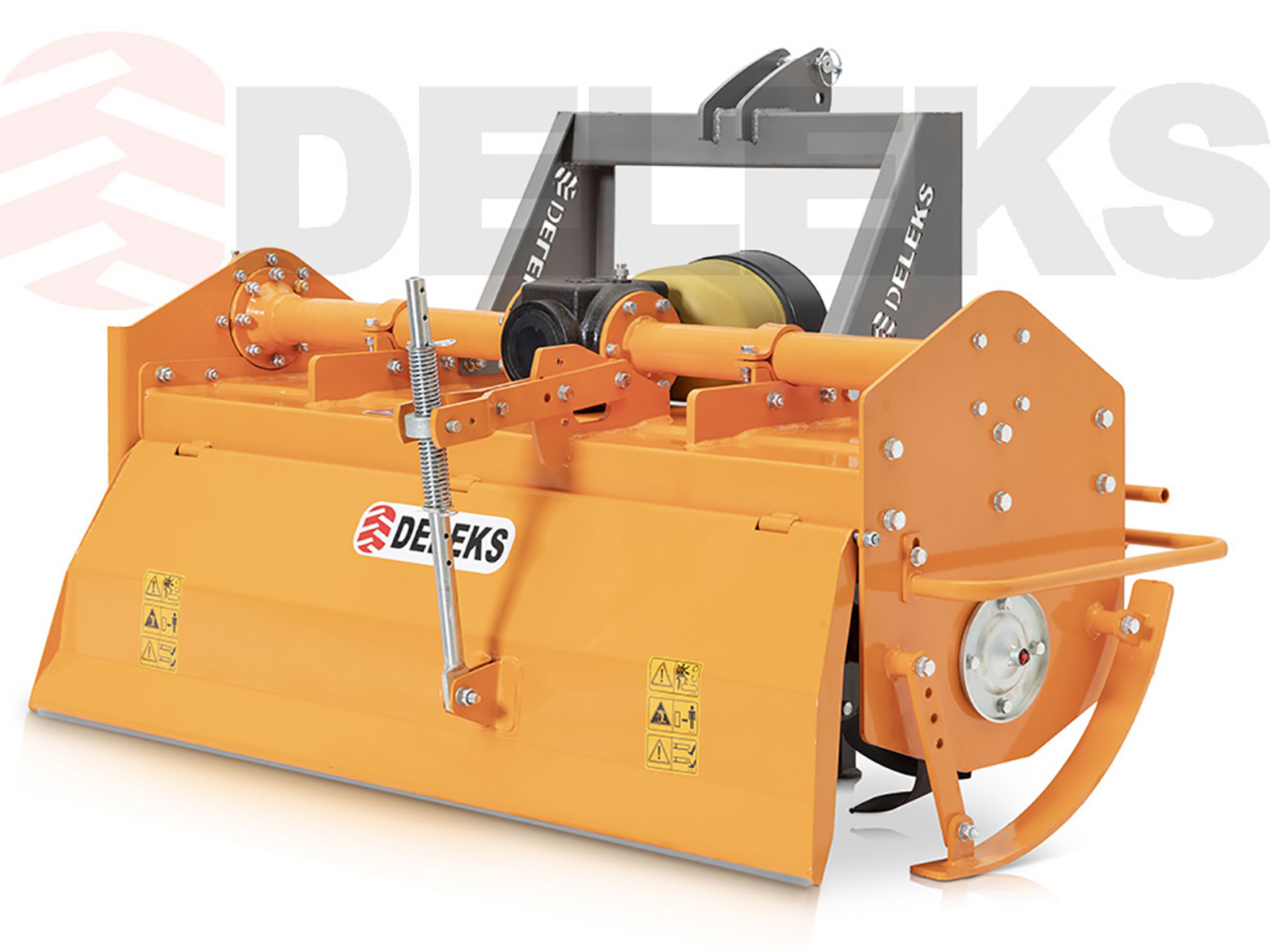

Rotary Tiller DELEKS® for 30-60 Hp Tractors, Rotovator 135cm / 322 kg - Side Gears Drive - Pto shaft CE included.


OVERVIEW

The DFH Rotary Tiller has been designed for soil preparation, in fields, nursery, orchards, allotments, and for gardening. Rotating blades break up the soil, on rough uncultivated ground. Can be also be used for weeding or working surface material into the soil.

Designed to fit most compact 30-60HP tractors e.g Kubota L, Lamborghini, Fiat, McCormick, Landini Mistral, New Holland Boomer 35-40, T3, John Deere 3-4 Series. Cat.1-2 universal three-point hitch, single-speed cast-iron gearbox. Delivered assembled (except 3 point linkage) and greased, Gearbox filled with oil.



BENEFITS & FEATURES

Side Gears Drive.

Pto shaft CE included.

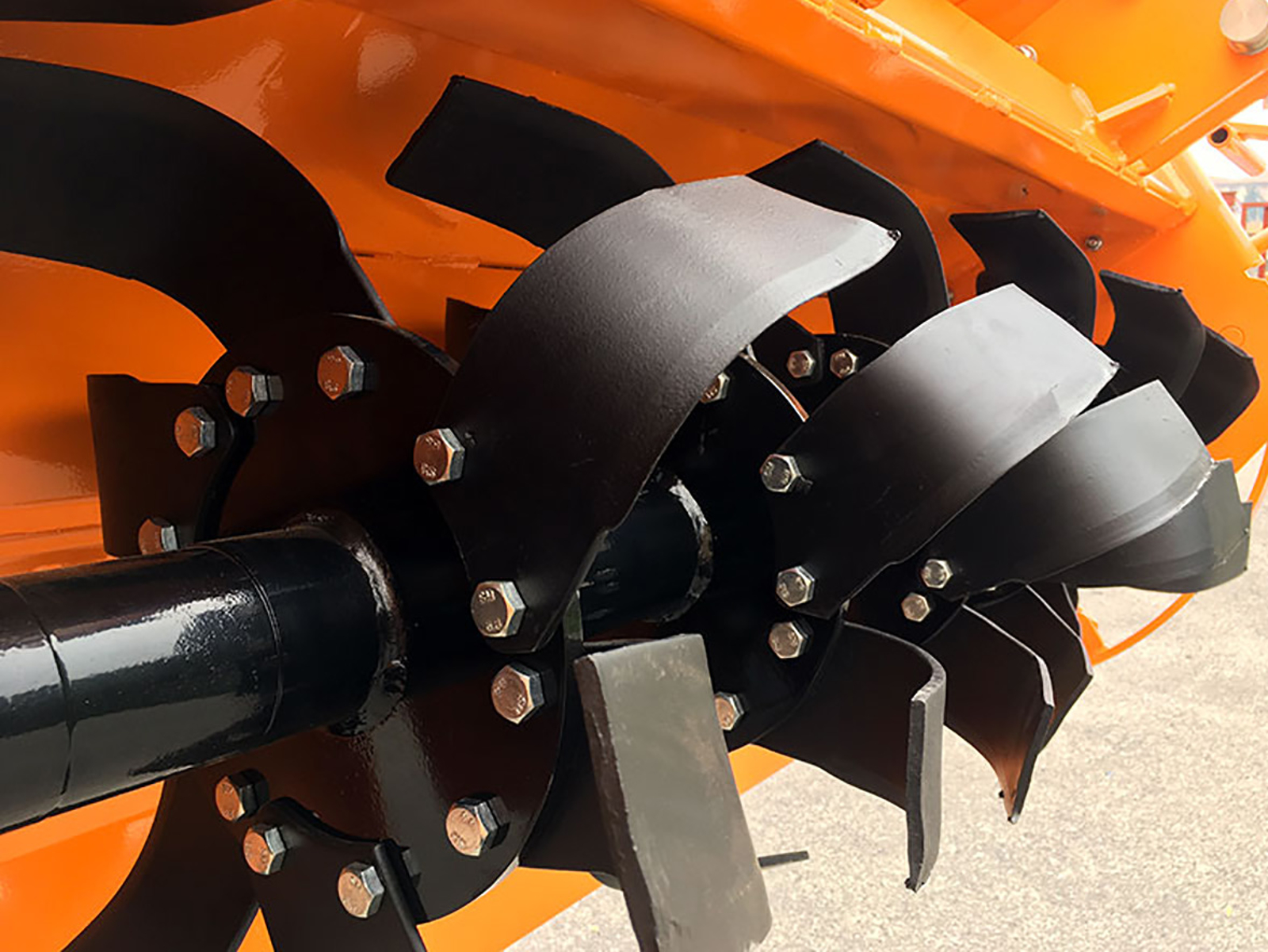

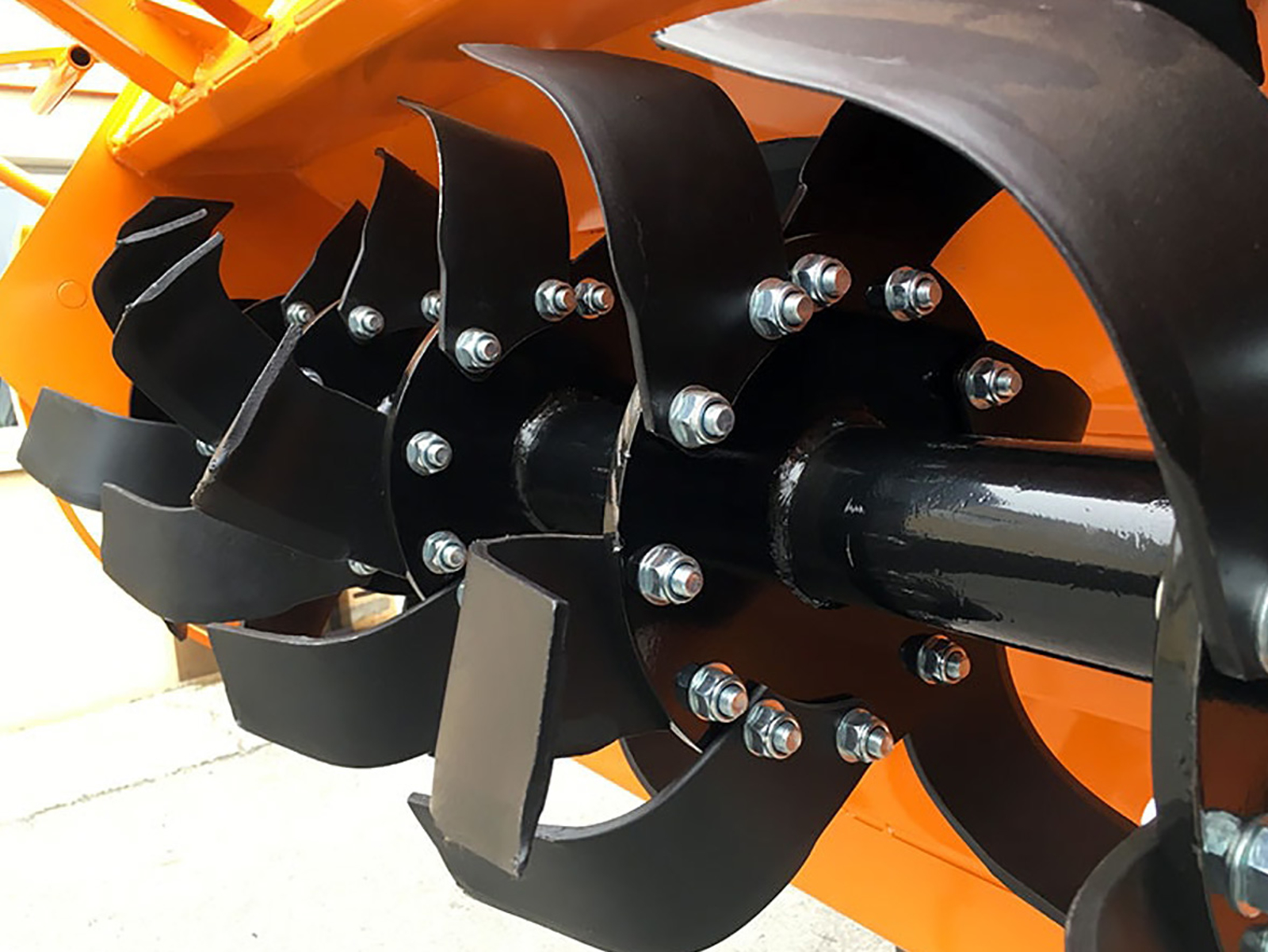

Six spiral blades per flange.

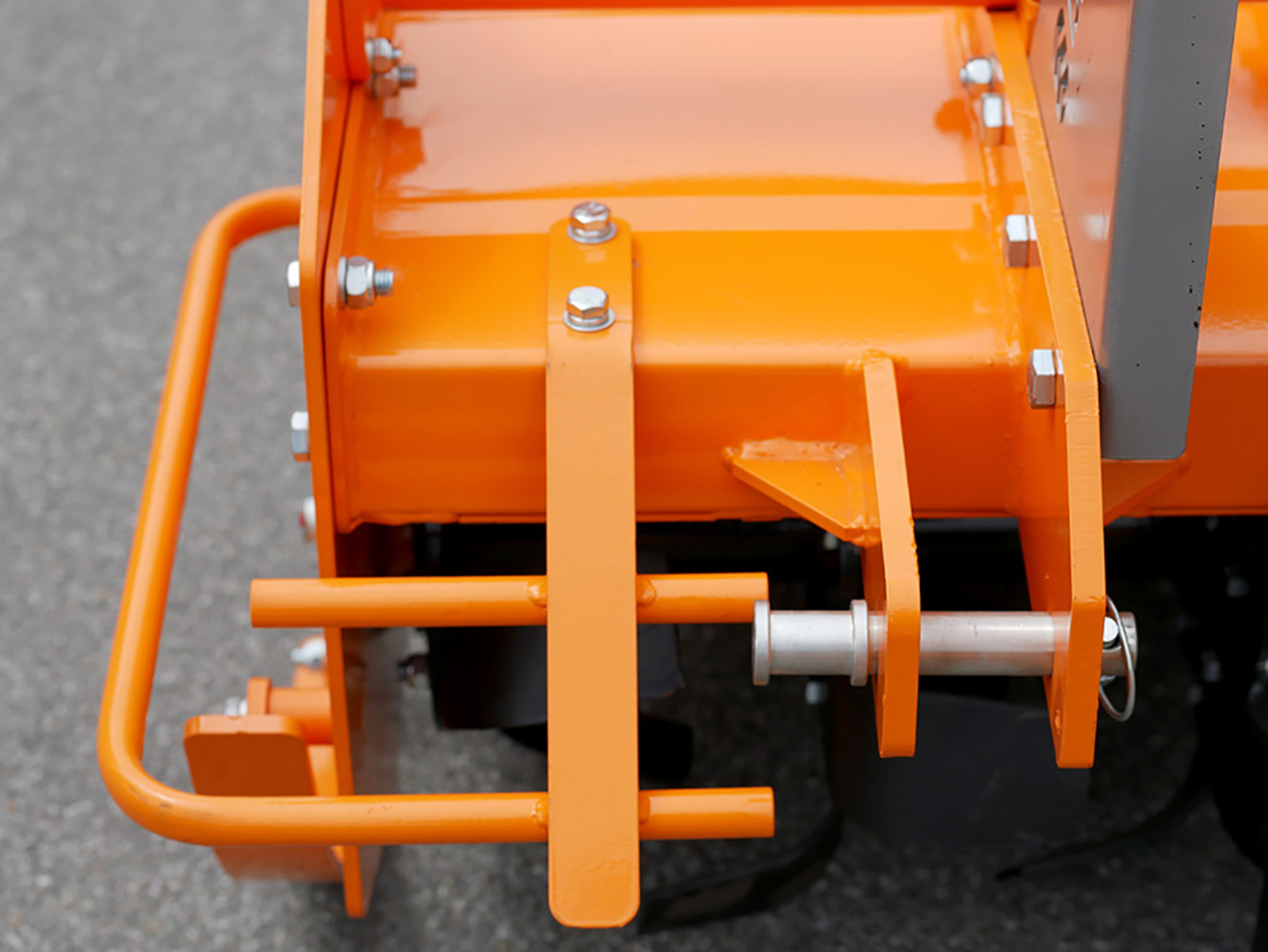

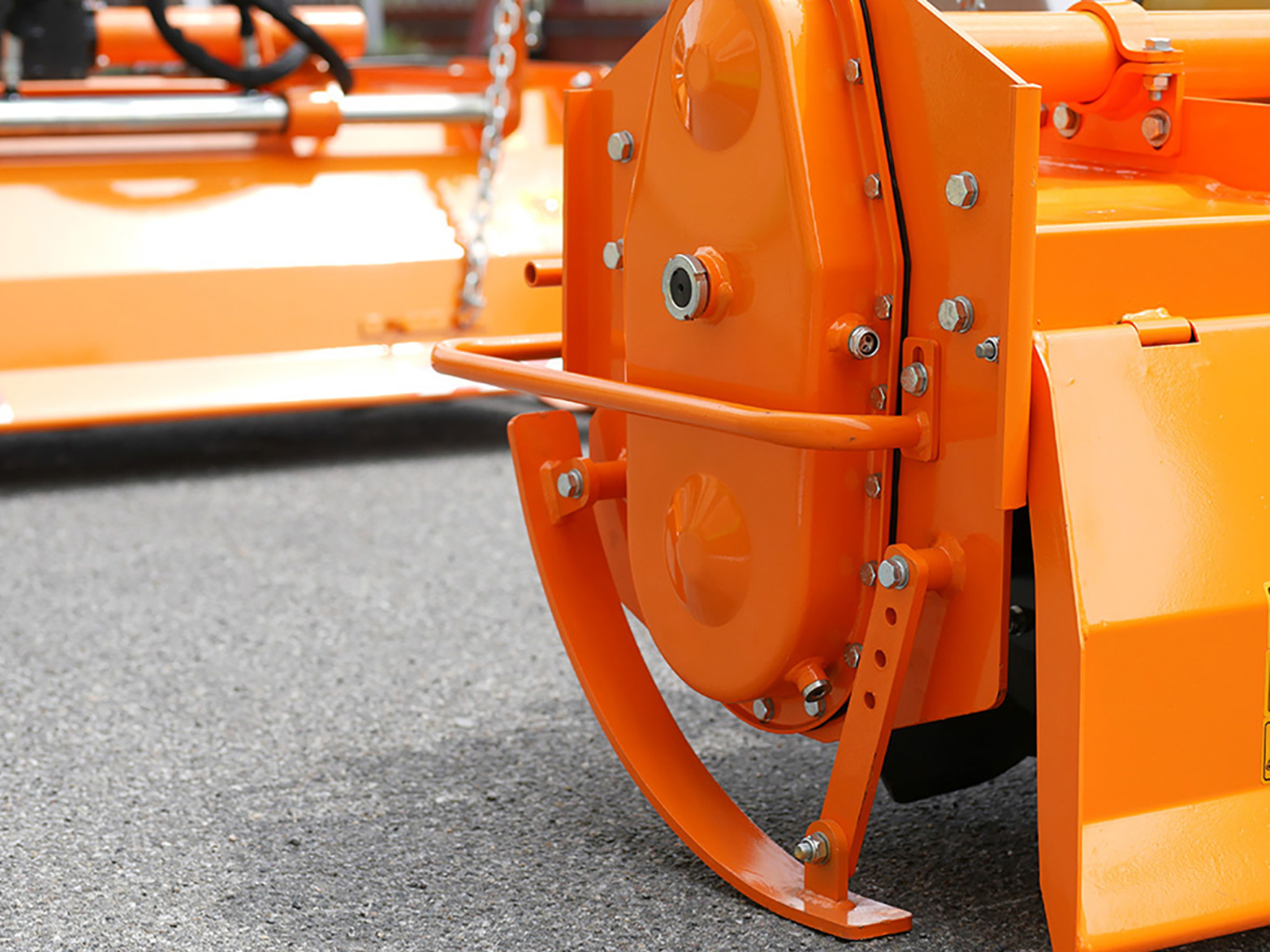

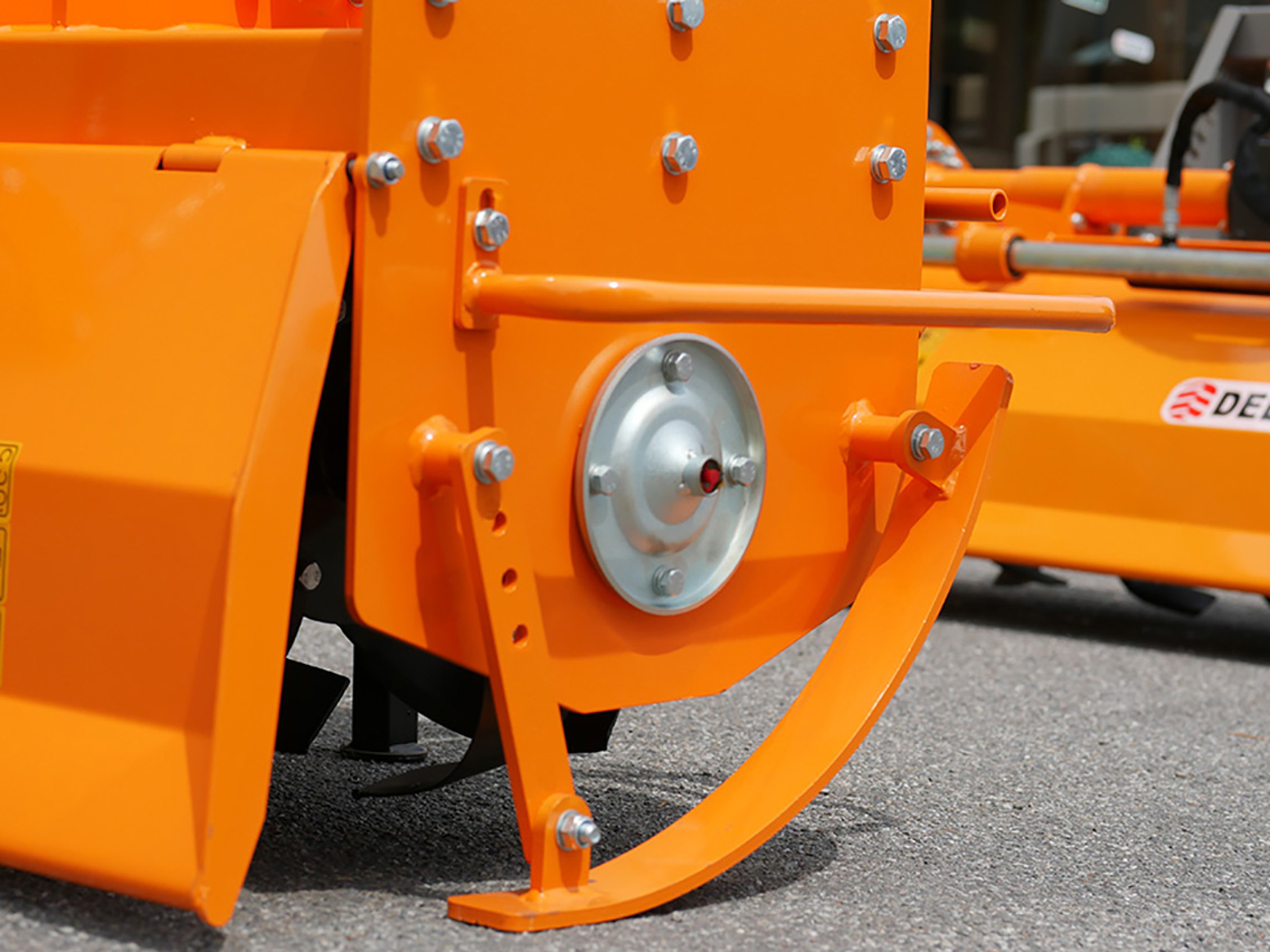

Adjustable side skids to obtain the desired working depth.

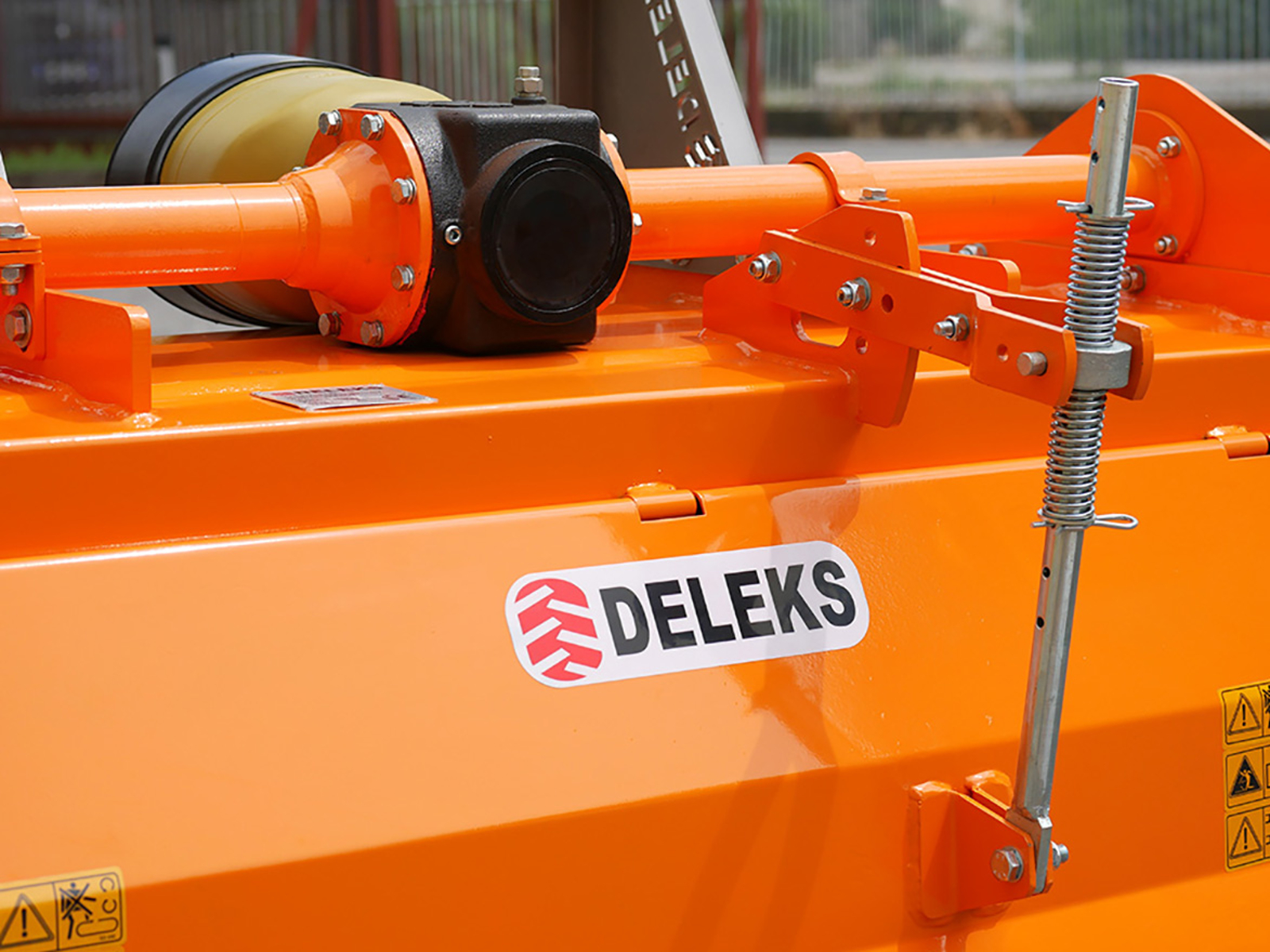

Adjustable rear shield.

CE Safety Guards.



CHARACTERISTICS

Characteristic Units metric Units US
Overall width 1550.0 mm 5.08 ft
Weight 322.0 kg 710.0 lb
Overall height 1030.0 mm 3.38 ft
Tractor Power Range 30 - 60 Hp 30 - 60 Hp

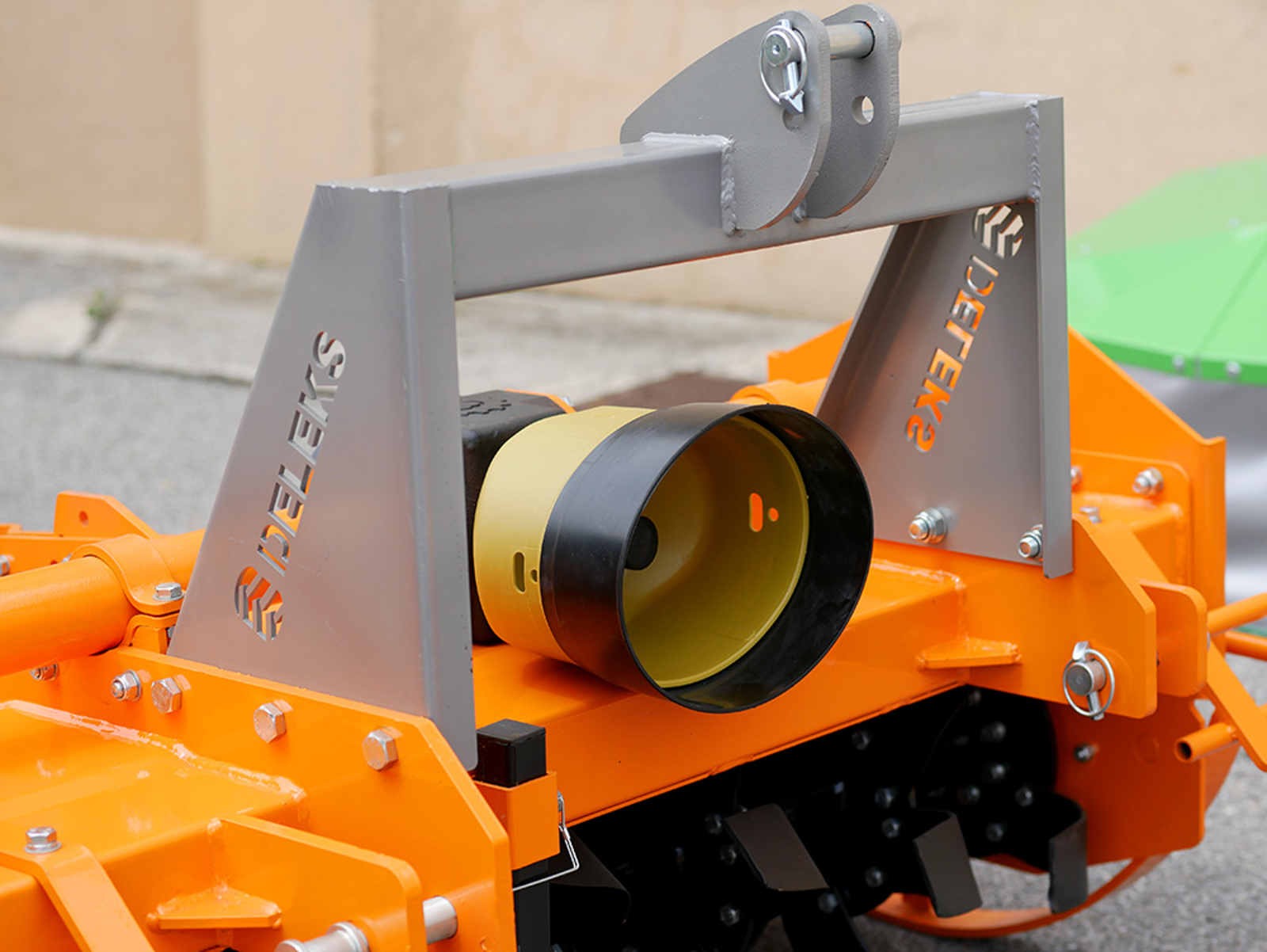

3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)

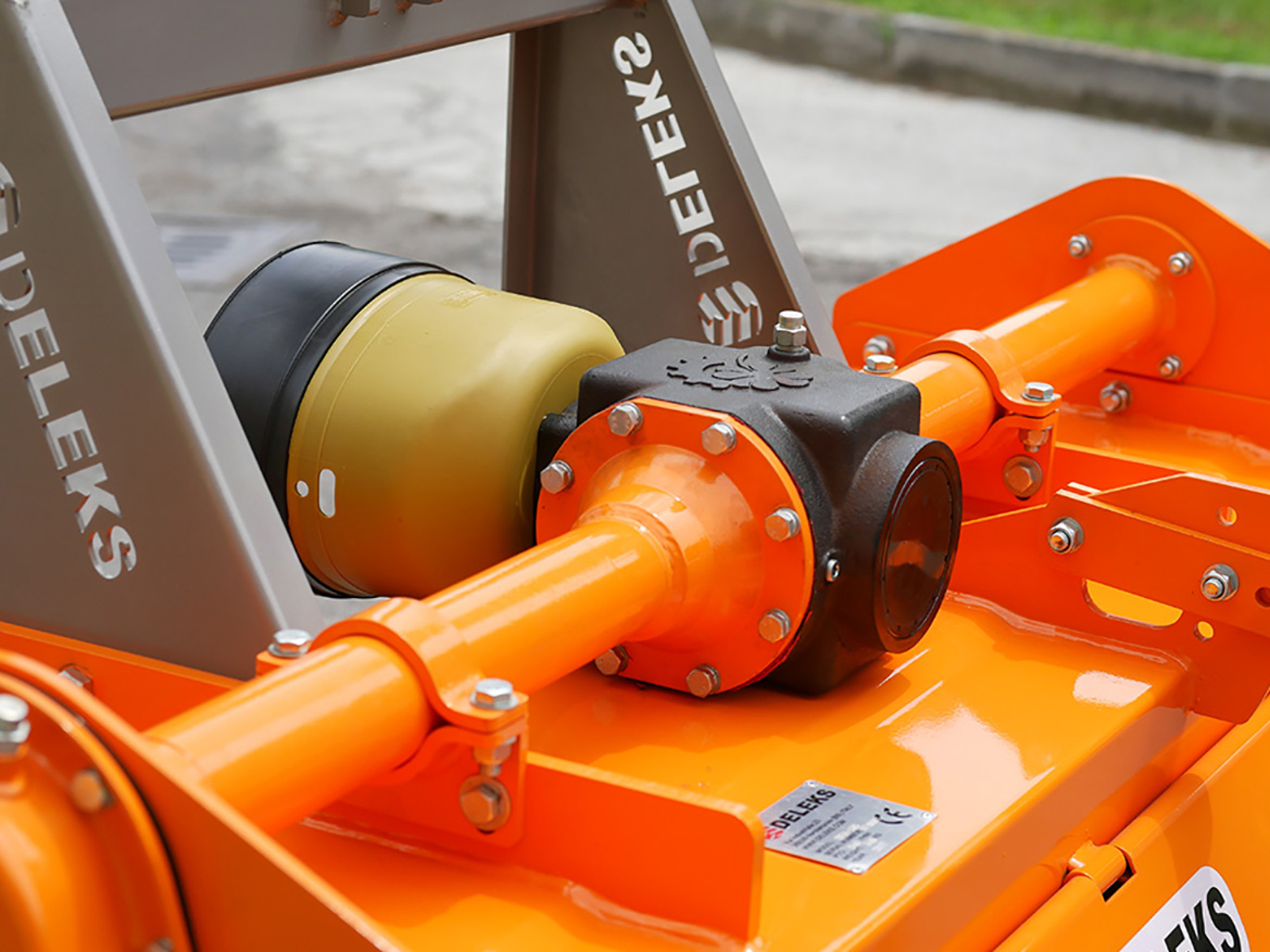

Position of the gearbox Central Central
Spacing between the 2 lower points 745.0 - 870.0 mm 29.35 - 34.25 in
Overall length 720.0 mm 2.36 ft
Rotor: diameter 76.0 mm 3.0 in
Rotor: sheet thickness 8.0 mm 0.31 in
Transmission Gears Gears
Effective Working width 1345.0 mm 4.41 ft
Working Depth Range 160.0-200.0 mm 6.30 - 7.87 in
Distance between pto attachment and base 590.0 mm 23.23 in
Pto shaft 6x800 + Clutch ø180mm 6x800 + Clutch ø180mm
Rotor: diameter with blades 480.0 mm 18.90 in
Rotor: bearings type and sizes "GB276-6306(R) GB276-6309(L)" "GB276-6306(R) GB276-6309(L)"
Rotor: flanges 6 6
Number of Blades per flange 6 6
Blades: quantity 36 36
Blades: height/width 180.0 / 83.0 mm 7.08 / 3.26 in
Blades: curve length 250.0 mm 9.84 in
Blades: distance between holes 55.0 mm 2.16 in
Blades: diameter of the holes 13.0 mm 0.51 in
Blades: thickness 6.0 mm 0.24 in
Gearbox Lombarda Ingranaggi 540 r/min (3 year warranty) Lombarda Ingranaggi 540 r/min (3 year warranty)
Rotation of gearbox Right side Right side
RPM Rotor speed 210 rpm 210 rpm
Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Blades: weight 810.0 g 28.57 oz
Packing sizes 800.0*1580.0*820.0 mm 2.62*5.18*2.70 ft
