DETAILS

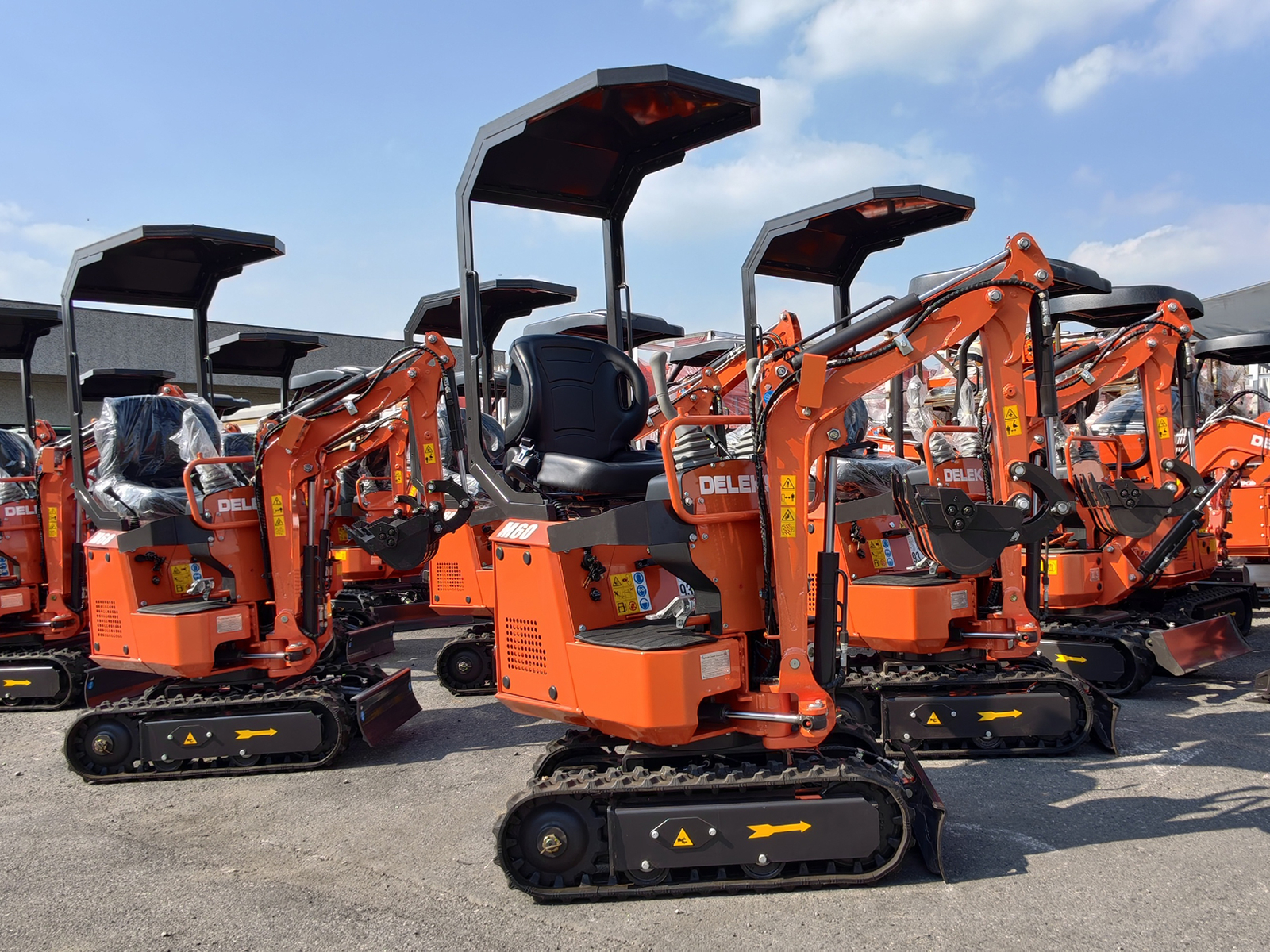

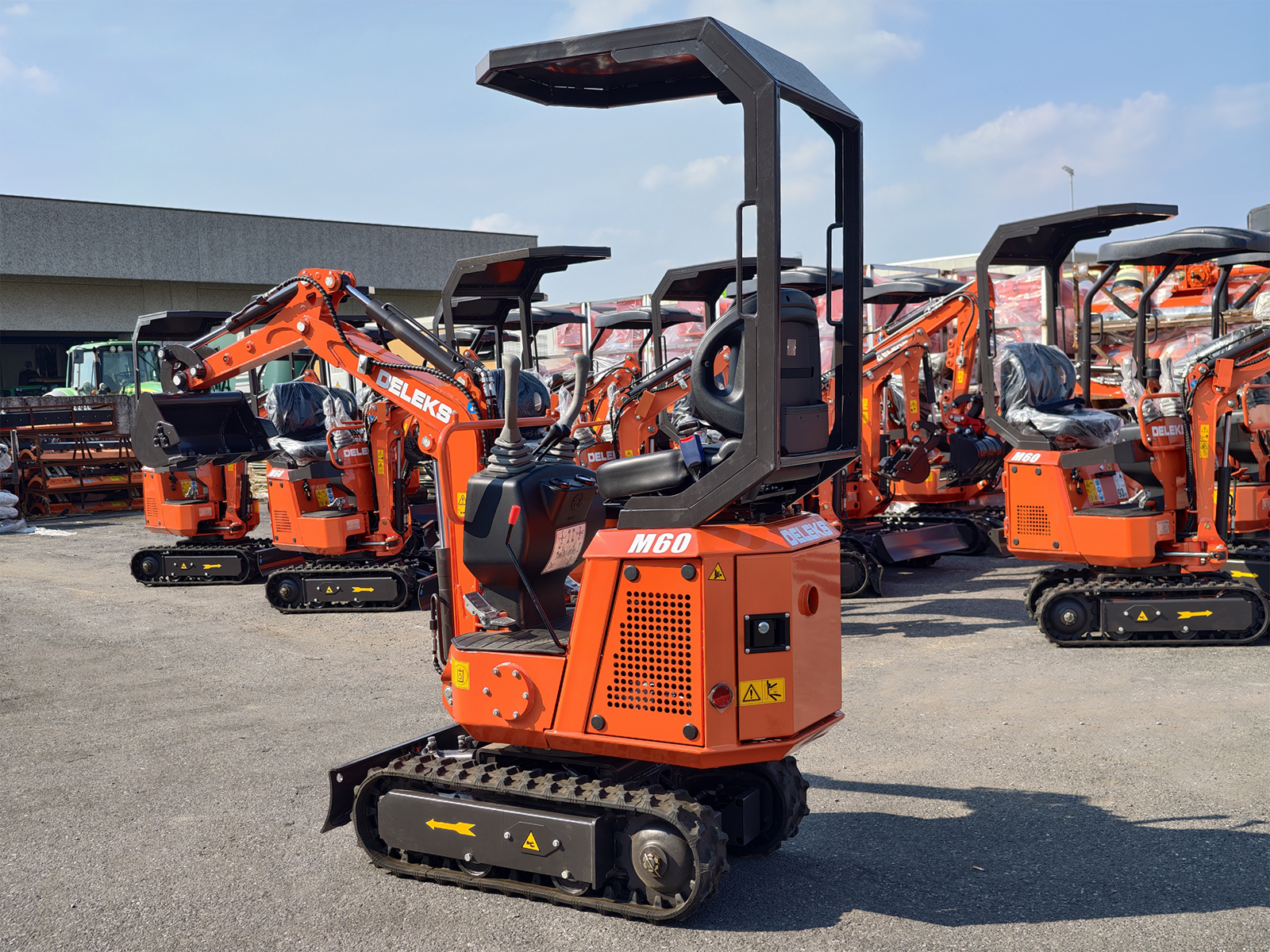

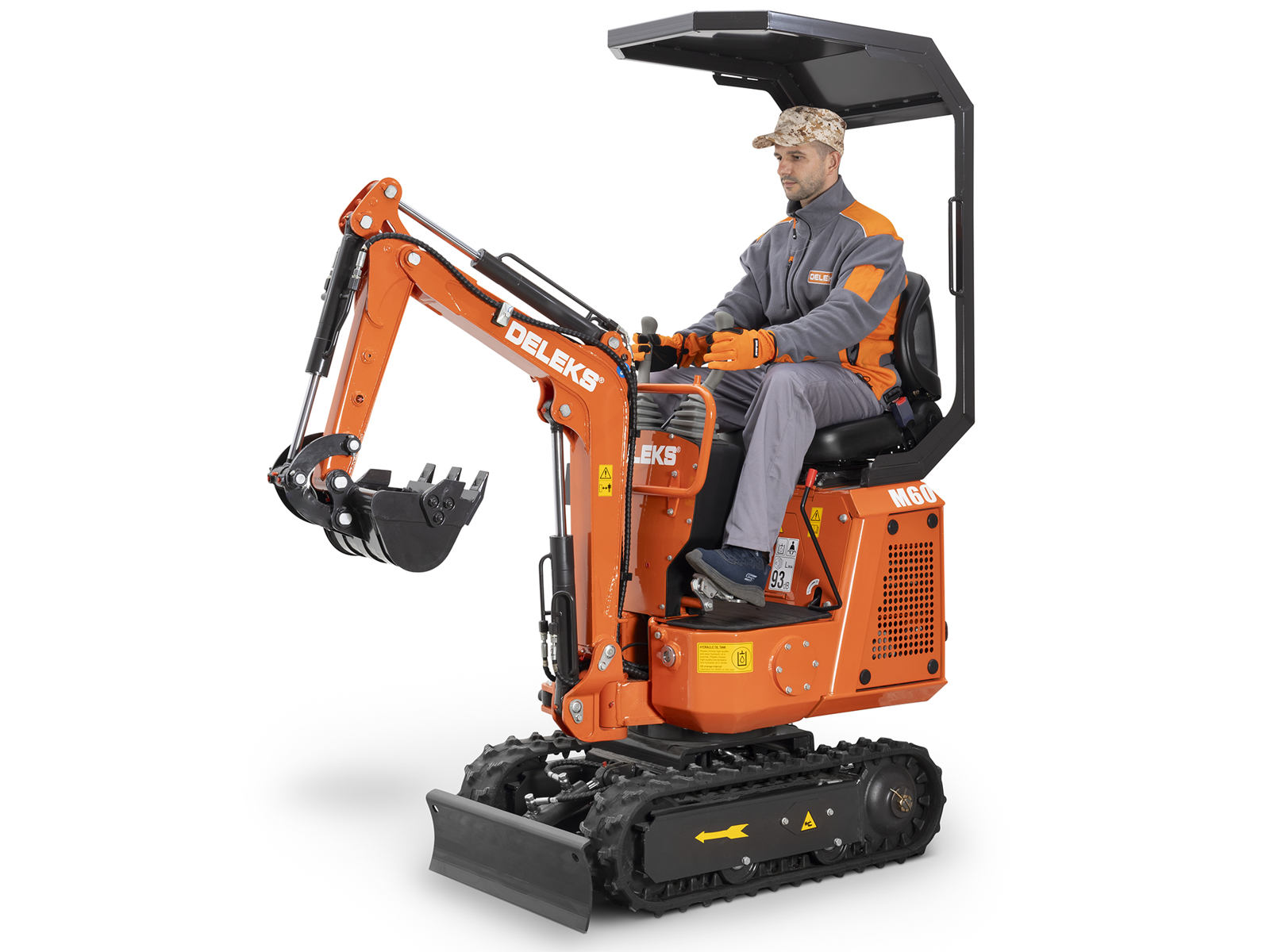

Mini excavator DELEKS® M60 with Loncin engine, 665kg, rubber tracks, swing boom. Certification made by italian agencies.
EXTREMELY COMPACT
The M60 mini excavator is the smallest in the Deleks range, offering the power and digging speed needed to work in confined spaces: in gardens for planting or irrigation system installation, inside buildings for small demolition tasks during renovations, and generally in all situations where a larger mini excavator cannot move or reach.
Moreover, the M60 is lightweight and has a low ground pressure, making it ideal for soil leveling tasks (without compaction) — an essential requirement for laying turf.
Thanks to an advanced hydraulic system, all movements are smooth and vibration-free, ensuring maximum precision in every situation.

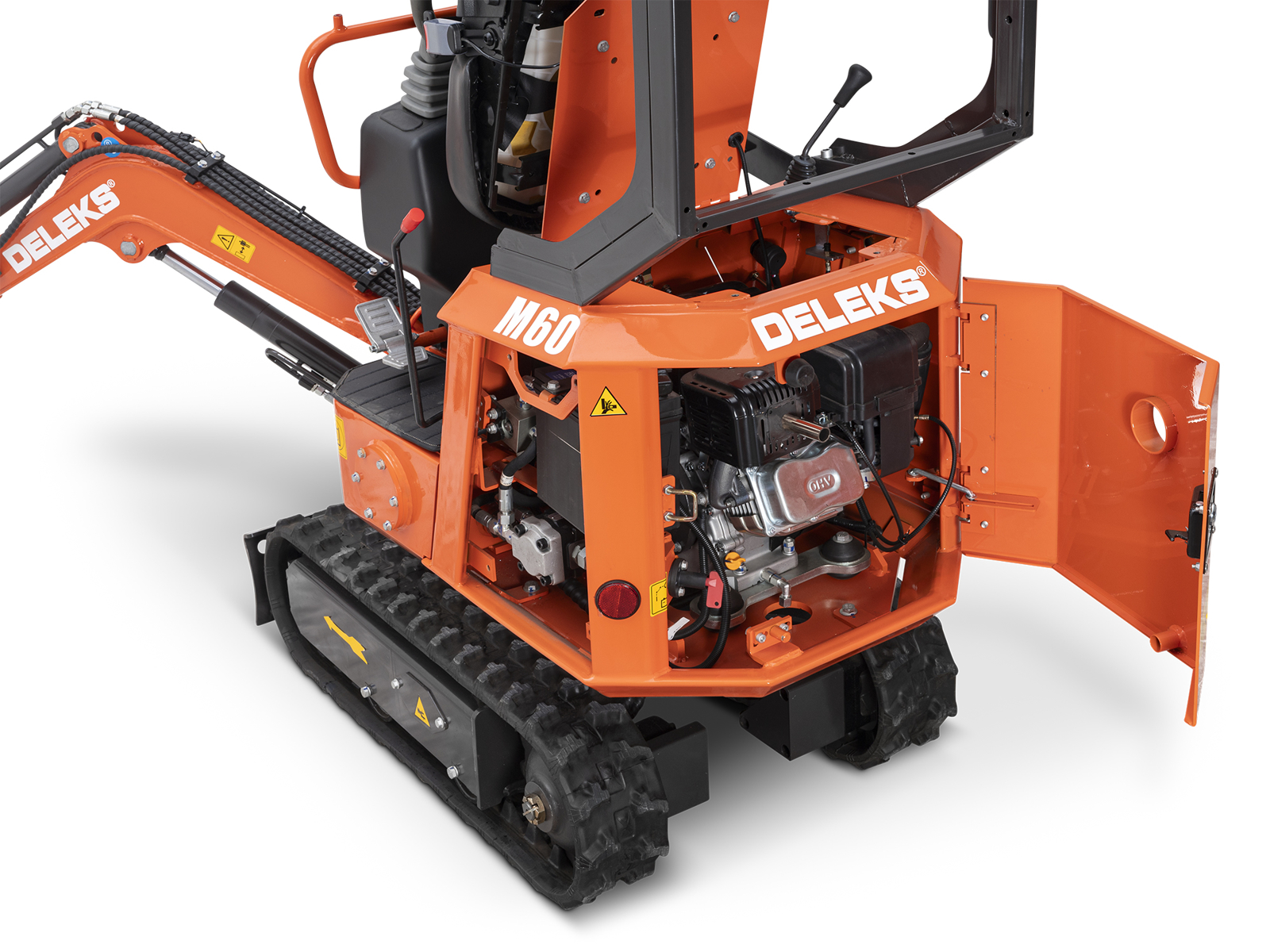

Daily maintenance checks are quick and easy thanks to the fully opening engine hood.

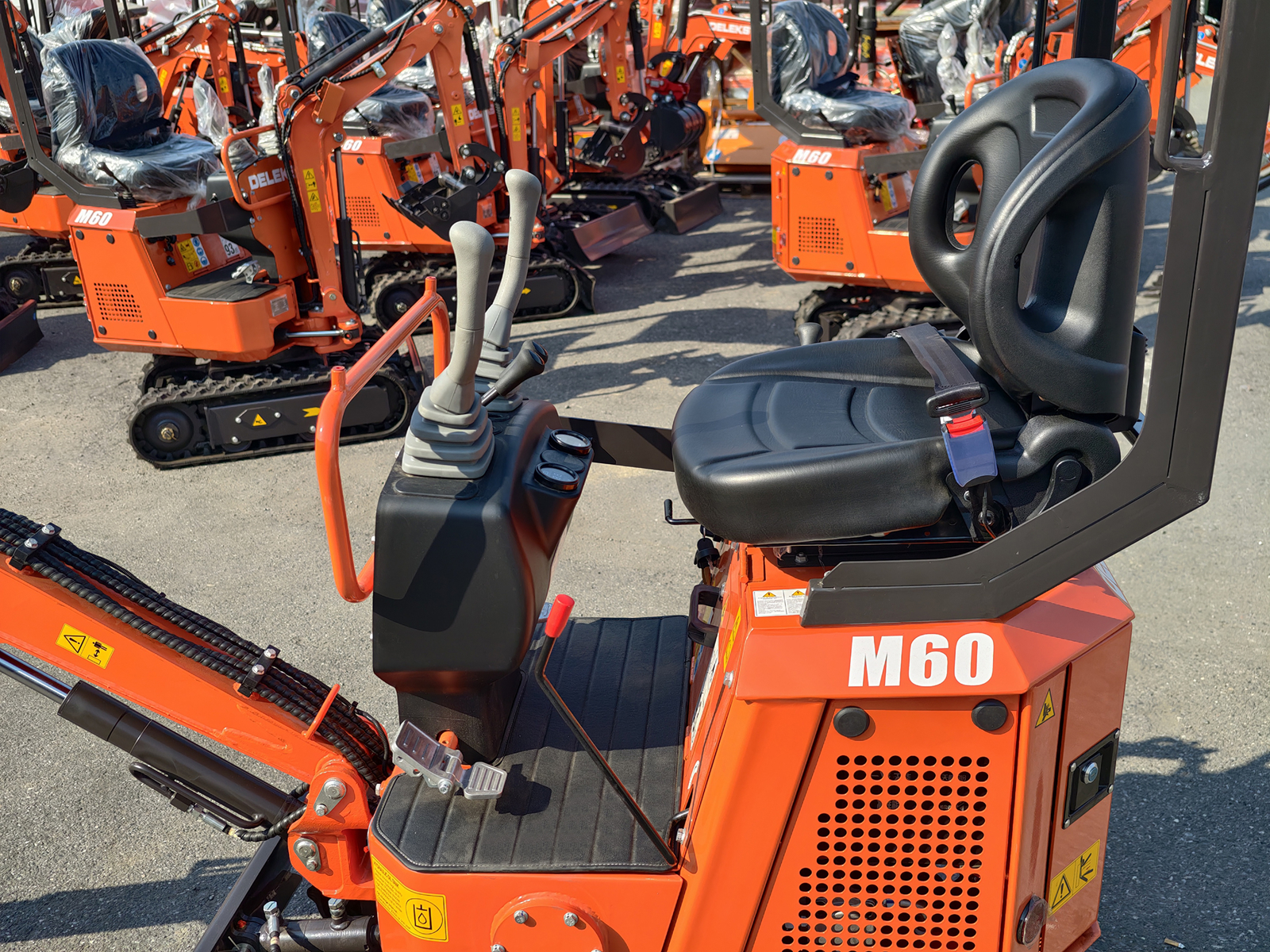

All functions are independent of one another, allowing both experienced and beginner operators to learn how to use the mini excavator from the very first use.

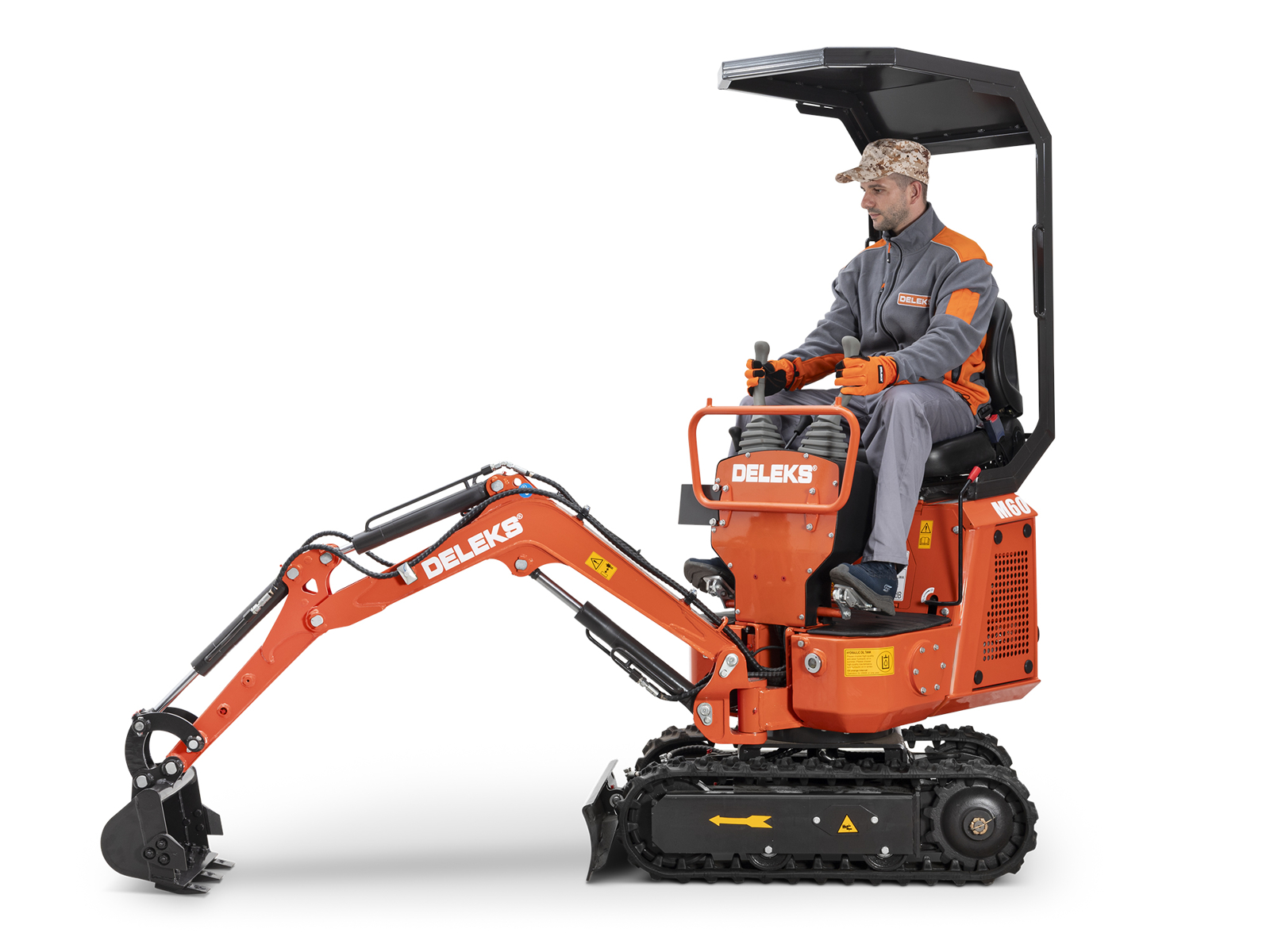

DELEKS® compact excavators come equipped with a standard canopy, providing the operator with 360° visibility.
SETUP
Loncin 302 petrol engine, 9.0 HP at 3600 rpm

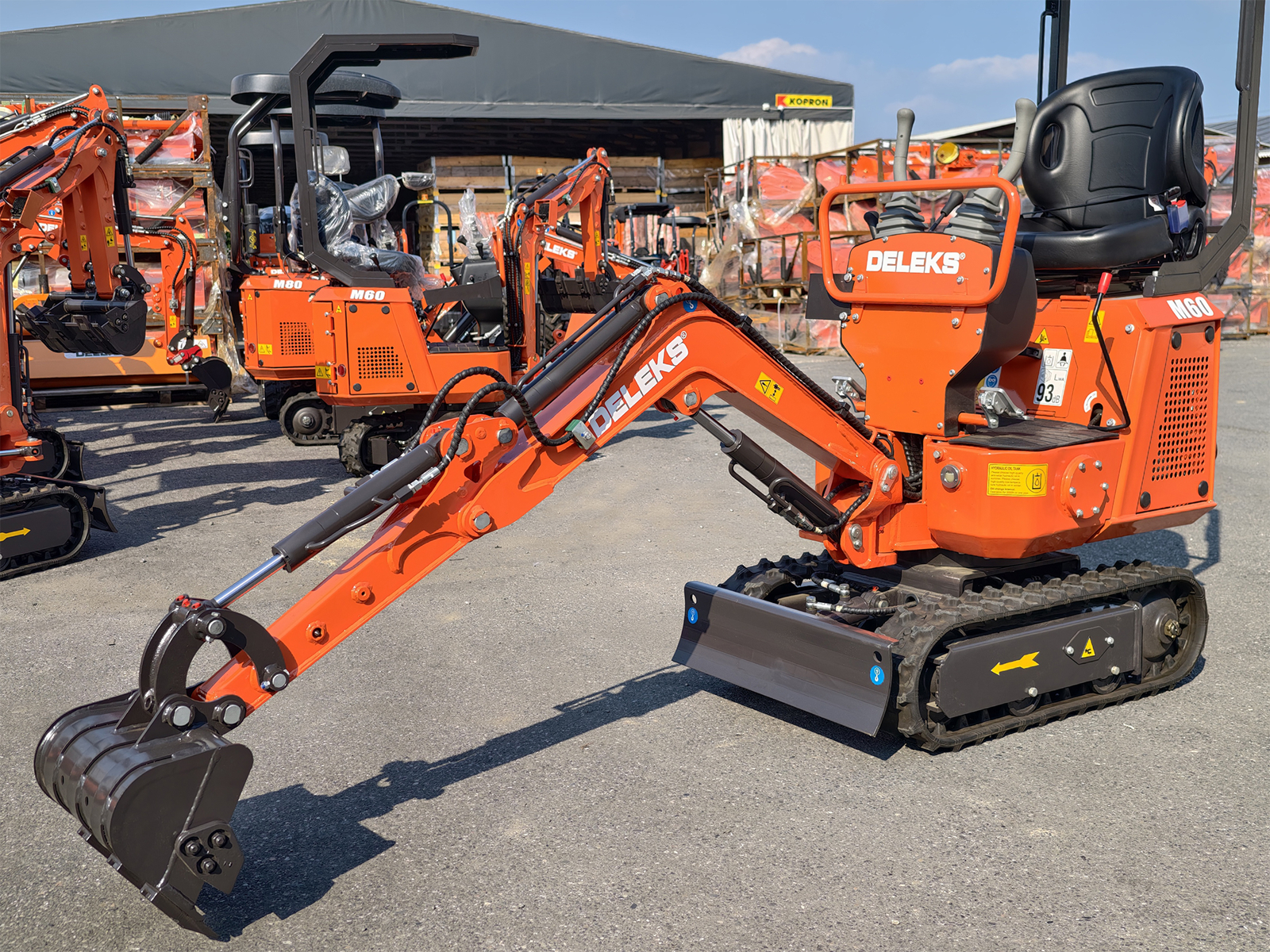

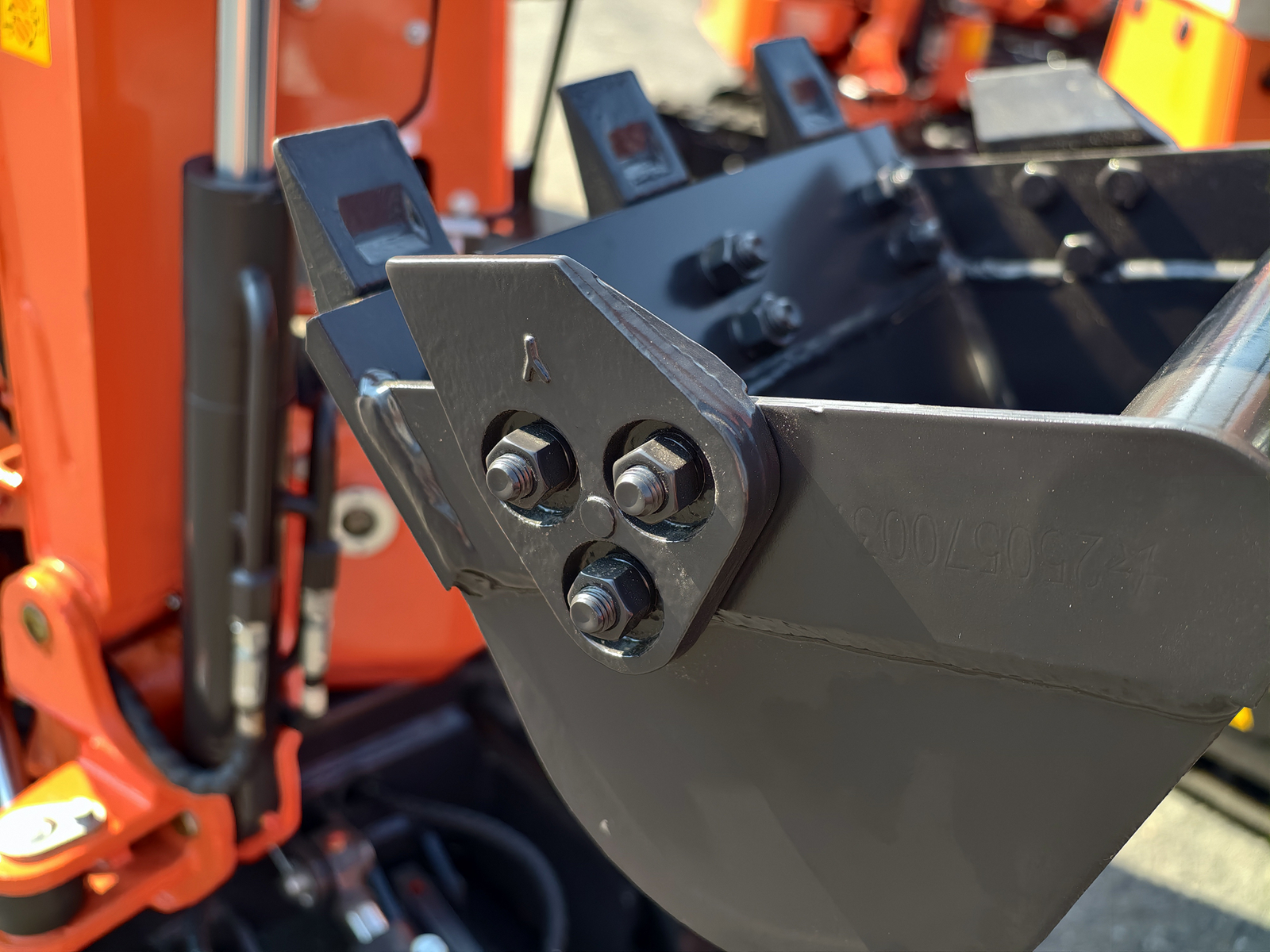

40 cm bucket

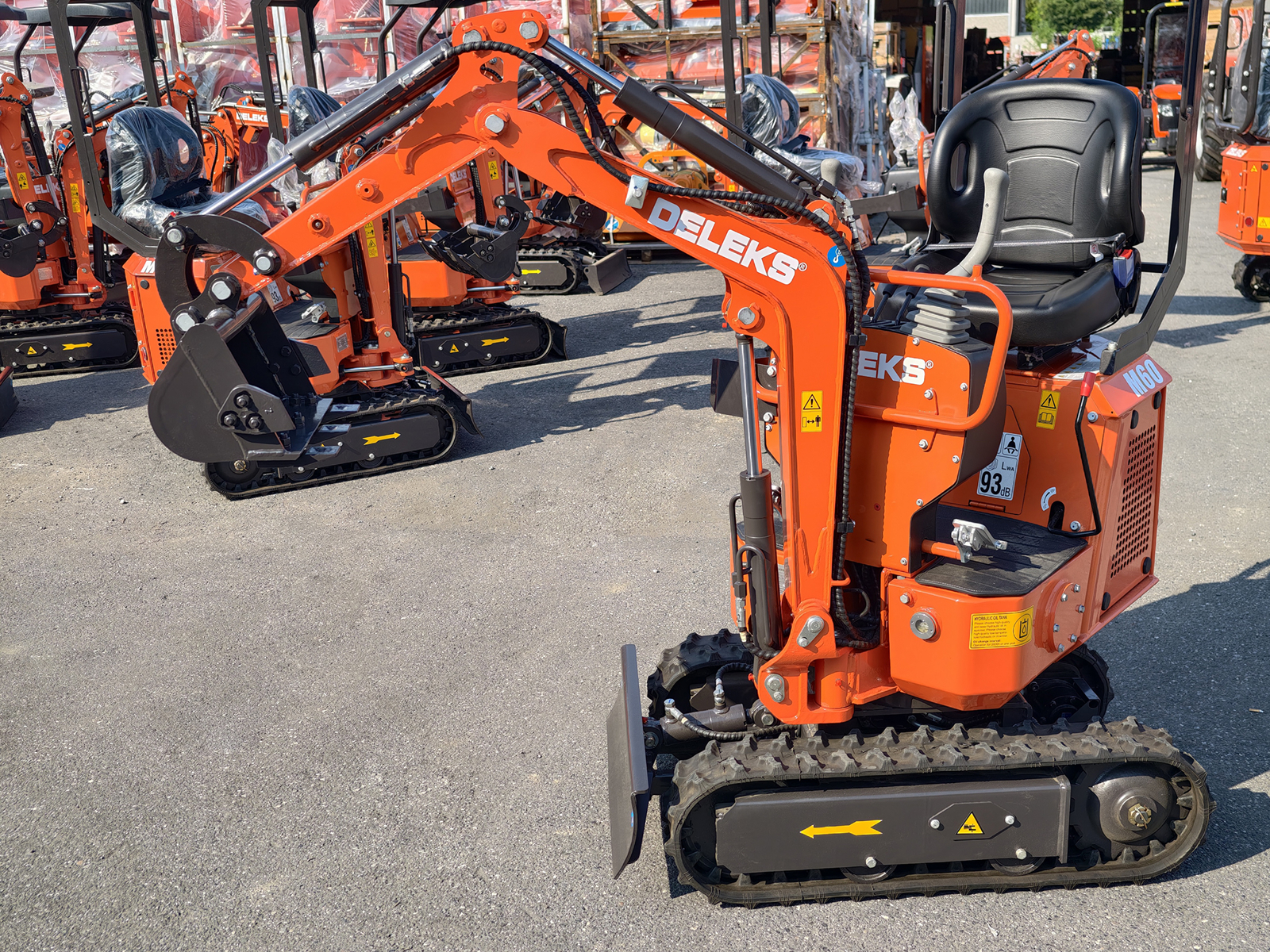

Front blade
Canopy
For more information: see attached technical datasheet (PDF).
PERFORMANCE
Hydraulic system: Flow rate: 19 l/min, Pressure: 160 bar
Max speed: 2.5 km/h
Rotation speed: 8 rpm
Fuel tank capacity: 6 L
Hydraulic oil tank capacity: 12 L
For more information: see attached technical datasheet (PDF).
CERTIFICATIONS
Certificate of Conformity to the requirements established in the standards harmonized for Machinery Directive 2006/42/EC:
EN 474-1:2006 + A4:2013 + AC:2014
EN 474-5:2006 + A3:2013
Certificate of conformity (Sound power level):
Directive 2000/14/EC
Directive 2005/88/EC
Measured sound power level: 90 dBA
Guaranteed sound power level: 91 dBA
Technical File
Edited by Macchinesicure S.r.l
Mechanical & Oleodynamic Engineering - Cesena (FC) Italy.
Documentation supplied with this article:
Invoice
CE Conformity
User Manual
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 665.0 kg | 0.665 t |
| Engine | Loncin 302 | Loncin 302 |
| Digg capacity | 1250.0 mm | 4.0 ft |
DETAILS
CLOSEMini excavator DELEKS® M60 with Loncin engine, 665kg, rubber tracks, swing boom. Certification made by italian agencies.
EXTREMELY COMPACT
The M60 mini excavator is the smallest in the Deleks range, offering the power and digging speed needed to work in confined spaces: in gardens for planting or irrigation system installation, inside buildings for small demolition tasks during renovations, and generally in all situations where a larger mini excavator cannot move or reach.
Moreover, the M60 is lightweight and has a low ground pressure, making it ideal for soil leveling tasks (without compaction) — an essential requirement for laying turf.
Thanks to an advanced hydraulic system, all movements are smooth and vibration-free, ensuring maximum precision in every situation.
Daily maintenance checks are quick and easy thanks to the fully opening engine hood.
All functions are independent of one another, allowing both experienced and beginner operators to learn how to use the mini excavator from the very first use.
DELEKS® compact excavators come equipped with a standard canopy, providing the operator with 360° visibility.
SETUP
Loncin 302 petrol engine, 9.0 HP at 3600 rpm
40 cm bucket
Front blade
Canopy
For more information: see attached technical datasheet (PDF).
PERFORMANCE
Hydraulic system: Flow rate: 19 l/min, Pressure: 160 bar
Max speed: 2.5 km/h
Rotation speed: 8 rpm
Fuel tank capacity: 6 L
Hydraulic oil tank capacity: 12 L
For more information: see attached technical datasheet (PDF).
CERTIFICATIONS
Certificate of Conformity to the requirements established in the standards harmonized for Machinery Directive 2006/42/EC:
EN 474-1:2006 + A4:2013 + AC:2014
EN 474-5:2006 + A3:2013
Certificate of conformity (Sound power level):
Directive 2000/14/EC
Directive 2005/88/EC
Measured sound power level: 90 dBA
Guaranteed sound power level: 91 dBA
Technical File
Edited by Macchinesicure S.r.l
Mechanical & Oleodynamic Engineering - Cesena (FC) Italy.
Documentation supplied with this article:
Invoice
CE Conformity
User Manual
CHARACTERISTICS
CLOSE| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 665.0 kg | 0.665 t |
| Engine | Loncin 302 | Loncin 302 |
| Digg capacity | 1250.0 mm | 4.0 ft |
Technical charts
CLOSE| Specifications | Download PDF |
