Adjustable sideshift flail mower for 60-90hp tractors shredder with hammers, mulcher mod. TIGRE-200

4.5

188 reviews

Available
Code TIGRE200PTO
EAN 8053470231001
View all details.
D
H
M
S
-240,00 2.995,00VAT incl.
TOTAL
2.755,00VAT incl.
Free shipping

VIDEO

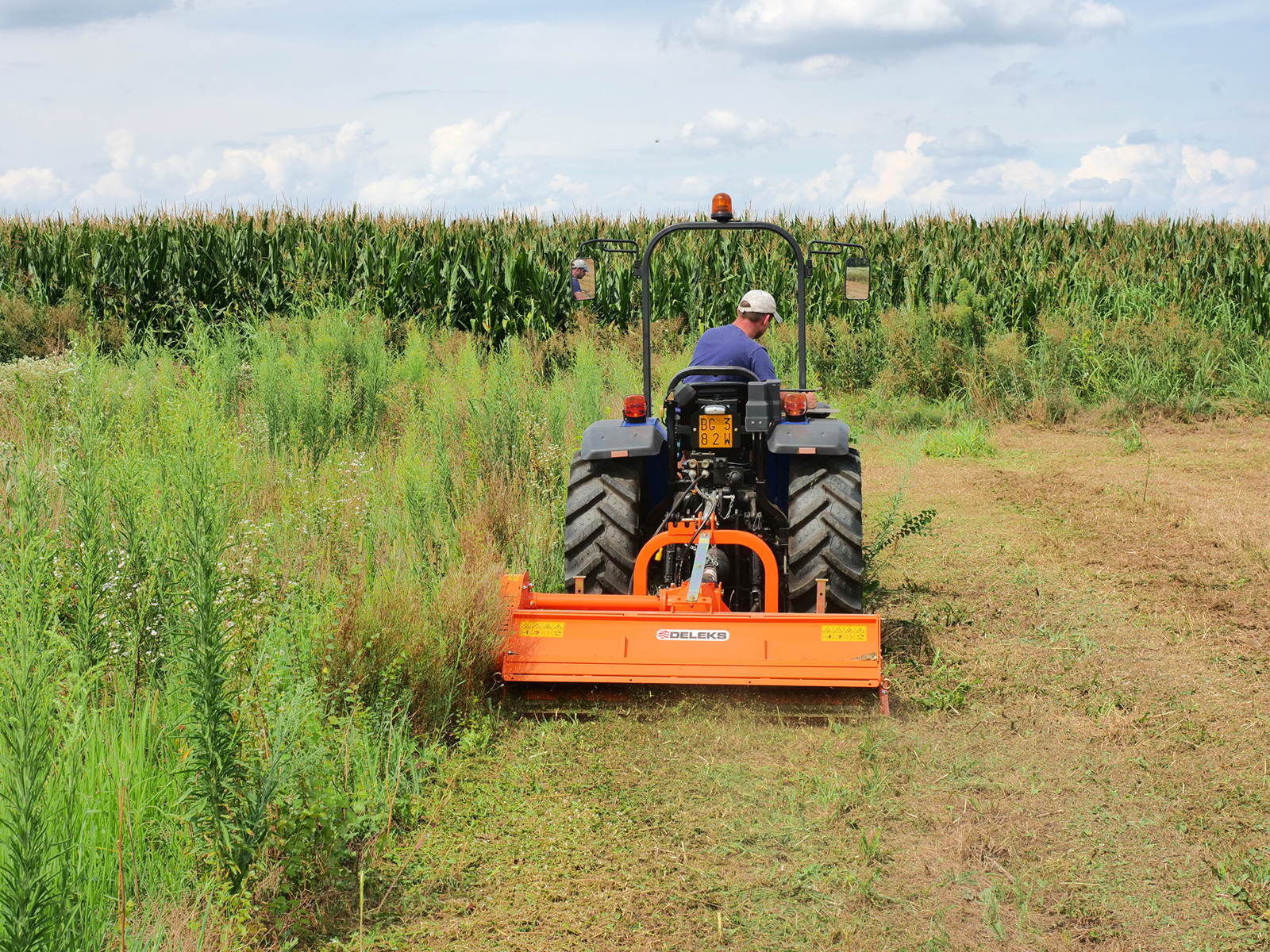

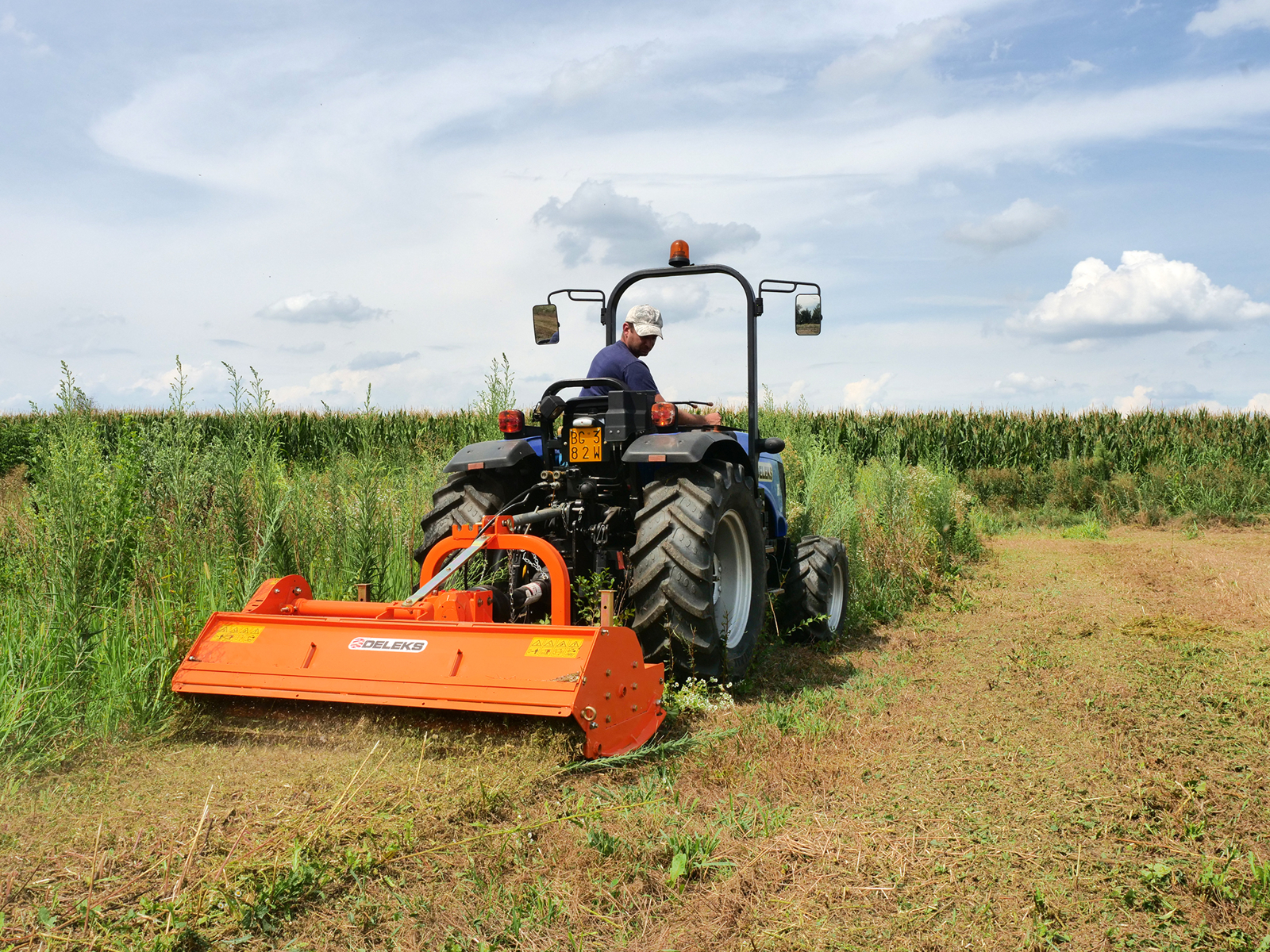

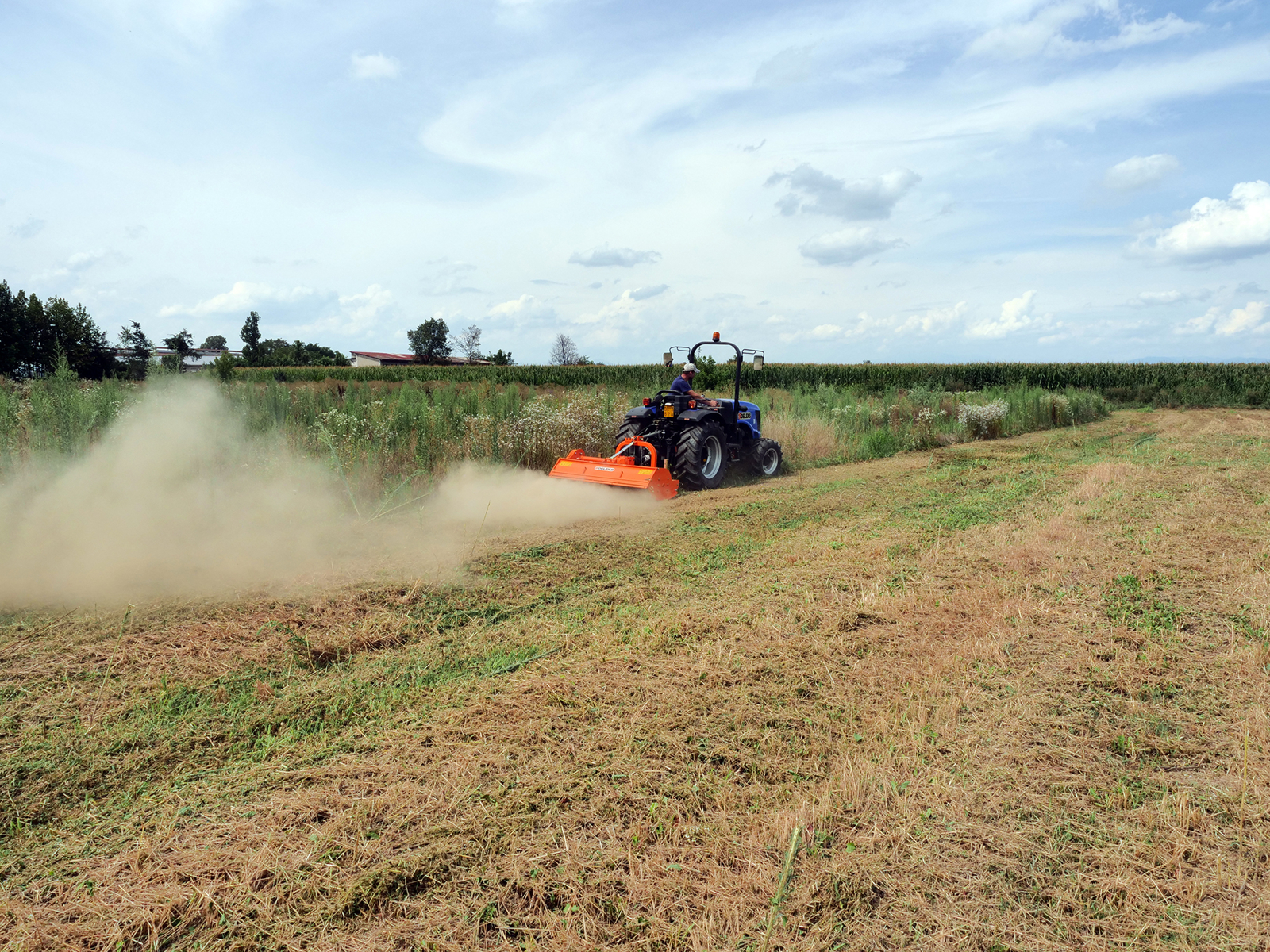

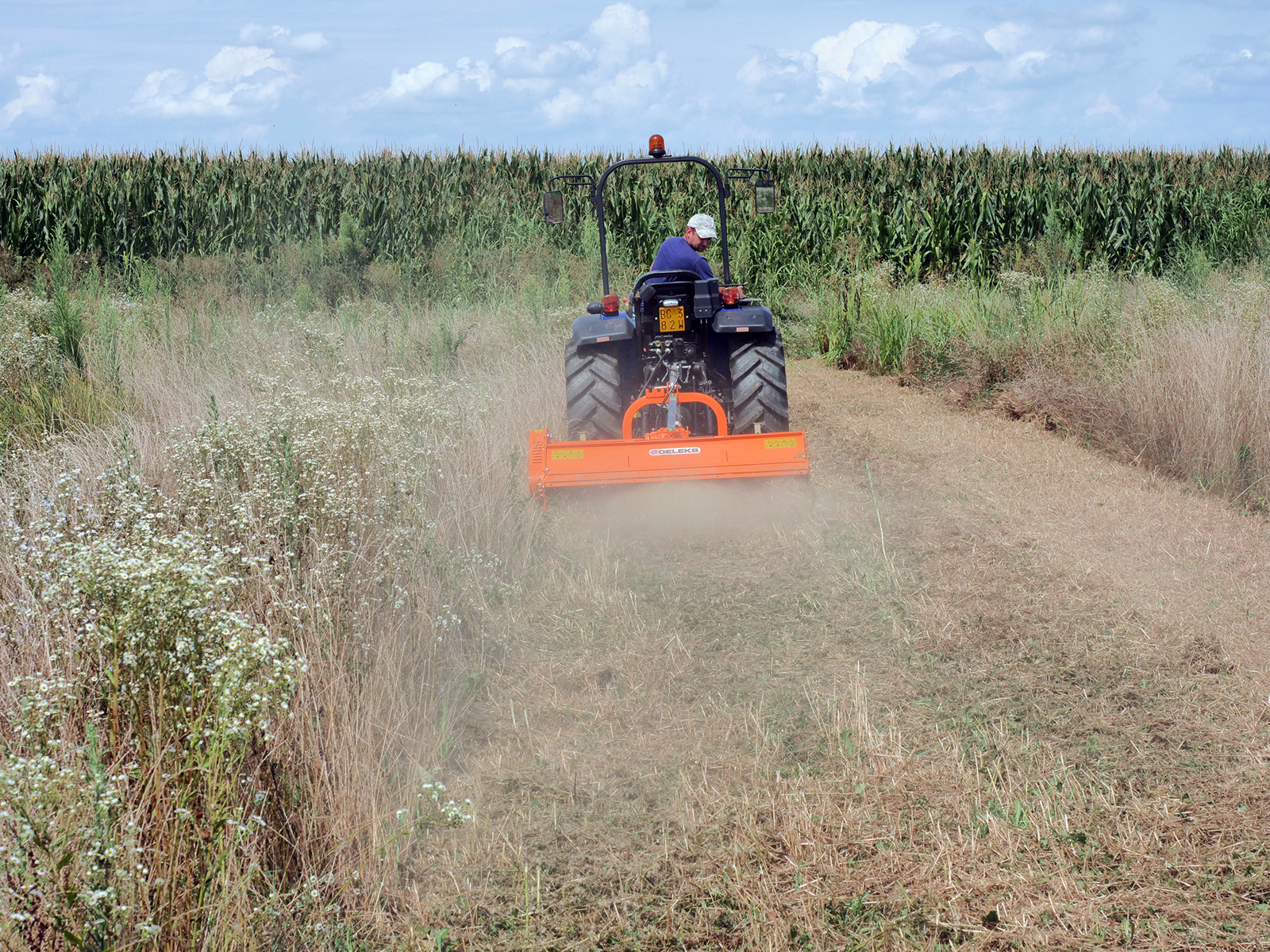

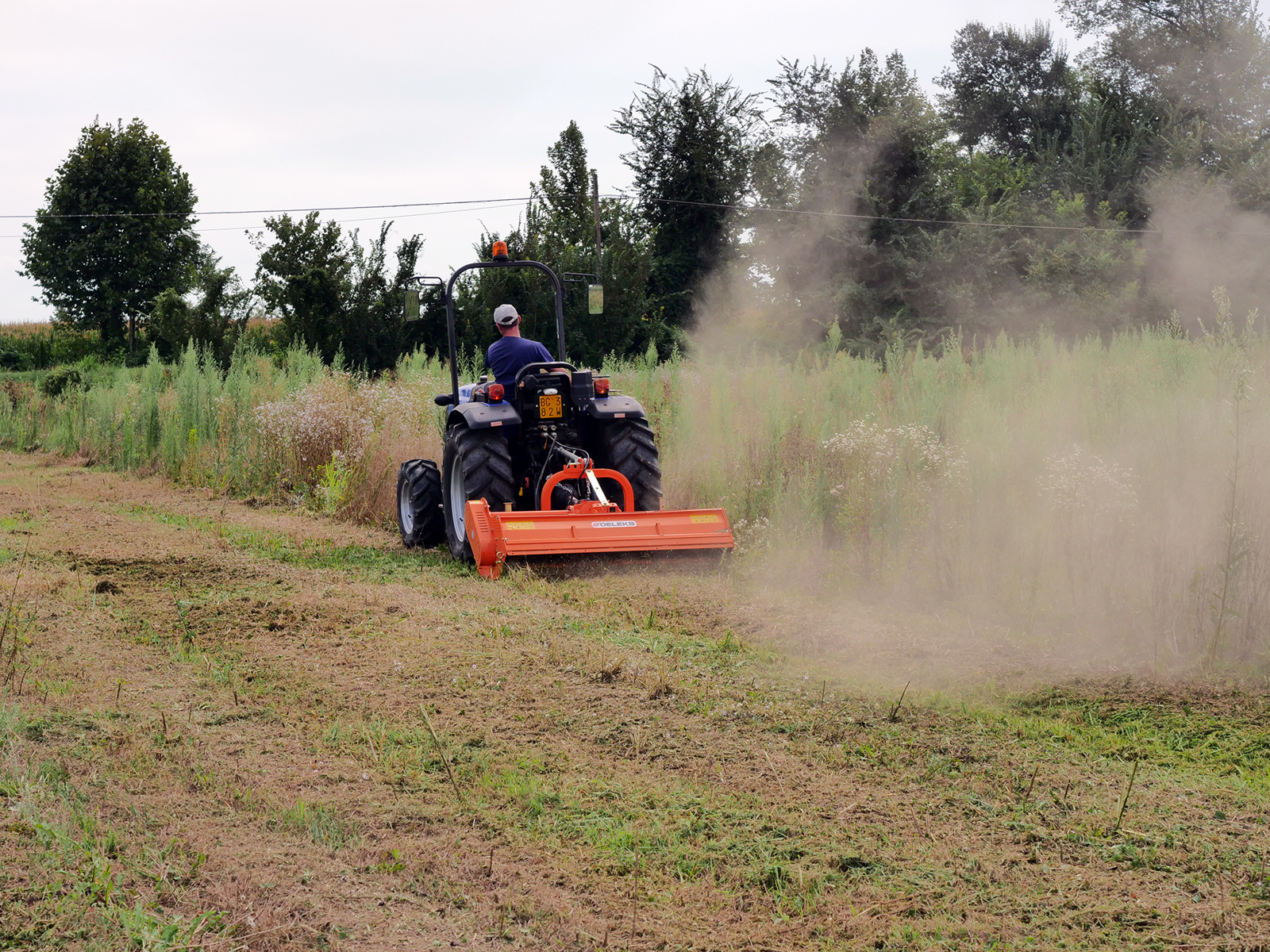

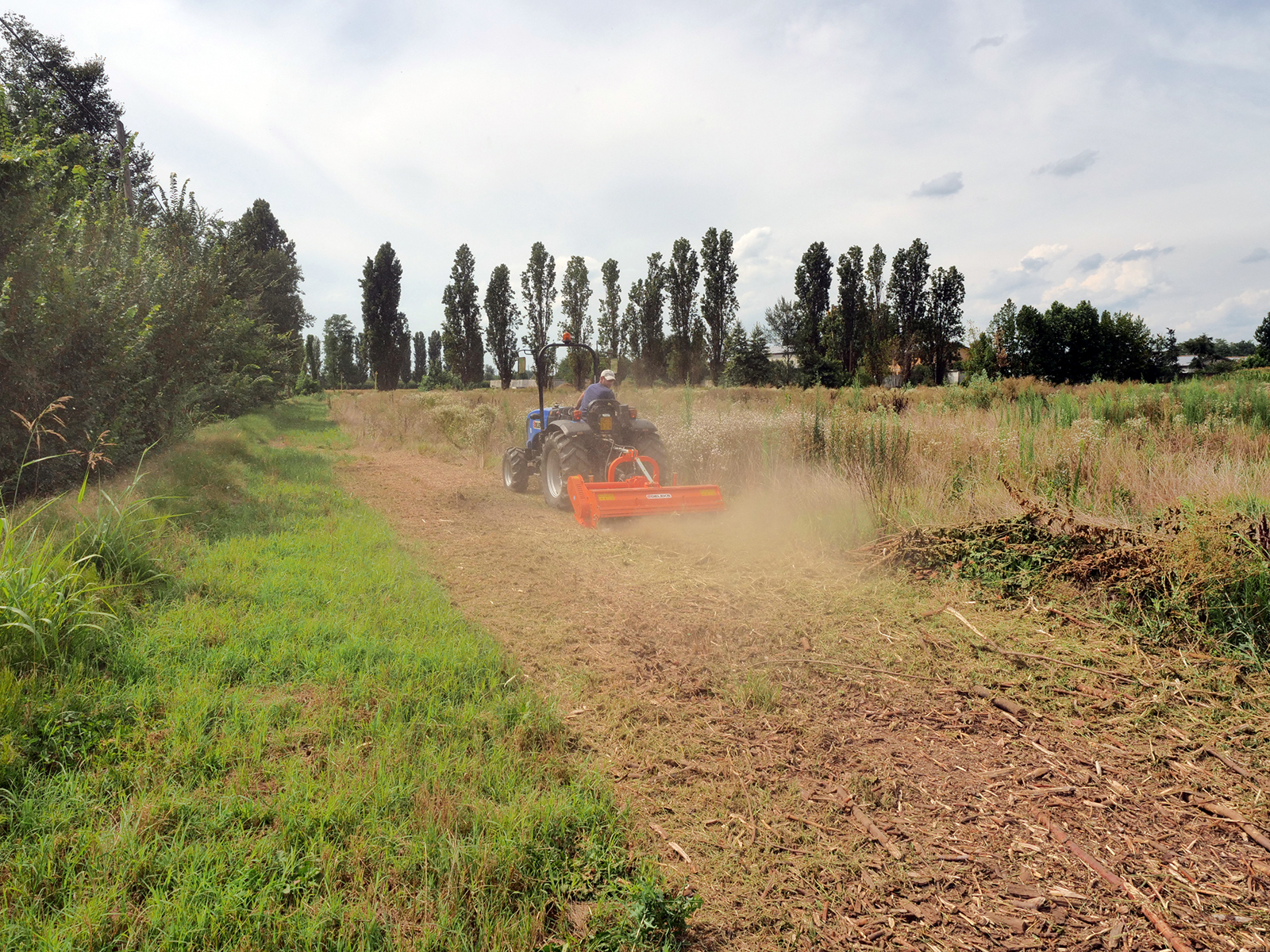

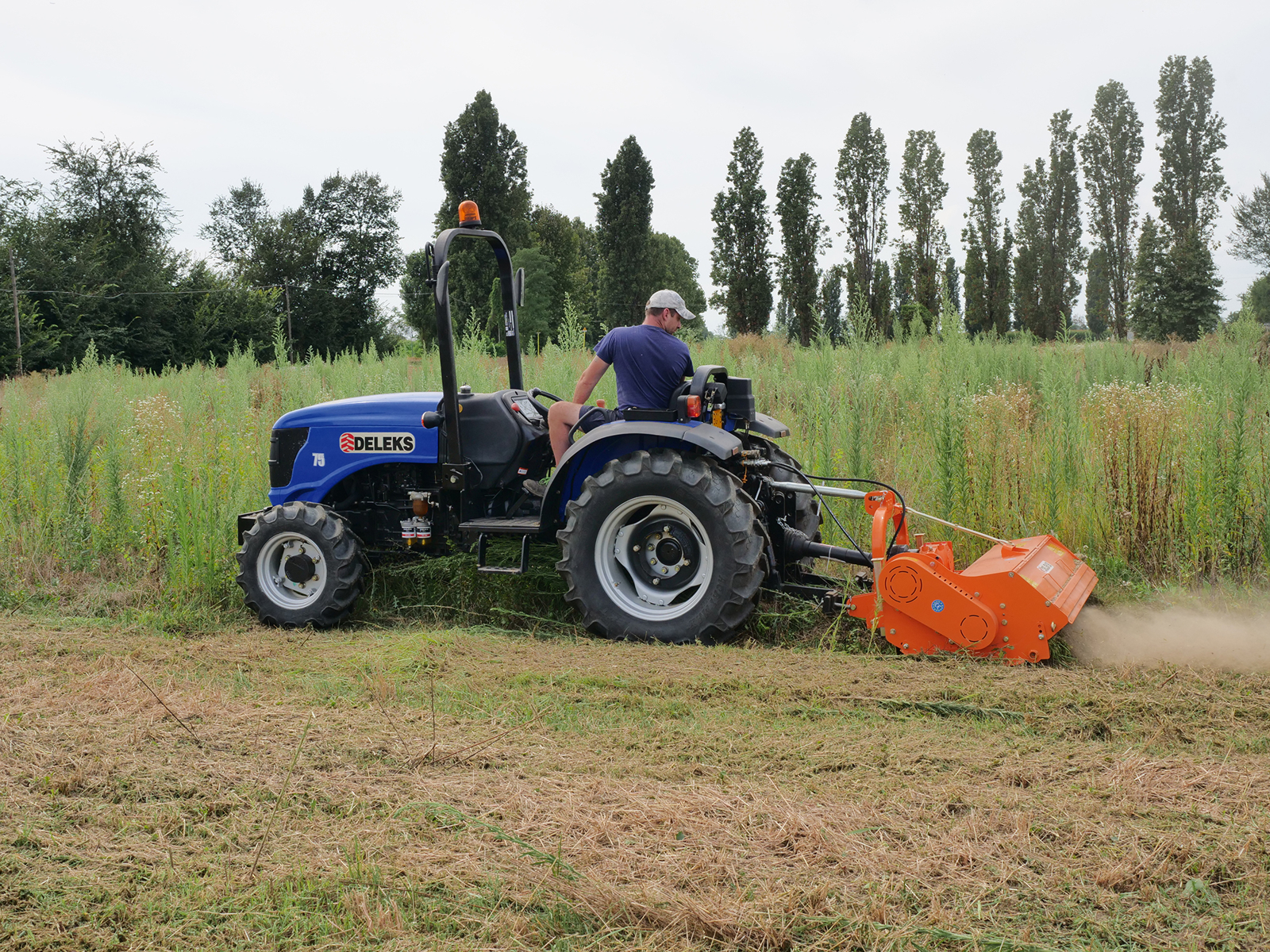

Field test
Field test

DETAILS

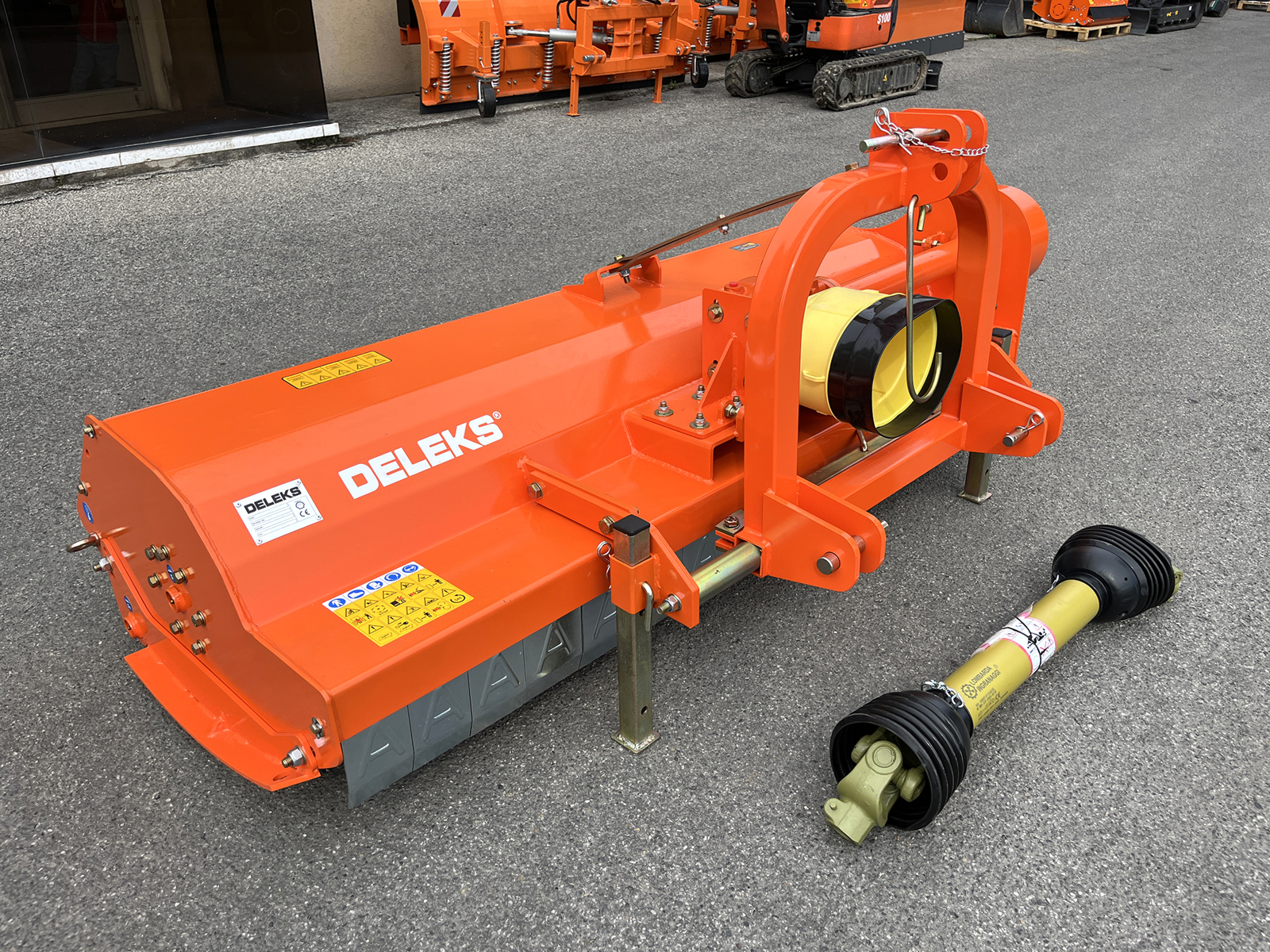

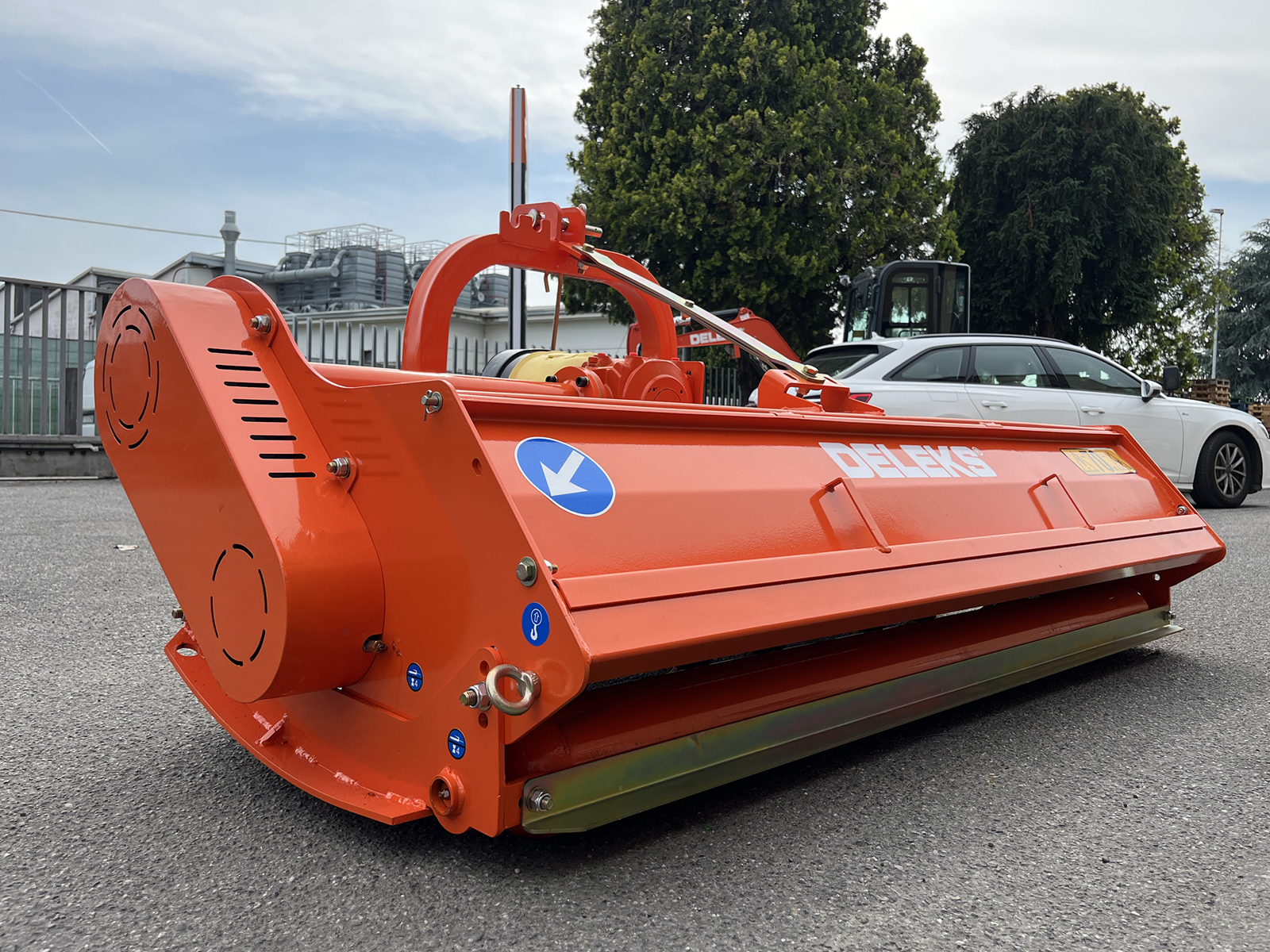

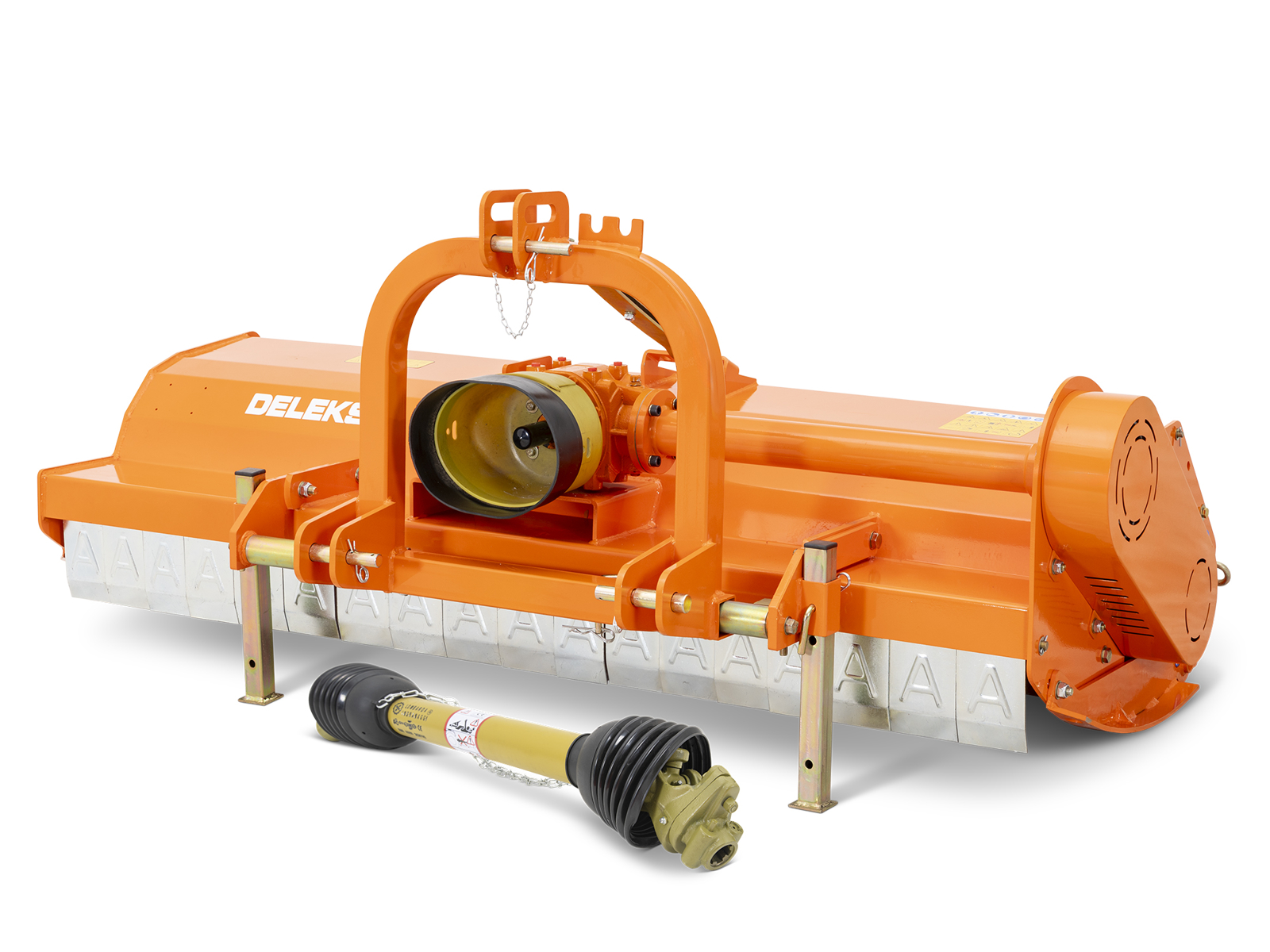

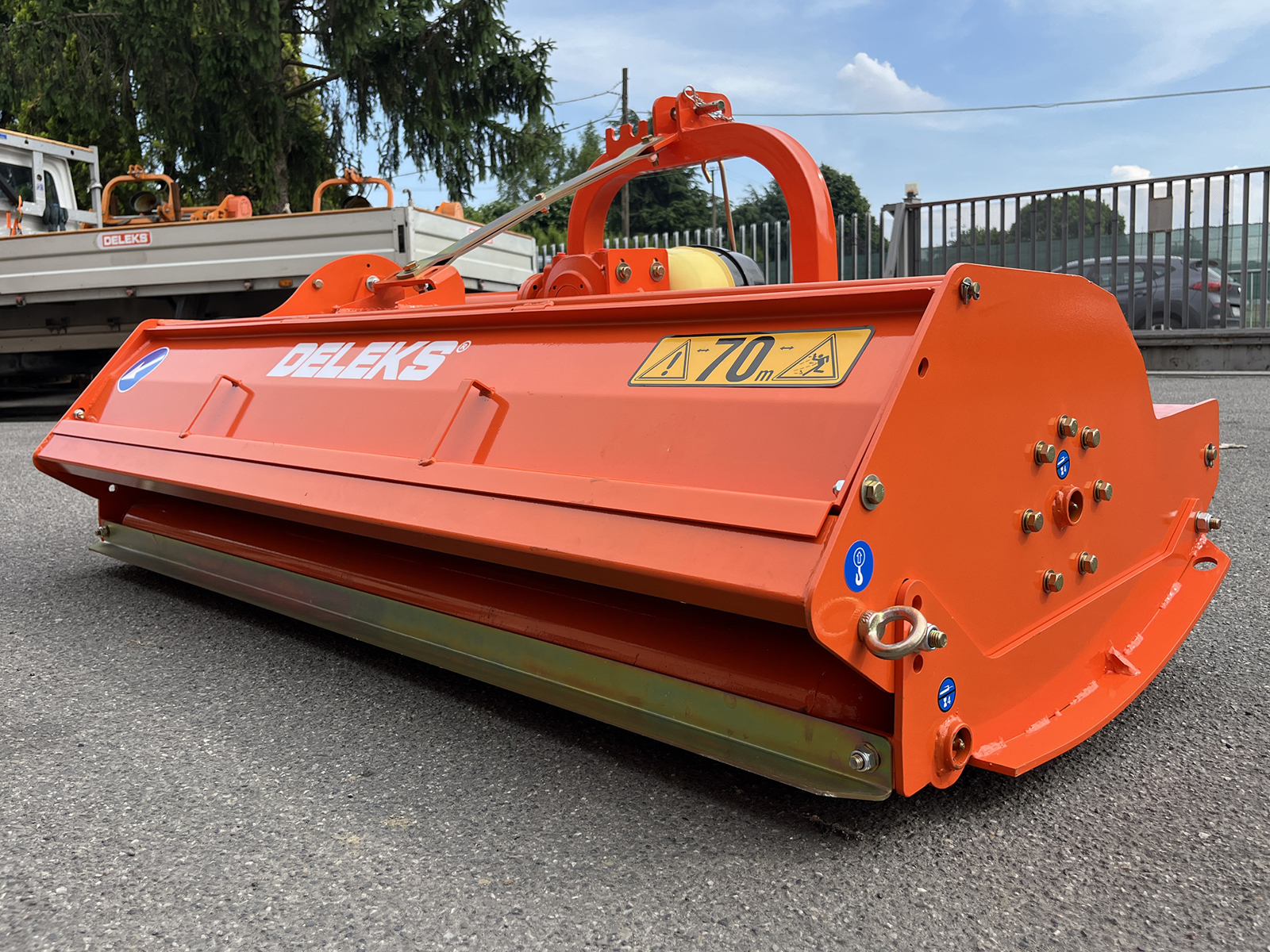

Shredder with hammers for tractor working width 200cm / 428kg - DELEKS® TIGRE-200 - flail mower max cutting diameter 4-5cm mulcher with mechanical side shift or hydraulic as optional, pto shaft CE included.


OVERVIEW

The TIGRE-200 flail mower has been designed for professional use in fields, meadows, parks, orchards etc. It is ideal mulching grass but is strong enough to handle shredding corn storks and heavy rushes. Thanks to it's solid frame and 160.0 mm rotor it can be used for work on the flat ground and verges. Compatible with all brands of tractors with Cat. 1-2  three-point linkage e.g Fiat, Ford, New Holland T4, Deutz-Fahr, Landini Rex, John Deere 4, Kubota L-M, Lamborghini, Goldoni, etc.


BENEFITS & FEATURES

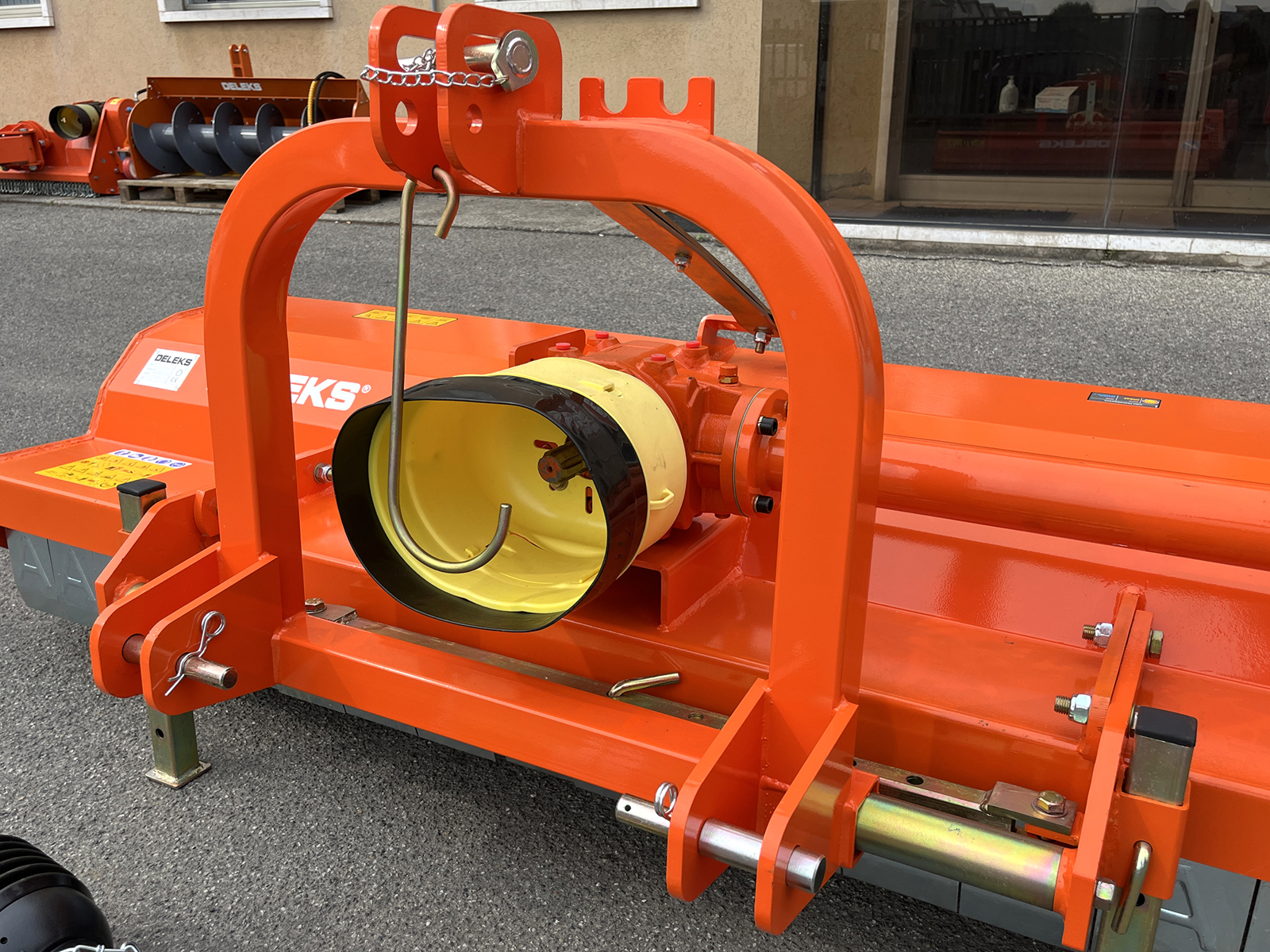

GB Bologna Gearbox with free wheel (Made in Italy) with 3 year warranty.

SKF long life rotor bearings.

Manual offset (hydraulic optional).

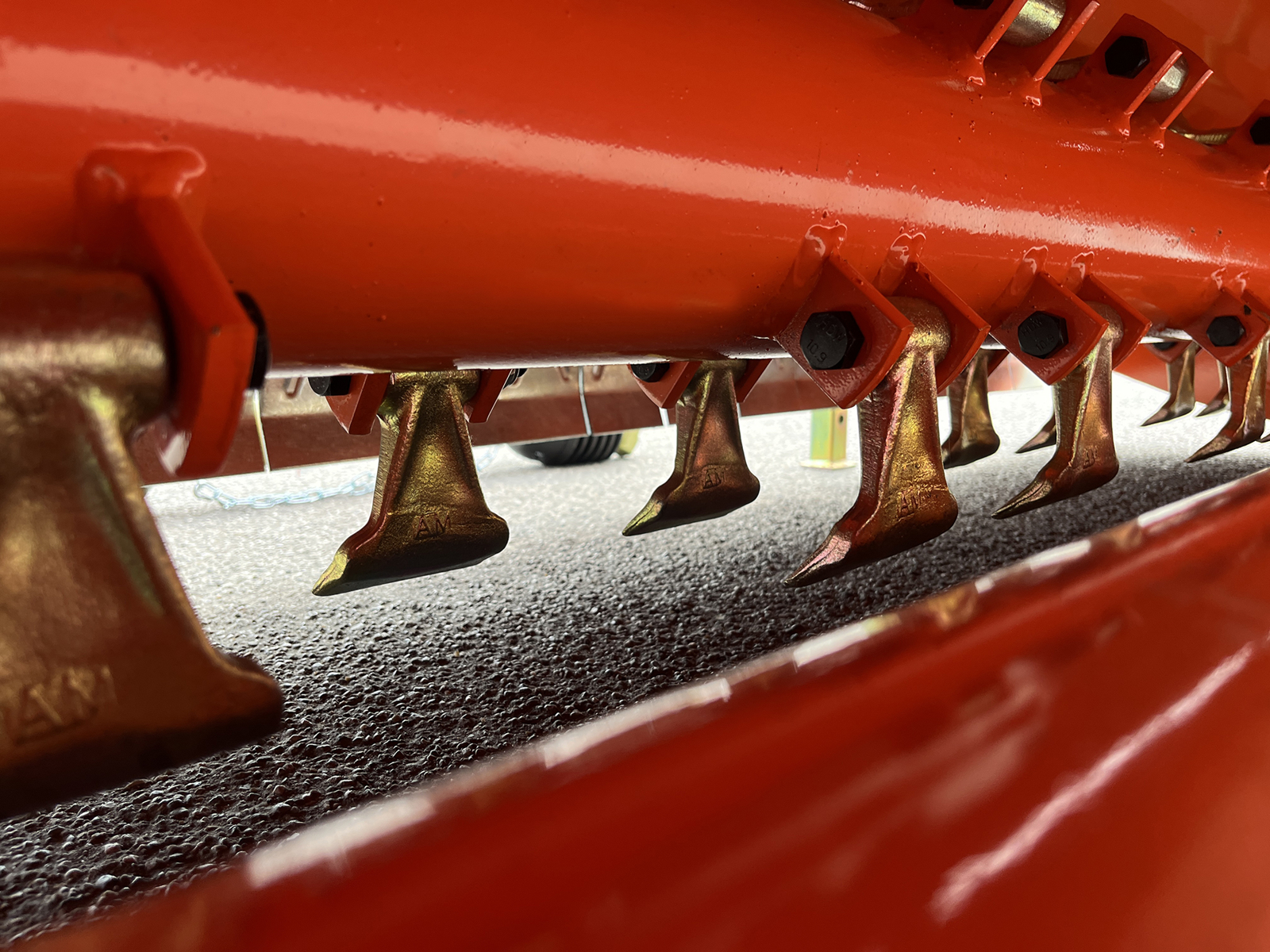

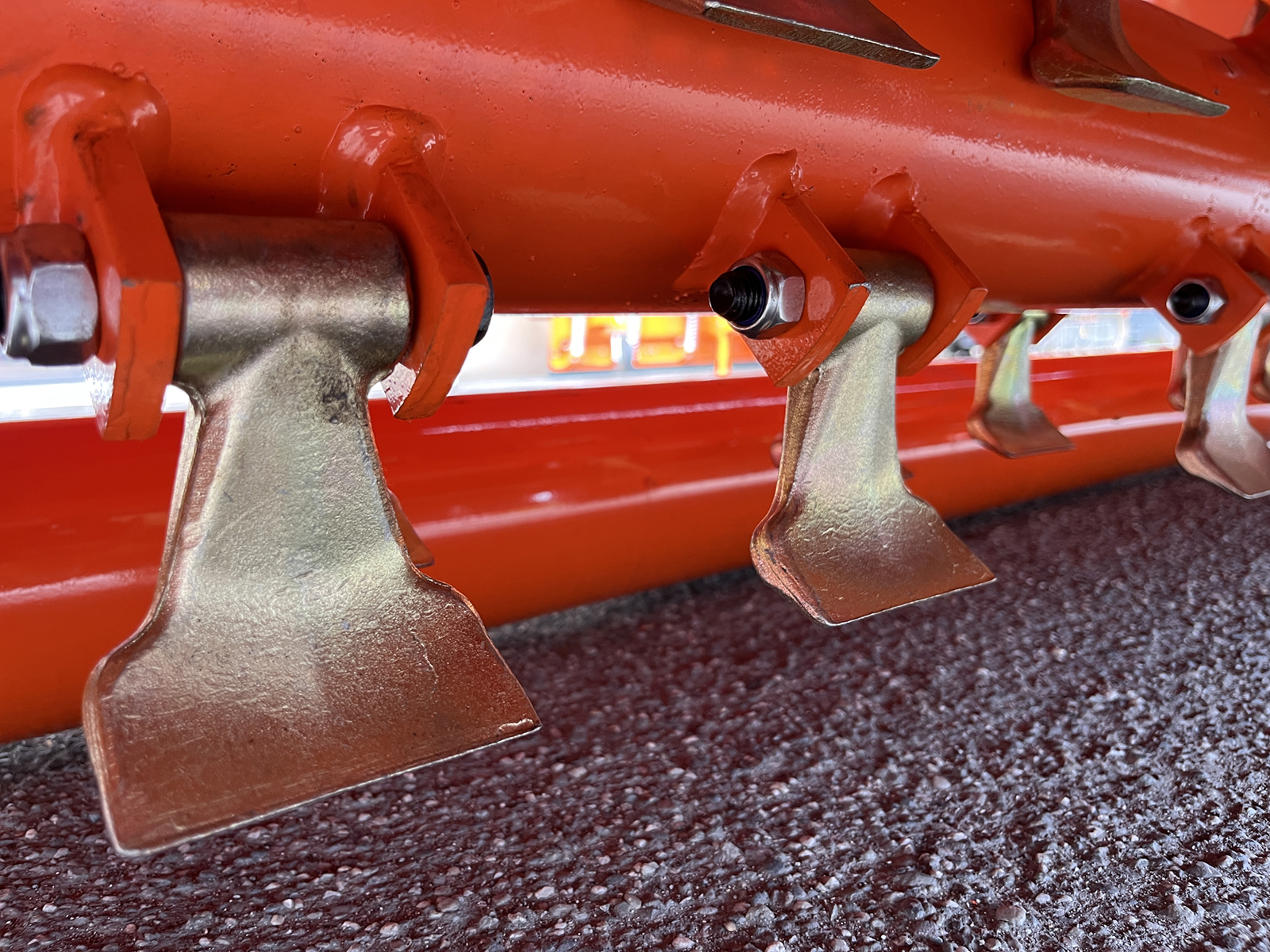

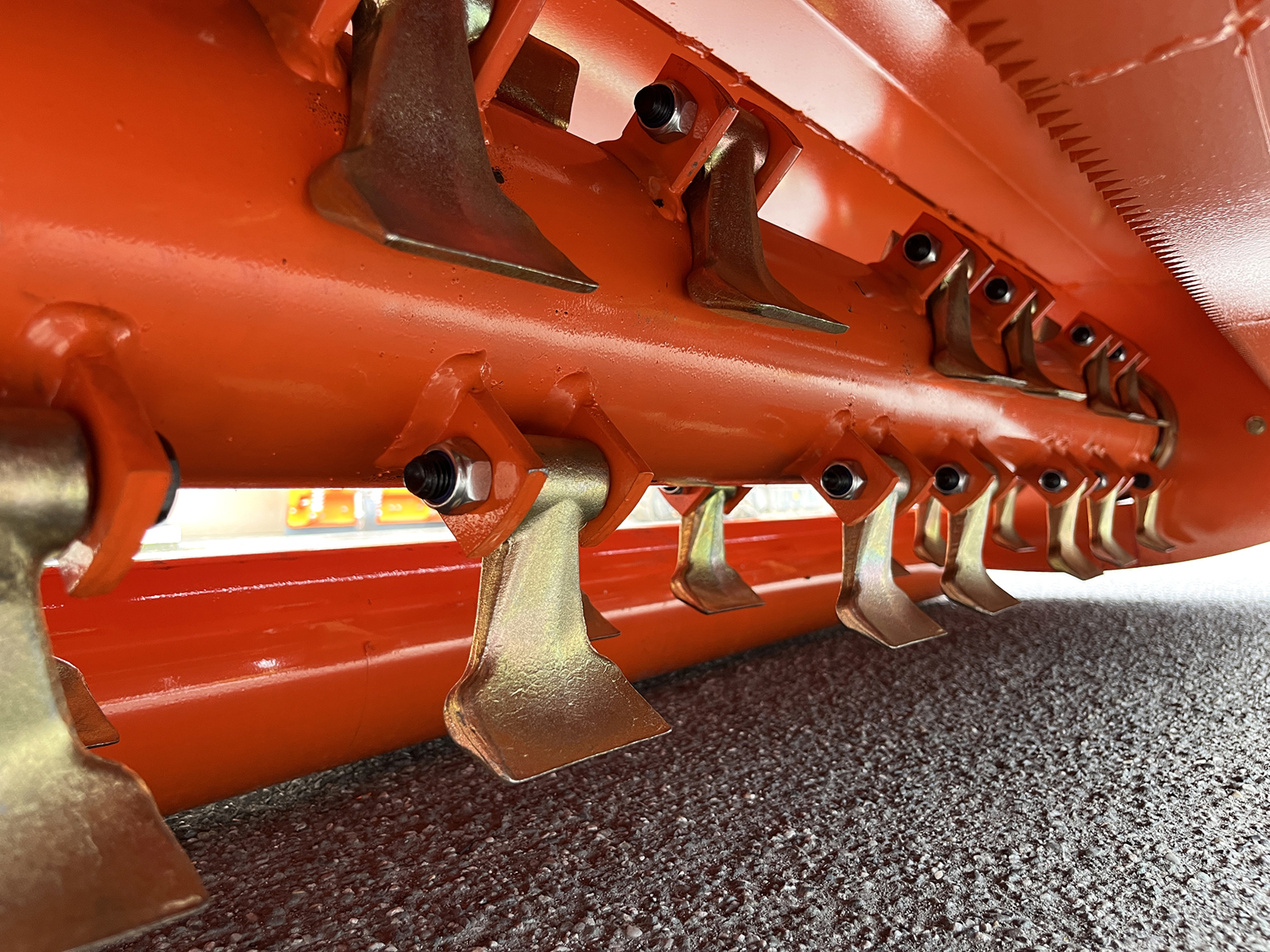

820g heat forged hammers to shred vegetation up to 3-4cm thick.

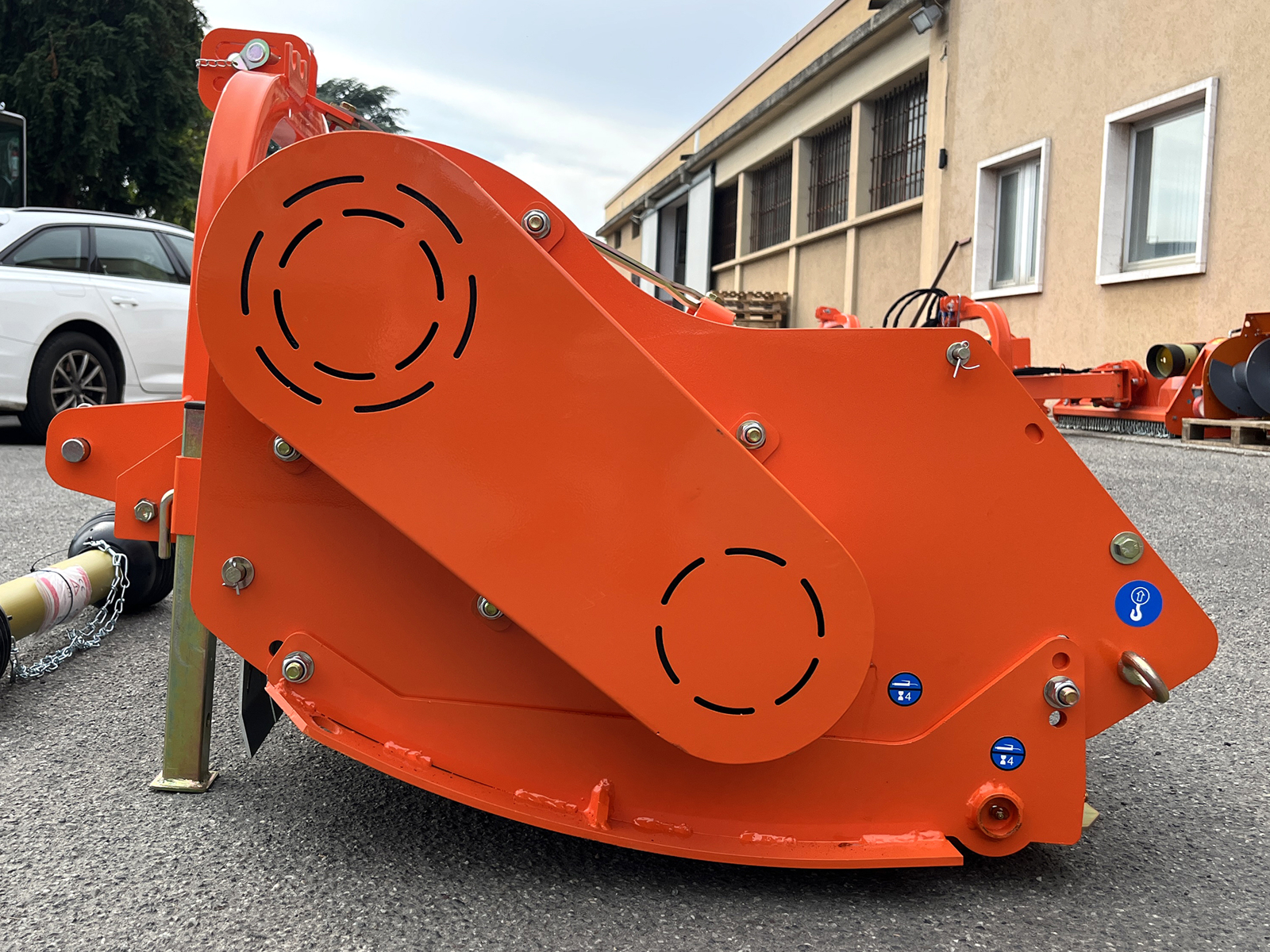

4 high resistance toothed belts, and external belt tensioner.

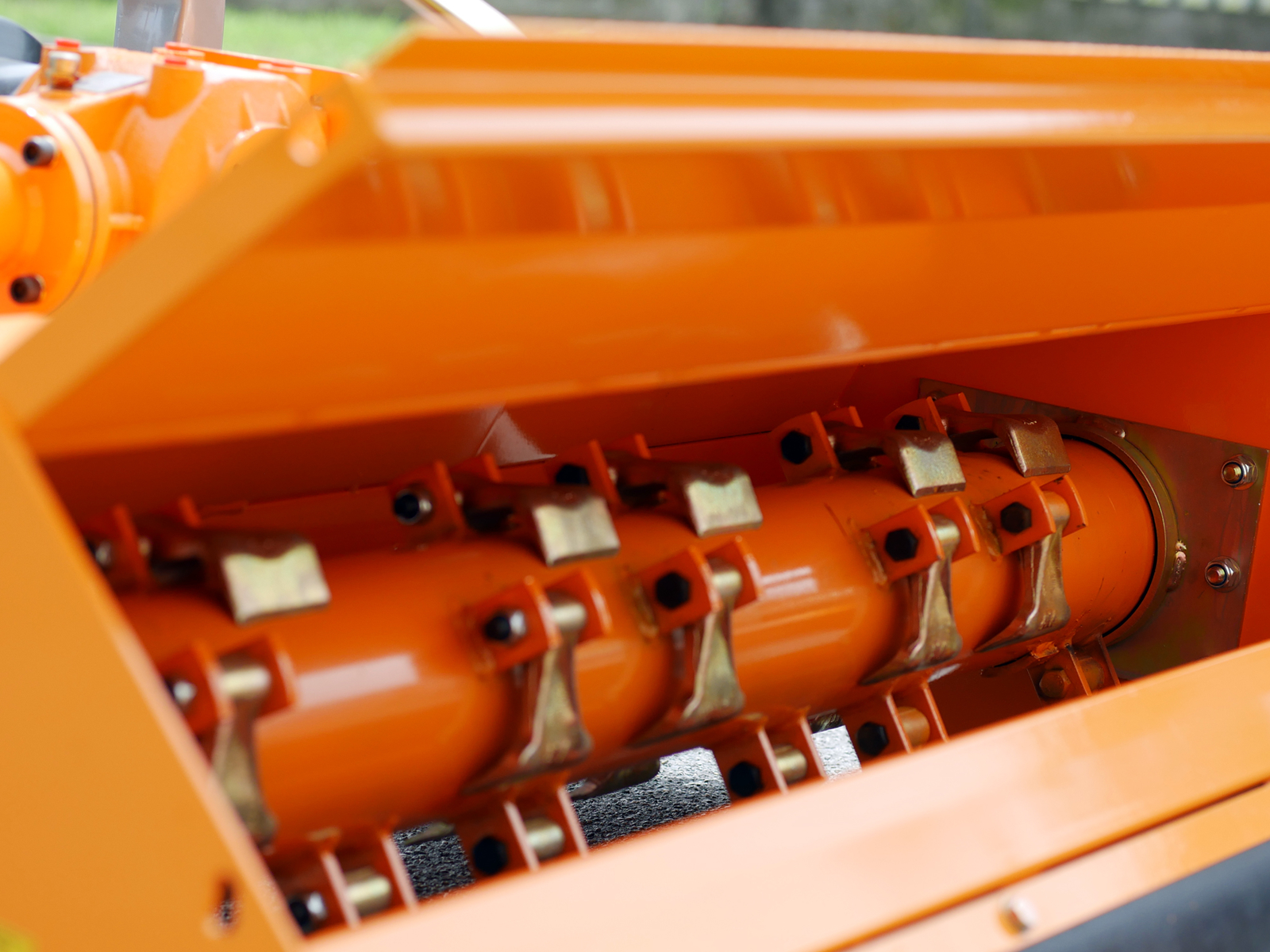

160.0 mm electronically balanced rotor.

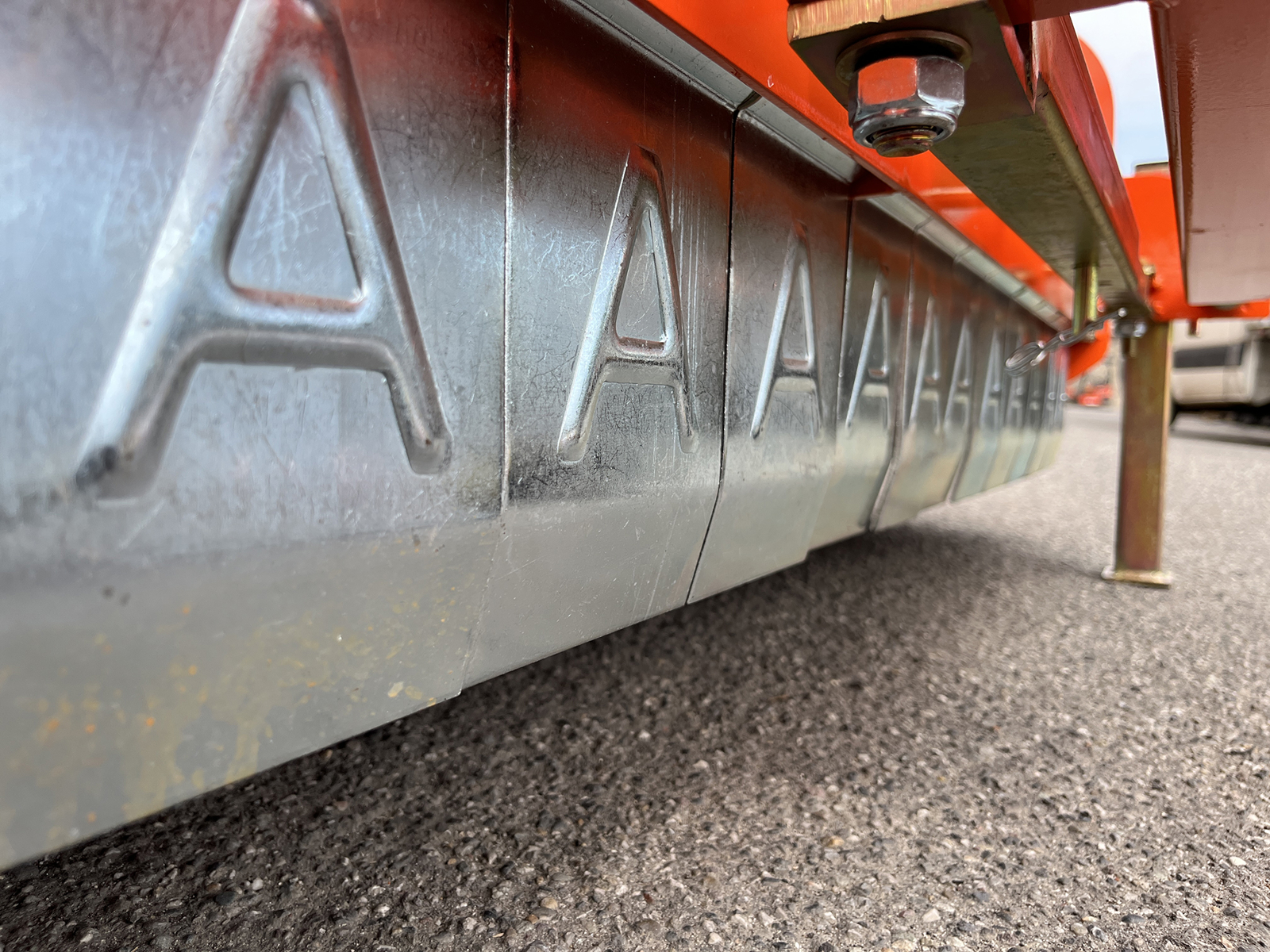

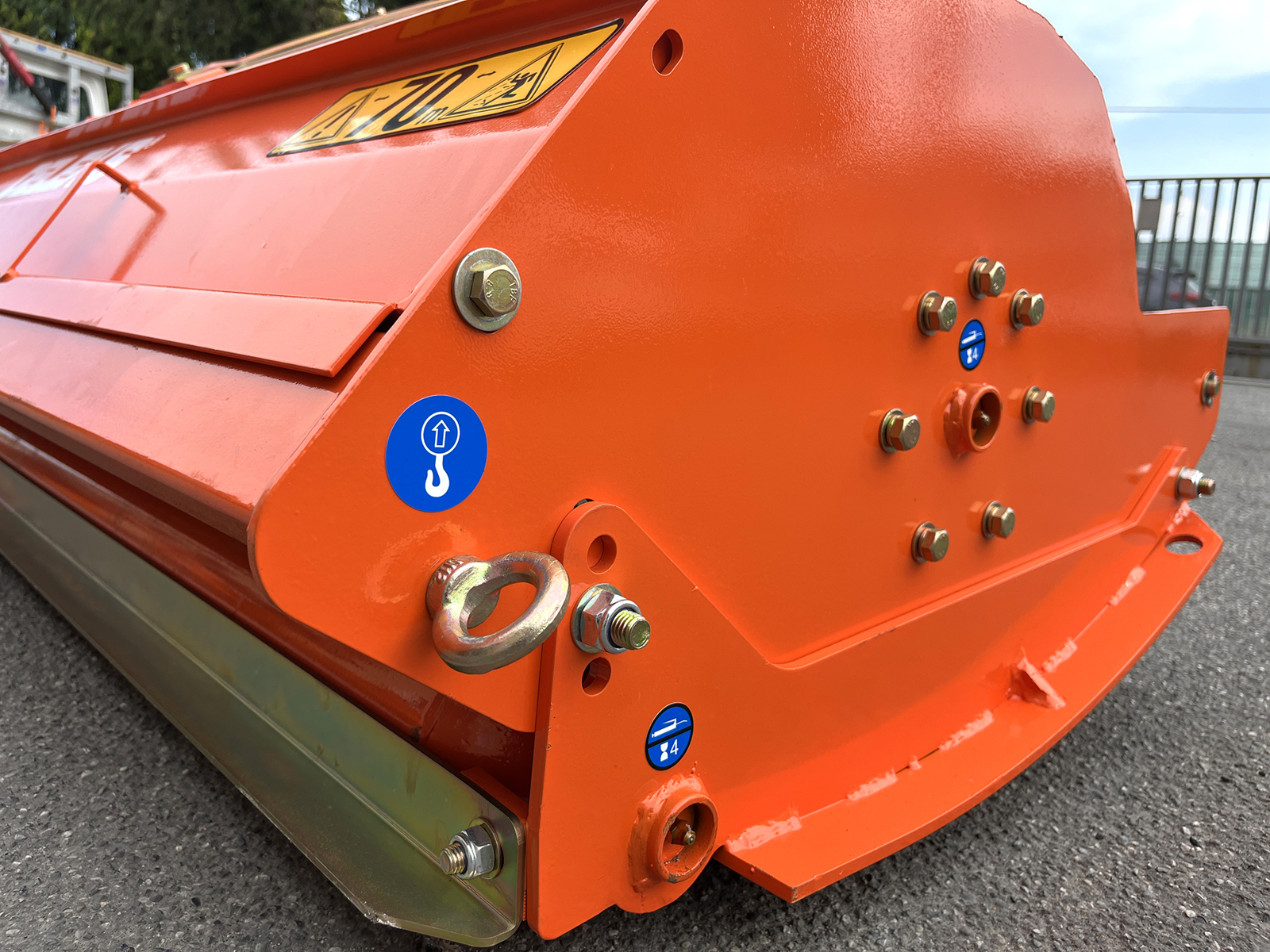

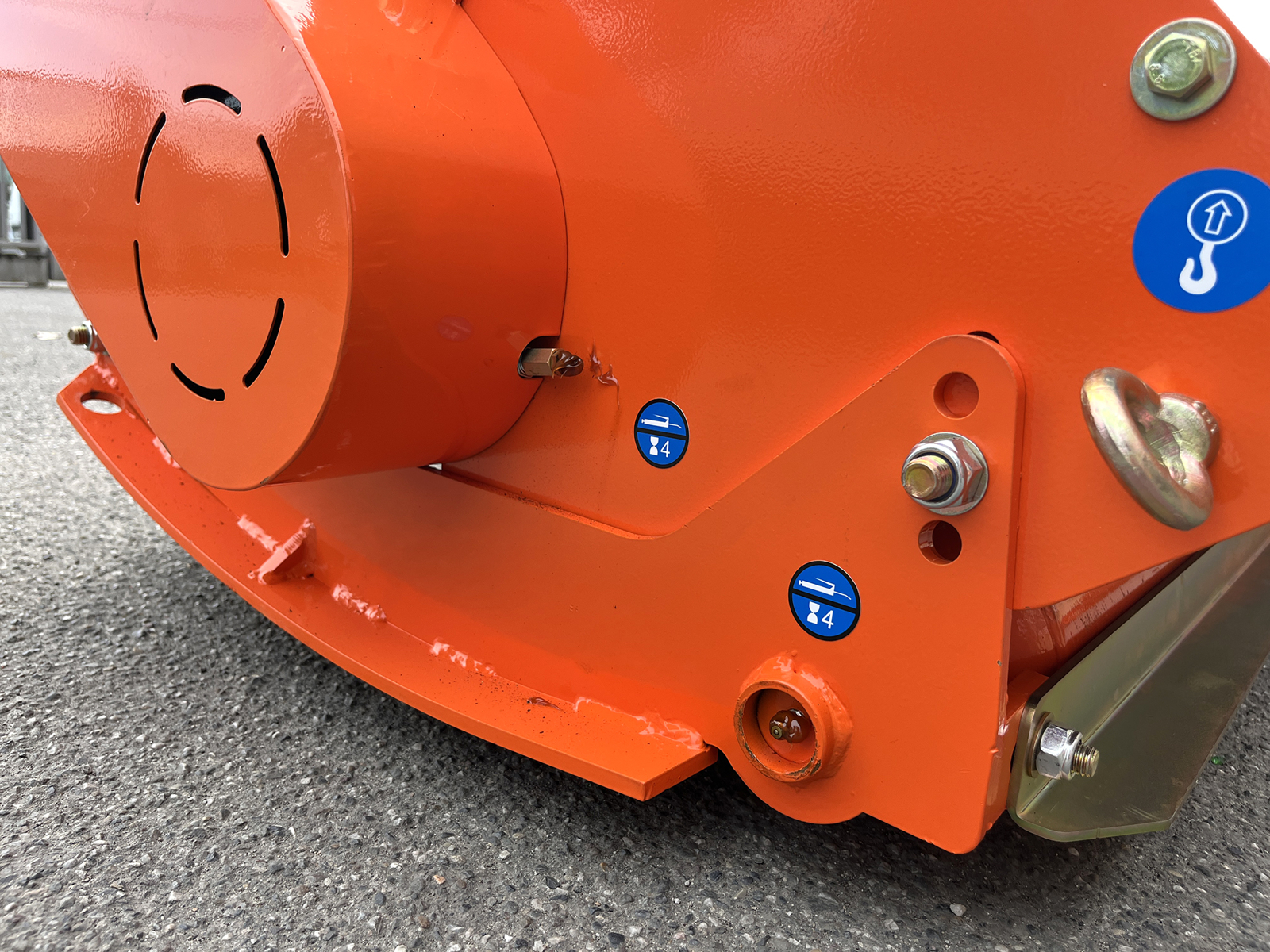

Self-cleaning rear roller and side skids.

Rear bonnet can be opened for maintenance purposes.

Reinforced rotor support fixed to the frame by 6 strong bolts for additional strength.

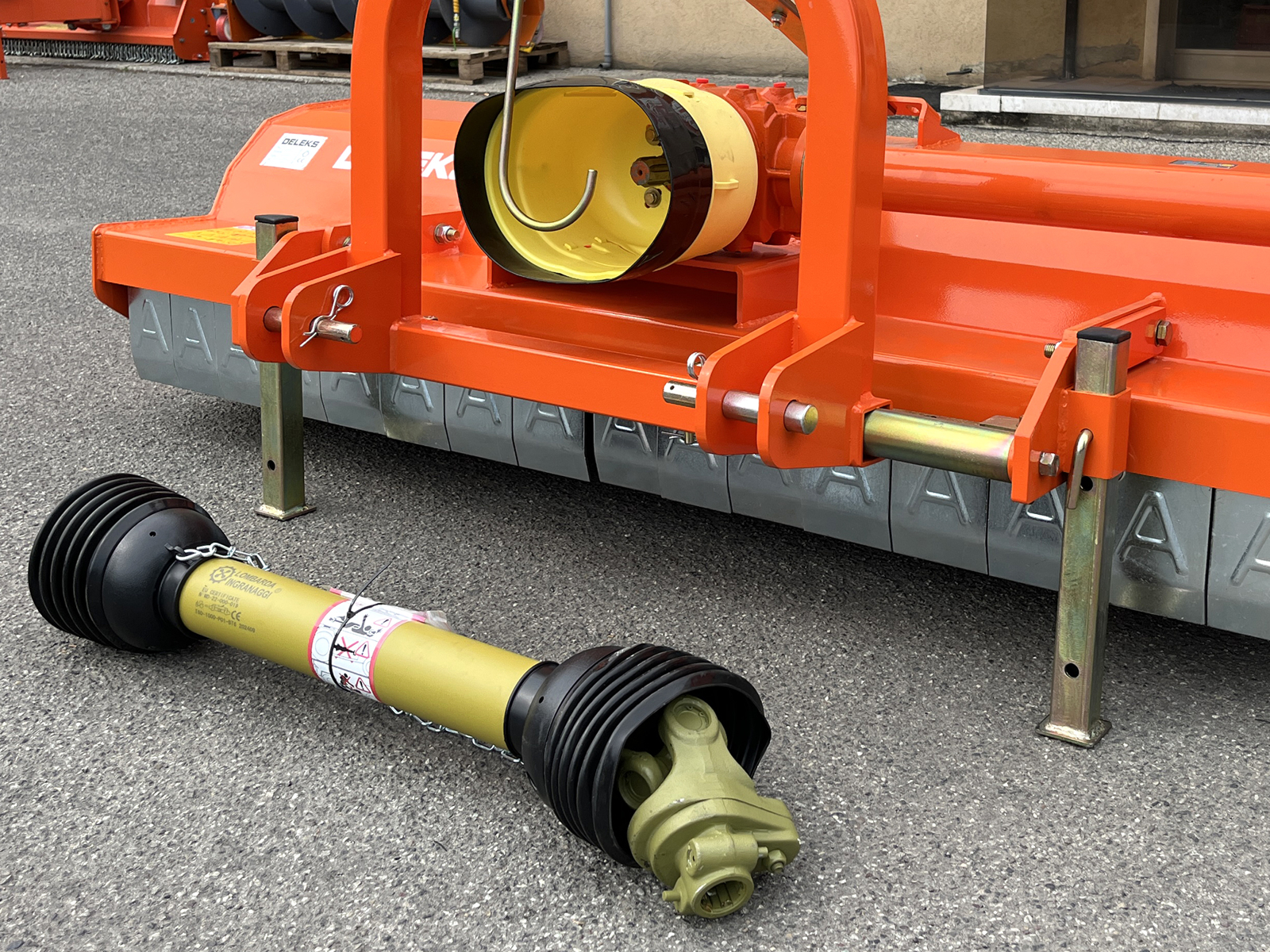

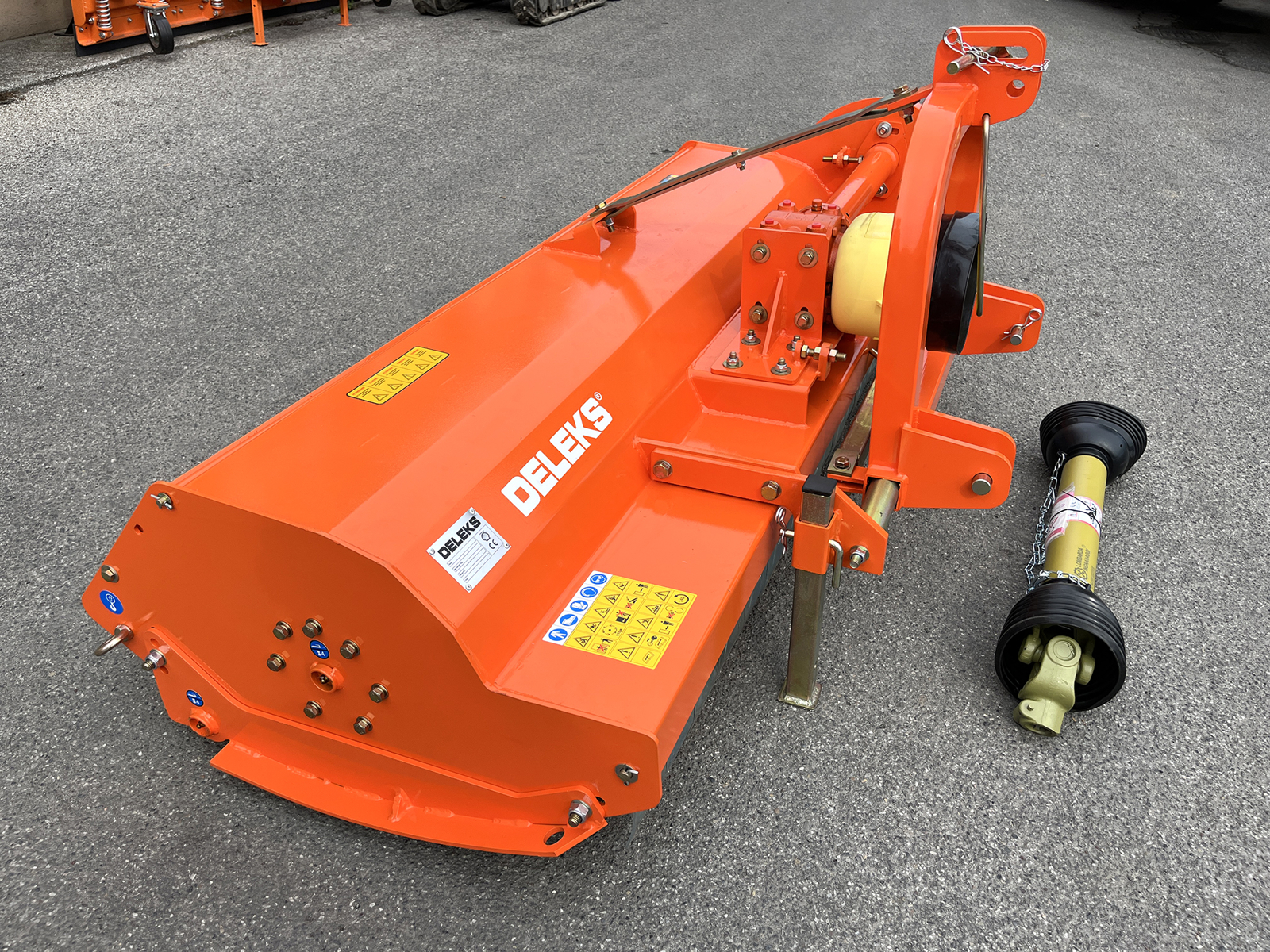

Pto shaft CE included.



CHARACTERISTICS

Characteristic Units metric Units US
Working width 2000.0 mm 6.54 ft
Overall width 2170.0 mm 7.12 ft
Min / Max cutting height 5.0 - 65.0 mm 0.2 - 2.55 in
Weight 428.0 kg 943.5 lb
Overall height 915.0 mm 3.0 ft
Tractor Power Range 60 - 90 Hp 60 - 90 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Position of the gearbox 890.0 mm from left side / 1105.0 mm from right side 35.0 in from left side / 43.5 in from right side
Hood height 495.0 mm 19.49 in
Spacing between the 2 lower points 550.0 - 660.0 mm 21.65 - 26.00 in
Number of Hammers 32 32
Maximum cutting diameter 40.0 - 50.0 mm 1.57 - 1.97 in
Overall length 1220.0 mm 4.0 ft
Distance between pto attachment and ground 400.0 mm 15.75 in
Main hood thickness 4.0 mm 0.16 in
Sides thickness 8.0 mm 0.31 in
Side plates thickness 8.0 mm 0.31 in
Transmission: Drive method V-Belts V-Belts
Transmission: Gearbox GB Bologna (Italy) (3 year warranty) GB Bologna (Italy) (3 year warranty)
Transmission: PTO 540 r/min 540 r/min
Transmission: Rotation of gearbox Right side Right side
Transmission: Free wheel
Transmission: RPM Rotor speed 2050 rpm 2050 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Transmission: Top pulley ø 189.0 mm 7.44 in
Transmission: Lower pulley ø 150.0 mm 5.90 in
Transmission: V-Belts quantity 4 4
Transmission: V-Belts size 17x1250 17x1250
Rotor: diameter 160.00 mm 6.30 in
Rotor: bearings type and size SKF 6309 SKF 6309
Rotor: balancing Electronic Electronic
Rotor: sheet thickness 8.0 mm 0.31 in

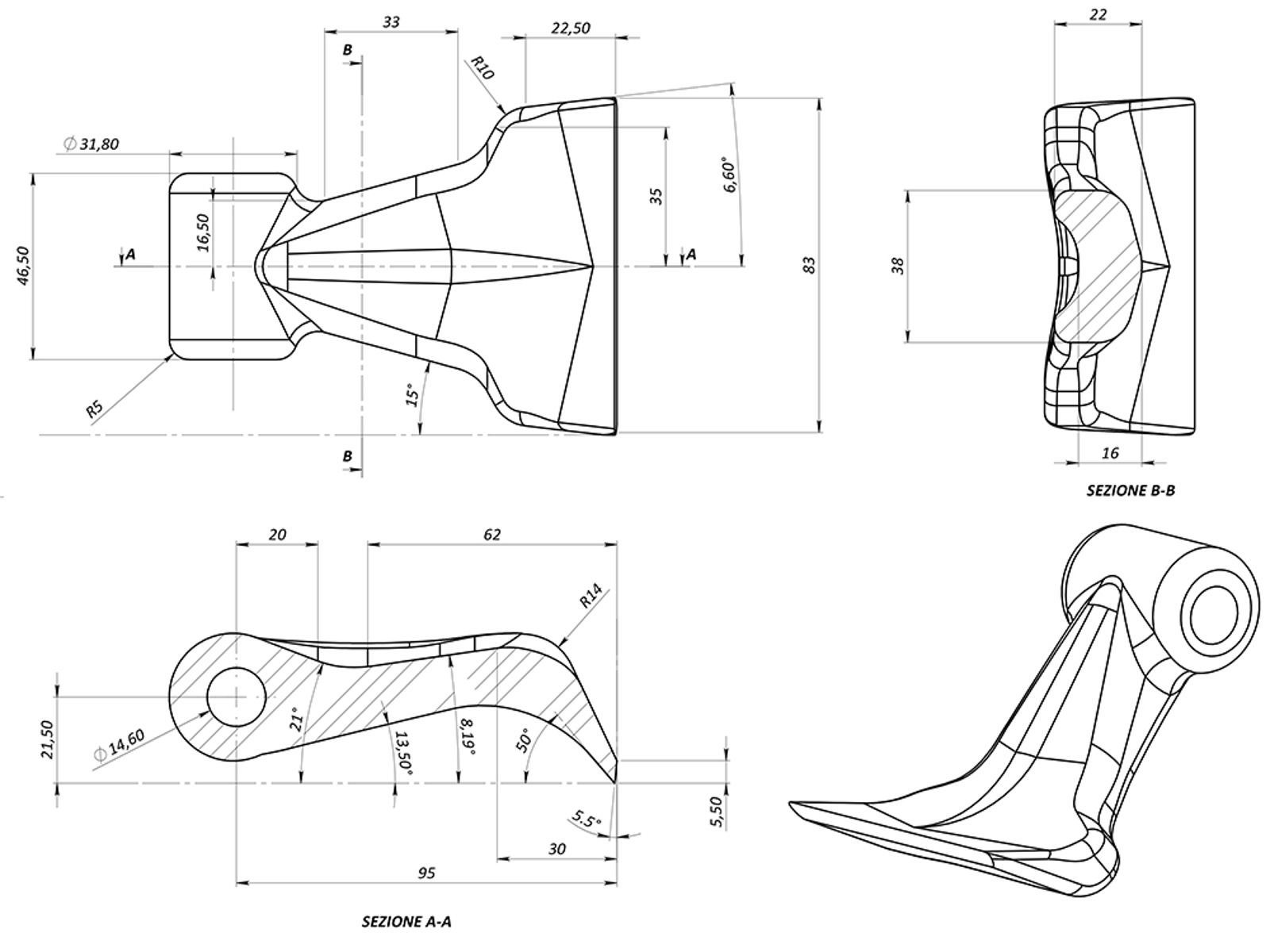

Hammers: Weight 820.0 g 29.0 oz
Hammer: øhole 15.0 mm 0.6 in
Hammer: base width 82.0 mm 3.23 in
Hammer: top width 45.0 mm 1.77 in
Hammer: Diagonal 95.0 mm 3.74 in
Rear roller: diameter 140.0 mm 5.51 in
Rear roller: sheet thickness 5.0 mm 0.2 in
Rear roller: bearings type and size 6205 6205
Pto shaft CE 6x1000 mm + shear bolt CE 6x1000 mm + shear bolt
Hood length 880.0 mm 34.65 in
Effective Displacement 270.0 mm (Manual/Hydr.) 10.63 in (Manual/Hydr.)
Packing sizes 2200.0*1000.0*750.0 mm 7.22*3.28*2.46 ft

Optional

10 bolts nuts t
10 Bolts + nuts T
62,00VAT incl.
Available

PUMA/TIGRE/RINO/LEO

10 hammers t
10 Hammers T
107,00VAT incl.
Available

TIGRE/PUMA/RINO/LEO/INTERFILA (2021>)

30 blades t
10 x 3 Blades T
114,00VAT incl.
Available

PUMA/TIGRE/RINO/LEO

4 belts tigre rino
4 belts TIGRE/RINO
84,00VAT incl.
Available

TIGRE/RINO

hydraulic offset tigre
Hydraulic offset TIGRE
225,00VAT incl.
Available

TIGRE

spare pins cat 1 2
Spare pins Cat. 1-2
53,00VAT incl.
Available

ø 19.0/22.0 + 25.0/28.0 mm
