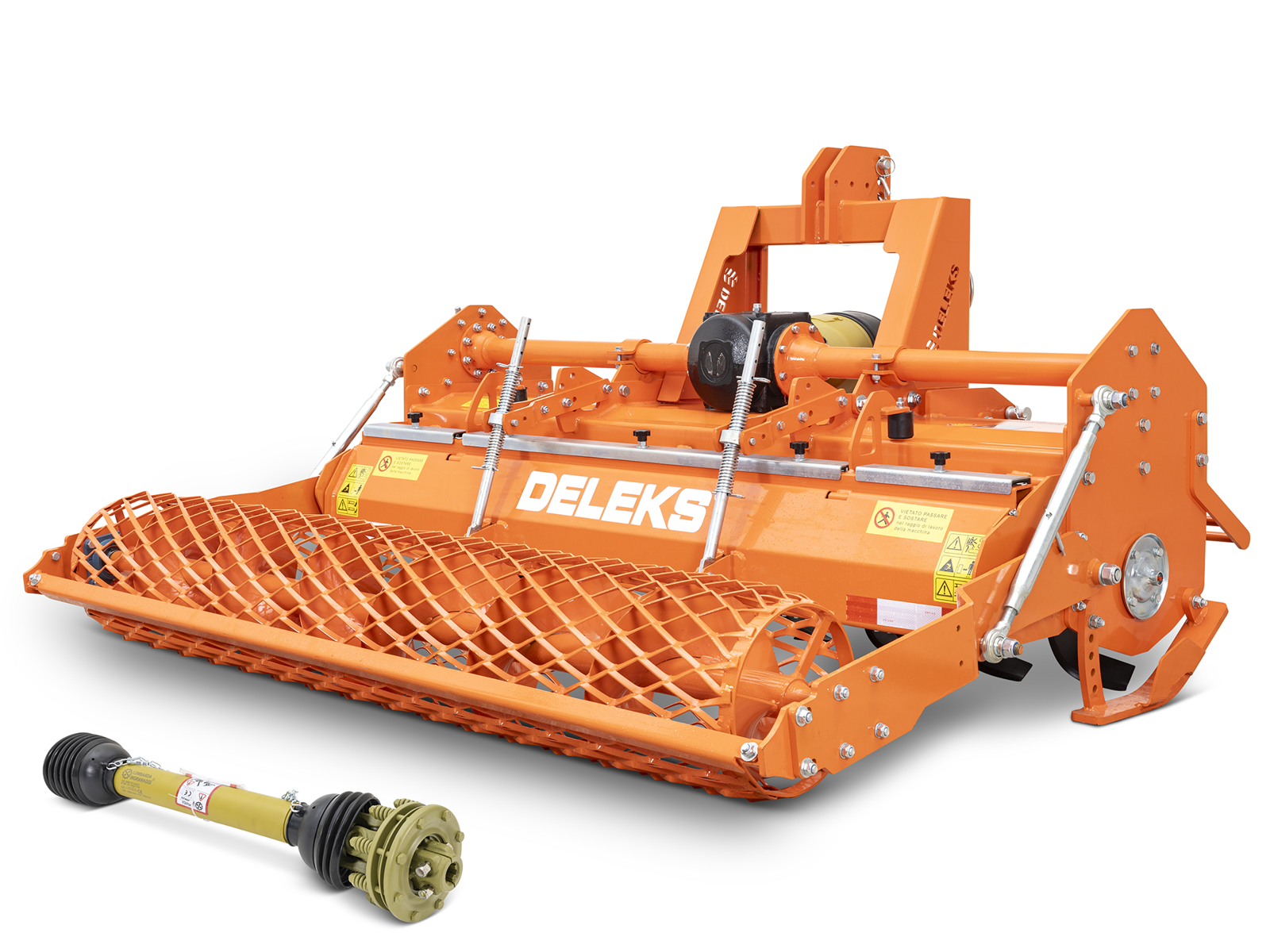

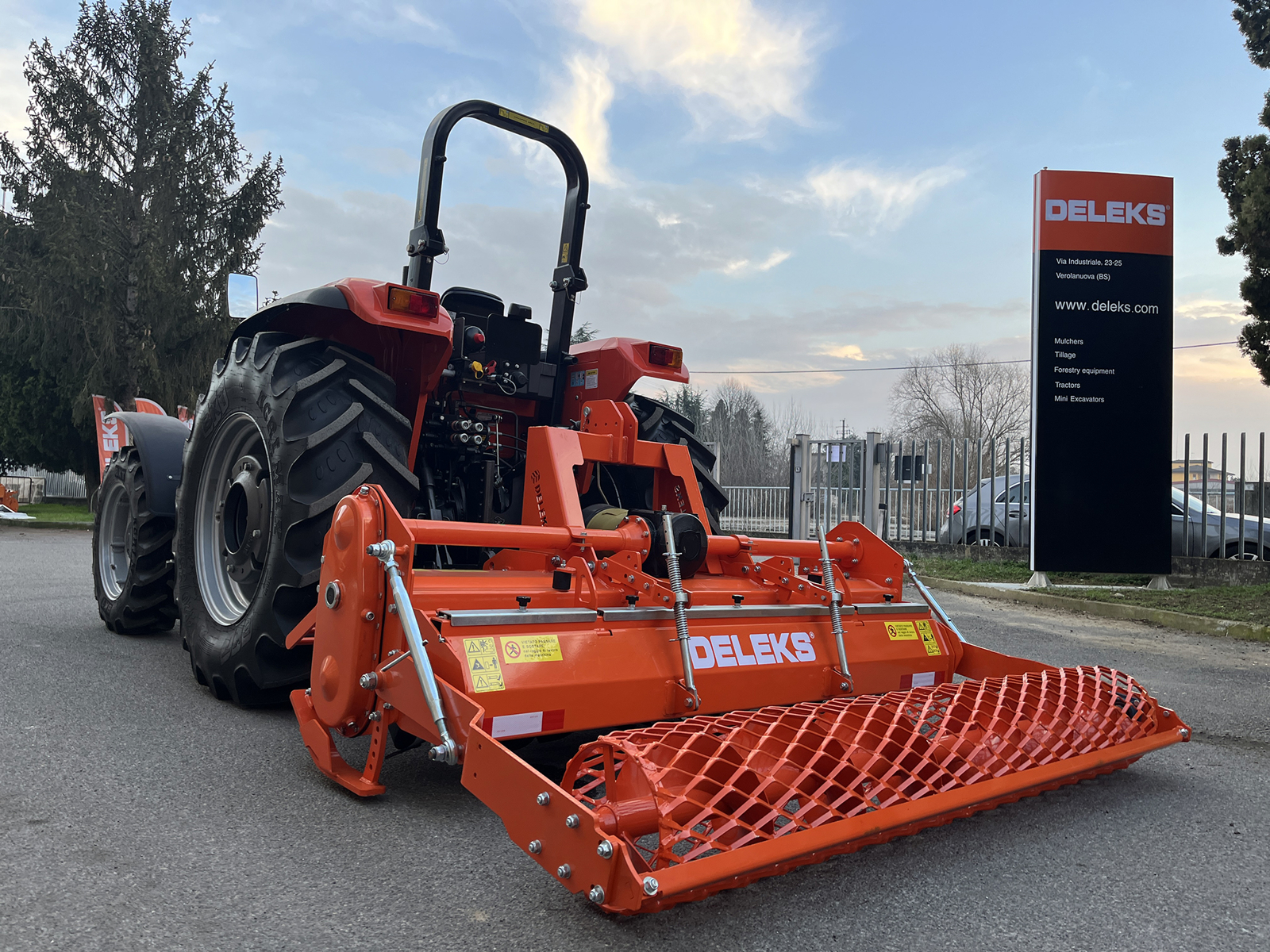

Heavy-duty rotavator for tractors 220 cm (86 in) DFTR-220 with mesh roller, reinforced series 80-100 hp, wheeled and tracked

Not available  Notify me
Code DFTR220PTO - EAN 8053470239960
3.400,00€VAT incl.
Free shipping
Loading...
3.400,00€VAT incl.
Free shipping
View all details.

4.6

1551 reviews

3.400,00€VAT incl.

DETAILS

Heavy-duty rotavator for tractors with 220 cm (86.4 in) working width, from the DELEKS® reinforced heavy series: a 680 kg (1,499 lb) rotary tiller for 80–100 hp wheeled and tracked tractors with a Cat. 2 three-point linkage, such as New Holland T5 and TK, John Deere 5 series, Same, Deutz-Fahr, Landini, Massey Ferguson, Kubota M and most other tractors in this class. 12 mm side plates, 90 mm rotor shaft, side gear drive, DELEKS® 540 rpm gearbox with a three-year warranty, 54 forged helical tines of 1 kg (2.2 lb) each and an adjustable rear bonnet. It works up to 20 cm (7.9 in) deep with the rotor at 210 rpm, has a rear mesh roller as standard and comes complete with its CE PTO shaft with twin-disc clutch; free delivery within the EU.

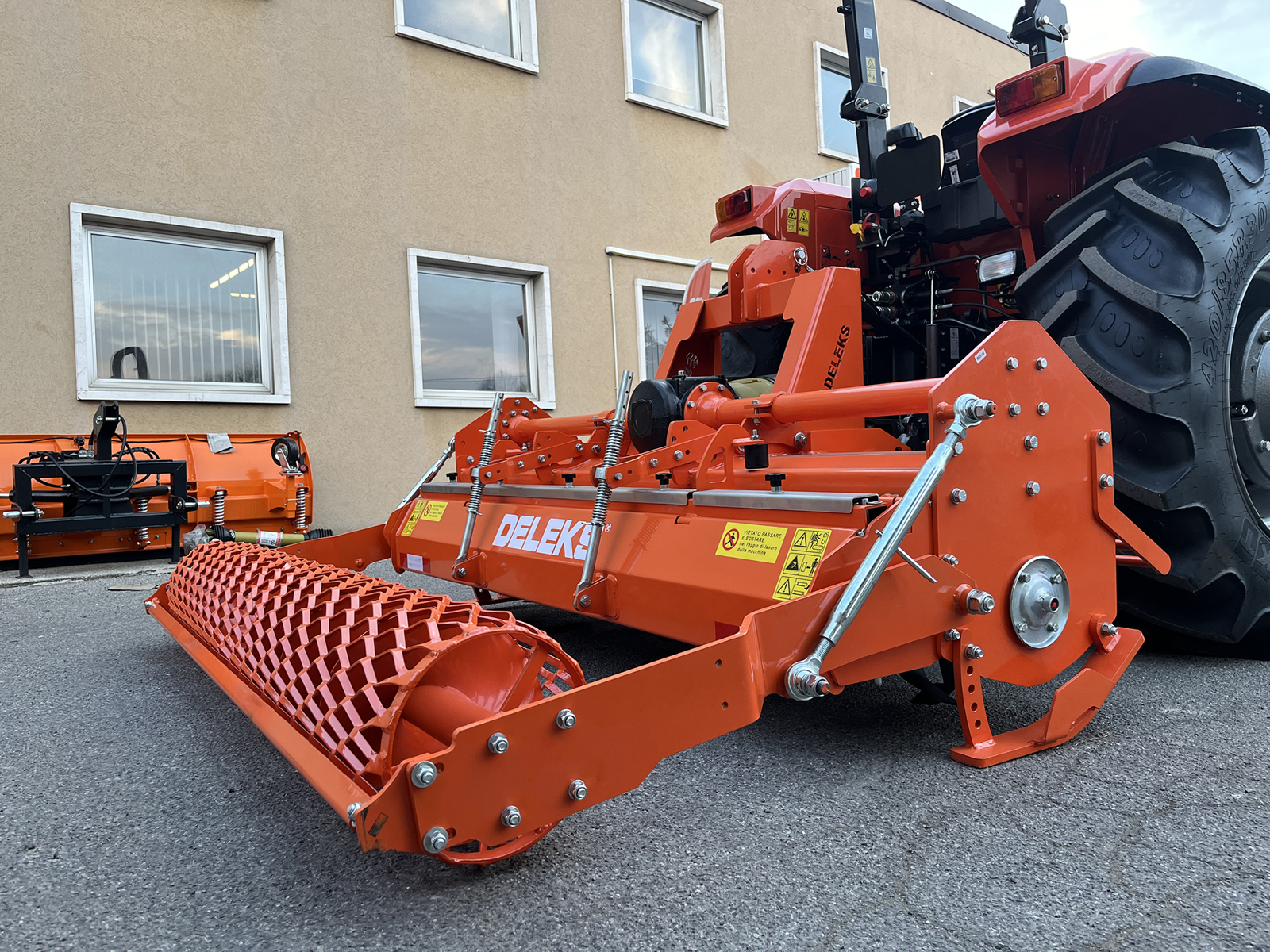

Which tractors it suits

The DFTR-220 works 220 cm (86.4 in) with 240 cm (94.5 in) overall and is built for 80–100 hp tractors, wheeled or tracked, that rotavate many hours a year: farms, contractors, nurseries and field-scale vegetable growers. At 680 kg (1,499 lb) it needs an adequate lift and, on wheeled tractors, front ballast. The three-point linkage is fixed, with the gearbox in the centre, and is Cat. 2 (ø 25–28 mm pins); the PTO must run at 540 rpm. For wheeled tractors under 80 hp the lighter heavy series DFH is the choice: the DFH-220, 560 kg (1,235 lb).

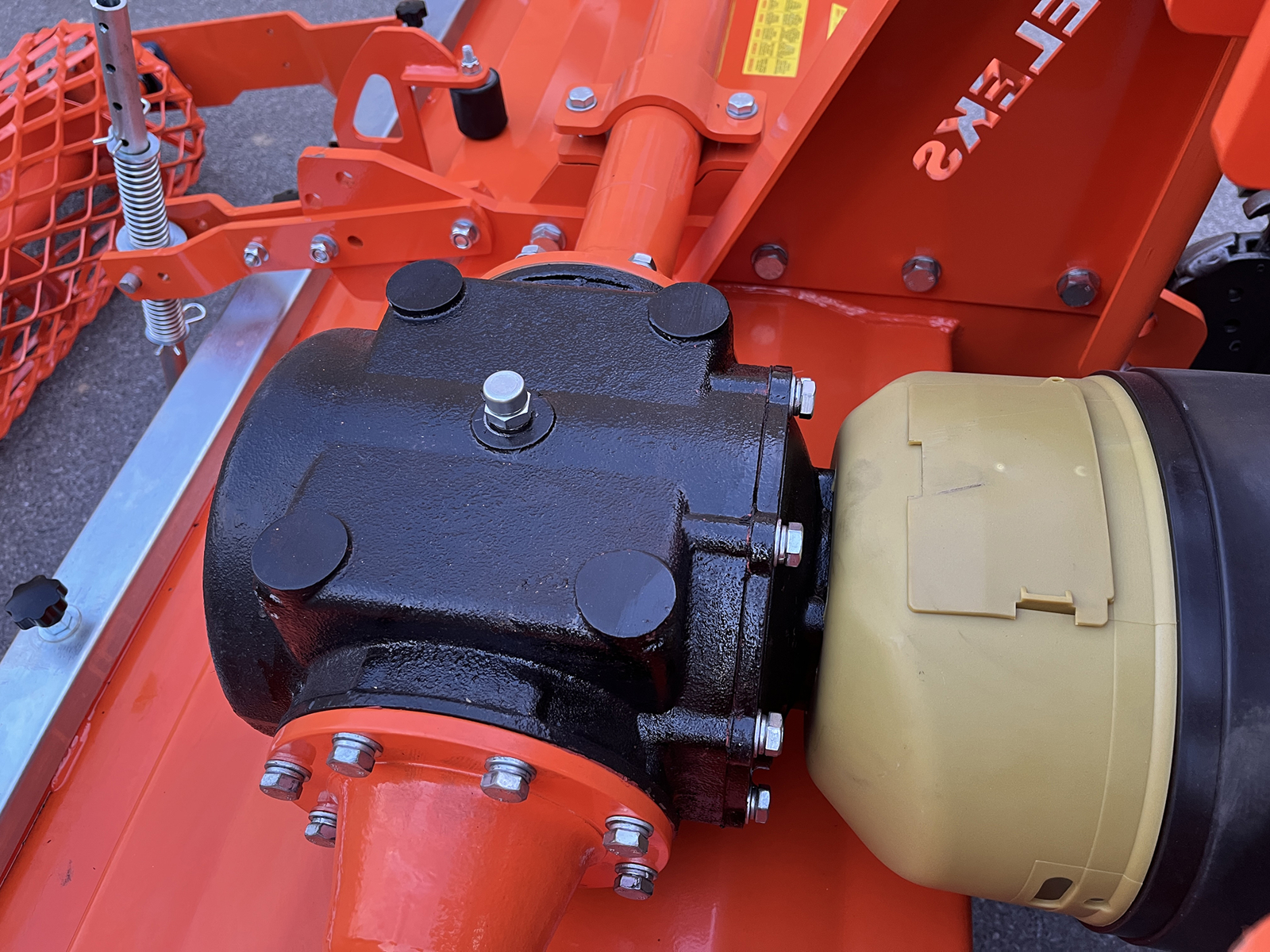

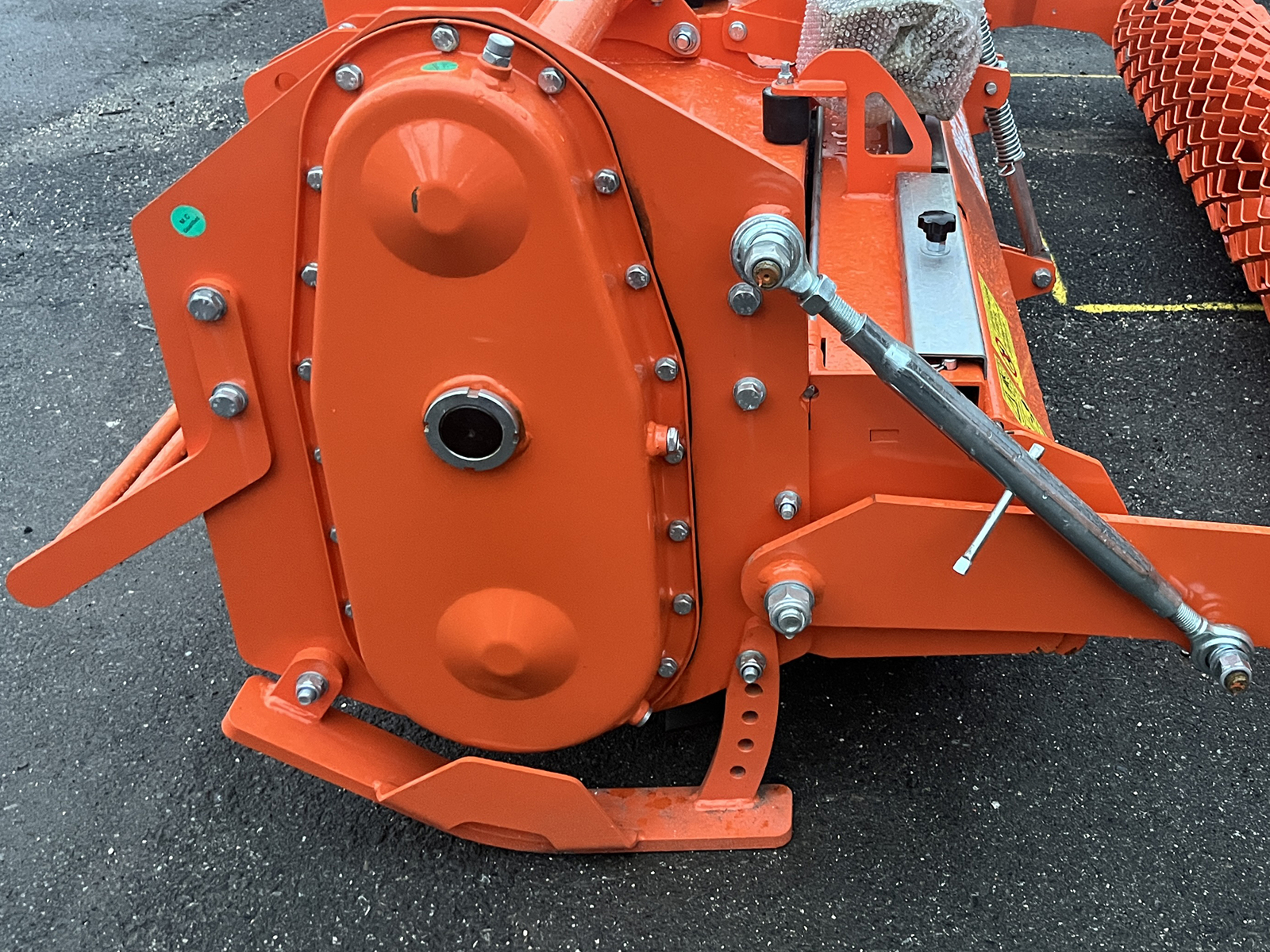

Gear drive and twin-disc clutch

The DELEKS® 540 rpm gearbox has a cast-iron housing, a three-year warranty and arrives filled with SAE 120 oil; a side gear drive, with no chain, takes the power to the rotor and is sized for powers up to 100 hp. The rotor turns at 210 rpm: it puts more torque into every tine and cuts finer. The CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in) is included: the clutch protects rotavator and tractor when a tine meets a stone or a root, and is set to suit the tractor and the ground following the manual.

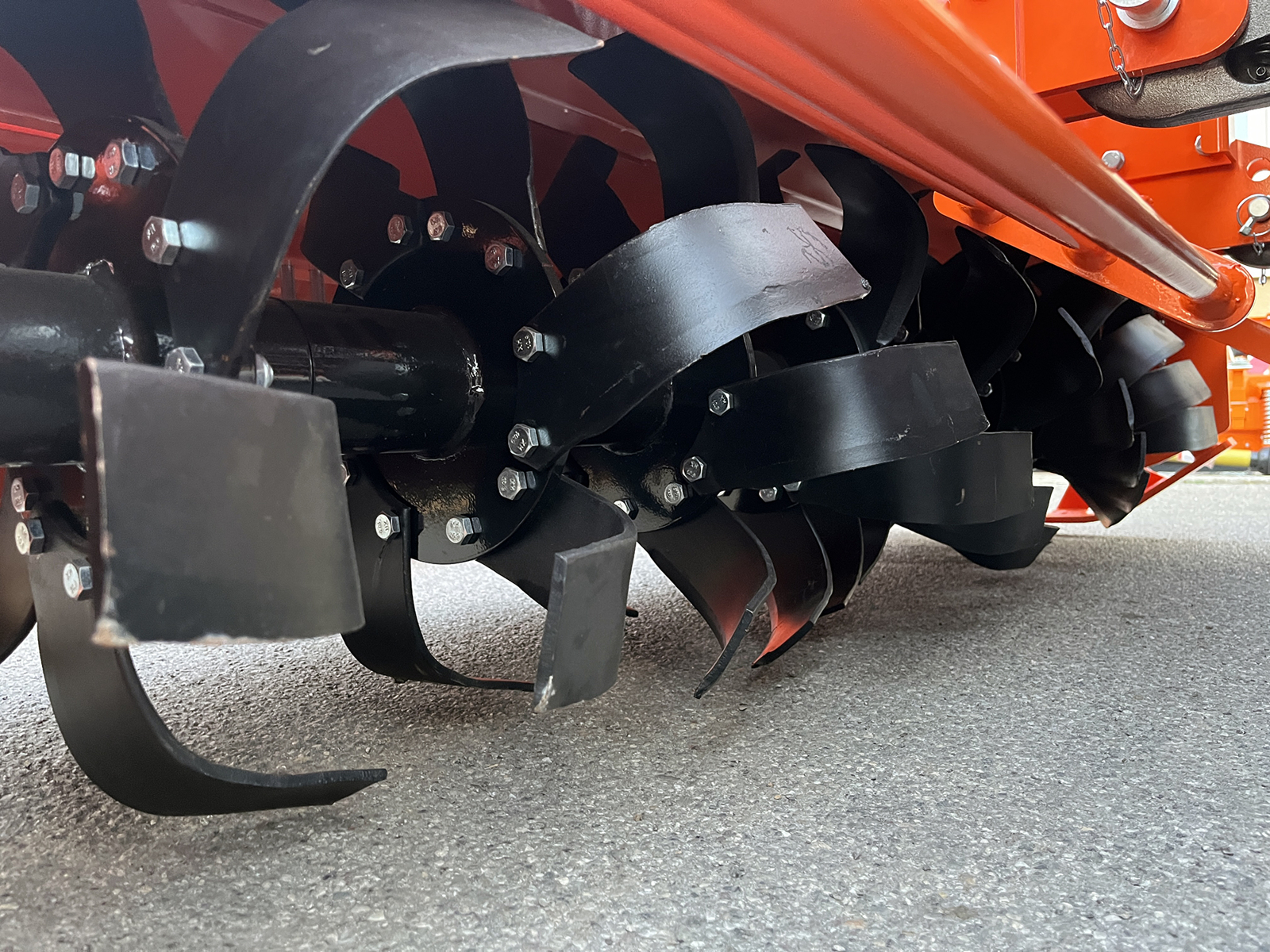

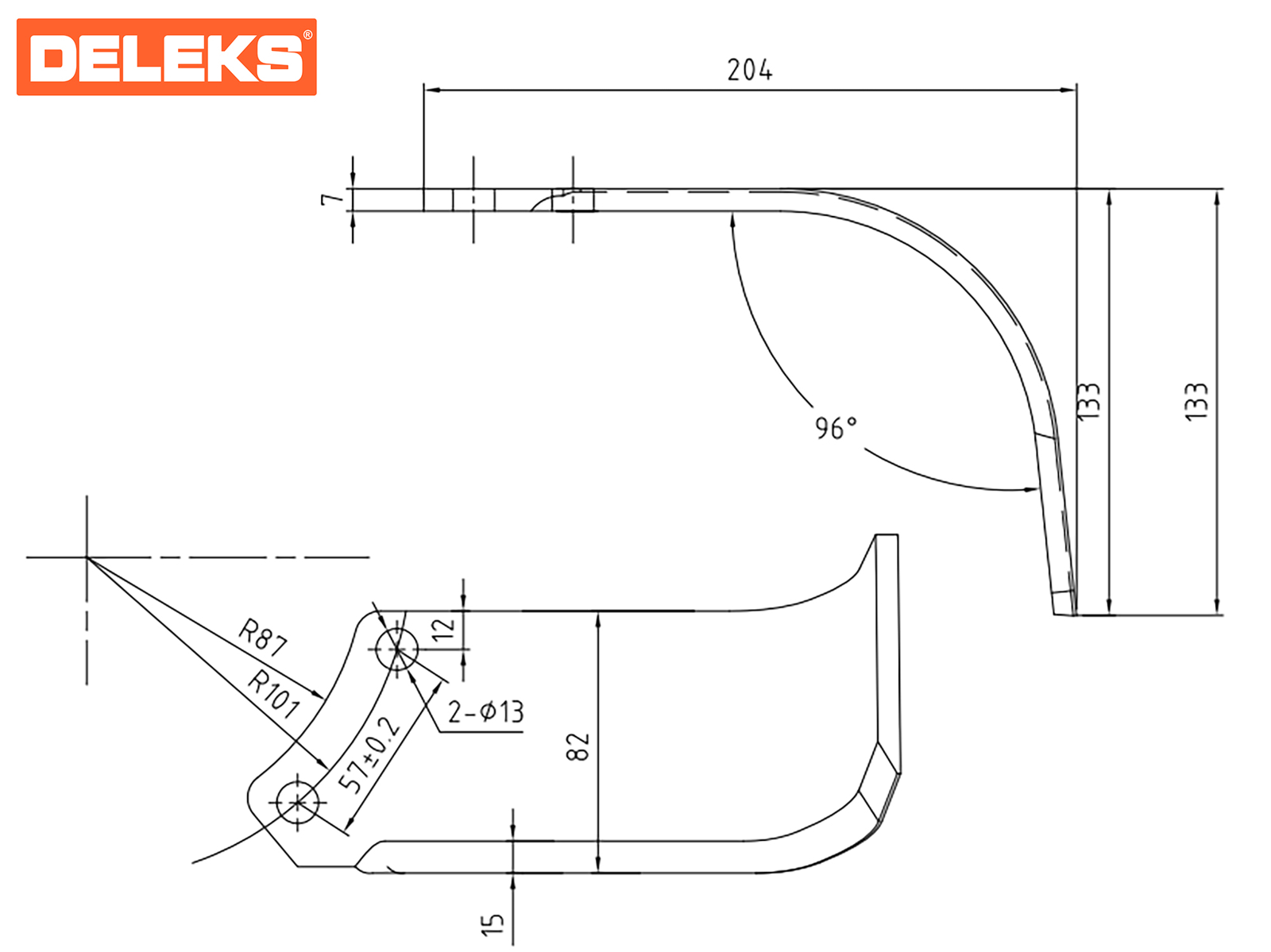

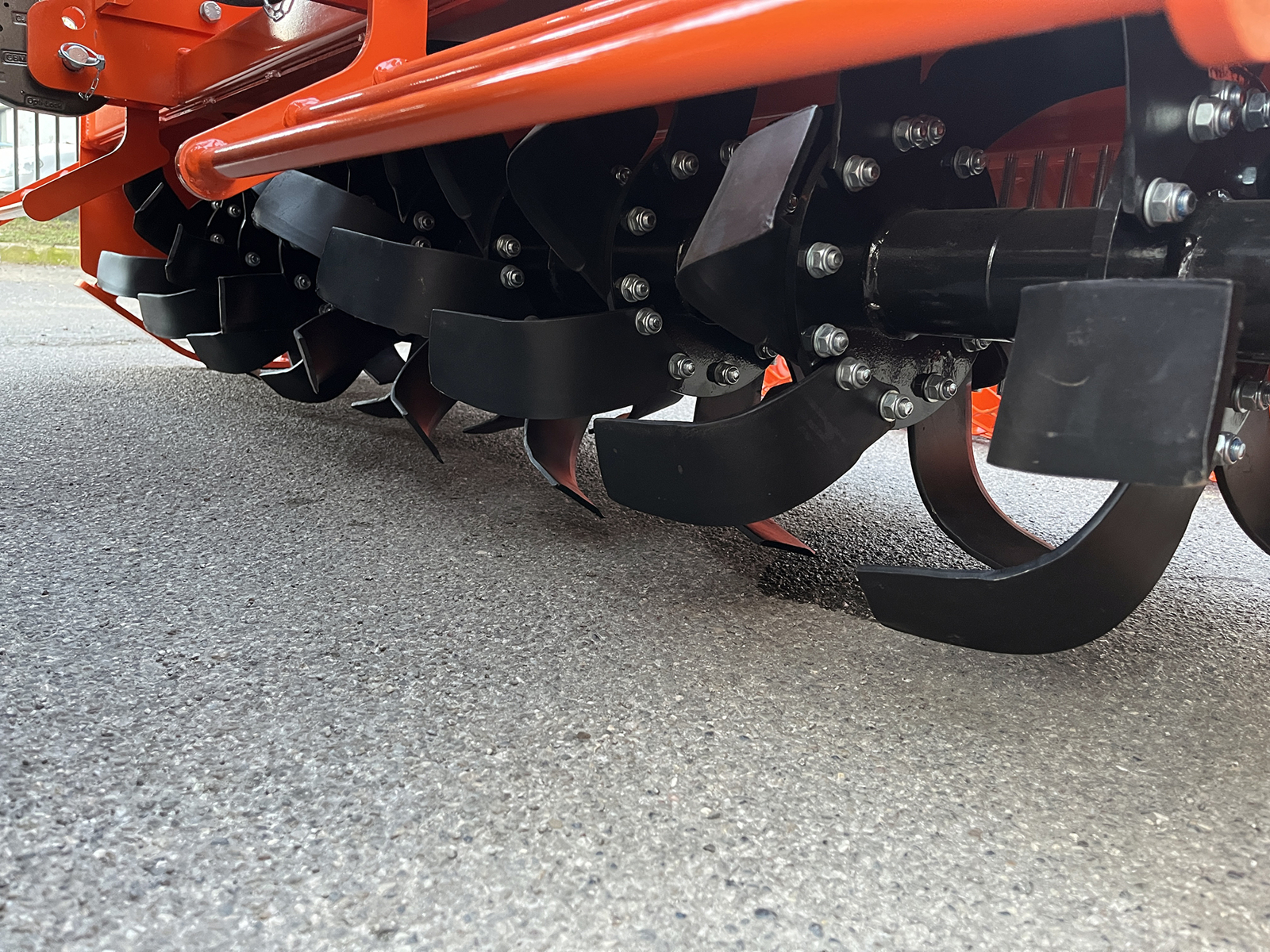

90 mm rotor and 1 kg helical tines

The rotor measures 500 mm (19.7 in) across with the tines fitted, on a 90 mm shaft with 6309 and 6310 bearings and 12 mm side plates. The 54 forged helical tines (27 right-hand and 27 left-hand, 6 per flange on 9 flanges, 1 kg / 2.2 lb each) enter the soil progressively, with less vibration and a finer cut than straight tines; they are held by two bolts each and are changed one at a time. Working depth up to 200 mm (7.9 in), set mechanically with the rear mesh roller.


Built for continuous work

12 mm side plates, a 90 mm rotor shaft and 680 kg (1,499 lb) of weight: the DFTR-220 is the rotavator for clay, hard ground and land worked several times a year, behind crawlers too, where lighter rotavators wear out fast. The rear bonnet adjusts in height: closed it holds the soil between the tines and refines the seedbed, open it lets large clods and crop residues out. On very stony ground a stone burier is the better choice.

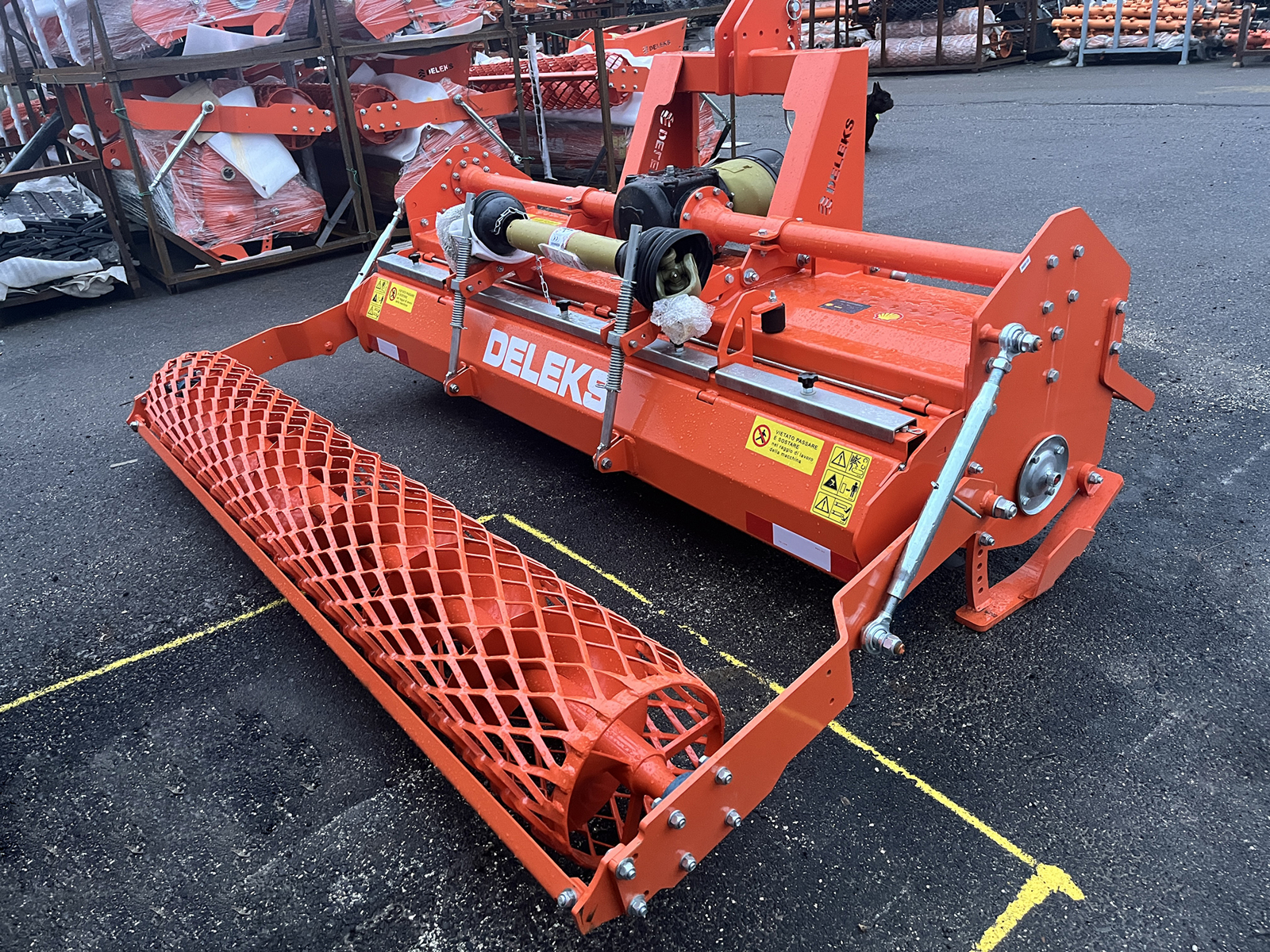

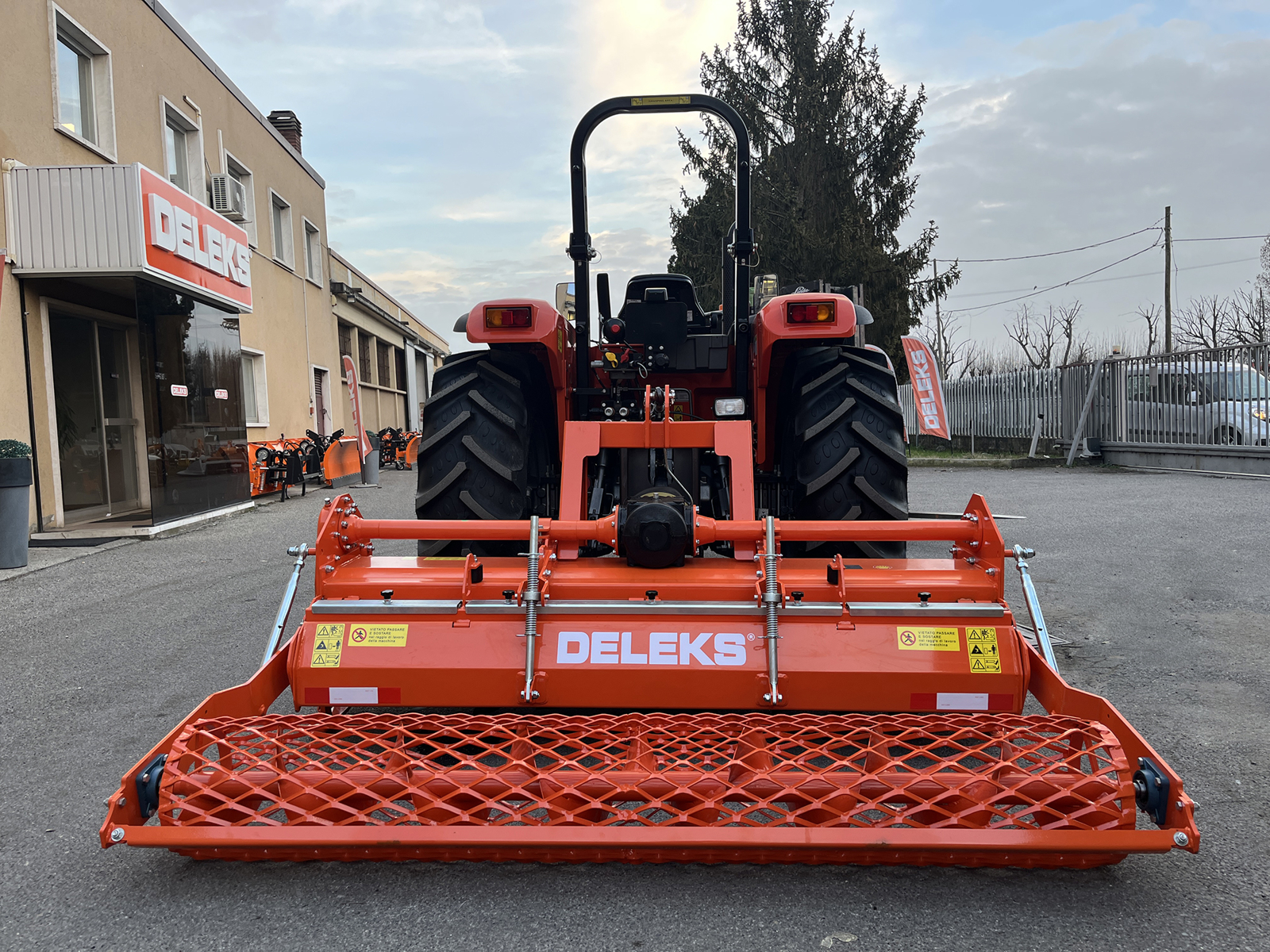

Standard rear mesh roller

Behind the bonnet the DFTR-220 carries a 300 mm (11.8 in) mesh roller as standard, with mechanical depth adjustment: the rotavator rides on the roller across its full width, keeps the depth constant on uneven ground too and leaves the surface level and crumbled, ready for sowing or planting. The mesh lets fine soil through and does not pack up like a solid roller, so it works well on damp ground as well. The roller is what makes the DFTR longer and heavier than a DFH of the same width, which has no roller even as an option and sets its depth with the side skids.


Dimensions, weight and delivery

Working width 2195 mm (86.4 in), overall width 2400 mm (94.5 in), height 1200 mm, weight 680 kg (1,499 lb); the gearbox sits 650 mm off the ground. It ships on a pallet of 250 × 115 × 115 cm (98 × 45 × 45 in), 844 kg (1,861 lb) gross, with free delivery within the EU: the delivery address must be reachable by an articulated lorry and unloading is down to the customer, with a forklift or the tractor's lift; delivery can take longer than standard, so it is worth speaking to our sales office before you order. The machine complies with the EC Machinery Directive, is TÜV Austria certified and comes with a two-year warranty.


Where it works

  • Open field and field-scale vegetables: seedbeds and planting beds, working in fertiliser, green manure and stubble, on clay too
  • Contractors and farms with 80–100 hp wheeled or tracked tractors
  • Wide-spaced orchards and vineyards with high-powered tractors
  • Hard ground worked several times a year

Options and spares

On this page you will also find the set of 10 helical tines, tine nuts and bolts and spare PTO shafts and clutches: order them with the rotavator or later on.


FAQ

How much power does the DFTR-220 need?
From 80 to 100 hp at the 540 rpm PTO, wheeled or tracked; under 80 hp the tractor struggles to keep its speed at depth and the lighter heavy-series DFH-220 is the better choice.

What is the difference between the DFTR-220 and the heavy series DFH?
A heavier build for the same width: 680 kg (1,499 lb), 12 mm side plates instead of 8, a 90 mm rotor shaft instead of 76, 1 kg tines and a standard rear mesh roller, for 80–100 hp tractors and for crawlers; the DFH models go up to 90 hp and weigh 352 to 560 kg.

Is the PTO shaft included? How is the clutch set?
Yes: the CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in) is standard. The clutch is set to suit the tractor and the ground following the manual: too tight it does not protect the drive, too loose it slips and overheats.

What maintenance does it need?
At the start of the season check the gearbox oil level (SAE 120), tine wear and bolt tightness; before each use grease the points shown in the manual and check the PTO clutch. Worn tines are replaced with the set of 10.

How is a rotavator of 844 kg delivered?
On a pallet, with free delivery within the EU: the lorry is an articulated one, so the address must be reachable and unloading is done with a forklift or the tractor's lift. Delivery can take longer than standard: best to speak to our sales office before ordering.


DELEKS® spares and support

Genuine spares ship from the DELEKS® warehouses in Europe: tines, gears, pins, bearings, PTO shafts, clutches and the other wearing parts are normally in stock, for routine servicing and for repairs. The technical team helps you pick the right part from the exploded drawings, service the machine and choose the rotavator and the accessories that suit your tractor. The rotavator comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric Units US
Working width 2195.0 mm 7.20 ft
Overall width 2400.0 mm 7.87 ft
Weight 680.0 kg 1500.0 lb
Overall height 1200.0 mm 3.94 ft
Tractor Power Range 80 - 100 Hp 80 - 100 Hp
3 point linkage Cat. 2 (ø 25.0-28.0mm) Cat. 2 (ø 25.0-28.0mm)
Spacing between the 2 lower points 745.0 - 870.0 mm 29.35 - 34.25 in
Overall length 1800.00 mm 5.90 ft
Distance between pto attachment and ground 650.0 mm 25.60 in
Transmission: Drive method Gears Gears
Transmission: Gearbox DELEKS 540 r/min (3 year warranty) DELEKS 540 r/min (3 year warranty)
Transmission: Rotation of gearbox Right side Right side
Transmission: RPM Rotor speed 210 rpm 210 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Rotor: diameter 90.0 mm 3.54 in
Rotor: bearings type and size 6309(L) / 6310(R) 6309(L) / 6310(R)
Rotor: sheet thickness 12.0 mm 0.47 in
Rear roller: diameter 300.0 mm 11.81 in
Working Depth Range 200.0 mm 7.87 in
Pto shaft CE 6x1000 mm + twin-disc friction clutch Ø180 mm CE 6x1000 mm (39.4 in) + twin-disc friction clutch Ø180 mm (7.1 in)
Rotor: diameter with blades 500.0 mm 19.70 in
Rotor: flanges 9 9
Number of Blades per flange 6 6
Blades: quantity 27 + 27 27 + 27
Blades: weight 1.0 kg 35.27 oz
Gross shipping weight 844 kg 1861 lb
Package volume 3.31 m3 116.9 cu ft
Packing sizes 2500*1150*1150 mm 8.20*3.77*3.77 ft
