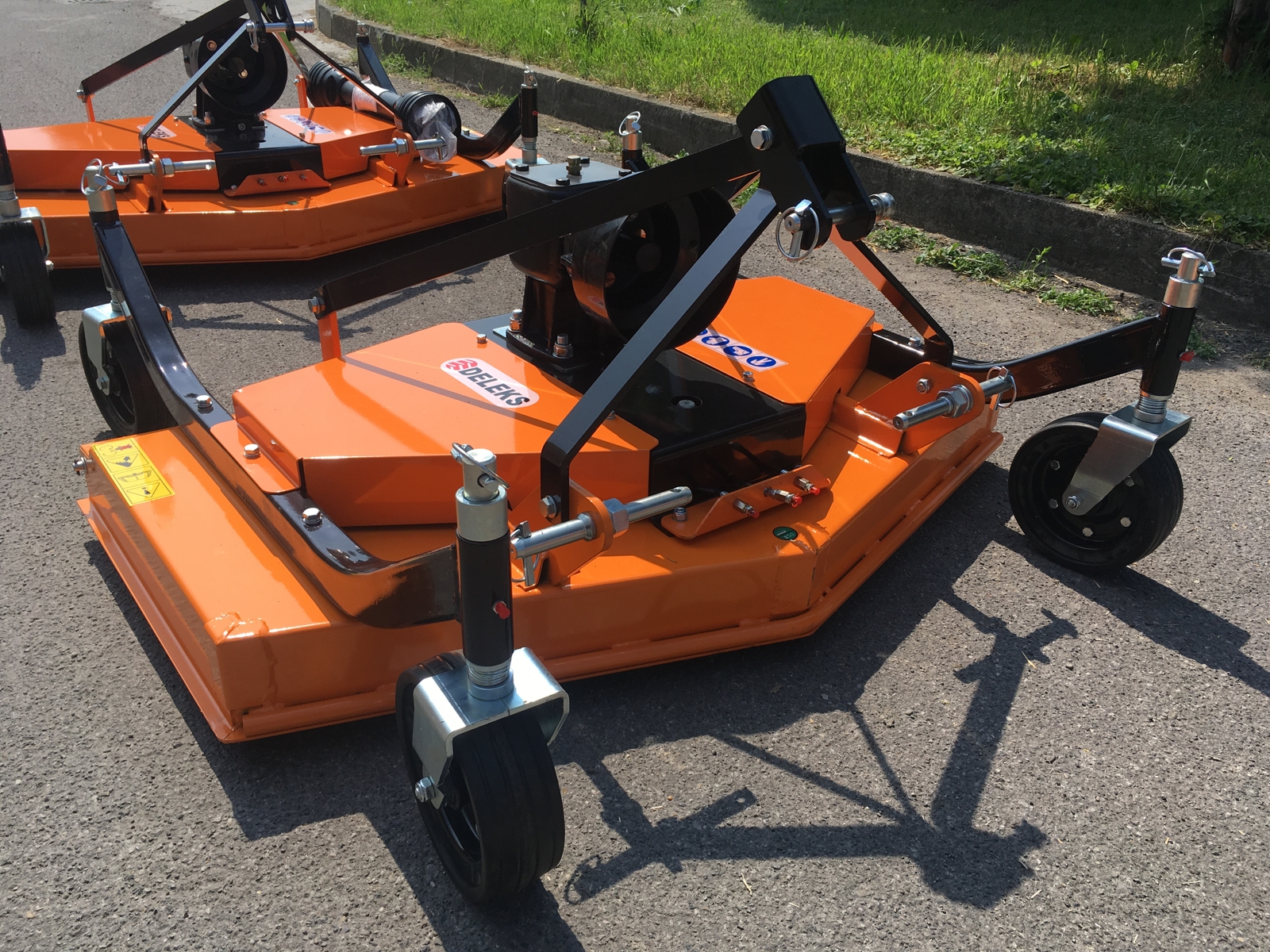

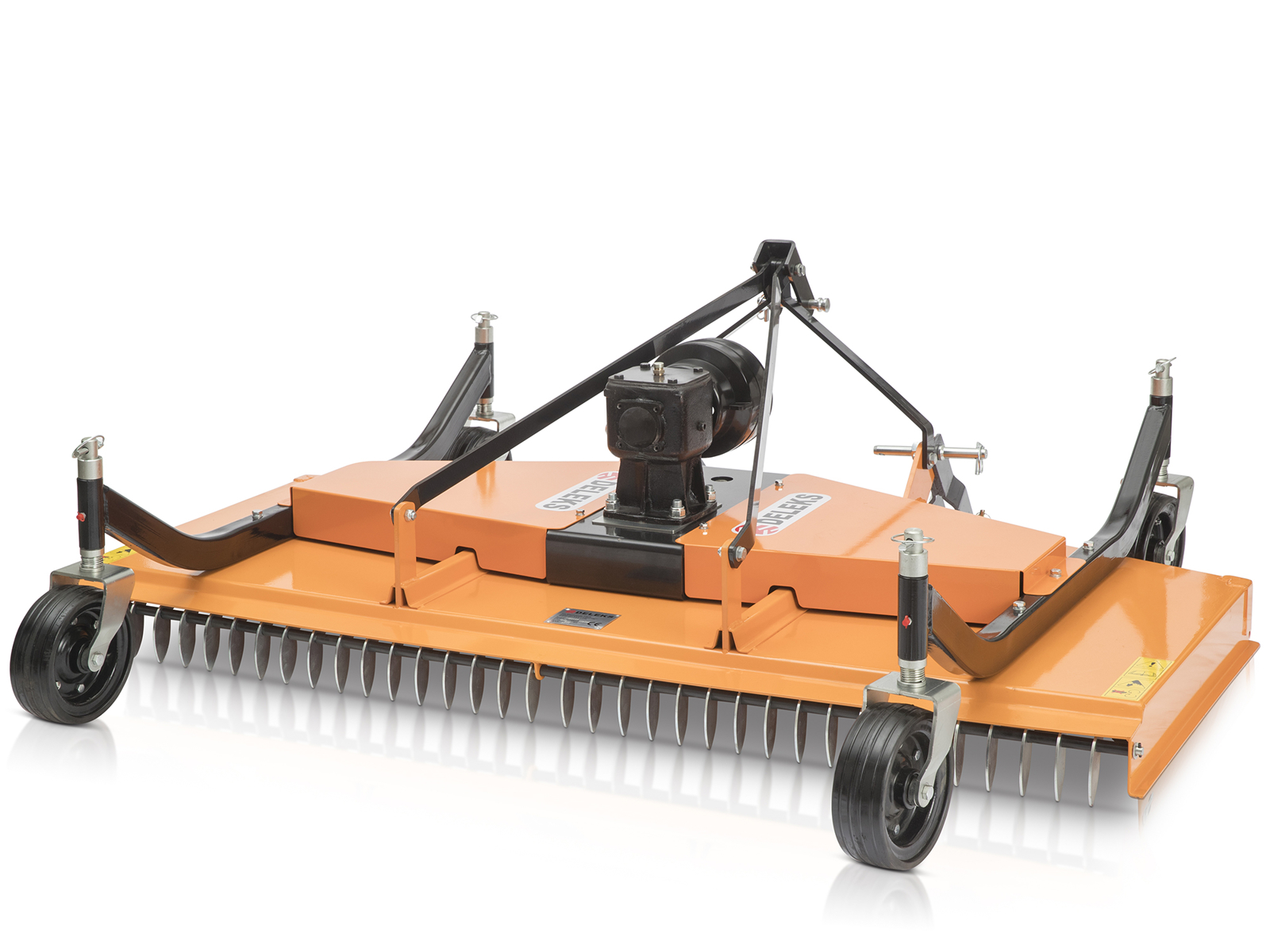

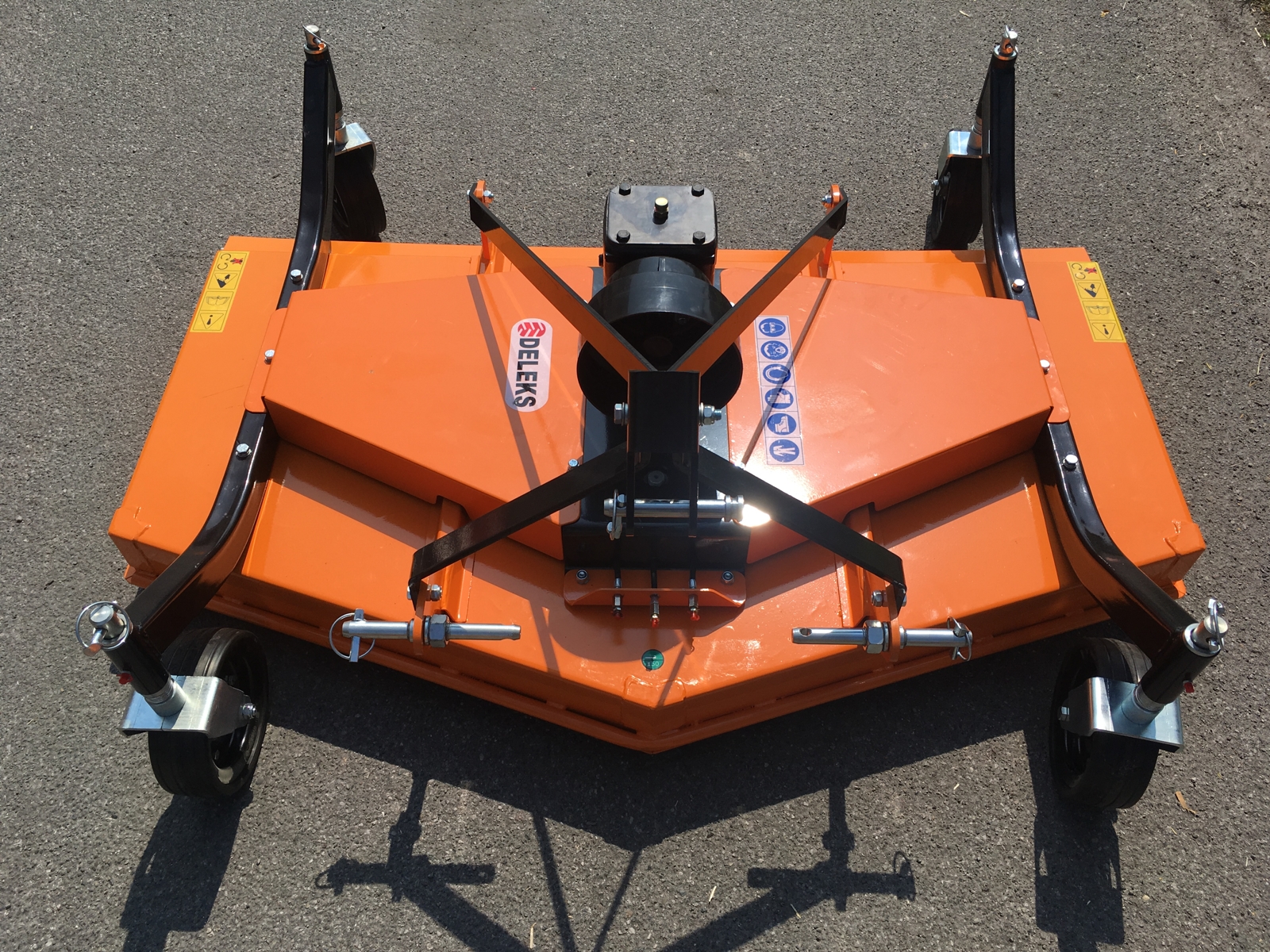

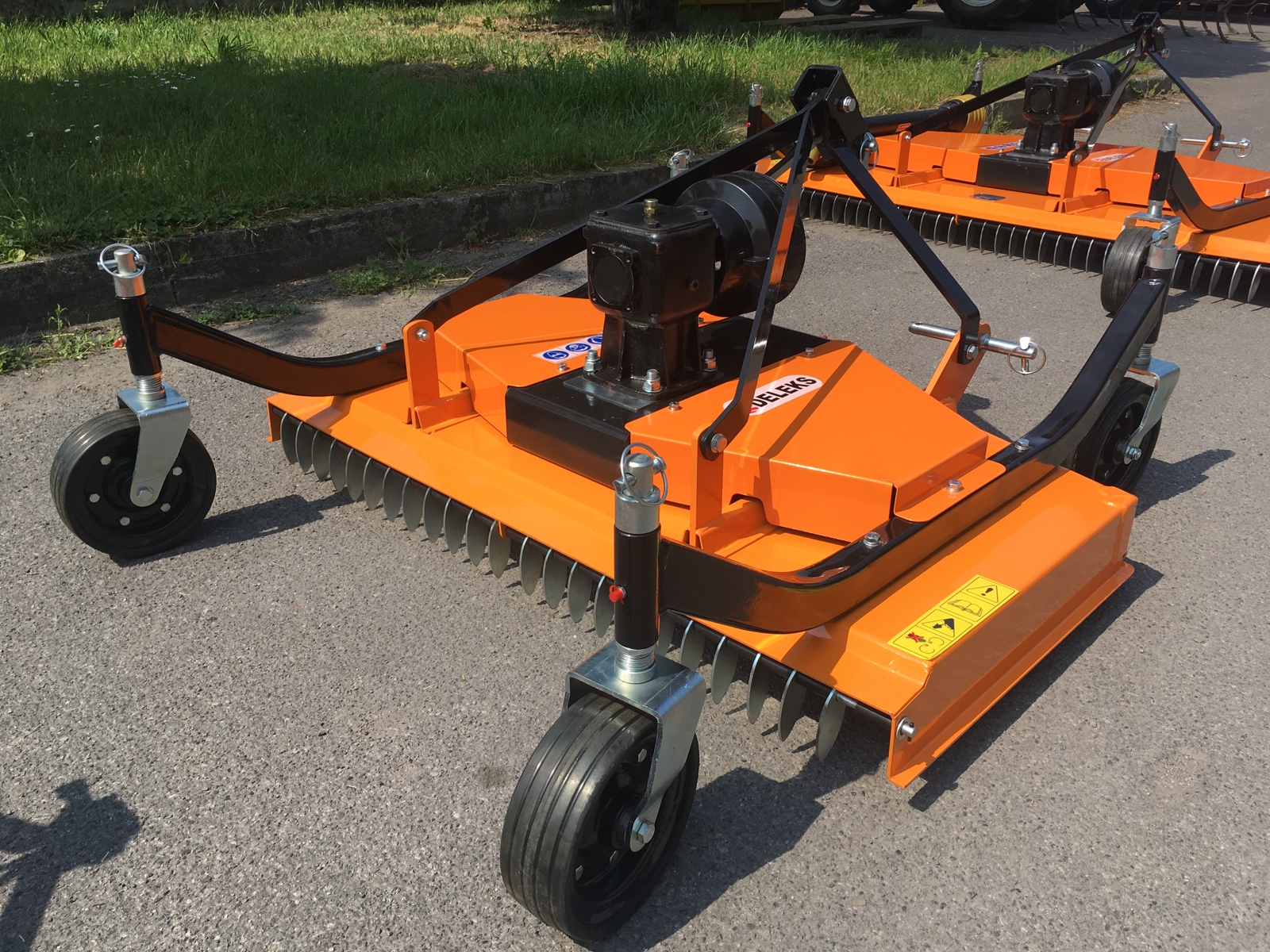

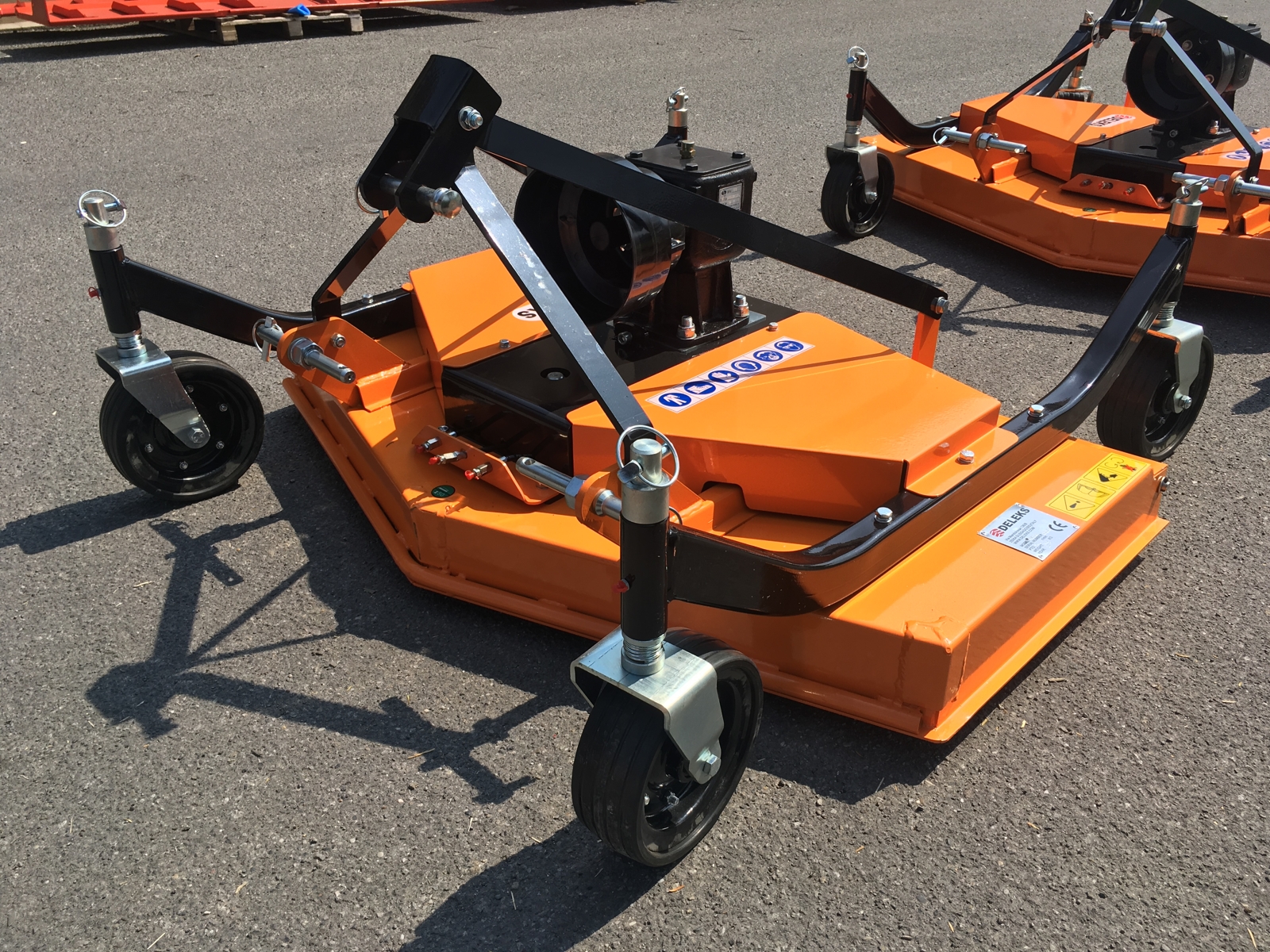

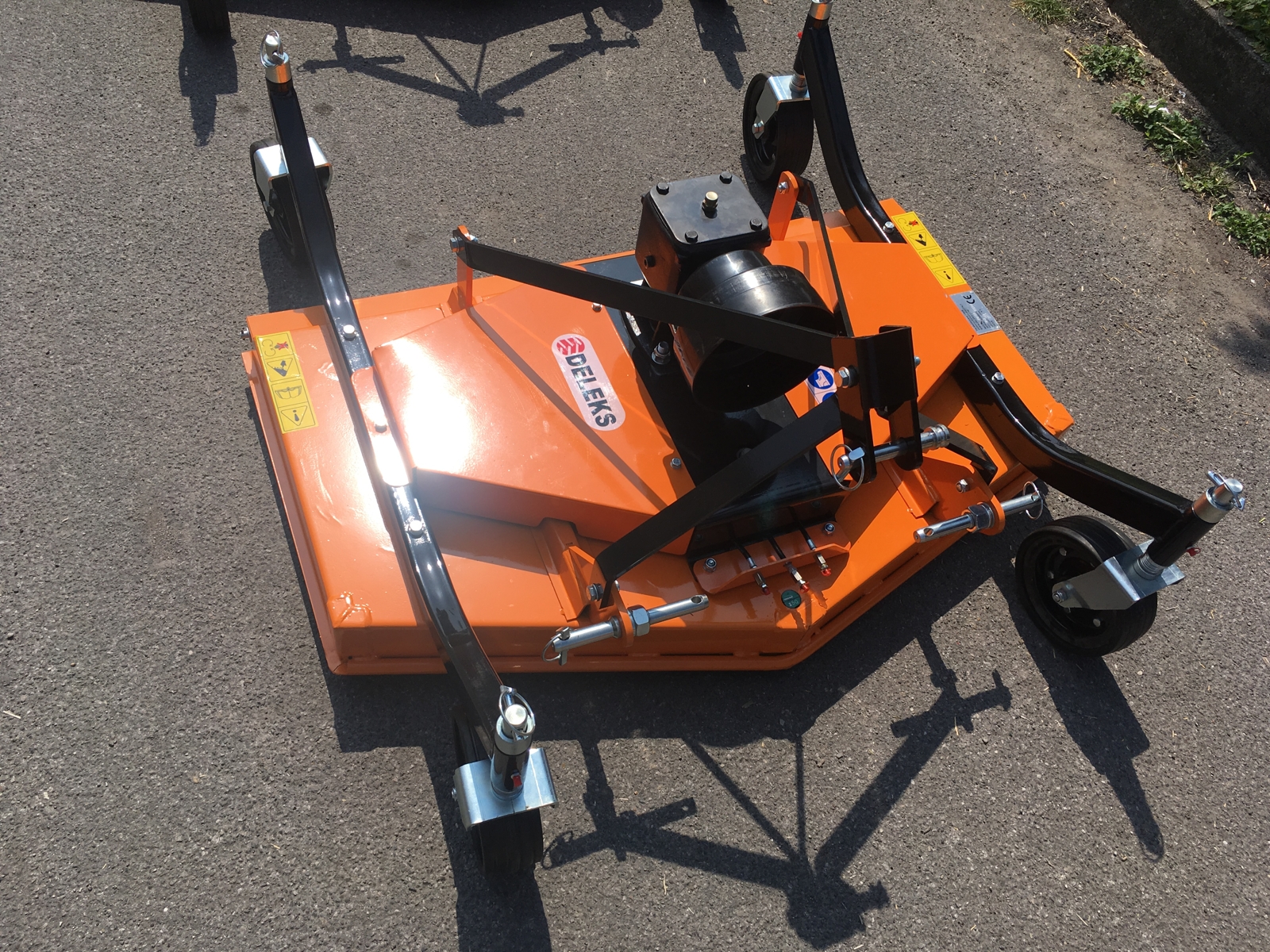

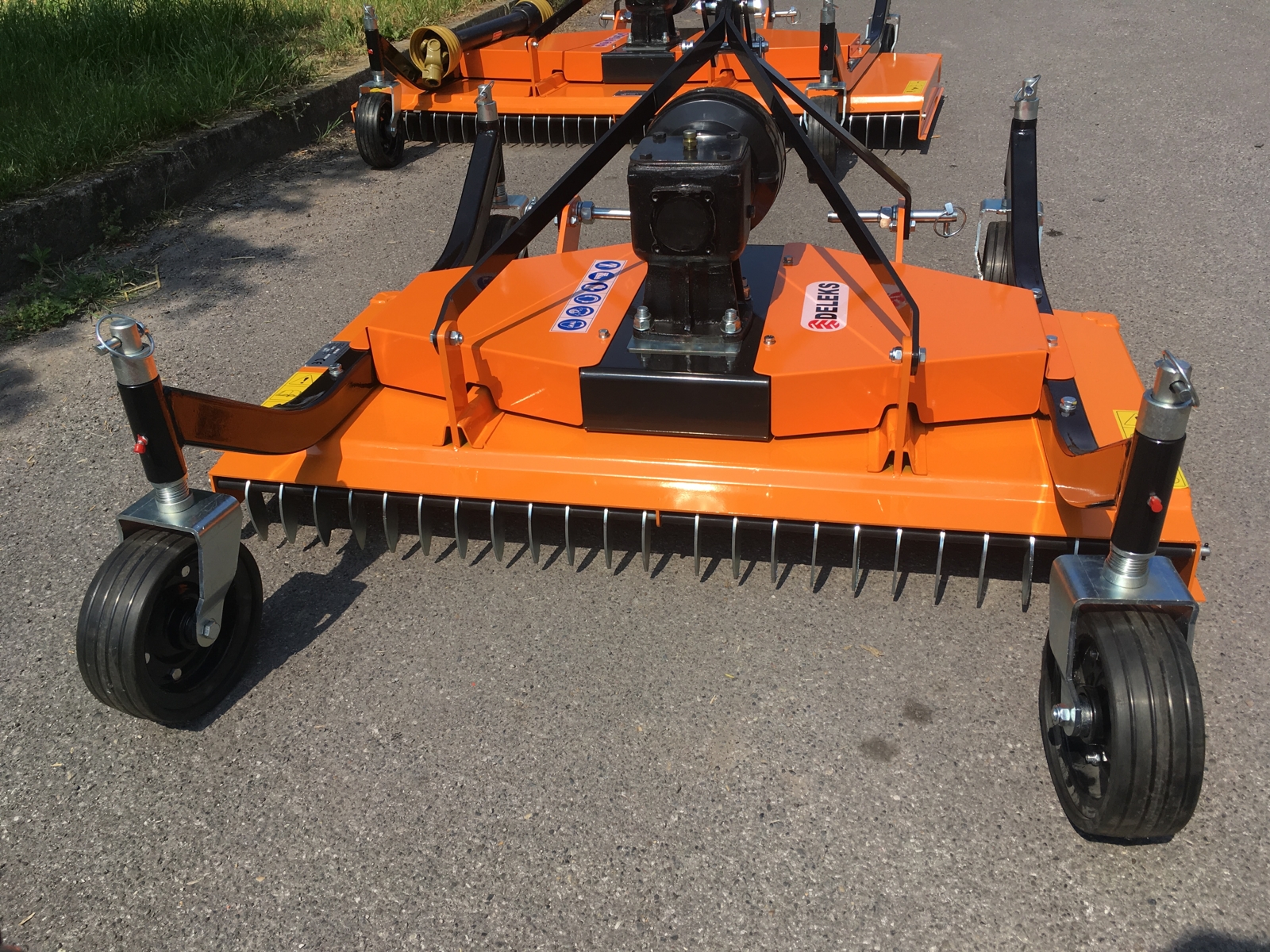

Finishing mower for tractor, DM-120
Field test
DETAILS
Finishing mower for tractor, 120cm / 140kg - DELEKS®- 3 blades - Cardan shaft with Free wheel integrated.
OVERVIEW
For customers looking for a professionally groomed lawn, the DM Series high-performance finish mowers ensure a clean, crisp, manicured appearance year round. Light weight yet durable, the DM-120 mower can be used on all 12-40HP tractors e.g Kubota BX-B, McCormick, Iseki, Yanmar. Ideal for lawns, gardens, sport areas and parks. Gearbox P.T.O. 540 r.p.m.
BENEFITS AND FEATURES

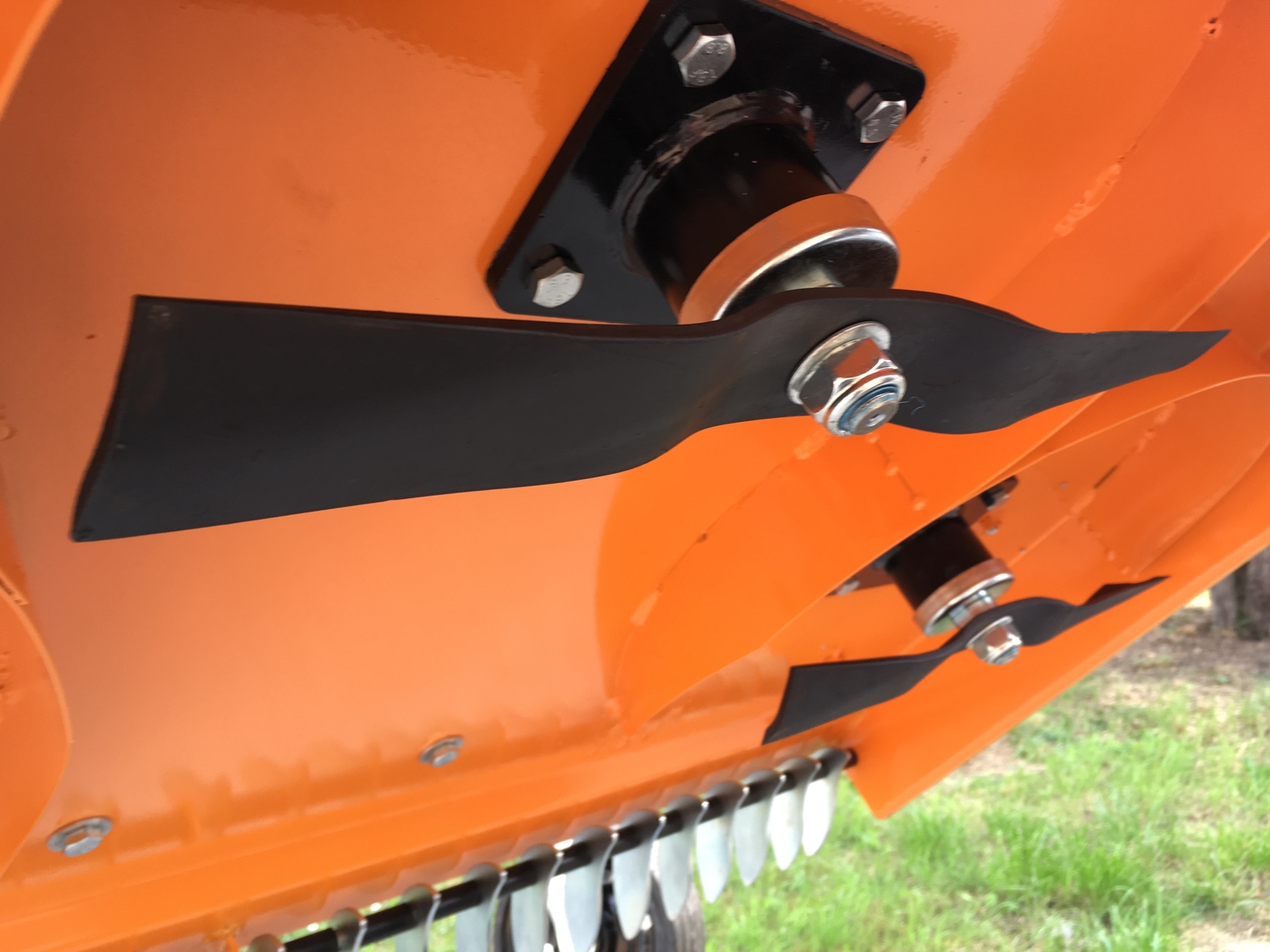

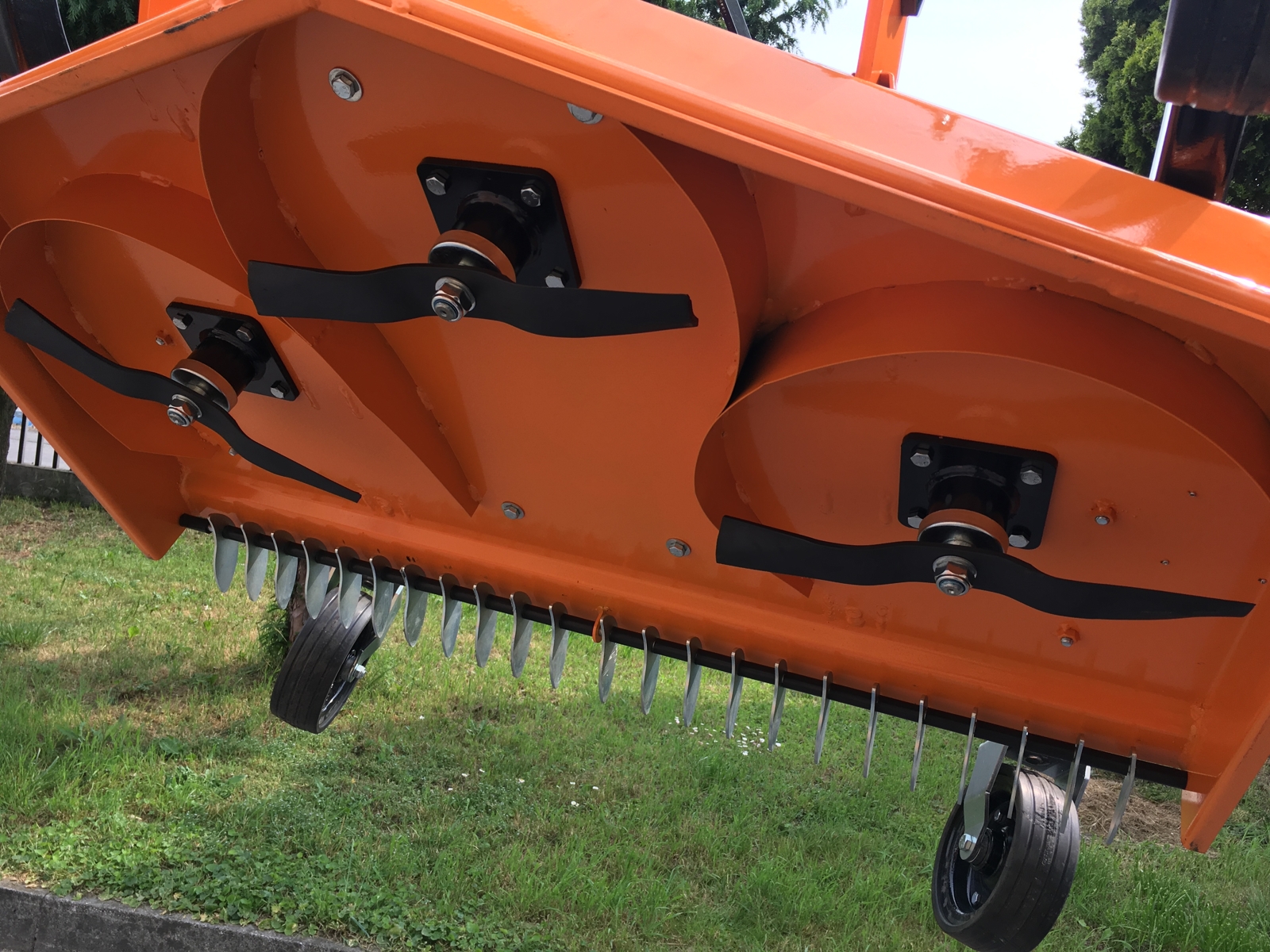

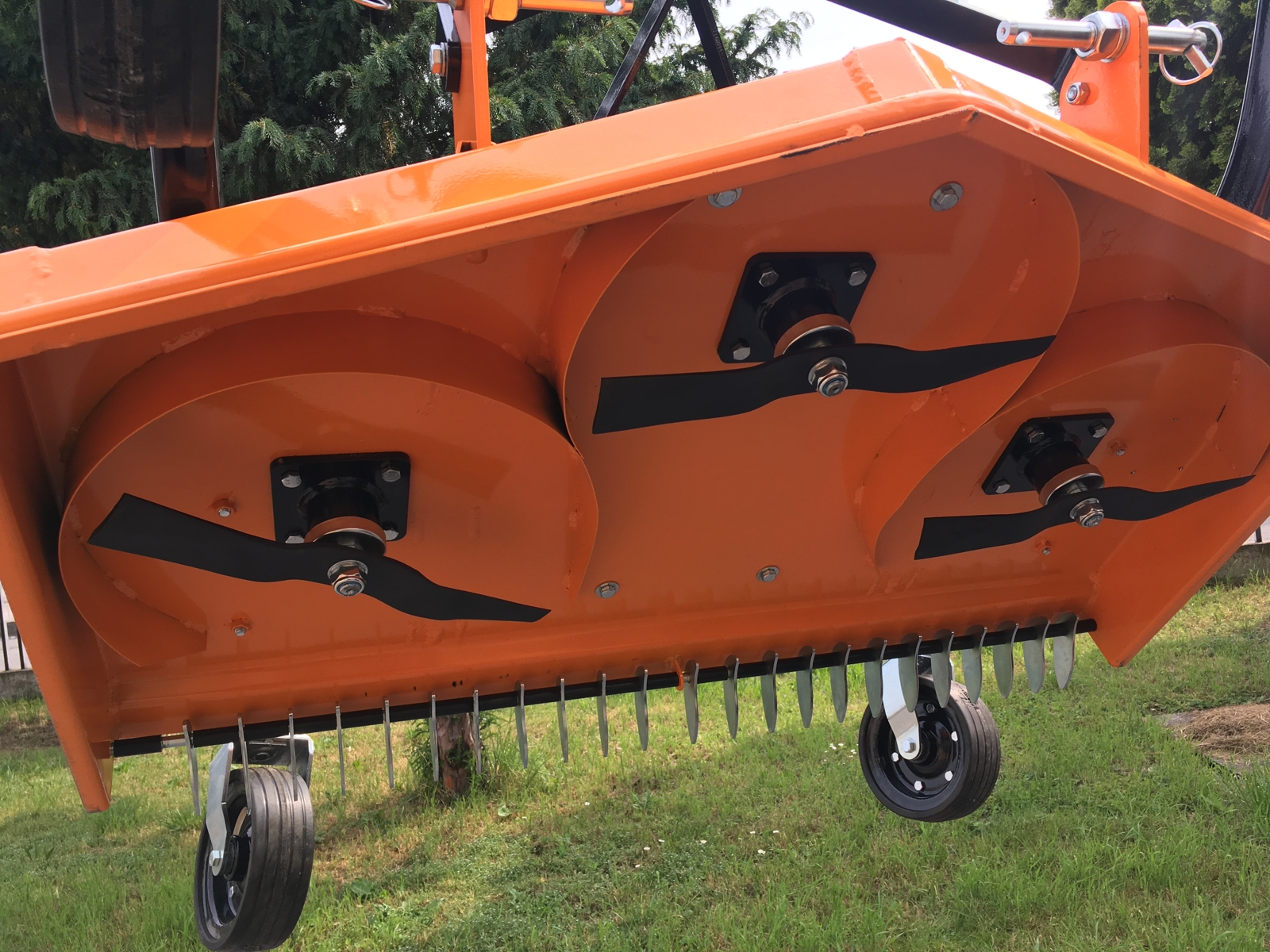

The 3 high speed blades pulverize grass clippings to ensures no tracks of grass are left behind.

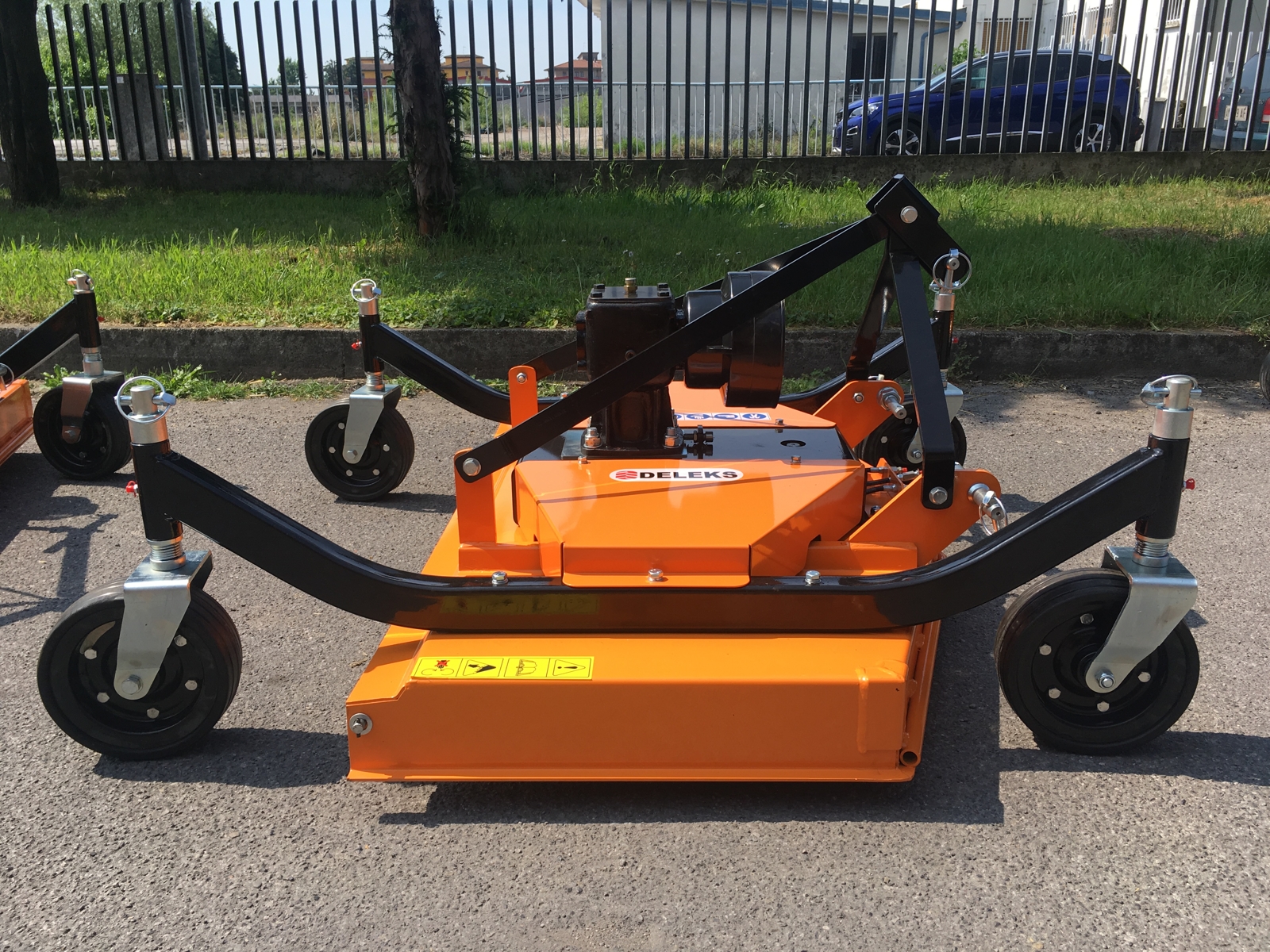

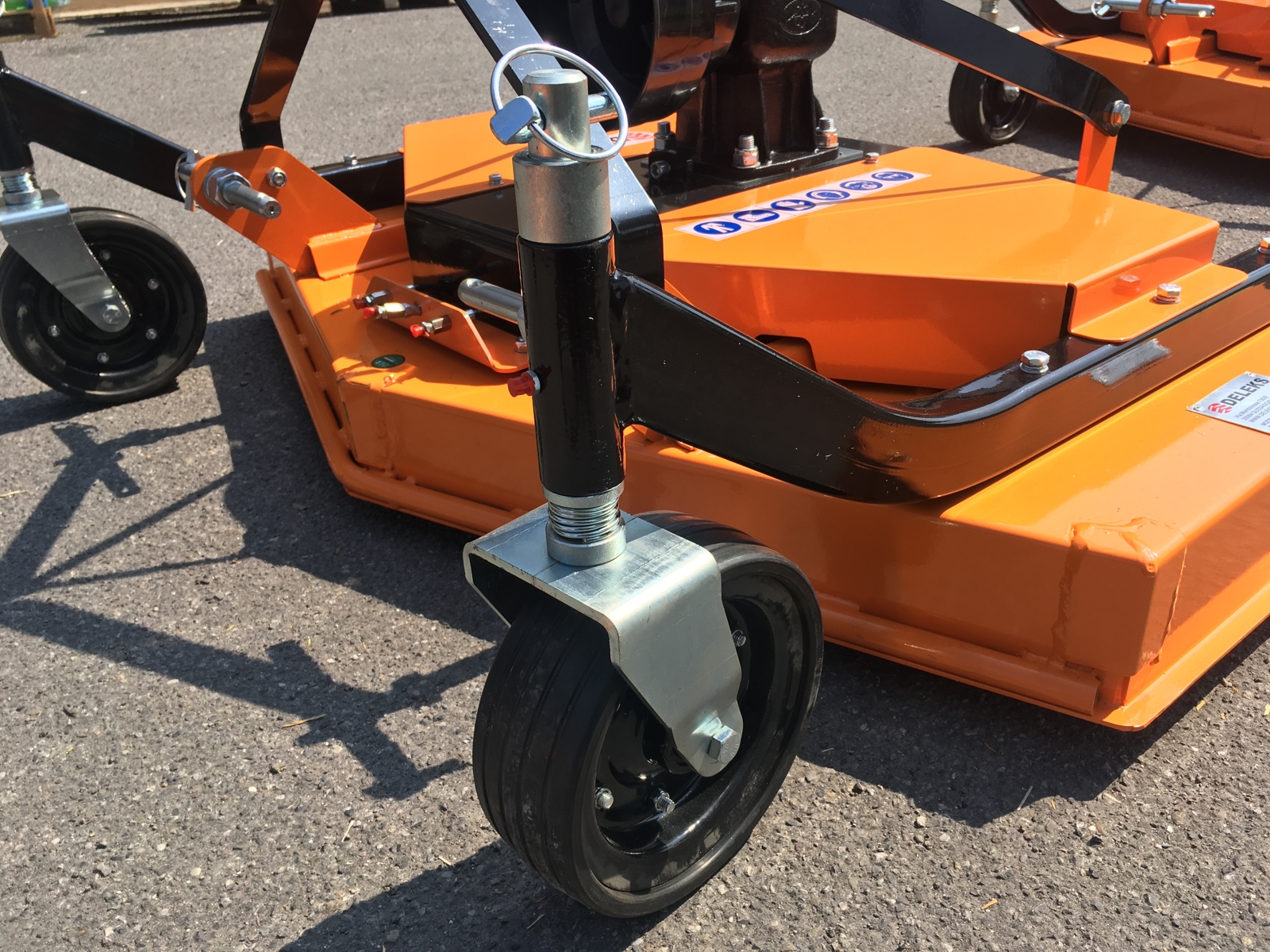

4 pivoting wheels maintain the horizontal cutting level and regulate the cutting height.
The lightweight design allows its use with low-powered tractors, on flat ground or on verges.
2 high resistance toothed belts, and external belt tensioner.

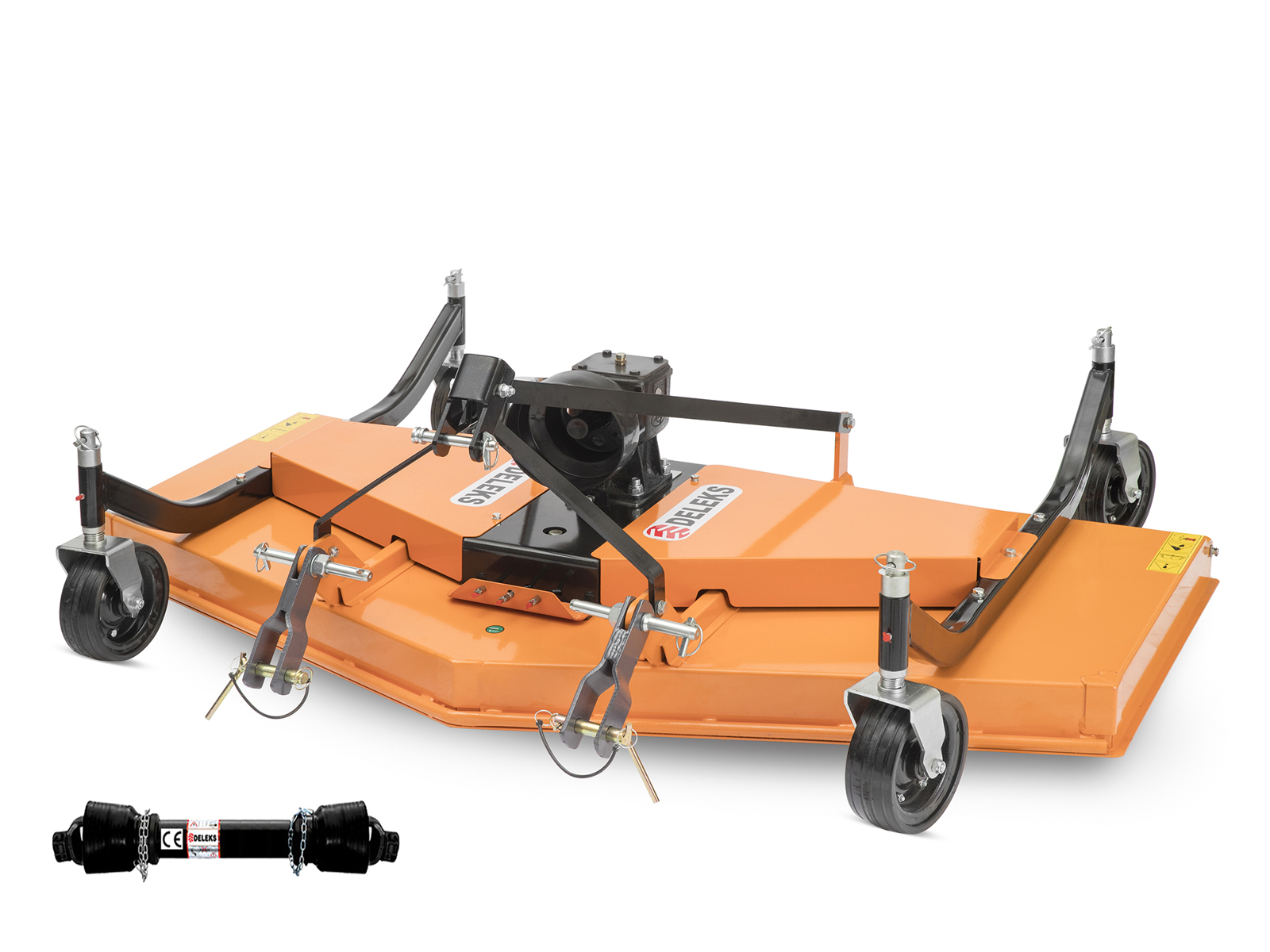

Cardan shaft with Free wheel integrated.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1200.0 mm | 3.94 ft |
| Overall width | 1280.0 mm | 4.20 ft |
| Min / Max cutting height | 5.0 - 50.0 mm | 0.2 - 1.97 in |
| Weight | 140.0 kg | 308.0 lb |
| Overall height | 750.0 mm | 2.46 ft |
| Tractor Power Range | 12-40 Hp | 12-40 Hp |

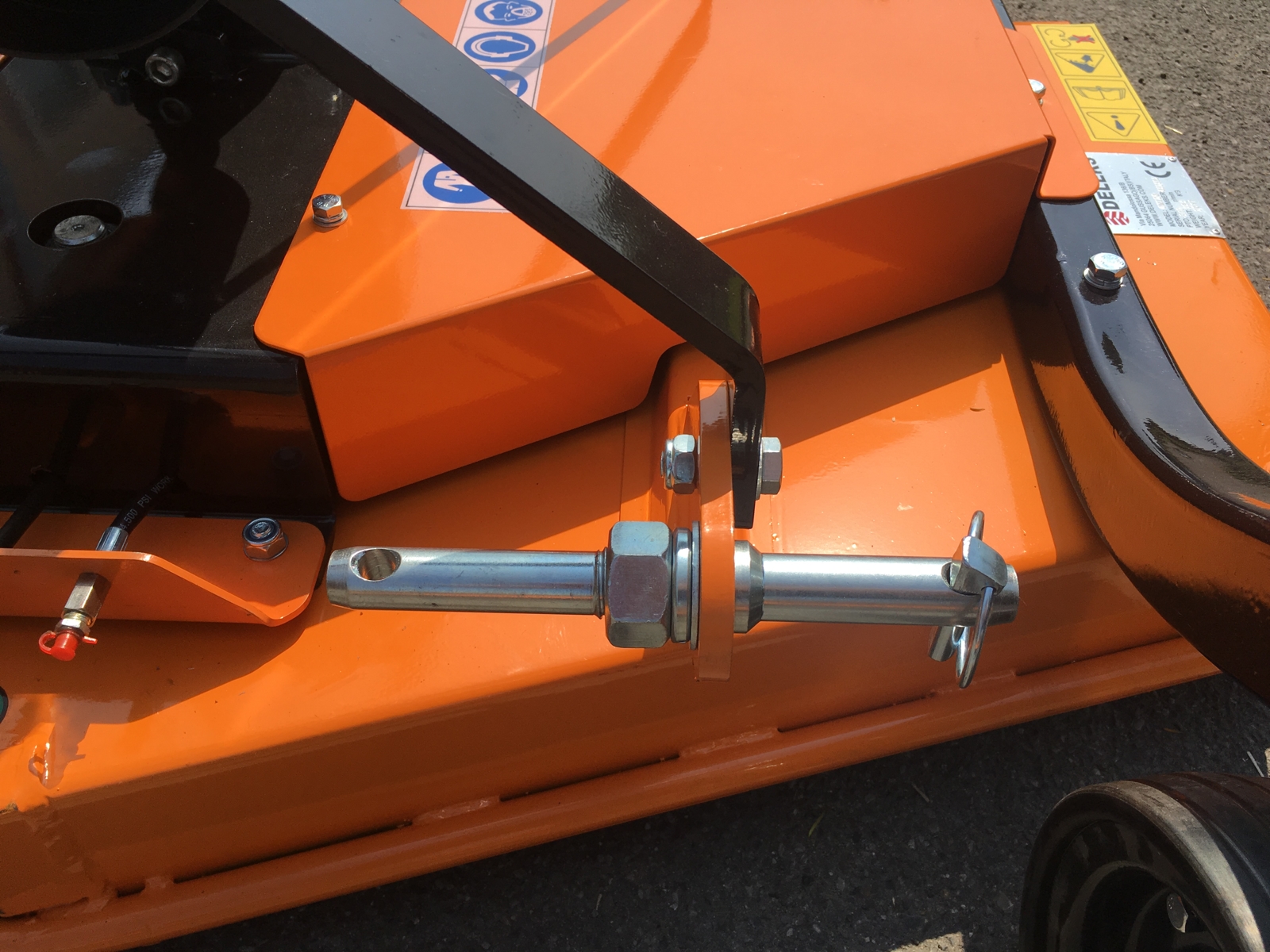

| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) | Cat. 1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 375.0-715.0 mm | 14.76 - 28.15 in |
| Overall length | 1150.0 mm | 3.77 ft |
| Distance between pto attachment and ground | 450.0 mm | 17.70 in |
| Main hood thickness | 4.0 mm | 0.16 in |
| Transmission: Drive method | V-Belts | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (3 years warranty) | Lombarda Ingranaggi Srl (3 years warranty) |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 2 | 2 |
| Transmission: V-Belts size | 17x1549 | 17x1549 |
| Number of Blades | 3 | 3 |
| Transmission: RPM Blade speed | 2600 r/min | 2600 r/min |
| Blades: Length/Width | 400.0/50.0 mm | 15.75/1.97 in |
| Blades: Diameter of the hole | 20.0 mm | 0.79 in |
| Wheels: Quantity | 4 | 4 |
| Wheels: Diameter / Width | 200.0/77.0 mm | 7.87/3.03 in |
| Pto shaft | CE 4x1000 mm + free wheel | CE 4x1000 mm + free wheel |
| Transmission: Pulleys diameter | 245.0/14.0 mm | 9.65/0.55 in |
| Blades: Weight | 920.0 g | 32.45 oz |
| Packing sizes | 1300.0*800.0*500.0 mm | 4.26*2.63*1.64 ft |
