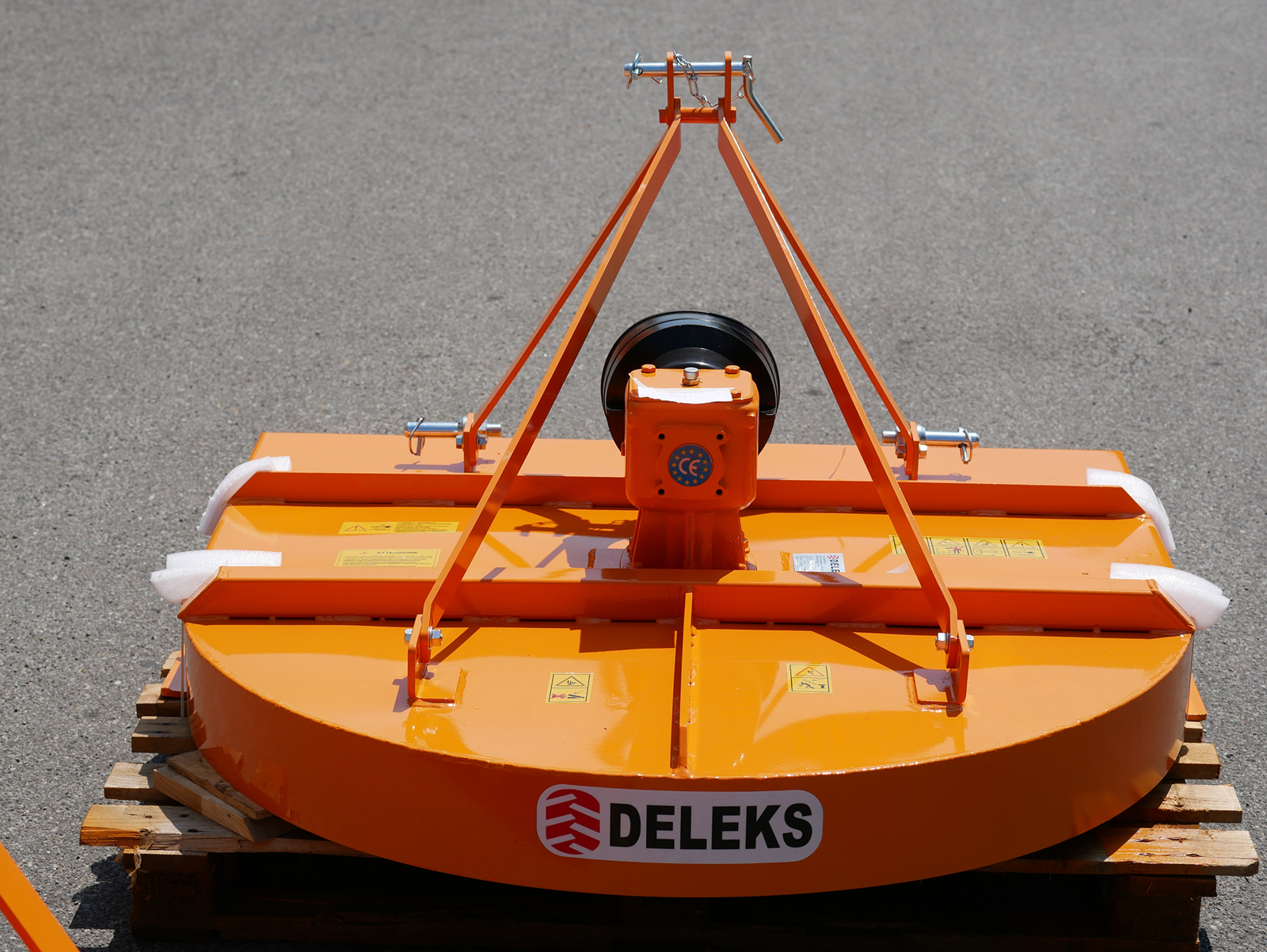

Topper mower for tractor 100 cm (39 in) BUGGY-100, rotary mower deck with swinging blades and freewheel PTO shaft, also works as a front mower, for 12-40 hp tractors
DETAILS
Topper mower for tractors with a 97 cm (38 in) cut: the DELEKS® BUGGY-100 is the single-rotor mower deck for compact tractors from 12 to 40 hp, for keeping lawns, gardens, parks and sports grounds tidy. Under the deck turns a central bar with a pair of swinging blades at each end: the 4 blades cut each stem of grass in several places and chop it fine; discharge is to the rear. Cutting height is set from 10 to 60 mm with the side skids. The deck is compact and gets in close to the edges; with the three-point headstock and the gearbox turned round, it also works as a front mower on reverse-drive tractors or on tractors with a front linkage and a 540 rpm front PTO. Frame in 3 mm Swedish SSAB steel, DELEKS® geared gearbox for a 540 rpm PTO with a 3-year warranty, weight 85 kg (187 lb). Made in Italy, built by DELEKS, it comes complete with a CE-approved PTO shaft with freewheel, a 2-year warranty and free delivery within the EU.
Which tractors it fits

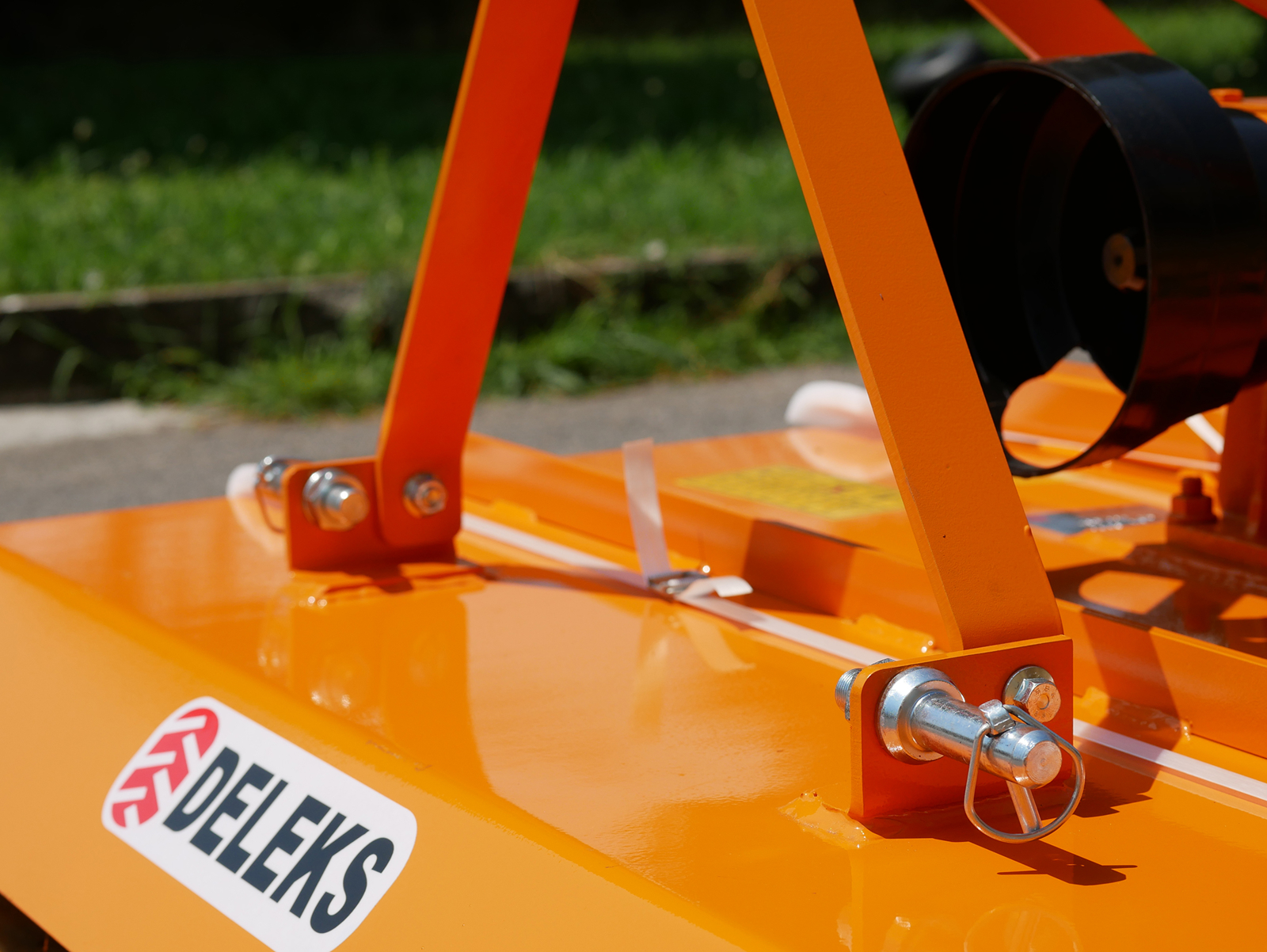

The BUGGY-100 cuts 97 cm (38 in) and is built for compact tractors from 12 to 40 hp with a 540 rpm PTO and a category 1 three-point linkage (19-22 mm pins, lower link spacing from 450 to 720 mm): Kubota, Carraro, BCS, Pasquali, Solis and equivalent tractors. The gearbox sits 340 mm (13.4 in) off the ground.
Four swinging blades and rear discharge

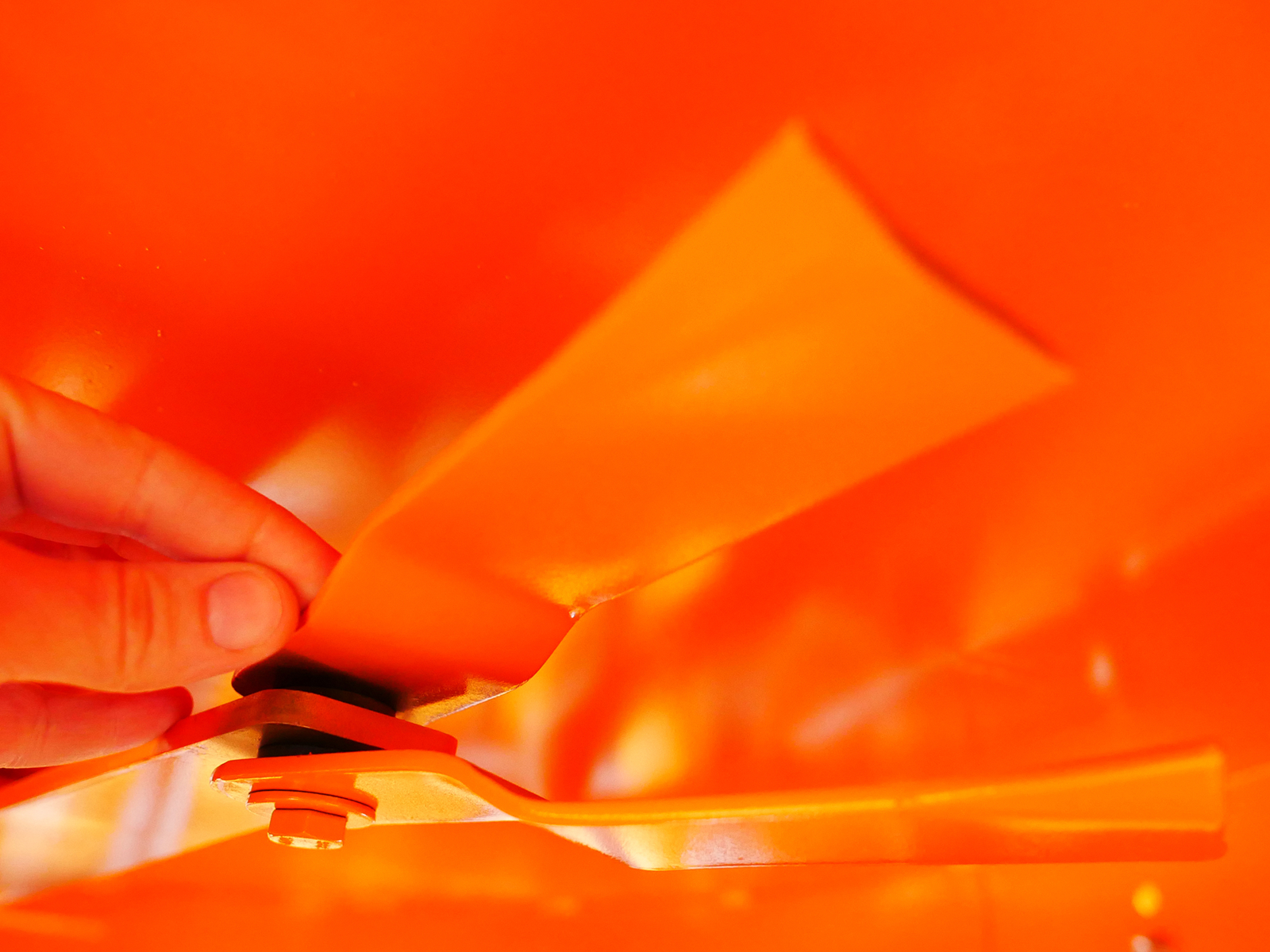

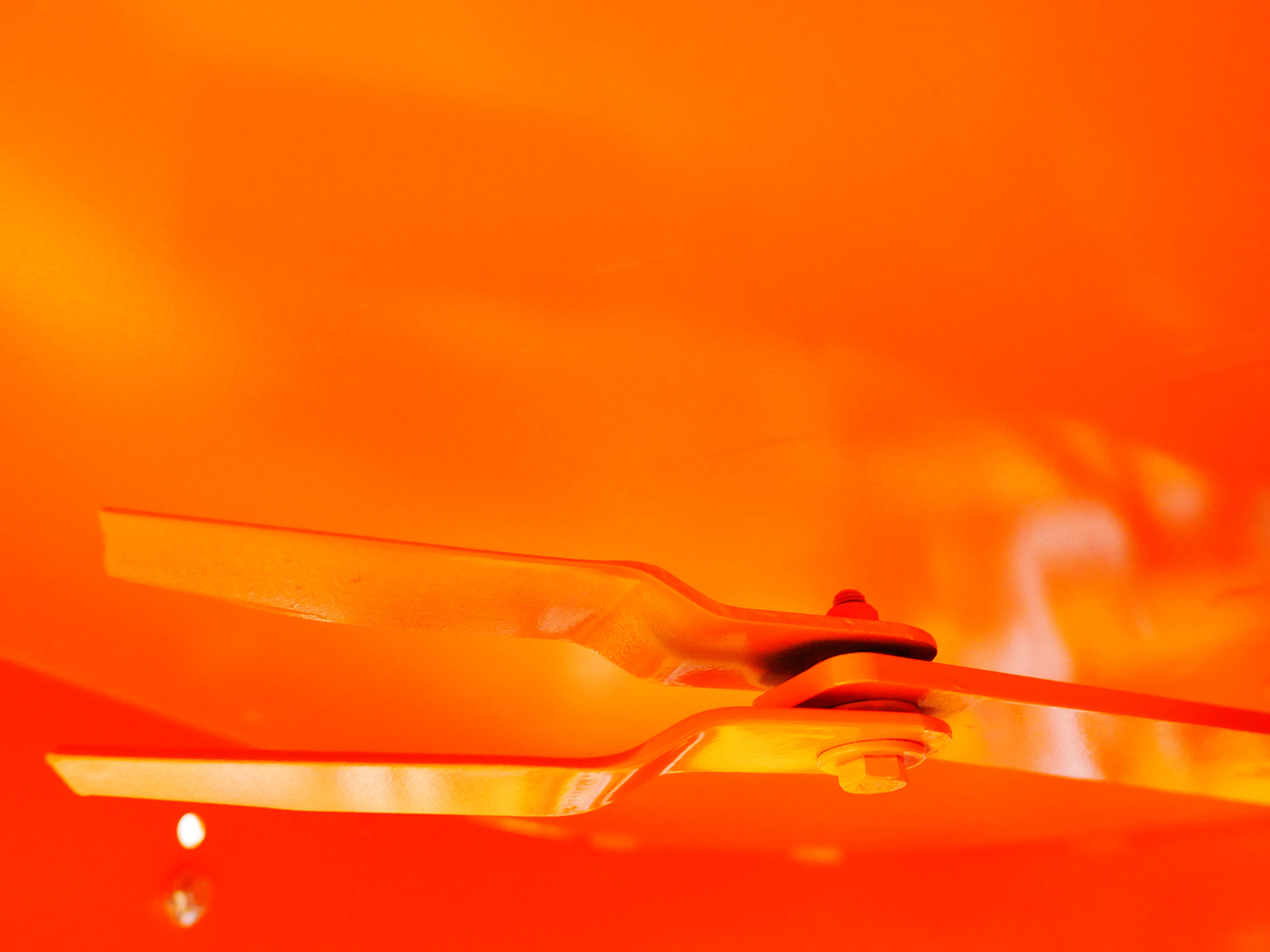

Under the deck a central bar turns at 1,080 rpm and carries a pair of swinging blades at each end: 4 blades of 300 g, 215 mm long and 50 mm wide, which cut each stem of grass into three sections in the same pass and pulverise it. The grass leaves through the rear discharge and stays on the lawn. For stony and overgrown ground, the rotor with chains (ROTORCHAINBUGGY) fits in place of the blades.
Cutting height from 10 to 60 mm with the skids
Cutting height is set from 10 to 60 mm with the side skids. The deck is compact, 1,070 mm overall width for 970 mm of cut: it works close to edges, low walls and fences. The frame is in 3 mm Swedish SSAB steel, with CE safety guards. The BUGGY-100 is Made in Italy, built by DELEKS. For this product the sheet steel is bought in Italy and worked at a production plant in the European Union.
Reversible: it also works as a front mower
The BUGGY-100 hitches to the rear linkage, but it is reversible: with the three-point headstock and the gearbox turned round, it also works as a front mower on reverse-drive tractors or on tractors with a front linkage and a 540 rpm front PTO, with the deck always in view.
Geared gearbox and PTO shaft with freewheel

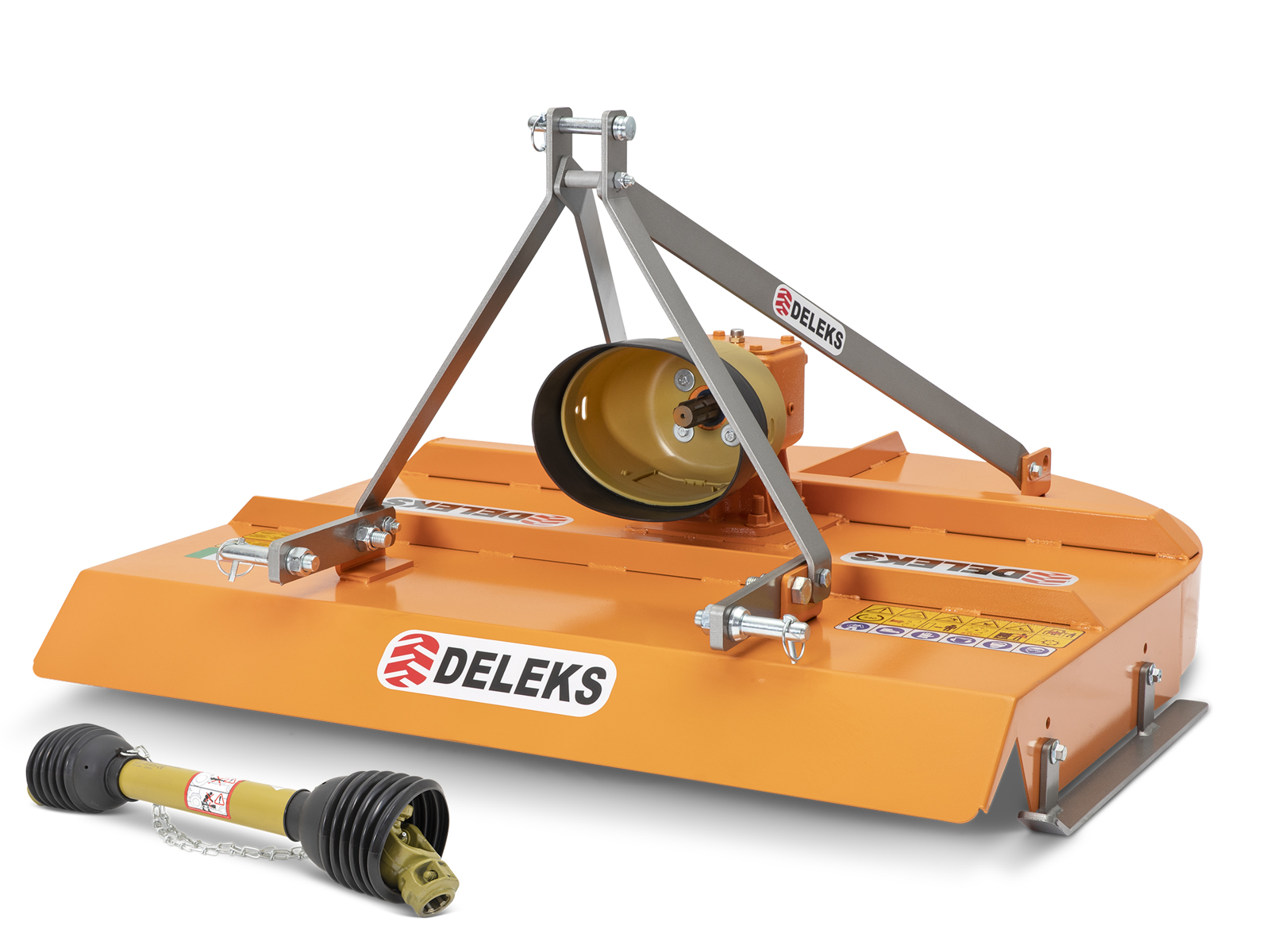

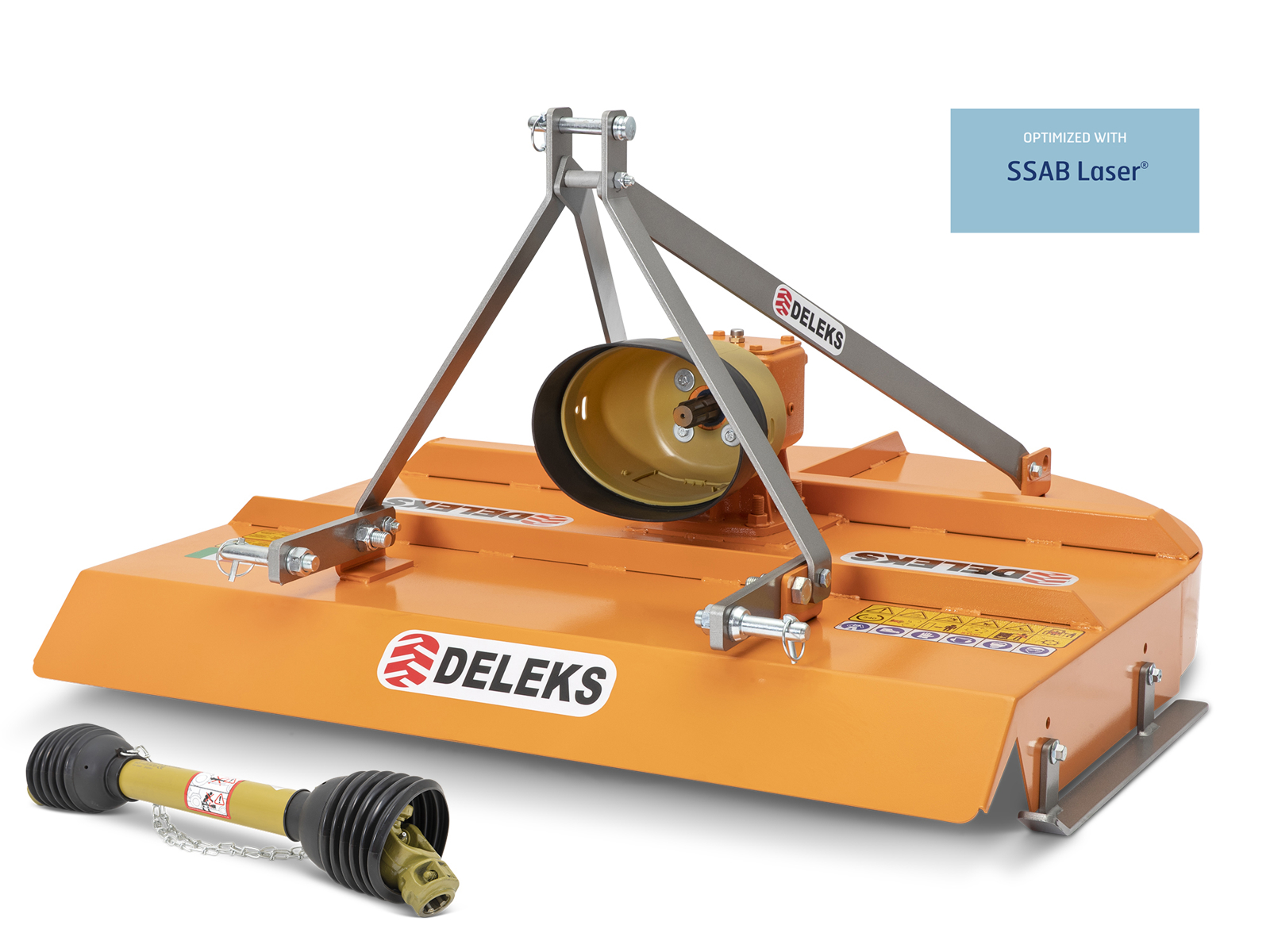

The drive is by gears: the DELEKS® gearbox for a 540 rpm PTO has a 3-year warranty. The CE-approved category 4 PTO shaft, 1,000 mm (39.4 in) long, with freewheel, is included: when you disengage the PTO the blades carry on turning under their own momentum and run down by themselves, without driving back through the tractor's transmission.
Dimensions, weight and delivery

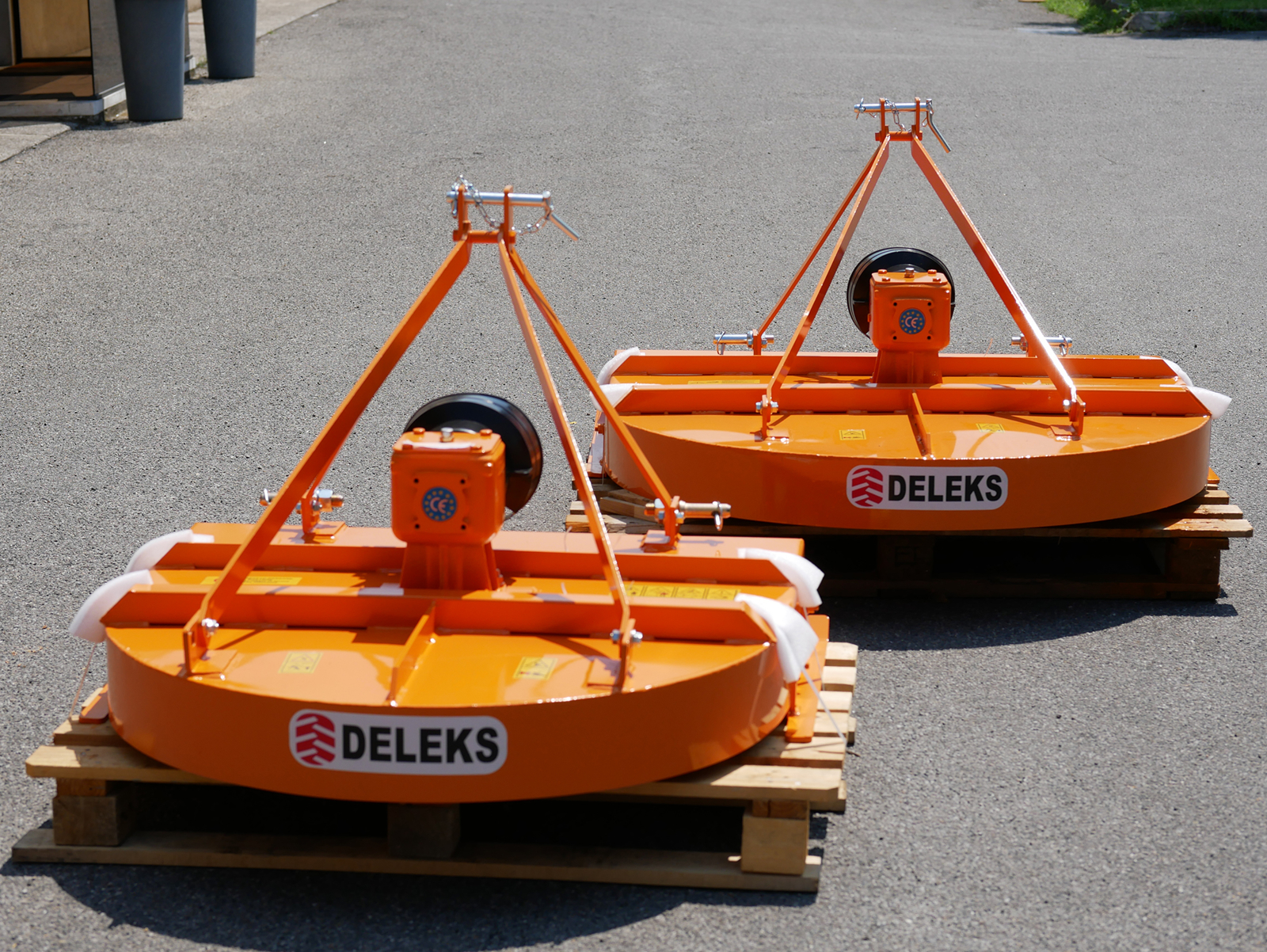

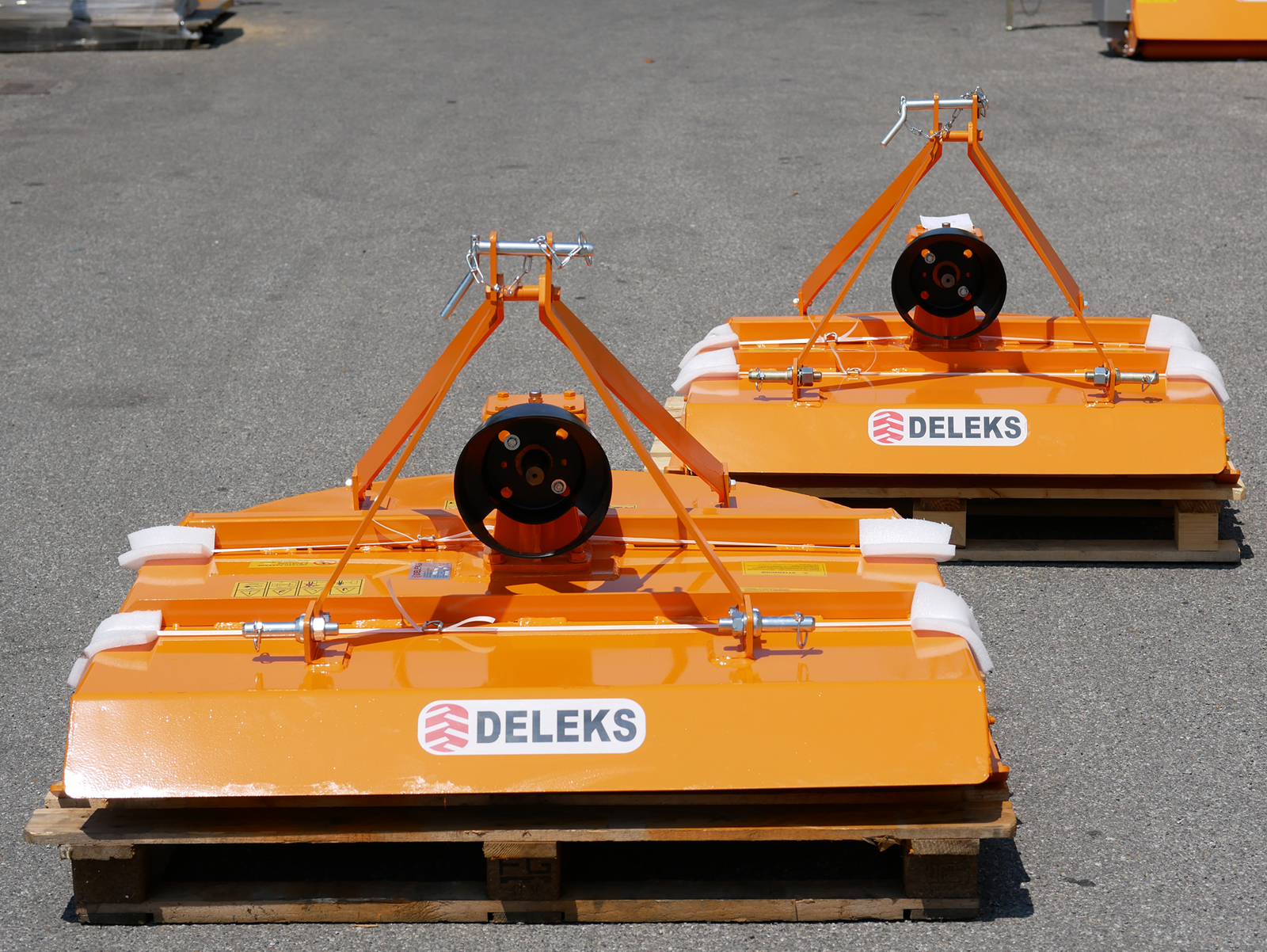

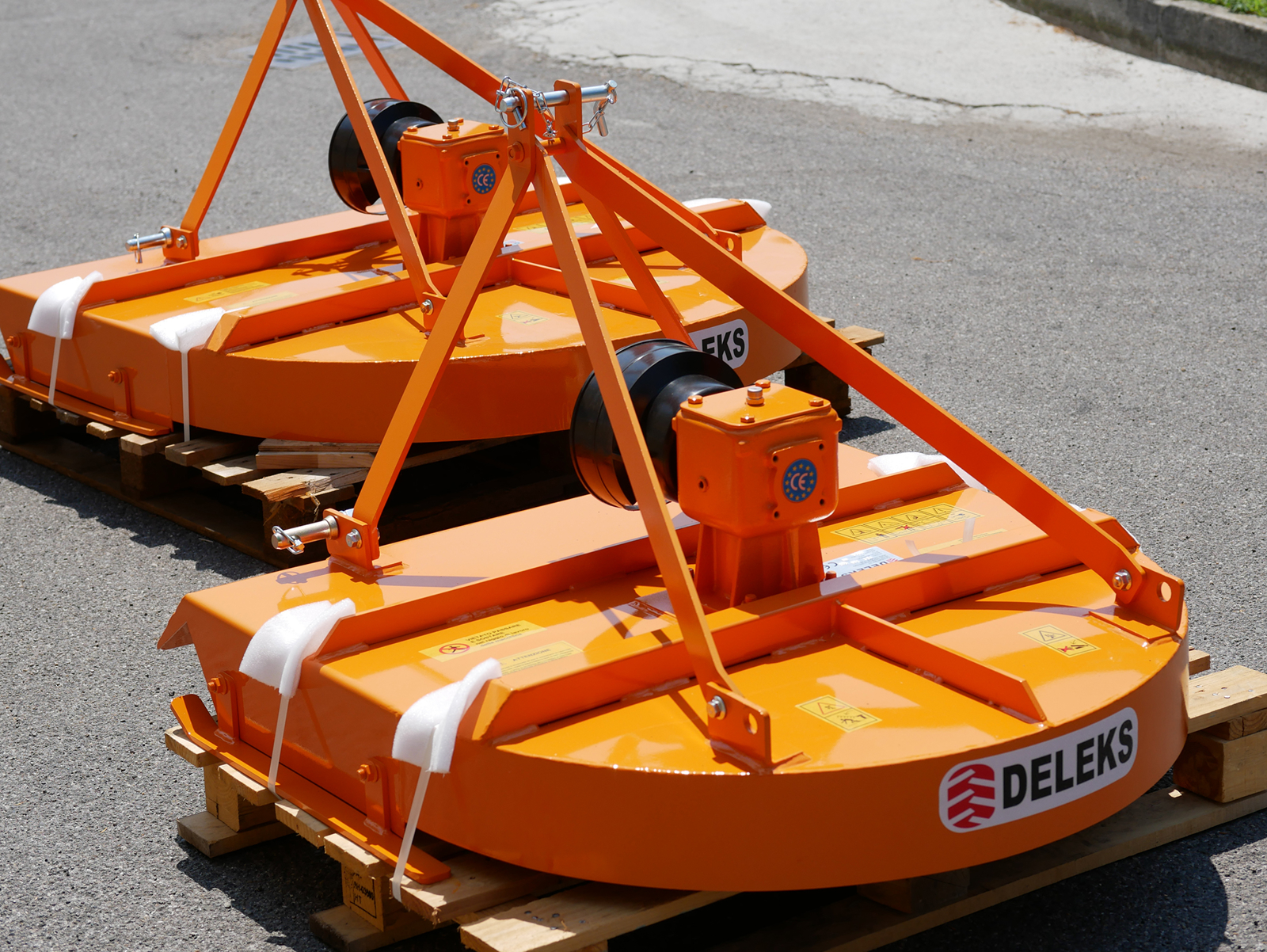

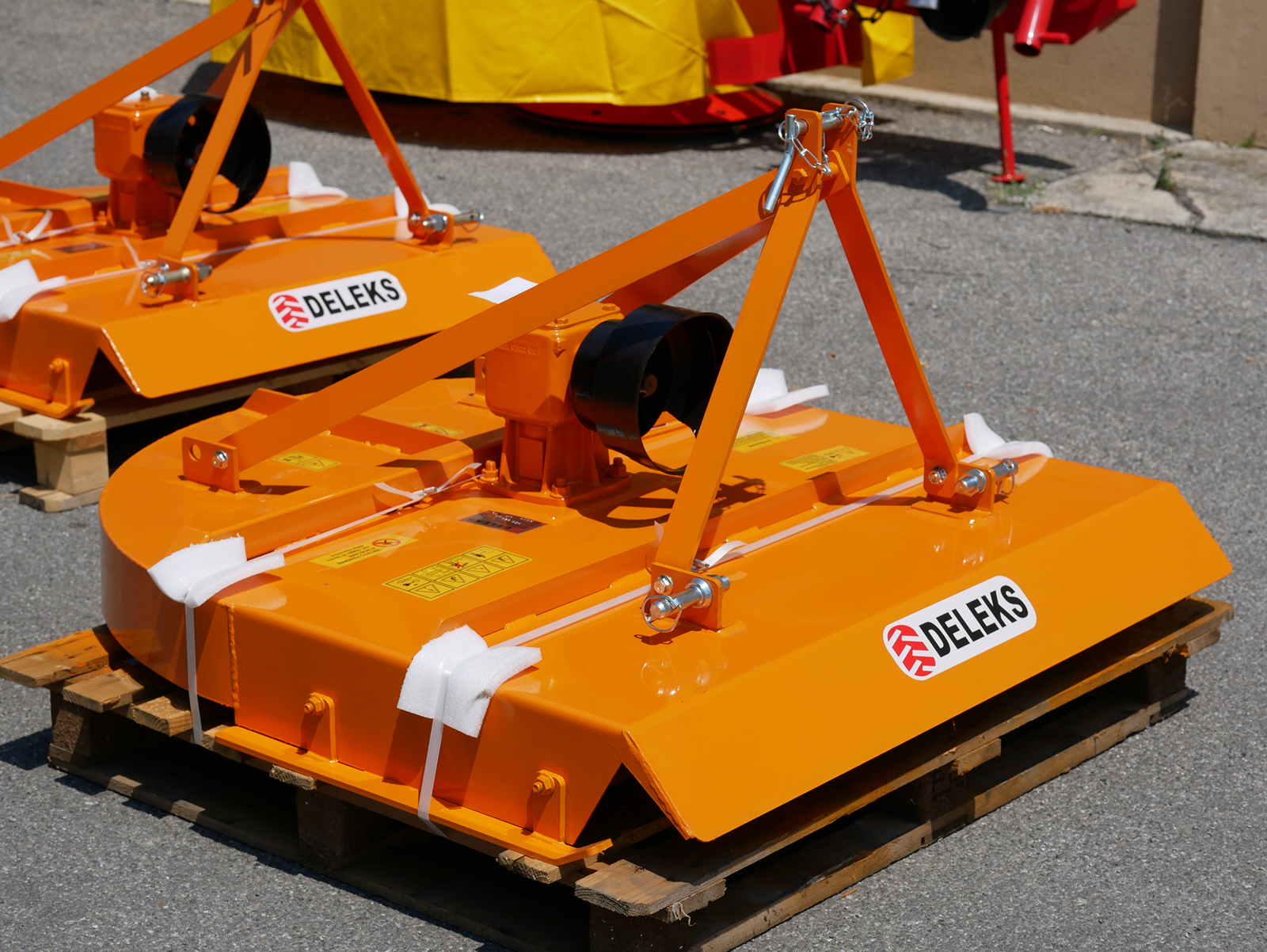

Working width 970 mm (38.2 in), overall width 1,070 mm (42.1 in), length 1,100 mm (43.3 in), height 650 mm (25.6 in), weight 85 kg (187 lb). It ships on a pallet in packaging measuring 107 × 110 × 60 cm (42 × 43 × 24 in), 126 kg (278 lb) gross, 0.71 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.

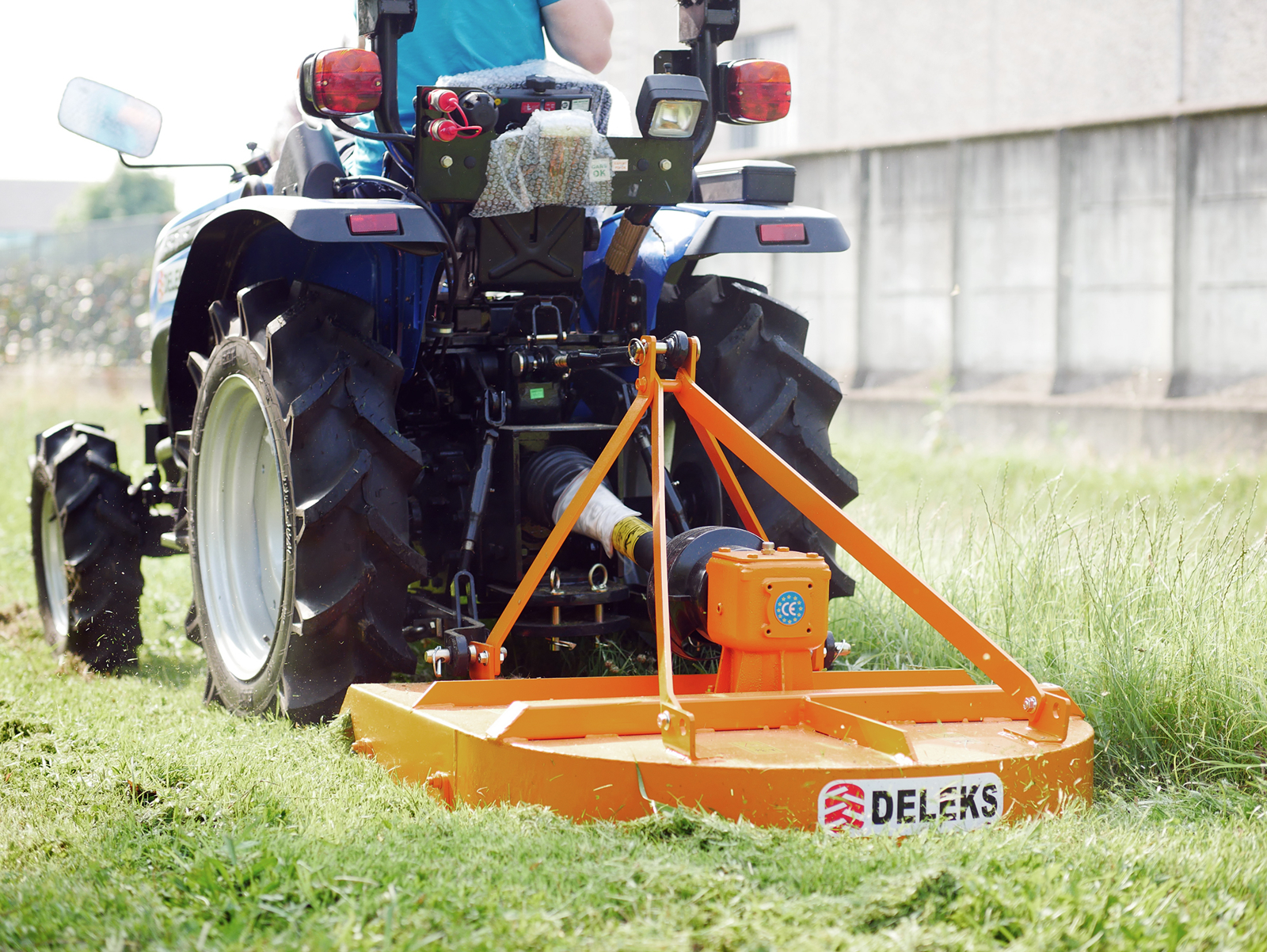

Where it works

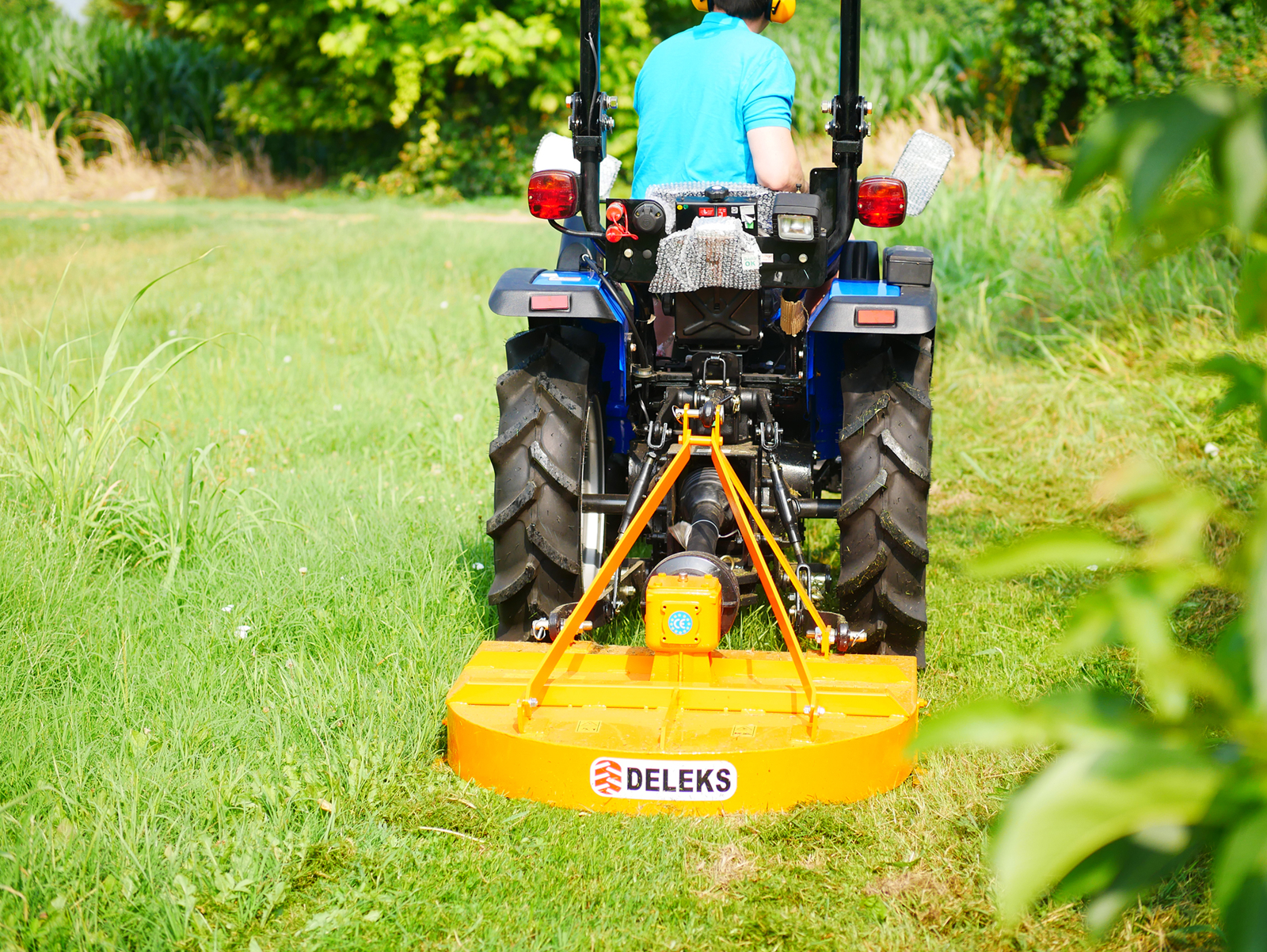

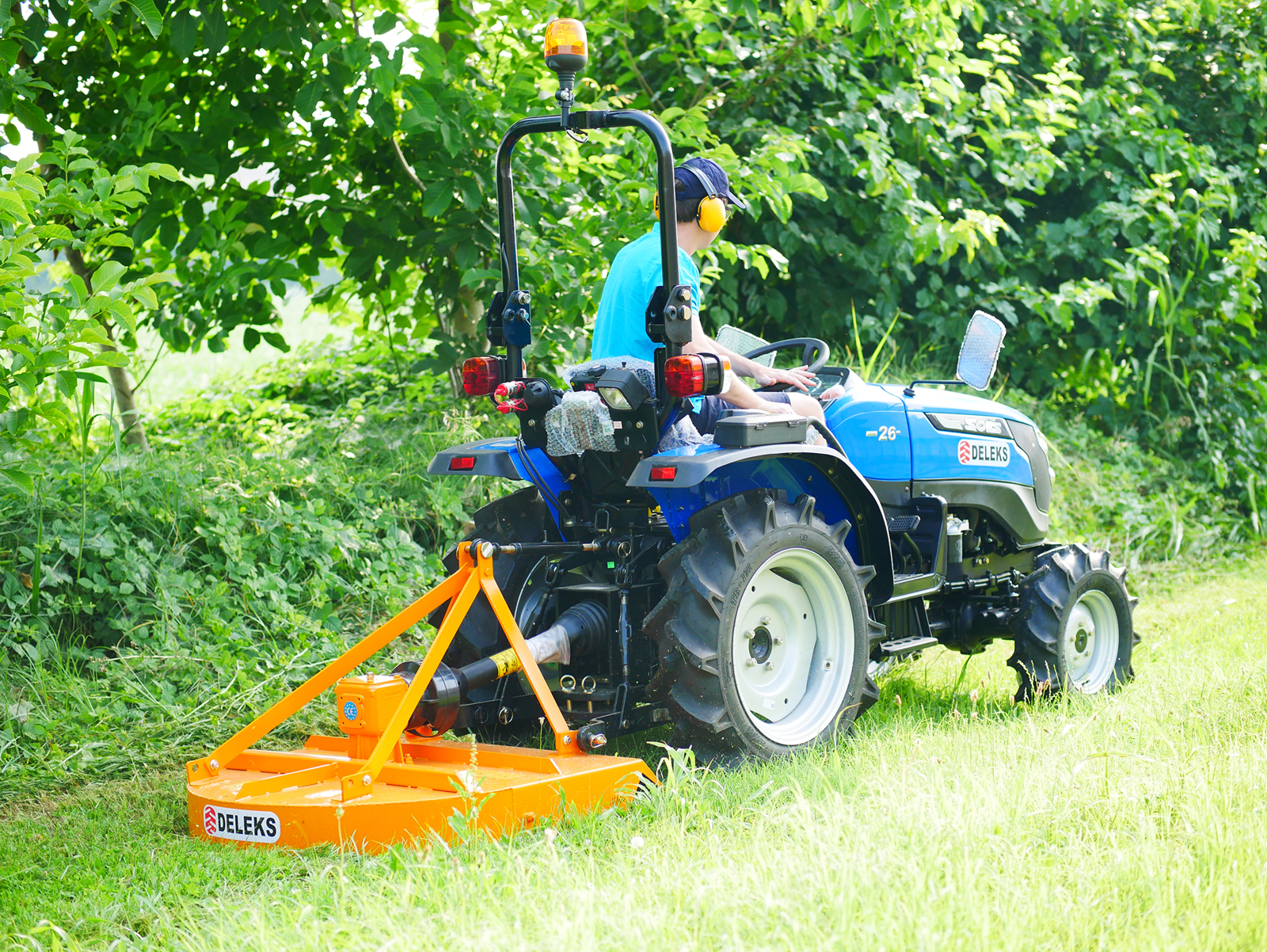

- Lawns, gardens and parks: grass to keep short and tidy
- Sports grounds and green areas: cut from 10 to 60 mm
- Edges, low walls and fences: the compact deck takes the cut close to obstacles
- Front use, with the three-point headstock and the gearbox turned round
- Compact tractors from 12 to 40 hp with a category 1 three-point linkage
Options and spares
From this page you can add to your order the spare set of 2 + 2 blades (COLTELLIBUGGY), the rotor with chains, to switch to chain cutting (ROTORCHAINBUGGY) and the universal PTO adapter (RID1). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the BUGGY-100 need?
From 12 to 40 hp, with a 540 rpm PTO and a category 1 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 85 kg (187 lb).
What is the cutting height?
From 10 to 60 mm, adjustable with the side skids.
Does it collect the grass?
No: the four swinging blades chop the grass fine; it leaves through the rear discharge and stays on the lawn.
Can it be used at the front?
Yes, the deck is reversible: with the three-point headstock and the gearbox turned round, it also works as a front mower on reverse-drive tractors or on tractors with a front linkage and a 540 rpm front PTO.
Is it suitable for stony or overgrown ground?
For stones, scrub and uneven ground chain cutting is the better choice: on the BUGGY-100 you fit the rotor with chains (ROTORCHAINBUGGY) in place of the blades, or there is the BUGGY-100C chain mower, ready to go.
Can the blades be replaced?
Yes: the spare set of 2 + 2 blades (COLTELLIBUGGY) can be ordered from this page.
Is the PTO shaft included?
Yes: a CE-approved category 4 PTO shaft, 1,000 mm (39.4 in) long, with freewheel.
How does it differ from the DM three-blade finishing mower?
The DM models are 3-blade decks on 4 castor wheels, from 120 to 180 cm and from 140 to 205 kg, with a cut from 5 to 50 mm, for large areas of lawn. The BUGGY is the single-rotor deck of 100 and 120 cm and from 85 to 120 kg: lighter and reversible, it also works as a front mower.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: blades, chains, belts, bearings, wheels, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower deck and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 970.0 mm | 3.18 ft |
| Overall width | 1070.0 mm | 3.50 ft |
| Min / Max cutting height | 10.0 - 60.0 mm | 0.40 - 2.35 in |
| Weight | 85.0 kg | 187.0 lb |
| Overall height | 650.0 mm | 25.59 in |
| Tractor Power Range | 12-40 Hp | 12-40 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) | Cat. 1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 450.0-720.0 mm | 17.70 - 28.35 in |
| Overall length | 1100.0 mm | 3.60 ft |
| Distance between pto attachment and ground | 340.0 mm | 13.40 in |
| Main hood thickness | 3.0 mm | 0.12 in |
| Transmission: Drive method | Gear | Gear |
| Transmission: Gearbox | DELEKS (3 year warranty) | DELEKS (3 year warranty) |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Number of Blades | 2 + 2 | 2 + 2 |
| Transmission: RPM Blade speed | 1080 r/min | 1080 r/min |
| Blades: Weight | 300.0 g | 10.60 oz |
| Blades: Diameter of the hole | 20.0 mm | 0.80 in |
| Pto shaft | CE 4x1000 mm + freewheel | CE 4x1000 mm + freewheel |
| Blades: Sizes | 215.0/50.0 mm | 8.46/1.97 in |
| Gross shipping weight | 126 kg | 278 lb |
| Package volume | 0.71 m3 | 25.1 cu ft |
| Packing sizes | 1070.0*1100.0*600.0 mm | 3.51*3.60*1.97 ft |
