Snowplough with plate for tractor, LNS-170-A

Not available Notify me
EAN 8053470231278
See more details






Light snow blade with plate for tractors Kubota, Yanmar.. - DELEKS® - 170cm - Homologated for road use.


LNS-170-A Front snow blade with universal plate, for tractors from 20 to 45hp with guidance right / left hand (hydraulic optional) and hydraulic lifting of the blade with torque tube 4.0m The plough is attached to the tractor with a quick attachment mounting plate.

The tractor must have 2 hydraulic outlets. Upon request we provide kits for tractors without hydraulic connectors. Compatible with all compact tractors, such as Japanese tractors Kubota BX-B, Iseki, Yanmar, Mitsubishi, or as BCS compact tractors, Pasquali, Ferrari, Goldoni, Antonio Carraro, Valpadana. Conforming to the EC Machinery Directive, Warranty 2 years.



Anti-shock system with 4 shock absorbers to operate in maximum safety.

Extremely easy to assemble and use.

Sharp replaceable steel. On request also available with rubber blade.

parking leg.

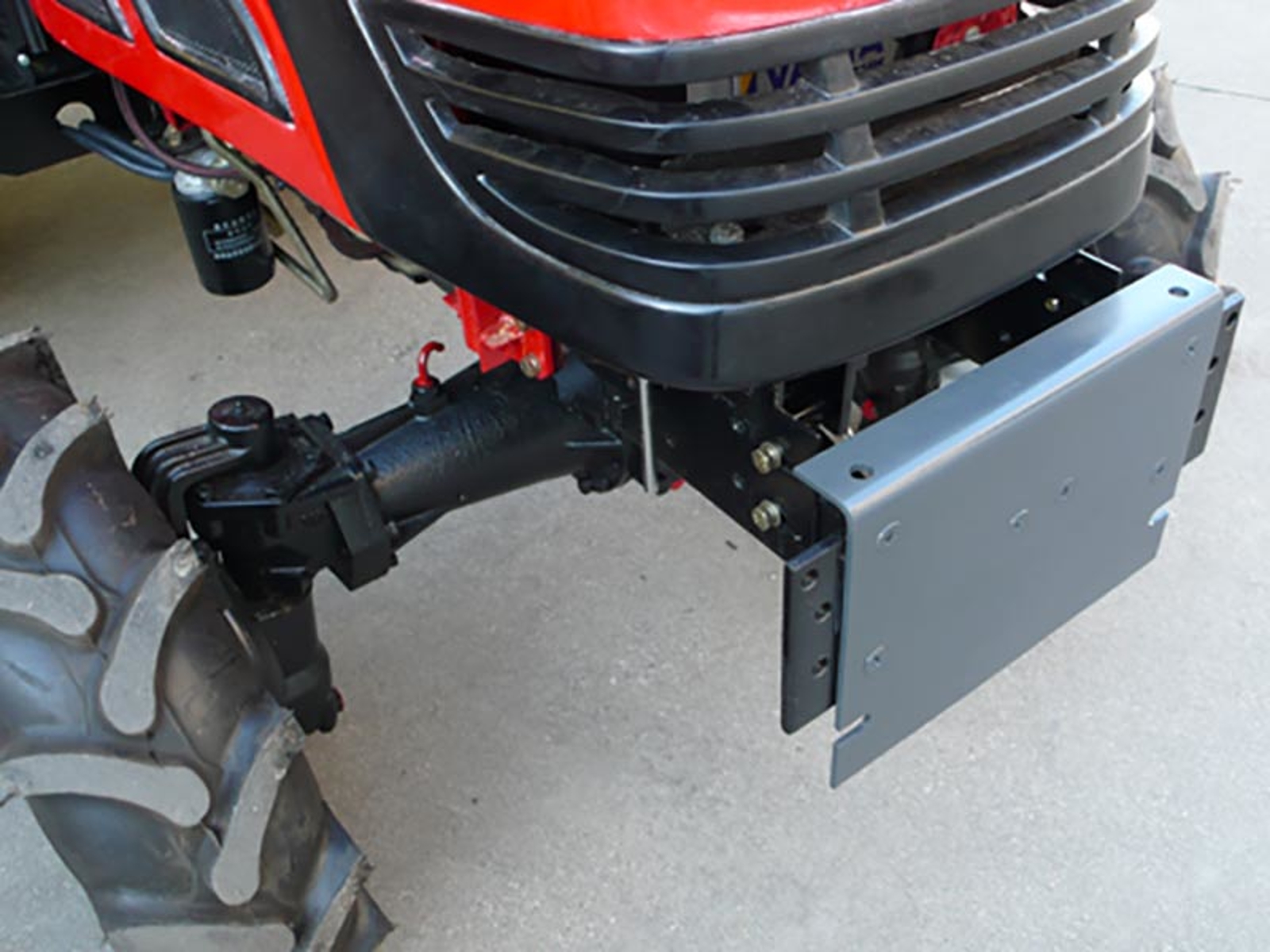

The attachment plate is removable and replaceable with a 3 point hitch or mini skid steer loaders.

Homologated for road use.




Caracteristic Units metric Units US
Weight 128.0 kg 282.0 lb
Overall height 830.0 mm 2.72 ft
Tractor Power Range 20 - 45 Hp 20 - 45 Hp
Overall Length 670.0 mm 2.20 ft
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Interface Universal Plate Universal Plate
Universal plate sizes 260.0*370.0 mm 10.23*14.57 in
Angling (left/right) 28° 28°
Float +/- 2° +/- 2°
Blade Height 525.0 mm 1.72 ft
Side edge thickness 8.0 mm 0.32 in
Shock absorbers 4 4

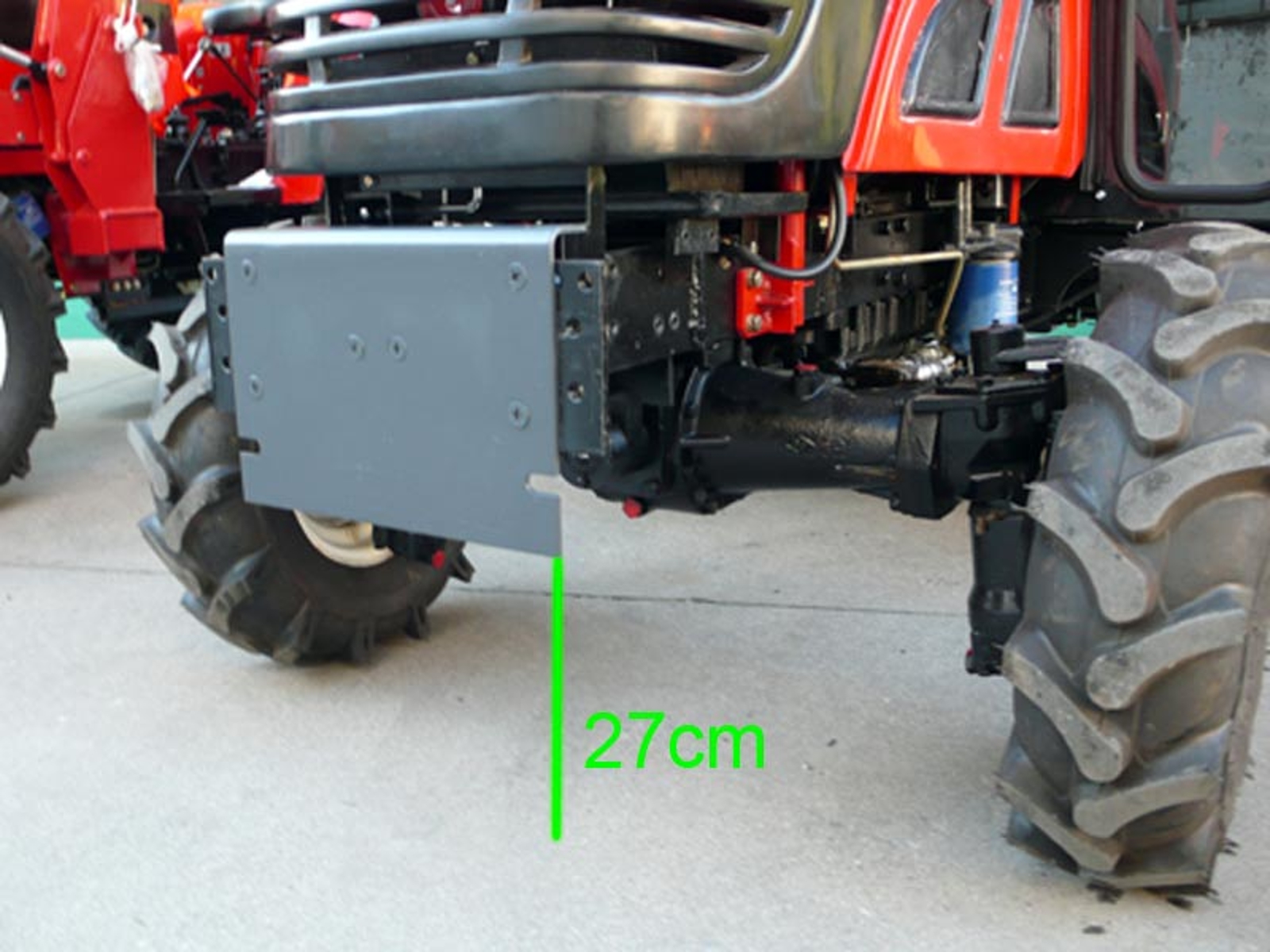

Distance between plate and base 270.0 mm 10.63 in
Cutting Edge Steel or Rubber Steel or Rubber
Cutting Edge Height 120.0 mm 4.72 in
Cutting Edge Thickness 14.0 mm 0.55 in
Trip Edge Quantity 1 1
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights x x
Removable Skid Shoes x x
Working width (angled) 1520.0 mm 5.00 ft
Hydraulic Hoses 2 x 4000.0 mm / connections 1.2" AGRI, WP 400 bar 2 x 13.12 ft / connections 1.2" AGRI, WP 400 bar
Overall width 1716.0 mm 5.63 ft
Main frame thickness 4.0 mm 0.16 in
Hydraulic cylinder/s ø 50.0 / 25.0 mm 1.97 / 0.98 in
Packing sizes 1716.0*800.0*800.0 mm 5.63*2.62*2.62 ft
