Snowblade with plate for tractor, LN-175-A

Available
Code LN175A
EAN 8053470231292
TOTAL
2.389,00VAT incl.
Free shipping

VIDEO
Field test
Field test

DETAILS

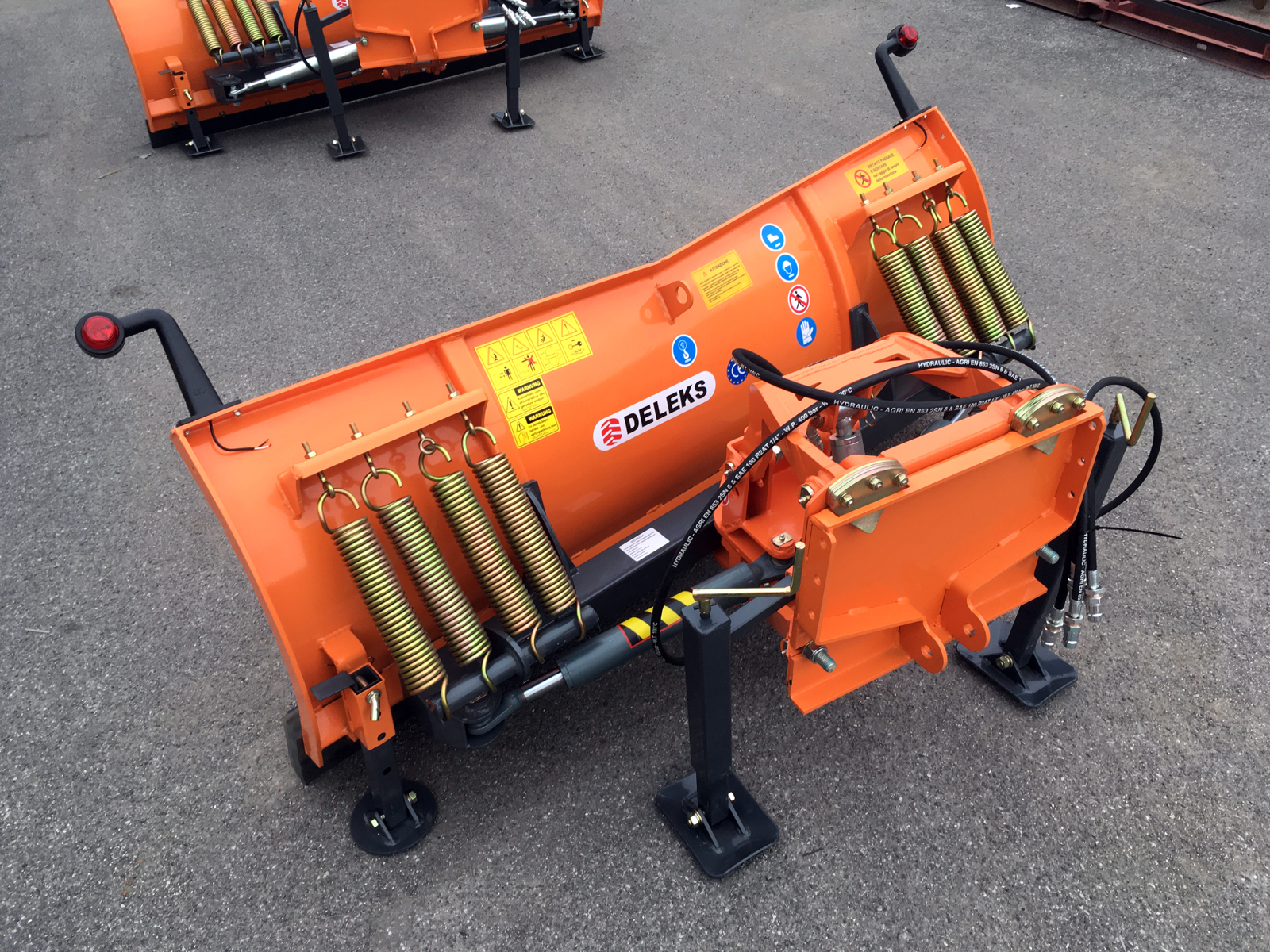

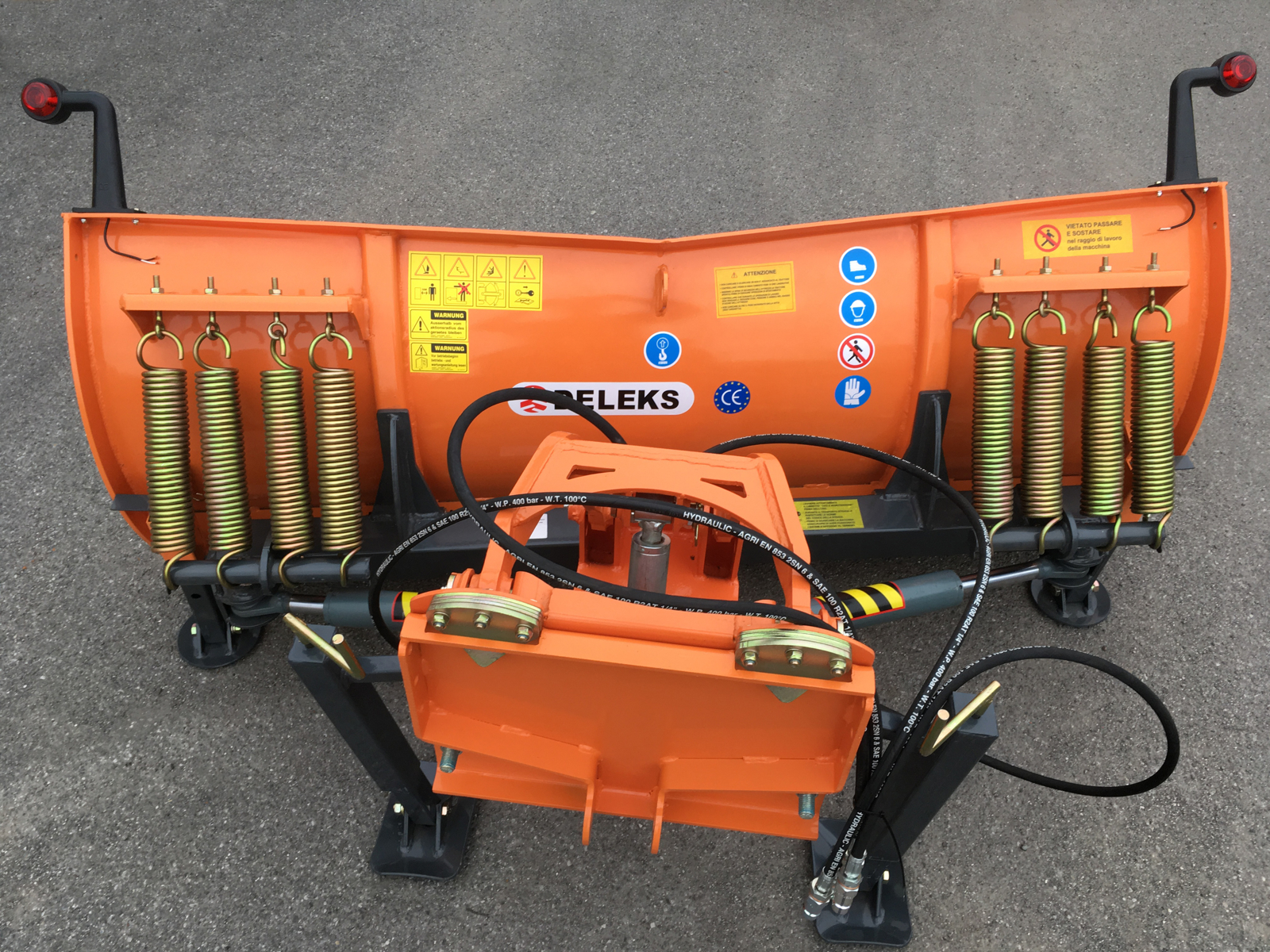

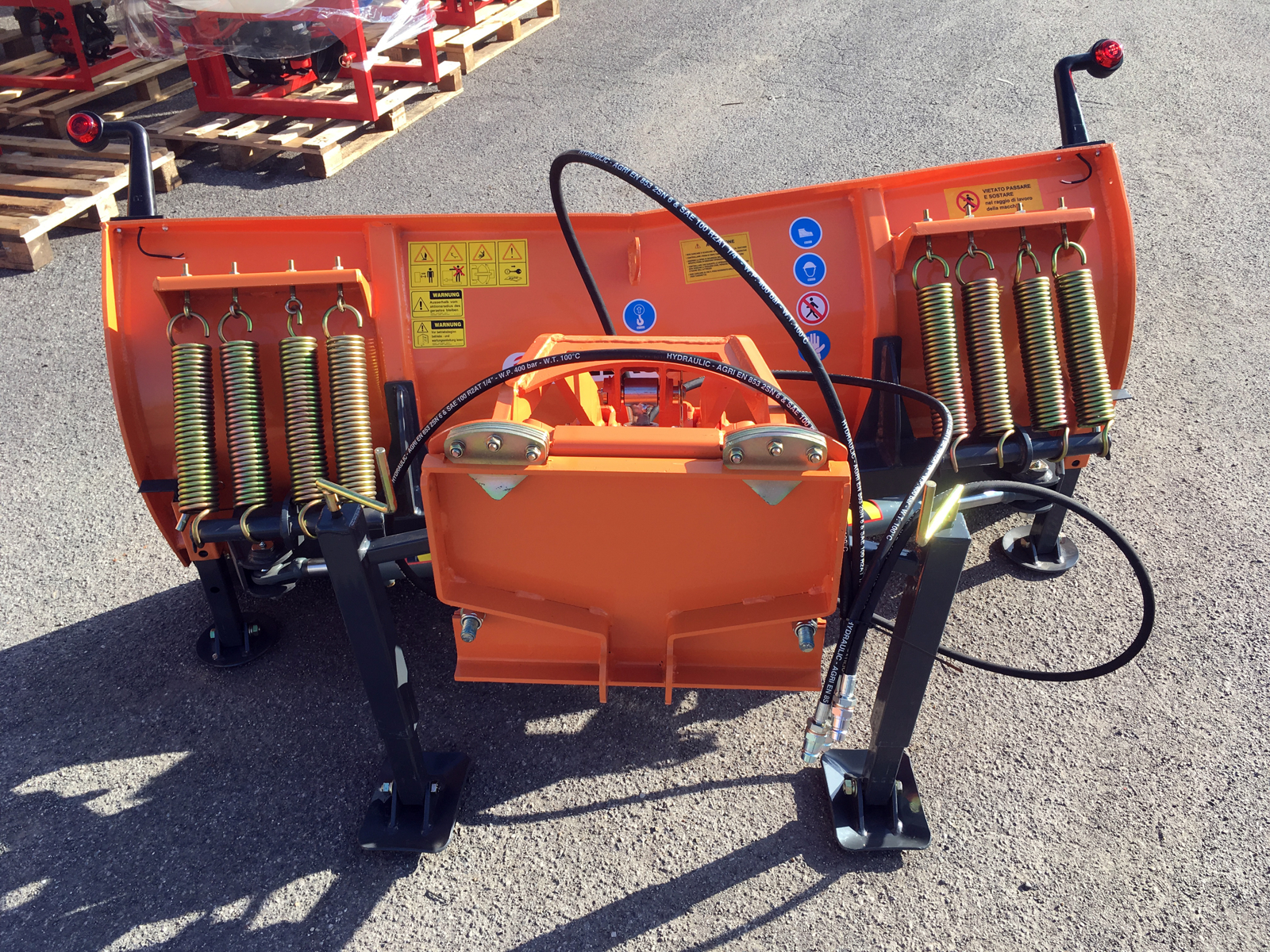

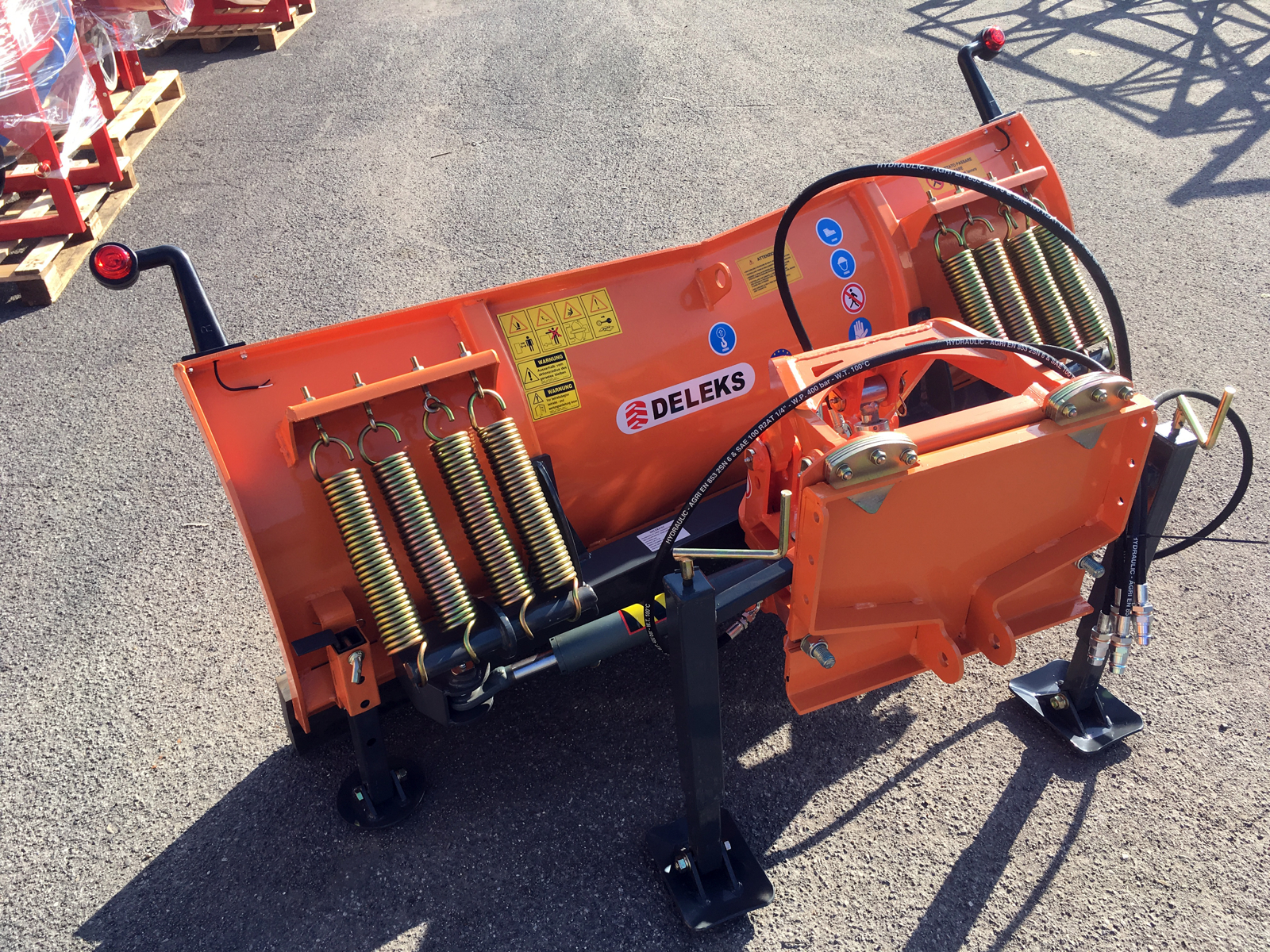

Frontal snow plow DELEKS® 175cm, with mounting plate for tractors John Deere, New Holland.. Homologated for road use.



DESCRIPTION

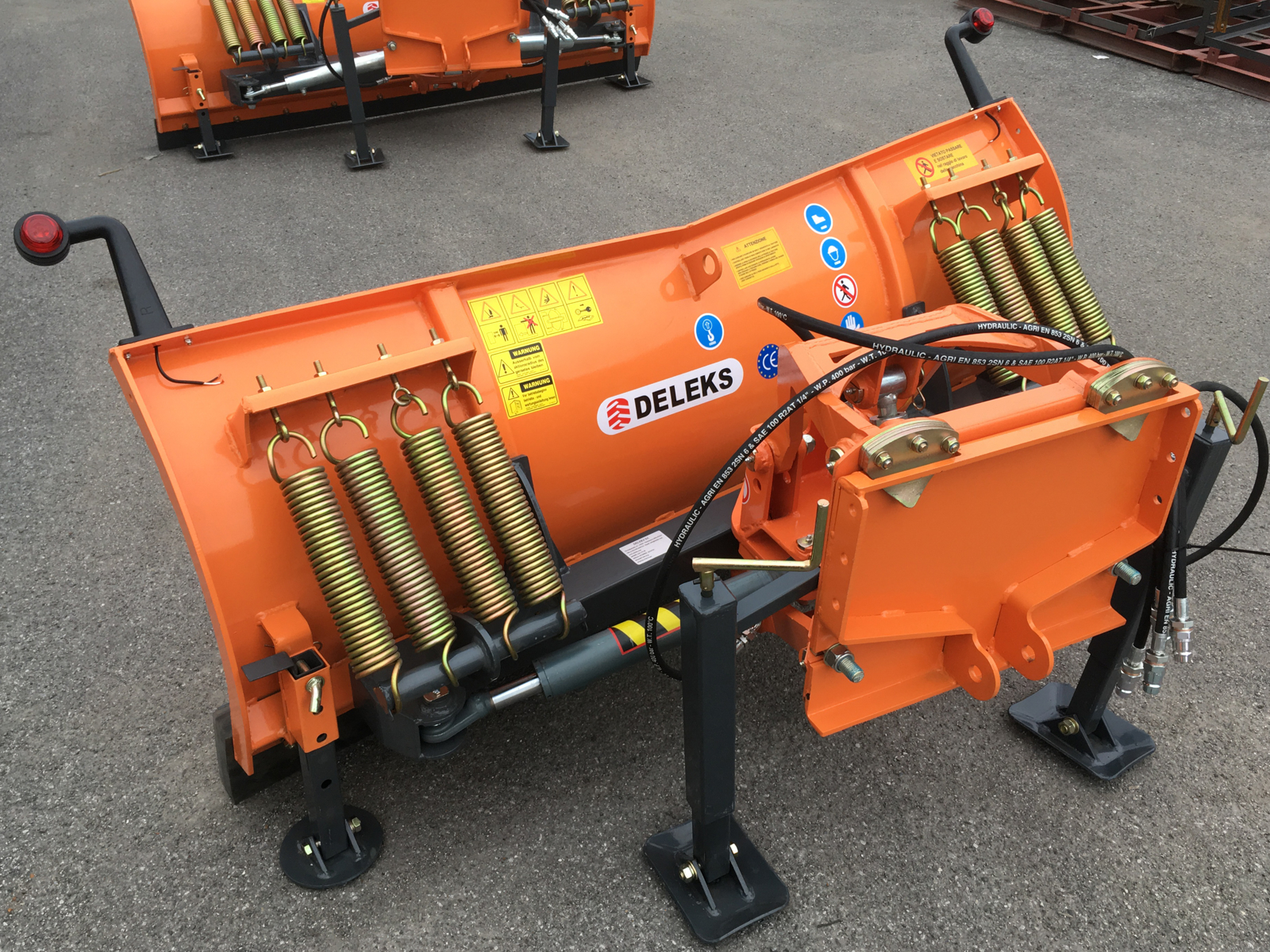

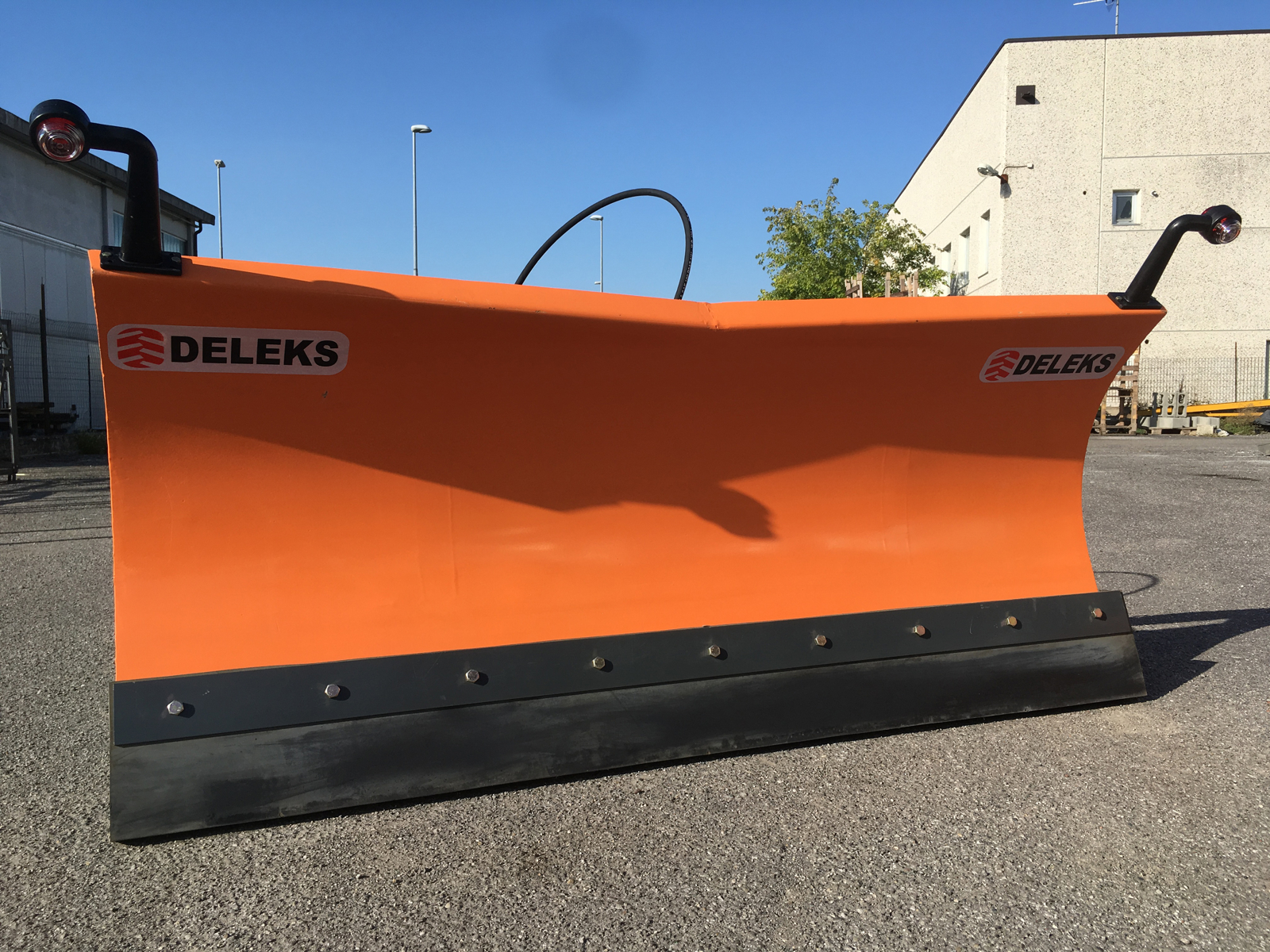

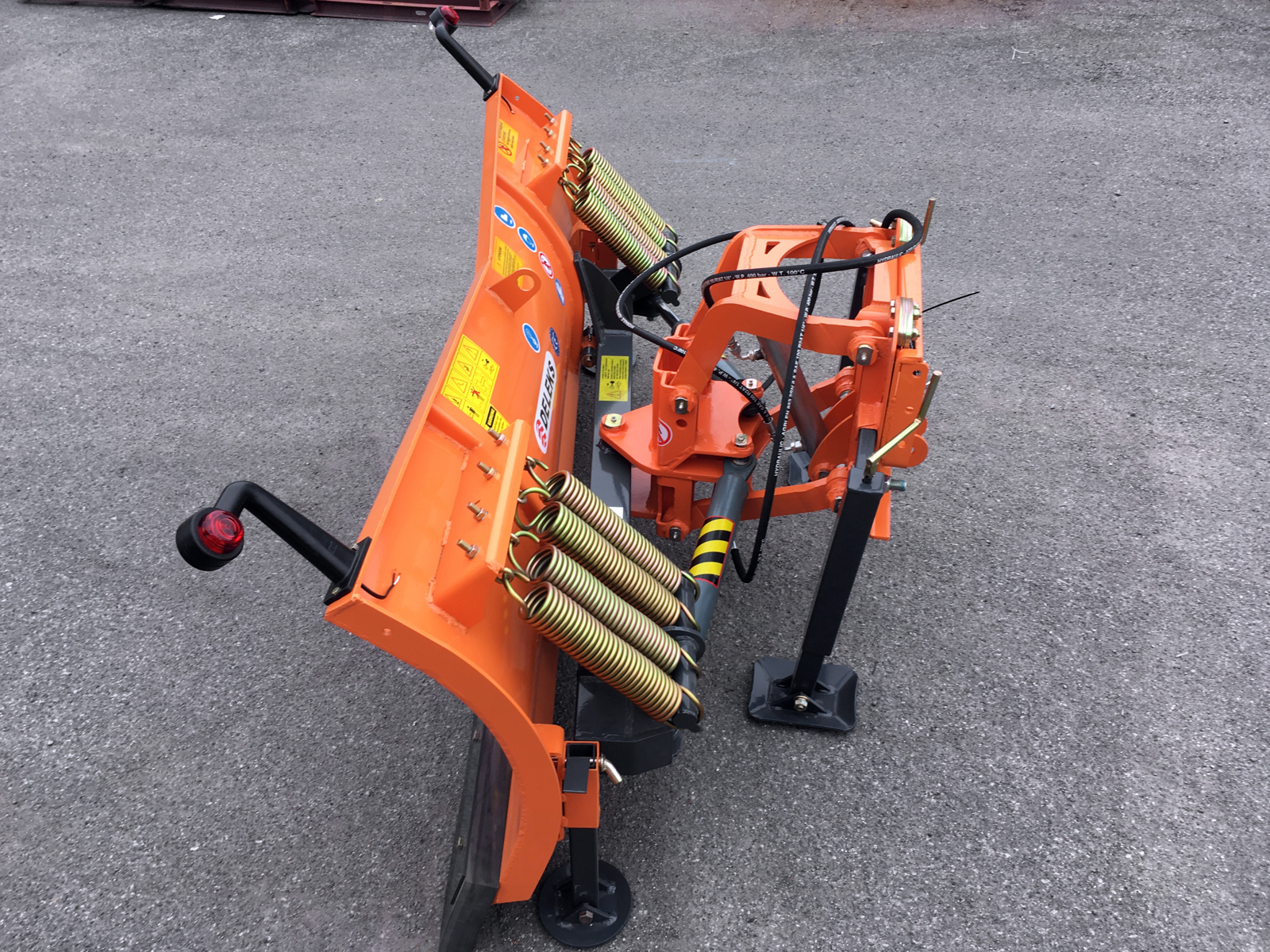

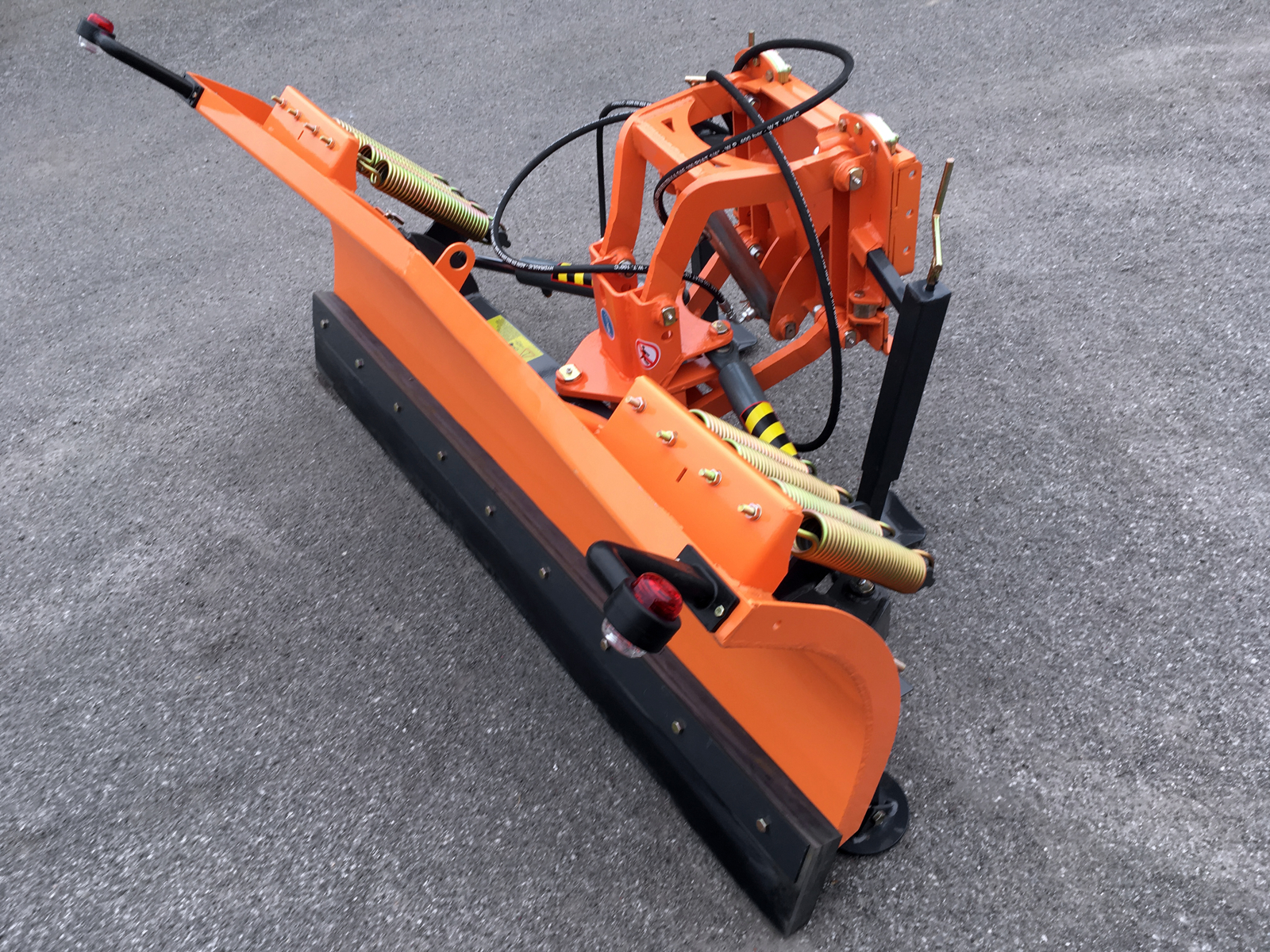

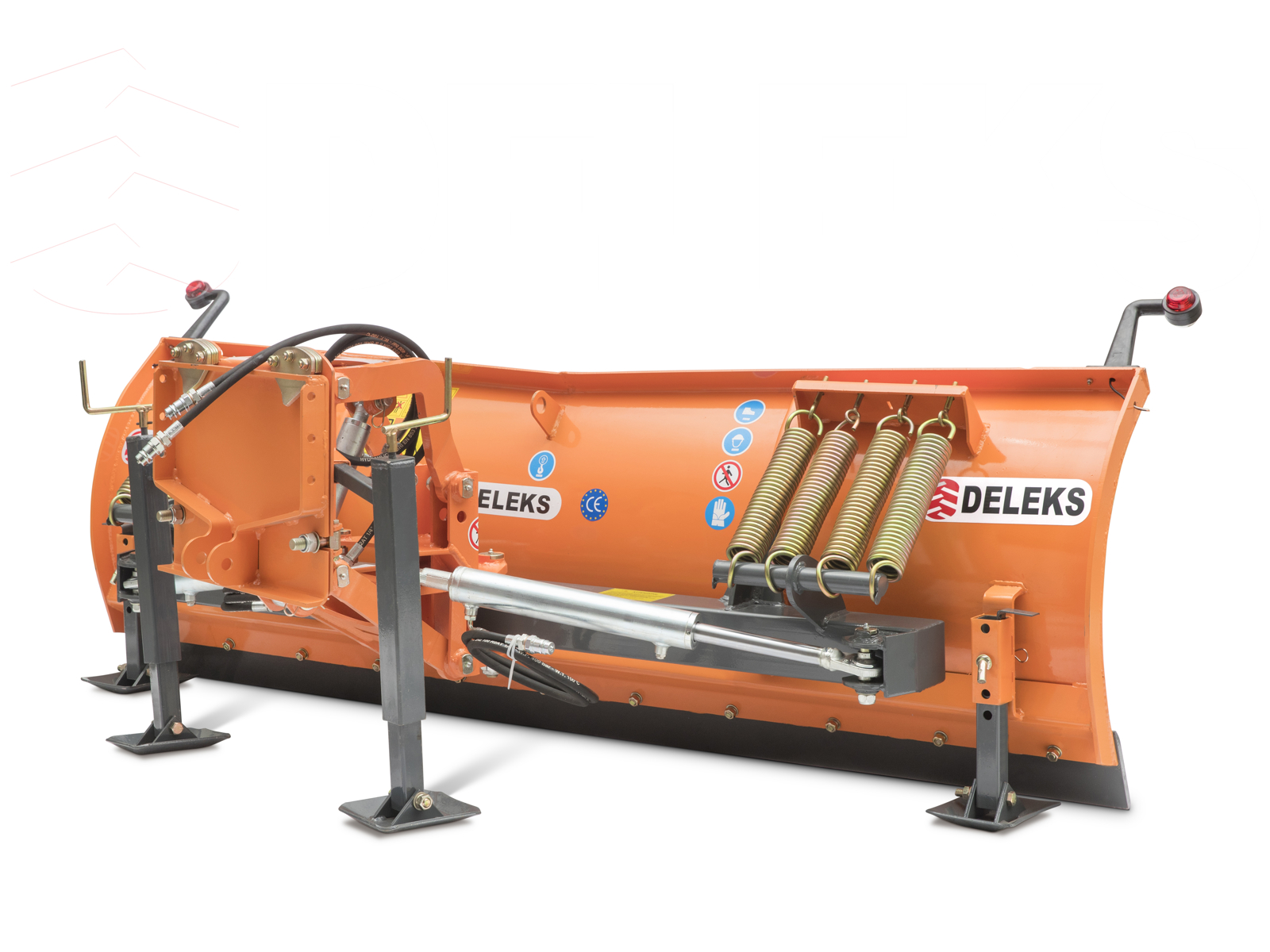

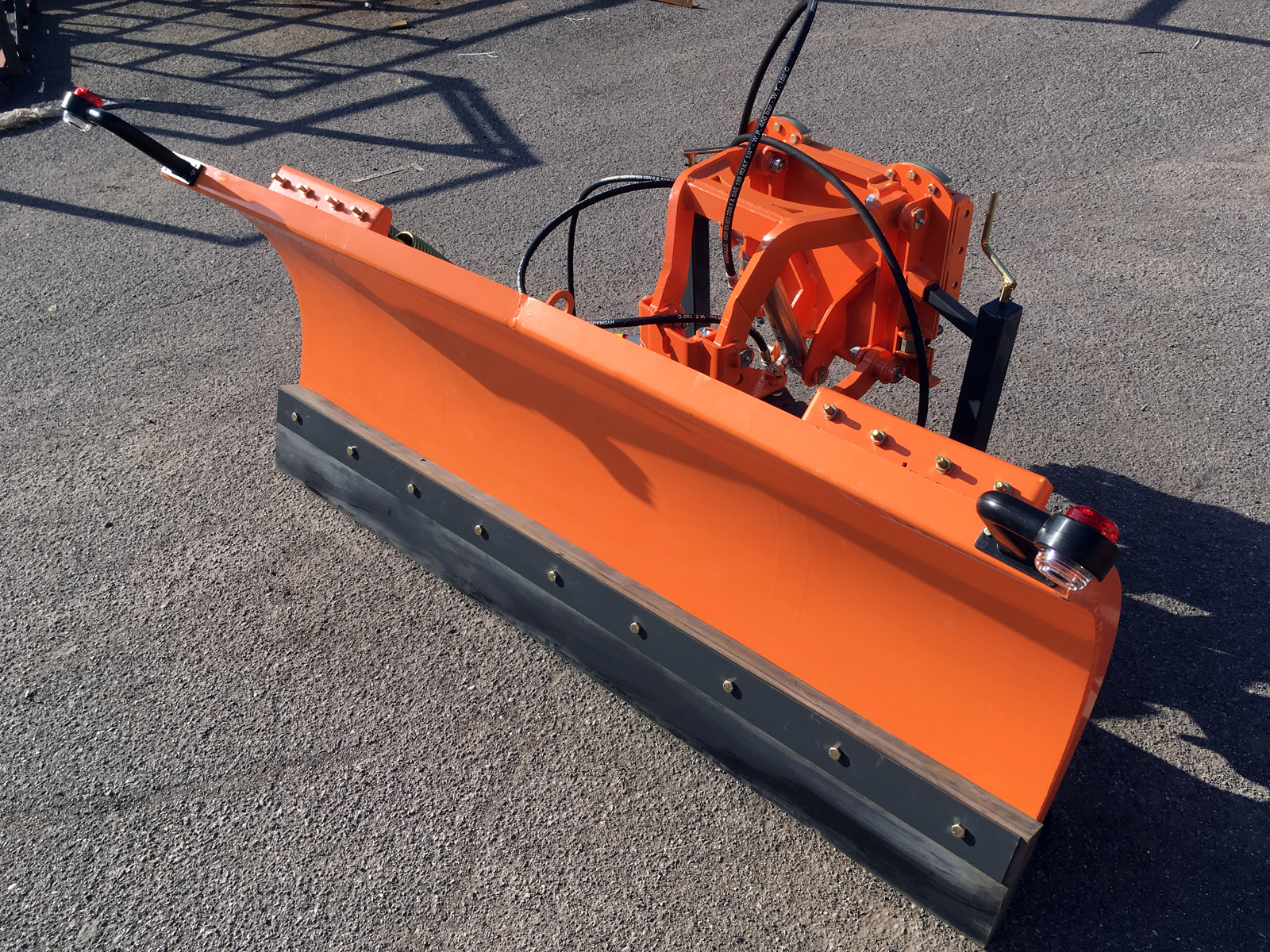

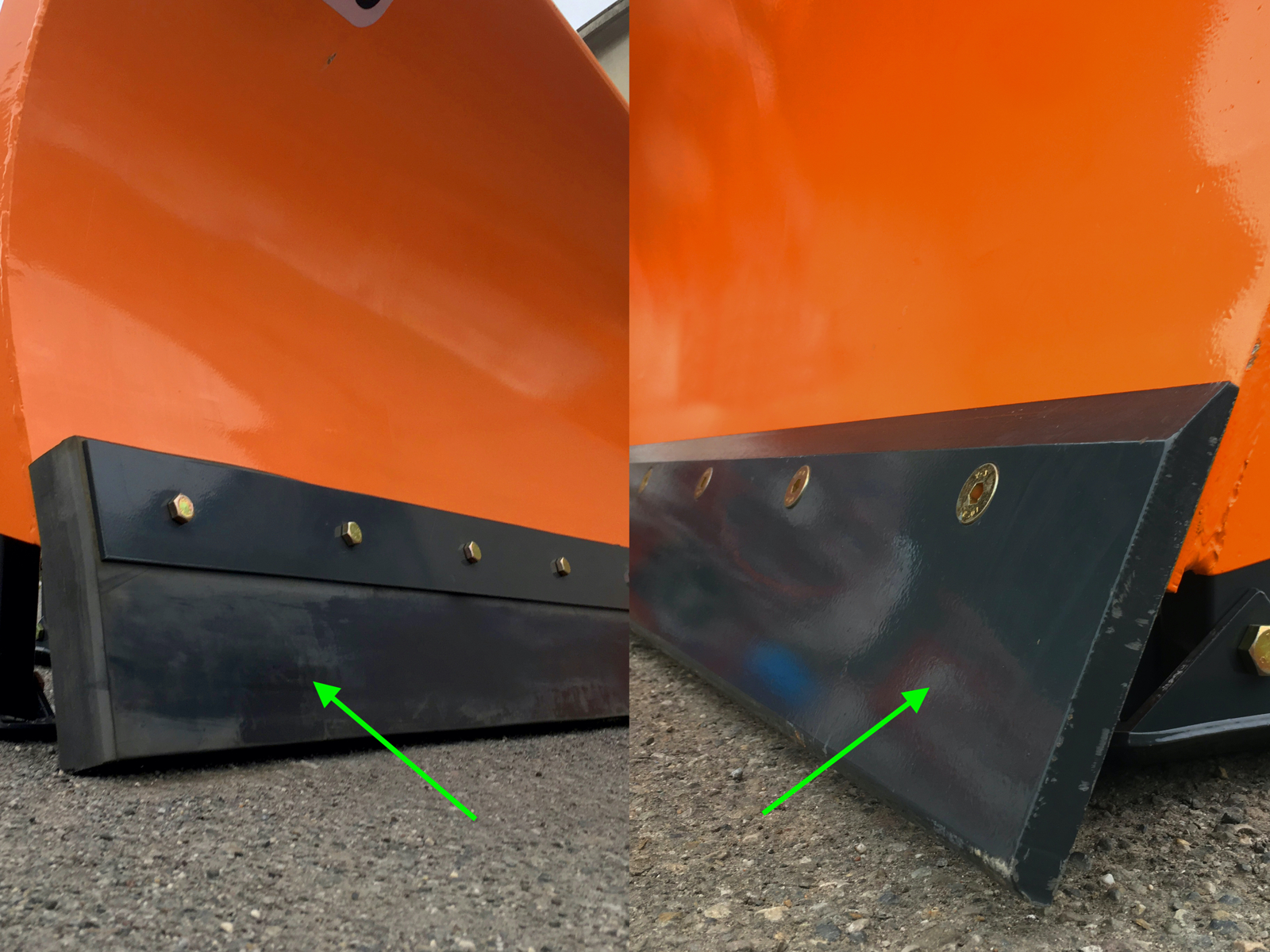

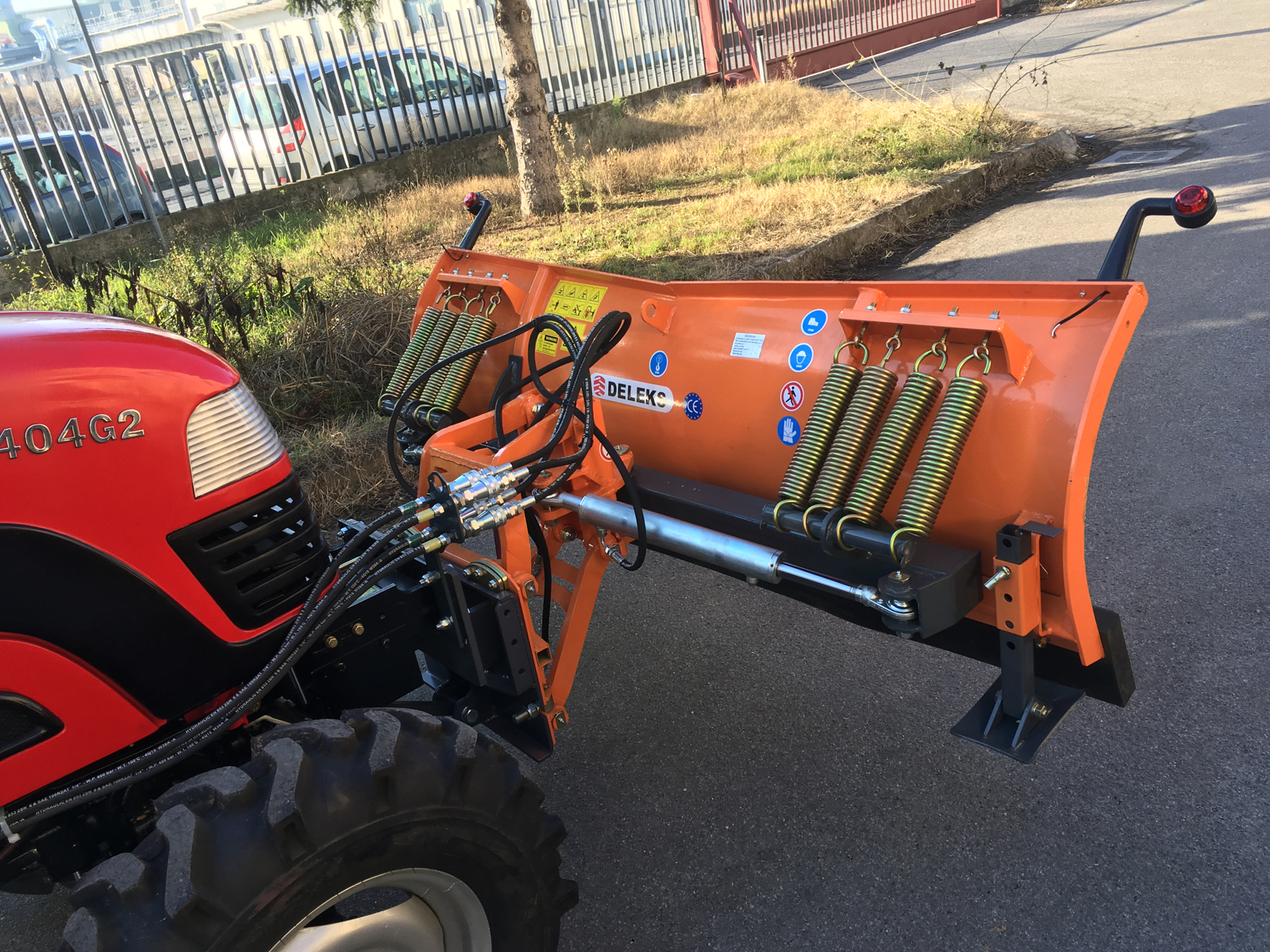

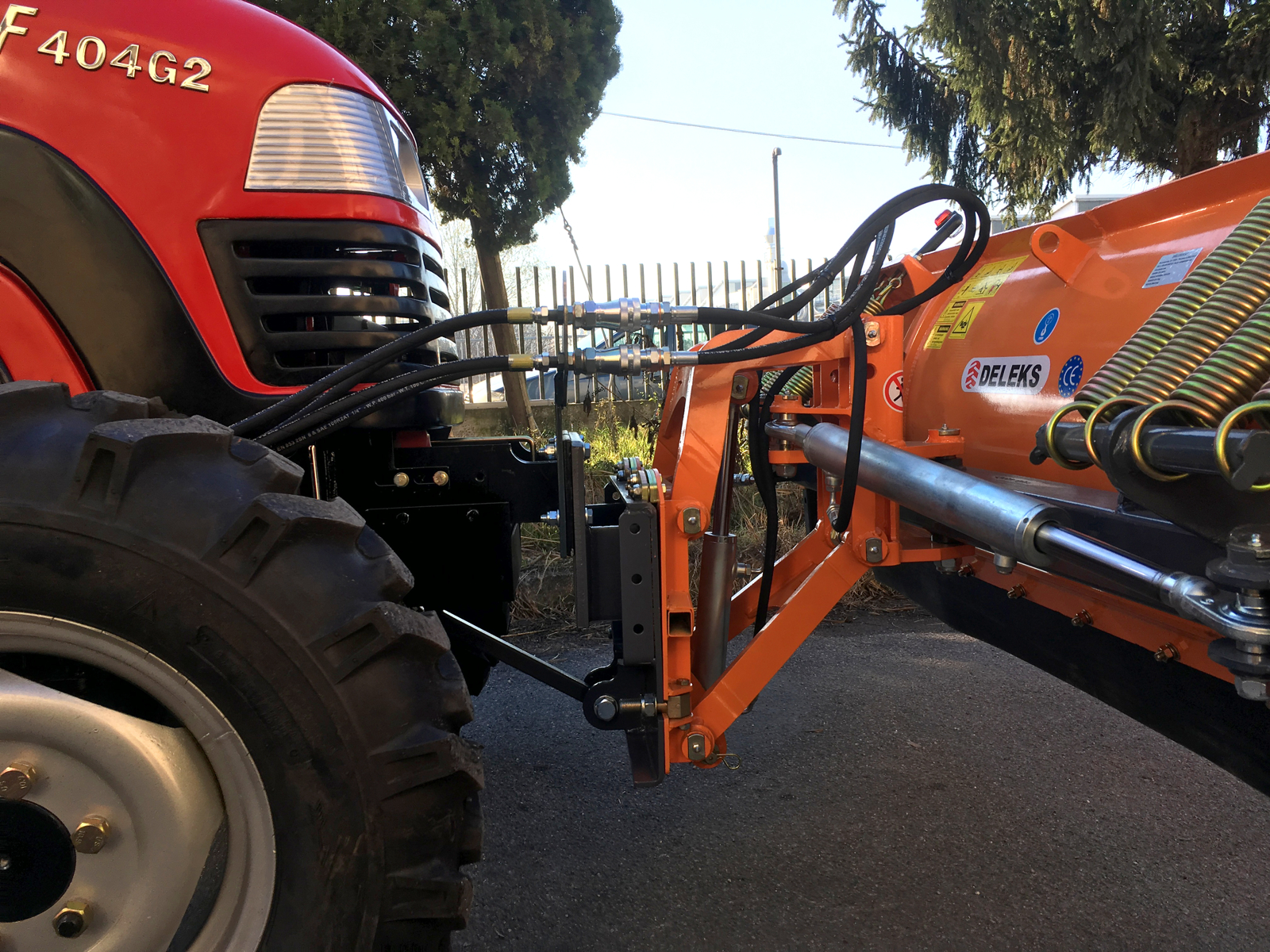

LN-175-A Frontal use Snow Plow with universal plate, with hydraulic lifting and angling. It attaches to the tractor via a quick coupling robust plate. 4 hydraulic pipes of 1.5m for front connection. On request we supply four hydraulic pipes to add an additional 4,0m of length. Our quick attachment system means pipes can be connected to the four hydraulic outlets of the tractor in seconds. The blade itself is sharp, replaceable steel edge (on request also available with Rubber edge), Couple of marker lights.

Compatible with all compact tractors from 30 to 70hp (no open field), e.g. John Deere 3, Ford, New Holland Boomer 35-40, T3030, Massey Ferguson, McCormick, Carraro or 4x4's e.g. Nissan, Seat, Renualt, and vans such as Caron, Bonetti, Bremach etc. Conforms to the EC Machinery Directive. 2 Year Warranty.



BENEFITS AND FEATURES

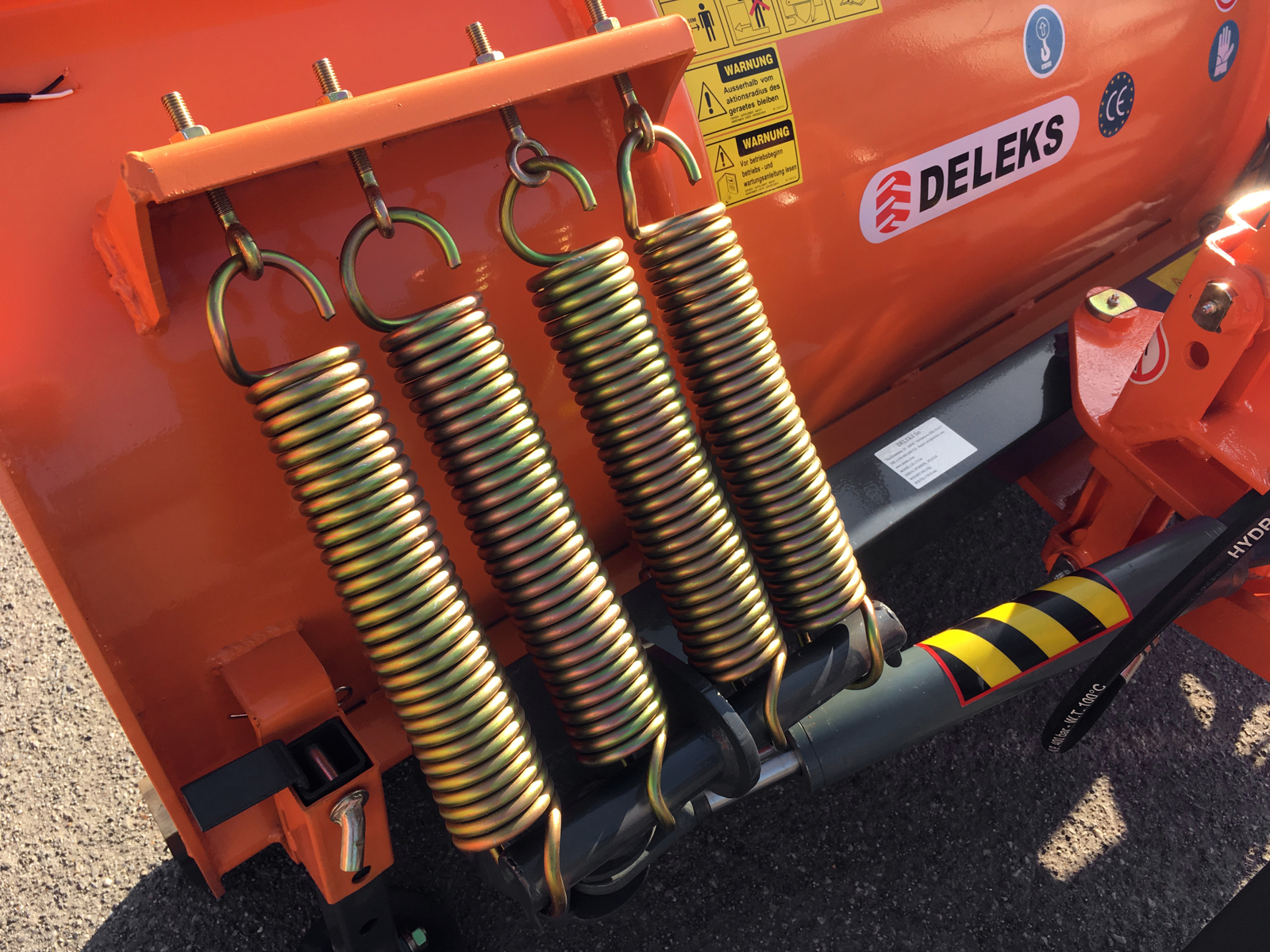

Shockproof system with 8 shock absorbing springs to operate in maximum safety.

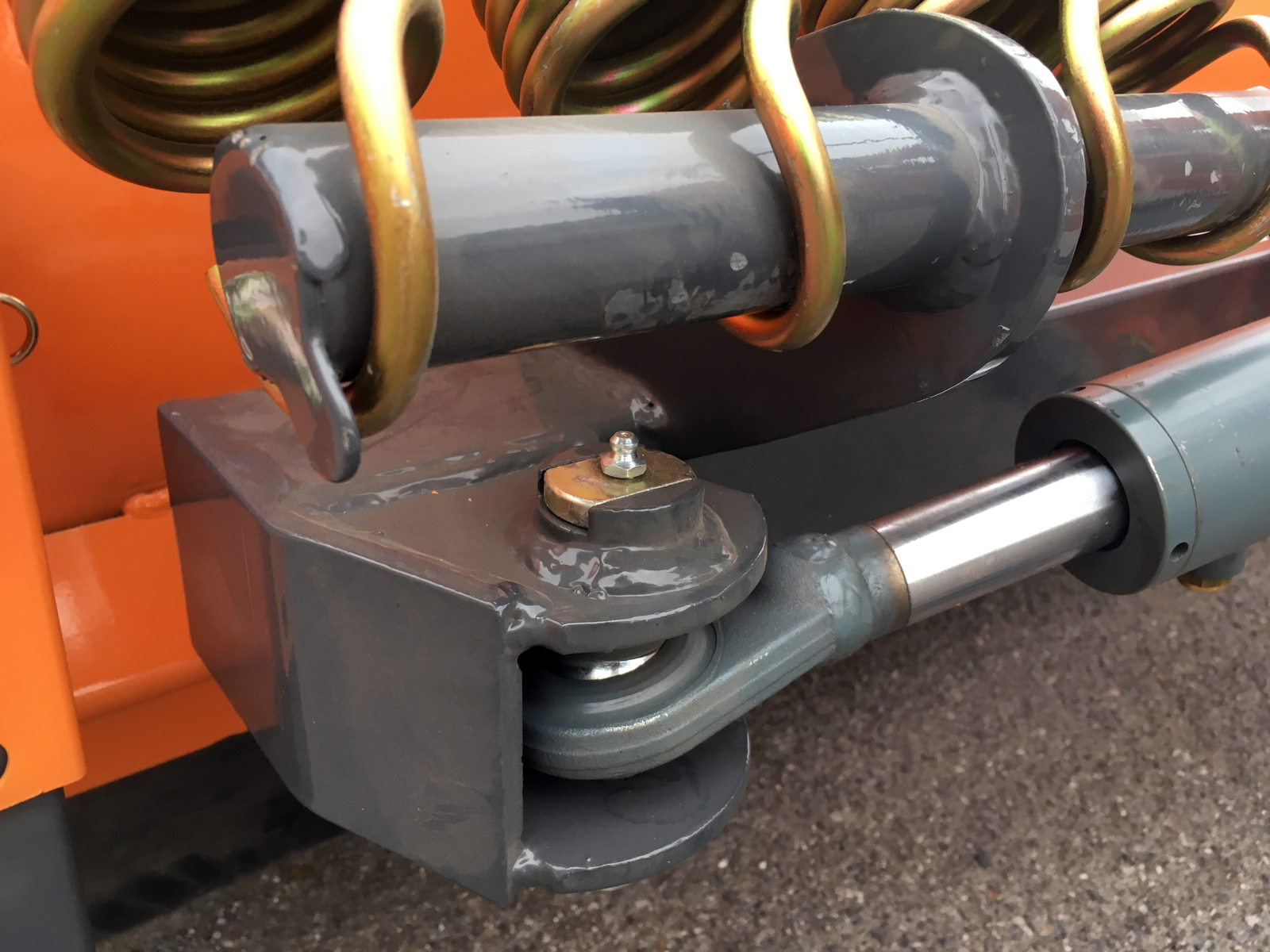

3 Hydraulic cylinders: left / right / up / down, Made in Italy.

Side skid shoes reduce the abrasive action on the cutting edge of the blade thereby prolonging the life of the blade.

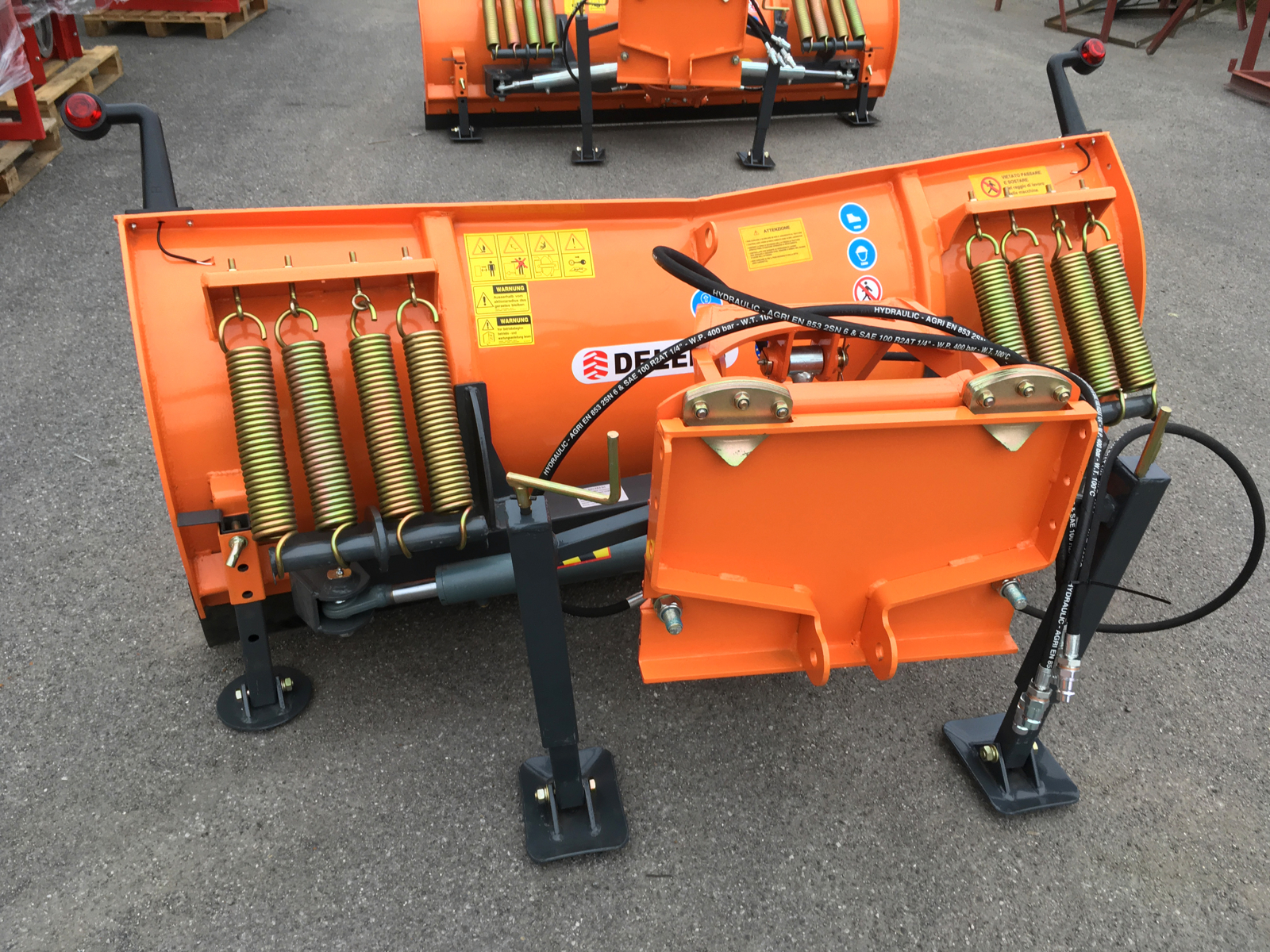

Support legs with crank, make it extremely easy to assemble and disassemble at the end of the season.

The plate fitting is removable and replaceable with a 3-point hitch, EURO or Skid steer loaders.

Homologated for road use.

The LN-A doubles as a grader blade and can be used for dirt work, road maintenance, ditching, landscaping, snow removal, cleaning livestock pens, gravel, sand year round.

Not limited to plowing snow.



CARACTERISTICS

Caracteristic Units metric Units US
Weight 269.0 kg 593.0 lb
Overall height 700.0 mm 2.30 ft
Tractor Power Range 30 - 70 Hp 30 - 70 Hp
Overall Length 830.0 mm 2.72 ft
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min

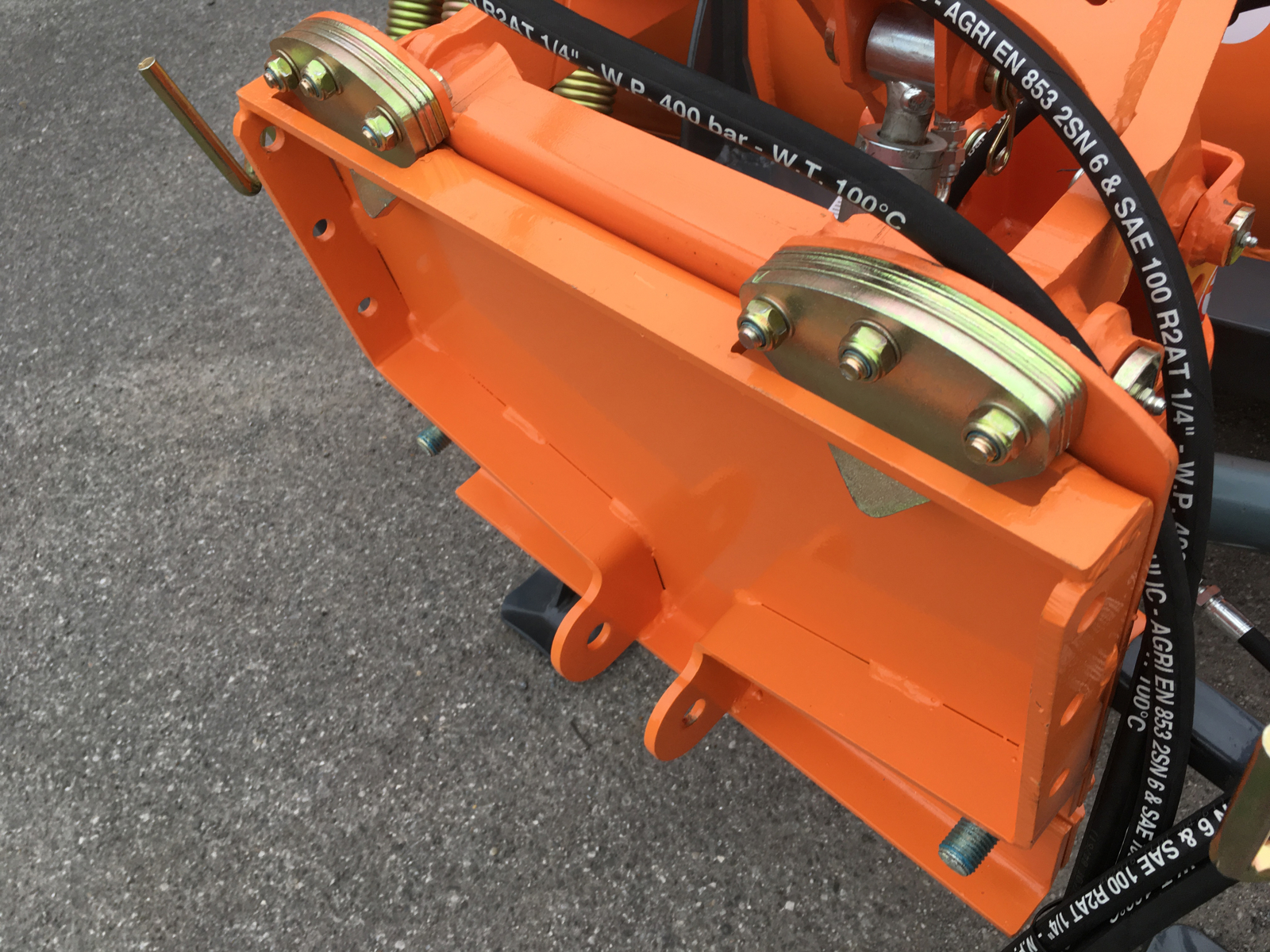

Interface Universal Plate Universal Plate
Universal plate sizes 500.0*360.0 mm 19.68*14.17 in
Angling (left/right) 27° 27°
Float +/- 4° +/- 4°
Blade Height 700.0 mm 2.30 ft
Side edge thickness 8.0 mm 0.32 in
Shock absorbers 8 8

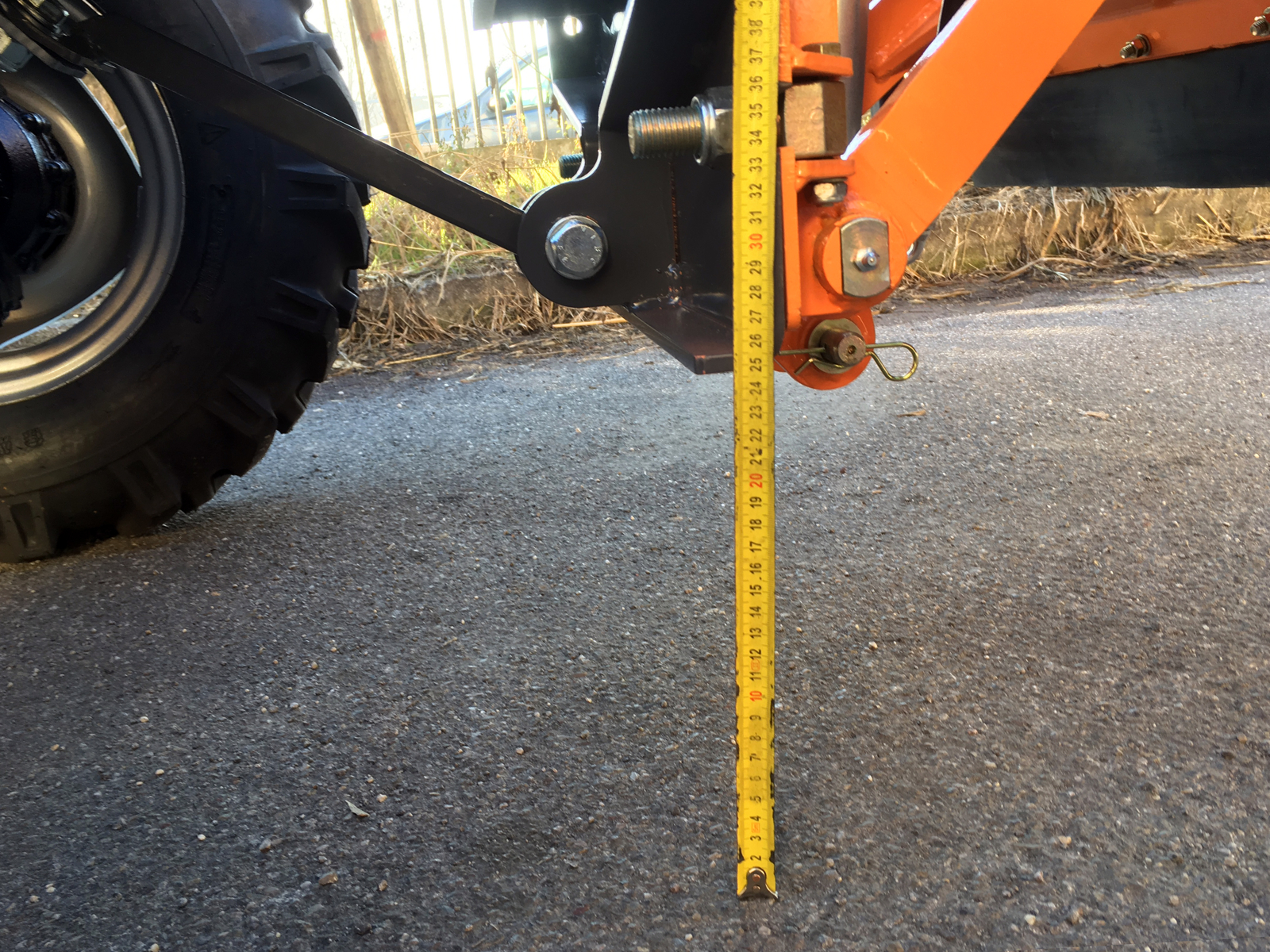

Distance between plate and base 270.0 mm 10.63 in
Cutting Edge Steel or Rubber Steel or Rubber
Cutting Edge Height 150.0 mm 5.90 in
Cutting Edge Thickness 16.0 mm 0.63 in
Trip Edge Quantity 1 1
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights
Removable Skid Shoes
Working width (angled) 1563.0 mm 5.13 ft
Hydraulic Hoses 4 x 1500.0 mm / connections 1.2" AGRI, WP 400 bar 4 x 4.92 ft / connections 1.2" AGRI, WP 400 bar
Overall width 1755.0 mm 5.76 ft
Main frame thickness 5.0 mm 0.2 in
Hydraulic cylinder/s ø 50.0/25.0 + 60.0/30.0mm 1.97/0.98 in + 2.36/1.18 in
Packing sizes 1755.0*800.0*900.0 mm 5.75*2.62*2.95 ft
