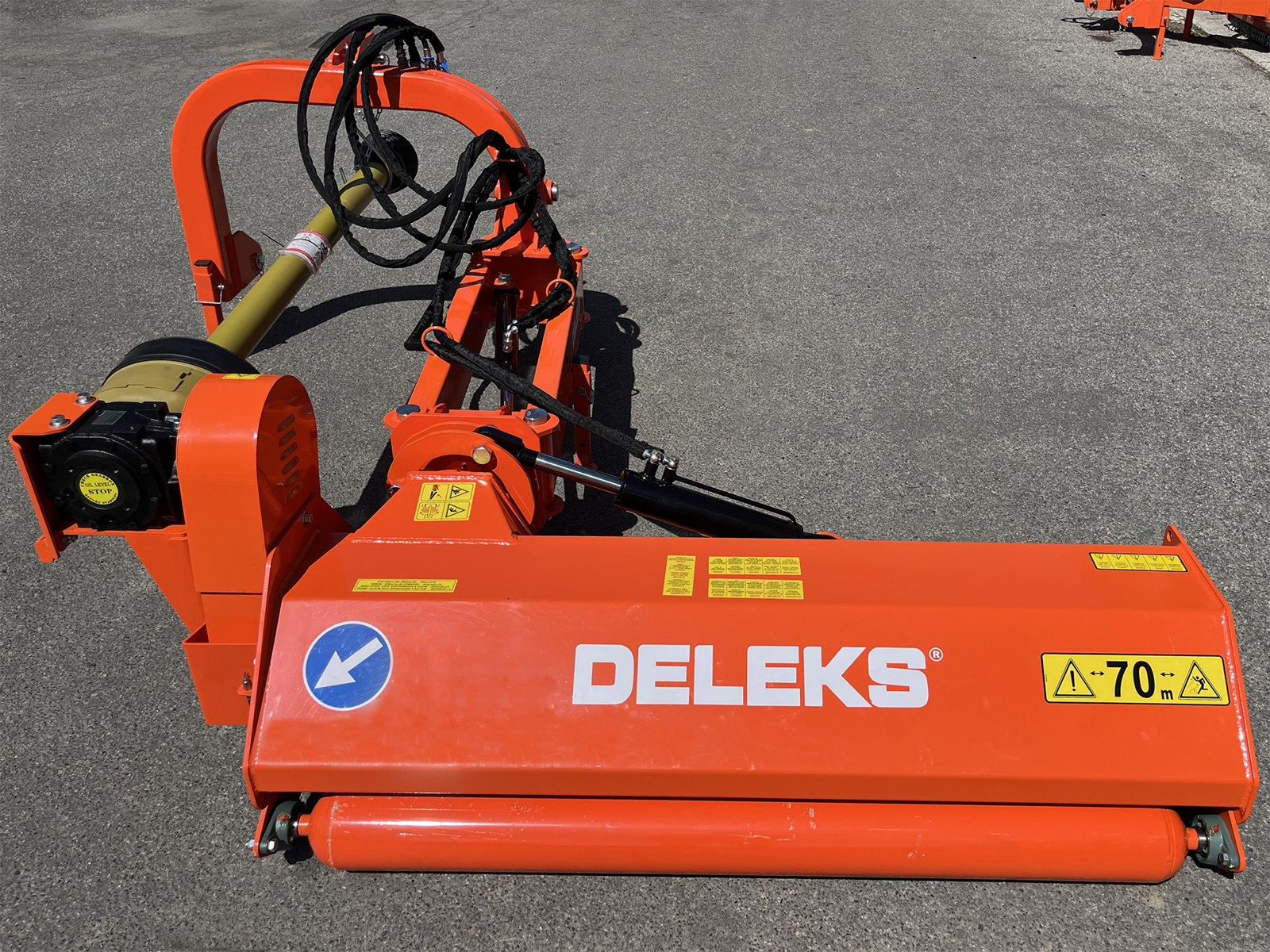

Offset flail mower for tractors 150 cm (59 in) GIRAFFA-150, verge hammer flail mower with external gearbox and double wide-angle PTO shaft for 40-70 hp tractors
DETAILS

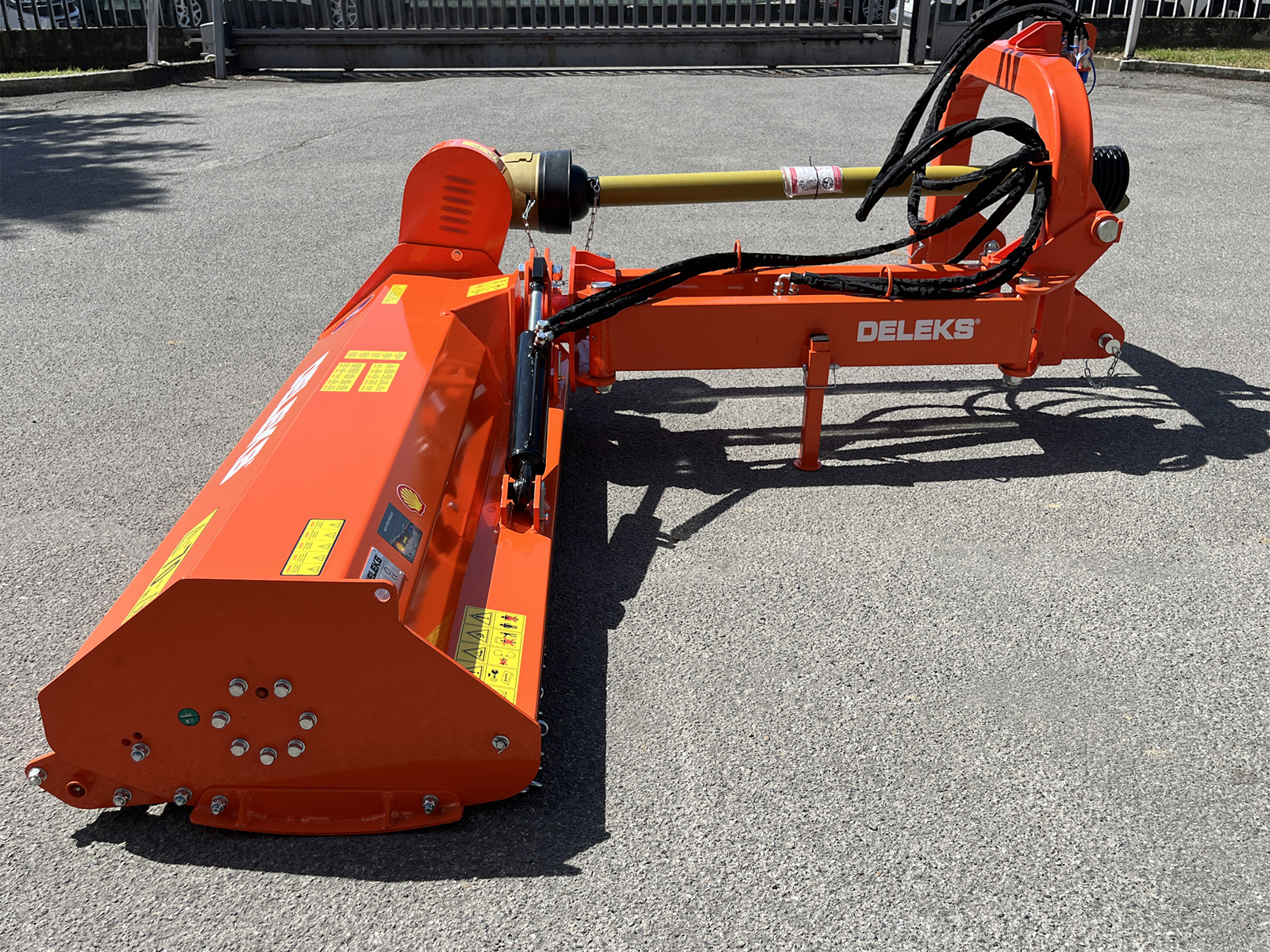

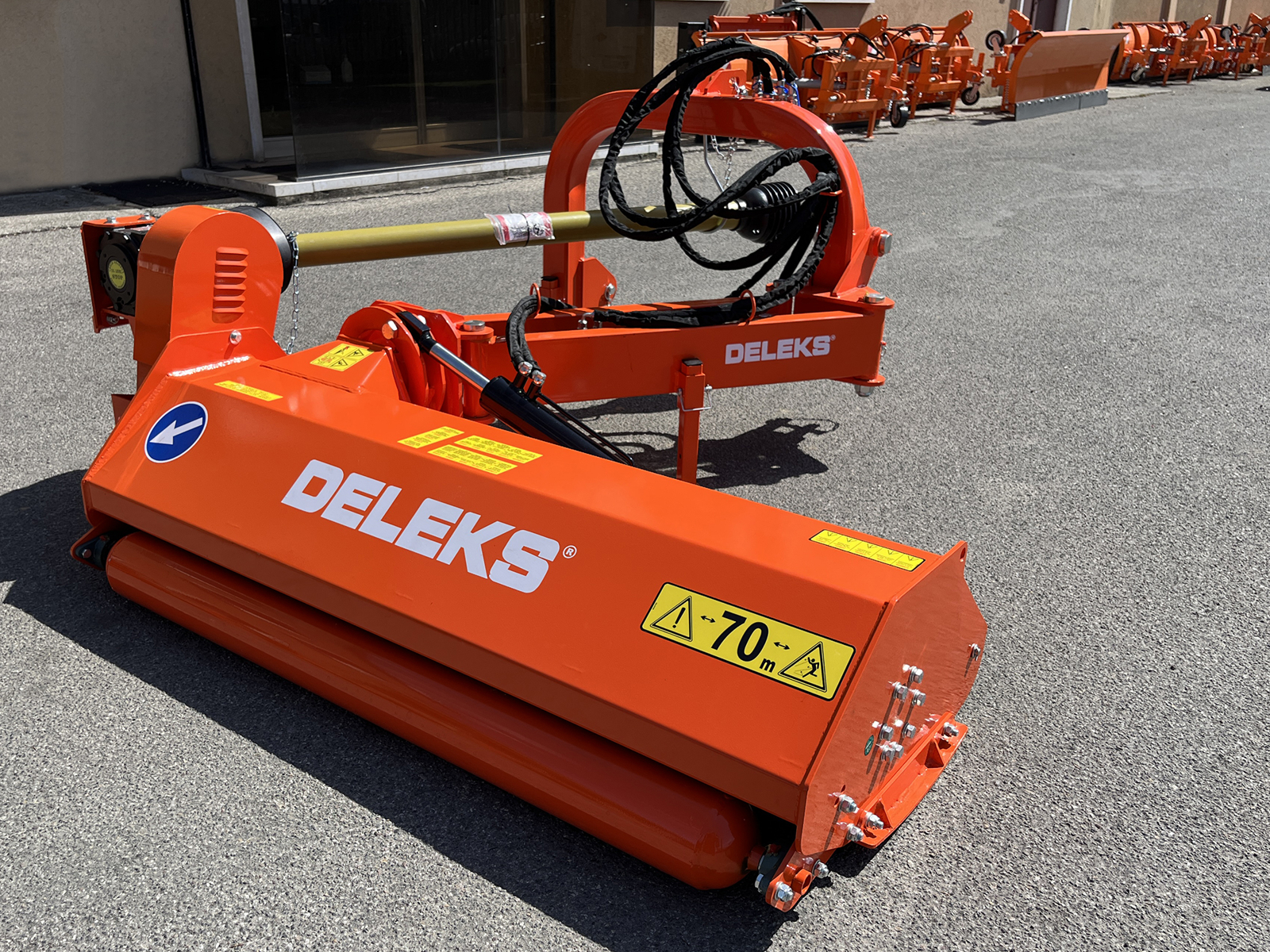

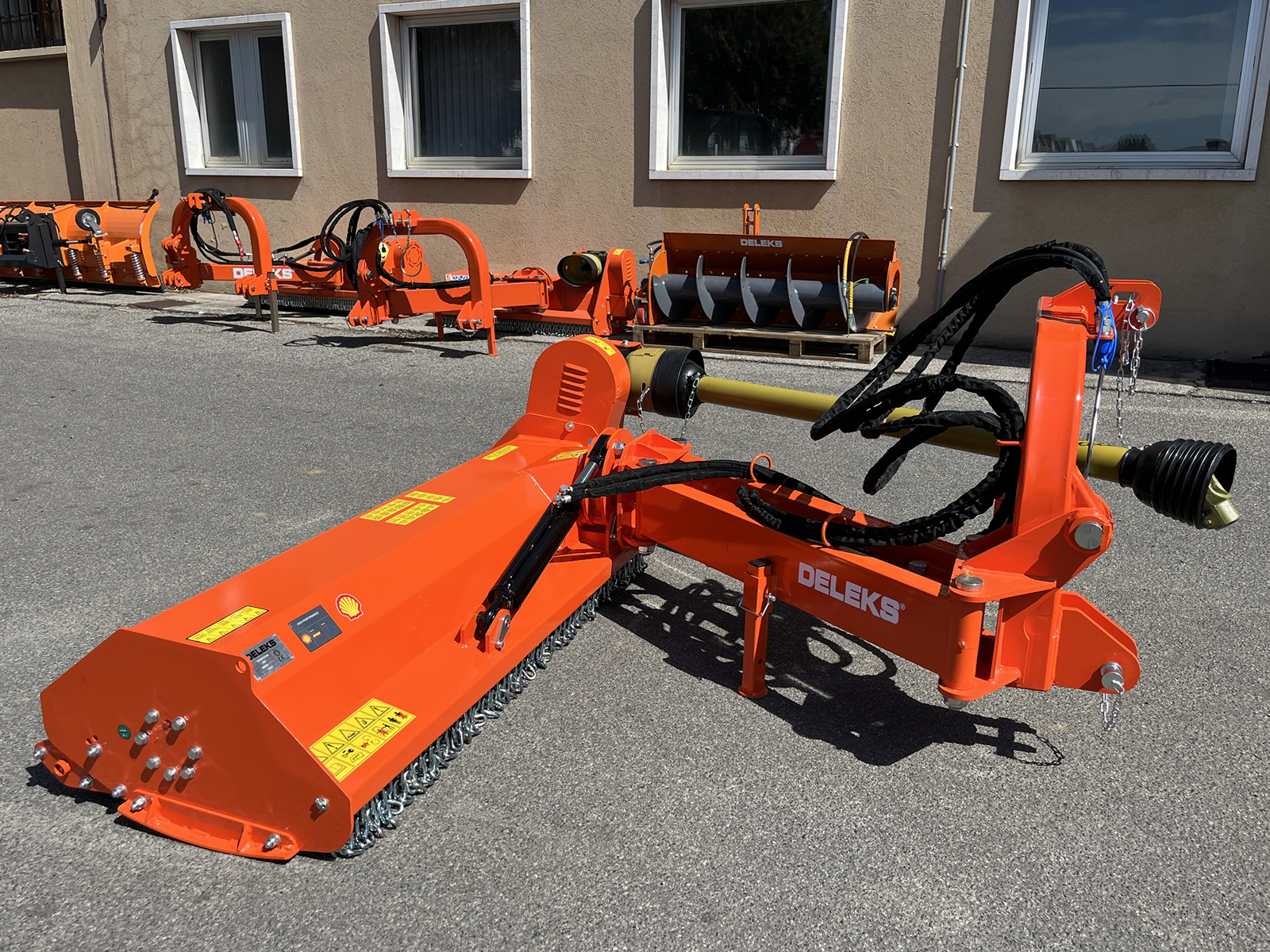

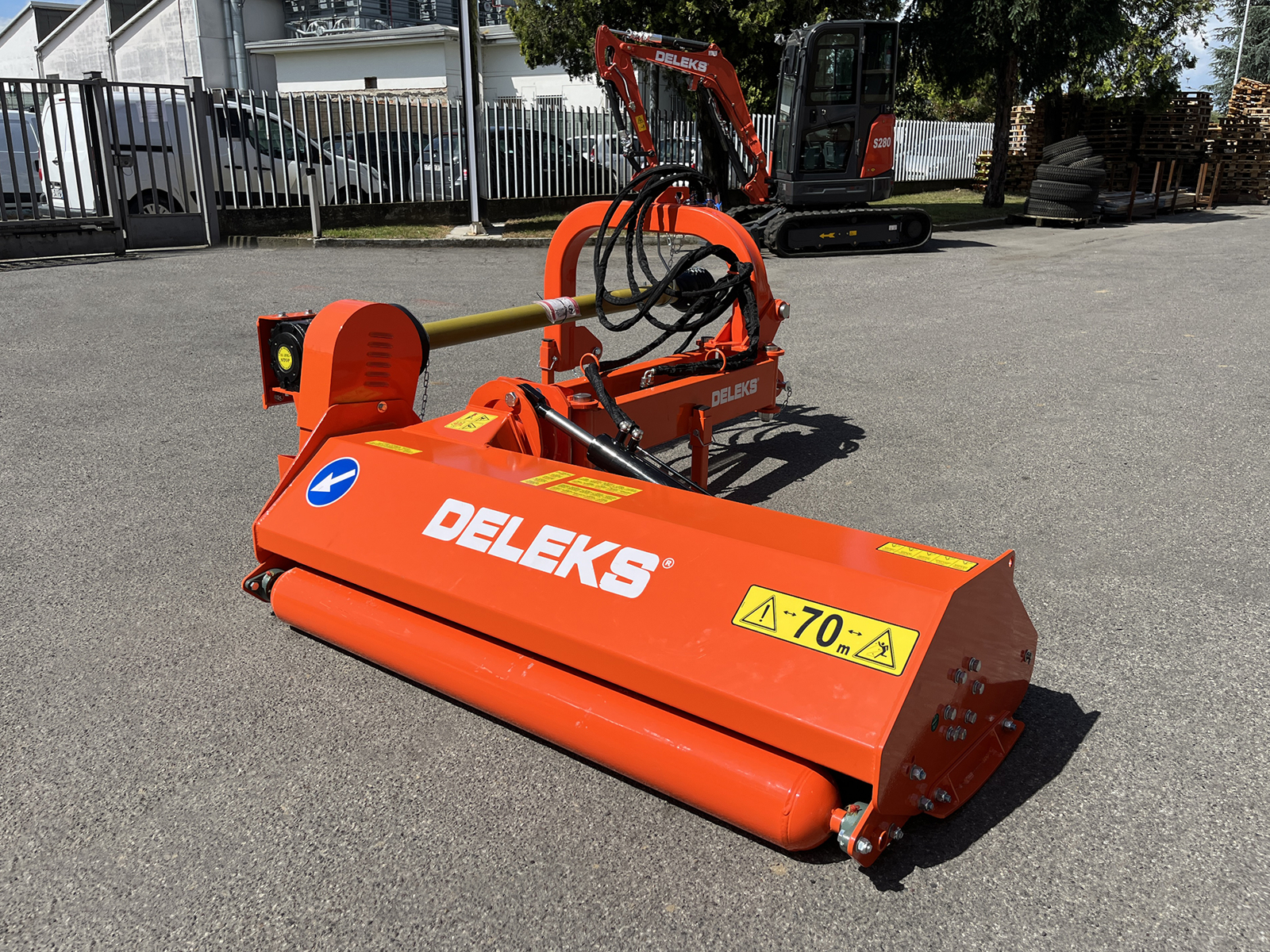

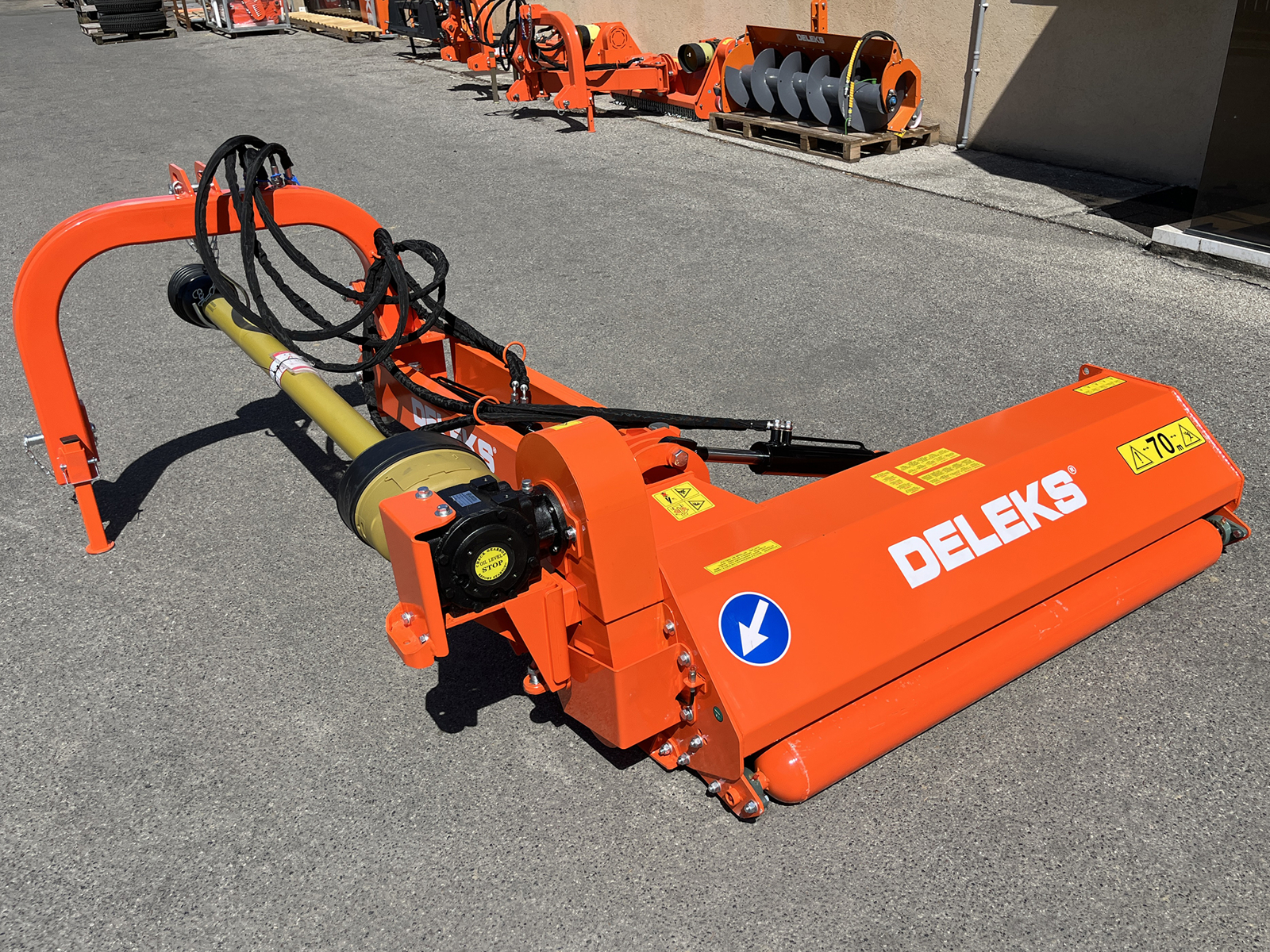

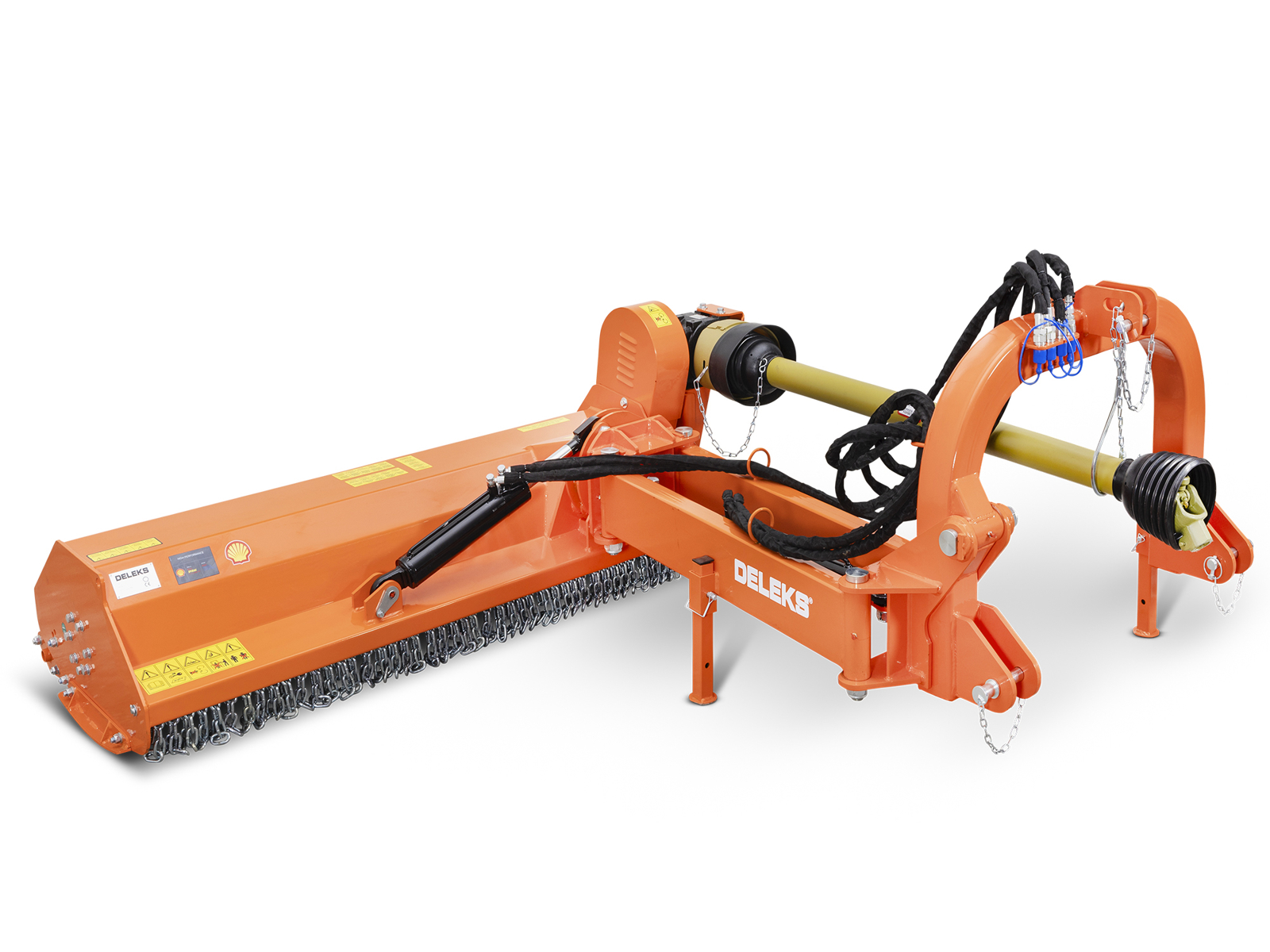

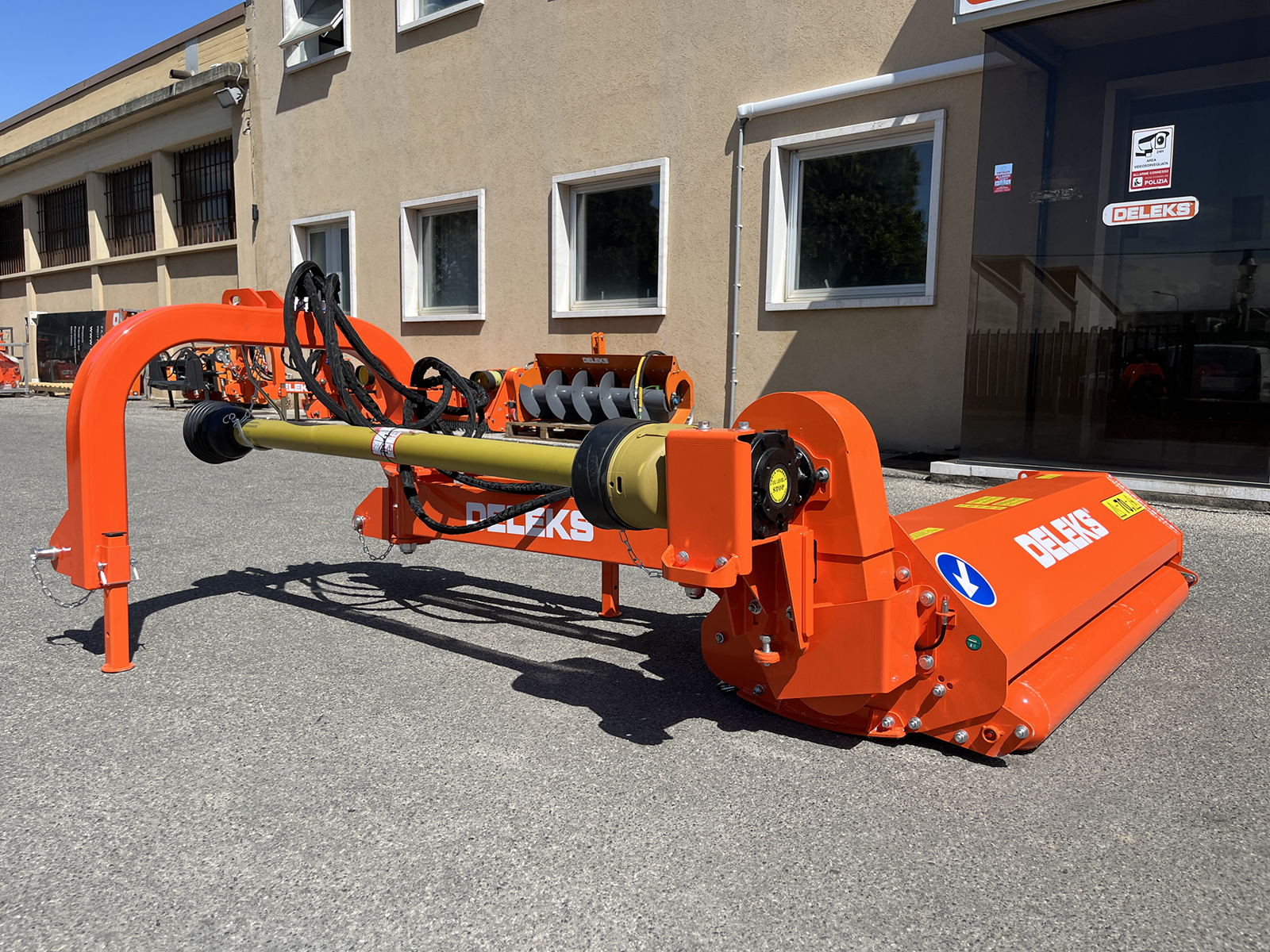

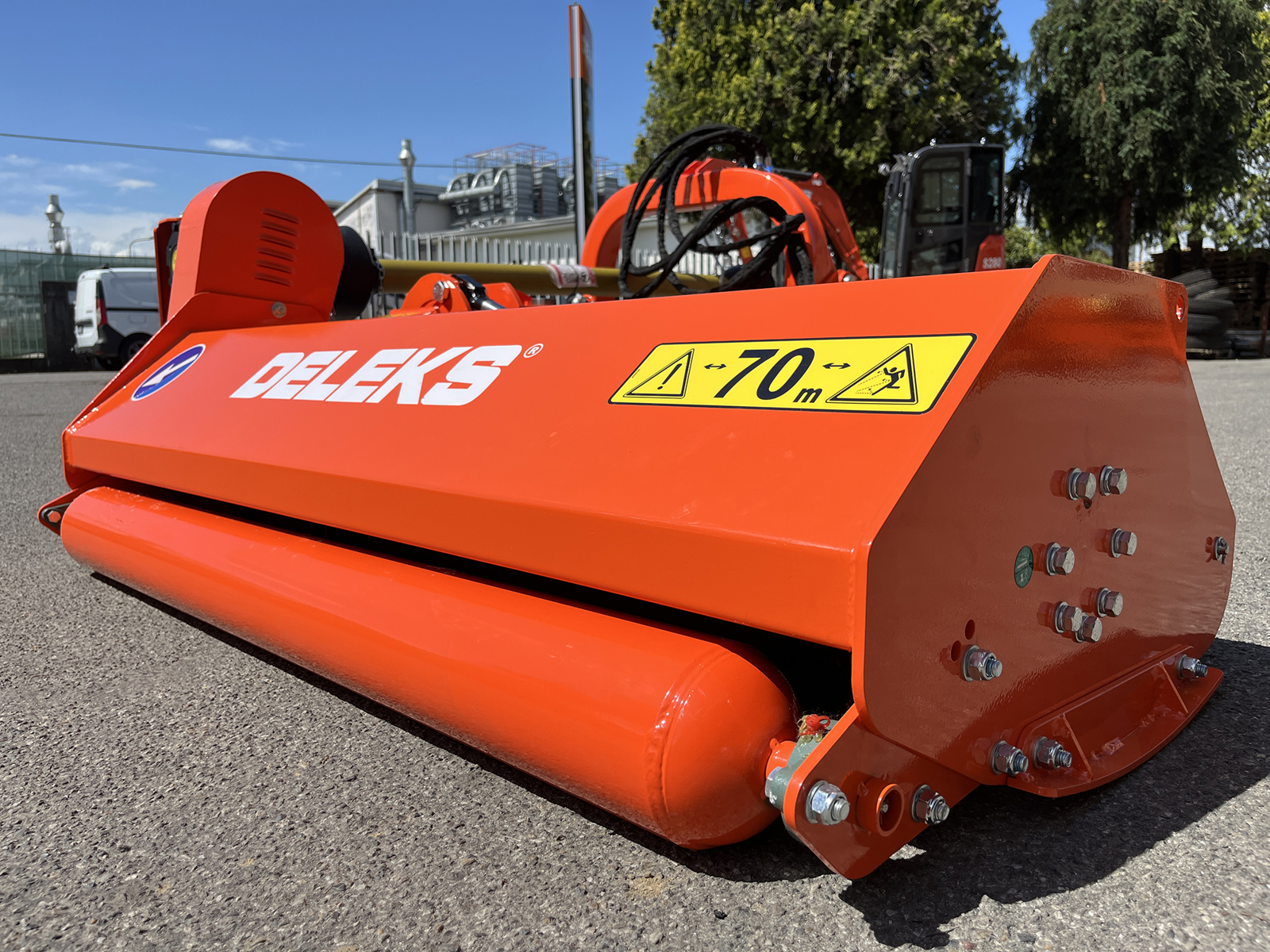

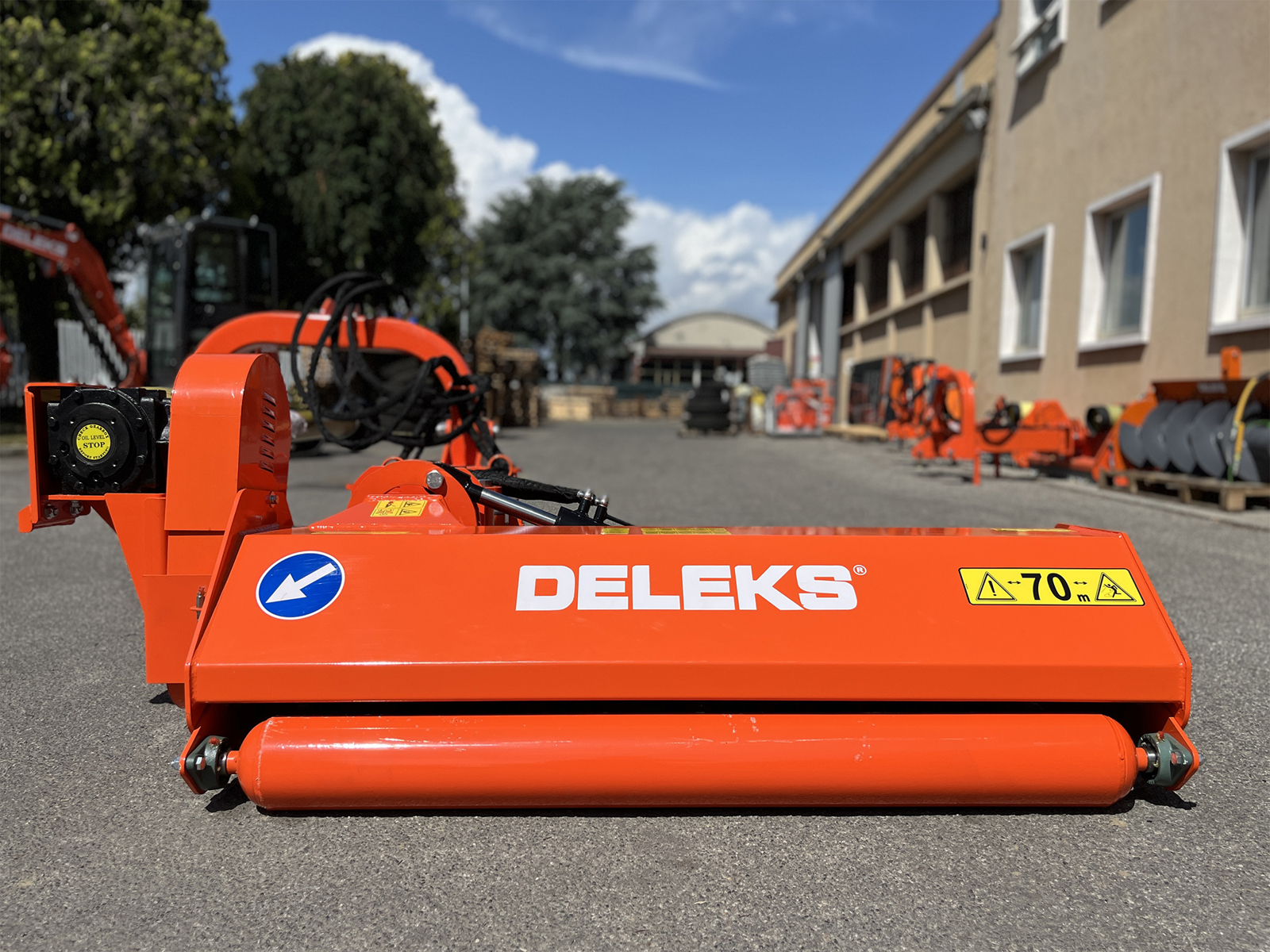

Offset flail mower for tractors with a 150 cm (59 in) cut: the DELEKS® GIRAFFA-150 is the verge hammer flail mower from the medium series for wheeled or tracked tractors from 40 to 70 hp, orchard tractors included. Two hydraulic rams move the head out beside the tractor and tilt it from +90° to -60°: it works on roadside verges, ditches, banks and sloping ground, upright on hedges and bushes and, level, between the rows. The oversized gearbox is mounted on the outside and the CE-approved category 6 PTO shaft is double wide-angle, with a wide-angle joint at both ends. The electronically balanced 127 mm (5 in) rotor carries 24 hammer flails of 820 g (1.8 lb) and pulverises grass, brambles and vine and olive prunings up to 4-5 cm (1.6-2 in) thick. Three-point headstock with Anti Shock system, oversized rear roller, 4-belt drive, 478 kg (1,054 lb). TÜV-certified, it comes complete with its PTO shaft, a 2-year warranty and free delivery within the EU.
Which tractors it fits
The GIRAFFA-150 cuts 150 cm (59 in) and is designed for mid-power wheeled or tracked tractors, from 40 to 70 hp, with a 540 rpm PTO and a category 2 three-point linkage (25-28 mm pins, lower link spacing from 820 to 964 mm): New Holland T4F, John Deere, Landini Mistral, Deutz-Fahr, Lamborghini, McCormick, Same Frutteto, Solis and equivalent tractors. The tractor needs 4 hydraulic outlets with ½ in couplings: the machine has 2 rams and 4 hoses with agricultural quick-release couplings and runs on an oil flow of 18-22 l/min at 120-150 bar. The gearbox sits 550 mm above the ground. It works on the flat and on slopes.

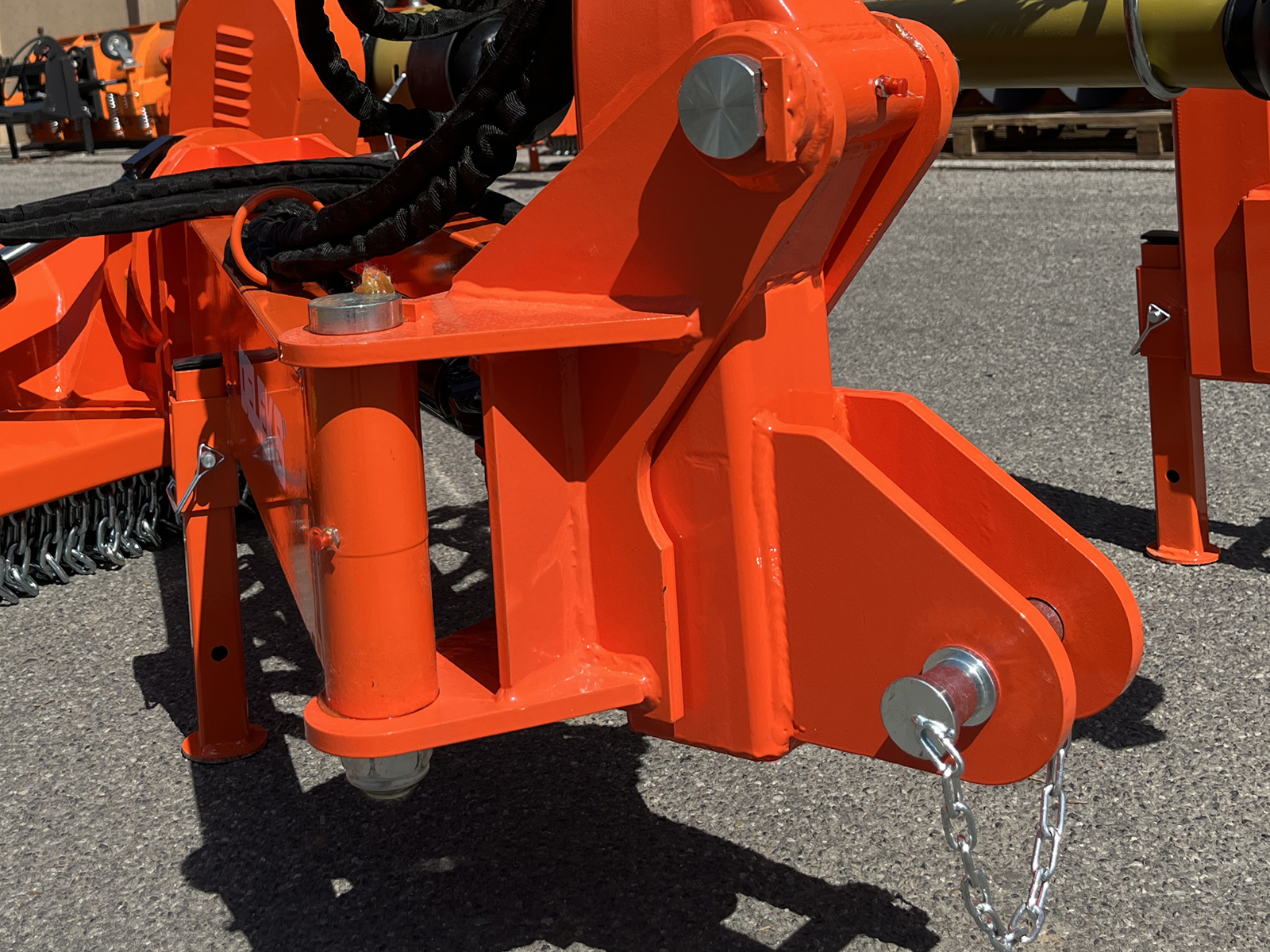

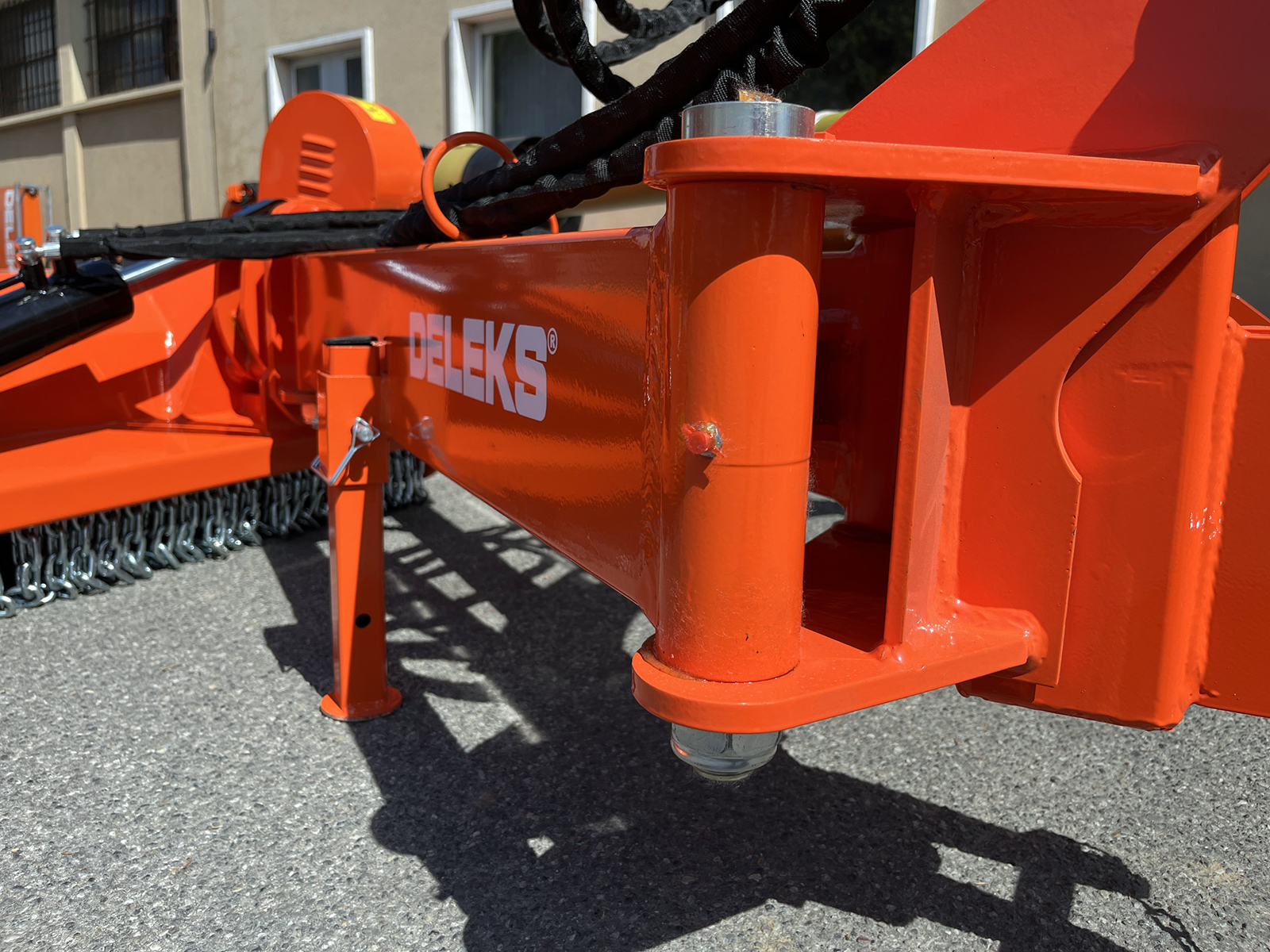

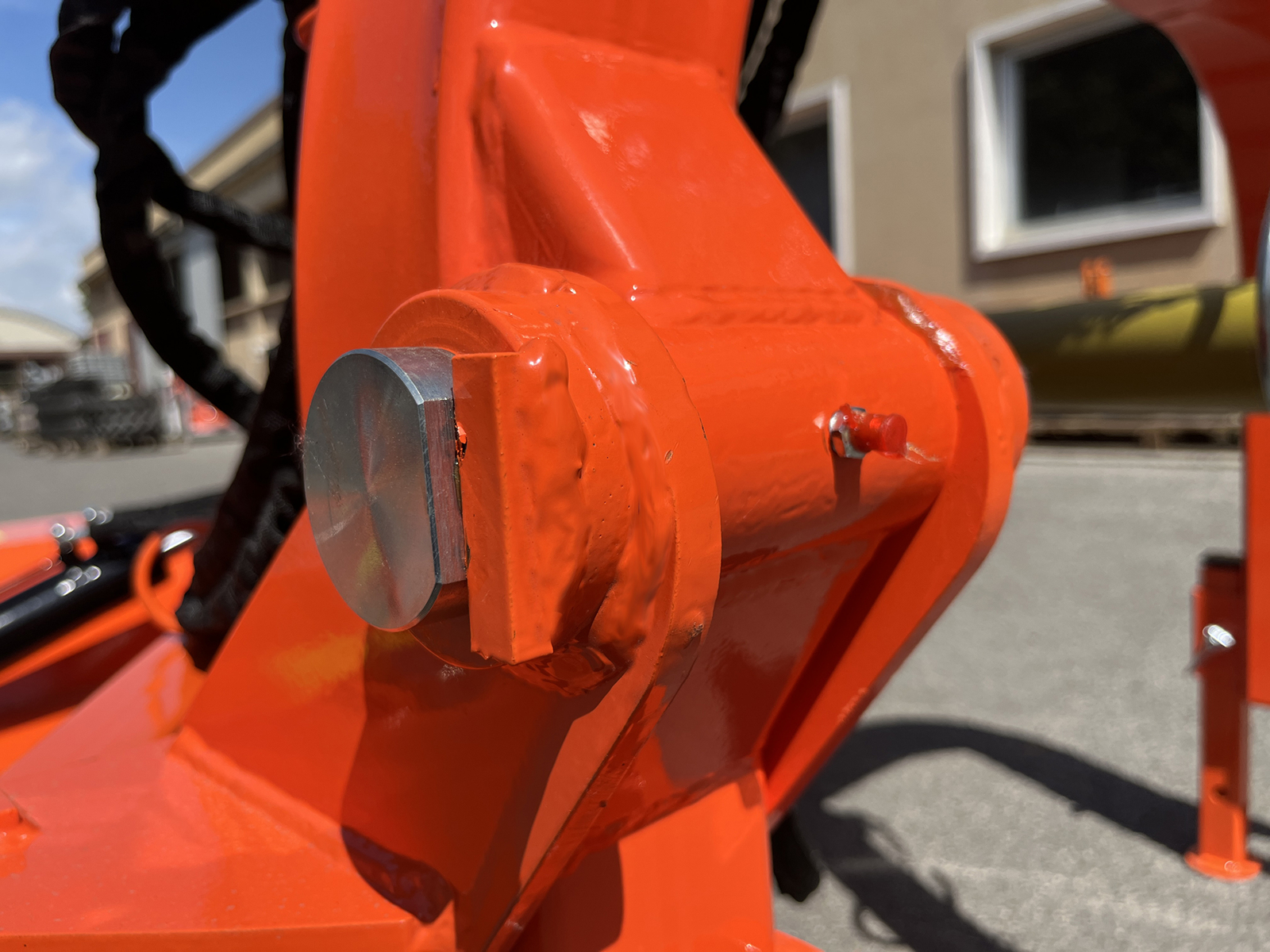

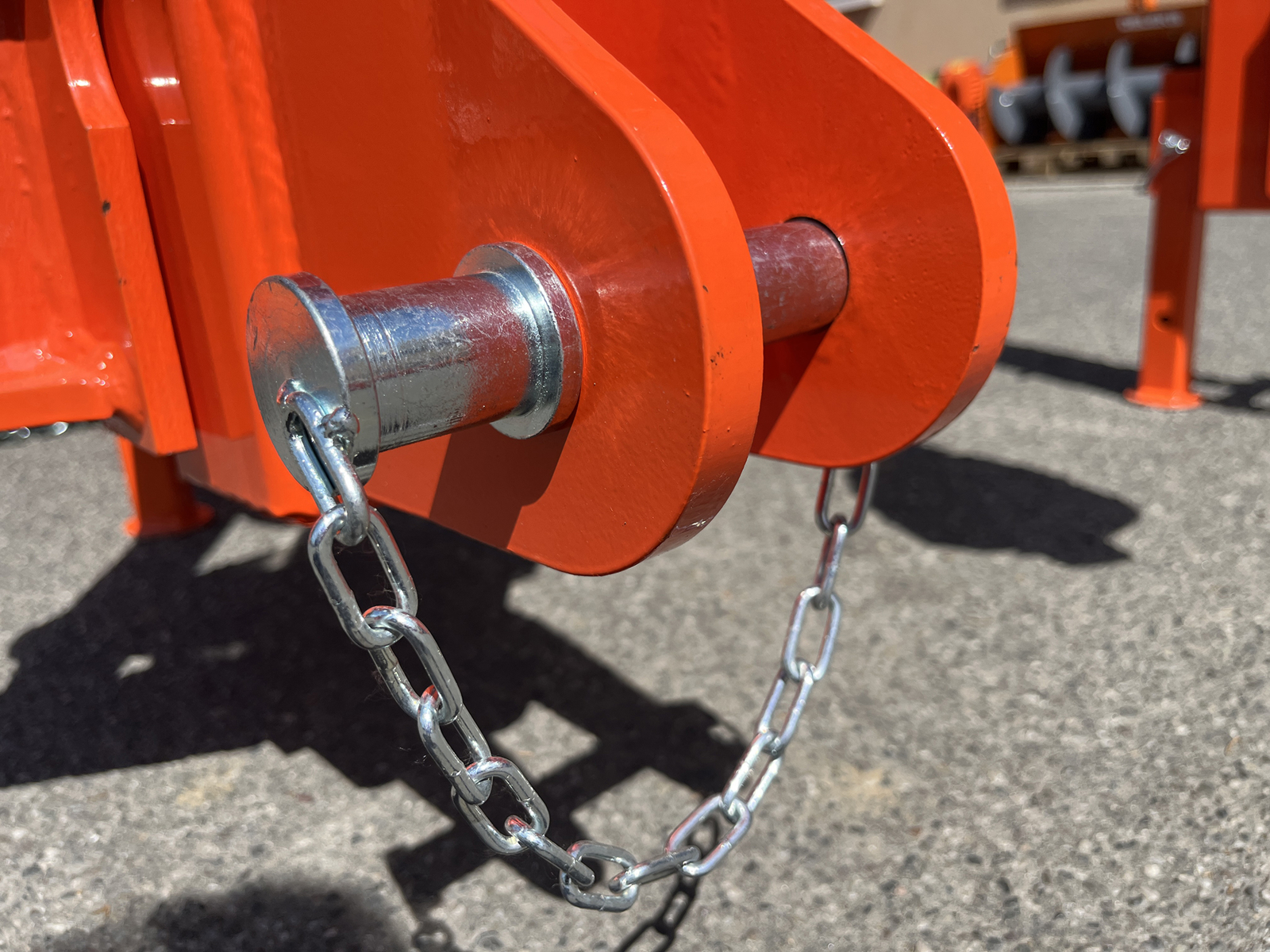

Hydraulic side shift and tilt
Two hydraulic rams, worked from the seat with the tractor's spool valves, move the head sideways and tilt it from +90° upwards to -60° downwards. With the arm fully out, the outer edge of the head reaches about 2.5 m (8 ft 2 in) from the centre of the tractor, on the right-hand side. Out to the side and tilted, the GIRAFFA-150 tidies roadside verges, ditches and banks; out to the side and upright it trims bushes and hedges; level, it works between the rows. The gearbox is mounted on the outside of the hood, a position that helps the head reach out beyond the width of the tractor. The three-point headstock has the Anti Shock system: the joint between the three-point headstock and the arm is not rigid, so the head can follow the ground over humps.

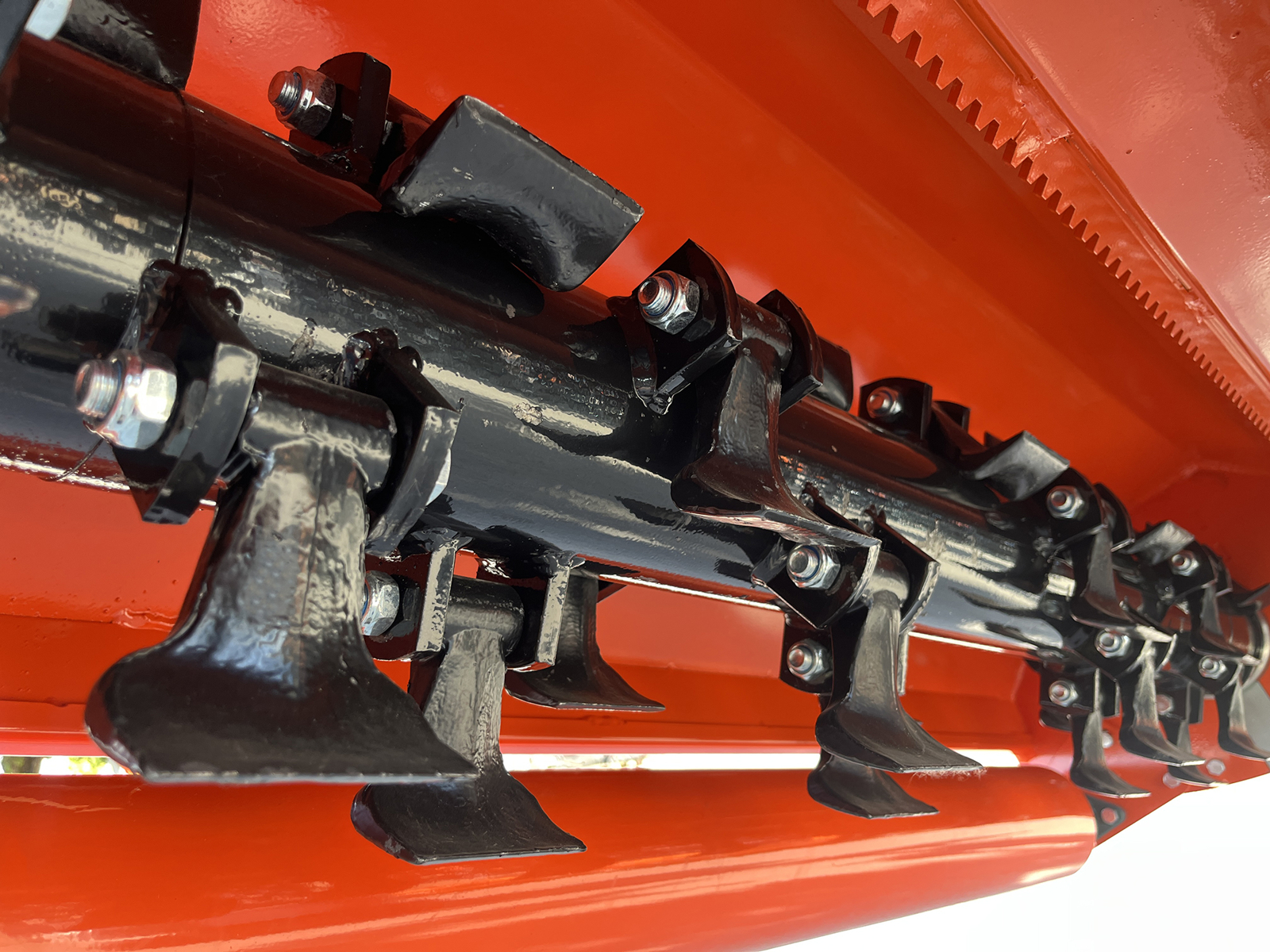

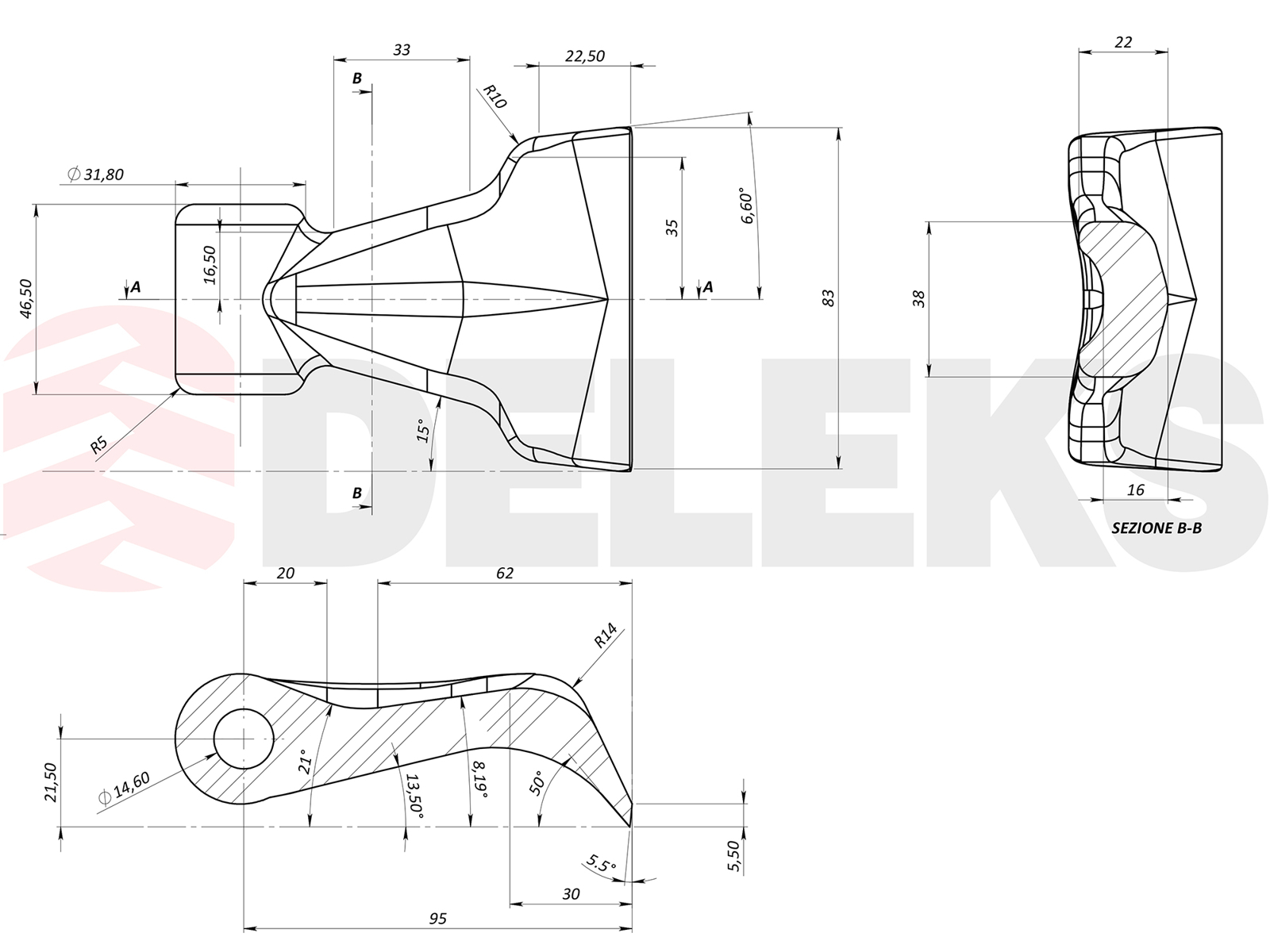

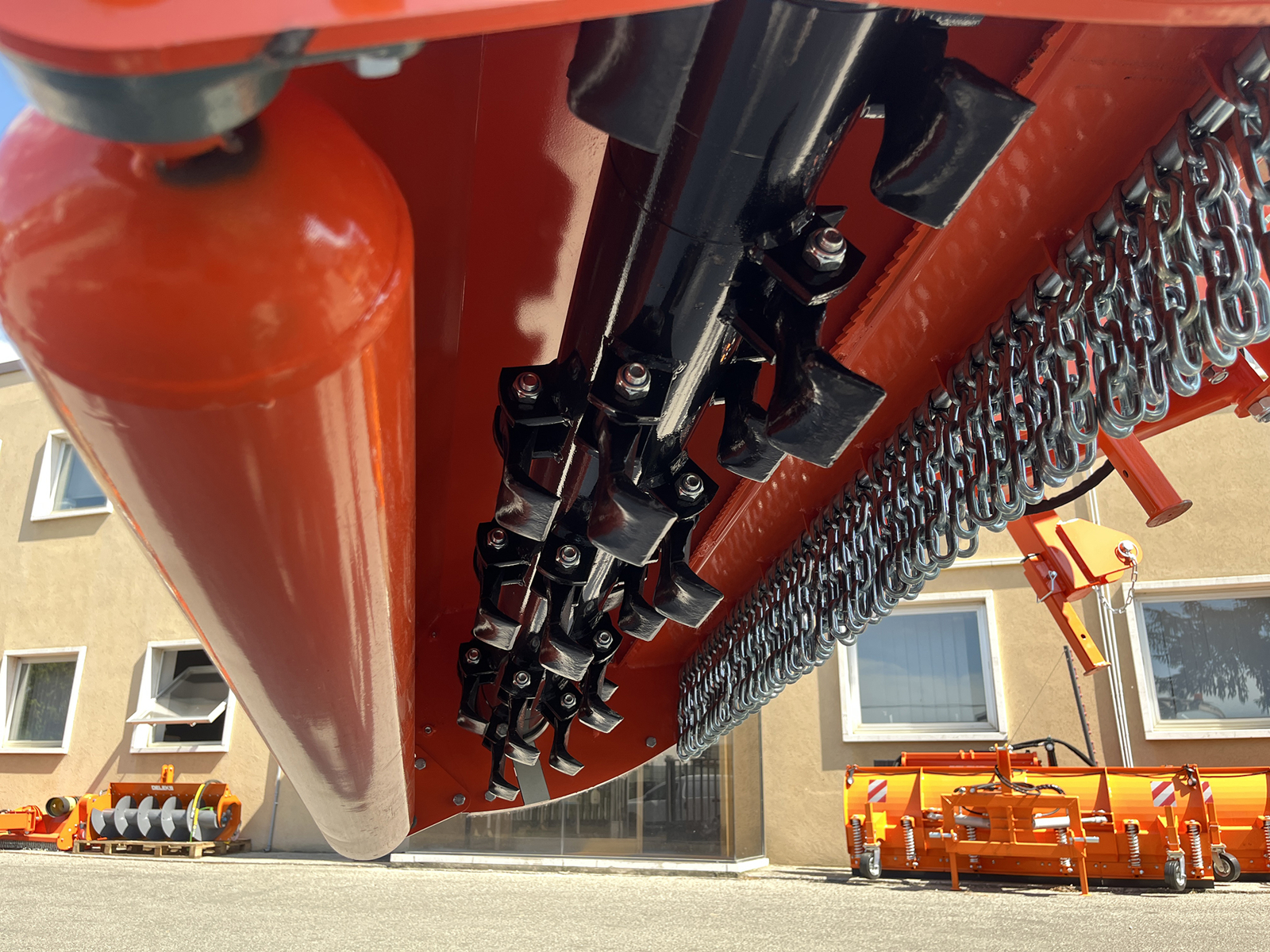

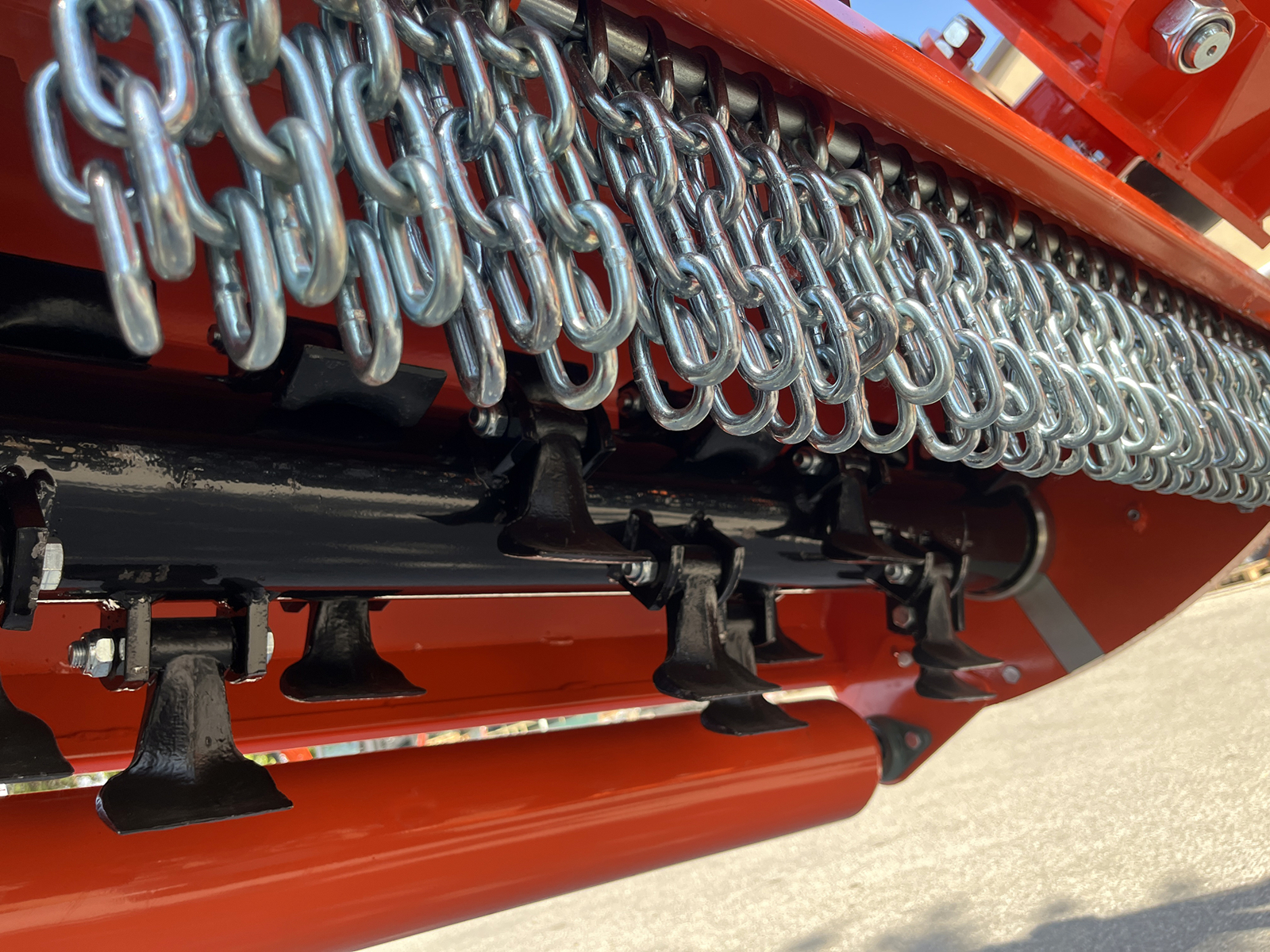

127 mm (5 in) rotor with 24 hammer flails of 820 g (1.8 lb)
The rotor is 127 mm (5 in) in diameter, with a 10 mm tube wall; it is electronically balanced and spins at 2,134 rpm. The 24 thick hammer flails weigh 820 g (1.8 lb) each: they pulverise grass, brambles and vine and olive prunings up to 4-5 cm (1.6-2 in) thick. As an option there is the kit of 30 blades (COLTELLI30T), as an alternative to the hammer flails.

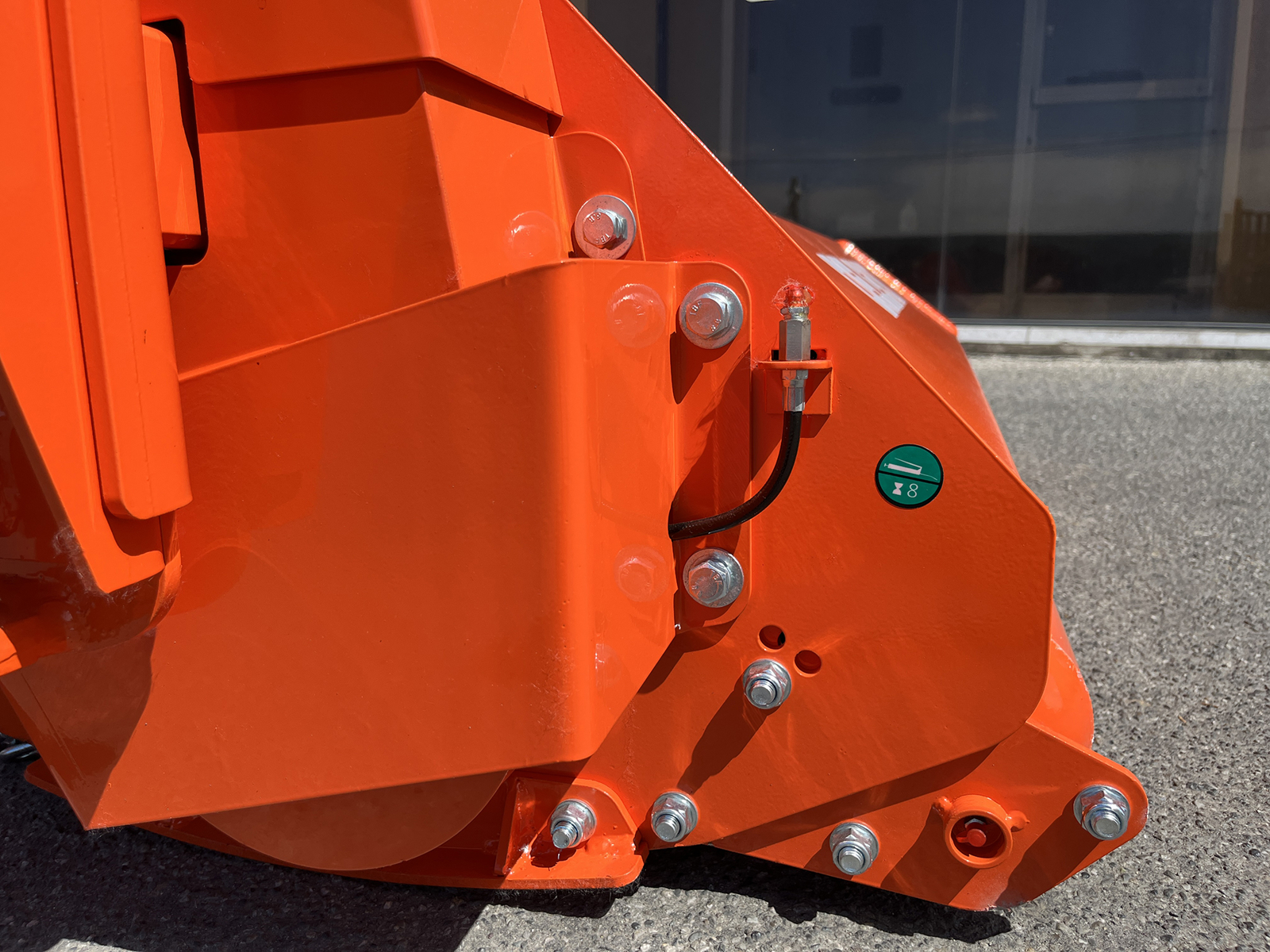

Hood, oversized roller and cutting height
The frame is 4 mm thick, with 8 mm side plates and 6 mm side skids. The oversized rear roller, 140 mm (5.5 in) in diameter, carries the head and, with the side skids, sets the cutting height from 10 to 45 mm (0.4 to 1.8 in).

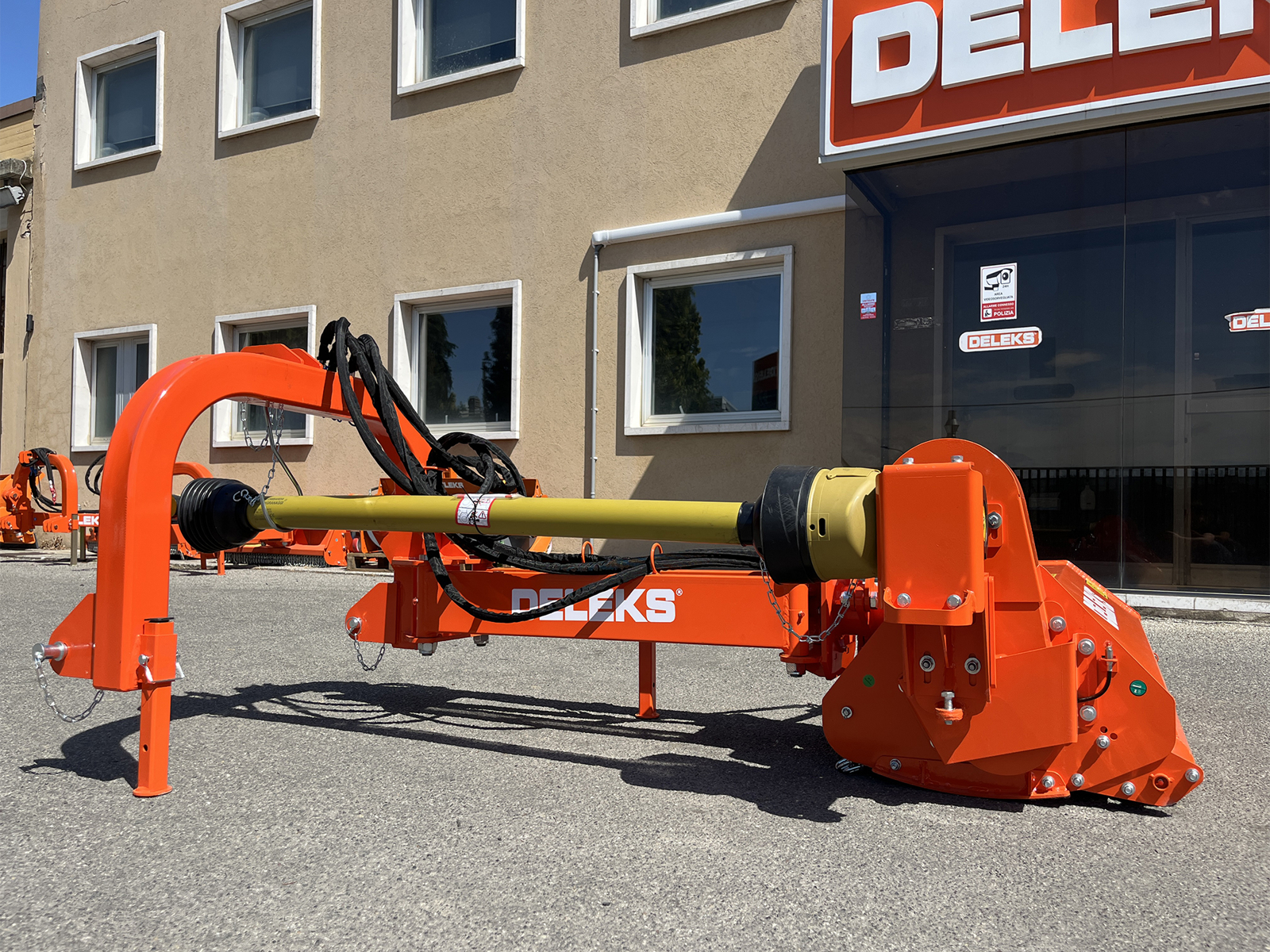

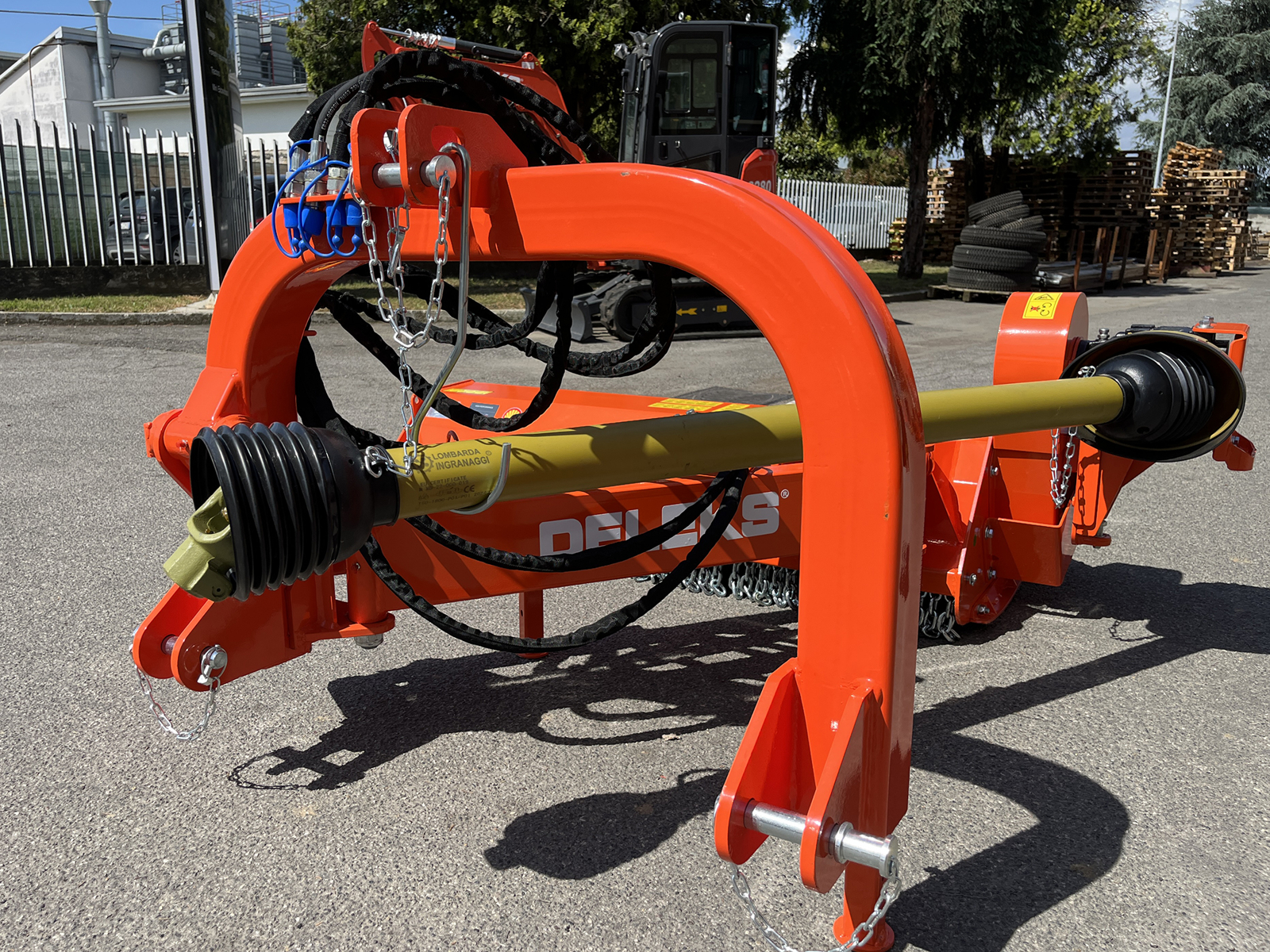

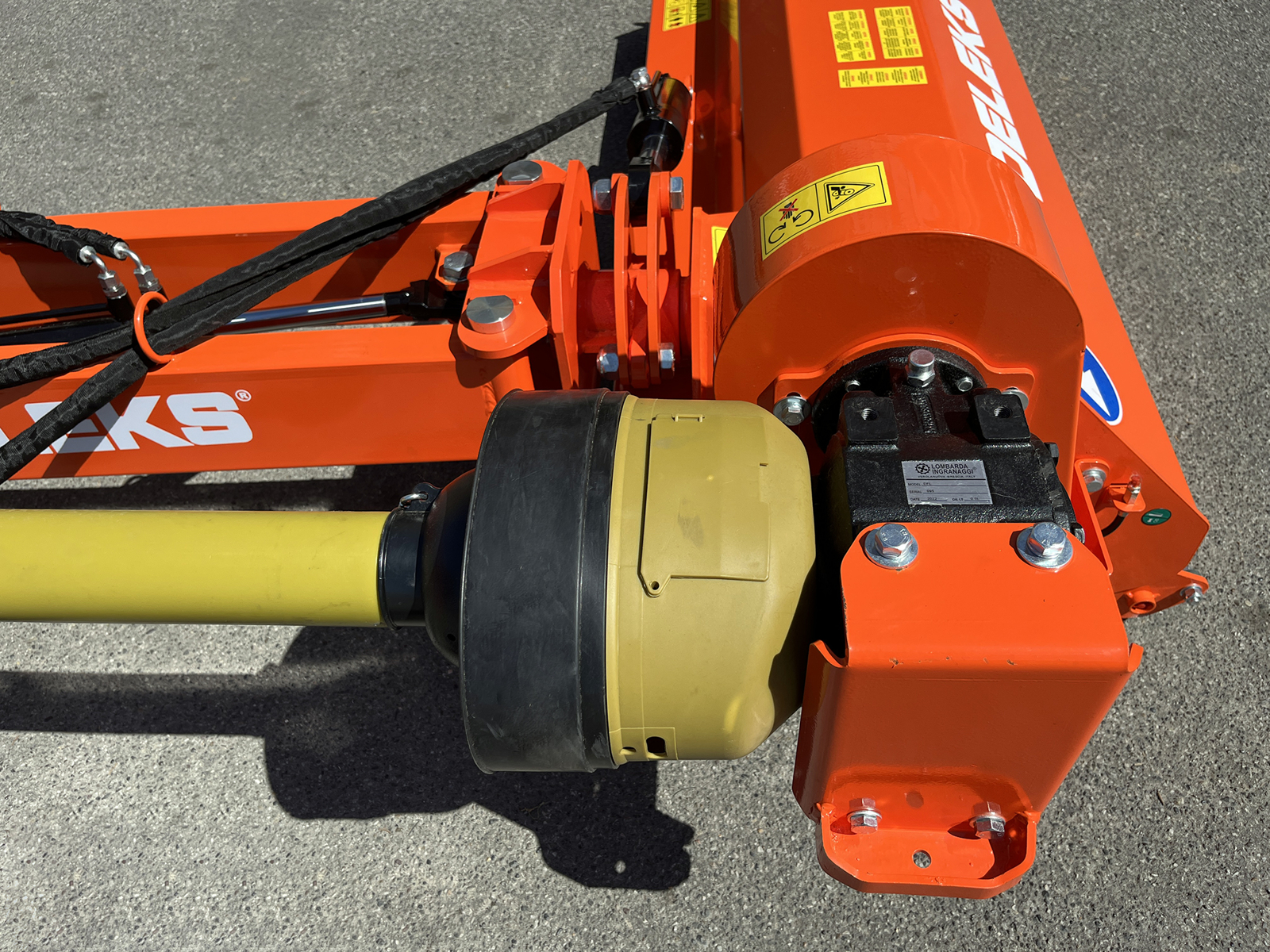

Gearbox with freewheel, 4 belts and double wide-angle PTO shaft

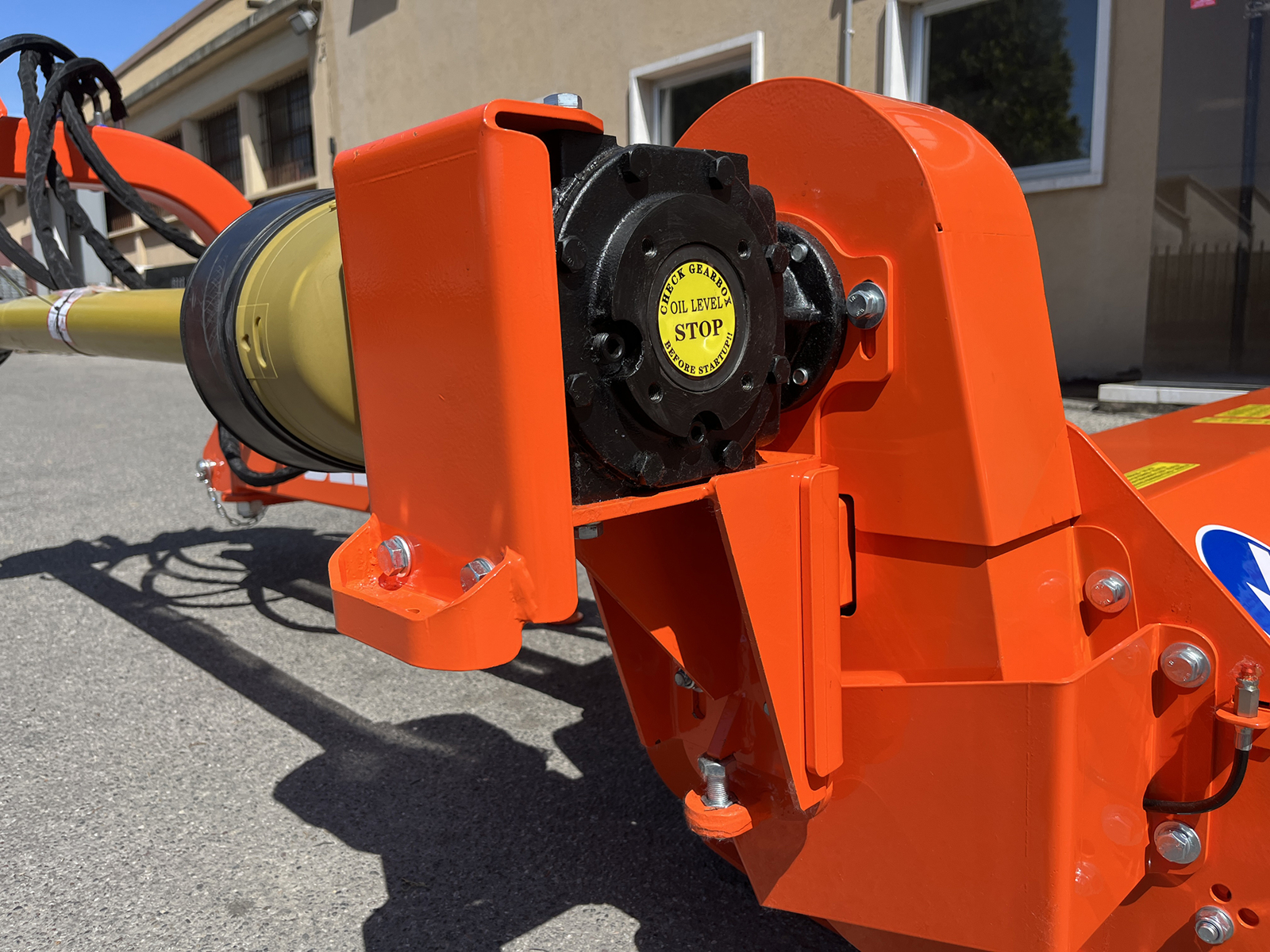

The gearbox for a 540 rpm PTO is oversized, has a built-in freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 4 V-belts, 17x1270; belt tension is set from the outside, with the adjustable tensioner. The CE-approved category 6 PTO shaft, 1,800 mm (70.9 in) long, is included and is double wide-angle: unlike shafts with a wide-angle joint at one end only, it has a wide-angle constant-velocity joint at both ends and allows generous working angles at the tractor end and at the machine end alike, even with the mower offset and tilted.
Dimensions, weight and delivery
Working width 1,500 mm (59.1 in), overall width 2,060 mm (81.1 in), length 1,750 mm (68.9 in) with the arm closed, height 975 mm (38.4 in), weight 478 kg (1,054 lb). It ships on a pallet in packaging measuring 185 × 95 × 95 cm (73 × 37 × 37 in), 600 kg (1,323 lb) gross, 1.67 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.

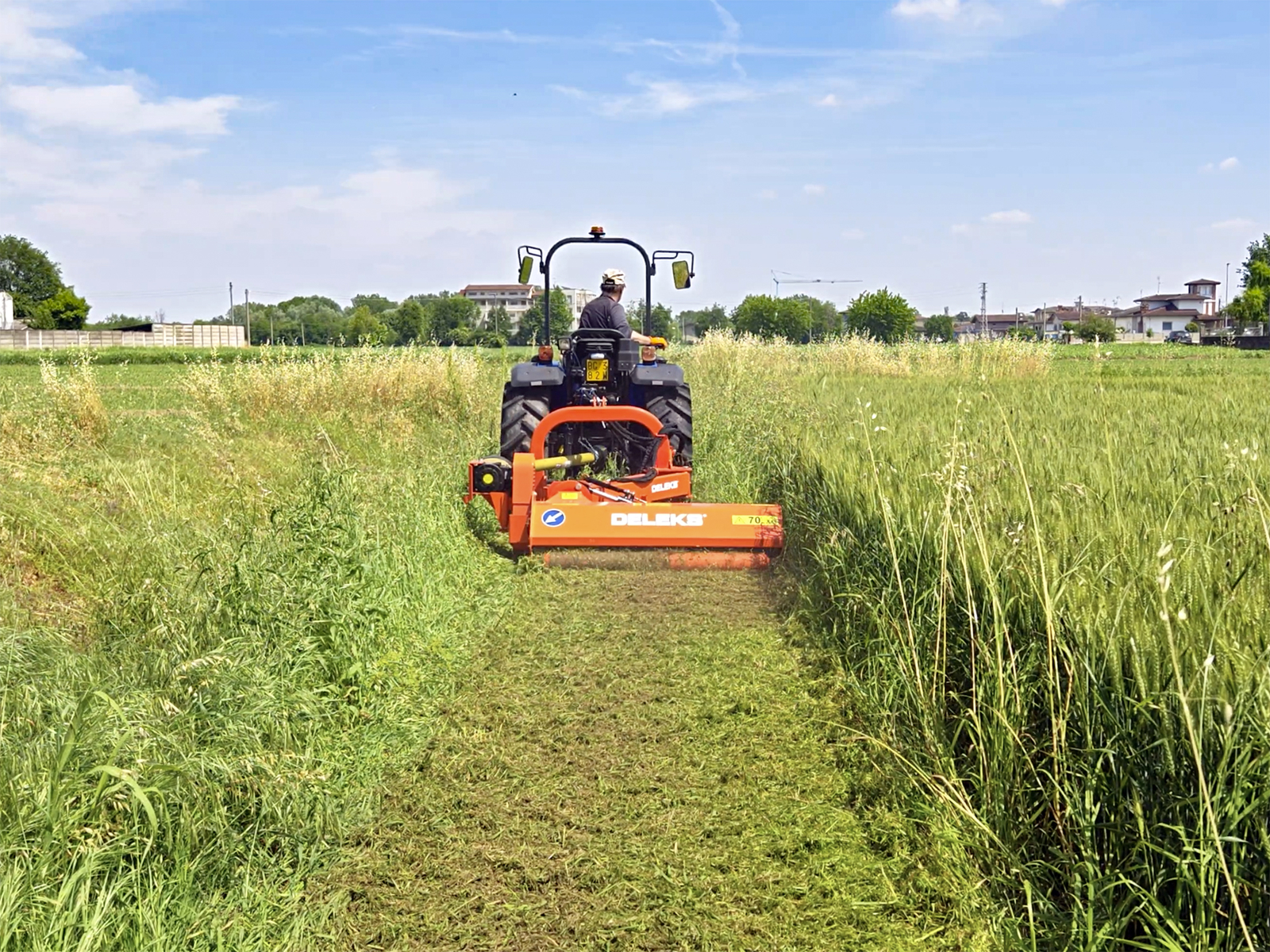

Where it works
- Roadside verges, road shoulders and council work: head out to the side
- Ditches, banks and sloping ground: head tilted downwards, as far as -60°
- Hedges and bushes: head upright
- Vineyards, orchards and olive groves: level between the rows, prunings up to 4-5 cm (1.6-2 in)
- On the flat and on slopes, with wheeled or tracked tractors from 40 to 70 hp
Options and spares
From this page you can add to your order the kit of 10 hammer flails (MAZZE10T), the 10 nuts and bolts for the flails (DB10T), the kit of 30 blades (COLTELLI30T) and the spare set of 4 belts (CINGHIE4A). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the GIRAFFA-150 need?
From 40 to 70 hp, with a 540 rpm PTO and a category 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 478 kg (1,054 lb).
How far out to the side does the GIRAFFA-150 reach?
With the arm fully out, the outer edge of the head reaches about 2.5 m (8 ft 2 in) from the centre of the tractor, on the right-hand side.
How far does the head tilt?
From +90° upwards, upright, for hedges and bushes, to -60° downwards, for ditches and banks.
What does the tractor need to work it?
4 hydraulic outlets with ½ in couplings for the mower's 4 hoses, which have agricultural quick-release couplings: they work the side shift and the tilt.
What size branches will it shred?
Grass, brambles and vine and olive prunings up to 4-5 cm (1.6-2 in) thick.
Hammer flails or blades?
It comes with 24 hammer flails of 820 g (1.8 lb). As an option there is the kit of 30 blades (COLTELLI30T), as an alternative to the hammer flails.
Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,800 mm (70.9 in) long, double wide-angle, with a wide-angle joint at both ends.
How does it differ from the LEO?
The LEO has its gearbox mounted inboard and, as standard, a category 5 PTO shaft: the wide-angle shaft is an option. The GIRAFFA has an external gearbox and, as standard, the category 6 double wide-angle PTO shaft. With the arm fully out the GIRAFFA reaches 2.3 to 2.7 m (7 ft 7 in to 8 ft 10 in) from the centre of the tractor, the LEO 2.0 to 2.4 m (6 ft 7 in to 7 ft 10 in).
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1500.0 mm | 4.92 ft |
| Overall width | 2060.0 mm | 6.65 ft |
| Min / Max cutting height | 10.0 - 45.0 mm | 0.4 - 1.77 in |
| Weight | 478.0 kg | 1053.0 lb |
| Overall height | 975.0 mm | 3.20 ft |
| Tractor Power Range | 40 - 70 Hp | 40 - 70 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0mm) | Cat. 2 (ø 25.0-28.0mm) |
| Hood height | 400.0 mm | 15.75 in |
| Spacing between the 2 lower points | 820.0 - 964.0 mm | 32.5 - 38.0 in |
| Number of Hammers | 24 | 24 |
| Maximum cutting diameter | 40.0 - 50.0 mm | 1.57 - 1.97 in |
| Overall length | 1750.0 mm (closed) | 5.74 ft (closed) |
| Distance between pto attachment and ground | 550.0 mm | 21.65 in |
| Main hood thickness | 4.0 mm | 0.16 in |
| Sides thickness | 8.0 mm | 0.31 in |
| Side plates thickness | 6.0 mm | 0.23 in |
| Transmission: Drive method | V-Belts | V-Belts |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Free wheel | √ | √ |
| Transmission: RPM Rotor speed | 2134 rpm | 2134 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 4 | 4 |
| Transmission: V-Belts size | 17x1270 | 17x1270 |
| Rotor: diameter | 127.0 mm | 5.0 in |
| Rotor: bearings type and size | 1308 | 1308 |
| Rotor: balancing | Electronic | Electronic |
| Rotor: sheet thickness | 10.0 mm | 0.4 in |
| Hammers: Weight | 820.0 g | 29.0 oz |
| Hammer: øhole | 15.0 mm | 0.6 in |
| Hammer: base width | 82.0 mm | 3.23 in |
| Hammer: top width | 45.0 mm | 1.77 in |
| Hammer: Diagonal | 95.0 mm | 3.74 in |
| Rear roller: diameter | 140.0 mm | 5.51 in |
| Rear roller: sheet thickness | 6.0 mm | 0.23 in |
| Rear roller: bearings type and size | UCFL206 | UCFL206 |

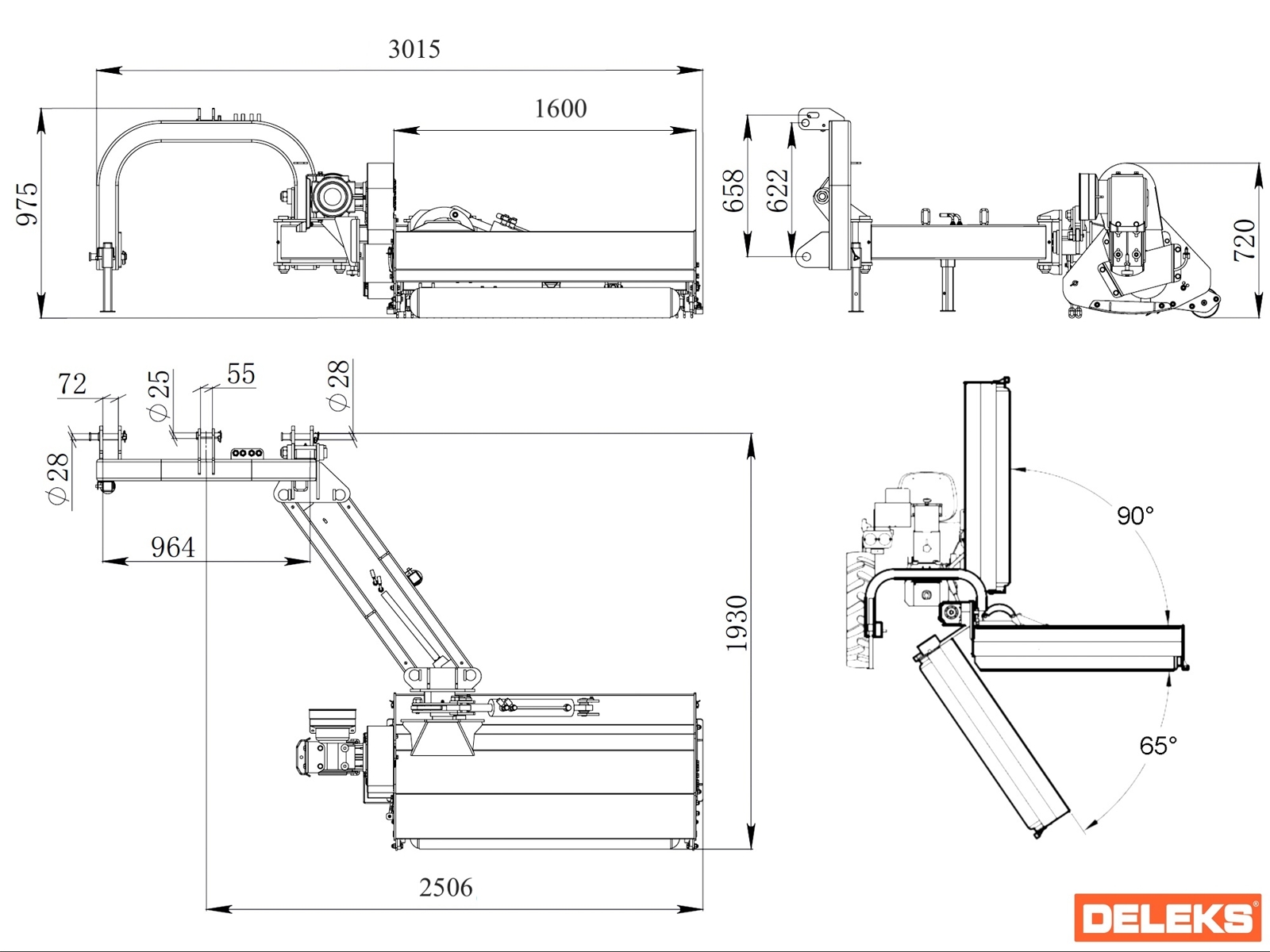

| Displacement and Sizes | See pictures | See pictures |
| Hydraulic cylinder A diam. | 80.0 - 35.0 mm | 3.15 - 1.37 in |
| Hydraulic cylinder B diam. | 60.0 - 30.0 mm | 2.36 - 1.18 in |
| Working pressure | 120 - 150 bar | 120 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min | 18 - 22 l/min |
| Hydraulic Hoses | WP 400 Bar, 1/2" Agri Standard | WP 400 Bar, 1/2" Agri Standard |
| Pto shaft | CE cat. 6 x 1800 mm, double wide-angle (CV joint at both ends) | CE cat. 6 x 71 in, double wide-angle (CV joint at both ends) |
| Hood length | 680.0 mm | 26.67 in |
| Gross shipping weight | 600 kg | 1323 lb |
| Package volume | 1.67 m3 | 59.0 cu ft |
| Packing sizes | 1850.0*950.0*950.0 mm | 6.07*3.17*3.17 ft |
DETAILS
CLOSEOffset flail mower for tractors with a 150 cm (59 in) cut: the DELEKS® GIRAFFA-150 is the verge hammer flail mower from the medium series for wheeled or tracked tractors from 40 to 70 hp, orchard tractors included. Two hydraulic rams move the head out beside the tractor and tilt it from +90° to -60°: it works on roadside verges, ditches, banks and sloping ground, upright on hedges and bushes and, level, between the rows. The oversized gearbox is mounted on the outside and the CE-approved category 6 PTO shaft is double wide-angle, with a wide-angle joint at both ends. The electronically balanced 127 mm (5 in) rotor carries 24 hammer flails of 820 g (1.8 lb) and pulverises grass, brambles and vine and olive prunings up to 4-5 cm (1.6-2 in) thick. Three-point headstock with Anti Shock system, oversized rear roller, 4-belt drive, 478 kg (1,054 lb). TÜV-certified, it comes complete with its PTO shaft, a 2-year warranty and free delivery within the EU.
Which tractors it fits
The GIRAFFA-150 cuts 150 cm (59 in) and is designed for mid-power wheeled or tracked tractors, from 40 to 70 hp, with a 540 rpm PTO and a category 2 three-point linkage (25-28 mm pins, lower link spacing from 820 to 964 mm): New Holland T4F, John Deere, Landini Mistral, Deutz-Fahr, Lamborghini, McCormick, Same Frutteto, Solis and equivalent tractors. The tractor needs 4 hydraulic outlets with ½ in couplings: the machine has 2 rams and 4 hoses with agricultural quick-release couplings and runs on an oil flow of 18-22 l/min at 120-150 bar. The gearbox sits 550 mm above the ground. It works on the flat and on slopes.
Hydraulic side shift and tilt
Two hydraulic rams, worked from the seat with the tractor's spool valves, move the head sideways and tilt it from +90° upwards to -60° downwards. With the arm fully out, the outer edge of the head reaches about 2.5 m (8 ft 2 in) from the centre of the tractor, on the right-hand side. Out to the side and tilted, the GIRAFFA-150 tidies roadside verges, ditches and banks; out to the side and upright it trims bushes and hedges; level, it works between the rows. The gearbox is mounted on the outside of the hood, a position that helps the head reach out beyond the width of the tractor. The three-point headstock has the Anti Shock system: the joint between the three-point headstock and the arm is not rigid, so the head can follow the ground over humps.
127 mm (5 in) rotor with 24 hammer flails of 820 g (1.8 lb)
The rotor is 127 mm (5 in) in diameter, with a 10 mm tube wall; it is electronically balanced and spins at 2,134 rpm. The 24 thick hammer flails weigh 820 g (1.8 lb) each: they pulverise grass, brambles and vine and olive prunings up to 4-5 cm (1.6-2 in) thick. As an option there is the kit of 30 blades (COLTELLI30T), as an alternative to the hammer flails.
Hood, oversized roller and cutting height
The frame is 4 mm thick, with 8 mm side plates and 6 mm side skids. The oversized rear roller, 140 mm (5.5 in) in diameter, carries the head and, with the side skids, sets the cutting height from 10 to 45 mm (0.4 to 1.8 in).
Gearbox with freewheel, 4 belts and double wide-angle PTO shaft
The gearbox for a 540 rpm PTO is oversized, has a built-in freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 4 V-belts, 17x1270; belt tension is set from the outside, with the adjustable tensioner. The CE-approved category 6 PTO shaft, 1,800 mm (70.9 in) long, is included and is double wide-angle: unlike shafts with a wide-angle joint at one end only, it has a wide-angle constant-velocity joint at both ends and allows generous working angles at the tractor end and at the machine end alike, even with the mower offset and tilted.
Dimensions, weight and delivery
Working width 1,500 mm (59.1 in), overall width 2,060 mm (81.1 in), length 1,750 mm (68.9 in) with the arm closed, height 975 mm (38.4 in), weight 478 kg (1,054 lb). It ships on a pallet in packaging measuring 185 × 95 × 95 cm (73 × 37 × 37 in), 600 kg (1,323 lb) gross, 1.67 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.
Where it works
- Roadside verges, road shoulders and council work: head out to the side
- Ditches, banks and sloping ground: head tilted downwards, as far as -60°
- Hedges and bushes: head upright
- Vineyards, orchards and olive groves: level between the rows, prunings up to 4-5 cm (1.6-2 in)
- On the flat and on slopes, with wheeled or tracked tractors from 40 to 70 hp
Options and spares
From this page you can add to your order the kit of 10 hammer flails (MAZZE10T), the 10 nuts and bolts for the flails (DB10T), the kit of 30 blades (COLTELLI30T) and the spare set of 4 belts (CINGHIE4A). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the GIRAFFA-150 need?
From 40 to 70 hp, with a 540 rpm PTO and a category 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 478 kg (1,054 lb).
How far out to the side does the GIRAFFA-150 reach?
With the arm fully out, the outer edge of the head reaches about 2.5 m (8 ft 2 in) from the centre of the tractor, on the right-hand side.
How far does the head tilt?
From +90° upwards, upright, for hedges and bushes, to -60° downwards, for ditches and banks.
What does the tractor need to work it?
4 hydraulic outlets with ½ in couplings for the mower's 4 hoses, which have agricultural quick-release couplings: they work the side shift and the tilt.
What size branches will it shred?
Grass, brambles and vine and olive prunings up to 4-5 cm (1.6-2 in) thick.
Hammer flails or blades?
It comes with 24 hammer flails of 820 g (1.8 lb). As an option there is the kit of 30 blades (COLTELLI30T), as an alternative to the hammer flails.
Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,800 mm (70.9 in) long, double wide-angle, with a wide-angle joint at both ends.
How does it differ from the LEO?
The LEO has its gearbox mounted inboard and, as standard, a category 5 PTO shaft: the wide-angle shaft is an option. The GIRAFFA has an external gearbox and, as standard, the category 6 double wide-angle PTO shaft. With the arm fully out the GIRAFFA reaches 2.3 to 2.7 m (7 ft 7 in to 8 ft 10 in) from the centre of the tractor, the LEO 2.0 to 2.4 m (6 ft 7 in to 7 ft 10 in).
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
CLOSE| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1500.0 mm | 4.92 ft |
| Overall width | 2060.0 mm | 6.65 ft |
| Min / Max cutting height | 10.0 - 45.0 mm | 0.4 - 1.77 in |
| Weight | 478.0 kg | 1053.0 lb |
| Overall height | 975.0 mm | 3.20 ft |
| Tractor Power Range | 40 - 70 Hp | 40 - 70 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0mm) | Cat. 2 (ø 25.0-28.0mm) |
| Hood height | 400.0 mm | 15.75 in |
| Spacing between the 2 lower points | 820.0 - 964.0 mm | 32.5 - 38.0 in |
| Number of Hammers | 24 | 24 |
| Maximum cutting diameter | 40.0 - 50.0 mm | 1.57 - 1.97 in |
| Overall length | 1750.0 mm (closed) | 5.74 ft (closed) |
| Distance between pto attachment and ground | 550.0 mm | 21.65 in |
| Main hood thickness | 4.0 mm | 0.16 in |
| Sides thickness | 8.0 mm | 0.31 in |
| Side plates thickness | 6.0 mm | 0.23 in |
| Transmission: Drive method | V-Belts | V-Belts |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Free wheel | √ | √ |
| Transmission: RPM Rotor speed | 2134 rpm | 2134 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 4 | 4 |
| Transmission: V-Belts size | 17x1270 | 17x1270 |
| Rotor: diameter | 127.0 mm | 5.0 in |
| Rotor: bearings type and size | 1308 | 1308 |
| Rotor: balancing | Electronic | Electronic |
| Rotor: sheet thickness | 10.0 mm | 0.4 in |
| Hammers: Weight | 820.0 g | 29.0 oz |
| Hammer: øhole | 15.0 mm | 0.6 in |
| Hammer: base width | 82.0 mm | 3.23 in |
| Hammer: top width | 45.0 mm | 1.77 in |
| Hammer: Diagonal | 95.0 mm | 3.74 in |
| Rear roller: diameter | 140.0 mm | 5.51 in |
| Rear roller: sheet thickness | 6.0 mm | 0.23 in |
| Rear roller: bearings type and size | UCFL206 | UCFL206 |
| Displacement and Sizes | See pictures | See pictures |
| Hydraulic cylinder A diam. | 80.0 - 35.0 mm | 3.15 - 1.37 in |
| Hydraulic cylinder B diam. | 60.0 - 30.0 mm | 2.36 - 1.18 in |
| Working pressure | 120 - 150 bar | 120 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min | 18 - 22 l/min |
| Hydraulic Hoses | WP 400 Bar, 1/2" Agri Standard | WP 400 Bar, 1/2" Agri Standard |
| Pto shaft | CE cat. 6 x 1800 mm, double wide-angle (CV joint at both ends) | CE cat. 6 x 71 in, double wide-angle (CV joint at both ends) |
| Hood length | 680.0 mm | 26.67 in |
| Gross shipping weight | 600 kg | 1323 lb |
| Package volume | 1.67 m3 | 59.0 cu ft |
| Packing sizes | 1850.0*950.0*950.0 mm | 6.07*3.17*3.17 ft |
