Log grapple for mini diggers and forest cranes DK-10

Not available Notify me
CodeDK10
EAN 8053470230141
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

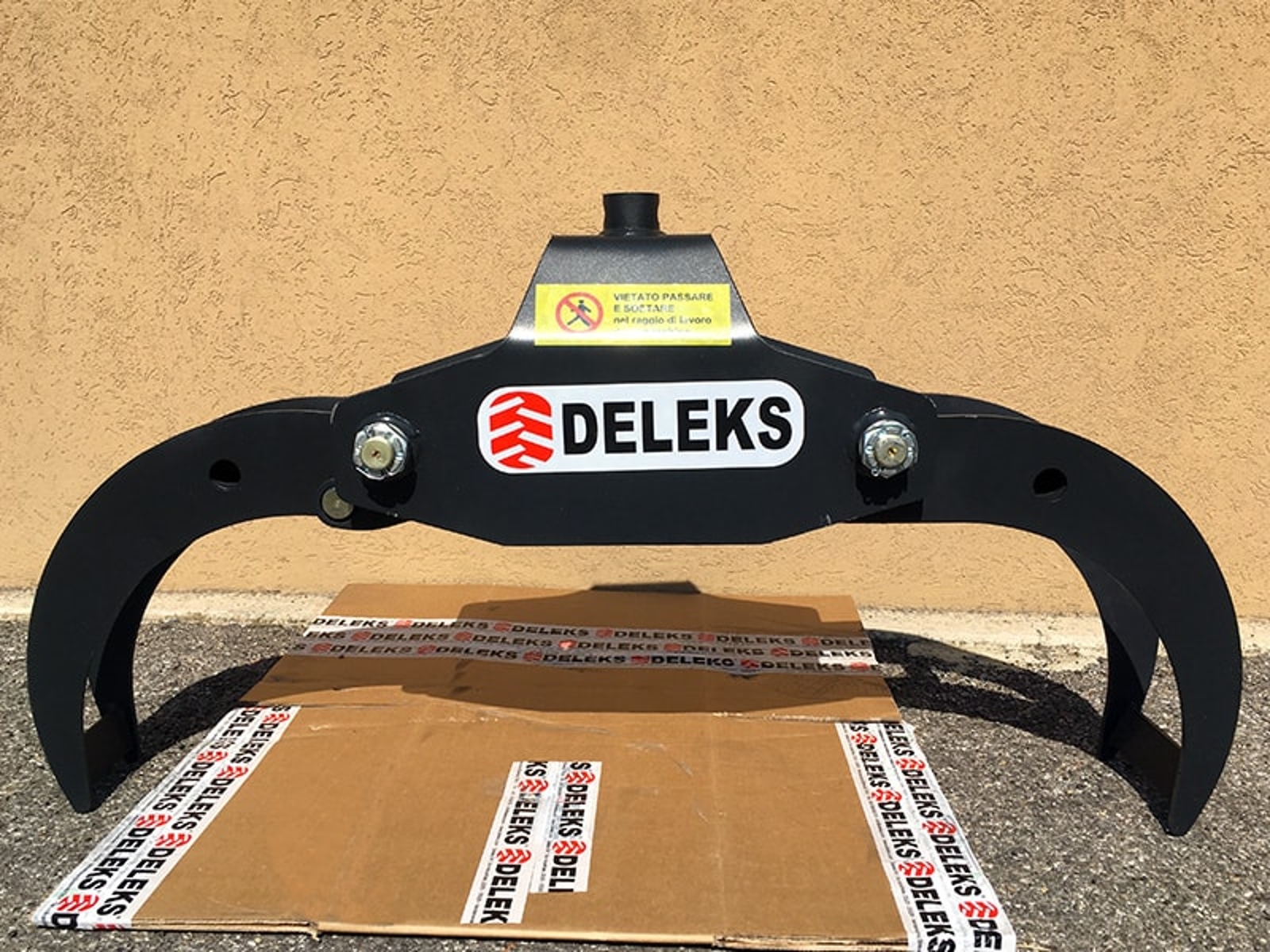

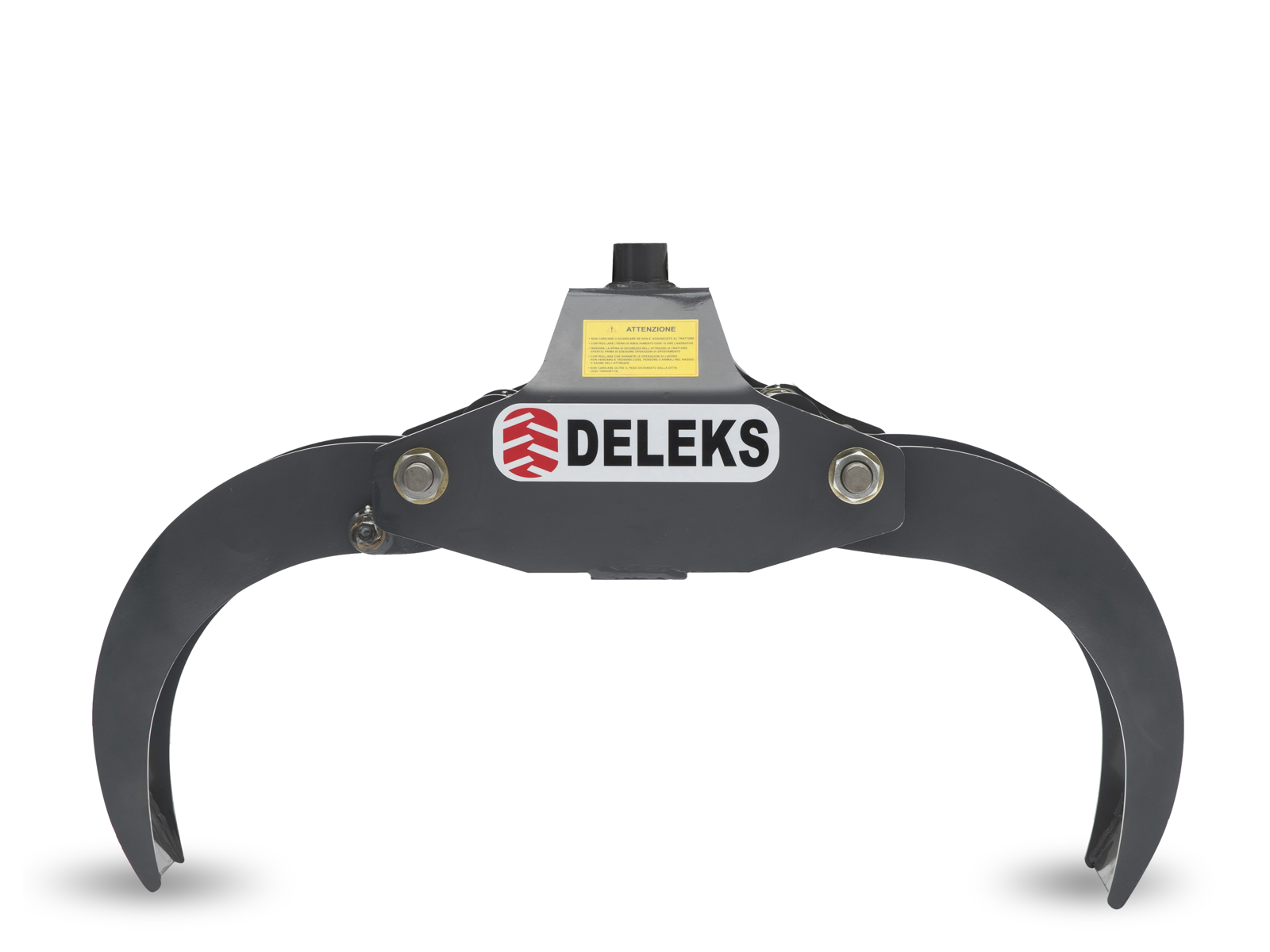

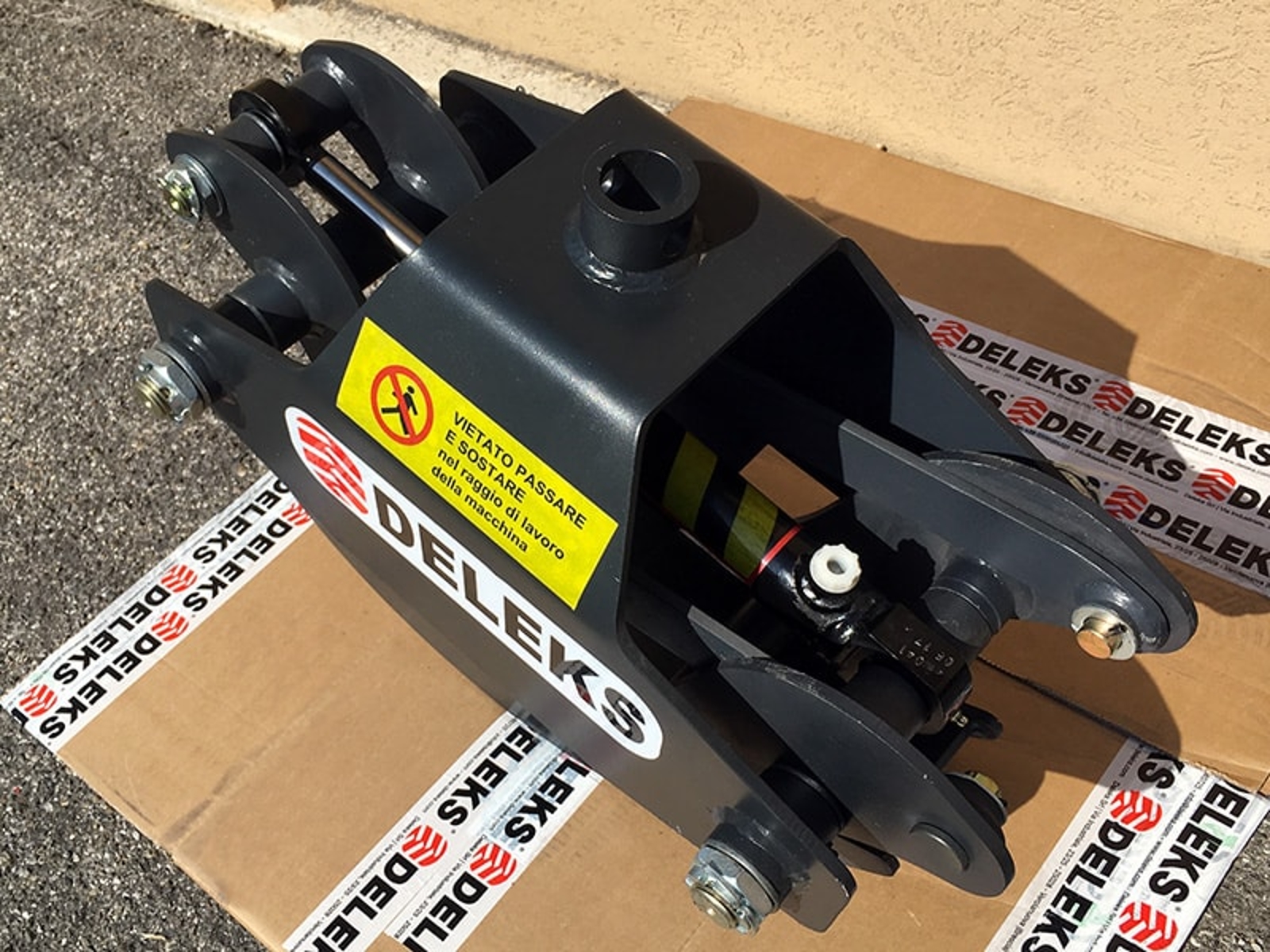

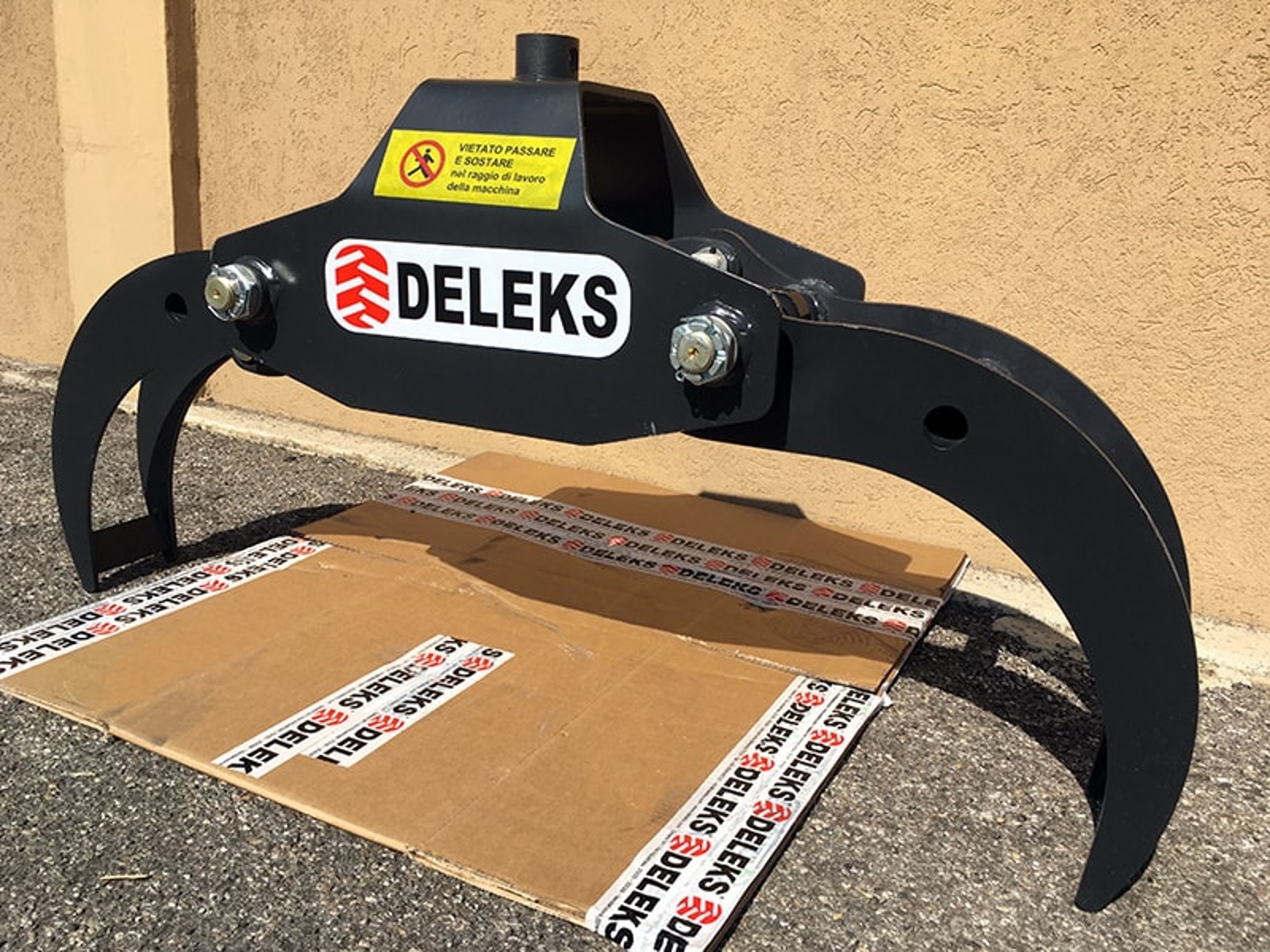

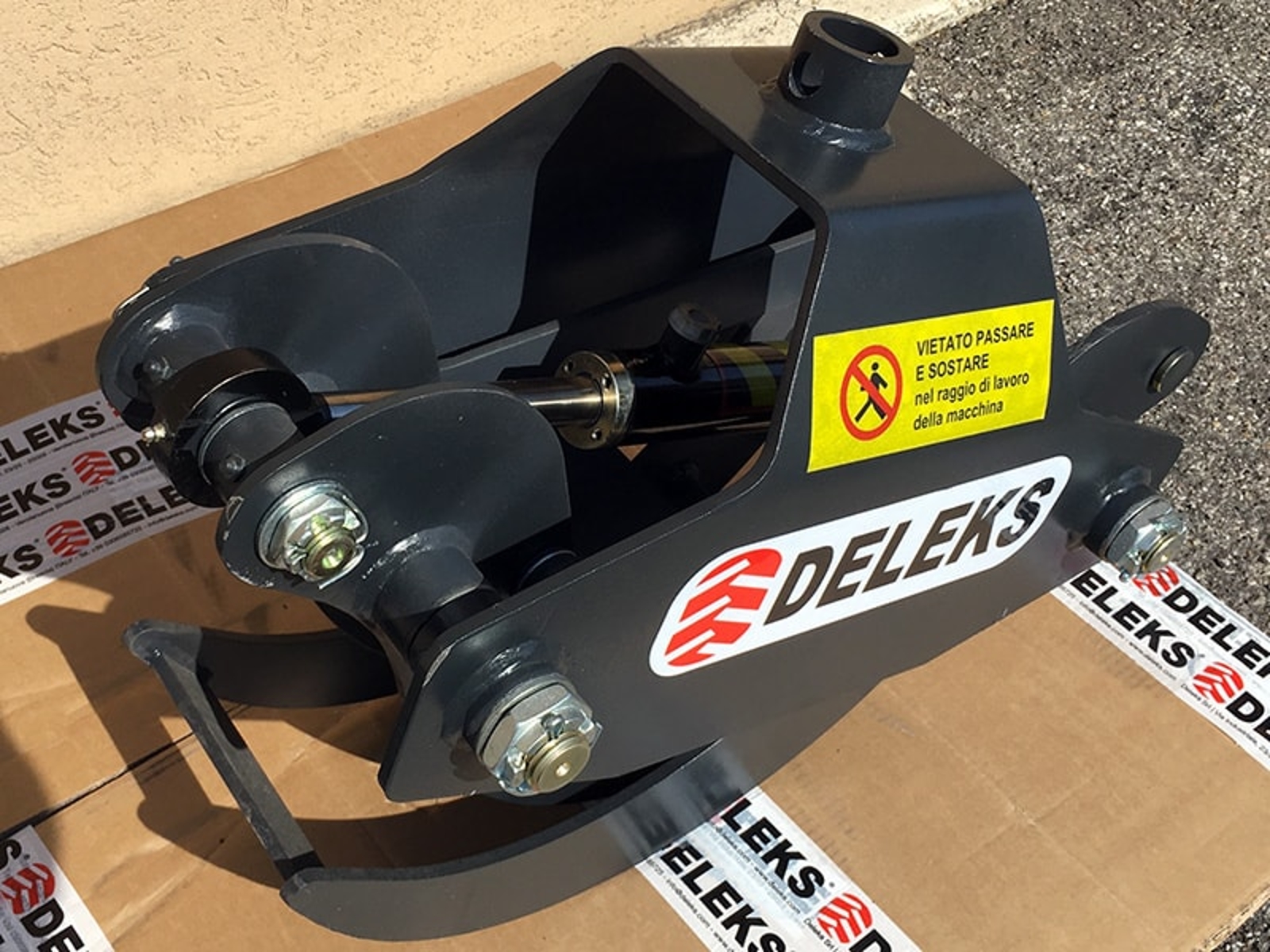

Log Grapple for Mini Diggers and Forest Cranes 1.5 – 2.5 Ton - DELEKS® DK-10


OVERVIEW

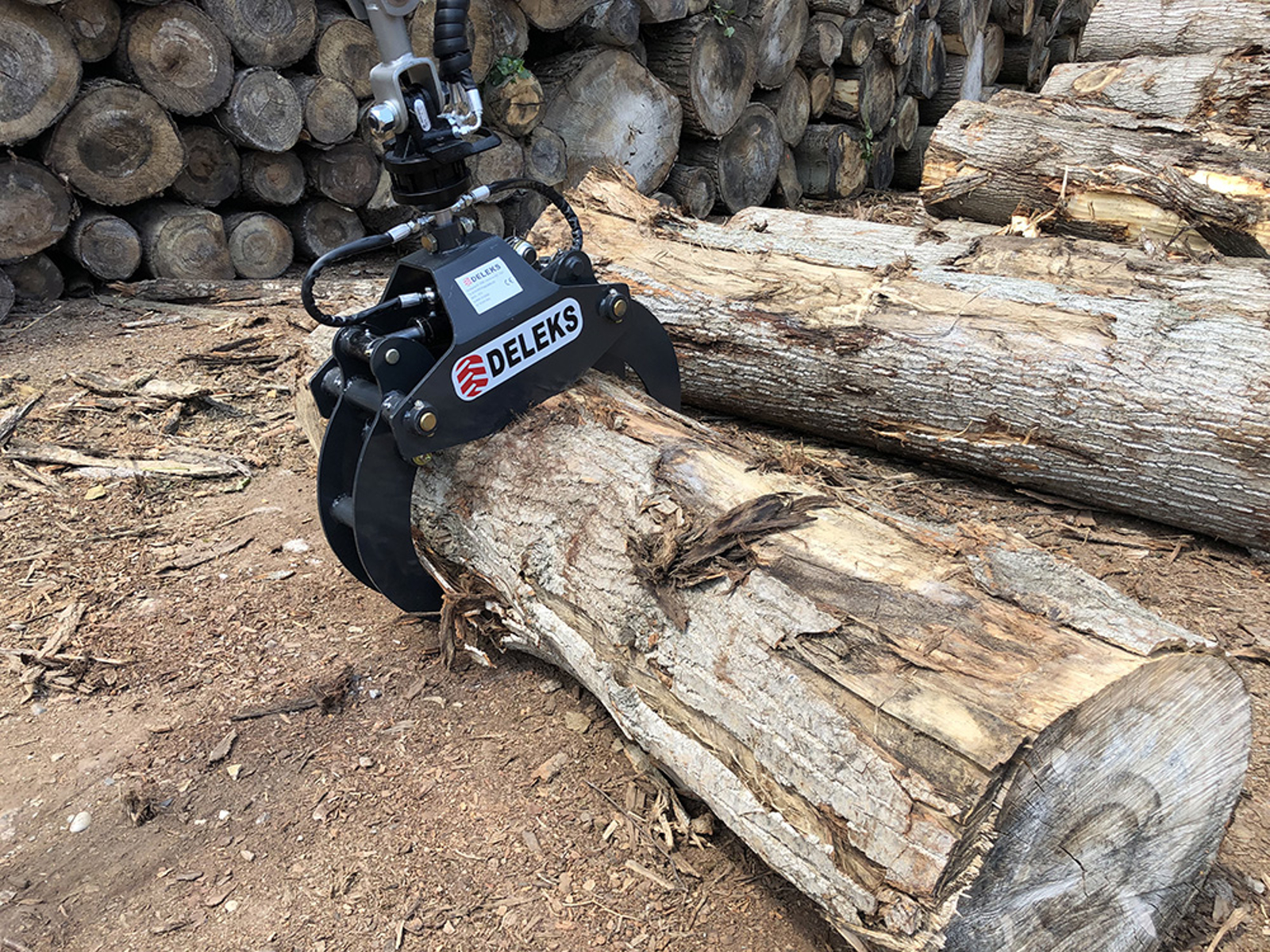

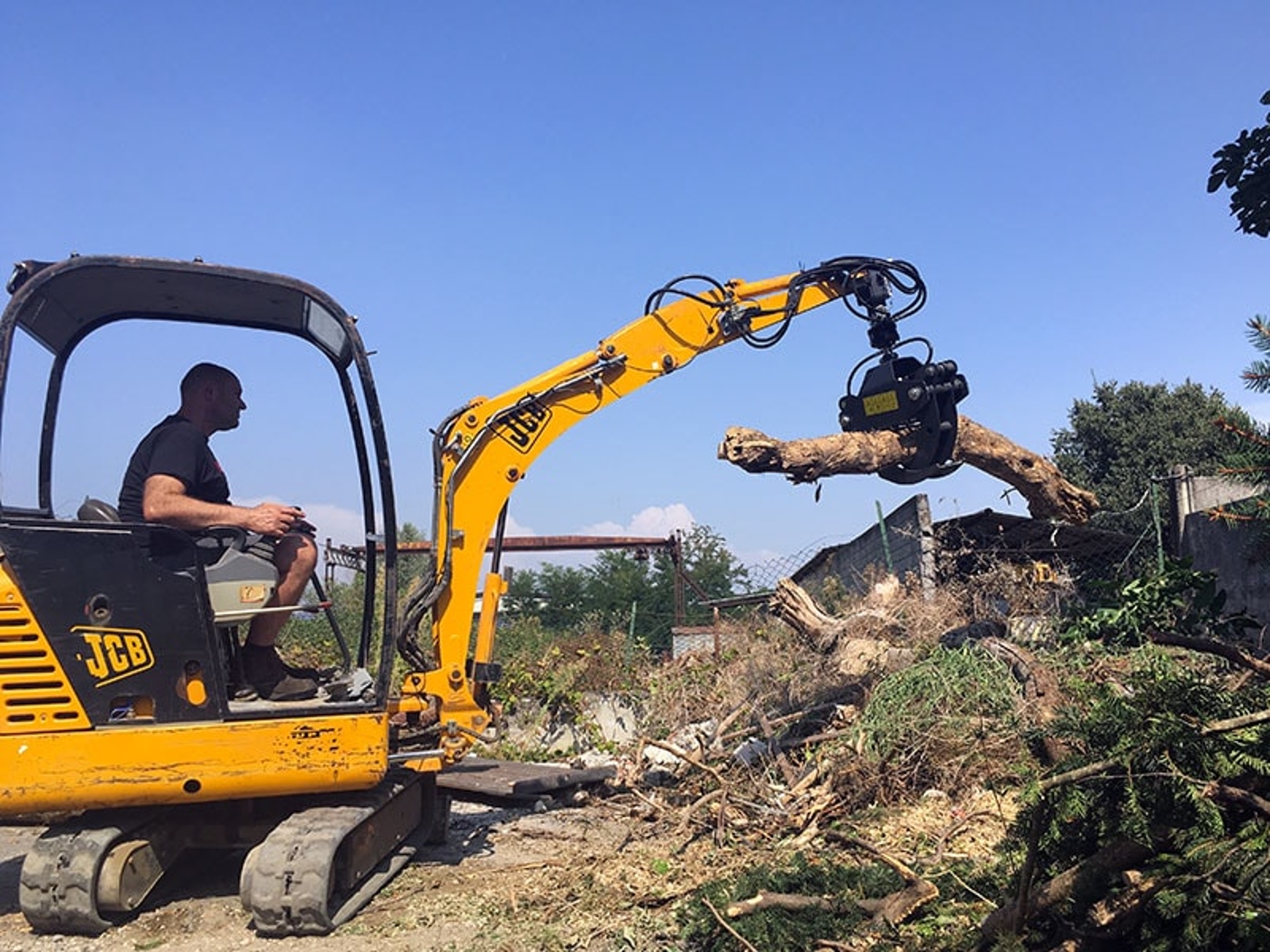

Lightweight and durable log grapple is perfect for carrying logs, timber and even heavy rocks and boulders making it an essential tool when carrying out forestry work, clearing debris or repairing stone walls. Maximum load 400.0 kg. Fits all mini diggers/excavators e.g Bobcat, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi. EC Conformity, 2 Year Warranty.



BENEFITS & FEATURES

Thanks to the DK10's unique design it grips timber, boulders or debris tightly.

High tensile strength, reinforced grapple tines.

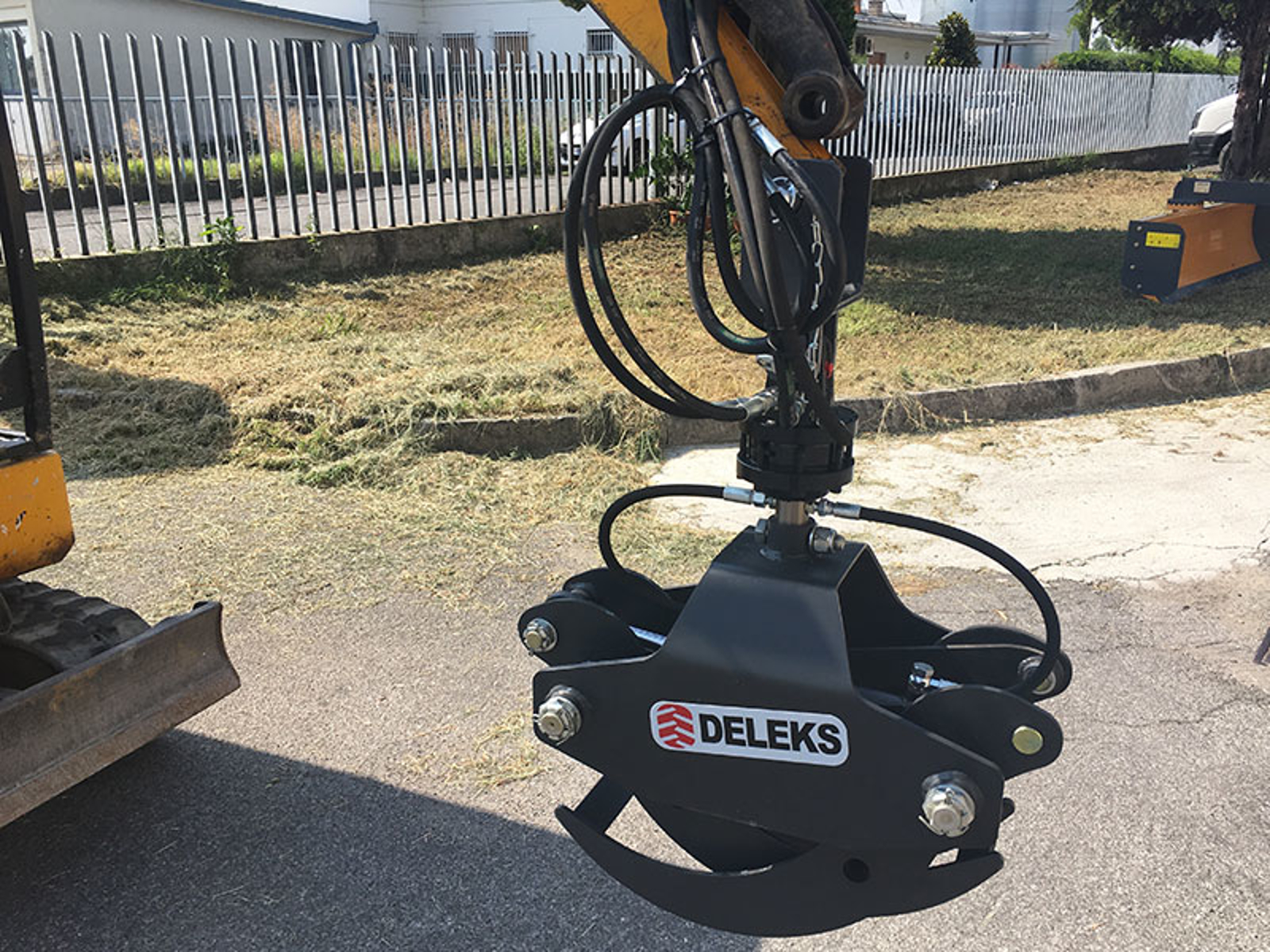

Available with optional hydraulic kit and rotator.


VIDEO

CARACTERISTICS

Caracteristic Units metric Units US
Weight 52.0 kg 115.0 lb
Load capacity 400.0 kg 880.0 lb
Main hood thickness 8.0 mm 0.31 in
Min./Max. Relief Pressure 80 - 120 bar 80 - 120 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min

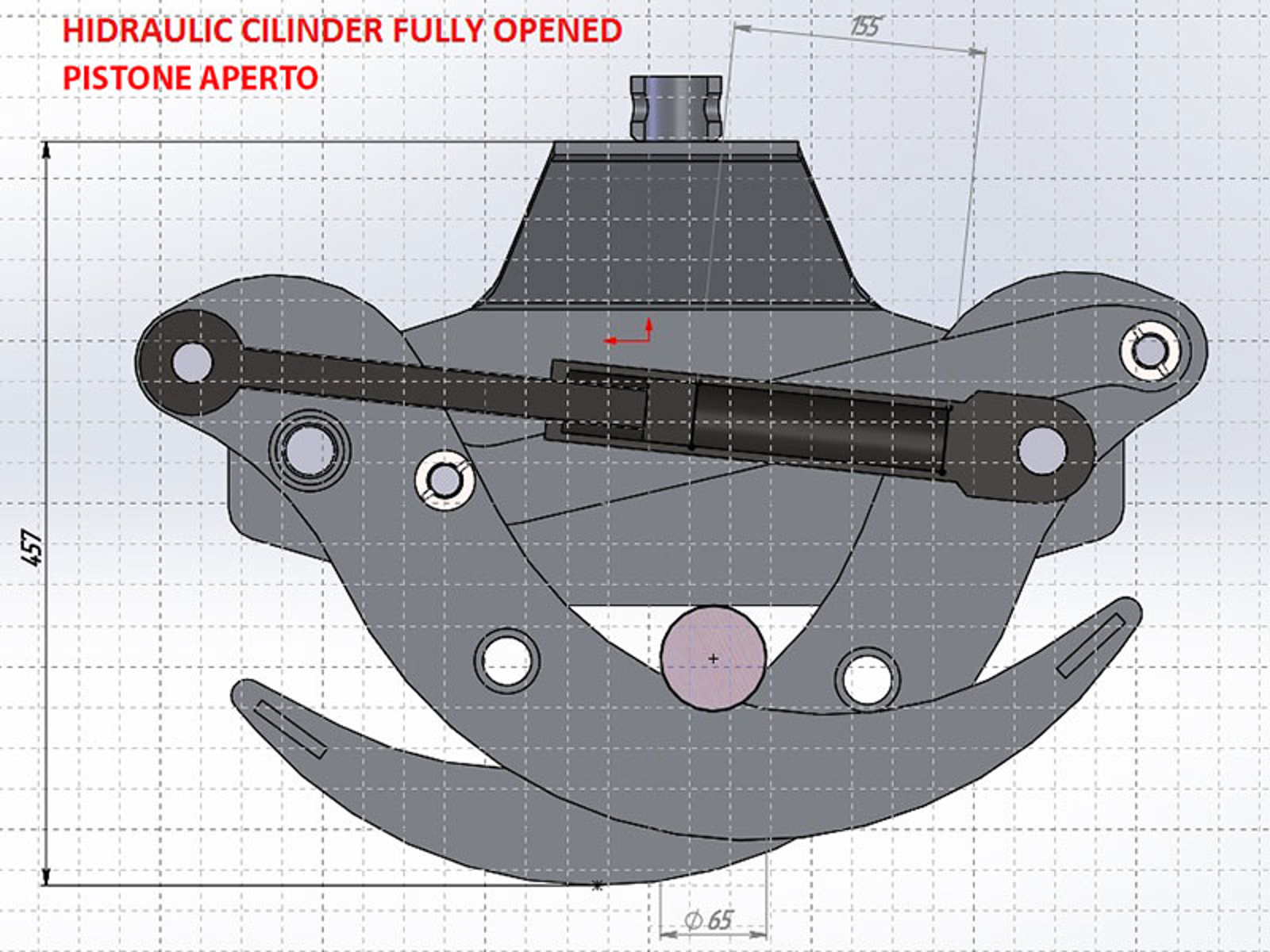

Other sizes See pictures See pictures
Hydraulic Hoses 400 bar pressure 400 bar pressure
Max Opening 1055.0 mm 3.46 ft
Height, grapple open 660.0 mm 26.0 in

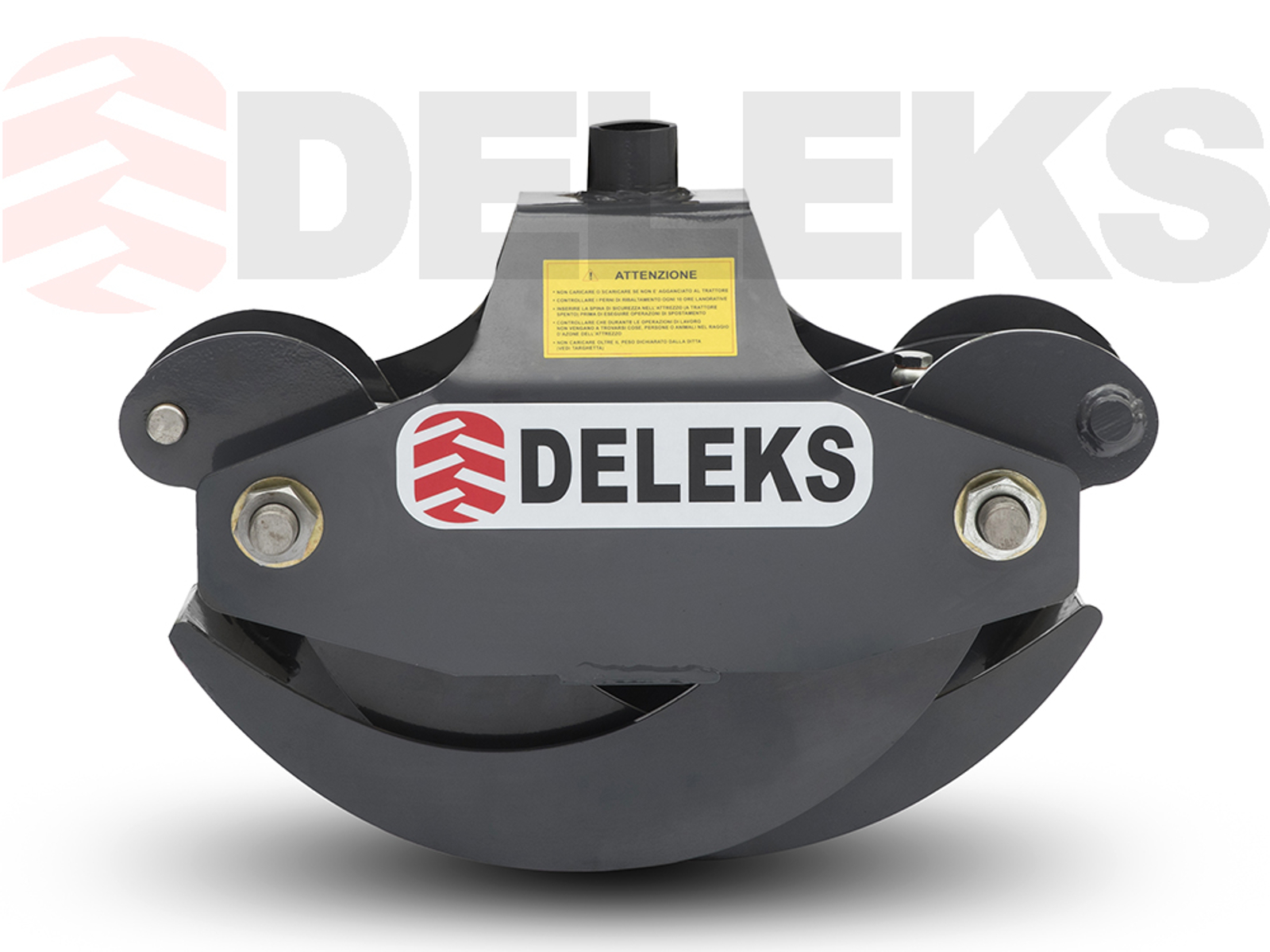

Height, grapple closed 495.0 mm 19.50 in
Width, grapple open 1150.0 mm 3.77 ft
Width, grapple closed 660.0 mm 2.17 ft
Overall depth 350.0 mm 1.15 ft
Minimum diameter of the log 50.0 mm 1.97 in
Hydraulic cilinder diameter 50.0 - 25.0 mm 1.97 - 0.98 in
Max Pressure 200 Bar 200 Bar
Rotator x x
Compact Excavators Range 1.5 - 2.5 ton 1.5 - 2.5 ton
Packing sizes 600.0*800.0*450.0 mm 1.97*2.62*1.47 ft
