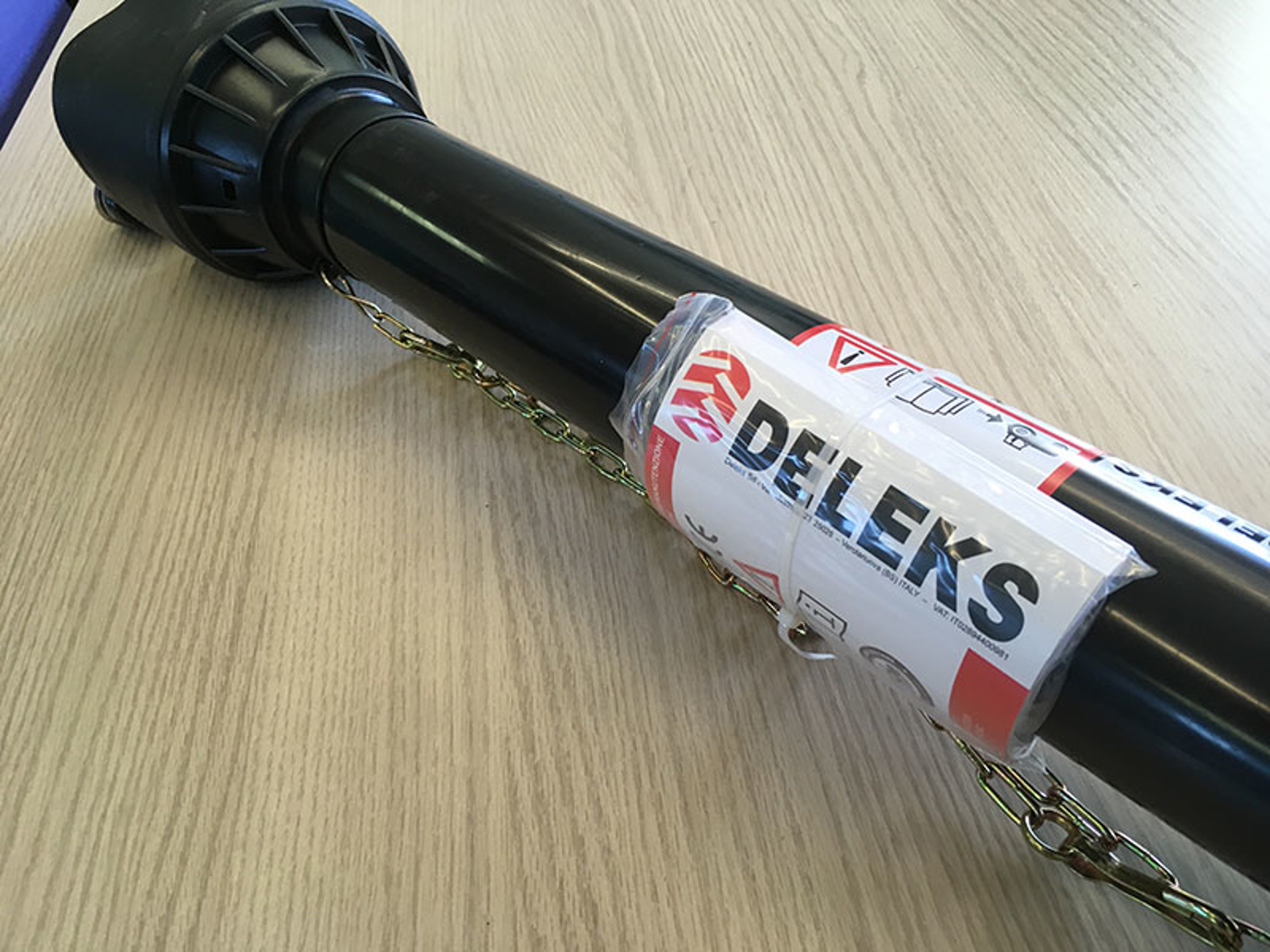

Cardan shaft CAT-6 1000 + shear bolt

4.4

199 reviews

Not available Notify me
Code 6X1000B
EAN 8053470232121
View all details.
TOTAL
180,00VAT incl.
Free shipping

DETAILS

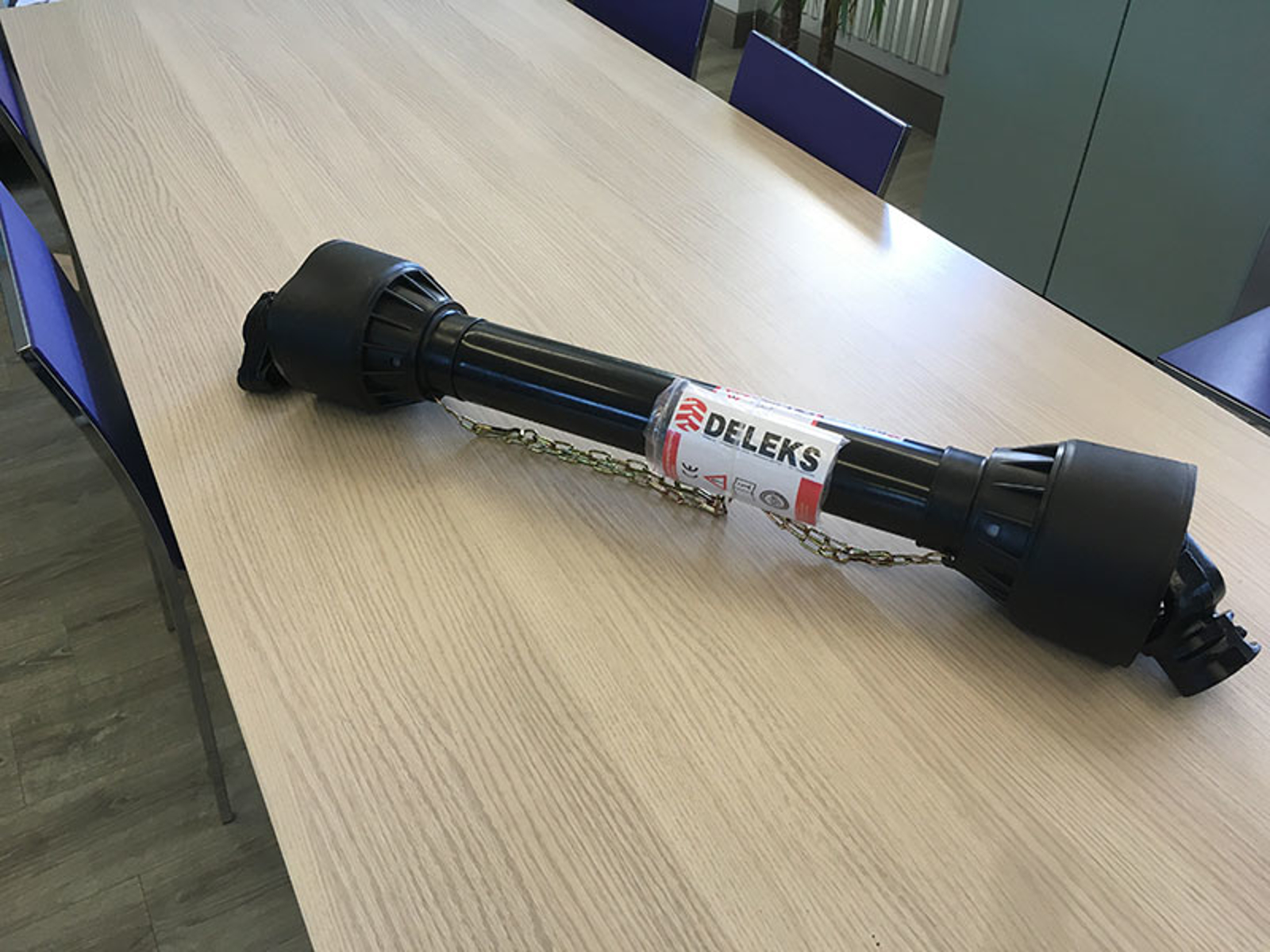

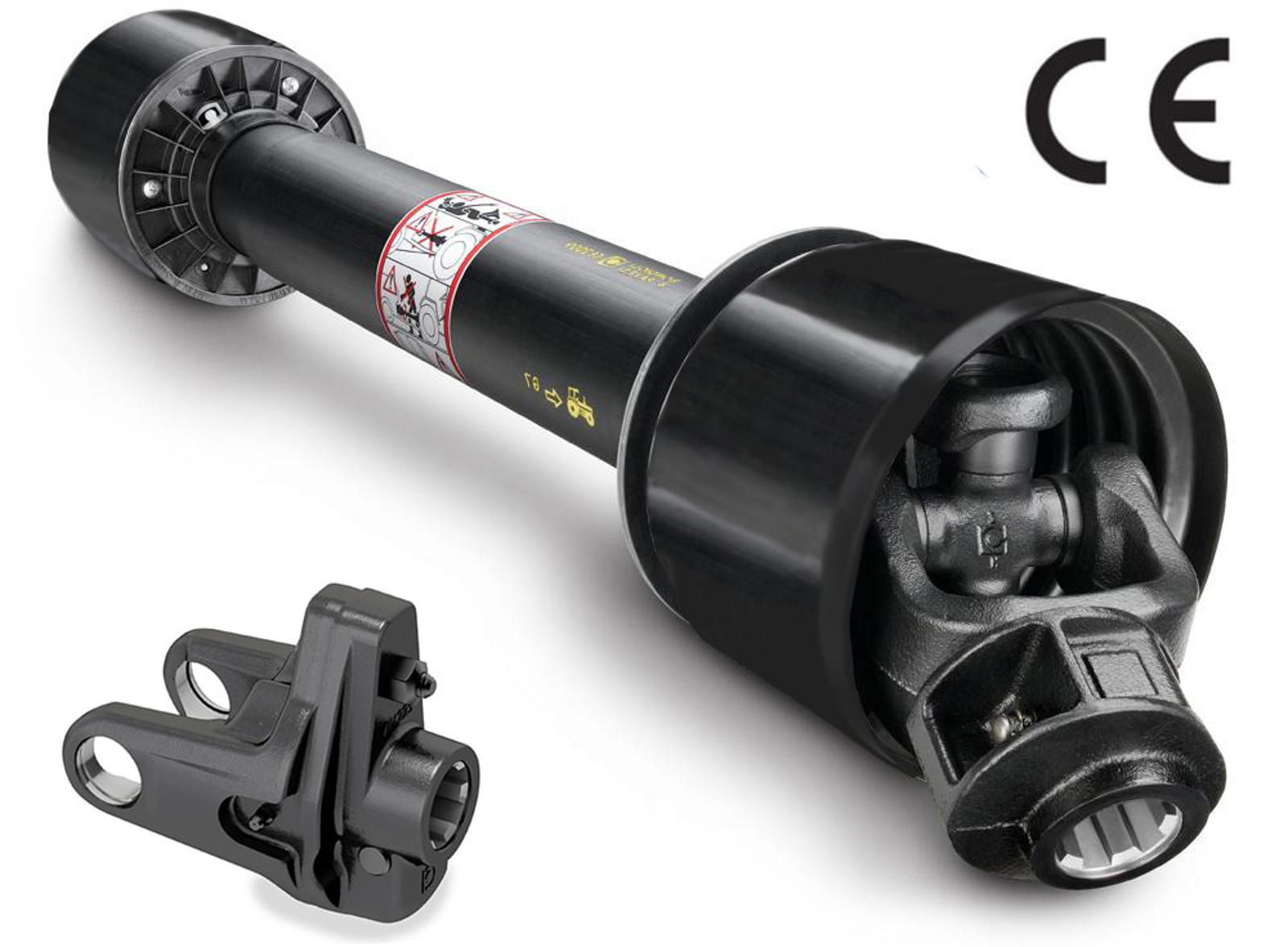

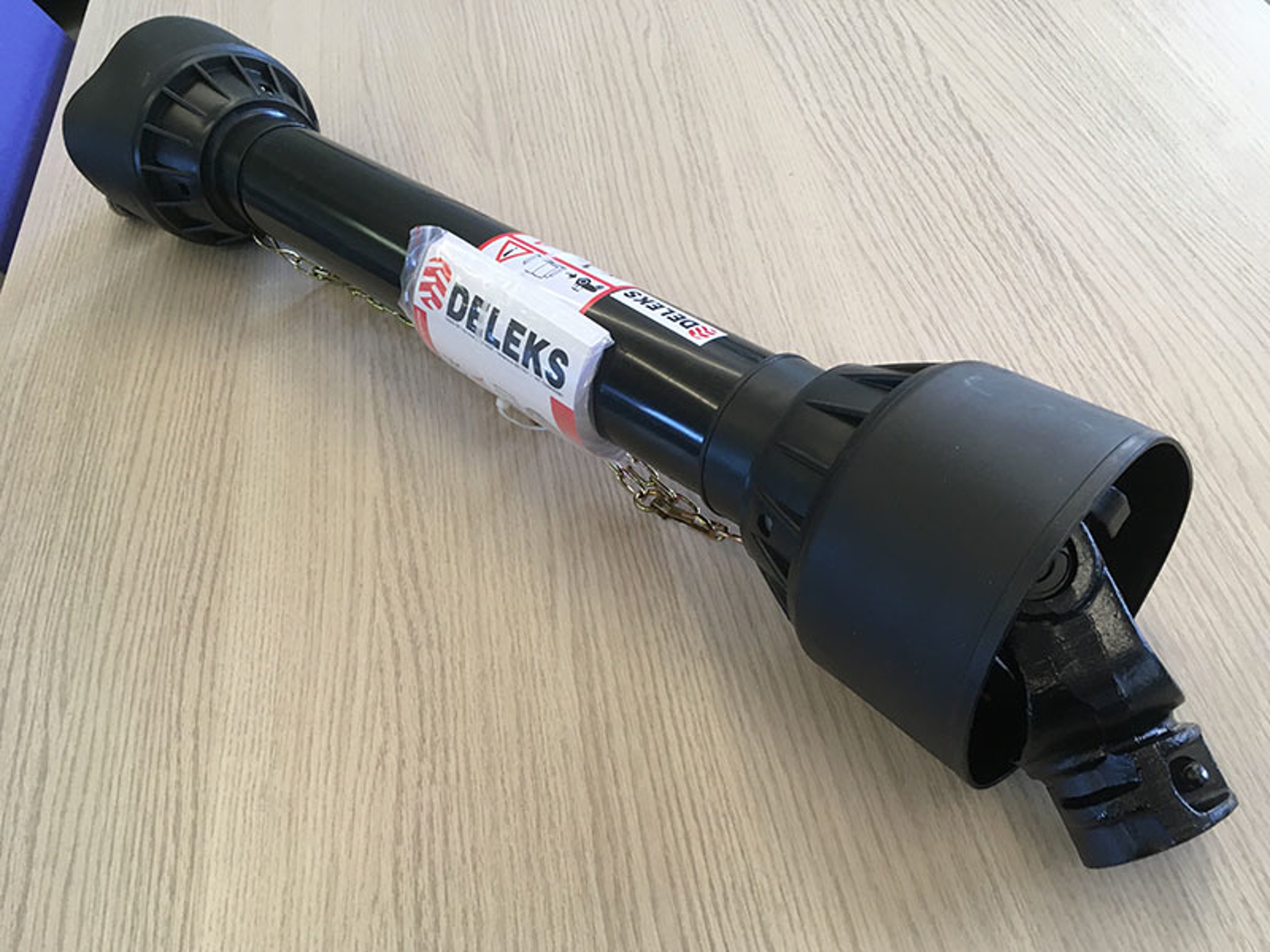

Pto Shaft for tractor.

Dim. 6

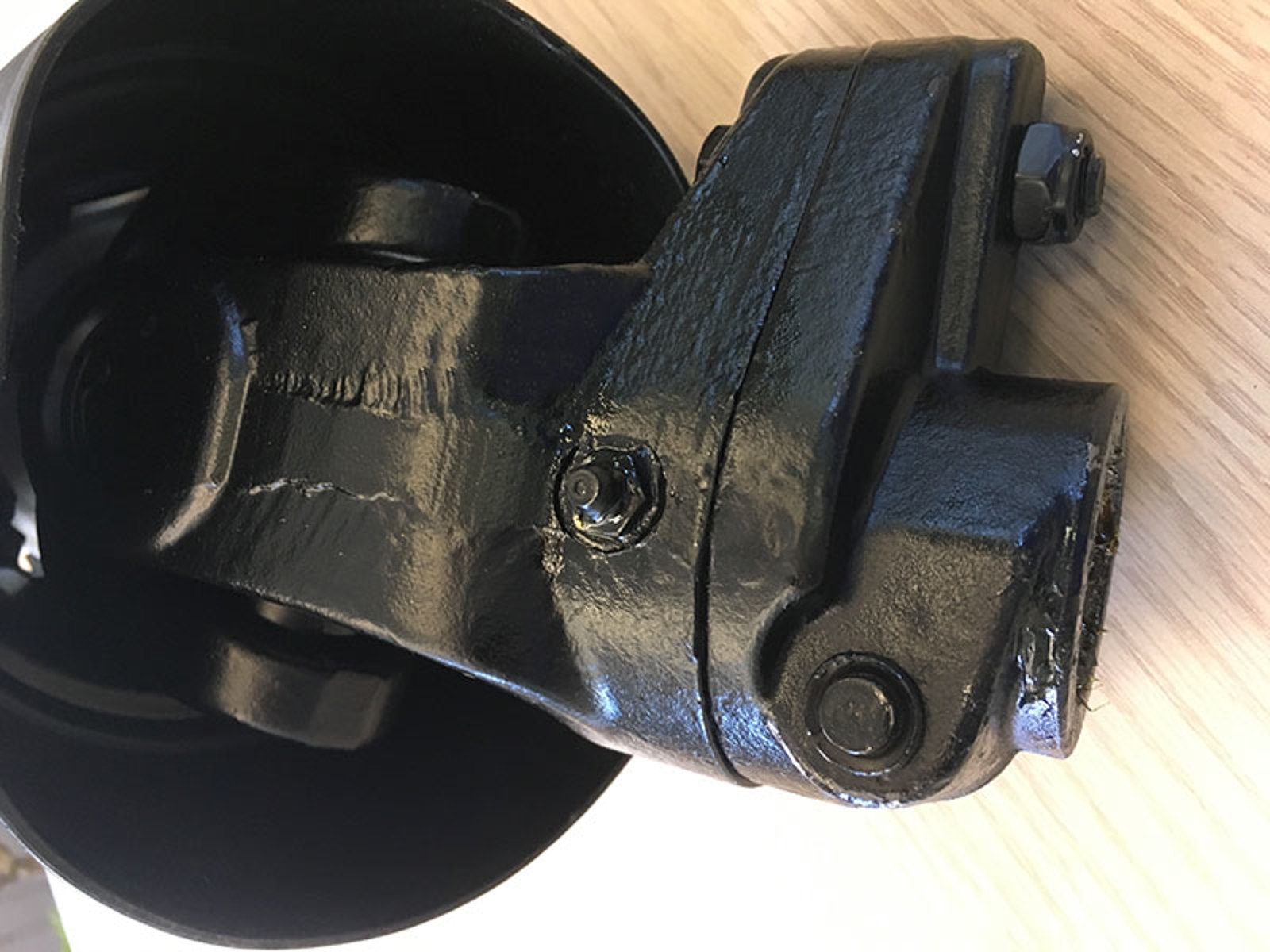

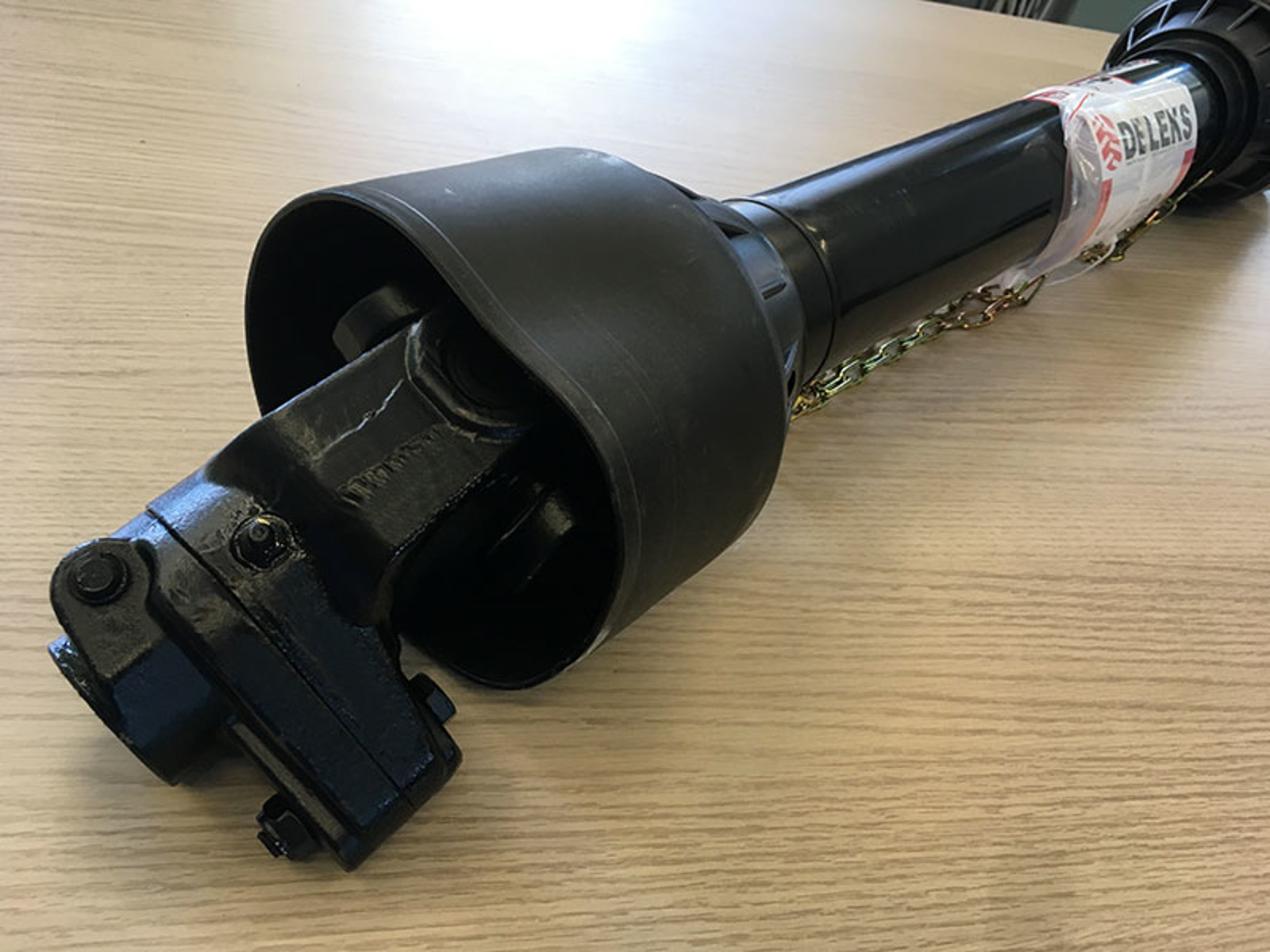

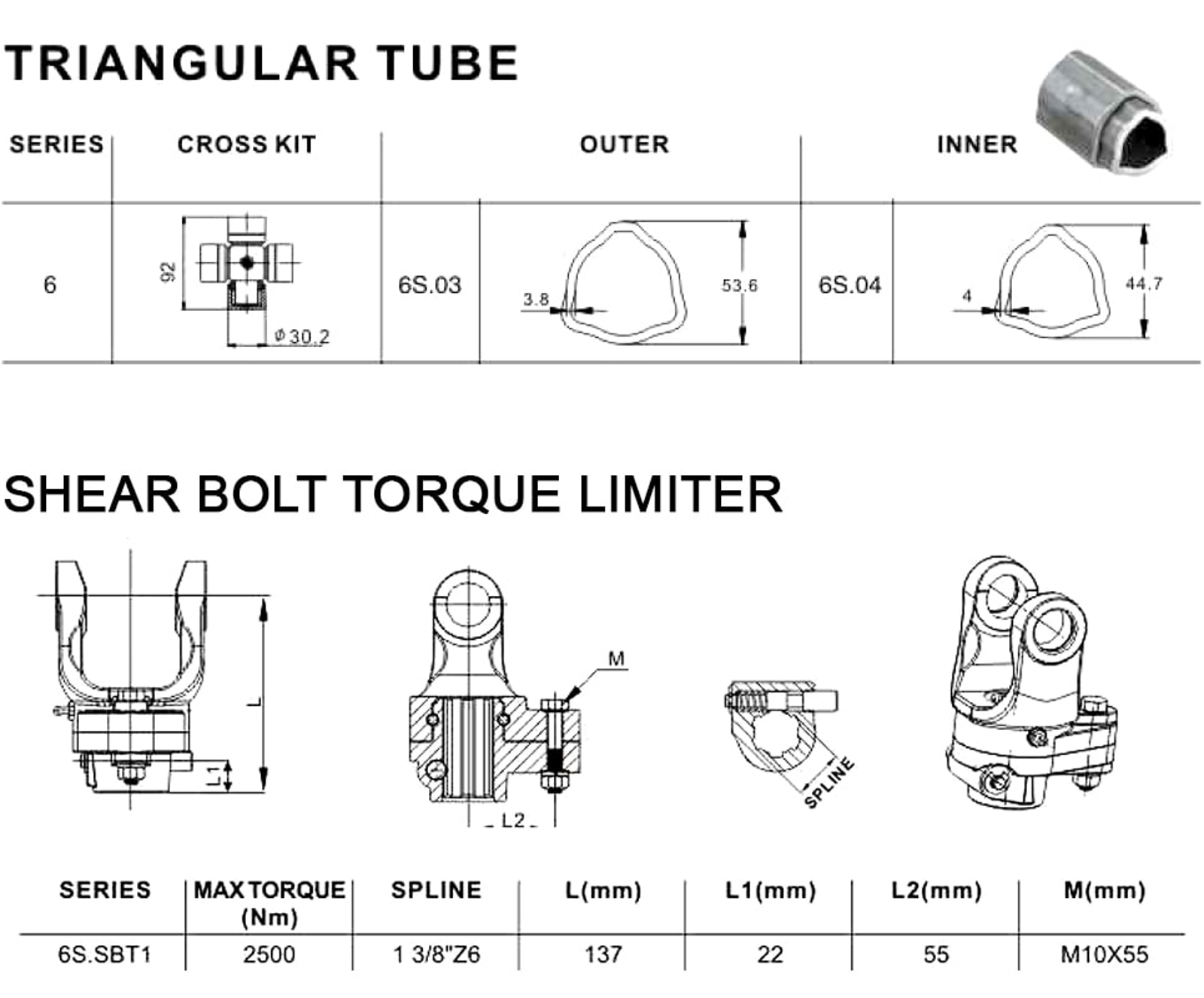

With Shear Bolt Torque Limiter:

This device prevents overloading by means of a shear bolt of specified size. When the bolt shears off, the hub and yoke assembly is kept together by a ball bearing ring which allows the two parts to rotate independent of each other. It is mounted on the implement side.

Min. Length: 1000.0 mm

Cross Kit: ø30.2*92.0

Transmission power at 540 r/min: 64HP (47Kw)

Transmission power at 1000 r/min: 100HP (74Kw)

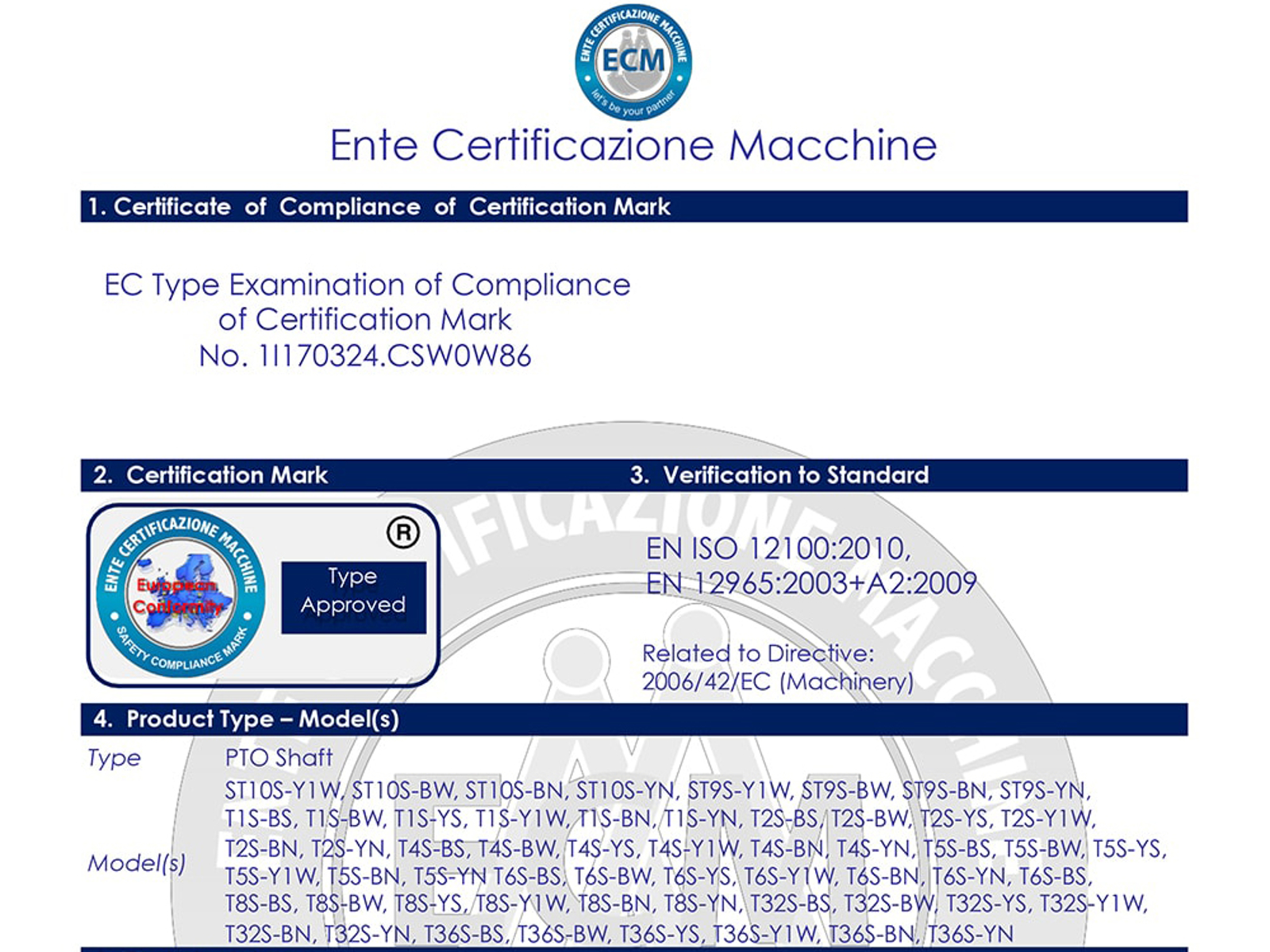

Certification Mark by ECM Ente Certificazione Macchine  (Modena - Italy)

User Manual

2 Years warranty

Beware of sellers offering driveshafts without certification.

CHARACTERISTICS

Characteristic Units metric Units US
Weight 17 kg 37,47854 lb
