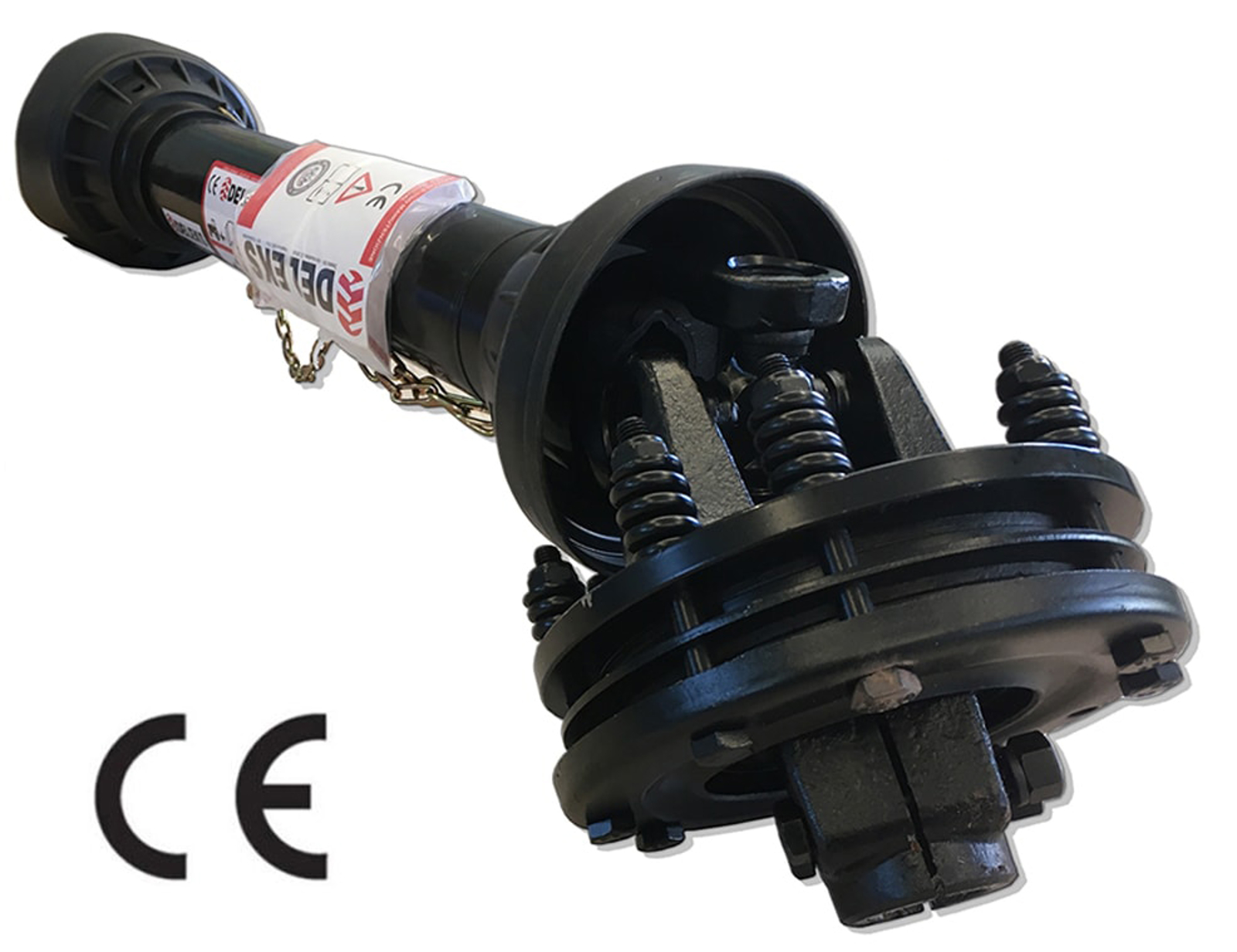

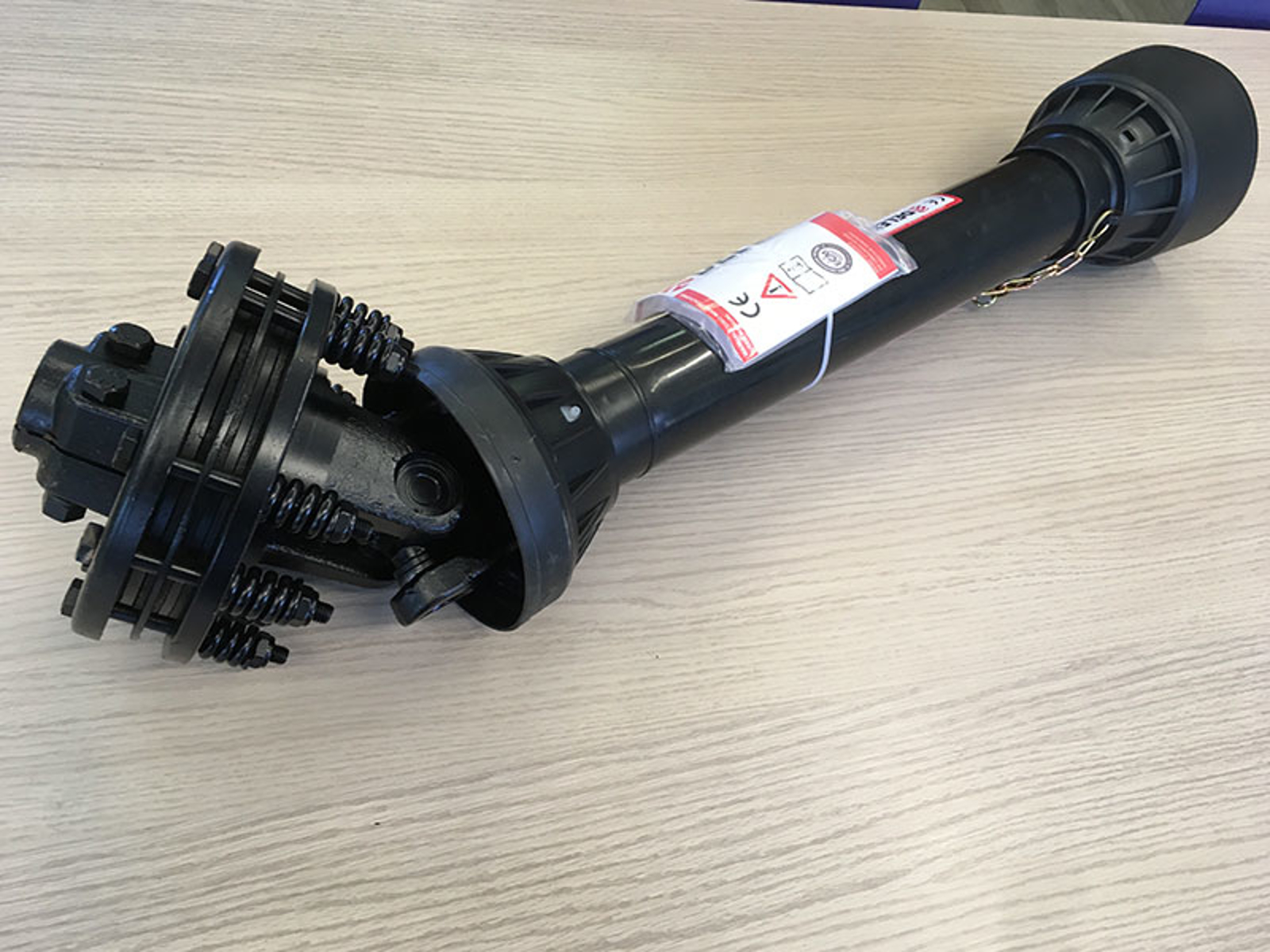

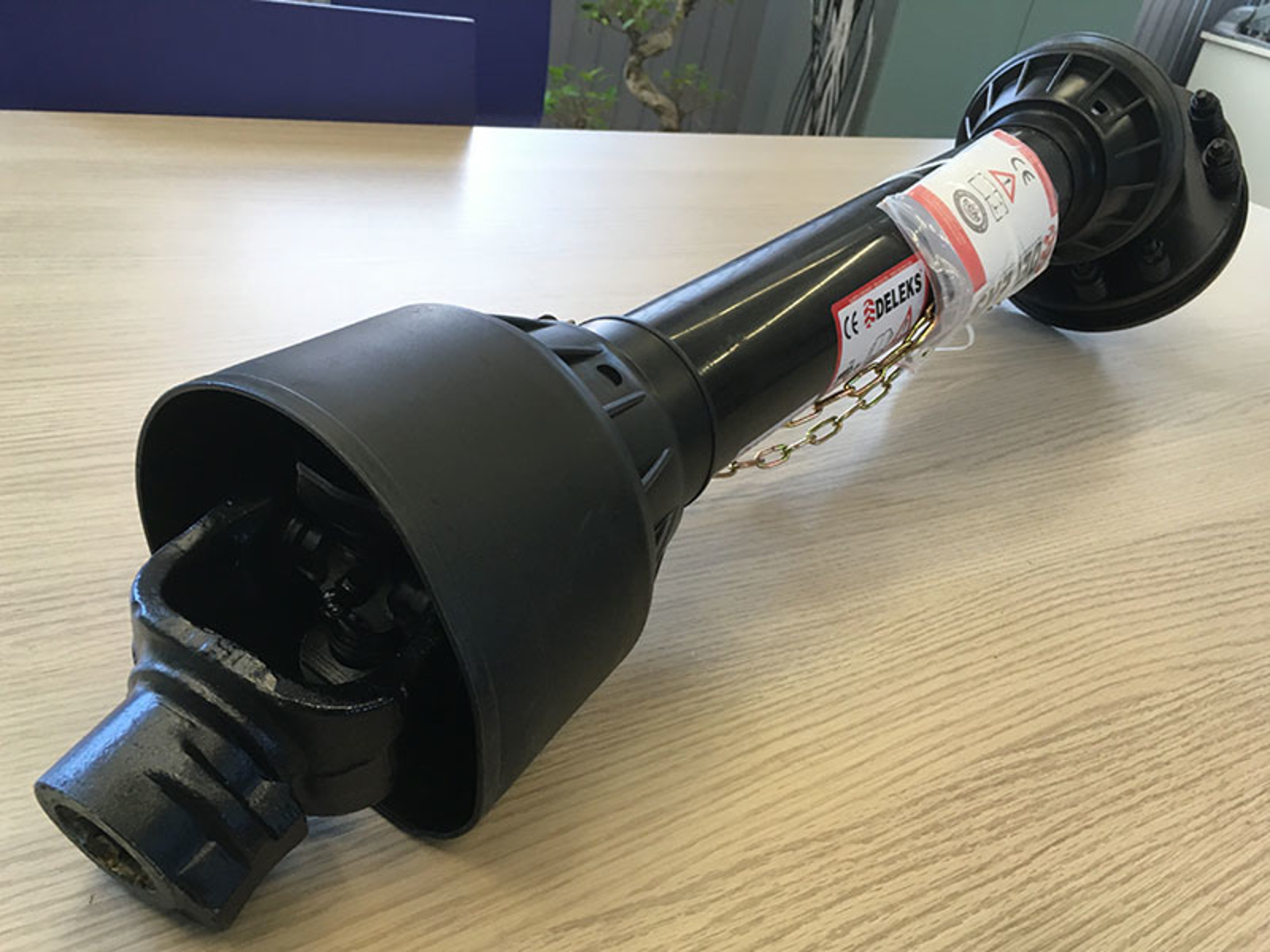

Cardan shaft CAT-6 1000 + Friction


275 reviews

Not available Notify me
Code 6X1000F4
EAN 8053470232138
View all details.
270,00VAT incl.
Free shipping


Pto Shaft for tractor.

Dim. 6

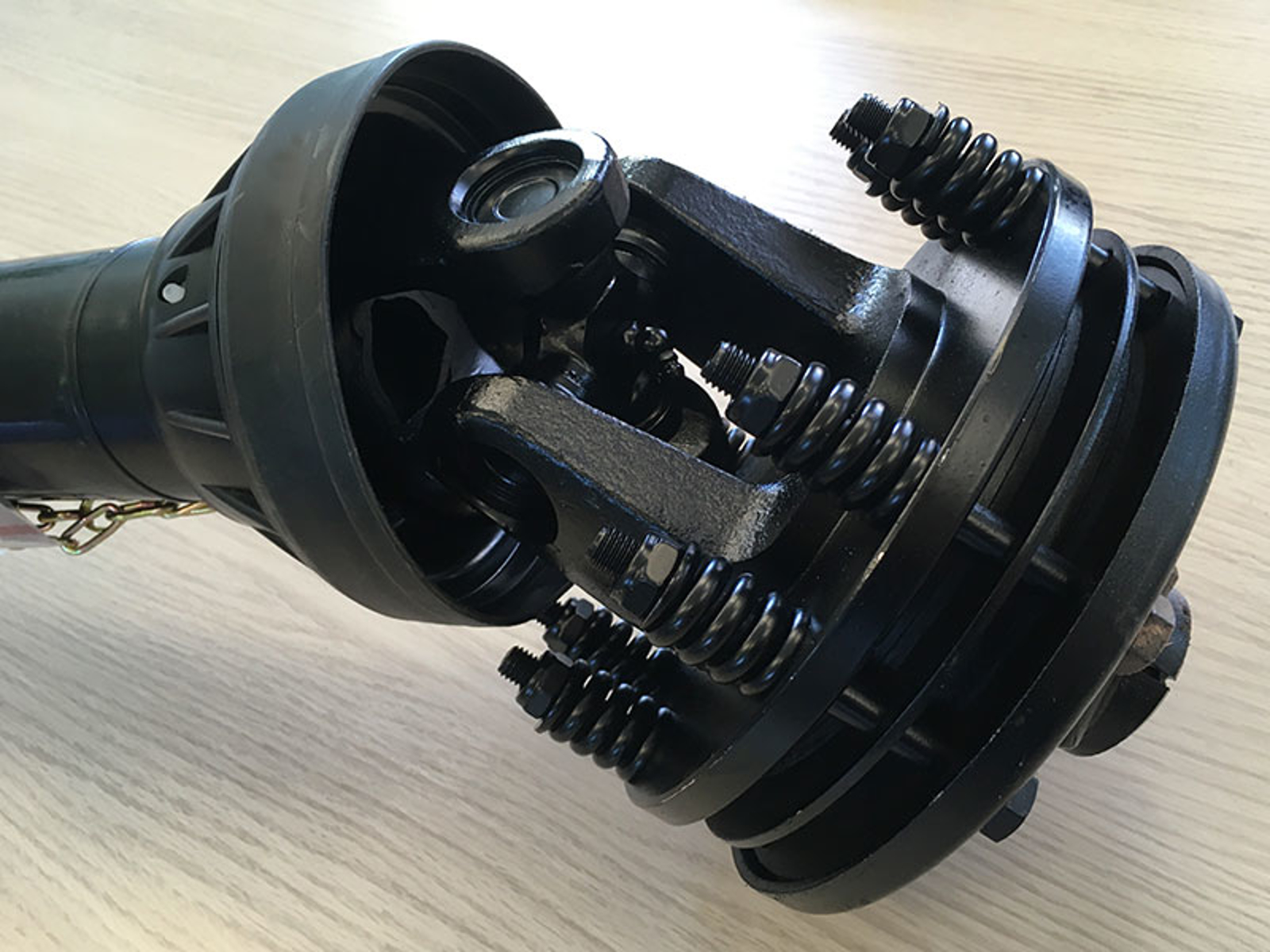

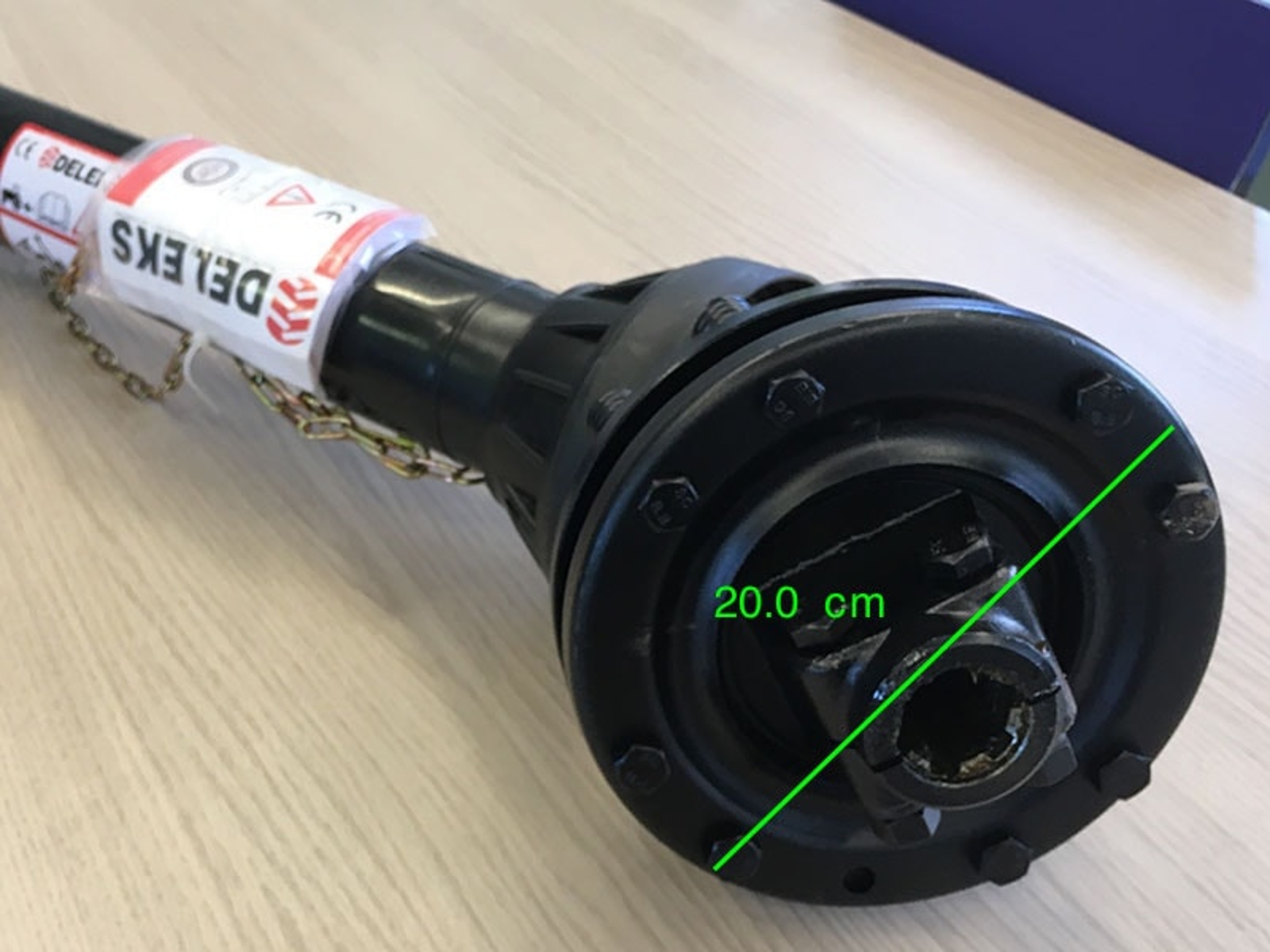

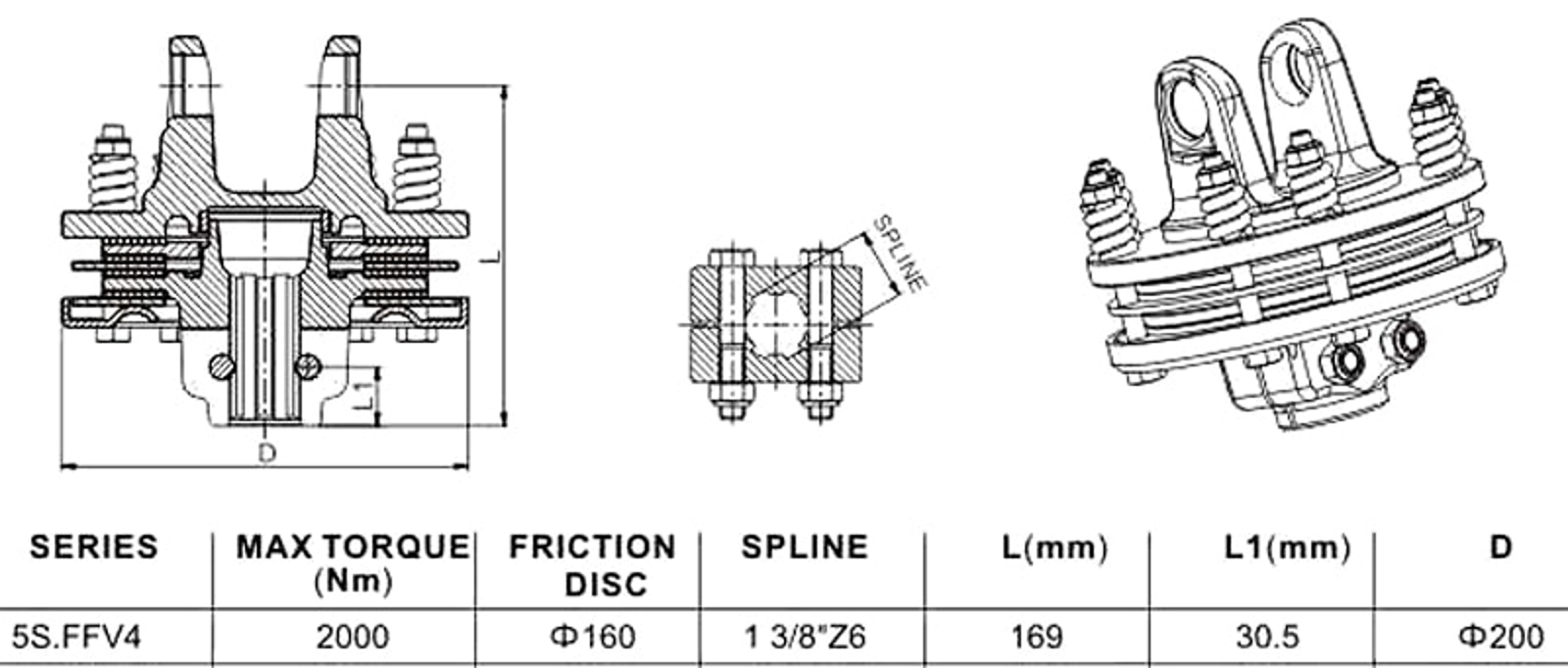

With adjustable Friction Torque Limiter ø 200 mm, 1600 Nm

Min. Length: 1000.0 mm

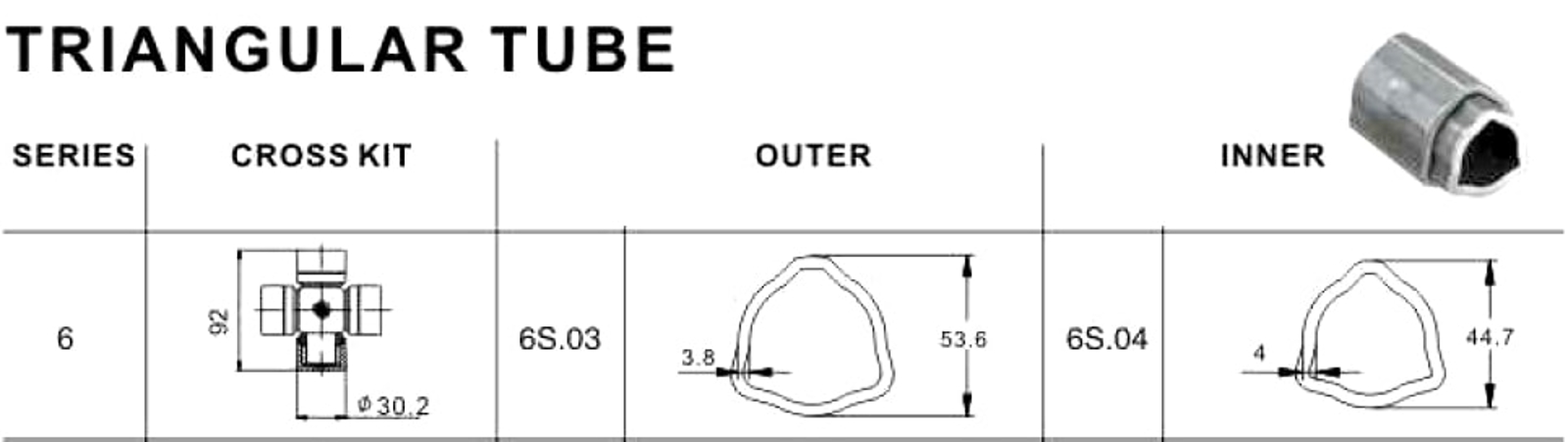

Cross Kit: ø30.2*92.0

Transmission power at 540 r/min: 64HP (47Kw)

Transmission power at 1000 r/min: 100HP (74Kw)

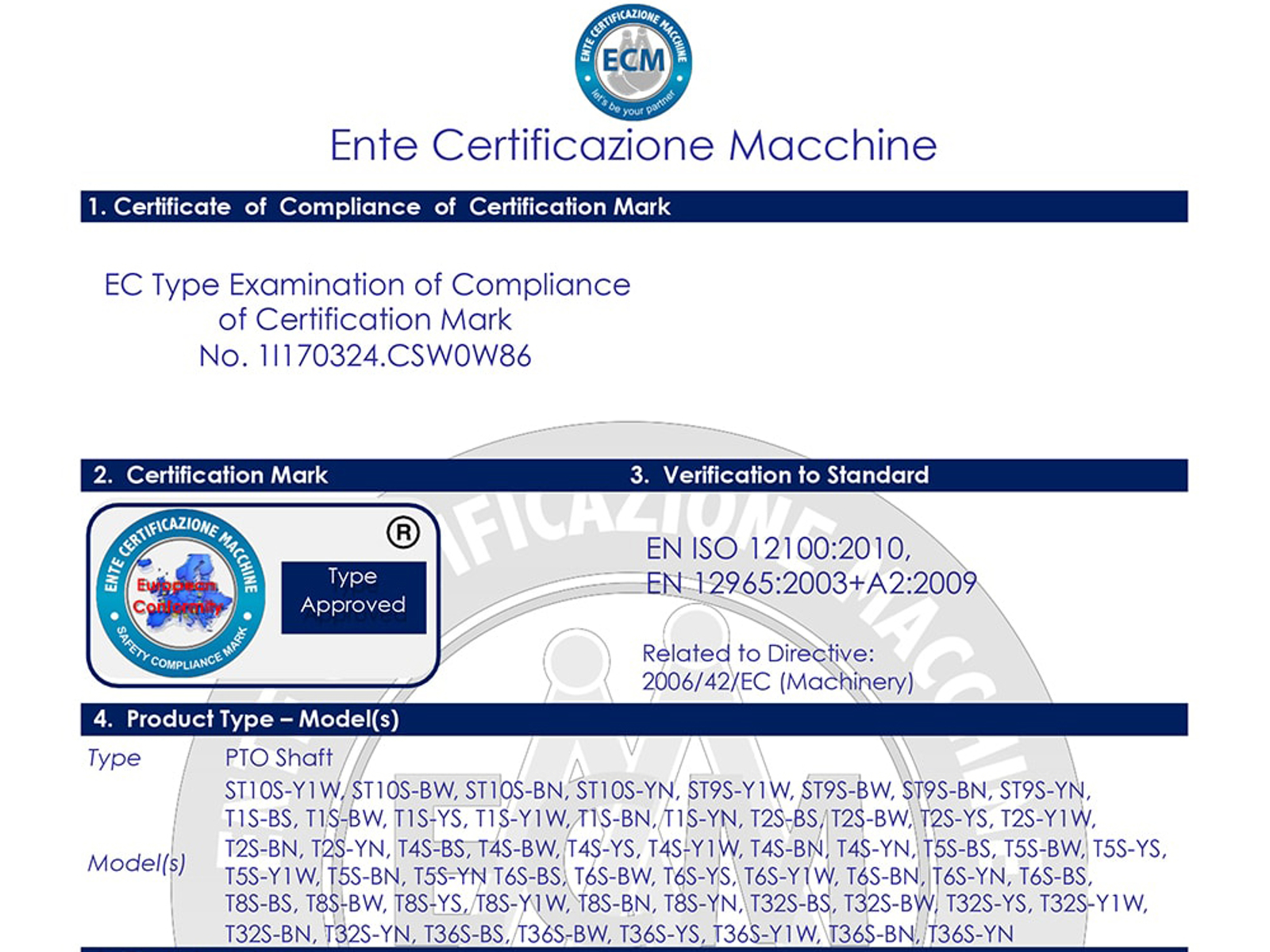

Certification Mark by ECM Ente Certificazione Macchine  (Modena - Italy)

User Manual

2 Years warranty

Beware of sellers offering driveshafts without certification.


Characteristic Units metric Units US
Weight 23 kg 50,70626 lb
