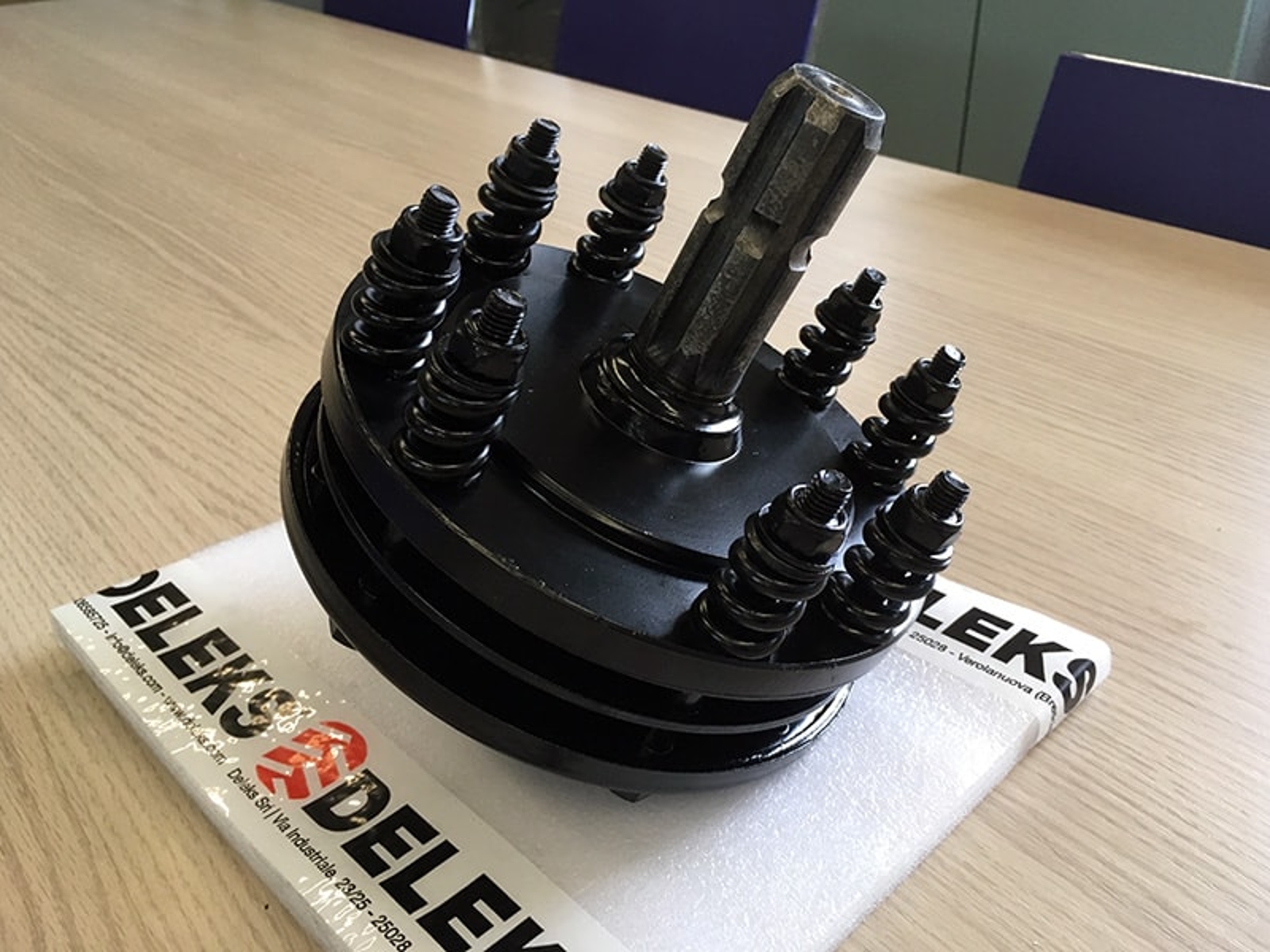

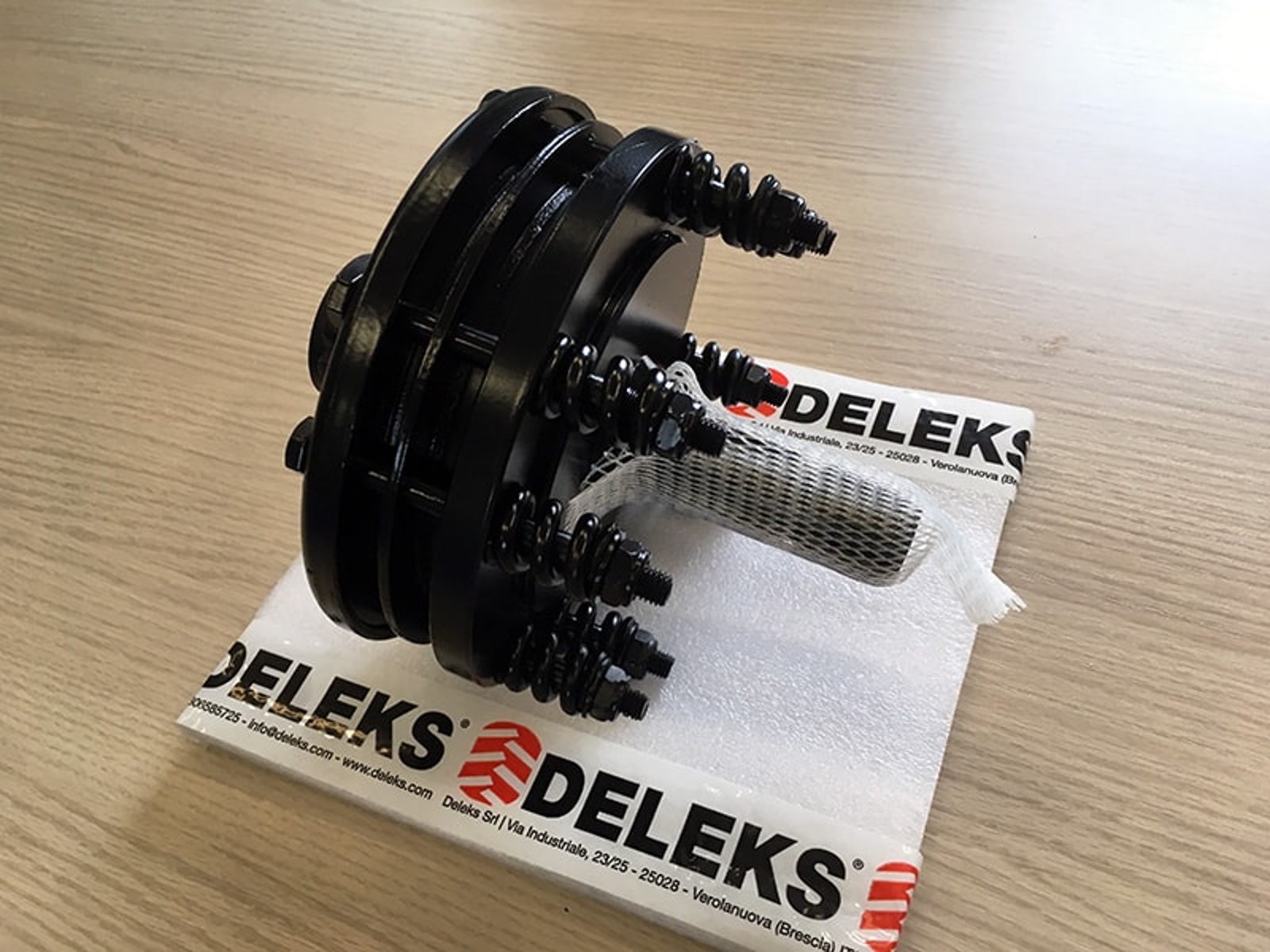

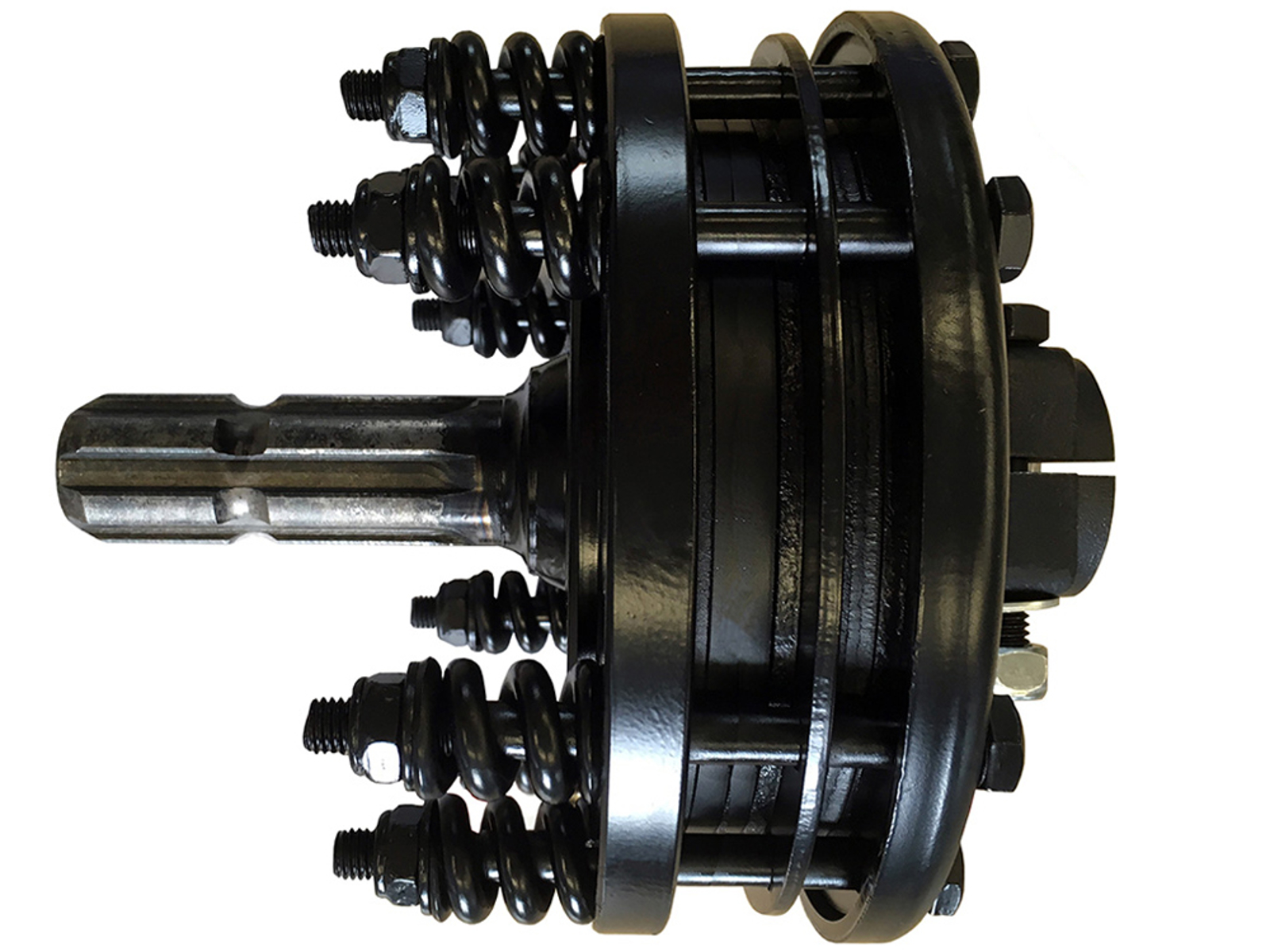

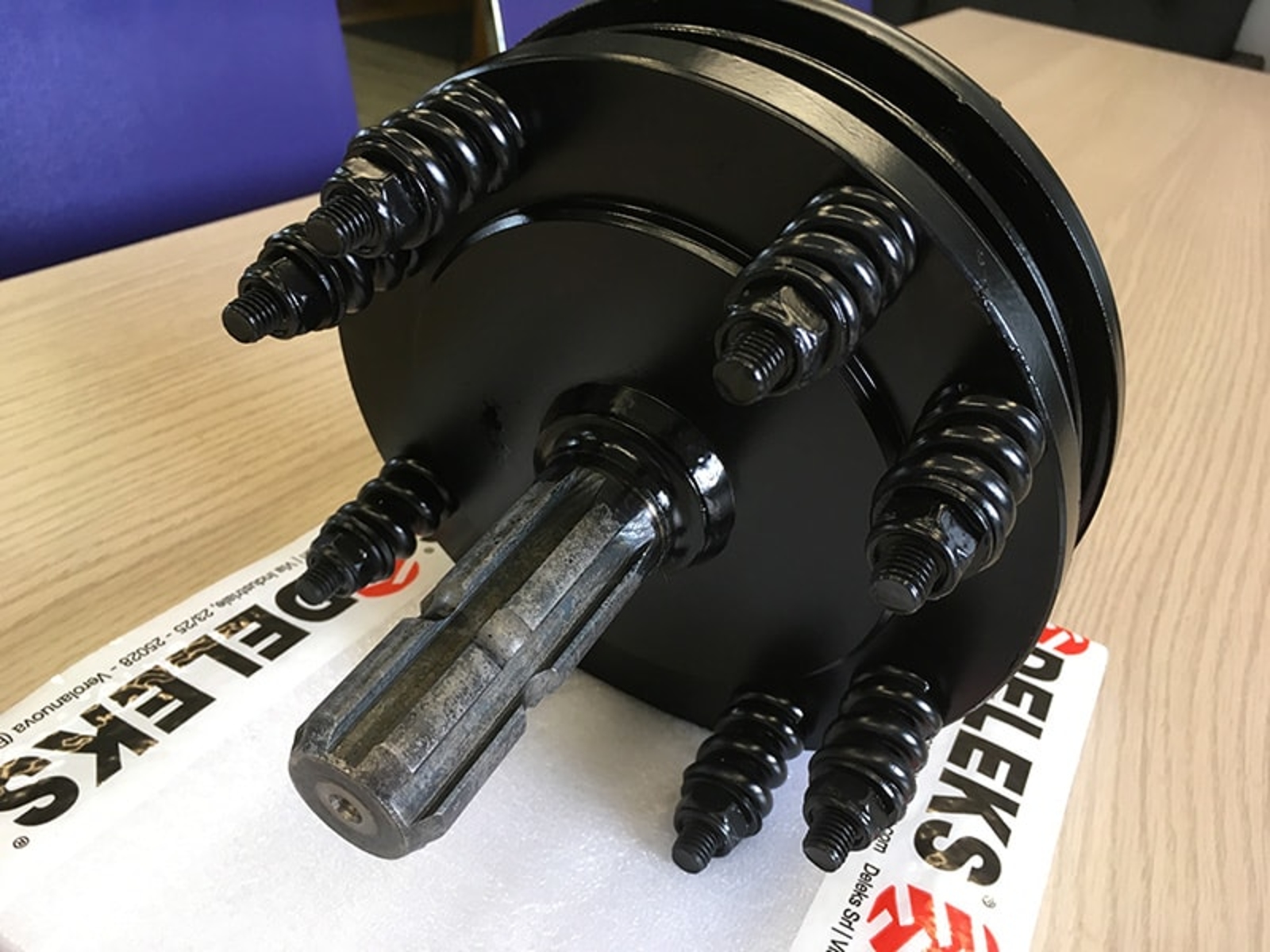

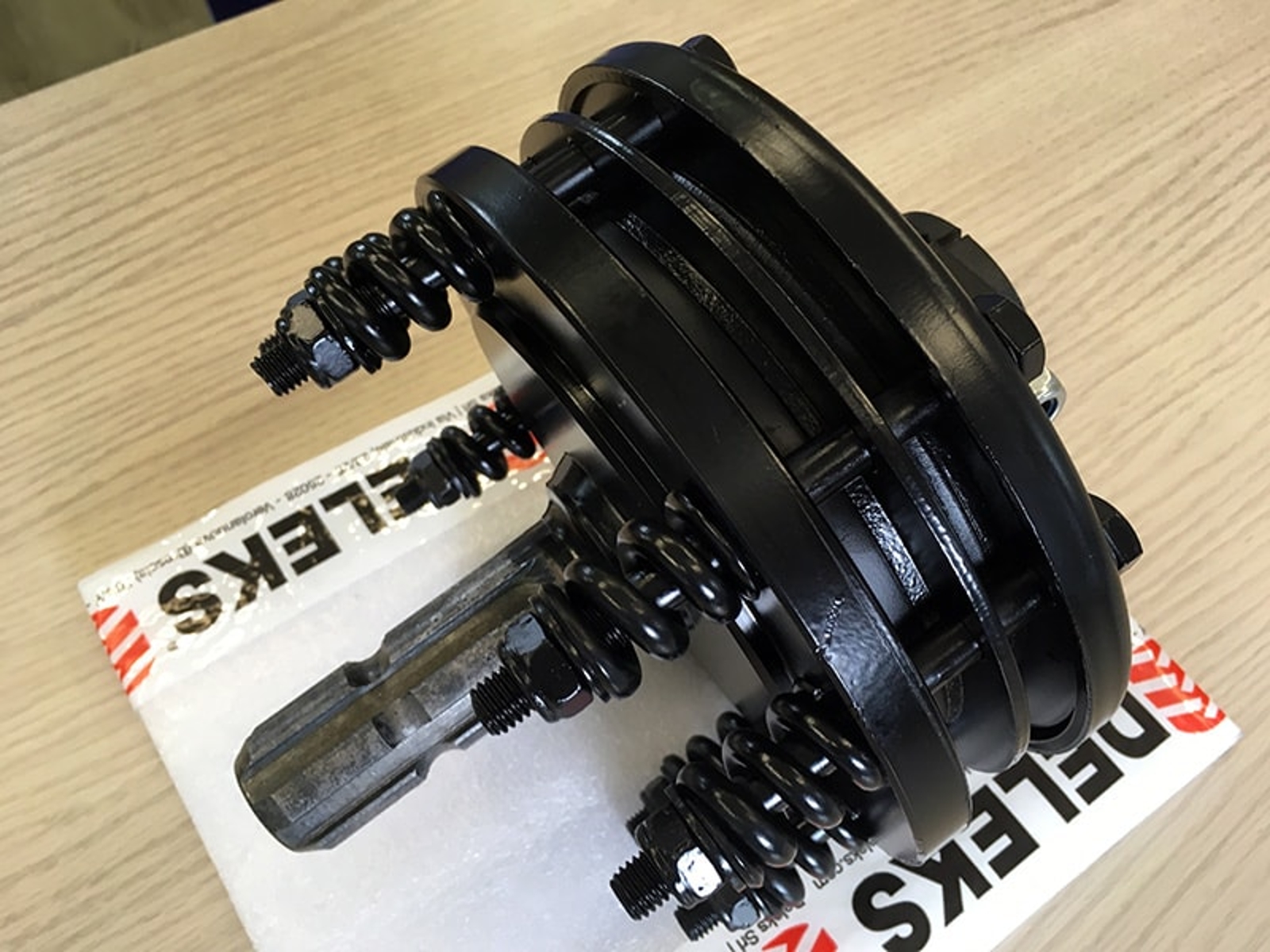

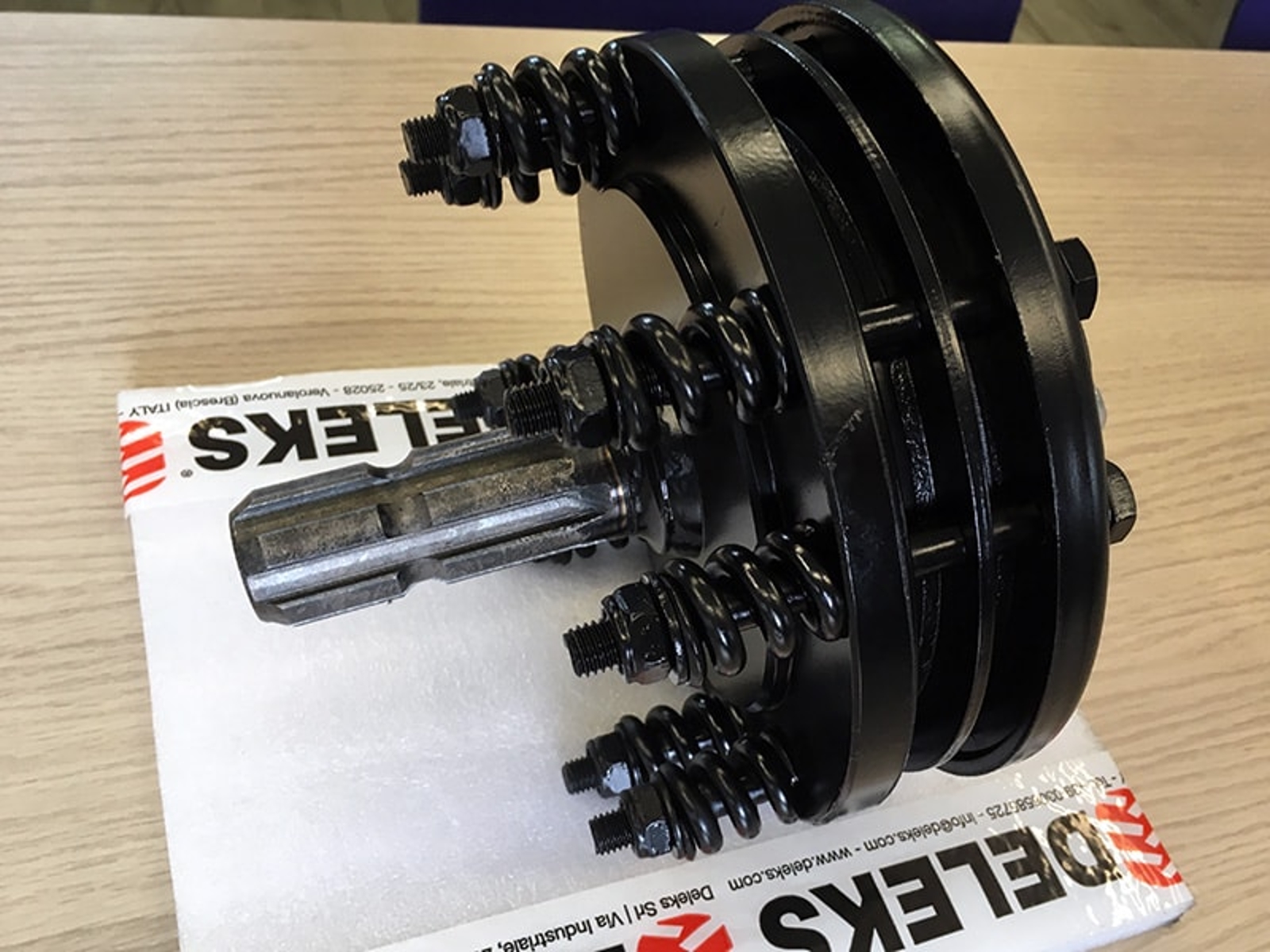

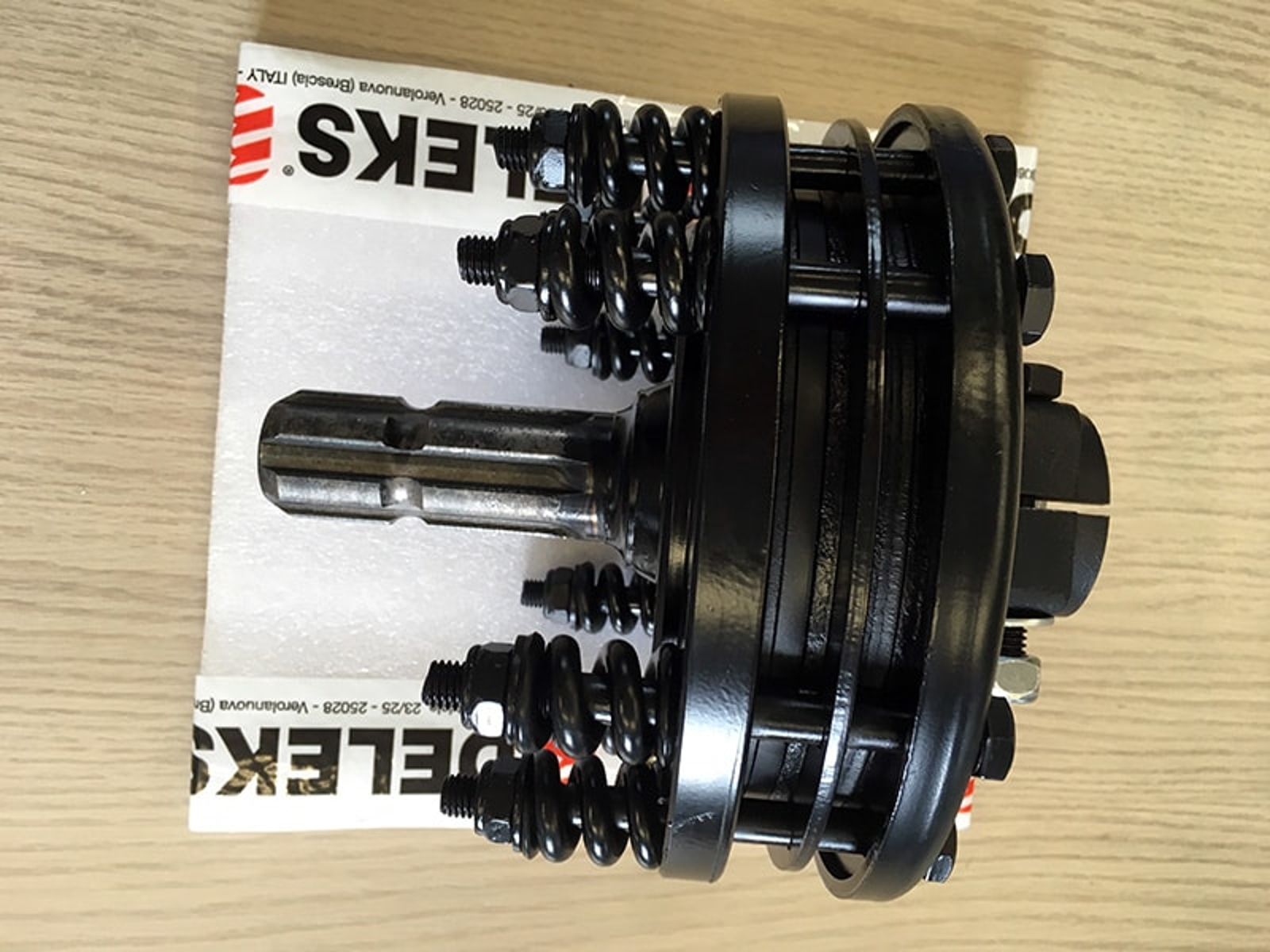

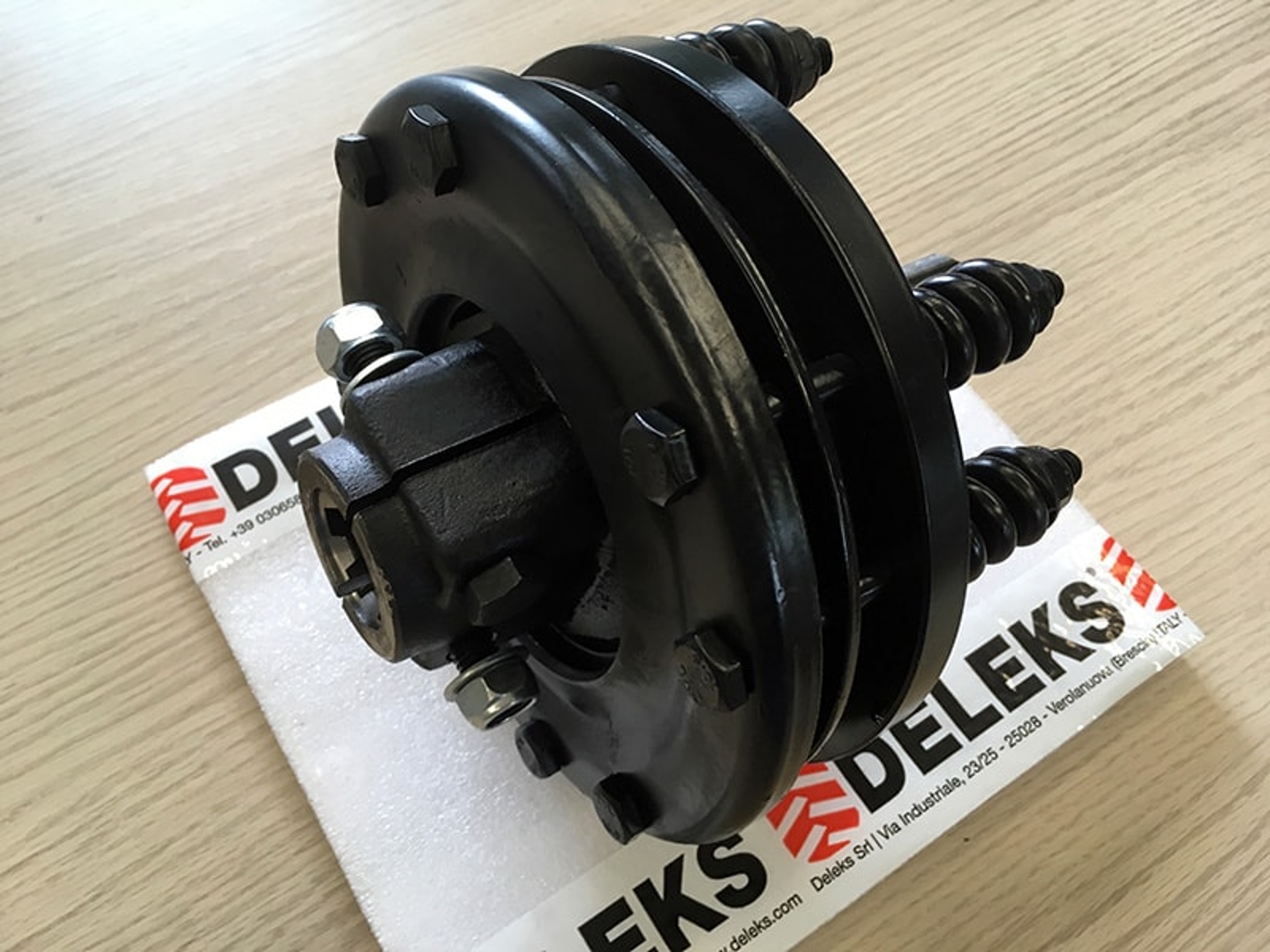

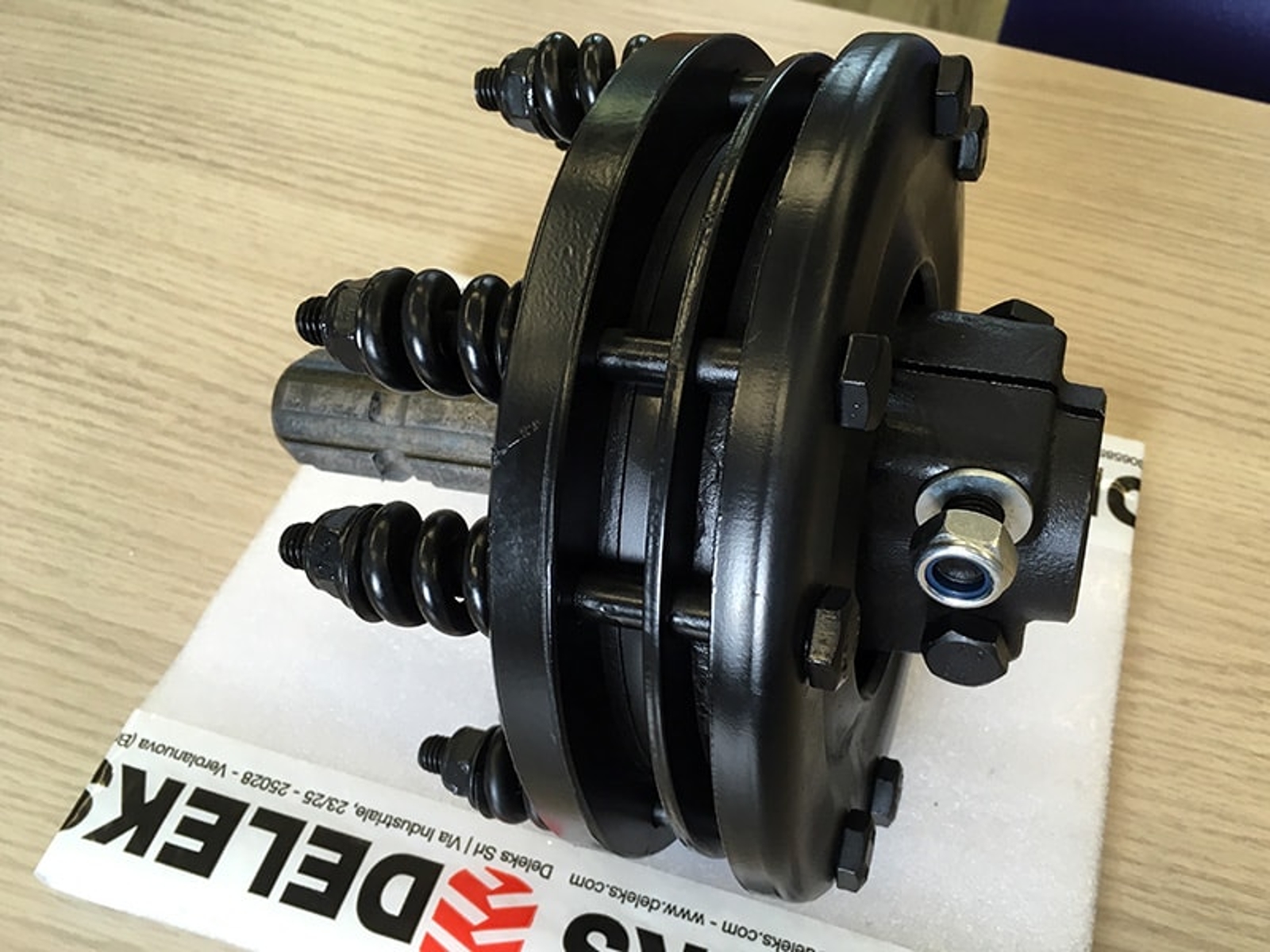

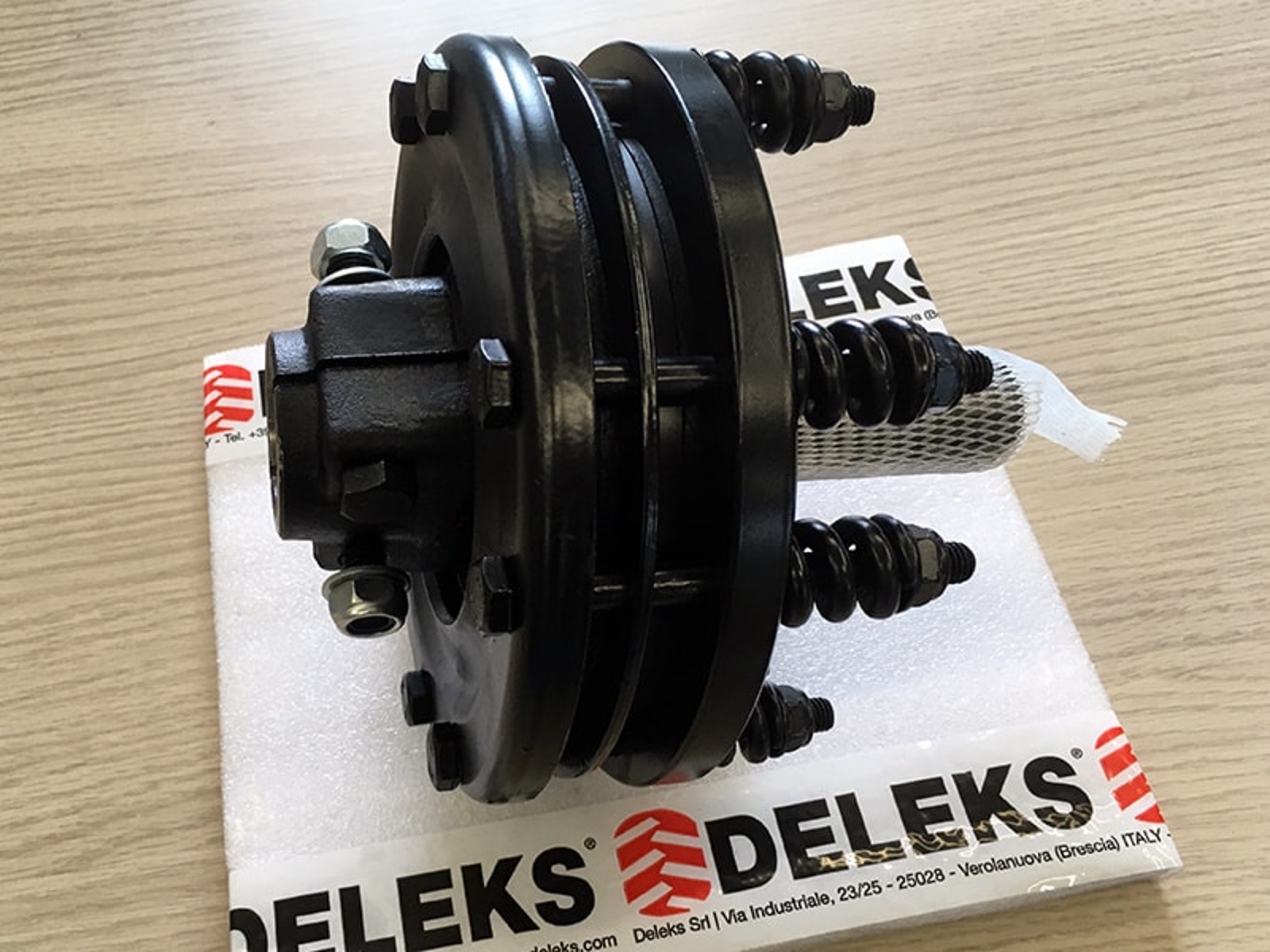

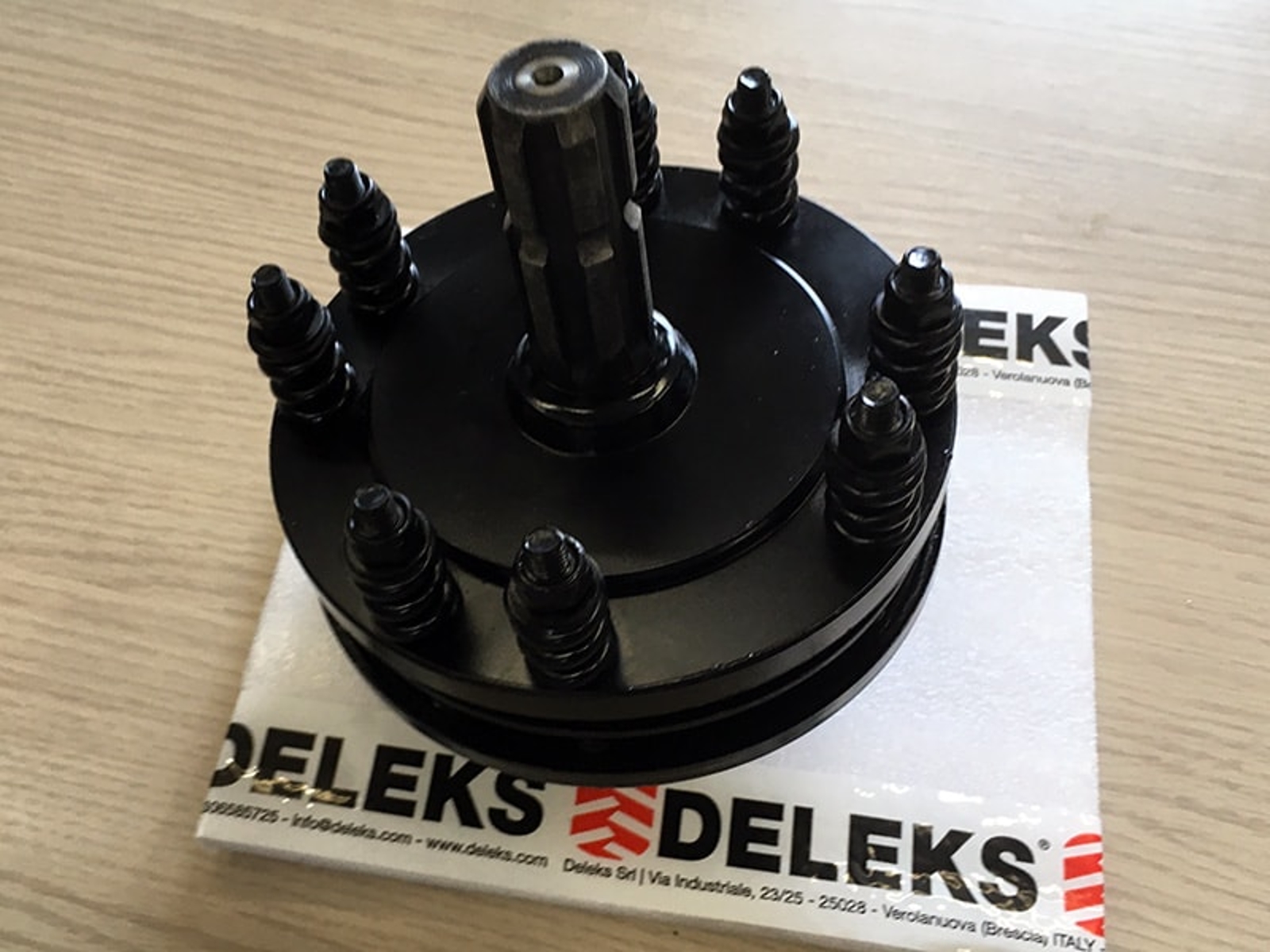

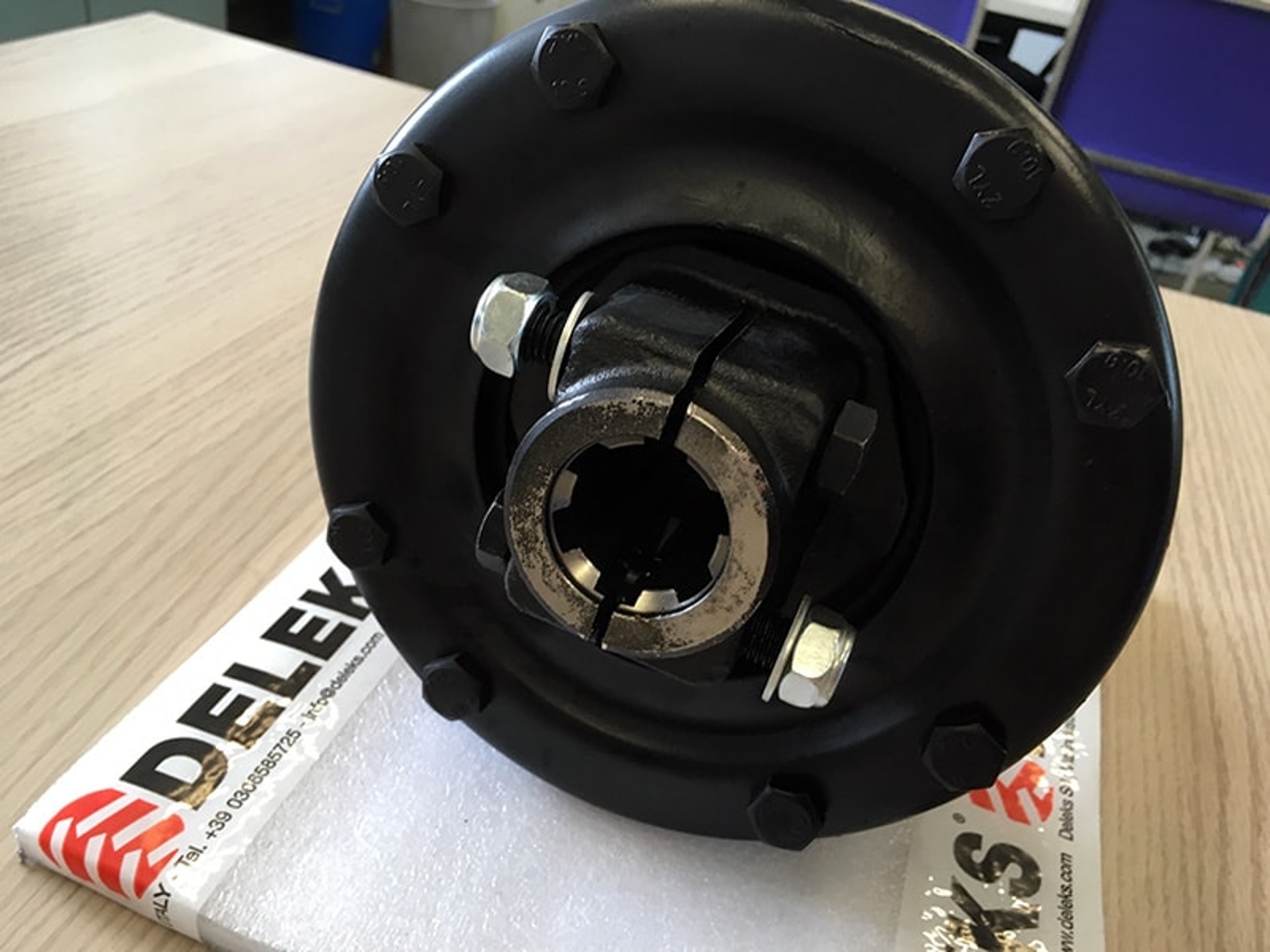

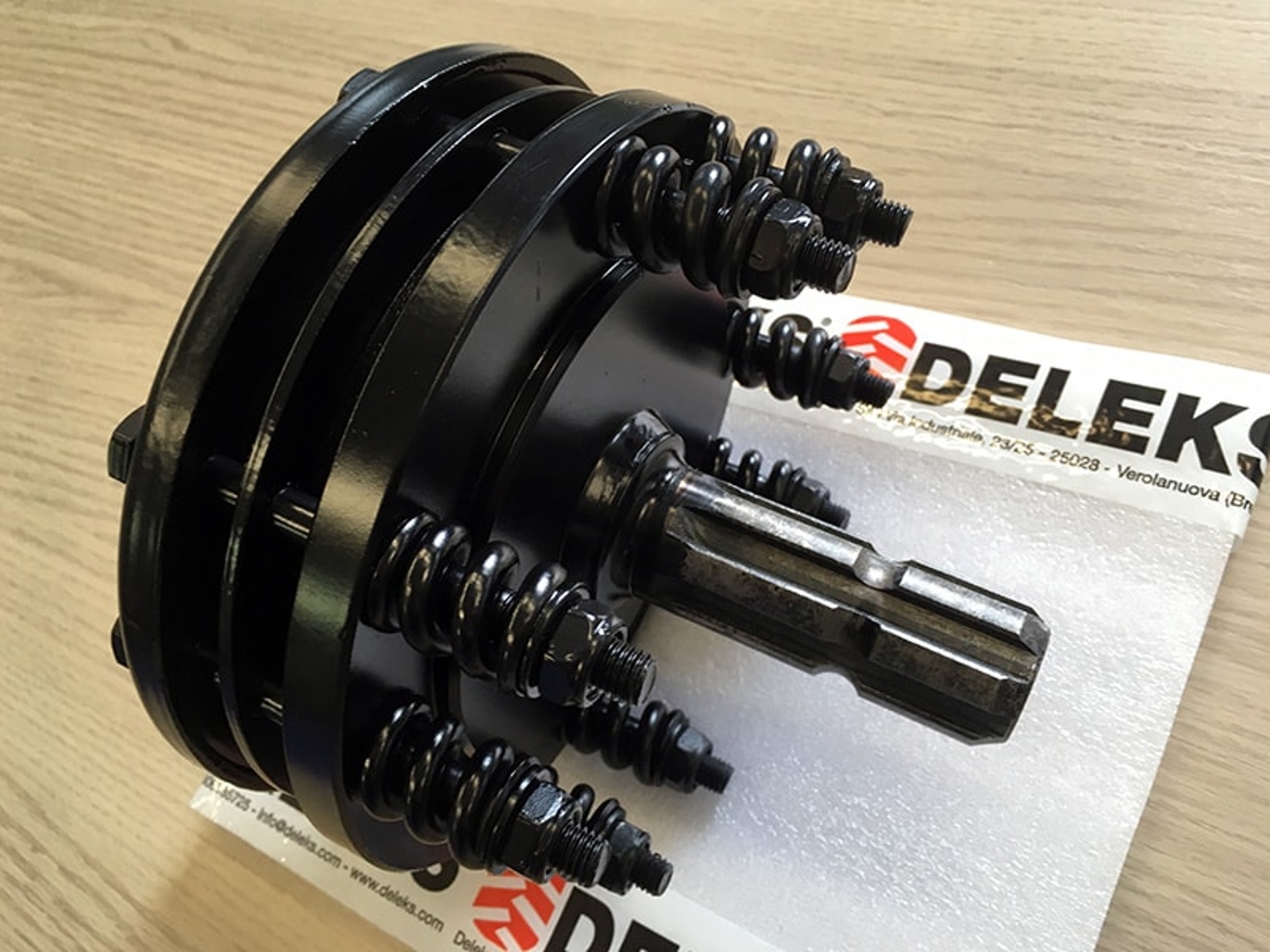

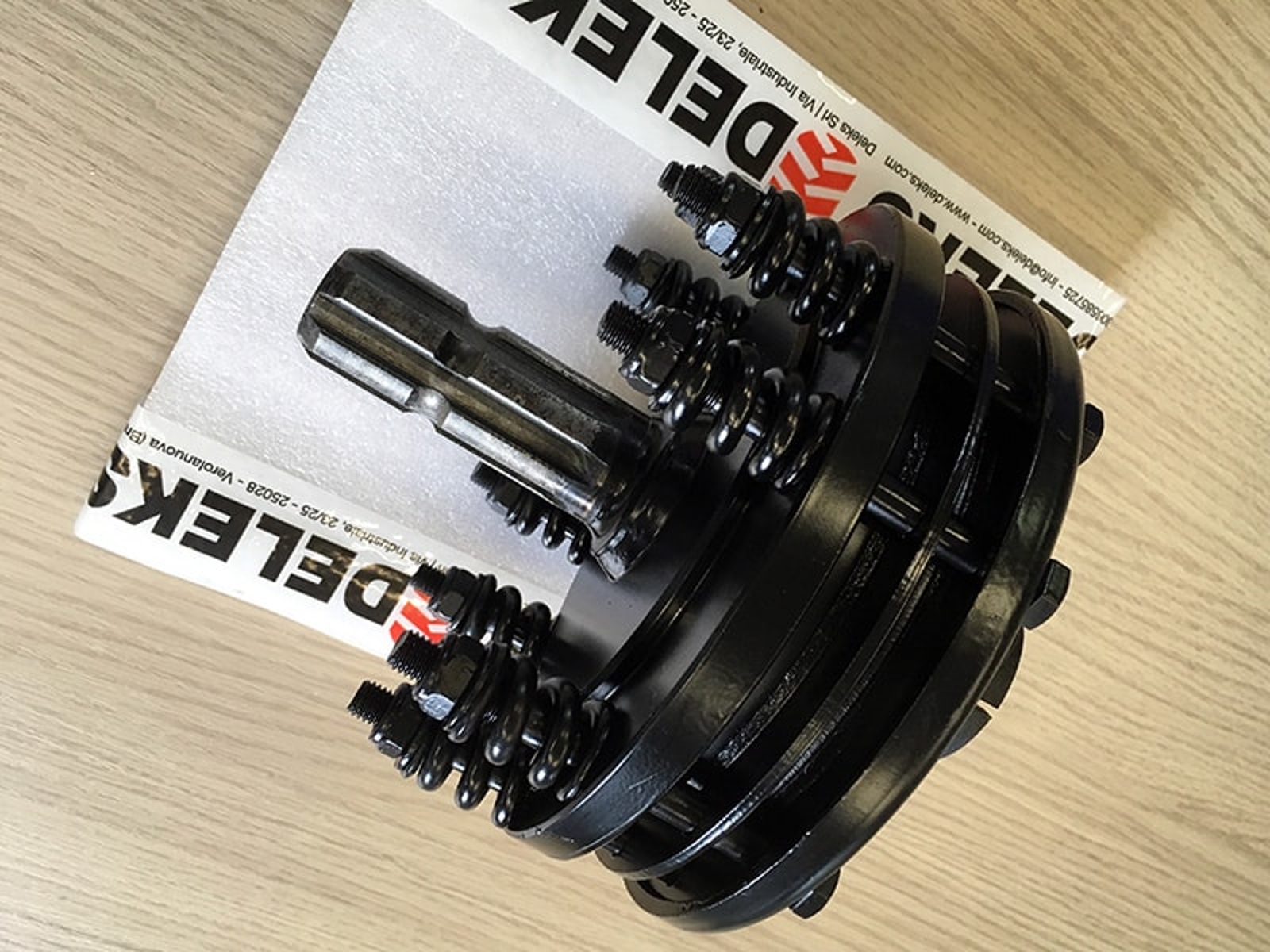

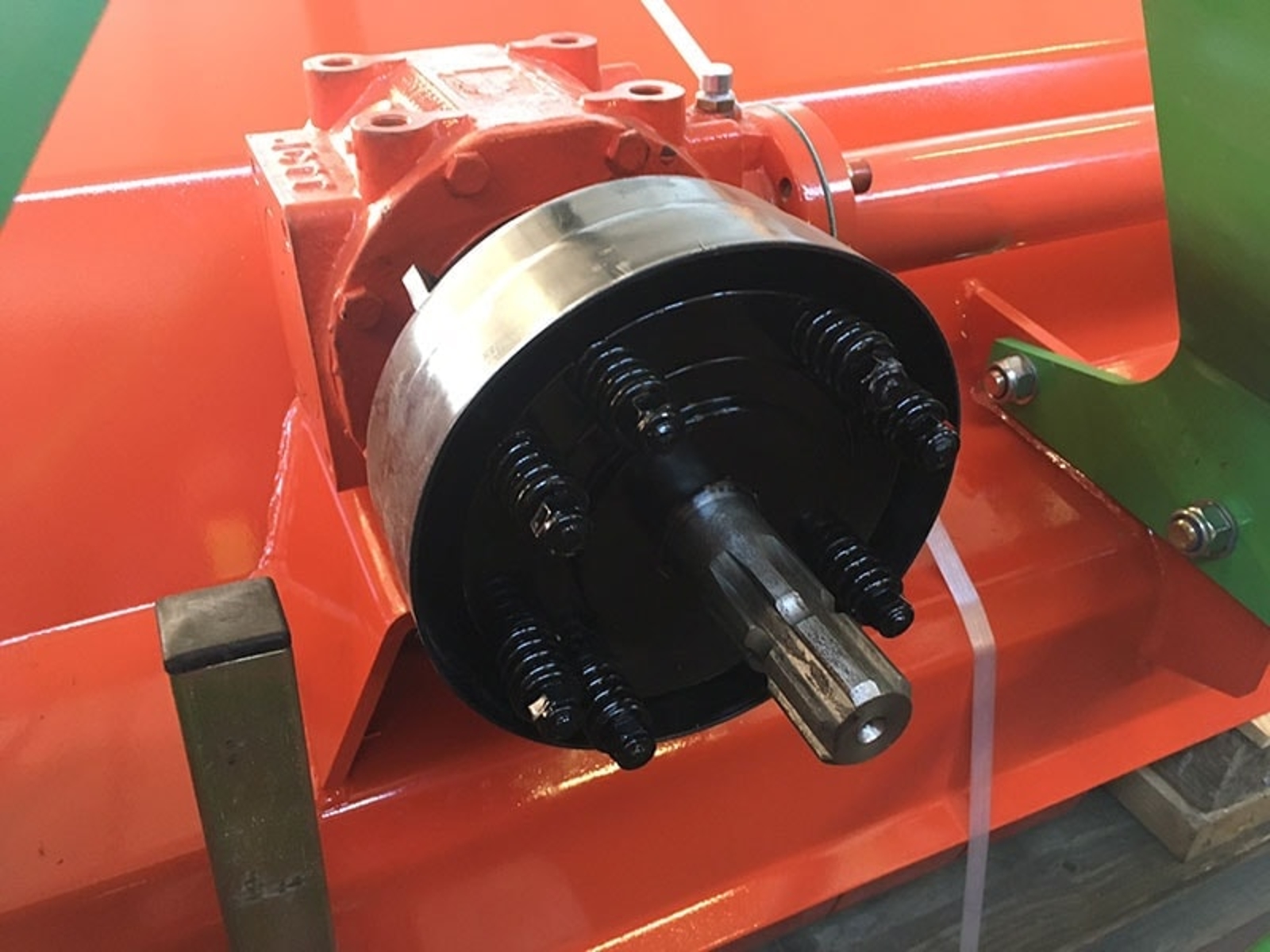

F4 Friction Torque limiter

Available
CodeF4
EAN 8053470232244
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

F4 PTO Friction Clutch Torque Limiter 1500 Nm x 6 Spline Male and Female

2 clutch plates

ECM Certification Body Machines (Bologna - Italy)

Fits Bondioli & Pavesi, Comer, and Walterscheid applications.



DESCRIPTION

For Use in Converting Rotary Cutters from Shear Pin Type to Slip Clutch.

It prevents overloading when the present torque is reached. Since the torque continues to be transmitted, no interruptions of work are necessary. External springs allow torque setting to be adjusted easily. It is mounted on the implement side.

  •     Quick Release Both Ends
  •     CE Approved to meet UK safety regulations
  •     2 Years warranty

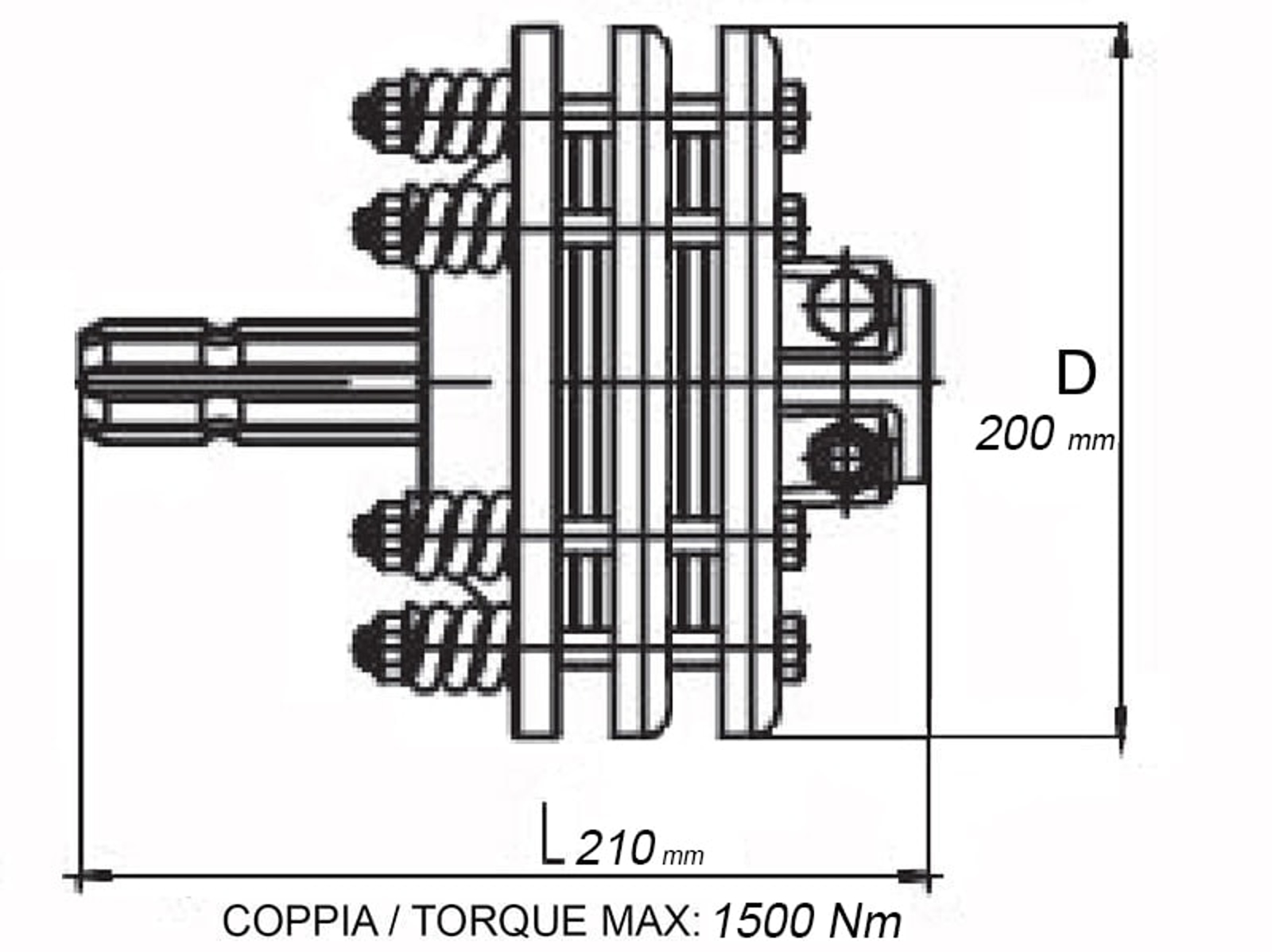

TECHNICAL SPECS

Female: 1-3/8" x 6 Spline

Male: 1-3/8" x 6 Spline

Weight: 12,50 kg

Nm: 1500

Disc ø: 160 mm

External ø: 200 mm

Hp max: 100

CARACTERISTICS

Caracteristic Units metric Units US
Weight 7 kg 15,43234 lb
