Grader blade 130cm for tractors, rear blade mod. DL-130

Not available Notify me
Code DL130
EAN 8053470230240
****
TOTAL
556,00VAT incl.
Free shipping

VIDEO
Field test
Field test
Field test
Field test

DETAILS

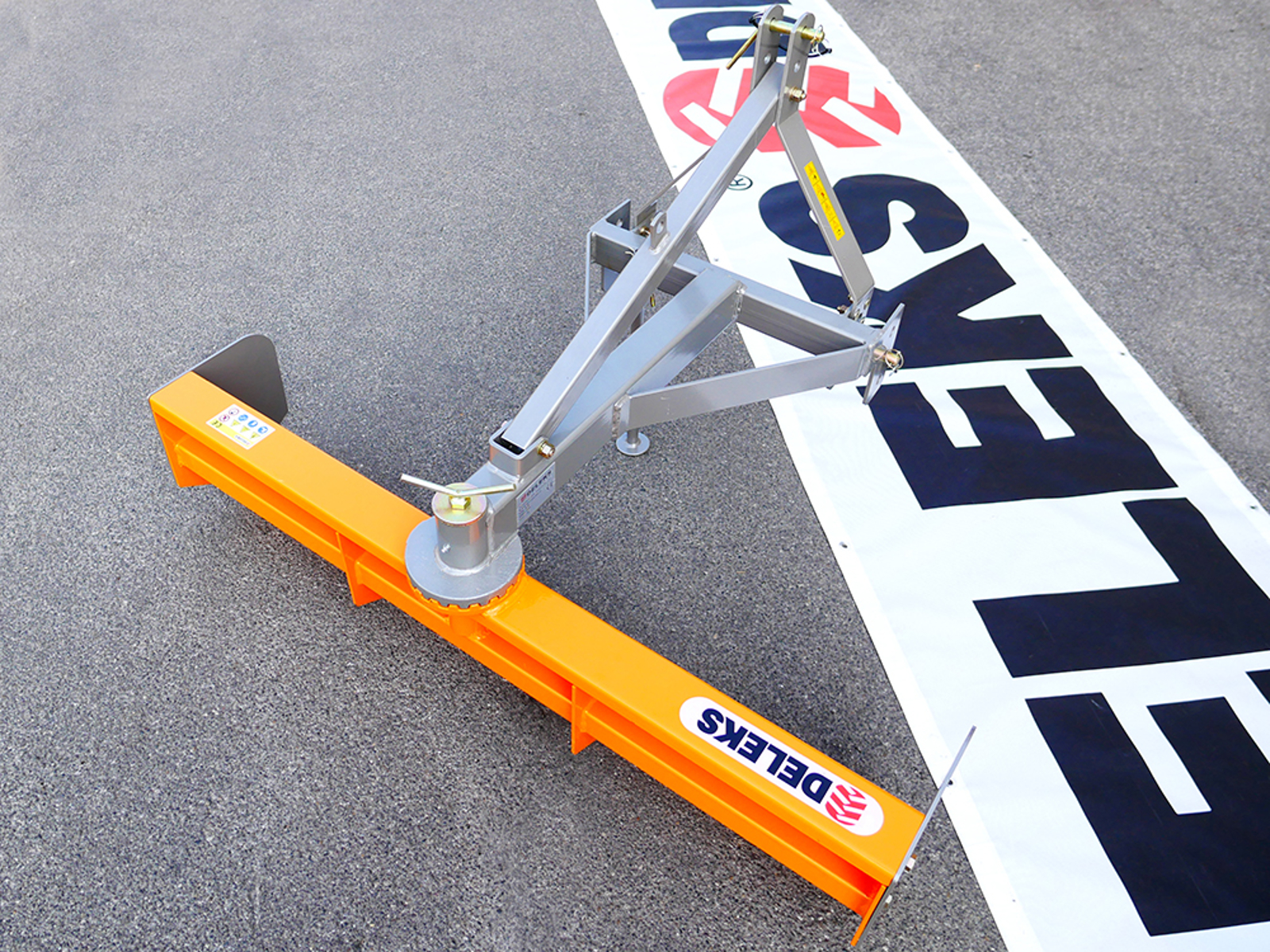

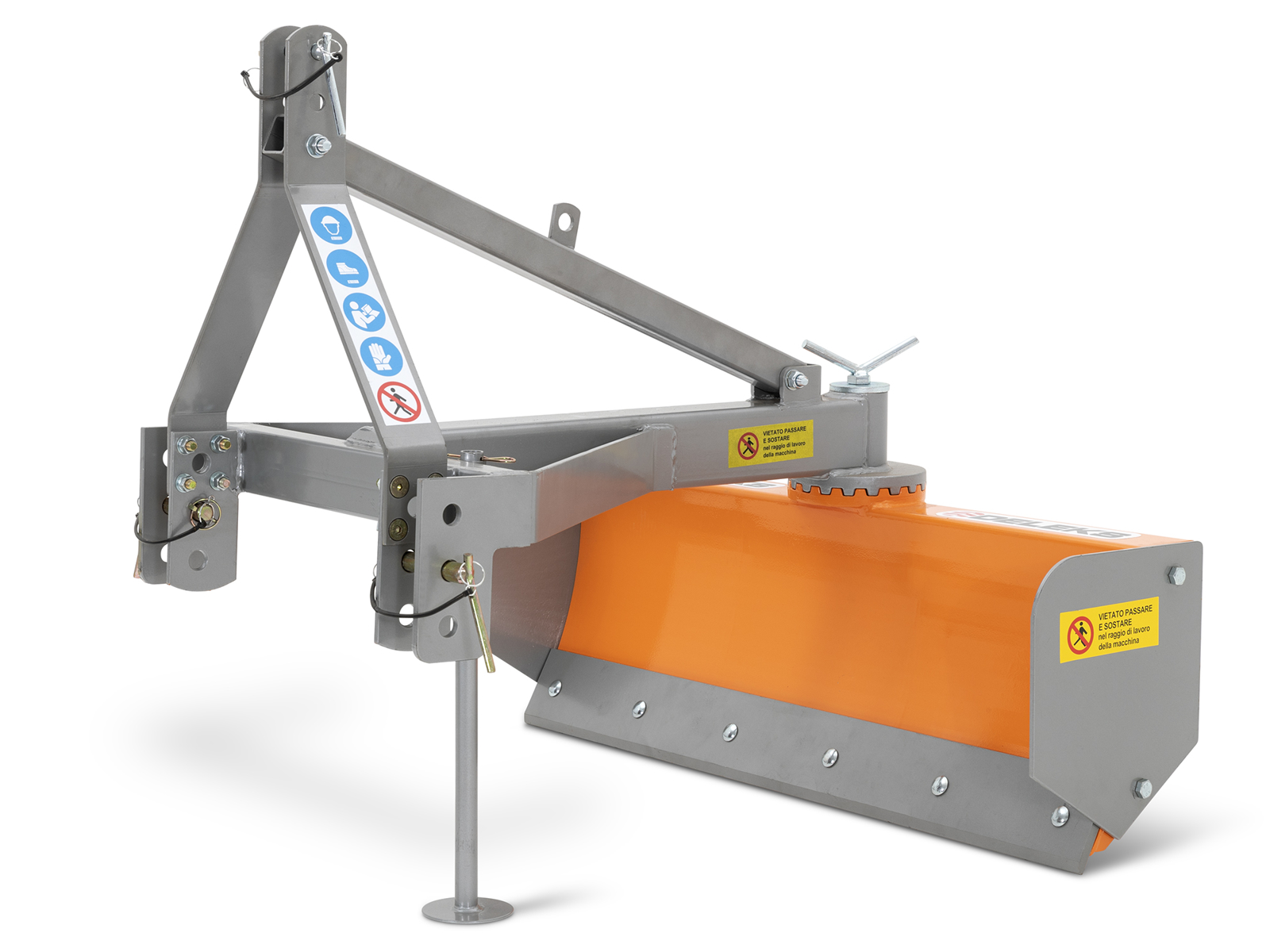

Grader Blade 130cm/110kg For lawn tractors - DELEKS® - Rear blade dirt and snow removal.


OVERVIEW

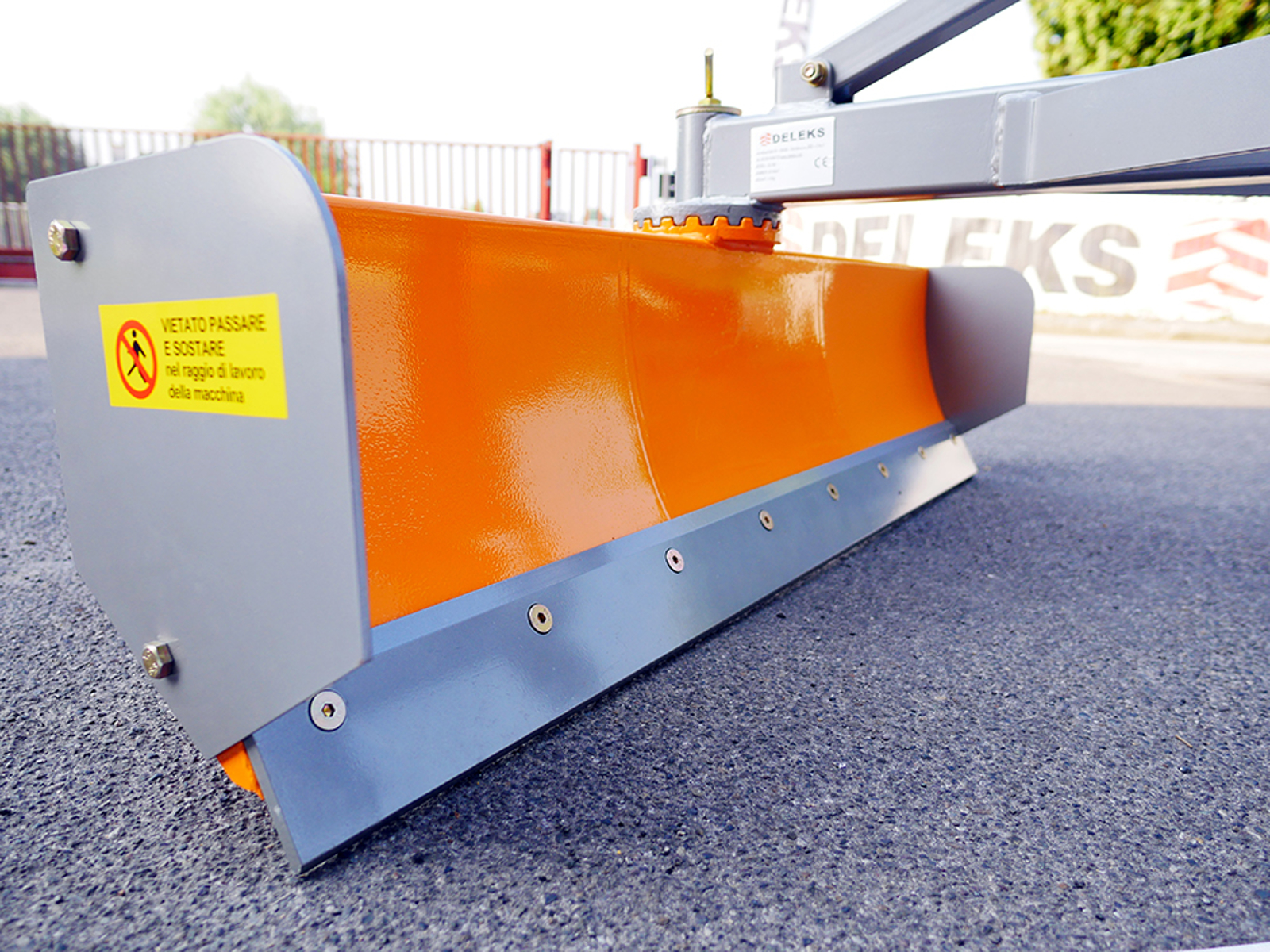

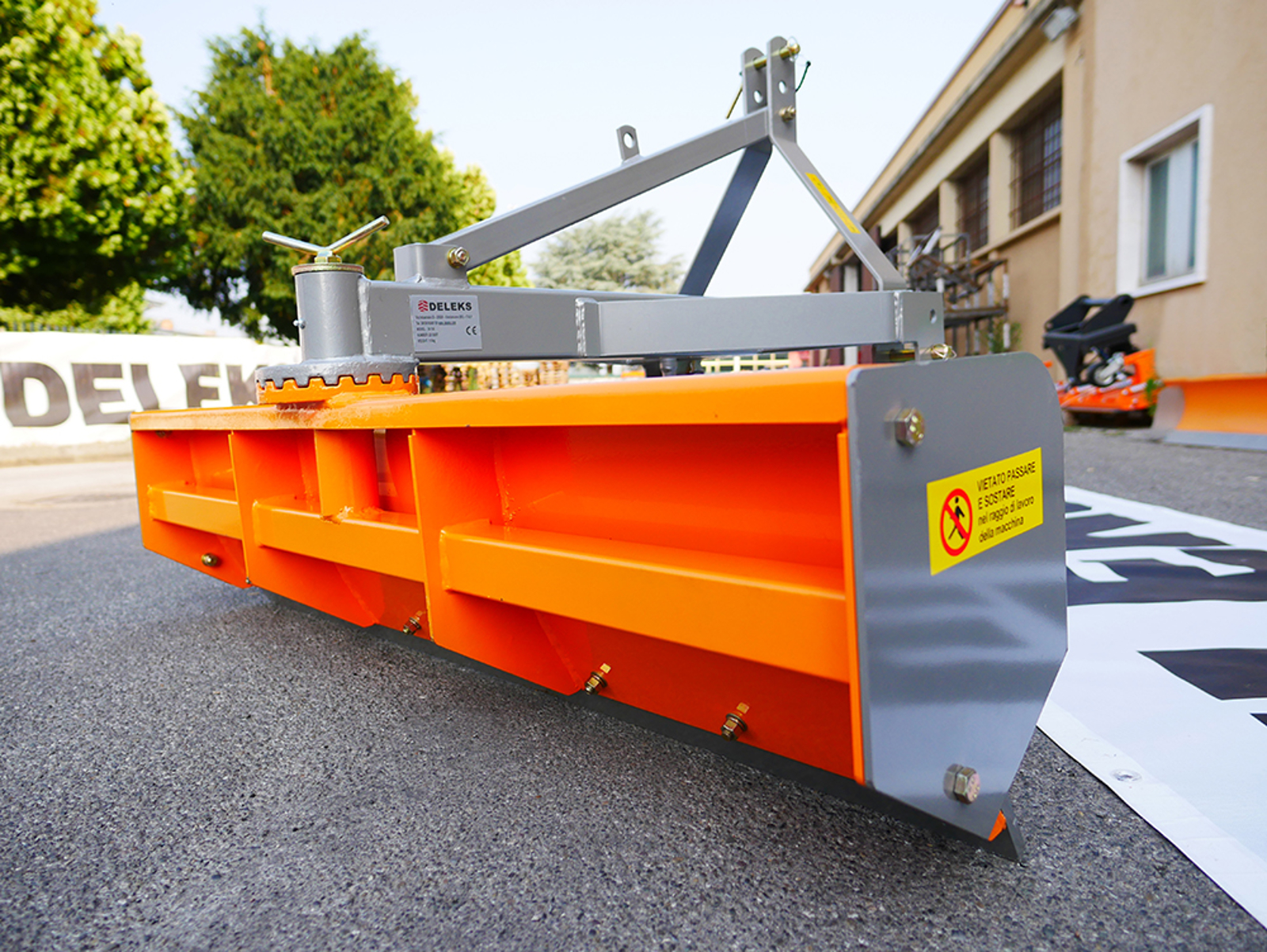

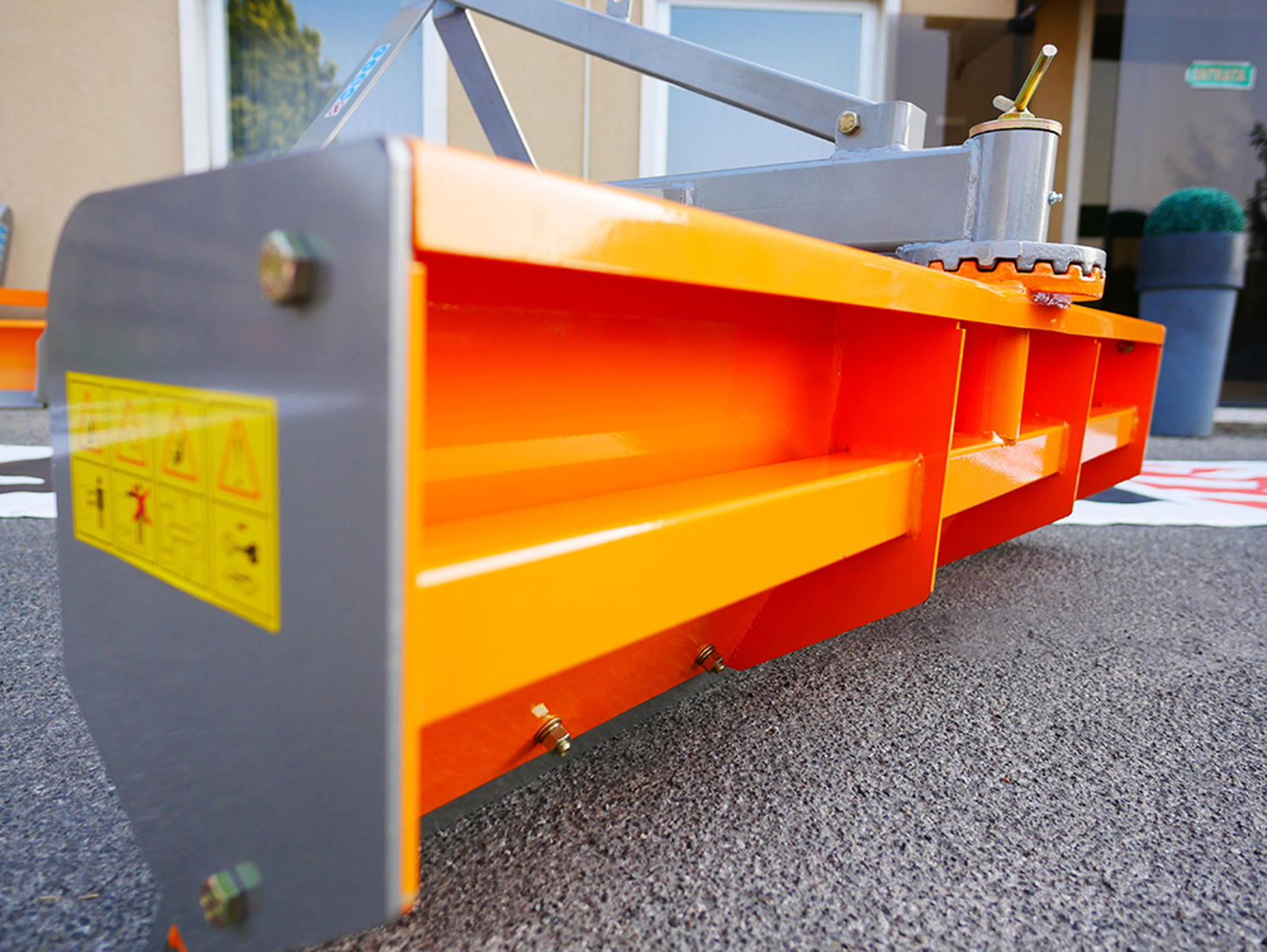

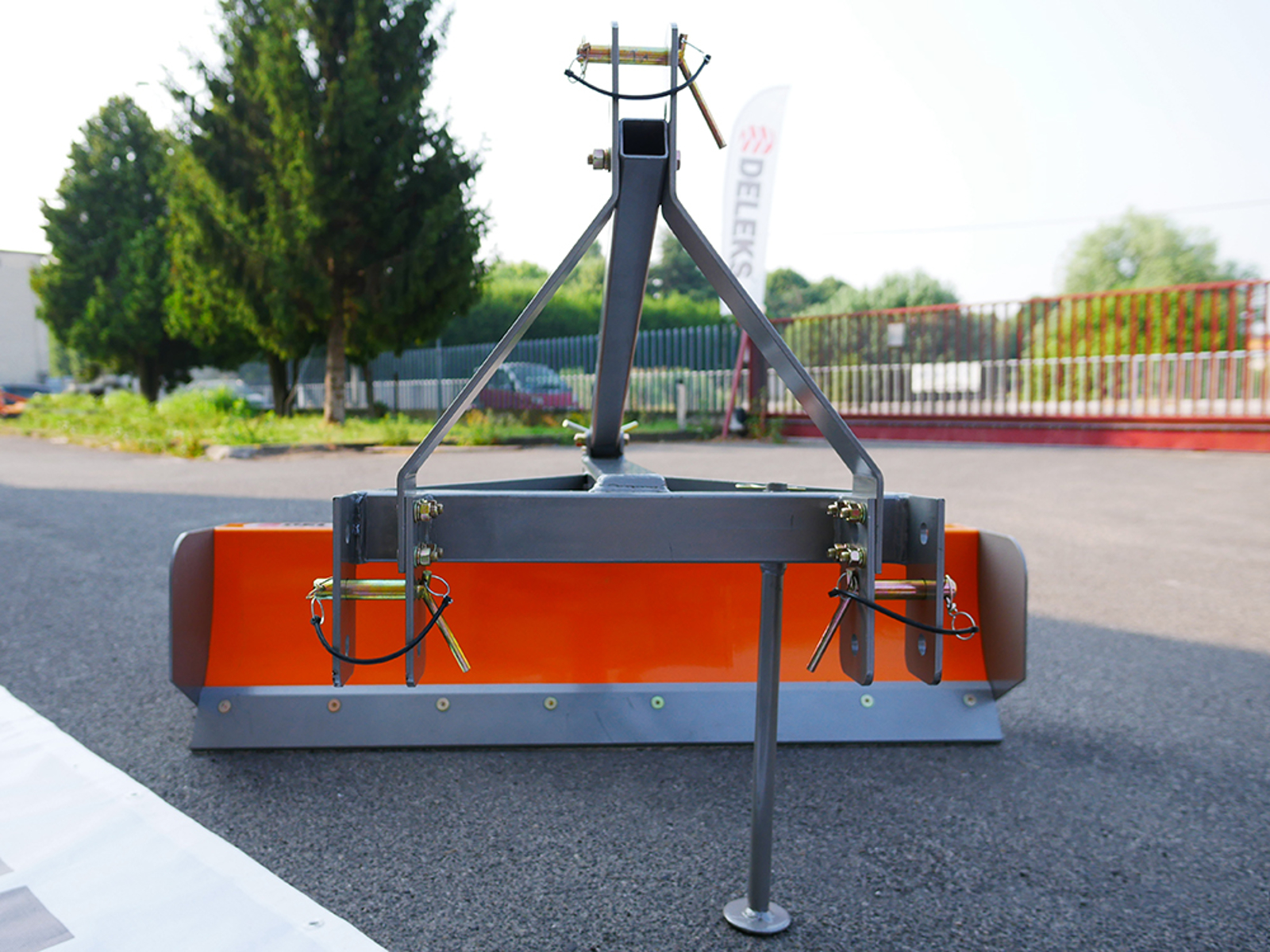

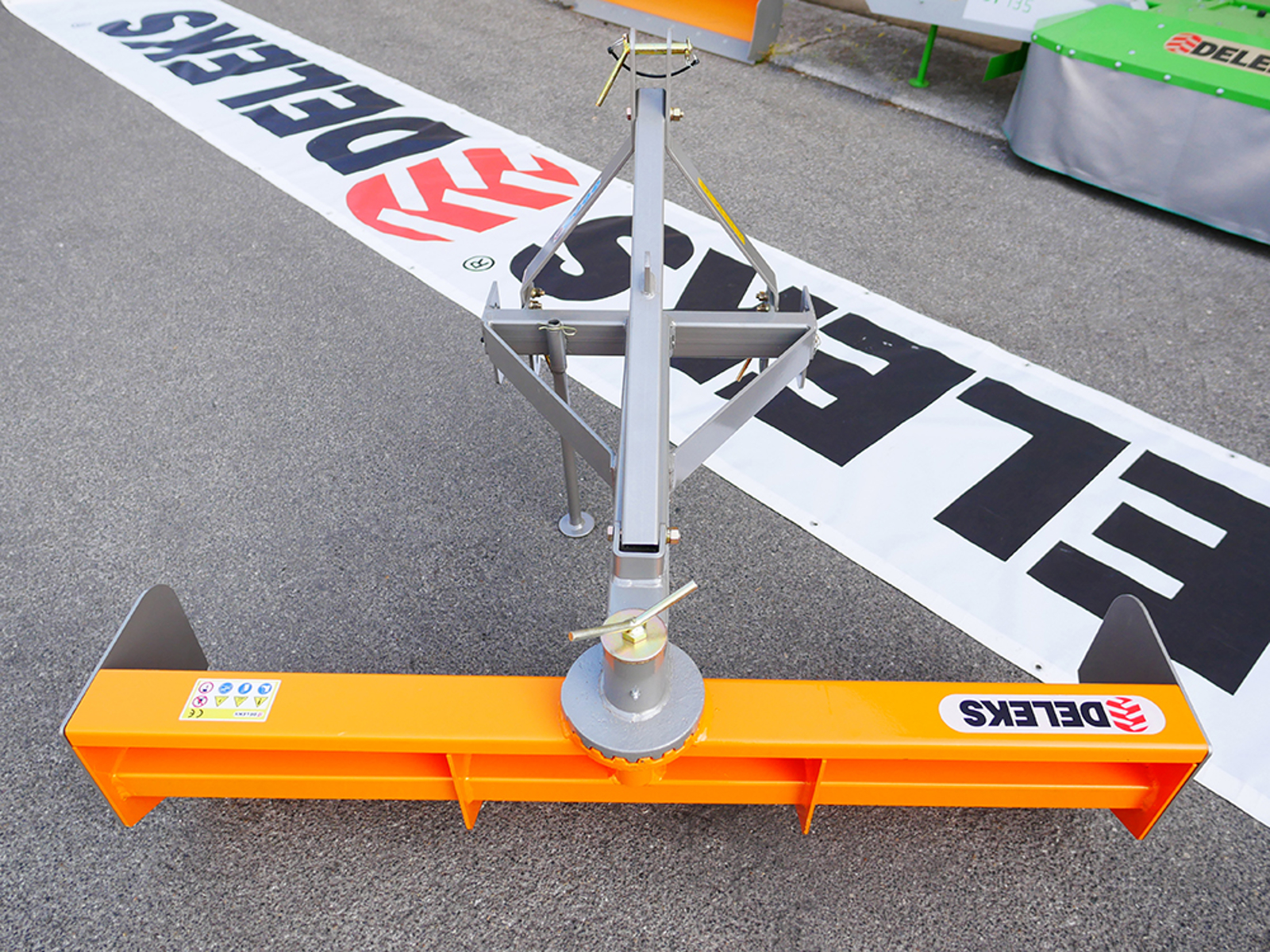

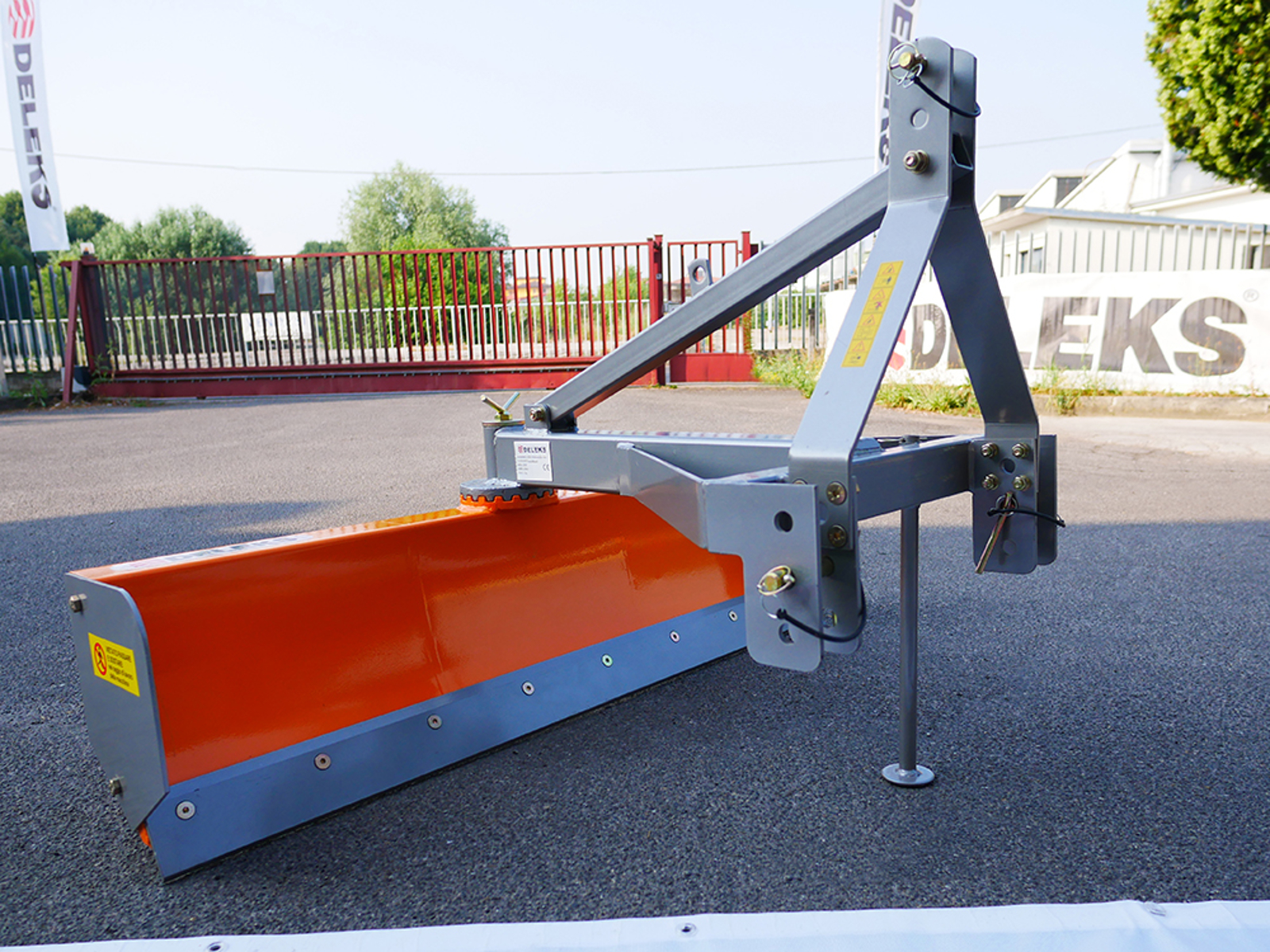

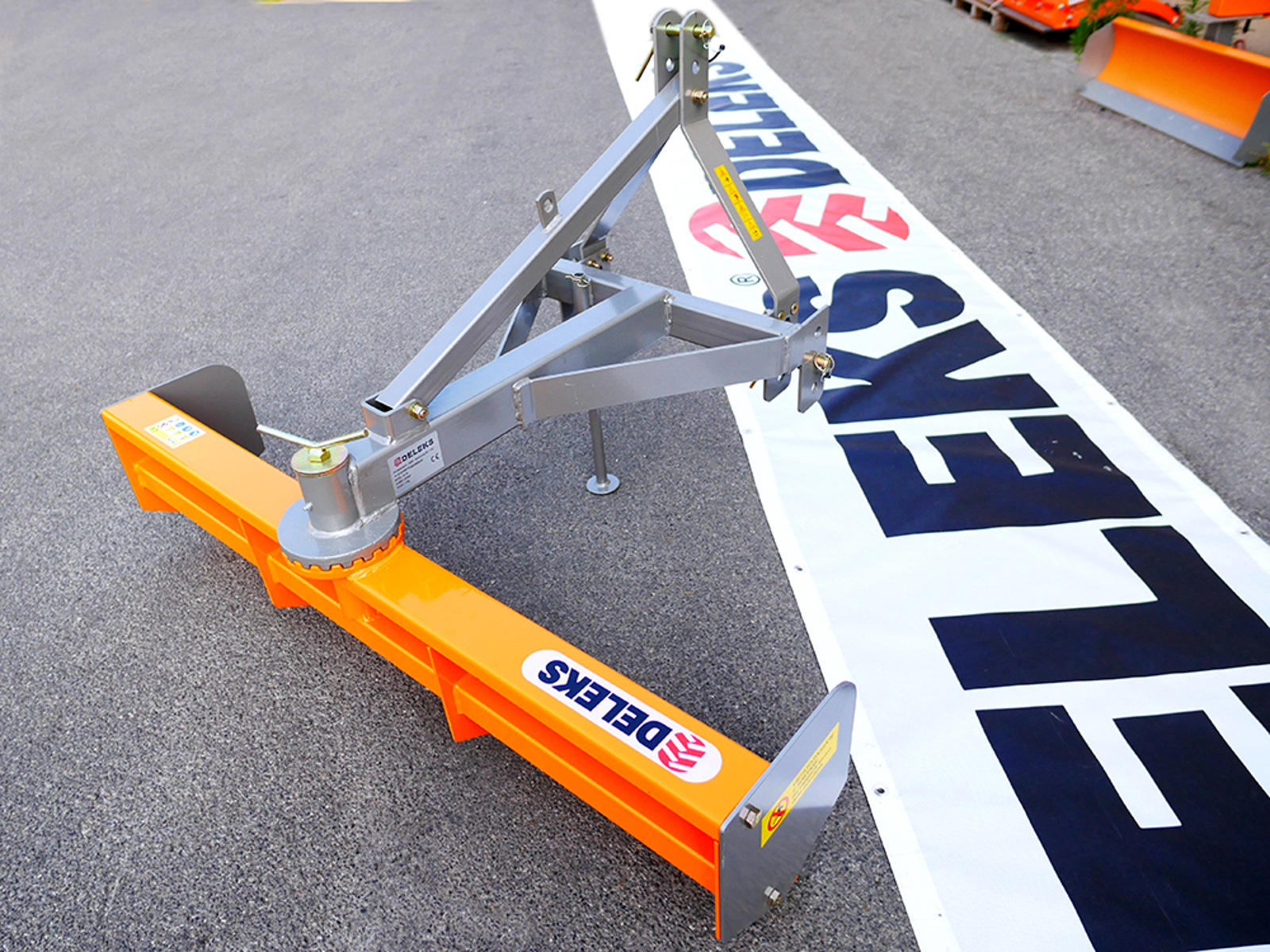

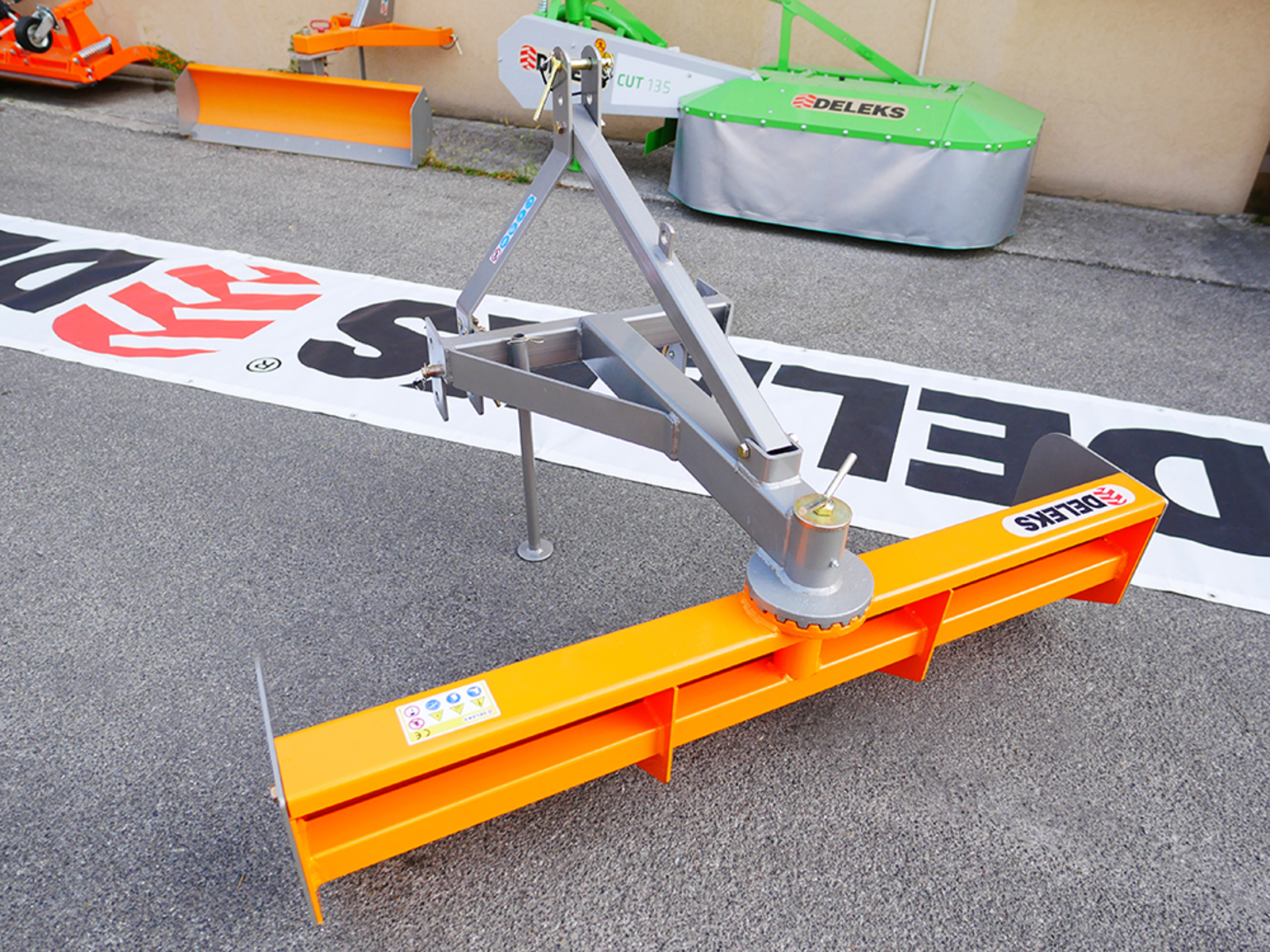

Rear grader blade complete with lateral guards for dragging the material to be leveled.

Designed for dependable performance on tough jobs.

Great for dirt work, road maintenance, ditching, landscaping, snow removal, cleaning livestock pens, gravel, sand and more.

Cutting blade reversible and replaceable.


BENEFITS & FEATURES

Light and narrow structure, suitable on compact tractors.

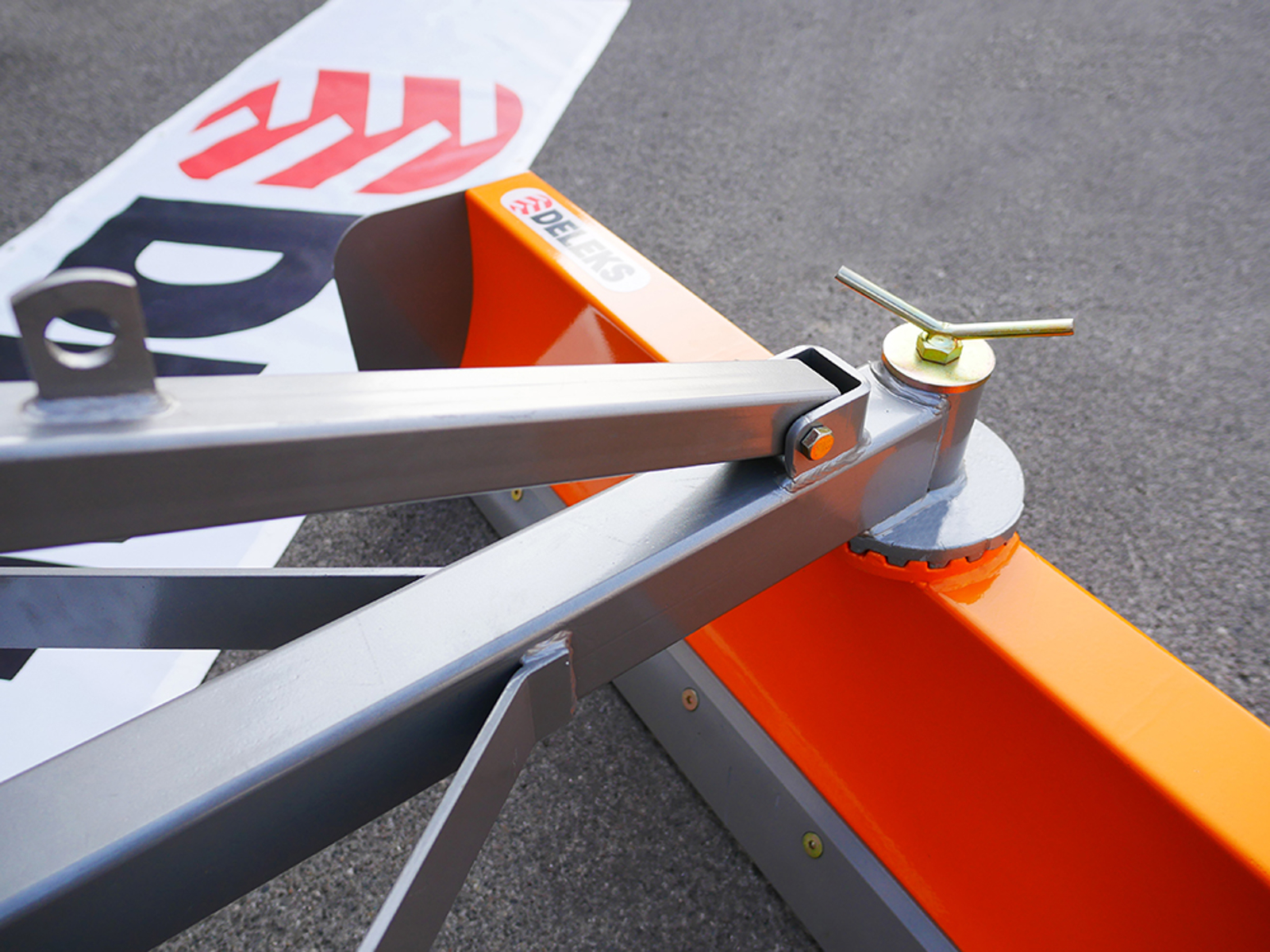

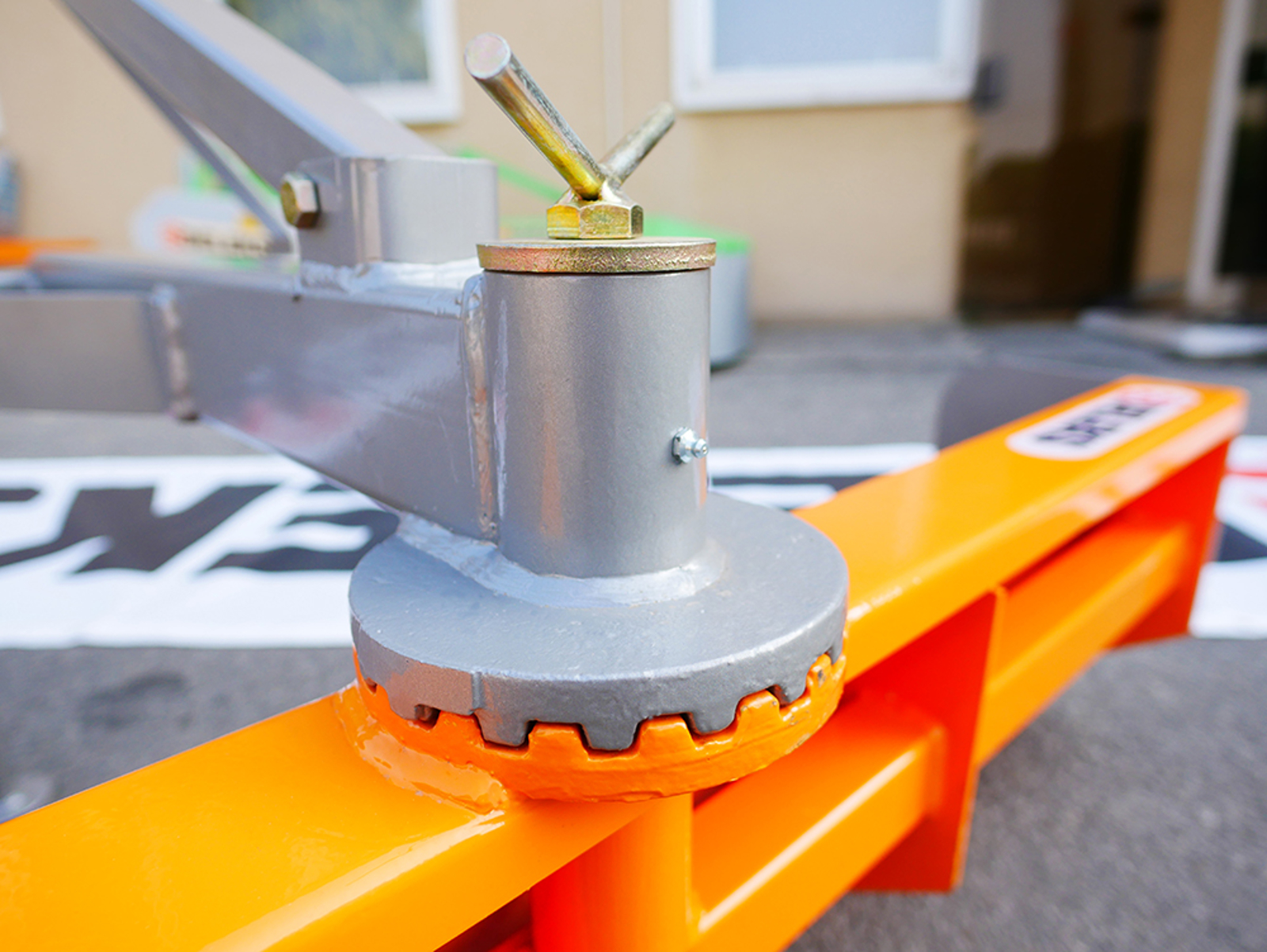

360º rotation blade for front and rear use.

Eliminates washboarding when using for road work.

Clear pathways easily in snowy conditions to reduce downtime.

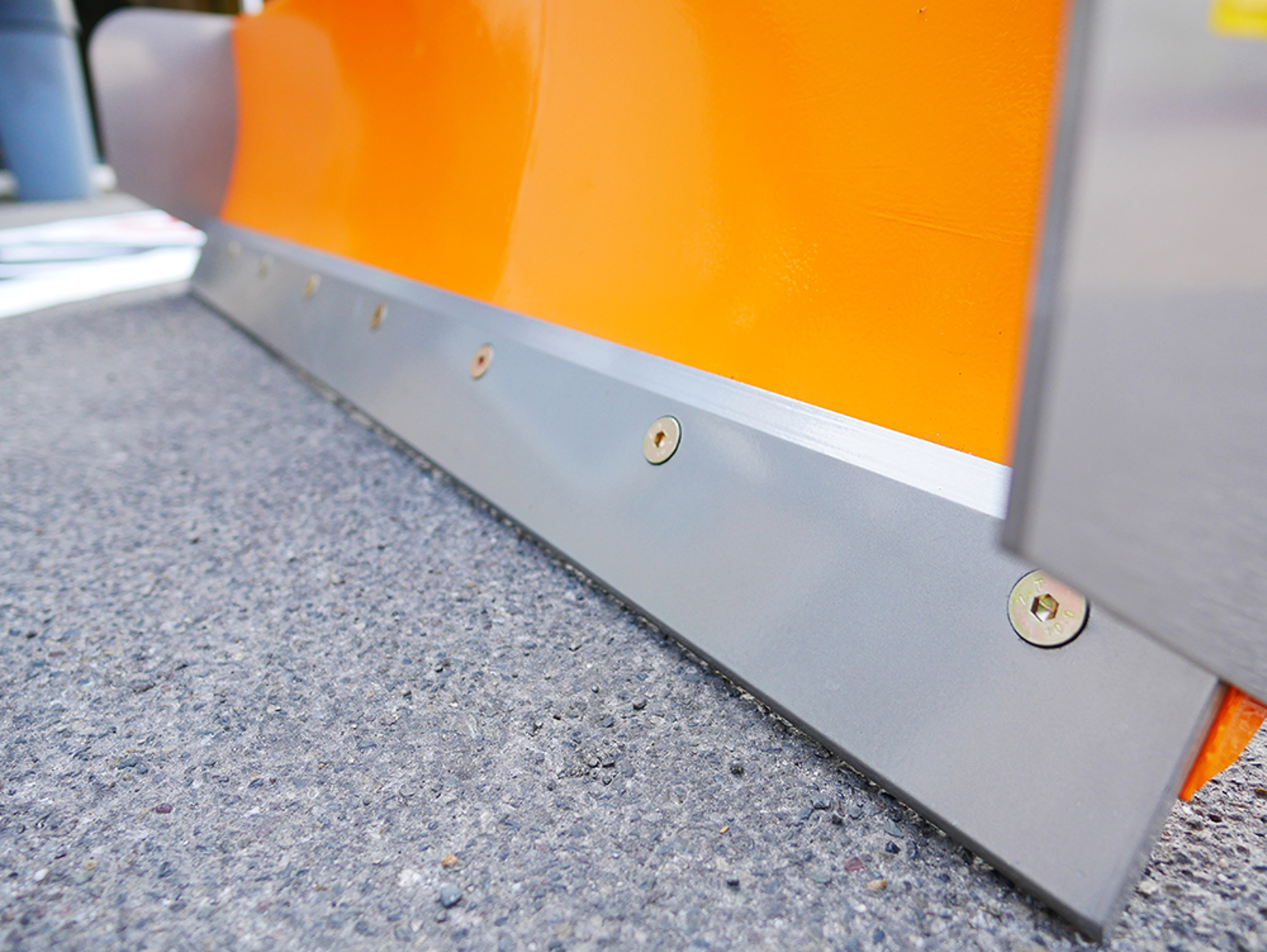

Interchangeable steel cutting edge can be changed in minutes without special tooling.



CHARACTERISTICS

Characteristic Units metric Units US
Overall width 1300.0 mm 4.26 ft
Weight 110.0 kg 243.0 lb
Tractor Power Range 14 - 35 Hp 14 - 35 Hp

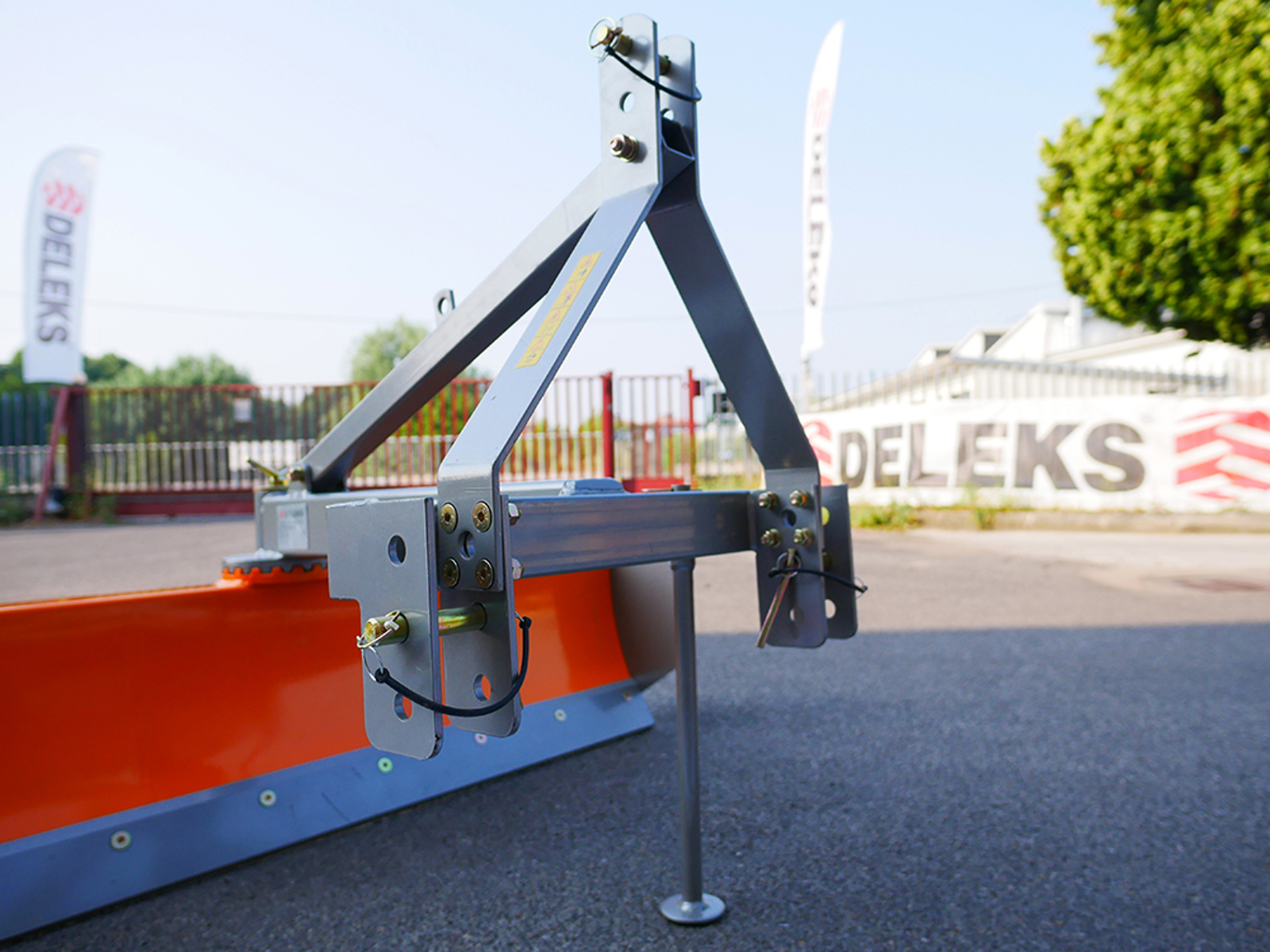

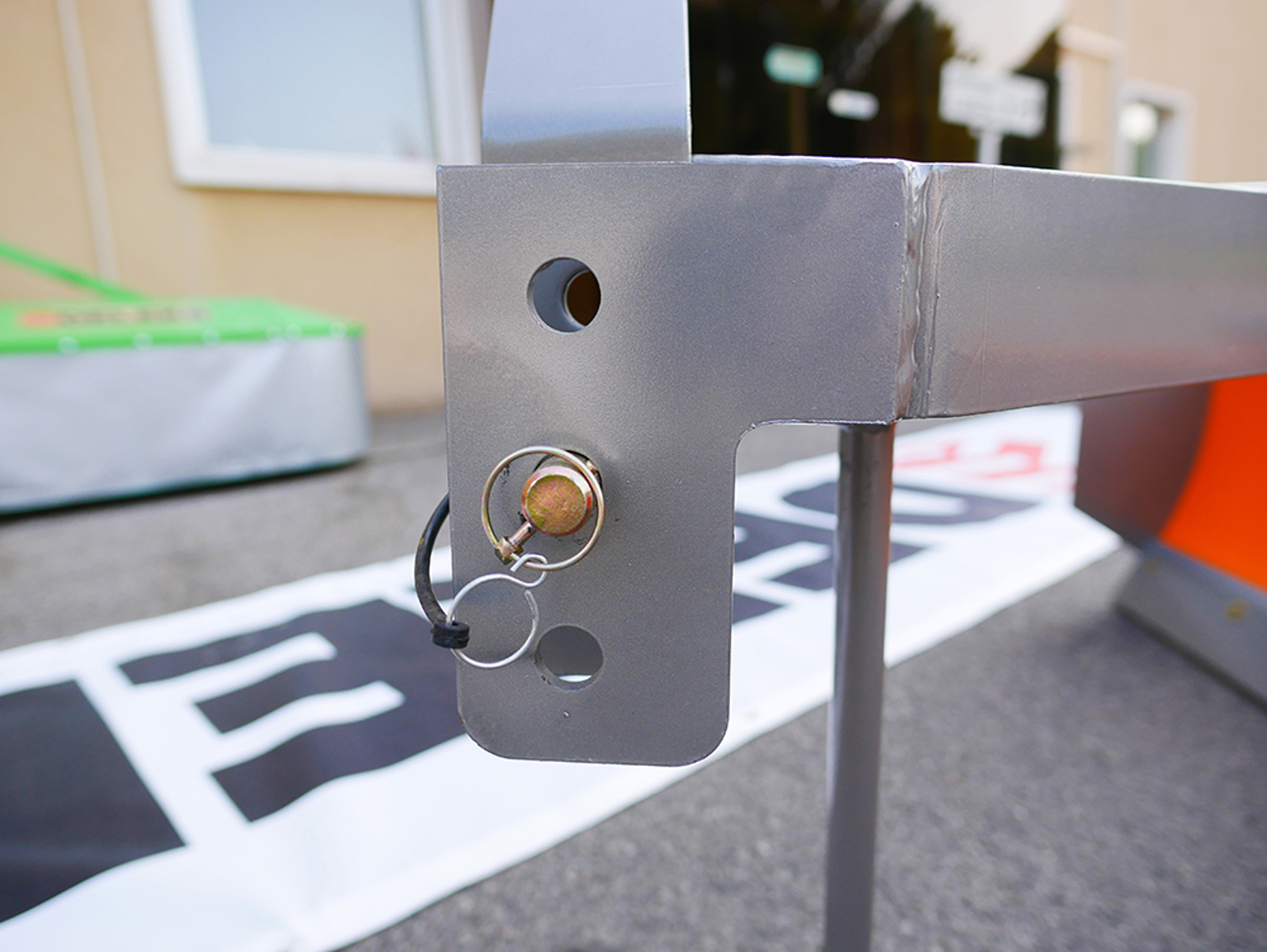

3 point linkage Cat. 1 (ø 19.0-22.0mm) Cat. 1 (ø 19.0-22.0mm)
Spacing between the 2 lower points 500.0 - 610.0 mm 19.70 - 24.00 in
Distance between the 2 lower points and ground 365.0 - 425.0 - 485.0 mm 14.73 - 16.73 - 19.10 in
Overall Height (forks open) 1000.0 mm 3.28 ft
Blade Height 400.0 mm 15.75 in
Cutting Edge Steel Steel
Cutting Edge Height 120.0 mm 4.72 in
Cutting Edge Thickness 13.0 mm 0.50 in
Trip Edge Quantity 1 1
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Rotation of the blade 360° 360°
Main frame thickness (yellow) 4.0 mm 0.16 in
Sides Removable Removable
Orientation of the arm x x
Sides thickness 6.0 mm 0.23 in
Packing sizes 1300.0*800.0*500.0 mm 4.26*2.62*1.64 ft

Optional

spare pins cat 1 a
Spare pins Cat. 1 A
45,00VAT incl.
Available

ø 19.0/22.0 mm

spare rubber blade 130 cm
Spare rubber blade 130 cm
140,00VAT incl.
Available

DL-130, LNS-130

spare steel blade 130 cm
Spare steel blade 130 cm
140,00VAT incl.
Available

DL-130, LNS-130
