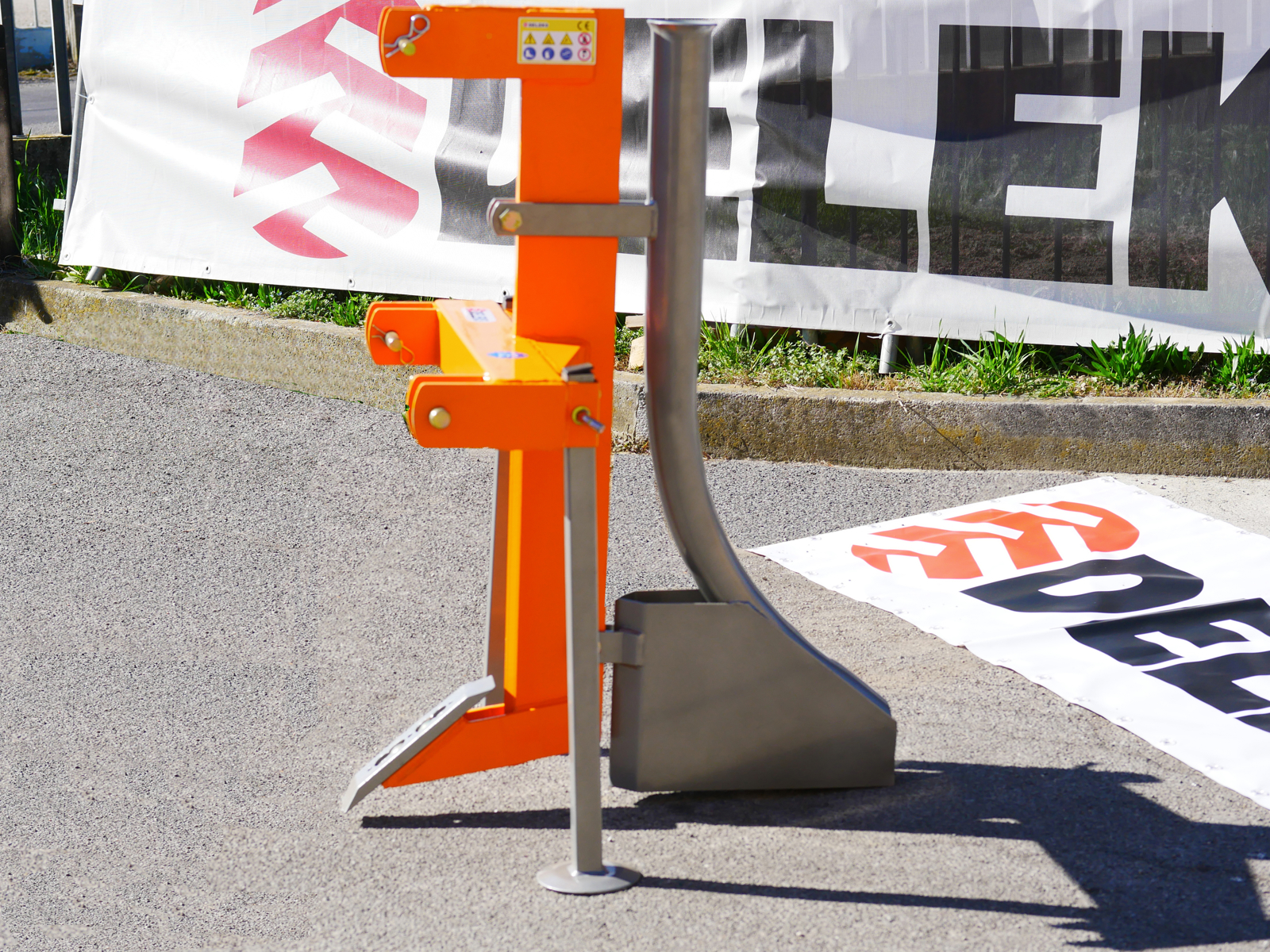

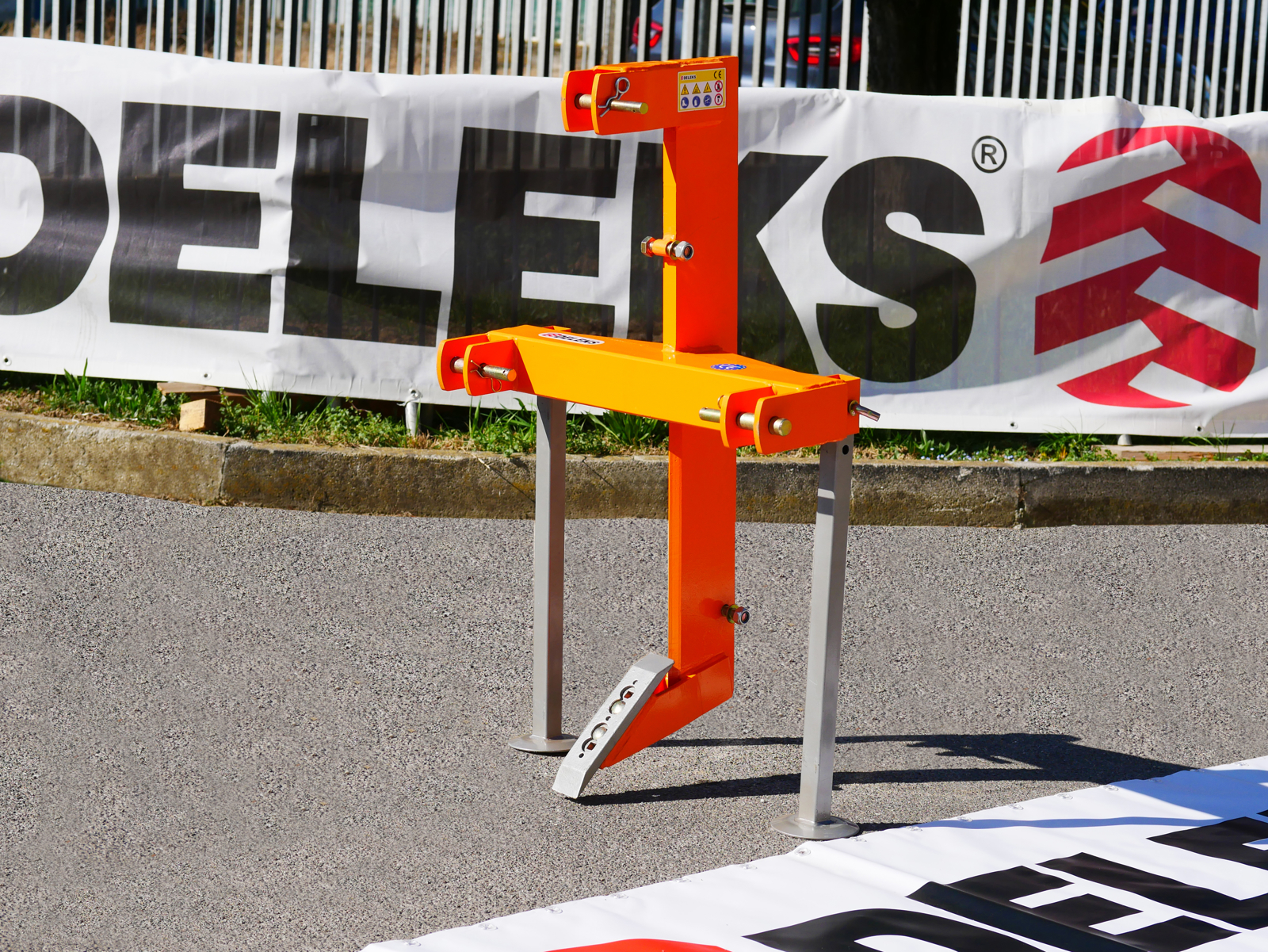

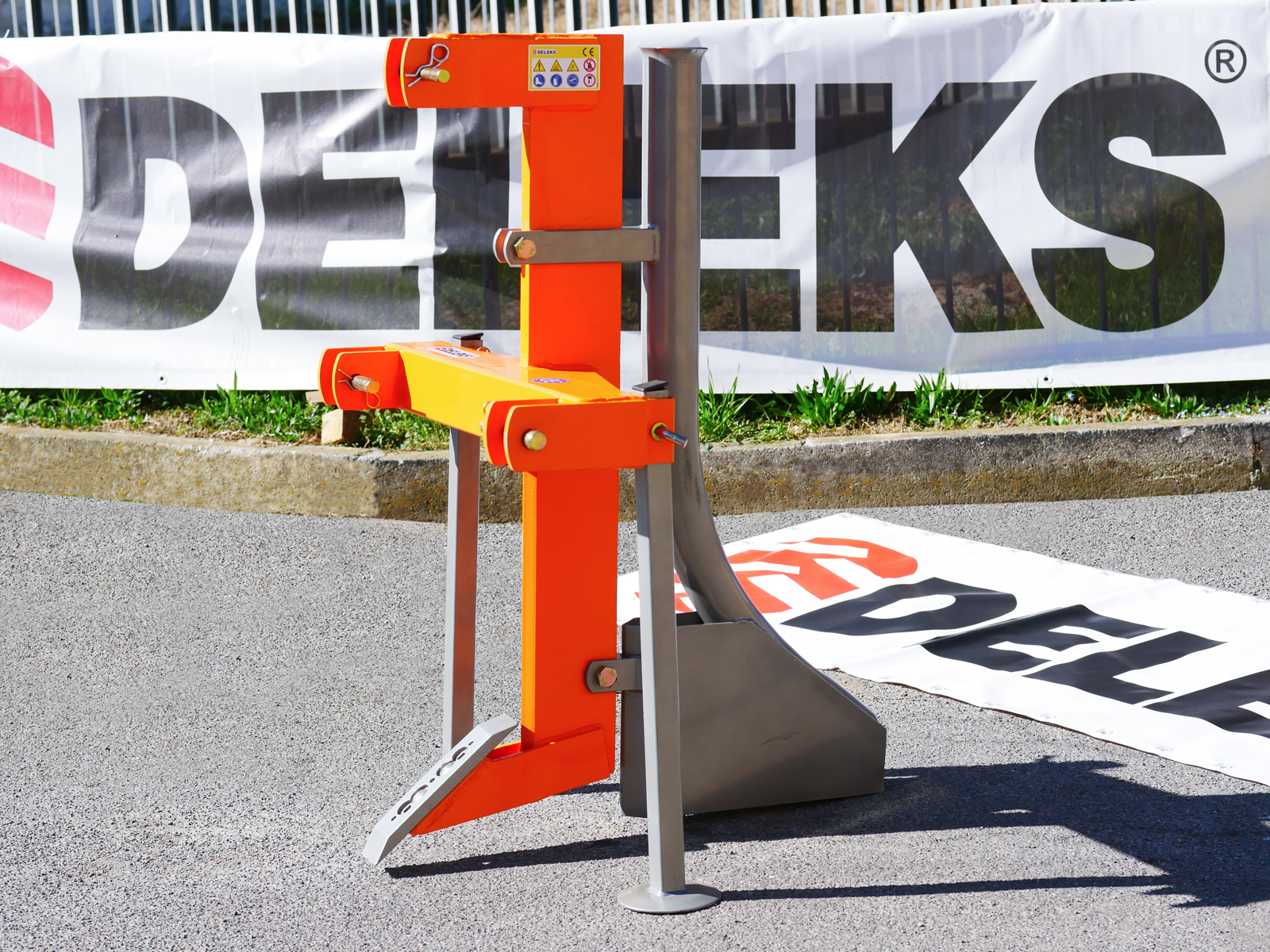

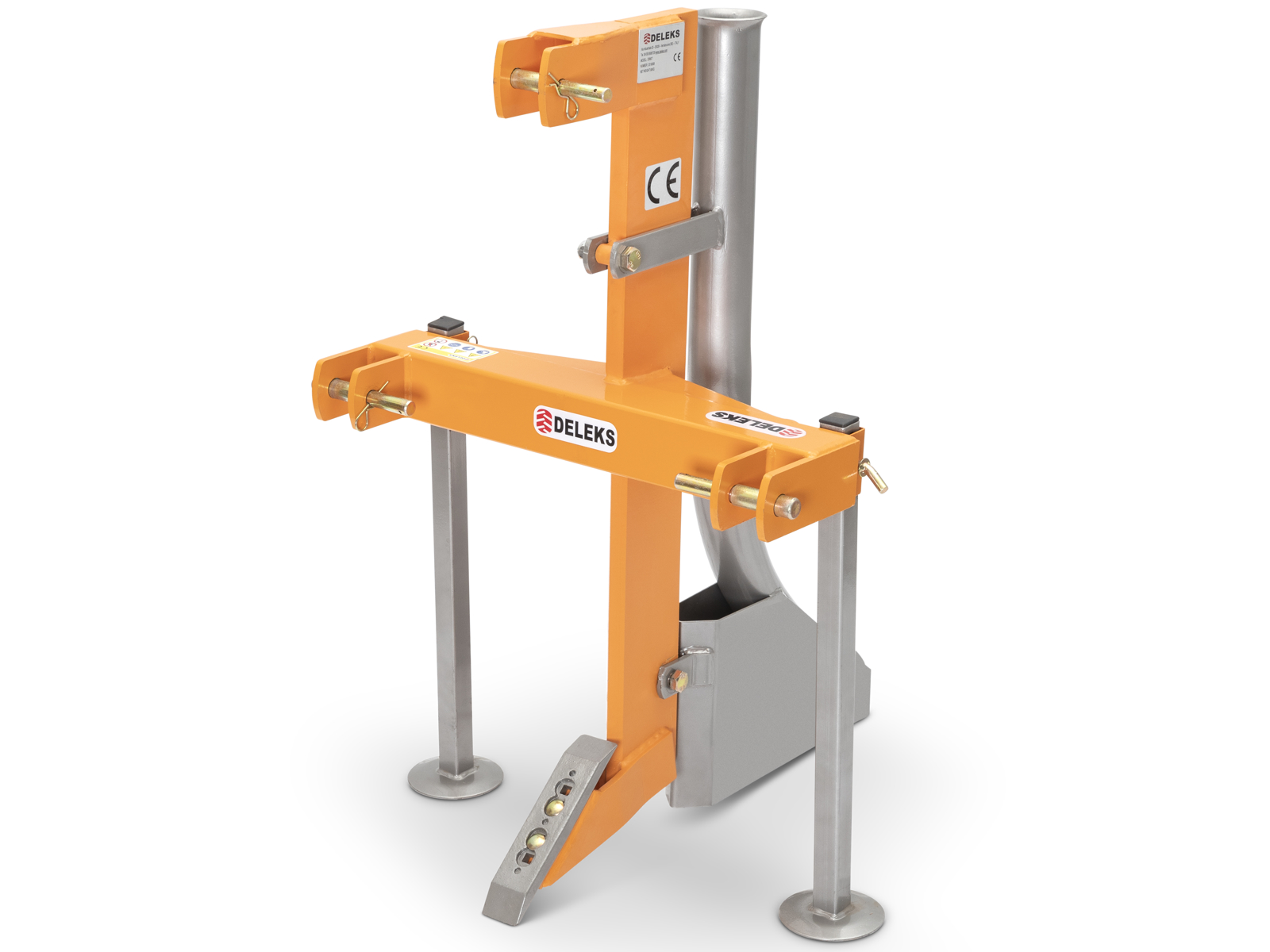

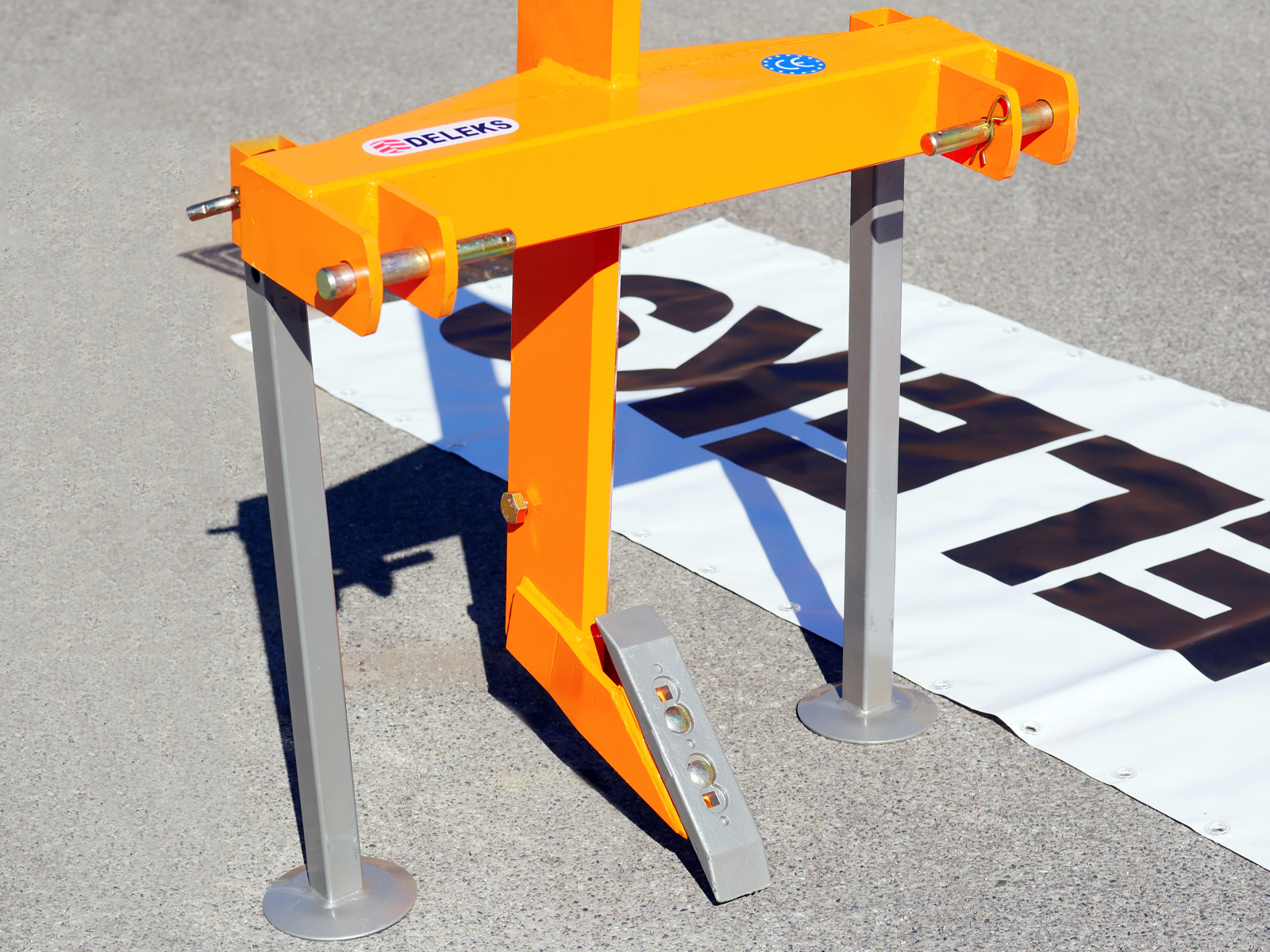

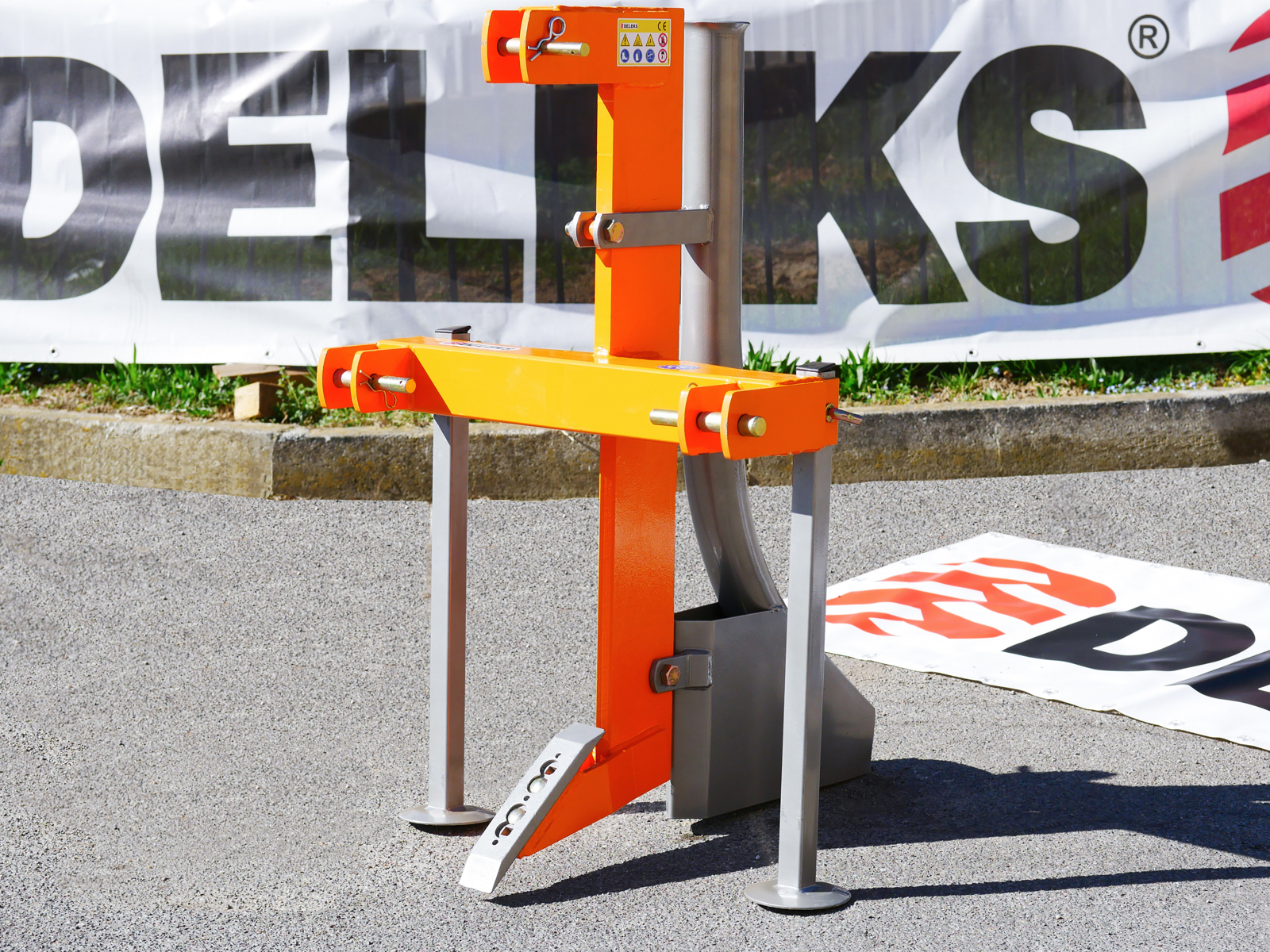

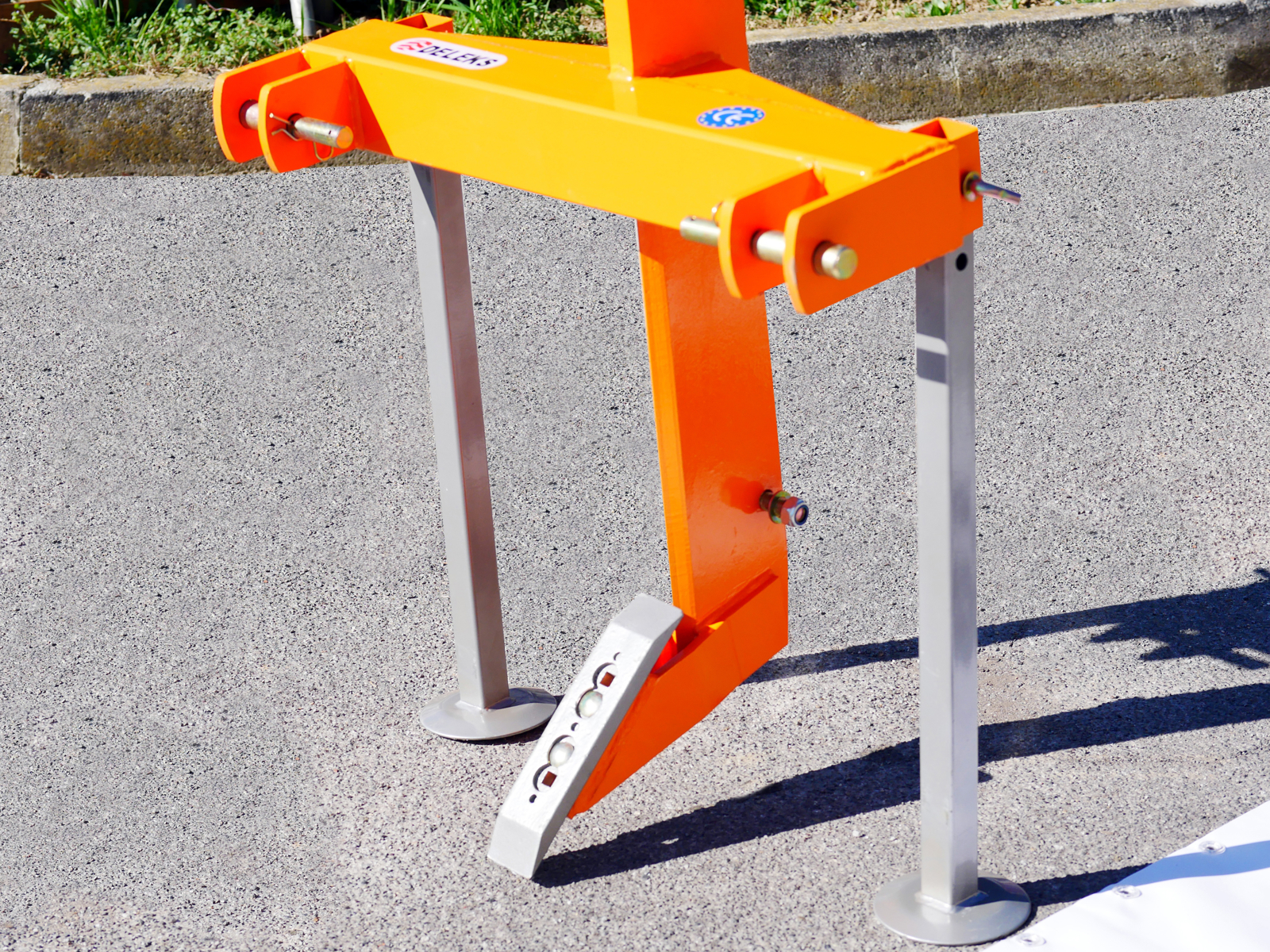

Single tyne ripper for tractors mod. DR-60

Code DR60
EAN 8053470230288
610,00VAT incl.
Free shipping


Single tine ripper for tractors like New Holland, John Deere - DELEKS® - Reversible cutting tooth that is easily replaced.


DR-60 single tine ripper can be used for preparing soil for crops and lawns or even for removing tree stumps. Recommended for tractors up to 30-60 hp e.g. New Holland T3000, John Deere 3-4, McCormick, Lamborghini R, Same Solaris, Kubota L, McCormick, FIAT, Ford, etc.

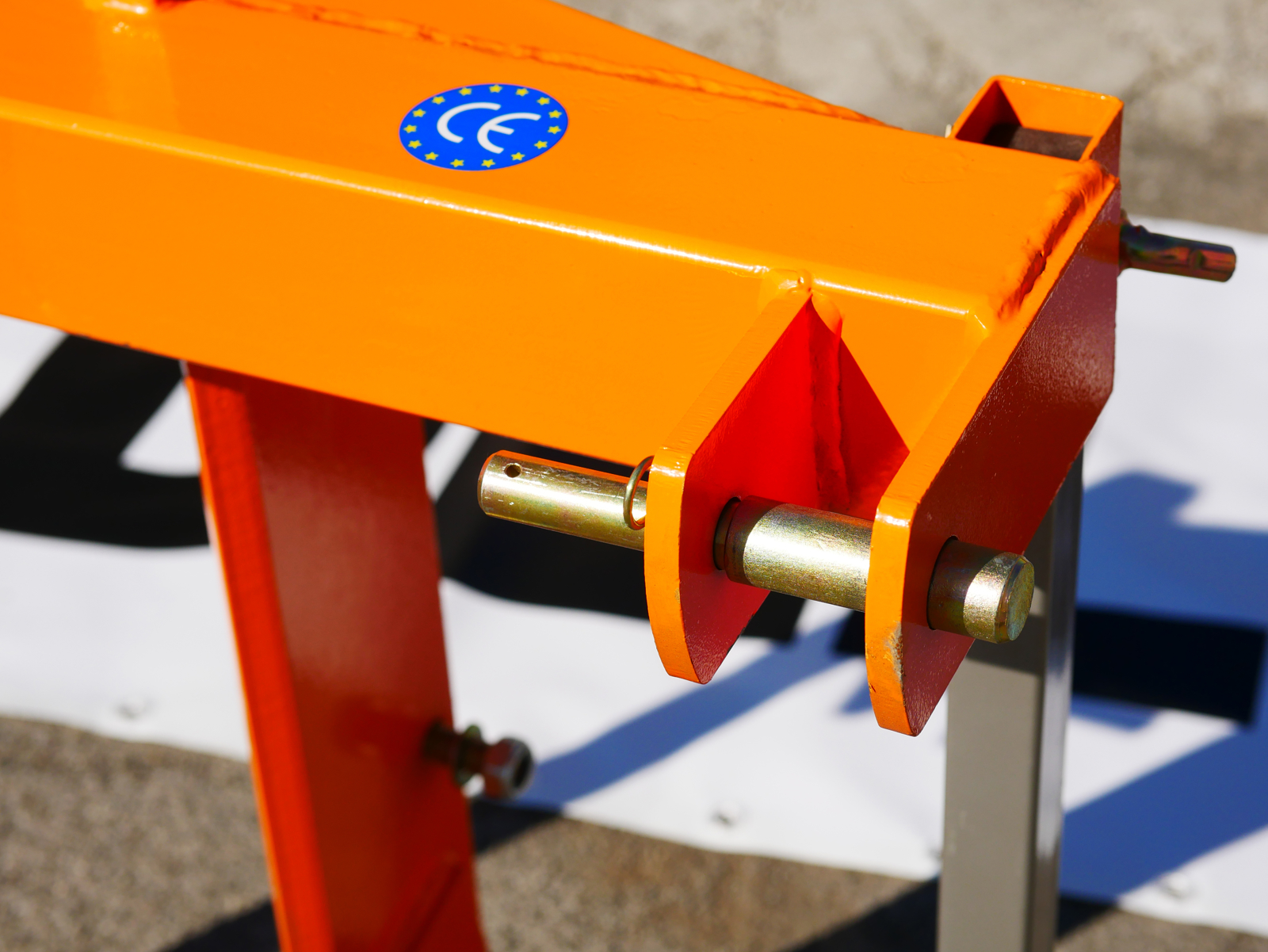

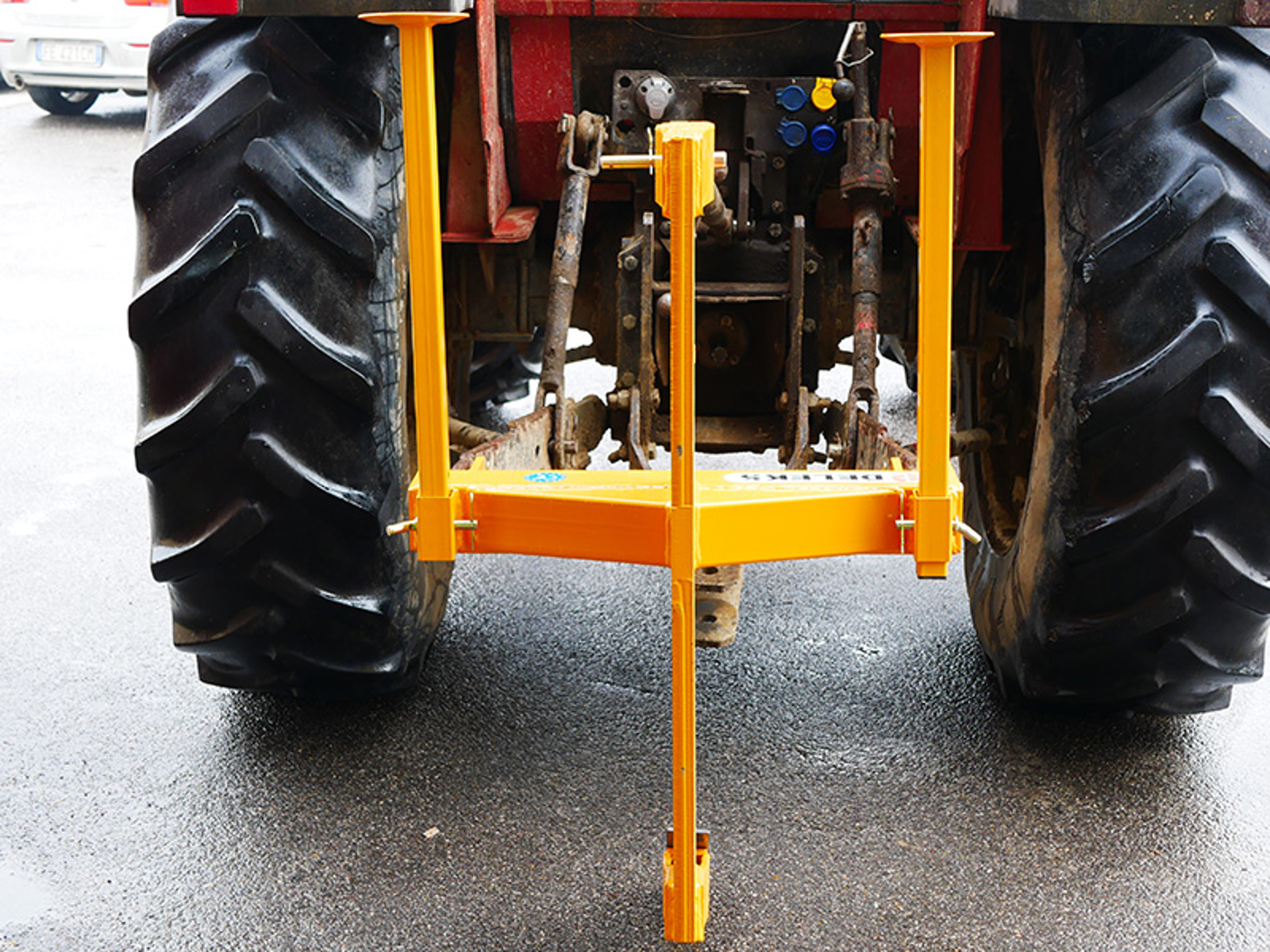

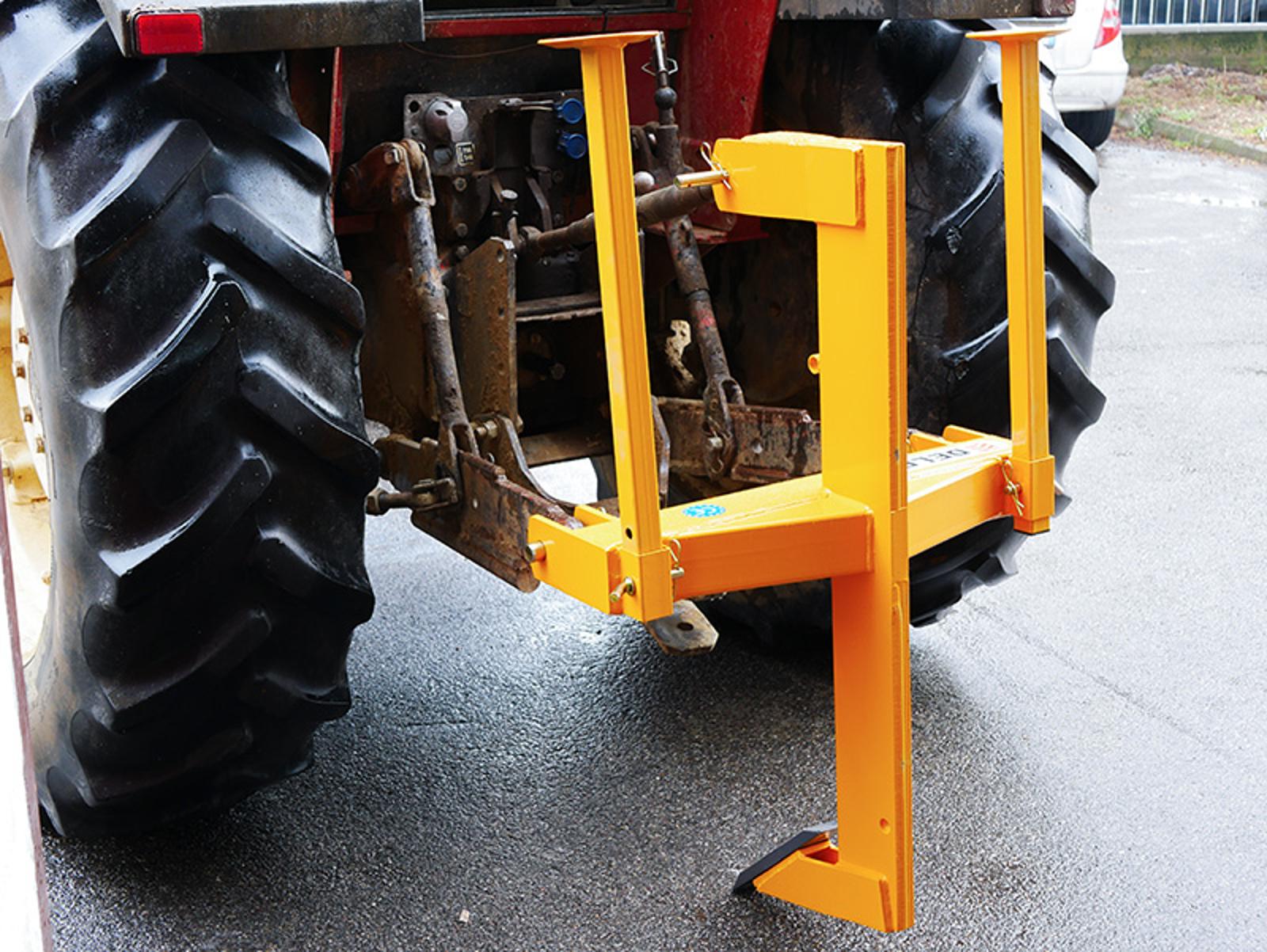

Universal 3 point linkage Cat.1-2. EC Declaration of Conformity.

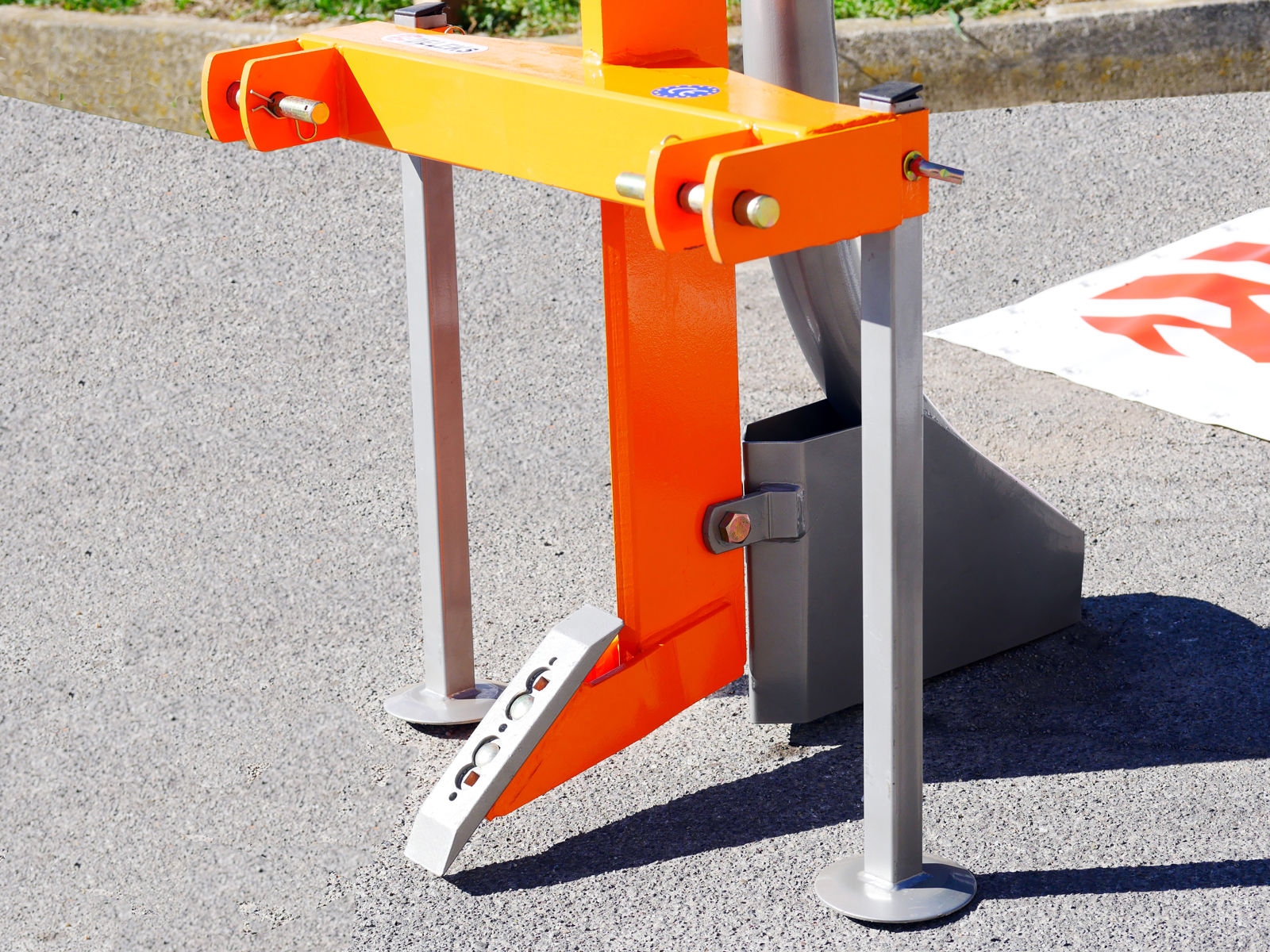

Reversible cutting tooth that is easily replaced.

Extremely strong and height adjustable tines.

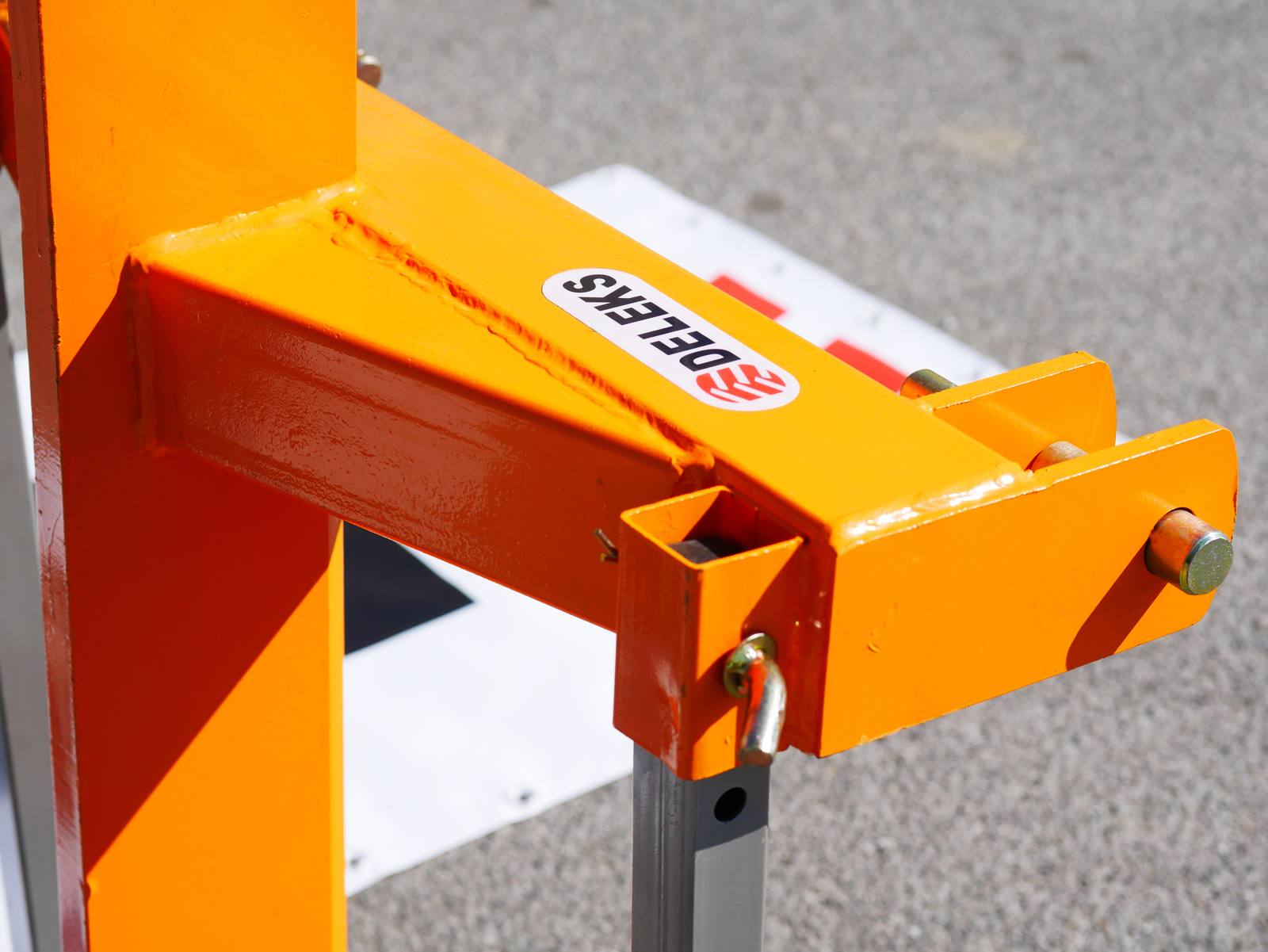

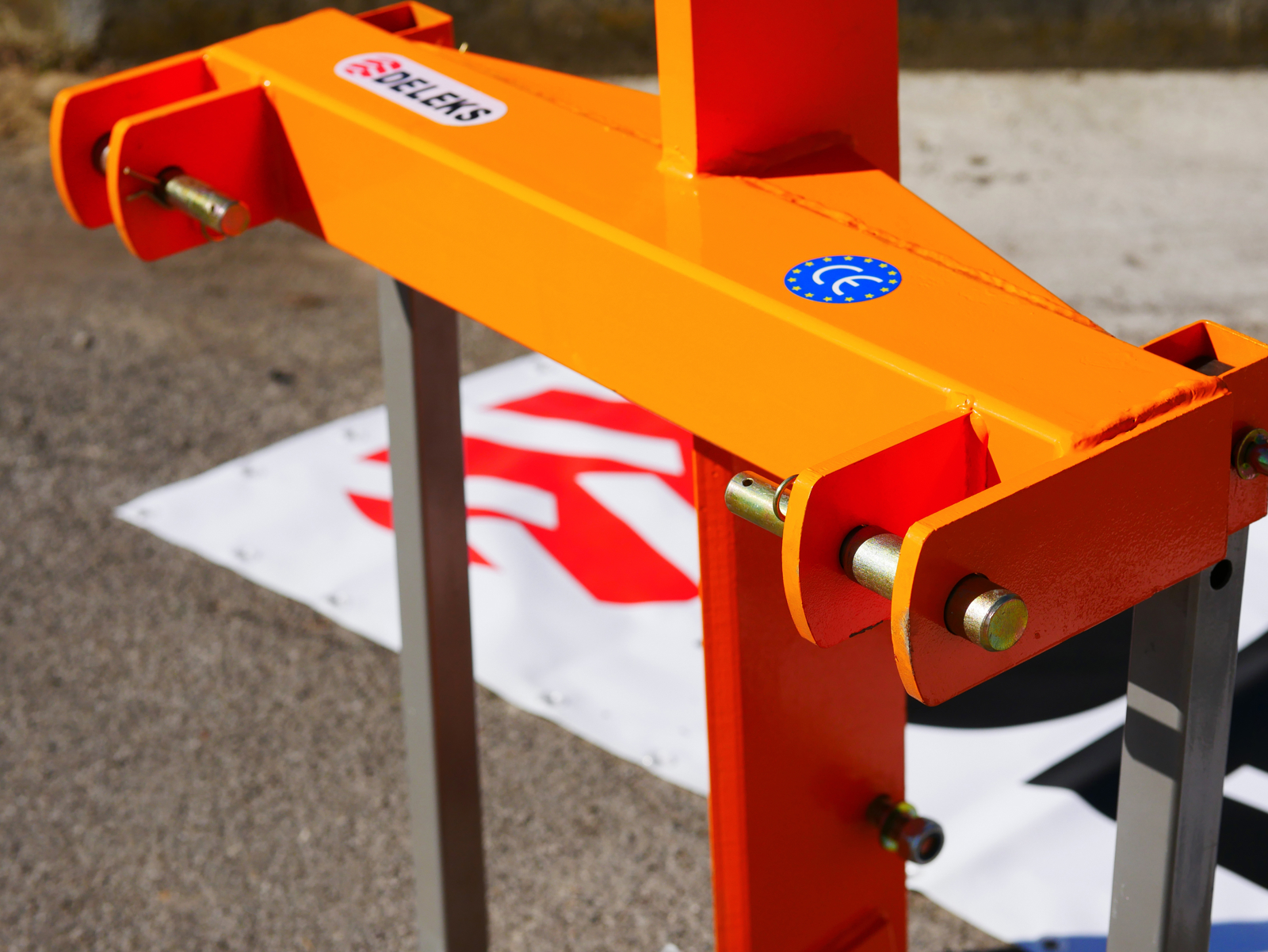

Reinforced steel framing for longer life.



Caracteristic Units metric Units US
Overall width 800.0 mm 2.62 ft
Weight 90.0 kg 200.0 lb
Overall height 1200.0 mm 3.94 ft
Tractor Power Range 30 - 60 Hp 30 - 60 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Spacing between the 2 lower points 645.0 - 760.0 mm 25.40 - 29.90 in

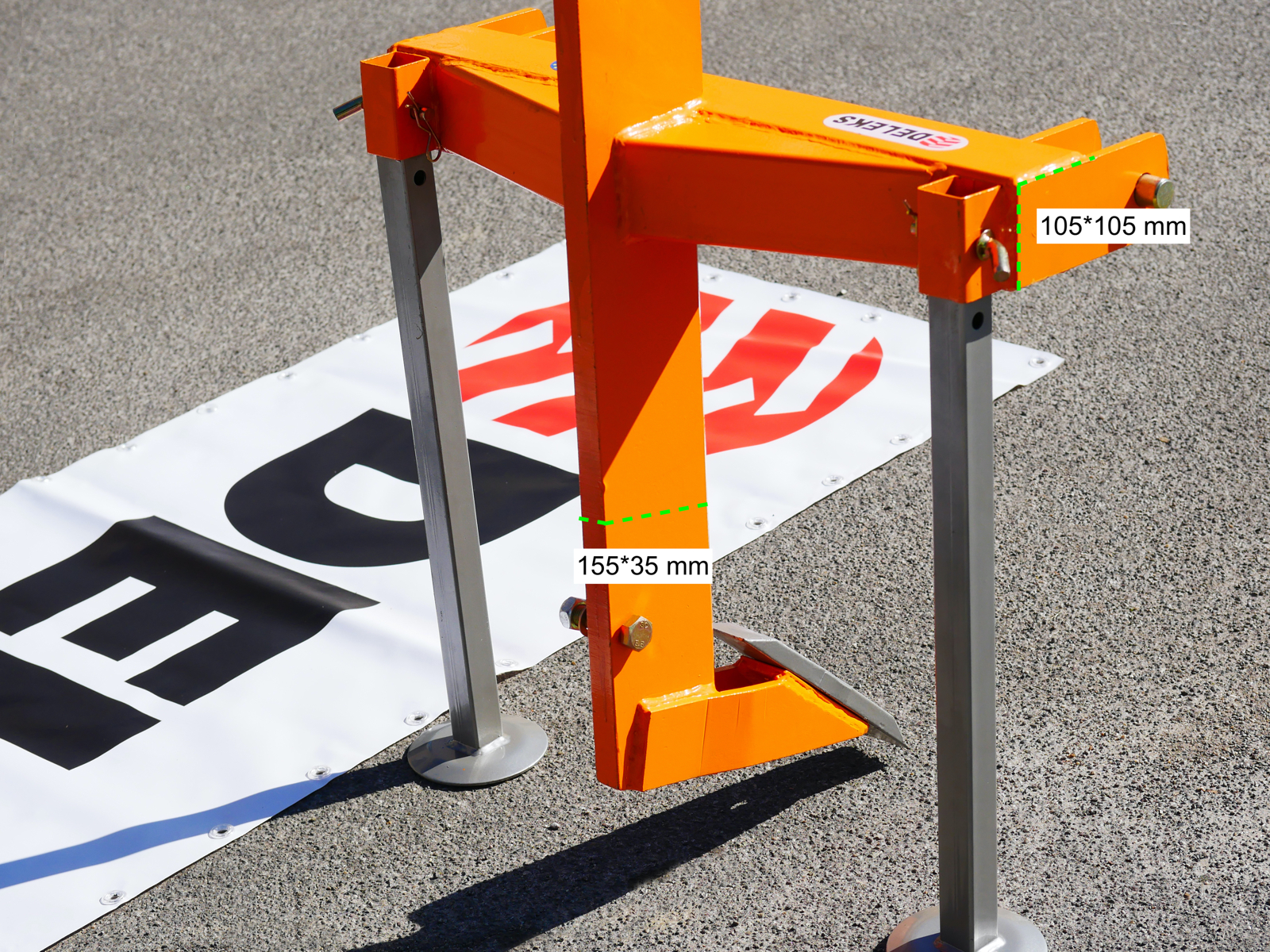

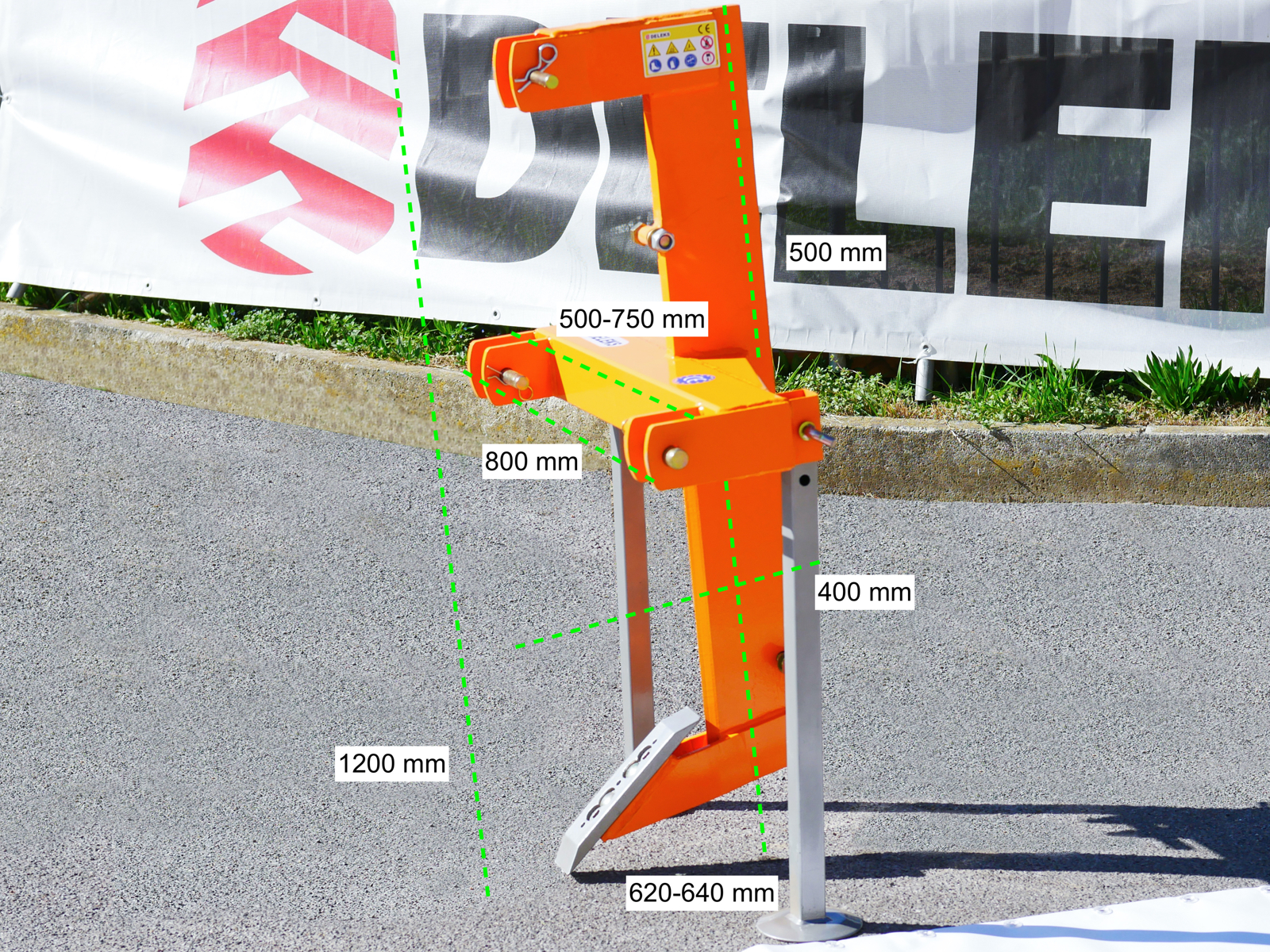

Other sizes See pictures See pictures
Thickness of the arm 30.0*150.0 mm 1.18*5.90 in
Shank width 150.0 mm 5.90 in

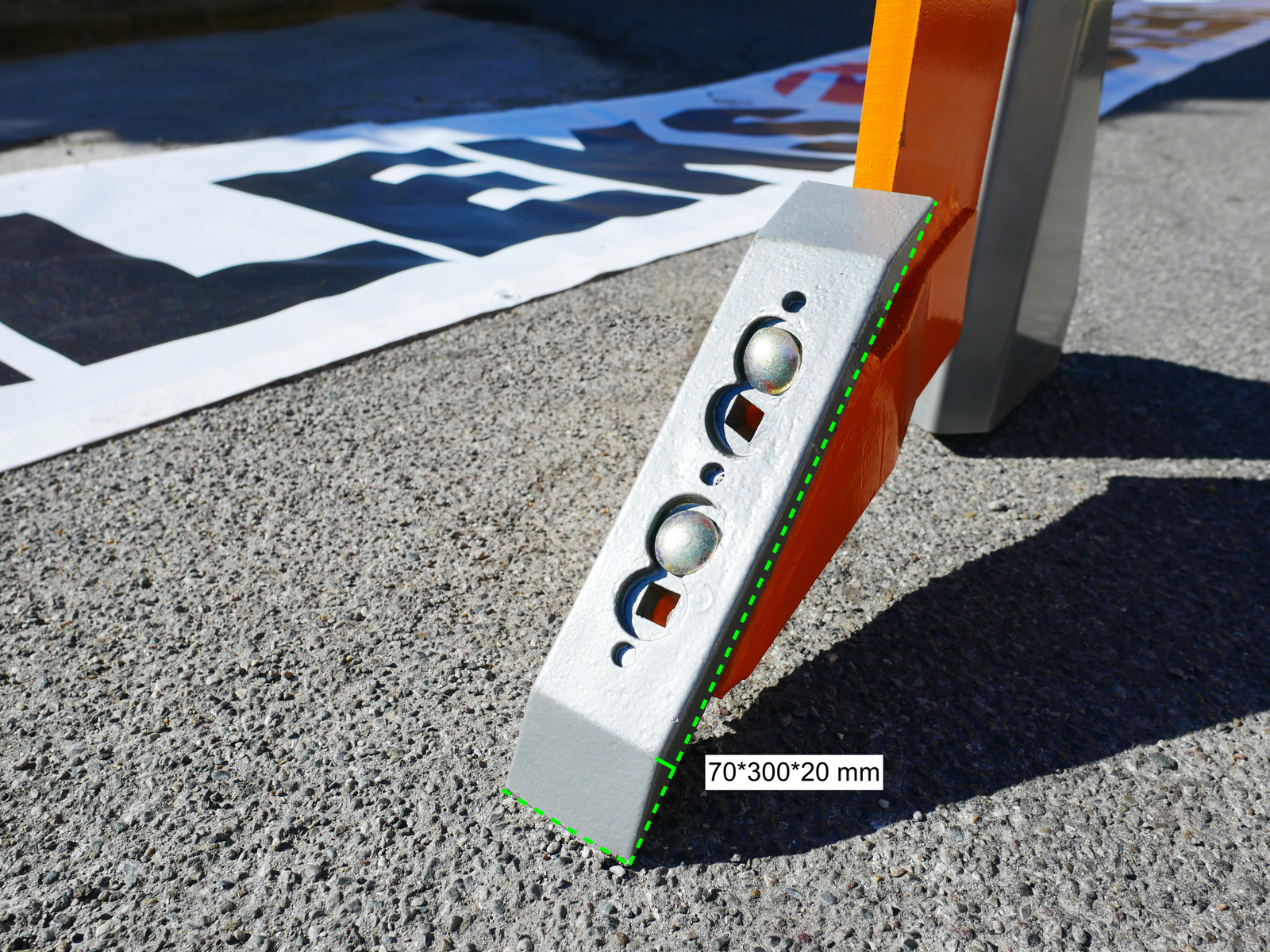

Removable blade Thickness 20.0 mm 0.78 in
Removable blade Width 70.0 mm 2.75 in
Removable blade Length 300.0 mm 11.80 in

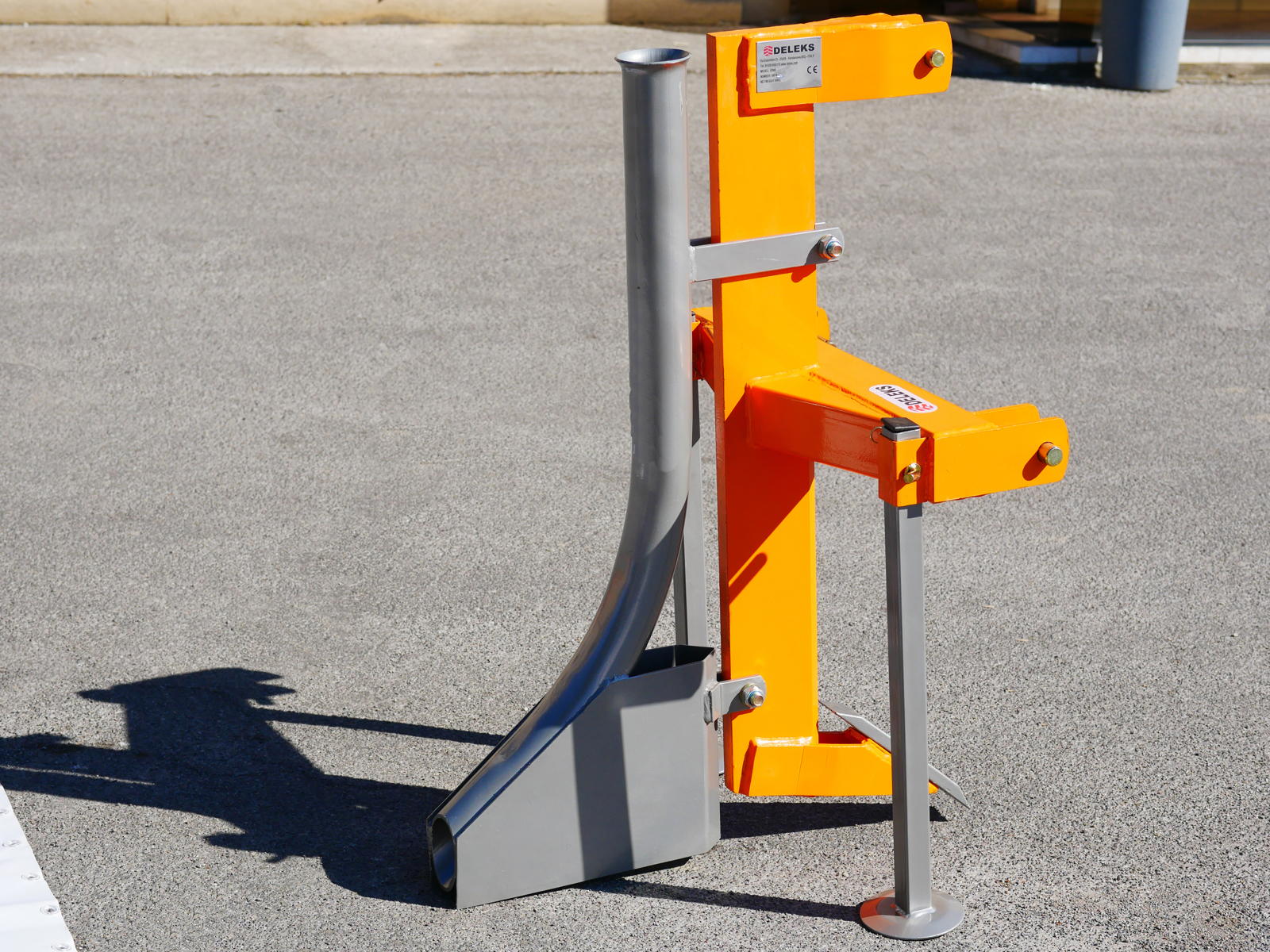

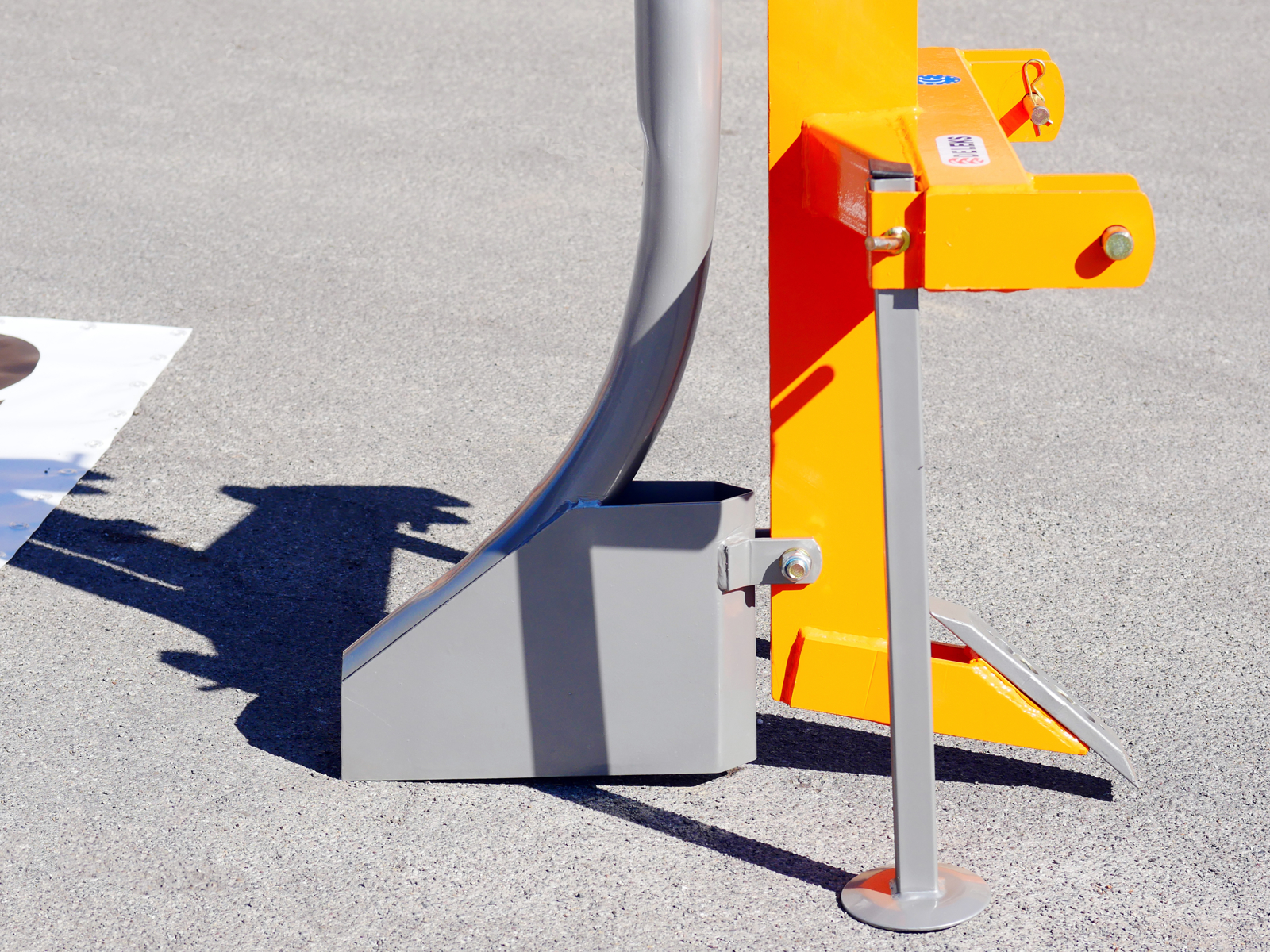

Pipe Layer: weight 15.0 kg 33.0 lb

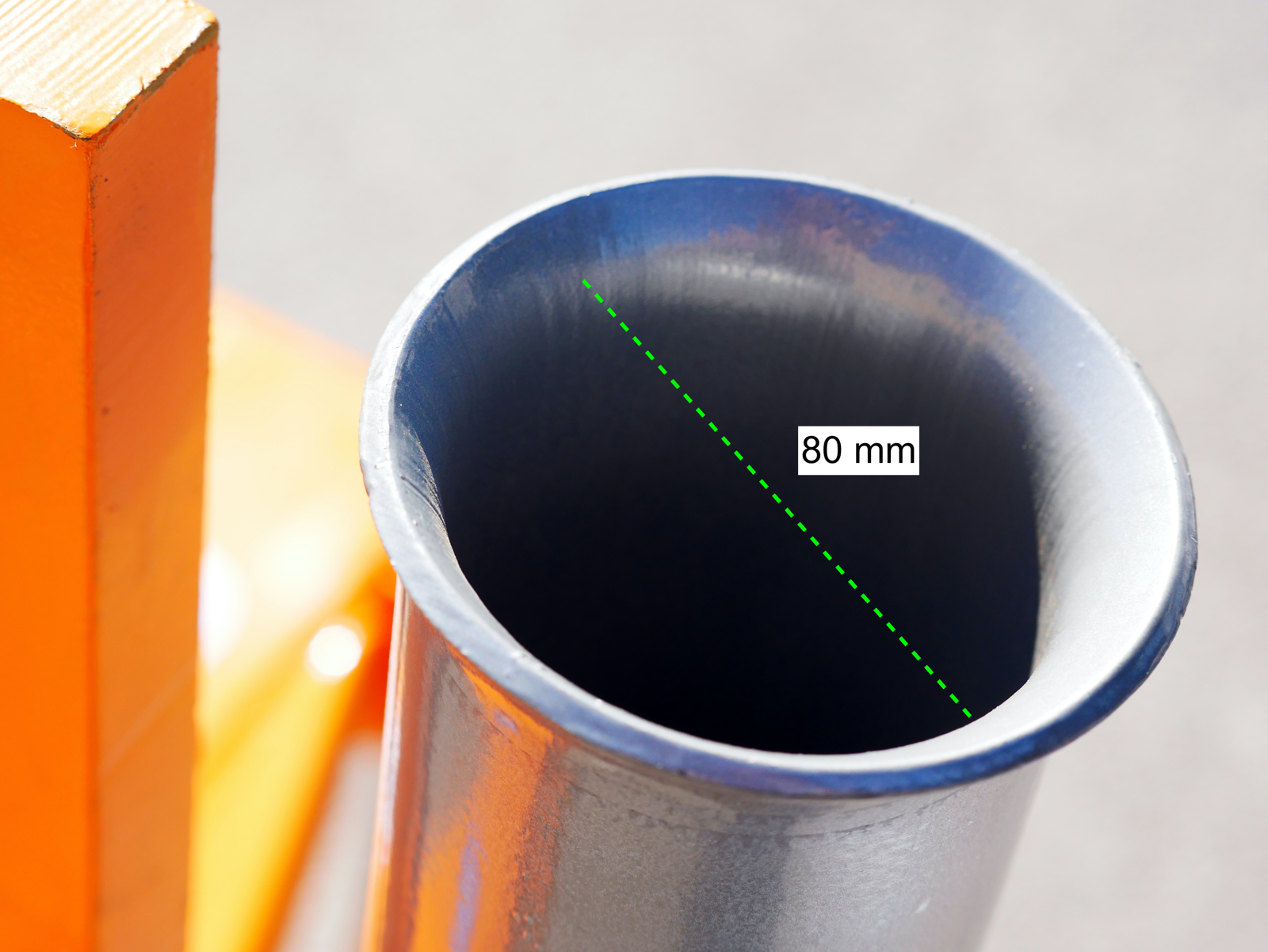

Pipe Layer: ø 80.0 mm 3.15 in
Working Depth Range 600.0 mm 23.60 in
Packing sizes 1200.0*850.0*500.0 mm 3.94*2.78*1.65 ft


blade dr
Blade DR
57,00VAT incl.
Not available Notify me

DR-30 / DR-60

spare pins cat 1 2
Spare pins Cat. 1-2
50,00VAT incl.

ø 19.0/22.0 + 25.0/28.0 mm
