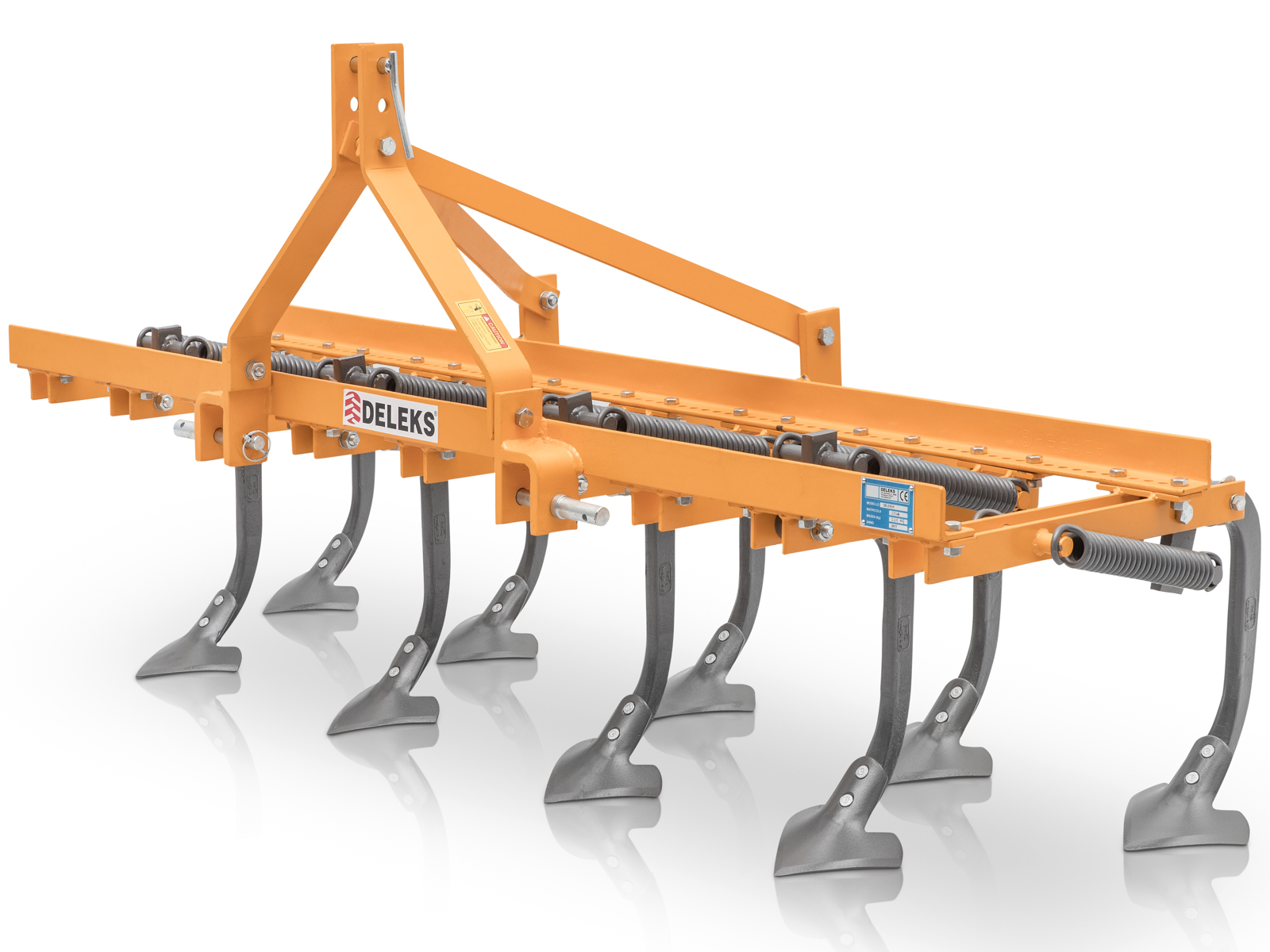

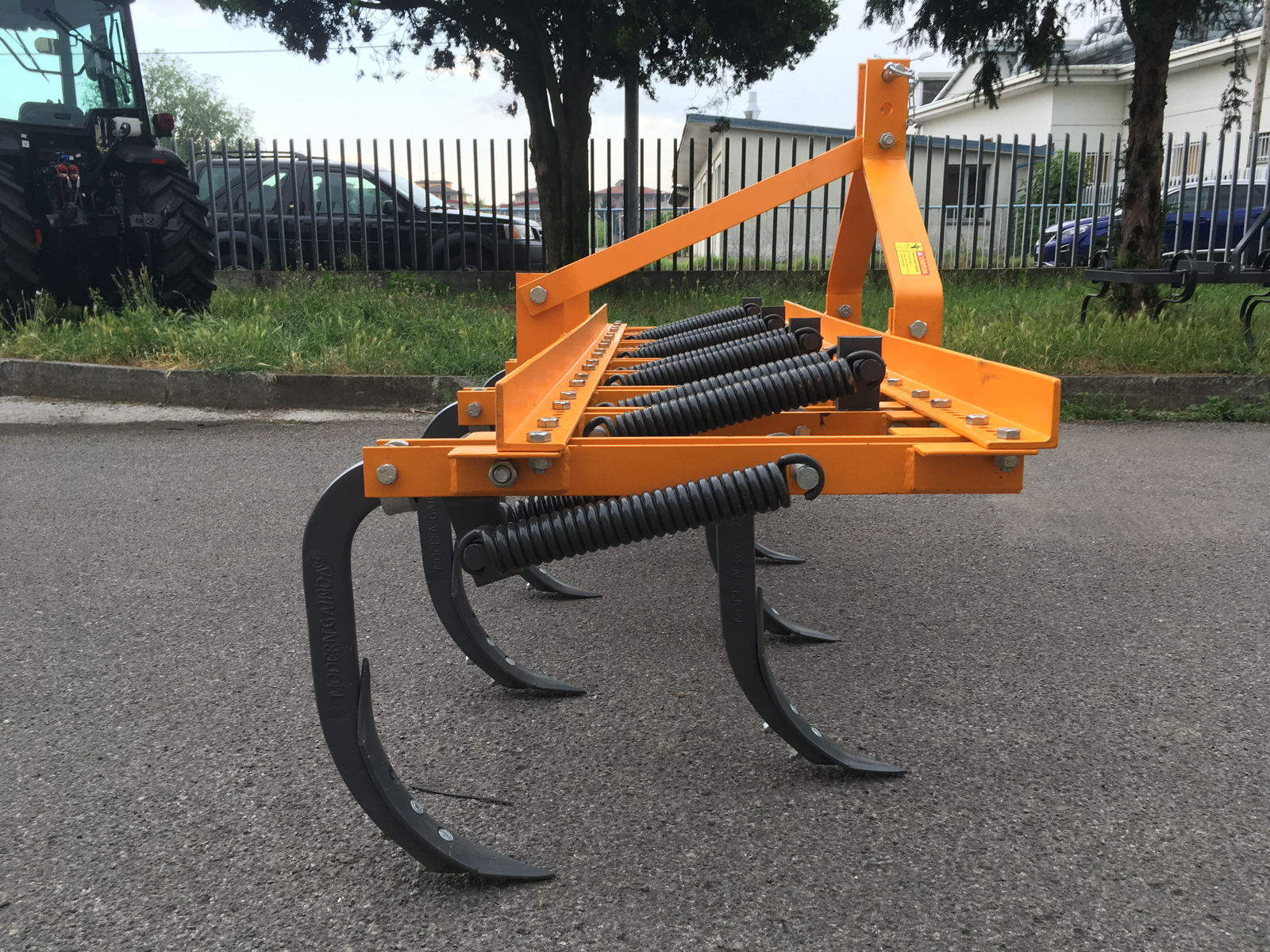

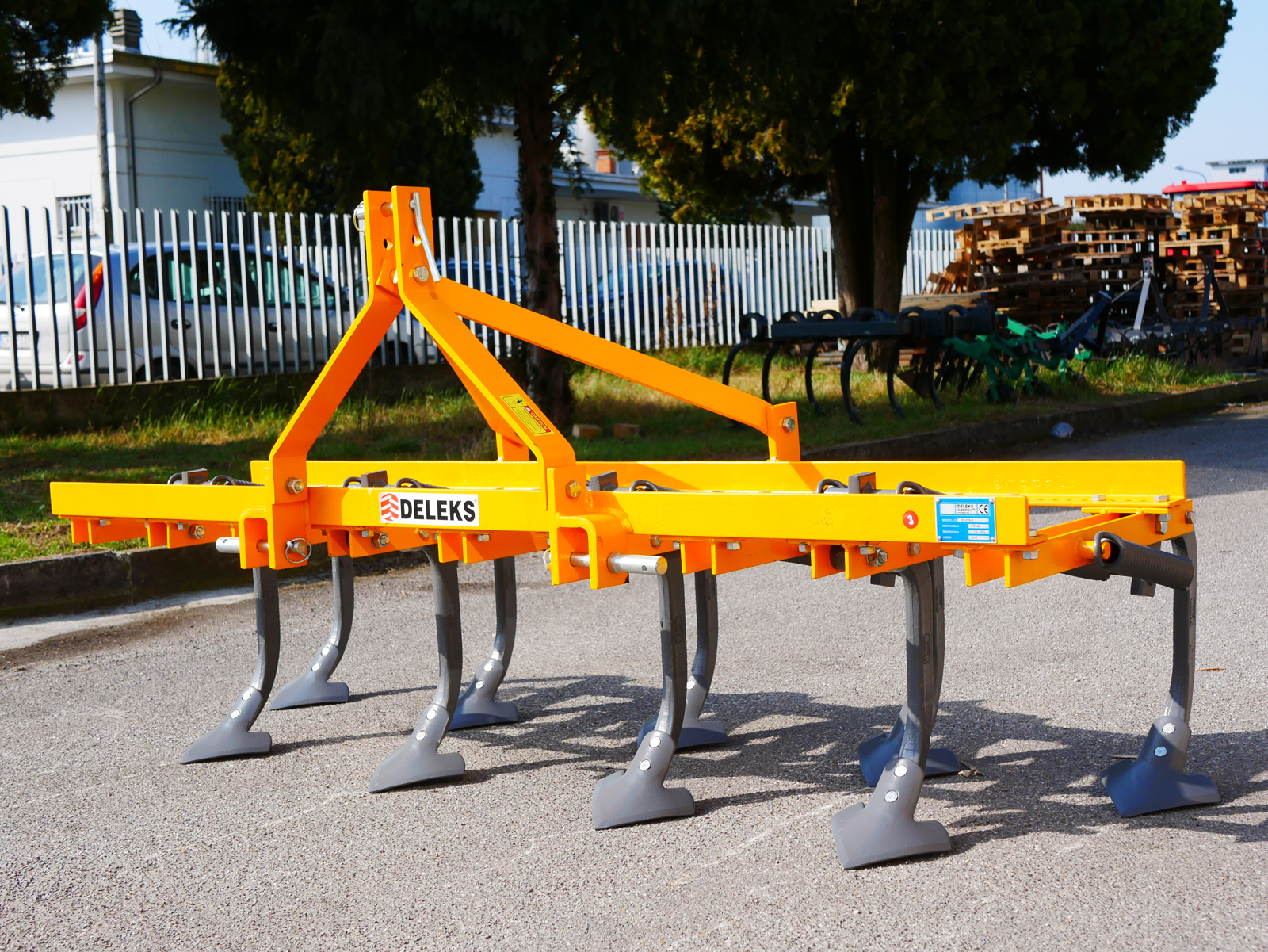

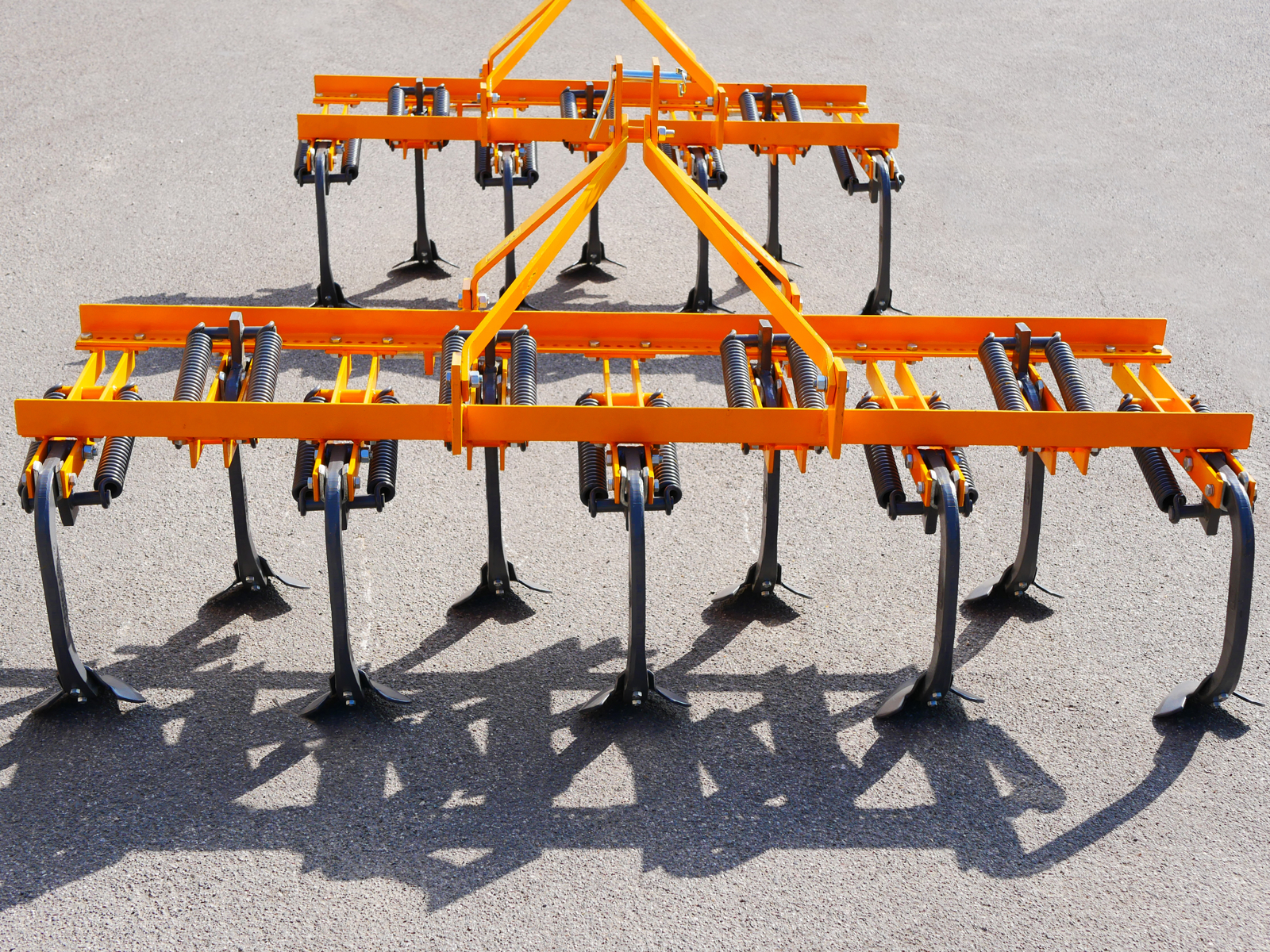

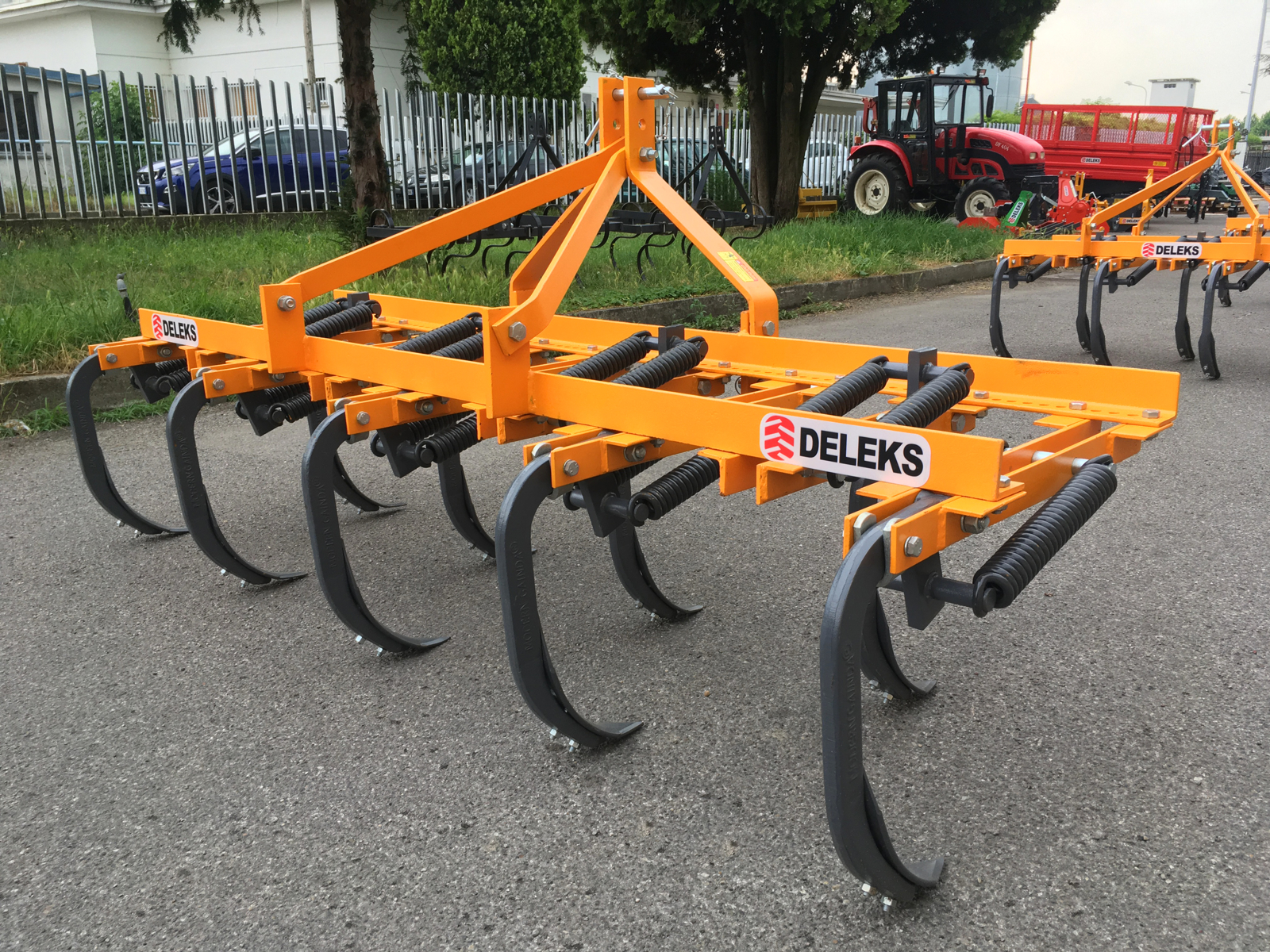

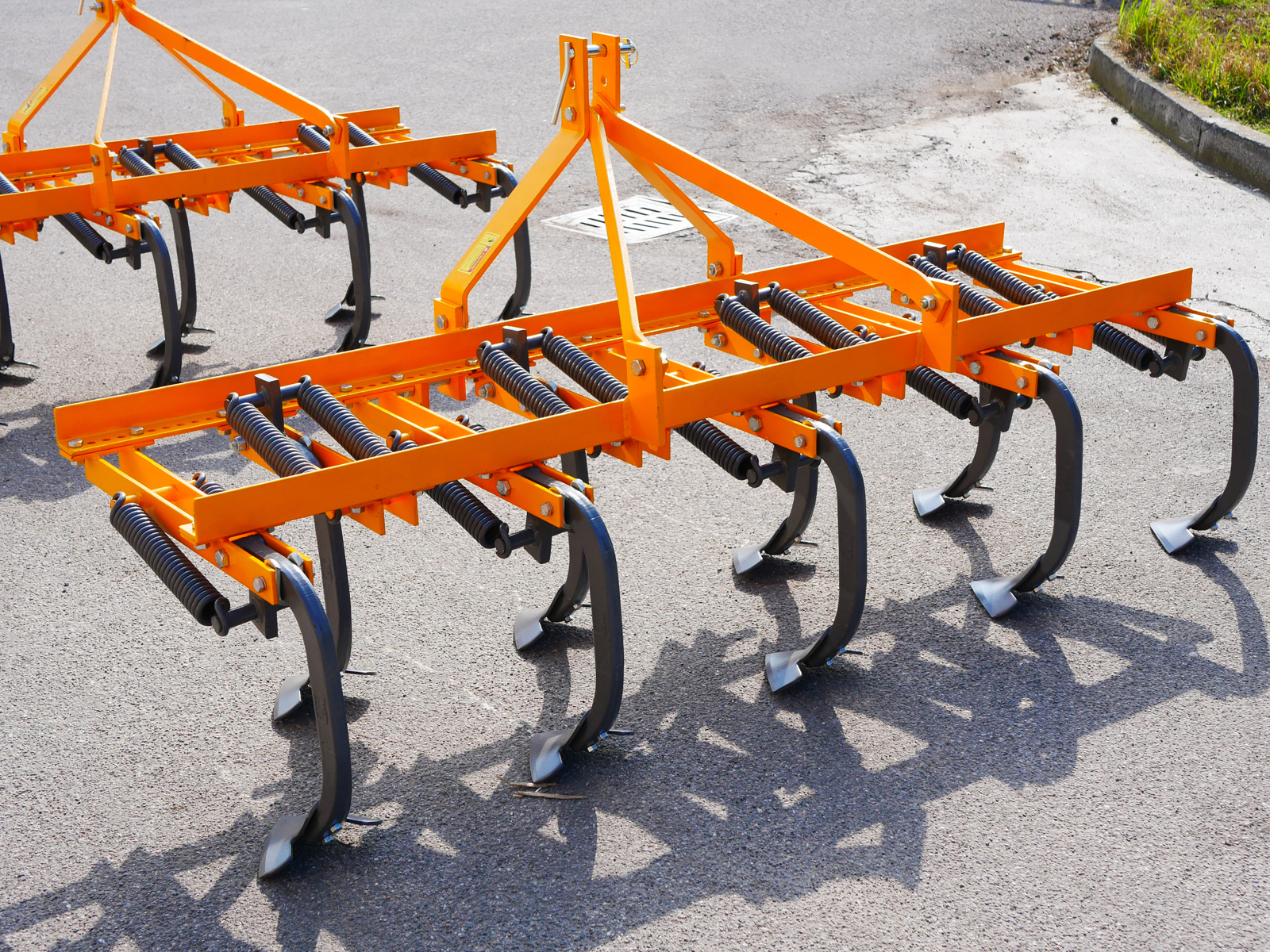

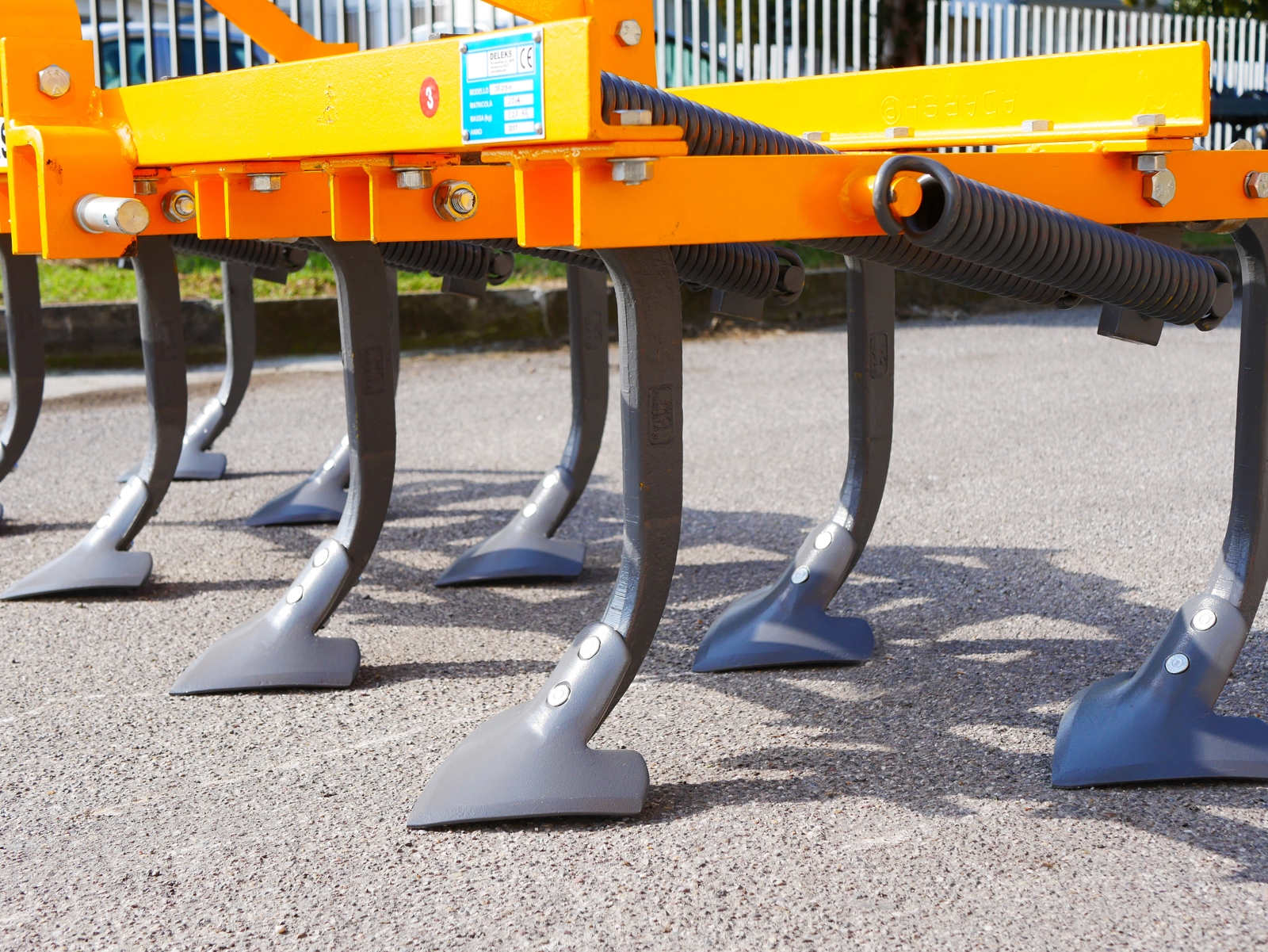

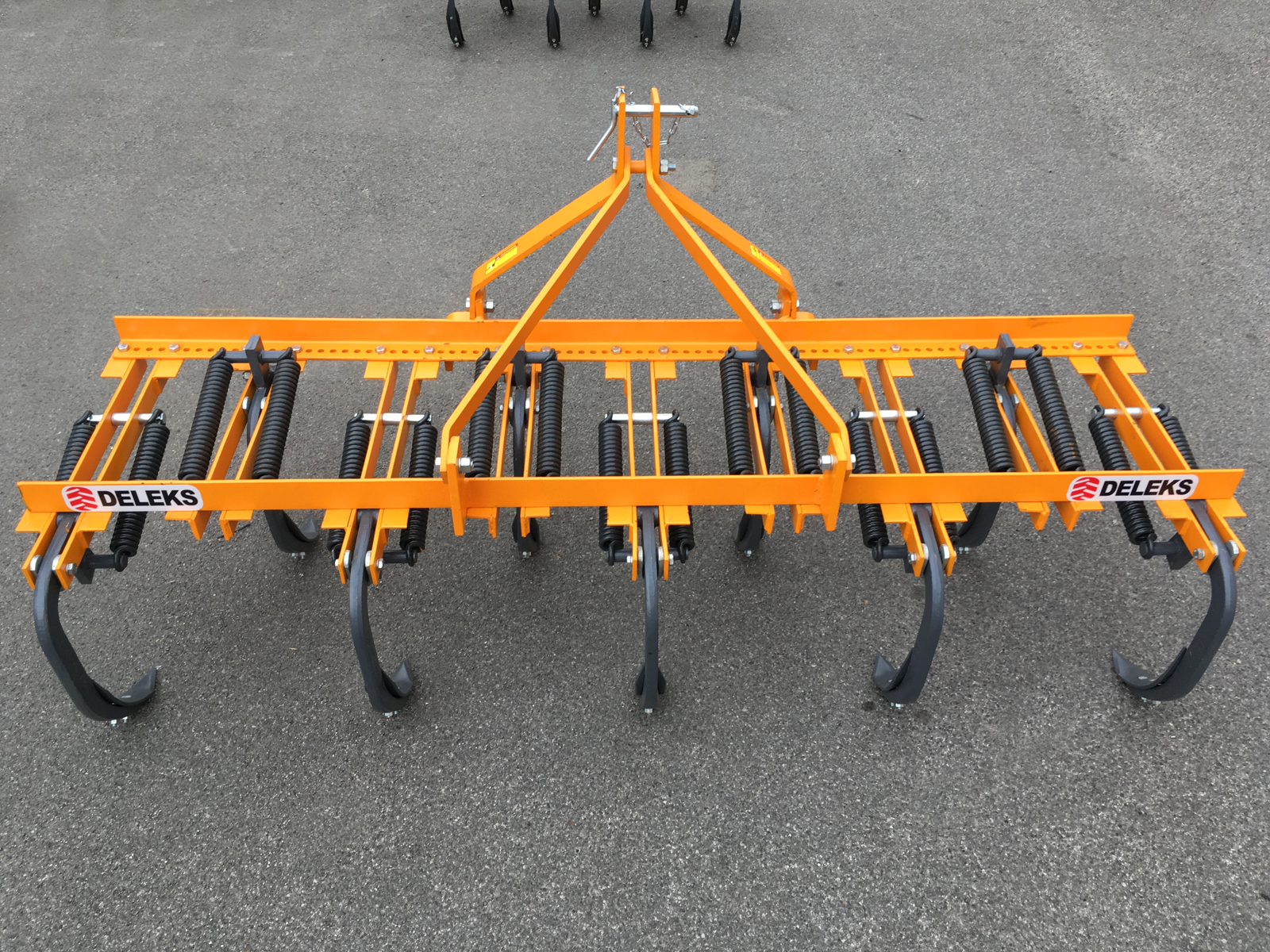

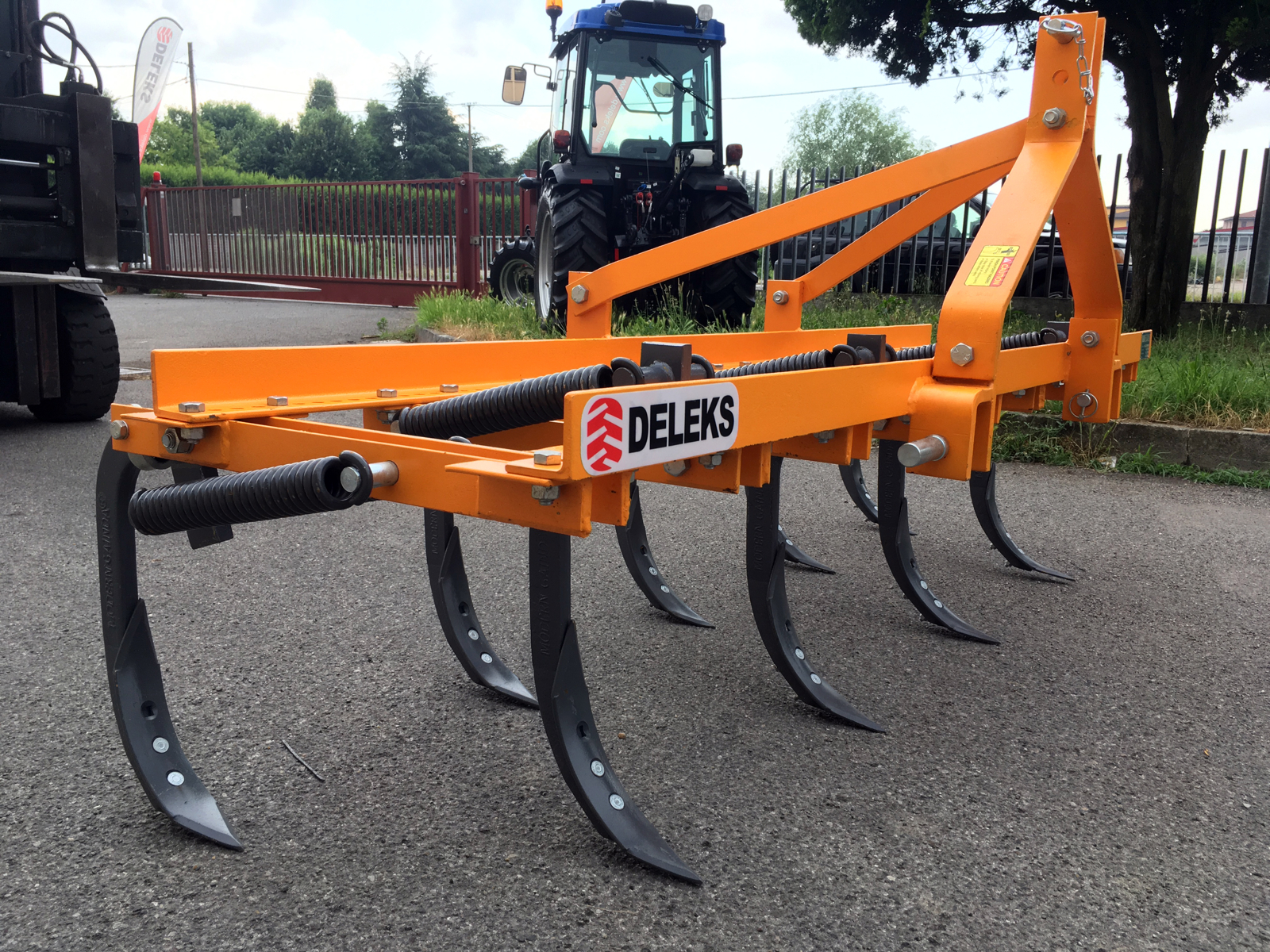

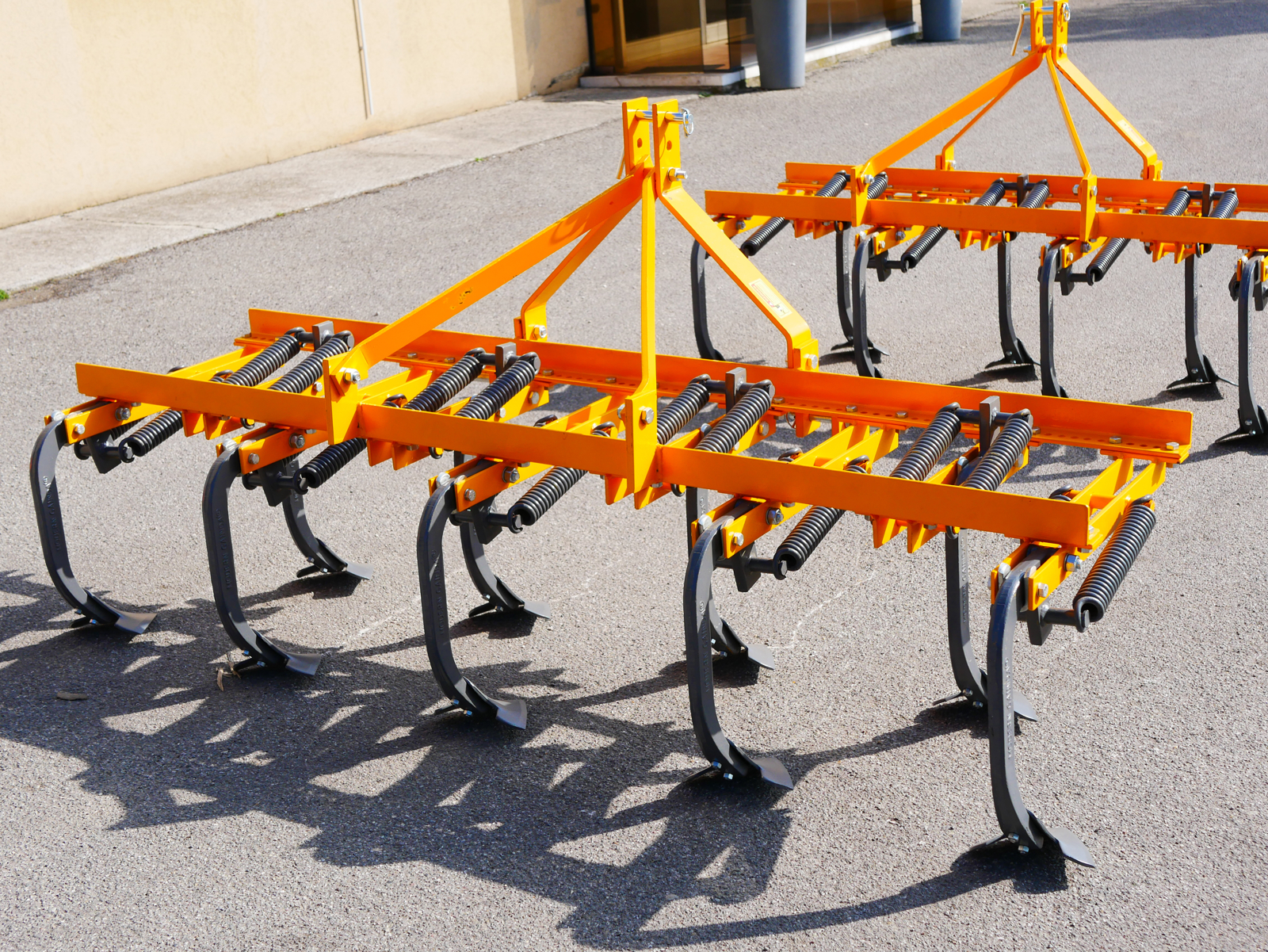

Tine Mounted field cultivator DELEKS® with springs and 9 "Duck foot" tines, working width 217cm, for tractor - interchangeable blades
The DE Cultivator has been designed to disturb the soil in careful patterns, sparing the crop plants but disrupting the weeds Designed to be used for loosening and aerating soil to a depth of approximately 35cm depending on the type of land and the horsepower of the tractor. If one tyne strikes a hidden object, the others continue to work at the correct depth. Ideal for 35-50HP tractors e.g. Kubota , John Deere, New Holland, Same, Fiat, Lamborghini, McCormick. Universal 3 point linkage Cat.1-2. EC Declaration of Conformity. 2 year Warranty.
BENEFITS & FEATURES
The shape of the tines allow homogeneous soil preparation work, with a working depth of 35cm.
Greatly reduces the build up of stagnated water.
Helps to distribute damp among worked soil for over-all more fertile growing conditions.
Heat forged tines to withstand hard & stony conditions.
Strong channel frame for the toughest farm operations.

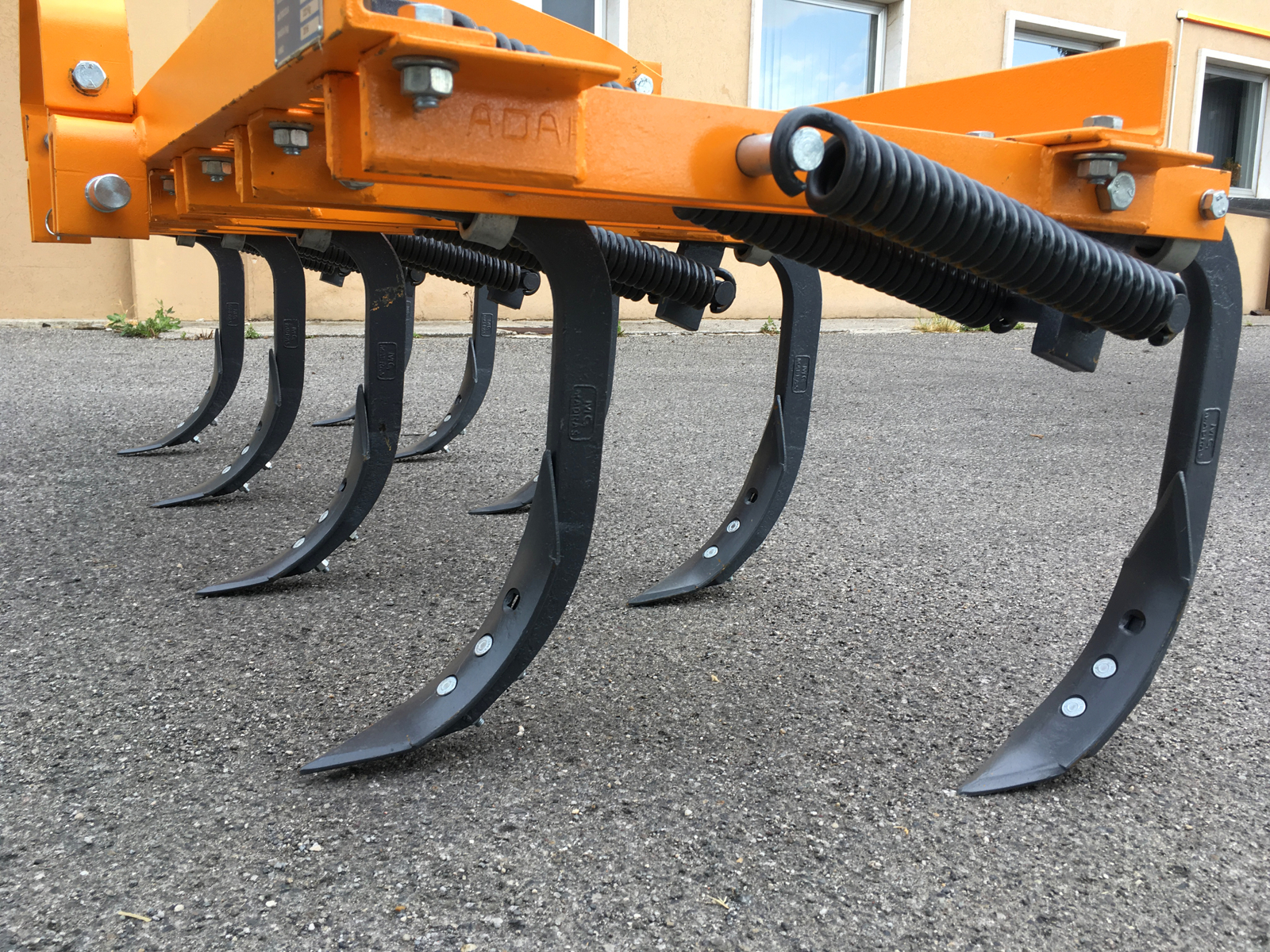

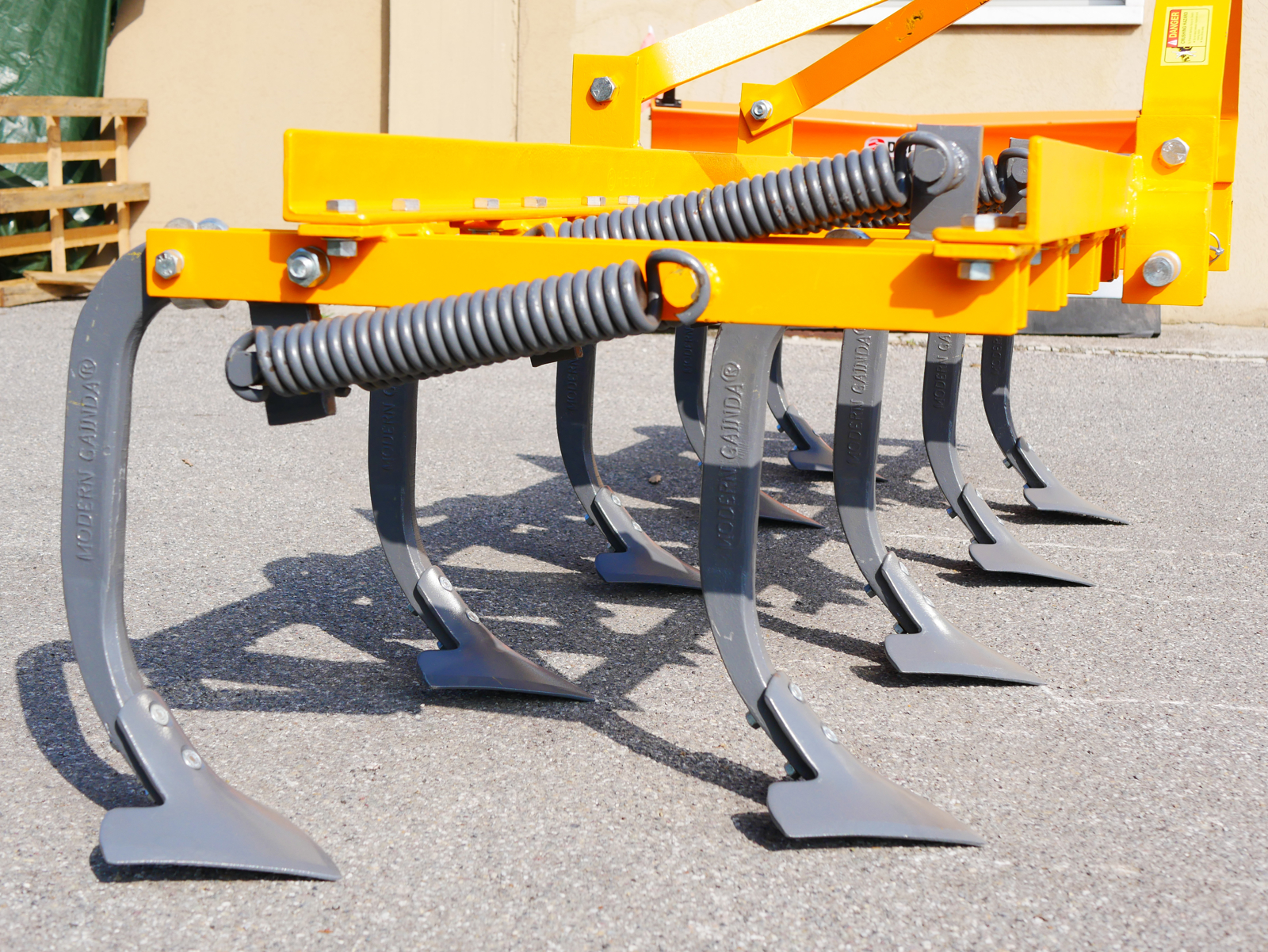

Each tine is supported by two springs for additional strength.
|Characteristic||Units metric||Units US|
|Overall width||2170.0 mm||7.12 ft|
|Weight||240.0 kg||530.0 lb|
|Overall height||1020.0 mm||3.35 ft|
|Tractor Power Range||35 - 50 Hp||35 - 50 Hp|
|3 point linkage||Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)||Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)|
|3 point linkage Thickness||12.0 mm||0.47 in|
|Spacing between the 2 lower points||670.0 - 790.0 mm||26.38 - 31.10 in|
|Overall length||800.0 mm||2.62 ft|
|Distance between the 2 lower points and ground||430.0 mm||17.0 in|

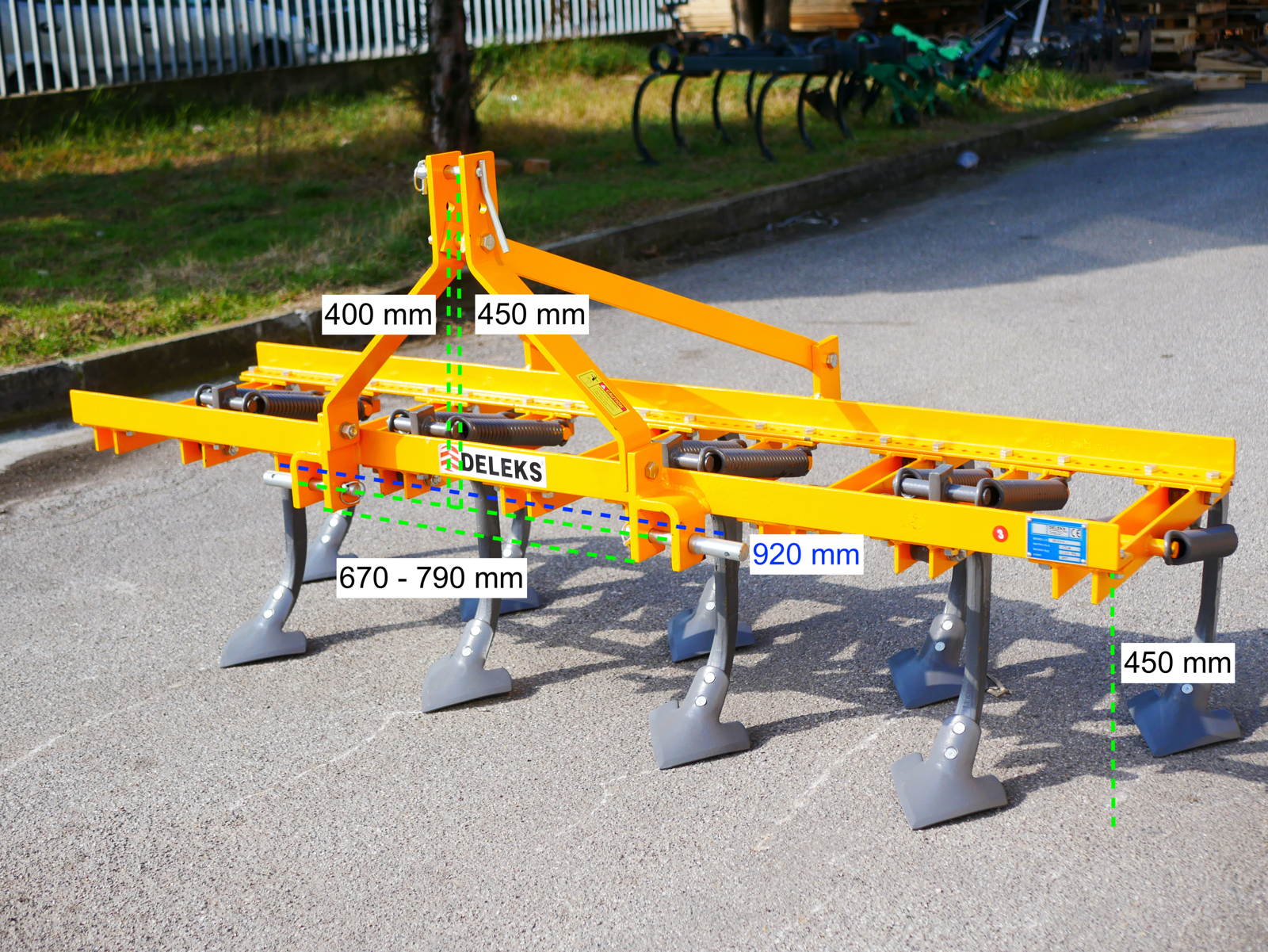

|Other sizes||See pictures||See pictures|
|Number of tines||9||9|
|Tines Height||450.0 mm||17.72 in|
|Number of Shock absorbers per tine||2||2|
|Tine Width (single tine)||25.0 mm||0.98 in|
|Tine Thickness||48.0 mm||1.90 in|
|Standard distances between tines||195.0 mm||7.67 in|
|Removable blades: Thickness||6.0 mm||0.23 in|
|Removable blades: Width||7.27 in|
|Removable blades: Width||200.0 mm|
|Removable blades: Length||220.0 mm||8.66 in|
|Effective Working width||2150.0 mm||7.05 ft|
|Working Depth Range||350.0 mm||13.78 in|
|Packing sizes||2170.0*800.0*400.0 mm||7.12*2.62*1.31 ft|
