Power harrow for tractors 125 cm (49 in) KR-120R with mesh roller, for 25-50 hp tractors

Not available  Notify me
Code KR120RPTO - EAN 8057724862546
2.421,00€VAT incl.
Free shipping
Loading...
2.421,00€VAT incl.

DETAILS

Power harrow for tractors with 125 cm (49 in) working width and rear mesh roller, from the DELEKS® compact series: the rotary harrow for 25–50 hp orchard and vineyard tractors and compact tractors, with a Cat. 1 and 2 three-point linkage, such as Antonio Carraro, Goldoni, Pasquali, Kubota B and L, New Holland T3F, Landini Rex, Same Frutteto, Solis and most compact and orchard tractors. 6 vertical rotors with two blades each (12 blades) at 300 rpm, 317 kg (699 lb) frame, DELEKS® 540 rpm gearbox with a three-year warranty, adjustable levelling bar and roller. It works 16 to 20 cm (6.3–7.9 in) deep, prepares the seedbed in one pass and comes complete with its CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in); free delivery within the EU.


Which tractors it suits

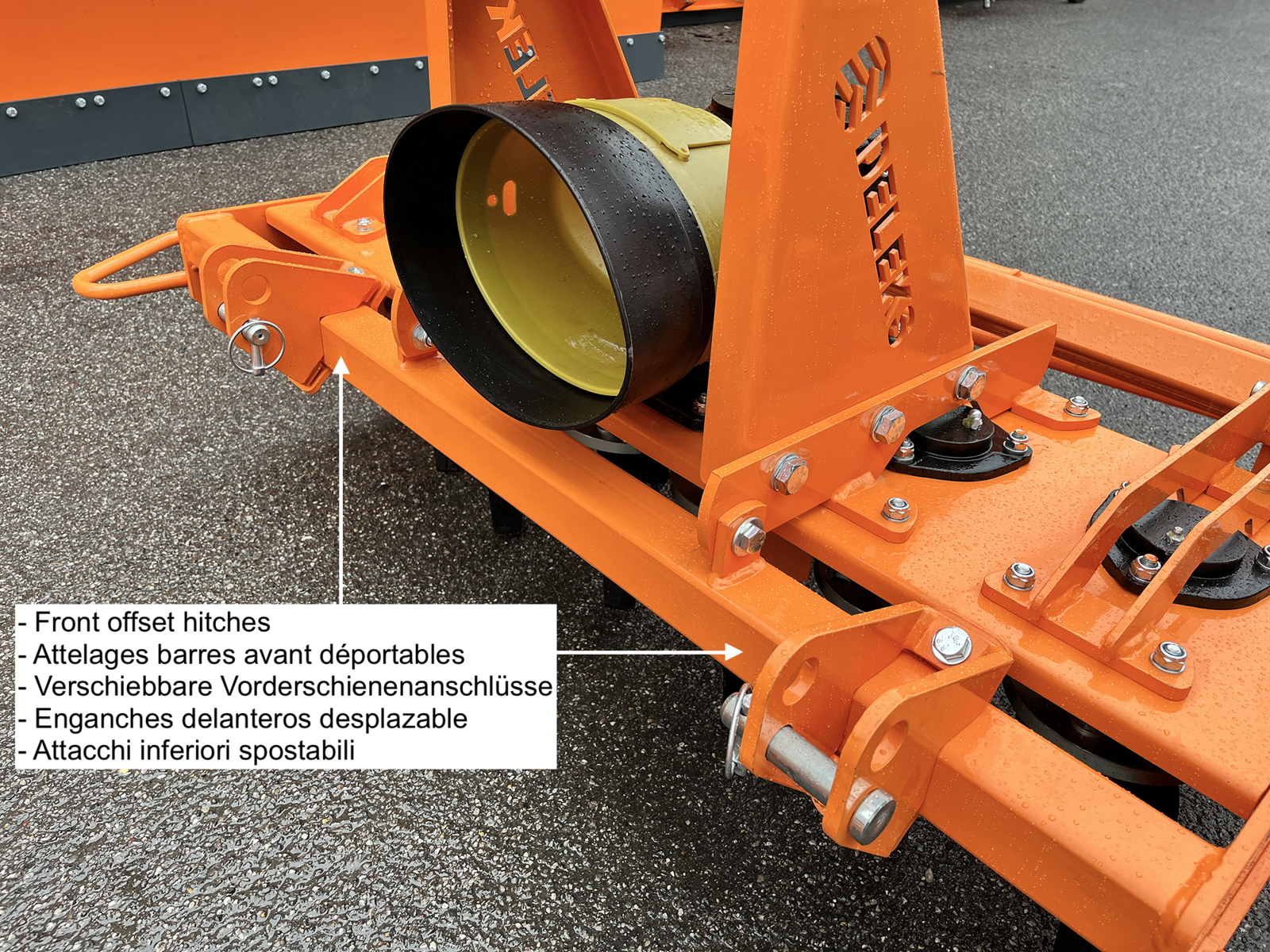

The KR-120R works 125 cm (49 in) wide with an overall width of 130 cm (51 in) and is built for 25–50 hp wheeled or tracked tractors with a Cat. 1 and 2 three-point linkage (19–22 mm and 25–28 mm pins): Antonio Carraro, Goldoni, Pasquali, Kubota B and L, New Holland T3F, Landini Rex, Same Frutteto, Solis and most compact and orchard tractors. The 317 kg (699 lb) weight is within reach of the lift on tractors of this class and the gearbox sits 520 mm off the ground. The KR series is compact and light: it was designed for orchard tractors and low-power tractors, where a field power harrow would be too wide and too heavy. The category 6 PTO shaft comes 1,000 mm long and can be shortened following the manual if the tractor's linkage sits very close.


How a power harrow works

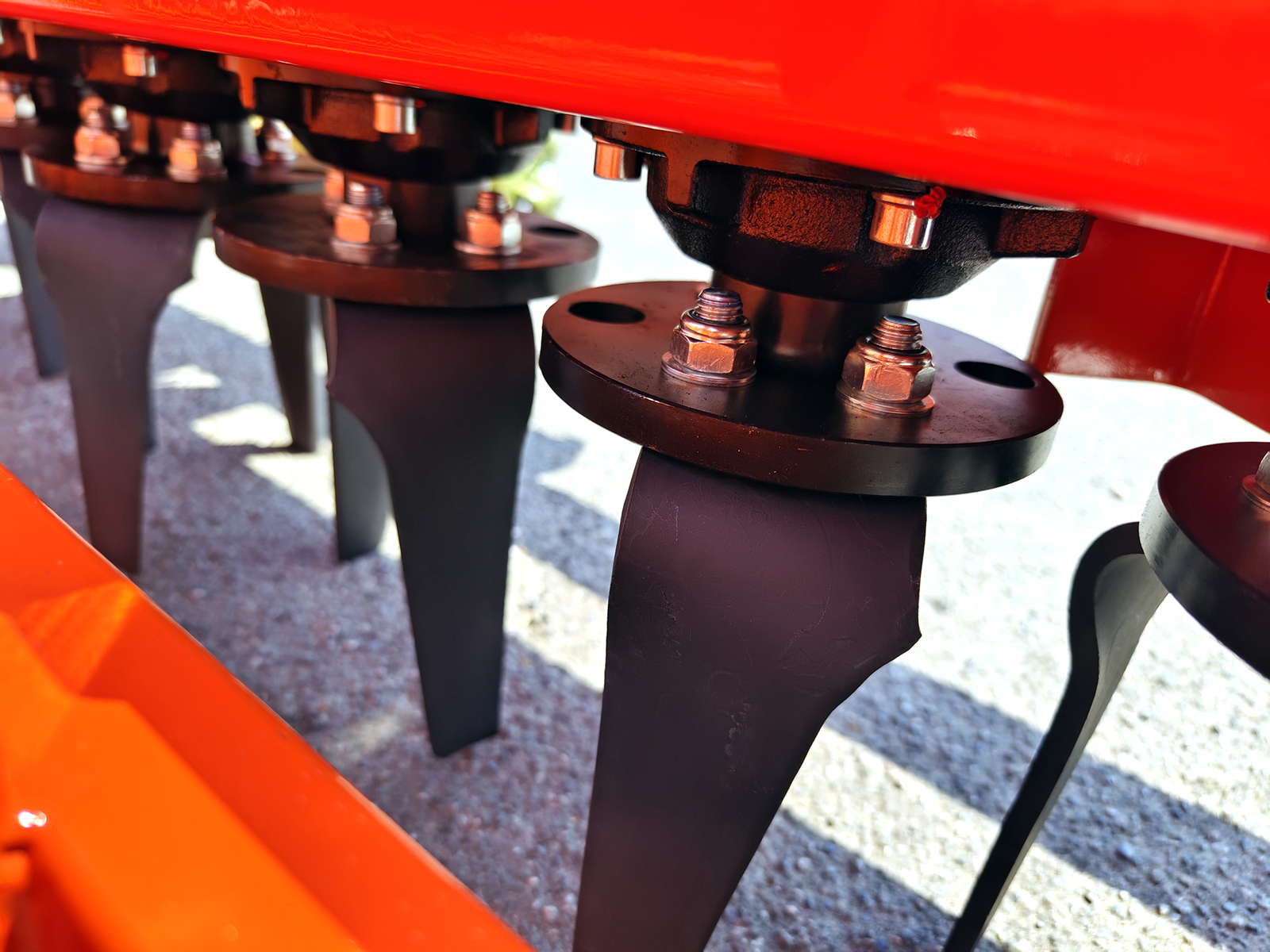

The 6 rotors turn on vertical axes in counter-rotating pairs, at a 21 cm pitch, and the 12 blades cut the soil vertically without turning it over: the fine soil stays on top, the large clods go down, and the structure and moisture of the deeper layers are preserved. That is the difference from a rotavator, which mixes the whole profile and leaves a pan. At 300 rpm on the rotors and 4–6 km/h (2.5–3.7 mph) on the tractor the harrow refines ploughed or unbroken ground in one pass, works in fertiliser and fine residues and leaves the seedbed ready for the drill, the planter or hand sowing. On very stony ground and large roots a heavy rotavator or a stone burier is the better choice.

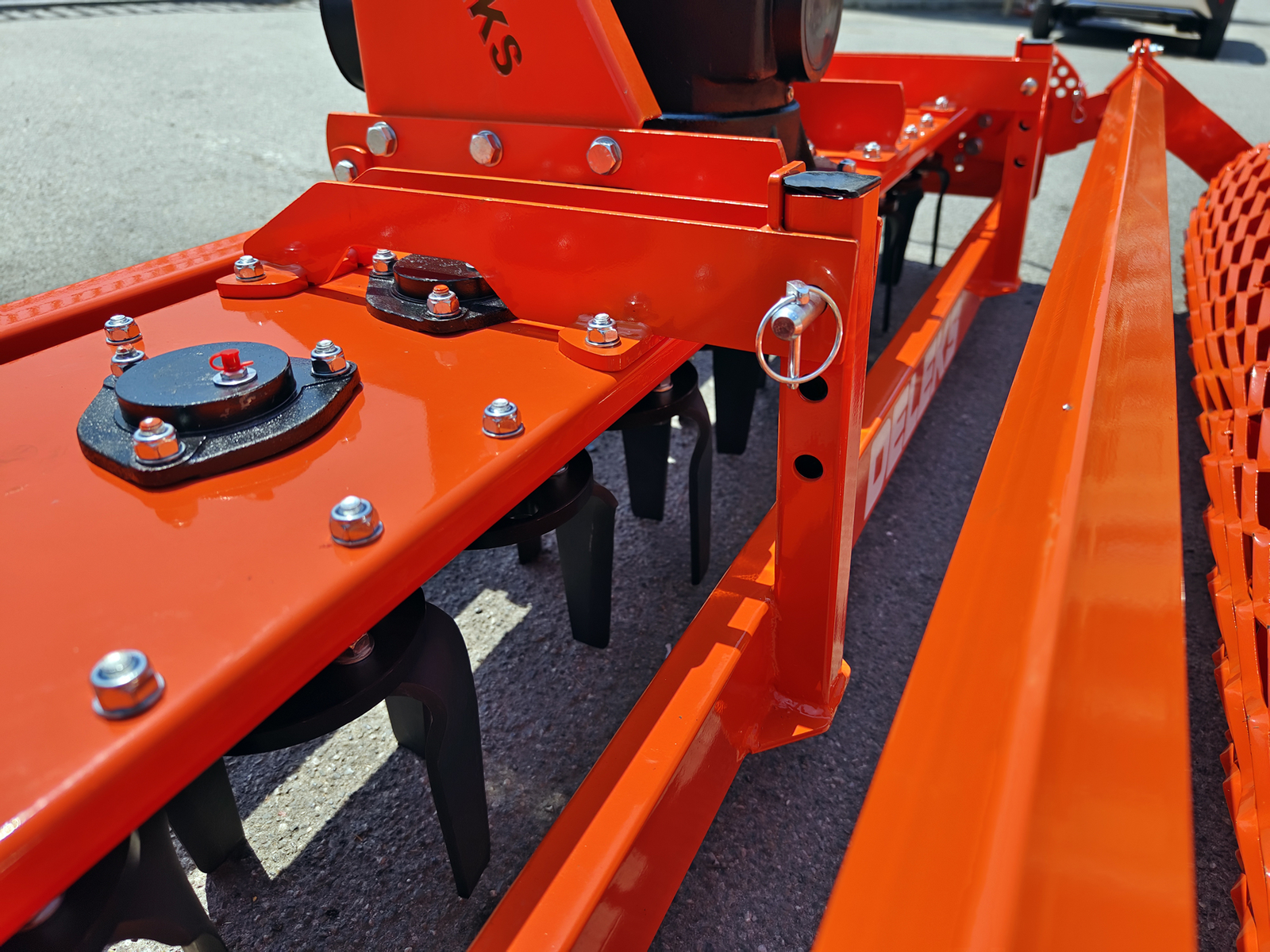

Mesh roller and levelling bar

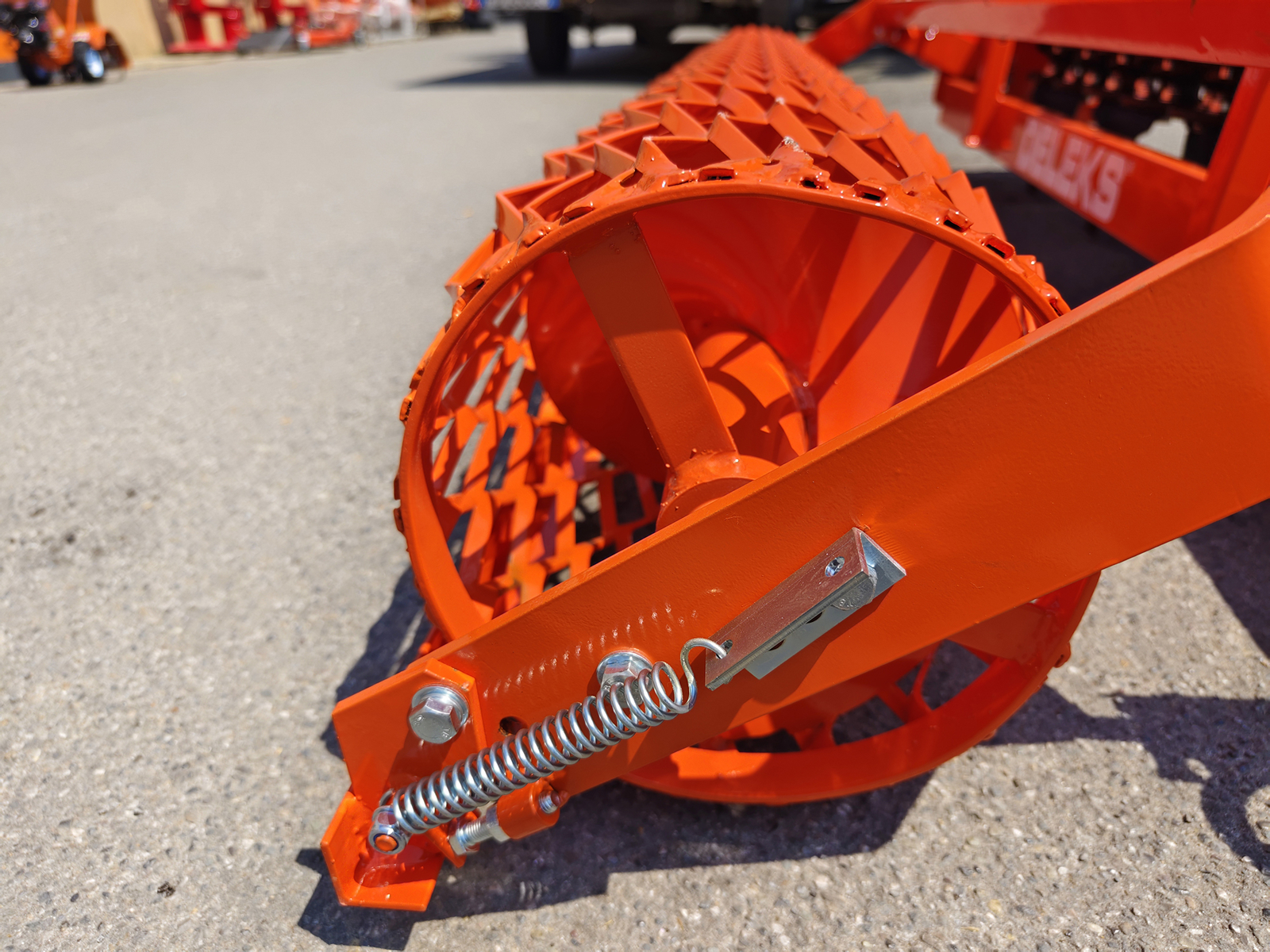

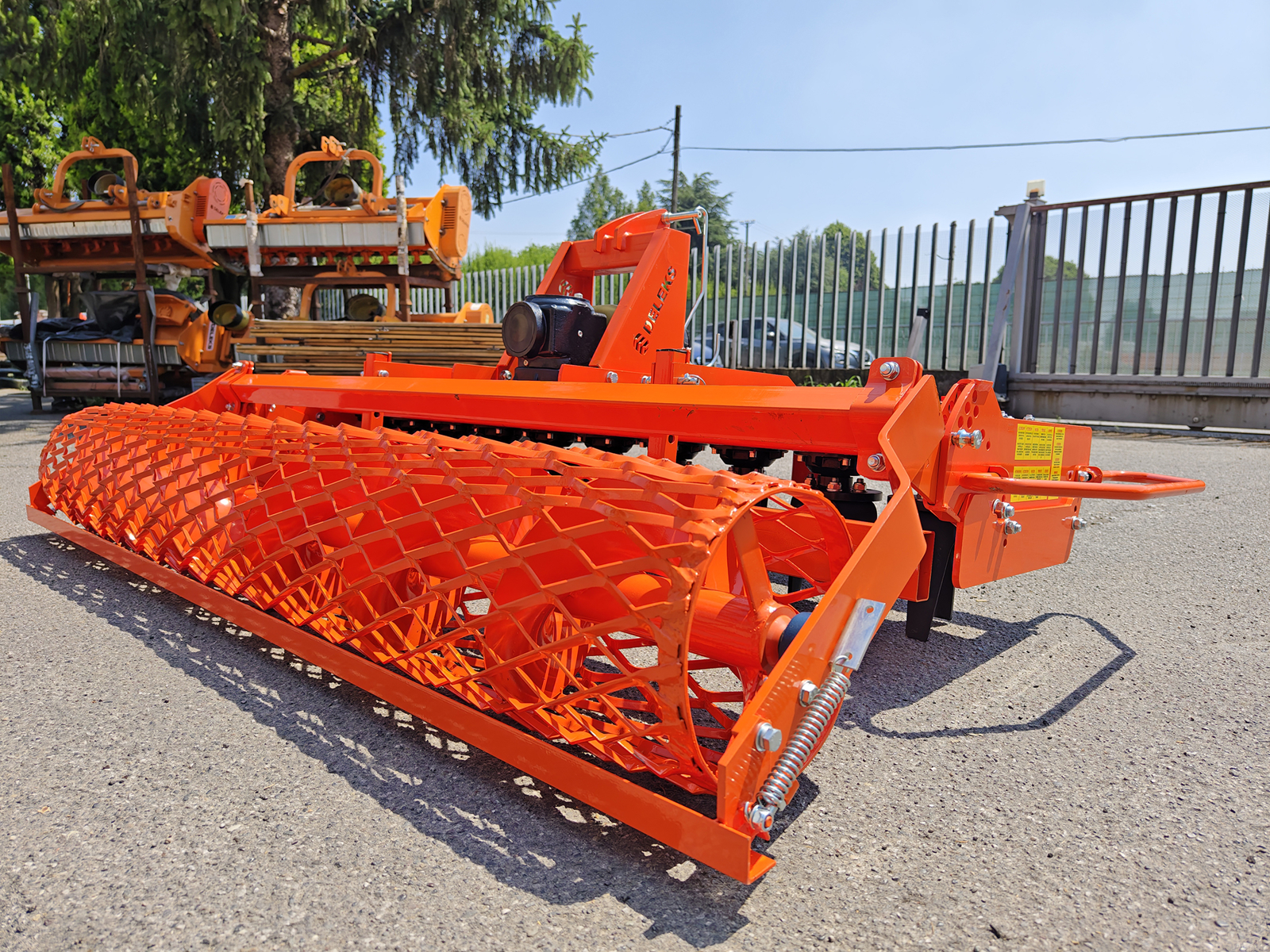

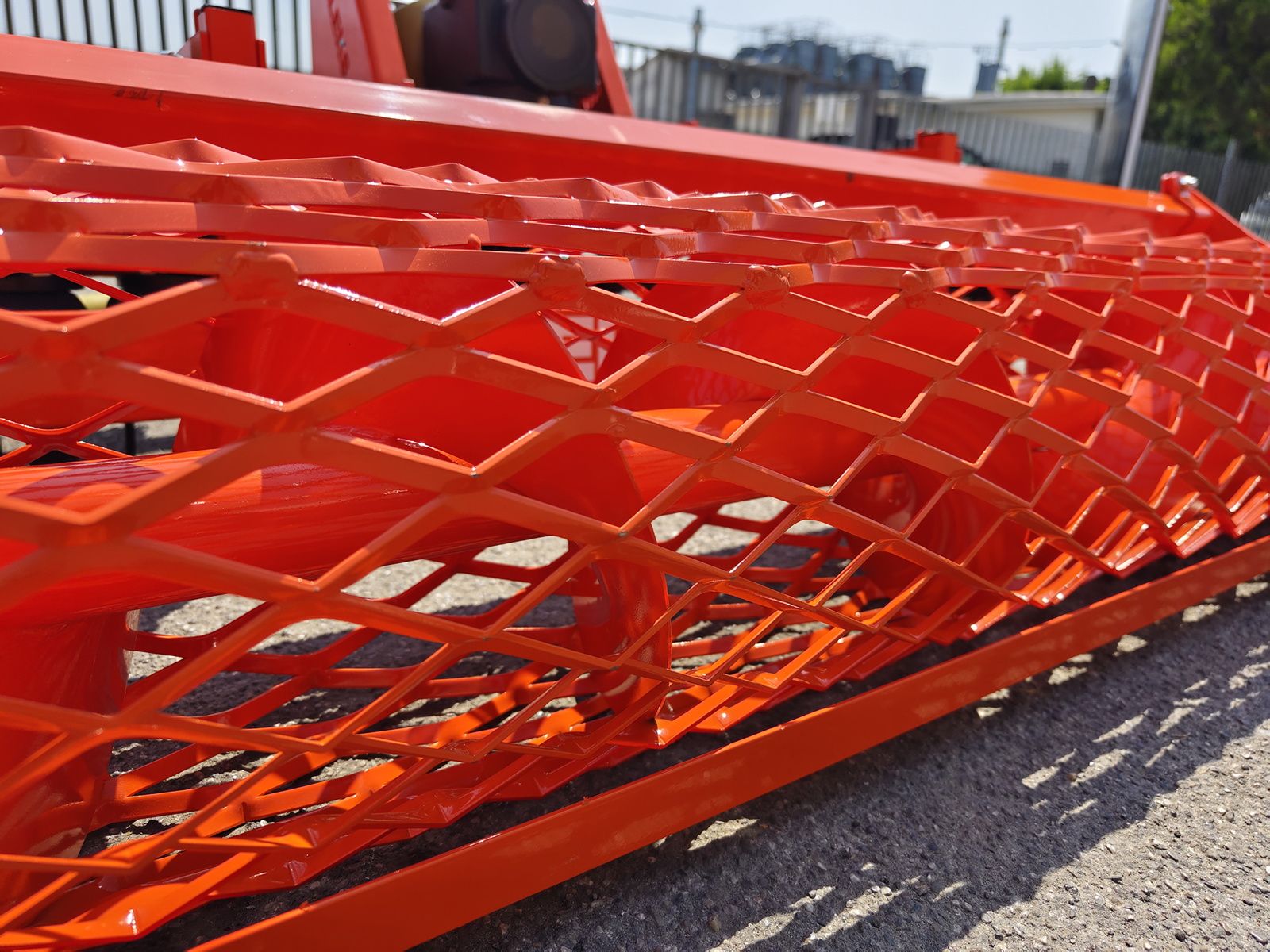

The rear mesh roller, 300 mm (11.8 in) in diameter, sets the working depth and finishes the seedbed behind the rotors: the mesh breaks the remaining clods and leaves a firmer, more level surface than a cage roller, right for anyone sowing or planting straight after, and it clears itself well on damp ground too. Depth is set mechanically by moving the roller along the holes in its arms; the rear levelling bar, also adjustable, evens the surface ahead of the roller. The same harrow with a cage roller is the KR-120, at the same price.

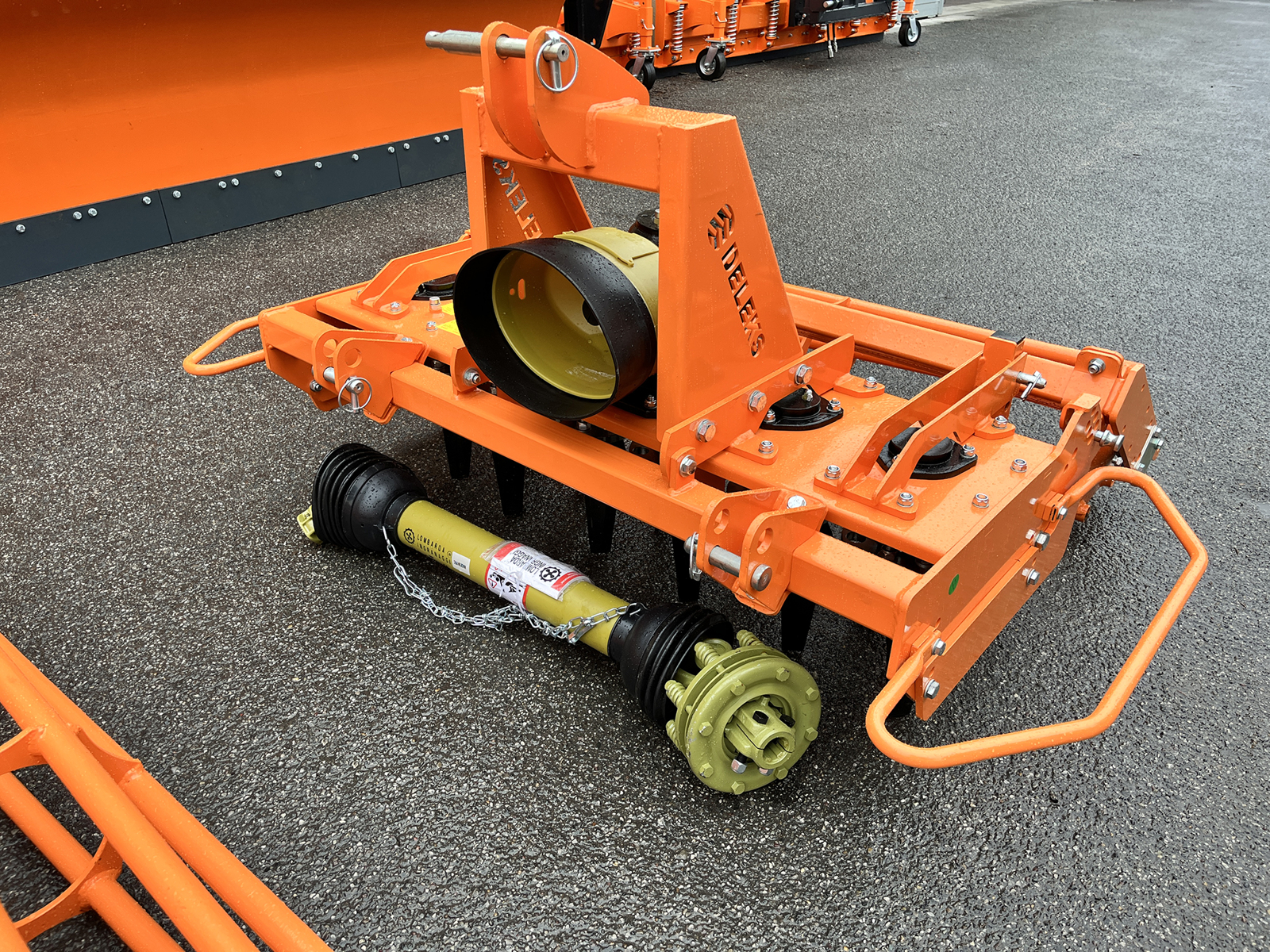

Gear drive and PTO shaft with clutch

The DELEKS® 540 rpm gearbox has a cast-iron housing, a three-year warranty and arrives already filled with SAE 120 oil; from the gearbox the drive goes down to the gear train in an oil bath that turns the 6 rotors at 300 rpm, protected in the closed trough under the frame. The CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in) is included: the clutch protects harrow and tractor when a blade meets a stone or a root, and is set to suit the tractor and the ground following the manual. The blades are bolted to the rotors and are changed one at a time; the side guards and the rear guard meet CE requirements.


Dimensions, weight and delivery

Working width 1250 mm (49 in), overall width 1300 mm (51 in), height 900 mm, length 1180 mm with the roller, weight 317 kg (699 lb). It ships on a pallet of 145 × 90 × 90 cm (57 × 35 × 35 in), 390 kg (860 lb) gross, 1.17 m³, with free delivery within the EU; to keep the pallet compact the roller travels detached and is fitted in a few minutes with the pins supplied before first use. Unloading is down to the customer, with a forklift or the tractor's lift. The harrow complies with the EC Machinery Directive, is TÜV Austria certified and comes with a two-year warranty.


Where it works

  • Vineyards and orchards: refining the alleyway and preparing for grassing down, with the orchard tractor
  • Market gardens and nurseries: a fine, level seedbed and planting bed, working in fertiliser and fine residues
  • Small and medium fields: working down the ploughing and refining before sowing cereals and forage crops
  • Landscaping and lawns: renewing lawns, preparing ground for seeding, levelling after excavations

Options and spares

Spare blades, rotors, seals and bearings are ordered from the DELEKS® spares service quoting the model and the serial number; spare PTO shafts and clutches are in the catalogue.


FAQ

Cage roller or mesh roller?
The cage roller is the choice for dry, loose or stony ground: it lets fine soil through and does not clog. The mesh roller refines more and leaves a firmer, more level surface, ideal for anyone sowing straight after or working soils that hold moisture. Same harrow, same price: only the roller changes.

What is the difference between a power harrow and a rotavator?
The power harrow cuts vertically and does not turn the soil over: it refines without creating a pan or bringing wet soil to the surface, and it is faster on ploughed ground. The rotavator mixes the whole profile, buries heavy residues better and also works compact unbroken ground. Many farms run both: rotavator to break, power harrow to refine.

How much tractor does the KR-120R need?
25 to 50 hp with a Cat. 1 and 2 three-point linkage and a 540 rpm PTO. The lift matters too: 317 kg (699 lb) plus a roller full of soil are within reach of tractors of this class, but on the smallest models front ballast is advisable.

How is the working depth set?

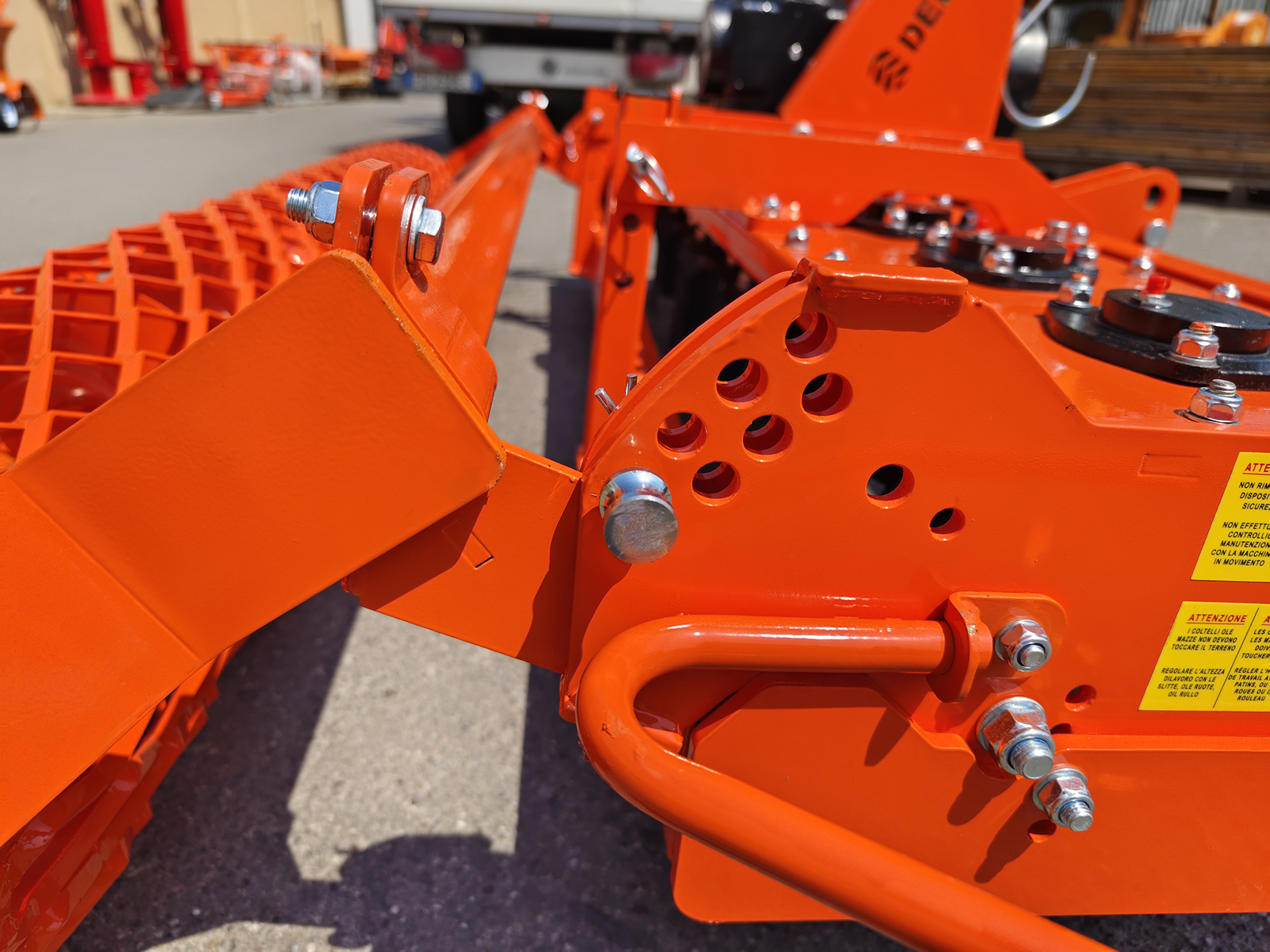

By moving the roller along the holes in the rear arms and trimming with the top link: with the harrow level the blades work 16 to 20 cm (6.3–7.9 in) deep. The levelling bar is raised on rough ground and lowered when a finer surface is needed.

What maintenance does it need?
At the start of the season check the oil level in the gearbox (SAE 120) and in the rotor trough, and blade wear and tightness; before each use grease the points shown in the manual and check the PTO clutch. Worn blades are replaced in pairs.


DELEKS® spares and support

Genuine spares ship from the DELEKS® warehouses in Europe: blades, rotors, bearings, seals, gears, PTO shafts and clutches are normally in stock, for routine servicing and for repairs. The technical team helps you pick the right part from the exploded drawings, service the machine and choose the harrow and the roller that suit your tractor and your soil. The harrow comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric
Working width 1250.0 mm
Overall width 1300.00 mm
Weight 317.0 kg
Overall height 900.0 mm
Tractor Power Range 25 - 50 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Overall length 1180.0 mm
Distance between pto attachment and ground 520.0 mm
Transmission: Gearbox DELEKS 540 r/min (3 year warranty)
Transmission: Rotation of gearbox Right side
Transmission: RPM Rotor speed 300 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925
Rear roller: diameter 300.0 mm
Working Depth Range 160.0-200.0 mm
Pto shaft CE 6x1000 mm + twin-disc friction clutch Ø180 mm
Rotator 6 vertical rotors
Number of Blades 12
Gross shipping weight 390 kg
Package volume 1.17 m3
Packing sizes 1450.0*900.0*900.0 mm
