Compact 1.1-ton mini excavator, Koop diesel engine

Compact DELEKS® Z110 mini excavator weighing 1,100 kg, powered by a Koop diesel engine, with an expandable undercarriage from 95 to 120 cm and a long 135 cm undercarriage for increased stability during operation. Swing boom, two-speed travel, side joysticks and auxiliary hydraulic circuit.

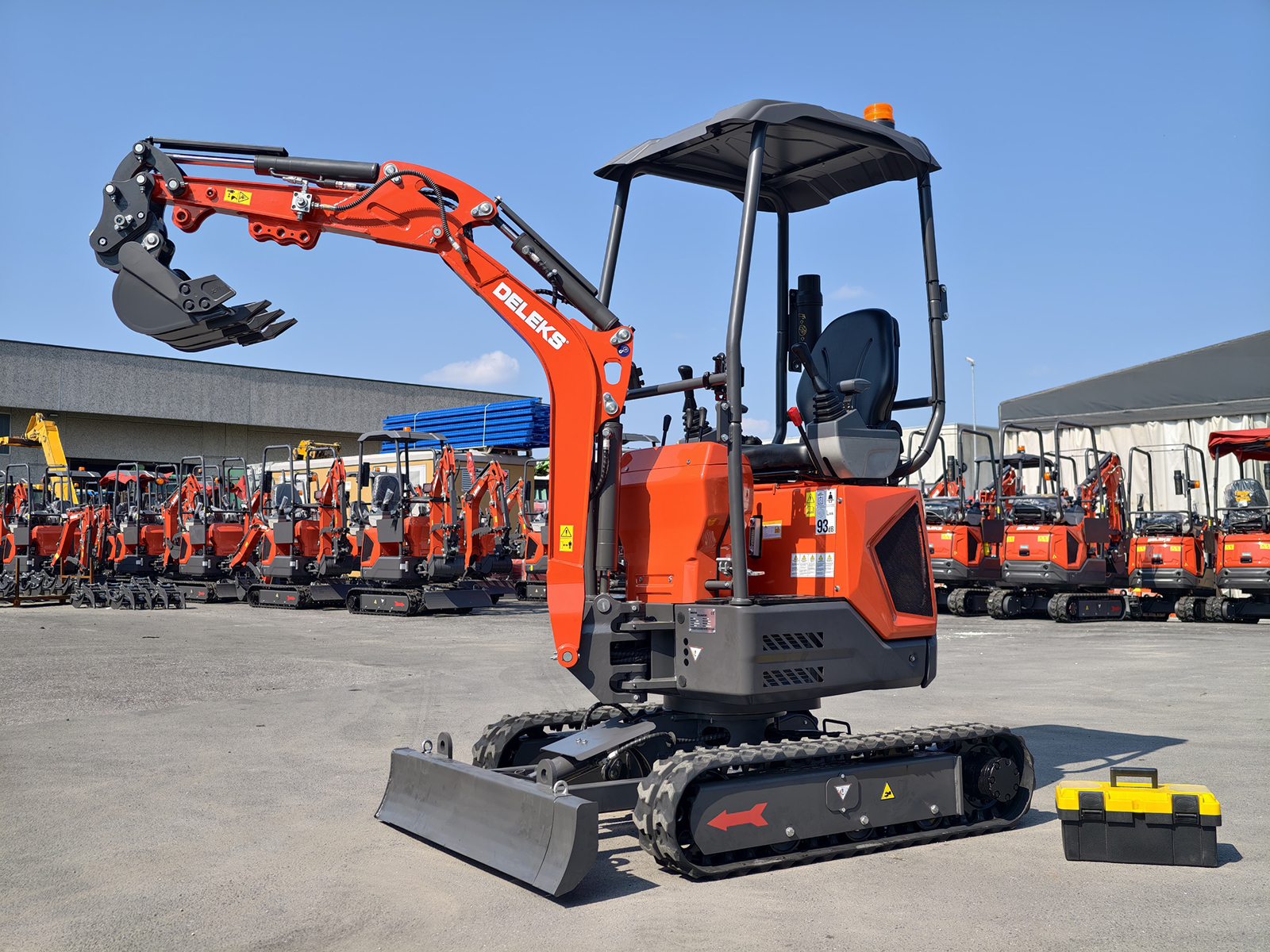

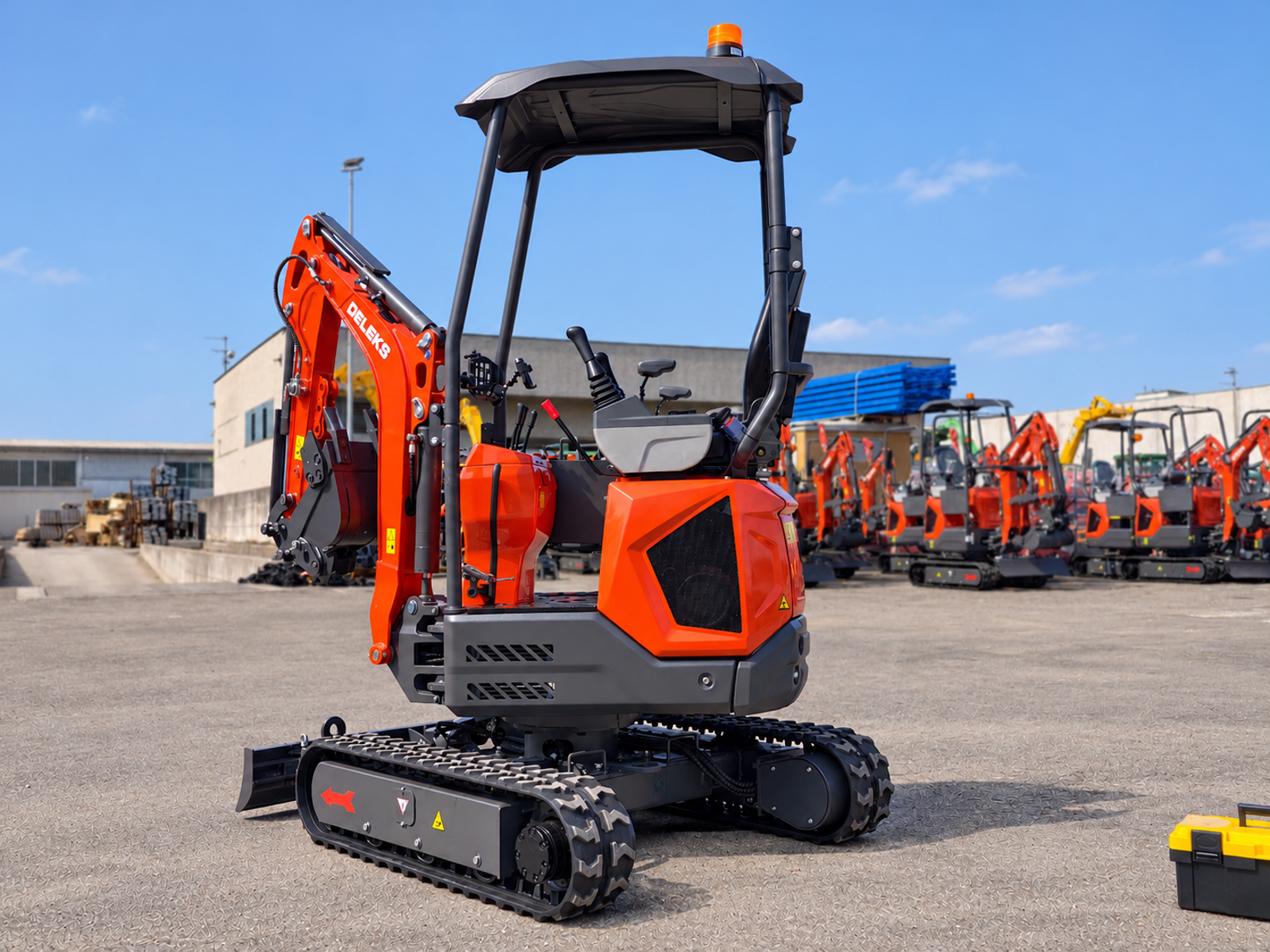

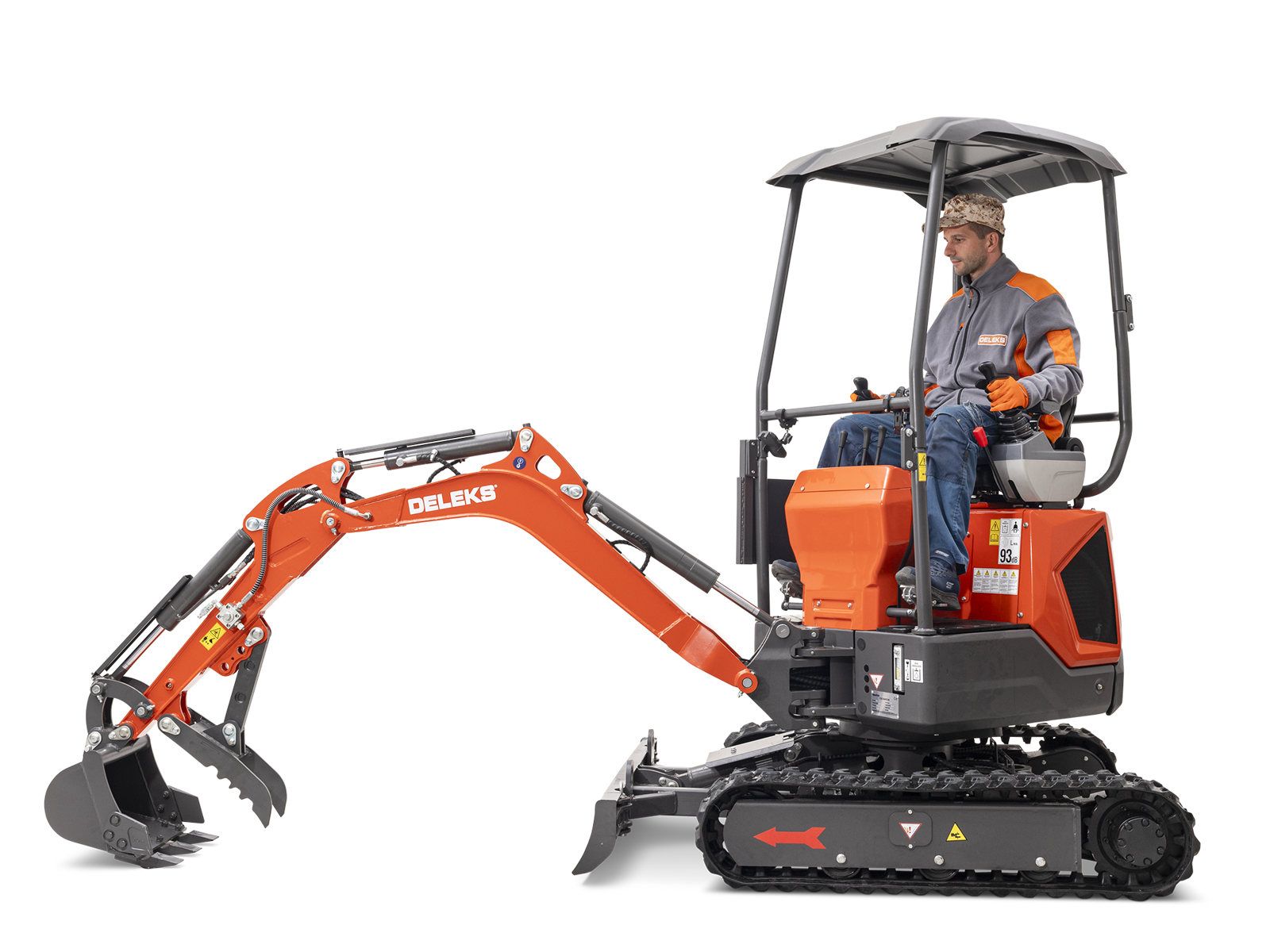

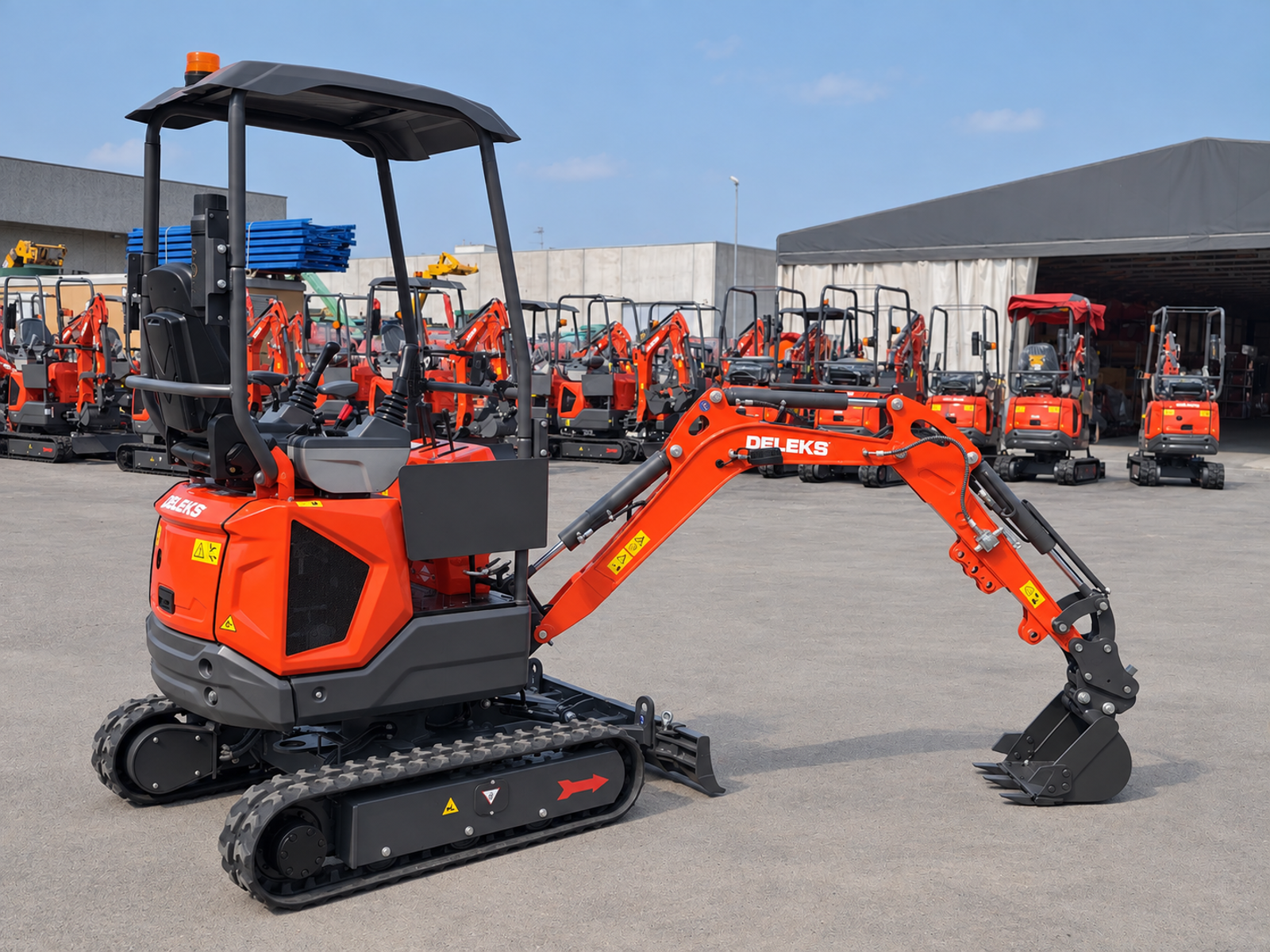

The DELEKS® Z110 is a compact 1,100 kg mini excavator, designed to provide stability, manoeuvrability and operator comfort while maintaining compact dimensions.

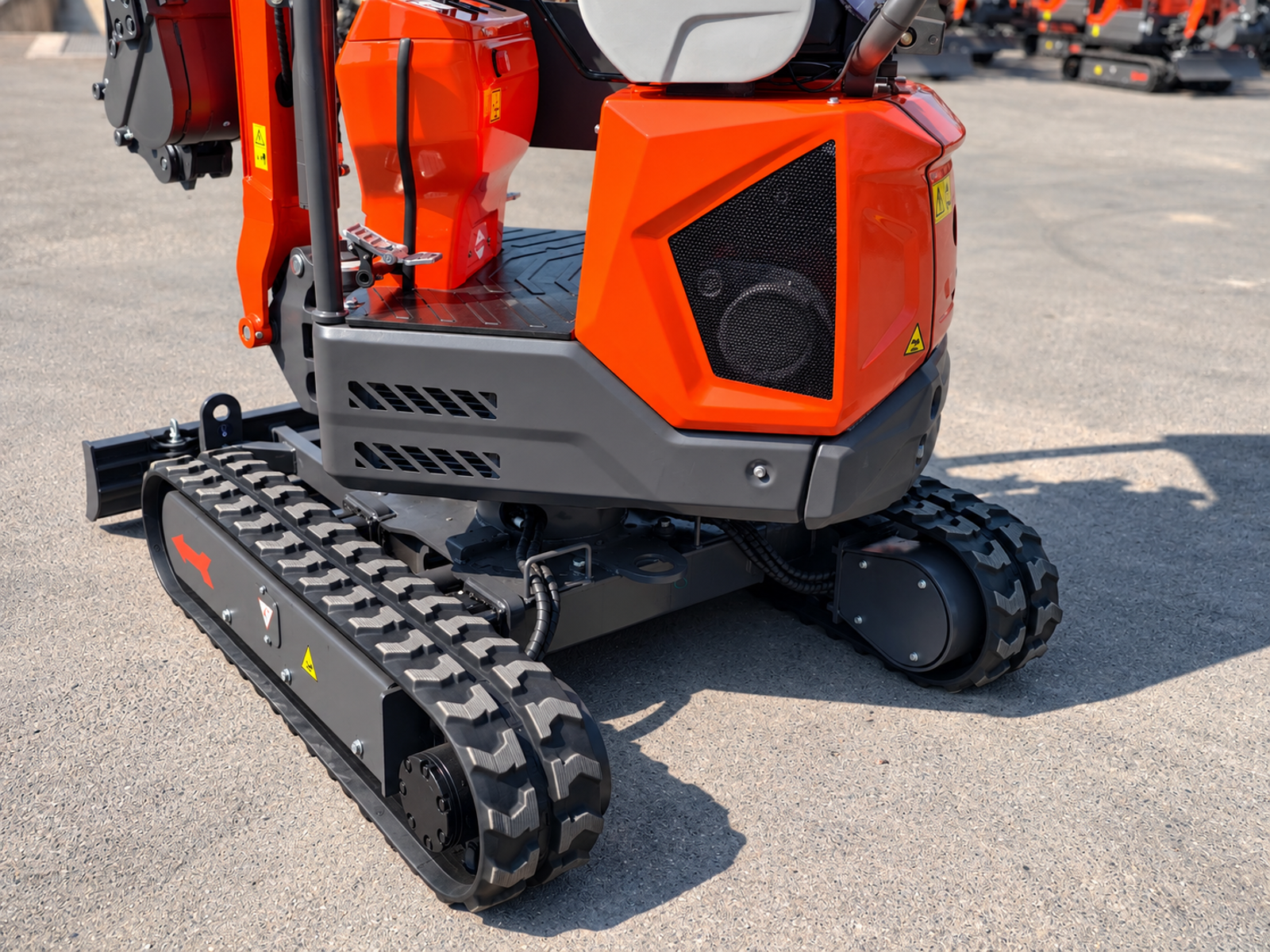

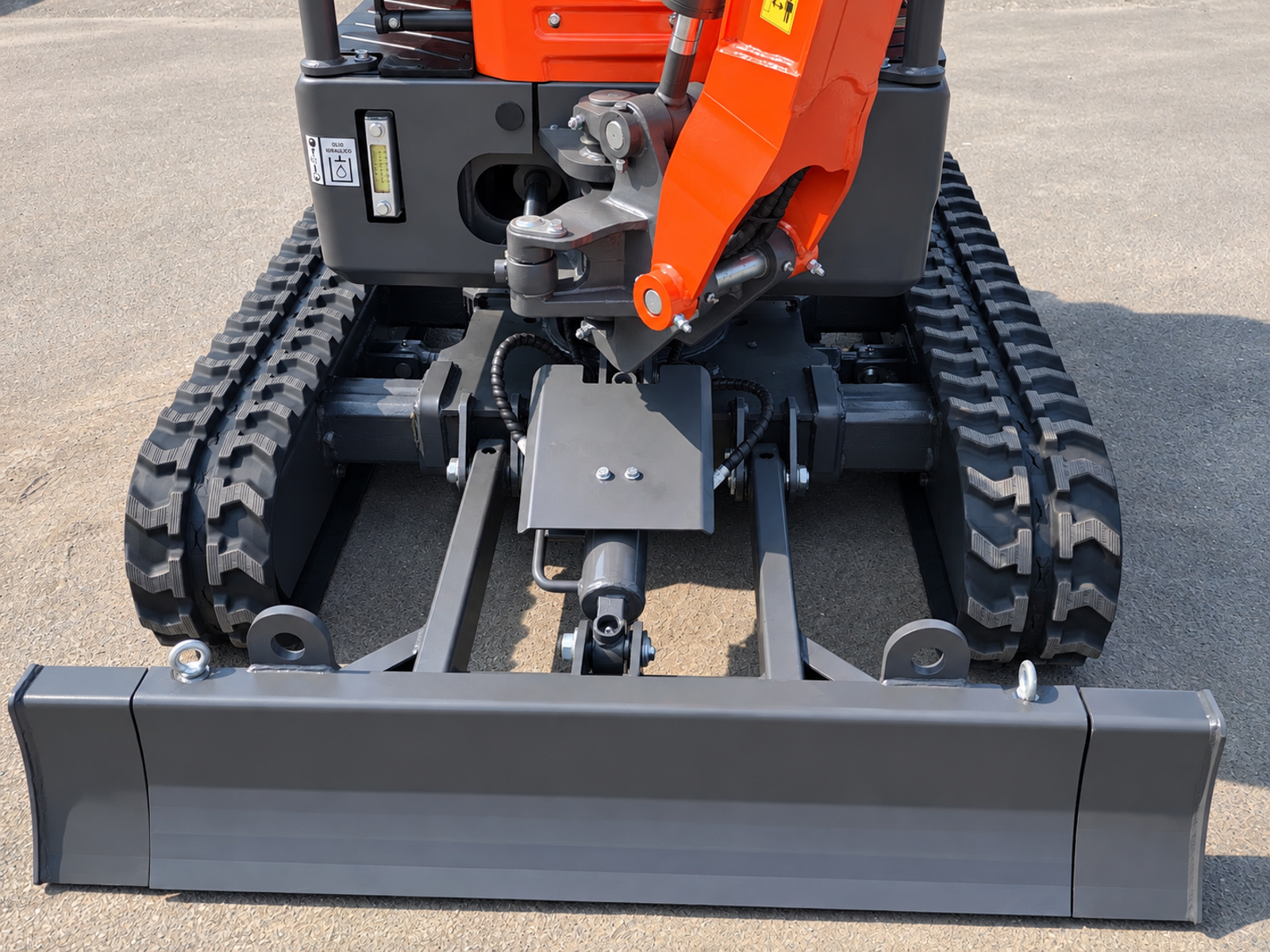

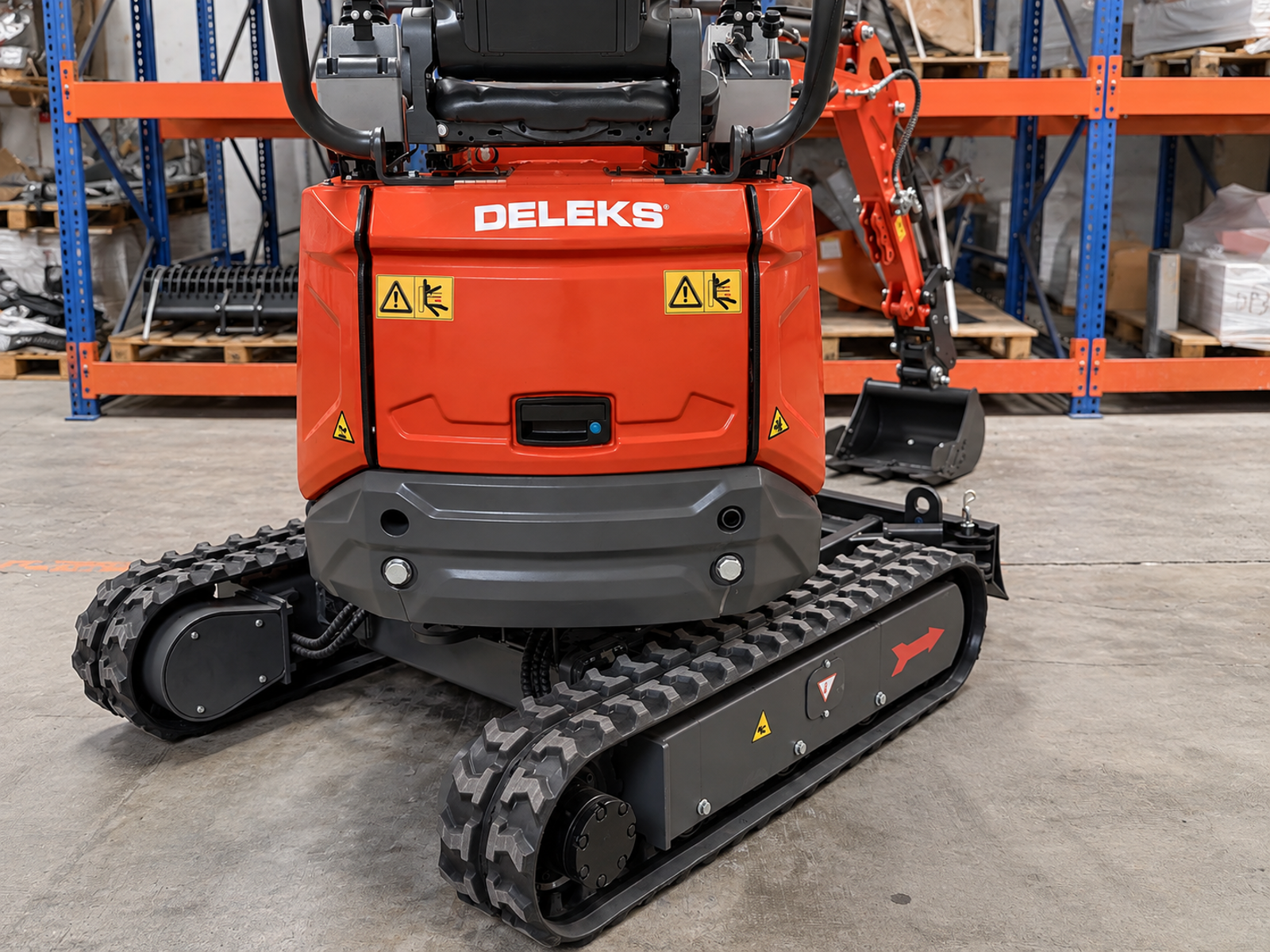

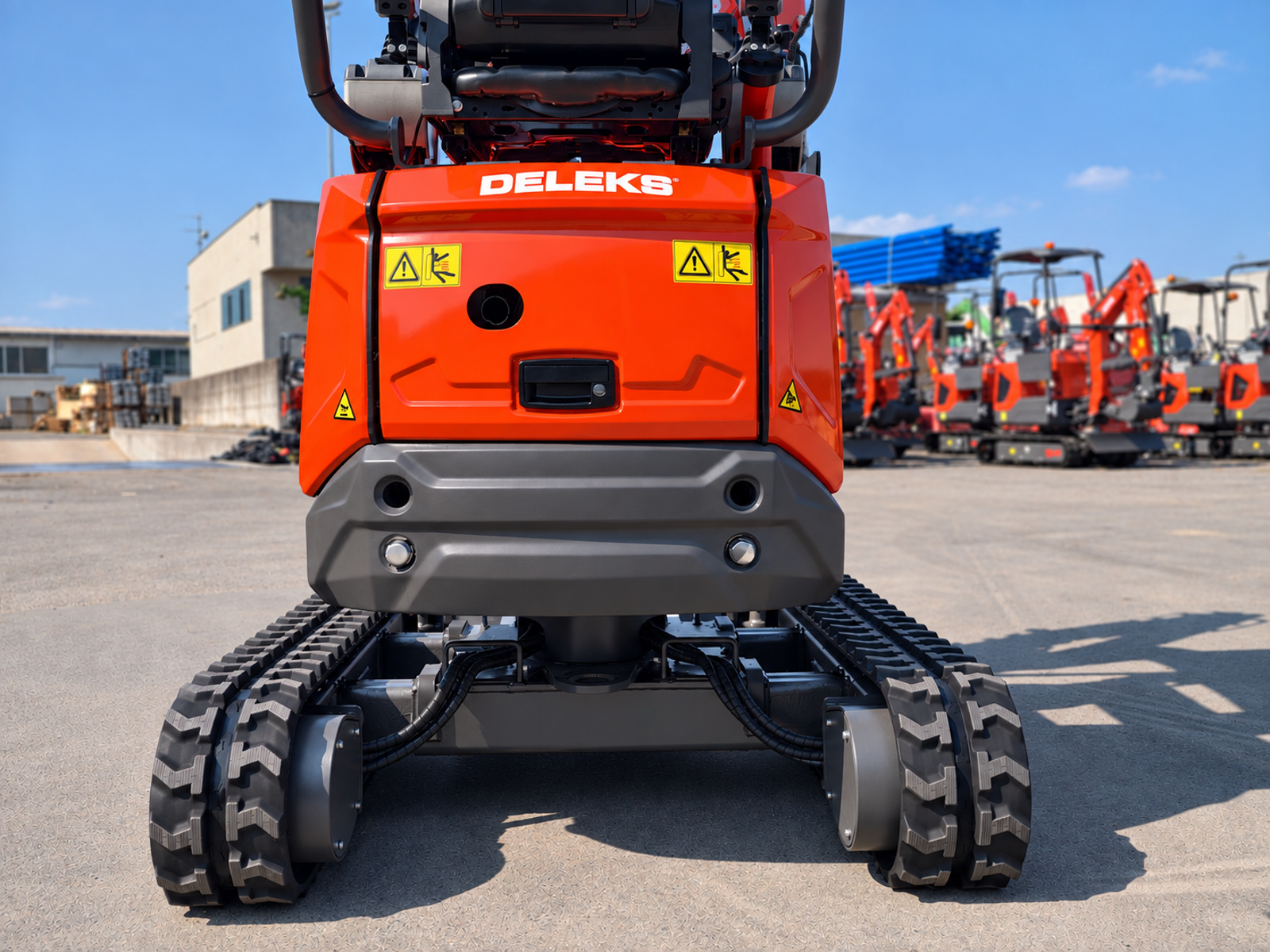

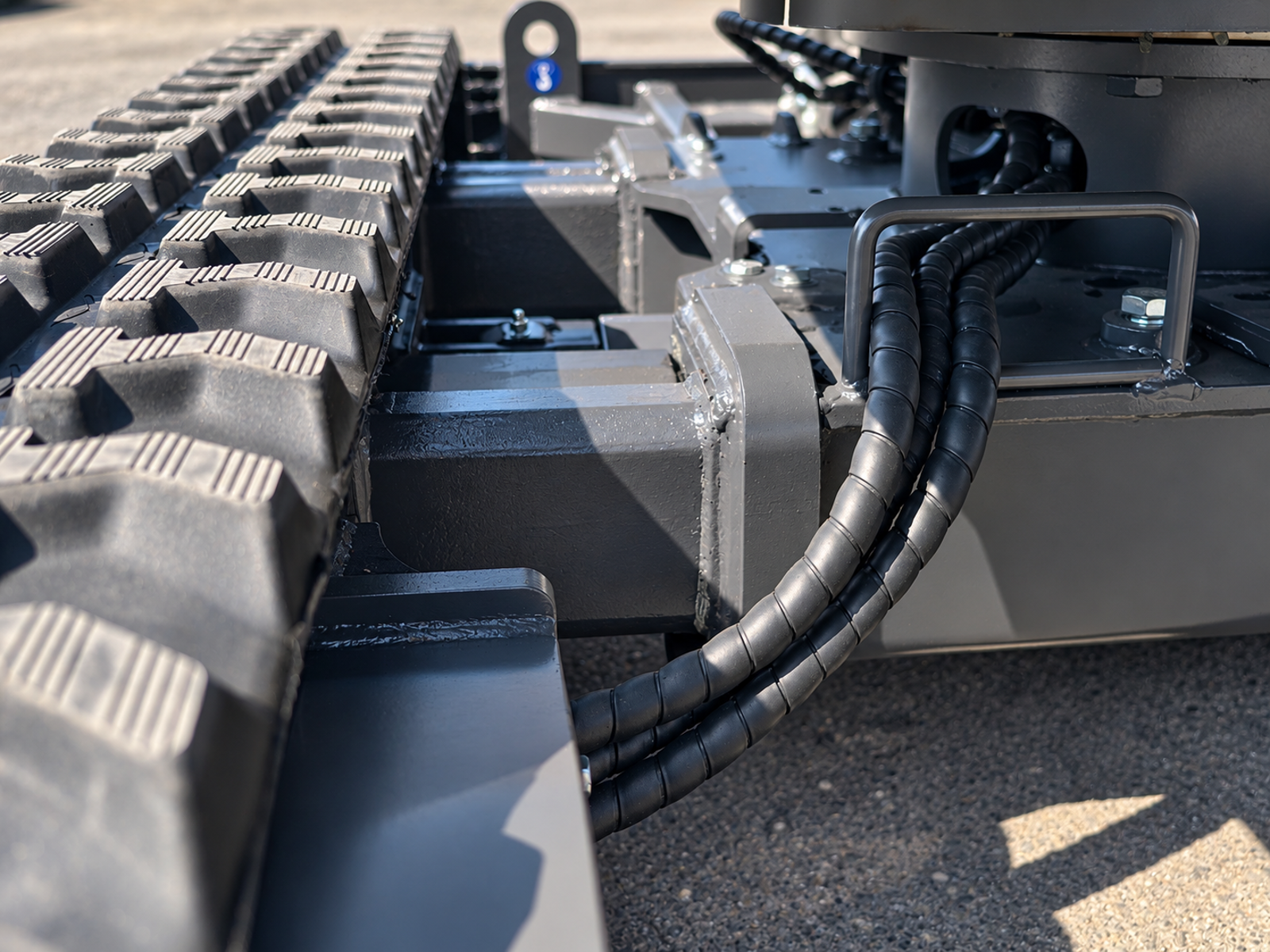

The expandable undercarriage from 95 to 120 cm allows the machine to pass through narrow access points when fully retracted and provides a wider support base during operation. The generous 135 cm undercarriage length, combined with the machine's weight, contributes to excellent stability during excavation and material handling.

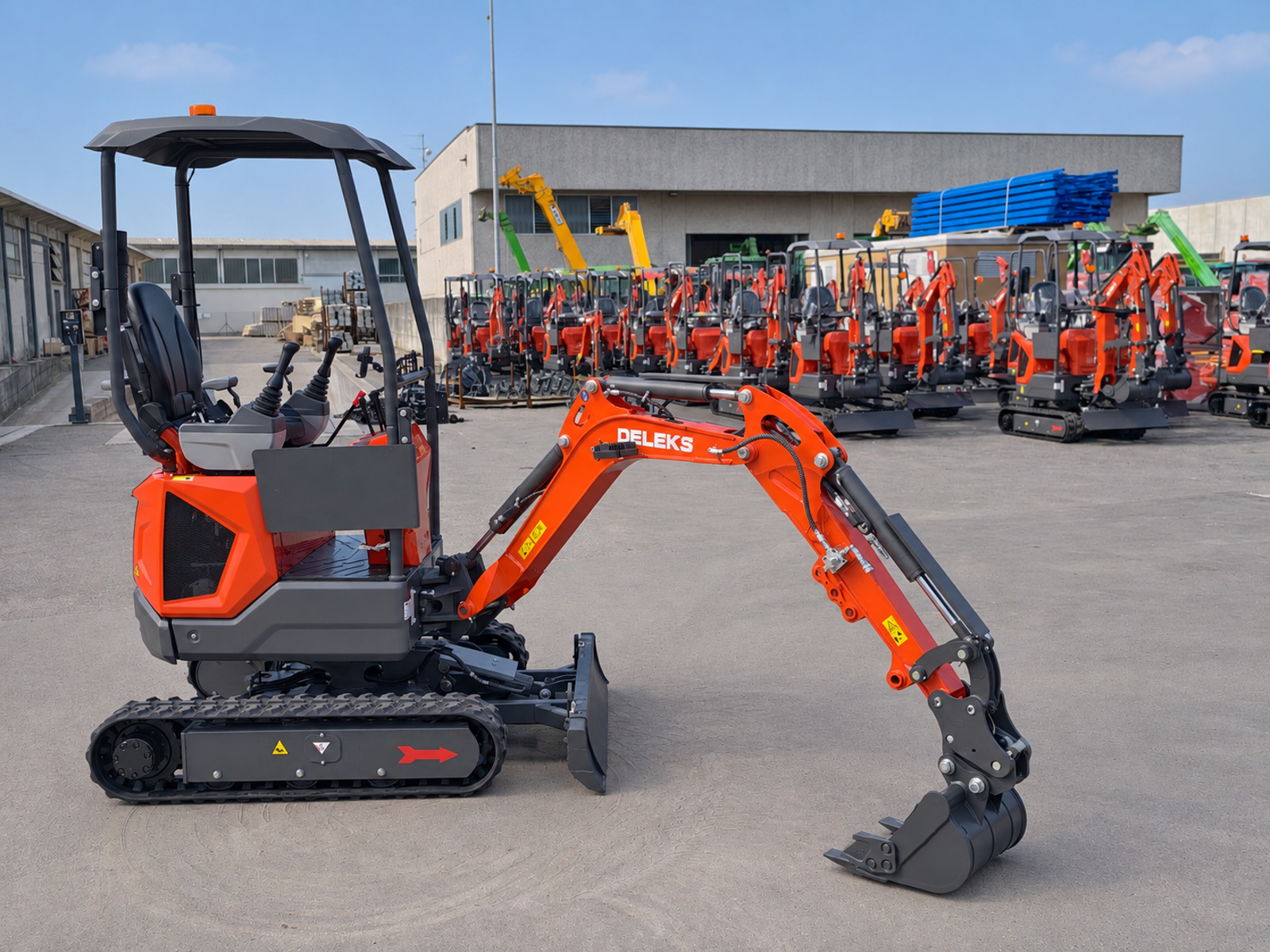

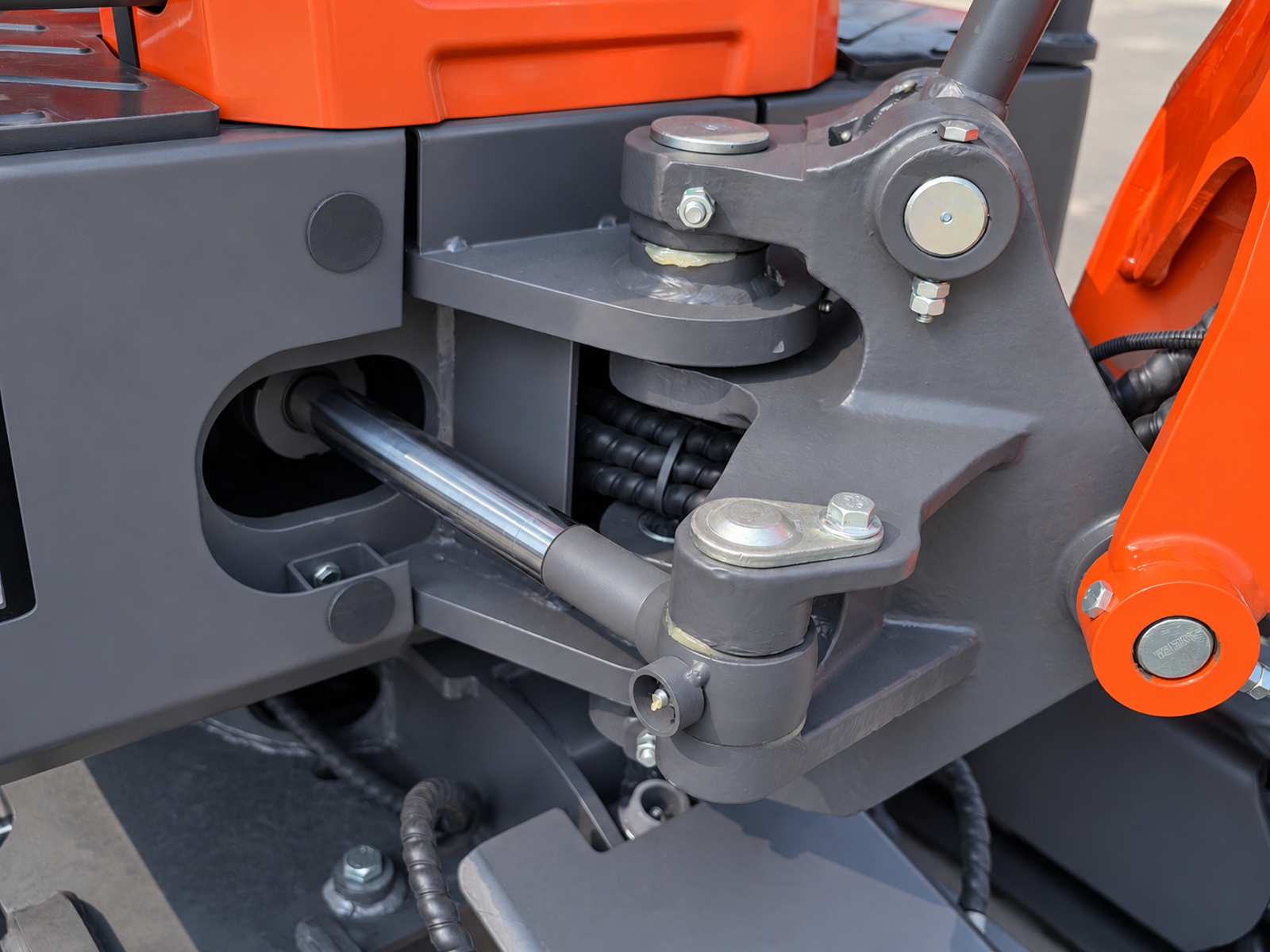

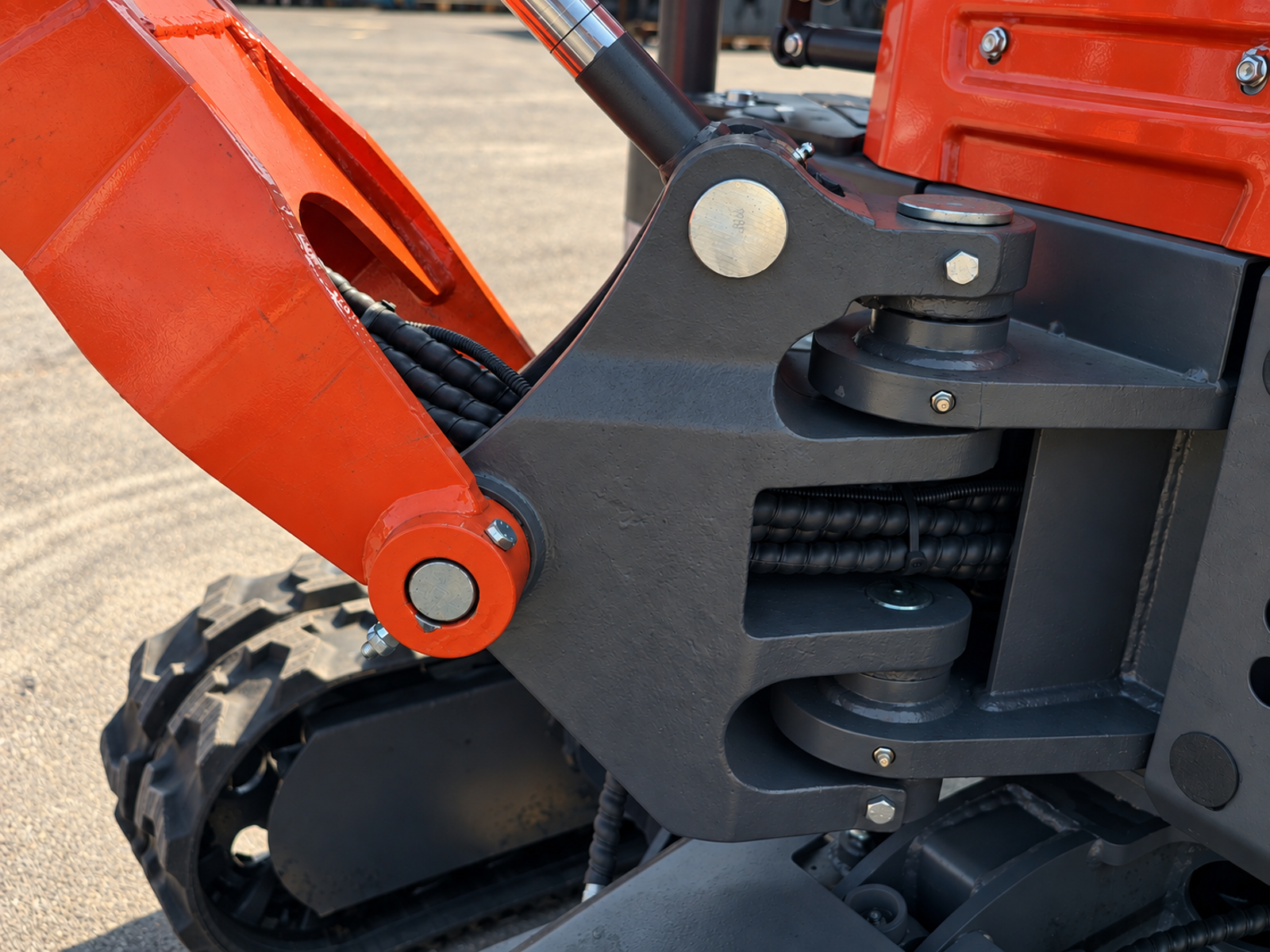

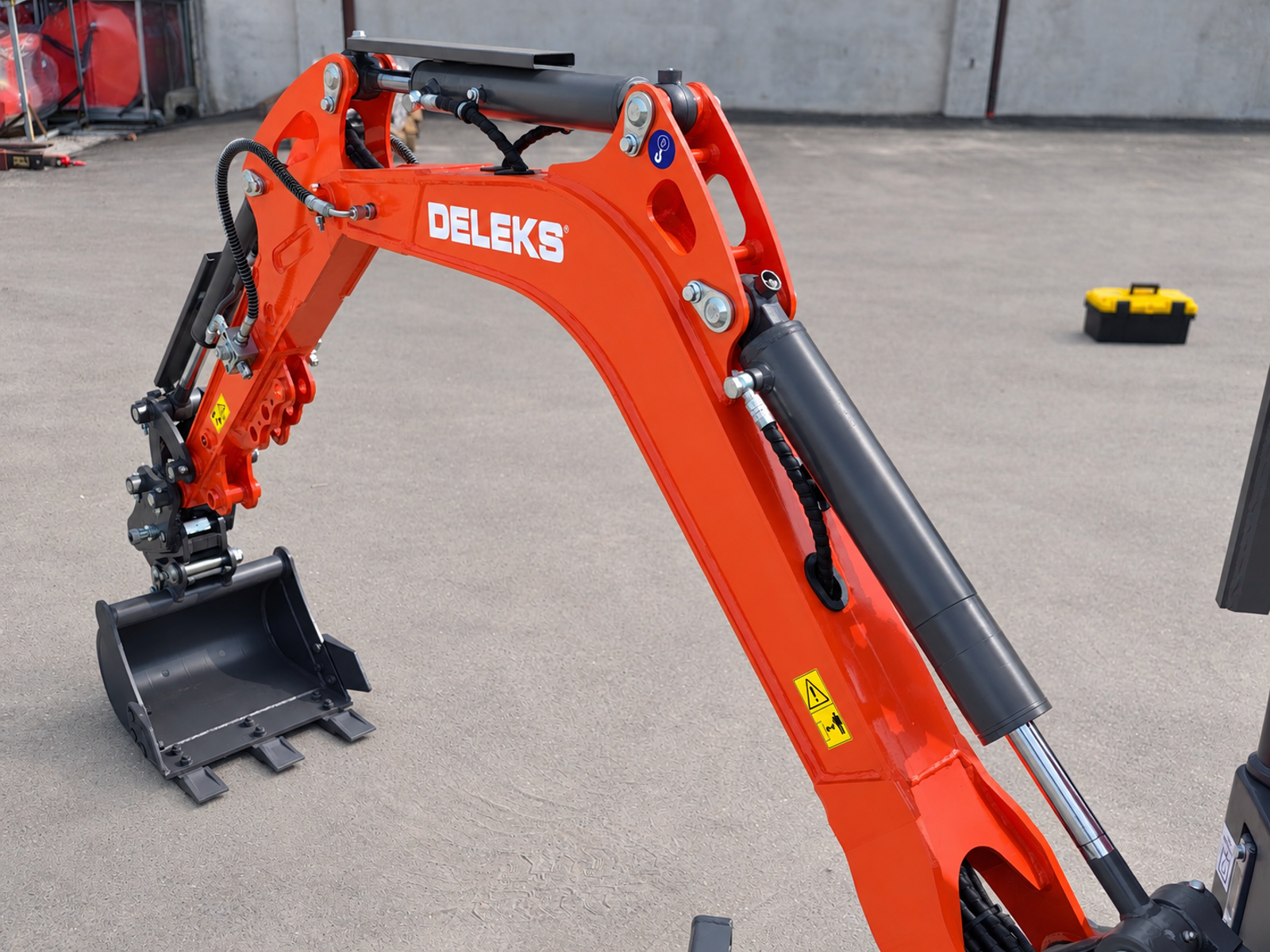

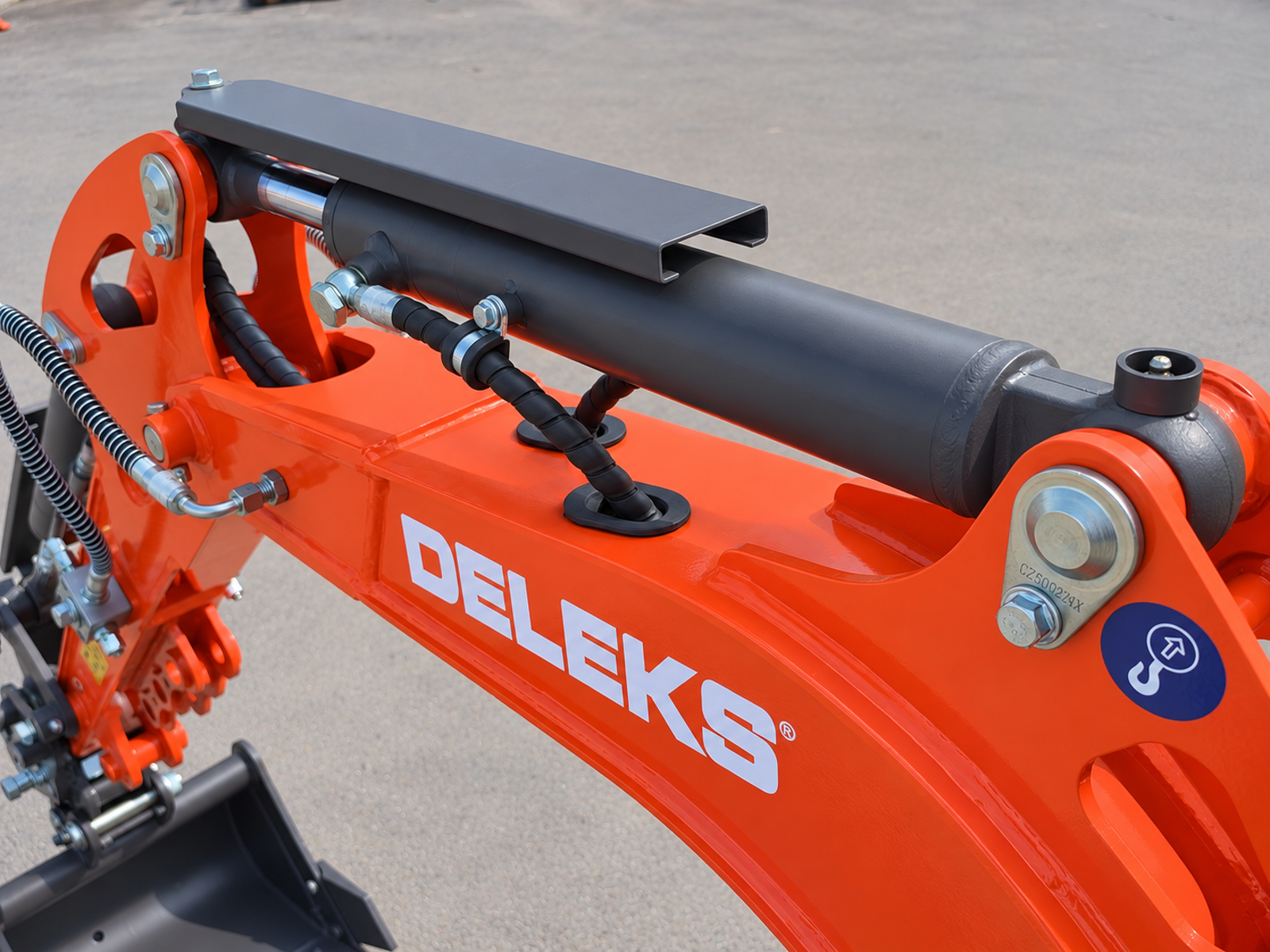

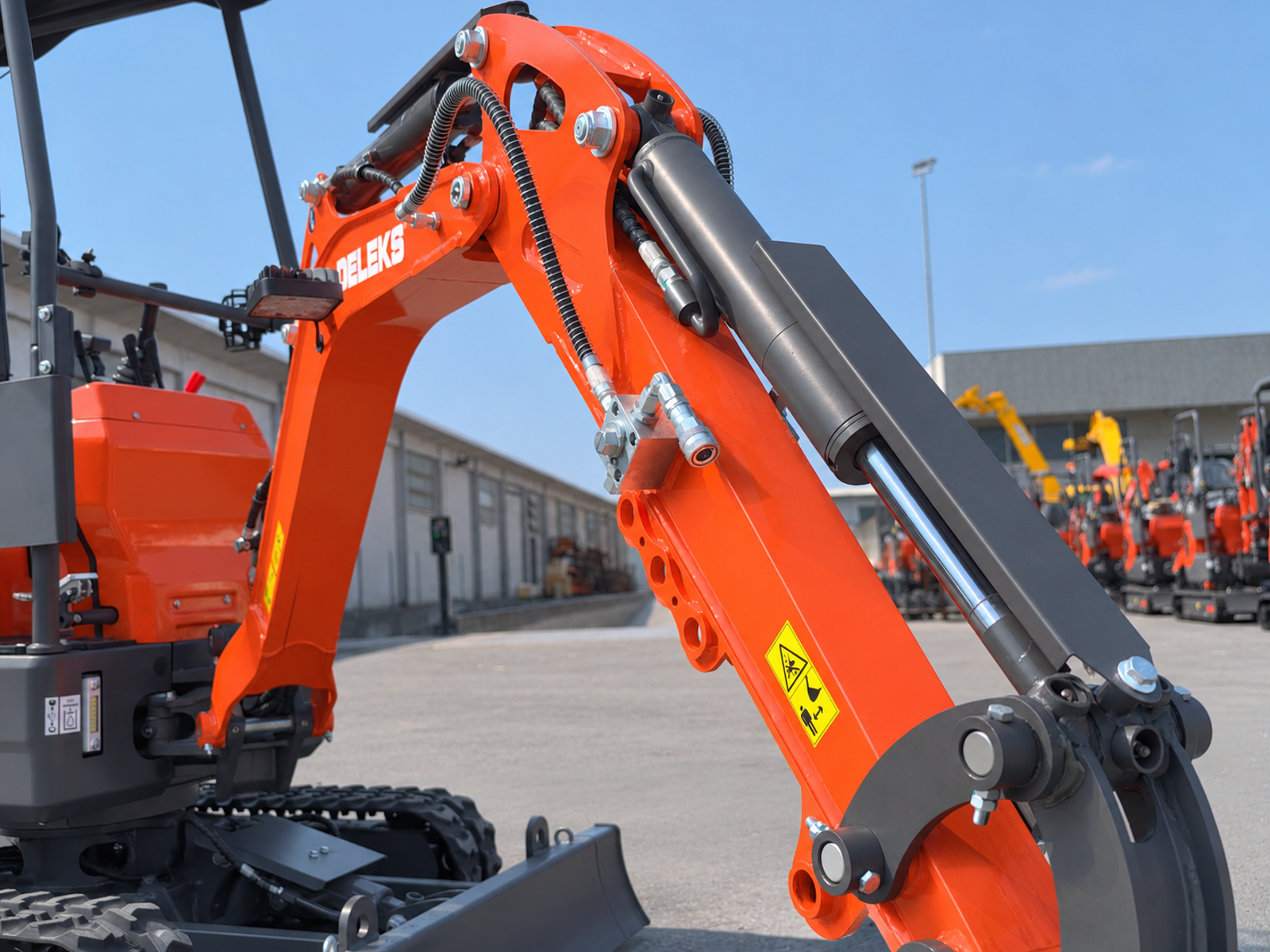

The swing boom makes it easier to work close to walls, fences and other obstacles. The updated boom design also features hydraulic cylinders positioned on top, where they are better protected against possible contact with soil, stones and debris during excavation.

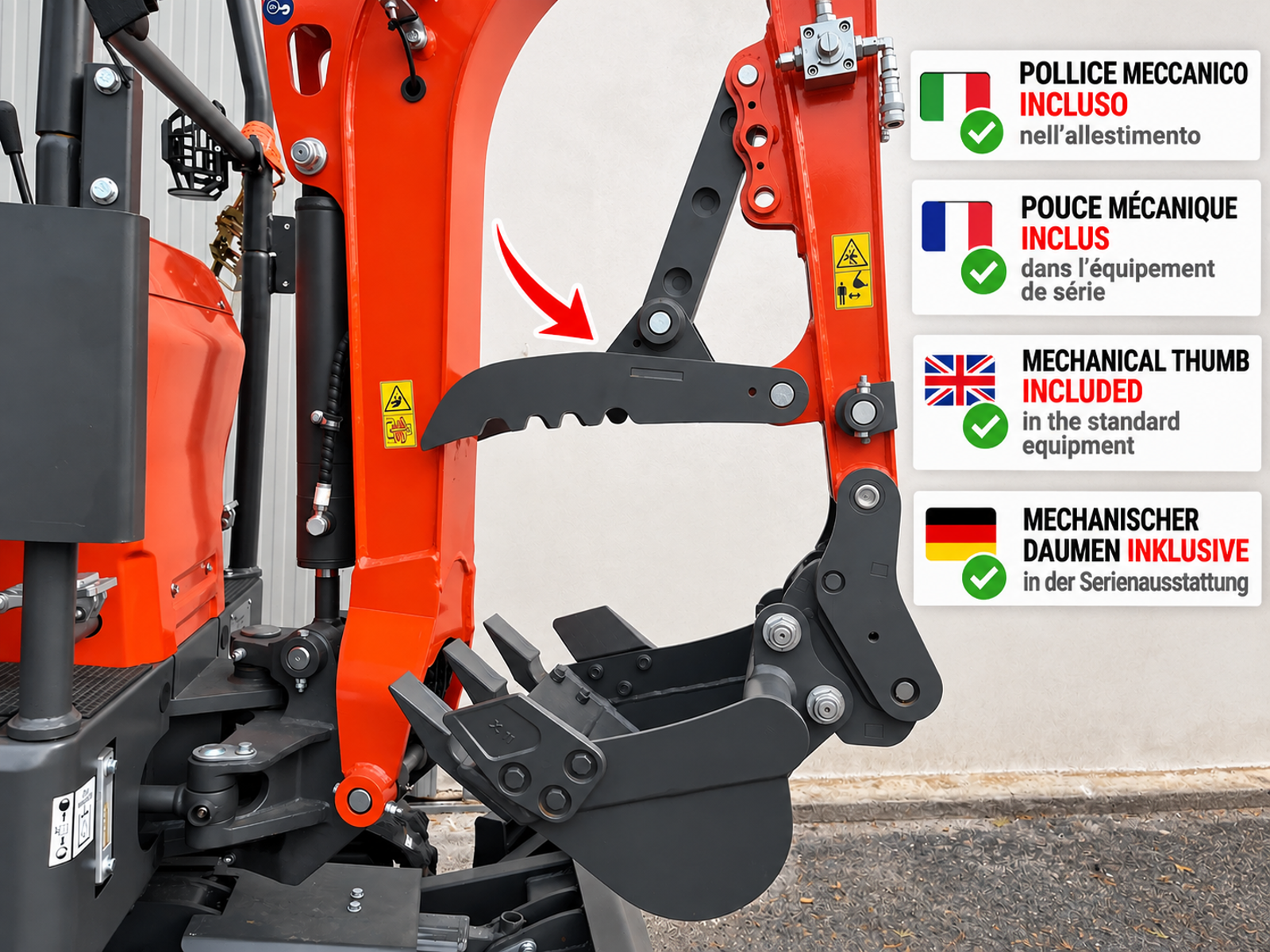

Mechanical thumb included in the price.

COMFORT AND CONTROL

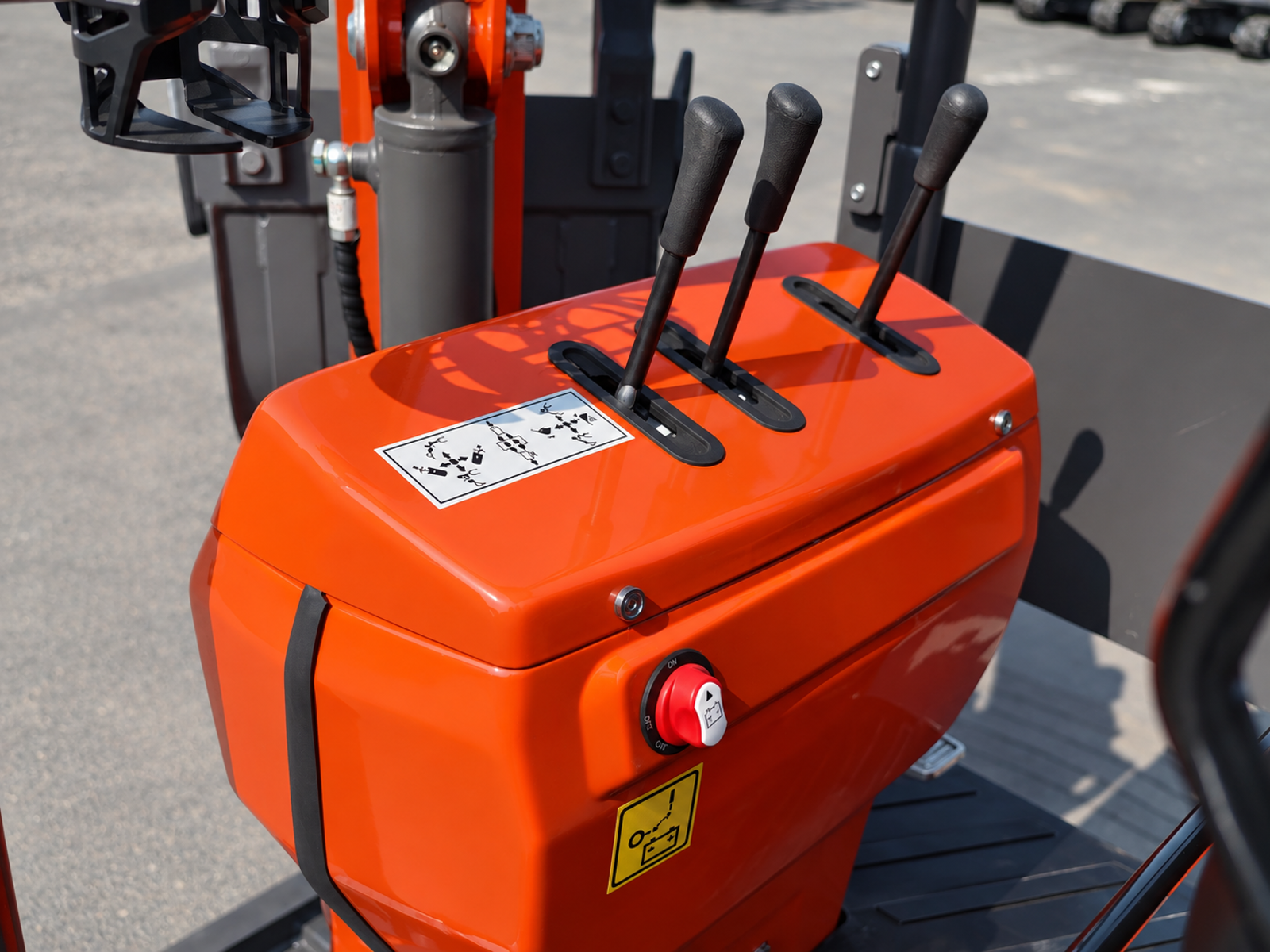

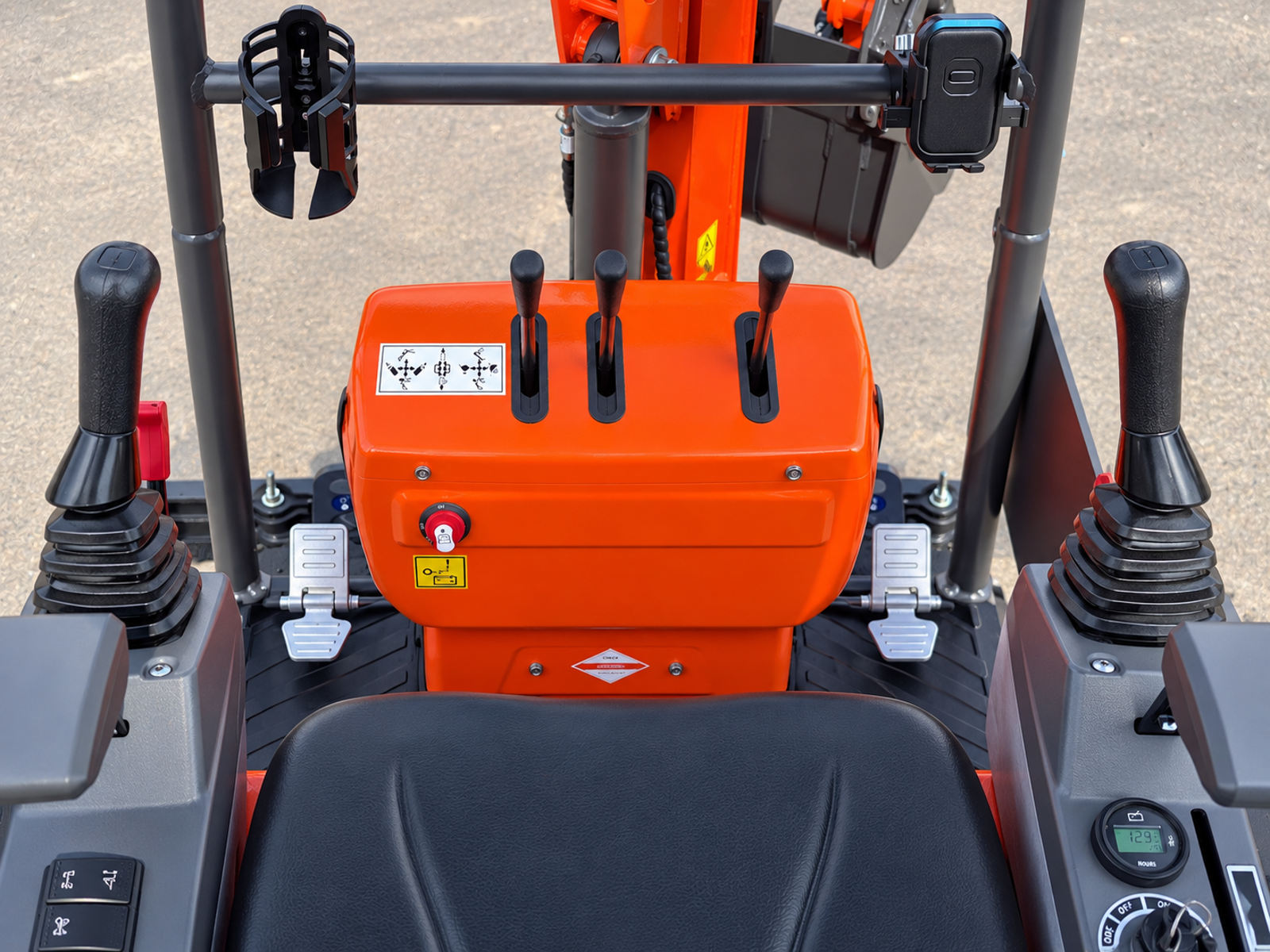

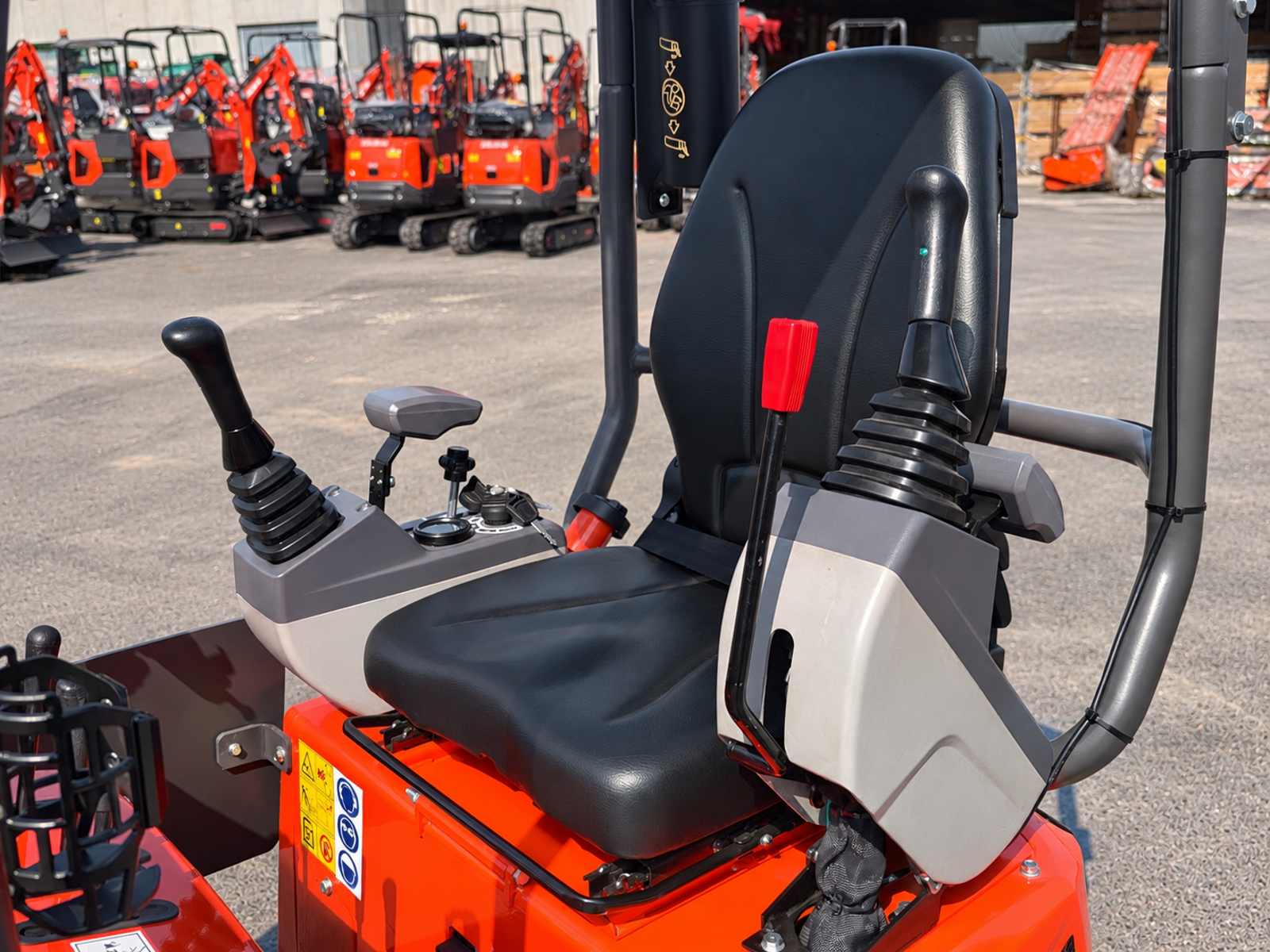

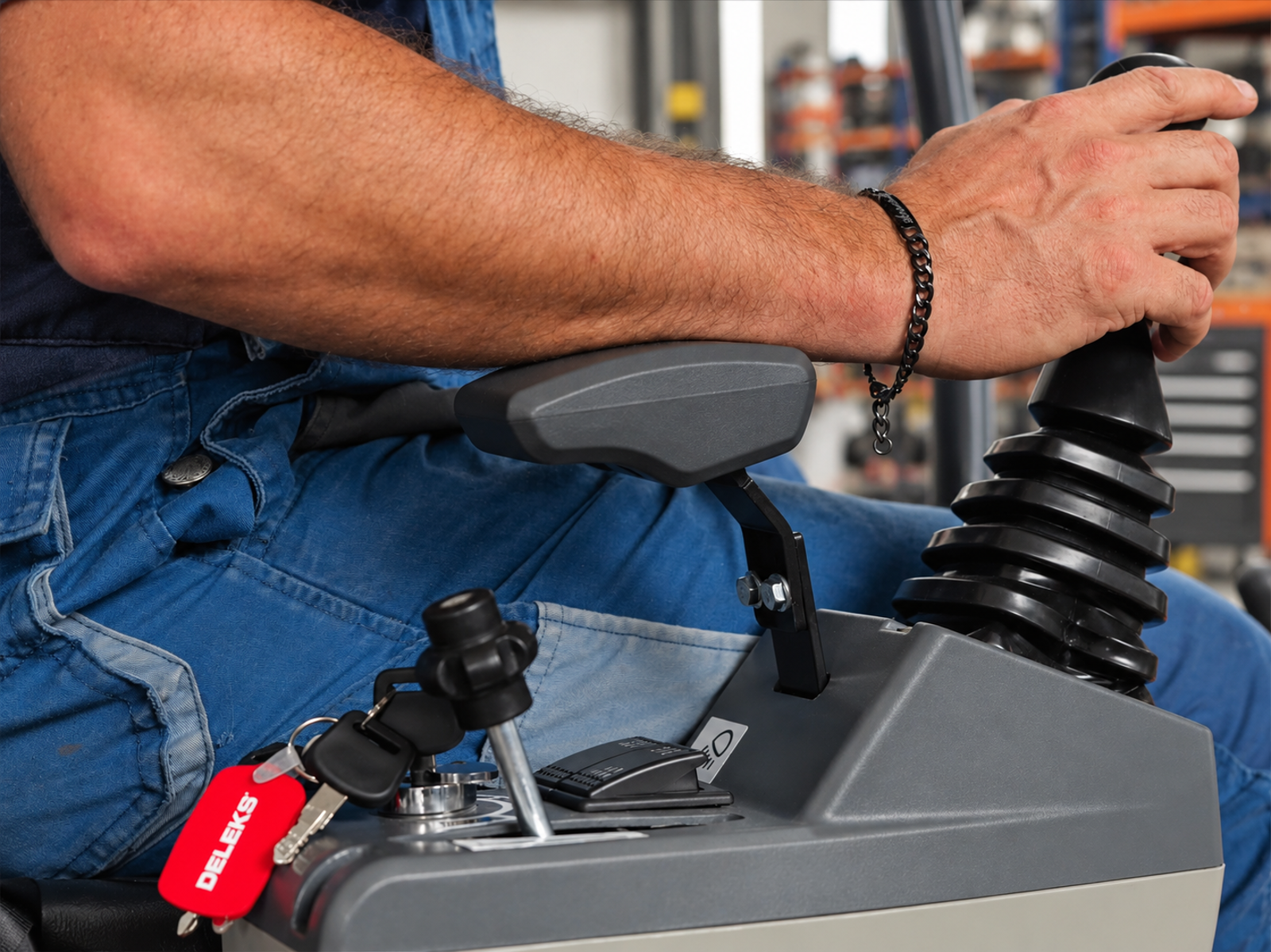

The operator station is equipped with side-mounted joysticks with armrests, designed to provide a comfortable working position even during extended periods of operation.

The two-speed travel system allows the machine to move quickly from one area of the job site to another.

COMPACT DIMENSIONS AND LOADING CAPABILITY

With the undercarriage fully retracted, the width of just 95 cm allows the Z110 to operate in areas with restricted access.

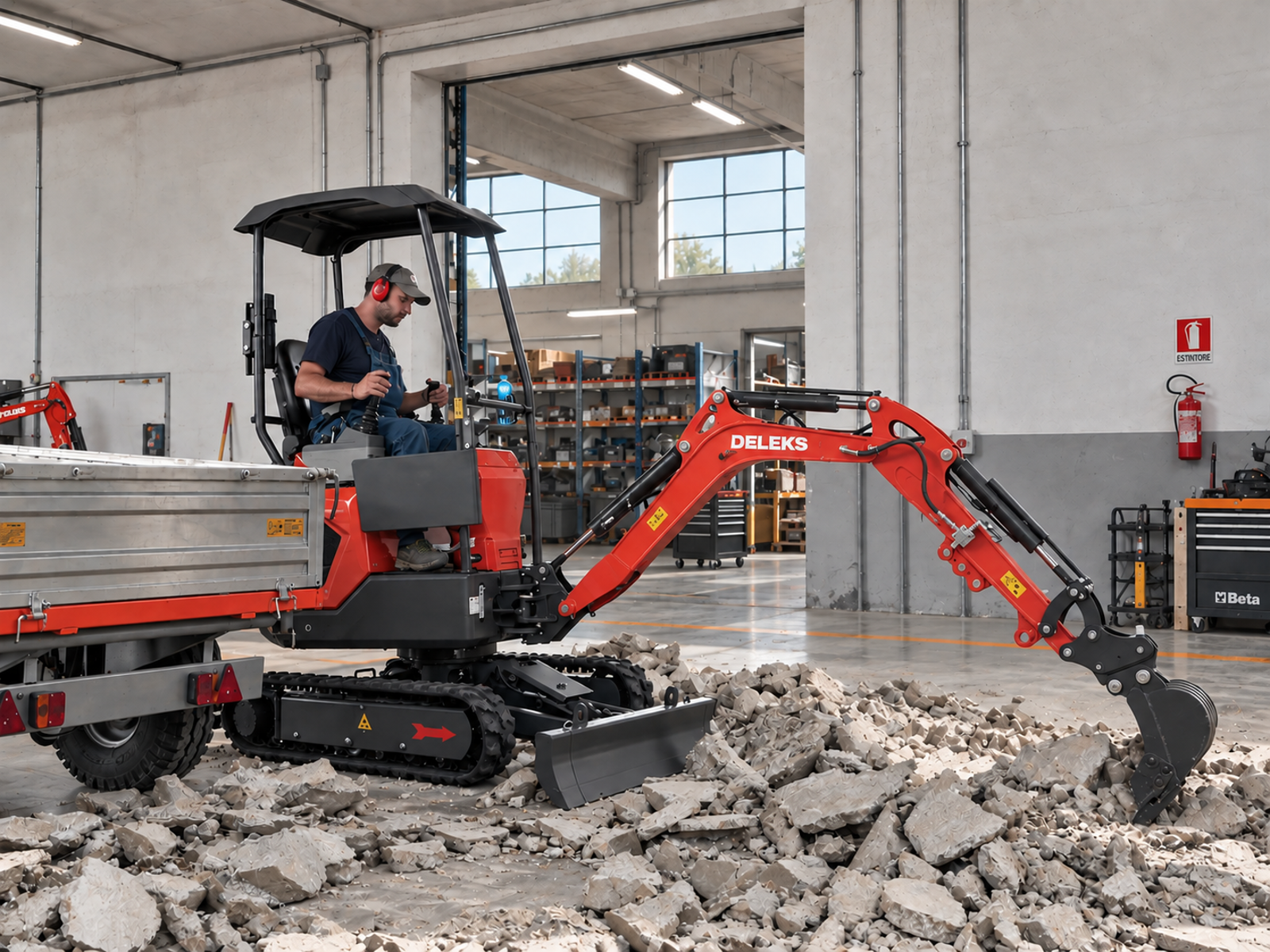

The boom geometry also allows material to be loaded directly onto pickup trucks and open vans, making loading and site-clearing operations easier.

HYDRAULIC SYSTEM AND ATTACHMENTS

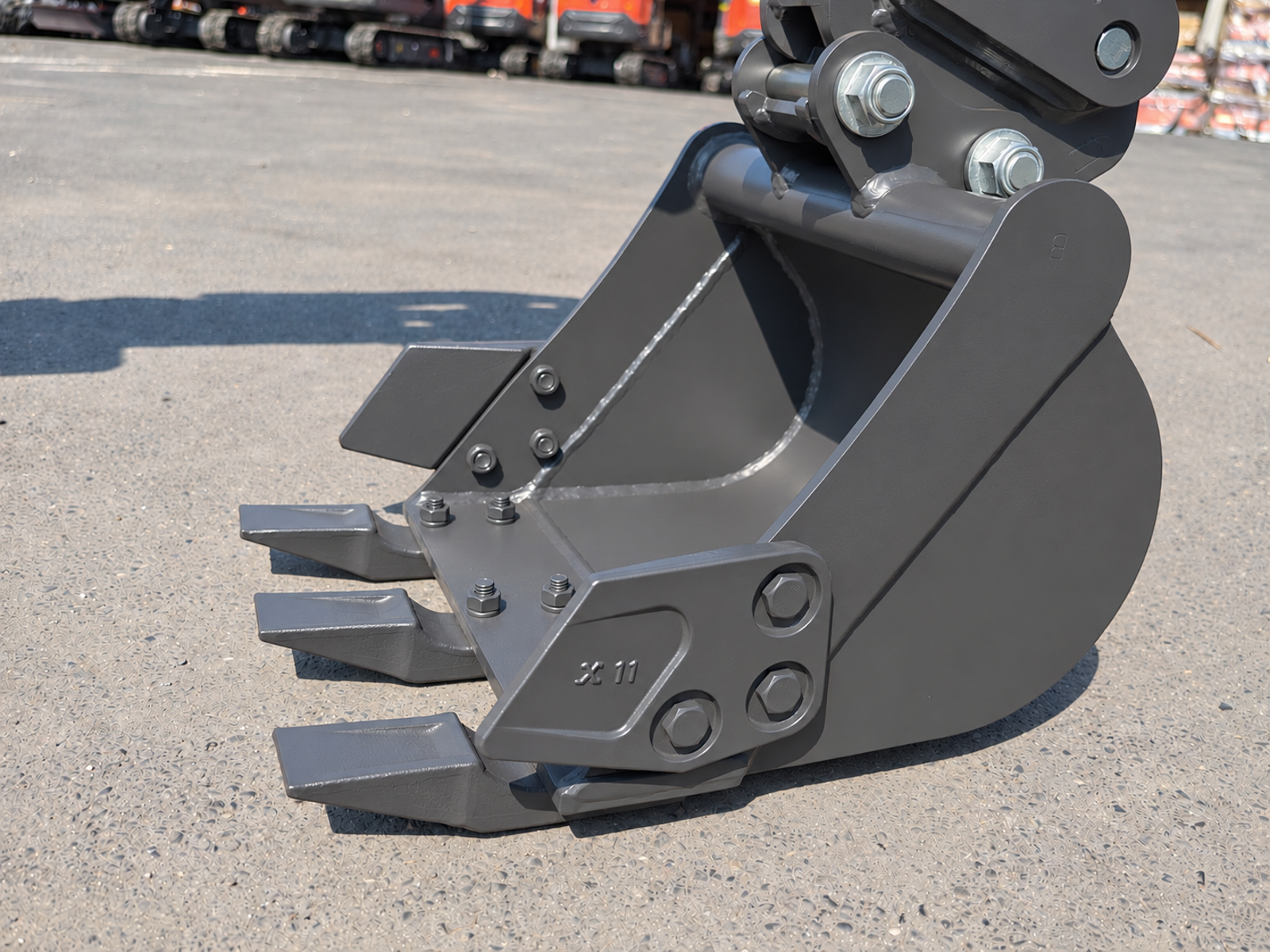

The Z110 is supplied as standard with a 40 cm digging bucket.

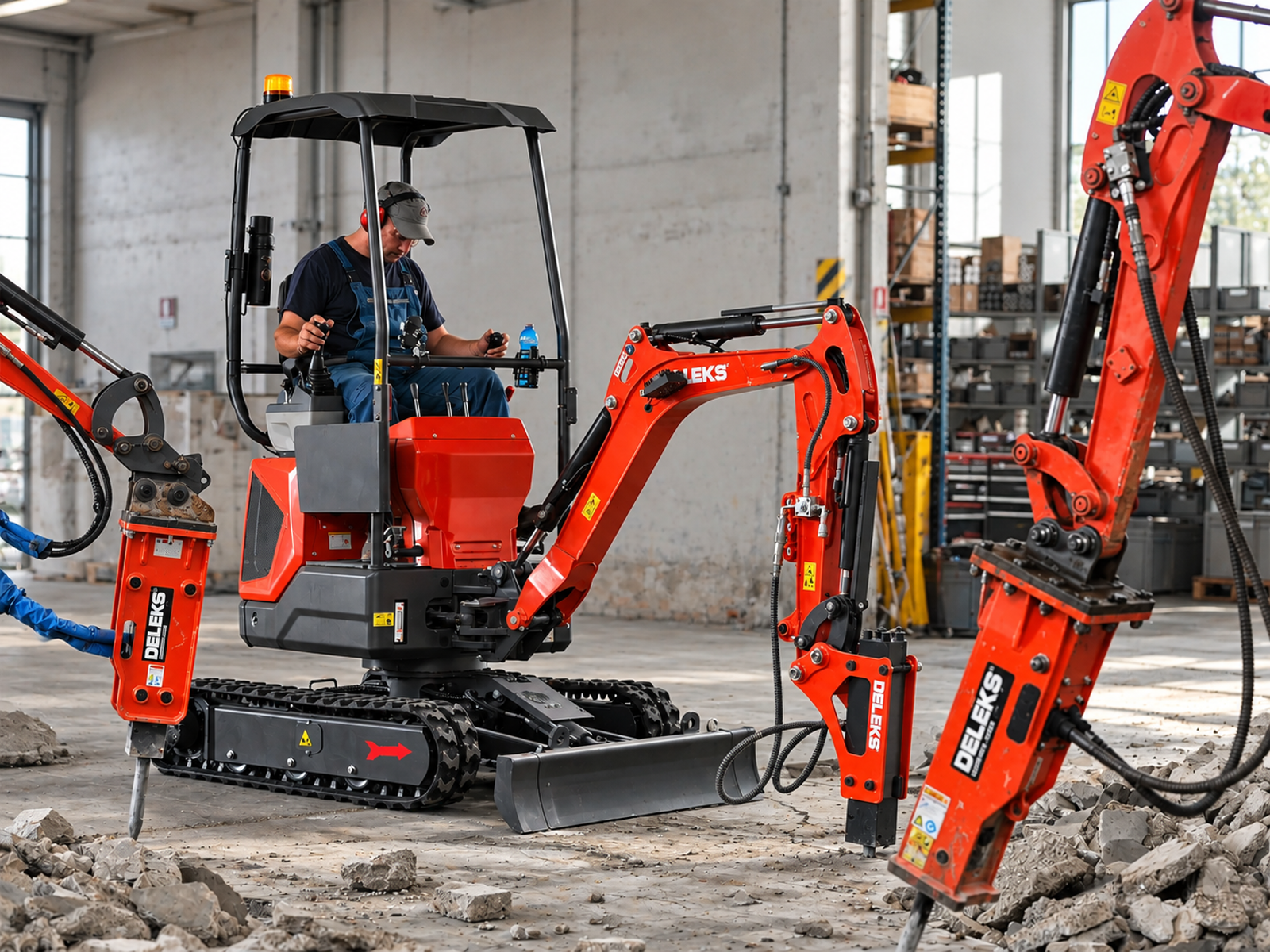

The auxiliary hydraulic circuit mounted on the boom allows the use of various attachments, including hydraulic breakers, tilt buckets, grapples and other compatible hydraulic attachments.

SAFETY AND VISIBILITY

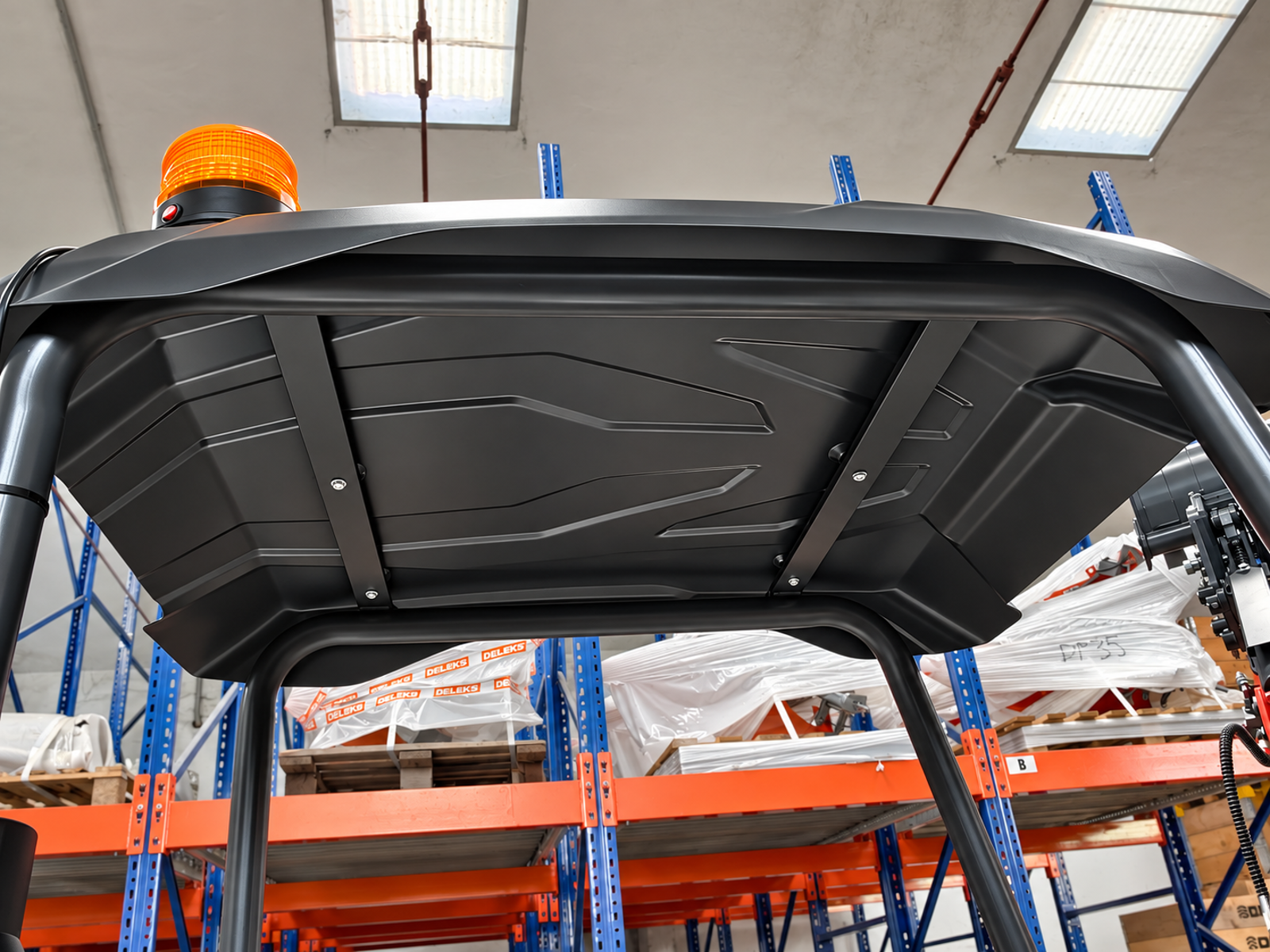

The machine is equipped with a 4-post TOPS/FOPS protective structure, designed to provide increased operator protection.

Standard equipment also includes:

• Rotating beacon

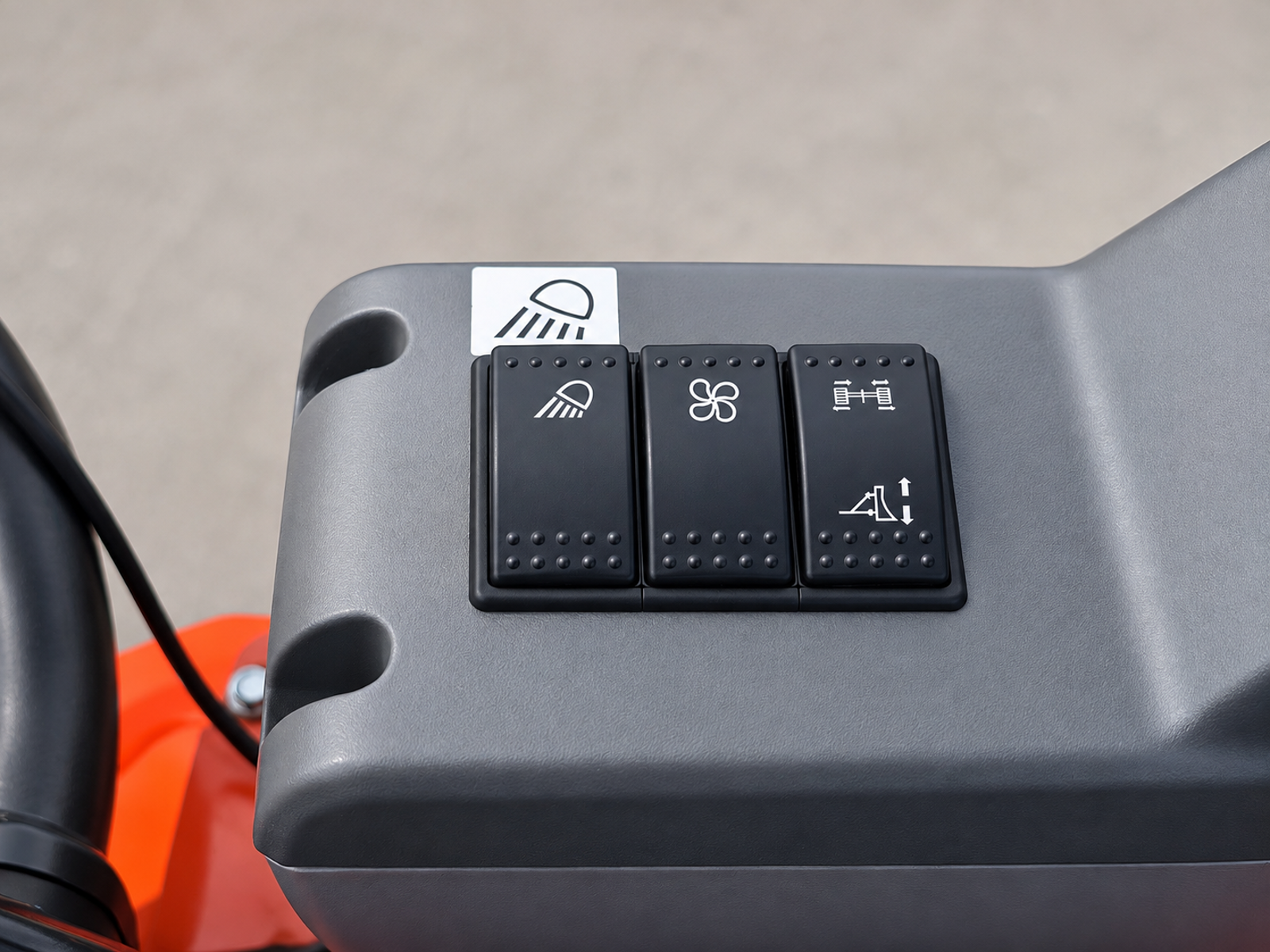

• Boom-mounted work light to illuminate the digging area directly

MAIN FEATURES

• Operating weight: 1,100 kg

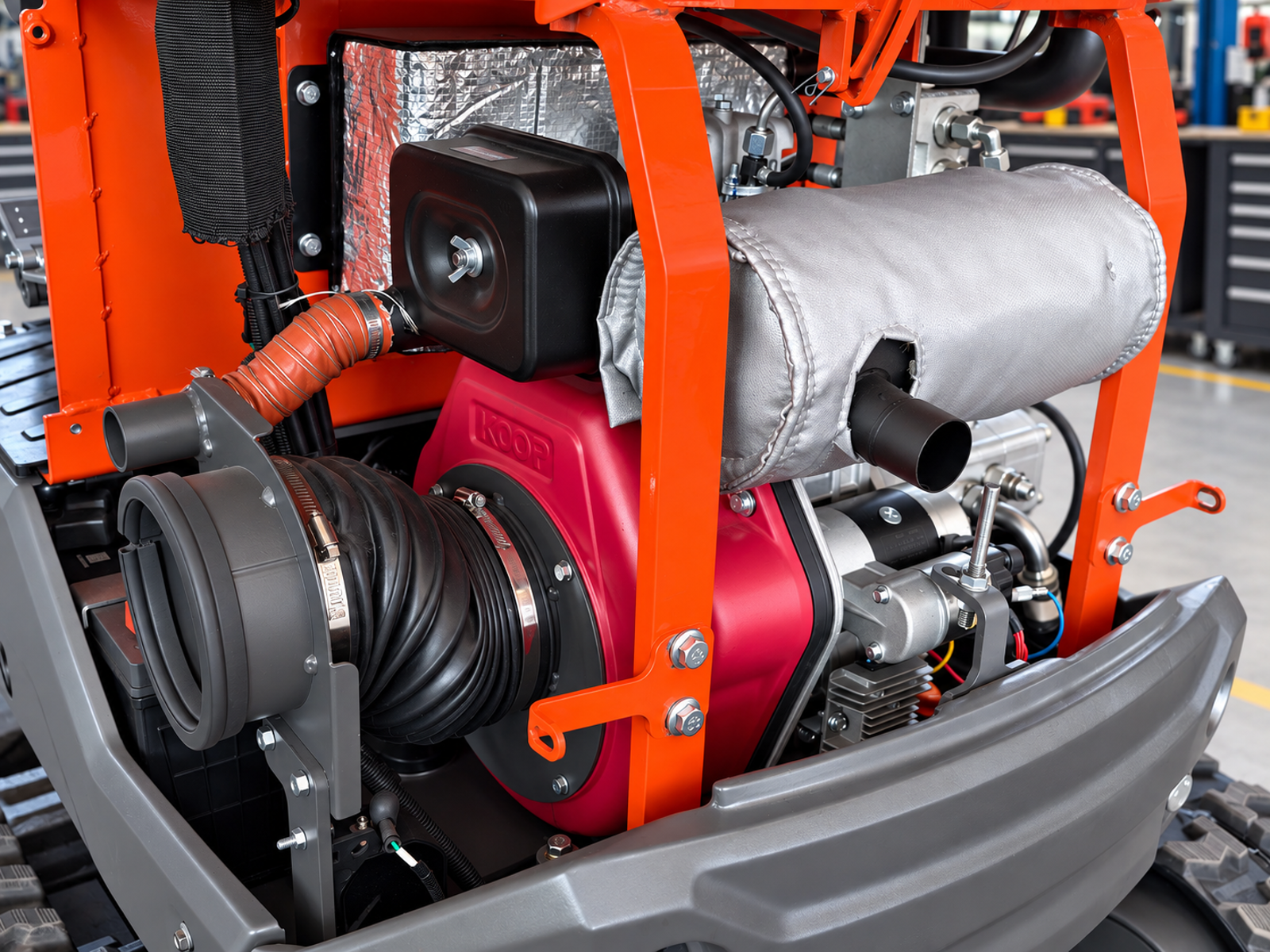

• Koop diesel engine
• Expandable undercarriage: 95–120 cm
• Undercarriage length: 135 cm
• Swing boom
• Two-speed travel
• Side-mounted joysticks with armrests
• Top-mounted boom hydraulic cylinders
• Auxiliary hydraulic circuit
• Standard 40 cm digging bucket
• 4-post TOPS/FOPS protective structure
• Rotating beacon
• Boom-mounted work light

DIMENSIONS

See images / PDF.

EASY MAINTENANCE

The Z110 is designed to reduce machine downtime and simplify daily checks.

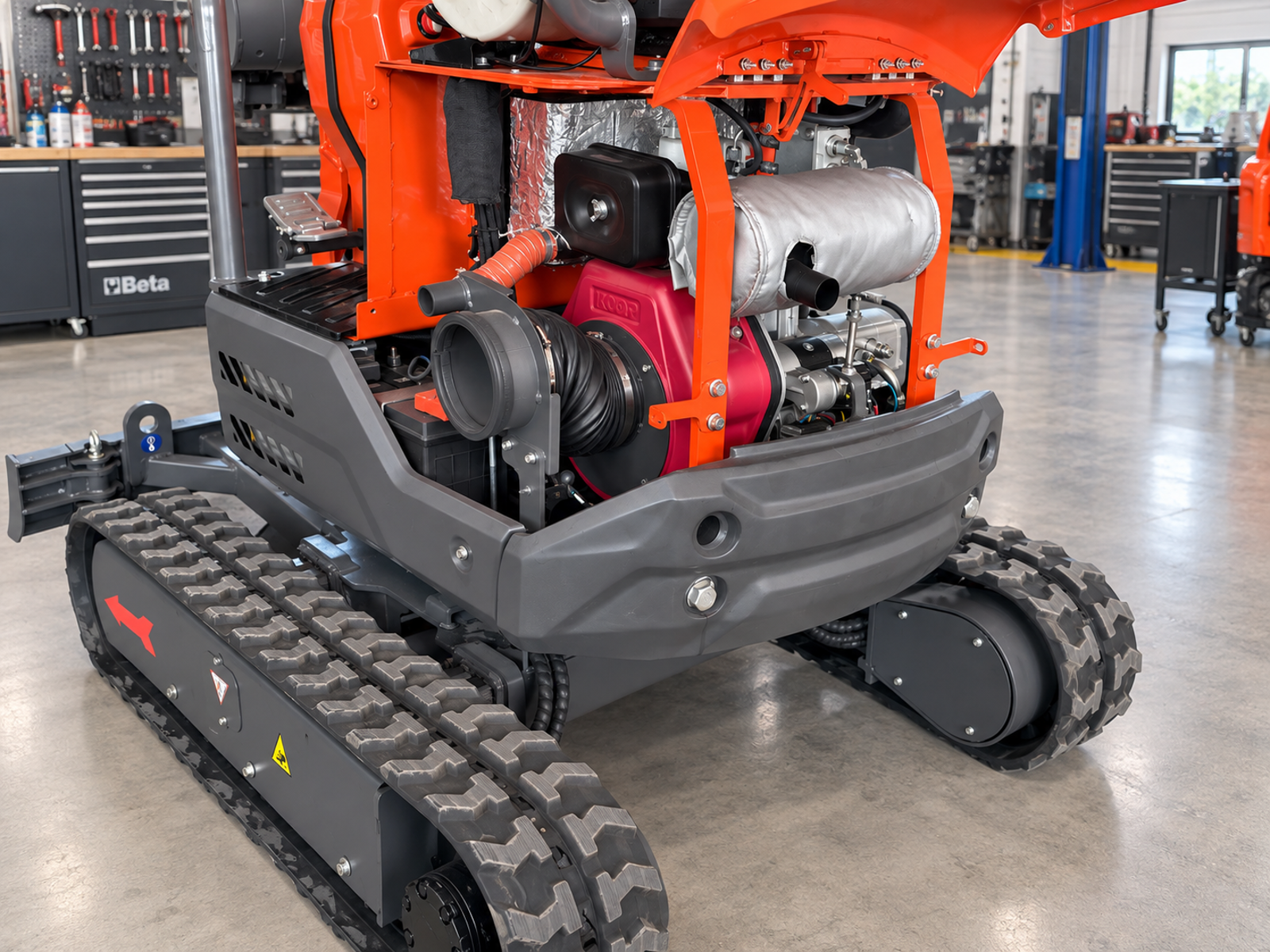

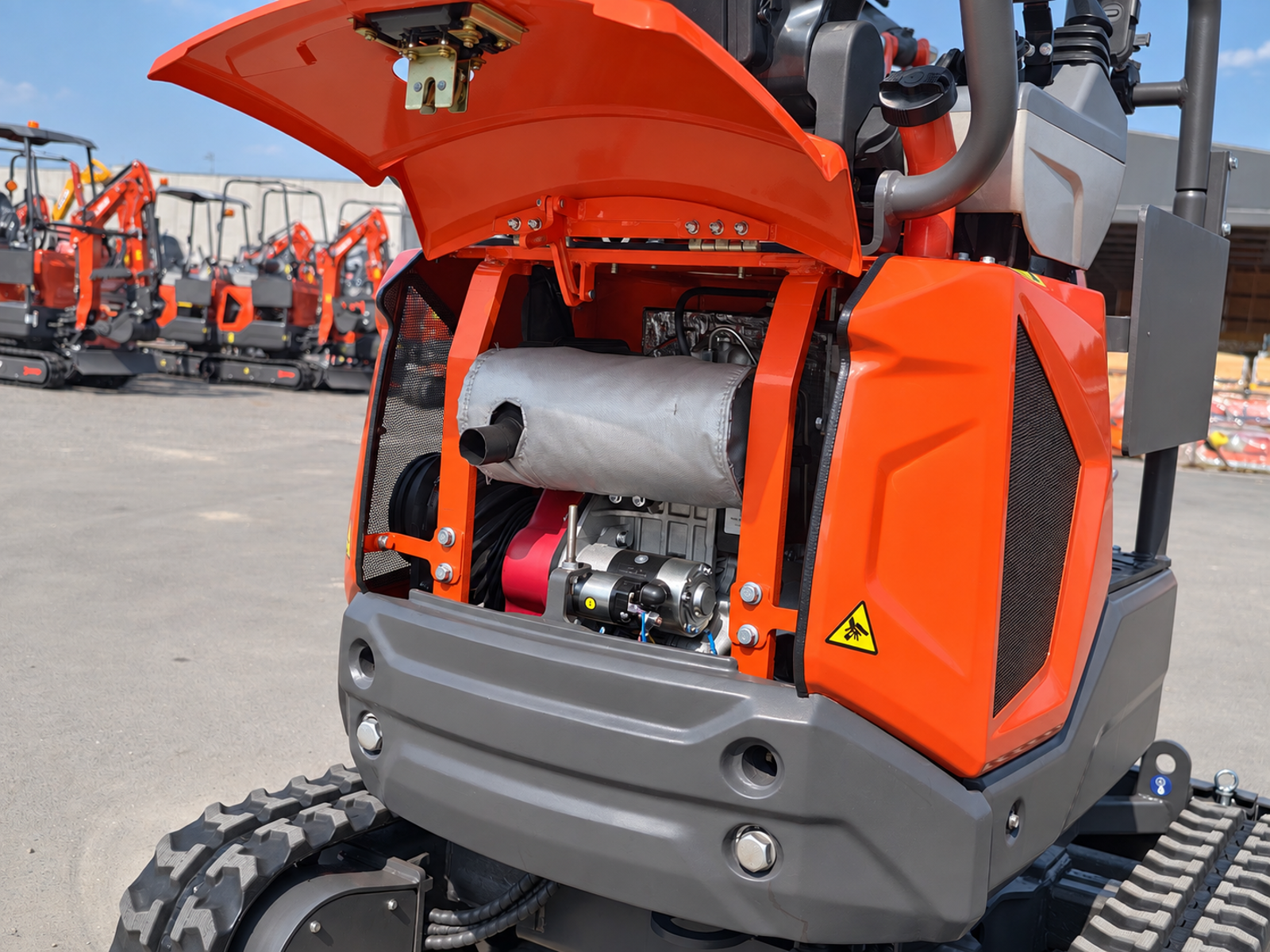

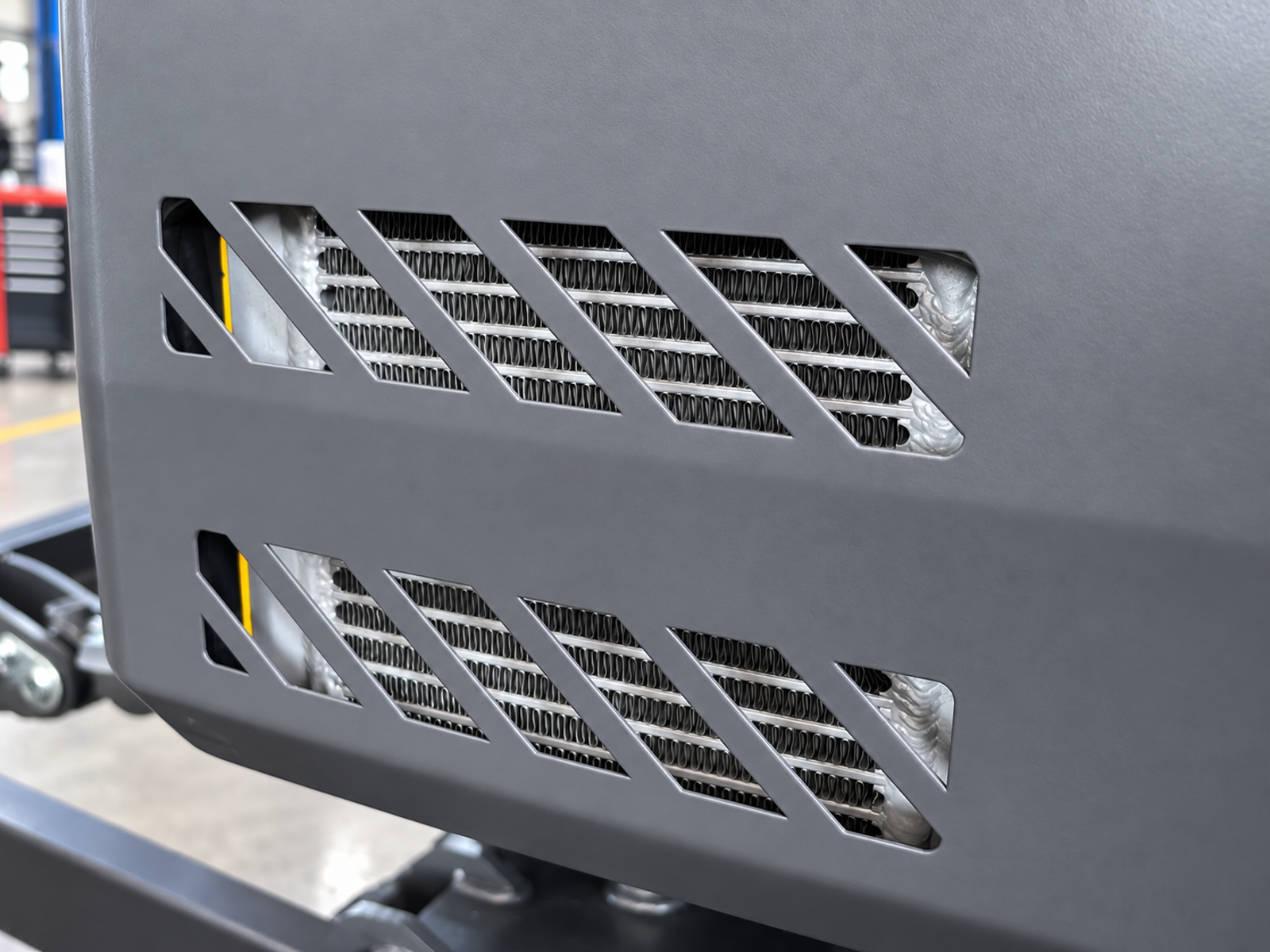

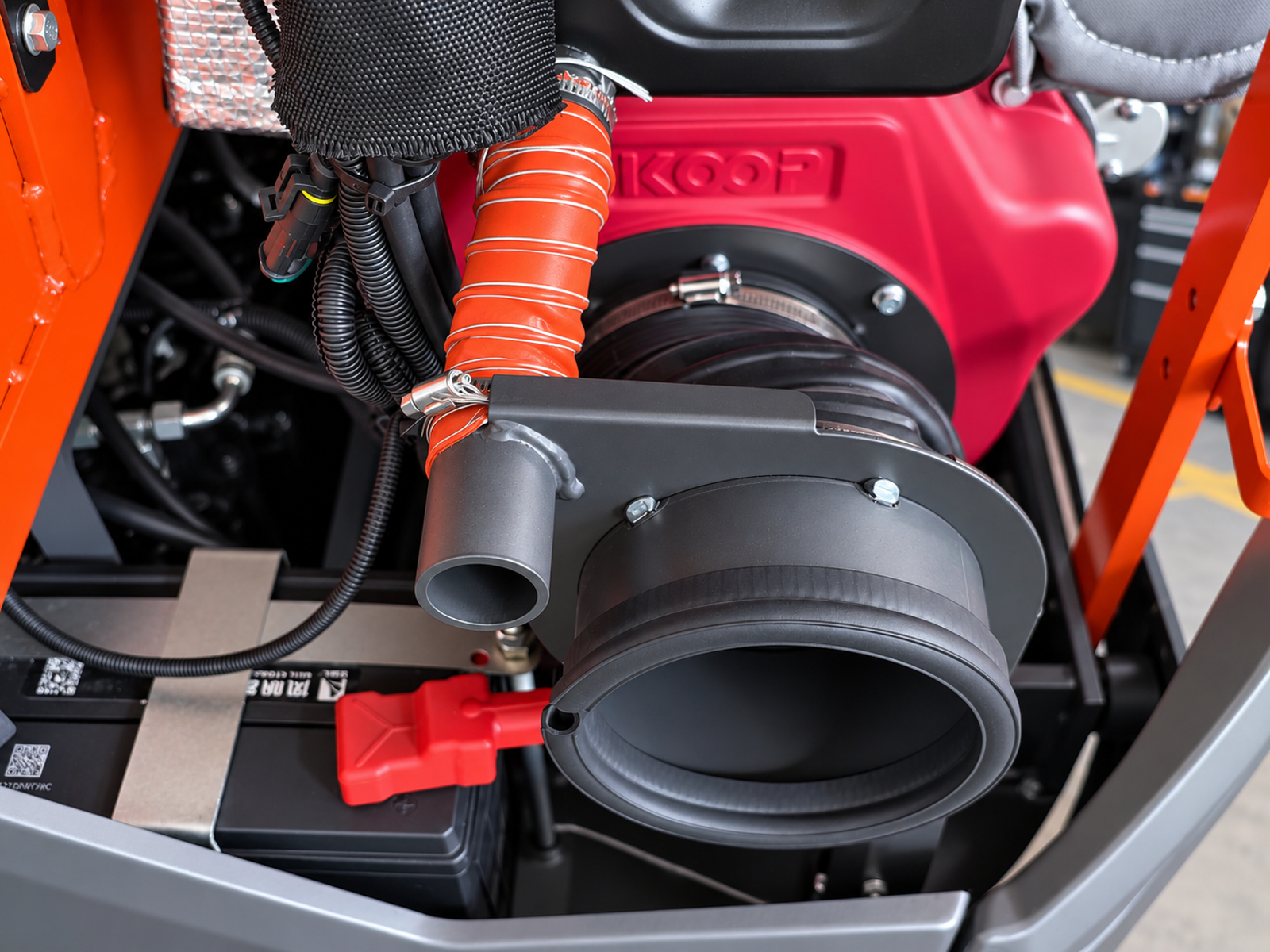

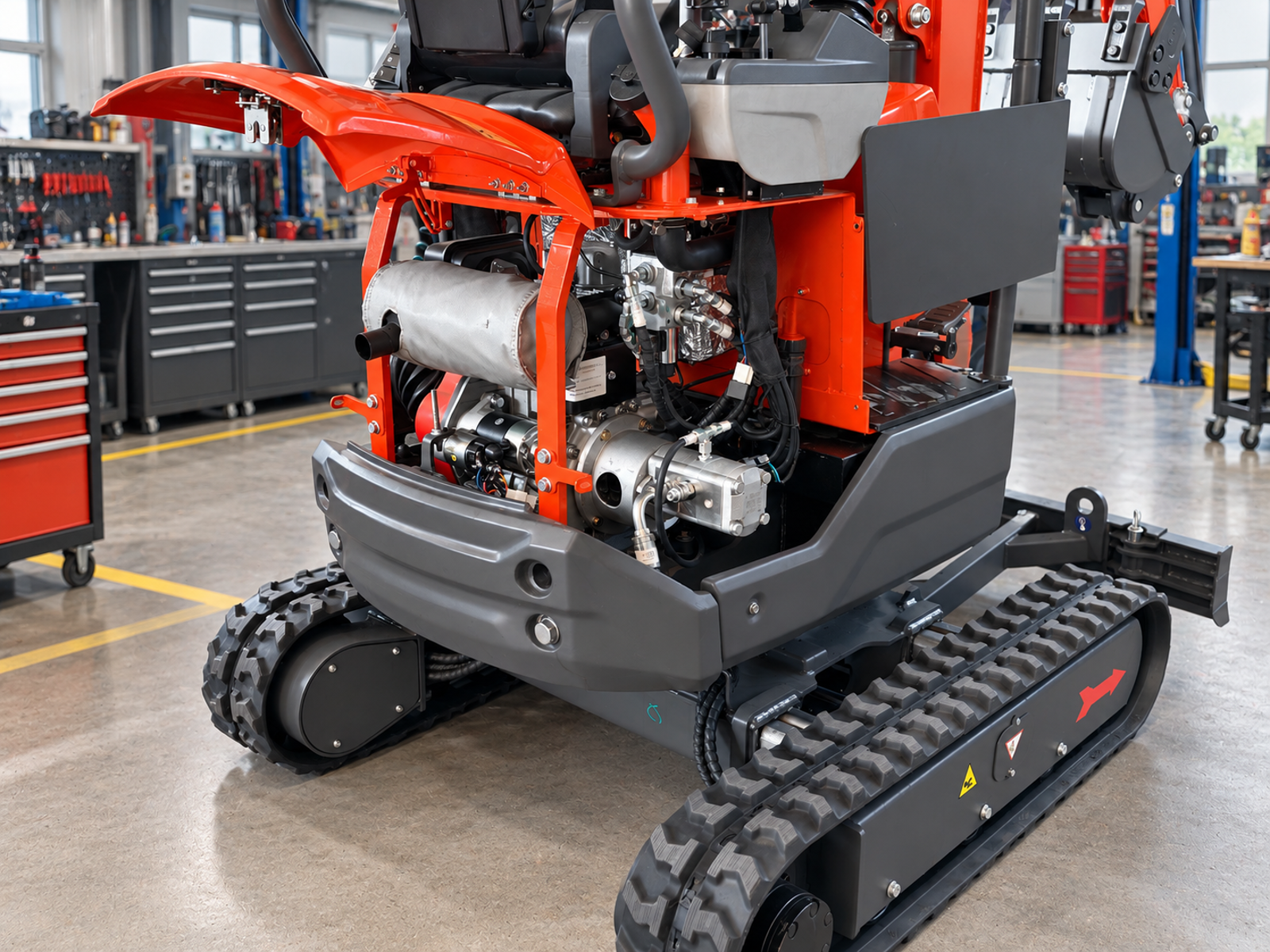

The engine compartment and main hydraulic components are accessible from all sides, allowing quick inspections and easier routine maintenance.

CERTIFICATIONS – APPLICABLE DIRECTIVES

Complies with the following directives:

2006/42/EC (Machinery) · 2014/30/EU (Electromagnetic Compatibility) · 2000/14/EC and 2005/88/EC (Outdoor Noise)

Harmonised standards: EN 474-1:2006+A6:2019 – EN 474-5:2006+A3:2013
TOPS: EN 13531:2001+A1:2008
FOPS Level I: ISO 3449:2008

SERVICE AND SPARE PARTS

DELEKS® provides technical assistance and availability of original DELEKS® spare parts, with dedicated after-sales support.

Documentation supplied with the machine:

• EC Declaration of Conformity
• Invoice
• Operation and Maintenance Manual

Transport information:

The delivery address must be accessible by an articulated truck. The machine is shipped directly from DELEKS® warehouses with ground-level delivery using a hydraulic tail lift.
