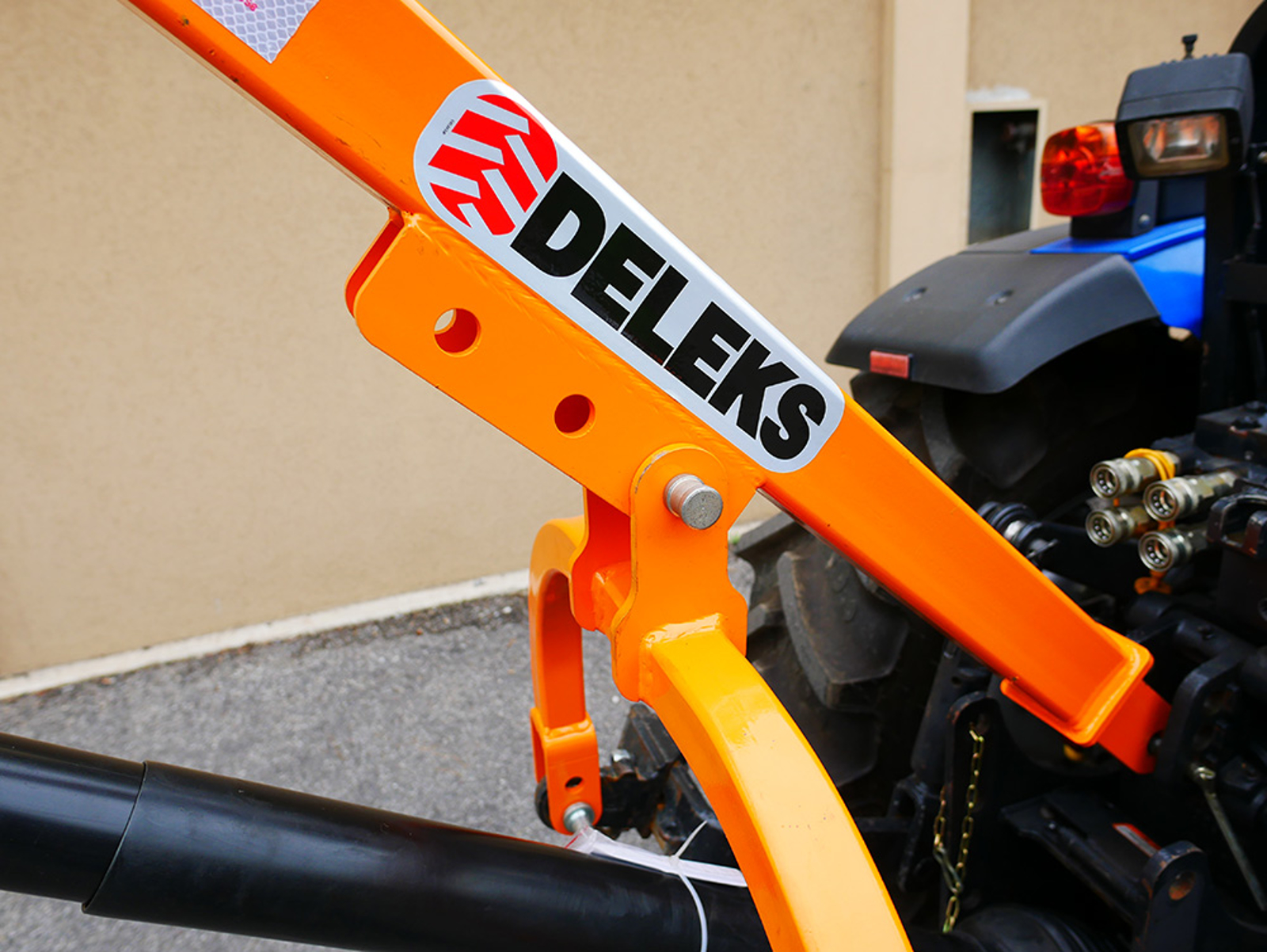

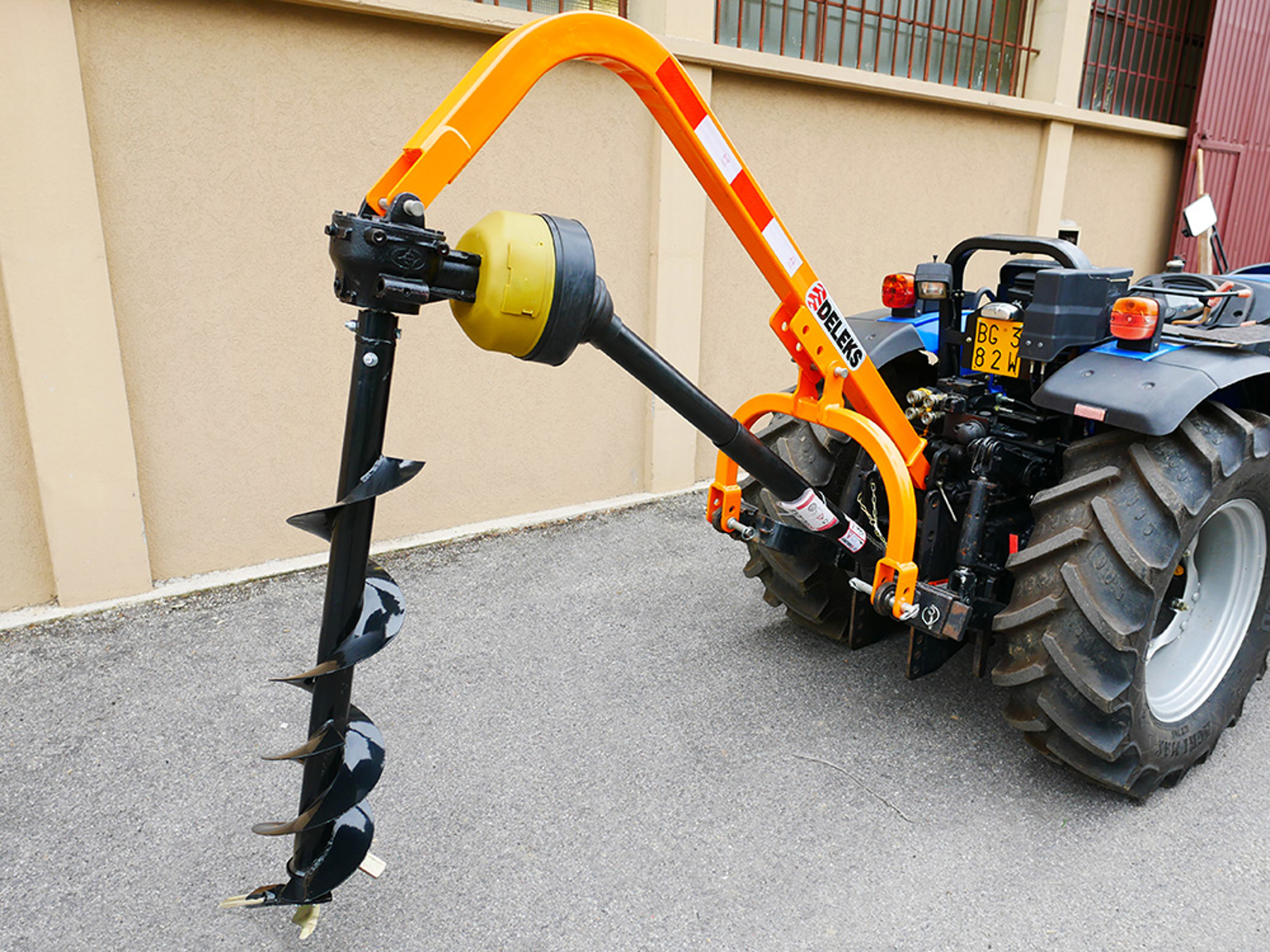

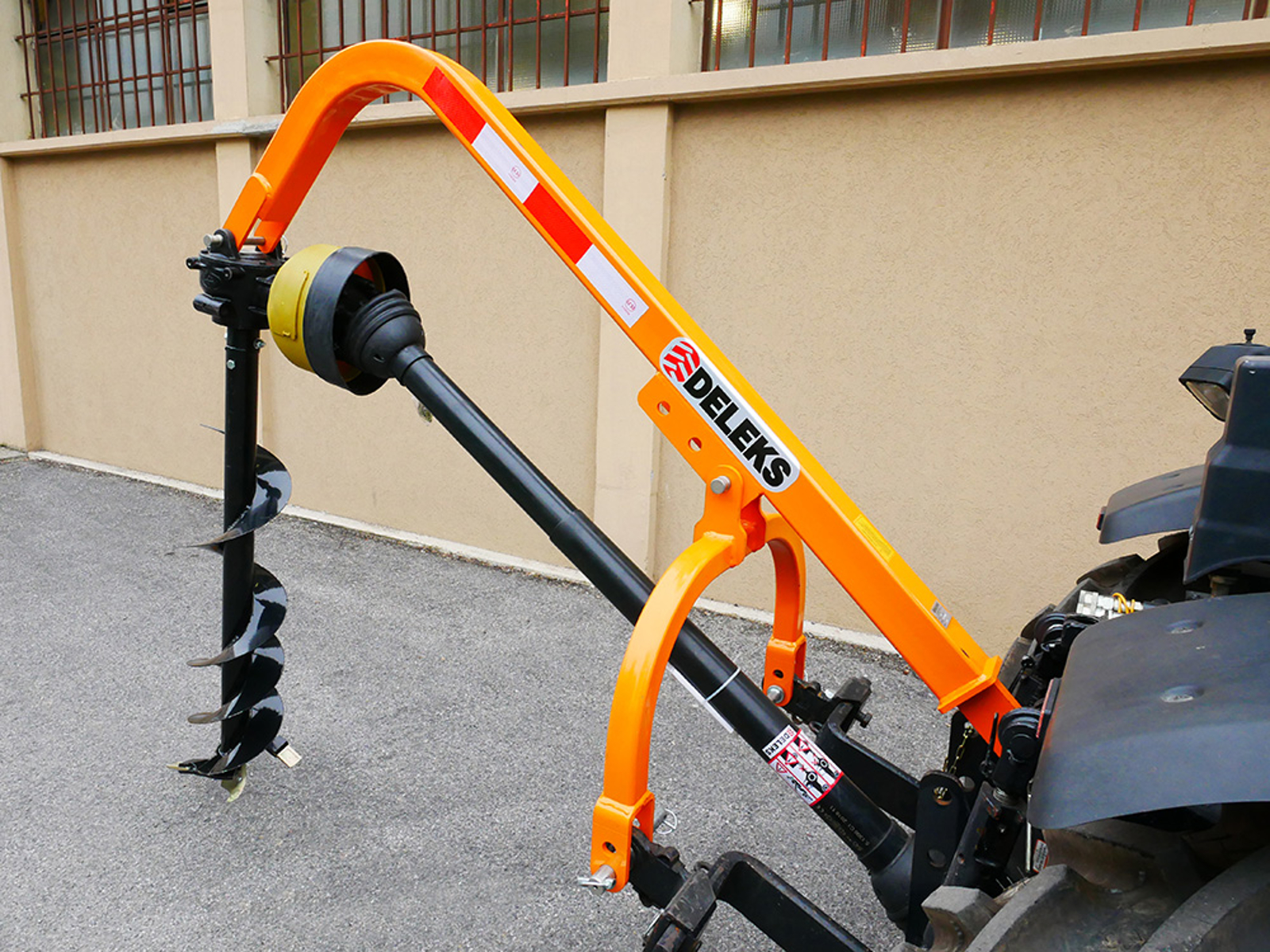

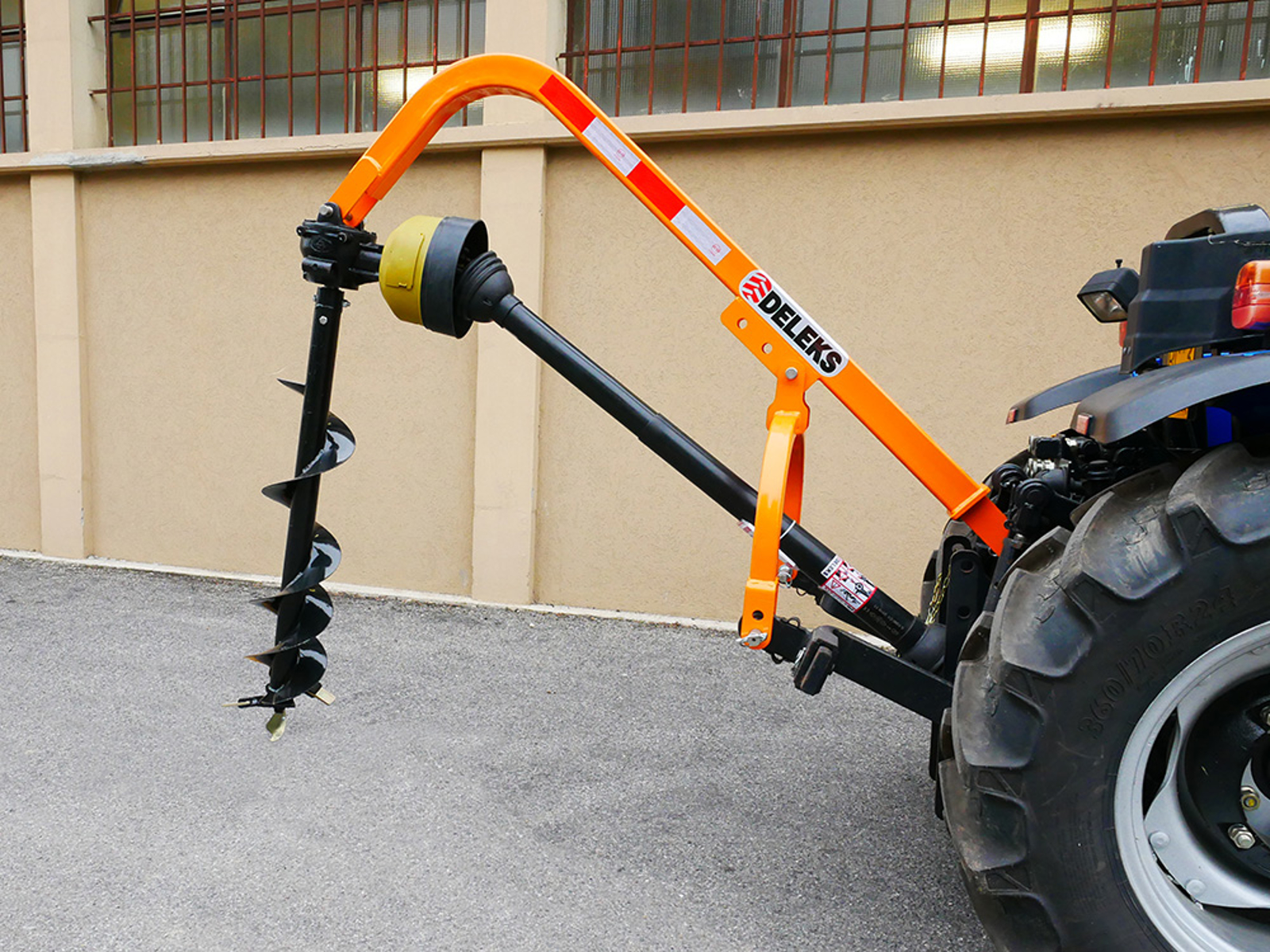

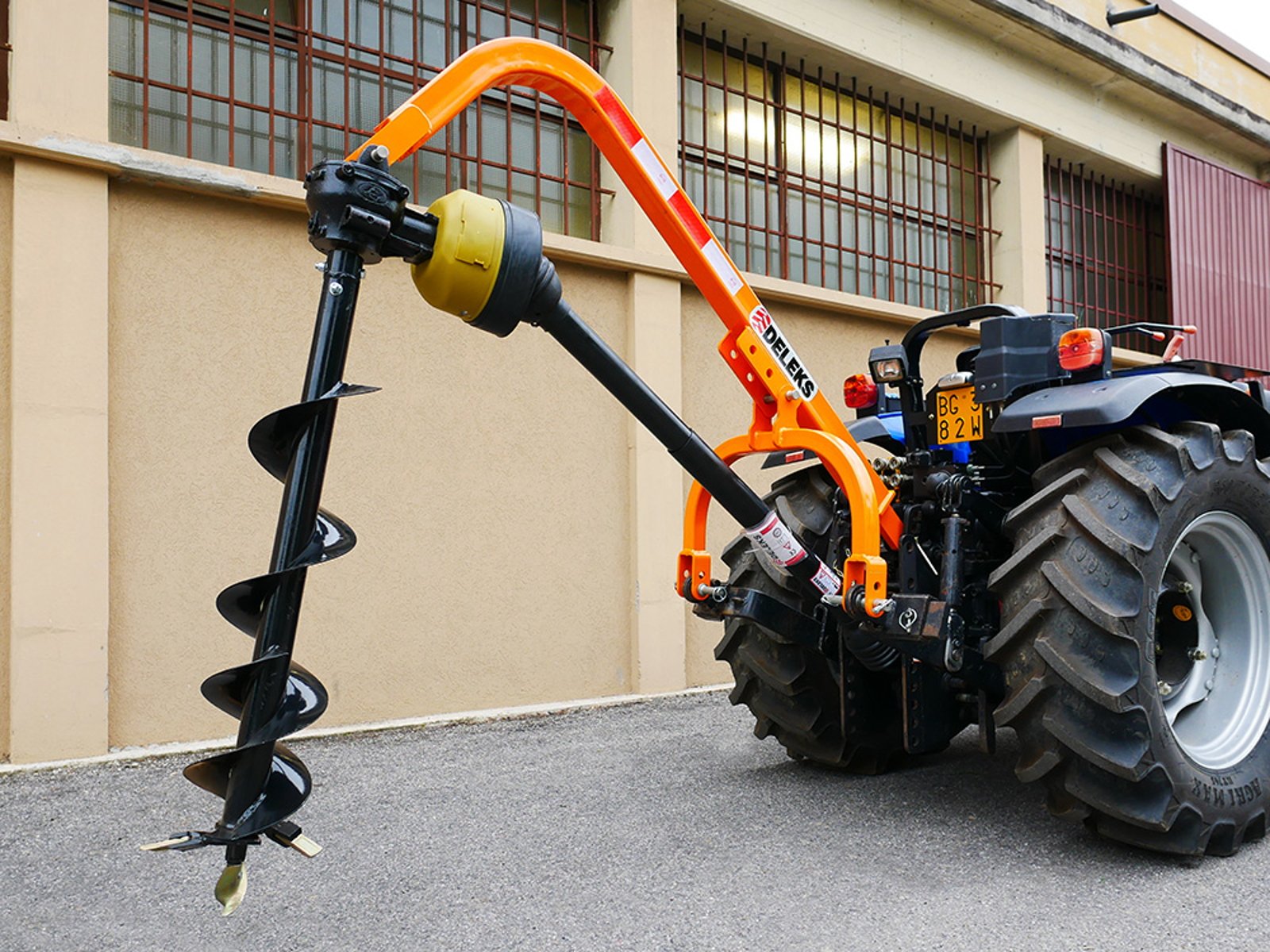

Post Hole Digger for tractor, L-30

Available
CodeL30PTO
EAN 8053470235061
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

Post Hole Digger for tractor - DELEKS® - Universal 3-point hitch Cat. 1-2 - Gearbox PTO 540 r.p.m. increased



APPLICATION

Agricultural post hole digger with 3-point linkage, works applied to the tractors lifting arms.

To make vertical holes in the ground. Ideal for agriculture, gardening, for planting vineyards, trees, poles, fences, for digging holes on the beach at the bathing establishments.


Supplied as standard with:

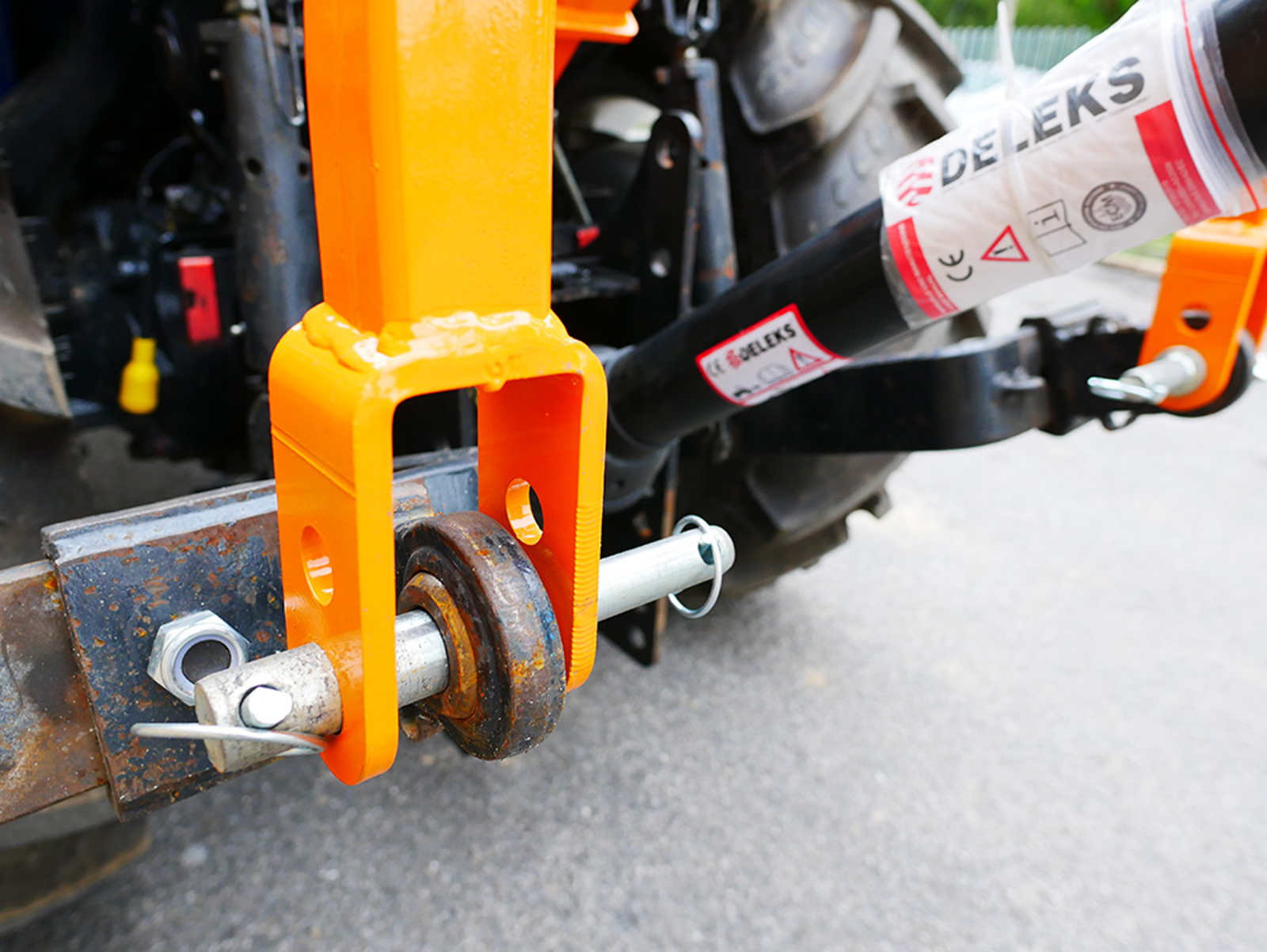

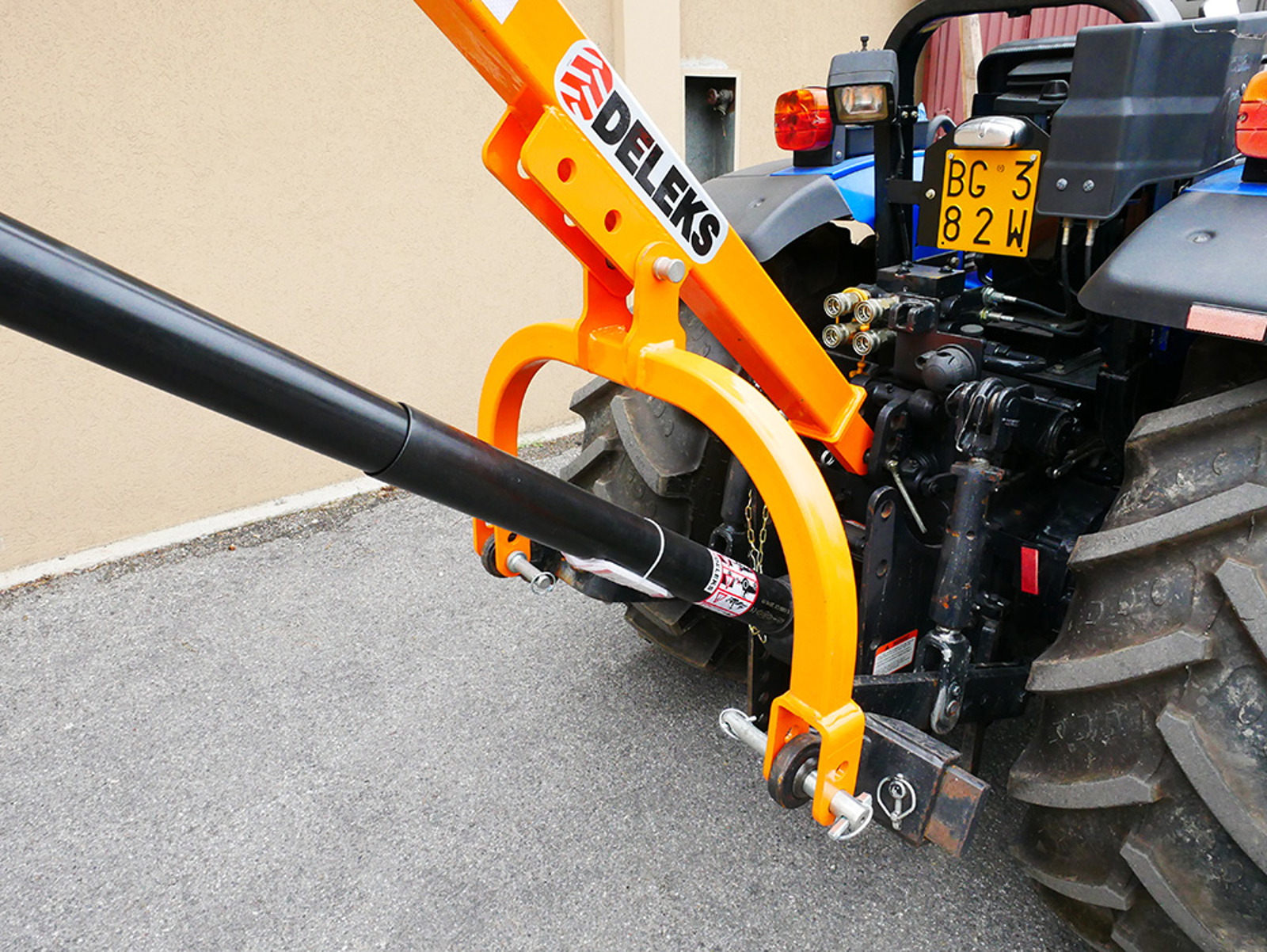

Universal 3-point hitch Cat. 1-2

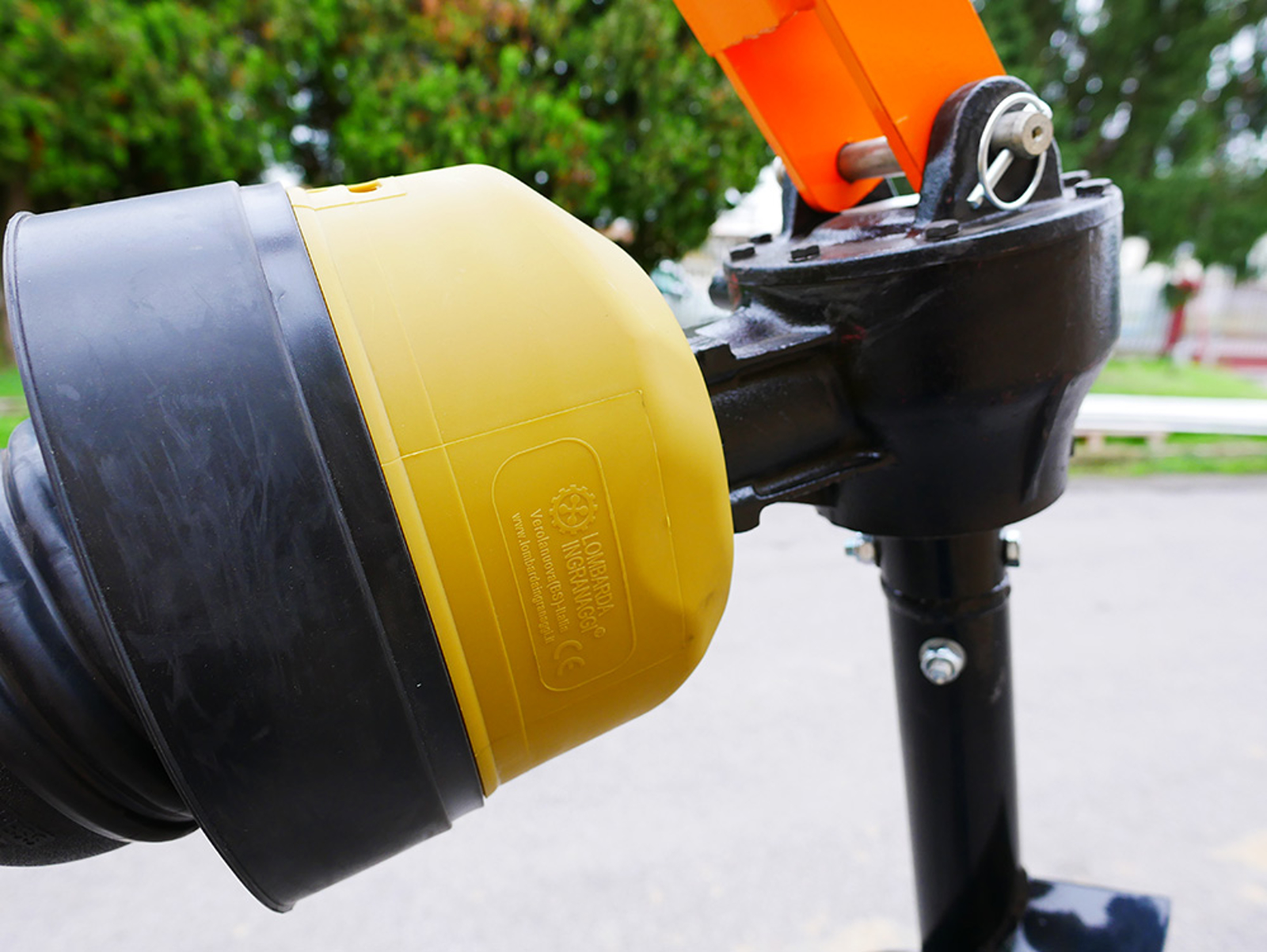

Gearbox PTO 540 r.p.m. increased

PTO 1300mm + clutch (CE approved)

Accordingly CE accident prevention protections


Optional:

Auger: 75.0 mm

Auger: 150.0 mm

Auger: 230.0 mm

Auger: 300.0 mm



ADVANTAGES

Extremely easy to use

Interchangeable tip and knives

Inclination adjustment of the arm angle

Takes advantage of the tractor levers does not require a hydraulic system


Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual



EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).



CARACTERISTICS

Caracteristic Units metric Units US
Weight 82.0 kg 180.0 lb
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Spacing between the 2 lower points 450.0 - 730.0 mm 17.70 - 28.70 in
Arm tube thickness 5.0 mm + reinforcements 0.2 in + reinforcements
Auger speed rotation 180 r/min 180 r/min
Thickness of the arm 5.0 mm + reinforcements 0.2 in + reinforcements
Pto shaft CE 5x1300 mm + clutch ø18cm CE 5x1300 mm + clutch ø18cm
Maximum reach 1770.0 mm 5.80 ft
Gearbox Lombarda Ingranaggi 540 r/min (3 year warranty) Lombarda Ingranaggi 540 r/min (3 year warranty)
Rotation of gearbox Right side Right side
Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Packing sizes 1700*800*500 mm 5.58*2.62*1.64 ft
