Log grapple mini diggers, forest crane or manure loading DK-16

Available
CodeDK16
EAN 8053470235108
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

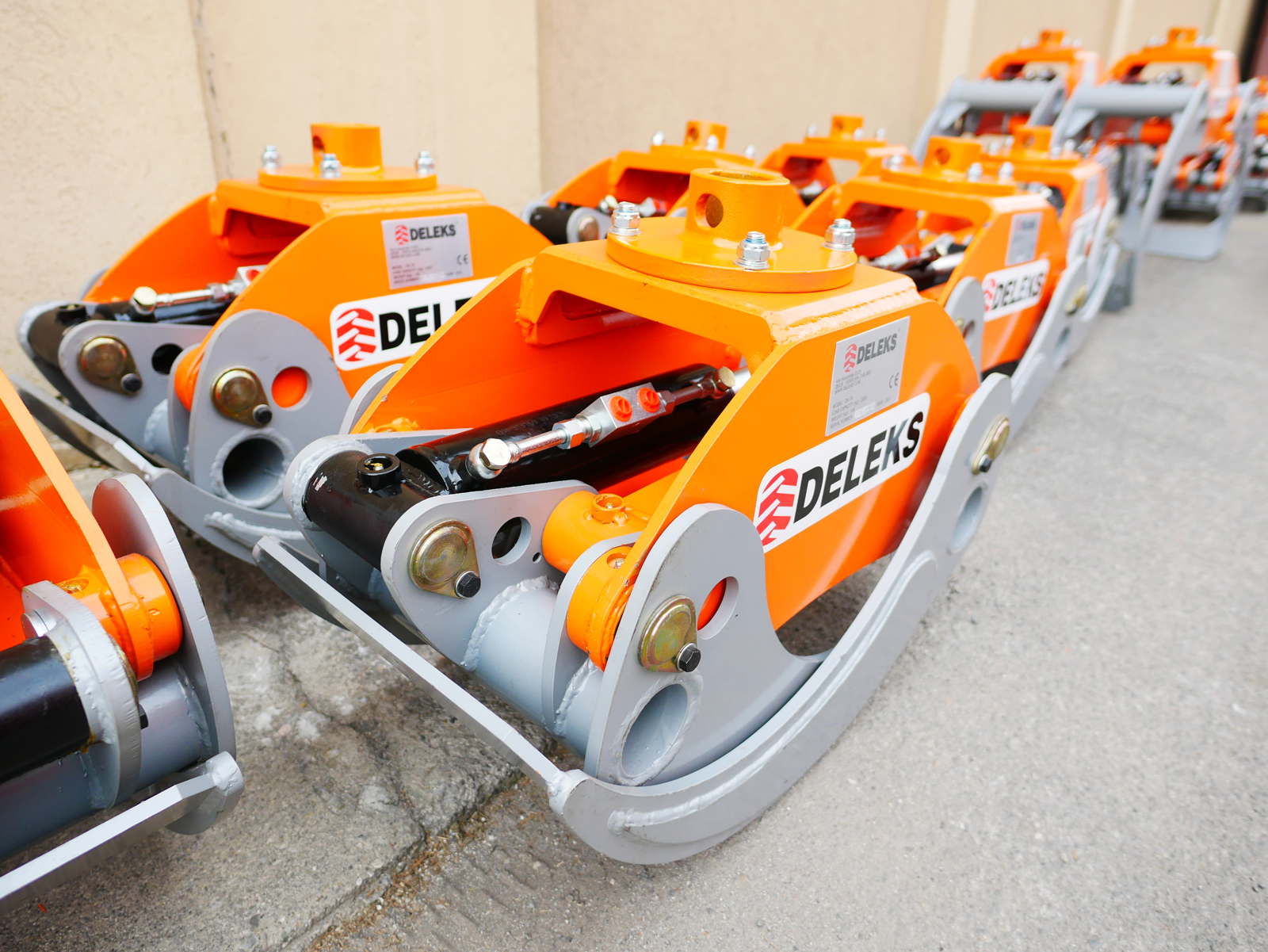

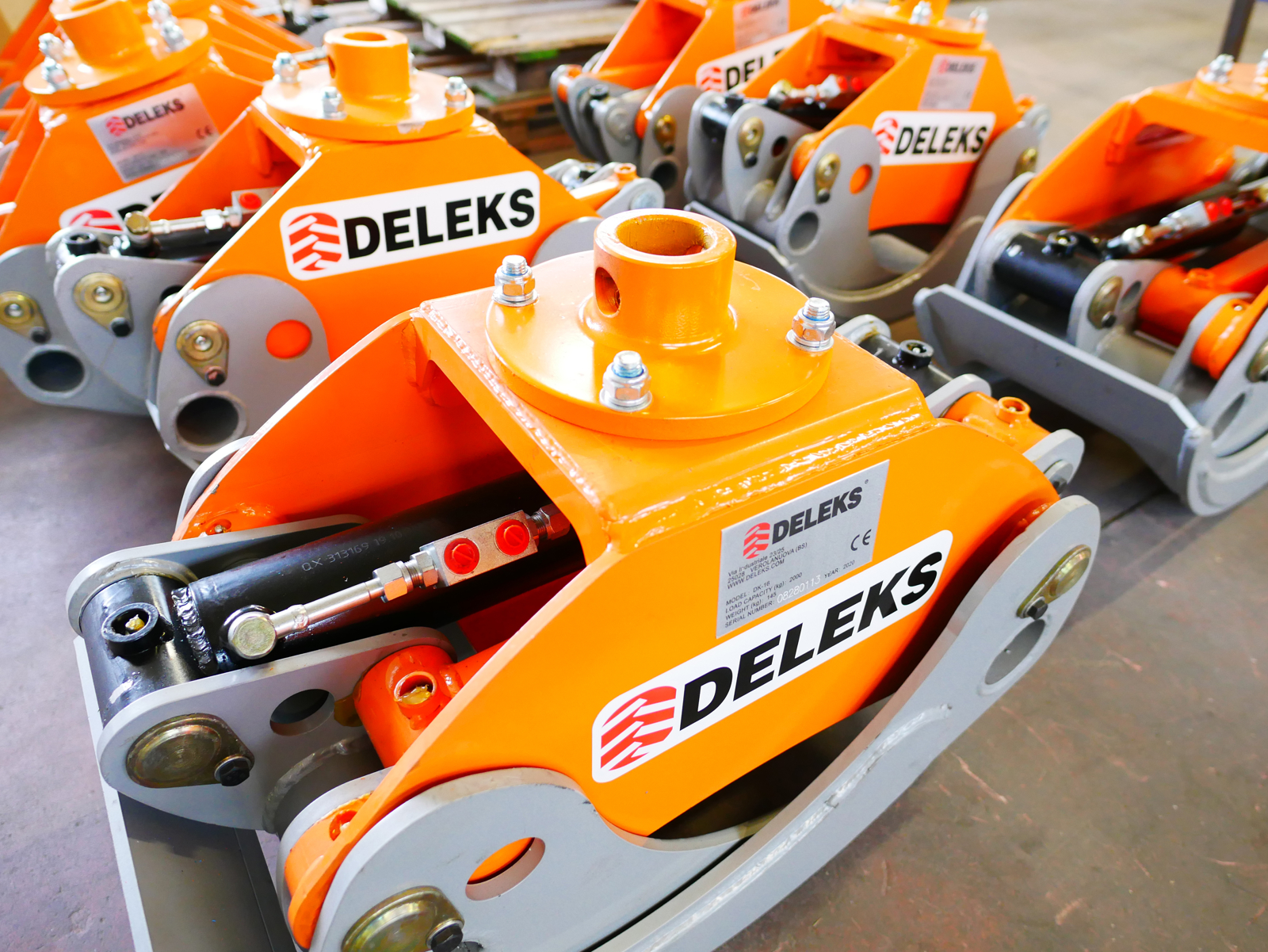

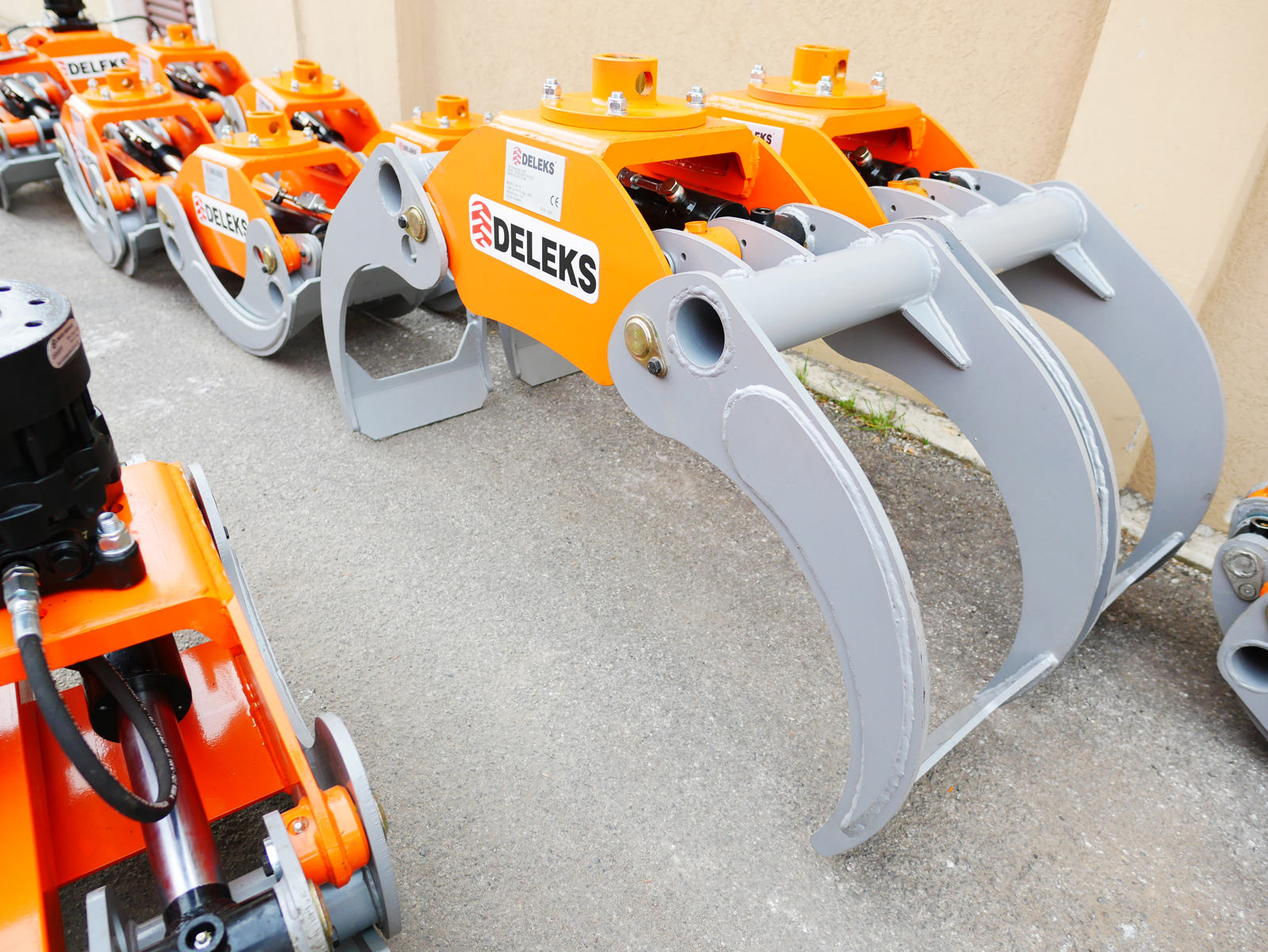

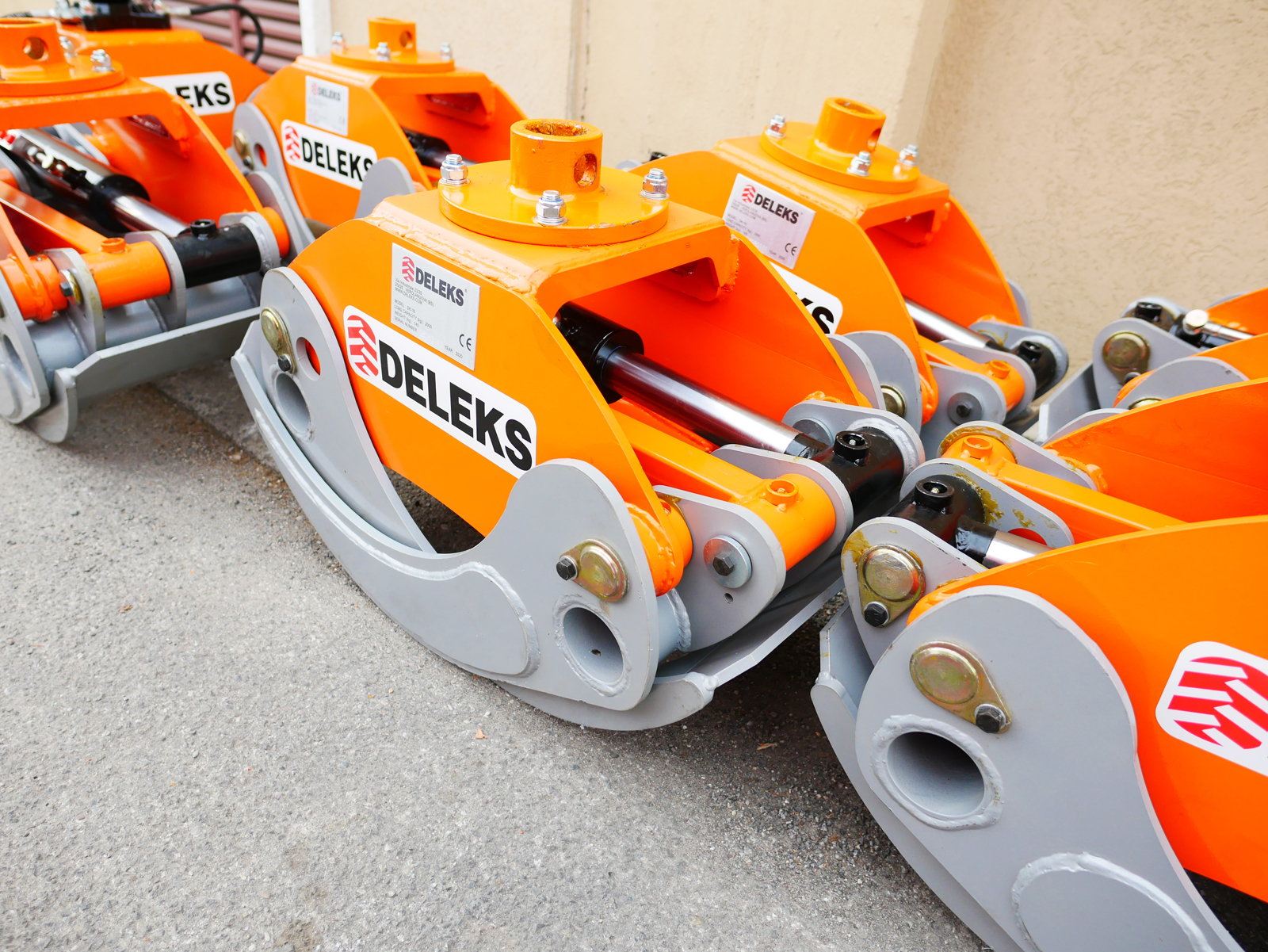

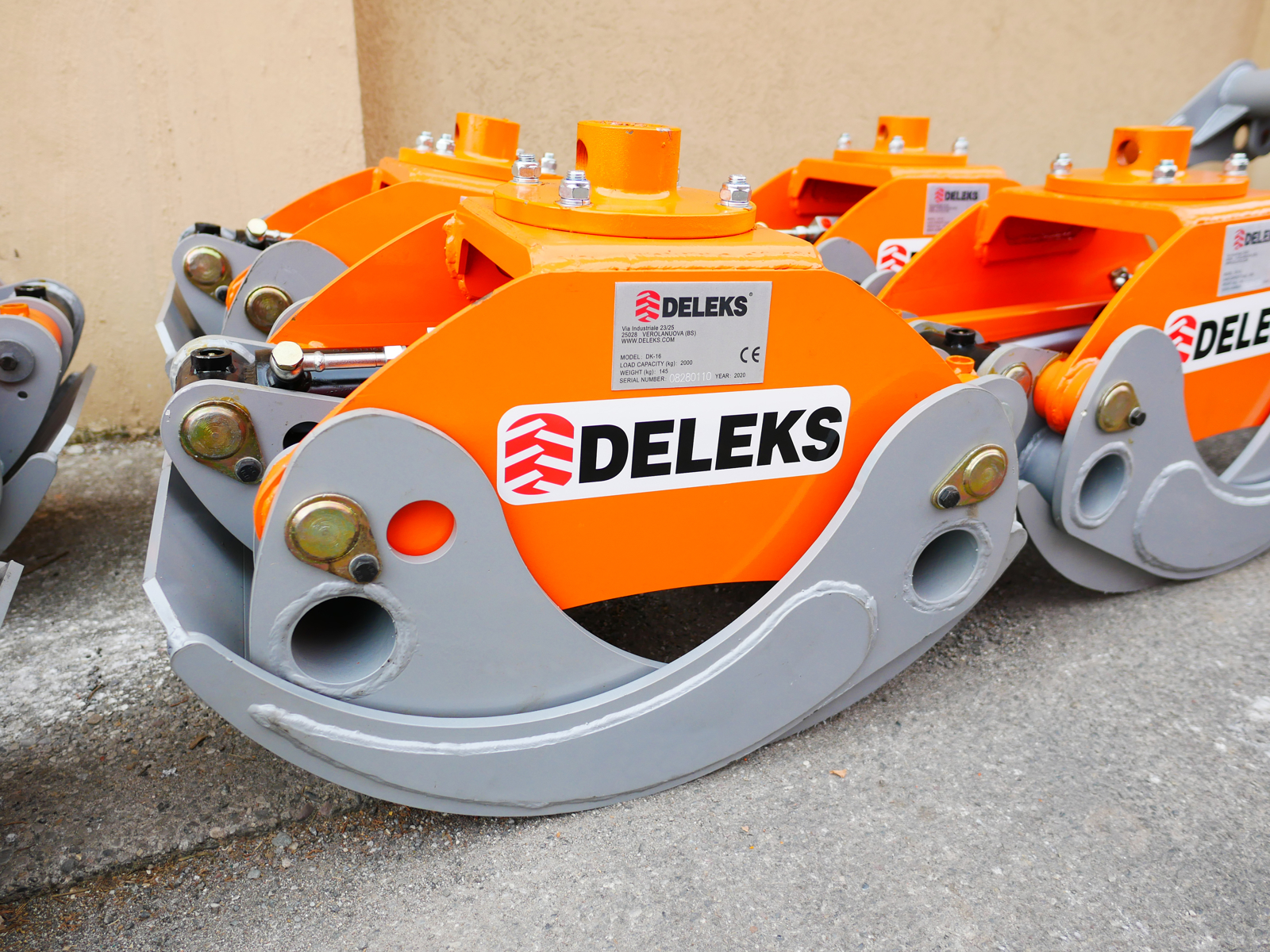

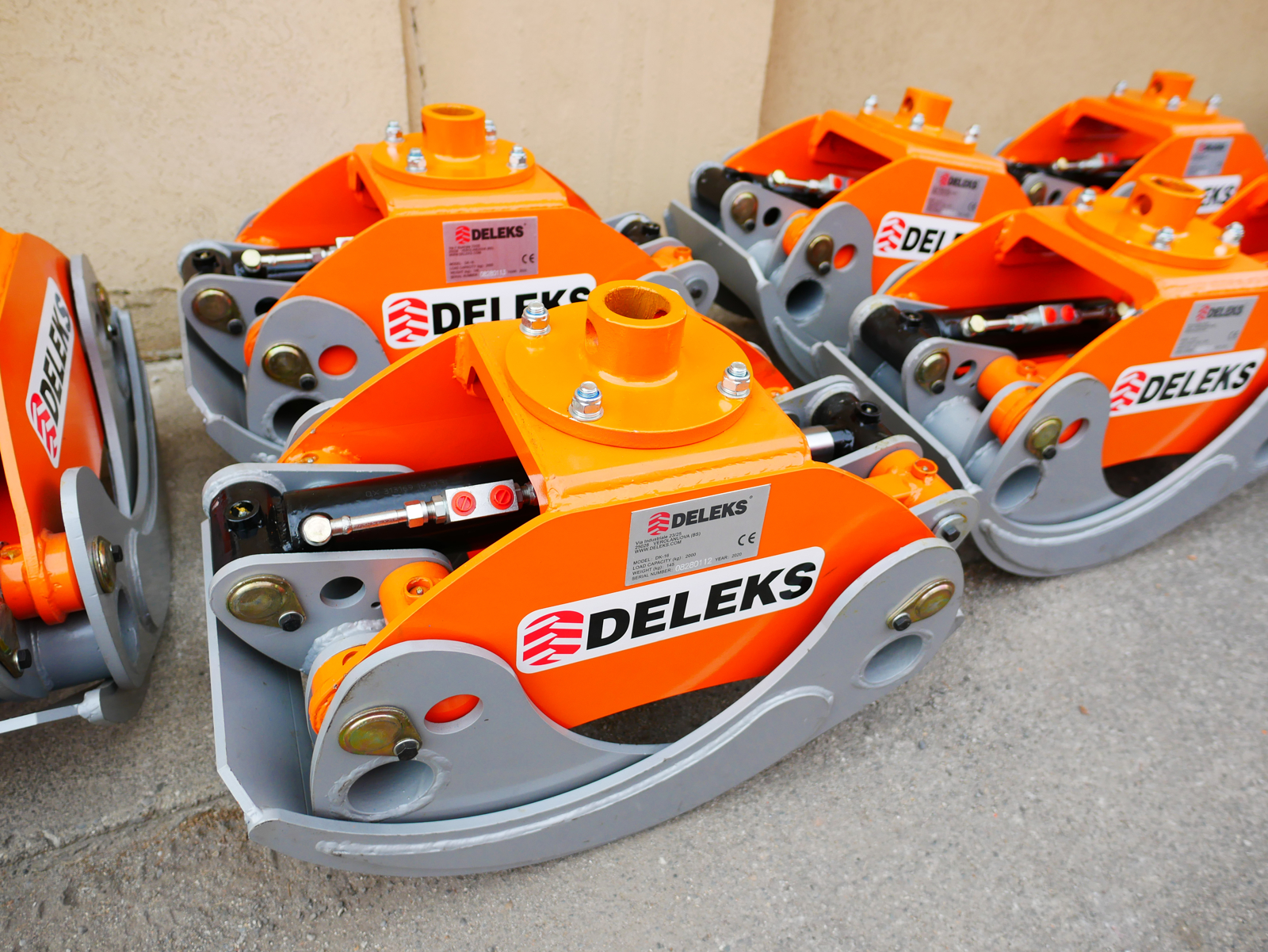

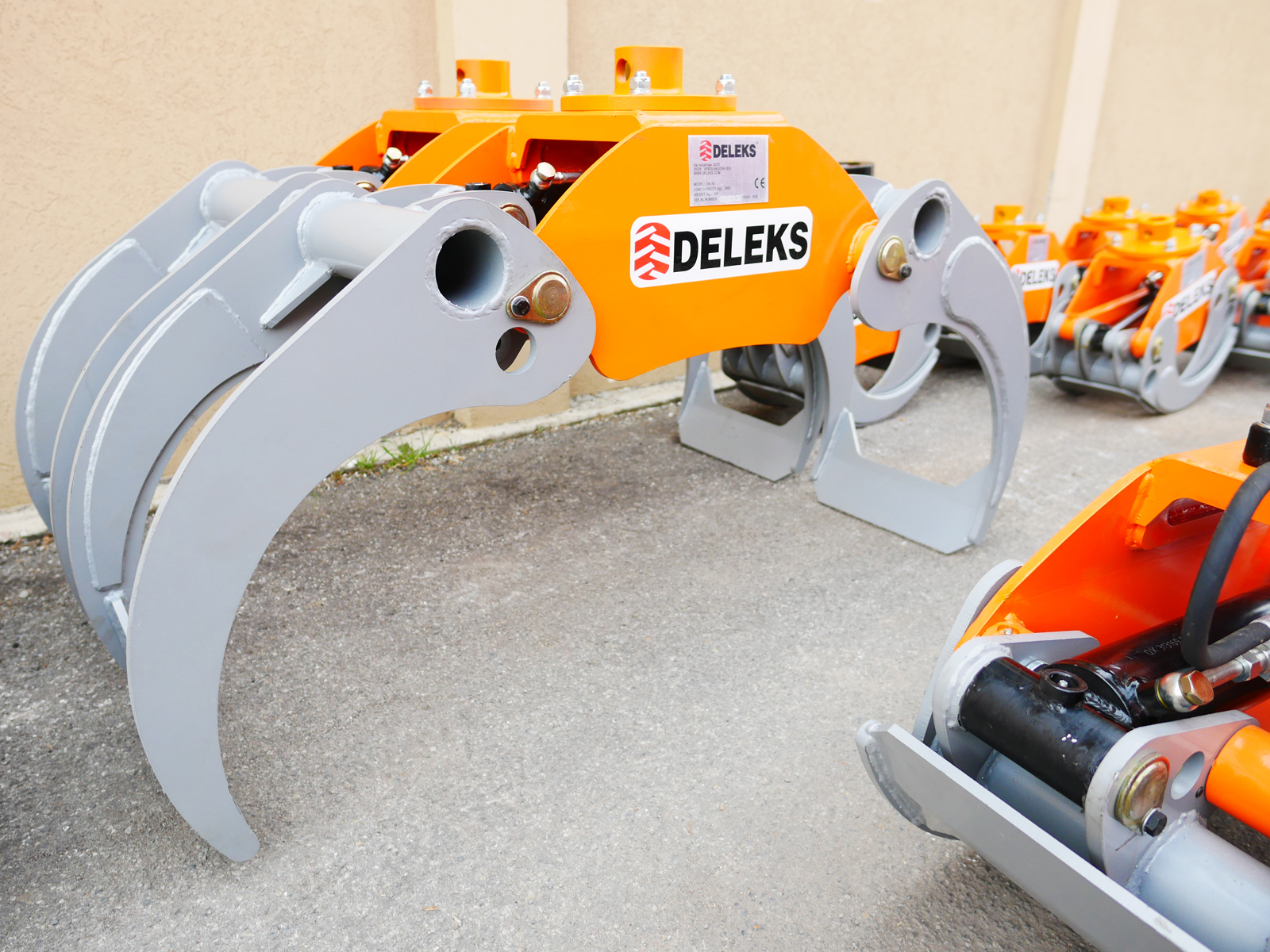

Log Grapple for Mini Diggers and Forest Cranes 4.0 – 8.0 Ton DELEKS® DK-16


OVERVIEW

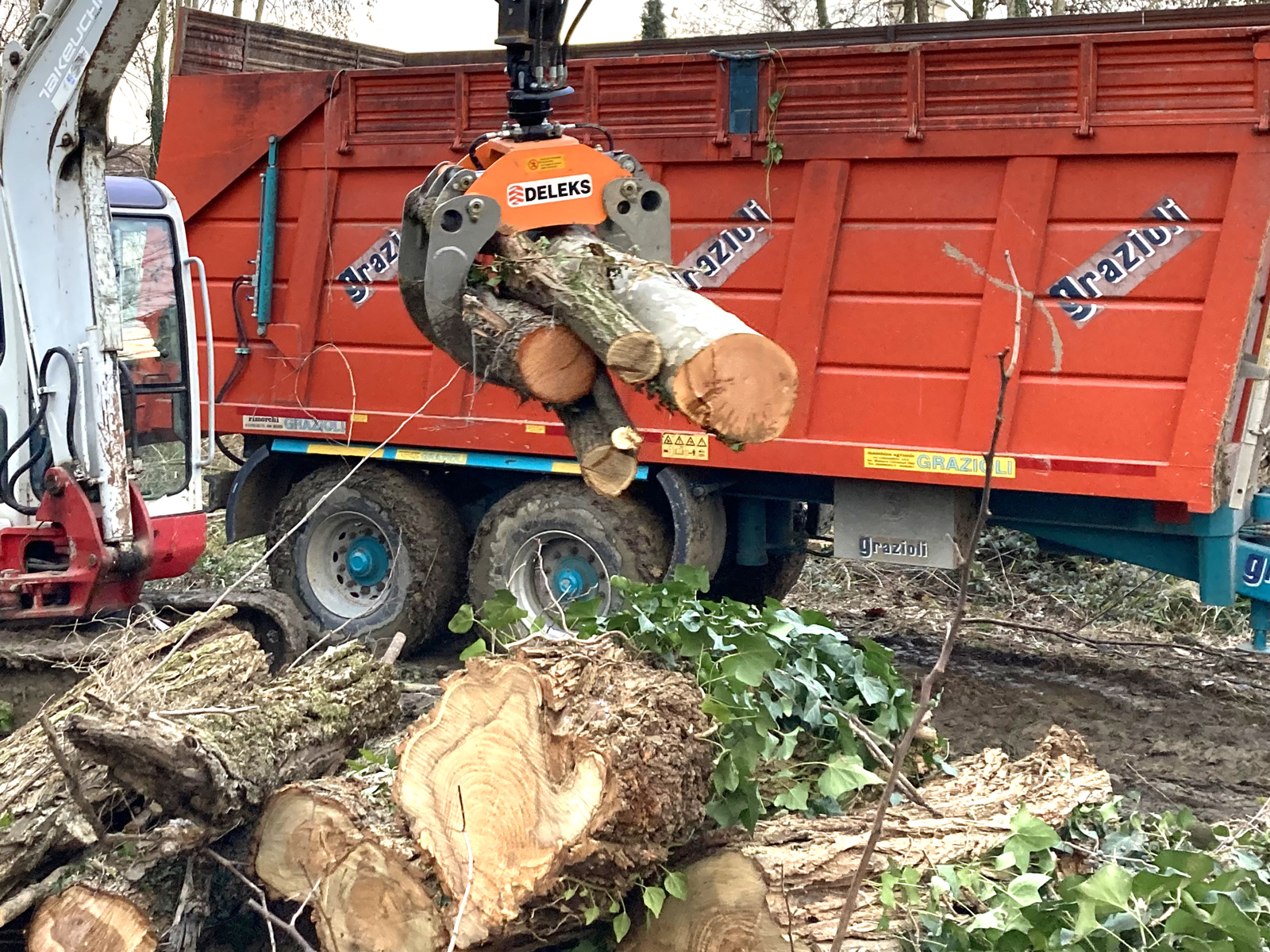

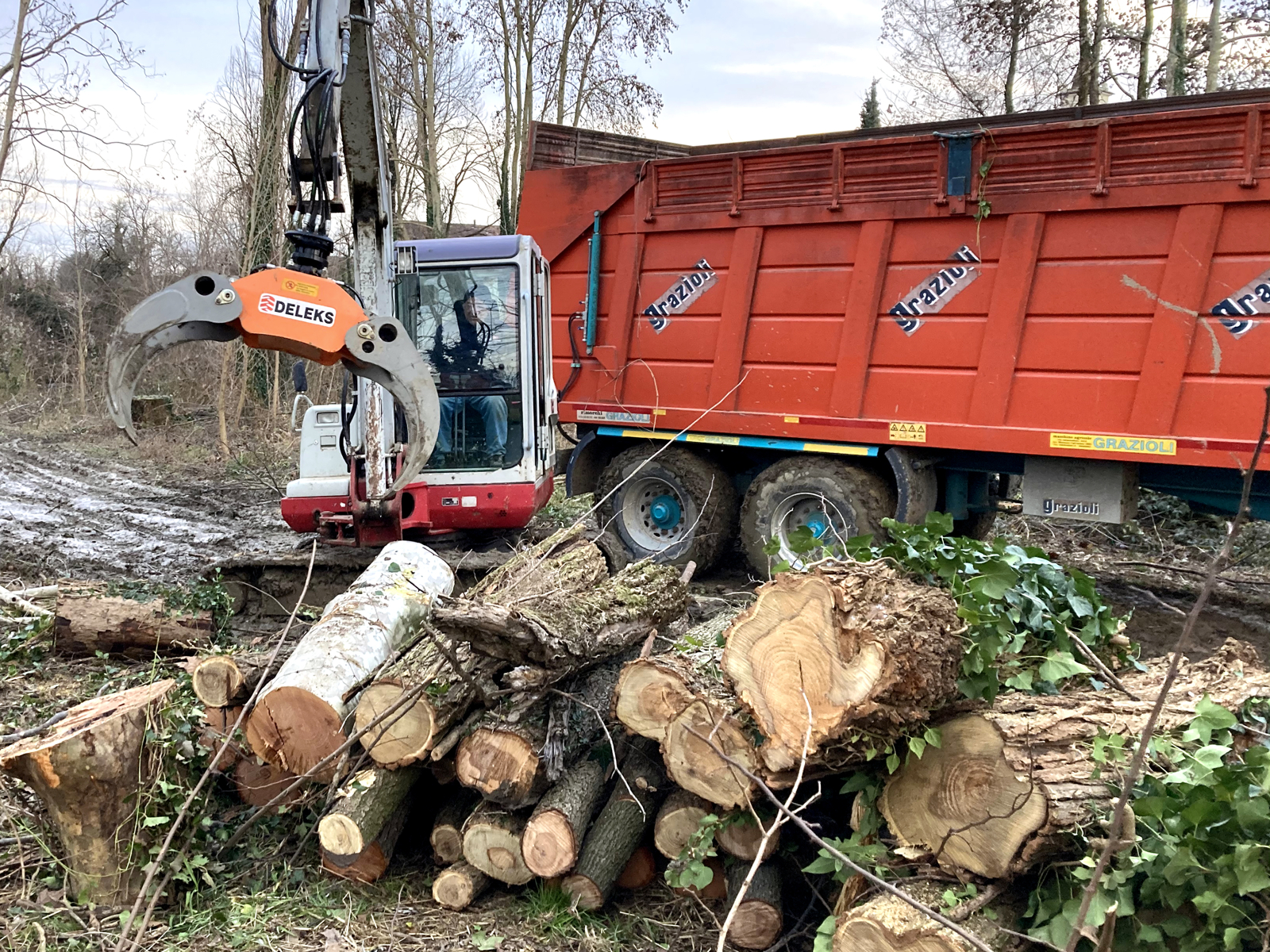

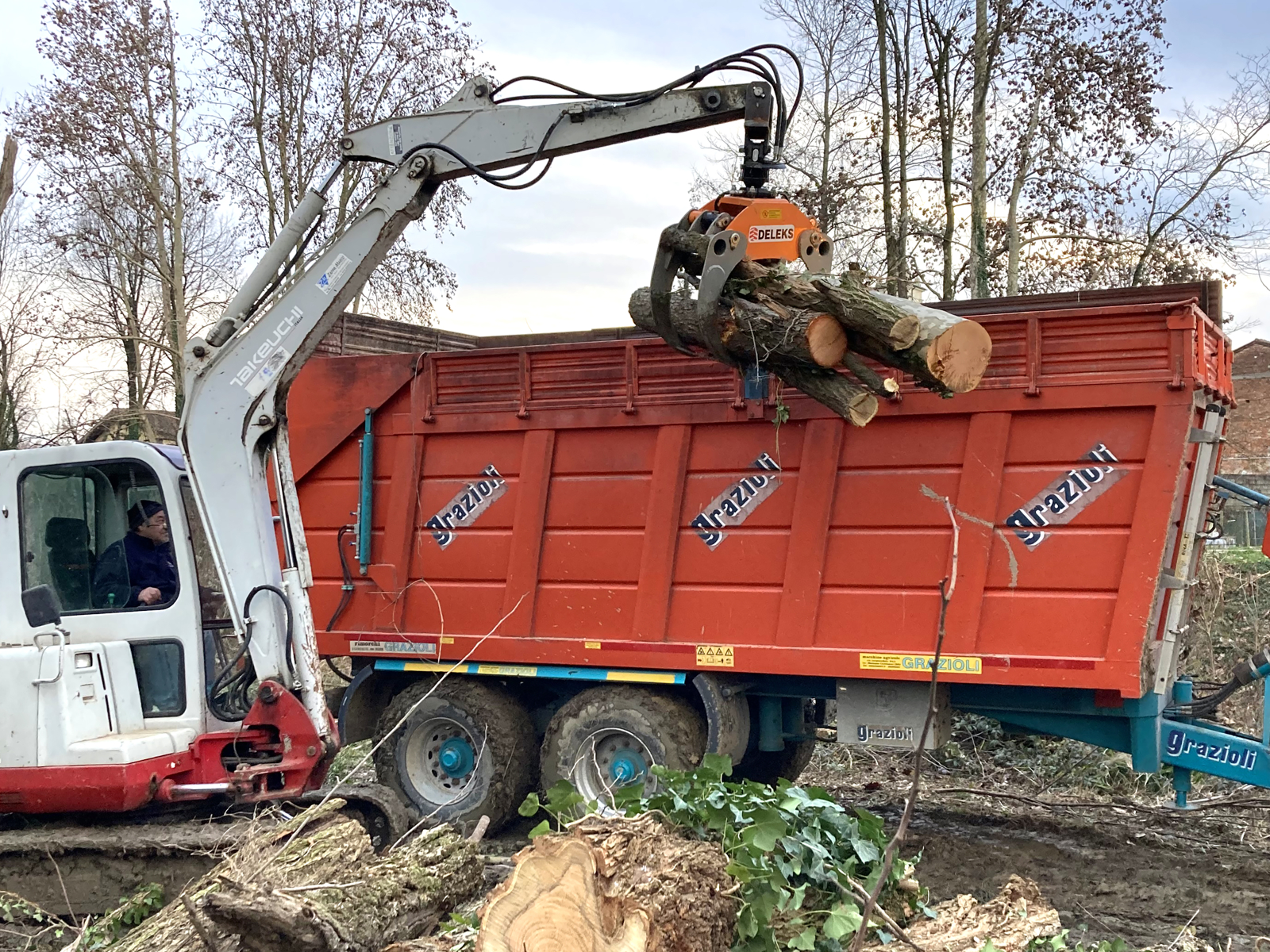

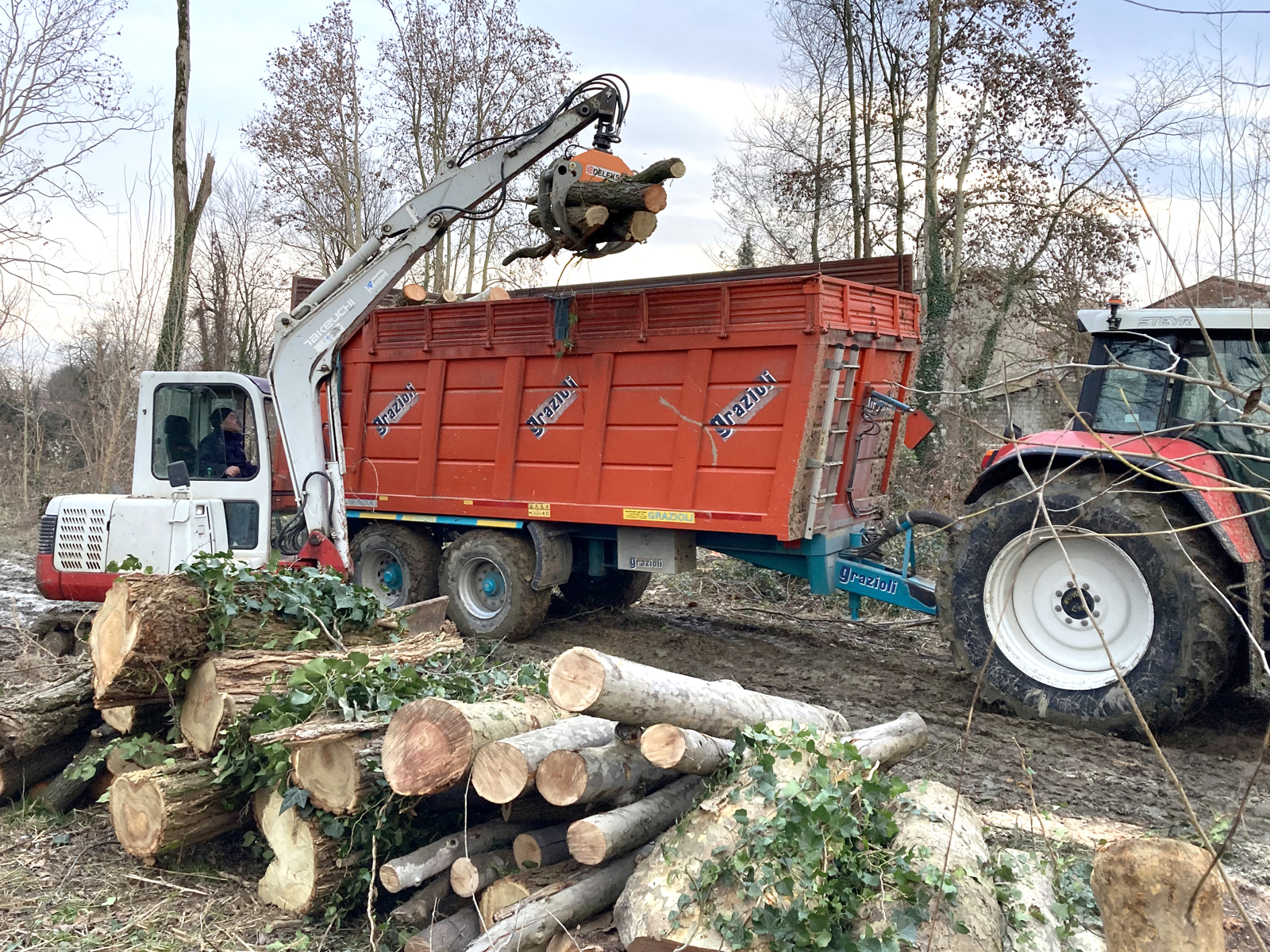

Lightweight and durable log grapple is perfect for carrying logs, timber and even heavy rocks and boulders making it an essential tool when carrying out forestry work, clearing debris or repairing stone walls.

Maximum load 2000.0 kg.

Gripping area: 0.24m2

Gripping force: 11.1KN

Fits all mini diggers/excavators e.g Bobcat, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi. EC Conformity, 2 Year Warranty.



BENEFITS & FEATURES

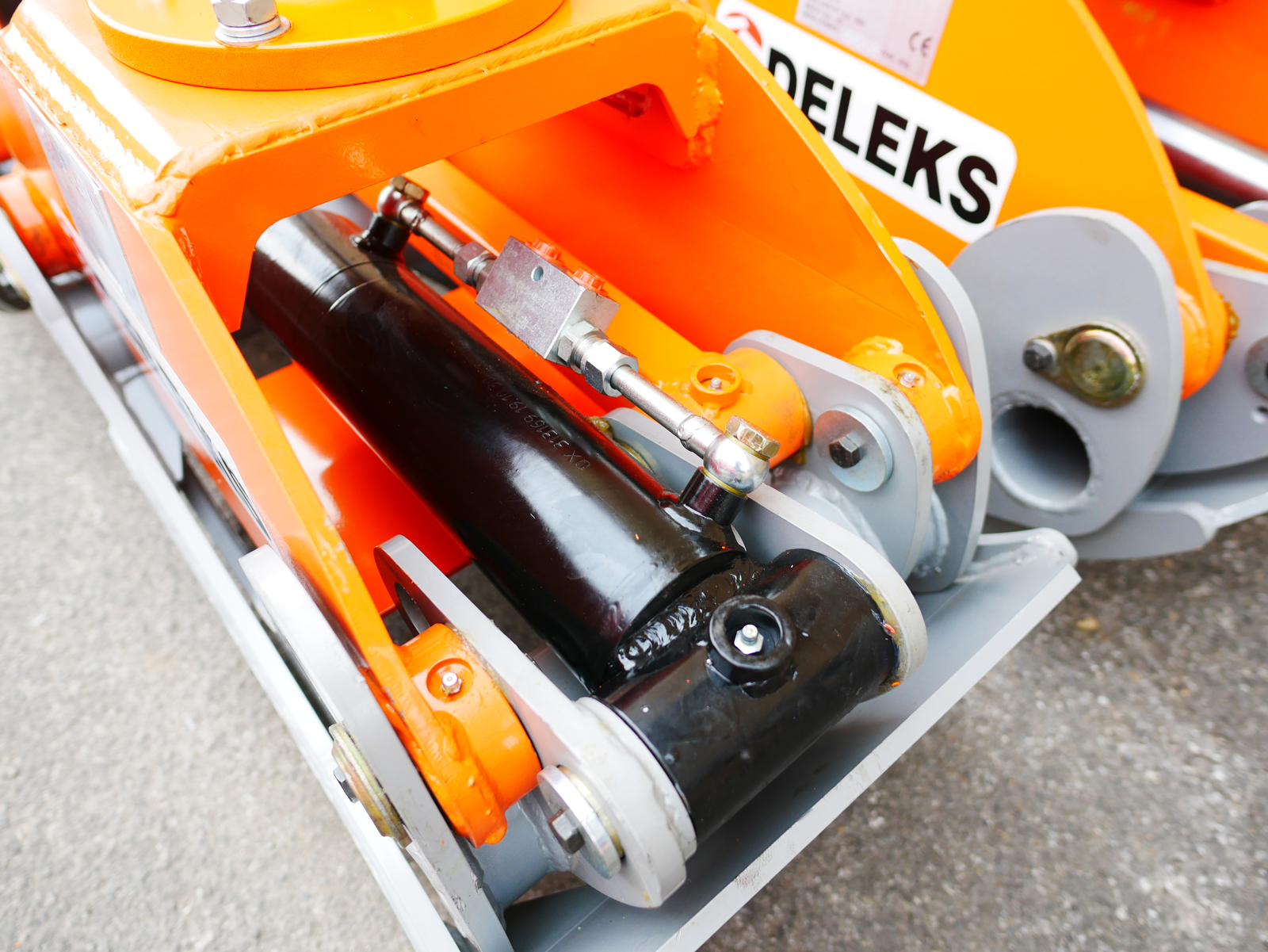

Shut-off valve on the hydraulic cylinder.

Solid steel bolts with bronze bushings.

Thanks to the DK16's unique design it grips timber, boulders or debris tightly.

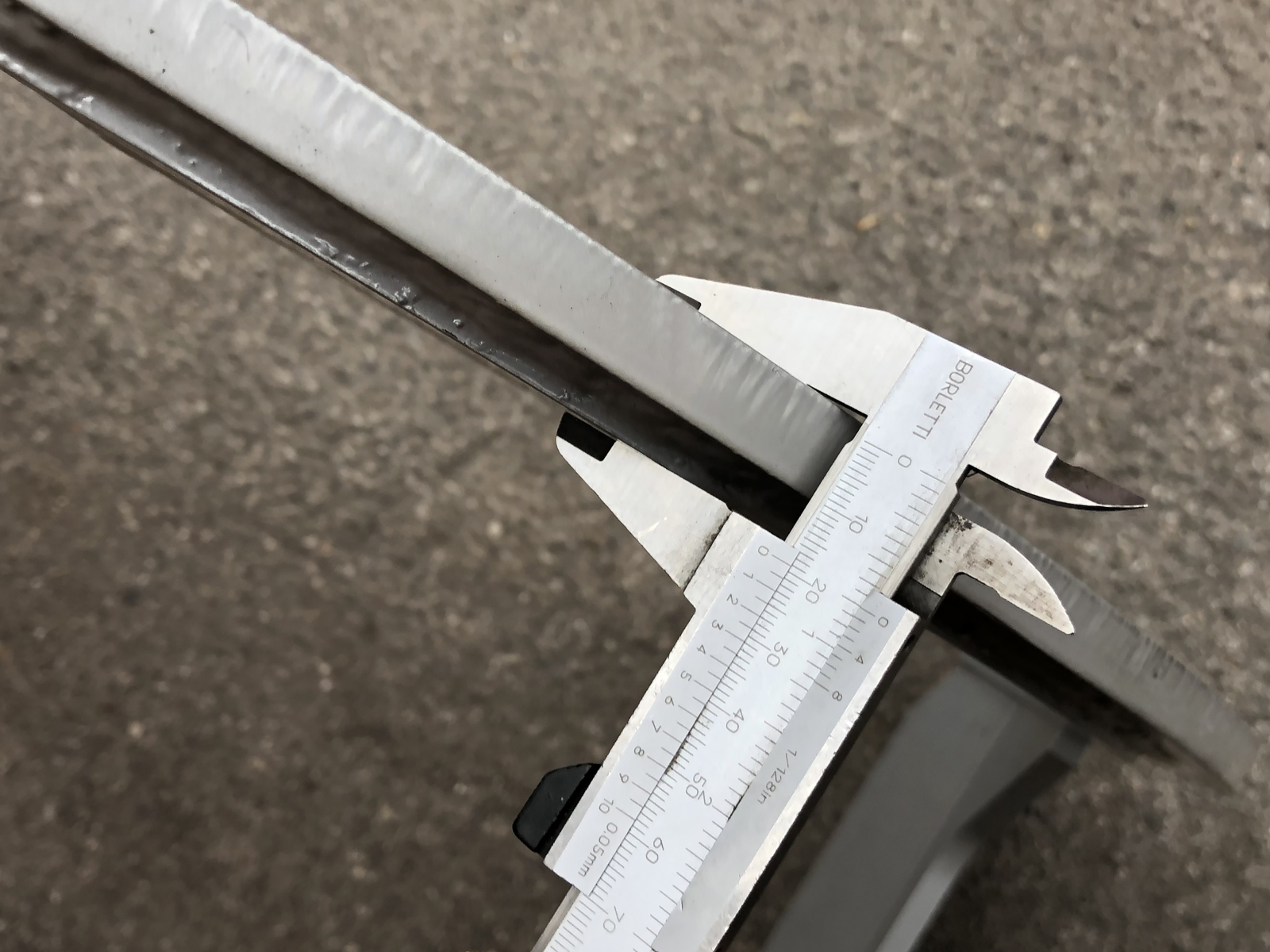

High quality steel: code S355 (Claws: S700) .

High tensile strength, reinforced grapple tines.

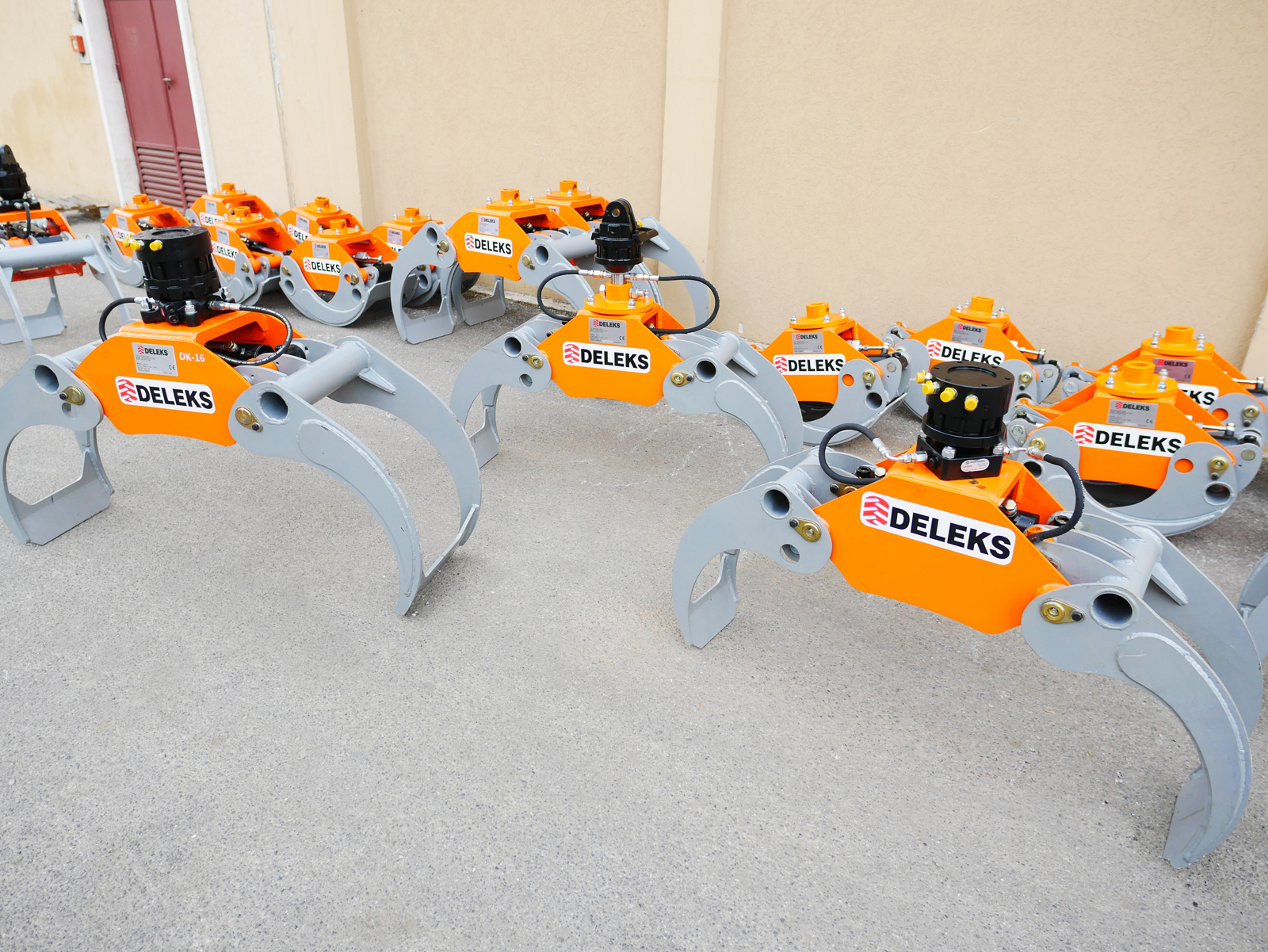

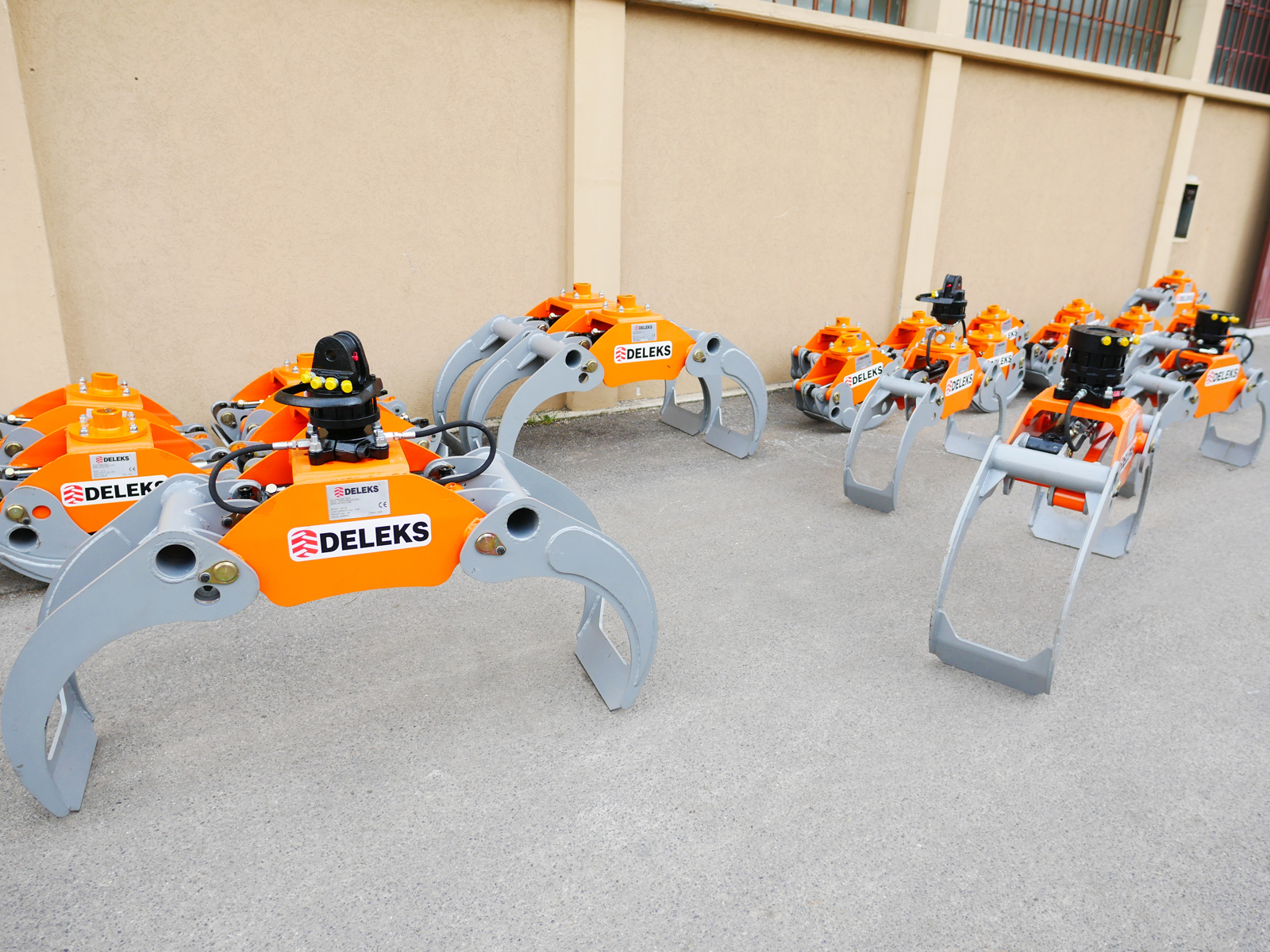

Available with optional hydraulic kit and rotator.



CARACTERISTICS

Caracteristic Units metric Units US
Weight 150.0 kg 332.0 lb
Load capacity 2000.0 kg 4400.0 lb

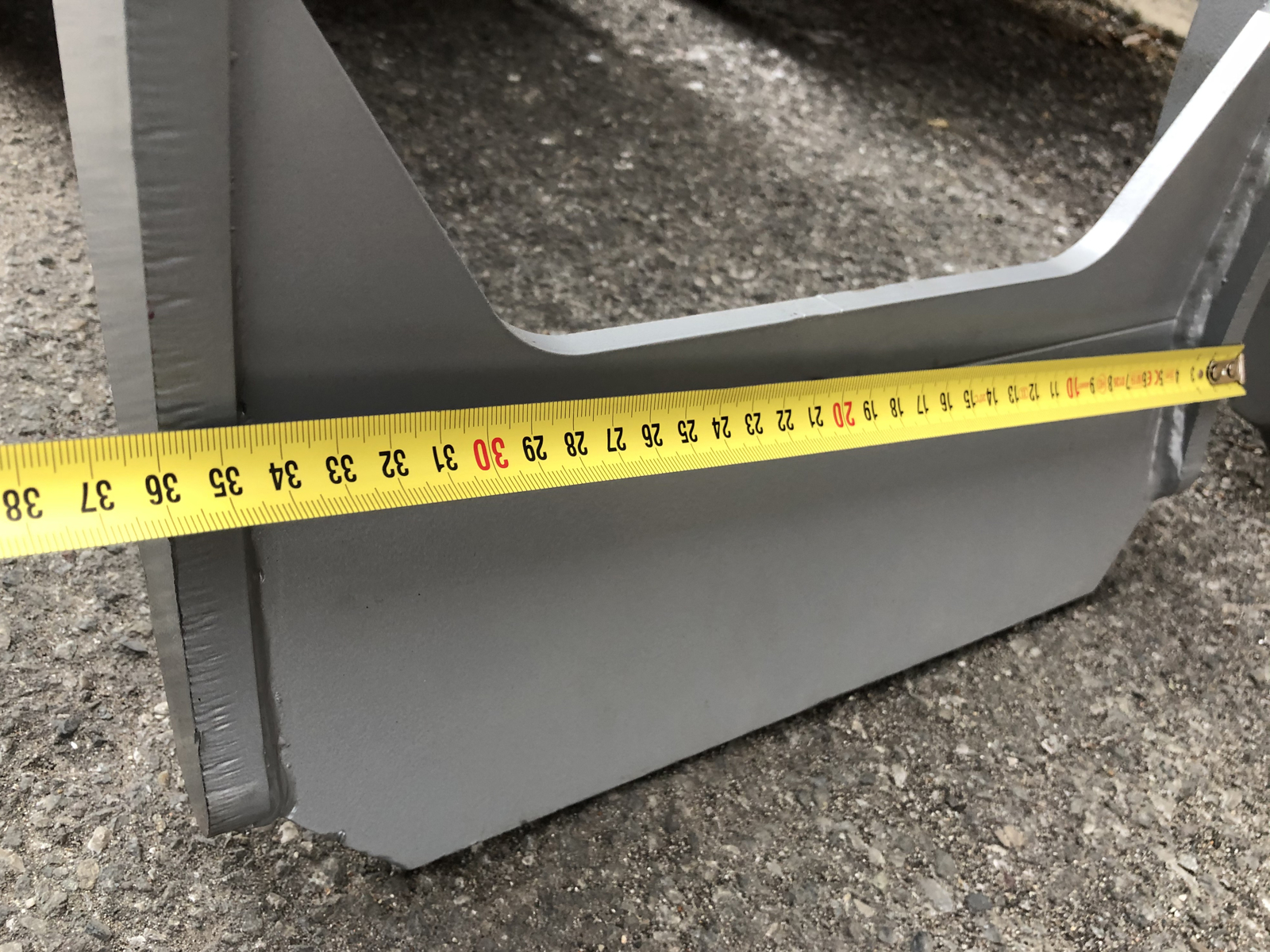

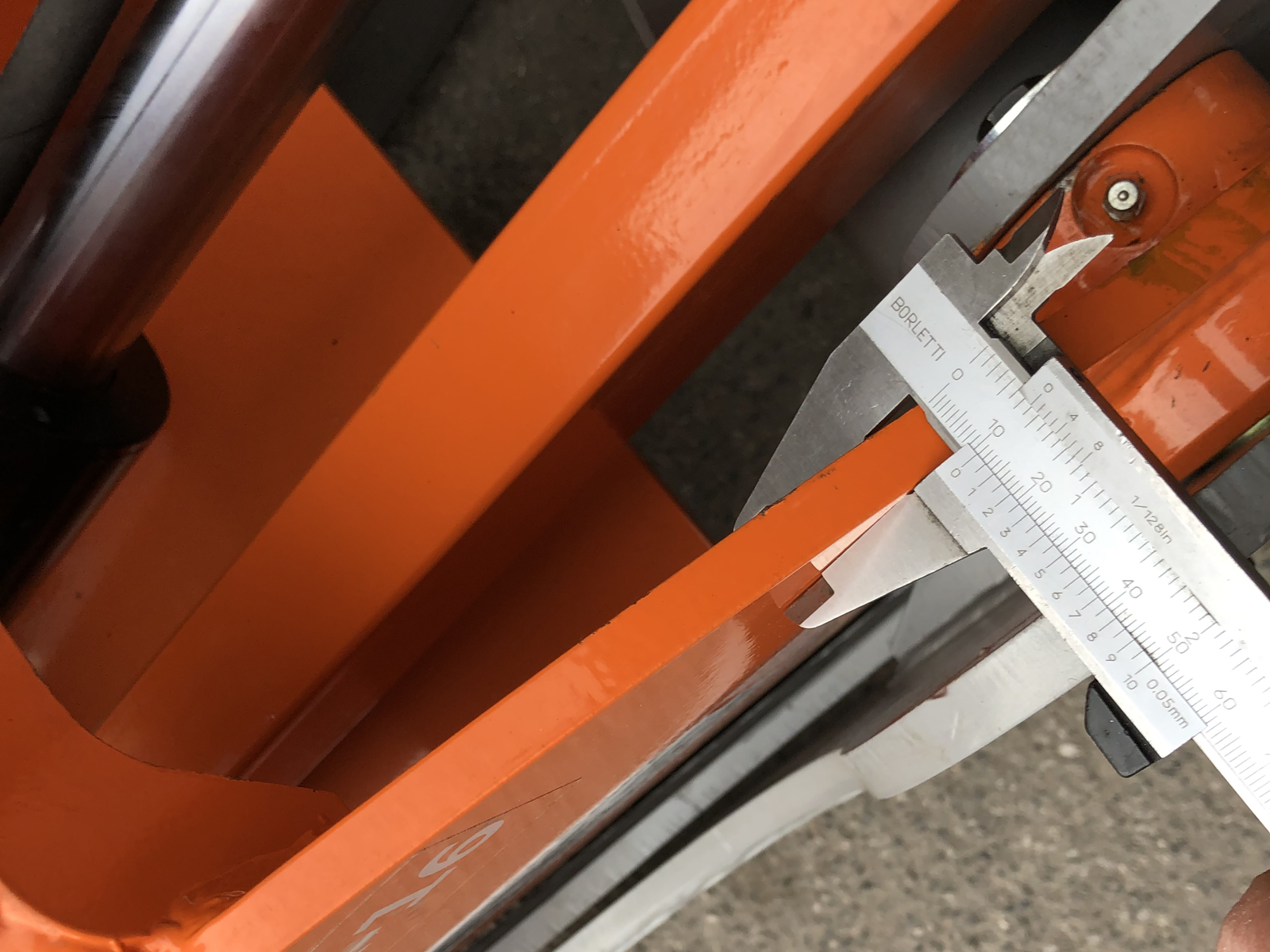

Main hood thickness 10.0 mm 0.4 in
Min./Max. Relief Pressure 120 - 150 bar 120 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min

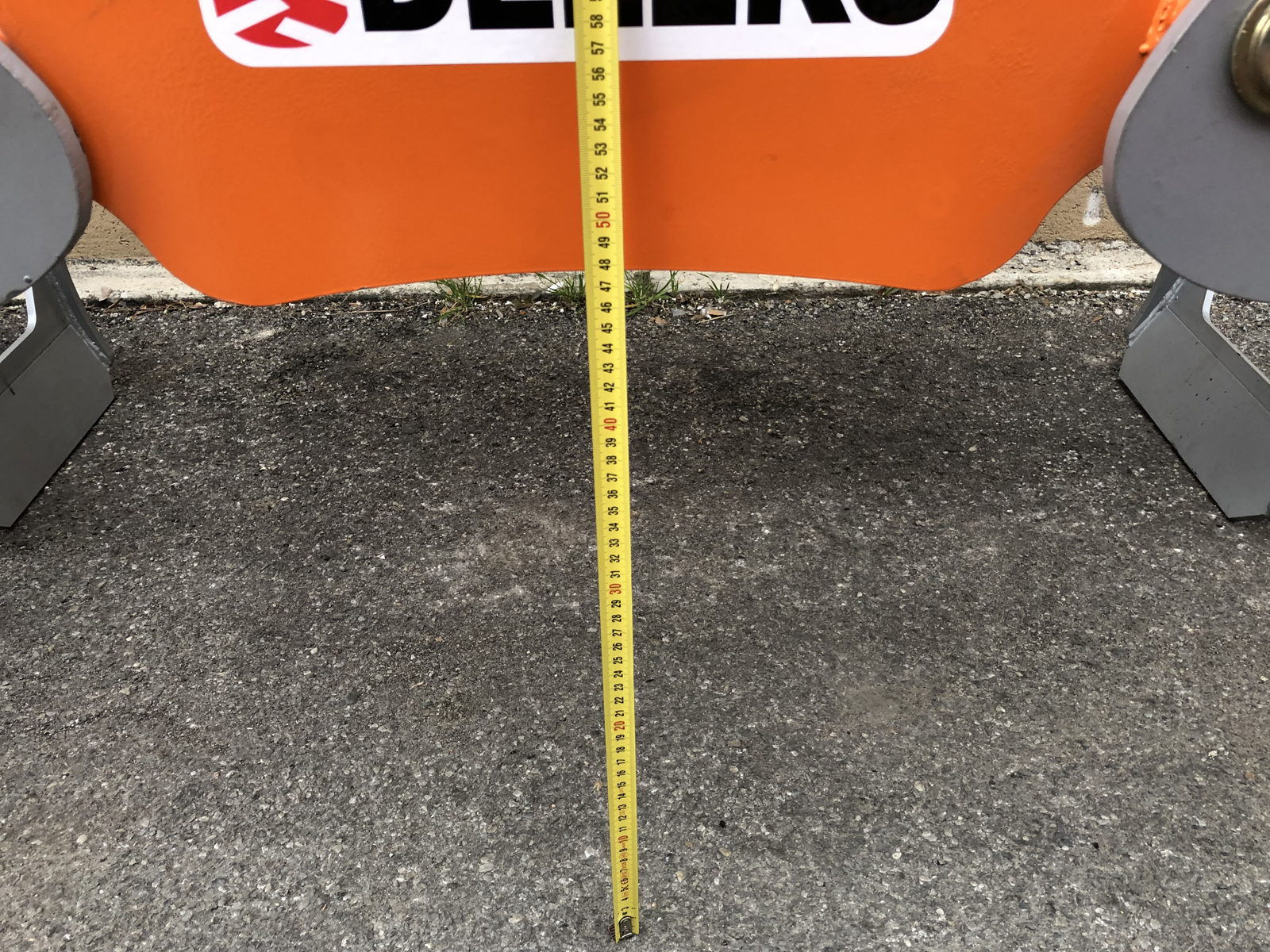

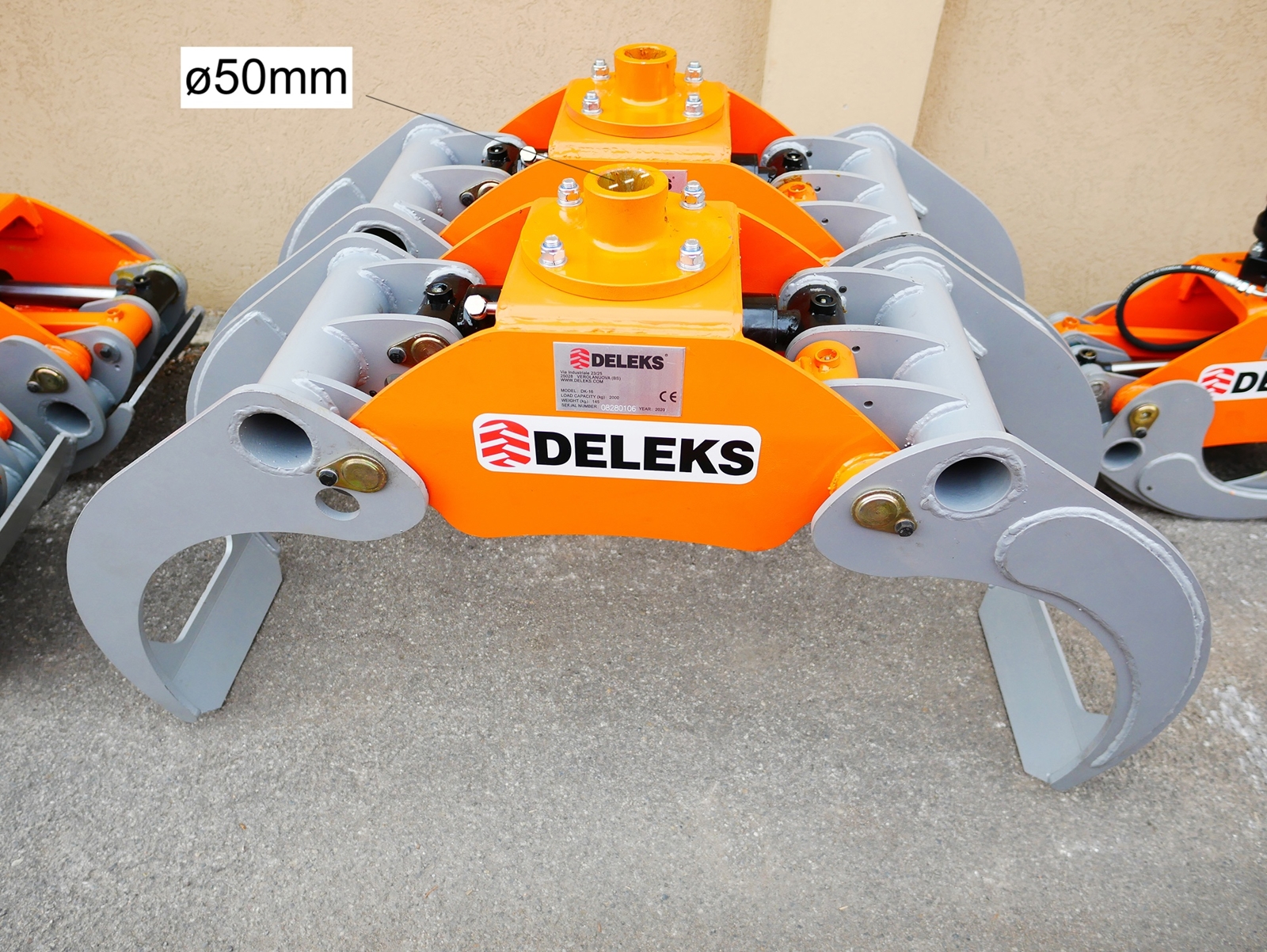

Other sizes See pictures See pictures
Hydraulic Hoses 400 bar pressure 400 bar pressure
Max Opening 1280.0 mm 4.20 ft
Height, grapple open 800.0 mm 31.50 in
Height, grapple closed 540.0 mm 21.25 in
Width, grapple open 1460.0 mm 4.79 ft
Width, grapple closed 730.0 mm 2.4 ft
Overall depth 475.0 mm 1.56 ft
Minimum diameter of the log 40.0 mm 1.57 in

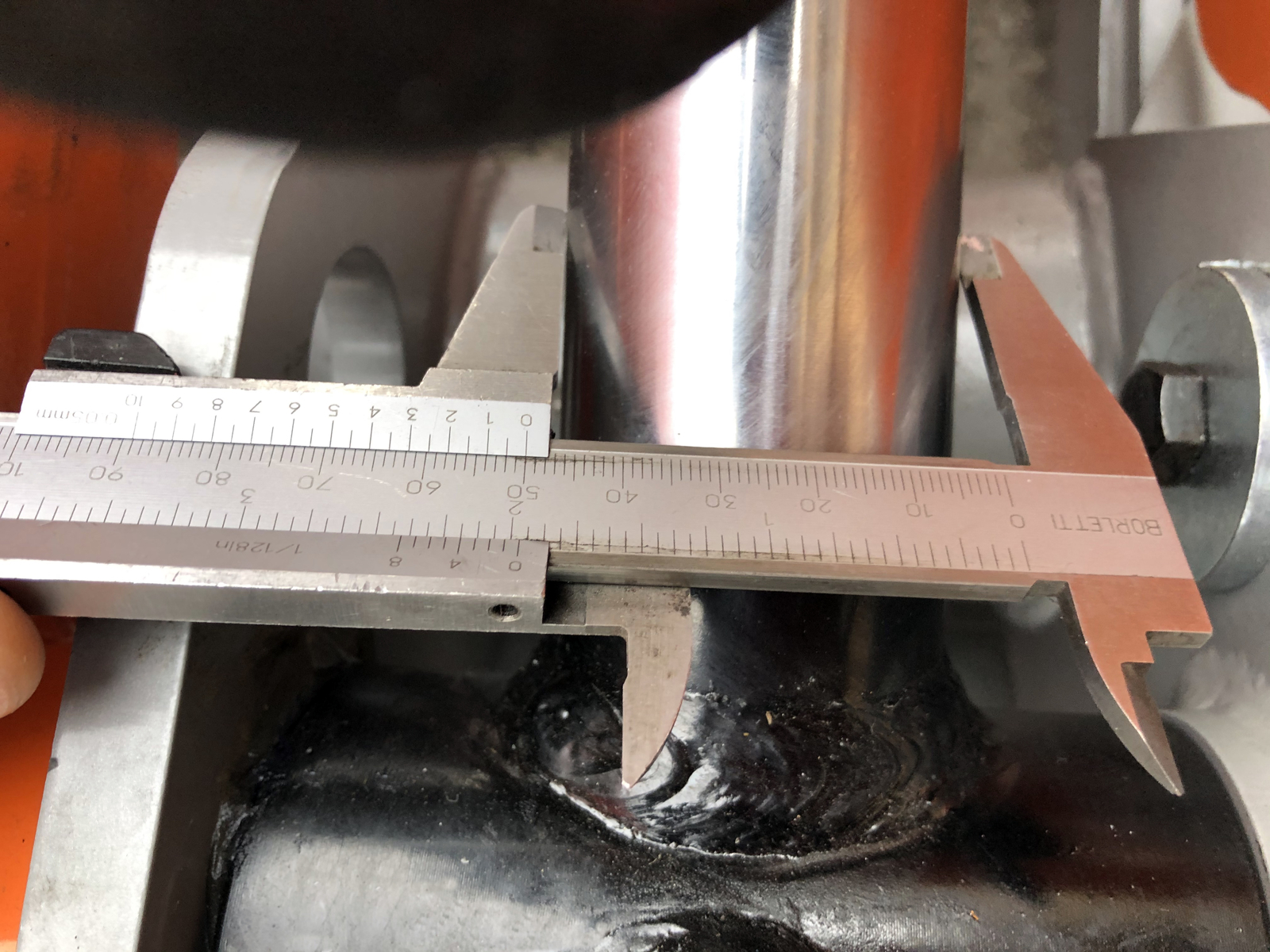

Hydraulic cilinder diameter 90.0 - 50.0 mm 3.55 - 1.97 in
Max Pressure 200 Bar 200 Bar
Rotator x x
Compact Excavators Range 4.0 - 8.0 ton 4.0 - 8.0 ton
Packing sizes 1200.0*800.0*500.0 mm 3.94*2.62*1.64 ft
