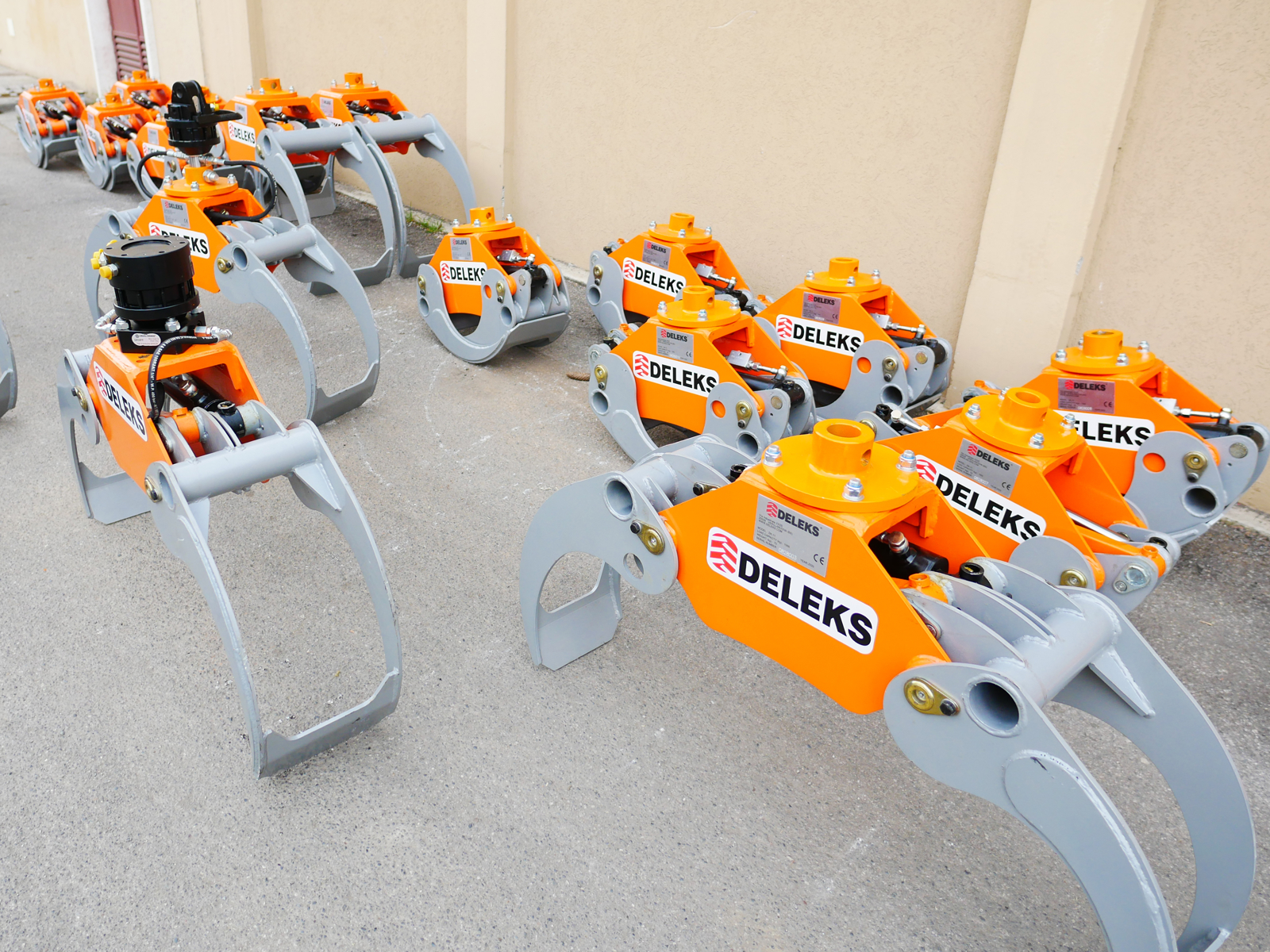

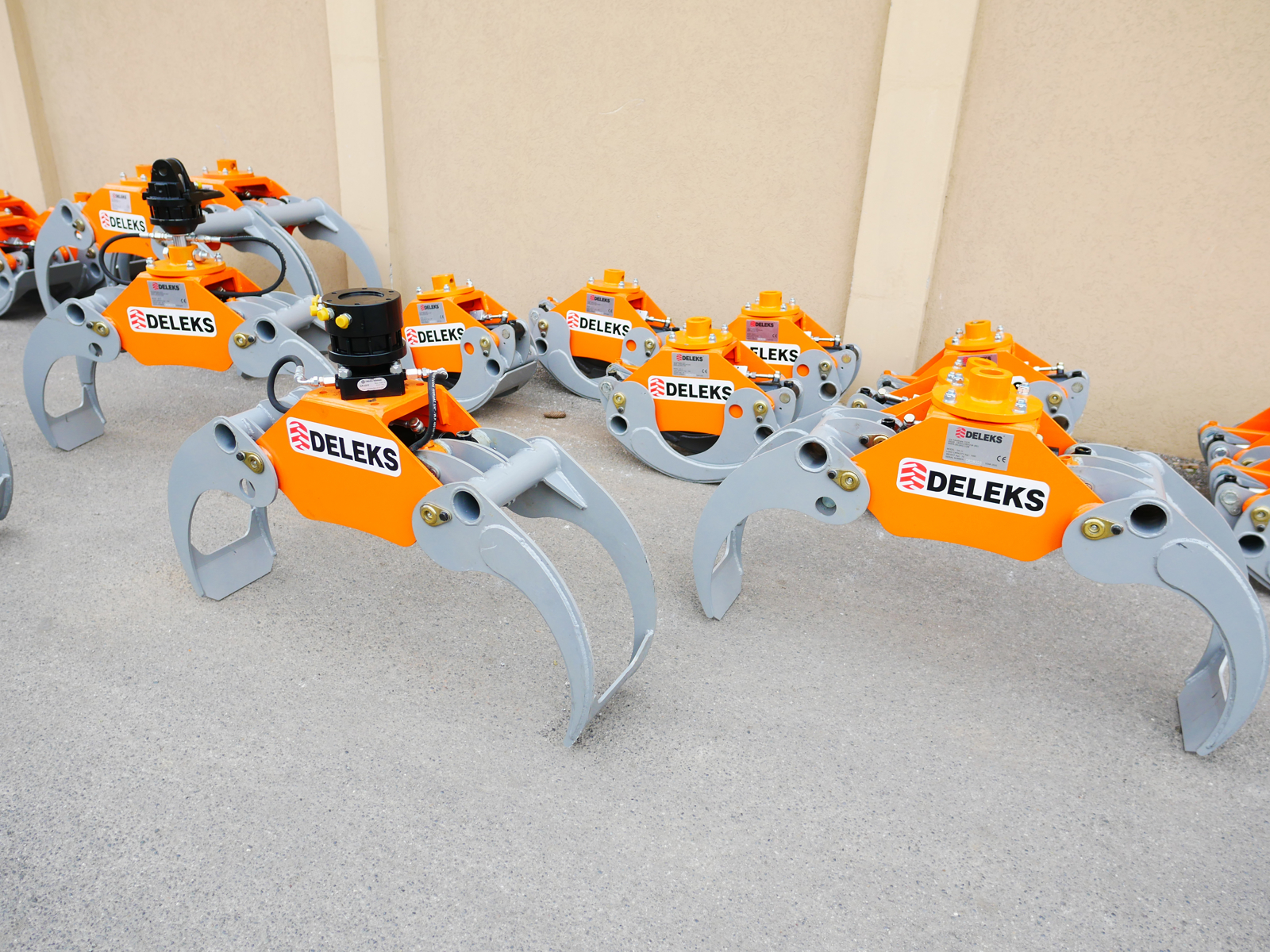

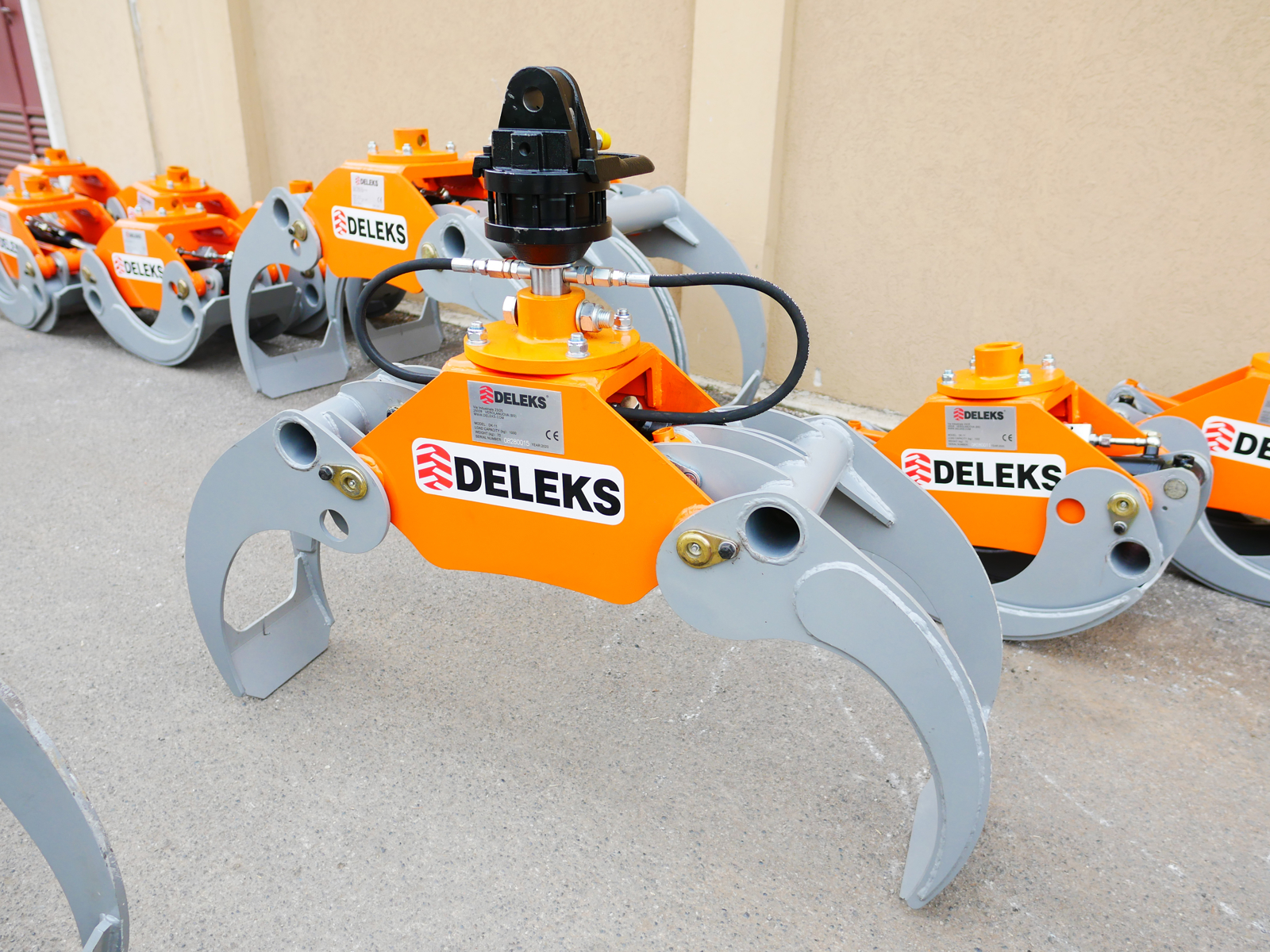

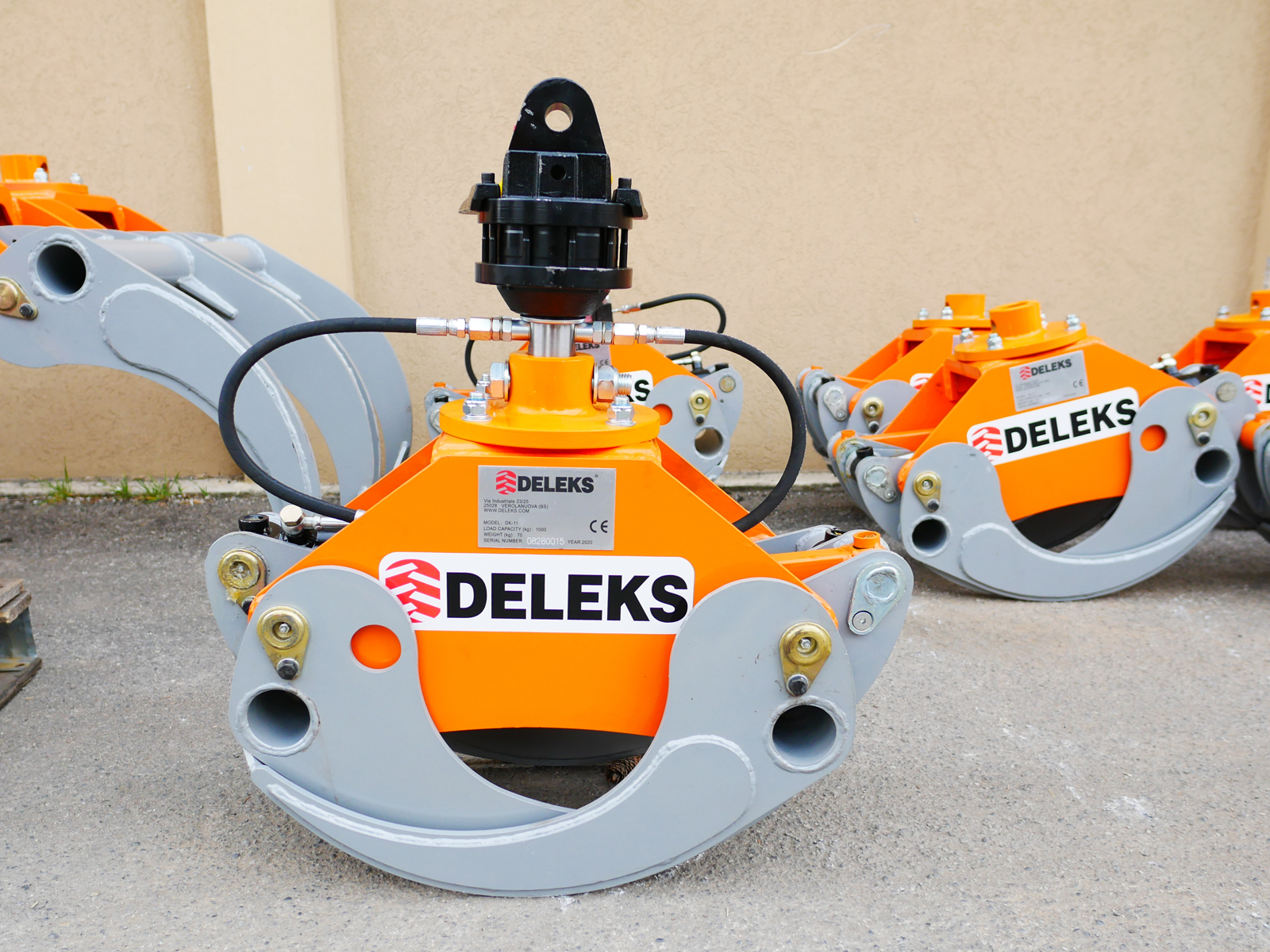

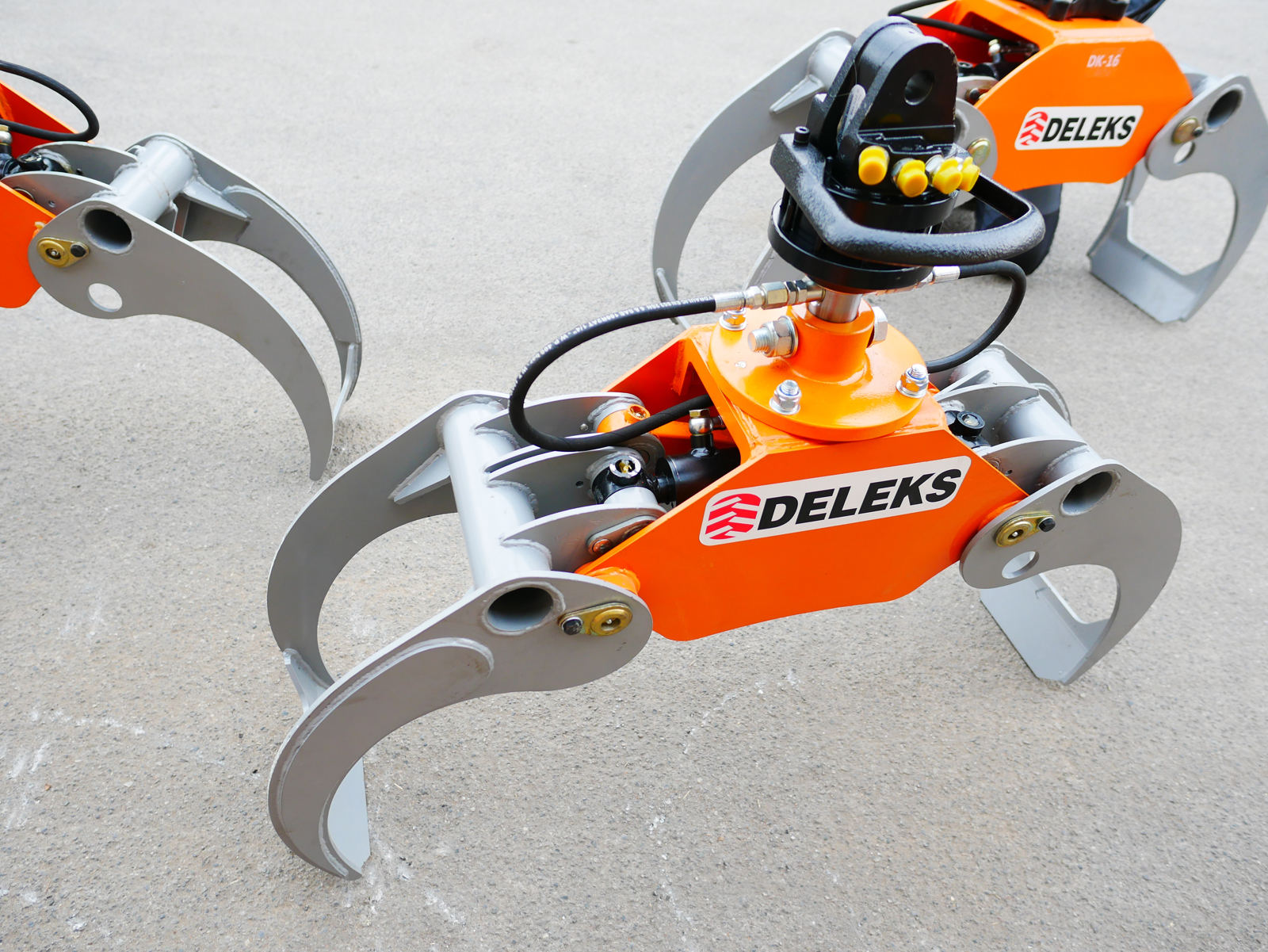

Log grapple with pendulum rotator DK-11C + GR-30

EAN 8053470235207
See more details

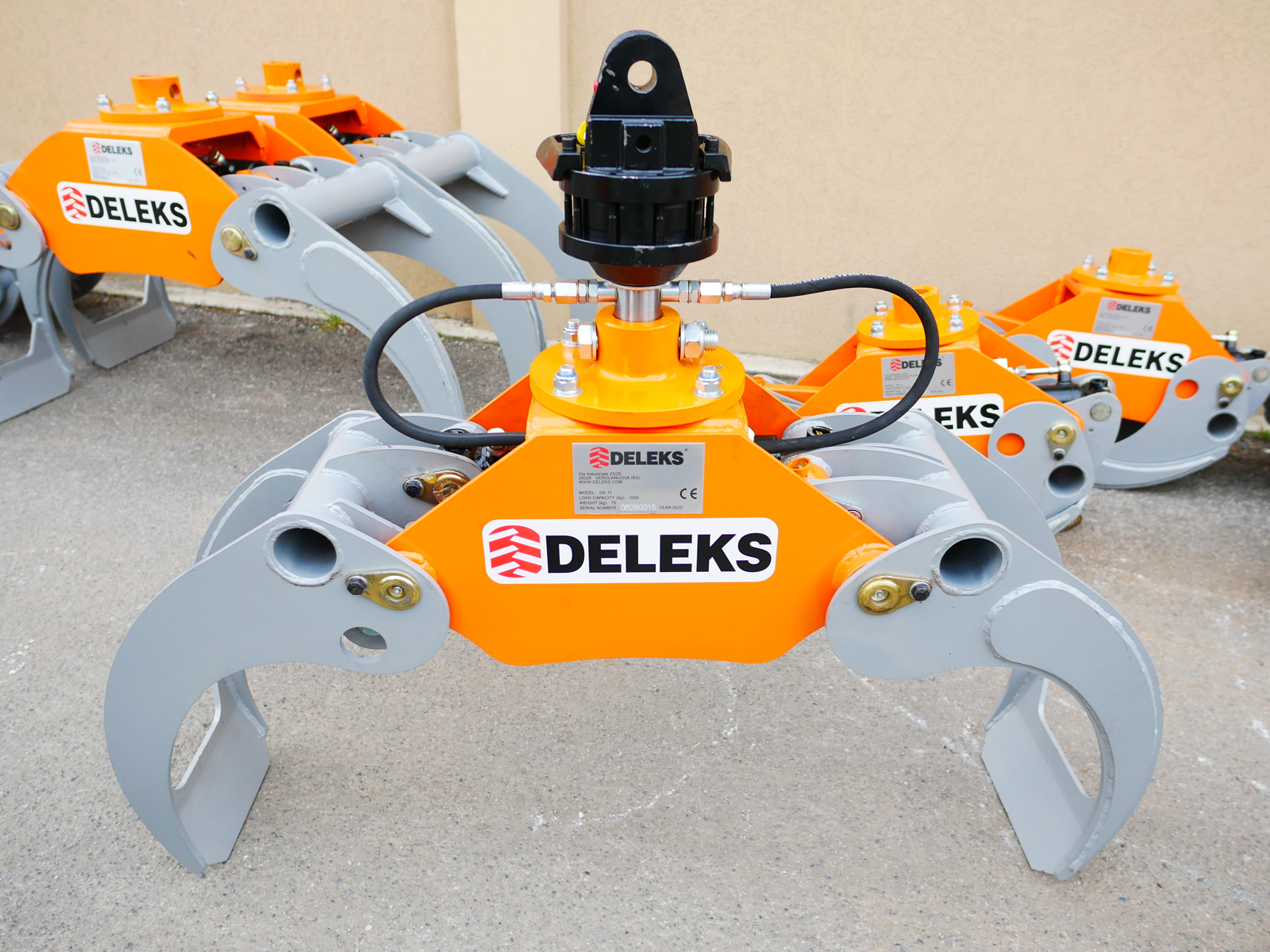

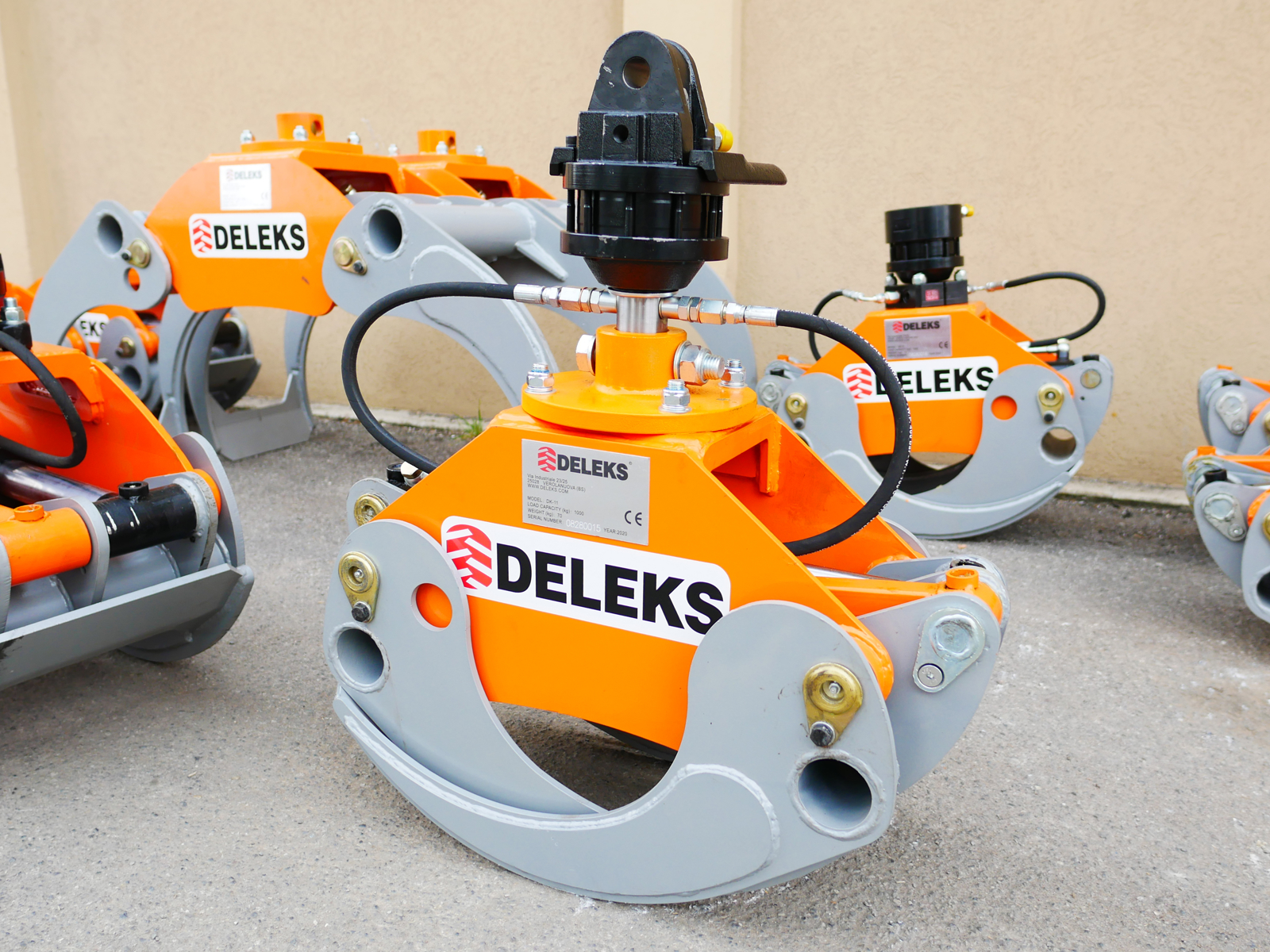

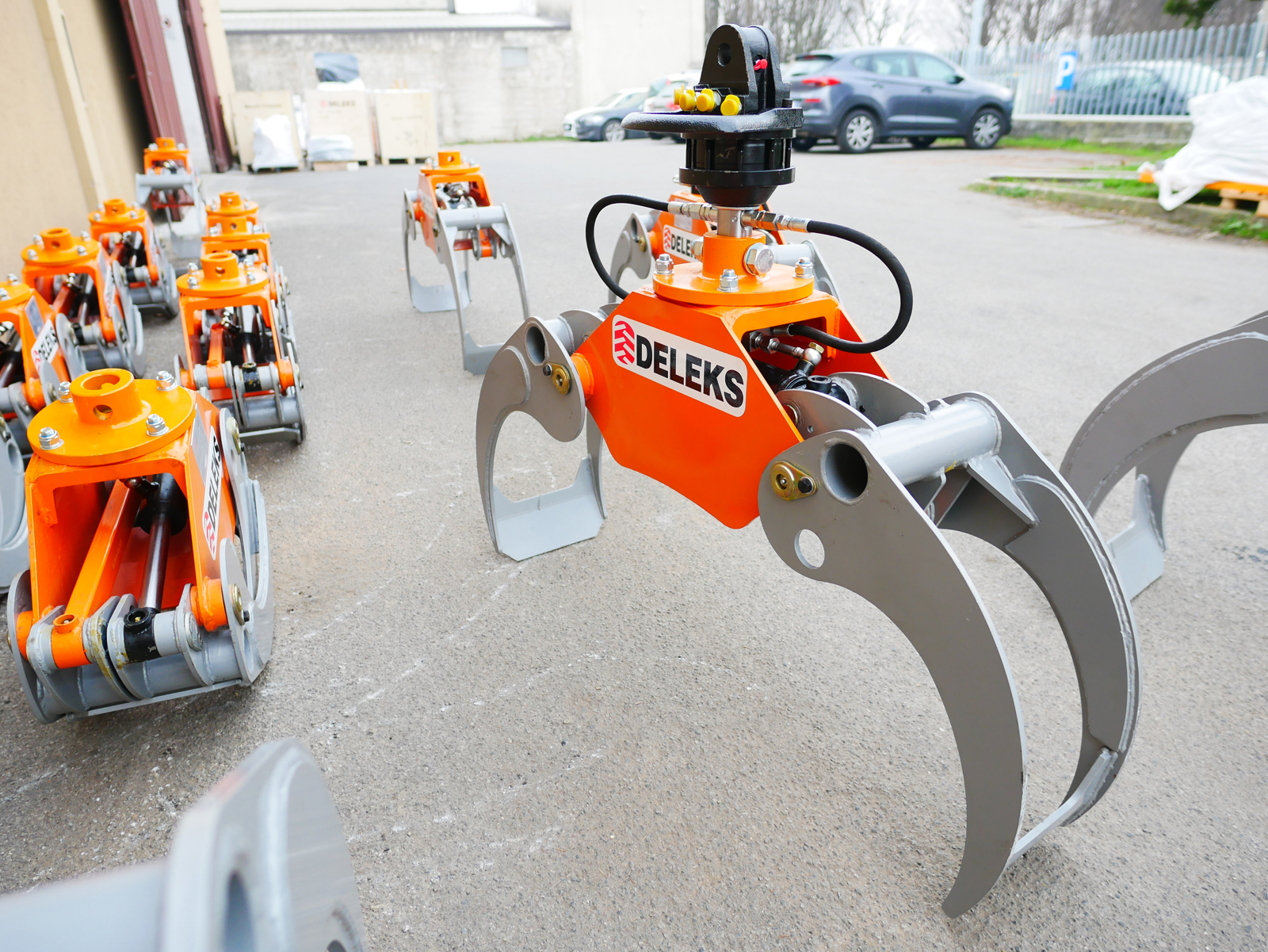

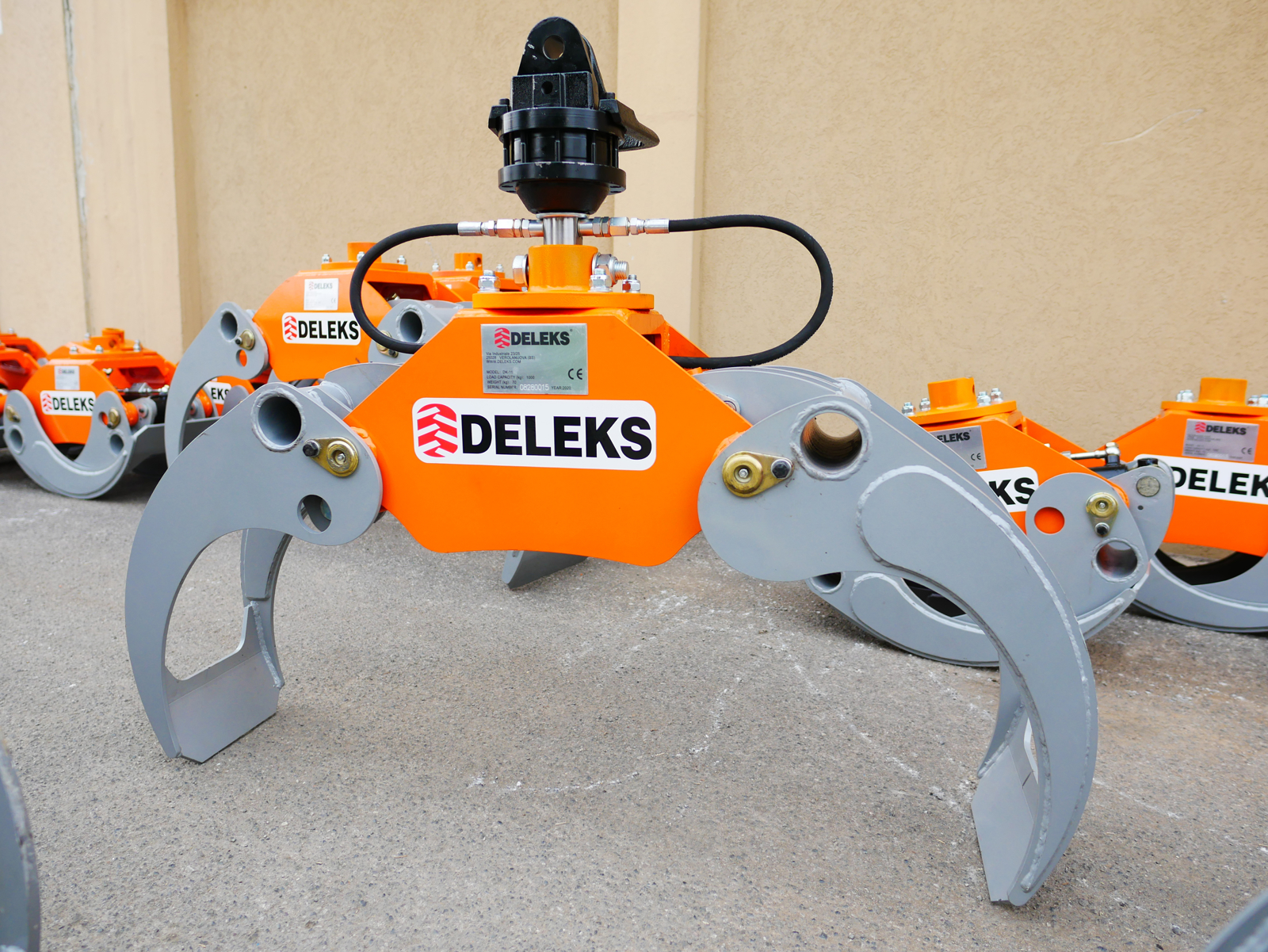

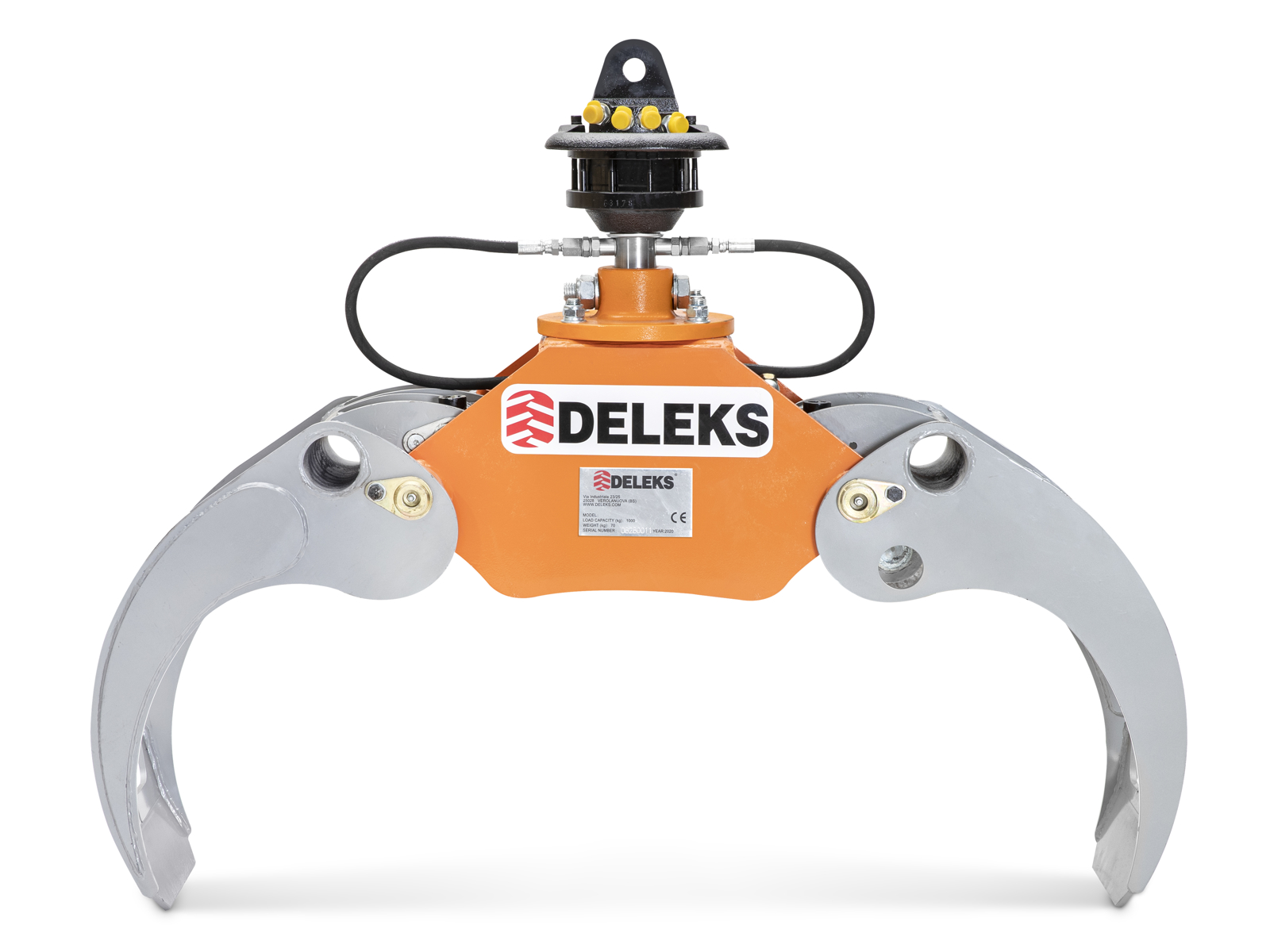

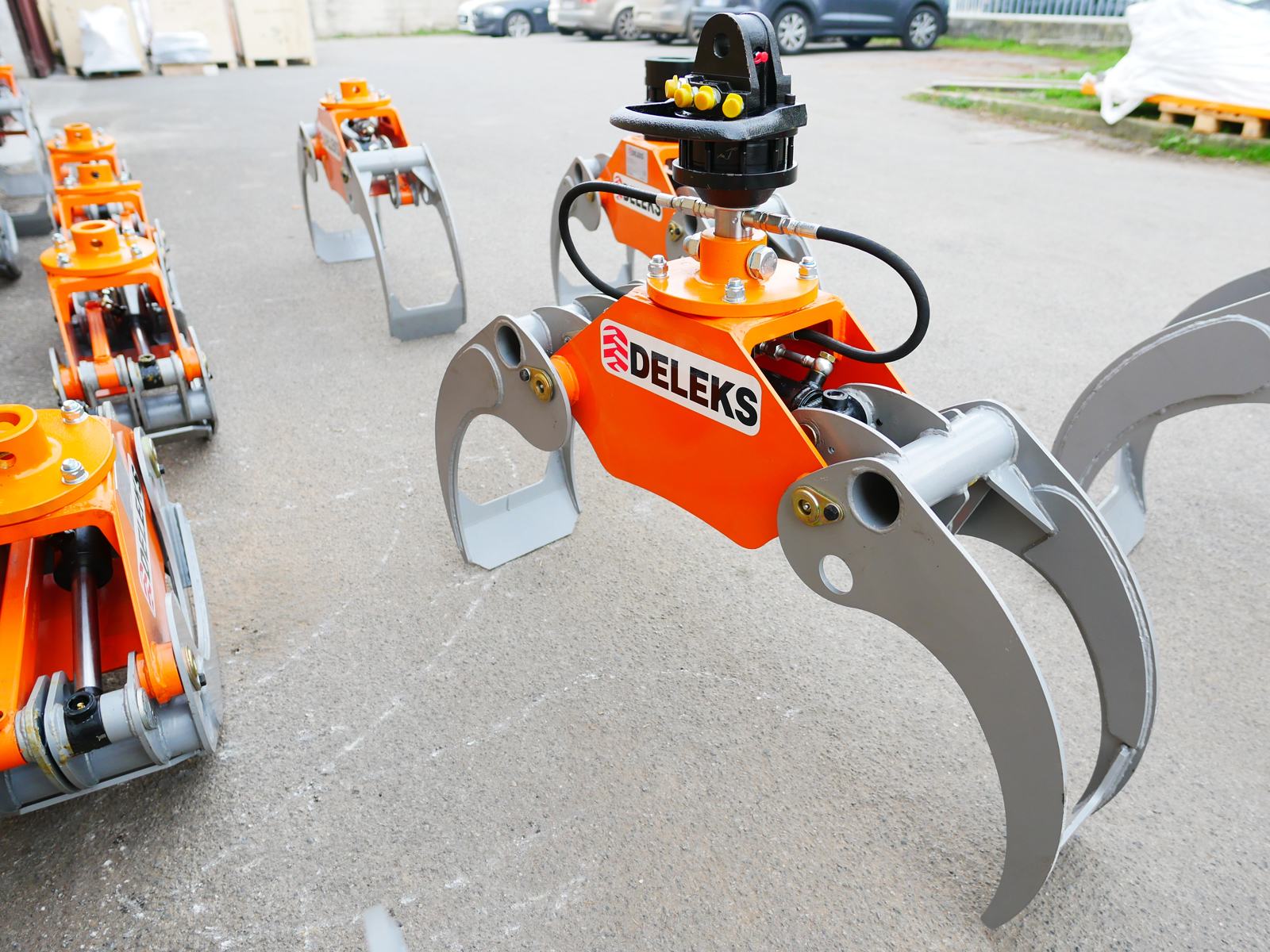

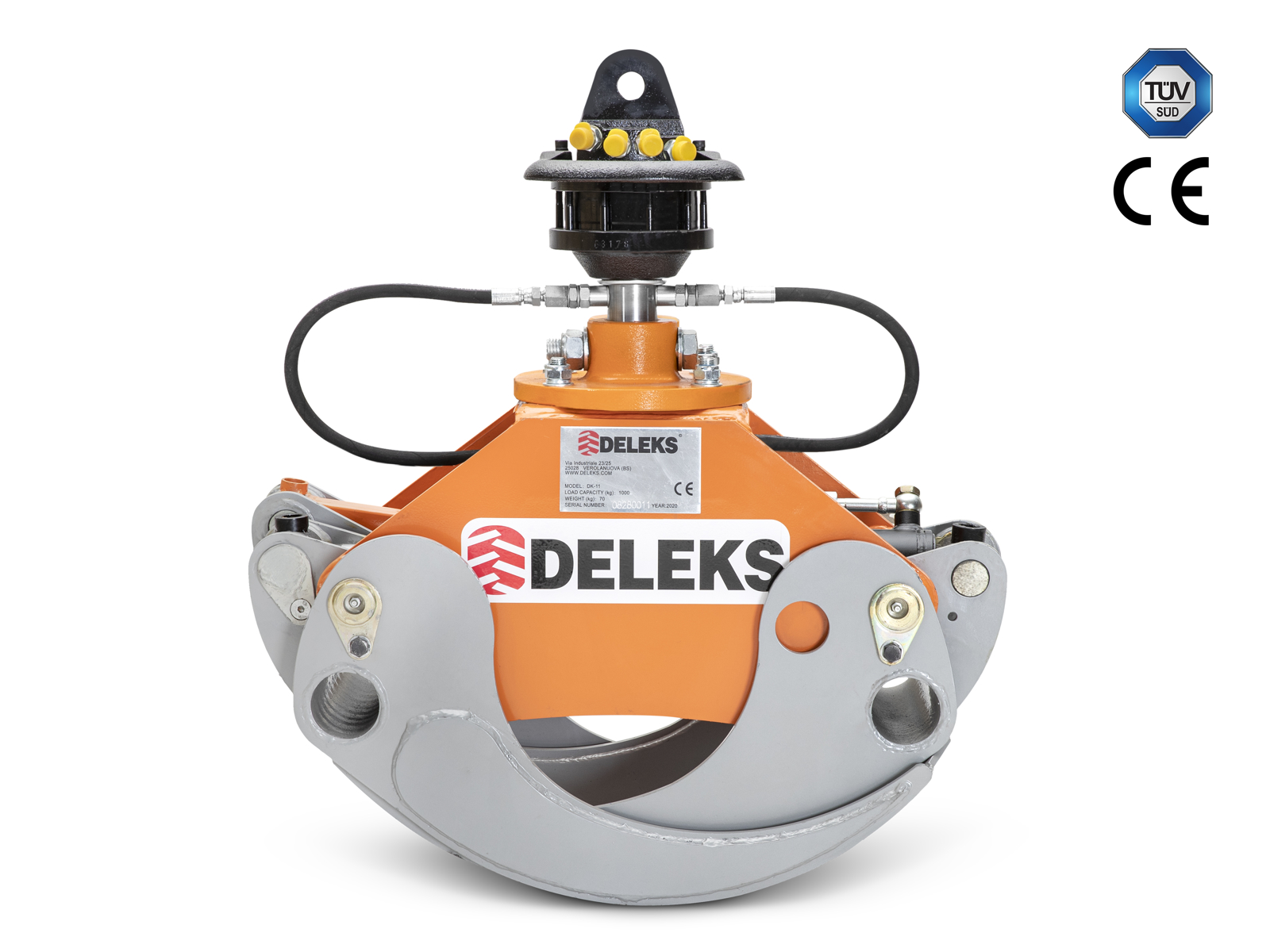

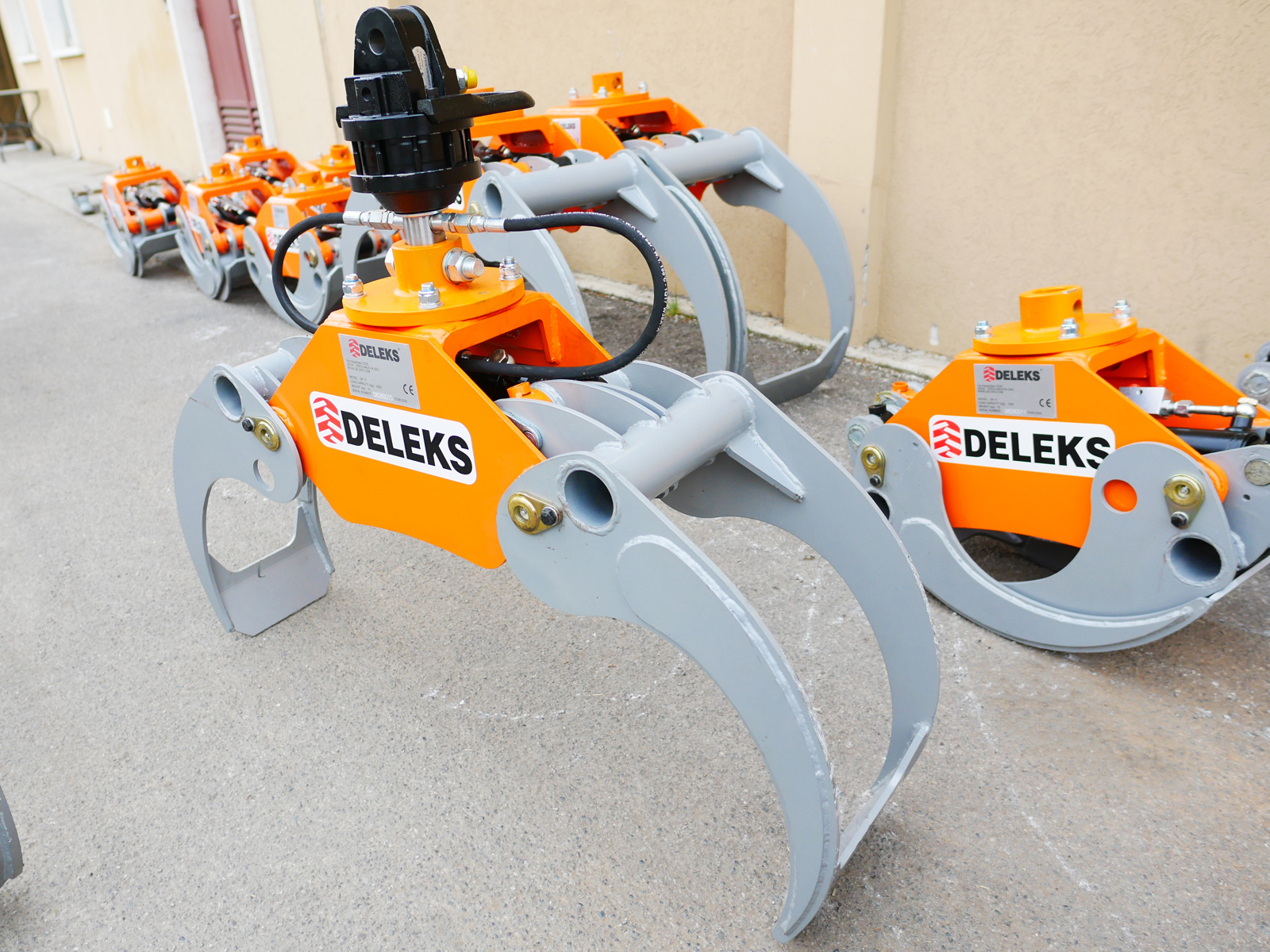

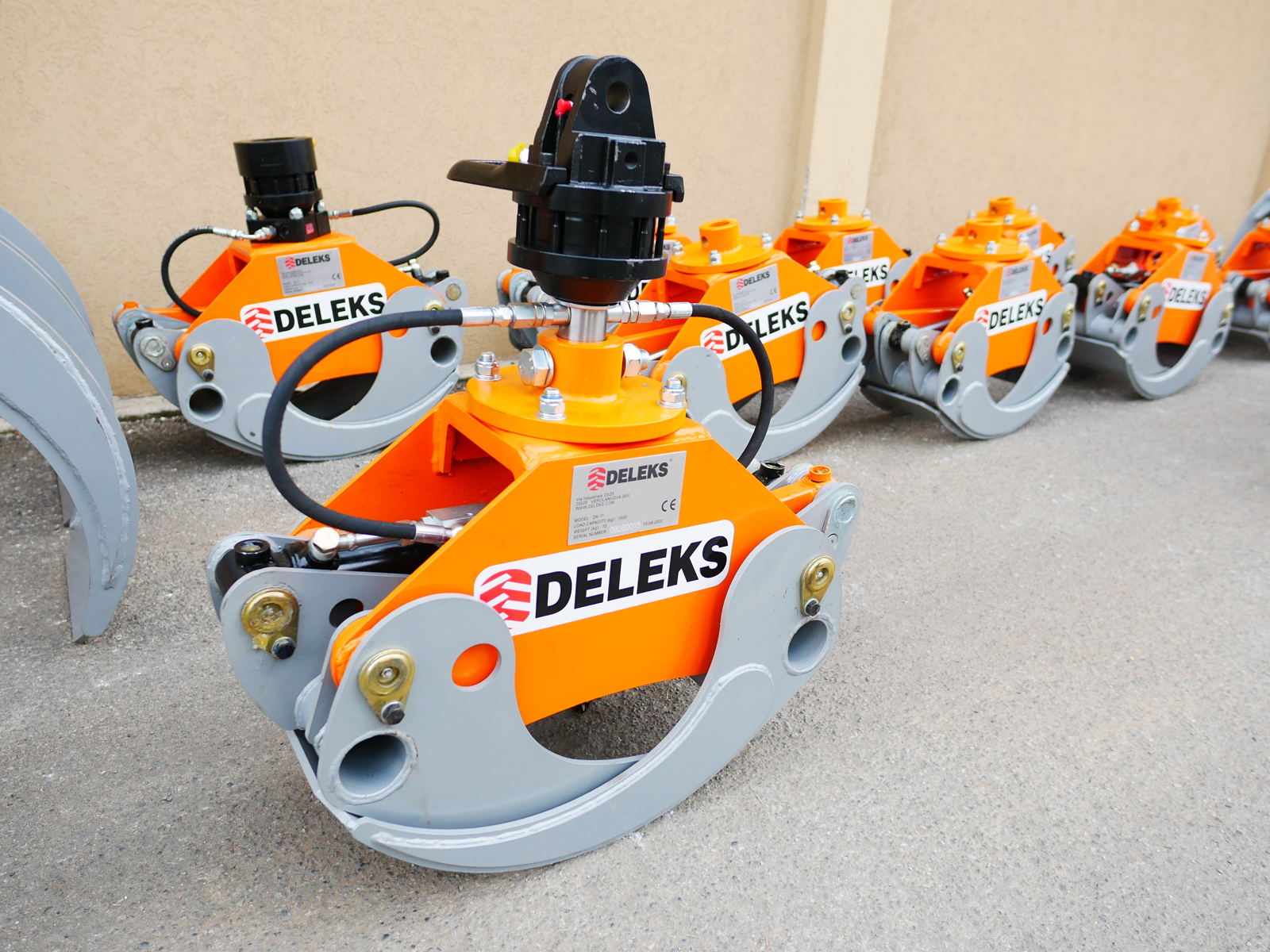

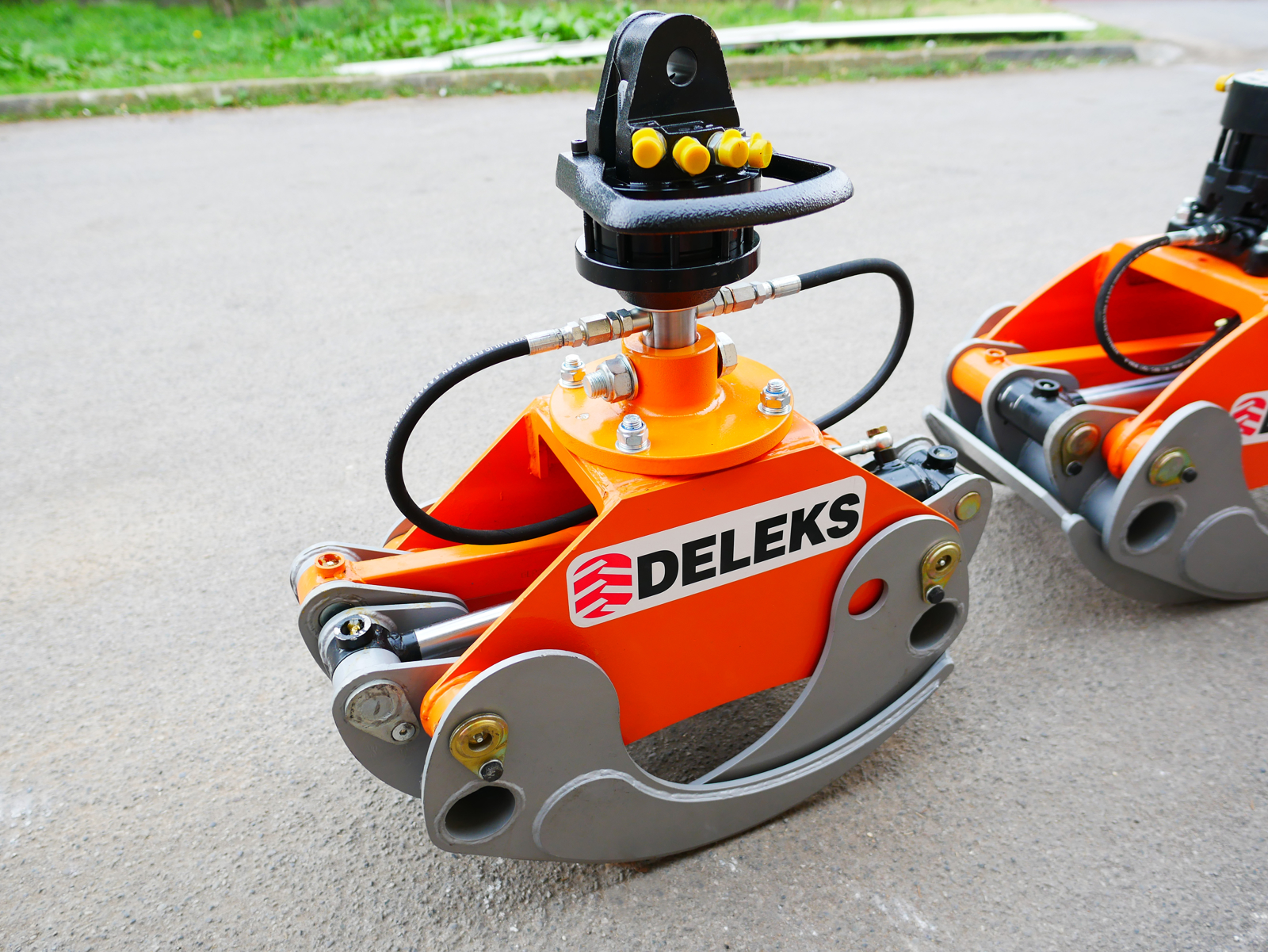

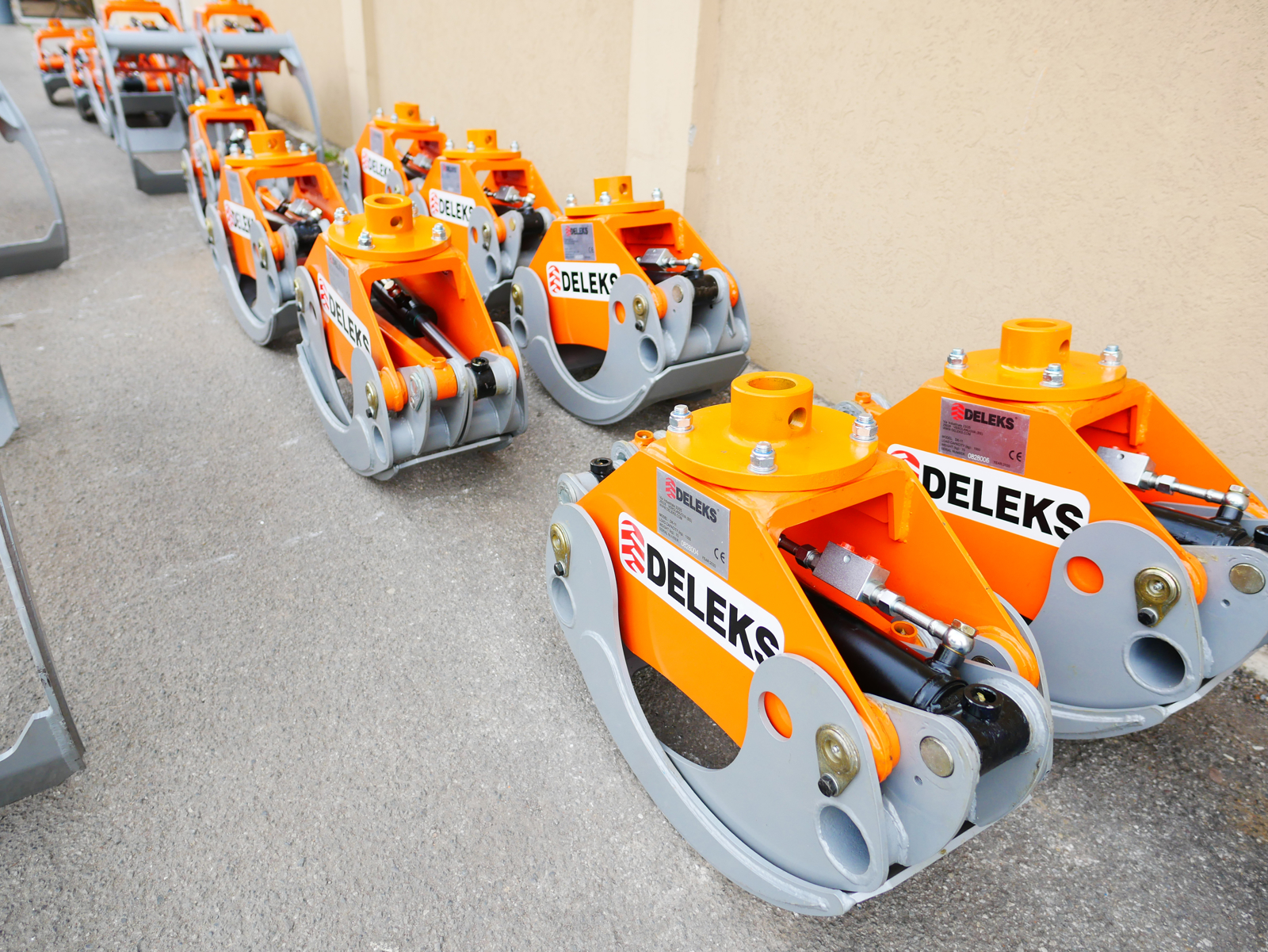

Log Grapple for Mini Diggers and Forest Cranes 1.8 – 3.5 Ton DELEKS® DK-11C+ Lombarda Ingranaggi Rotator


Perfect for carrying logs and timber around your farm or park.

Maximum load 1000.0 kg.

Gripping area: 0.16m2

Gripping force: 6.2KN

Fits all mini diggers/excavators e.g Bobcat, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi...

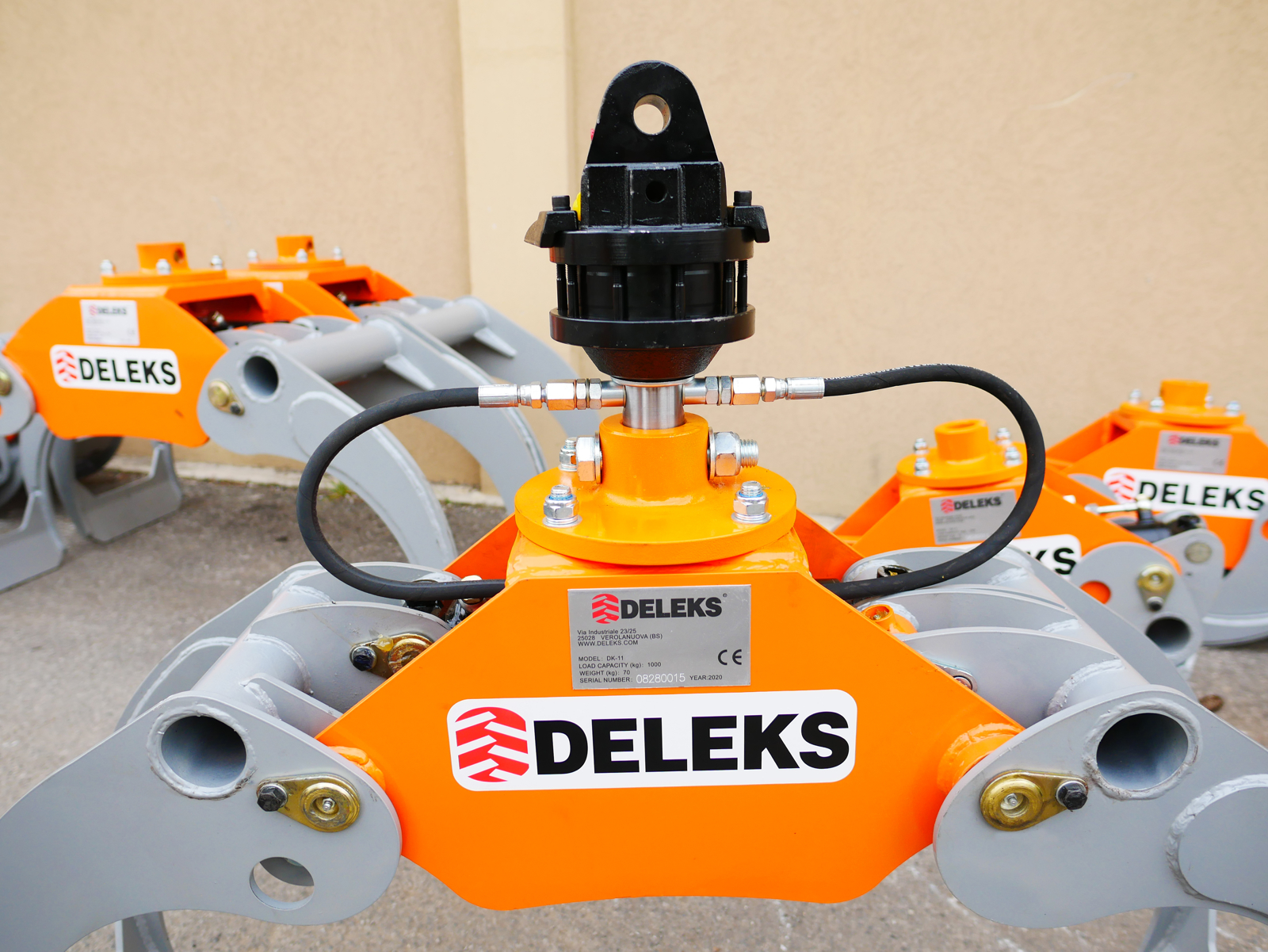

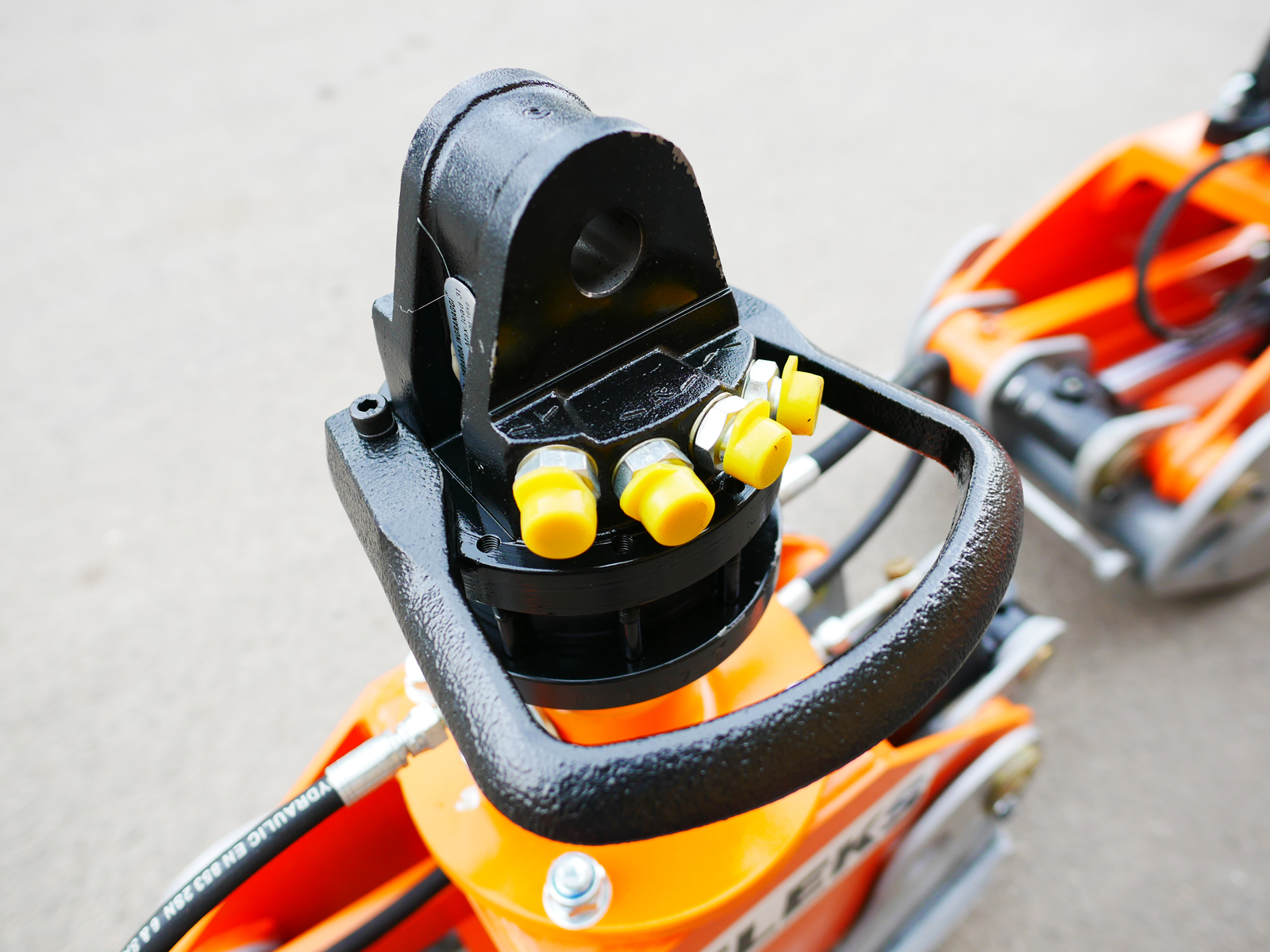

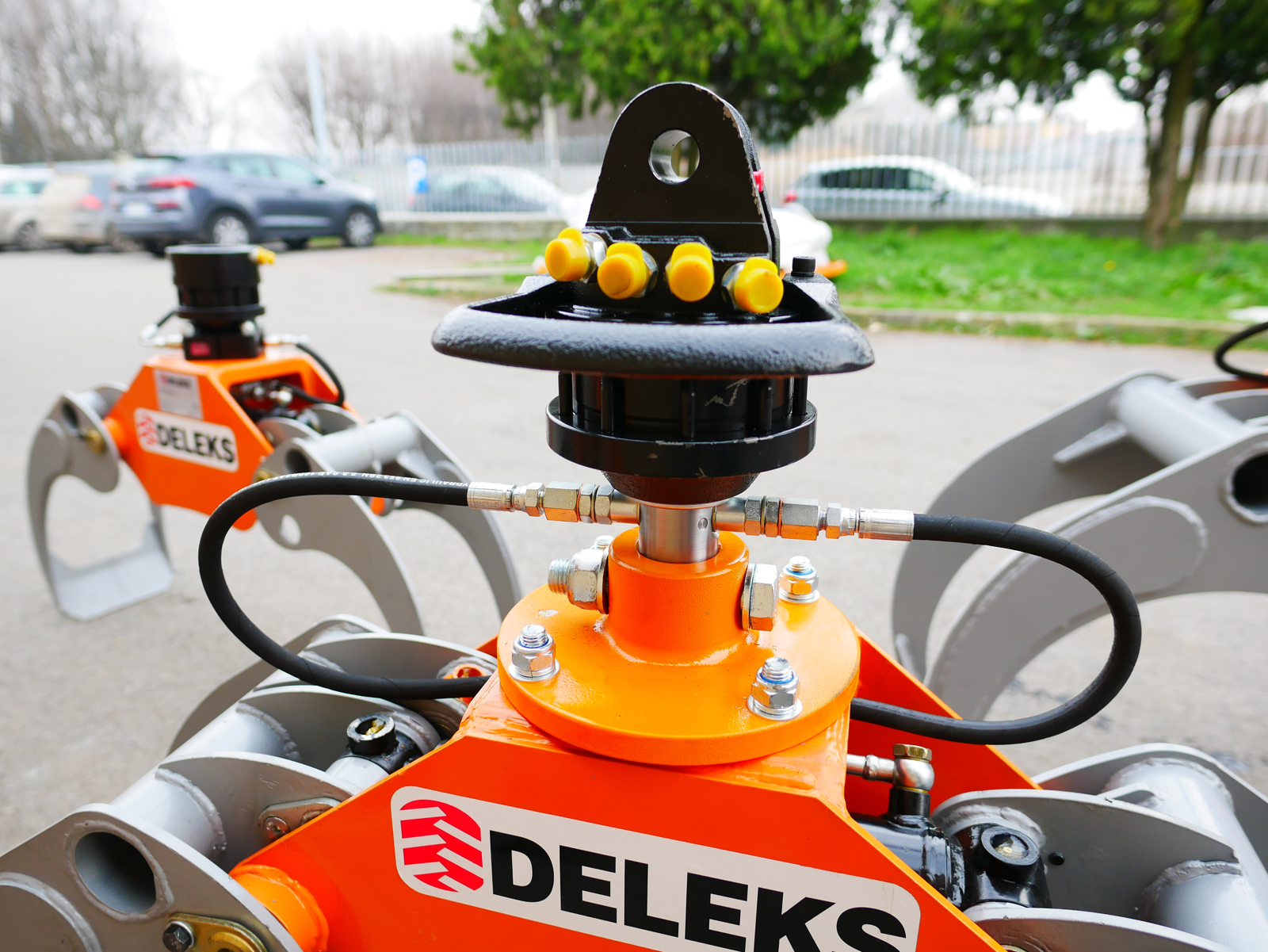

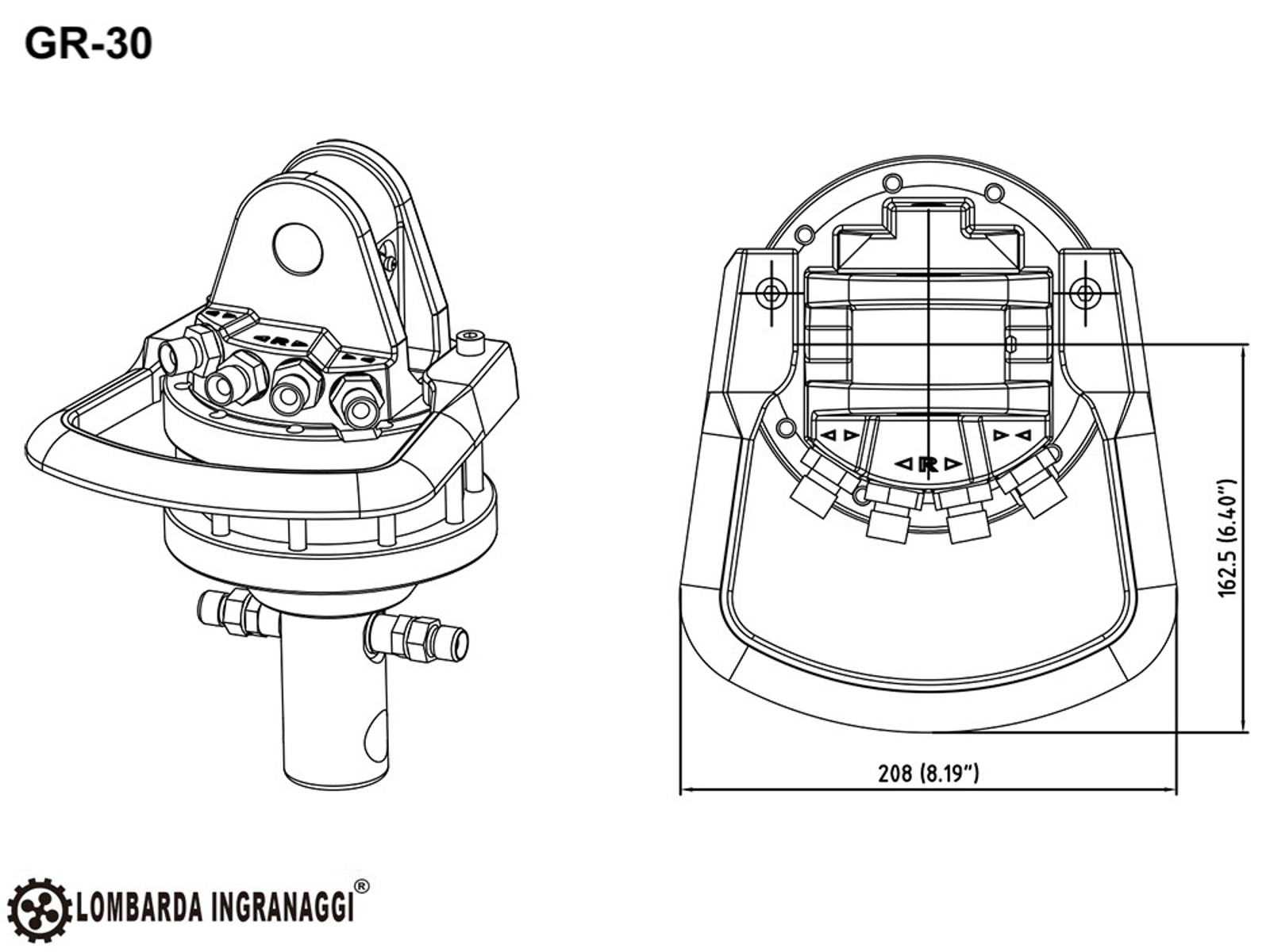

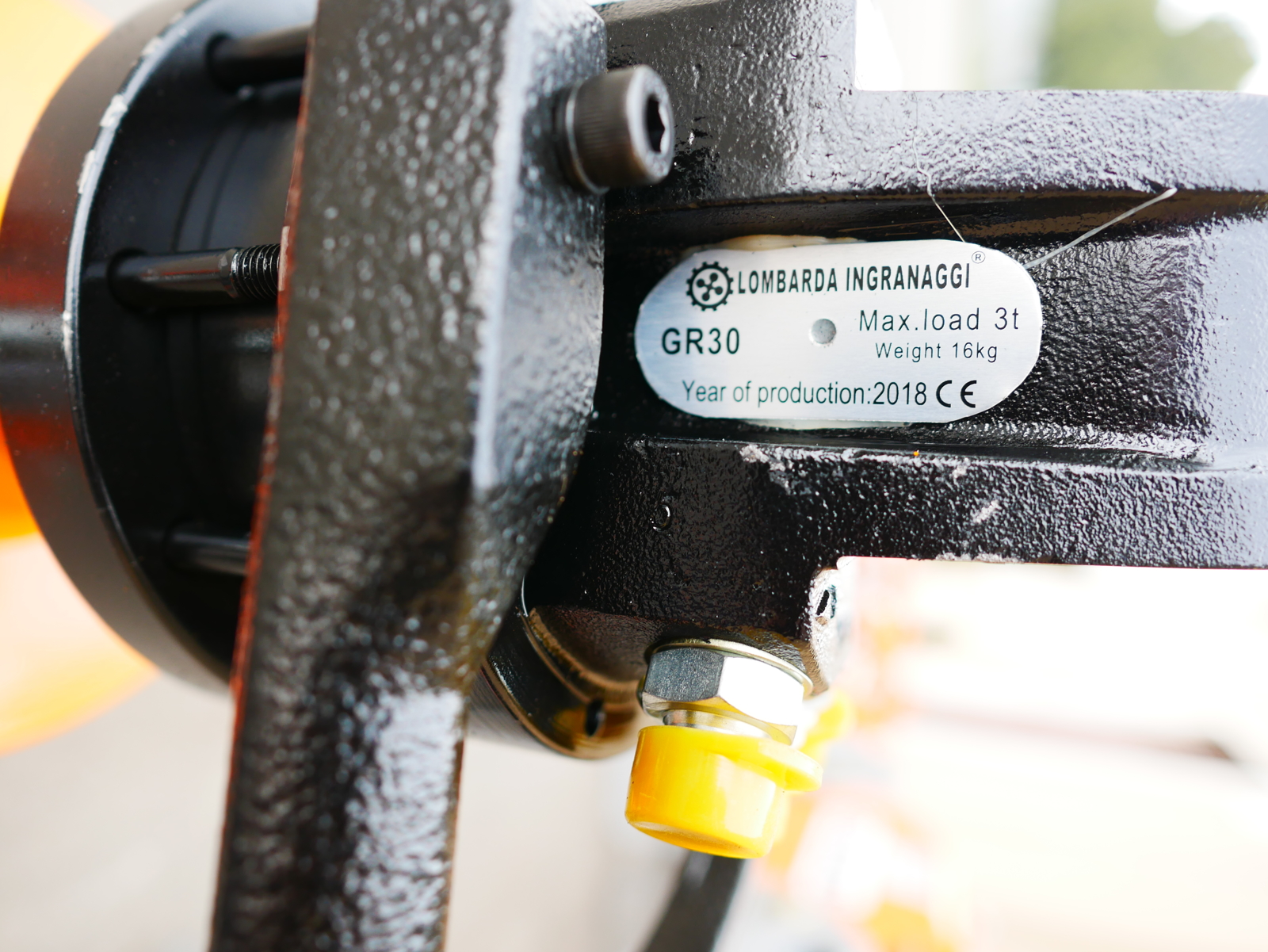

Rotator: Lombarda Ingranaggi's GR30 rotators are powerful, reliable and robust. It is engineered to perform in heavy duty work environments with maximal efficiency and minimal unscheduled downtime as they have a loading capacity 3000kg. Grapple needs 4 hydraulic outlets to function or additionally, Rexroth Bosh electro-valve 6 ways (made in Germany), can be supplied to reduce the amount of outlets needed to two. EC Conformity, 2 Year Warranty.



360º continuous rotation.

Solid steel bolts with bronze bushings.

Thanks to the DK11C's unique design it grips timber, boulders or debris tightly.

Steel: code S355.

High tensile strength, reinforced grapple tines.

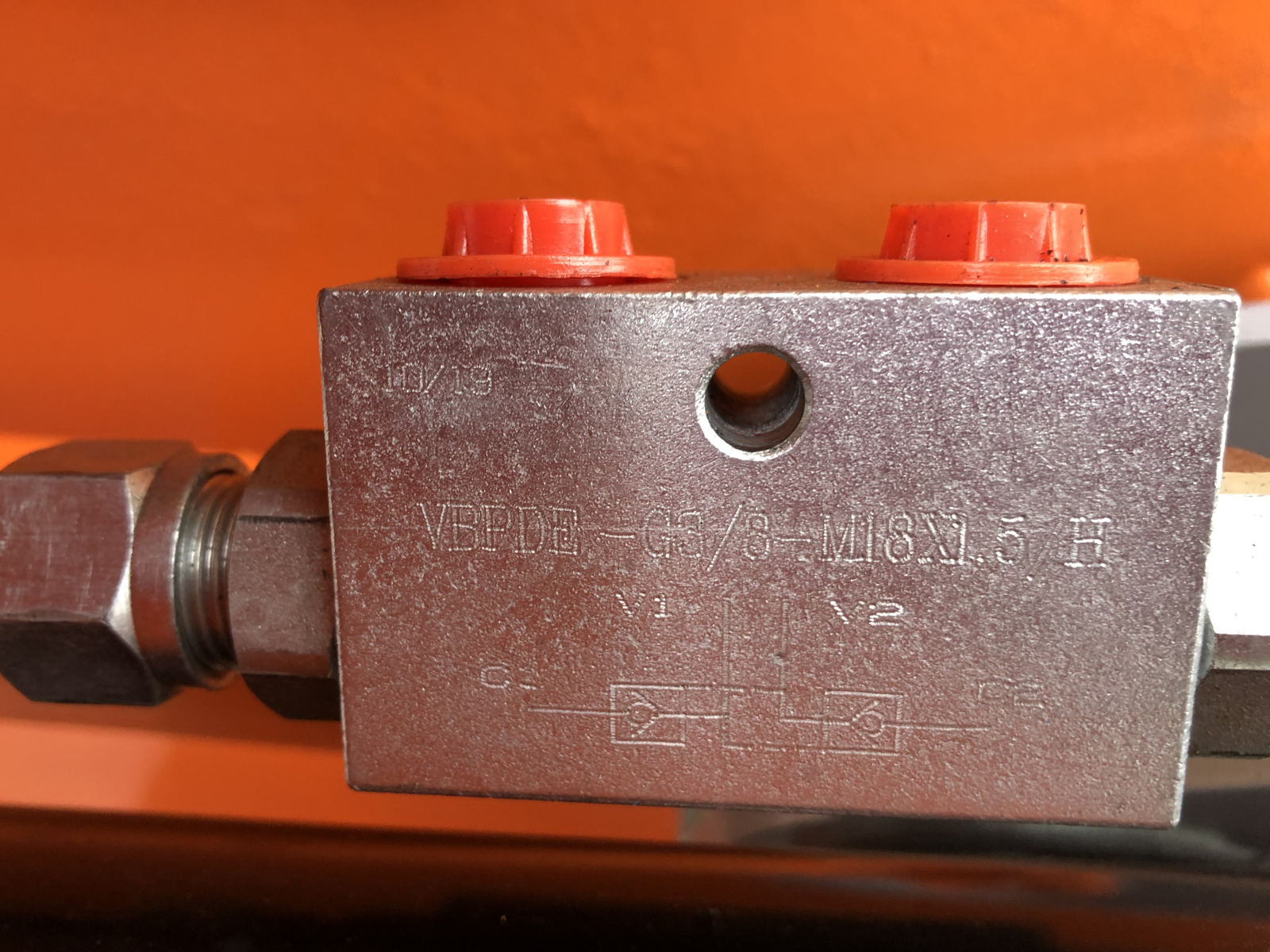

The Rexroth 6-ways electro-valve let the grapple work with only two outlets from the machine. By connecting the hydraulic pipes from the machine to the bucket cylinder you will get the four-way power required by the clamp rotor (rotating left and right - opening and closing).

In order to function the valve must be connected i with a simple wire to a power source 12 volts, it is possible for example to connect to the horn and then use the key on the lever to select rotation or opening. Hydraulic pipes are not included.



Caracteristic Units metric Units US
Weight 106.0 kg 233.0 lb
Load capacity 1000.0 kg 2200.0 lb

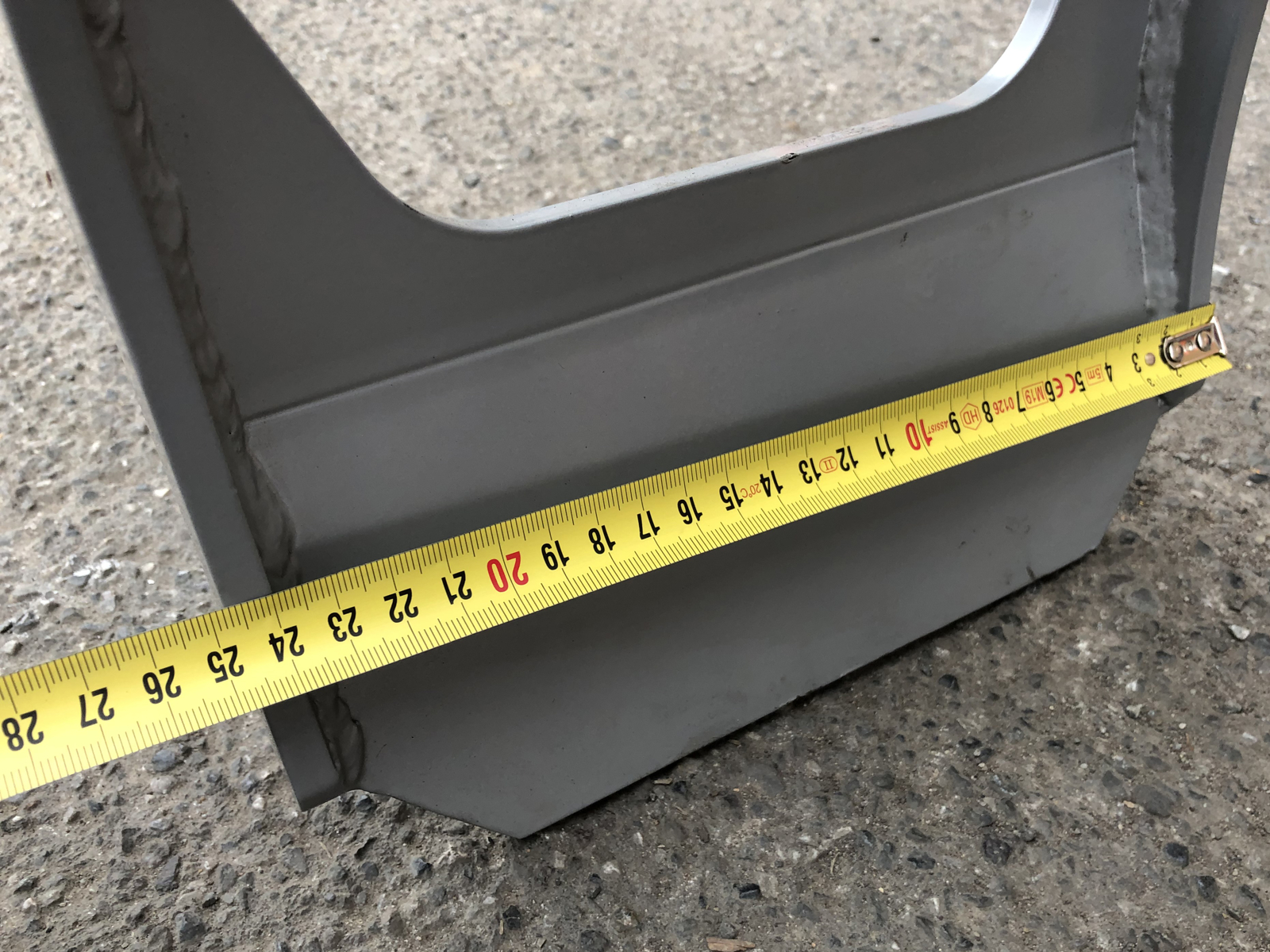

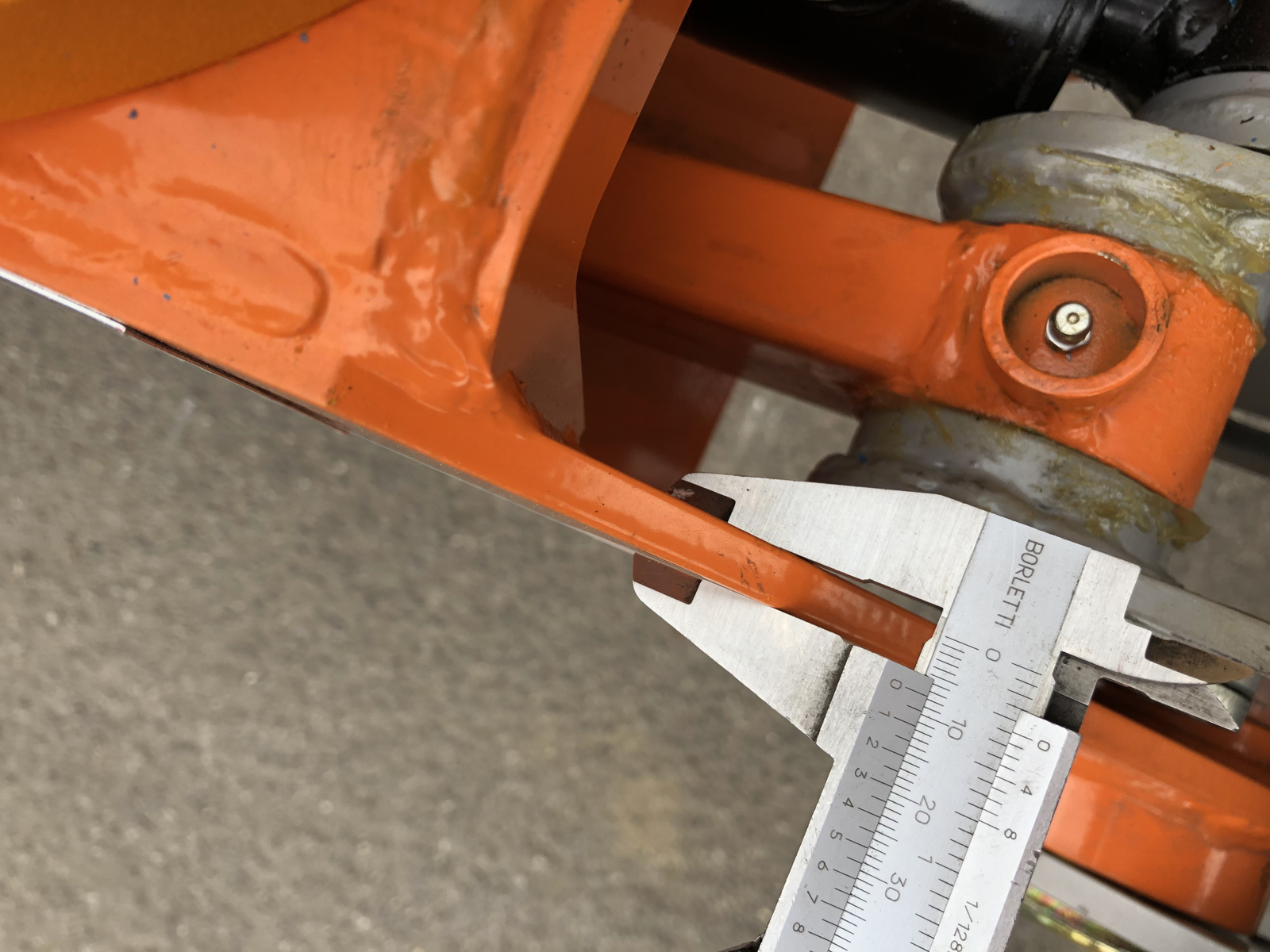

Main hood thickness 8.0 mm 0.31 in
Min./Max. Relief Pressure 80 - 120 bar 80 - 120 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min

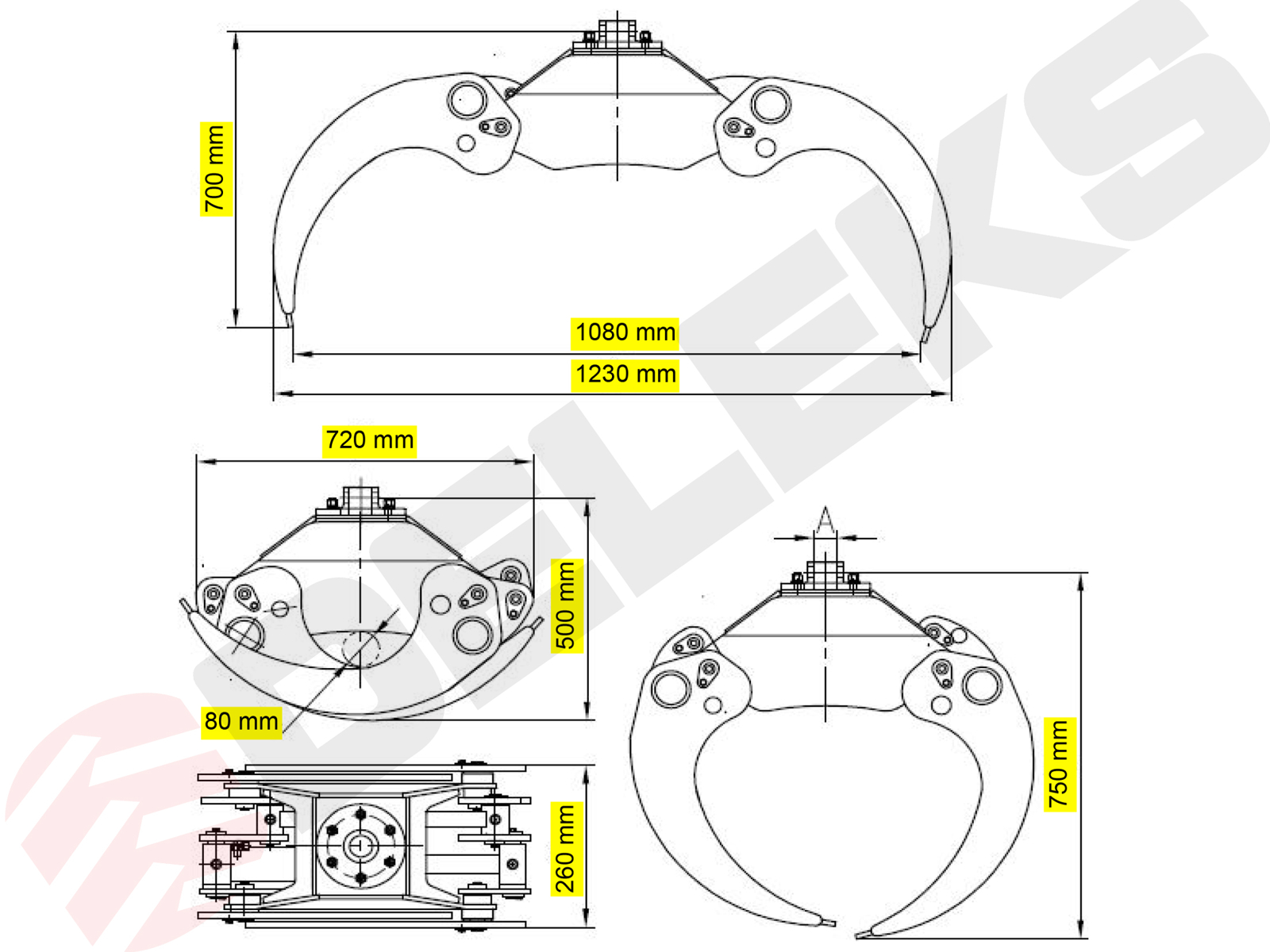

Other sizes See pictures See pictures
Hydraulic Hoses 400 bar pressure 400 bar pressure
Max Opening 1080.0 mm 3.54 ft

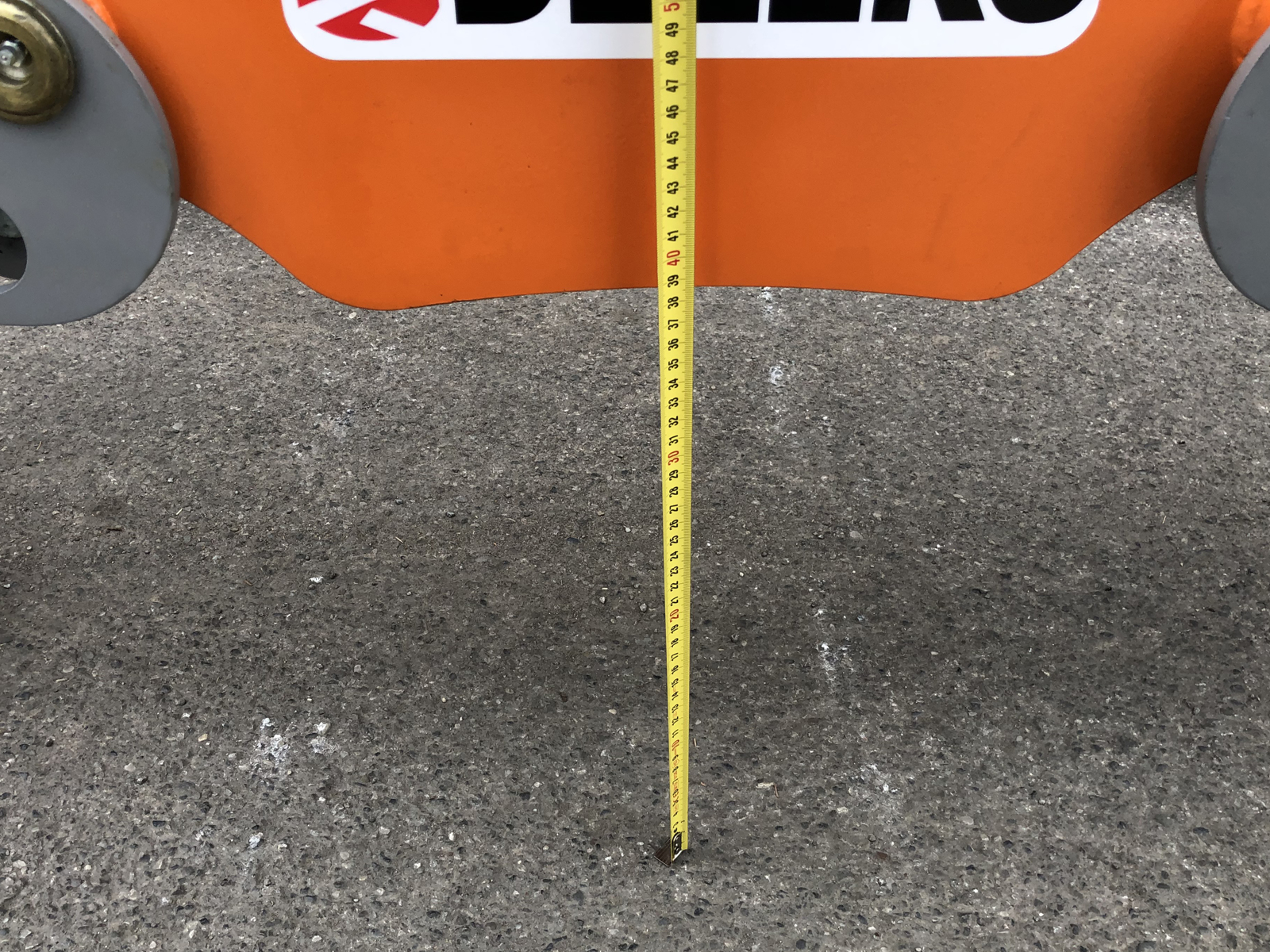

Height, grapple open 980.0 mm 38.60 in
Height, grapple closed 810.0 mm 31.90 in
Width, grapple open 1230.0 mm 4.0 ft
Width, grapple closed 720.0 mm 2.35 ft
Overall depth 260.0 mm 0.85 ft
Minimum diameter of the log 40.0 mm 1.57 in

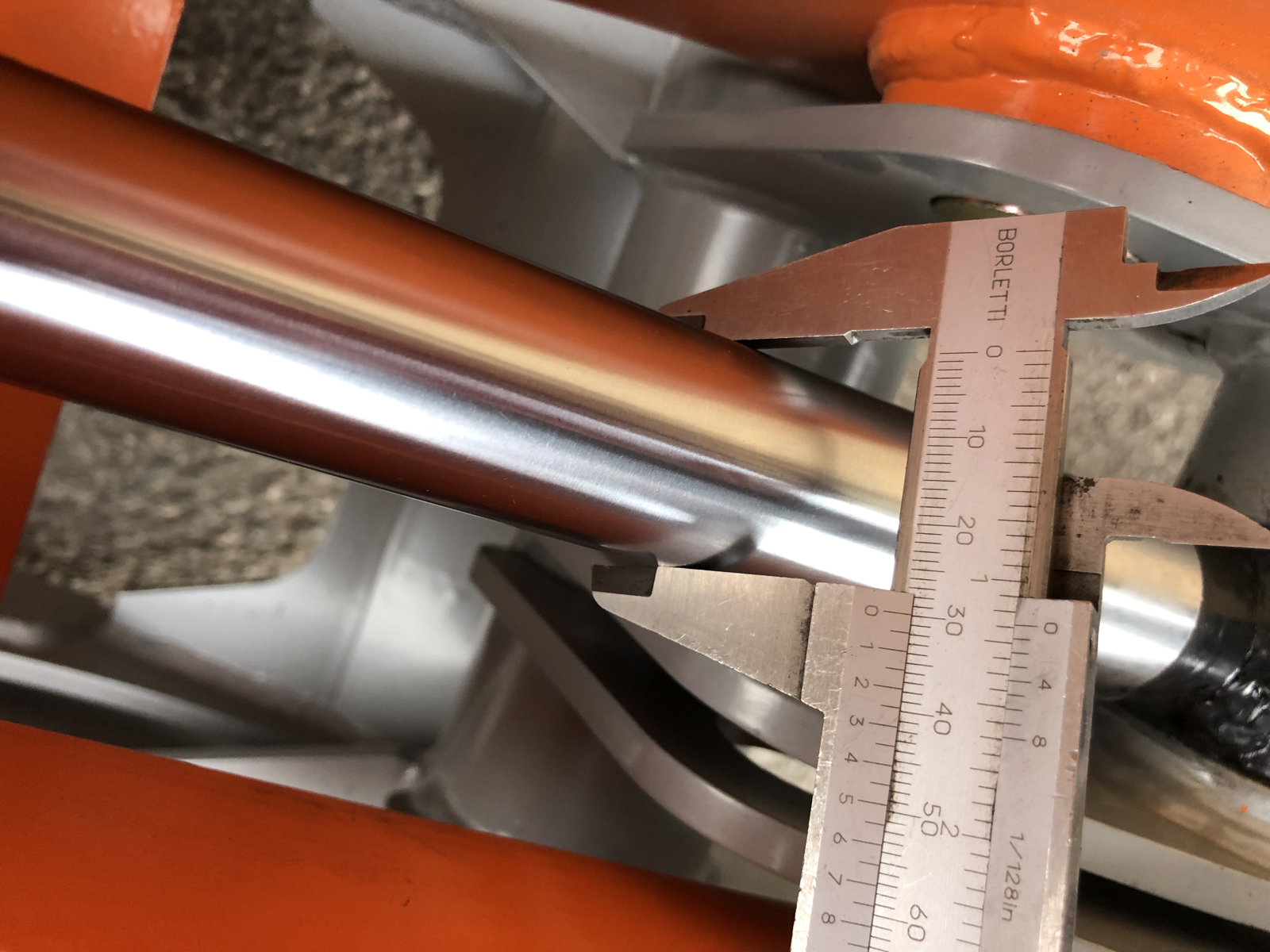

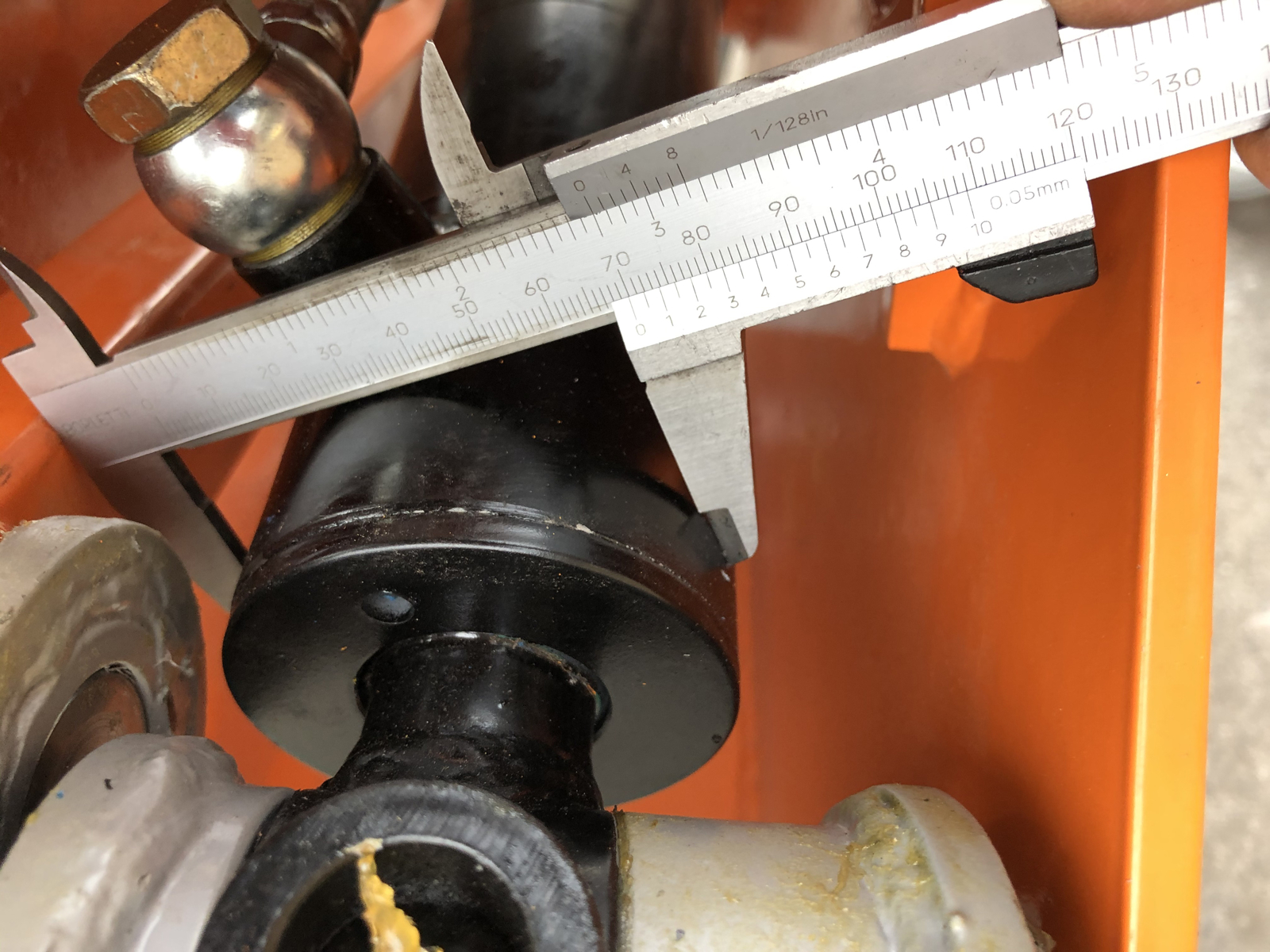

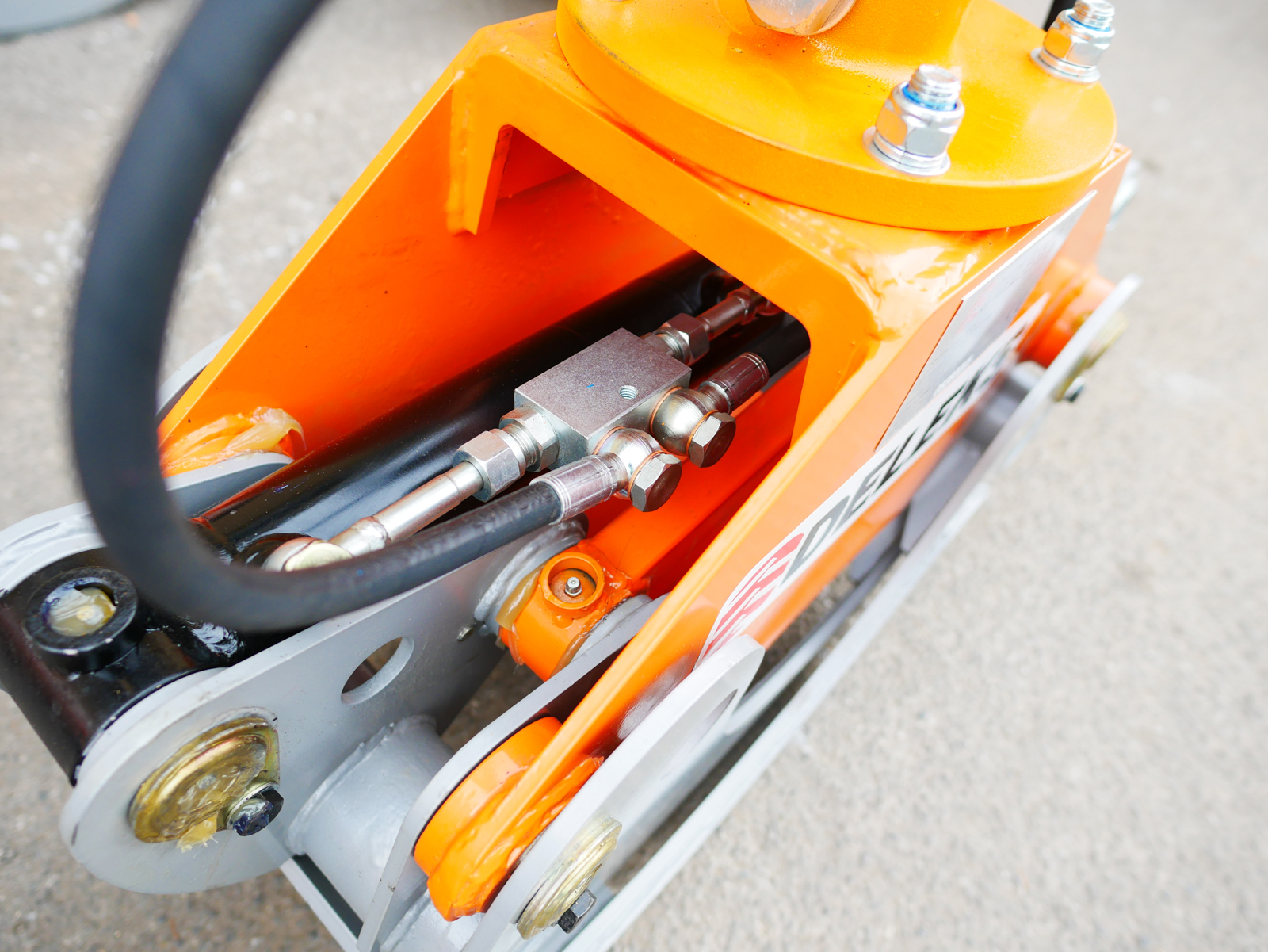

Hydraulic cilinder diameter 70.0 - 30.0 mm 2.75 - 1.20 in
Max Pressure 200 Bar 200 Bar

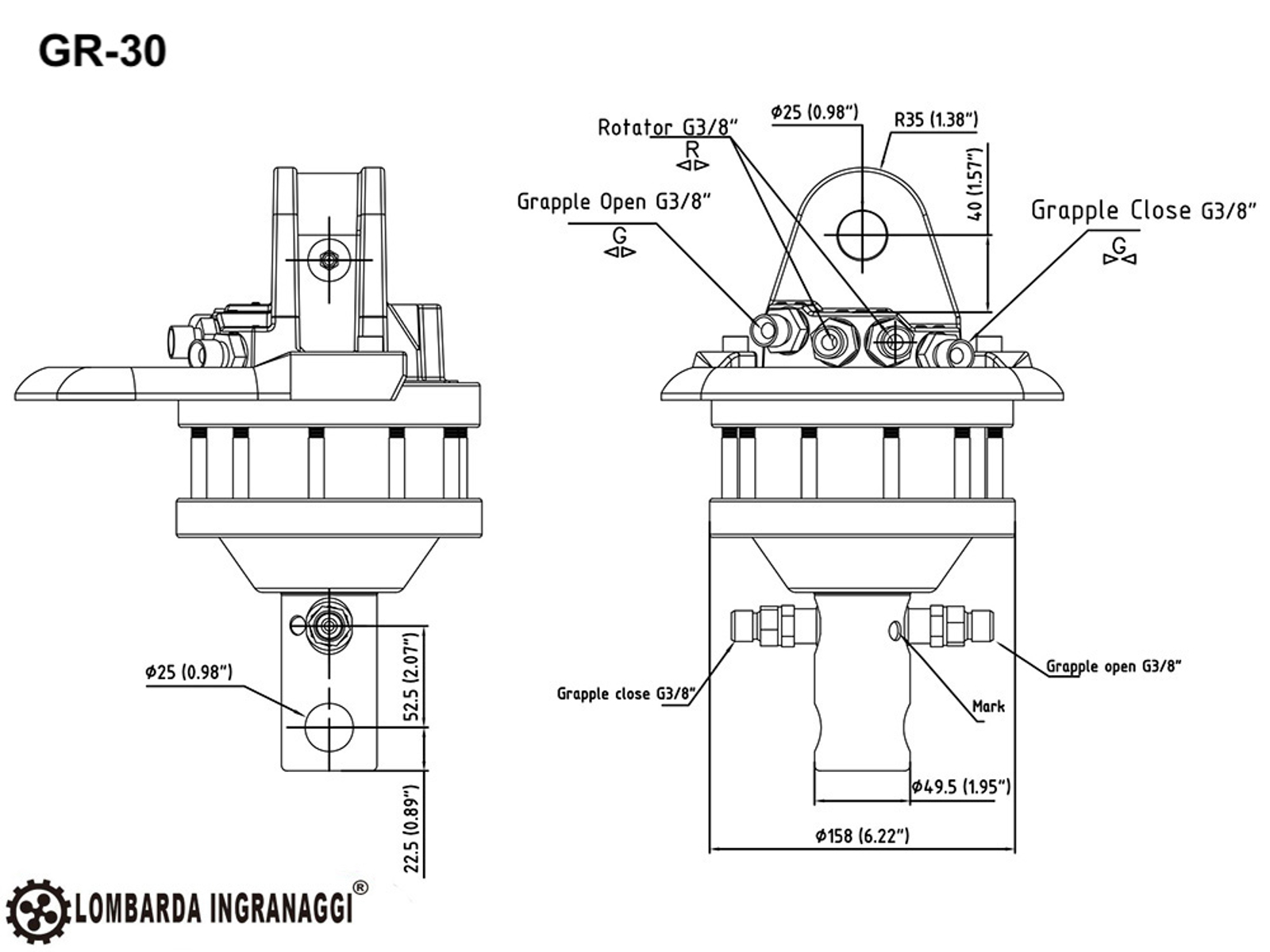

Rotator Lombarda Ingranaggi GR-30 (3,0 ton) Lombarda Ingranaggi GR-30 (3,0 ton)
Compact Excavators Range 1.8 - 3.5 ton 1.8 - 3.5 ton
Packing sizes 600.0*800.0*450.0 mm 1.97*2.62*1.47 ft
