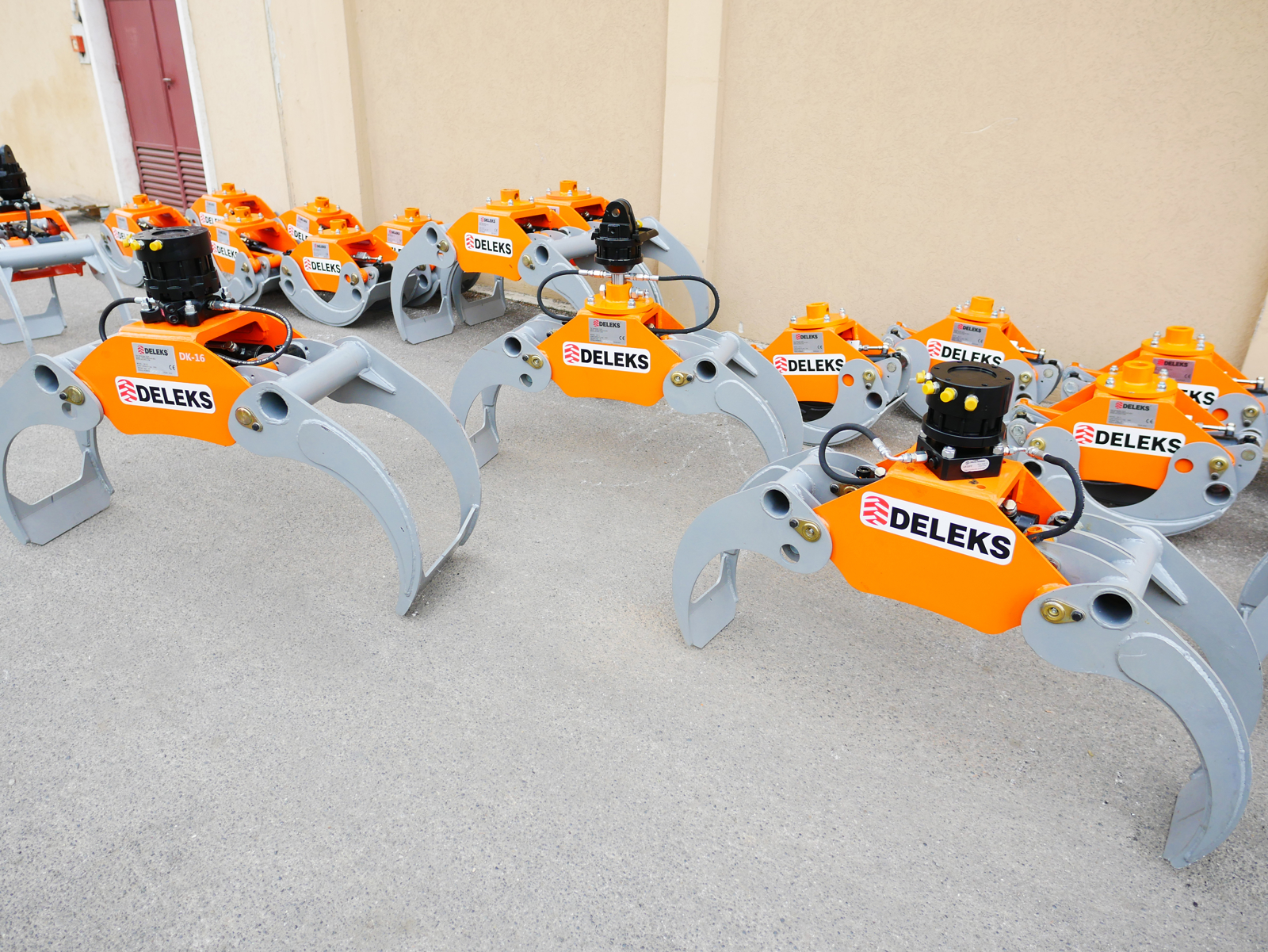

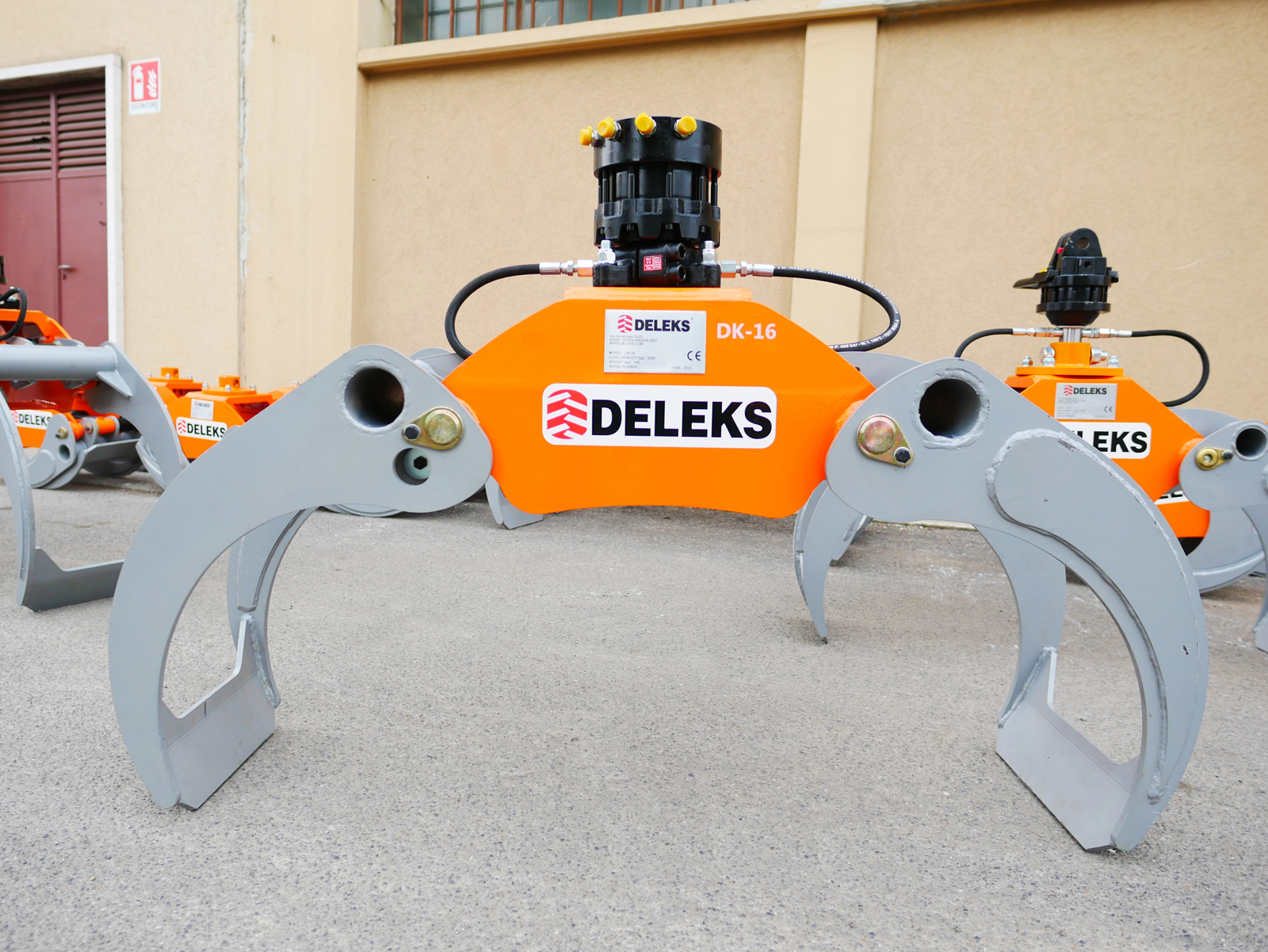

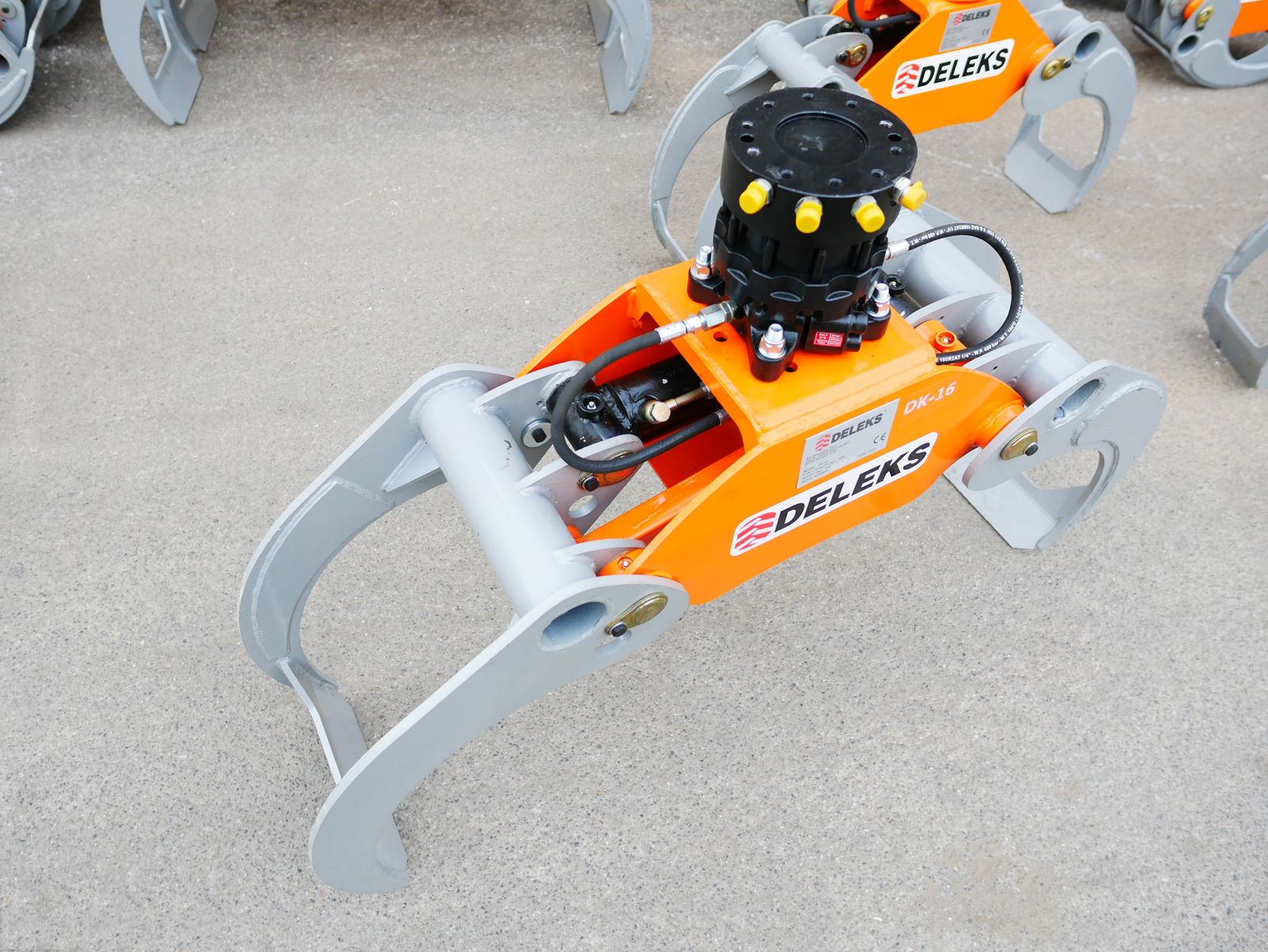

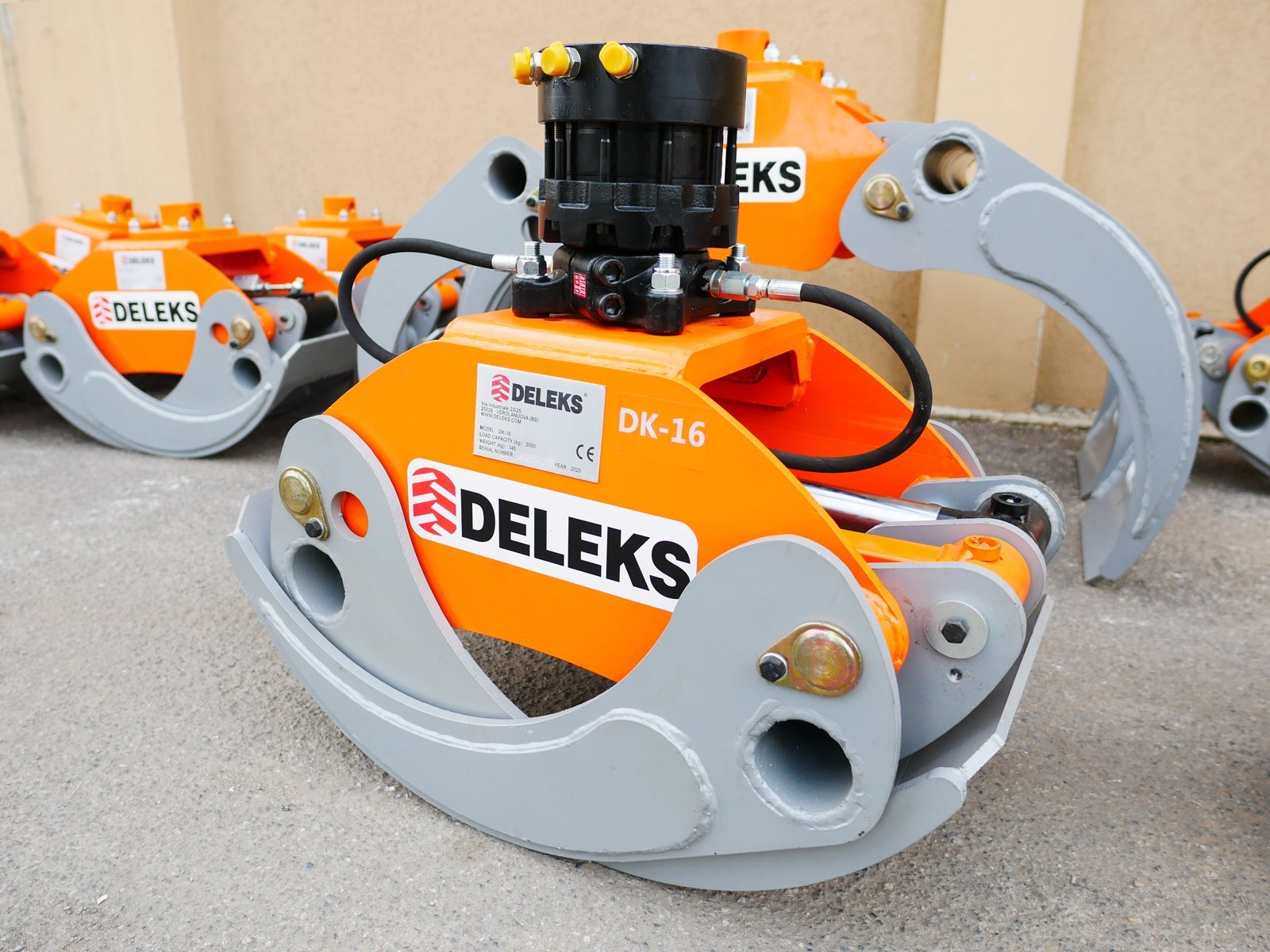

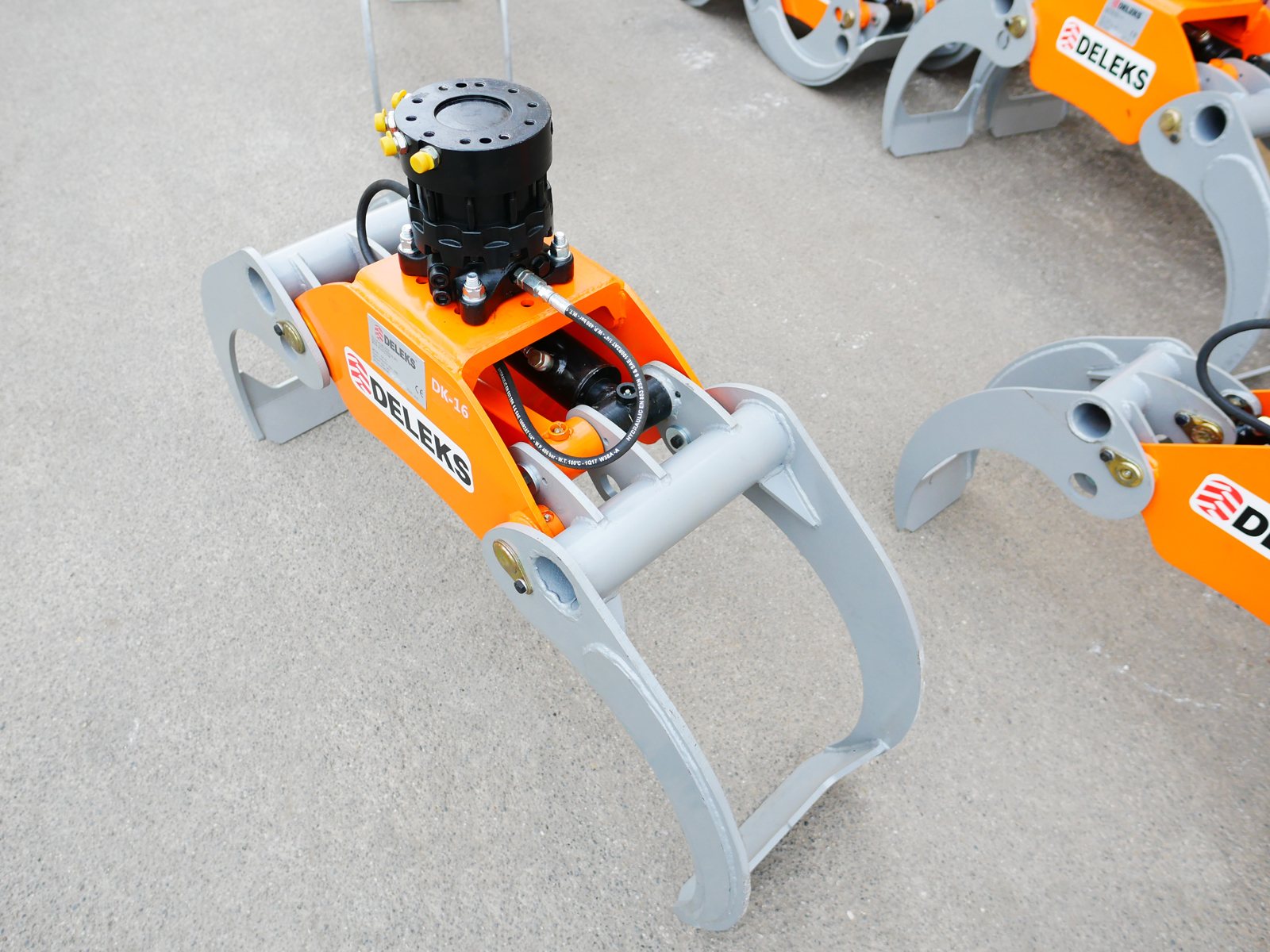

Log grapple with fixed rotator for quick linkage DK-16 + GR-55FF

4.5

188 reviews

Not available Notify me
Code DK16R55
EAN 8053470235313
View all details.
TOTAL
2.389,00VAT incl.
Free shipping

DETAILS

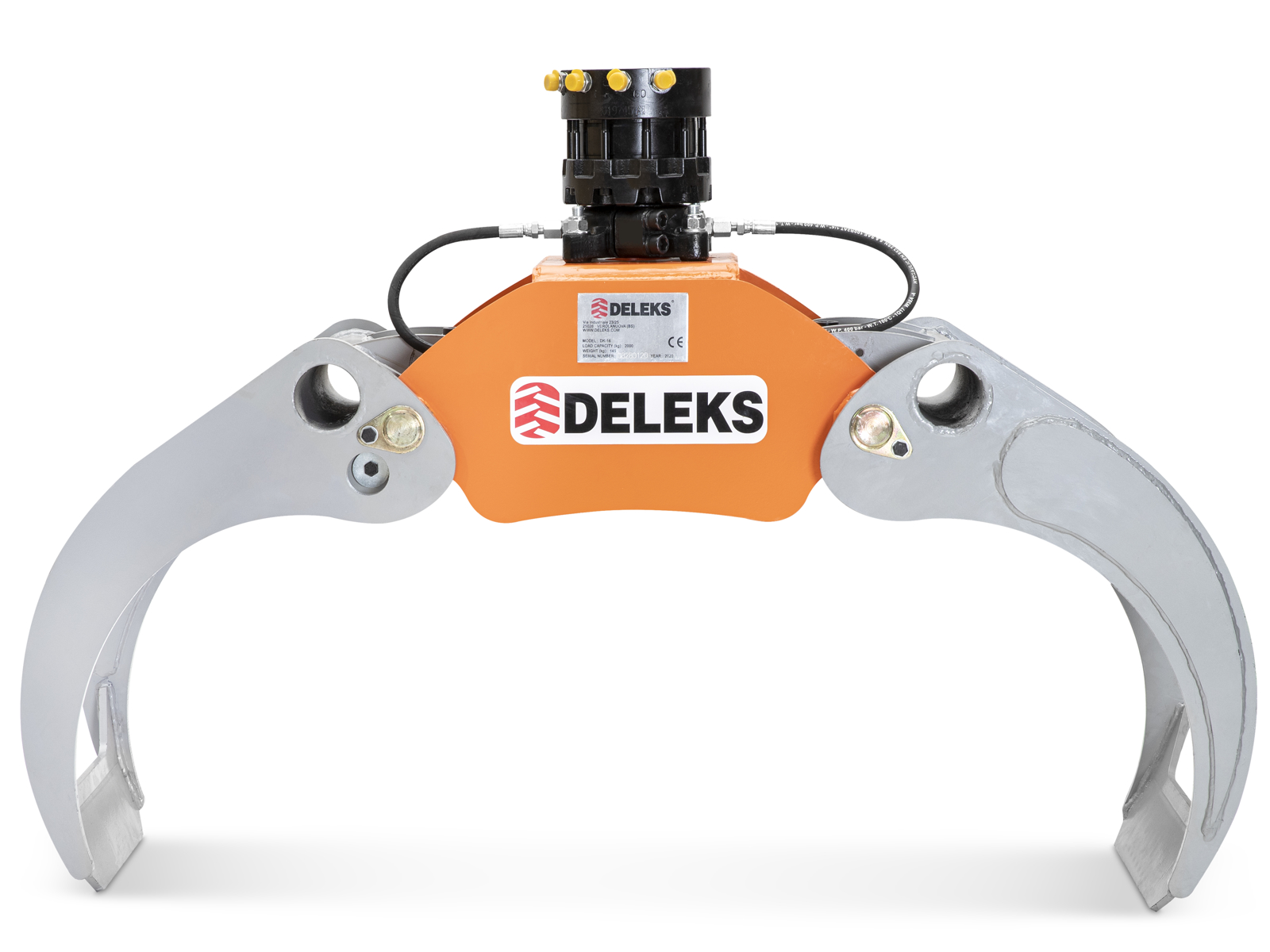

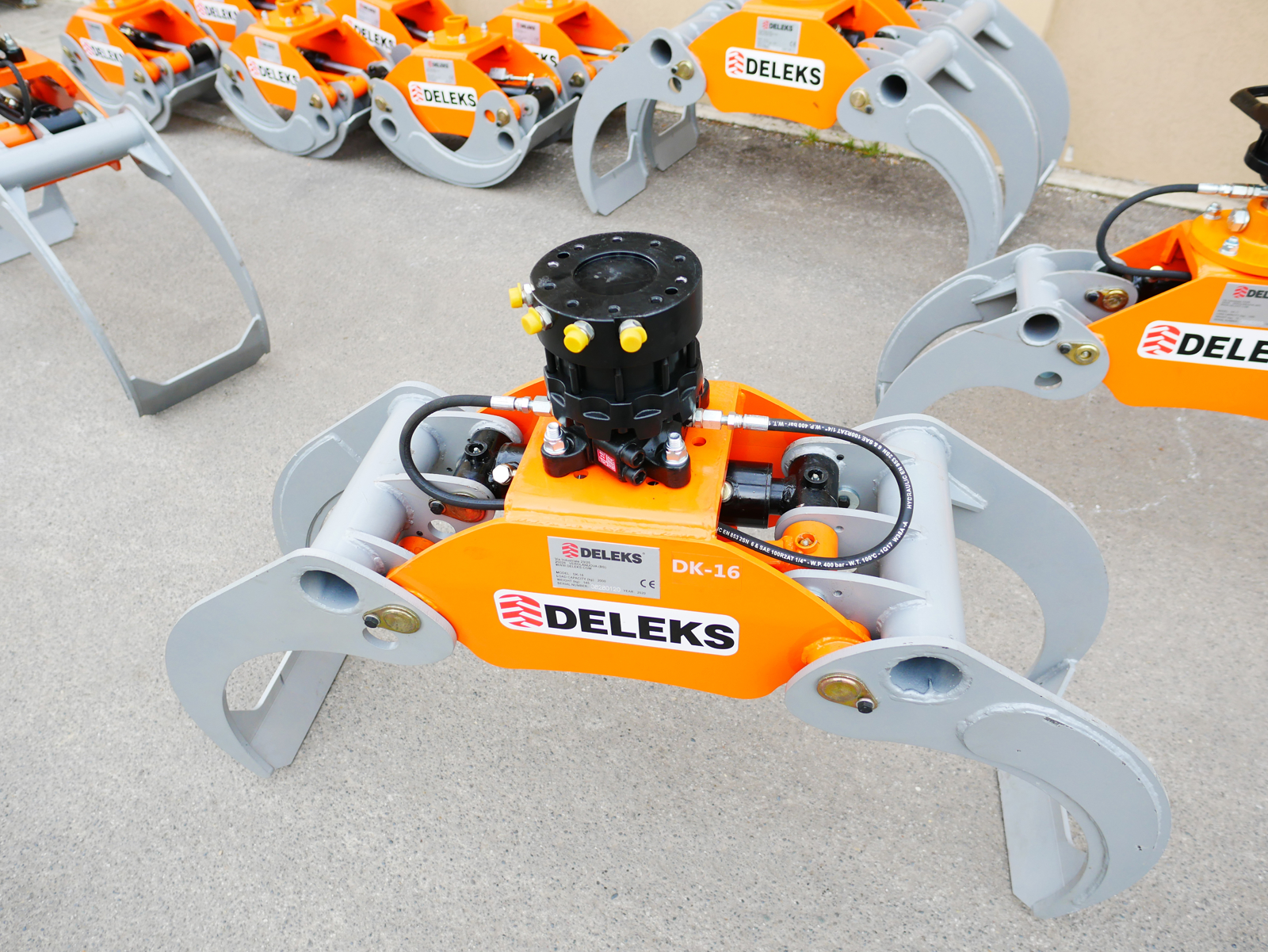

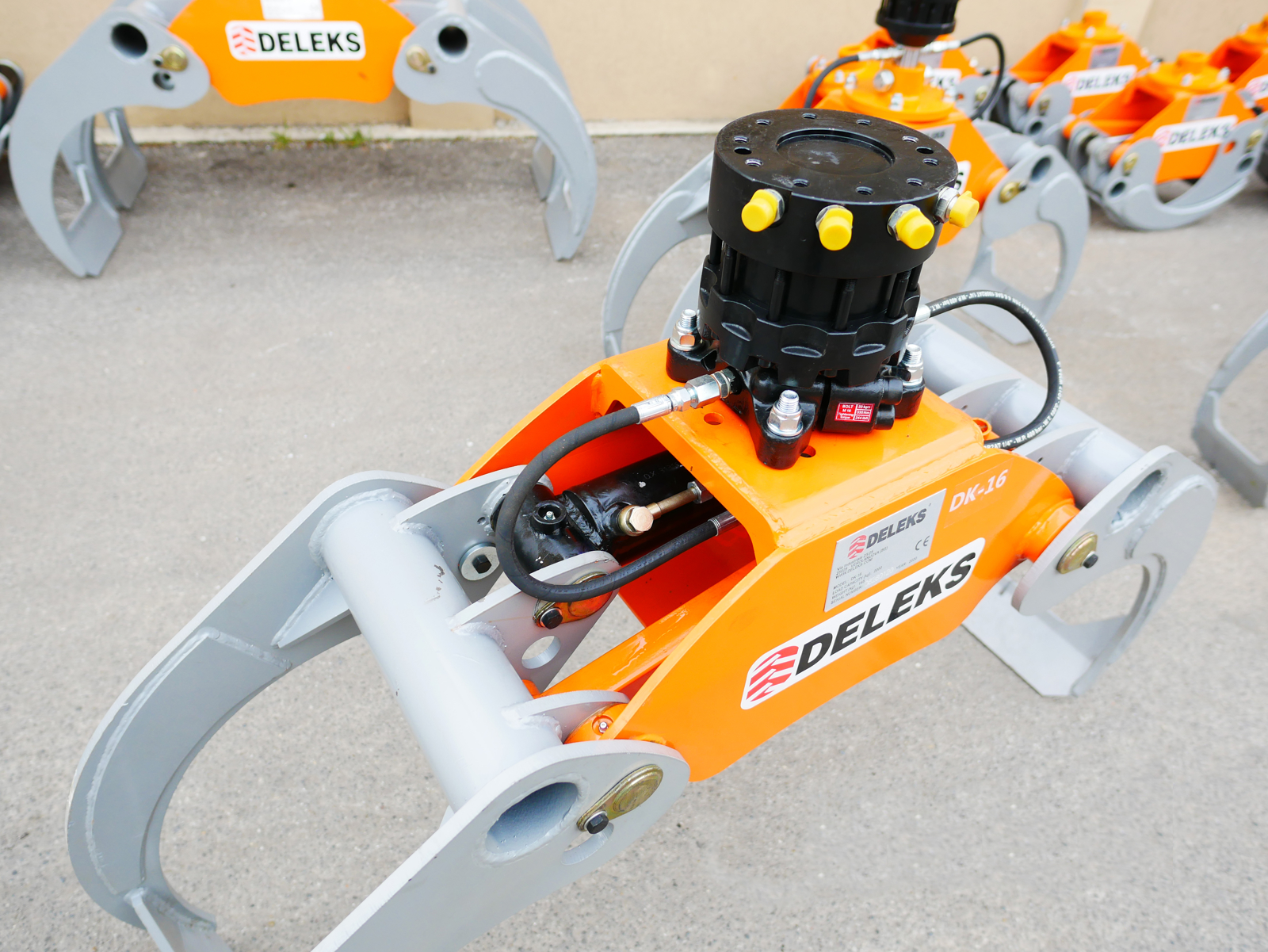

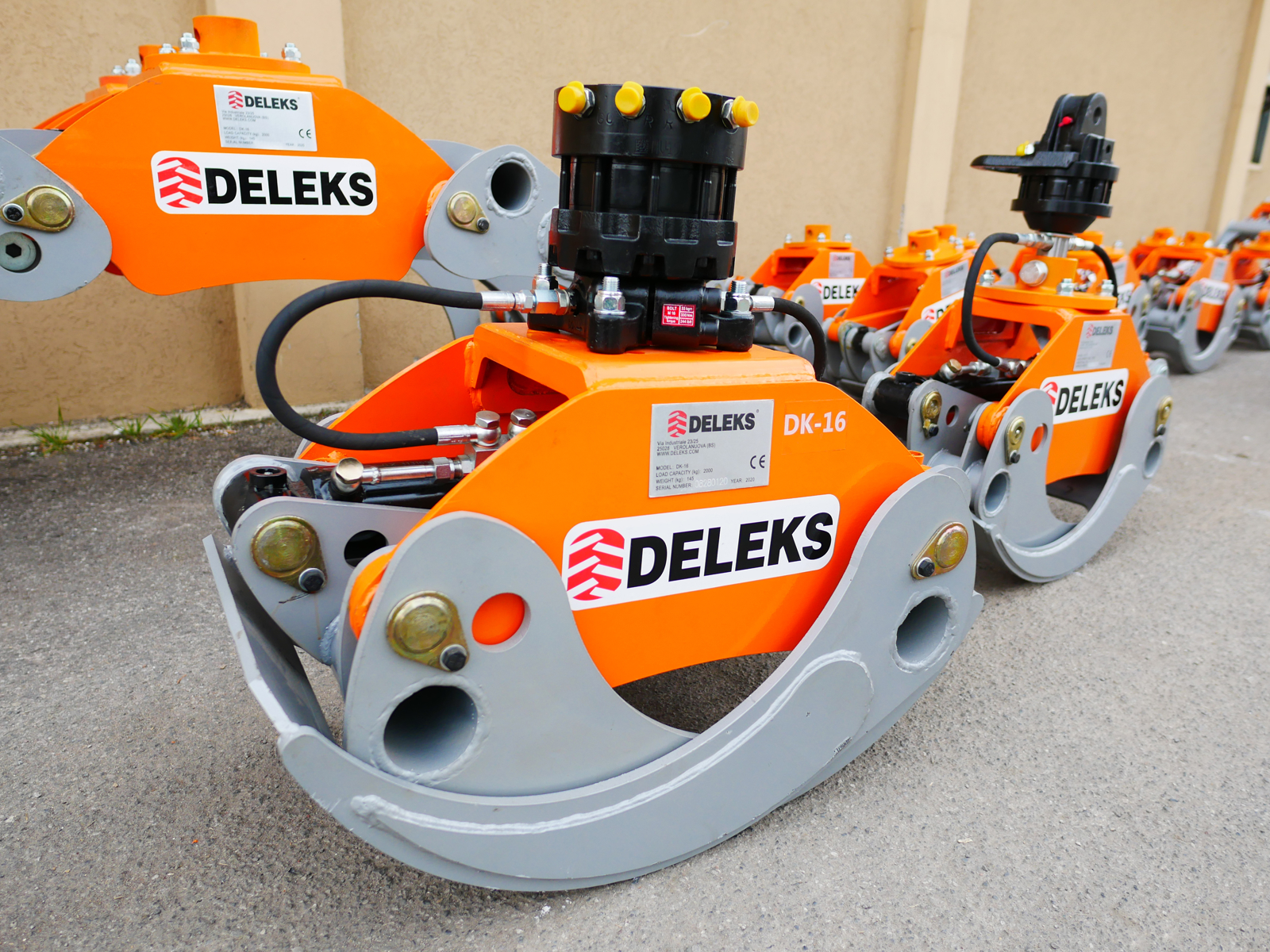

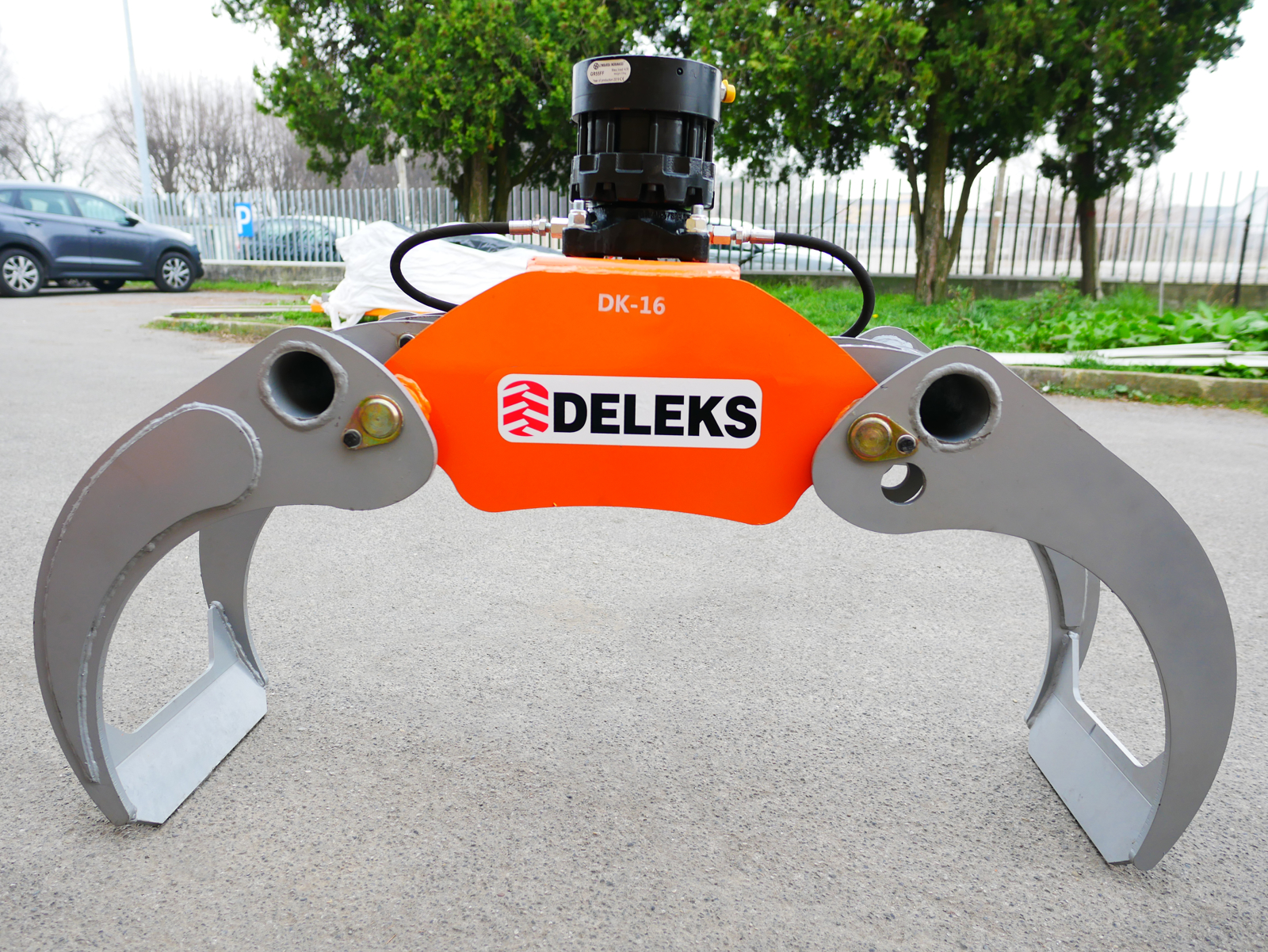

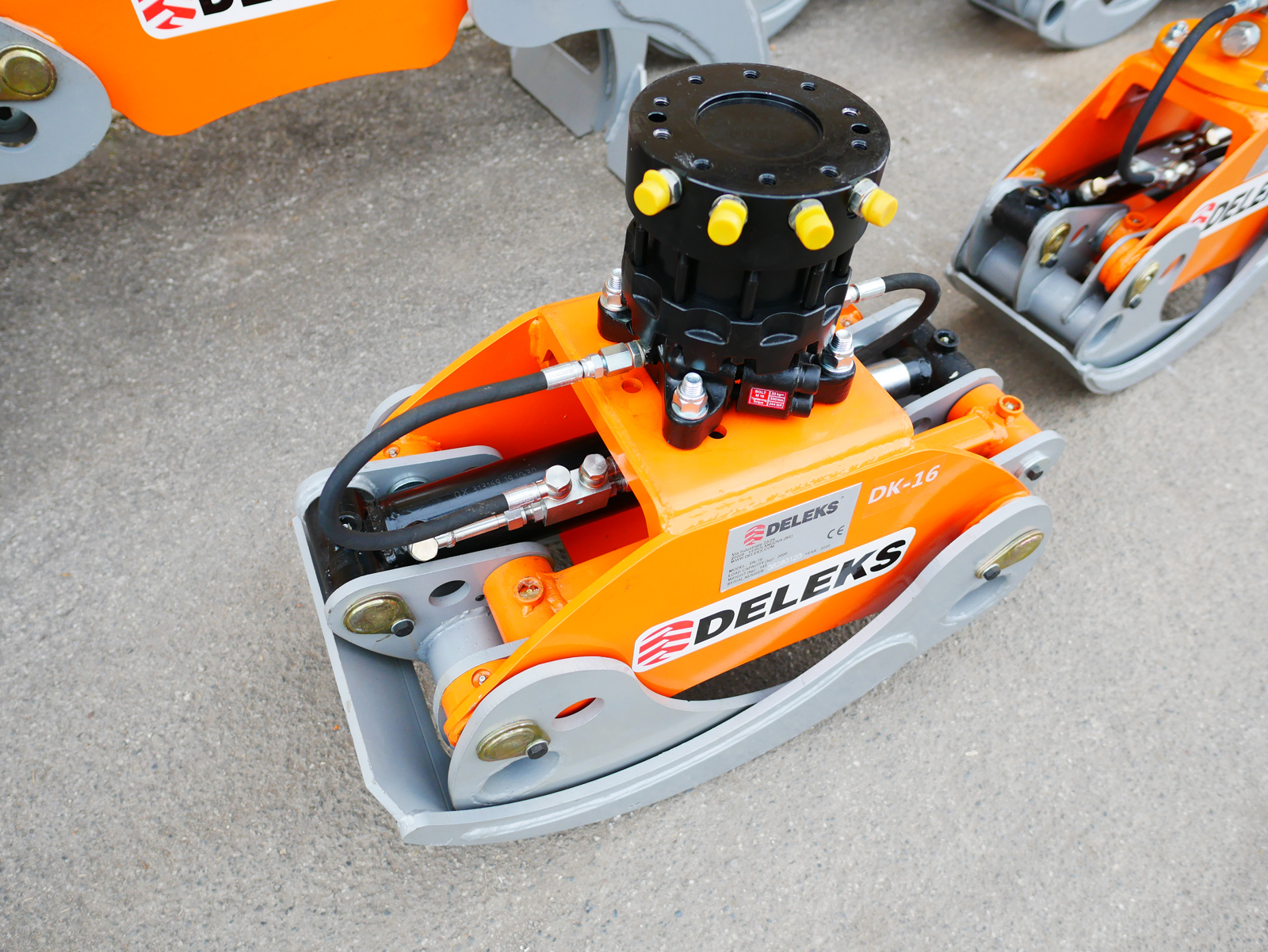

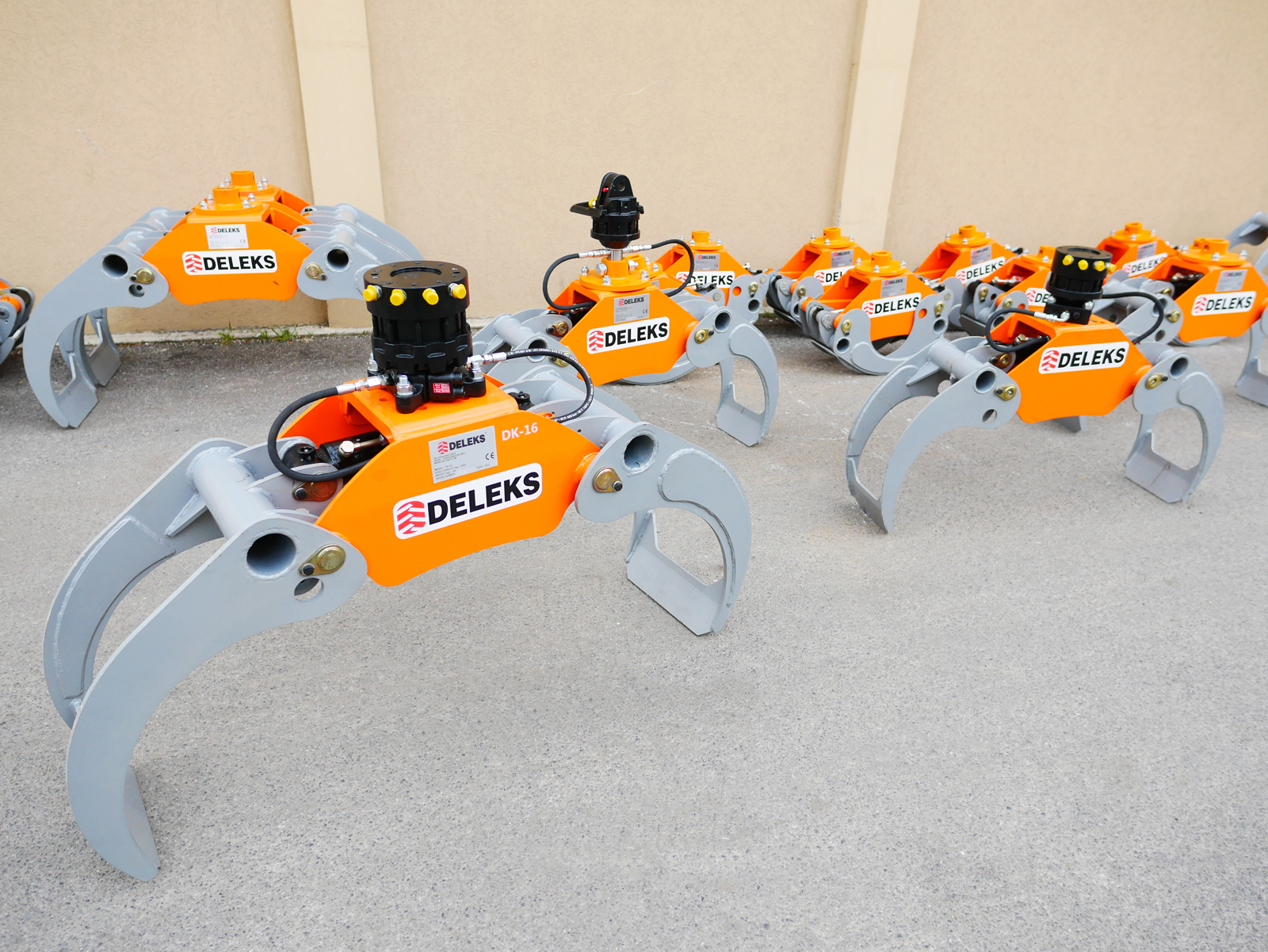

Log Grapple for Mini Diggers and Forest Cranes 4.0 – 8.0 Ton DELEKS® DK-16 + Lombarda Ingranaggi® Rotator


OVERVIEW

Perfect for carrying logs and timber around your farm or park.

Maximum load 2000.0 kg.

Gripping area: 0.24m2

Gripping force: 11.1KN

Fits all mini diggers/excavators e.g Bobcat, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi.

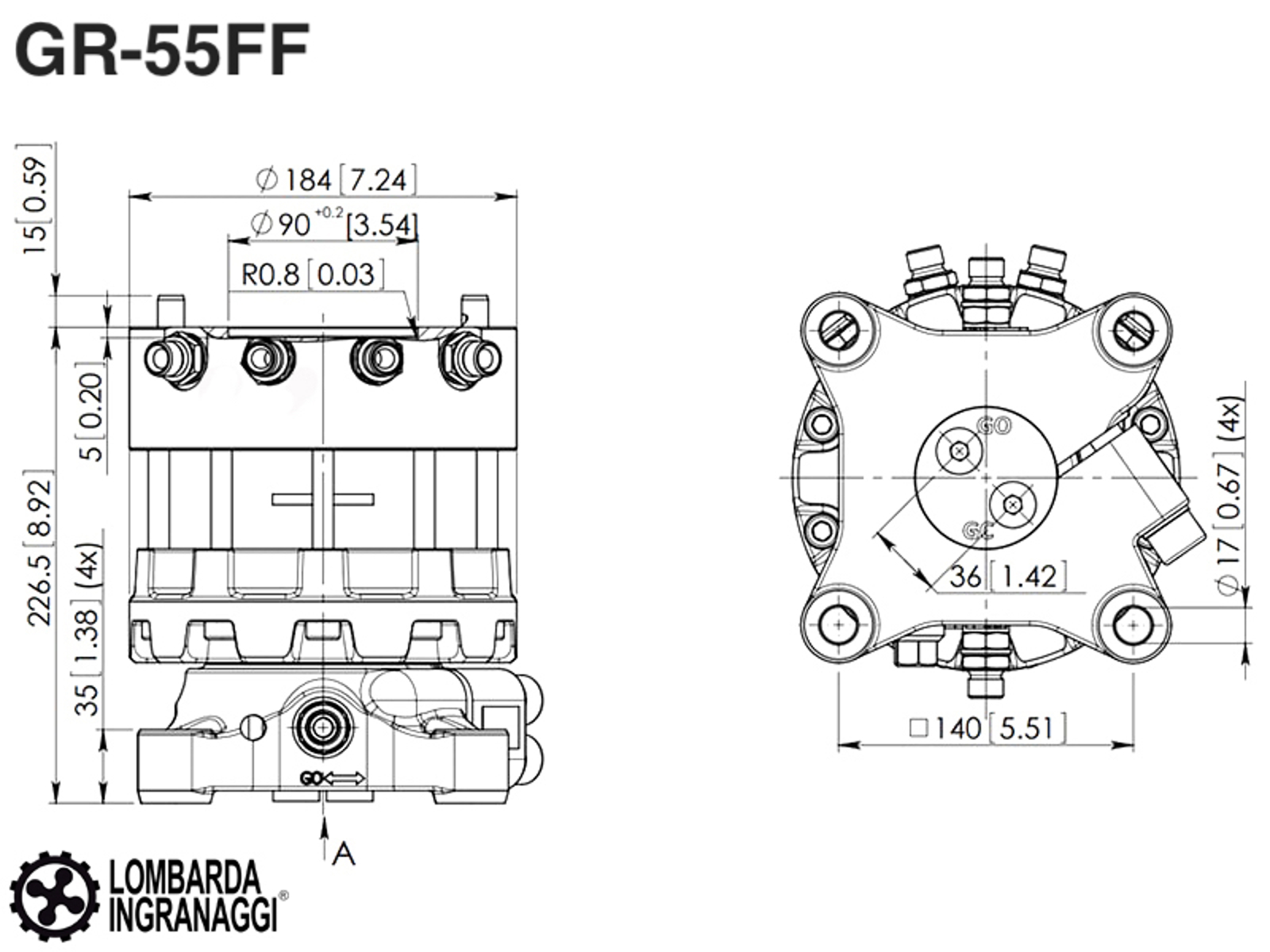

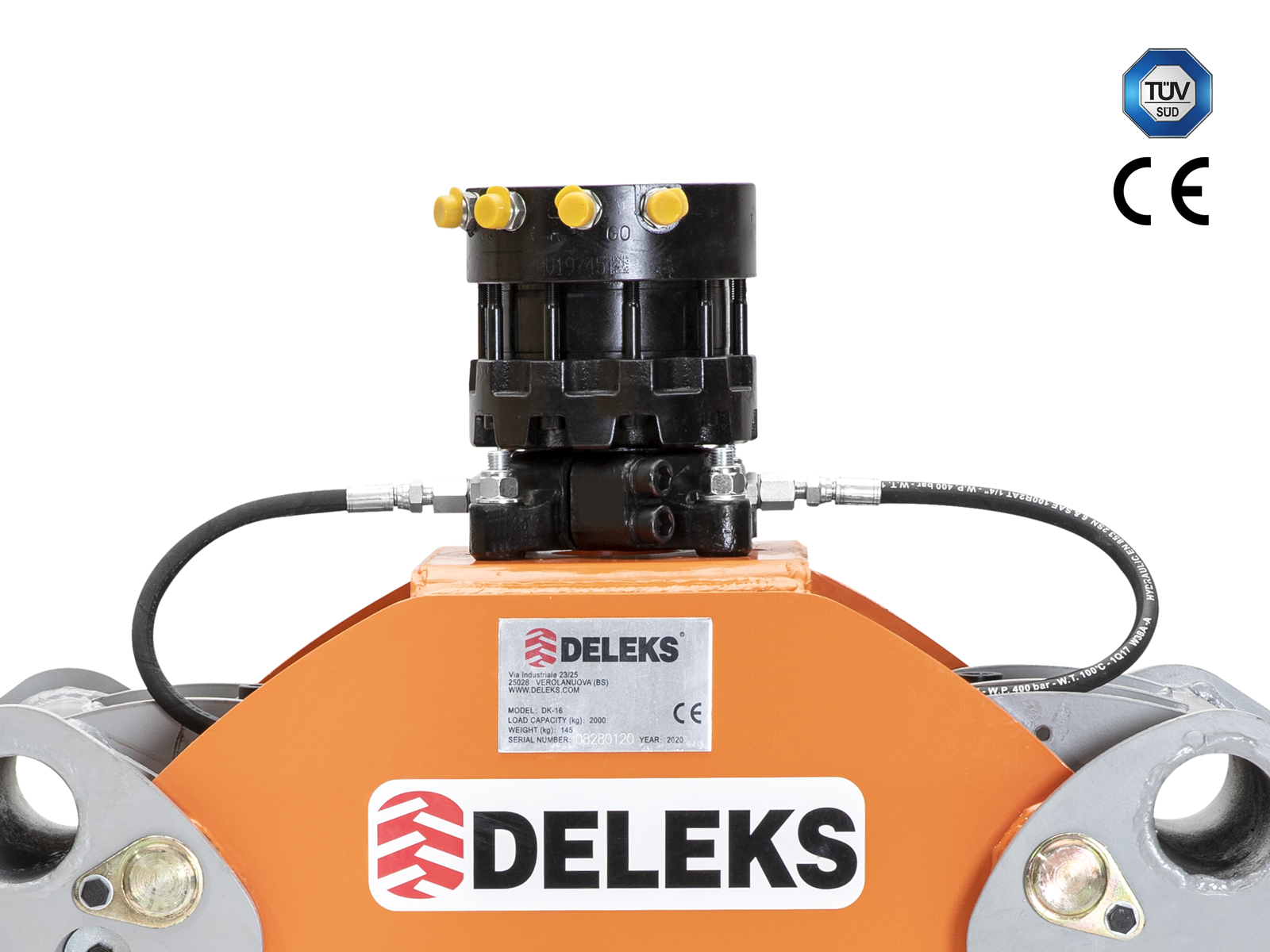

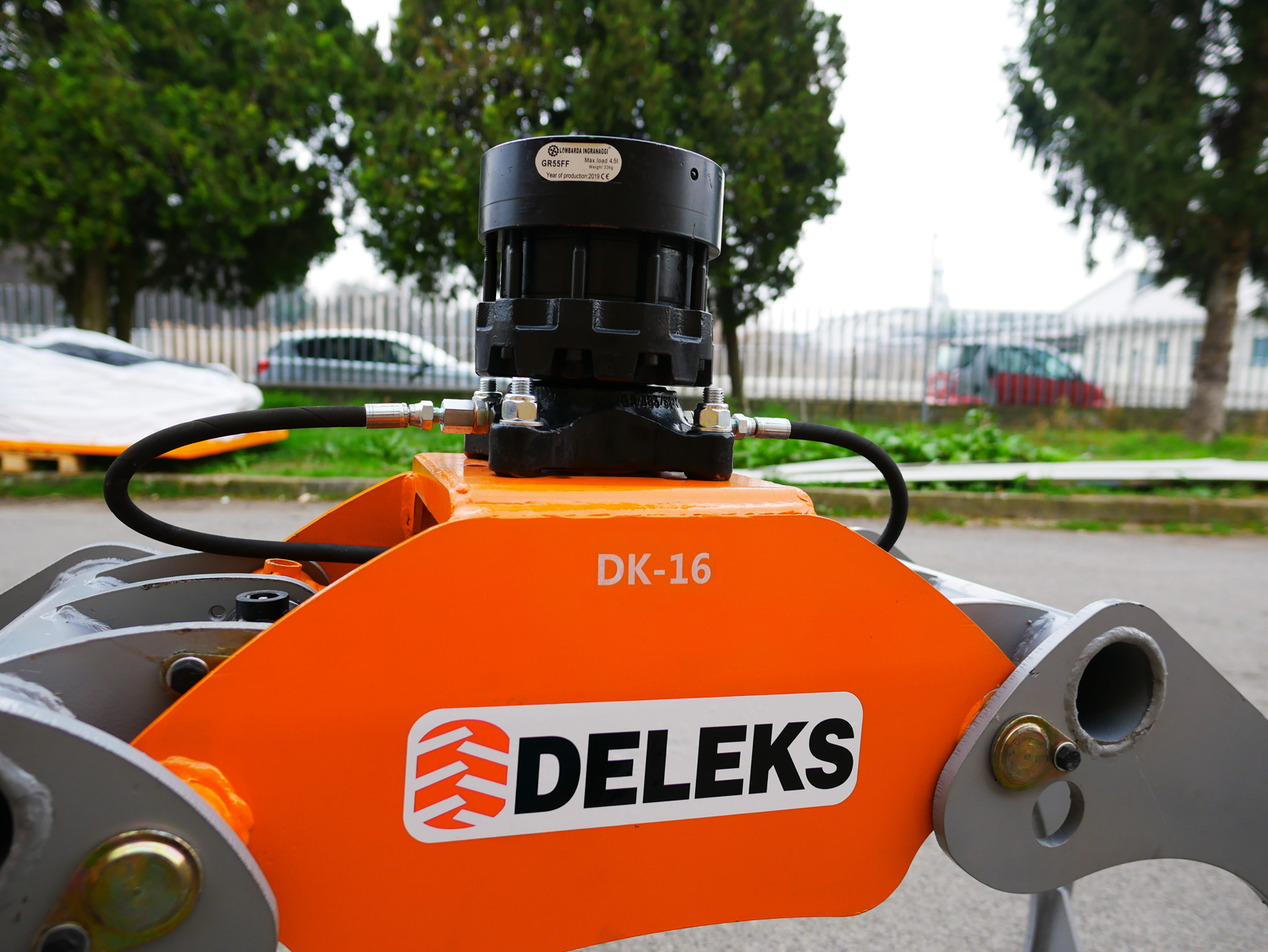

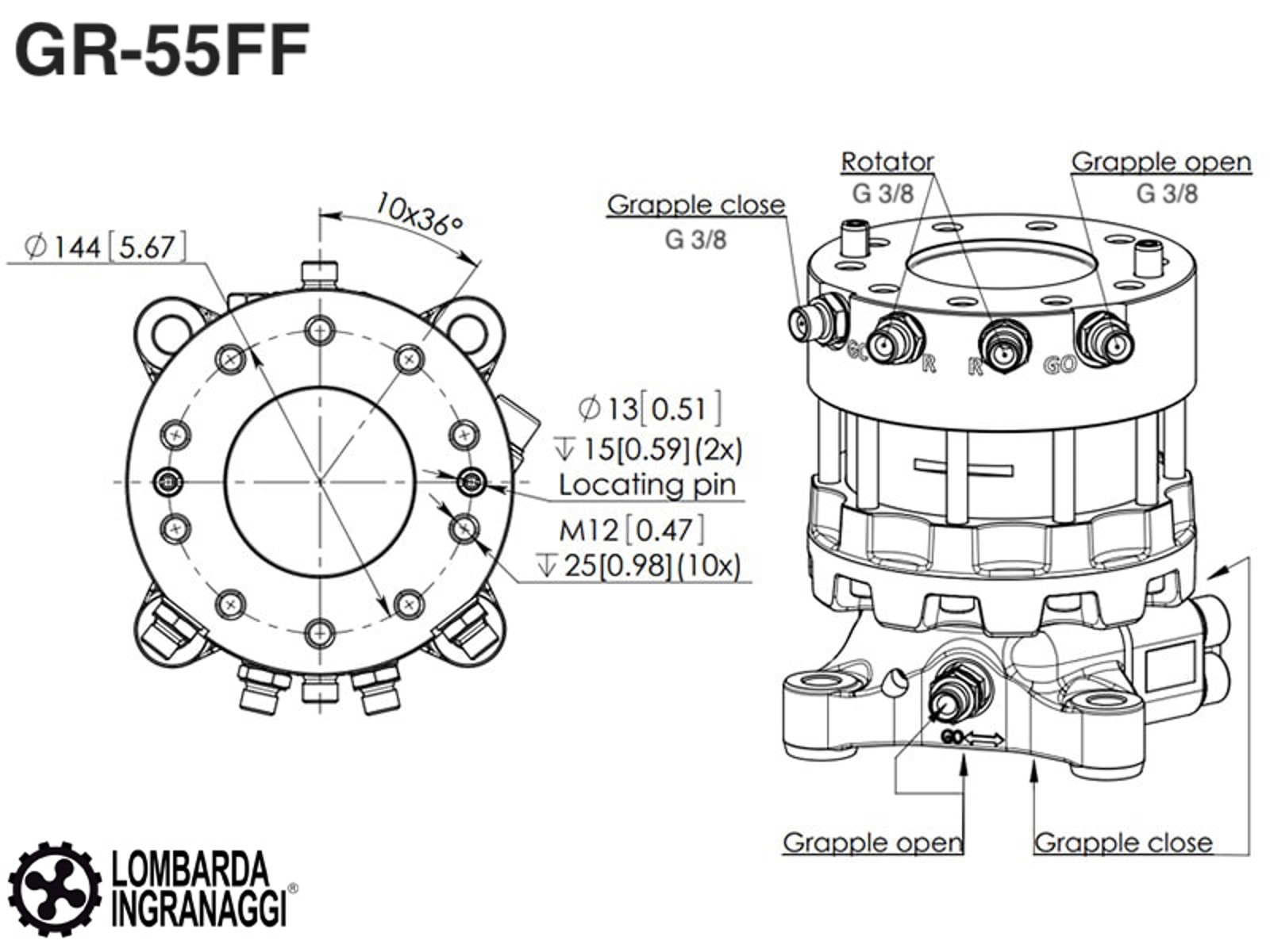

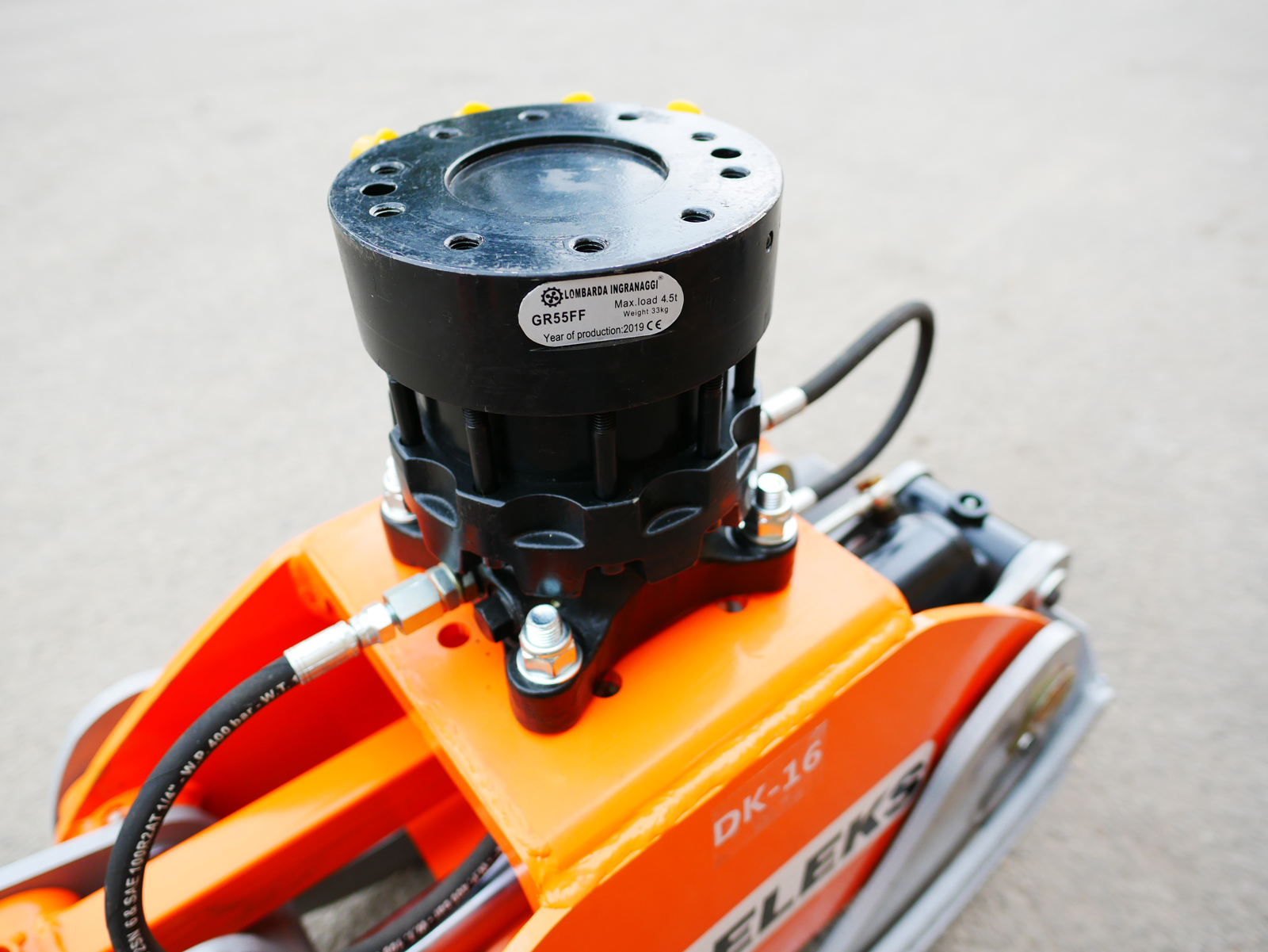

Rotator: Lombarda Ingranaggi® GR55FF rotators are powerful, reliable and robust. They are engineered to perform in heavy duty work environments with maximal efficiency and minimal unscheduled downtime as they have a loading capacity 4500kg. Grapple needs 4 hydraulic outlets to function or additionally, Rexroth Bosh electro-valve 6 ways (made in Germany), can be supplied to reduce the amount of outlets needed to two. EC Conformity, 2 Year Warranty.



BENEFITS & FEATURES

360º continuous rotation.

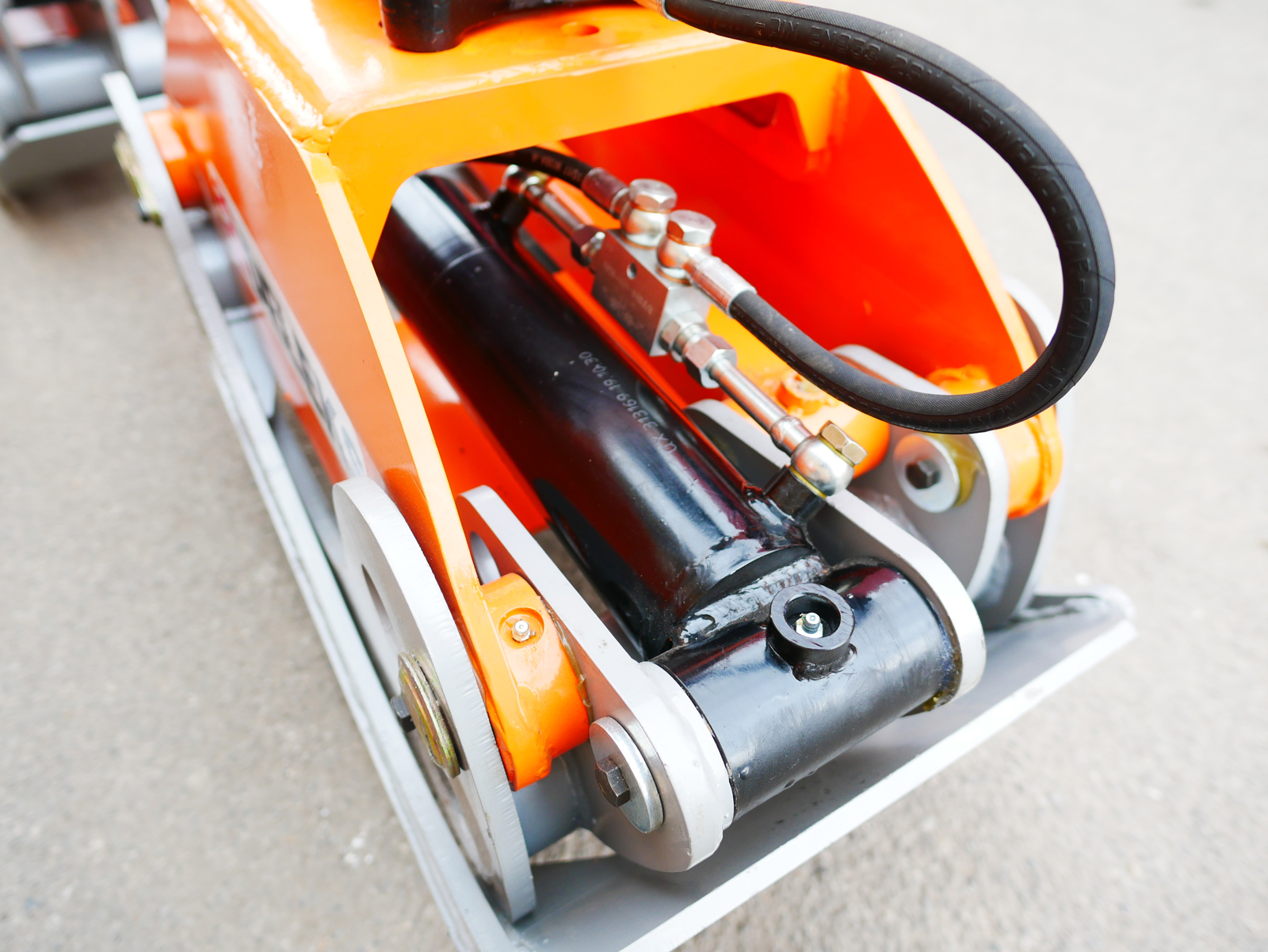

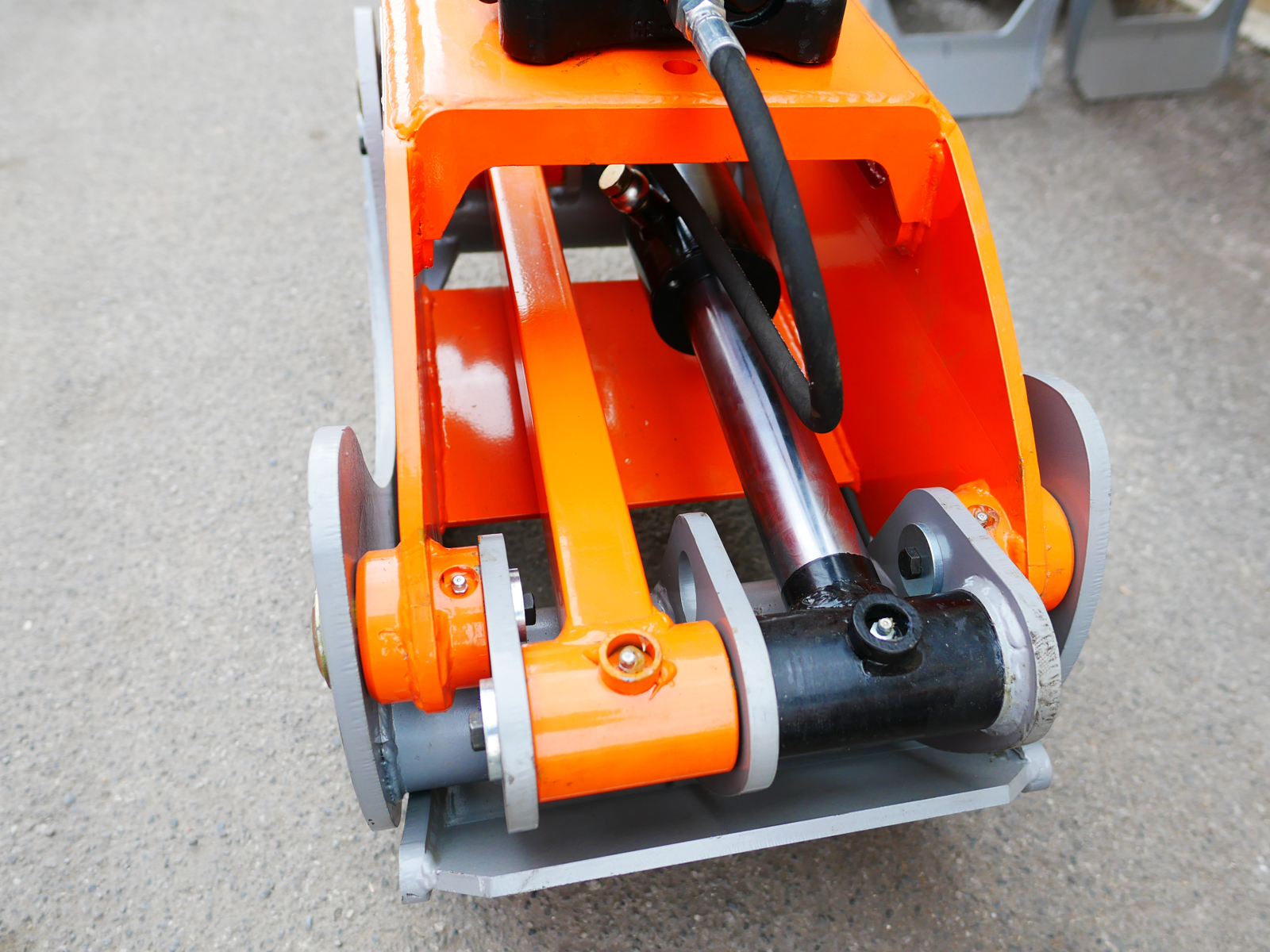

Shut-off valve on the hydraulic cylinder.

Solid steel bolts with bronze bushings.

Thanks to the DK16's unique design it grips timber, boulders or debris tightly.

High quality steel: code S355 (Claws: S700).

High tensile strength, reinforced grapple tines.



CHARACTERISTICS

Characteristic Units metric Units US
Weight 185.0 kg 408.0 lb
Load capacity 2000.0 kg 4400.0 lb

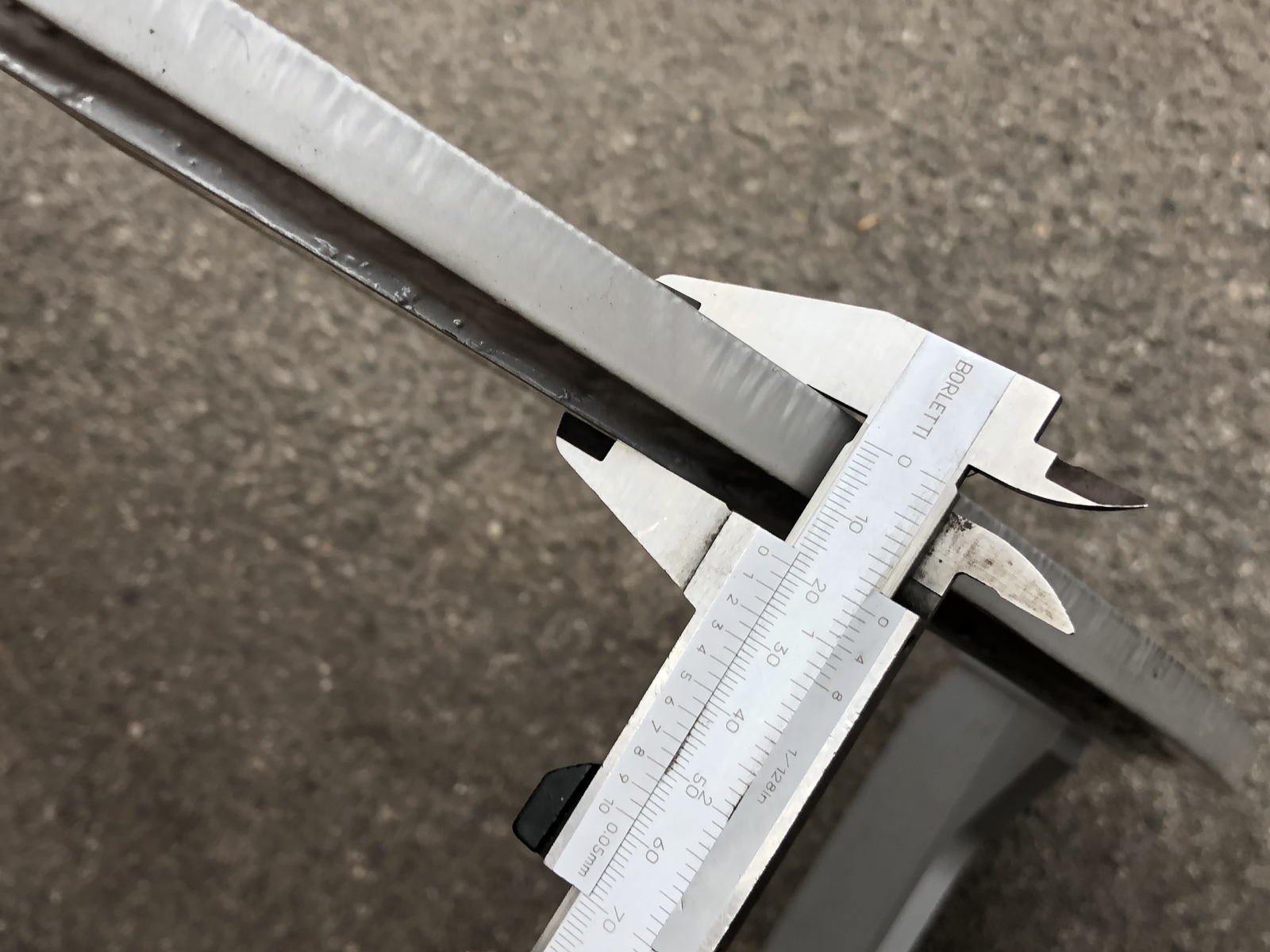

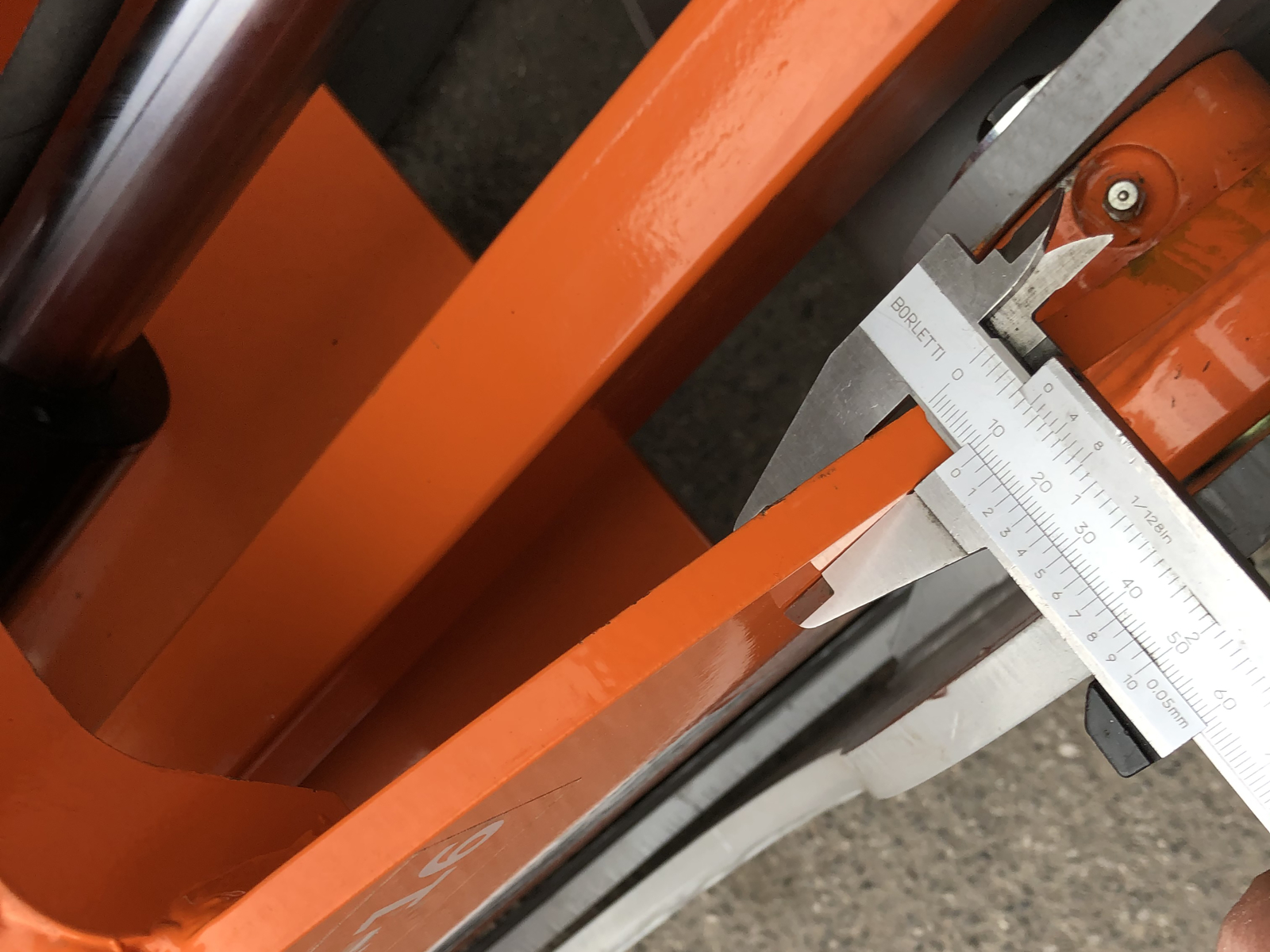

Main hood thickness 10.0 mm 0.4 in
Min./Max. Relief Pressure 120 - 150 bar 120 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min

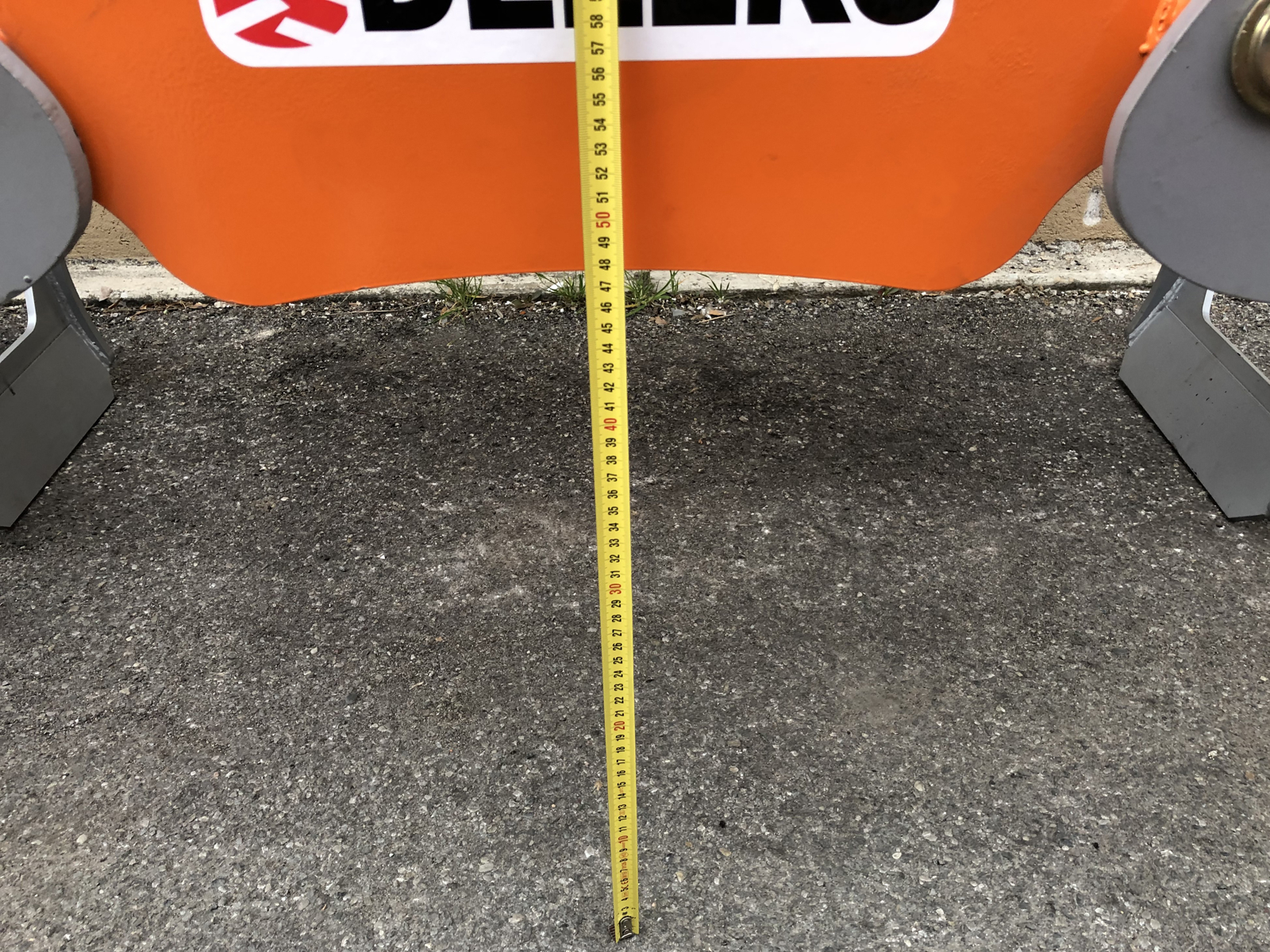

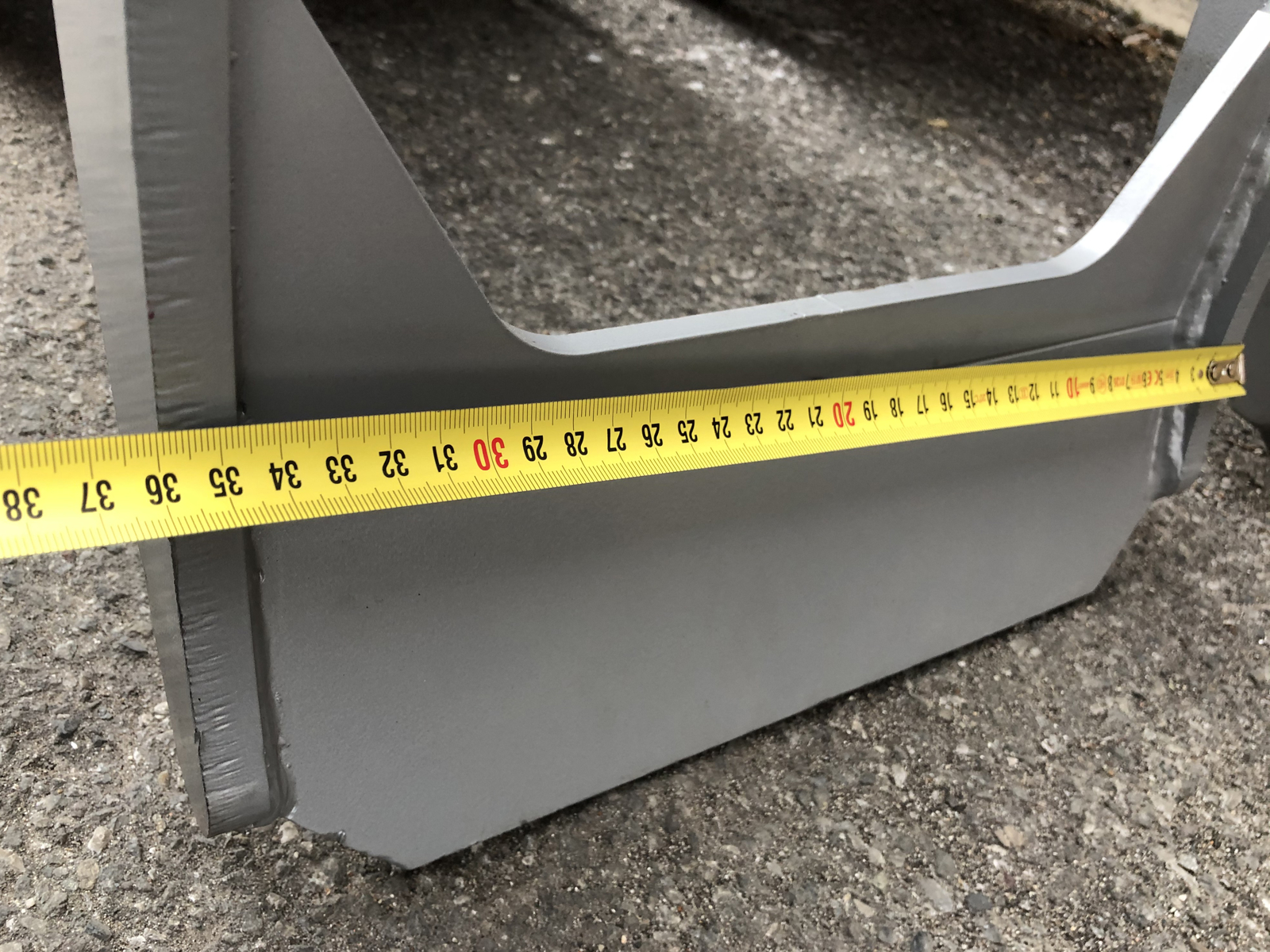

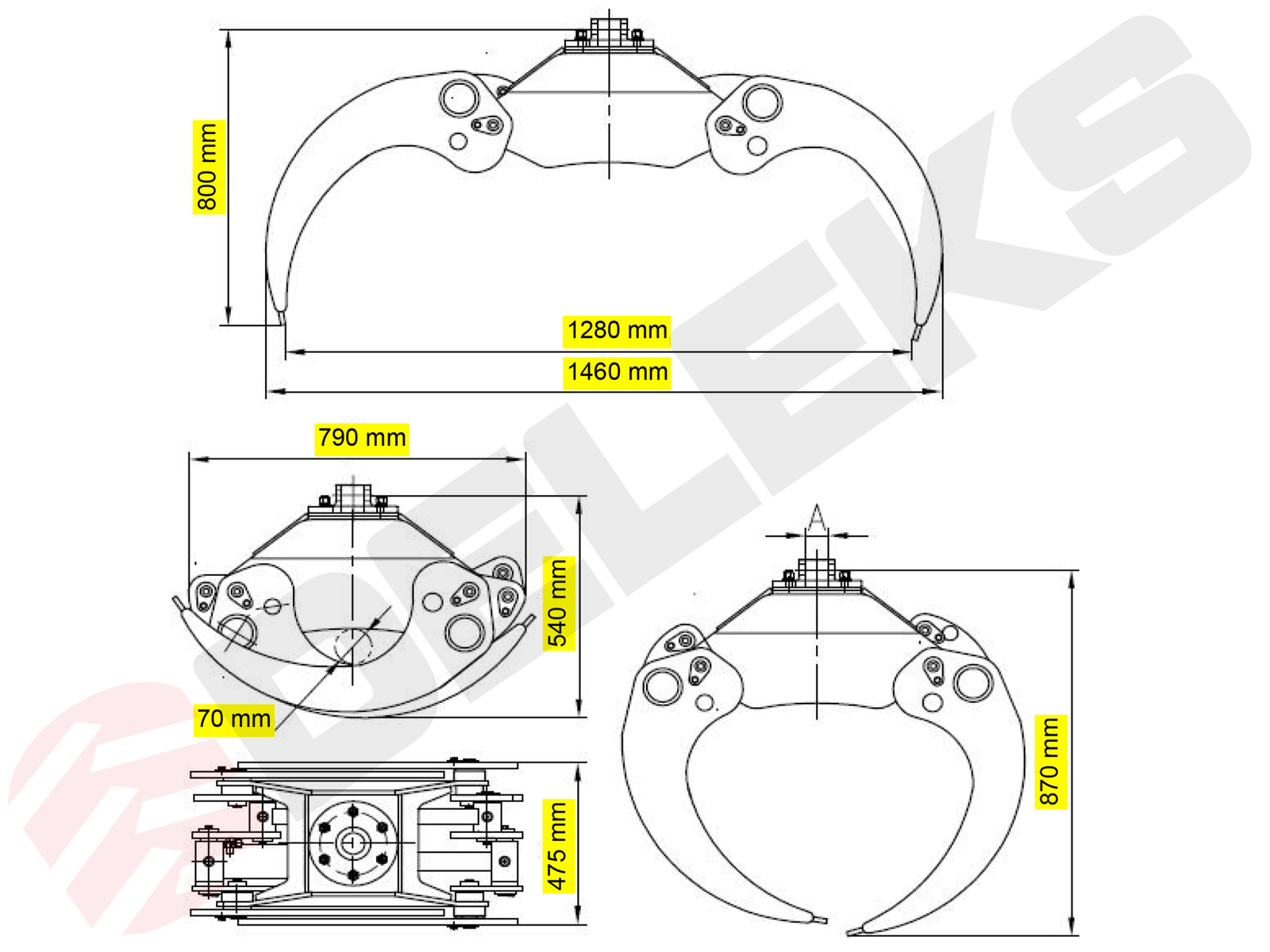

Other sizes See pictures See pictures
Hydraulic Hoses 400 bar pressure 400 bar pressure
Max Opening 1280.0 mm 4.20 ft
Height, grapple open 990.0 mm 39.0 in
Height, grapple closed 710.0 mm 27.95 in
Width, grapple open 1460.0 mm 4.79 ft
Width, grapple closed 730.0 mm 2.4 ft
Overall depth 475.0 mm 1.56 ft
Minimum diameter of the log 40.0 mm 1.57 in

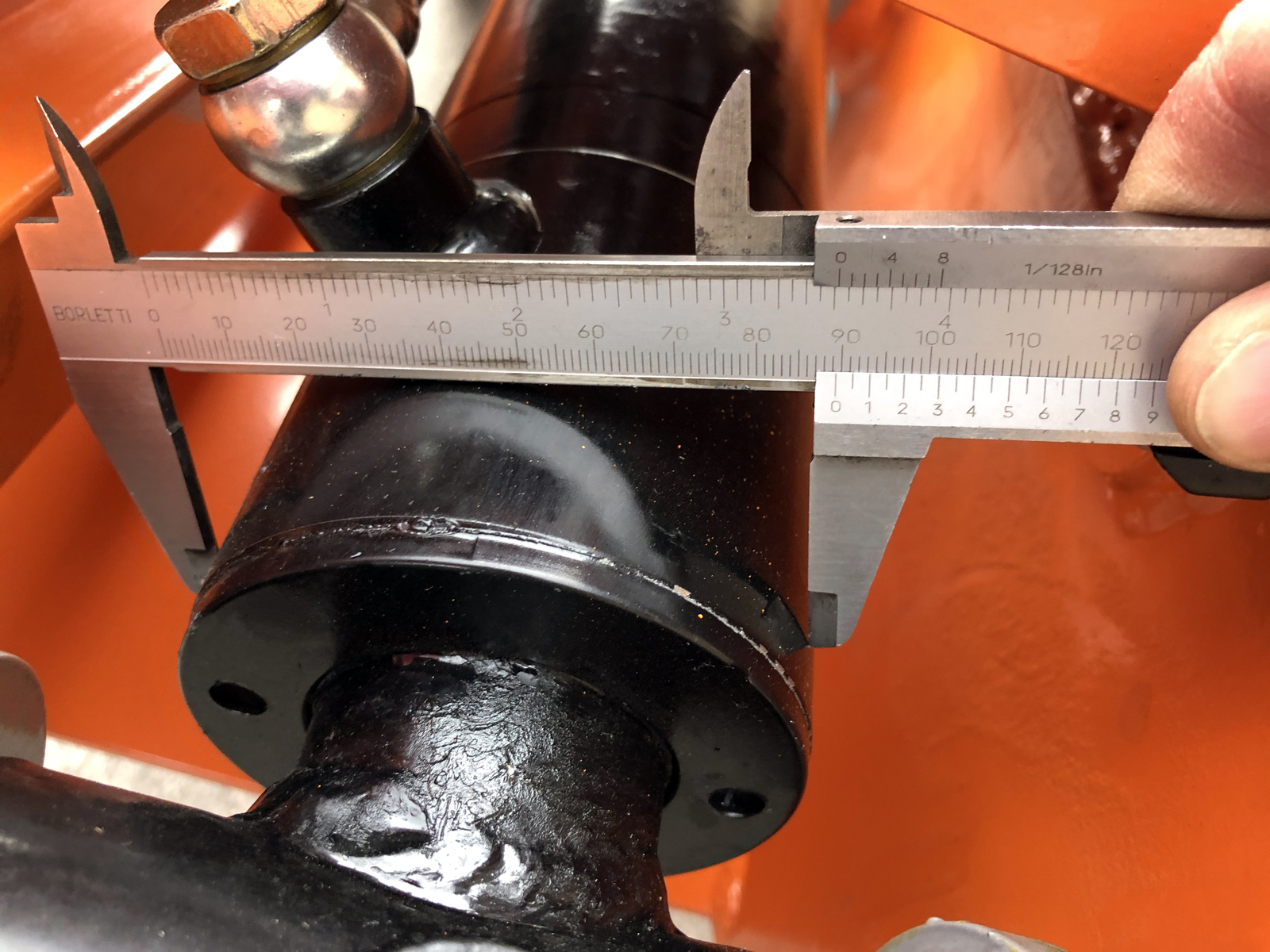

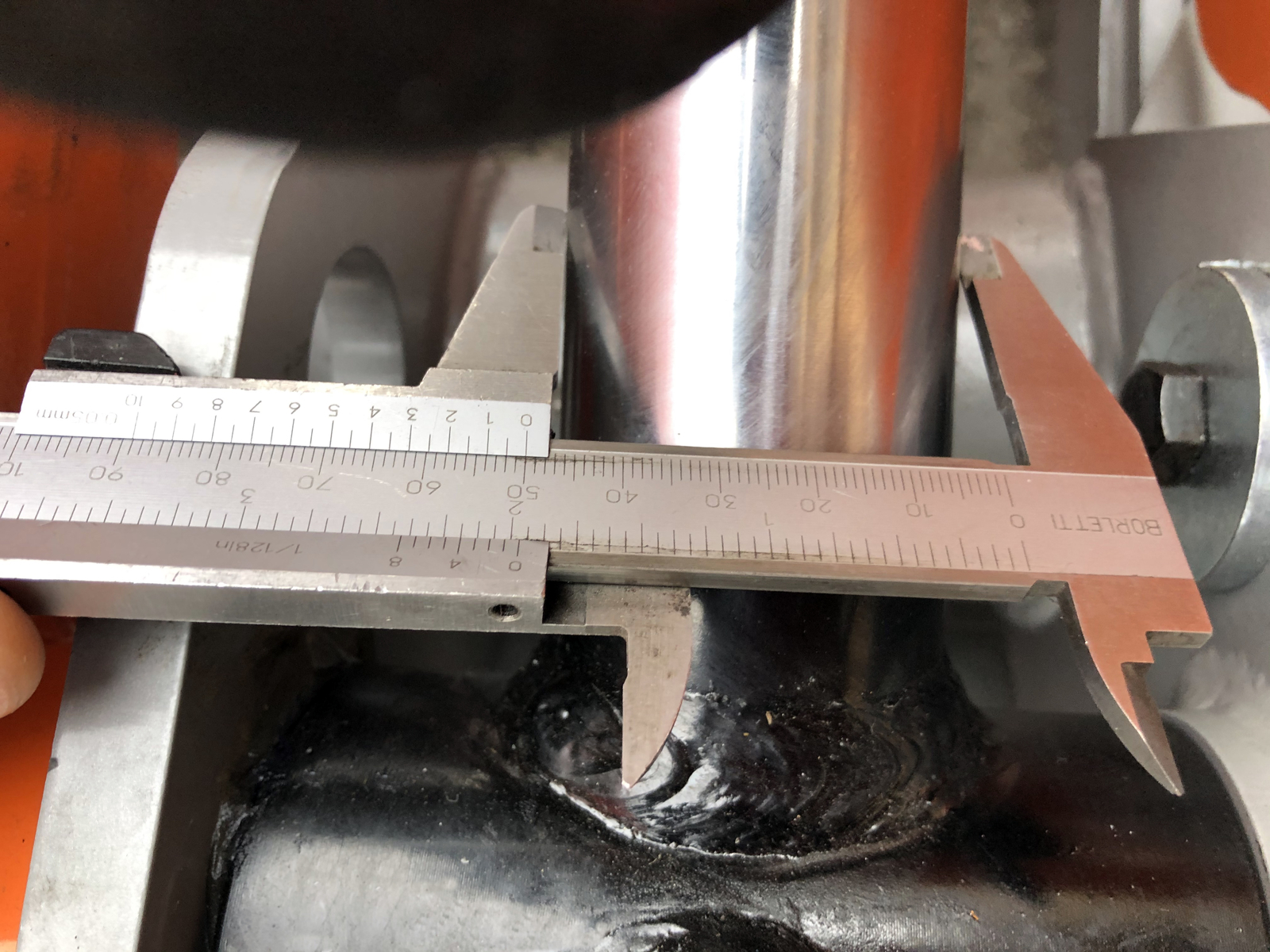

Hydraulic cilinder diameter 90.0 - 50.0 mm 3.55 - 1.97 in
Max Pressure 200 Bar 200 Bar
Rotator Lombarda Ingranaggi® GR-55FF (4,5 ton) Lombarda Ingranaggi® GR-55FF (4,5 ton)
Compact Excavators Range 4.0 - 8.0 ton 4.0 - 8.0 ton
Packing sizes 1200.0*800.0*500.0 mm 3.94*2.62*1.64 ft

Optional

6 ways flow diverter
BOSCH 6 ways flow diverter
186,00VAT incl.
Available

250 - 310 bar

25 l/min

12 V
