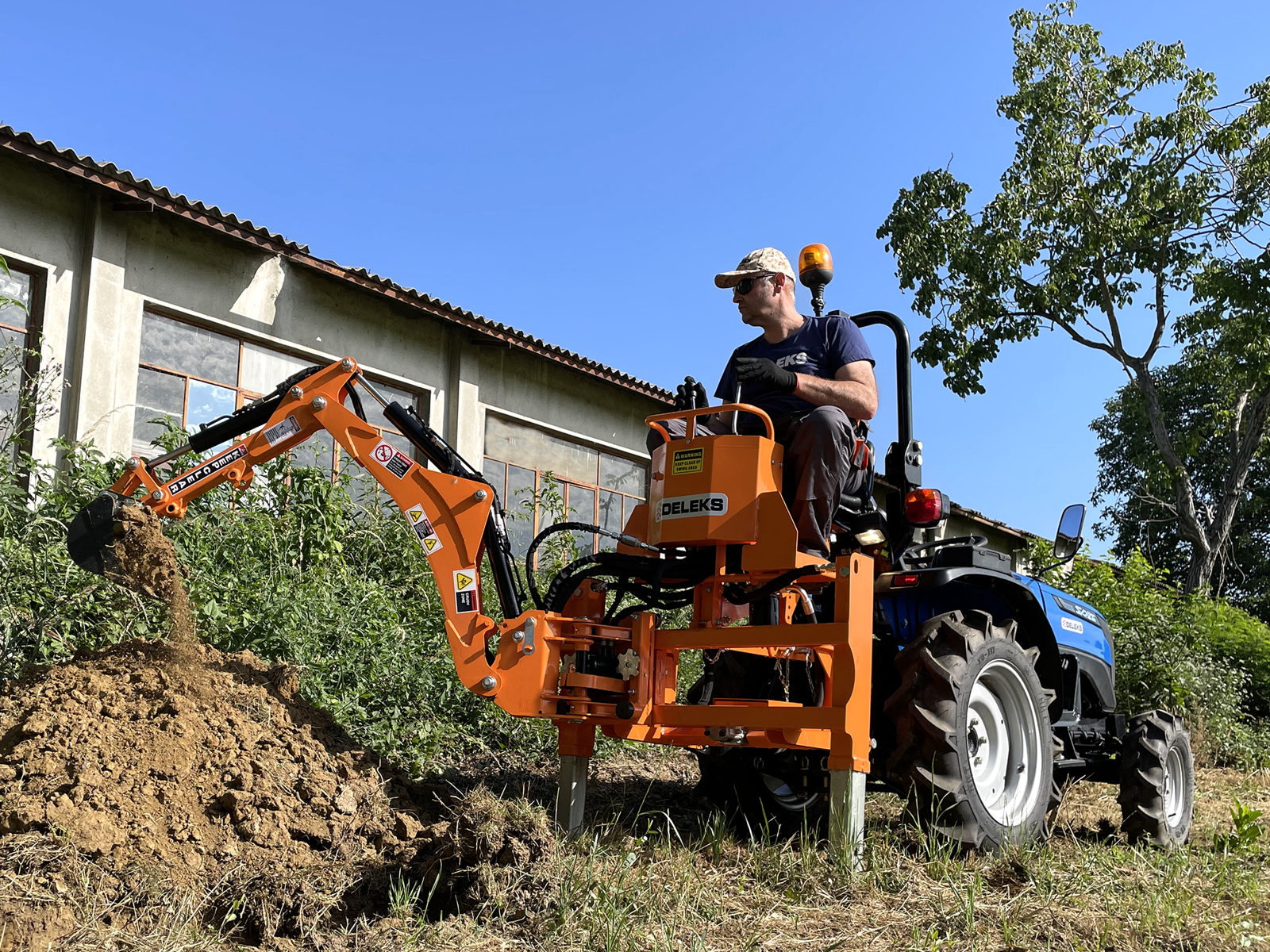

Mini backhoe for universal compact tractors

Available
Code DRS1000TPTO - EAN 8053470236440
3.914,00€VAT incl.
Free shipping
Loading...
3.914,00€VAT incl.
Free shipping
View all details.

4.6

1551 reviews

3.914,00€VAT incl.
 REQUEST INFORMATION

VIDEO

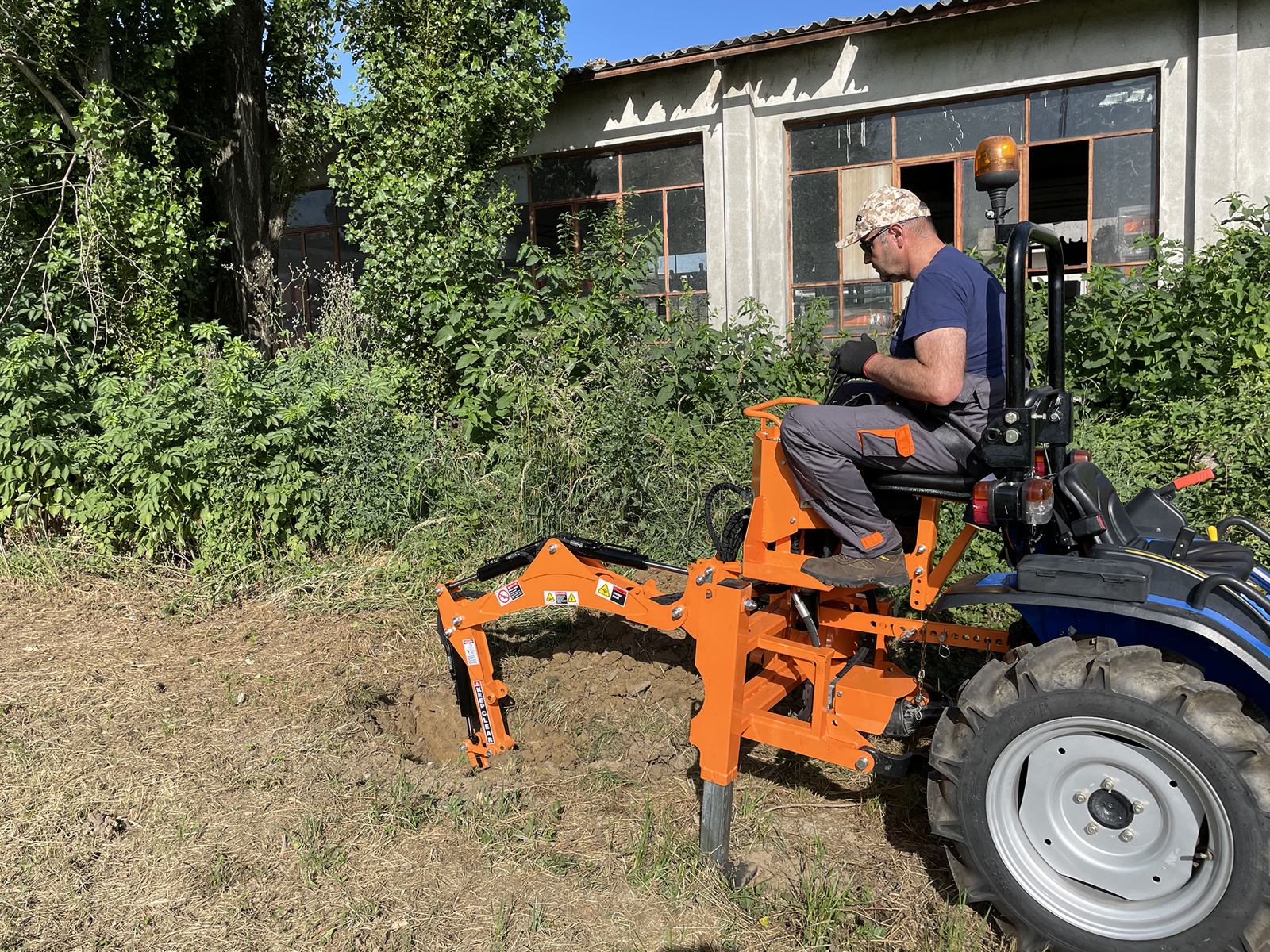

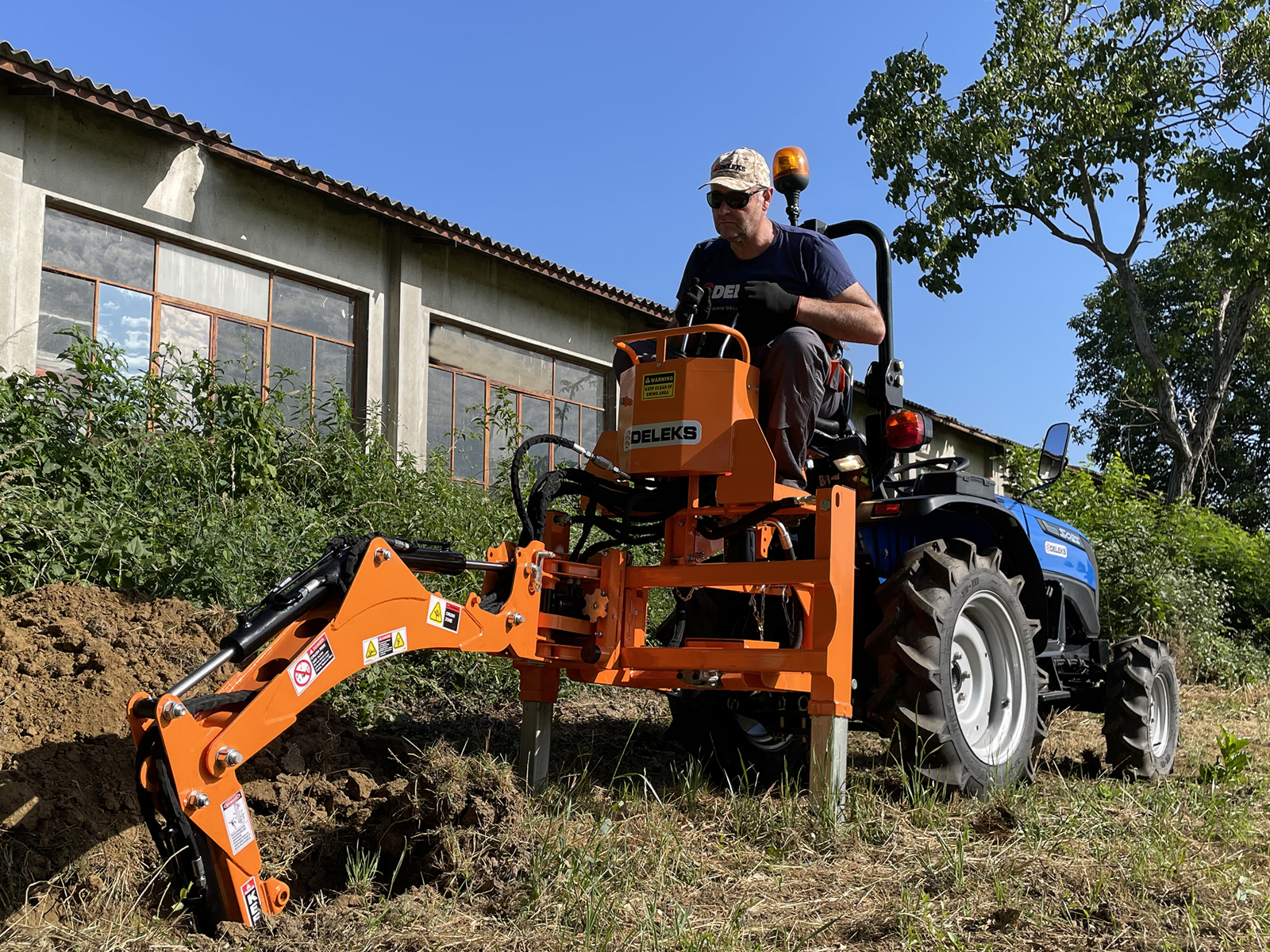

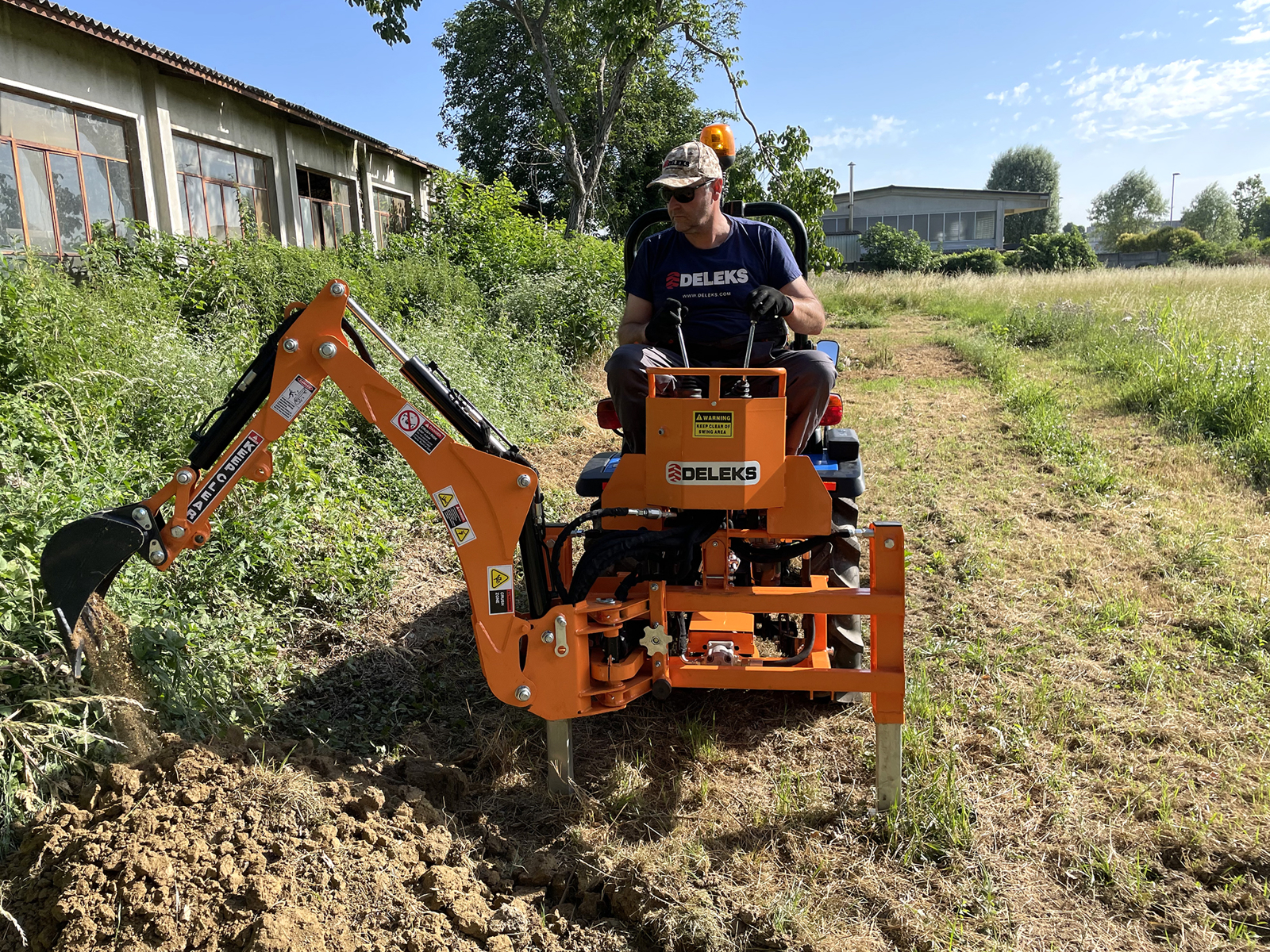

Field test
Field test

DETAILS

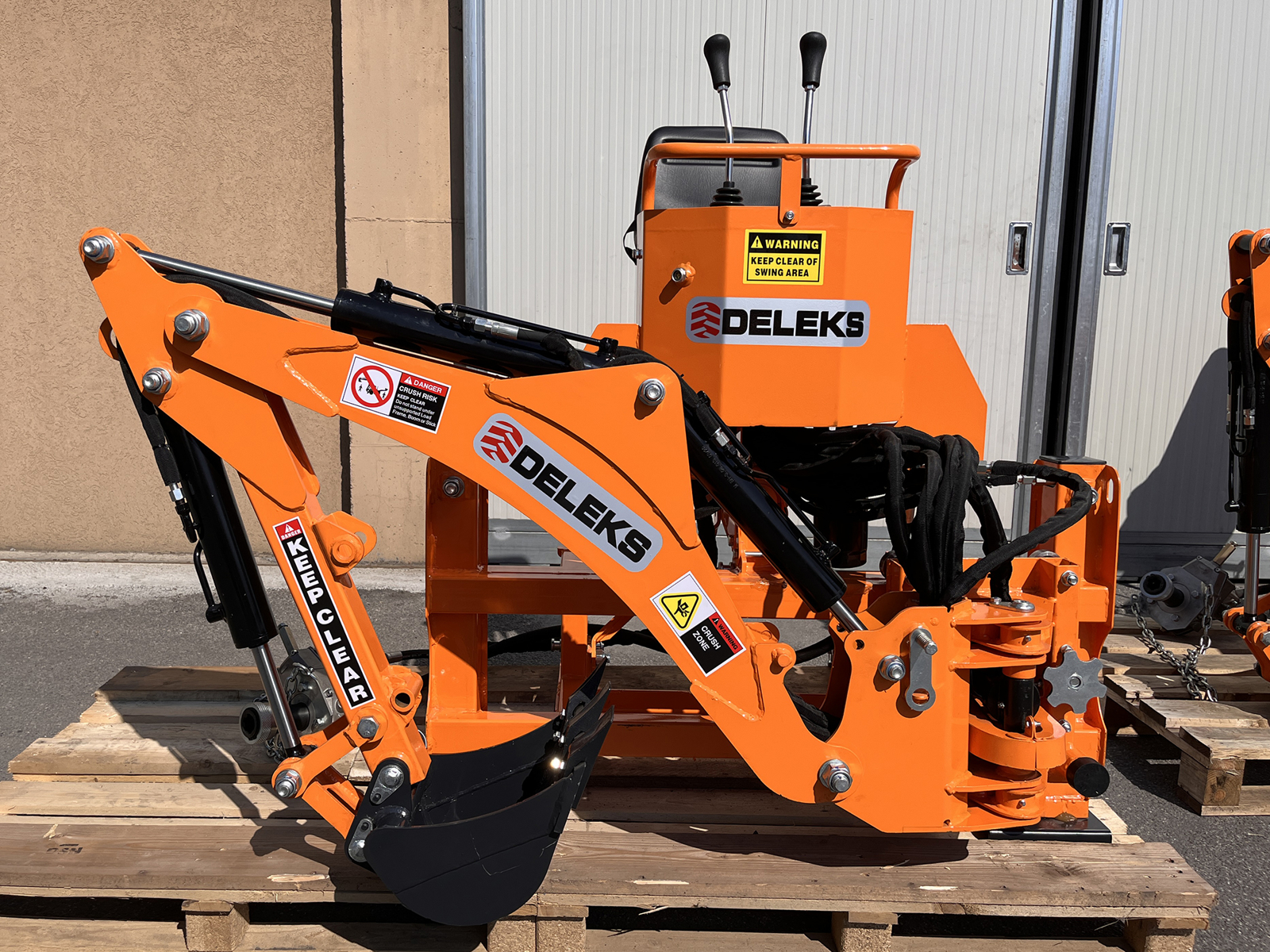

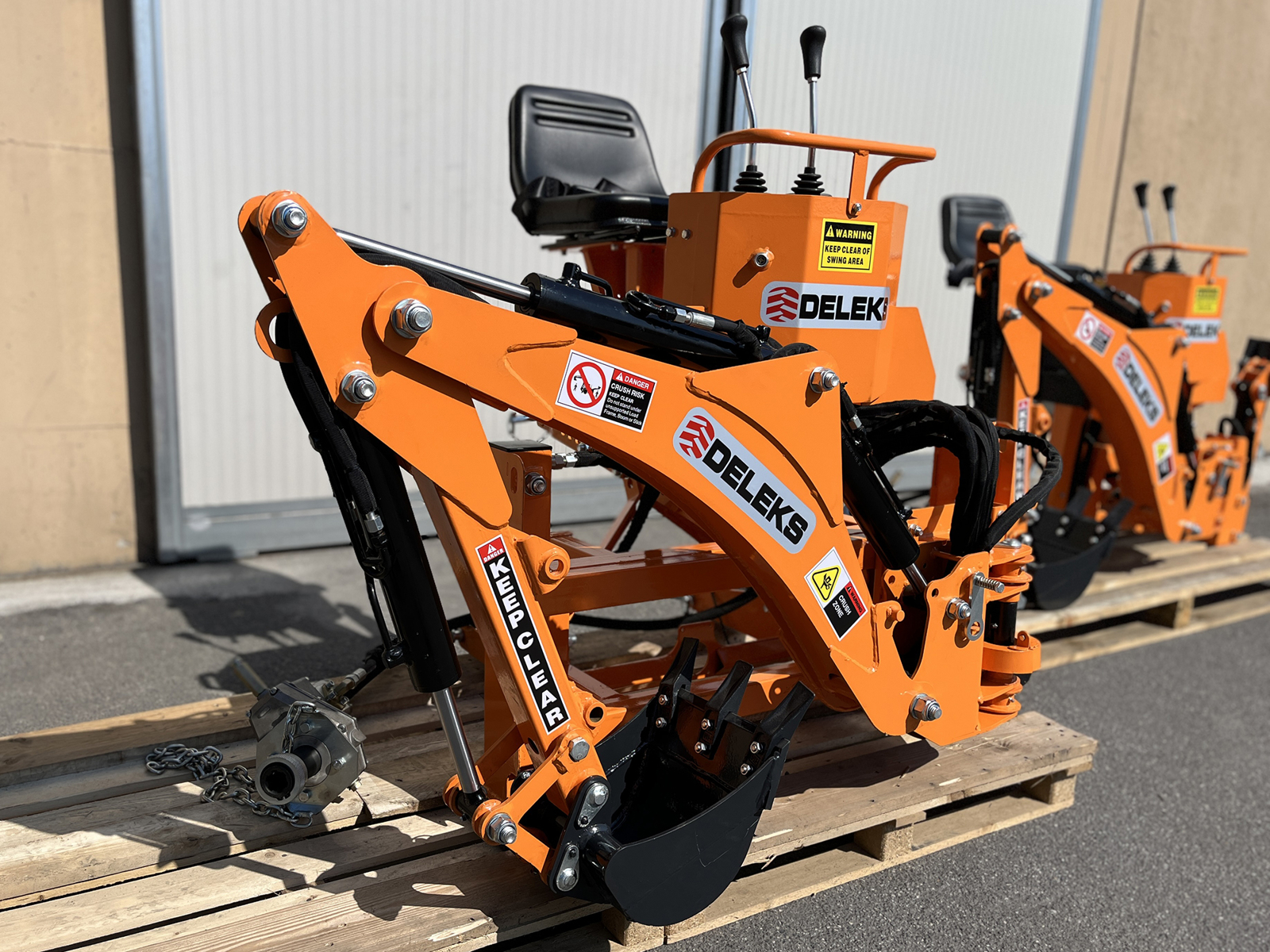

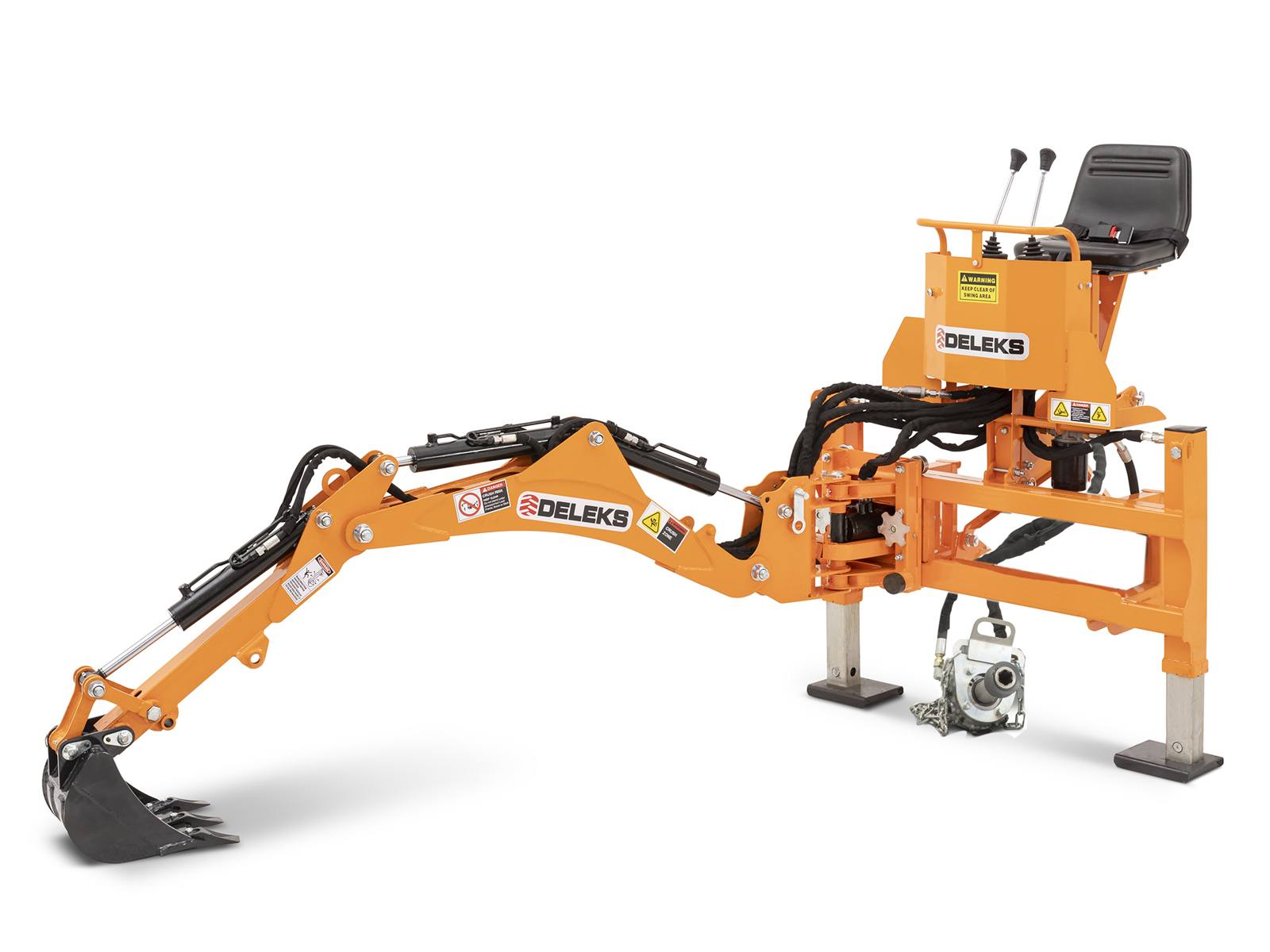

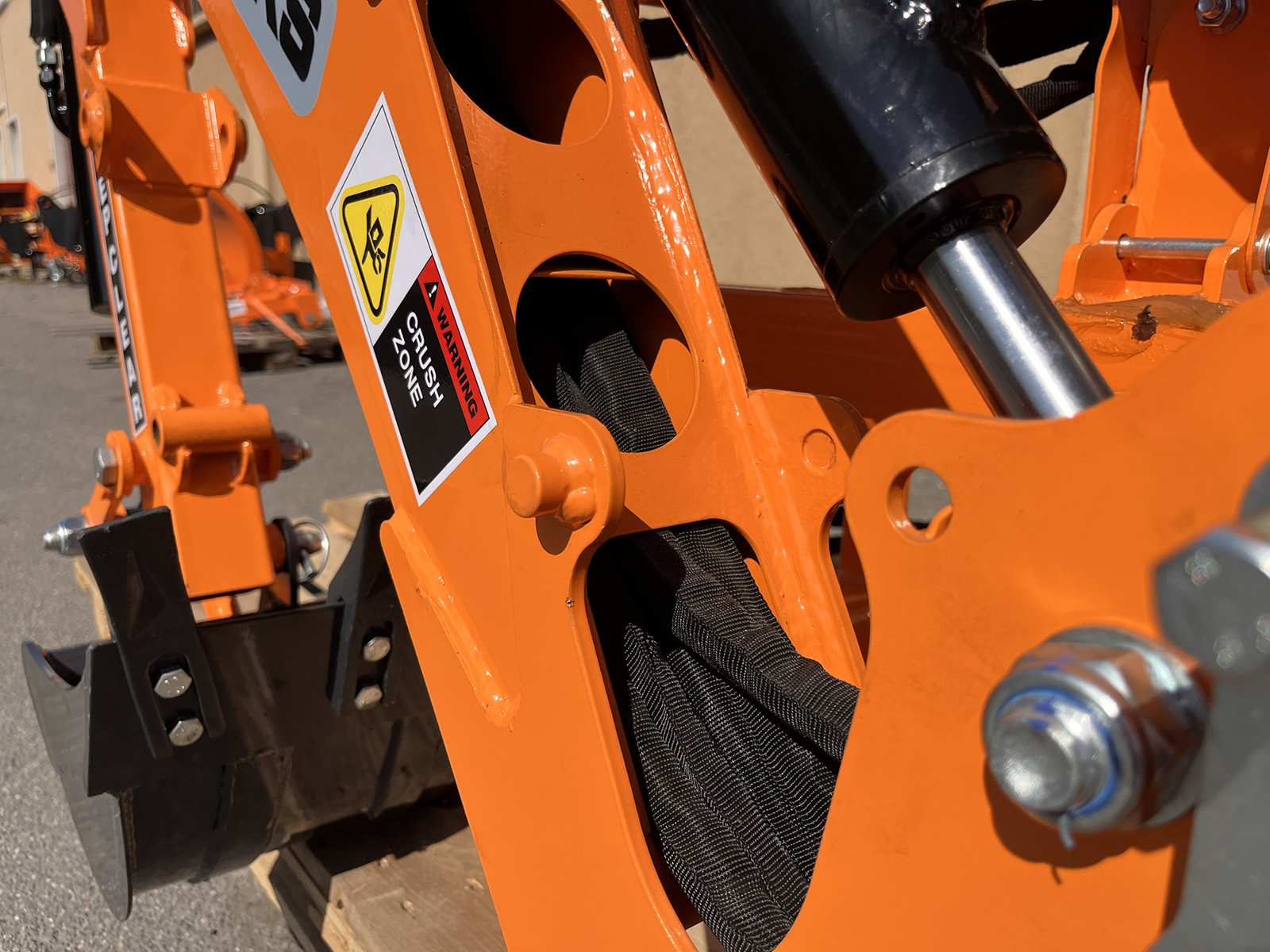

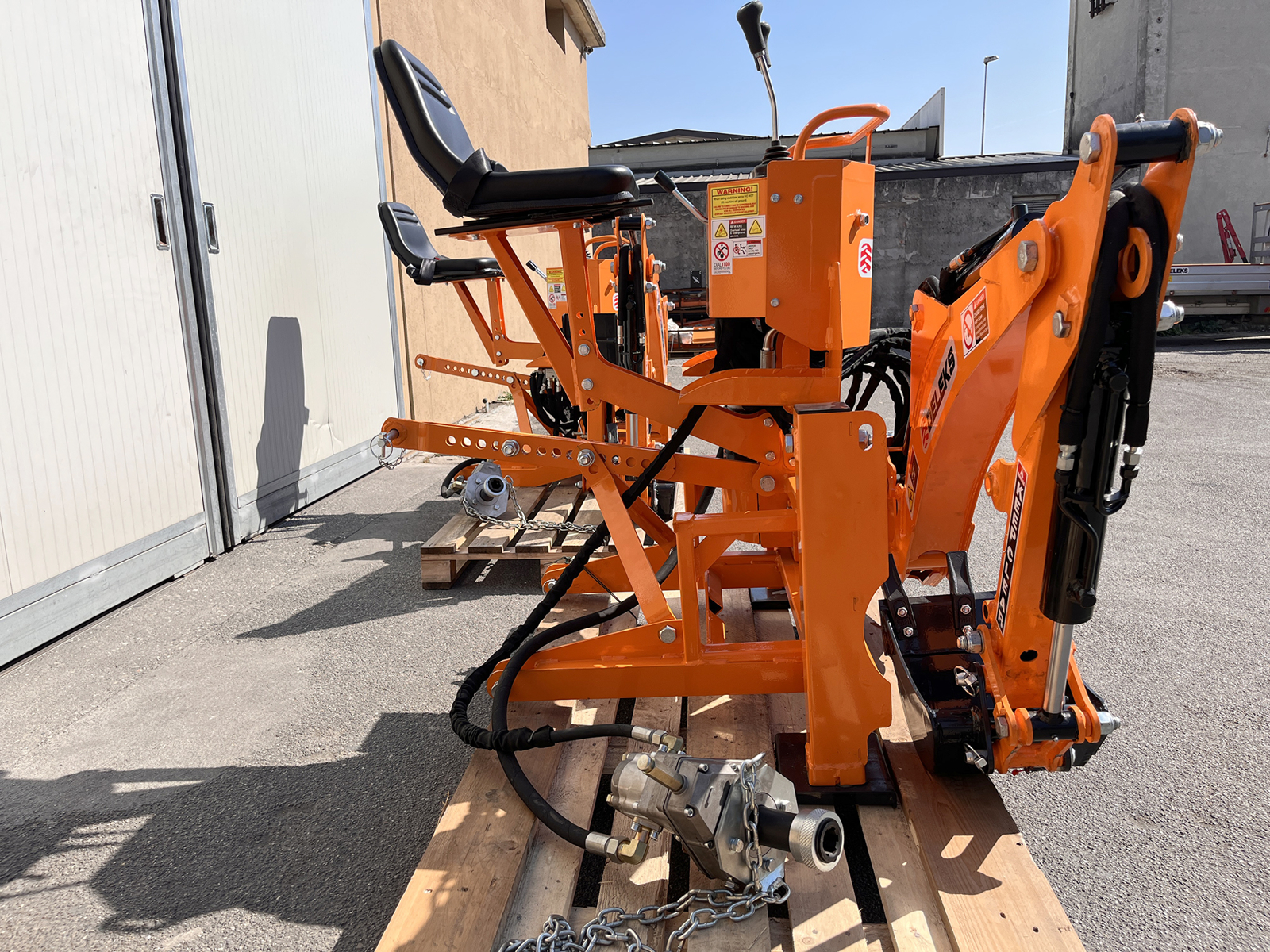

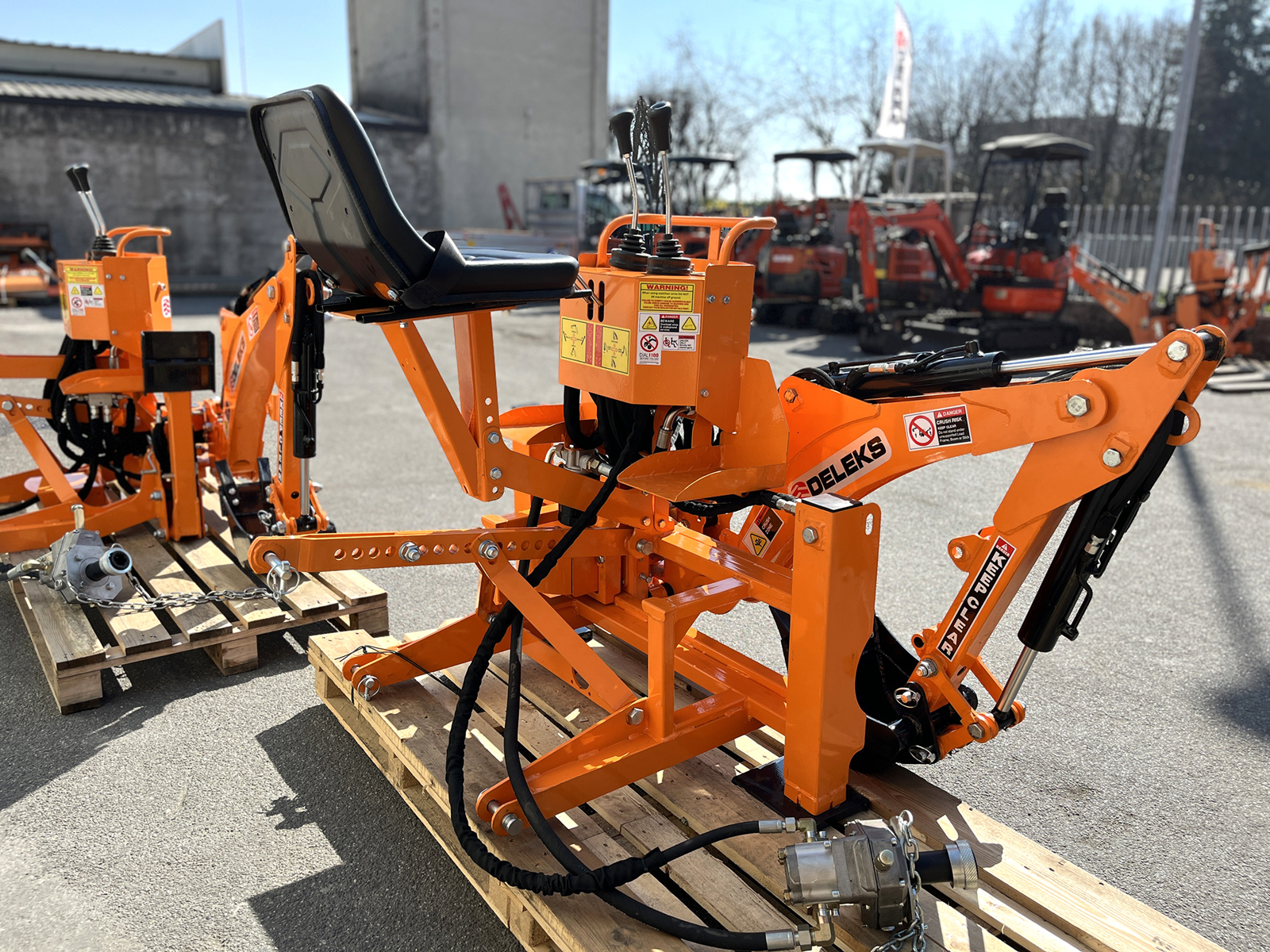

Mini backhoe for universal compact tractors - DELEKS® DRS-1000T - 358 kg - Side shift frame with manual locking - Oil system.



OVERVIEW

Dig ditches, dig soil, trench plumbing lines, haul piles of dirt or rocks.

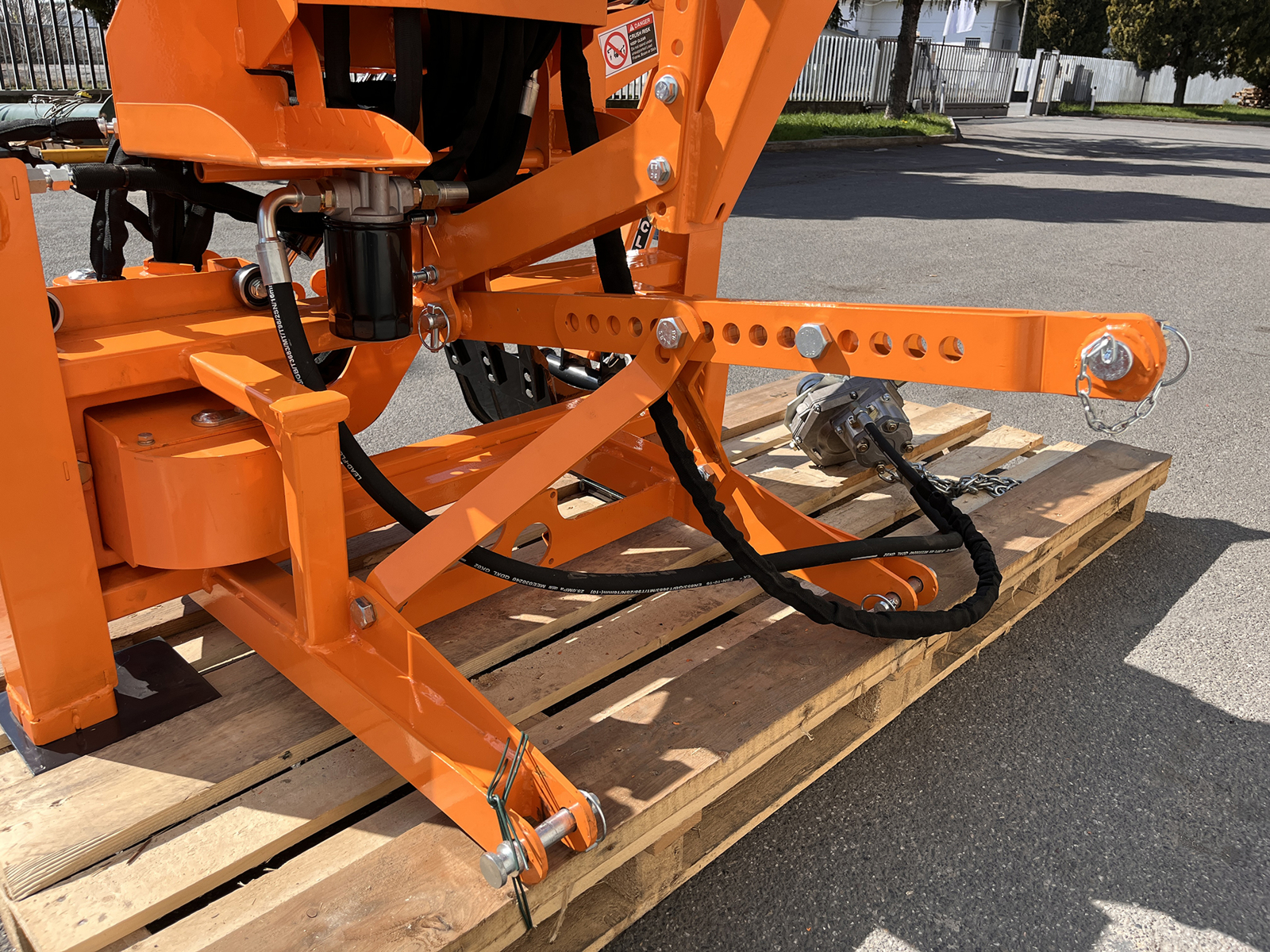

Suitable for mounting on all types of tractors 18-45 hp with 3-point attachment cat. 1.

Arm digging force: 1100 kgf

Bucket digging force: 150kgf



BENEFITS AND FEATURES

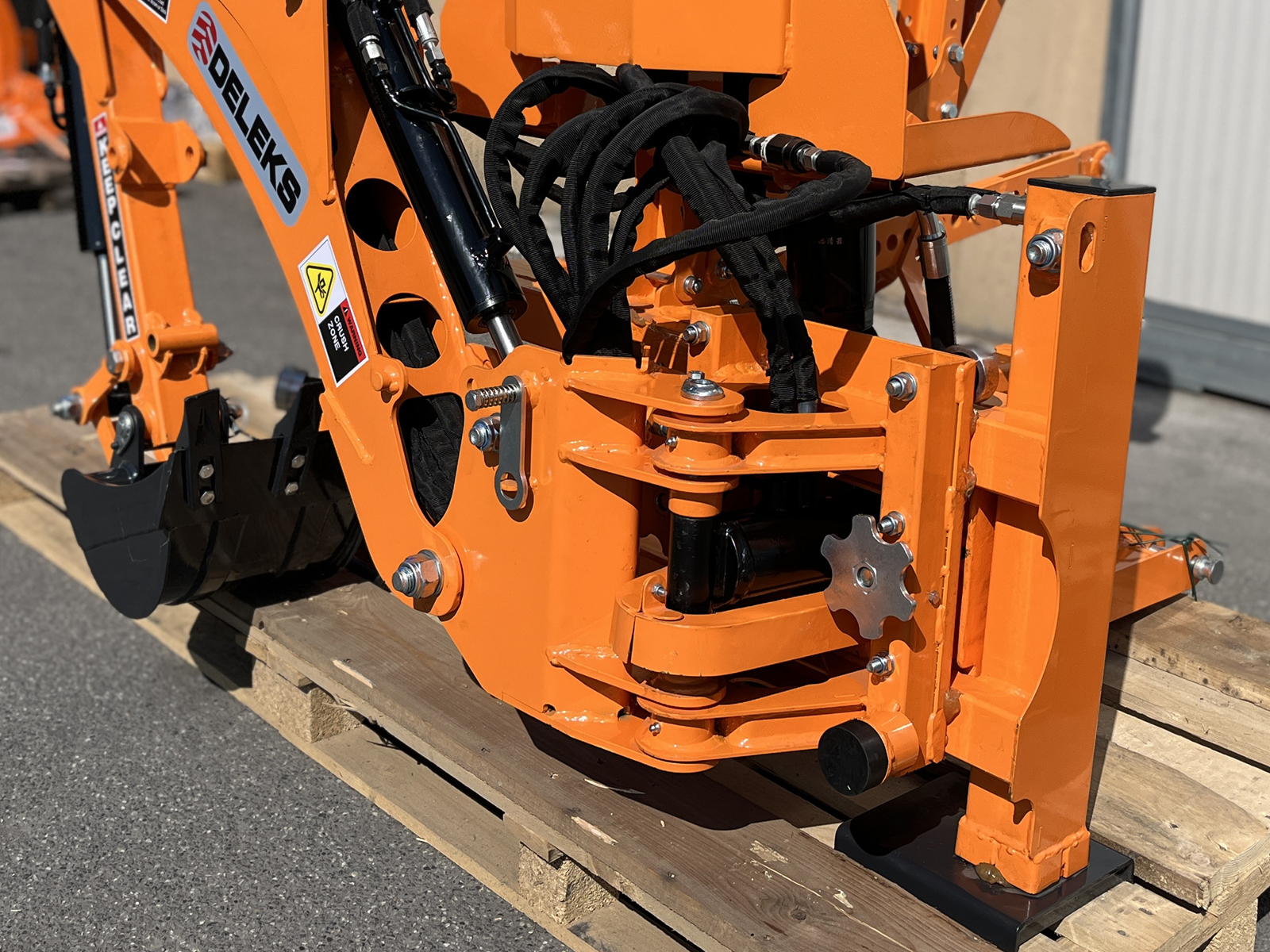

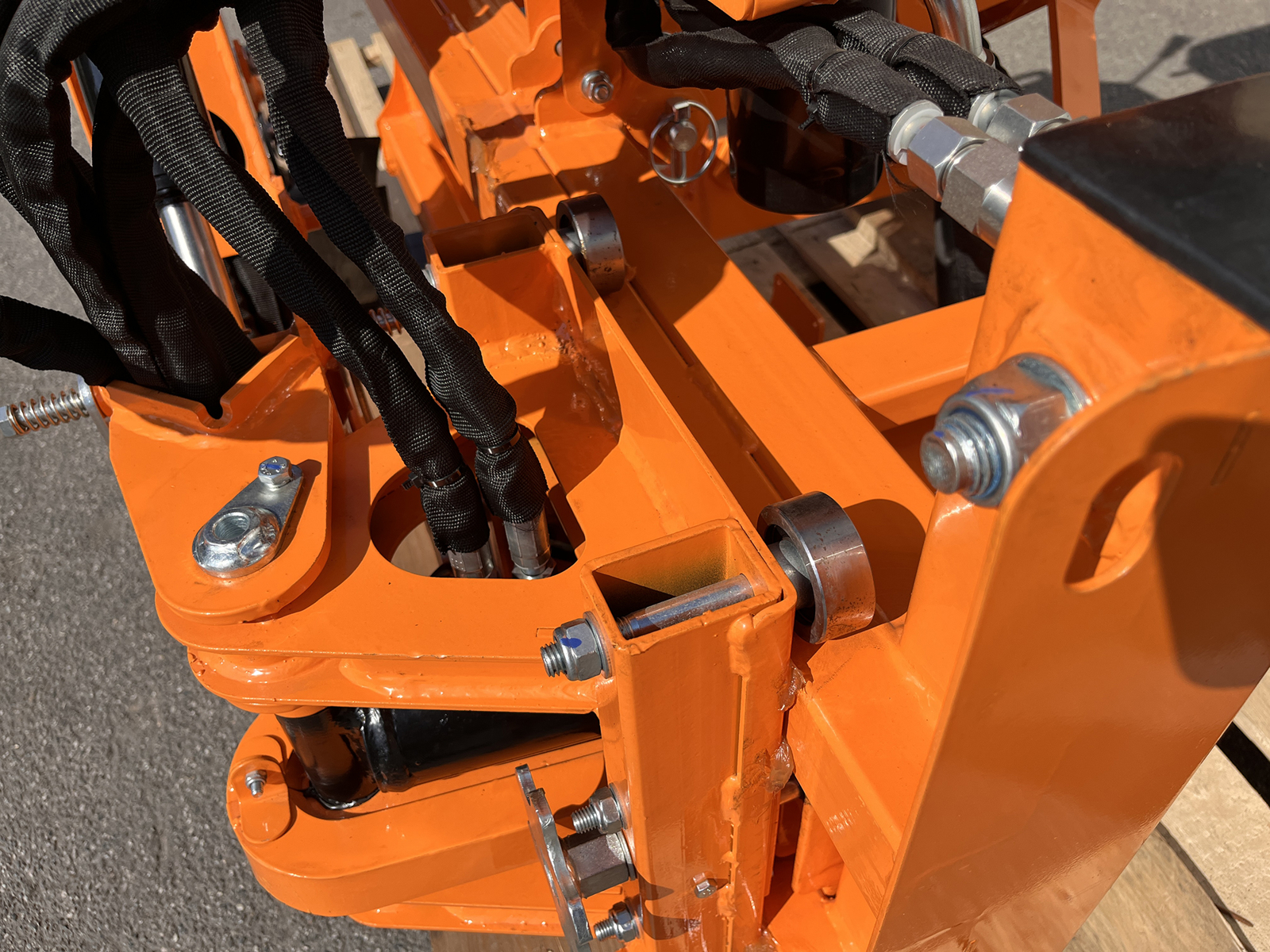

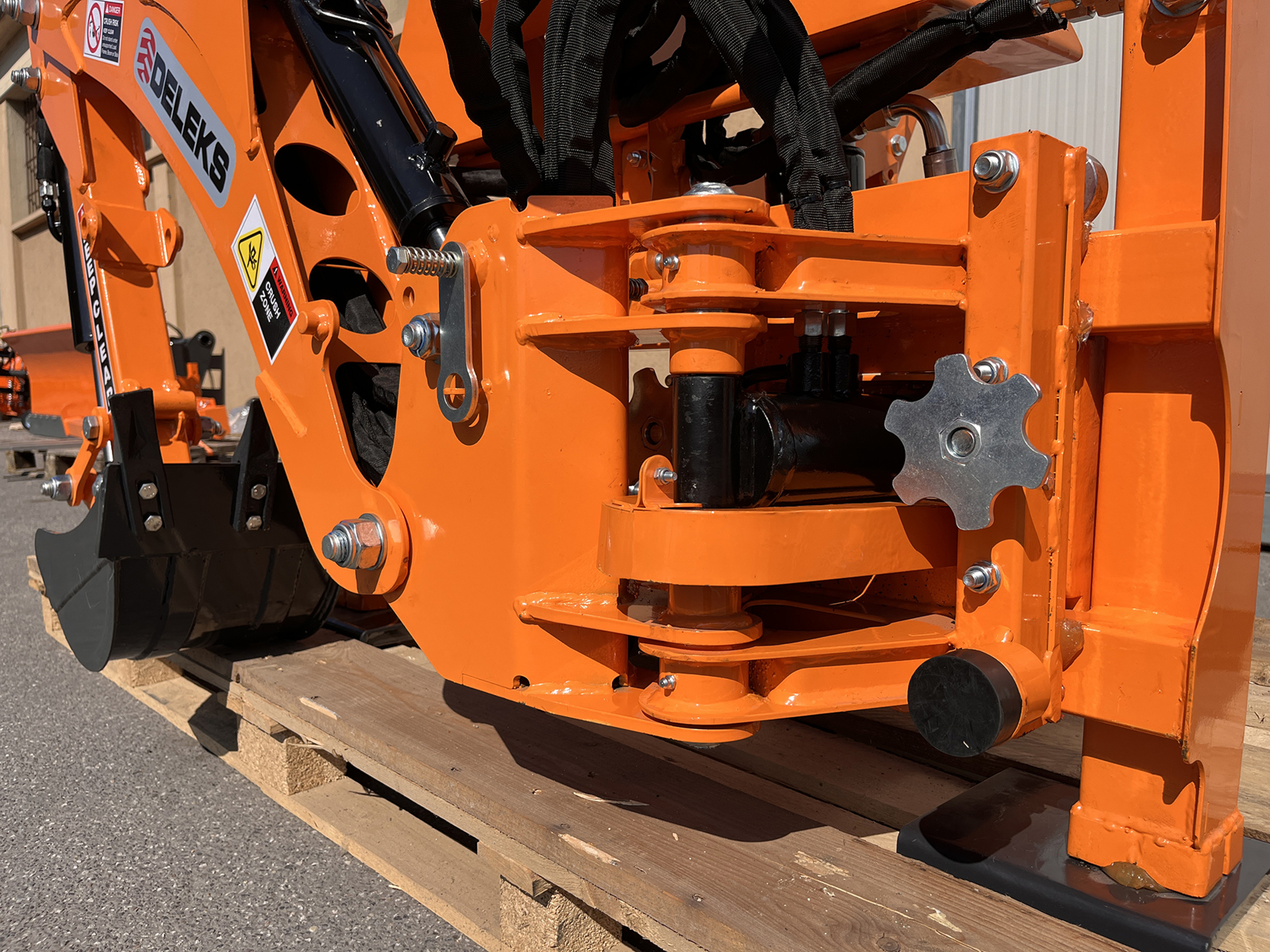

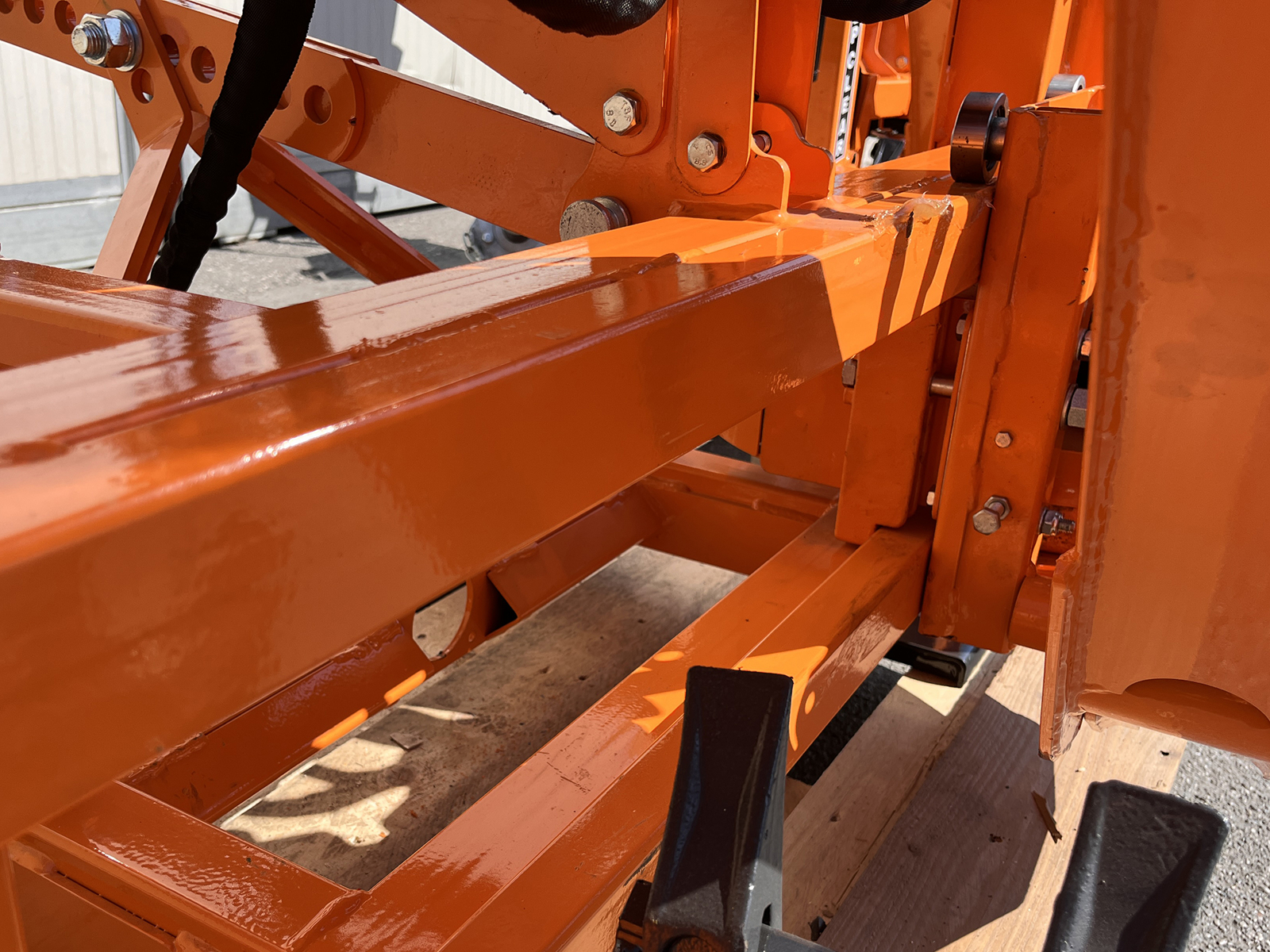

Side shift frame with manual locking.

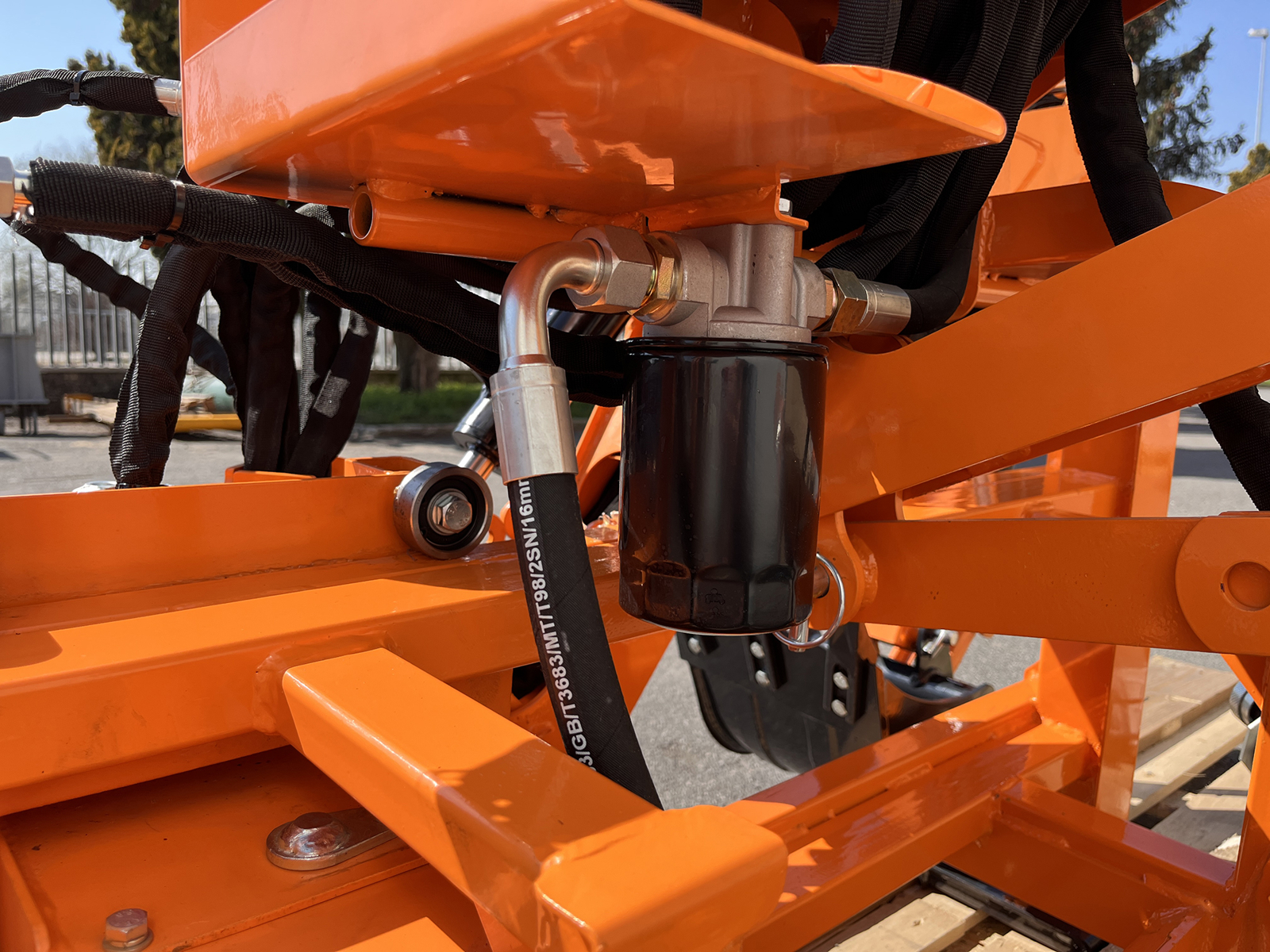

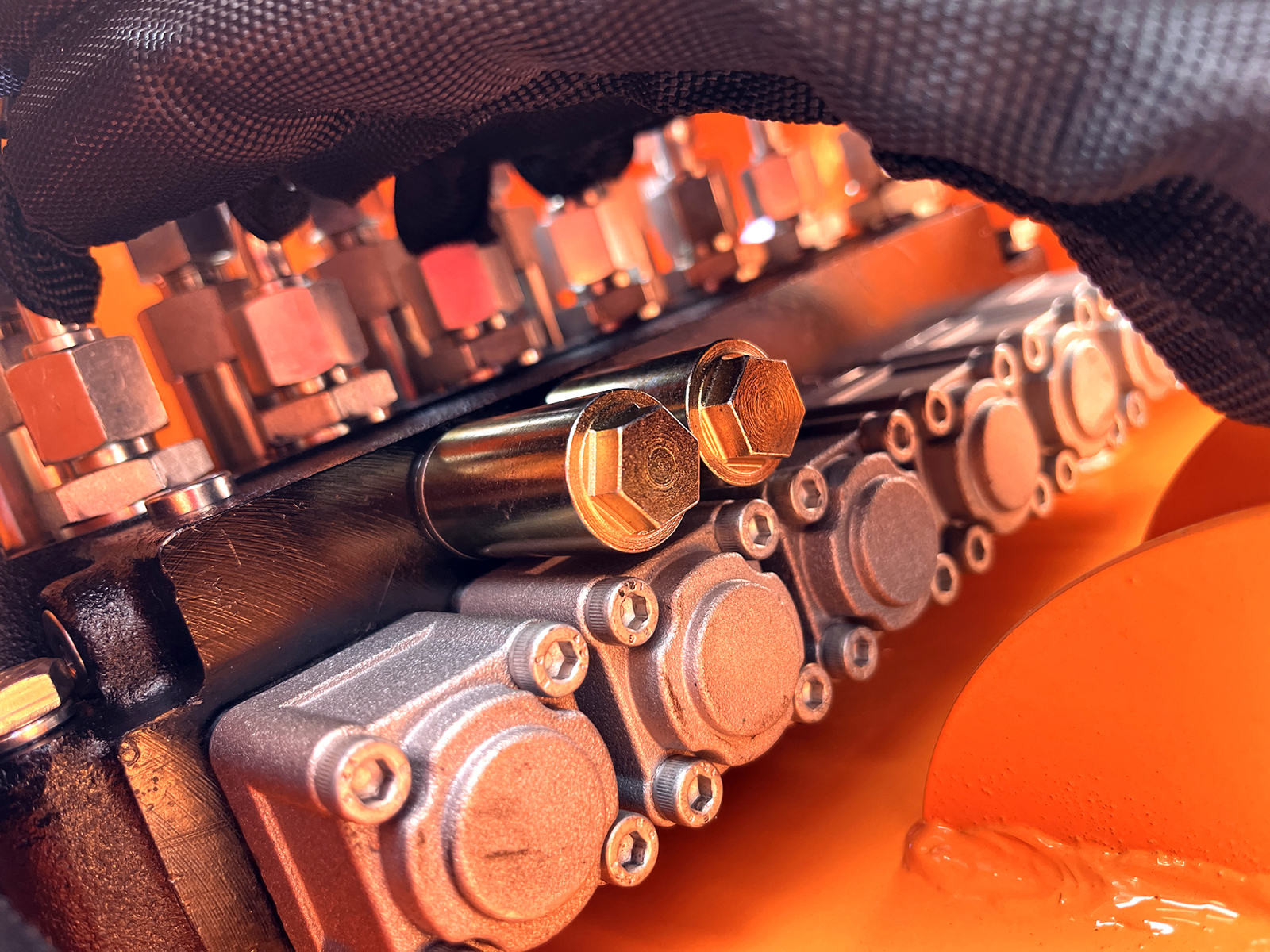

Oil system.

Practical deign, comfortable seat and foldable.

Blocking kit to prevent uncontrolled lifting of the tractor's 2 arms (UNI EN 16246 standard of January 2013 - International obligation).

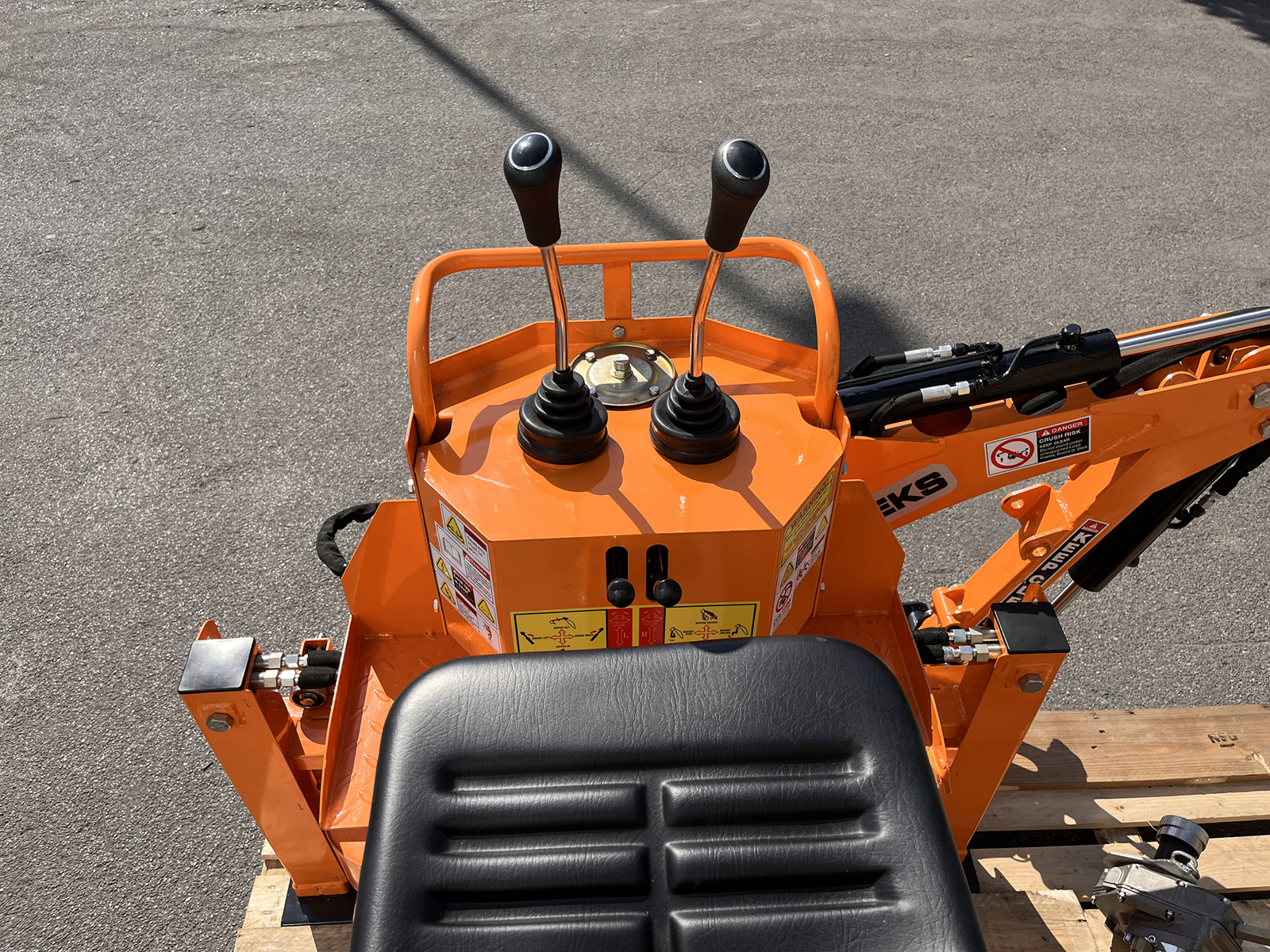

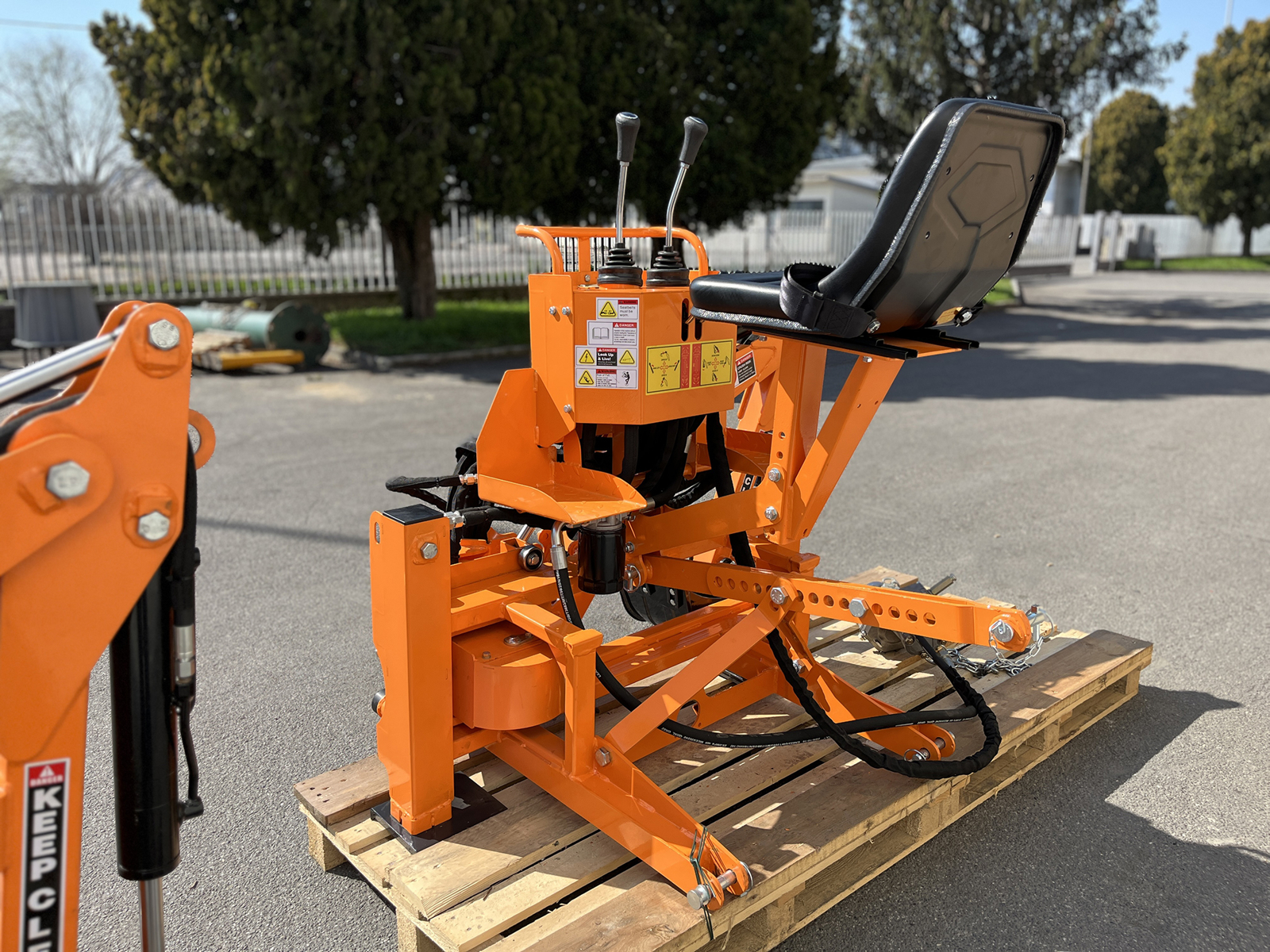

Ergonomic control position.

Stabilizing legs individually steerable.

Hook lock for safe transport.

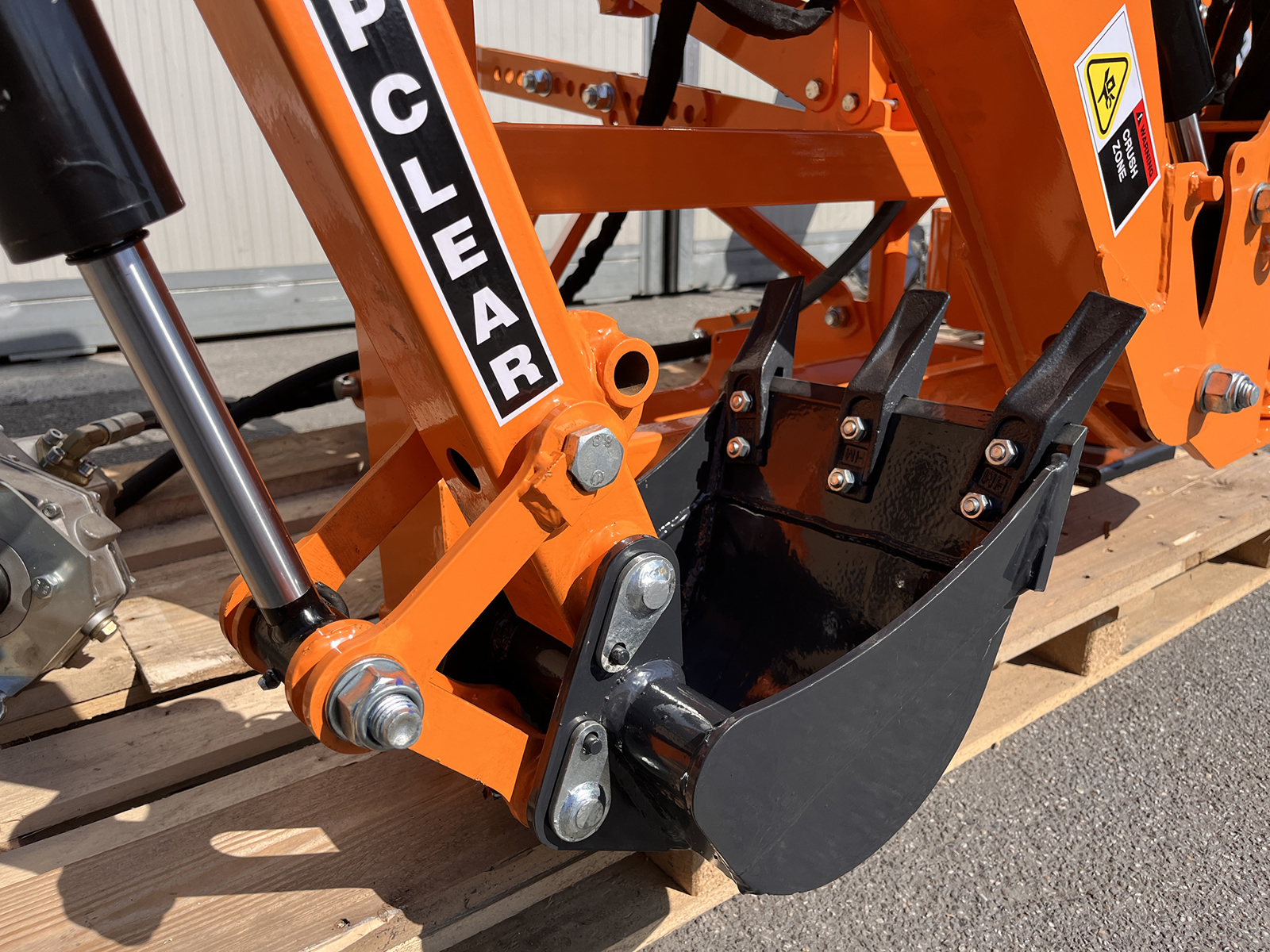

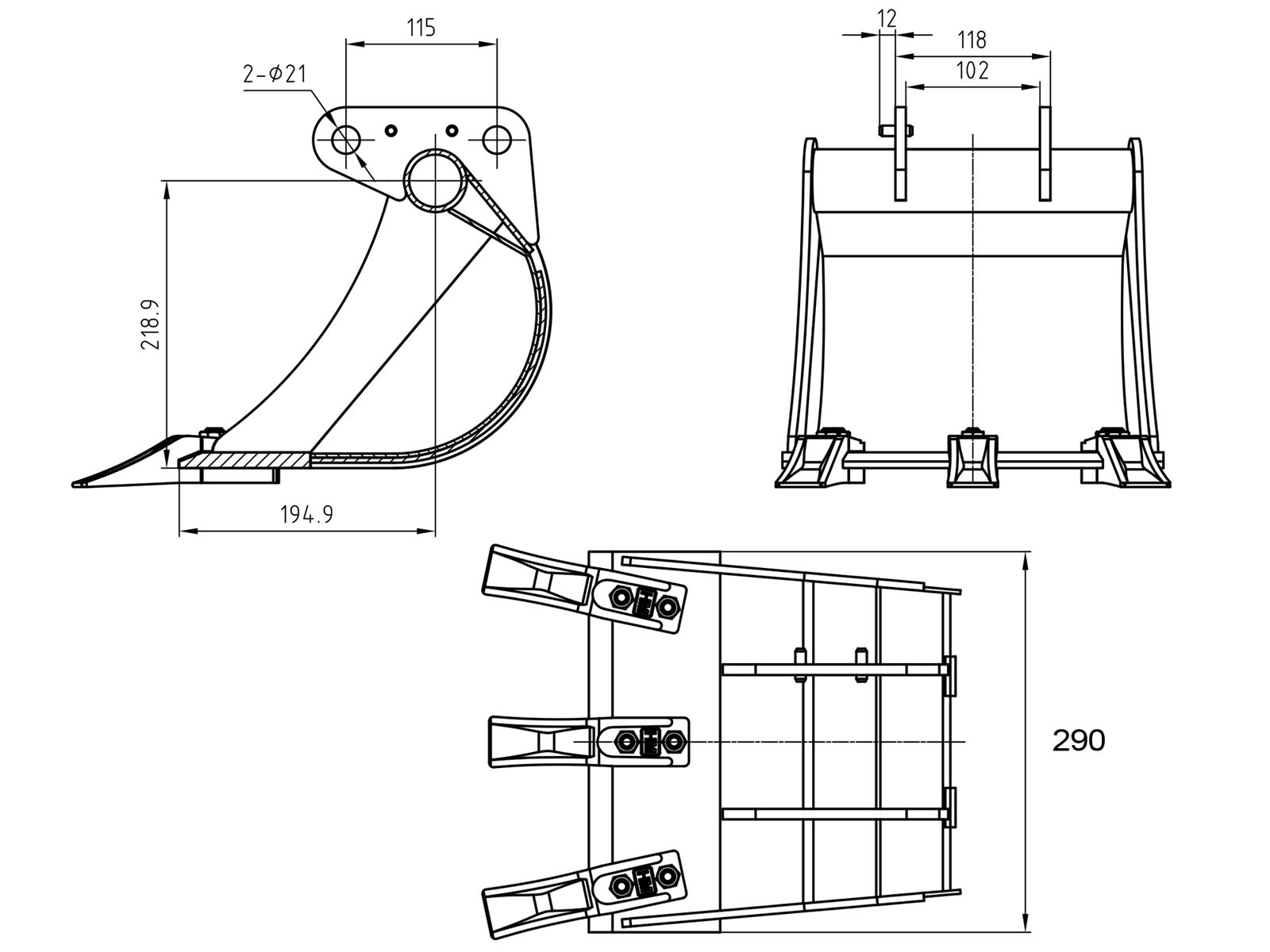

Bucket (11.5 in - 29cm).

Simple to connect to the tractor even by a single person, pins and bushings on seams of high quality guarantee long durability.

Supplied with a two year warranty.



CHARACTERISTICS

Characteristic Units metric Units US
Weight 358.0 kg 780.0 lb
3 point linkage Cat. 1 (ø 19.0-22.0mm) Cat. 1 (ø 19.0-22.0mm)
Bucket Width 290.0 mm 11.5 in
Spacing between the 2 lower points 590.0 - 680.0 mm 23.0 - 27.0 in
Working pressure 120 - 200 bar 120 - 200 bar
Min./Max. Flow 25 - 40 l/min 25 - 40 l/min

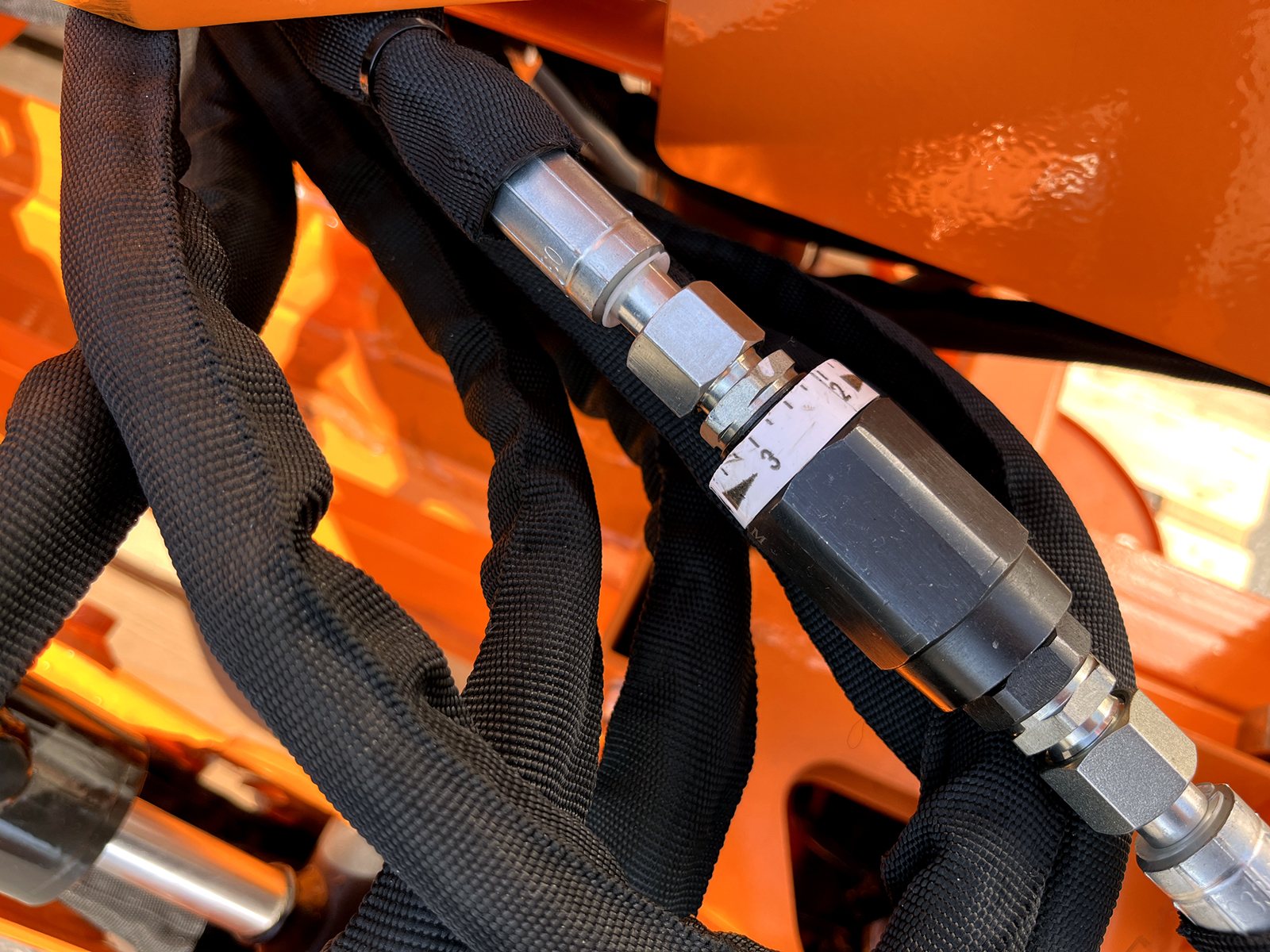

Hydraulic Hoses WP-400 bar WP-400 bar
Slewing Angle 180° 180°
HP min 18 Hp 18 Hp
Arms cylinders diameter 63.0 - 25.0 mm 2.5 - 1.0 in
Independent Stabilizers 2 2

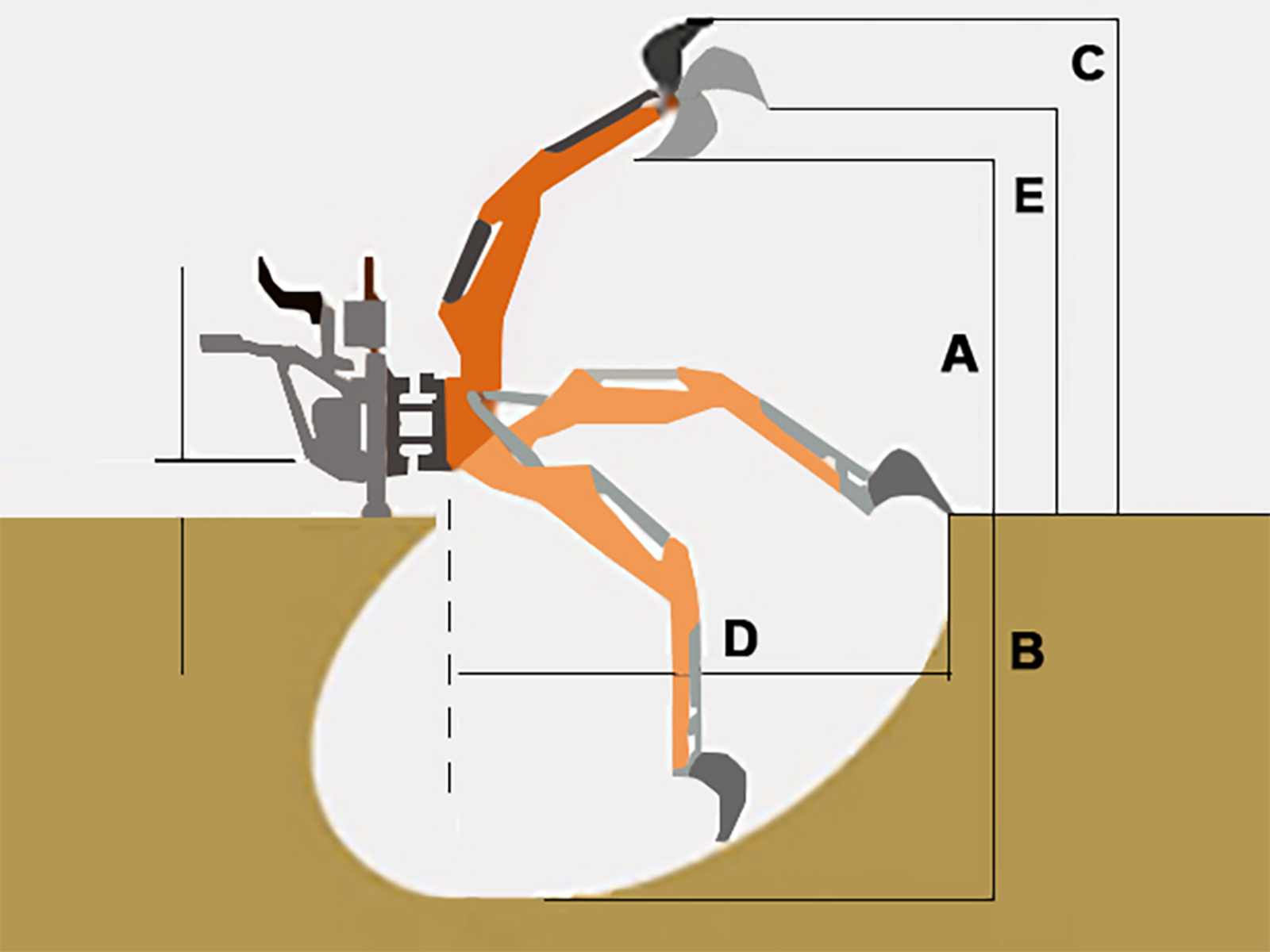

Digging depth 950.0 mm 3.12 ft
Loading Height 1690.0 mm 5.54 ft
Unload Height 1800.0 mm 5.90 ft
Max Height 2280.0 mm 7.48 ft
Reach 2440.0 mm 8.00 ft
Leg Spread 1150.0 mm 3.77 ft
Gross shipping weight 386 kg 851 lb
Package volume 1.96 m3 69.2 cu ft
Packing sizes 1900*860*1200 mm 6.23*2.82*3.94 ft
DETAILS
CHARACTERISTICS

DETAILS

CLOSE

Mini backhoe for universal compact tractors - DELEKS® DRS-1000T - 358 kg - Side shift frame with manual locking - Oil system.



OVERVIEW

Dig ditches, dig soil, trench plumbing lines, haul piles of dirt or rocks.

Suitable for mounting on all types of tractors 18-45 hp with 3-point attachment cat. 1.

Arm digging force: 1100 kgf

Bucket digging force: 150kgf



BENEFITS AND FEATURES

Side shift frame with manual locking.

Oil system.

Practical deign, comfortable seat and foldable.

Blocking kit to prevent uncontrolled lifting of the tractor's 2 arms (UNI EN 16246 standard of January 2013 - International obligation).

Ergonomic control position.

Stabilizing legs individually steerable.

Hook lock for safe transport.

Bucket (11.5 in - 29cm).

Simple to connect to the tractor even by a single person, pins and bushings on seams of high quality guarantee long durability.

Supplied with a two year warranty.



CHARACTERISTICS

CLOSE
Characteristic Units metric Units US
Weight 358.0 kg 780.0 lb
3 point linkage Cat. 1 (ø 19.0-22.0mm) Cat. 1 (ø 19.0-22.0mm)
Bucket Width 290.0 mm 11.5 in
Spacing between the 2 lower points 590.0 - 680.0 mm 23.0 - 27.0 in
Working pressure 120 - 200 bar 120 - 200 bar
Min./Max. Flow 25 - 40 l/min 25 - 40 l/min
Hydraulic Hoses WP-400 bar WP-400 bar
Slewing Angle 180° 180°
HP min 18 Hp 18 Hp
Arms cylinders diameter 63.0 - 25.0 mm 2.5 - 1.0 in
Independent Stabilizers 2 2
Digging depth 950.0 mm 3.12 ft
Loading Height 1690.0 mm 5.54 ft
Unload Height 1800.0 mm 5.90 ft
Max Height 2280.0 mm 7.48 ft
Reach 2440.0 mm 8.00 ft
Leg Spread 1150.0 mm 3.77 ft
Gross shipping weight 386 kg 851 lb
Package volume 1.96 m3 69.2 cu ft
Packing sizes 1900*860*1200 mm 6.23*2.82*3.94 ft

Optional

Bucket for miniexcavator or backhoe - 60cm
Optional special price -31,90€ 319,00€VAT incl. 287,10€VAT incl.
Not available  Notify me

DRS-1000

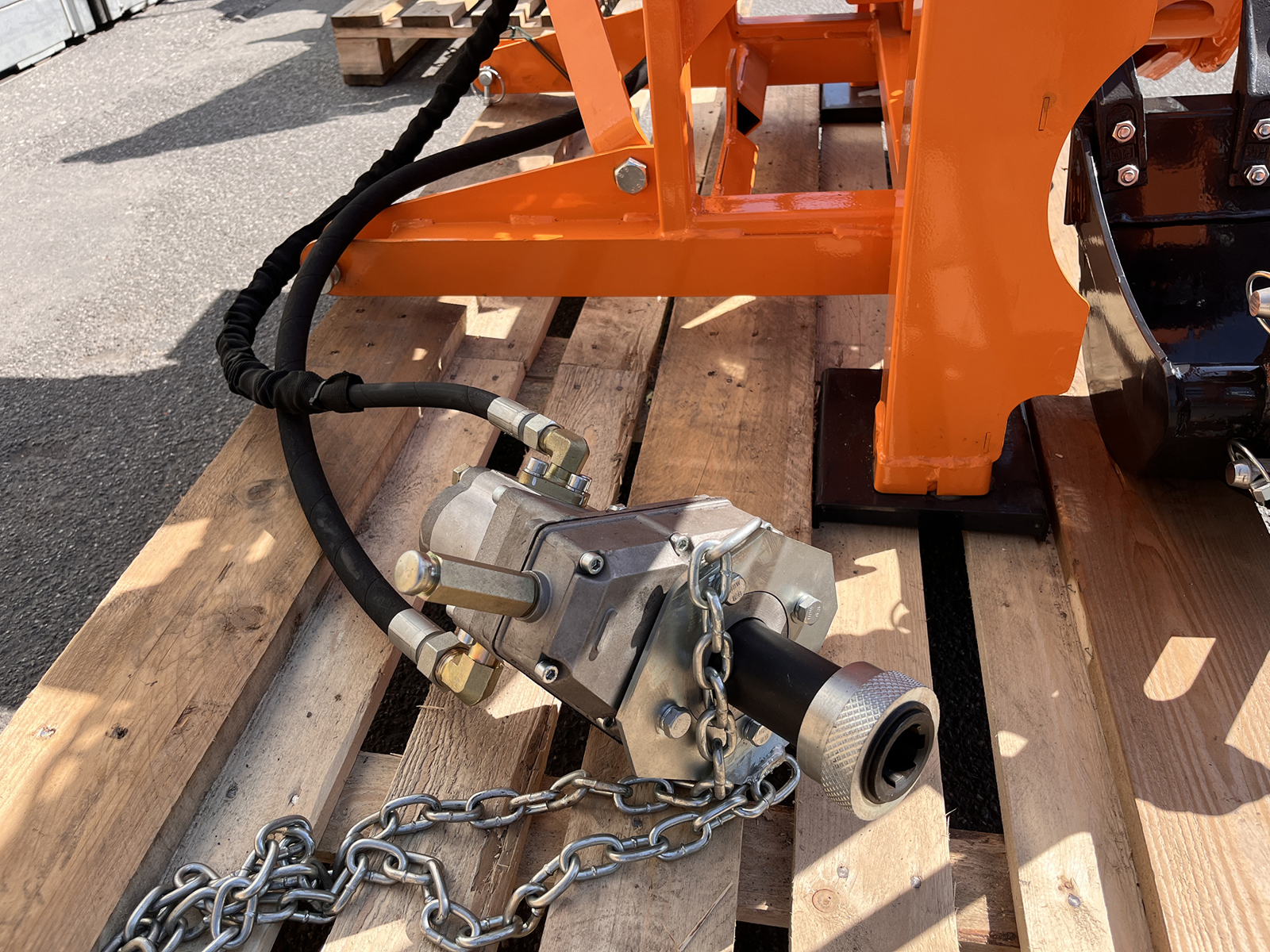

PTO-adapter
