3 way hydraulic tipping trailer for tractor, with mesh sides
Field test
DETAILS

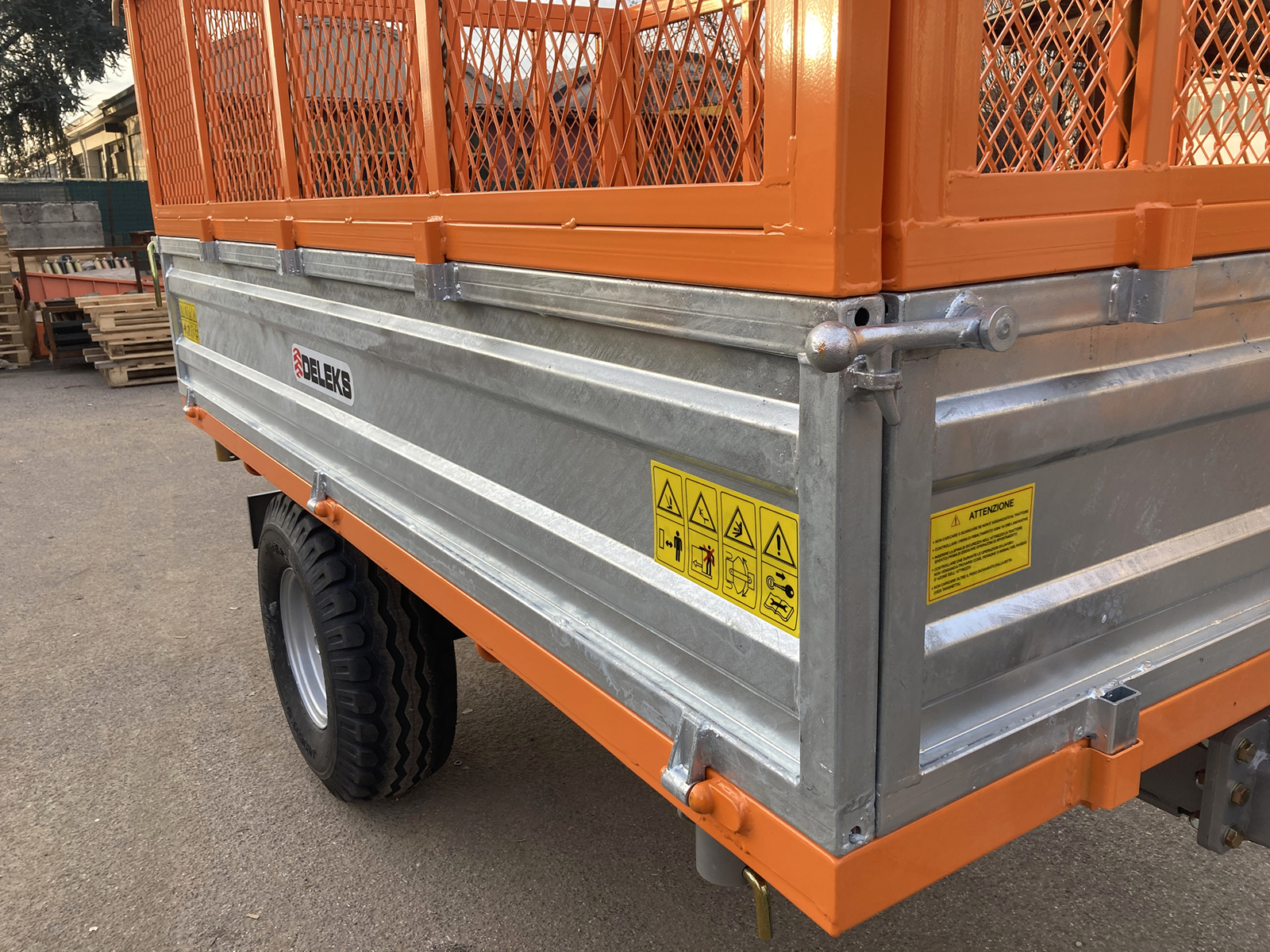

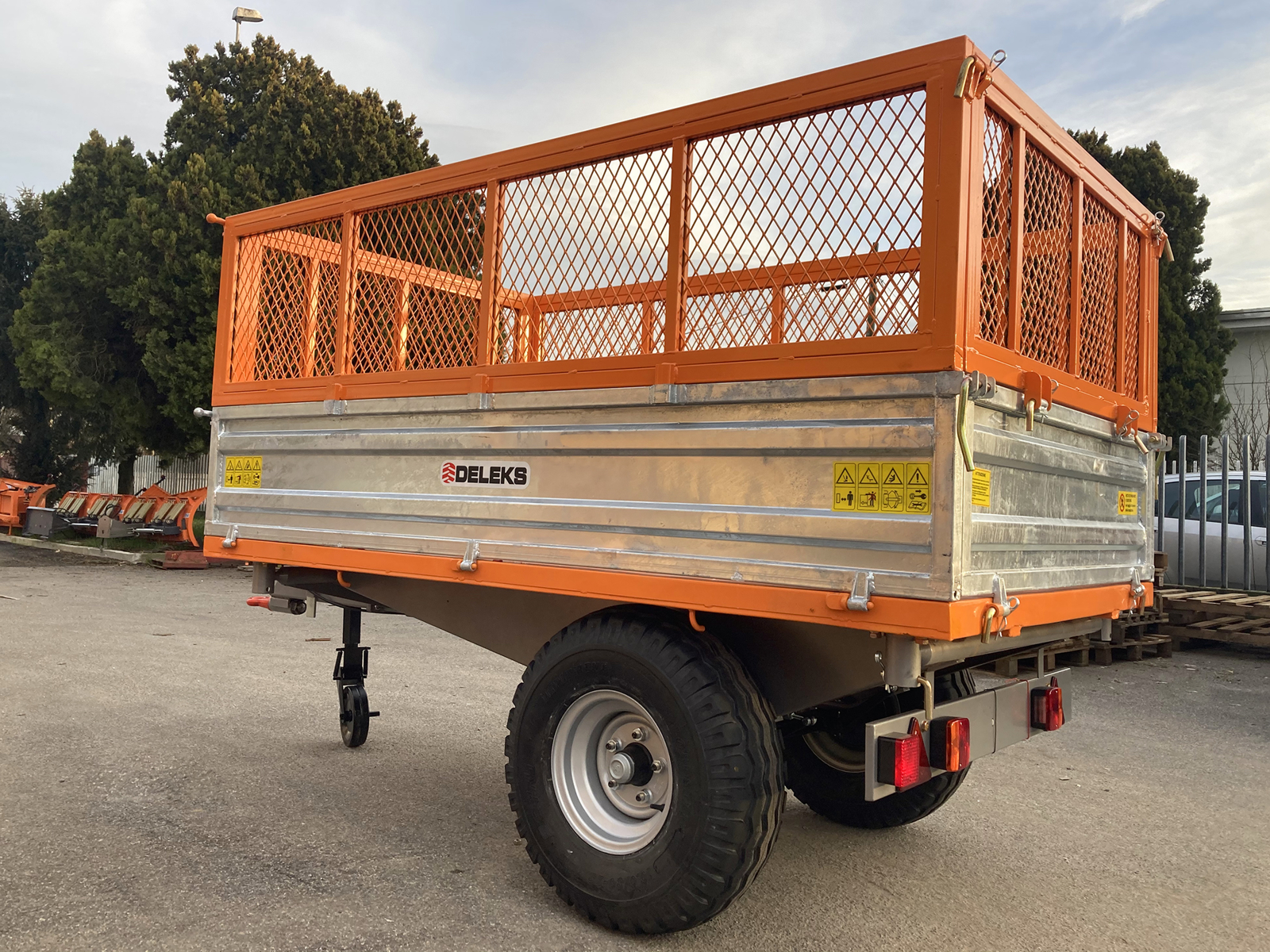

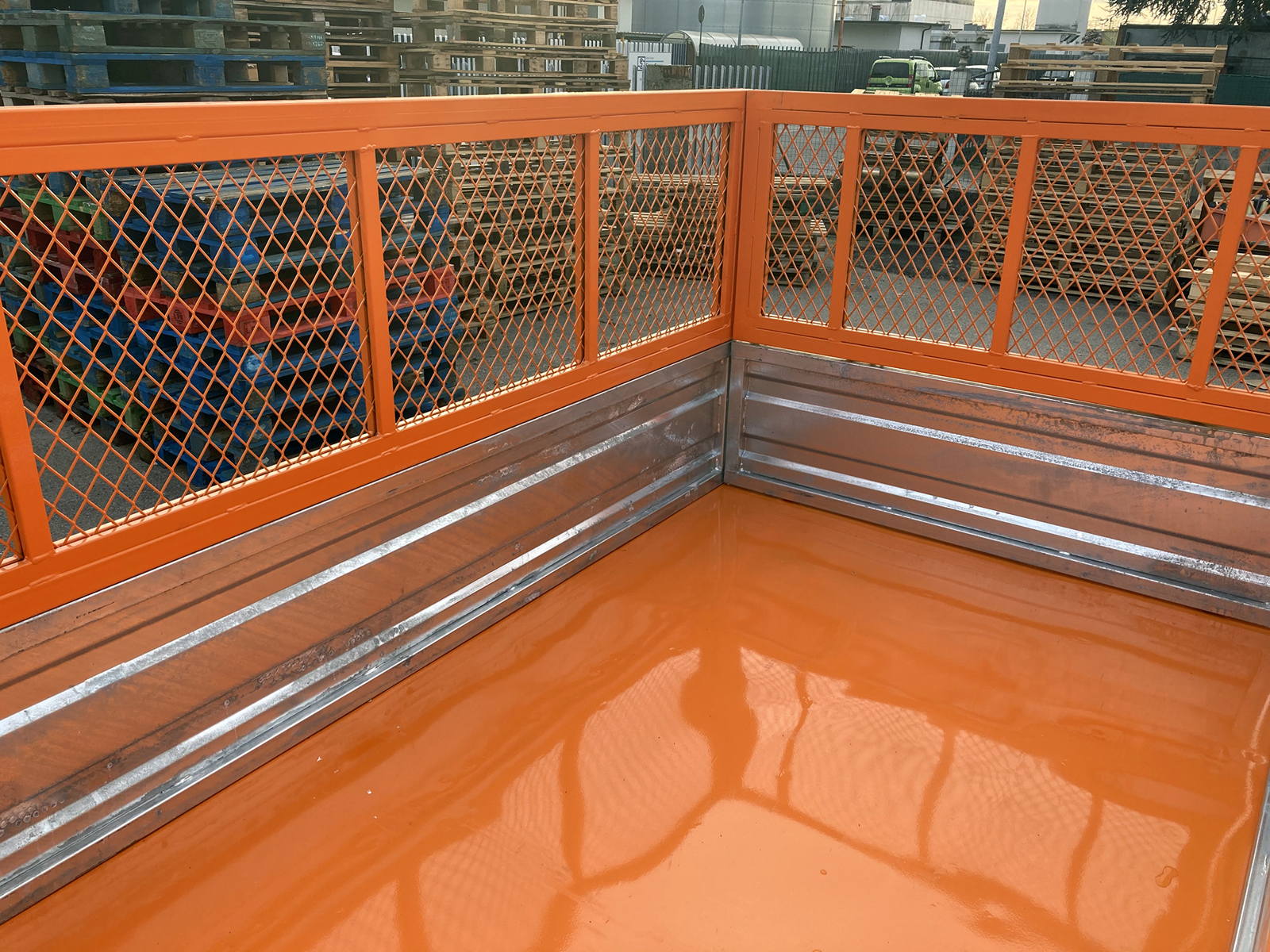

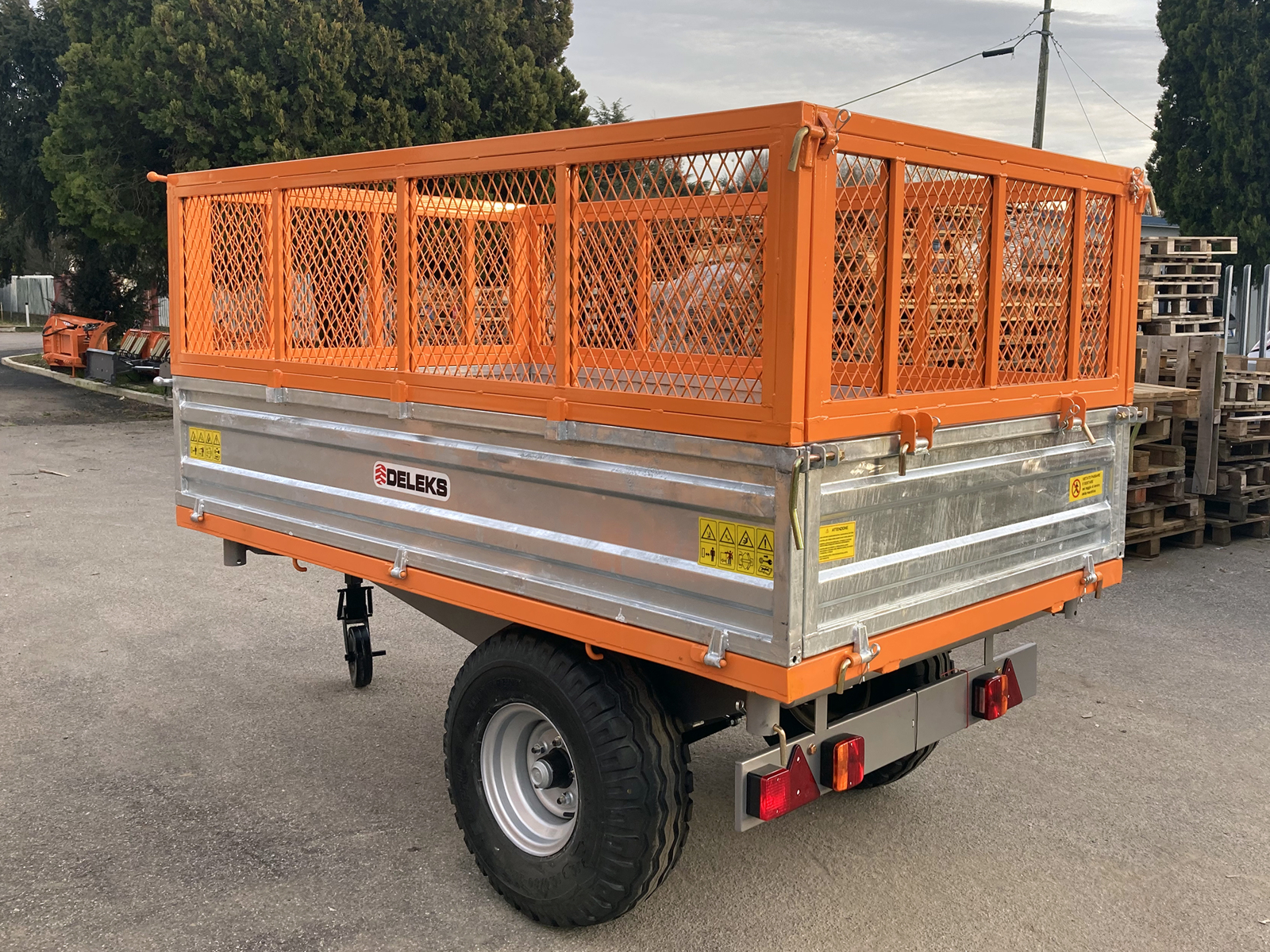

DELEKS® 3 way hydraulic tipping trailer 140x240cm – single acting ram, for tractors - Mesh sides 23.6" / 60cm.
OVERVIEW
RM14-T3S single-axis two-wheeled, three way tipping trailer for 20-70 Hp tractors e.g Valpadana, Renault, Massey Ferguson, New Holland Boomer, Antonio Carraro Tigre, John Deere Series 2. Loading earth, sand, fertilizer, manure, food, wood, gravel etc is made simpler thanks to it's three 40cm removable doors.

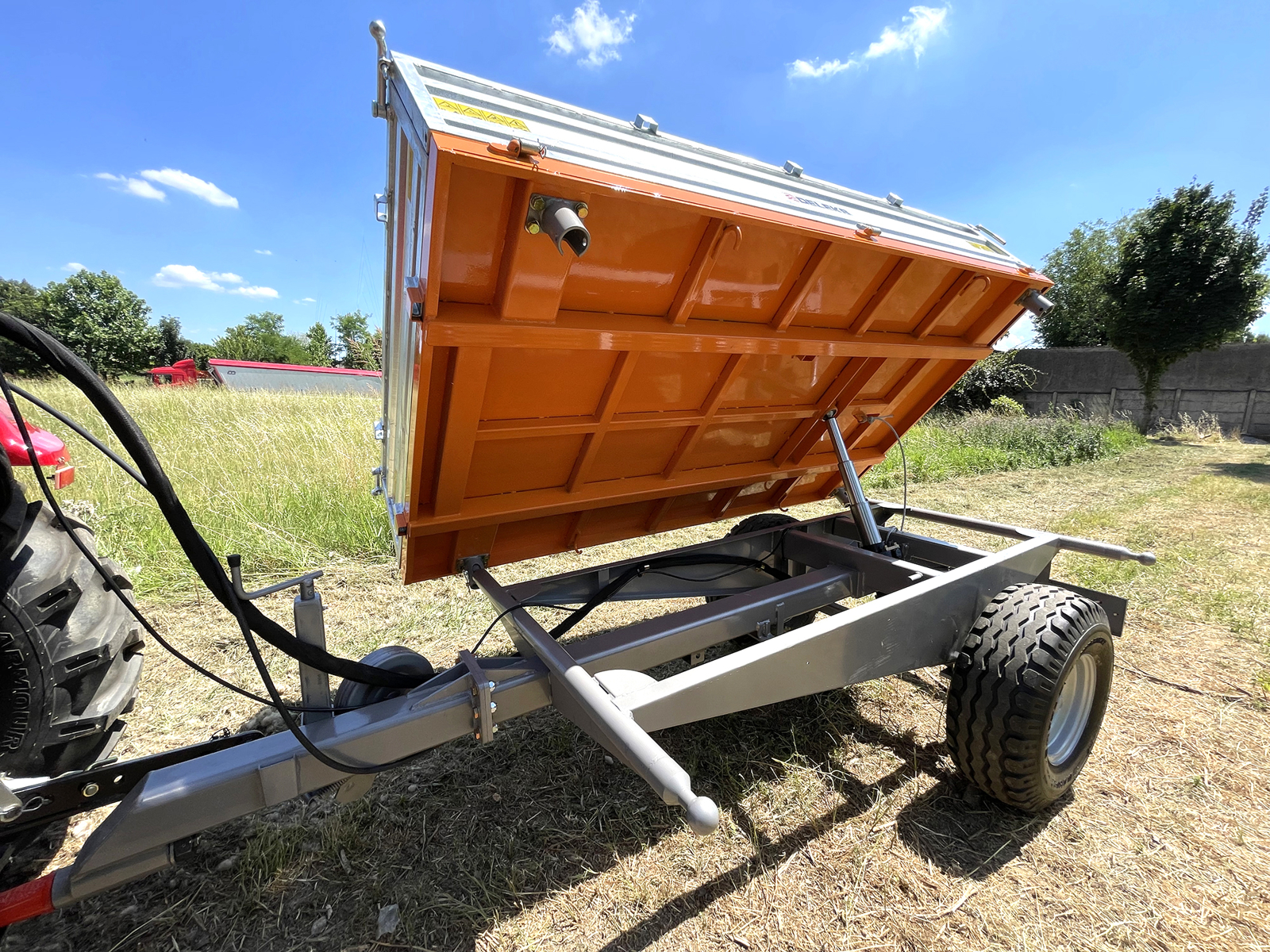

DELEKS® unique design means the trailer tips vertically, left and right (See pictures) in order to maximise usage. RM14-T3S measures 140x240cm and has a laden mass of 2.0 Ton, making it ideal for farm use.
For courier deliveries, the trailer is delivered on a pallet with sides and rudder dismantled (as can be seen in photo).
RM14 T3 is in compliance with CE regulations. Supplied with a 2 year parts warranty.
BENEFITS AND FEATURES
Trilateral hydraulic tipping 3 opening sides 40cm.
Axle brand TVZ 50mm framework (MADE IN ITALY).
Drawbar brand BBM (MADE IN ITALY).

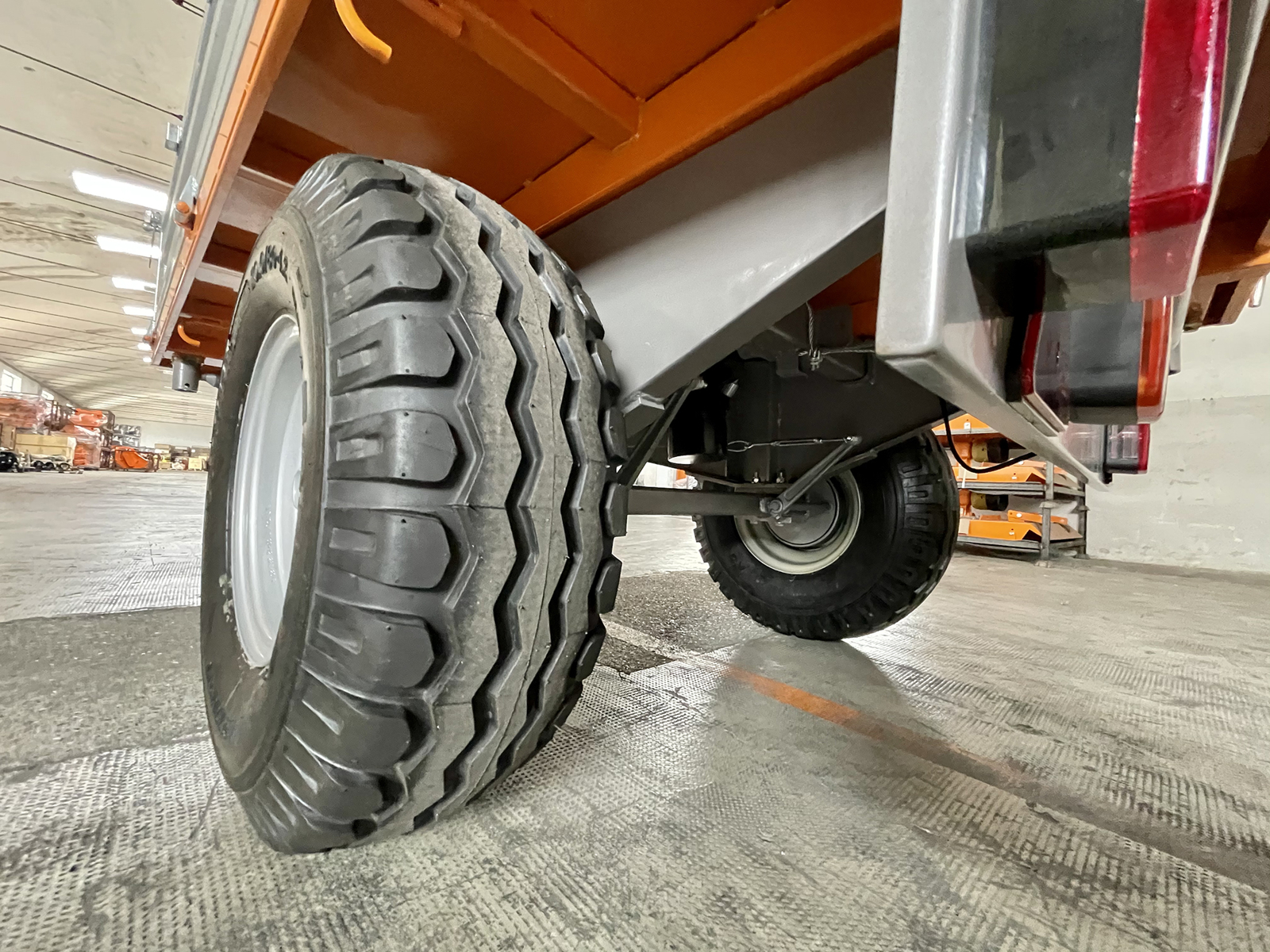

Tires 10.0/80 R12 - 40km/h TVS-EUROGRIP.

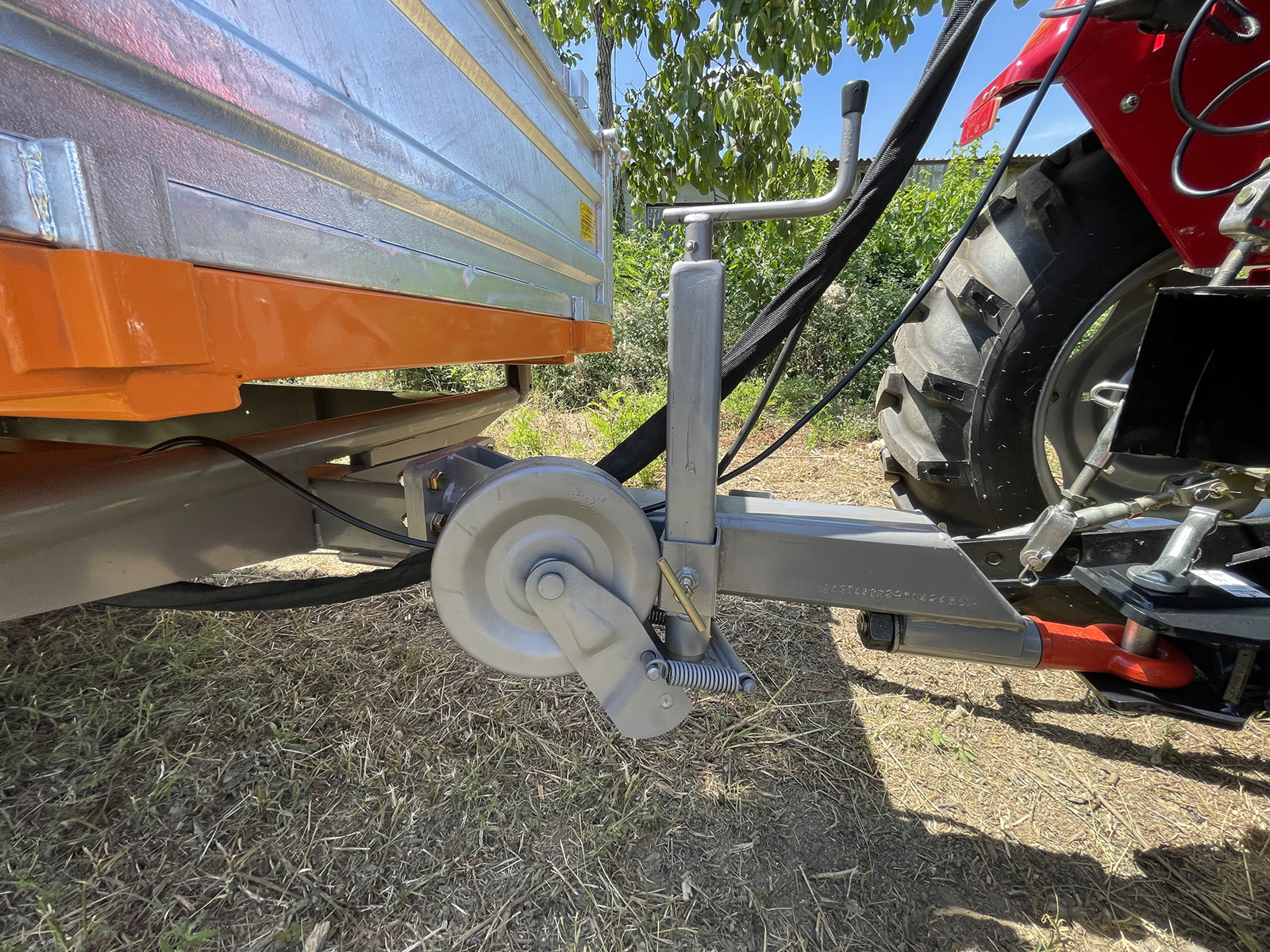

Rotatable support leg.
Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 500 kg | 1100.0 lb |
| Tractor Power Range | 20 - 70 Hp | 20 - 70 Hp |
| Min./Max. Relief Pressure | 130 - 150 bar | 130 - 150 bar |
| Min./Max. Flow | 20-25 l/min | 20-25 l/min |
| Type | Hydraulic 3 tipping way | Hydraulic 3 tipping way |
| ATM | 2.0 ton | 2.0 ton |
| Tipping angle | 45° | 45° |
| Sides Heigh | 400.0 mm | 15.75 in |
| Headboard | Fixed | Fixed |
| Tailgate | Top and bottom hinged with manual lock | Top and bottom hinged with manual lock |
| Floor Thickness | 2.0 mm | 0.08 in |
| Floor height from ground | 770.0 mm | 2.52 ft |
| Axle | TVZ 50x50 full bar | TVZ 50x50 full bar |
| Wheel Sizes | 10.0/80 R12 - 40km/h TVS-EUROGRIP | 10.0/80 R12 - 40km/h TVS-EUROGRIP |
| Mechanical Brakes | √ | √ |
| Hydraulic Brakes | Optional | Optional |
| Extra extension sides | Height 600.0 mm | Height 600.0 mm |

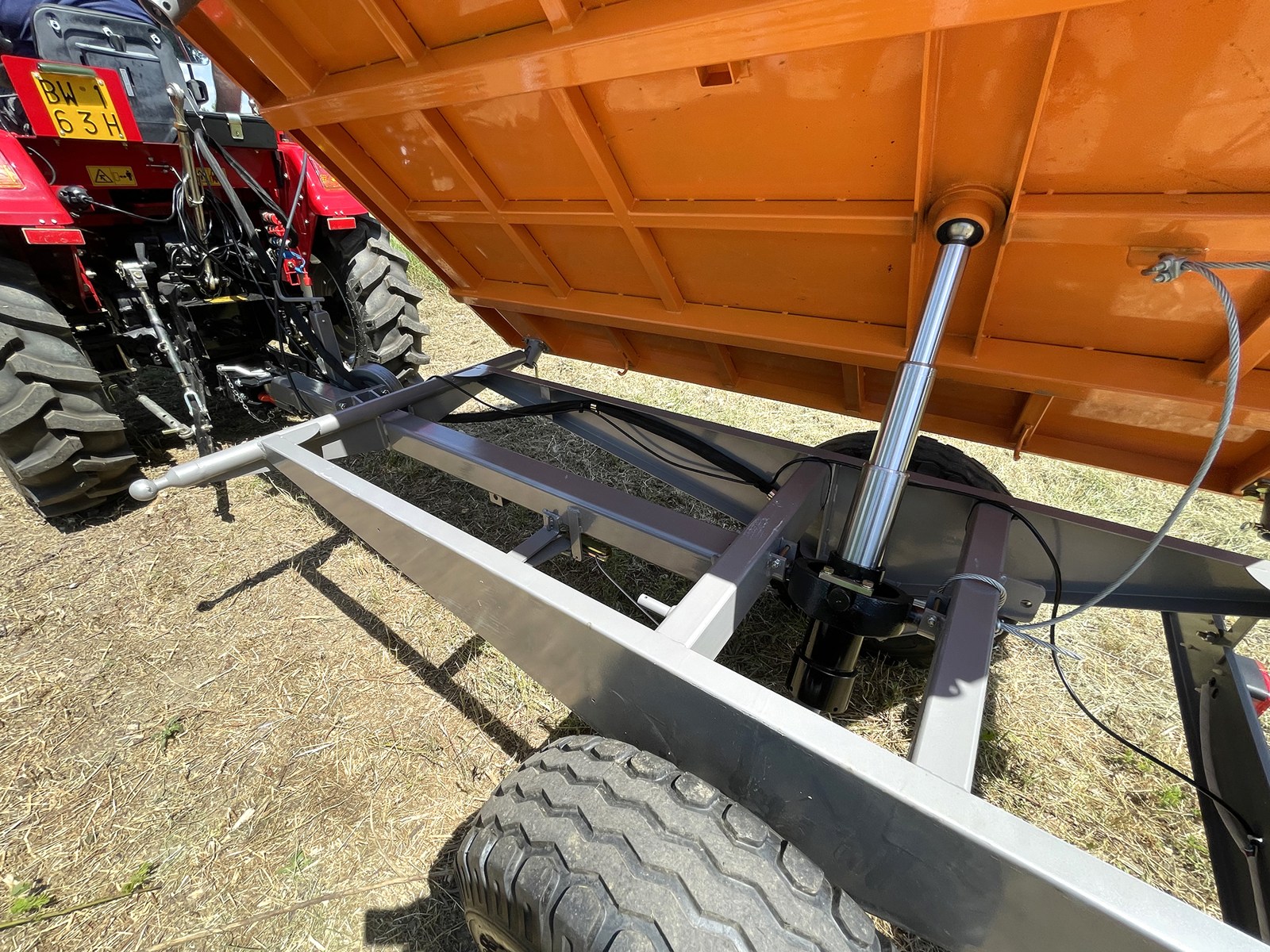

| Tipping Mechanism | Single acting multistage hydr. Ram | Single acting multistage hydr. Ram |
| Hydraulic Hose (1) | With connections 1.2" AGRI, WP-400 bar | With connections 1.2" AGRI, WP-400 bar |

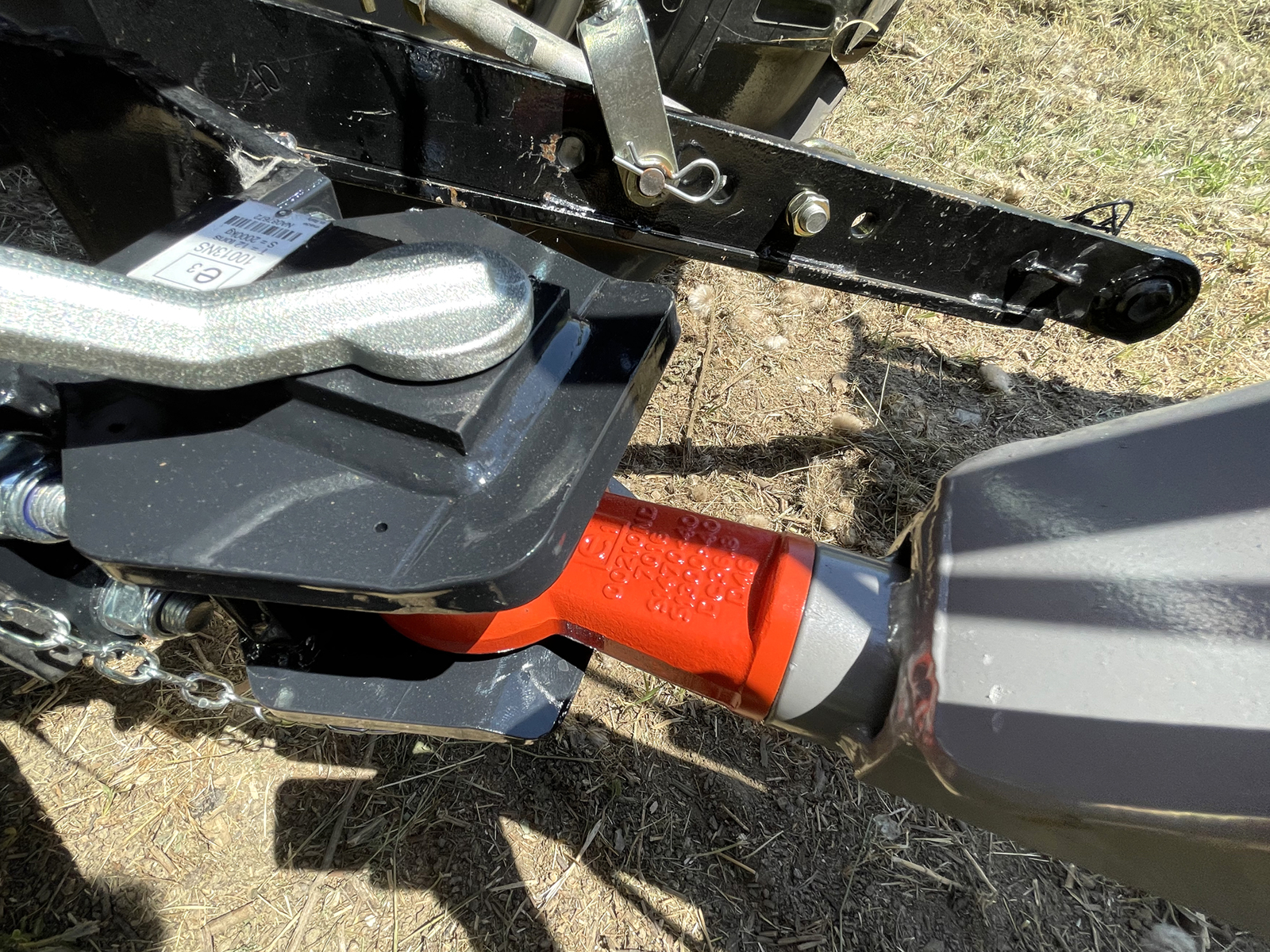

| Towing eye | BBM | BBM |
| Tail lights | KRAMP | KRAMP |
| Tray Size | 1450.0*2450.0 mm | 4.75*8.00 ft |
| Load Capacity with brakes | 1500.0 kg | 1.50 ton |
| Tare Weight | 500.0 kg | 1100.0 lb |
| Sides | Drop and removable | Drop and removable |
| Packing sizes | 1450*2450*900 mm | 4.75*8.04*2.95 ft |
