Light rotavator tiller for tractors - working width 135cm - for soil preparation DFL-135


298 reviews

Not available Notify me
Code DFL135PTO
EAN 8053470230769
View all details.


1.480,00VAT incl.
Free shipping

Field test
Field test

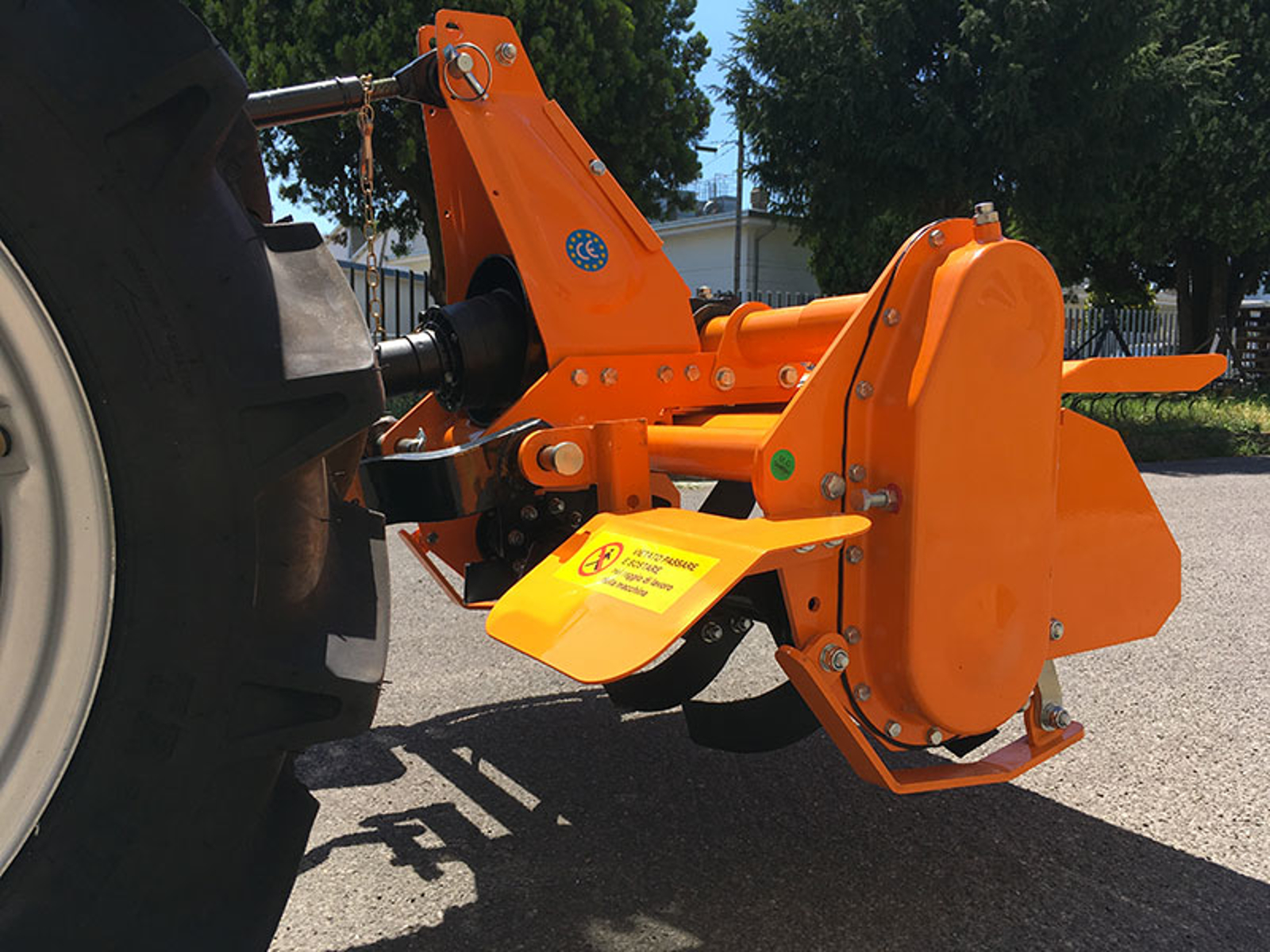

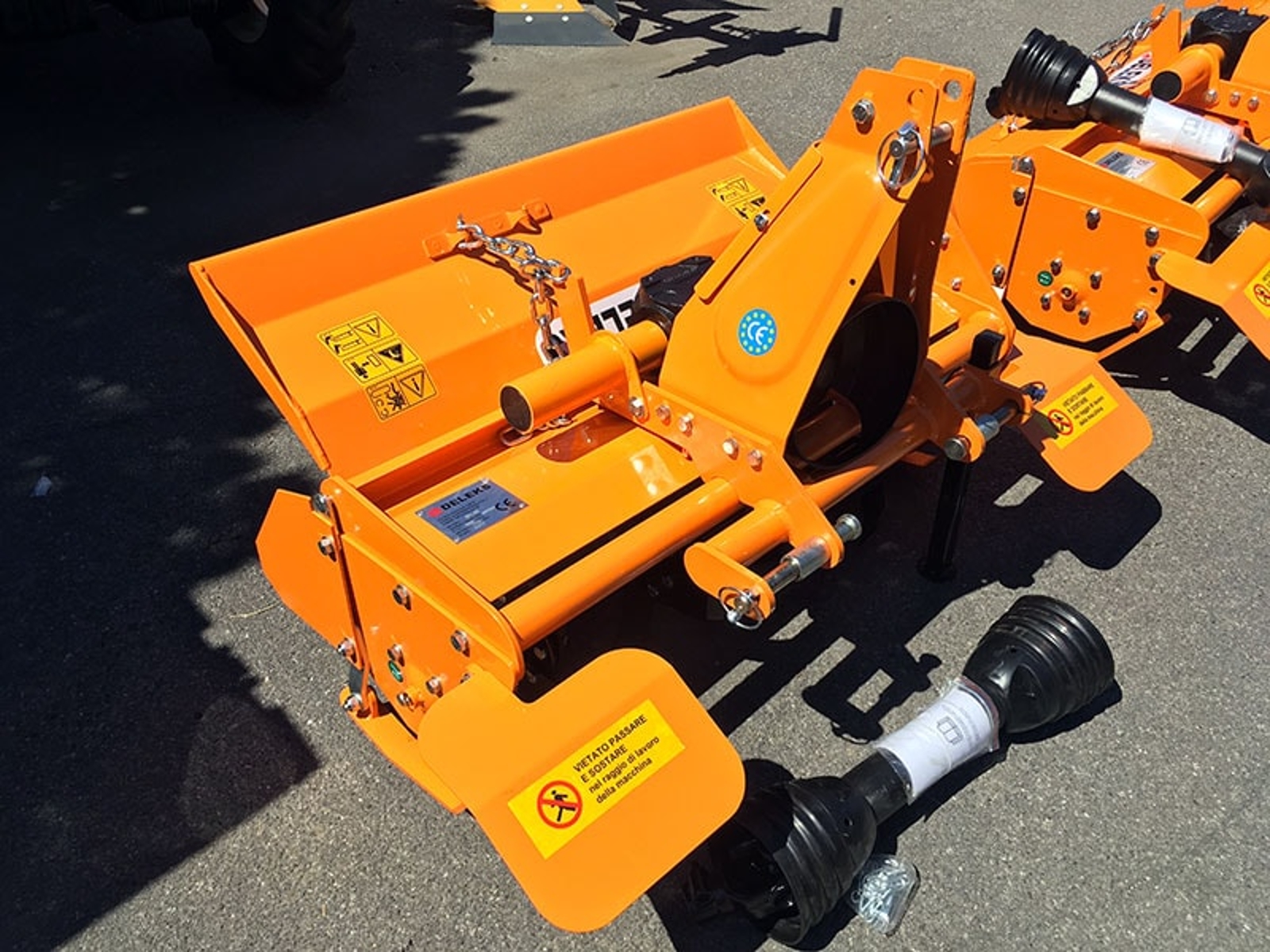

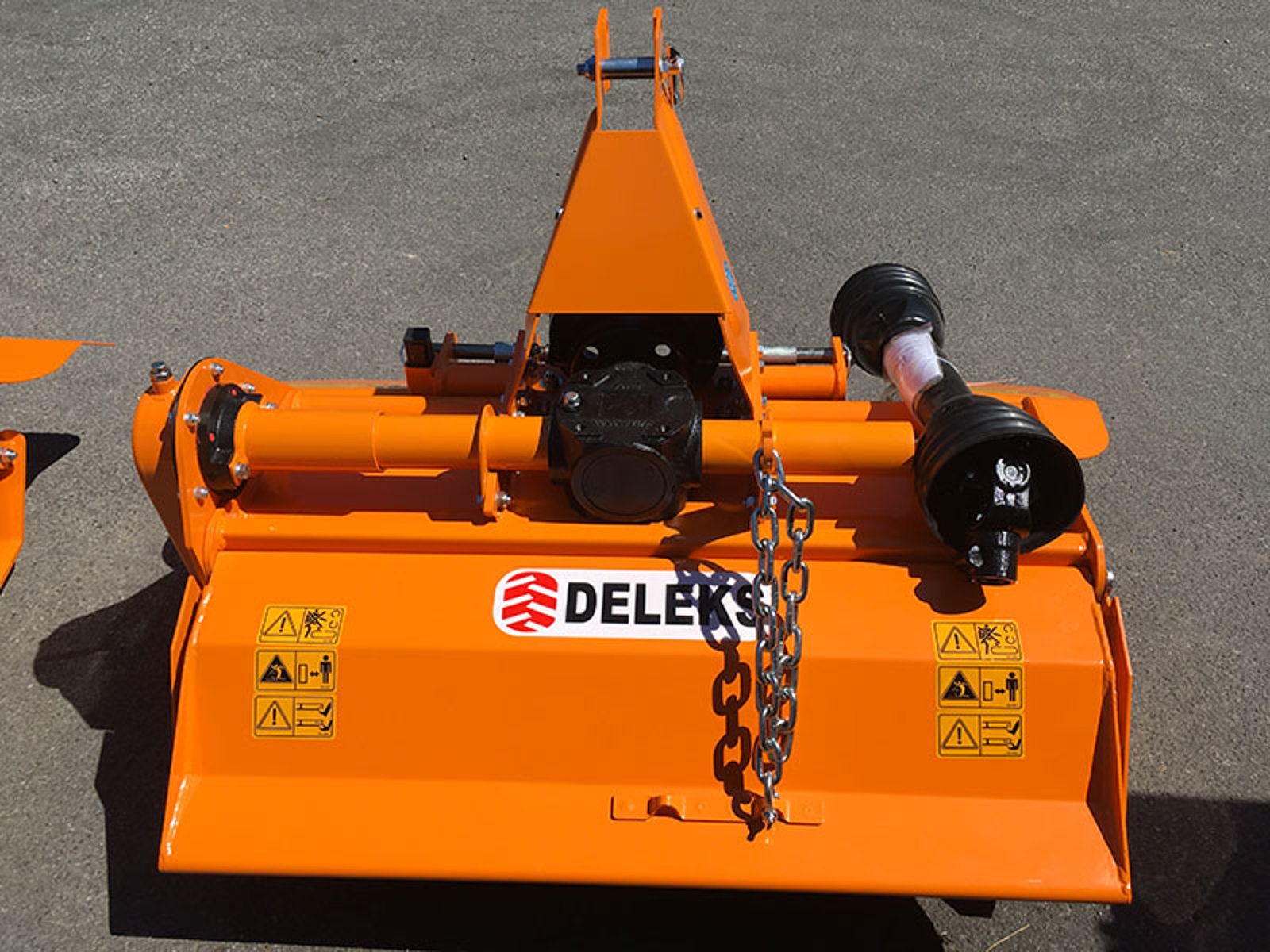

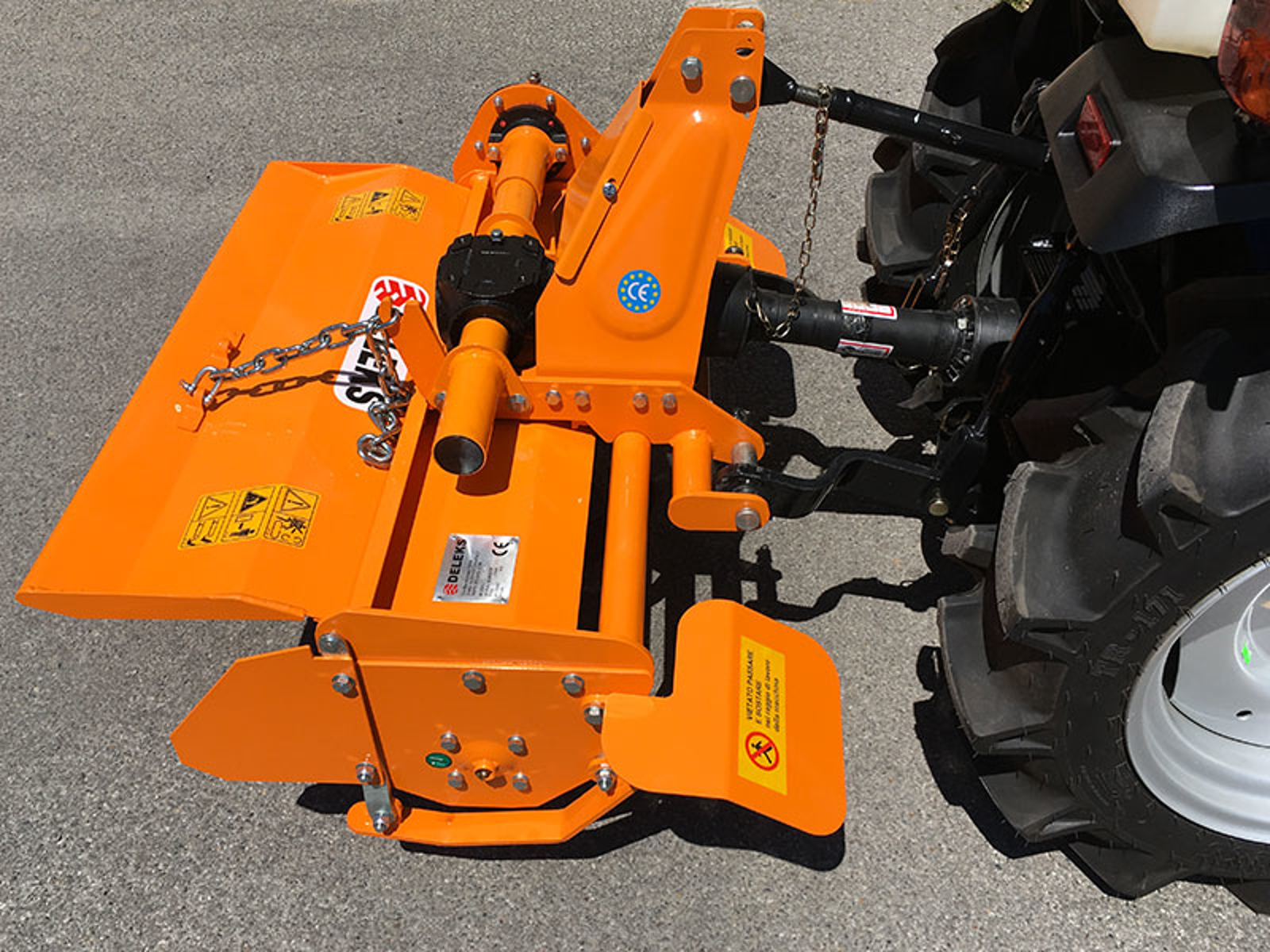

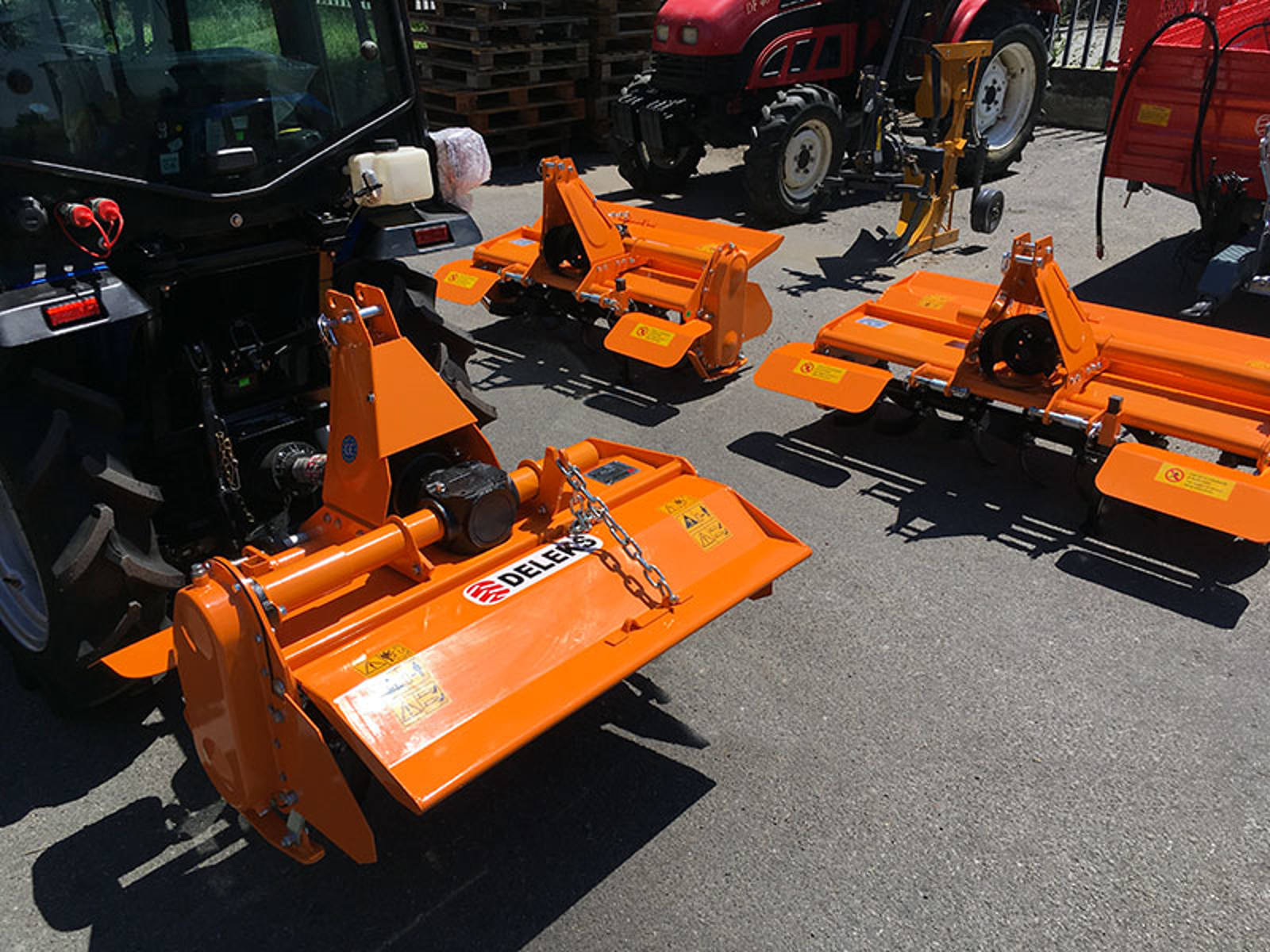

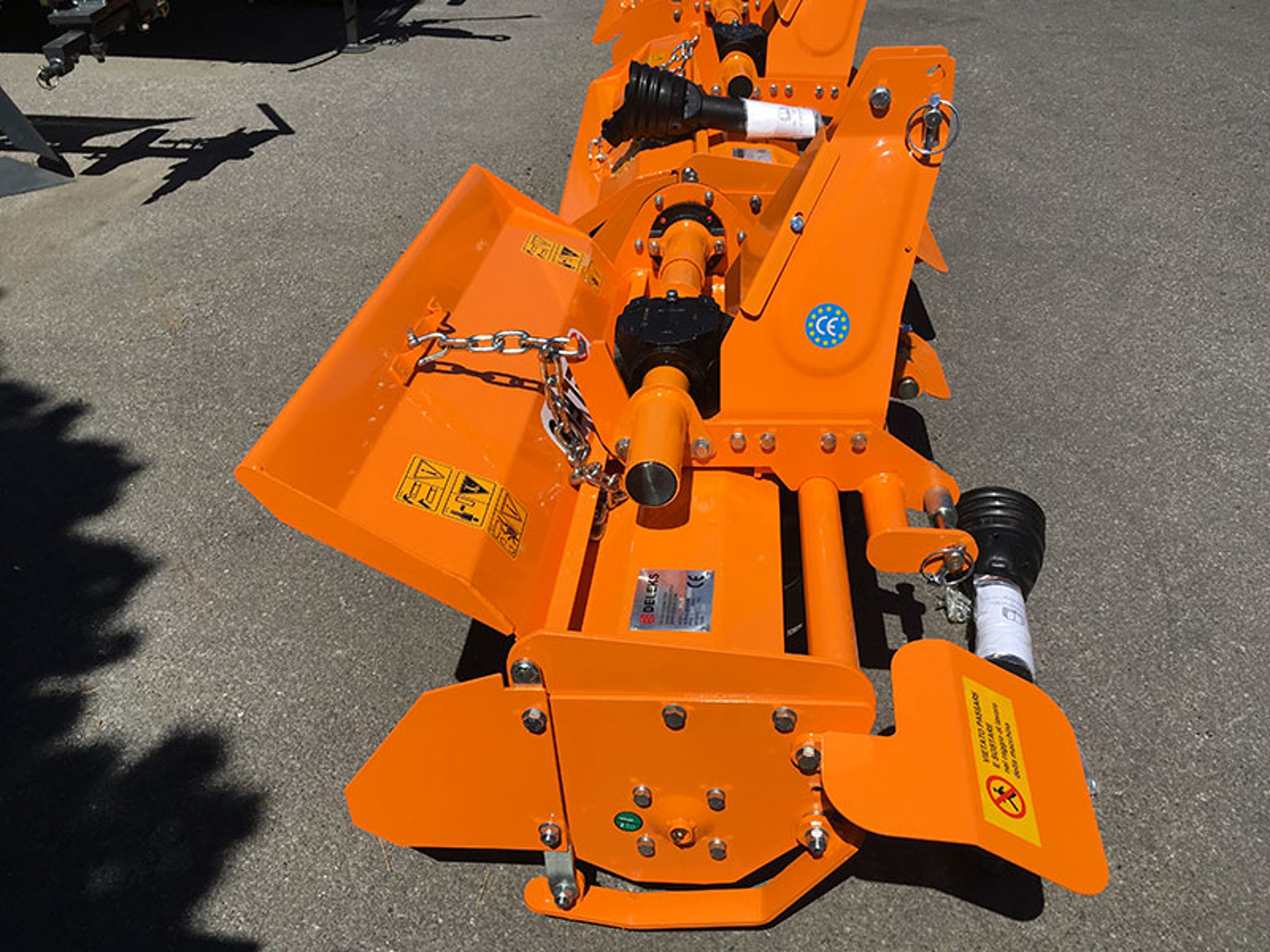

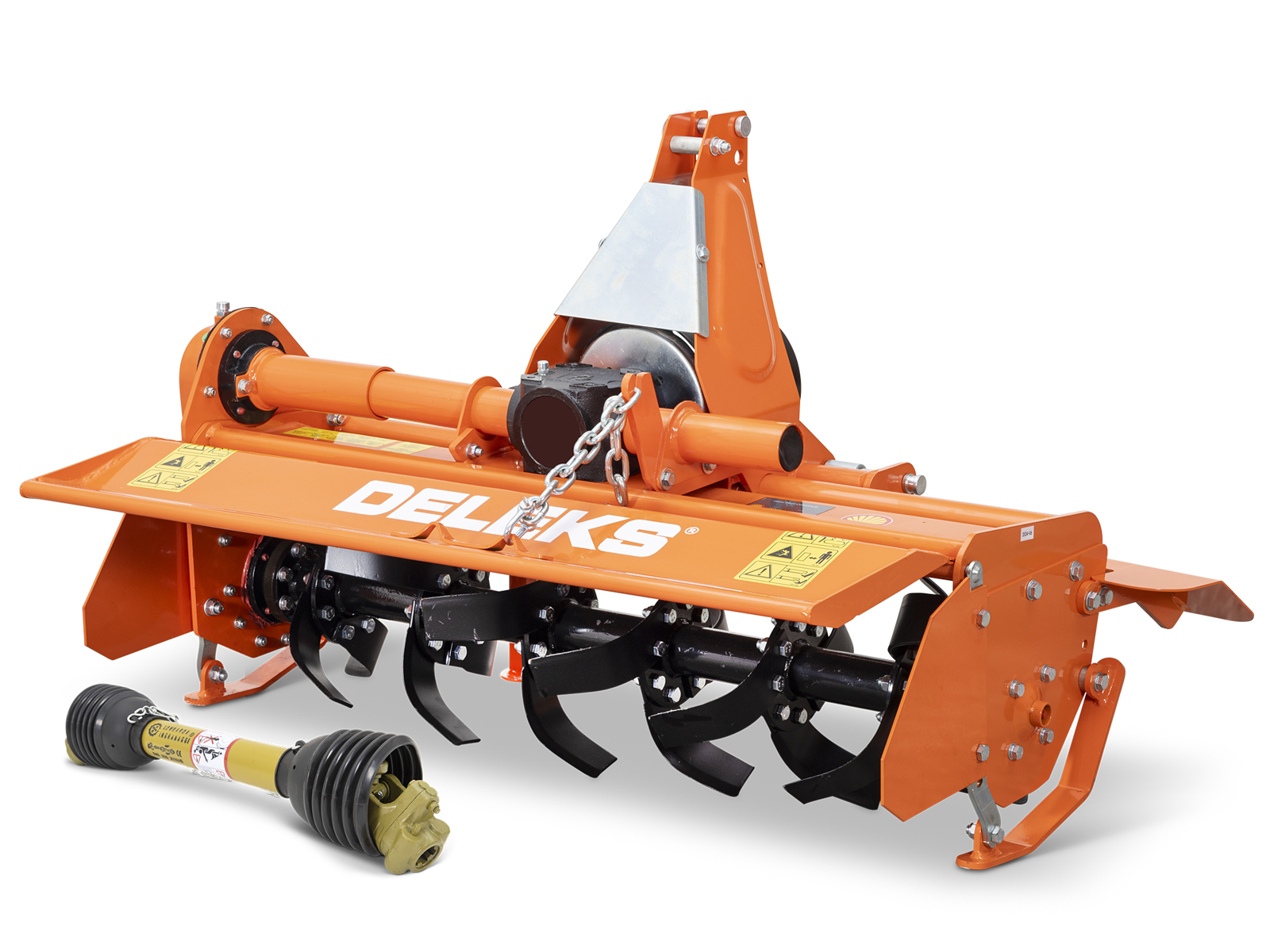

Light rotavator tiller with sideshift DELEKS® for tractors like Kubota, Iseki, New Holland, John Deere  - PTO shaft included.

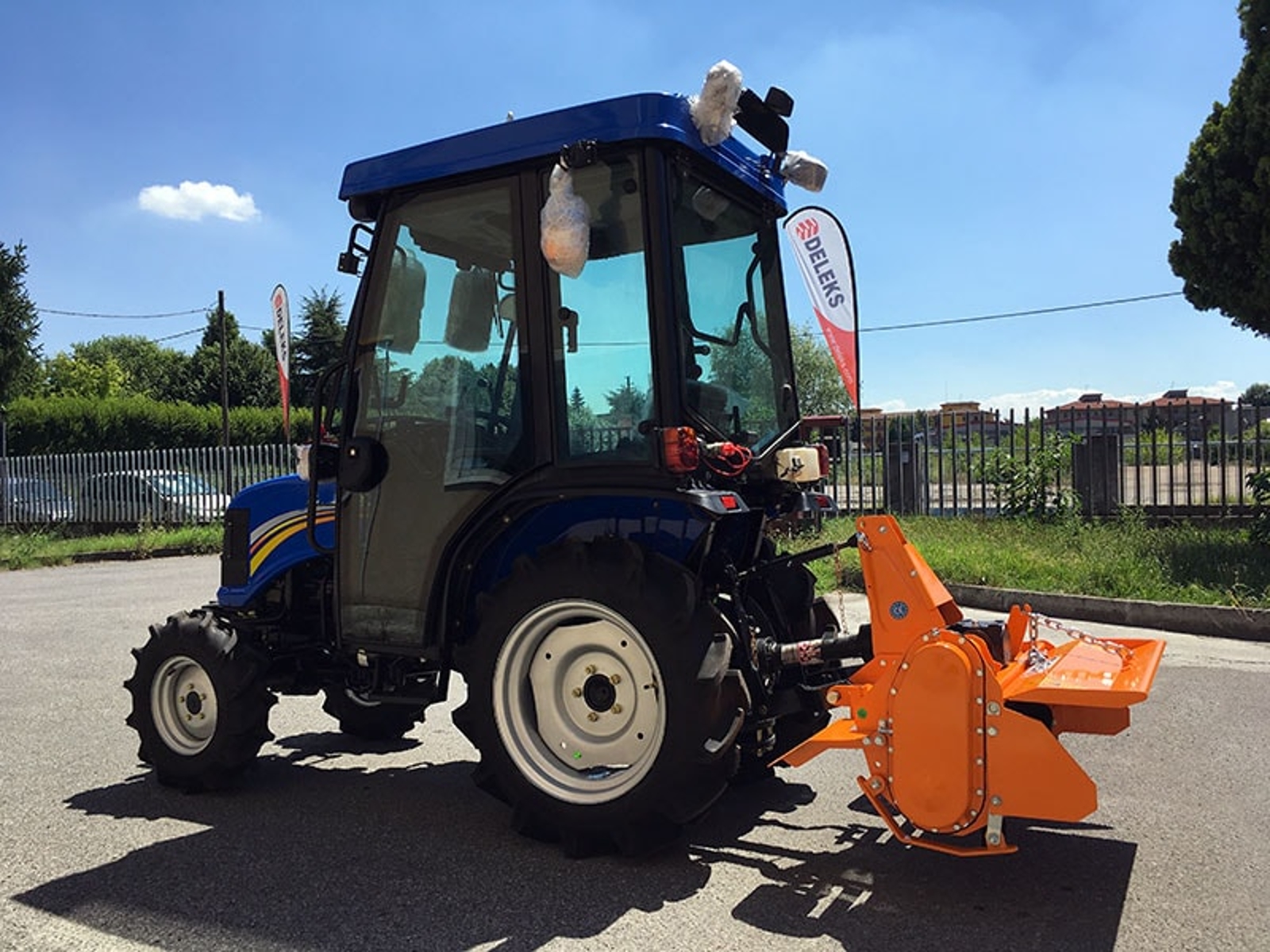

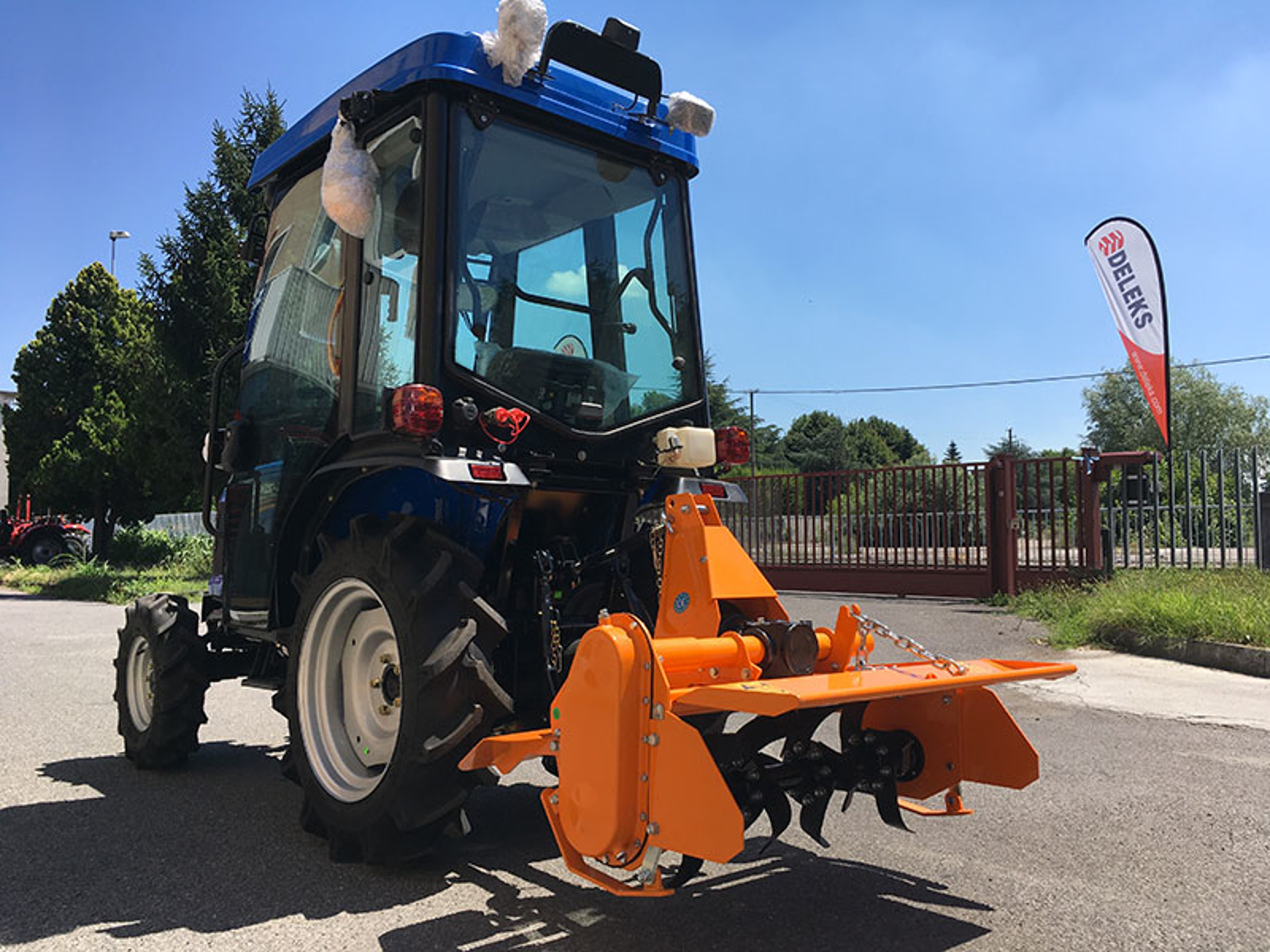

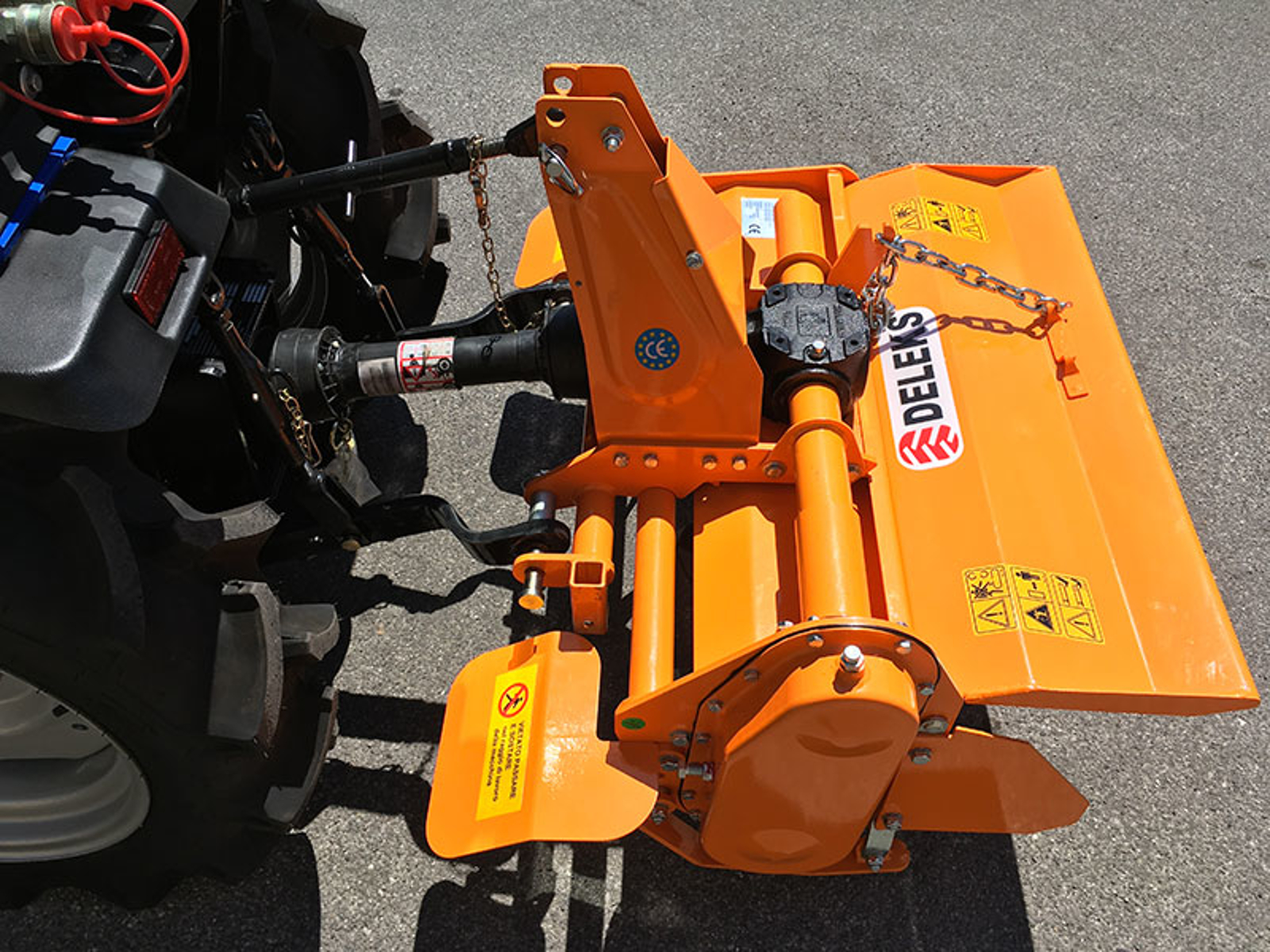

Light rotary tiller for tractors 18-35hp e.g Kubota, Iseki, Yanmar, Mahindra, Solis, Mitsubishi, Ferrari, Pasquali, New Holland Boomer 25-30, John Deere 2 Serie, etc. The tiller is attached to the tractor by the universal three point linkage.

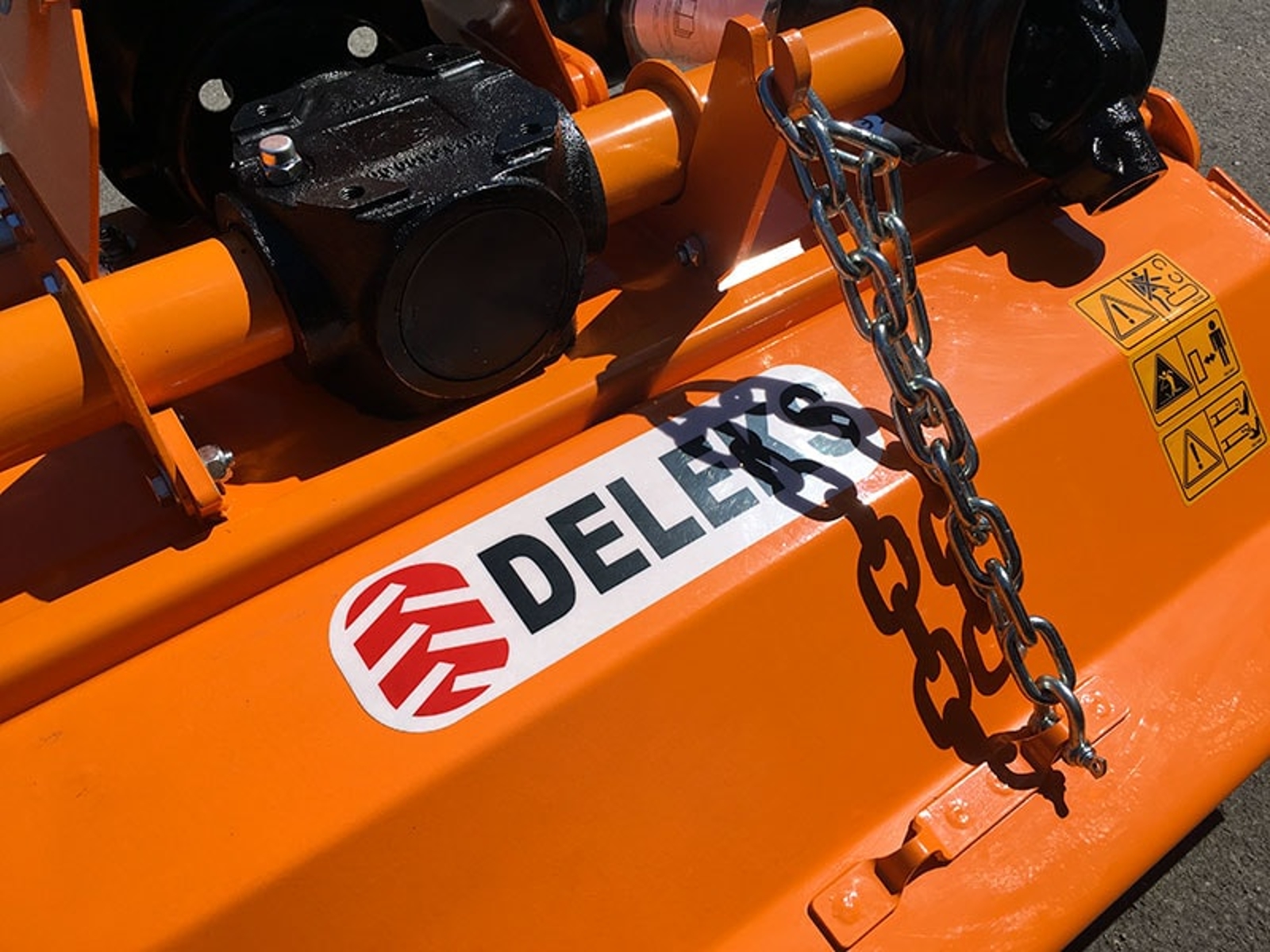

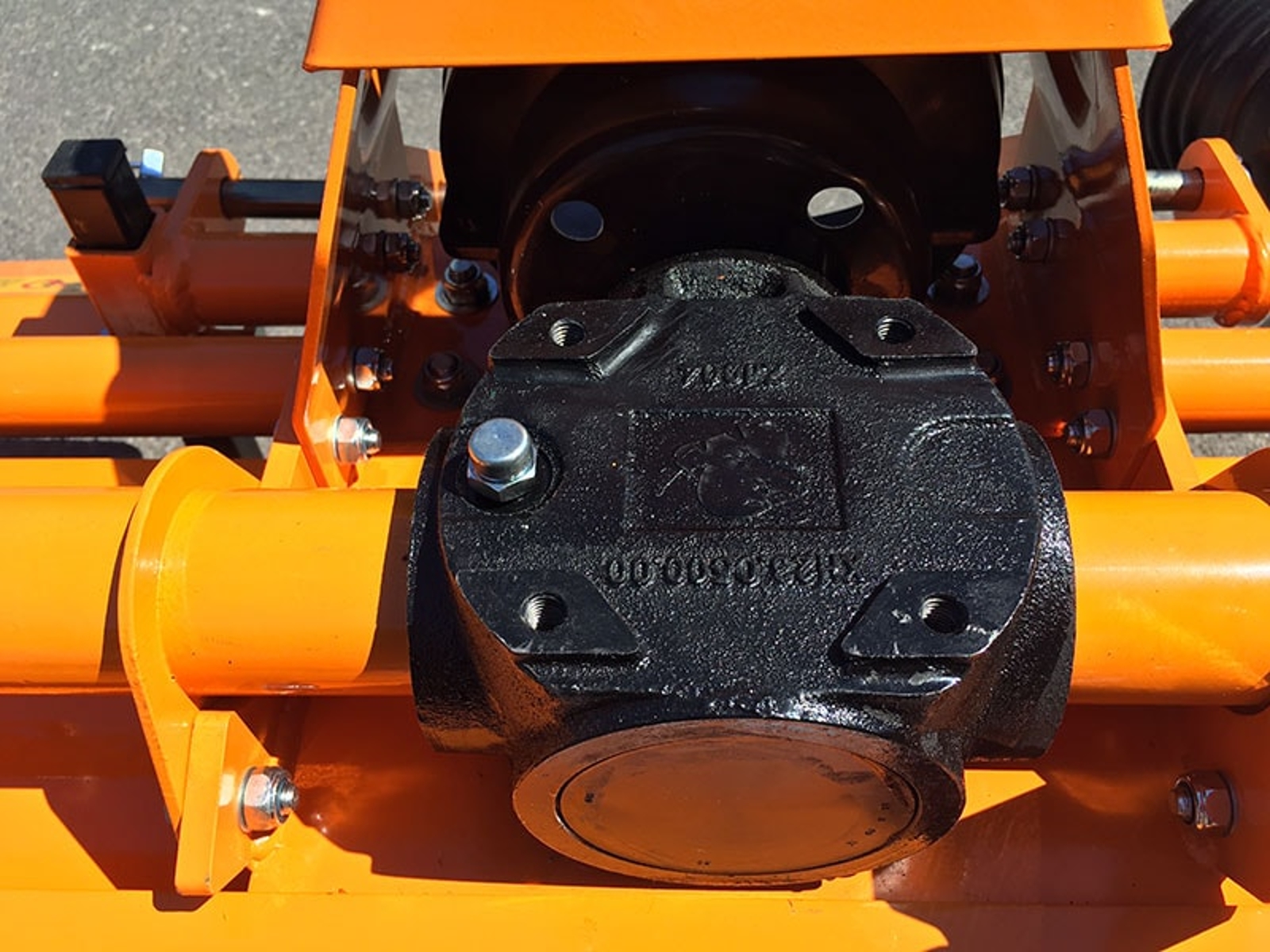

Designed for soil preparation/cultivation in nursery, orchards, and for gardens. Our rotavators can be used to pulverize and stir soil before planting (to prepare seed beds) or after your crop has begun growing (to kill off unwanted weeds). Single Speed Gearbox with 540 RPM PTO, Chain Side Drive. Delivered assembled (except 3 point linkage) and greased, Gearbox filled with oil.



Light weight compact design for low powered tractors.

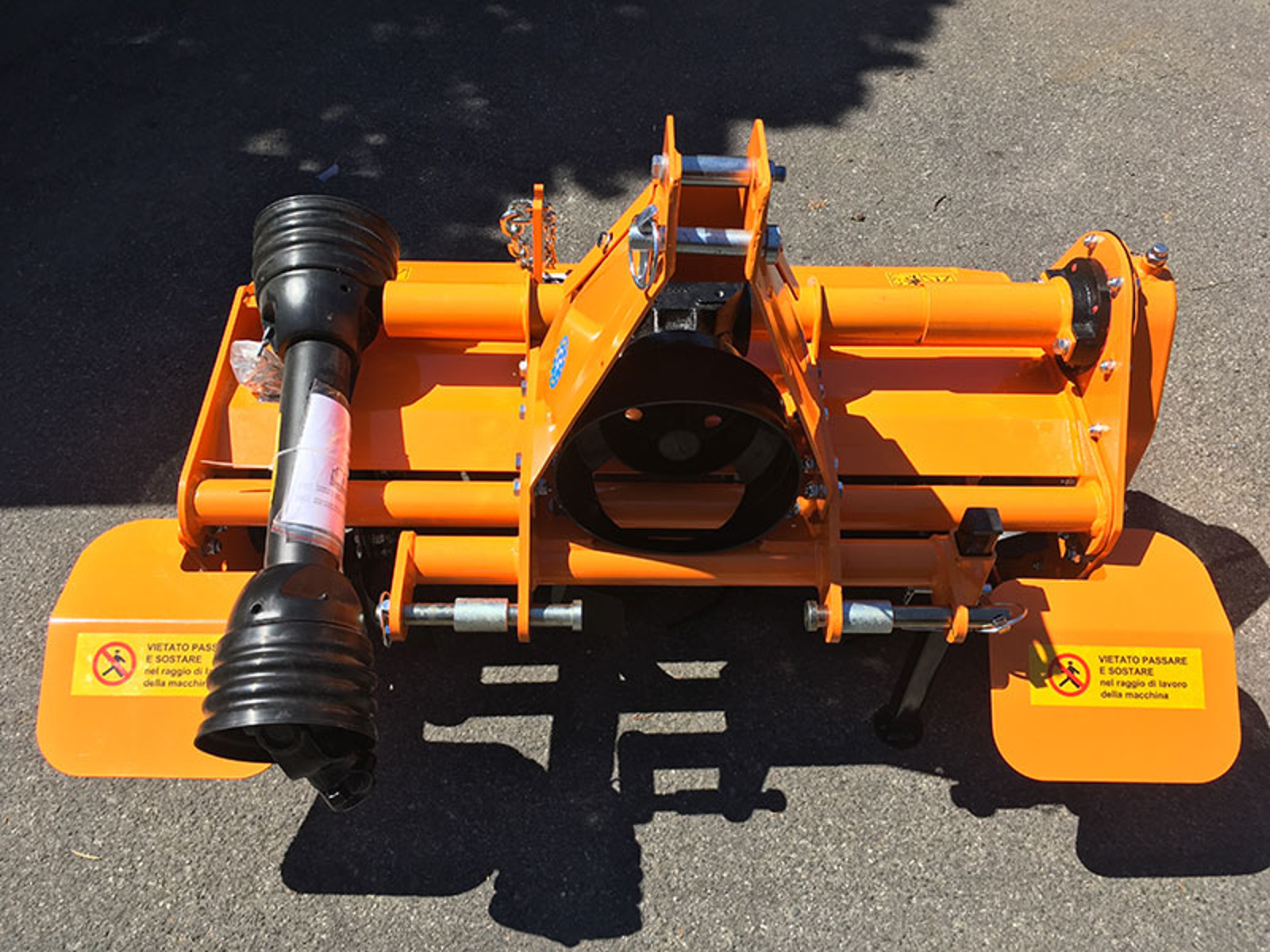

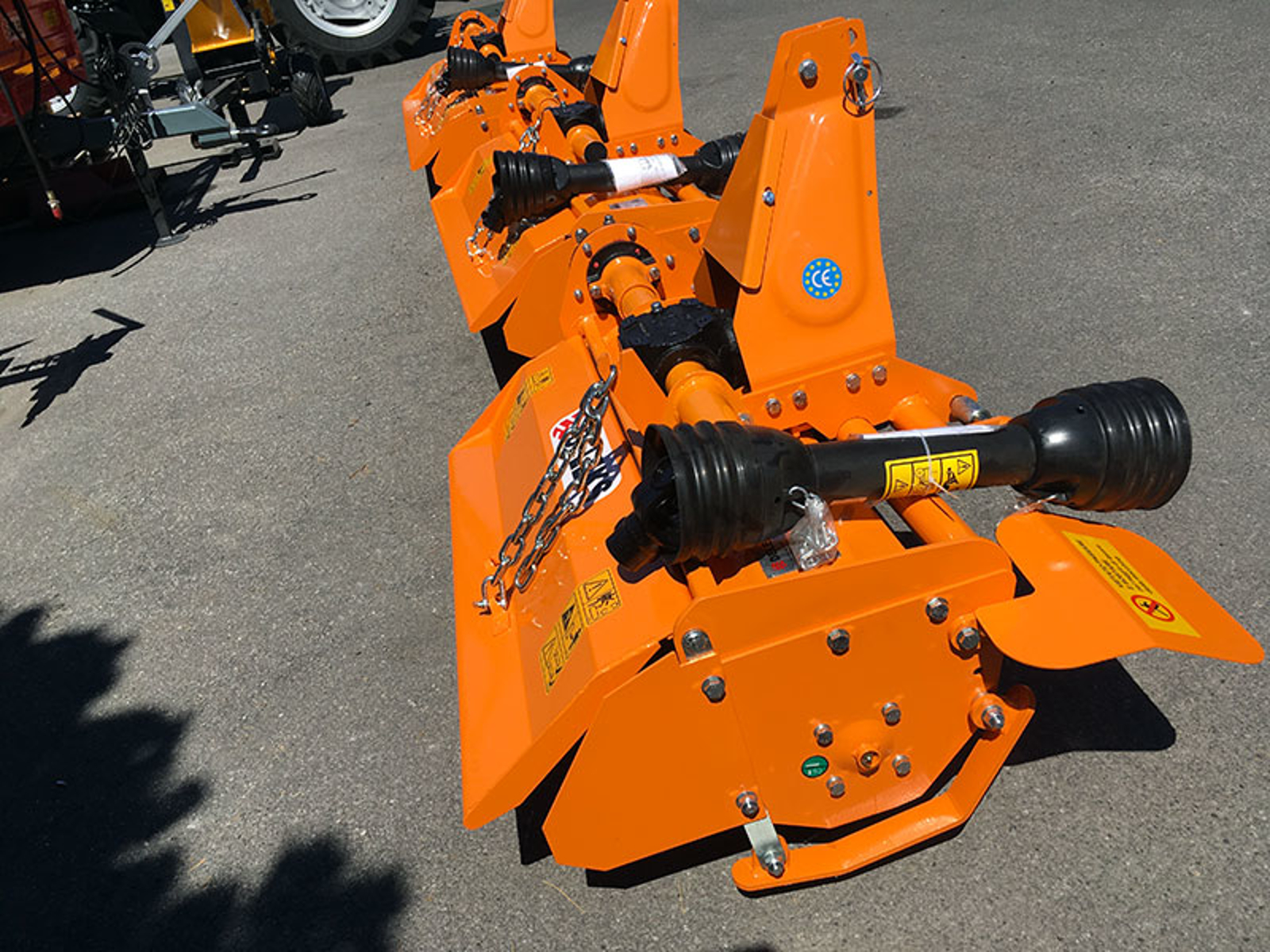

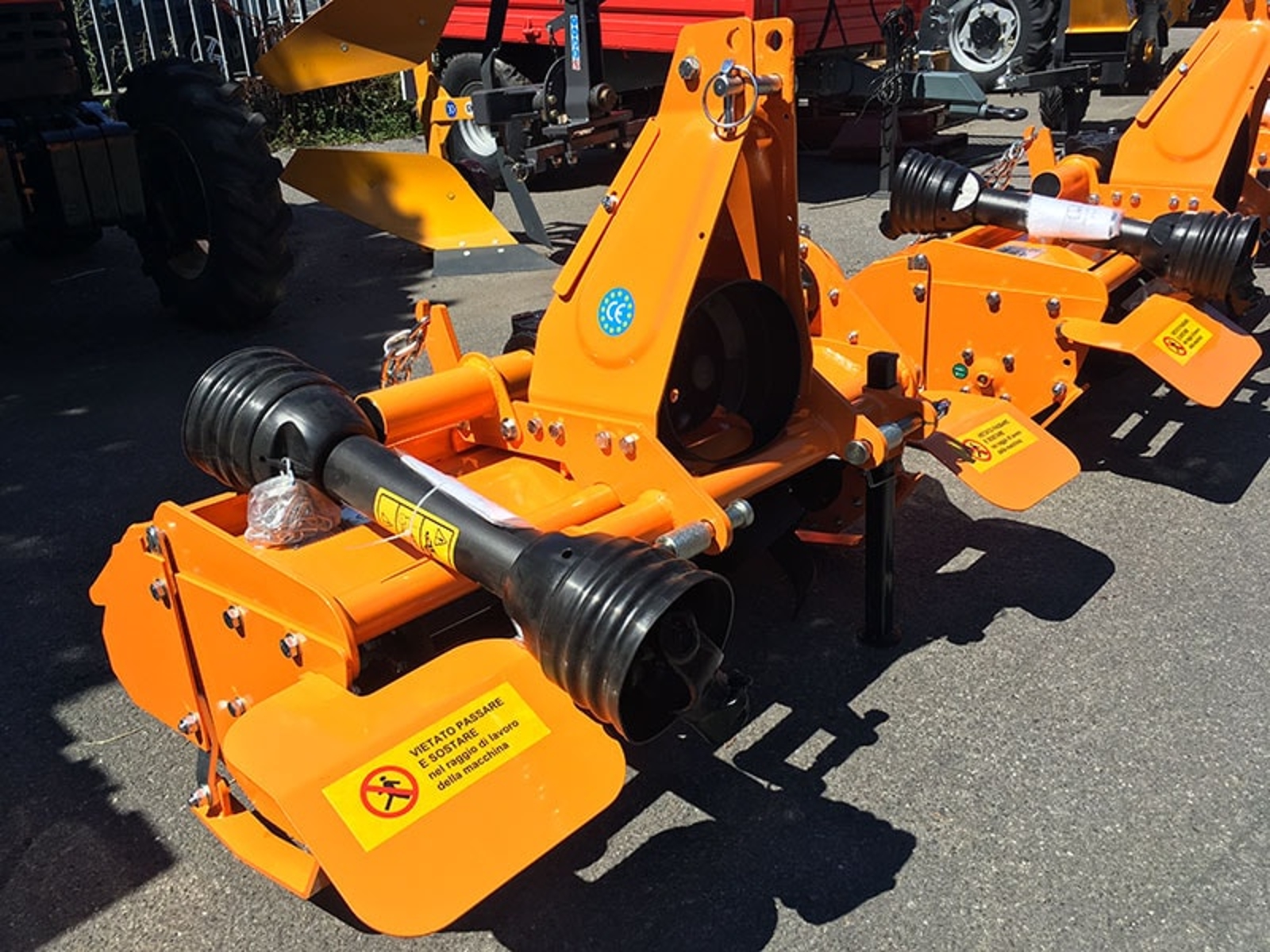

Pto shaft CE included.

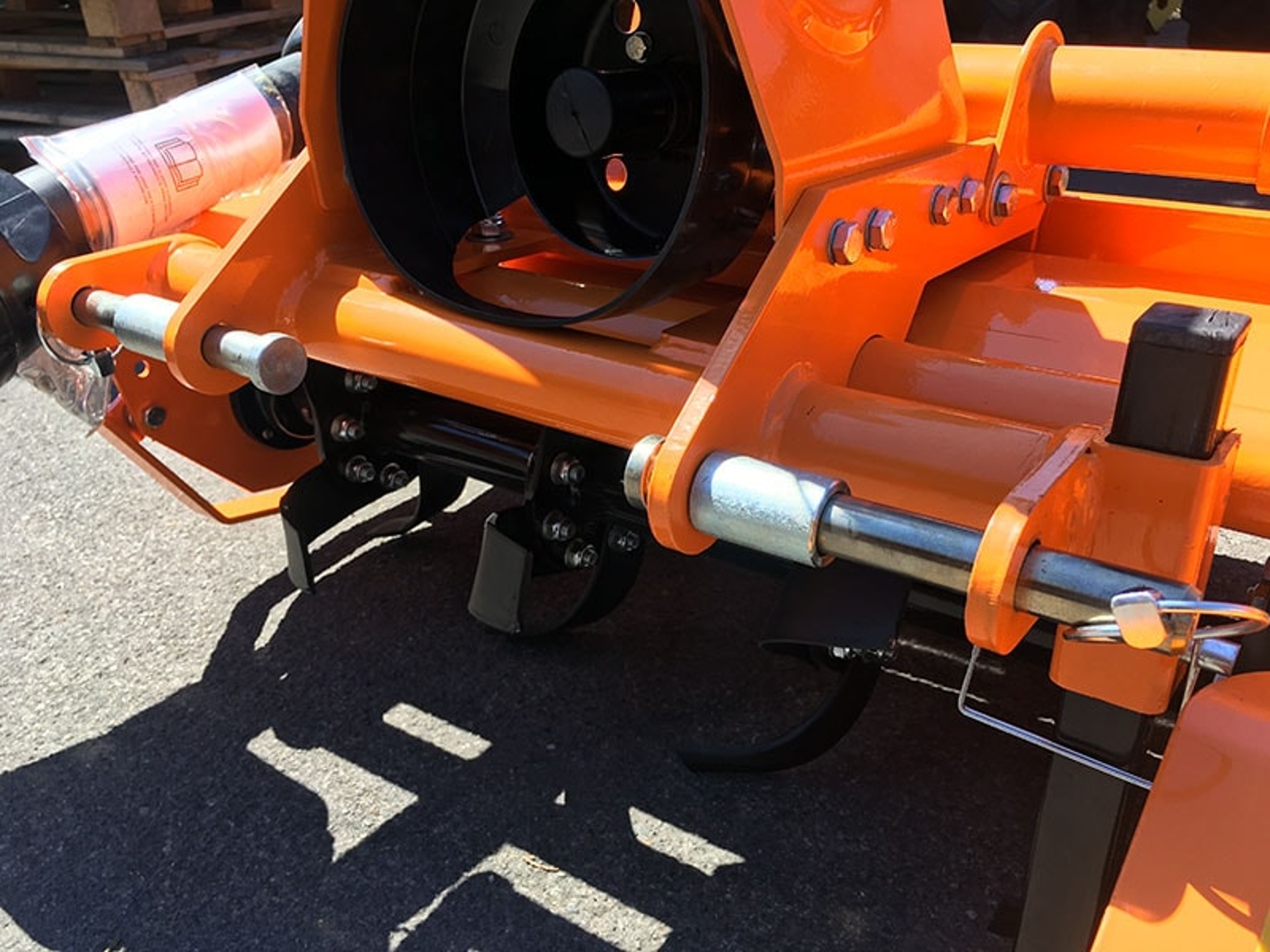

The sideshift by the three-point hitch (120.0 mm) is moved manually by hand and does not require levers to operate.

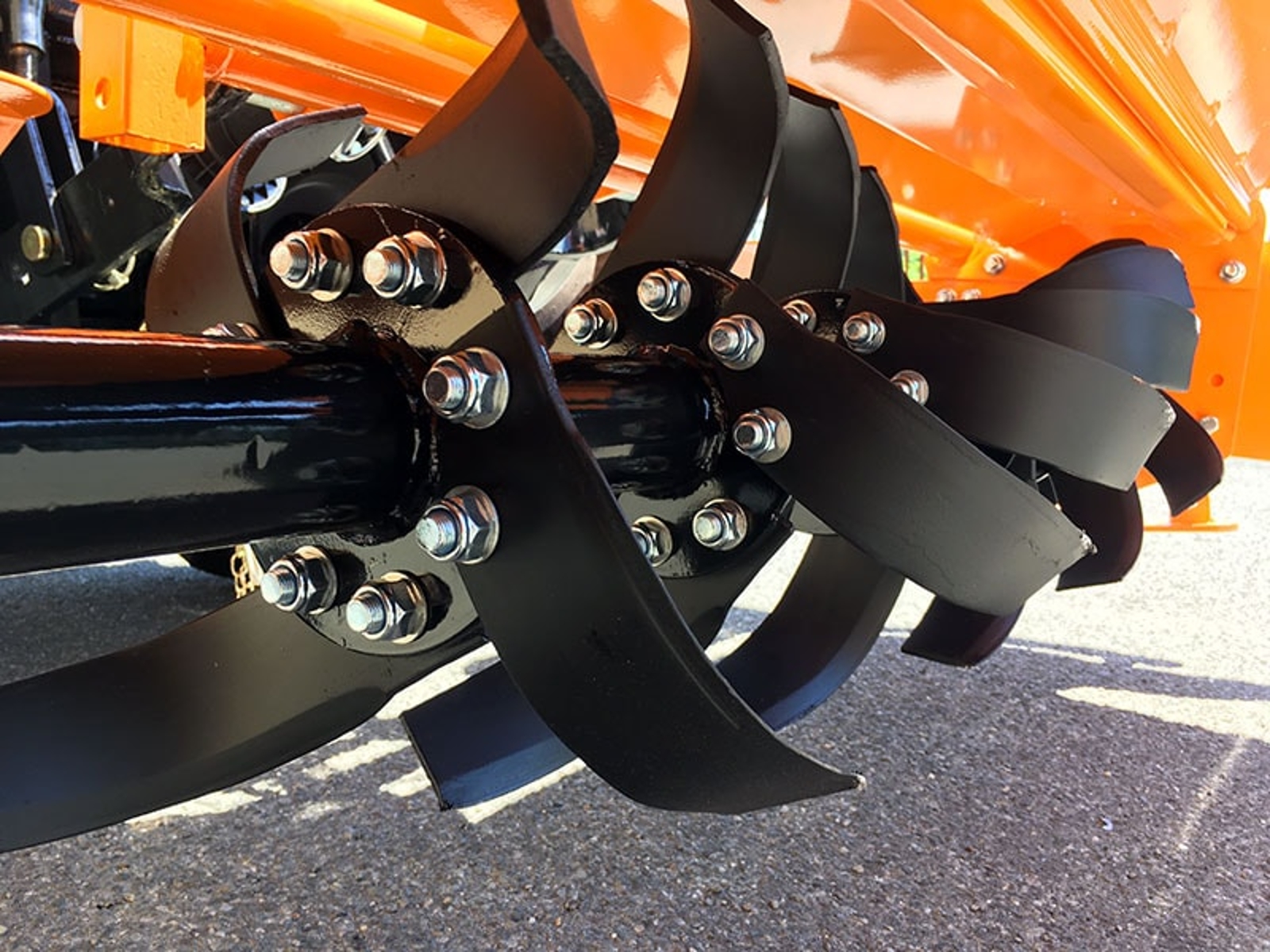

Blades are hardened for maximum strength, durability and wear life in the toughest soil conditions.

Automatic chain tensioner.

Adjustable skids to obtain the desired working depth.

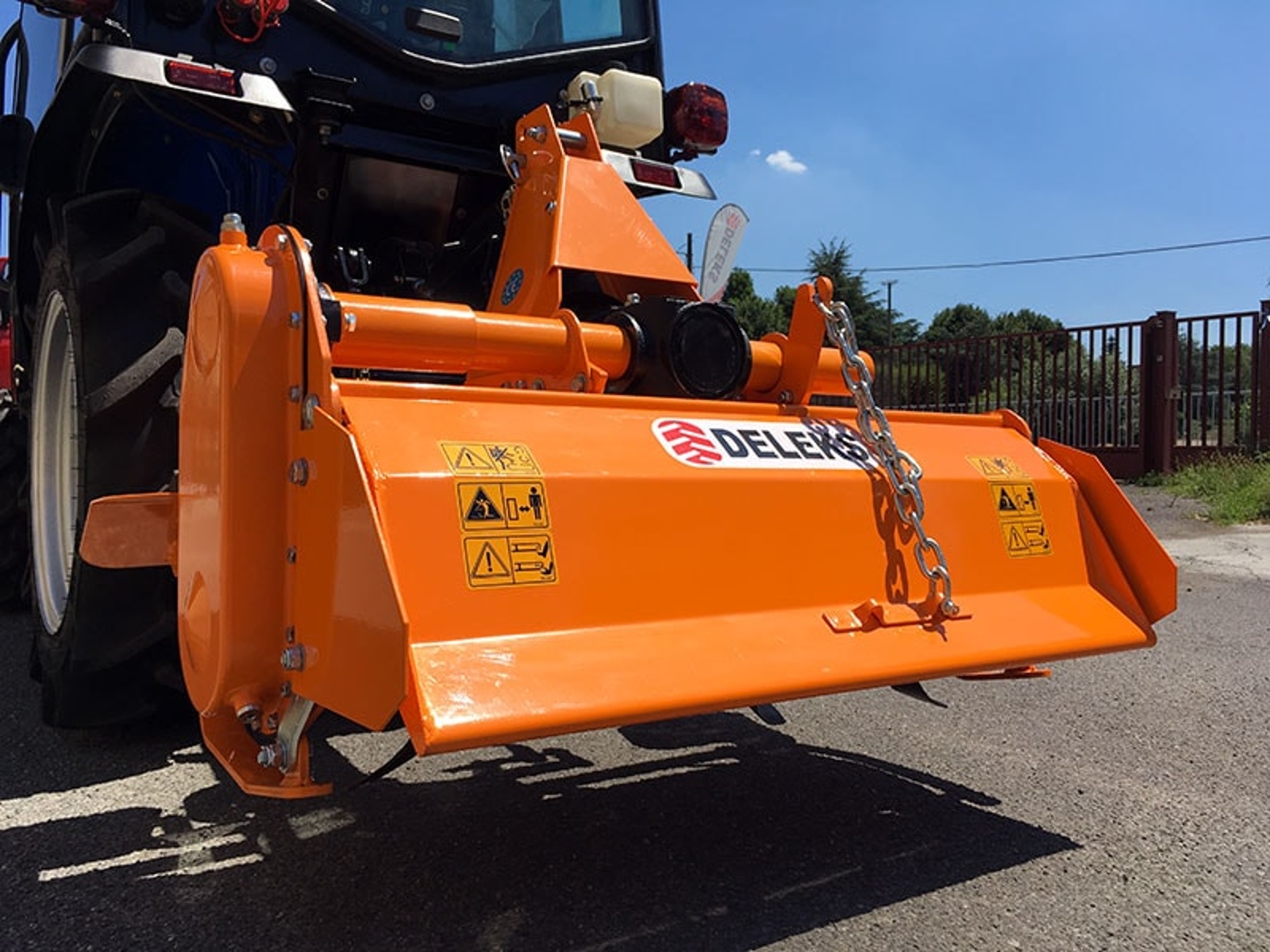

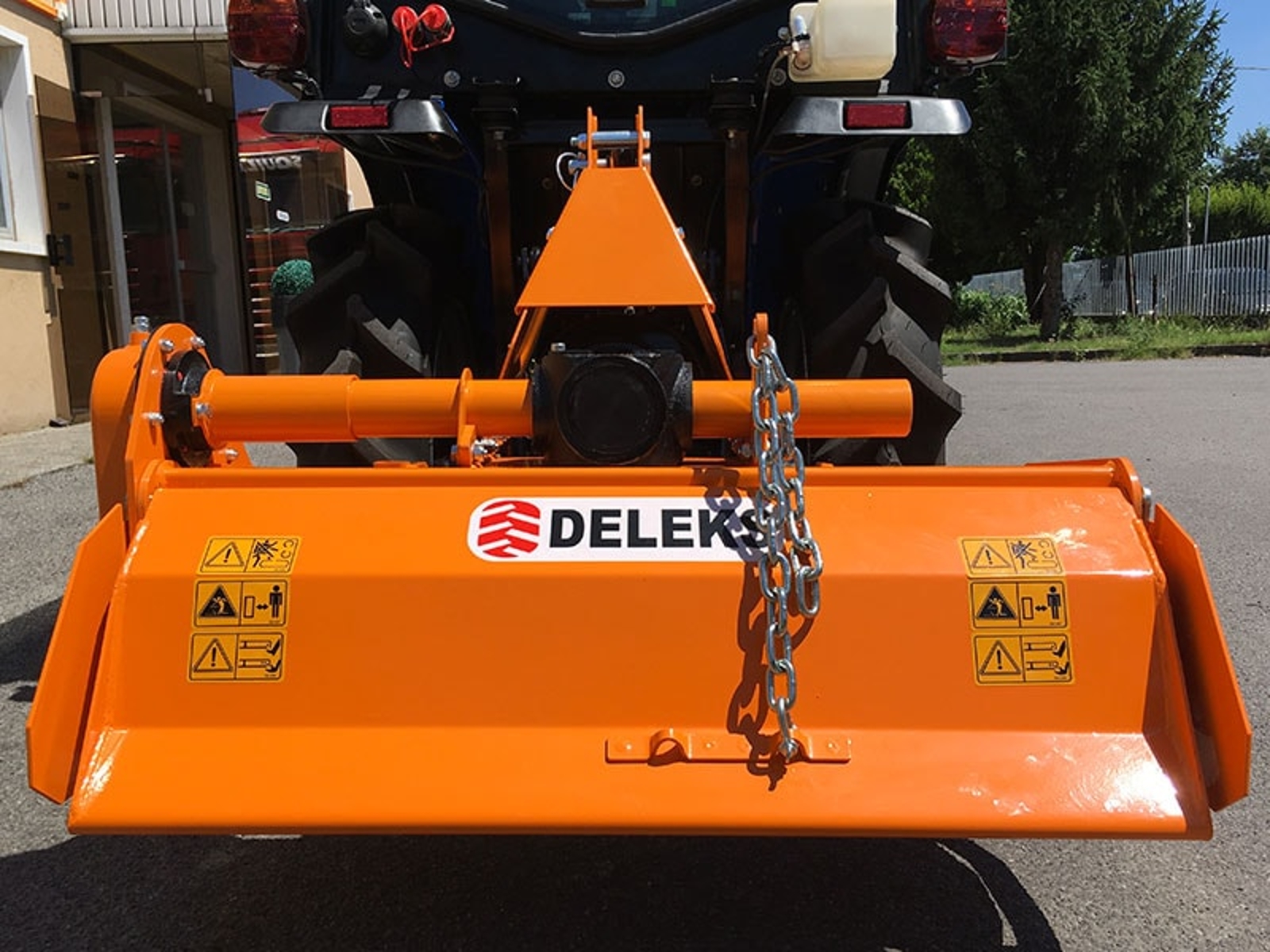

Adjustable rear shield ensures best ground leveling.

CE Safety Guards.



Characteristic Units metric Units US
Overall width 1480.0 mm 4.85 ft
Weight 171.0 kg 377.0 lb
Overall height 800.0 mm 2.63 ft
Tractor Power Range 18 - 35 Hp 18 - 35 Hp
3 point linkage Cat. 1 (ø 19.0-22.0mm) Cat. 1 (ø 19.0-22.0mm)
Position of the gearbox 560.0 mm from left side / 790.0 mm from right side 22.0 in from left side / 31.10 in from right side
Spacing between the 2 lower points 305.0 - 520.0 mm 12.0 - 20.47 in
Overall length 680.0 mm 2.23 ft
Rotor: diameter 64.0 mm 2.52 in
Rotor: sheet thickness 6.0 mm 0.24 in
Transmission Chain Chain
Effective Working width 1350.0 mm 4.43 ft
Working Depth Range 120.0 - 160.0 mm 4.73 - 6.30 in
Distance between pto attachment and base 490.0 mm 19.30 in
Pto shaft CE 4x800 mm CE 4x800 mm
Rotor: diameter with blades 370.0 mm 14.57 in
Rotor: bearings type and sizes "GB276-6207(R) GB276-6207(L)" "GB276-6207(R) GB276-6207(L)"
Rotor: flanges 7 7
Number of Blades per flange 4 4
Blades: quantity 28 28
Blades: height/width 180.0 / 67.0 mm 7.08 / 2.64 in
Blades: curve length 230.0 mm 9.05 in
Blades: distance between holes 45.0 mm 1.77 in
Blades: diameter of the holes 13.0 mm 0.51 in
Blades: thickness 6.0 mm 0.24 in
Gearbox Lombarda Ingranaggi 540 r/min (3 year warranty) Lombarda Ingranaggi 540 r/min (3 year warranty)
Effective Displacement 120.0 mm manual 4.73 in
Rotation of gearbox Right side (left side on request) Right side (left side on request)
RPM Rotor speed 280 rpm 280 rpm
Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Blades: weight 570.0 g 20.10 oz
Packing sizes 800.0*1490.0*650.0 mm 2.62*4.88*2.13 ft
