Mini round baler for tractor STAR-870, compact hay baler for 60 x 70 cm (24 x 28 in) round bales, 24-55 hp

Available
Code STAR870PTO - EAN 8053470237782
D
H
M
S
-1.068,00€ 6.283,00€VAT incl.
5.215,00€VAT incl.
Free shipping
Loading...
D
H
M
S
-1.068,00€ 6.283,00€VAT incl.
5.215,00€VAT incl.
Free shipping
View all details.

4.6

1551 reviews

-1.068,00€ 6.283,00€VAT incl.
5.215,00€VAT incl.
 REQUEST INFORMATION

DETAILS

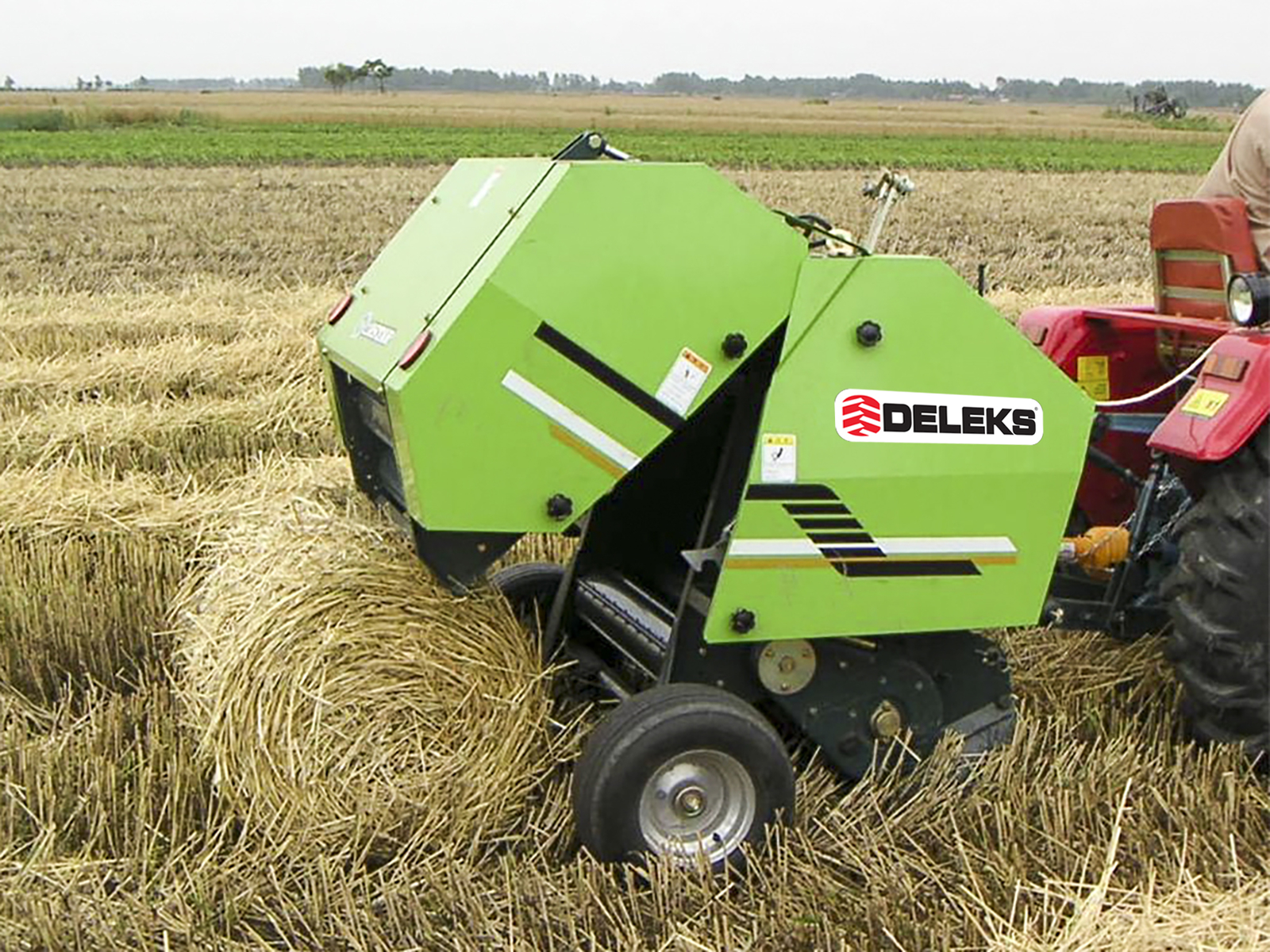

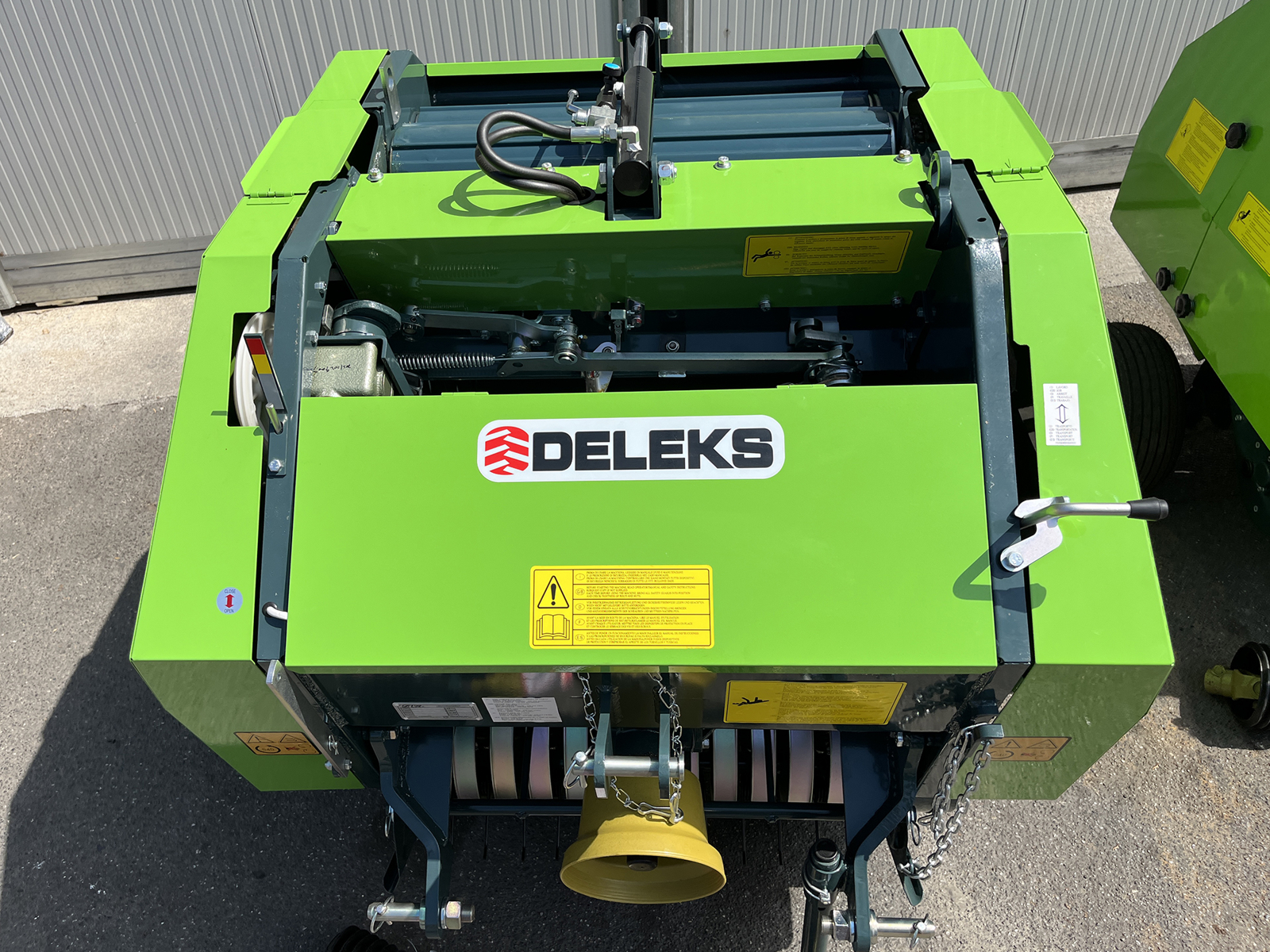

Mini round baler for tractors, the DELEKS® STAR-870: a mounted mini baler that picks up the swath with an 80 cm (31 in) pick-up and presses it into round bales of hay or straw of 60 x 70 cm (24 x 28 in) and 25-30 kg (55-66 lb), tied with twine. It works at 2 to 5 km/h (1.2 to 3 mph) with compact tractors from 24 to 55 hp, with a category 1 three-point linkage and a 540 rpm PTO. It is the small baler for small bales you can move by hand: for smallholdings, horse owners and plots where a big baler cannot get in. EUROCERT-certified, it comes complete with a CE-approved PTO shaft, a 2-year warranty and free delivery within the EU.


Round bales of 60 x 70 cm (24 x 28 in), tied with twine

The STAR-870 makes cylindrical bales 60 cm (24 in) in diameter and 70 cm (28 in) wide, weighing about 25-30 kg (55-66 lb), tied with twine: small bales you can move by hand, ideal for small livestock holdings. Round bales stand up to the weather better and can be wrapped in plastic film.

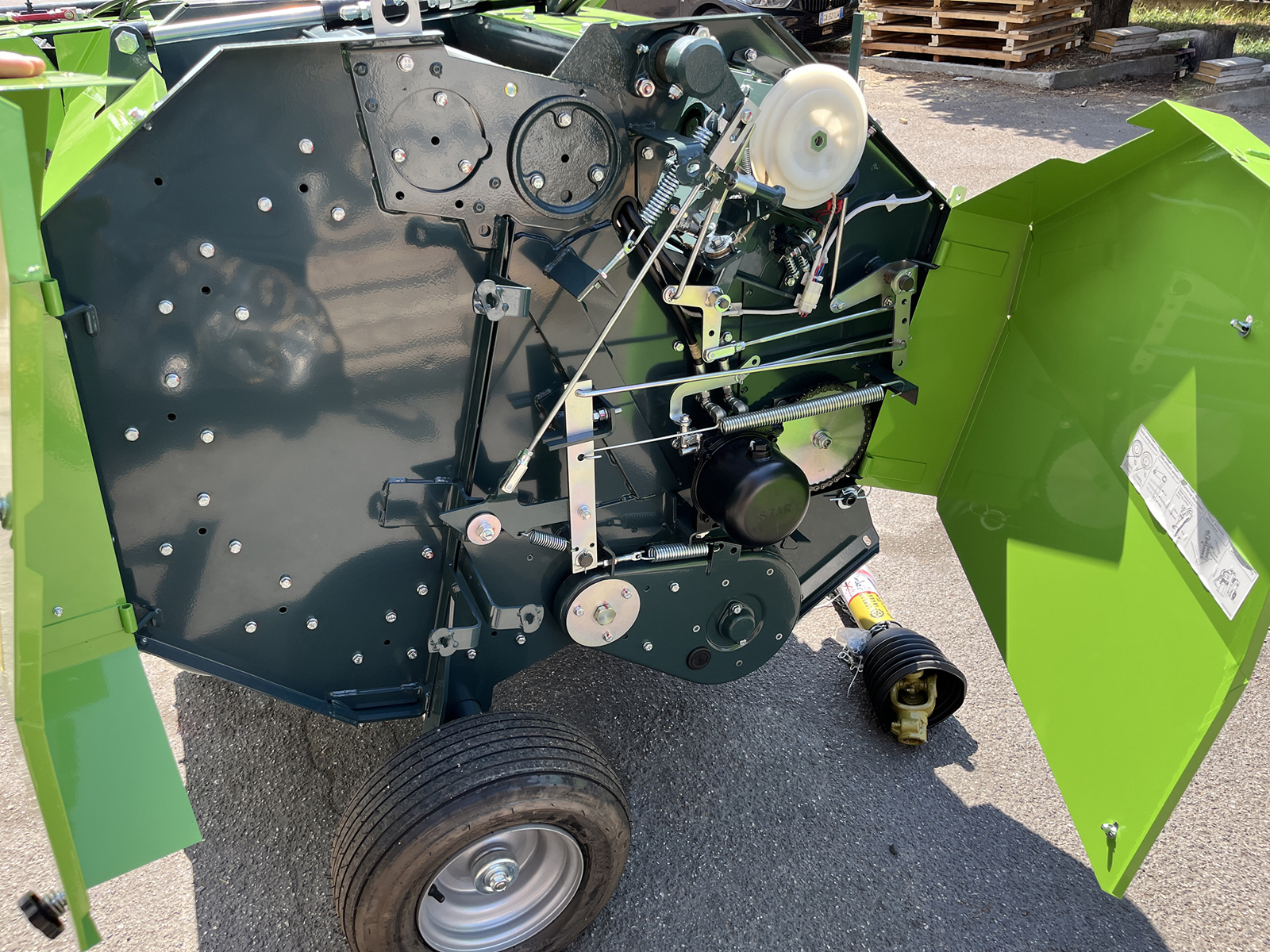

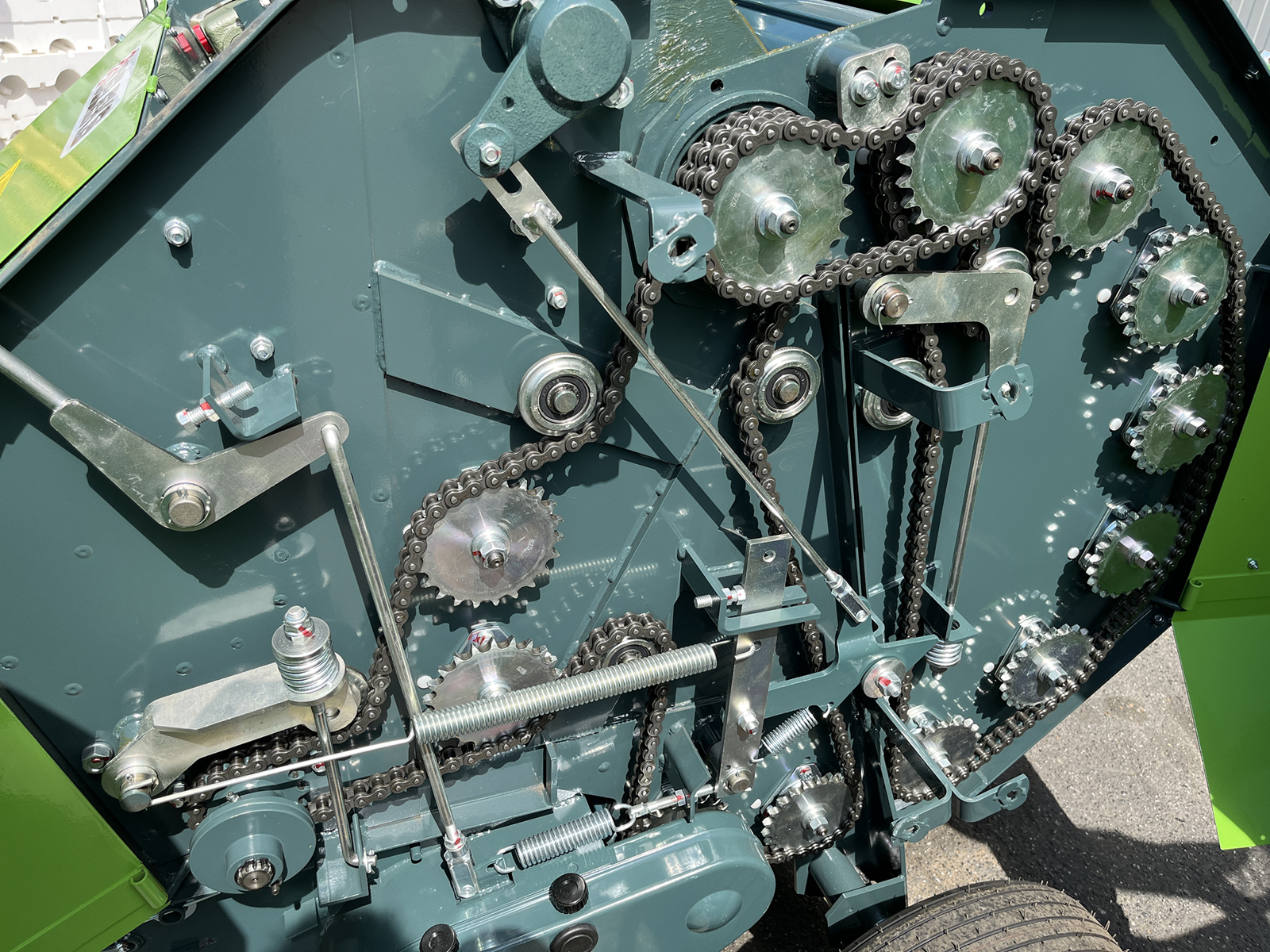

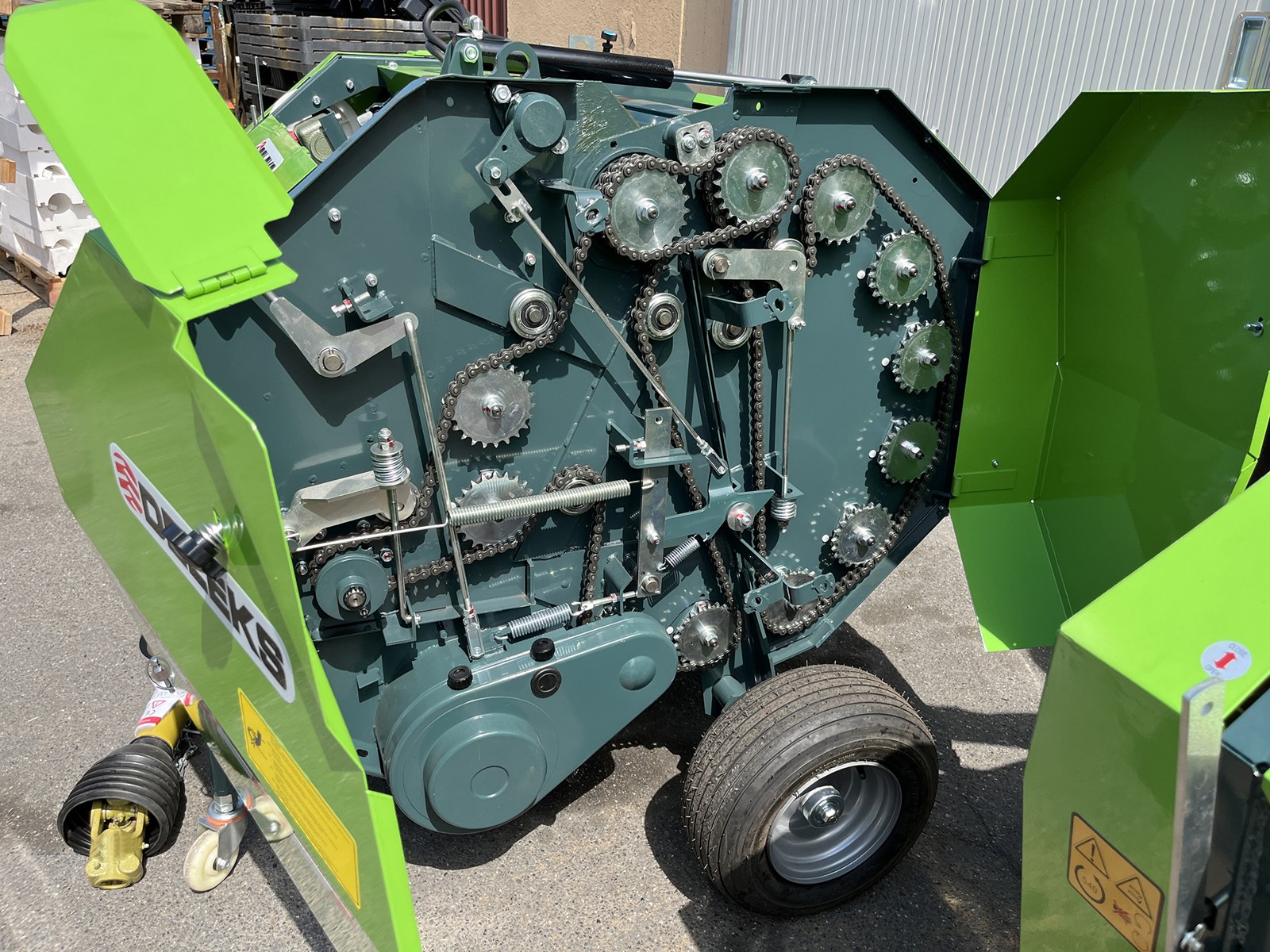

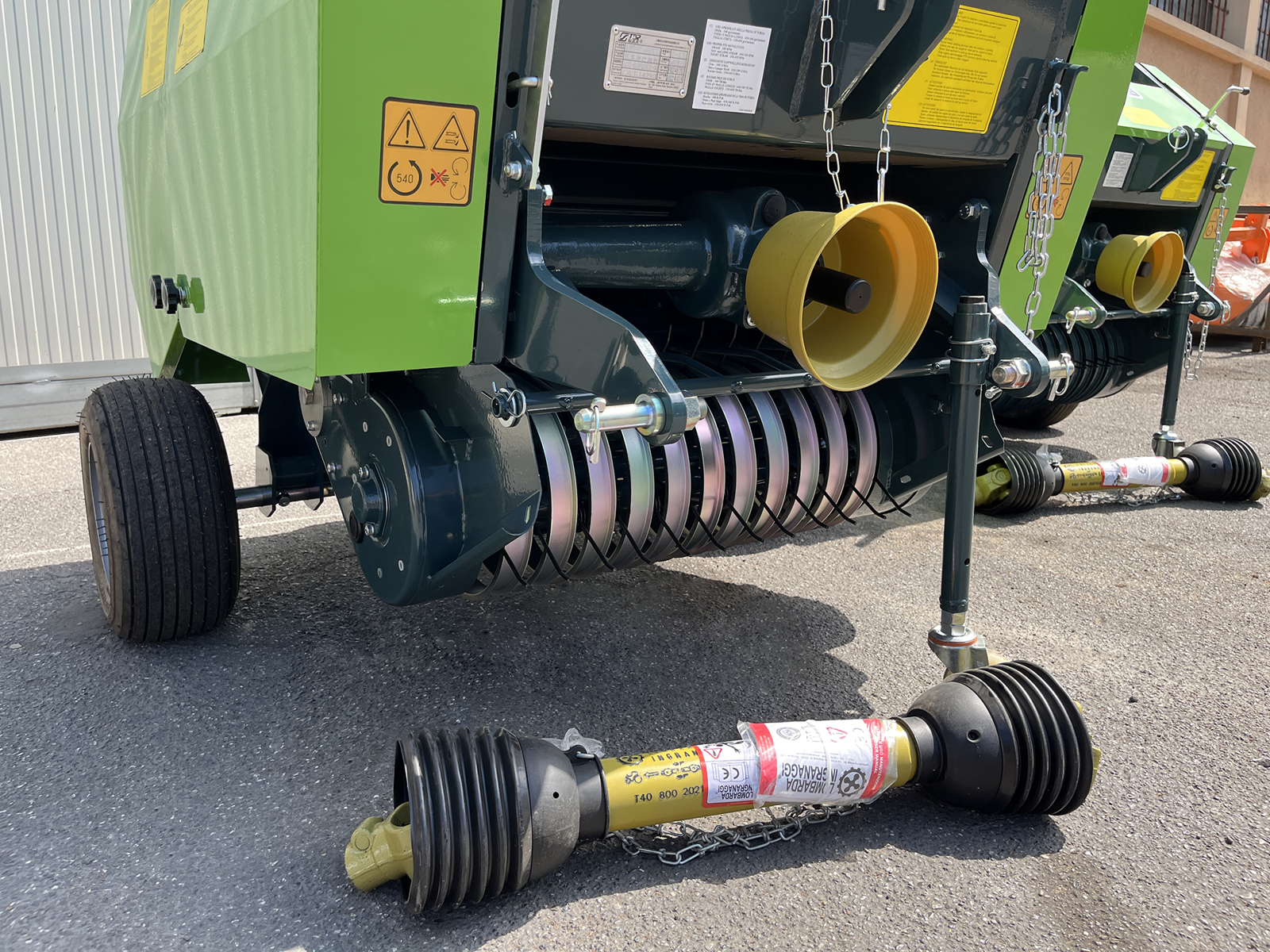

How it works: 80 cm (31 in) pick-up, rotary feeder and roller chamber

The pick-up, 80 cm (31 in) wide, lifts the swath of hay or straw; the rotary feeder helps it into the roller baling chamber, where the bale is formed. You work at 2 to 5 km/h (1.2 to 3 mph). When the bale is formed a buzzer warns the operator: the bale is tied with twine and unloaded. It is built with Japanese quality and technology.

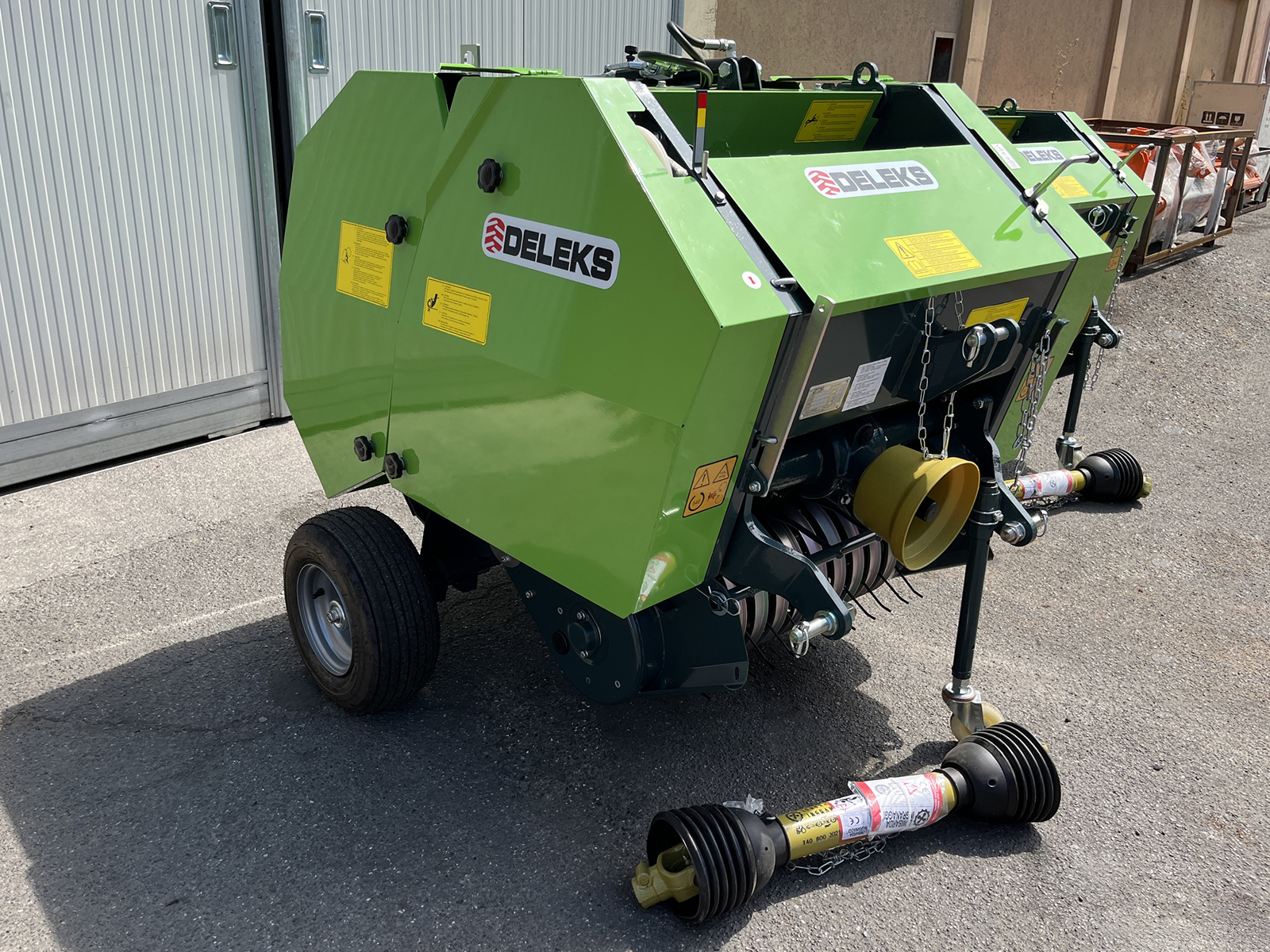

Which tractors it fits

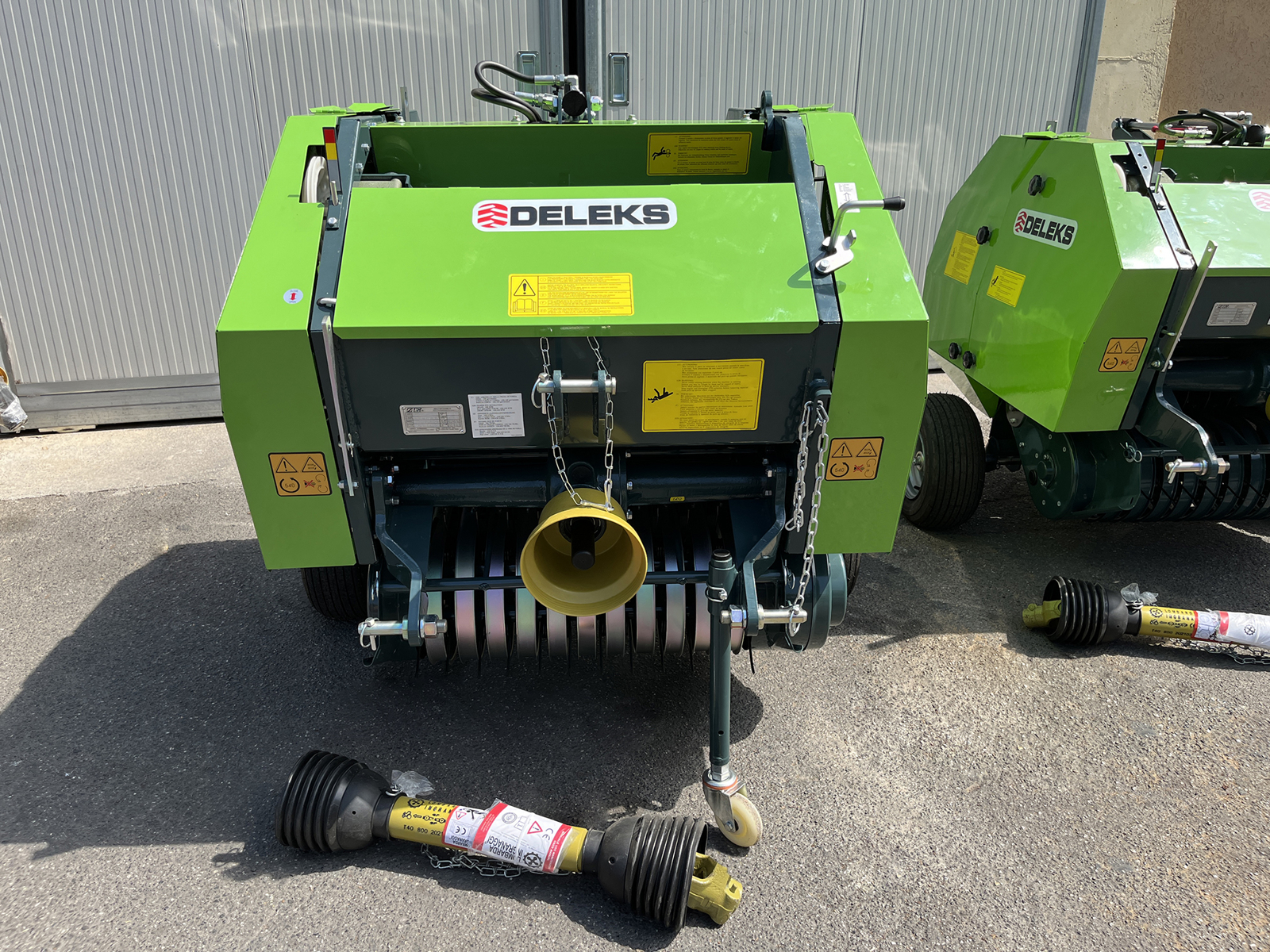

The STAR-870 is a mounted baler: it connects to the category 1 three-point linkage (19-22 mm pins, lower link spacing from 410 to 660 mm) and to the rear 540 rpm PTO of compact tractors from 24 to 55 hp, such as Kubota, Iseki, Yanmar, Antonio Carraro, Goldoni and Solis. It has two wheels with 16 x 6.50-8 tyres.

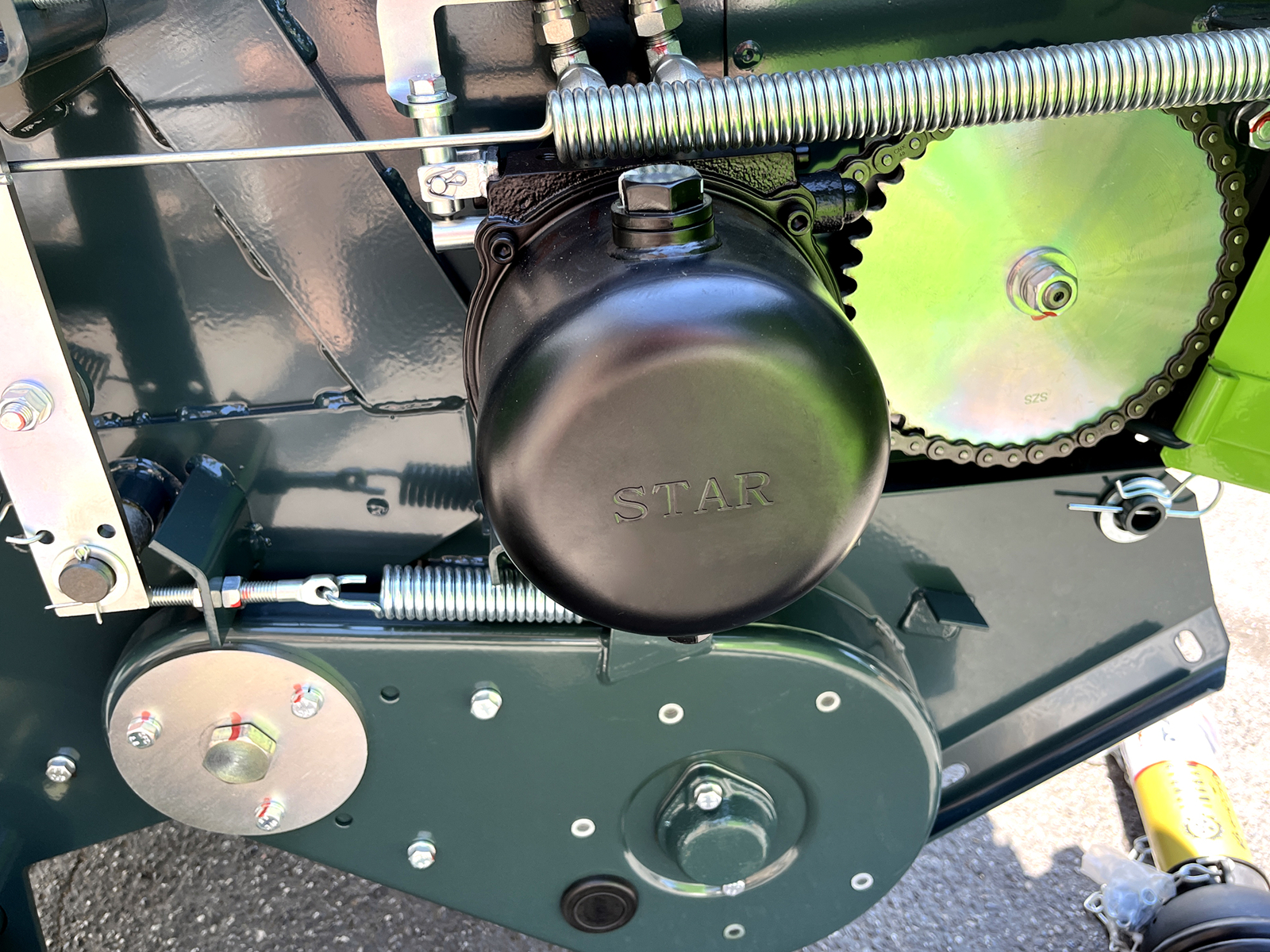

Independent hydraulics, clutch and PTO shaft

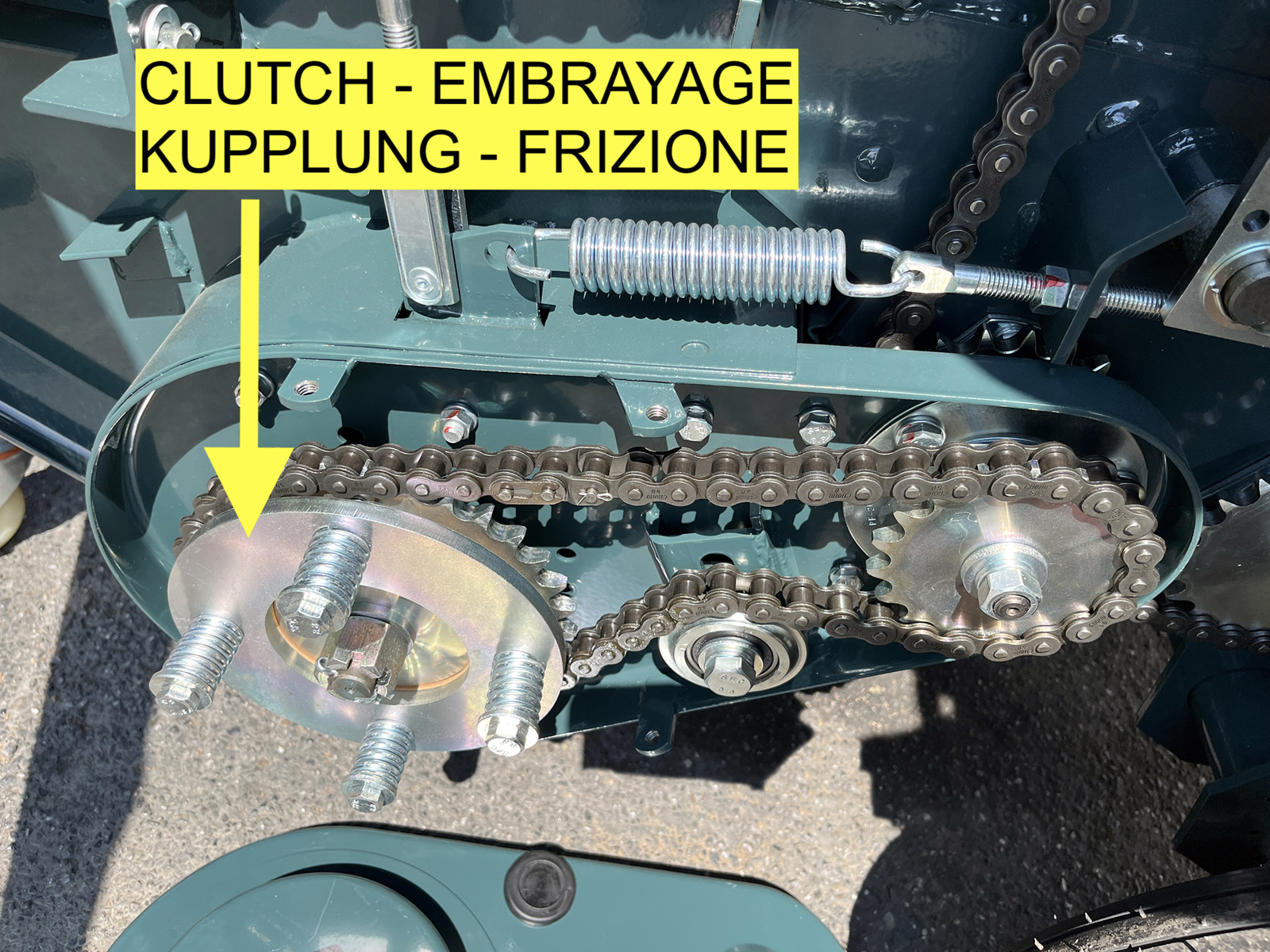

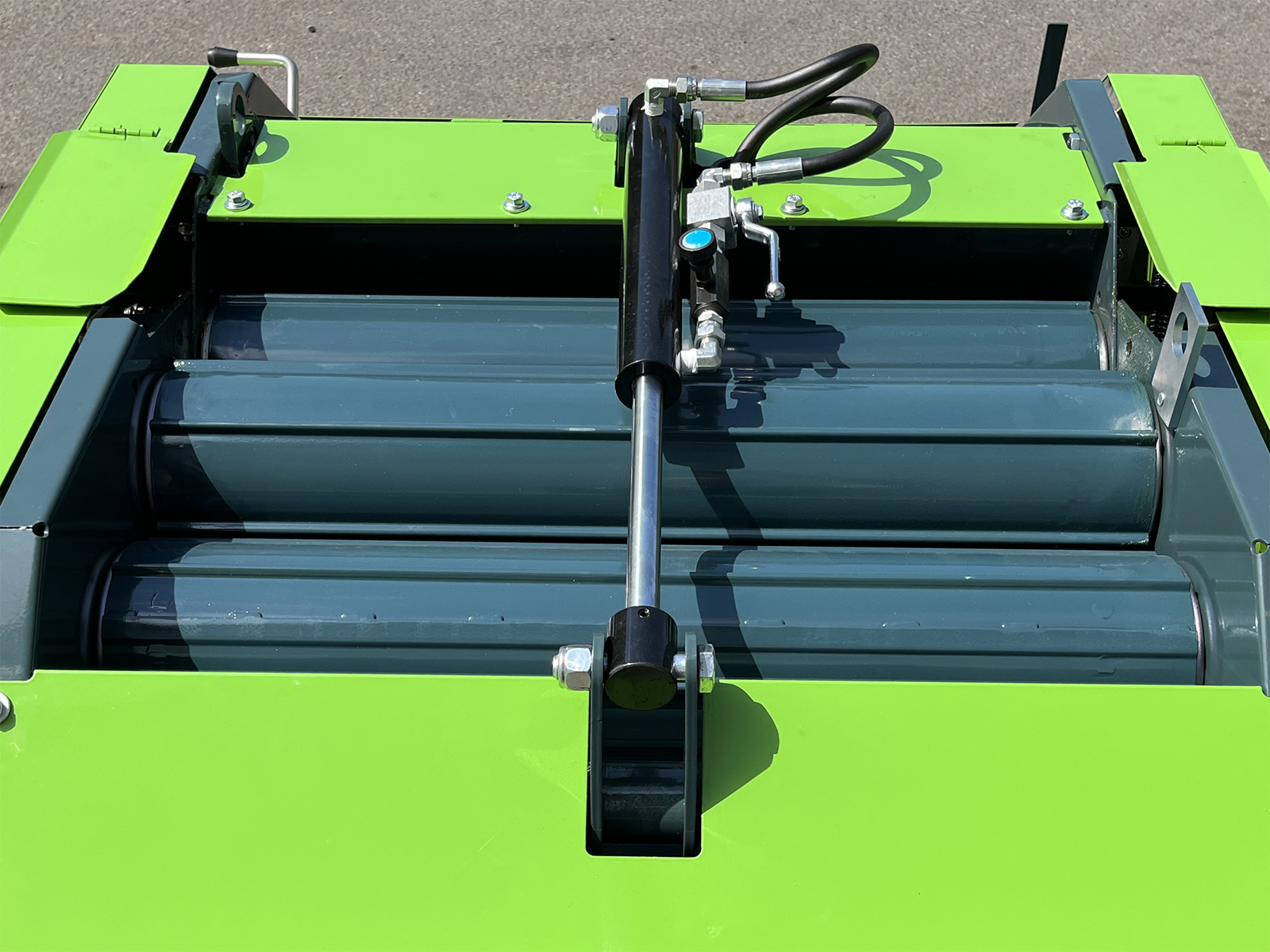

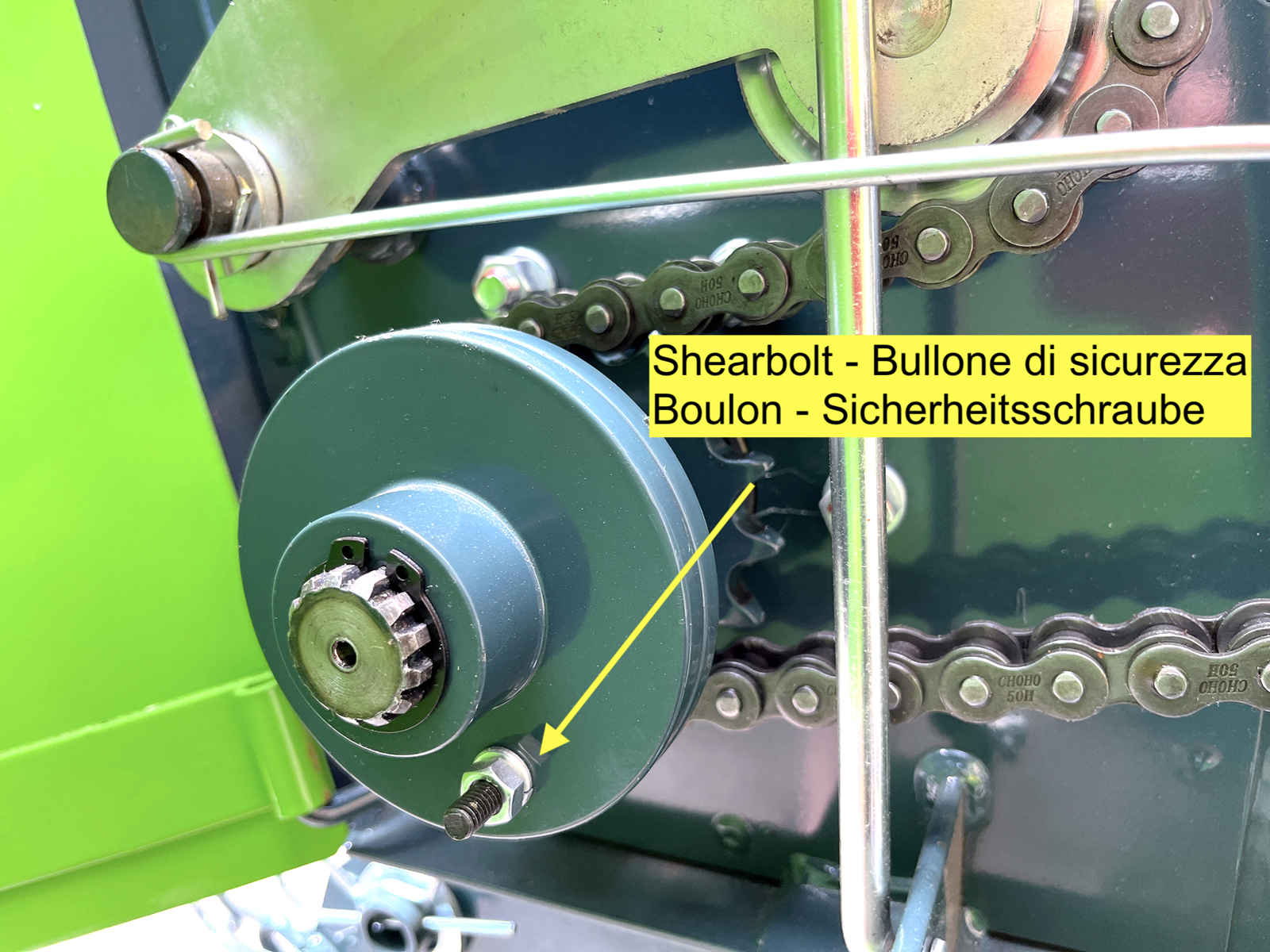

The hydraulic system is independent: the STAR-870 has its own oil tank and does not use the tractor's oil. The driveline has a clutch, which cuts in if a foreign object jams the machine, and a shear bolt. The CE-approved category 4 PTO shaft, 700 mm (27.6 in) long, is included.


Compact: it works where a big baler cannot get in

It is more compact than square balers: with an overall width of 1,350 mm (53.1 in) it works in confined areas, on slopes too, and gets through narrow passages. It picks up the swath from any mower; with the 100 and 135 cm (39 and 53 in) mowers the swath is the right size for the 80 cm (31 in) pick-up.


Dimensions, weight and delivery

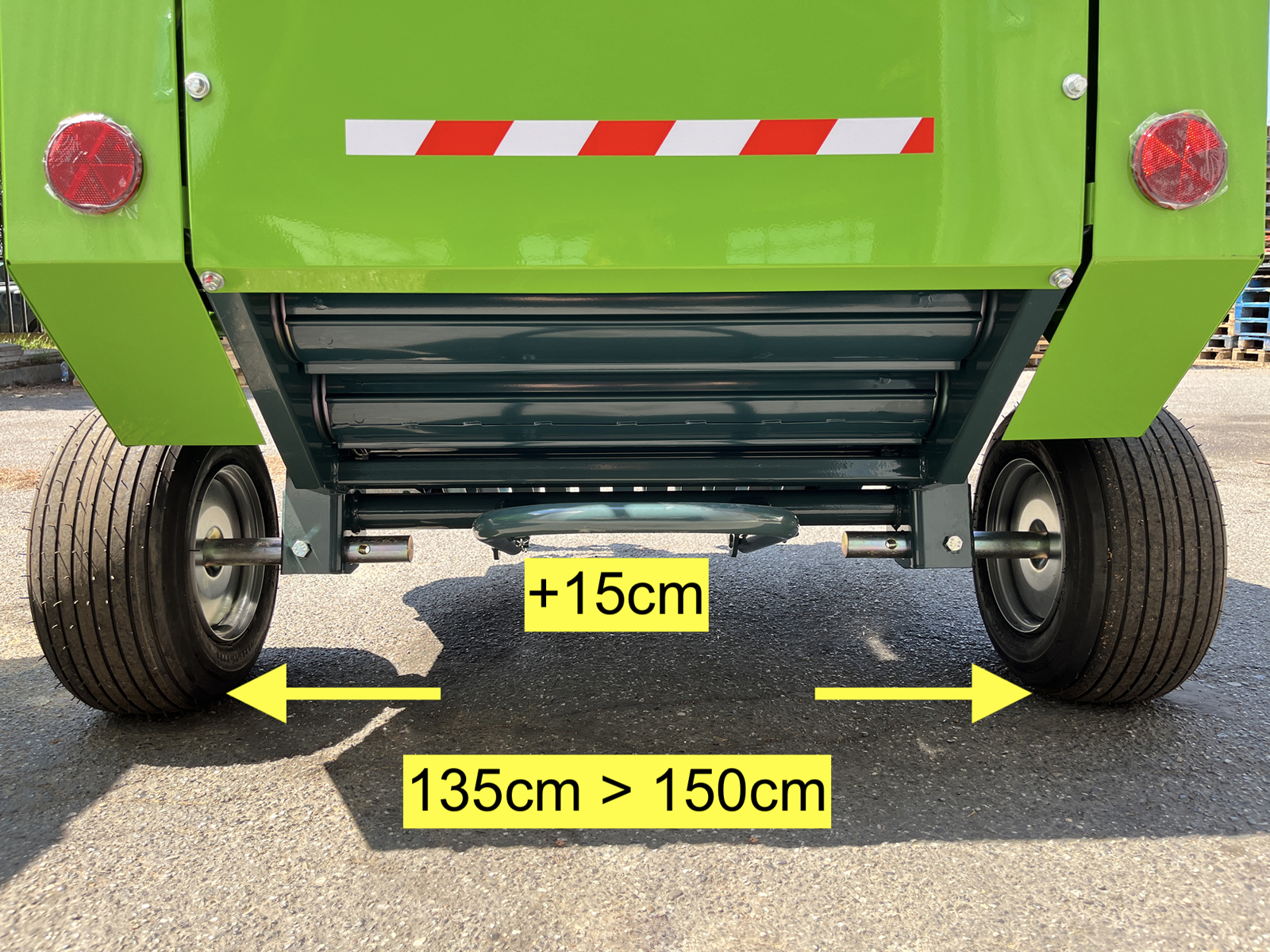

Working width 800 mm (31.5 in), overall width 1,350 mm (53.1 in), length 1,300 mm (51.2 in), weight 440 kg (970 lb). The wheel track has two settings, 135 or 150 cm (53 or 59 in): each hub has 2 holes and, with nuts and bolts, the wheels are fitted closer in, to keep the machine narrow, or further out, for greater stability. It ships in packaging measuring 145 × 115 × 125 cm (57 × 45 × 49 in), 516 kg (1138 lb) gross, 2.08 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is EUROCERT-certified and carries a 2-year warranty.


Where it works

  • Hay in small bales of 25-30 kg (55-66 lb) that you can move by hand
  • Smallholdings, horse owners and small livestock holdings
  • Small plots, confined areas and narrow passages, where a big baler cannot get in
  • Straw in round bales of 60 x 70 cm (24 x 28 in)
  • Compact tractors from 24 to 55 hp with a category 1 three-point linkage

Options and spares

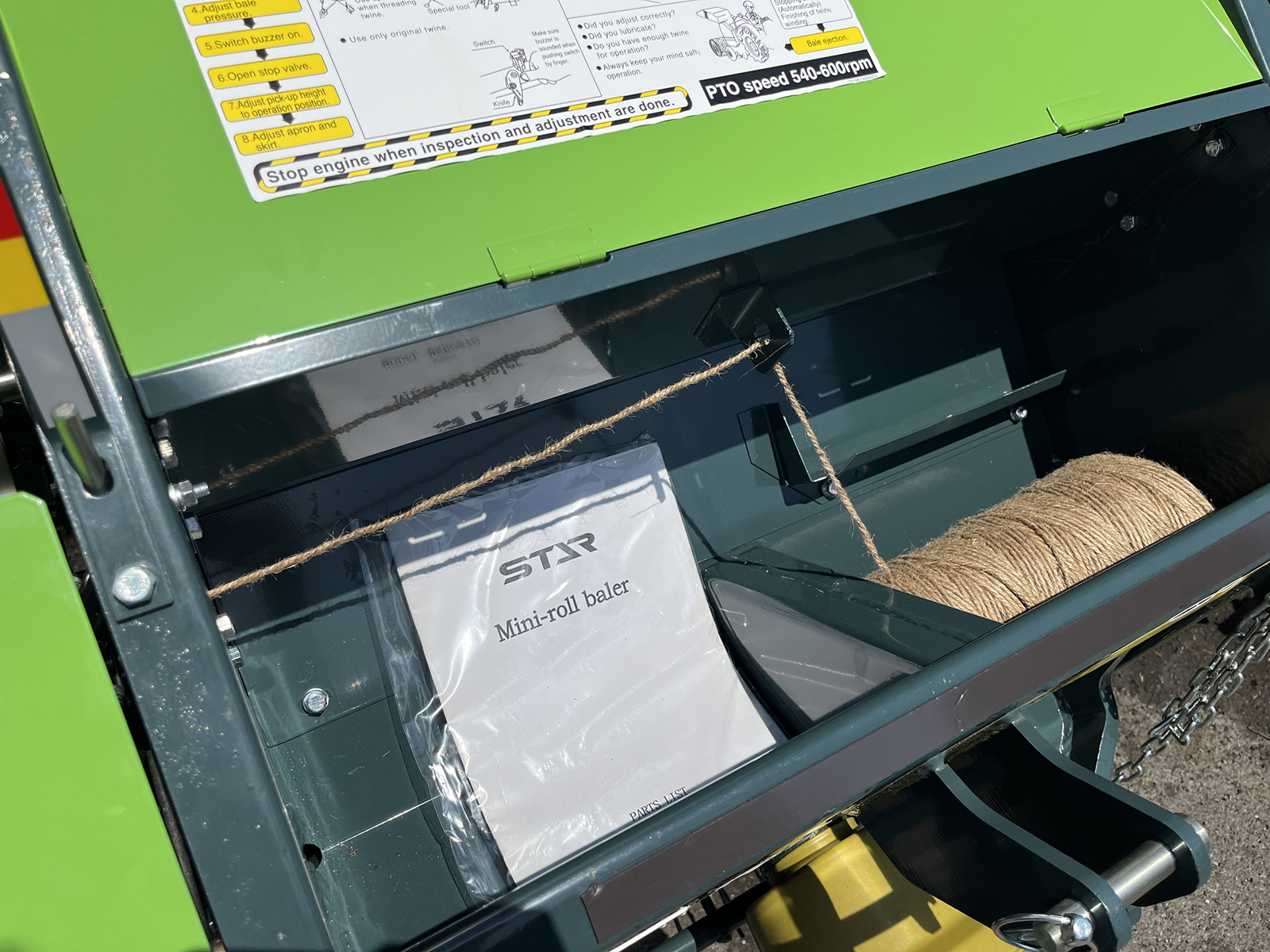

From this page you can add to your order baler twine in a 3 kg (6.6 lb) pack (STARSPAGO) and the set of 5 spare pick-up tines (STARDENTI). Other spares are identified on the exploded diagrams with our technical team.


FAQ

What bales does the STAR-870 make?
Round bales 60 cm (24 in) in diameter and 70 cm (28 in) wide, 25-30 kg (55-66 lb), tied with twine: they can be handled by hand.

What size tractor does it need?
From 24 to 55 hp, with a 540 rpm PTO and a category 1 three-point linkage.

Does it need the tractor's oil?
No: the hydraulic system is independent, with its own oil tank.

How do you know when the bale is ready?
A buzzer sounds when the bale is formed.

Can the bales be wrapped?
Yes: round bales can be wrapped in plastic film.

How does it differ from the STAR-850?
The STAR-850 makes bales of 50 x 70 cm (20 x 28 in) and 20-30 kg (44-66 lb), weighs 390 kg (860 lb) and works with tractors from 24 to 40 hp; the STAR-870 makes bales of 60 x 70 cm (24 x 28 in) and 25-30 kg (55-66 lb), weighs 440 kg (970 lb) and works with tractors from 24 to 55 hp. Both have an 80 cm (31 in) pick-up.

Does it need a particular mower?
No: it picks up the swath from any mower; with the 100 and 135 cm (39 and 53 in) mowers the swath is the right size for the 80 cm (31 in) pick-up.

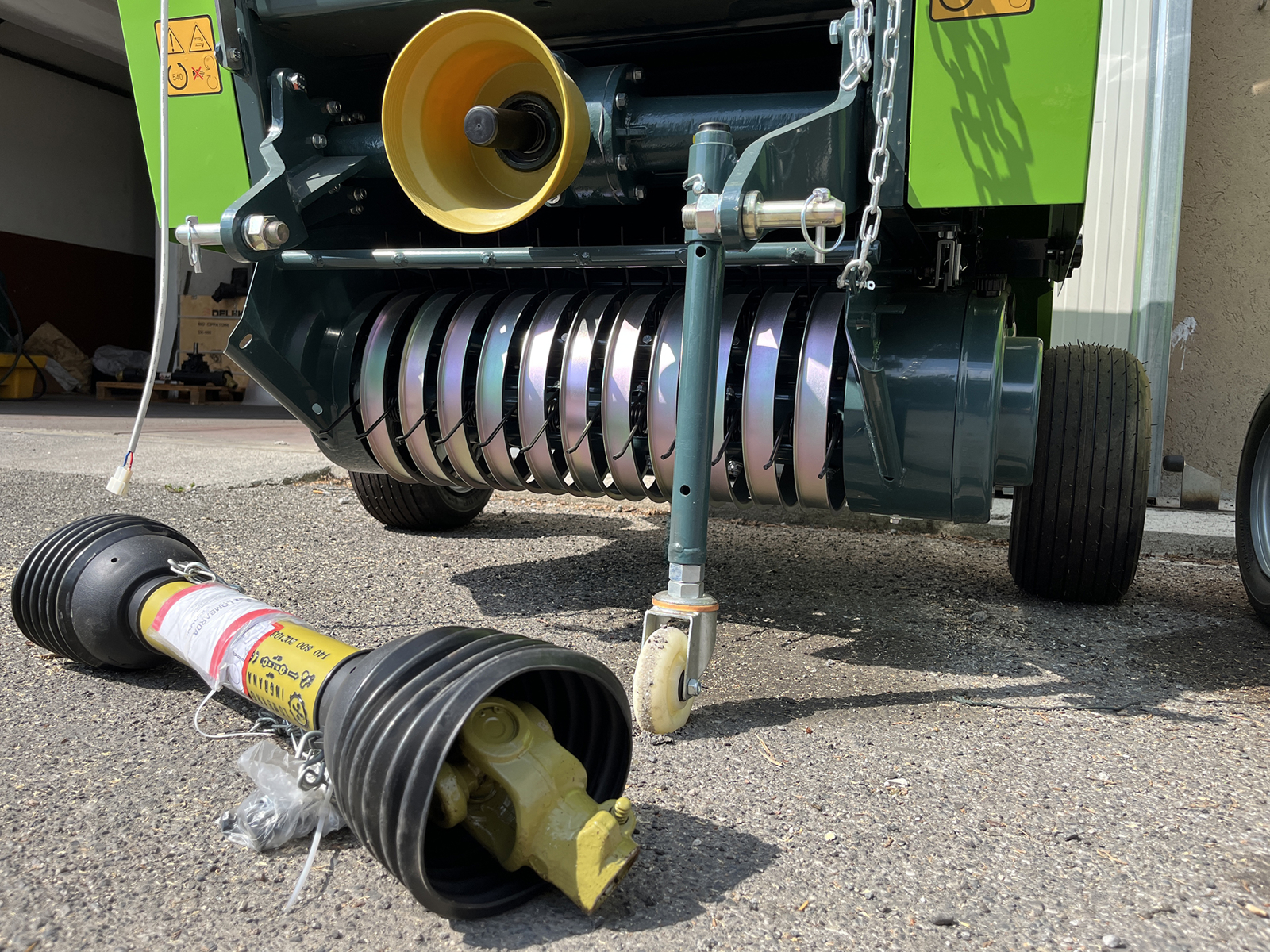

Is the PTO shaft included?
Yes: a CE-approved category 4 PTO shaft, 700 mm (27.6 in) long.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: pick-up tines, twine, bearings, rollers and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right baler for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric Units US
Working width 800.0 mm 2.60 ft
Overall width 1350.0 mm 4.43 ft
Weight 440.0 kg 970.0 lb
Tractor Power Range 24-55 Hp 24-55 Hp
3 point linkage Cat. 1 (ø 19.0-22.0mm) Cat. 1 (ø 19.0-22.0mm)
Spacing between the 2 lower points 410.0-660.0 mm 16.15-26.00 in
Overall length 1300.0 mm 4.25 ft
Distance between pto attachment and ground 550.0 mm 22.00 in
Transmission: PTO 540 r/min 540 r/min
Transmission: Rotation of gearbox Right side Right side
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Pto shaft CE 4x700 mm CE 4x700 mm
Wheel Sizes 16 x 6.50-8-4PR 16 x 6.50-8-4PR
Gross shipping weight 516 kg 1138 lb
Package volume 2.08 m3 73.5 cu ft
Packing sizes 1450.0*1150.0*1250.0 mm 4.75*3.77*4.10 ft
