Heavy rotavator tiller for tractors - working width 180cm - for soil preparation - mod. DFH-180

Trustpilot
4.5

192 reviews

Not available Notify me
Code DFH180PTO
EAN 8053470230806
View all details.
TOTAL
2.216,00€VAT incl.
Free shipping
REQUEST MORE INFORMATION
> ROTOVATORS & STONE BURIERS > FIXED HEAVY ROTAVATOR TILLERS > Heavy rotavator tiller for tractors - working width 180cm - for soil preparation - mod. DFH-180
VIDEO

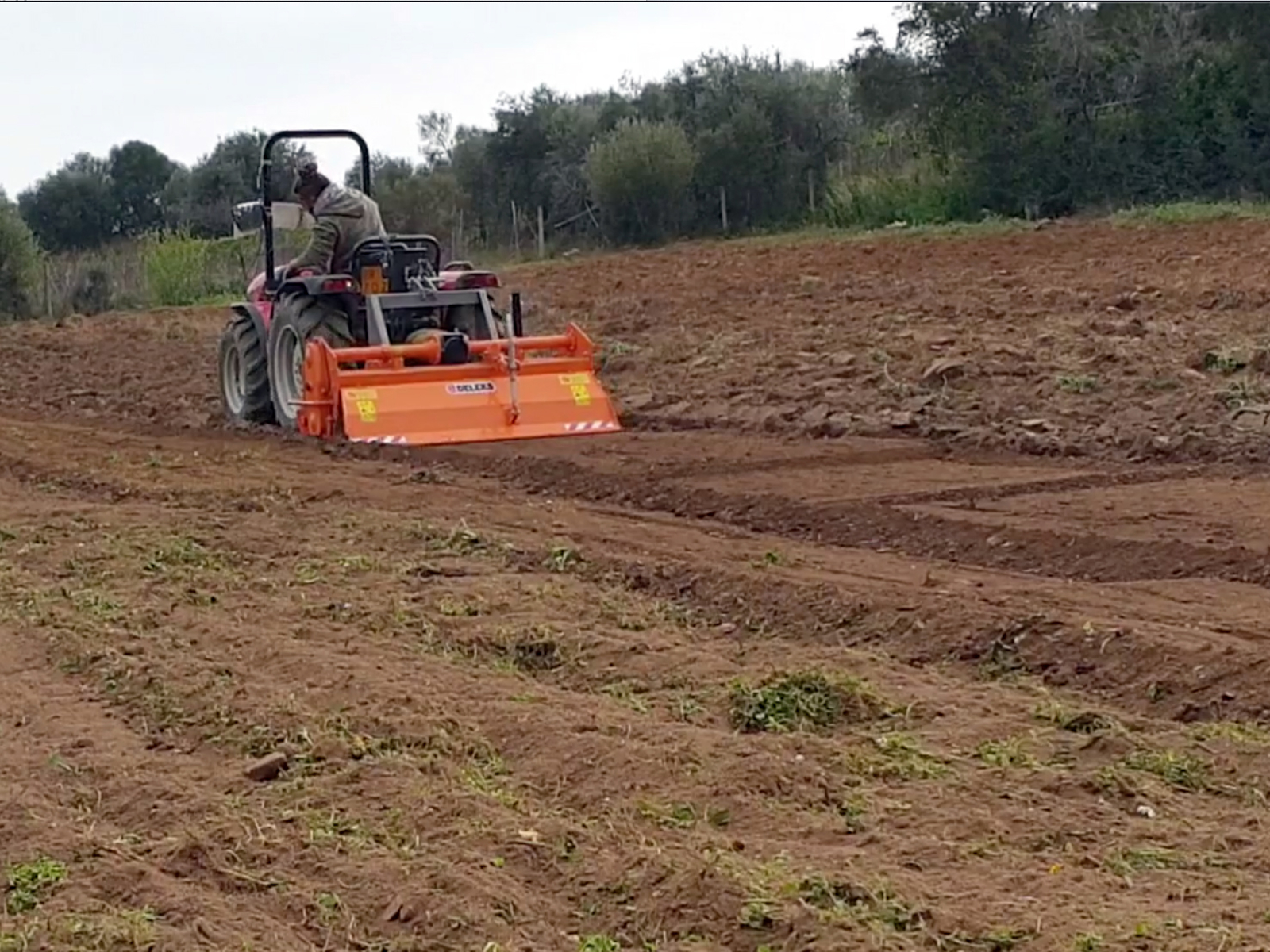

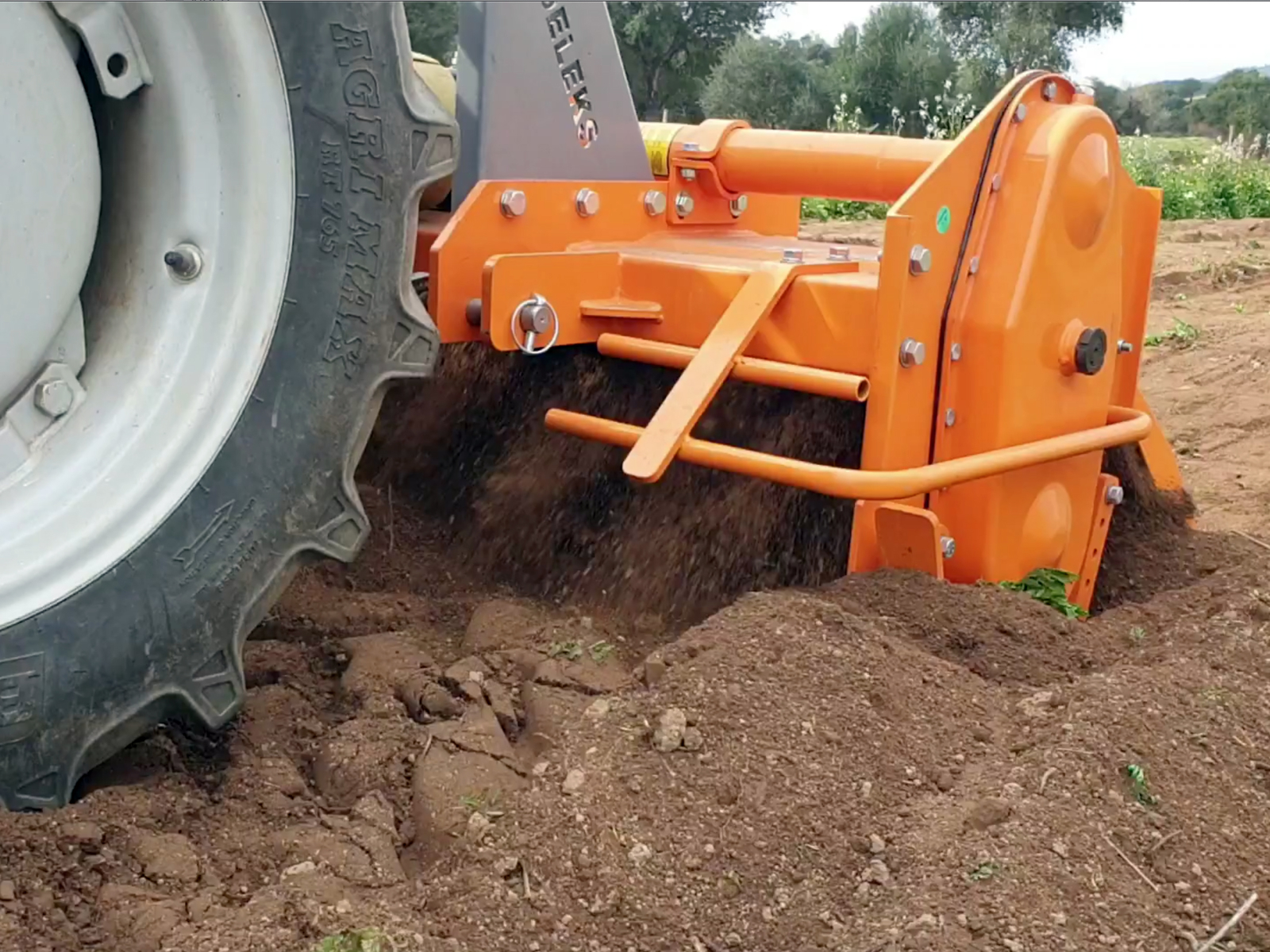

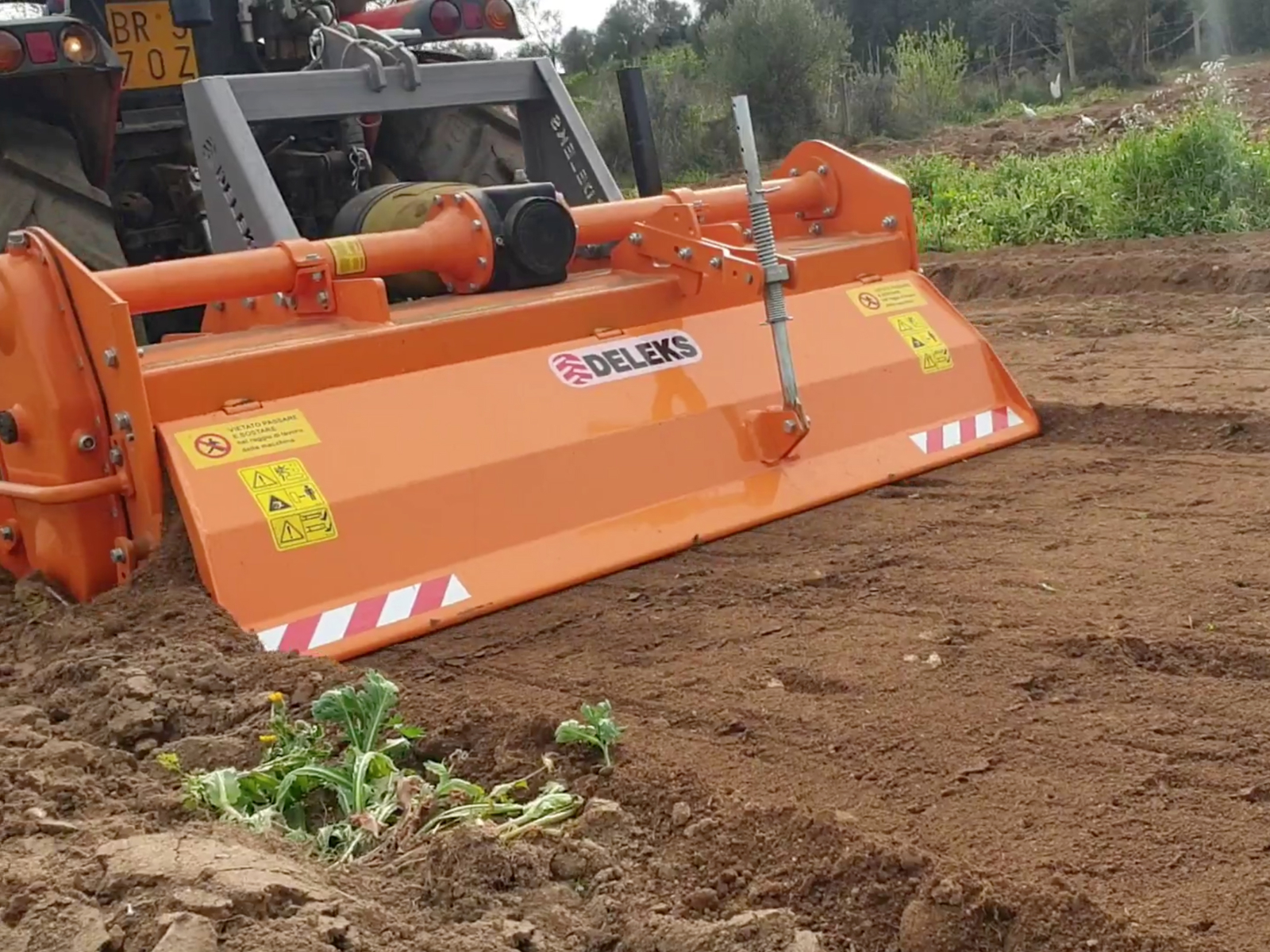

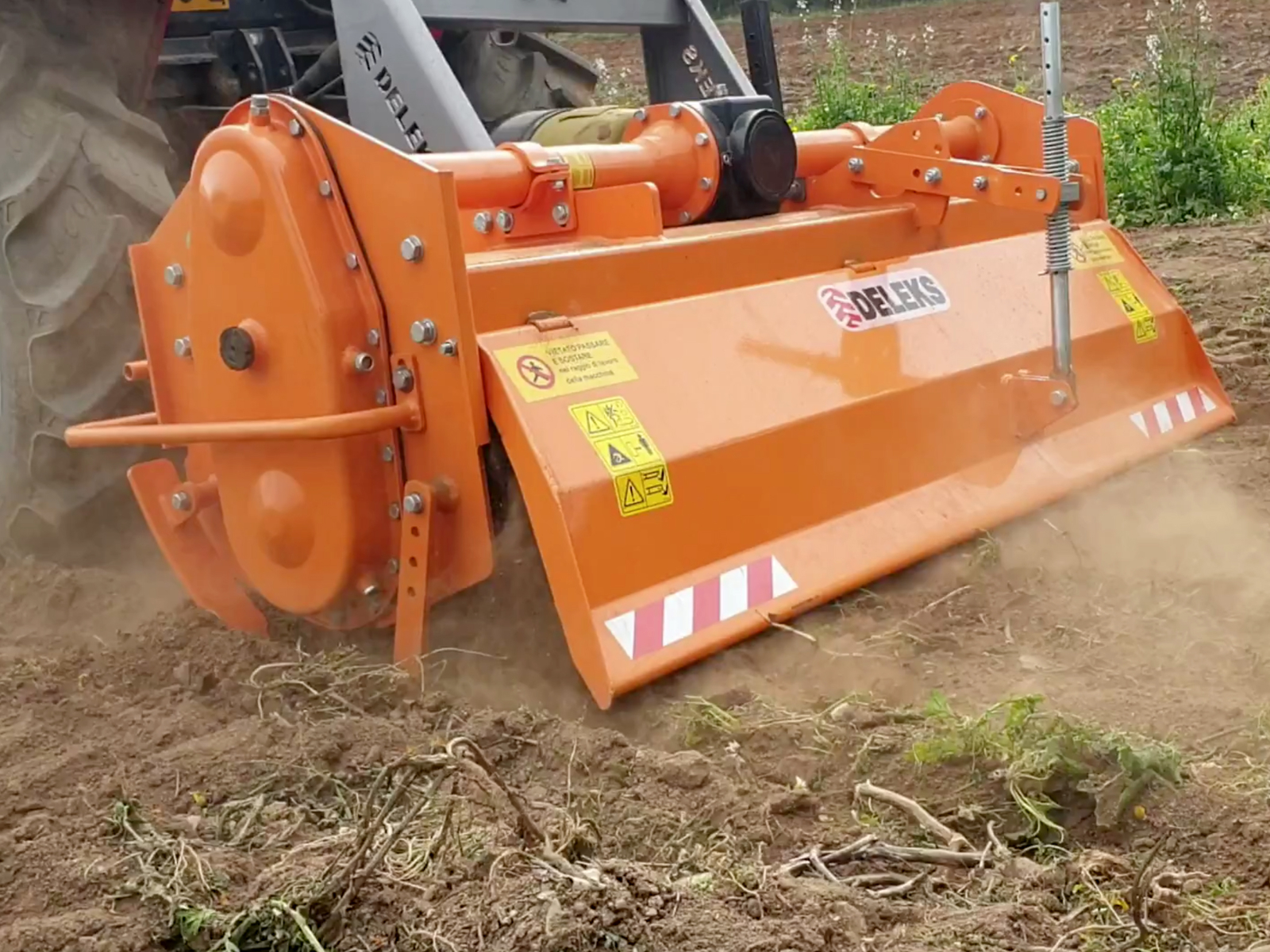

Field test
Field test

DETAILS

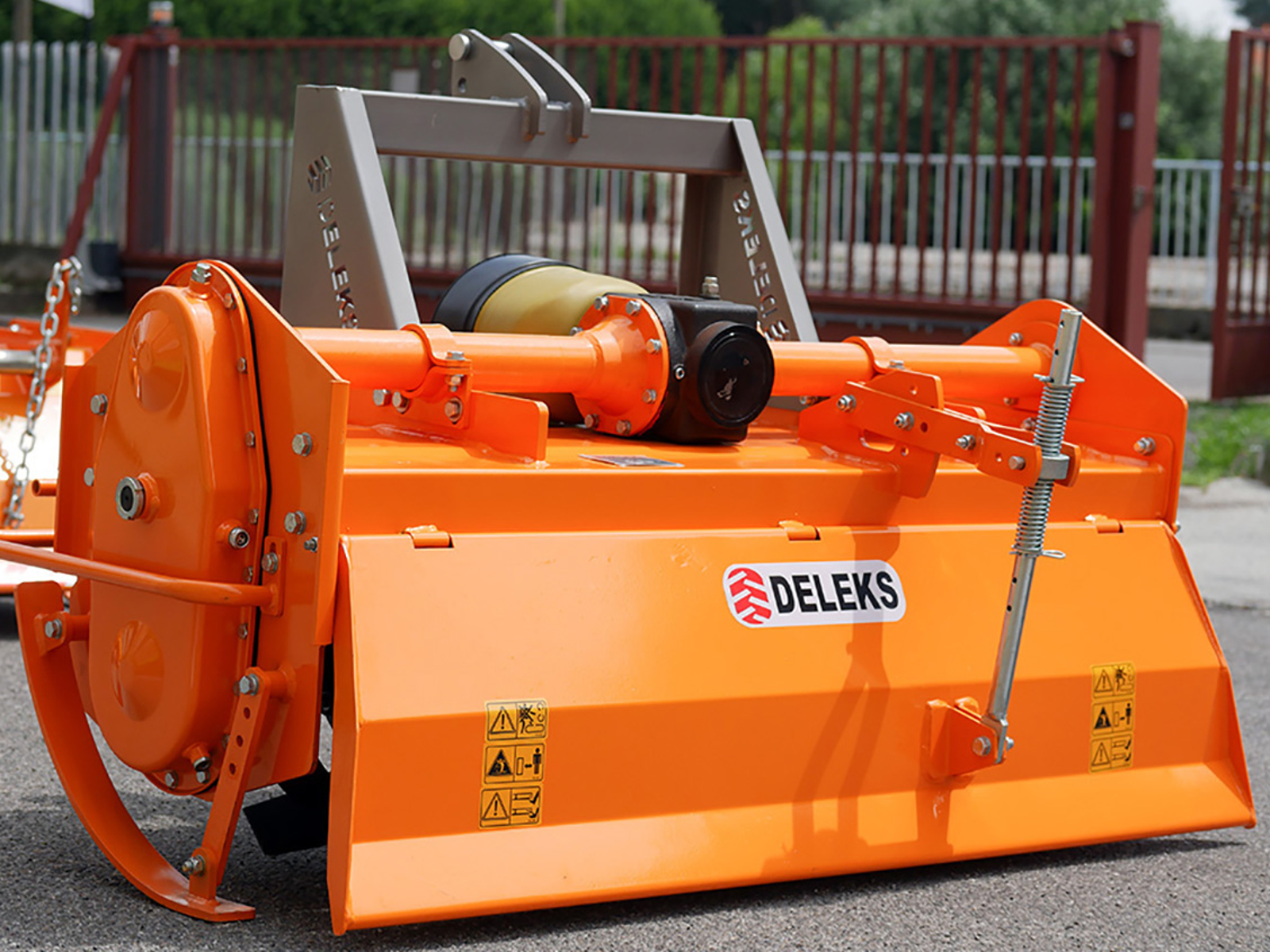

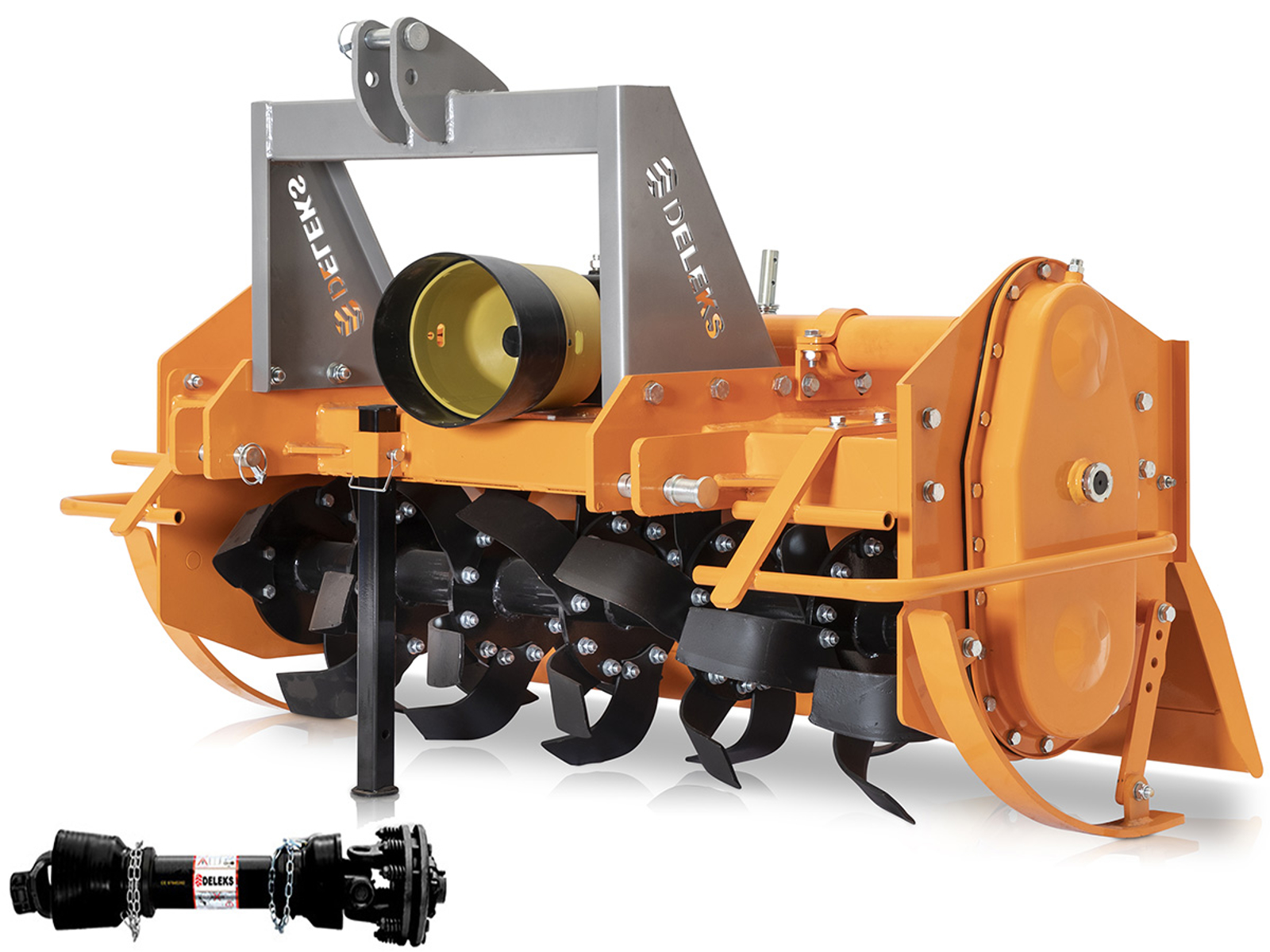

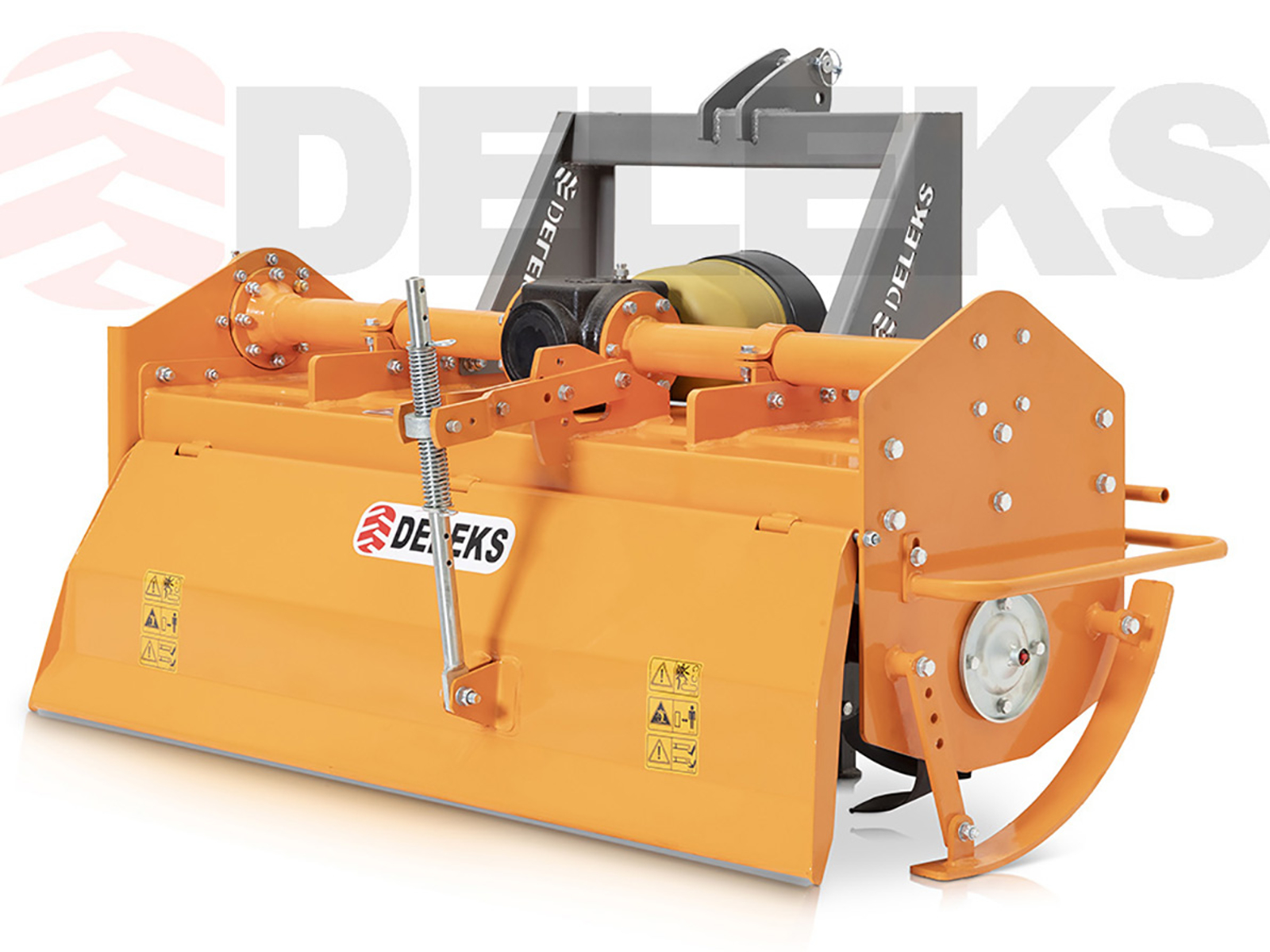

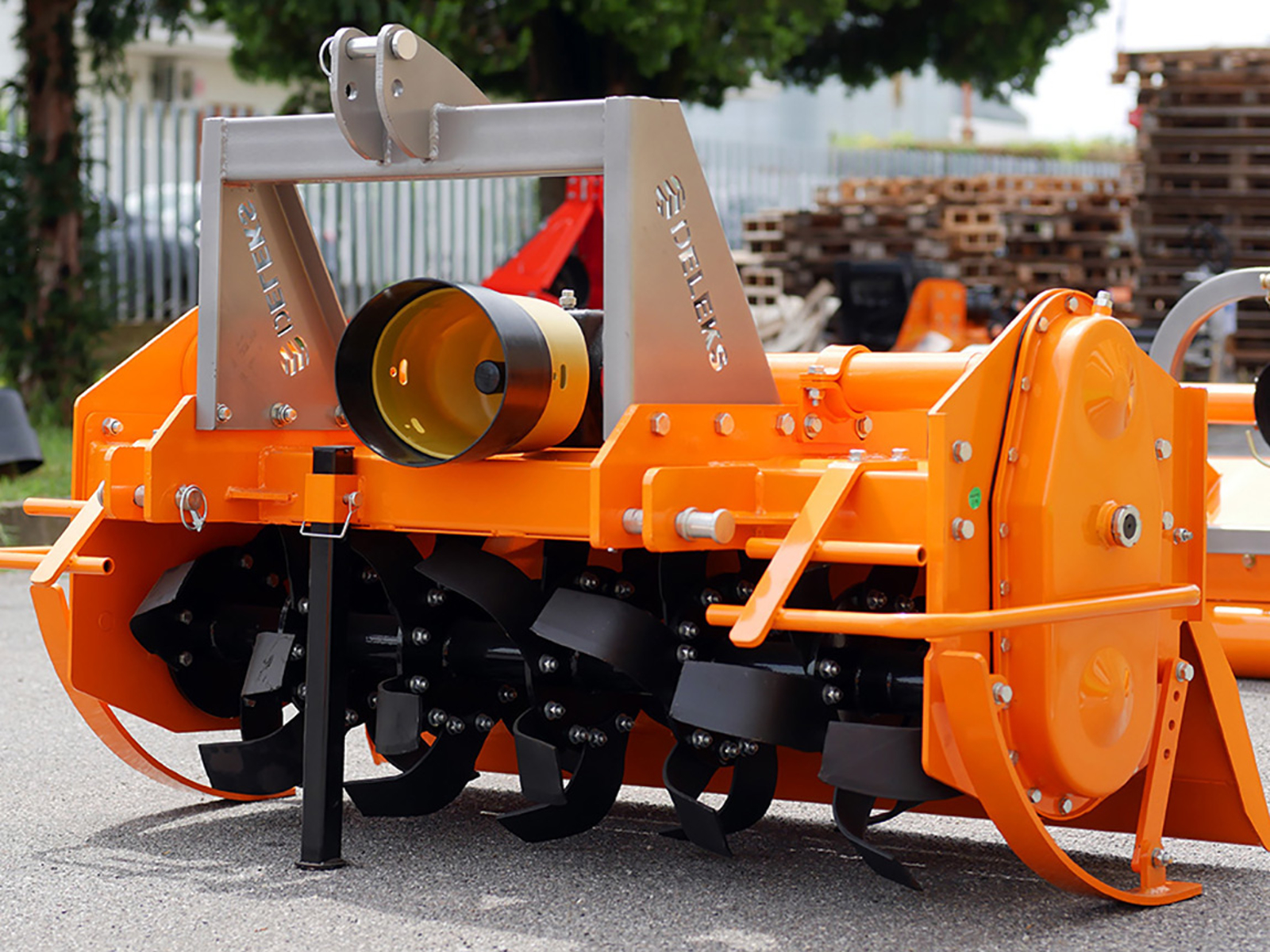

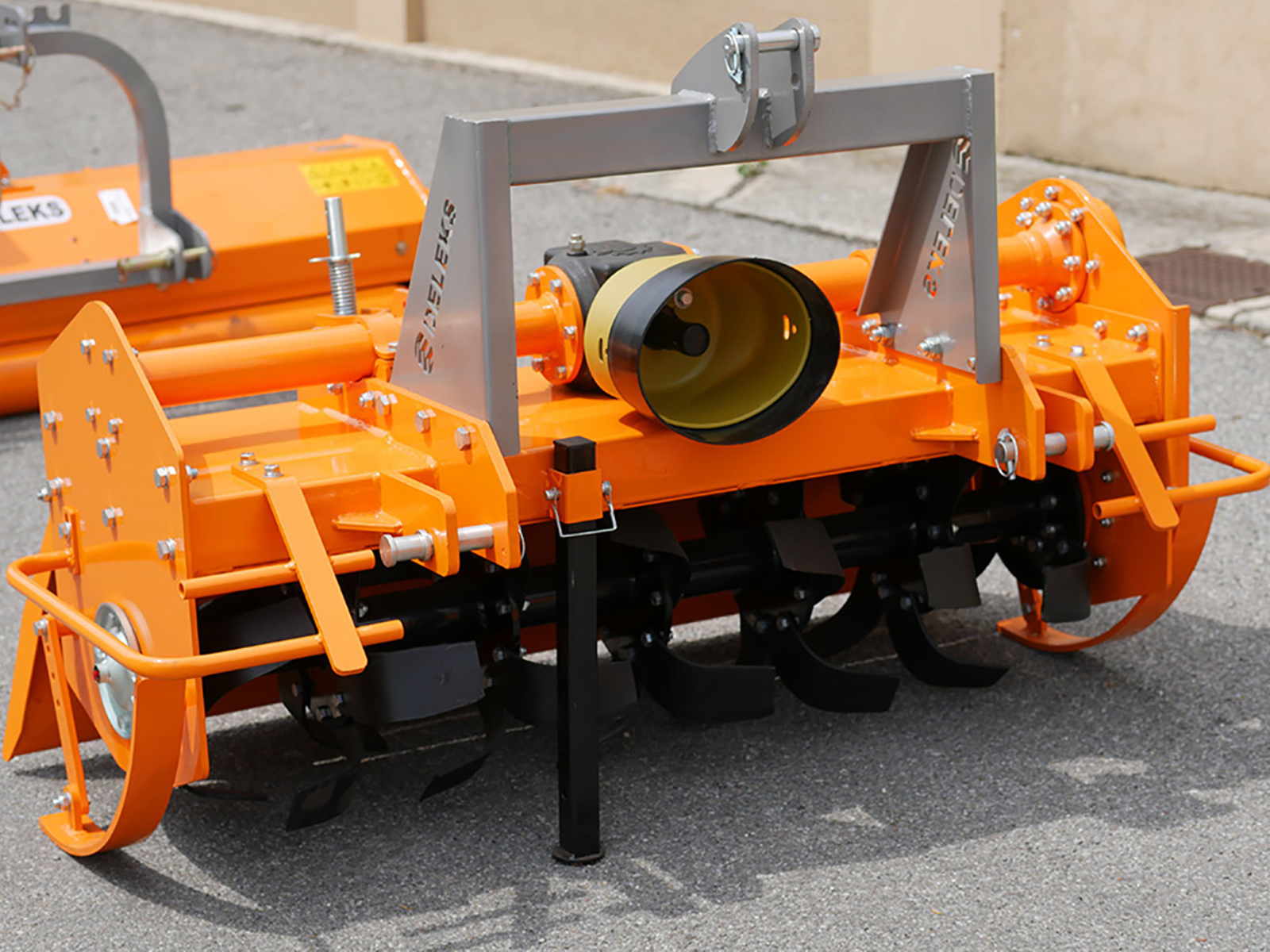

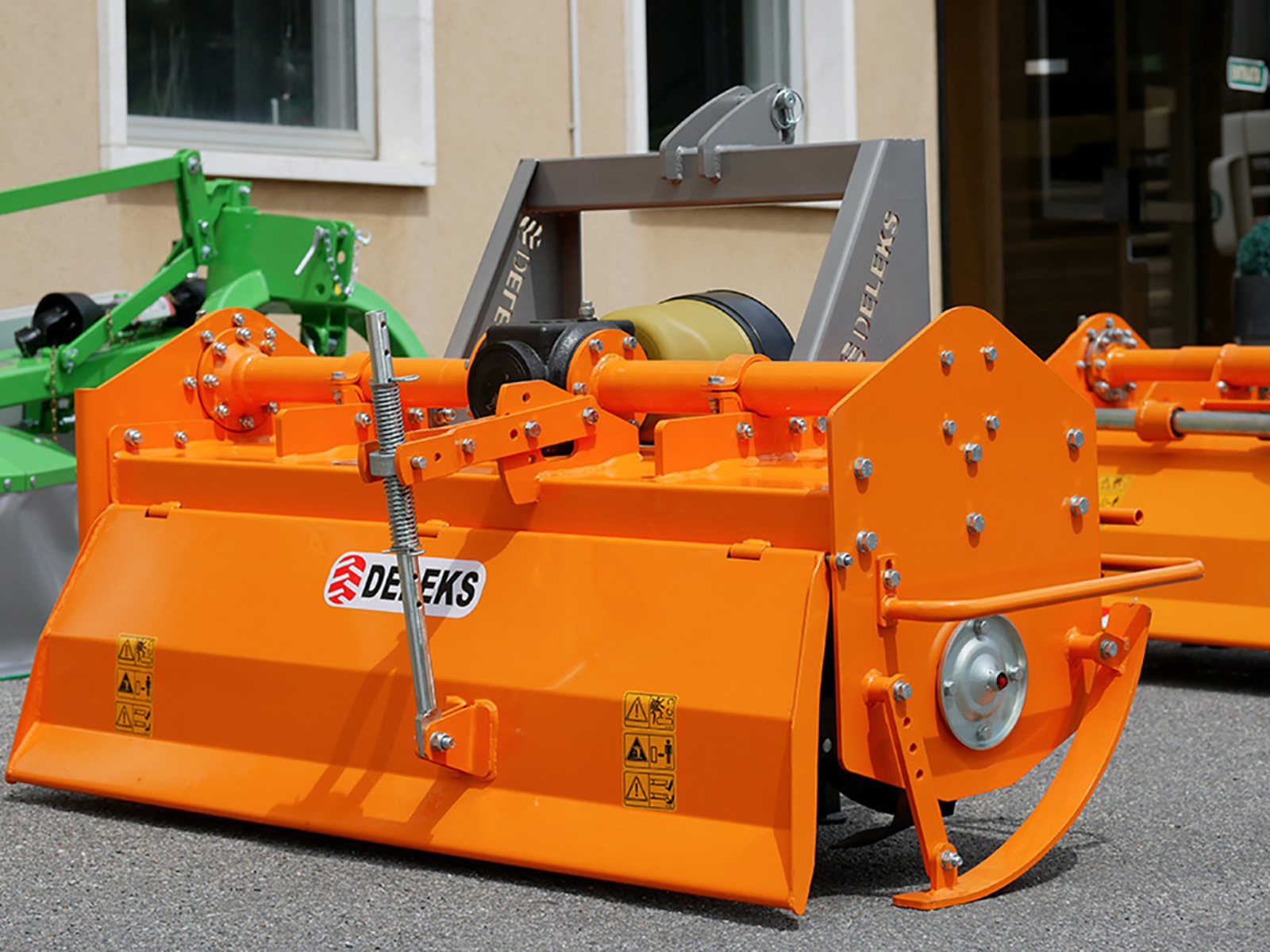

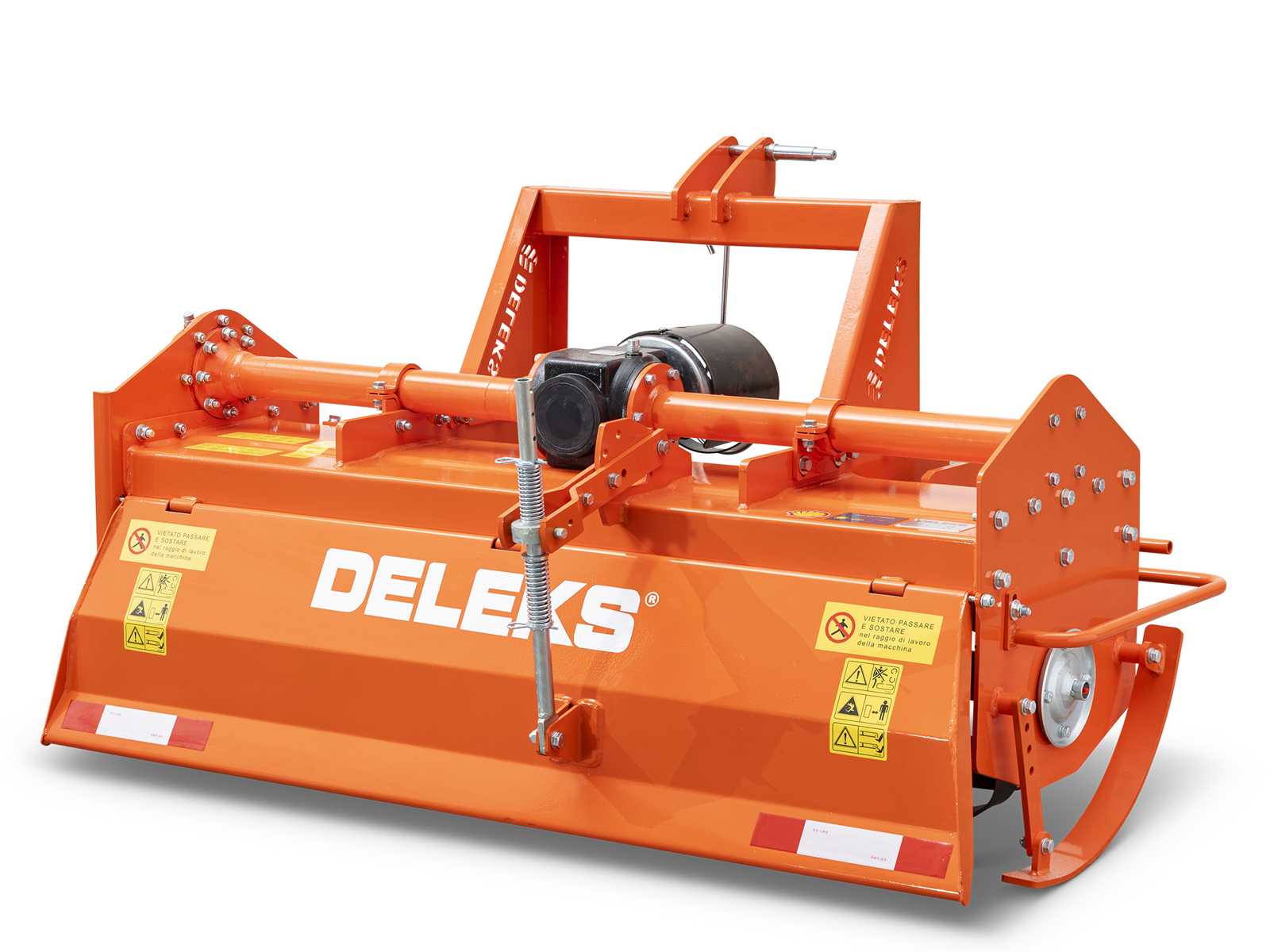

Rotary Tiller DELEKS® for 50-70 Hp Tractors, Rotovator 180cm / 392 kg - Side Gears Drive - Pto shaft CE included.


OVERVIEW

The DFH Rotary Tiller has been designed for soil preparation, in fields, nursery, orchards, allotments, and for gardening. Rotating blades break up the soil, on rough uncultivated ground. Can be also be used for weeding or working surface material into the soil.

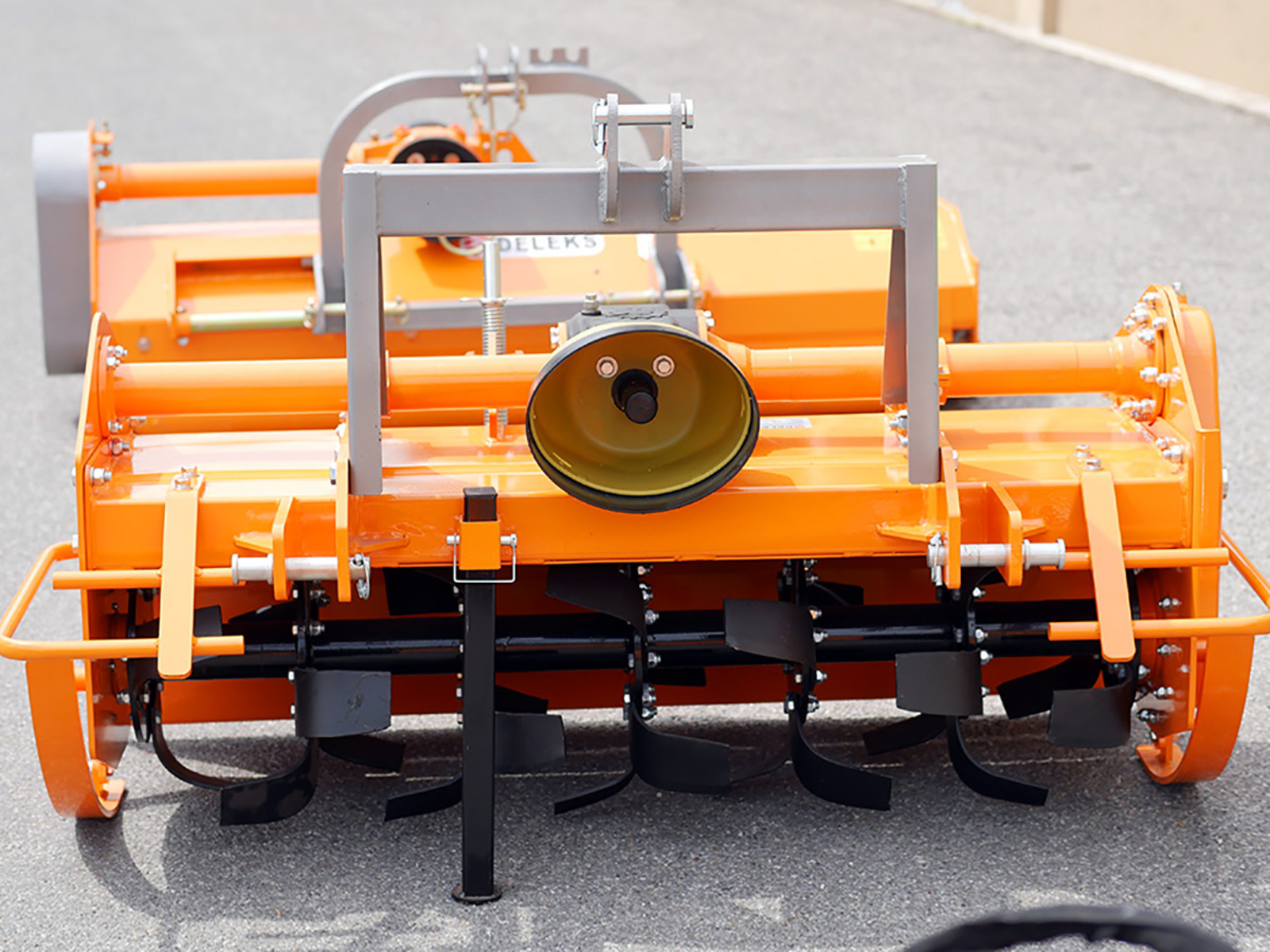

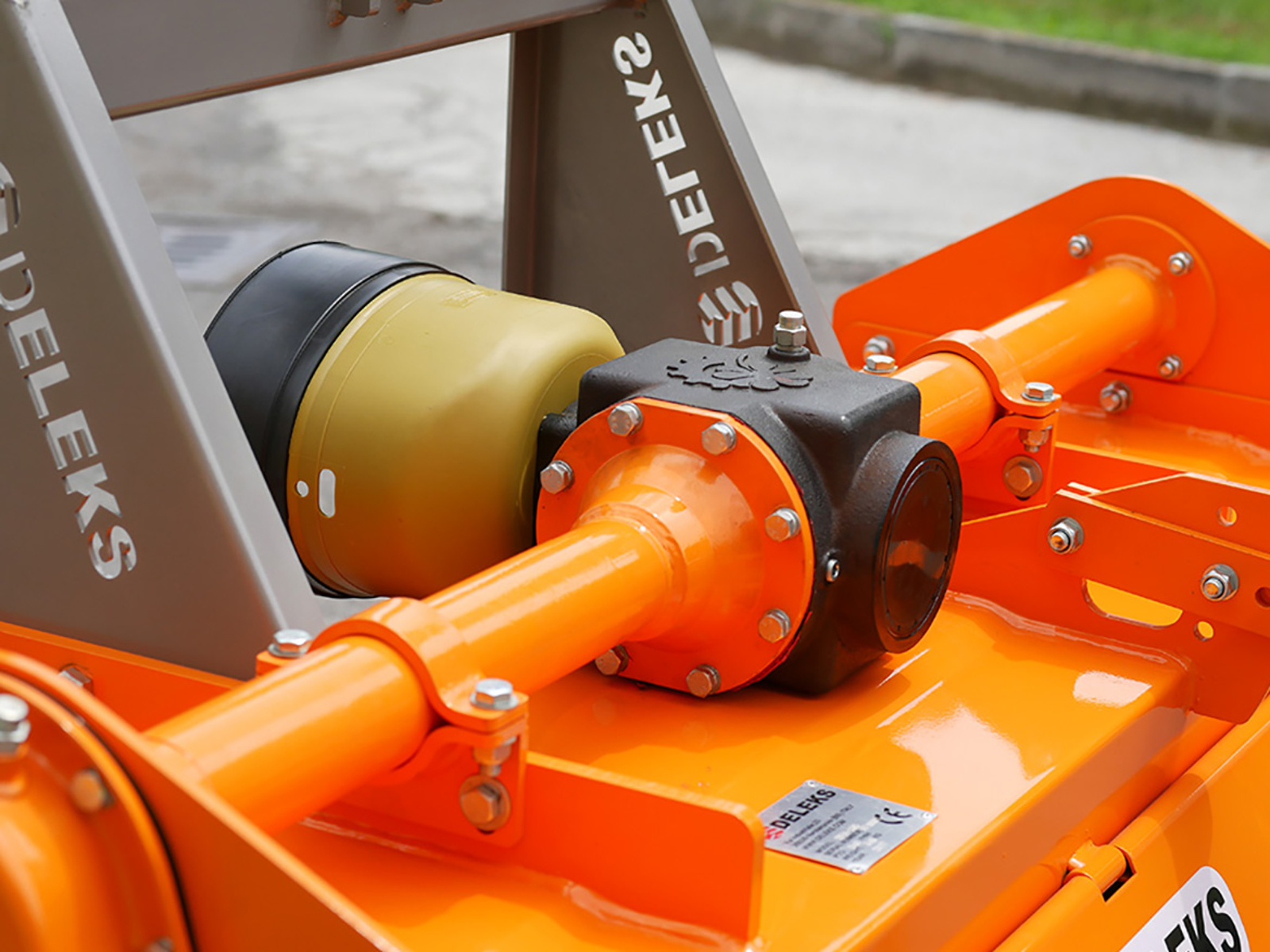

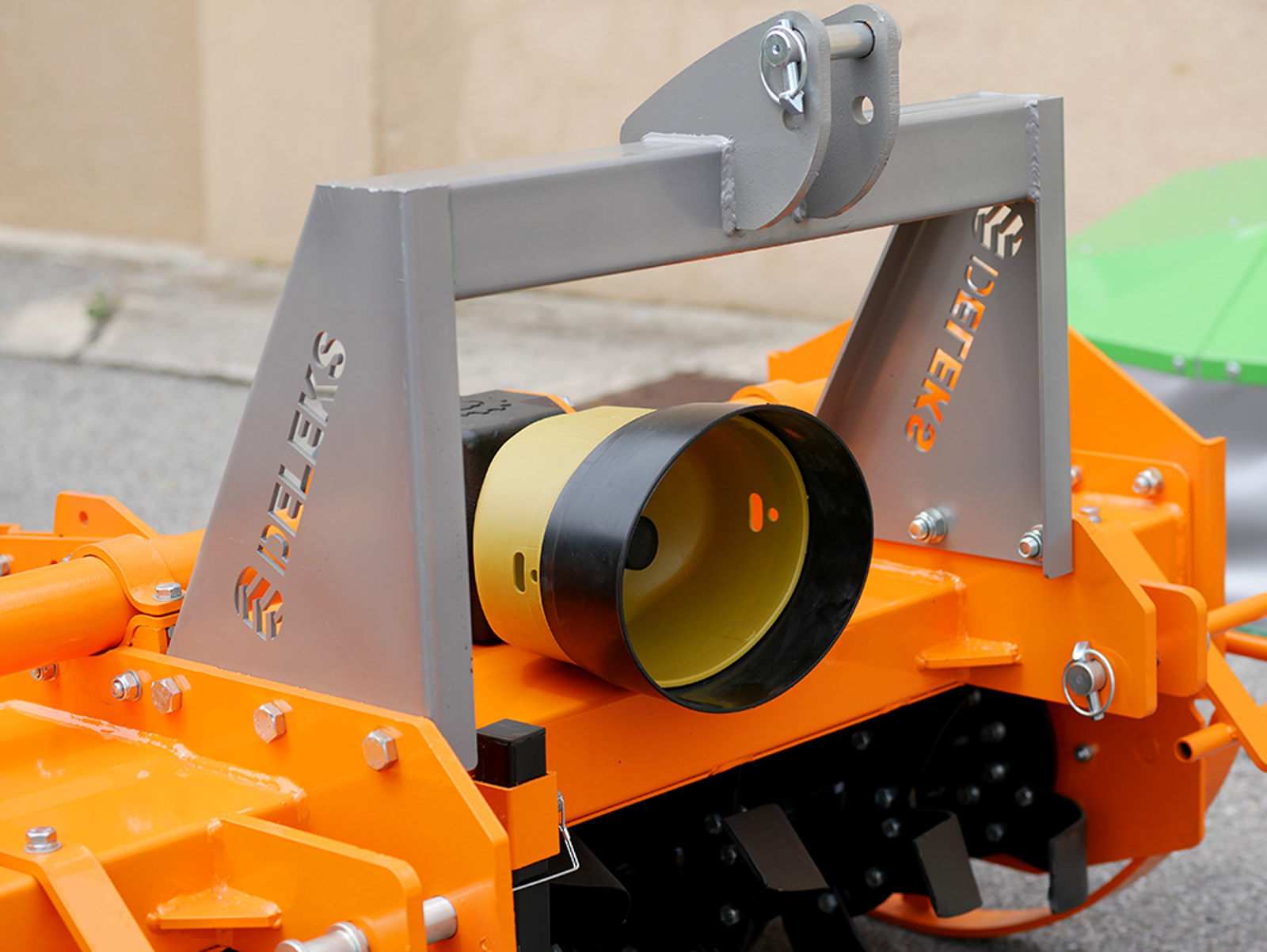

Designed to fit most compact 50-70HP tractors e.g Kubota L, Fiat, McCormick, Ford, New Holland T3, John Deere 3-4 Series, Massey Fergusson. Cat.1-2 universal three-point hitch, single-speed cast-iron gearbox. Delivered assembled (except 3 point linkage) and greased, Gearbox filled with oil.



BENEFITS & FEATURES

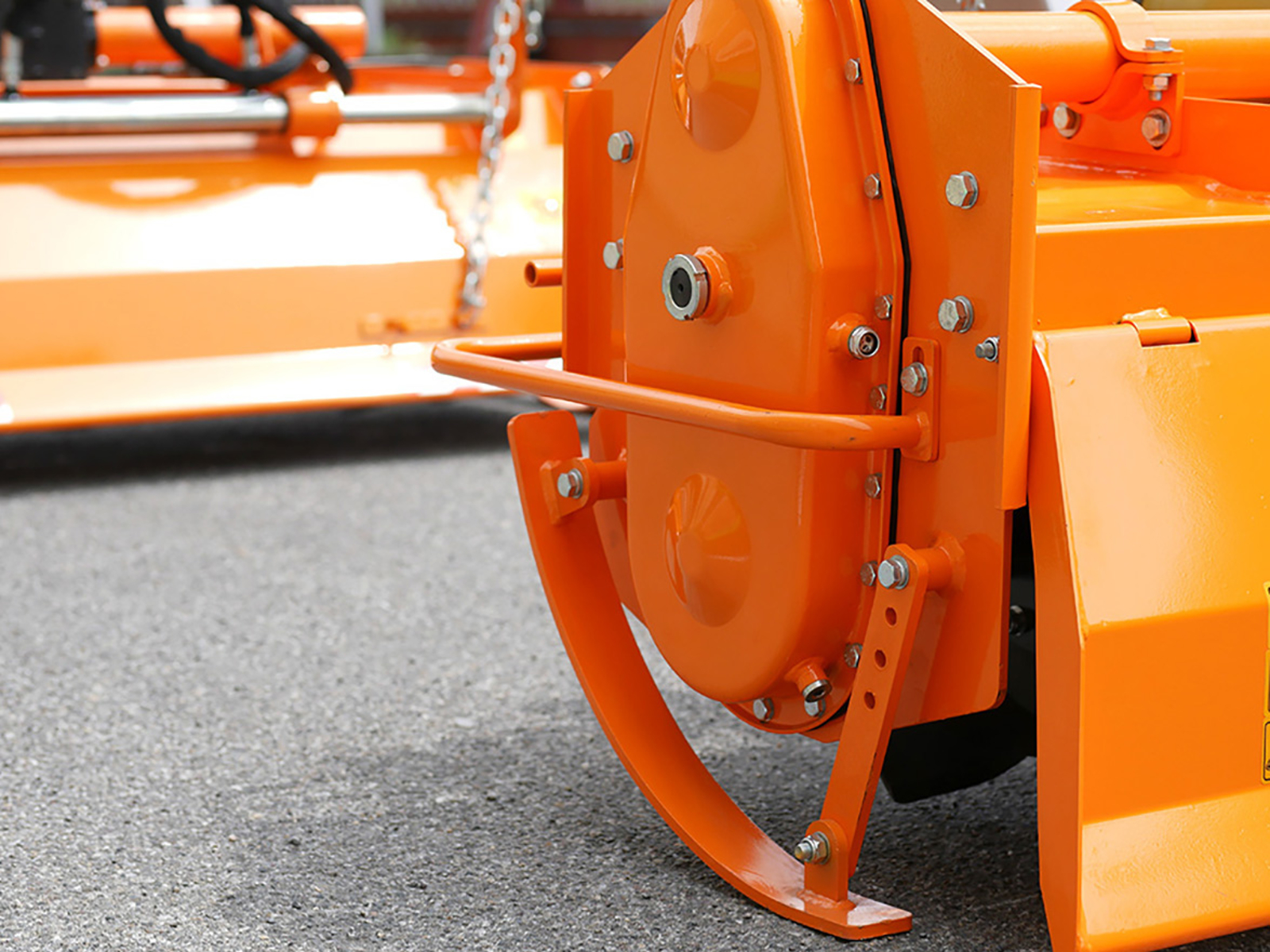

Side Gears Drive.

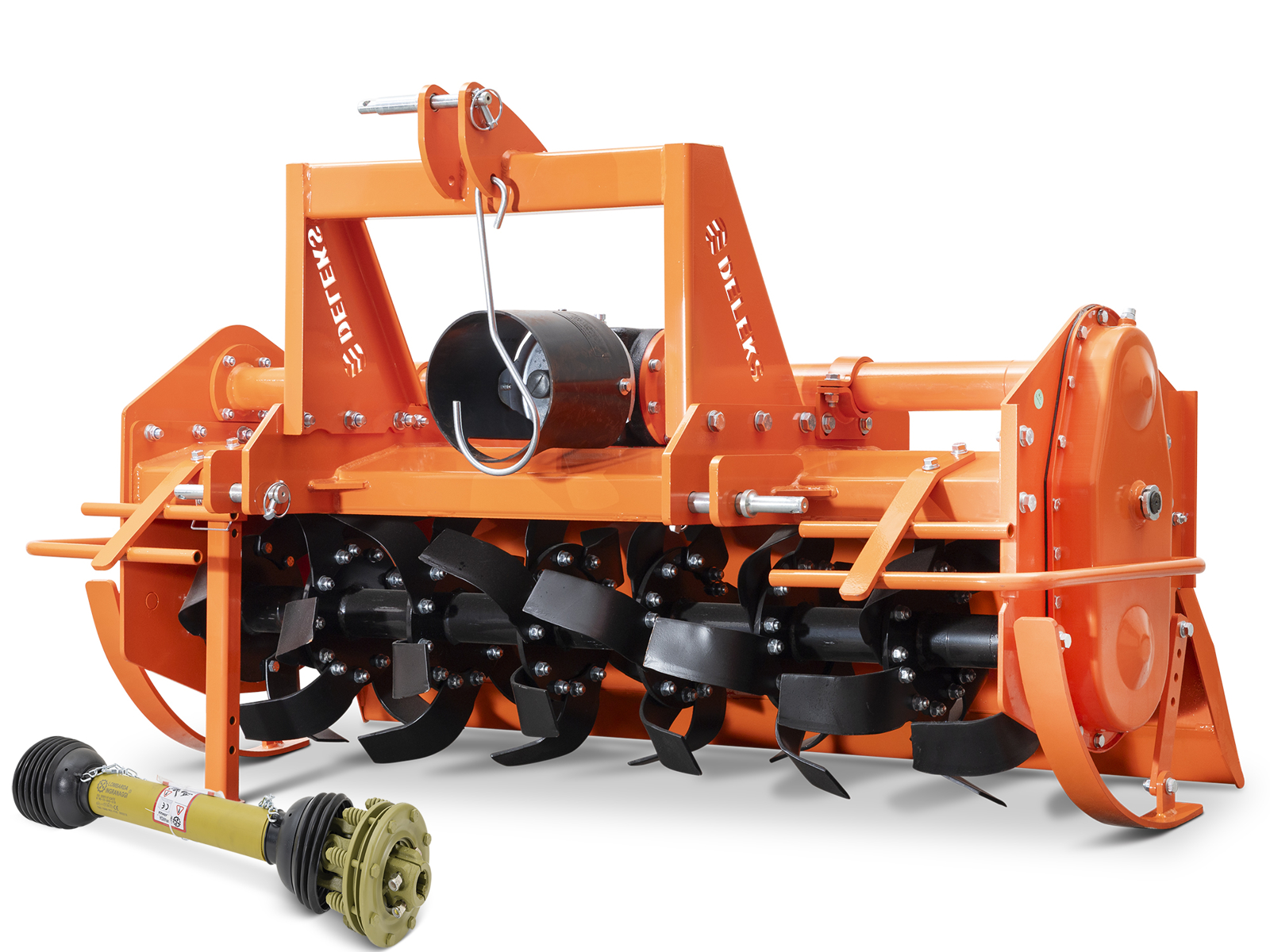

Pto shaft CE included.

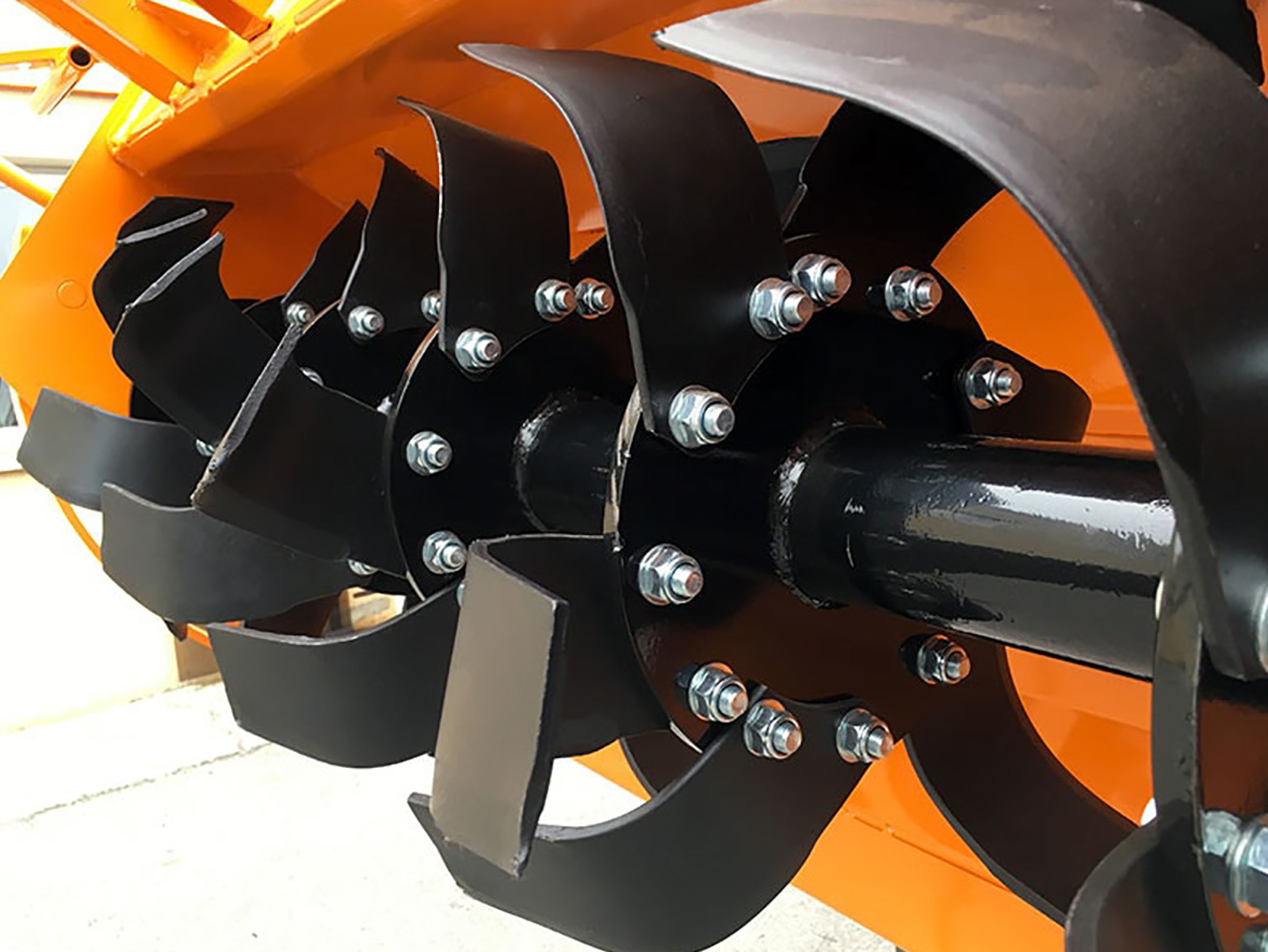

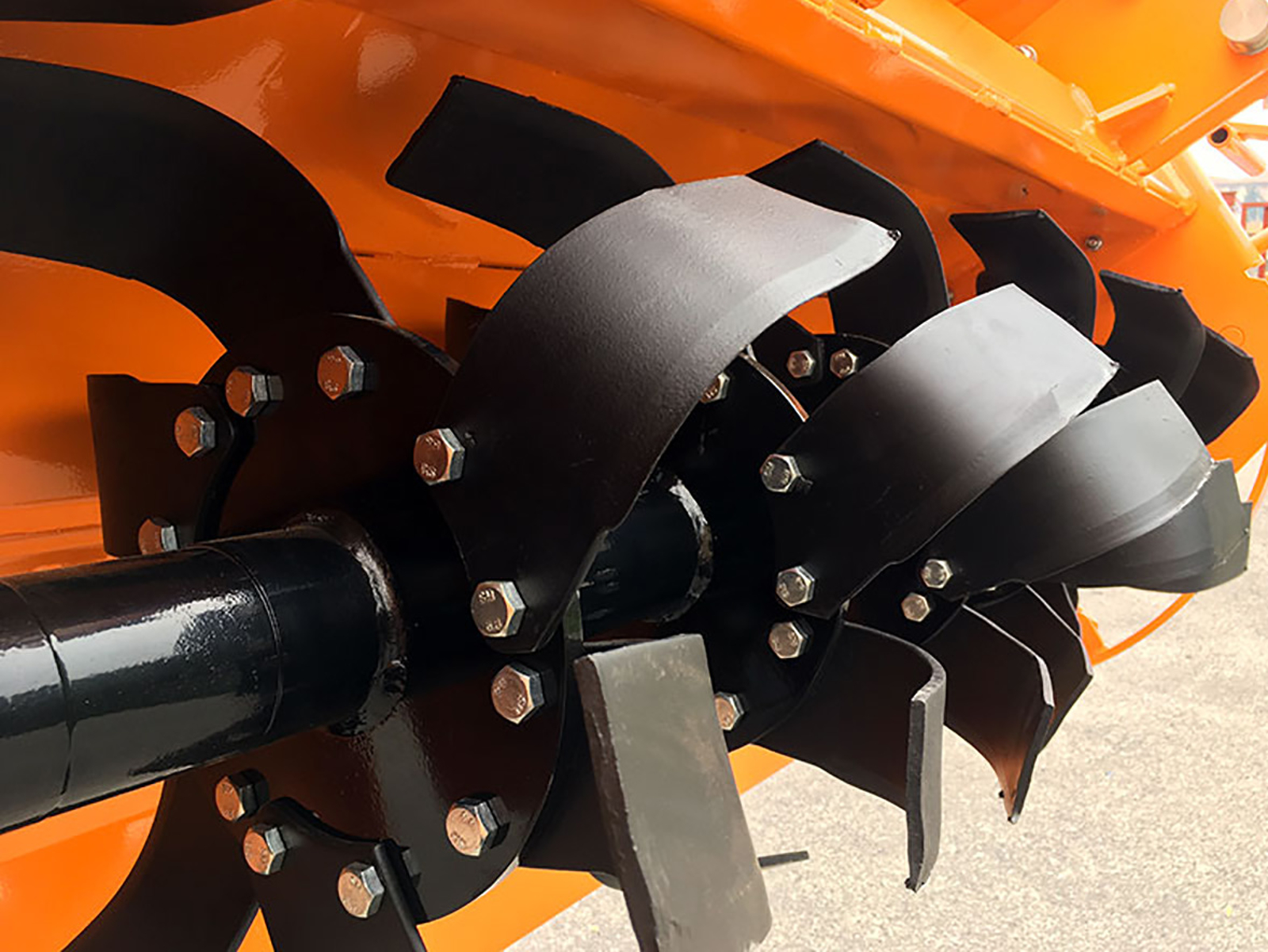

Six spiral blades per flange.

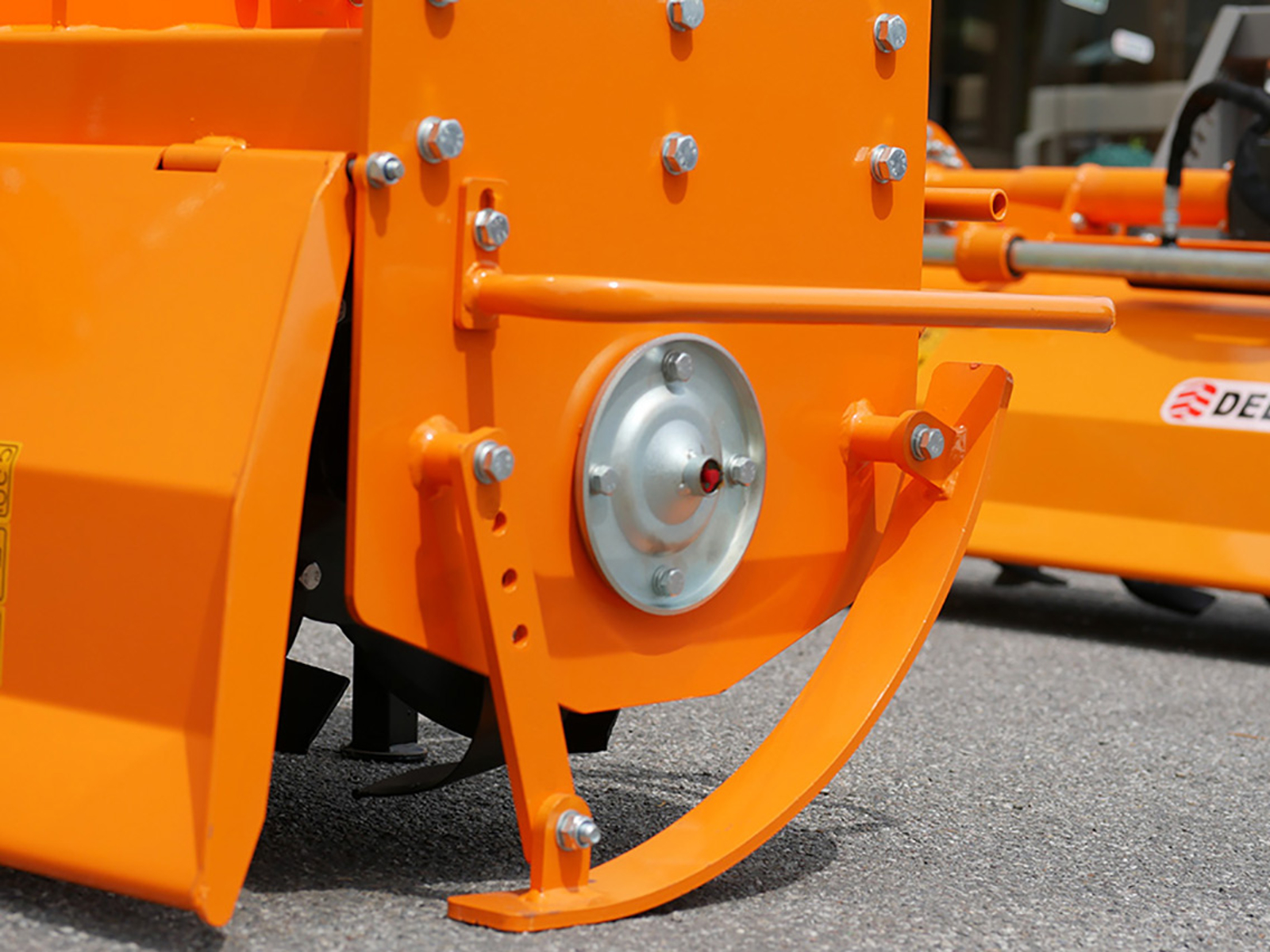

Adjustable side skids to obtain the desired working depth.

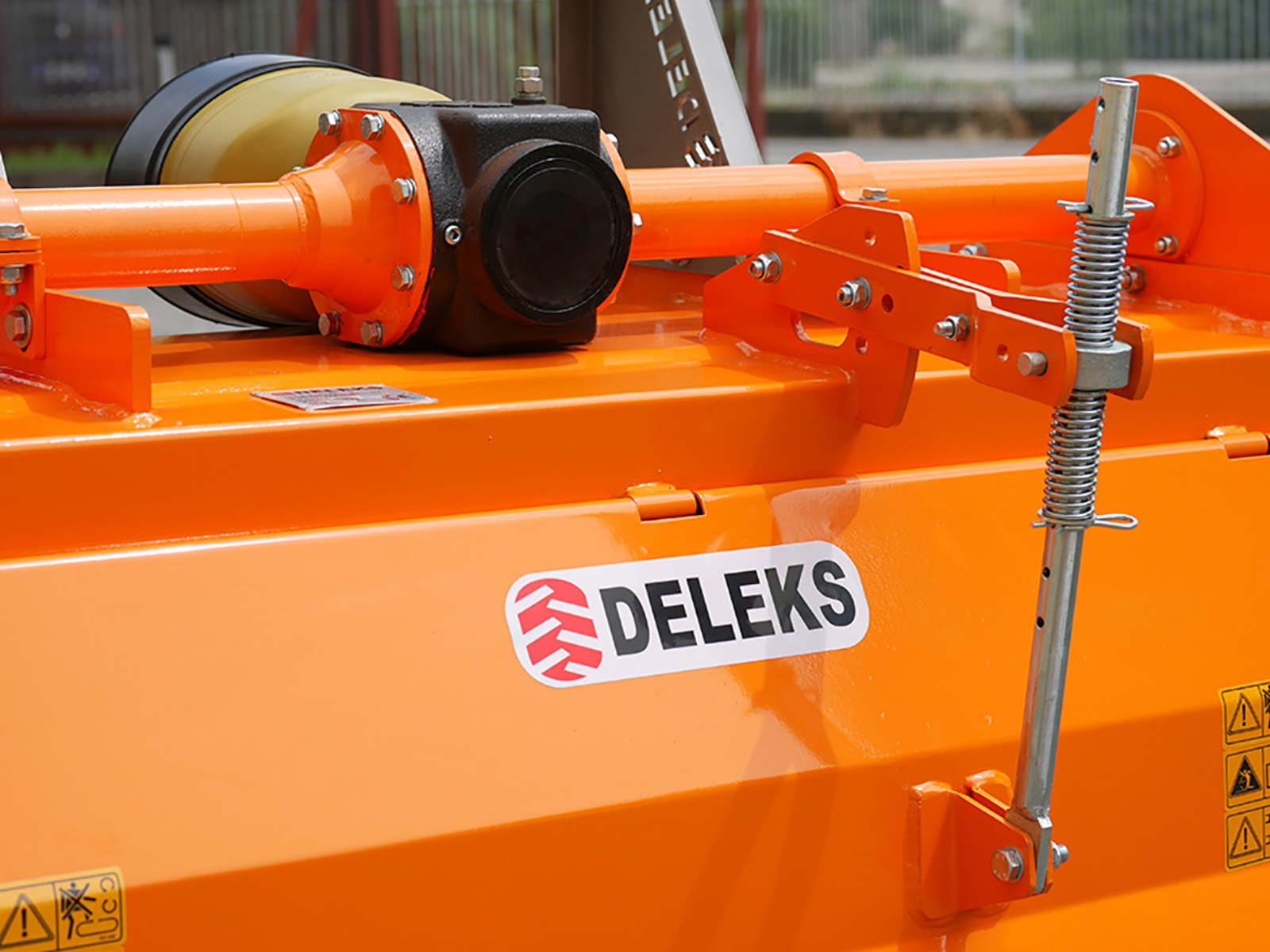

Adjustable rear shield.

CE Safety Guards.



CHARACTERISTICS

Characteristic Units metric Units US
Overall width 2000.0 mm 6.56 ft
Weight 392.0 kg 865.0 lb
Overall height 1030.0 mm 3.38 ft
Tractor Power Range 50 - 70 Hp 50 - 70 Hp
3 point linkage Cat. 2 (ø 25.0-28.0mm) Cat. 2 (ø 25.0-28.0mm)
Position of the gearbox Central Central
Spacing between the 2 lower points 745.0 - 870.0 mm 29.35 - 34.25 in
Overall length 720.0 mm 2.36 ft
Rotor: diameter 76.0 mm 3.0 in
Rotor: sheet thickness 8.0 mm 0.31 in
Transmission Gears Gears
Effective Working width 1795.0 mm 5.90 ft
Working Depth Range 160.0-200.0 mm 6.30 - 7.87 in
Distance between pto attachment and base 590.0 mm 23.23 in
Pto shaft 6x800 + Clutch ø180mm 6x800 + Clutch ø180mm
Rotor: diameter with blades 480.0 mm 18.90 in
Rotor: bearings type and sizes "GB276-6306(R) GB276-6309(L)" "GB276-6306(R) GB276-6309(L)"
Rotor: flanges 9 9
Number of Blades per flange 6 6
Blades: quantity 48 48
Blades: height/width 180.0 / 83.0 mm 7.08 / 3.26 in
Blades: curve length 250.0 mm 9.84 in
Blades: distance between holes 55.0 mm 2.16 in
Blades: diameter of the holes 13.0 mm 0.51 in
Blades: thickness 6.0 mm 0.24 in
Gearbox Lombarda Ingranaggi 540 r/min (3 year warranty) Lombarda Ingranaggi 540 r/min (3 year warranty)
Rotation of gearbox Right side Right side
RPM Rotor speed 210 rpm 210 rpm
Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Blades: weight 810.0 g 28.57 oz
Packing sizes 800.0*2030.0*820.0 mm 2.62*6.65*2.70 ft

Optional

10 blades dfh
10 blades DFH
130,00€VAT incl.
Available

DFH 5+5

20 bolts nuts blades
20 Bolts + nuts blades
56,00€VAT incl.
Available

DFL/DFM/DFH/DFU
