Power harrow for tractors 210 cm (83 in) KR-210H with mesh roller, heavy series 50-80 hp
DETAILS
Product conditions:
Product in good condition, refurbished by the manufacturer, shows signs of use.
Professional heavy-duty rotary harrow with 210 cm working width, for 50-80 HP tractors, with rear mesh roller and transmission for 540 rpm PTO.
APPLICATION
The KR210H is designed for soil preparation and refinement in professional agricultural applications and for more intensive use compared with DELEKS® light-duty rotary harrows.
Its heavy-duty structure and working unit configuration make the KR210H suitable for farms and professional users requiring a robust rotary harrow for medium-power tractors.
The rotors, each equipped with two blades, work the soil across the entire working width, breaking up clods and preparing a uniform seedbed.
The rear mesh roller completes the operation, contributing to soil levelling and working depth control. The rear levelling bar helps to further level the worked surface.
TRANSMISSION AND STRUCTURE
The KR210H operates with a 540 rpm PTO and is supplied with a PTO shaft equipped with a friction clutch.
The H series features a heavier and more robust structure compared with the light-duty KR range and is designed for use with tractors up to 80 HP.
The universal 3-point linkage allows connection to the tractor's rear hydraulic lift.
STANDARD EQUIPMENT
540 rpm PTO gearbox
PTO shaft with friction clutch
Universal 3-point linkage
Rear mesh roller
2 blades per rotor
Rear levelling bar
CE safety guards
PREPARATION AND SHIPPING
The machine is inspected before shipment, including checks of the main fasteners, the gearbox oil level and the lubrication of the required components.
To optimize space and protect the machine during transport on a pallet, the rear roller is supplied disassembled and must be installed by the customer before use.
The PTO shaft is included, and the machine is supplied with protective packaging suitable for transport.
TECHNICAL SUPPORT AND SPARE PARTS
DELEKS® provides technical support and original spare parts for routine and extraordinary maintenance of the machine.
Component identification and spare parts requests are handled directly by our after-sales service, helping to ensure the correct parts are supplied.
WARRANTY
The product is covered by the DELEKS® warranty according to the conditions applicable to the customer type and country of sale.
Warranty assistance is handled directly by the DELEKS® after-sales service, including technical diagnosis and supply of the required spare parts in accordance with the warranty conditions.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 2100.0 mm | 6.90 ft |
| Overall width | 2530.0 mm | 8.30 ft |
| Weight | 560.0 kg | 1235.0 lb |
| Overall height | 1100.0 mm | 3.60 ft |
| Tractor Power Range | 50 - 80 Hp | 50 - 80 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Overall length | 1050.0 mm | 3.45 ft |
| Distance between pto attachment and ground | 680.0 mm | 26.80 in |
| Transmission: Gearbox | DELEKS 540 r/min (3 year warranty) | DELEKS 540 r/min (3 year warranty) |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: RPM Rotor speed | 300 rpm | 300 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Rear roller: diameter | 300.0 mm | 11.81 in |
| Working Depth Range | 160.0-200.0 mm | 6.30 - 7.87 in |
| Pto shaft | CE 6x1000 mm + twin-disc friction clutch Ø180 mm | CE 6x1000 mm (39.4 in) + twin-disc friction clutch Ø180 mm (7.1 in) |
| Rotator | 8 vertical rotors | 8 vertical rotors |
| Number of Blades | 16 | 16 |
| Gross shipping weight | 570 kg | 1257 lb |
| Package volume | 2.07 m3 | 73.1 cu ft |
| Packing sizes | 2420.0*1070.0*800.0 mm | 7.94*3.50*2.62 ft |
DETAILS
CLOSEPower harrow for tractors with 210 cm (83 in) working width and rear mesh roller, from the DELEKS® heavy series: the rotary harrow for 50–80 hp field and orchard tractors that work many hours a year, with a universal three-point linkage, such as New Holland T4F, John Deere 4 and 5 series, Landini Rex and Mistral, Kubota L and M, Same Frutteto and Explorer, Deutz-Fahr, Massey Ferguson, Solis and most other 40–80 hp tractors. 8 vertical rotors with two blades each (16 blades) at 300 rpm, 560 kg (1,235 lb) frame, DELEKS® 540 rpm gearbox with a three-year warranty, adjustable levelling bar and roller. It works 16 to 20 cm (6.3–7.9 in) deep, prepares the seedbed in one pass and comes complete with its CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in); free delivery within the EU.
Which tractors it suits
The KR-210H works 210 cm (83 in) wide with an overall width of 253 cm (100 in) and is built for 50–80 hp wheeled or tracked tractors with a universal three-point linkage: New Holland T4F, John Deere 4 and 5 series, Landini Rex and Mistral, Kubota L and M, Same Frutteto and Explorer, Deutz-Fahr, Massey Ferguson, Solis and most other 40–80 hp tractors. The 560 kg (1,235 lb) weight is within reach of the lift on tractors of this class and the gearbox sits 680 mm off the ground. The H series has a frame, gear trough and rotors sized for continuous work with tractors up to 80 hp: 8 wide-pitch rotors (26 cm) instead of the ten on the KR-210, 560 kg (1,235 lb), and it is the harrow for anyone refining many hectares a year and for contractors. The category 6 PTO shaft comes 1,000 mm long and can be shortened following the manual if the tractor's linkage sits very close.
How a power harrow works

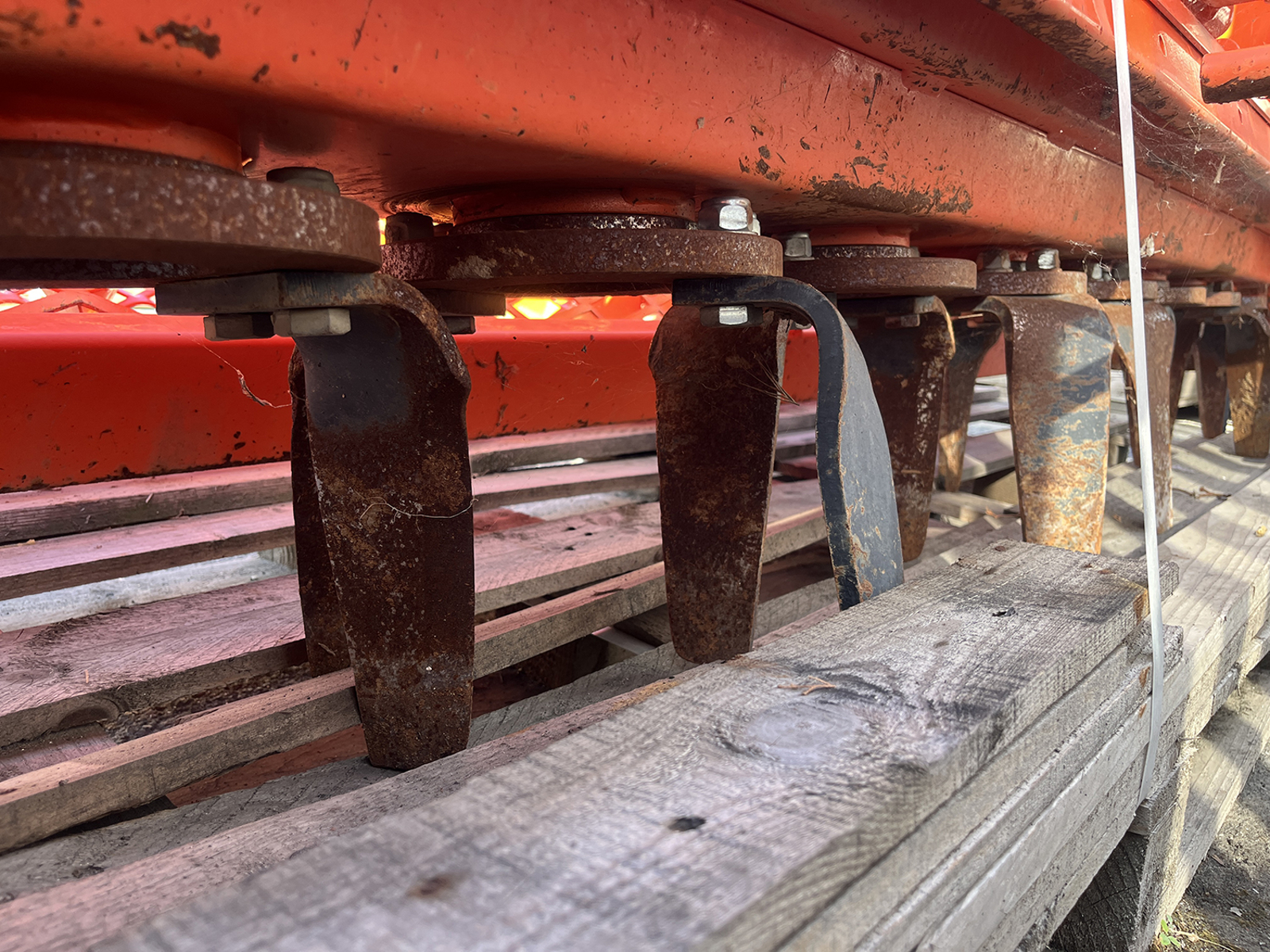

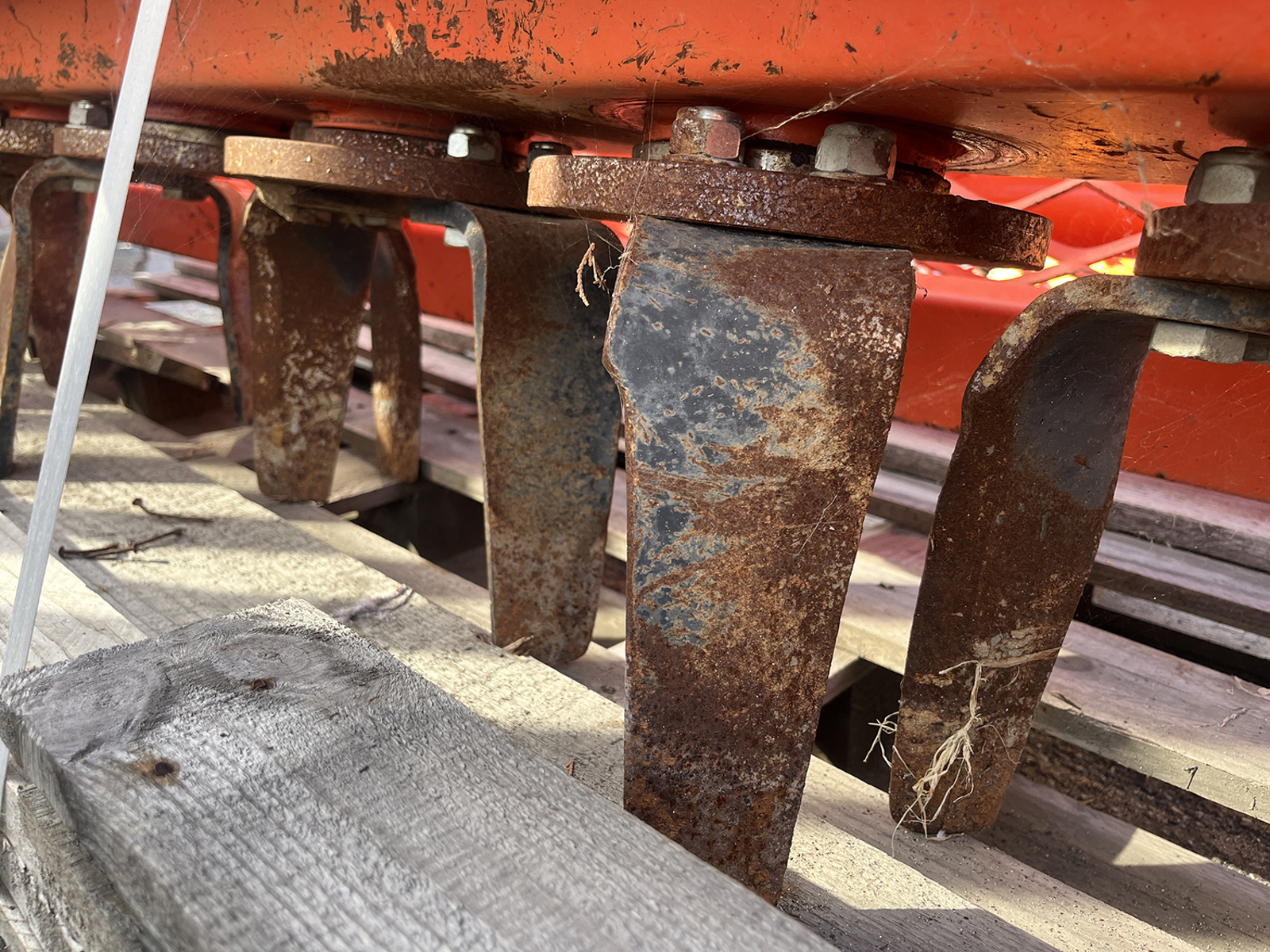

The 8 rotors turn on vertical axes in counter-rotating pairs, at a 26 cm pitch, and the 16 blades cut the soil vertically without turning it over: the fine soil stays on top, the large clods go down, and the structure and moisture of the deeper layers are preserved. That is the difference from a rotavator, which mixes the whole profile and leaves a pan. At 300 rpm on the rotors and 4–6 km/h (2.5–3.7 mph) on the tractor the harrow refines ploughed or unbroken ground in one pass, works in fertiliser and fine residues and leaves the seedbed ready for the drill, the planter or hand sowing. On very stony ground and large roots a heavy rotavator or a stone burier is the better choice.
Mesh roller and levelling bar

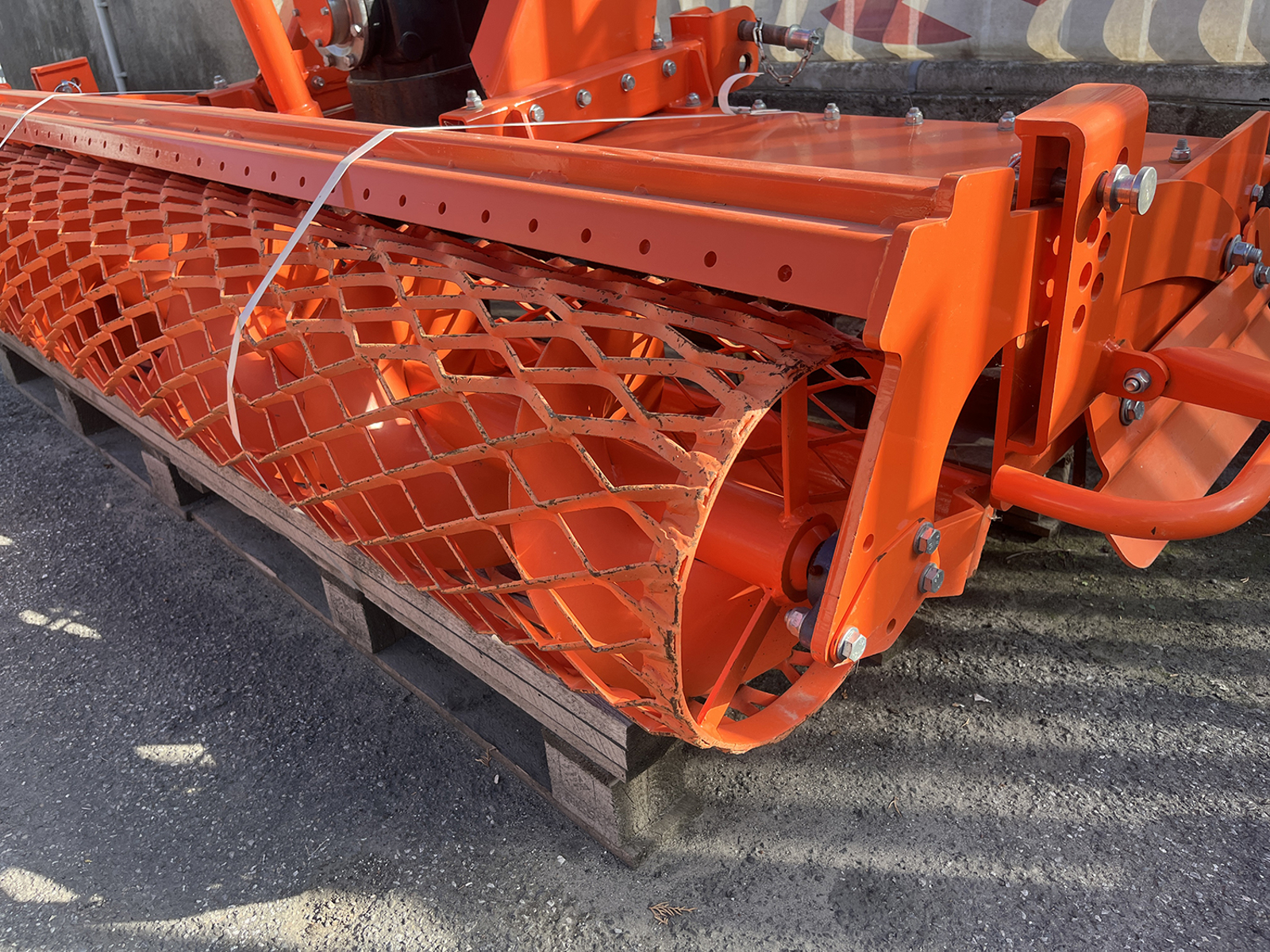

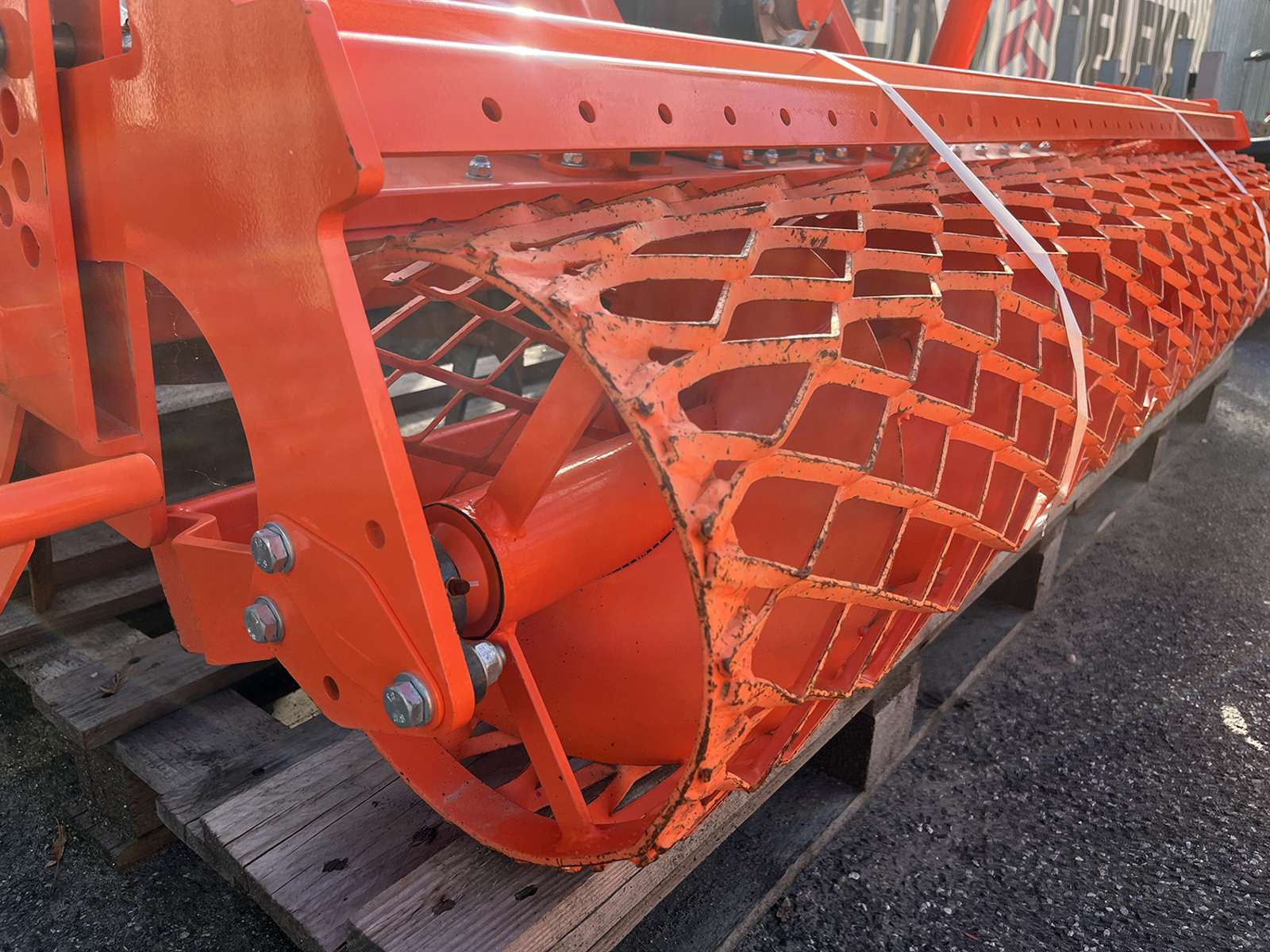

The rear mesh roller, 300 mm (11.8 in) in diameter, sets the working depth and finishes the seedbed behind the rotors: the mesh breaks the remaining clods and leaves a firmer, more level surface than a cage roller, right for anyone sowing or planting straight after, and it clears itself well on damp ground too. Depth is set mechanically by moving the roller along the holes in its arms; the rear levelling bar, also adjustable, evens the surface ahead of the roller. The mesh roller is the only one offered on this model.
Gear drive and PTO shaft with clutch

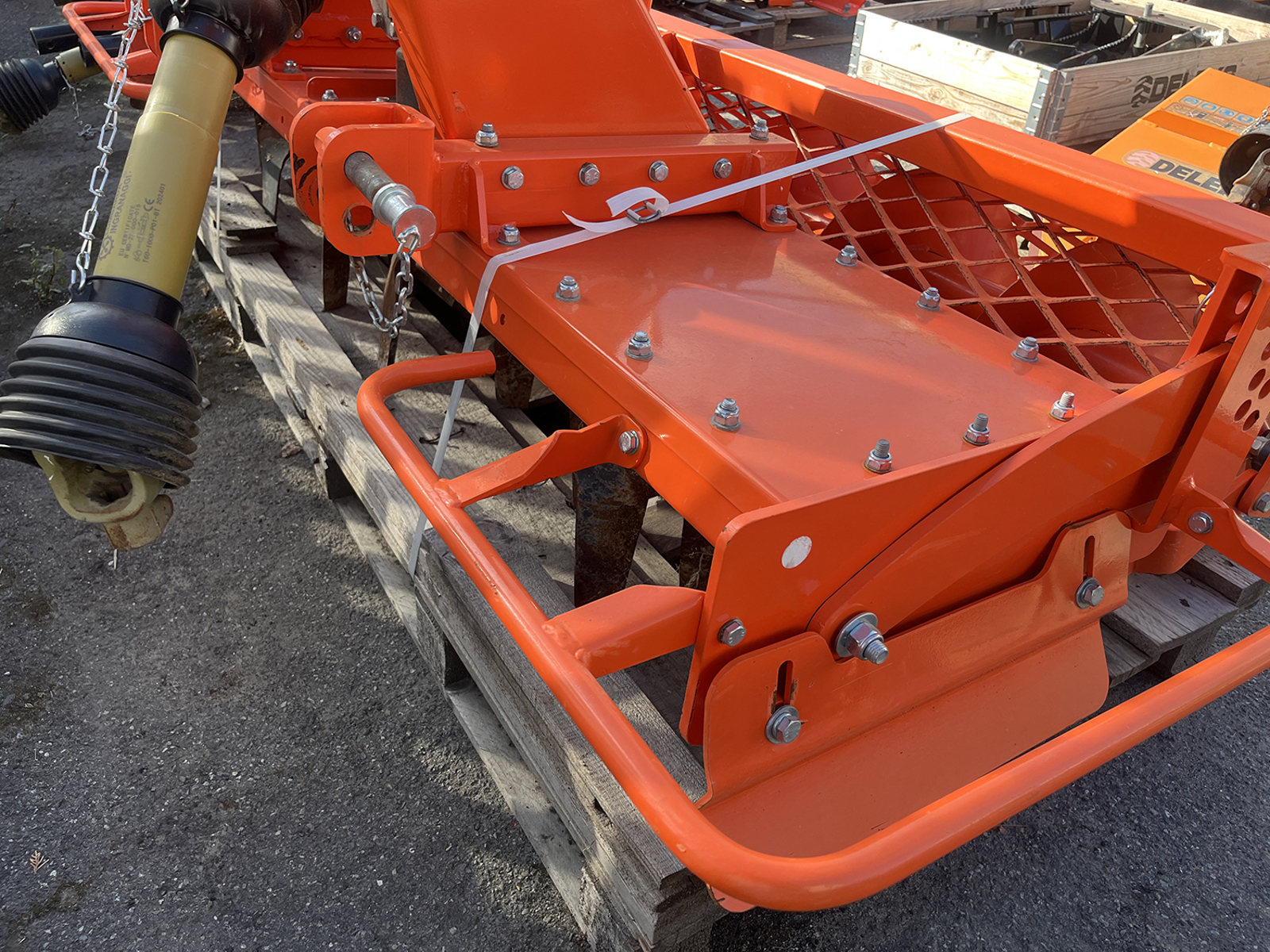

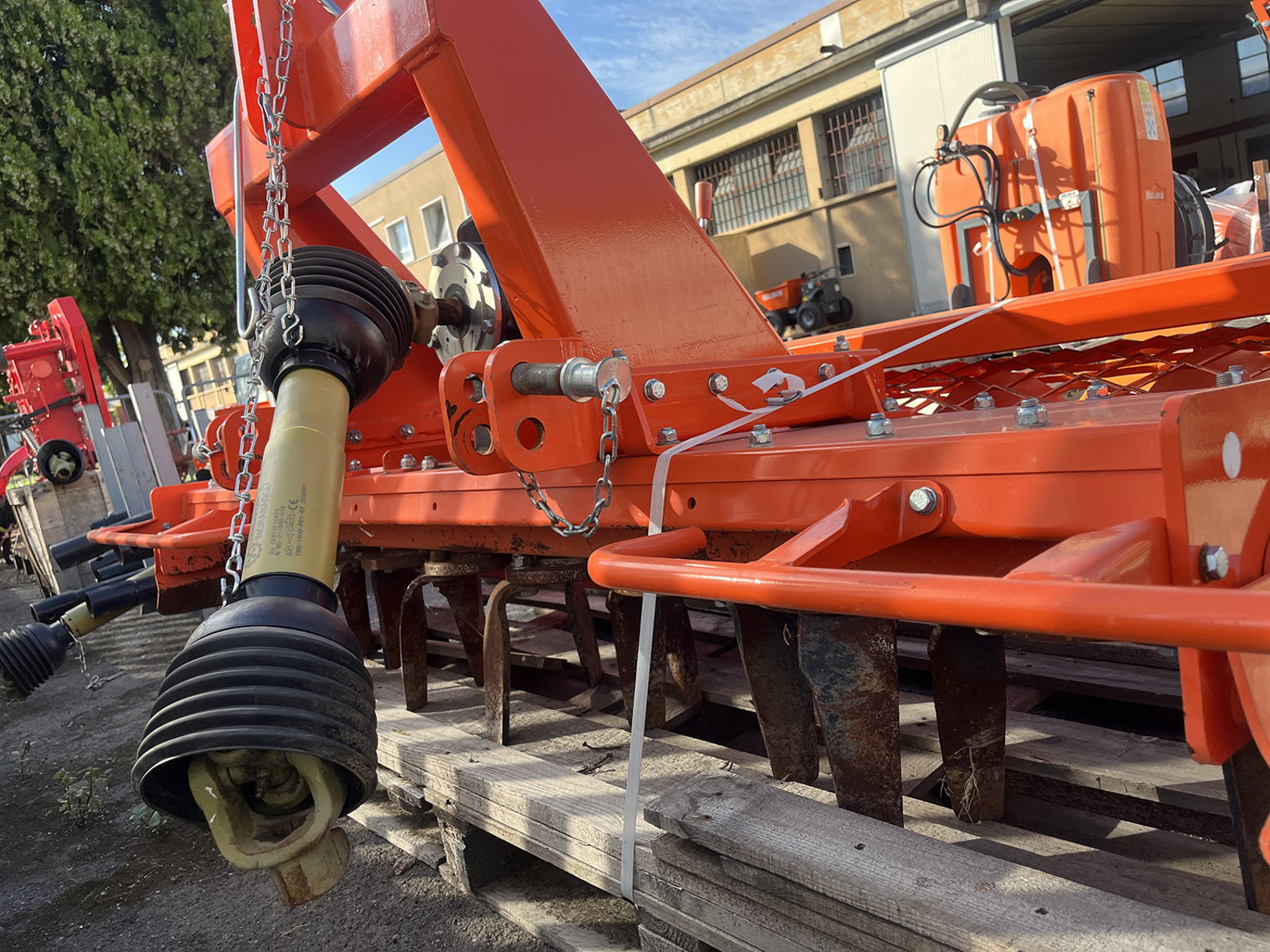

The DELEKS® 540 rpm gearbox has a cast-iron housing, a three-year warranty and arrives already filled with SAE 120 oil; from the gearbox the drive goes down to the gear train in an oil bath that turns the 8 rotors at 300 rpm, protected in the closed trough under the frame. The CE PTO shaft (category 6, 1,000 mm / 39 in) with twin-disc friction clutch Ø 180 mm (7.1 in) is included: the clutch protects harrow and tractor when a blade meets a stone or a root, and is set to suit the tractor and the ground following the manual. The blades are bolted to the rotors and are changed one at a time; the side guards and the rear guard meet CE requirements.
Dimensions, weight and delivery
Working width 2100 mm (83 in), overall width 2530 mm (100 in), height 1100 mm, length 1050 mm with the roller, weight 560 kg (1,235 lb). It ships on a pallet of 242 × 107 × 80 cm (95 × 42 × 31 in), 570 kg (1,257 lb) gross, 2.07 m³, with free delivery within the EU; to keep the pallet compact the roller travels detached and is fitted in a few minutes with the pins supplied before first use. Unloading is down to the customer, with a forklift or the tractor's lift. The harrow complies with the EC Machinery Directive, is TÜV Austria certified and comes with a two-year warranty.
Where it works
- Vineyards and orchards: refining the alleyway and preparing for grassing down, with the orchard tractor
- Market gardens and nurseries: a fine, level seedbed and planting bed, working in fertiliser and fine residues
- Small and medium fields: working down the ploughing and refining before sowing cereals and forage crops
- Landscaping and lawns: renewing lawns, preparing ground for seeding, levelling after excavations
Options and spares
Spare blades, rotors, seals and bearings are ordered from the DELEKS® spares service quoting the model and the serial number; spare PTO shafts and clutches are in the catalogue.
FAQ
Cage roller or mesh roller?
The cage roller is the choice for dry, loose or stony ground: it lets fine soil through and does not clog. The mesh roller refines more and leaves a firmer, more level surface, ideal for anyone sowing straight after or working soils that hold moisture. Same harrow, same price: only the roller changes.
What is the difference between a power harrow and a rotavator?
The power harrow cuts vertically and does not turn the soil over: it refines without creating a pan or bringing wet soil to the surface, and it is faster on ploughed ground. The rotavator mixes the whole profile, buries heavy residues better and also works compact unbroken ground. Many farms run both: rotavator to break, power harrow to refine.
How much tractor does the KR-210H need?
50 to 80 hp with a universal three-point linkage and a 540 rpm PTO. The lift matters too: 560 kg (1,235 lb) plus a roller full of soil are within reach of tractors of this class, but on the smallest models front ballast is advisable.
How is the working depth set?
By moving the roller along the holes in the rear arms and trimming with the top link: with the harrow level the blades work 16 to 20 cm (6.3–7.9 in) deep. The levelling bar is raised on rough ground and lowered when a finer surface is needed.
What maintenance does it need?
At the start of the season check the oil level in the gearbox (SAE 120) and in the rotor trough, and blade wear and tightness; before each use grease the points shown in the manual and check the PTO clutch. Worn blades are replaced in pairs.
DELEKS® spares and support
Genuine spares ship from the DELEKS® warehouses in Europe: blades, rotors, bearings, seals, gears, PTO shafts and clutches are normally in stock, for routine servicing and for repairs. The technical team helps you pick the right part from the exploded drawings, service the machine and choose the harrow and the roller that suit your tractor and your soil. The harrow comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty and free delivery within the EU.
CHARACTERISTICS
CLOSE| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 2100.0 mm | 6.90 ft |
| Overall width | 2530.0 mm | 8.30 ft |
| Weight | 560.0 kg | 1235.0 lb |
| Overall height | 1100.0 mm | 3.60 ft |
| Tractor Power Range | 50 - 80 Hp | 50 - 80 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Overall length | 1050.0 mm | 3.45 ft |
| Distance between pto attachment and ground | 680.0 mm | 26.80 in |
| Transmission: Gearbox | DELEKS 540 r/min (3 year warranty) | DELEKS 540 r/min (3 year warranty) |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: RPM Rotor speed | 300 rpm | 300 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Rear roller: diameter | 300.0 mm | 11.81 in |
| Working Depth Range | 160.0-200.0 mm | 6.30 - 7.87 in |
| Pto shaft | CE 6x1000 mm + twin-disc friction clutch Ø180 mm | CE 6x1000 mm (39.4 in) + twin-disc friction clutch Ø180 mm (7.1 in) |
| Rotator | 8 vertical rotors | 8 vertical rotors |
| Number of Blades | 16 | 16 |
| Gross shipping weight | 570 kg | 1257 lb |
| Package volume | 2.07 m3 | 73.1 cu ft |
| Packing sizes | 2420.0*1070.0*800.0 mm | 7.94*3.50*2.62 ft |
