Power harrow 70 cm (28 in) with mesh roller for two-wheel tractor, BCS-type quick hitch
DETAILS
Power harrow with a 70 cm (28 in) working width for two-wheel tractors, with rear mesh roller and the male 3-tooth BCS-type quick hitch included: it fits the DELEKS® ZEUS and BCS, Ferrari, Pasquali and other two-wheel tractors with the same hitch; fine-spline (millerighe) tractors take it with the adapter. Overall width 78 cm (31 in), 78 kg (172 lb): it prepares a fine seedbed without turning the soil over and firms it with the roller, ready for the seeder. Free delivery within the EU; if it is not compatible with your two-wheel tractor, returning it is free.
Power harrow or rotavator?
The rotavator turns and mixes the soil; the power harrow crumbles it without turning it over, with vertical tines working the top layer and the mesh roller levelling and firming: a fine seedbed, soil structure preserved, fewer weed seeds brought to the surface. It is the tool for lawns, turf and sowing after ploughing.

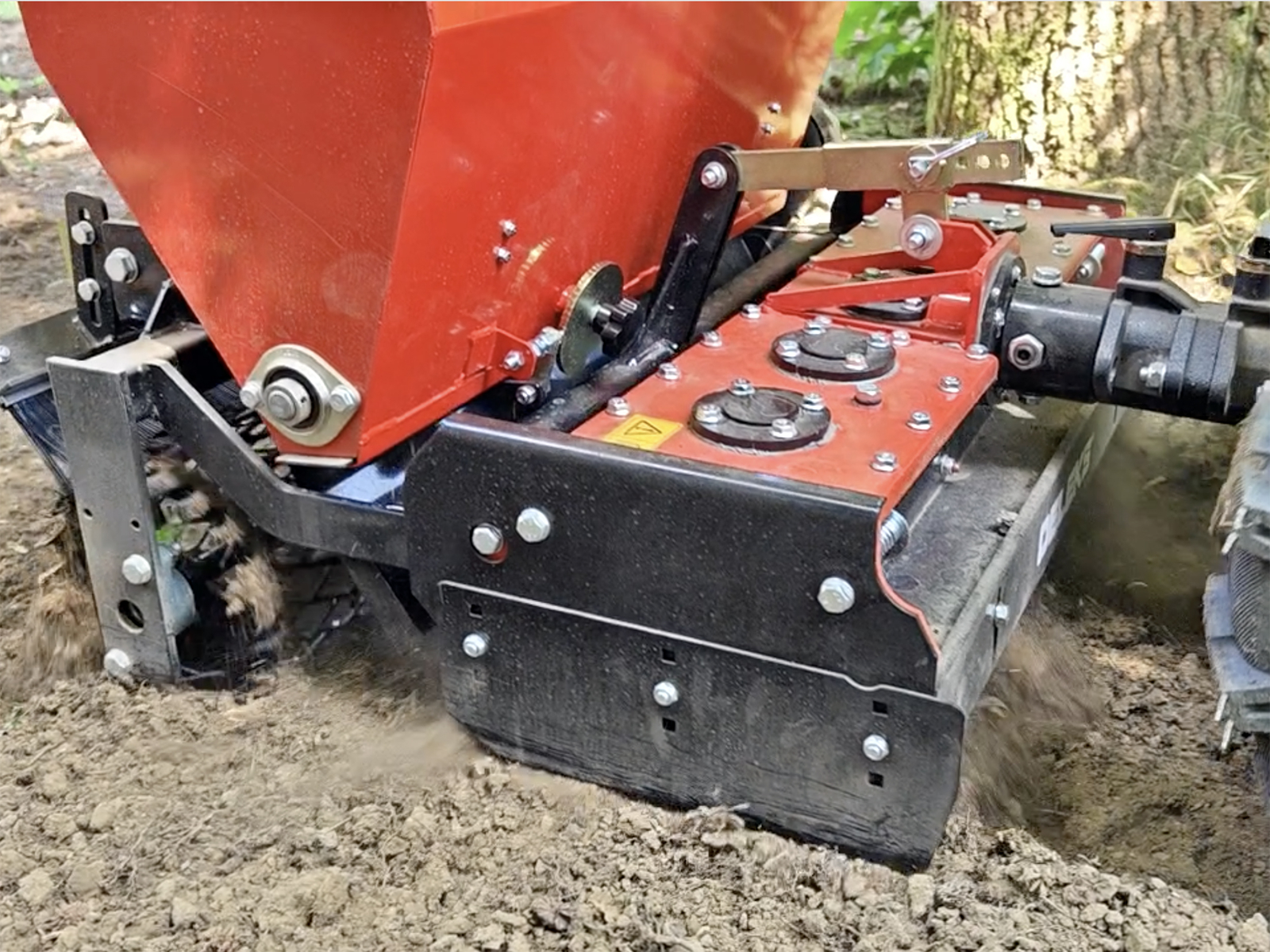

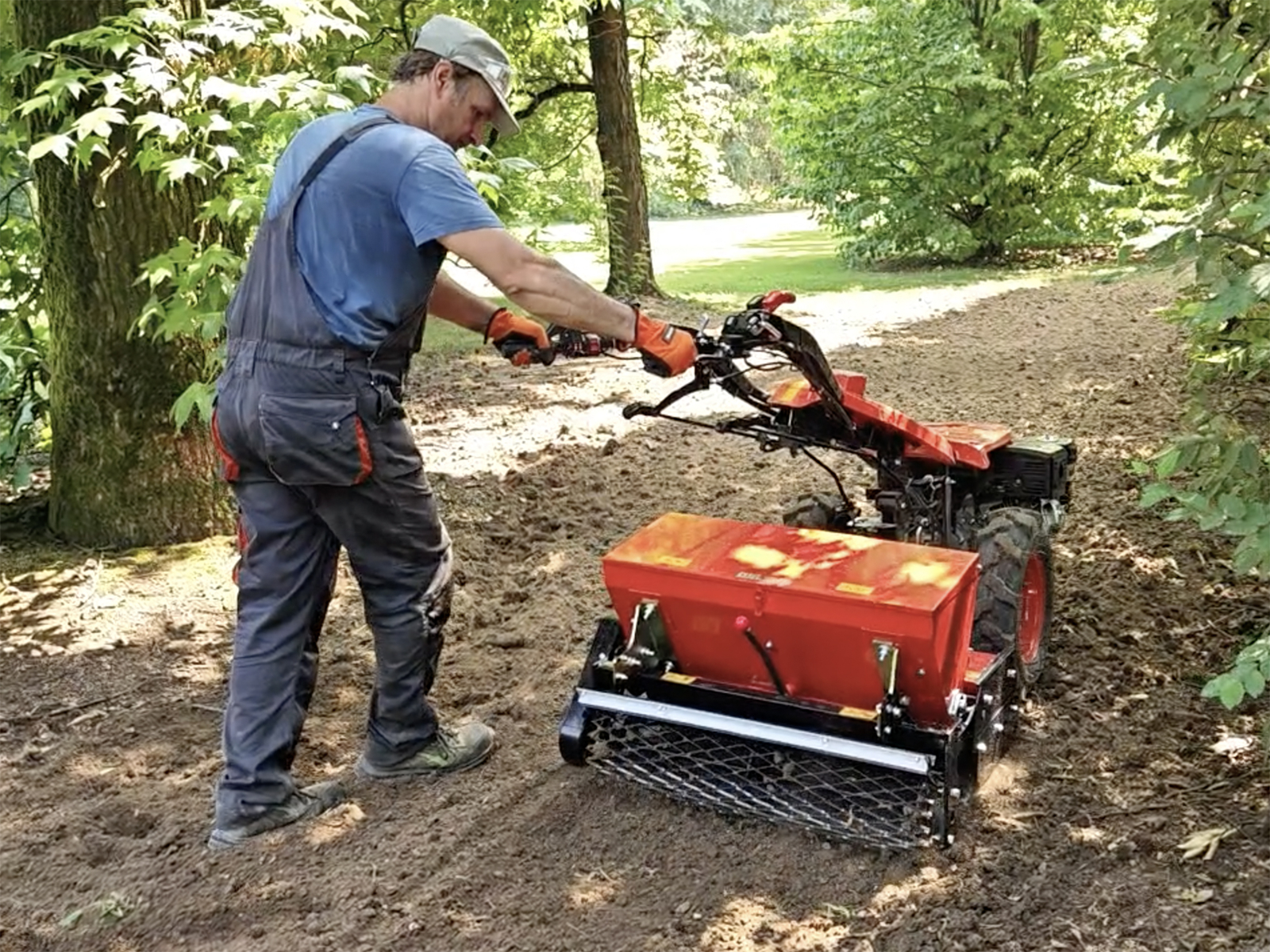

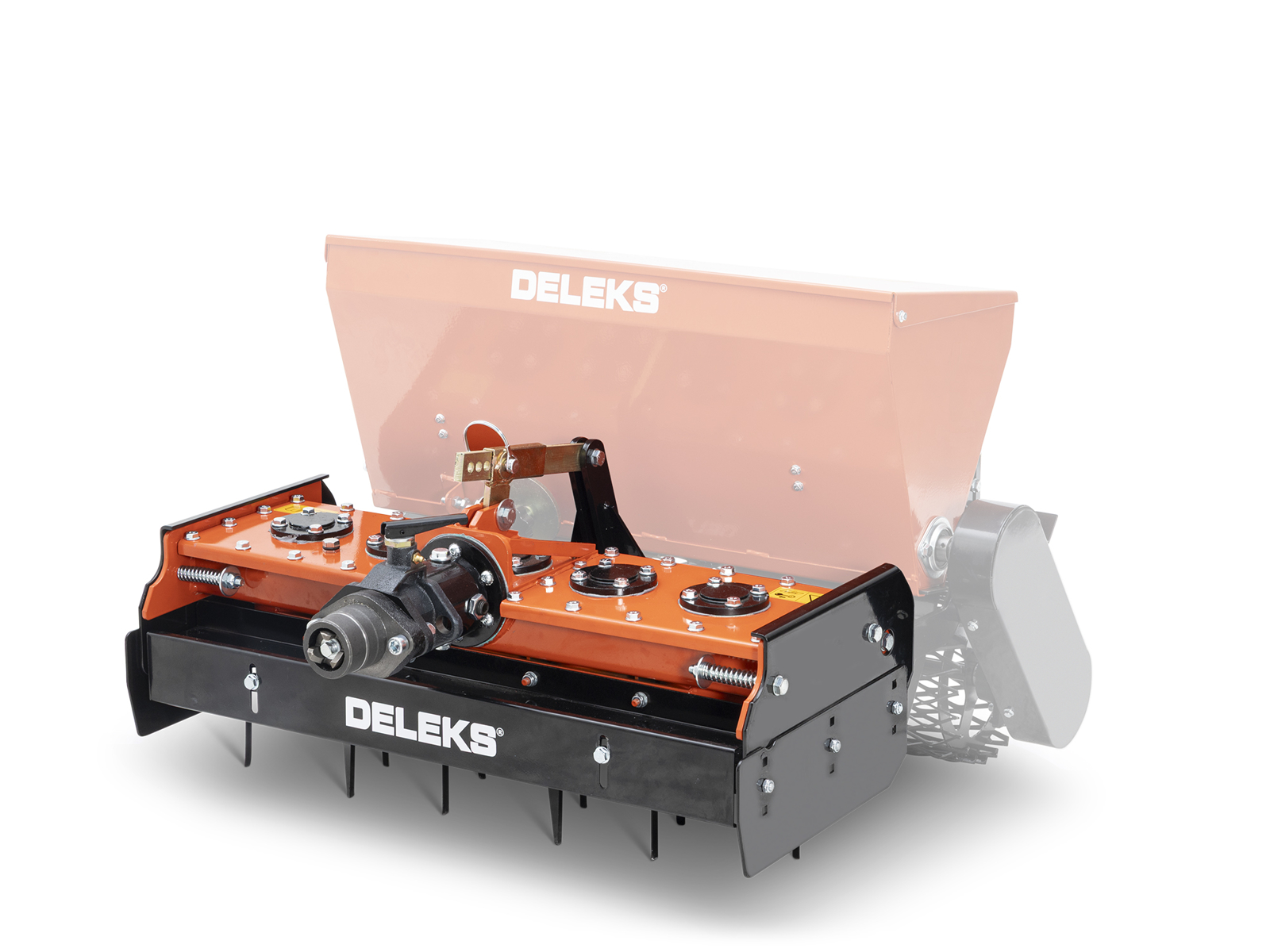

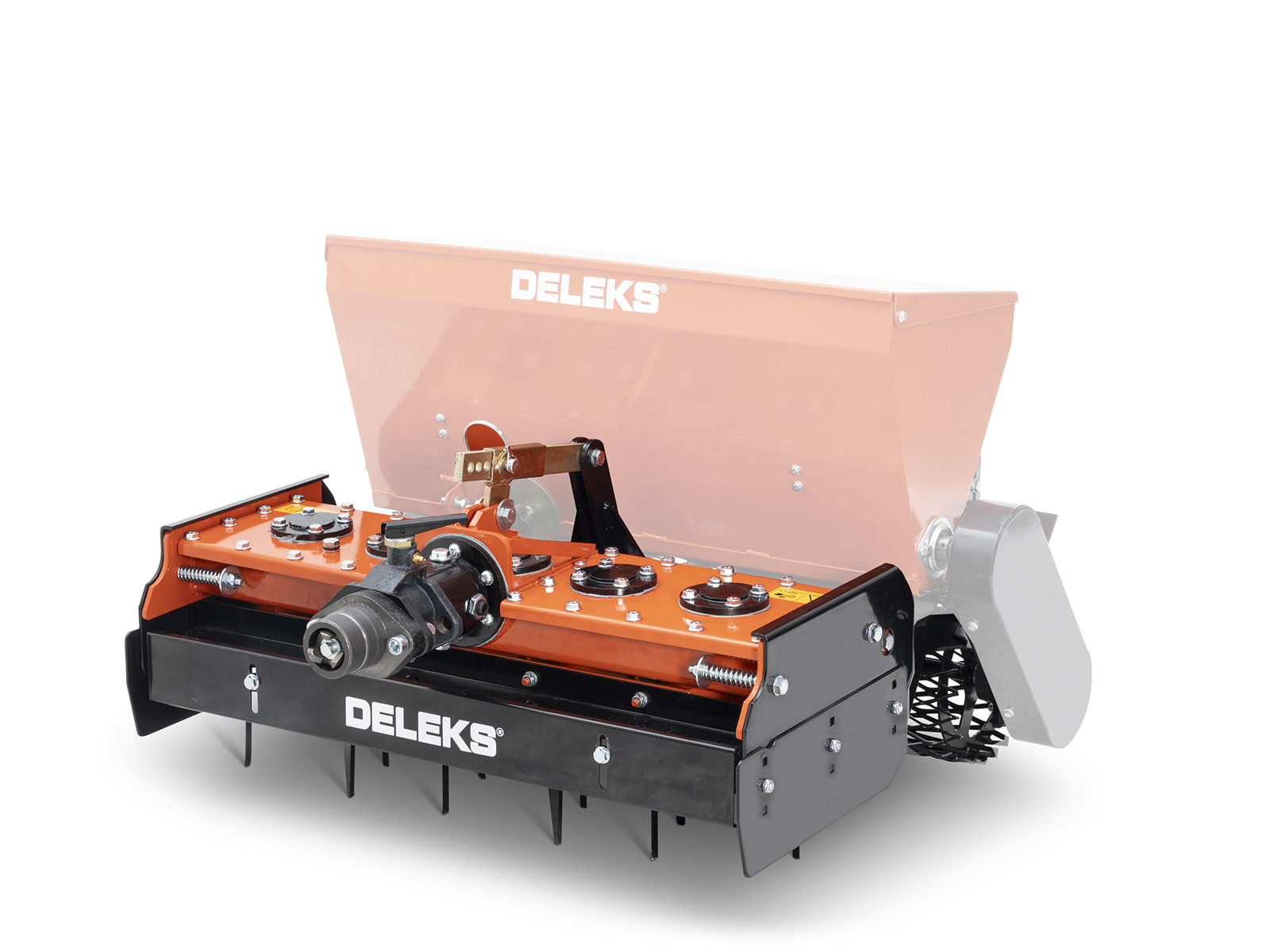

Harrow plus seeder
With the KR70 mechanical seeder mounted on the harrow you prepare and sow in a single pass: the mesh roller closes the seed and the ground is left ready. It works behind the tractor with the PTO at 990 rpm; harrow plus seeder weigh 136 kg (300 lb), matched to the 9 hp diesel or the 14 hp petrol, with steel wheels in loose ground.

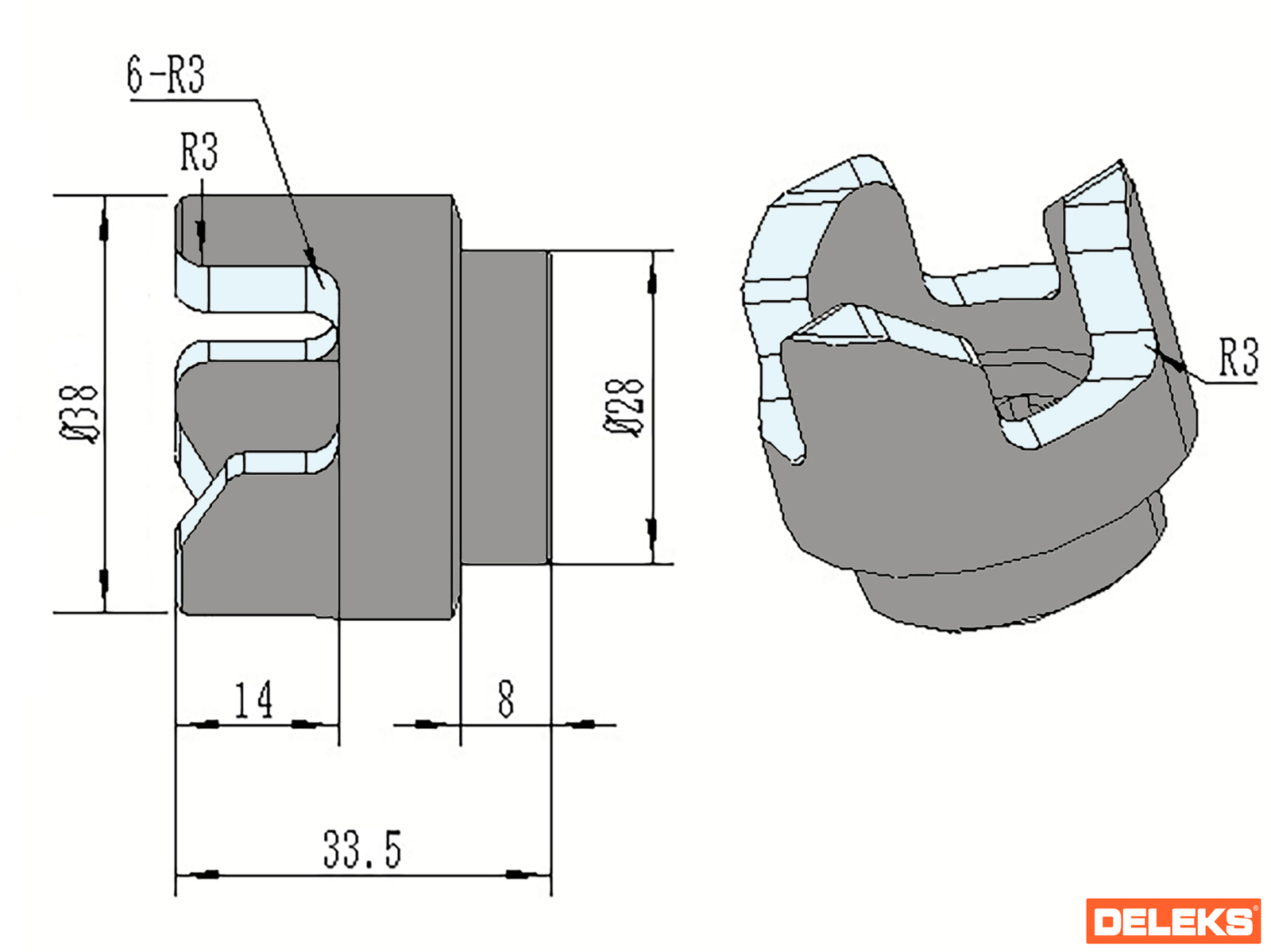

3-tooth BCS-type quick hitch, fine-spline with adapter
The male half of the 3-tooth quick hitch comes fitted as standard: on the DELEKS® ZEUS two-wheel tractor, which has the female half already installed, the attachment hooks on and off in seconds, with no tools. It is the same hitch as BCS, Ferrari and Pasquali, so it fits those tractors straight on; for fine-spline (millerighe) tractors there is the adapter. If in doubt, ask the DELEKS® team first: if the attachment does not fit, returning it is free.
Fields of application
- Sowing lawns, turf and green manure
- Fine seedbed after ploughing, plots and smallholdings
- Renewing lawns without turning the soil
- Closely sown row vegetables, with the seeder
FAQ
Power harrow or rotavator?
The rotavator for turning and incorporating, the power harrow for a fine seedbed without turning: for lawns and after ploughing it is the harrow.
Will it fit my BCS, Ferrari or Pasquali?
Yes, if it has the 3-tooth quick hitch; fine-spline tractors need the adapter. Ask the DELEKS® team first if in doubt: returns are free if it does not fit.
DELEKS® spare parts and service
Genuine spare parts ship from the DELEKS® warehouses in Europe: tines, blades, knives, belts, filters, control cables and the other wearing parts are normally in stock, for routine and for unscheduled maintenance. The technical service helps you find the right part from the exploded drawings, service the machine and choose the attachments that suit your work. The product comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty, free delivery within the EU and free returns on attachments that do not fit your two-wheel tractor.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 70.0 cm | 2.30 ft |
| Overall width | 78.0 cm | 2.55 ft |
| Weight | 78.0 kg | 172.0 lb |
| Gross shipping weight | 90 kg | 198 lb |
| Package volume | 0.30 m3 | 10.6 cu ft |
