Finishing mower for tractor, with hydraulic side shift and inter-row disc
4.6
1438 reviews
DETAILS

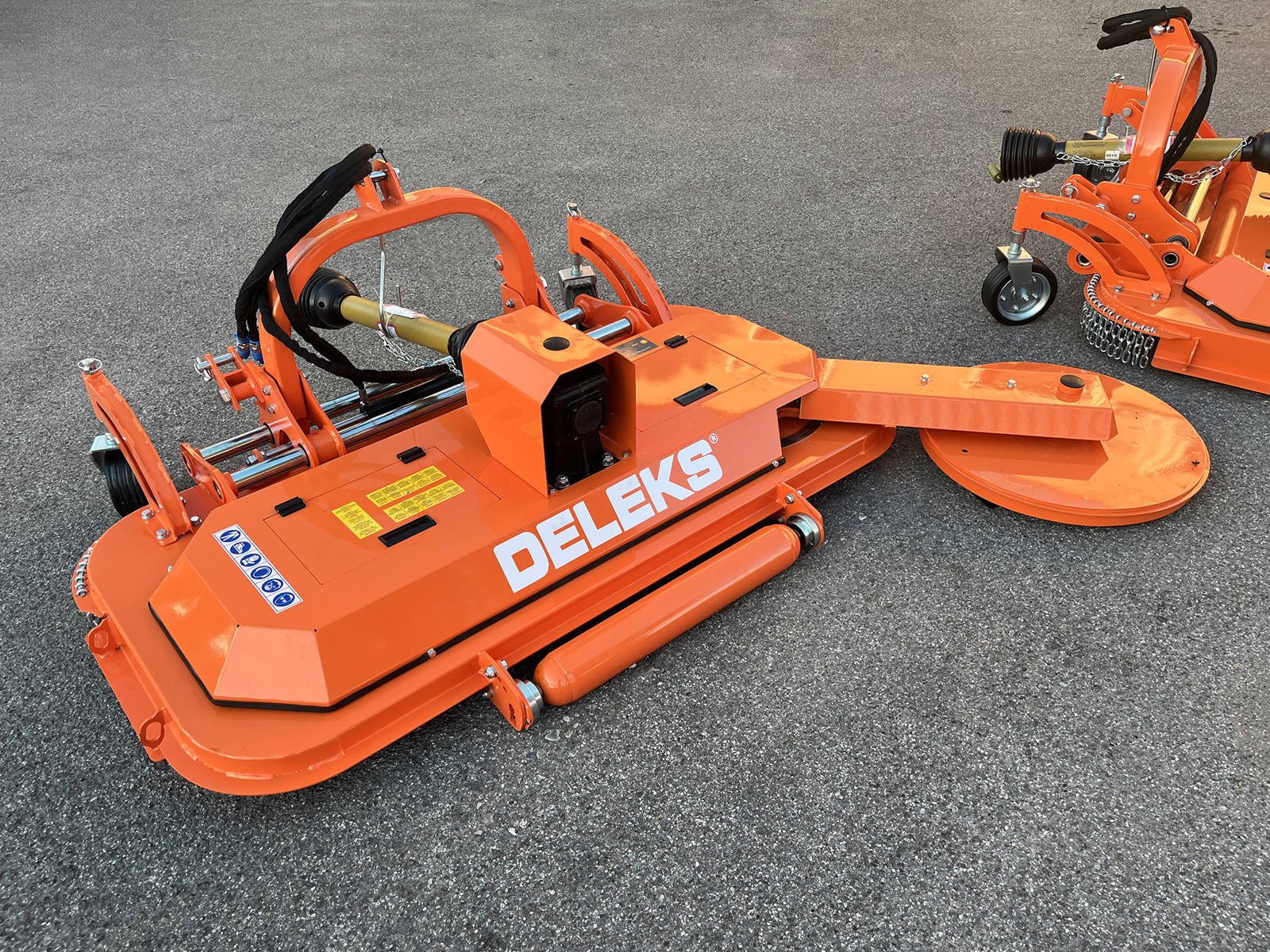

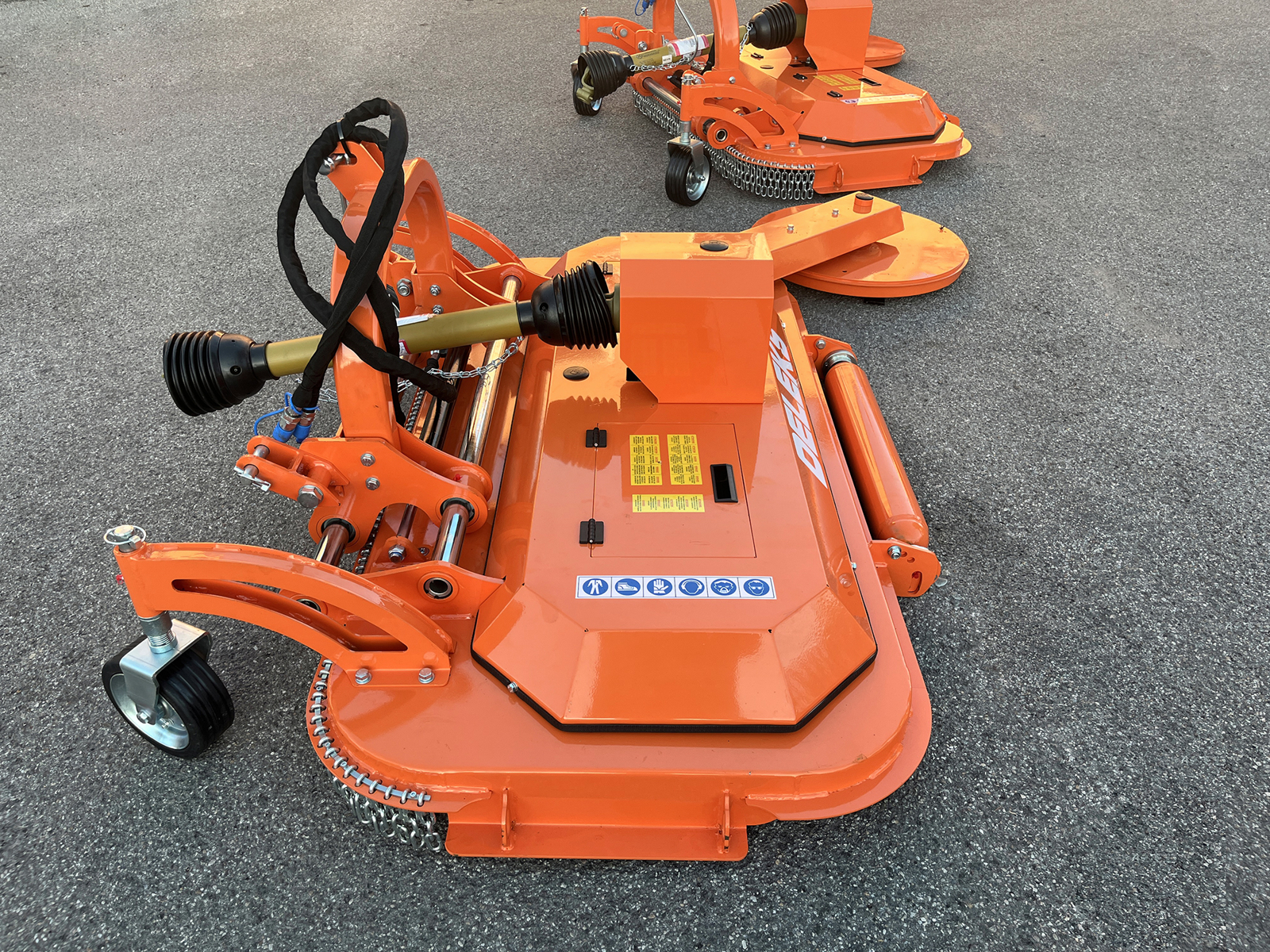

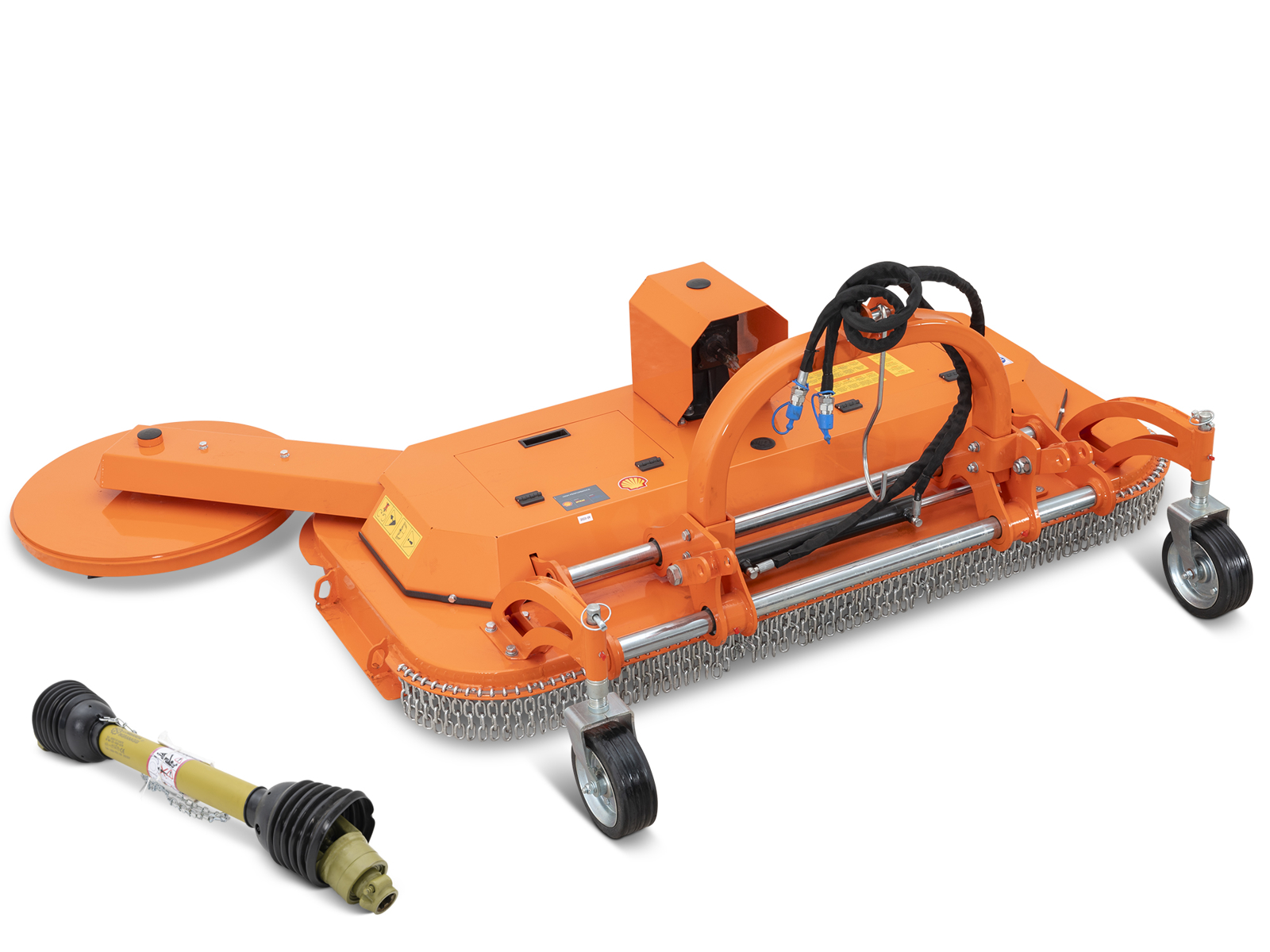

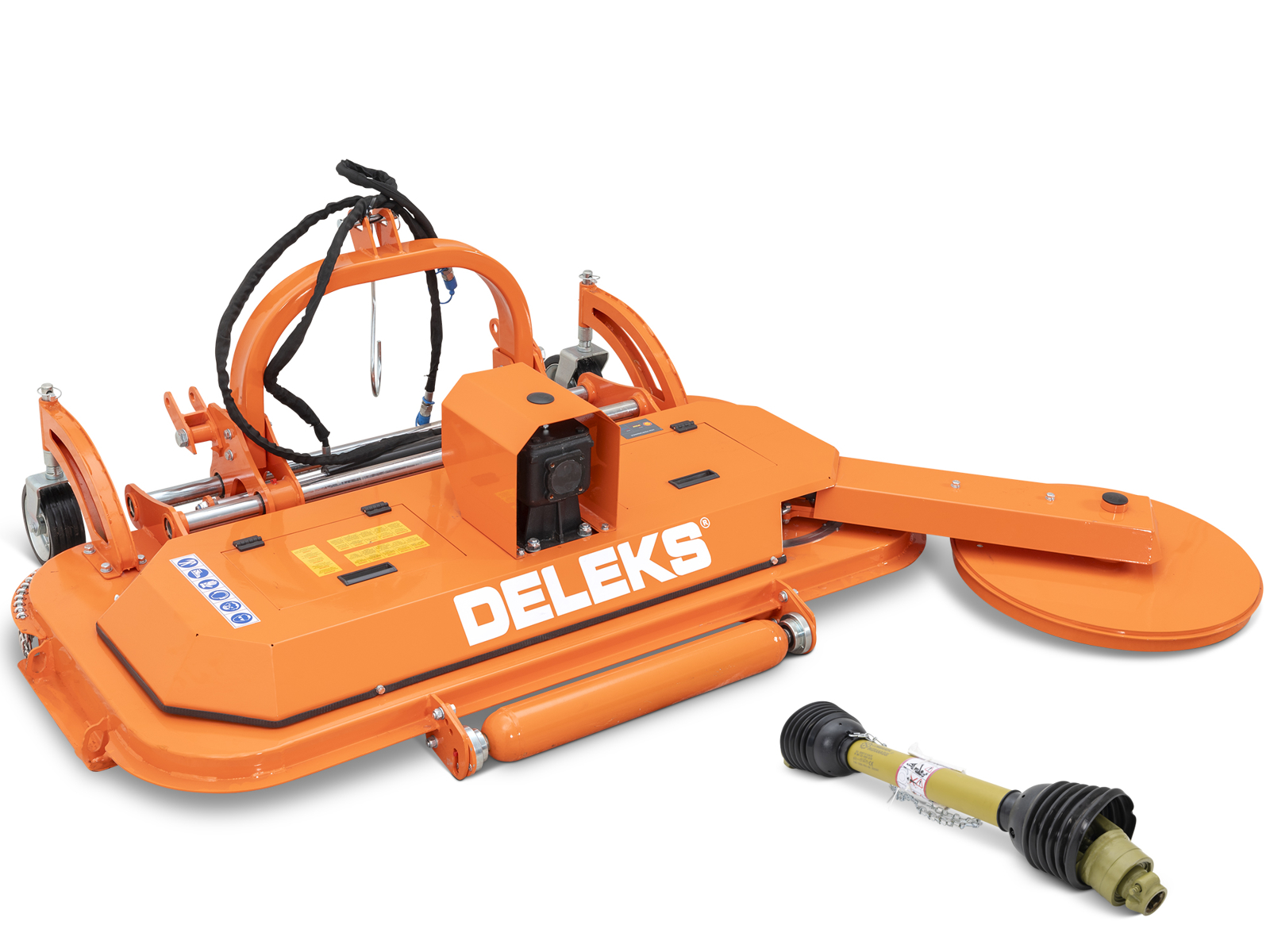

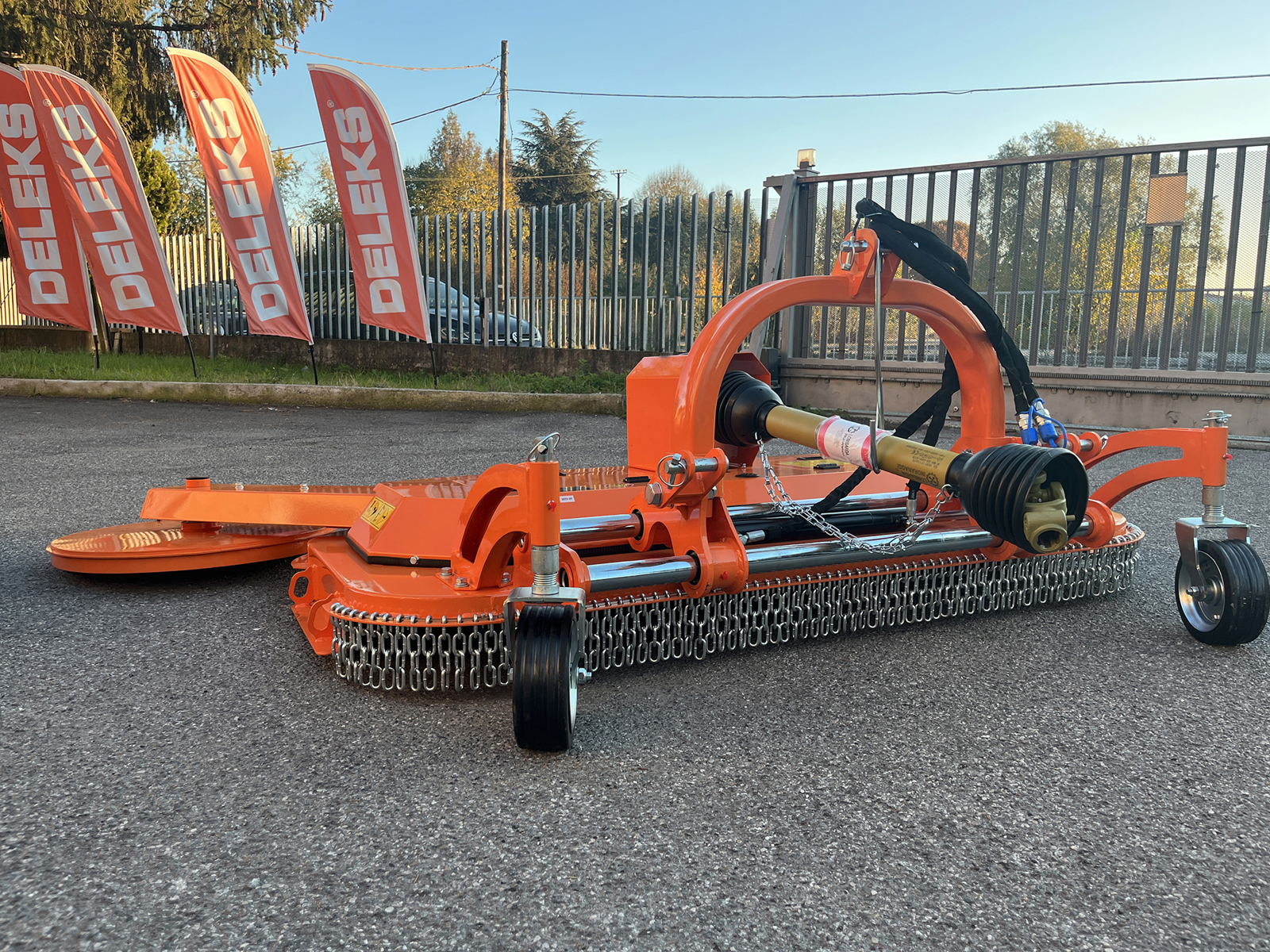

DELEKS® DM180-INTERFILA Finishing mower for tractor, 8 blades, hydraulic side shift and 60cm inter-row disc, Cardan shaft with Free wheel integrated.
OVERVIEW
DM180-INTERFILA Lawn mower for tractor with horizontal blades and rear discharge, for mowing grass in orchard and vineyard rows, in parks and green areas in general. Light weight yet durable, the DM180-INTERFILA mower can be used on all 25-55HP tractors e.g Kubota BX-B, McCormick, Iseki, Yanmar.
BENEFITS AND FEATURES

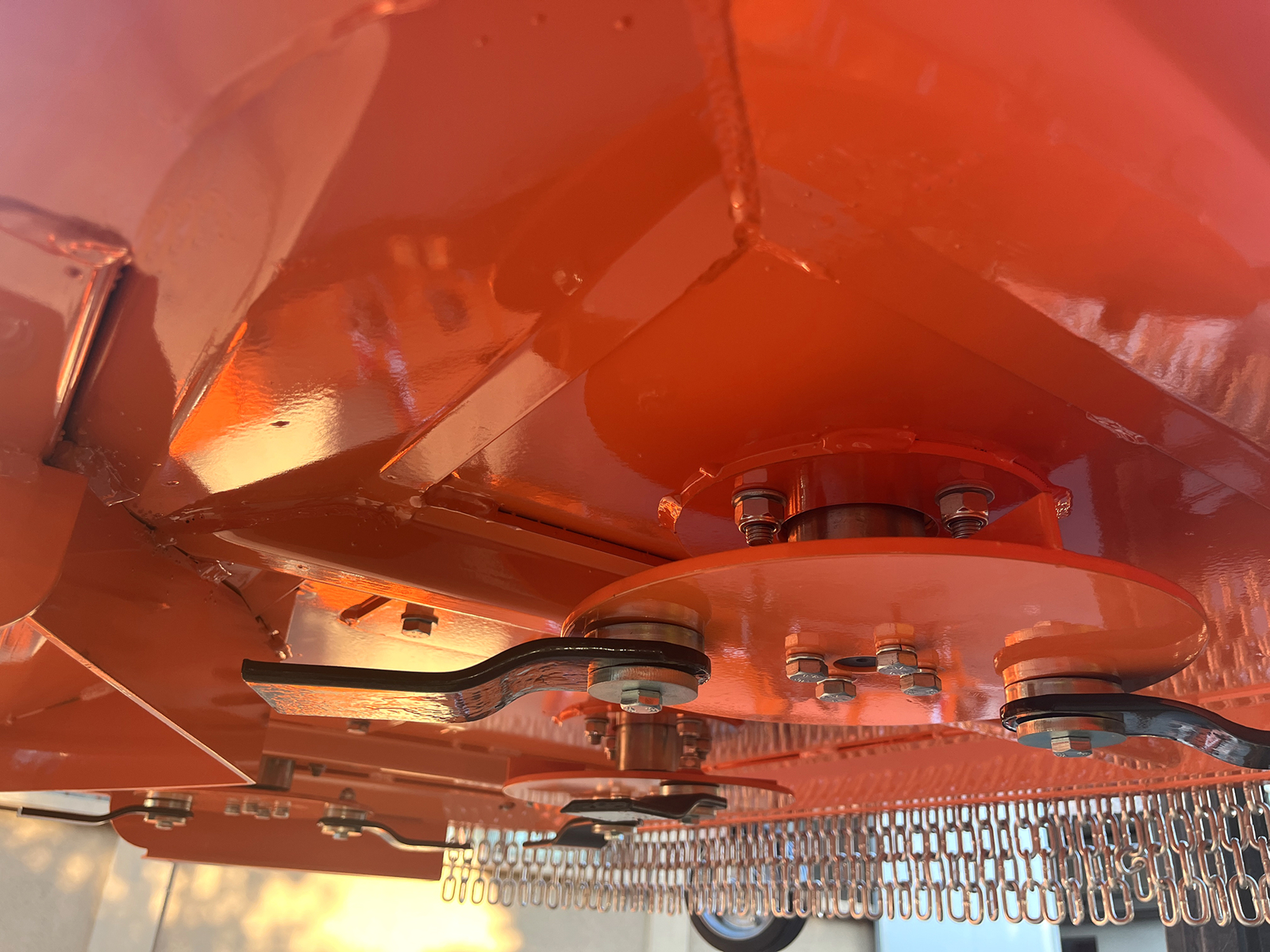

The 8 high speed blades pulverize grass clippings to ensures no tracks of grass are left behind.

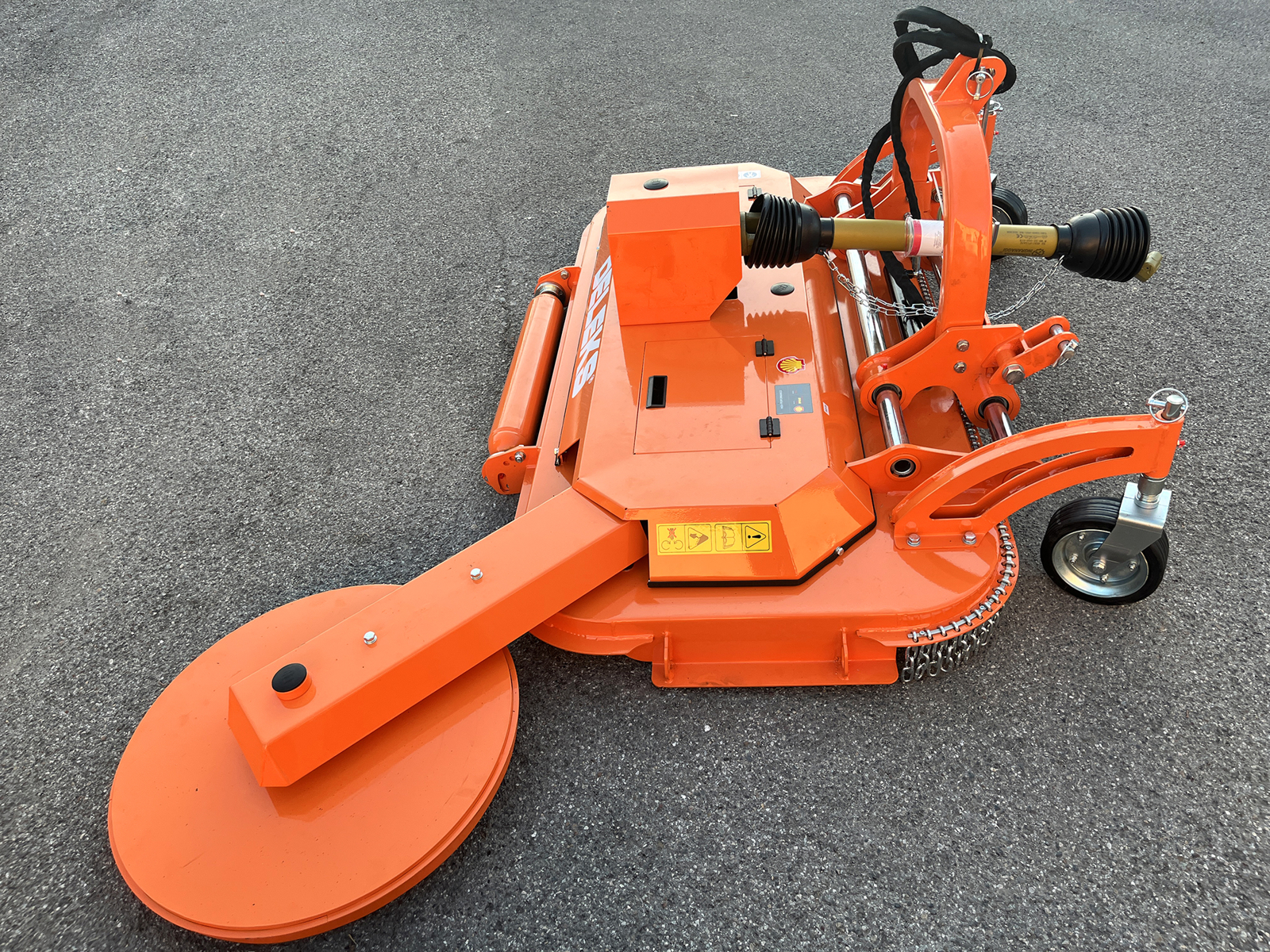

Double blade inter-row disc.

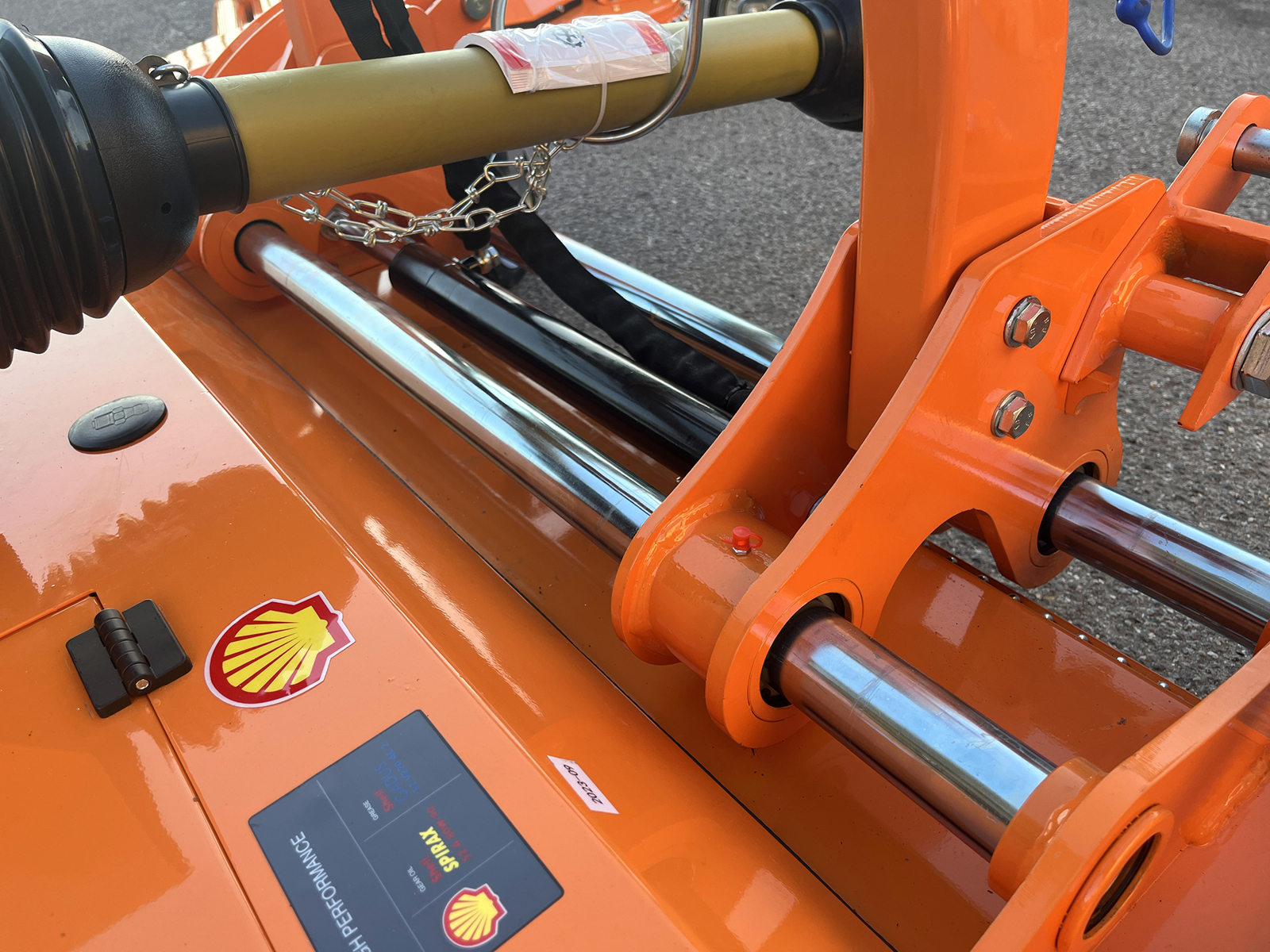

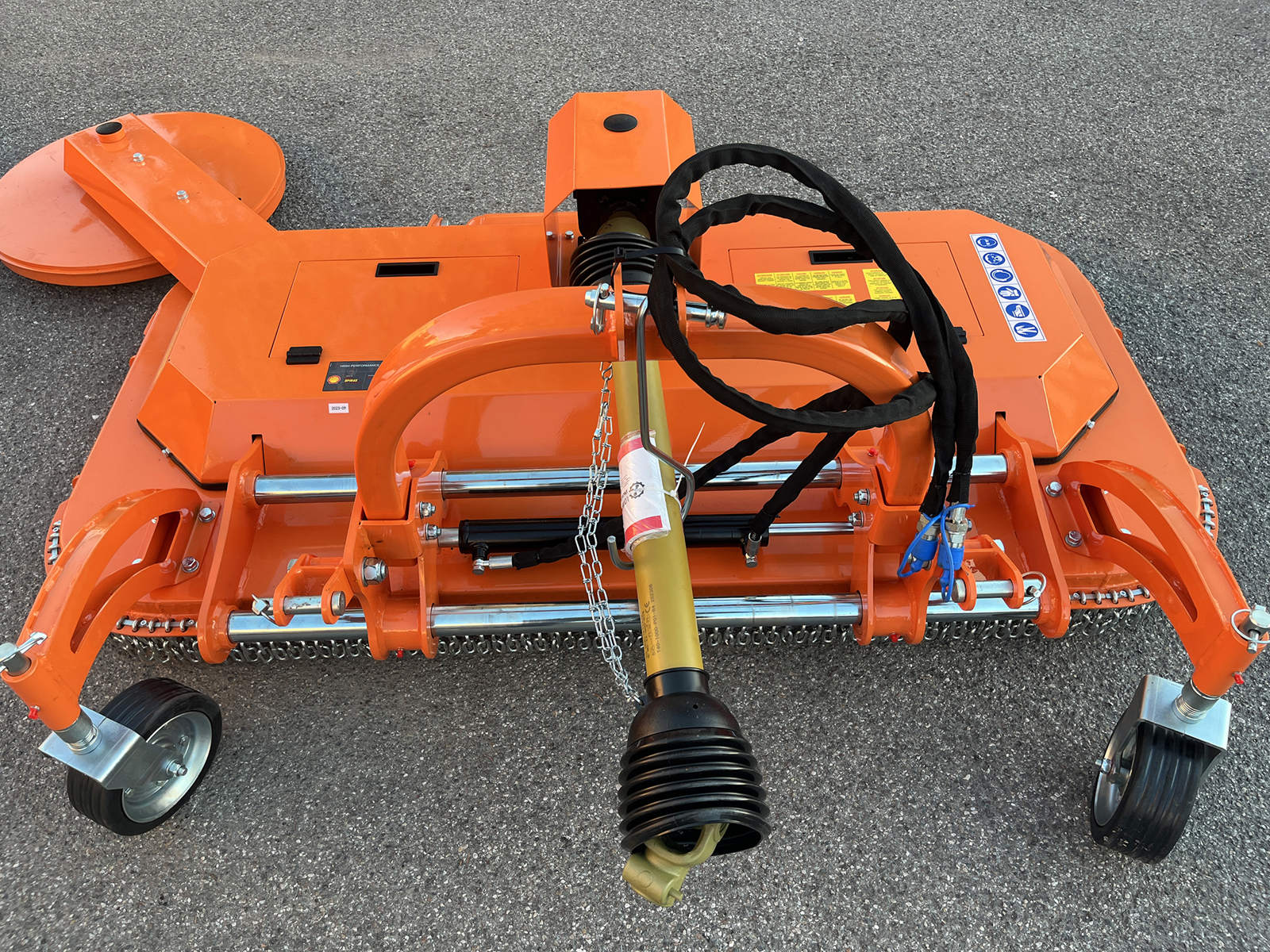

Hydraulic displacement of the 3-point hitch

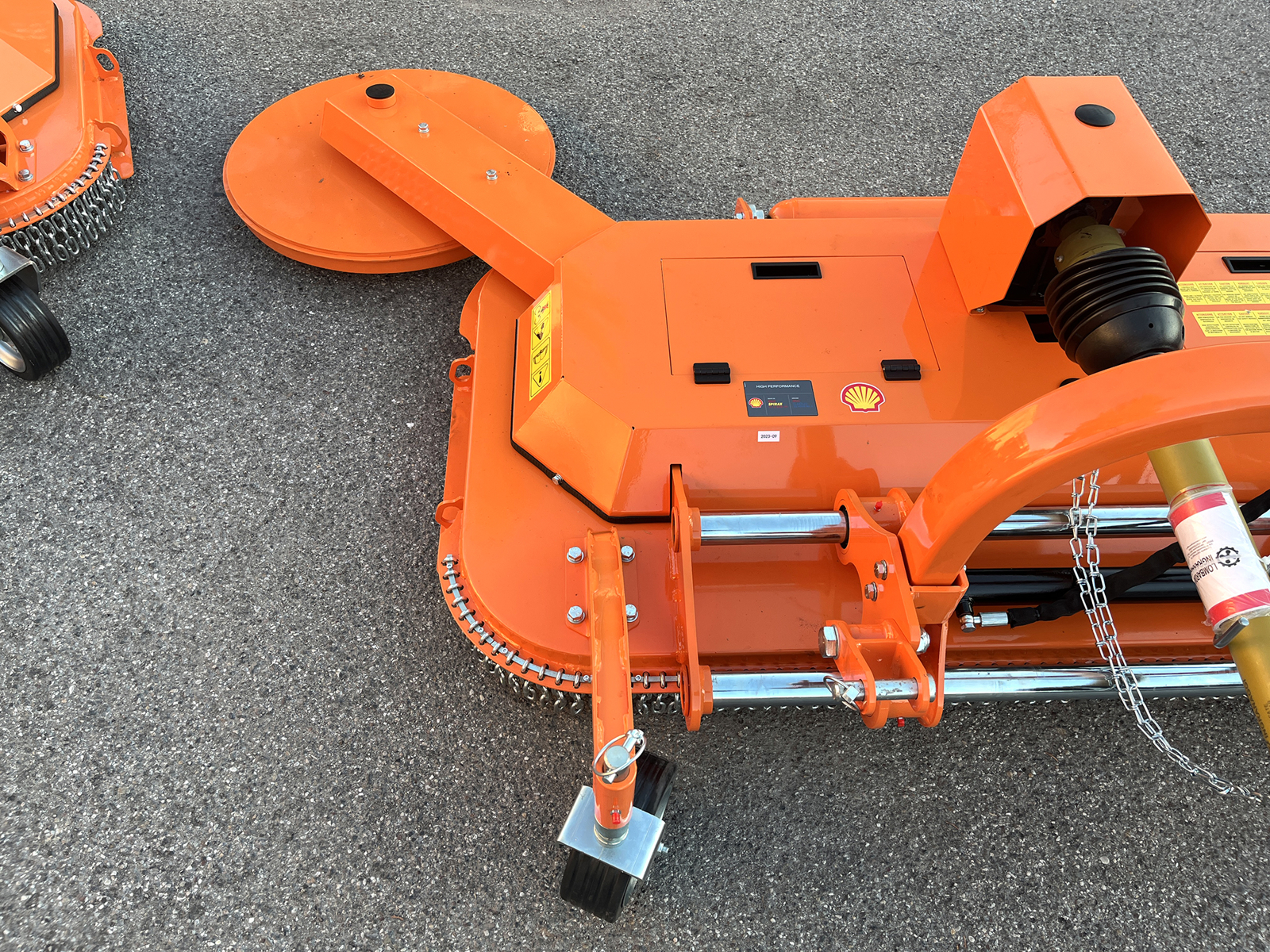

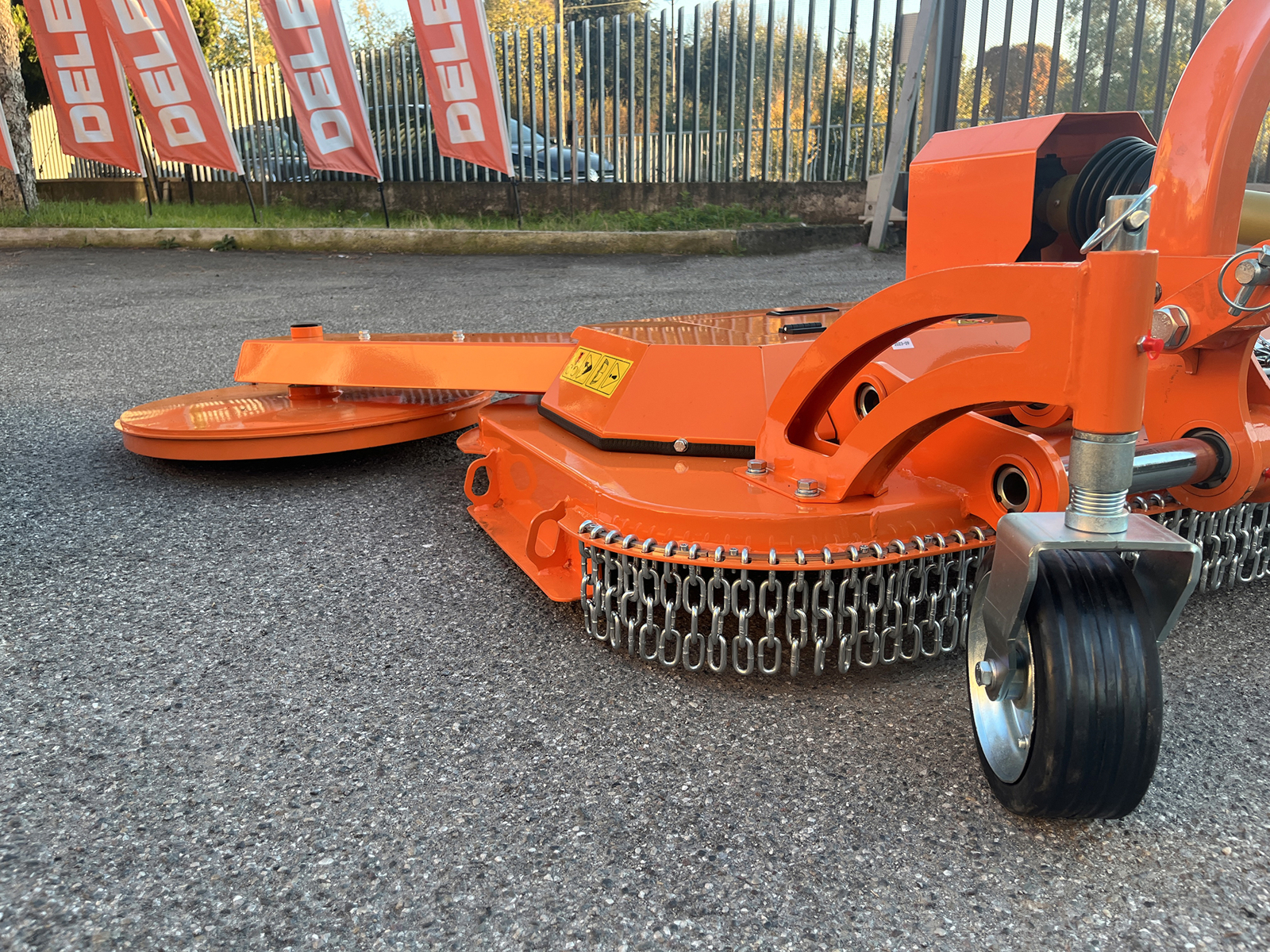

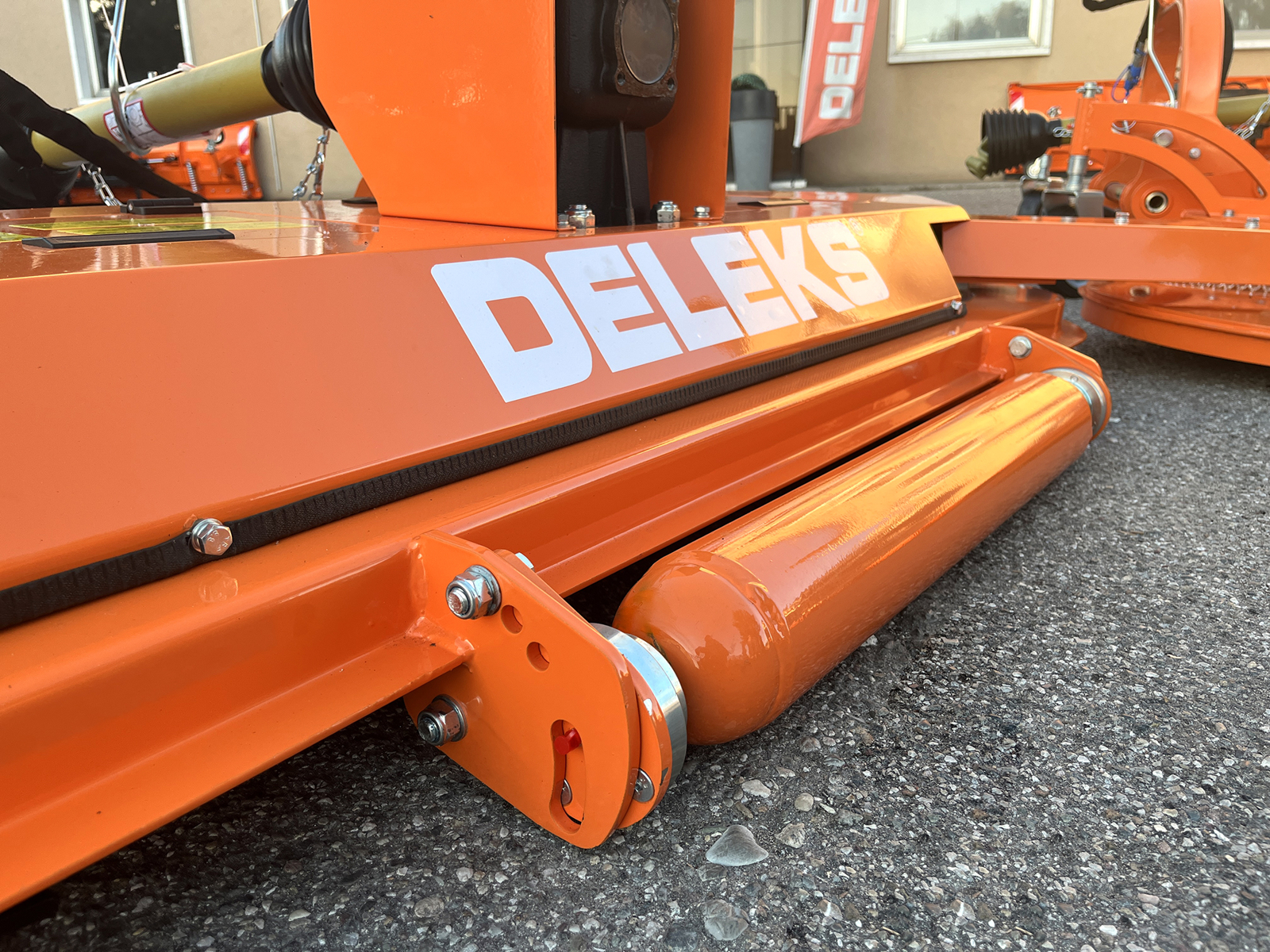

2 pivoting wheels and the rear roller maintain the horizontal cutting level and regulate the cutting height.
The lightweight design allows its use with low-powered tractors, on flat ground or on verges.
High resistance toothed belts, and external belt tensioner.
Cardan shaft with Free wheel integrated.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 2300.0 mm | 7.55 ft |
| Overall width | 2350.0 mm | 7.70 ft |
| Min / Max cutting height | 5.0 - 50.0 mm | 0.2 - 1-97 in |
| Weight | 230.0 kg | 507.0 lb |
| Overall height | 750.0 mm | 2.46 ft |
| Tractor Power Range | 25-55 Hp | 25-55 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) | Cat. 1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 640.0-740.0 mm | 25.20-29.15 in |
| Overall length | 1700.0 mm | 5.57 ft |
| Distance between pto attachment and ground | 450.0 mm | 17.70 in |
| Main hood thickness | 4.0 mm | 0.16 in |
| Transmission: Drive method | V-Belts | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (3 years warranty) | Lombarda Ingranaggi Srl (3 years warranty) |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 3 | 3 |
| Transmission: V-Belts size | B1930 | B1930 |
| Number of Blades | 8 | 8 |
| Transmission: RPM Blade speed | 2780 r/min | 2780 r/min |
| Wheels: Quantity | 2 | 2 |
| Wheels: Diameter / Width | 200.0/77.0 mm | 7.87/3.03 in |
| Pto shaft | CE 4x1000 mm + free wheel | CE 4x1000 mm + free wheel |
| Effective Displacement | 200.0 mm | 7.87 in |
| Packing sizes | 1950.0*1200.0*600.0 mm | 6.40*3.94*1.97 ft |
