Reversible plough for two-wheel tractor, 32 kg (71 lb), flange mounting

Available
Code ZEUSDRP - EAN 8057724860870
290,00€VAT incl.
or 3 installments of 96,67 €
Free shipping
Loading...
290,00€VAT incl.
or 3 installments of 96,67 €
Free shipping
View all details.

4.6

1551 reviews

290,00€VAT incl.
 REQUEST INFORMATION

DETAILS

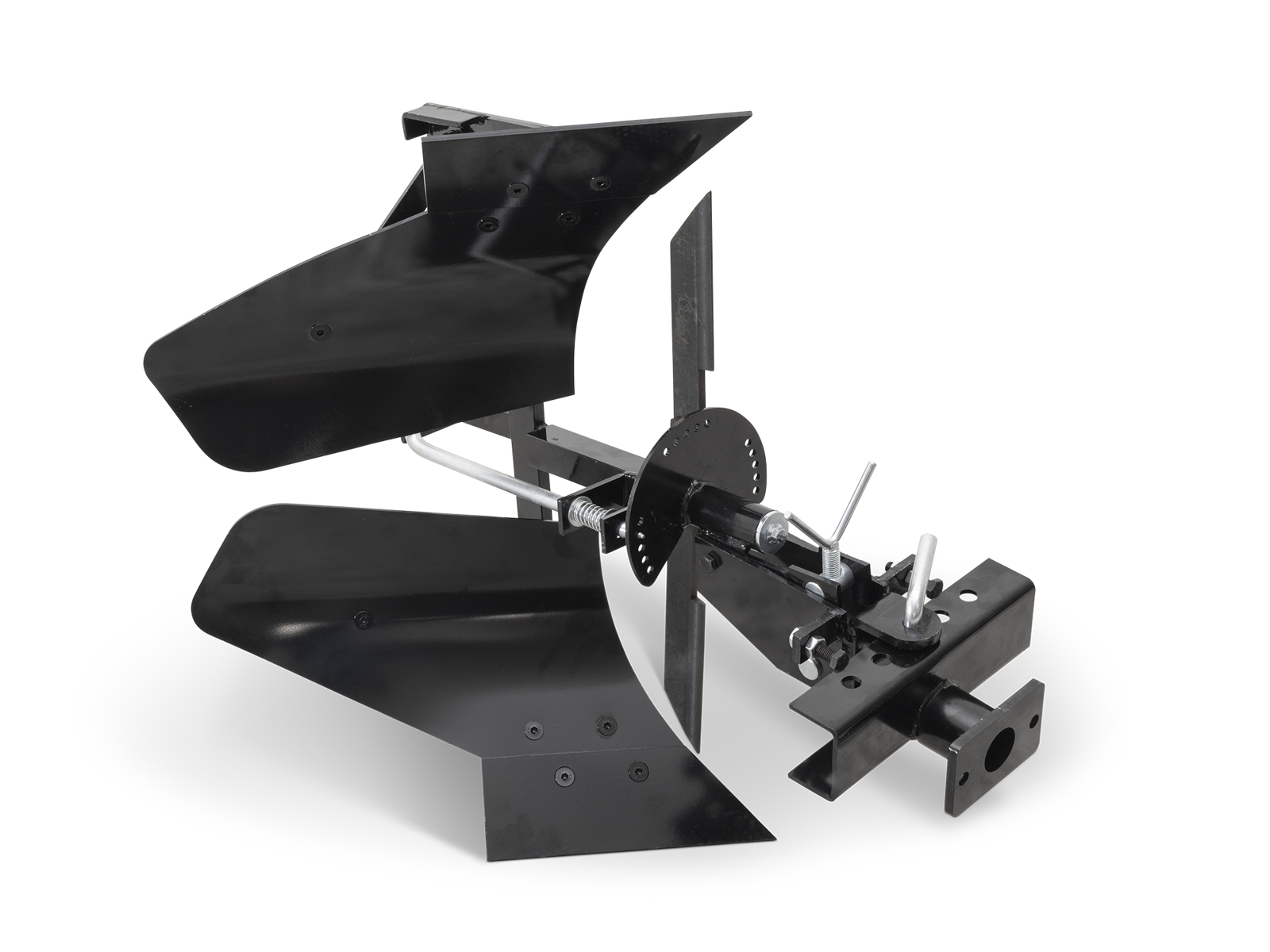

Reversible plough with traditional mouldboard, 32 kg (71 lb): at the end of the furrow you swing the mouldboard over and come back turning to the same side. It bolts straight onto the rear flange of the DELEKS® ZEUS two-wheel tractor with two bolts, in place of the female quick hitch: no drive and no 3-tooth hitch; it works with the handlebars in the rear position, using the weight and traction of the machine. Free delivery within the EU; if it is not compatible with your two-wheel tractor, returning it is free.


Trailed work, no drive

No moving parts: the implement bites into the ground with the weight of the tractor and the grip of the wheels, with the differential lock engaged in hard ground and steel wheels or ballast weights when rubber wheels spin. On the flat and in worked ground the 9 hp diesel is enough; the 14 hp petrol has more in reserve.


Two-bolt flange mounting

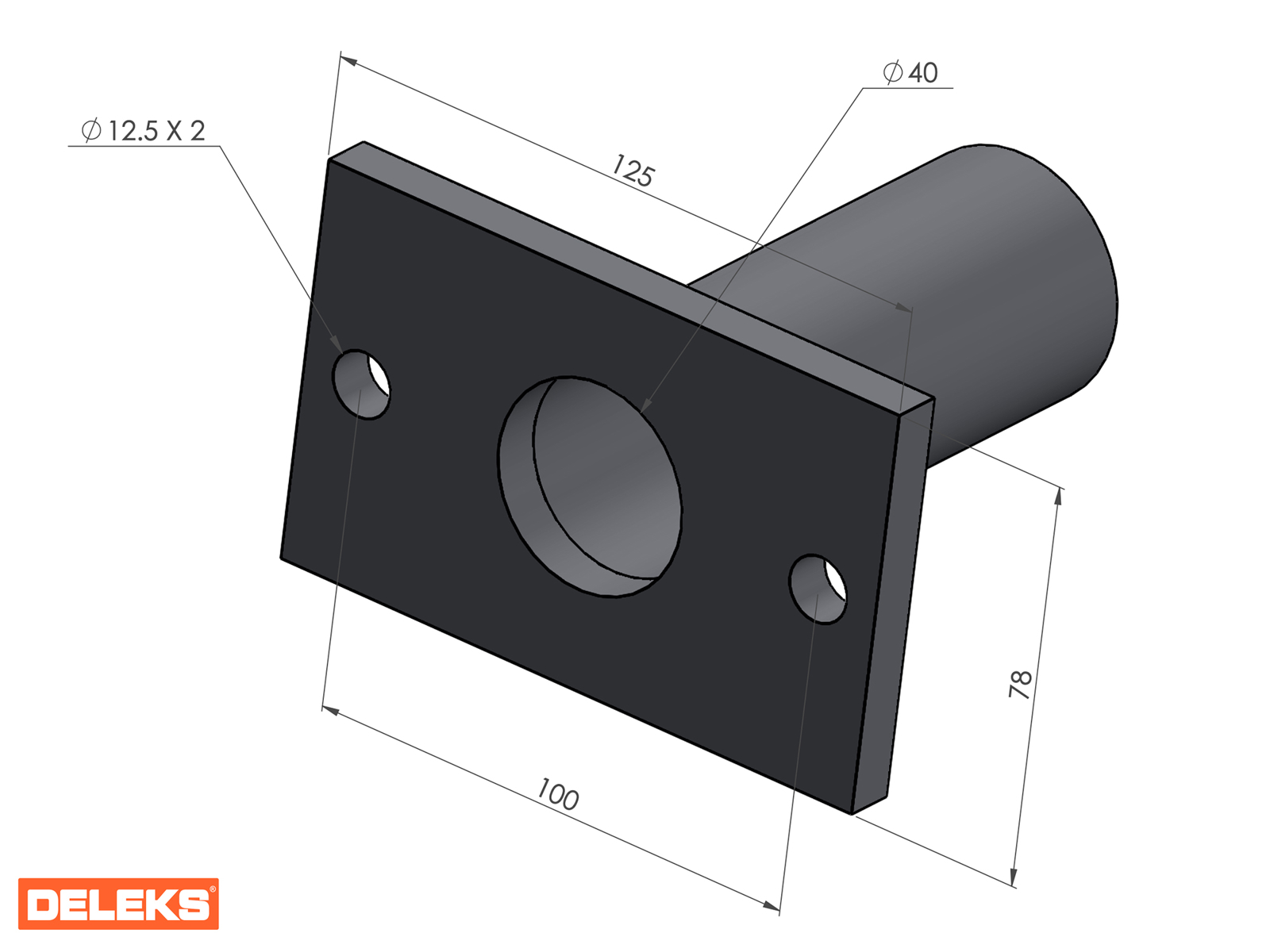

No quick hitch needed: undo the two bolts of the female quick hitch on the tractor and fit the implement's plate in its place, 125 × 78 mm (4.9 × 3.1 in), with a Ø 40 mm (1.57 in) centring hole and two Ø 12.5 mm (0.49 in) holes at 100 mm (3.94 in) centres. To go back to driven attachments, refit the female hitch. For BCS, Ferrari, Pasquali and other makes, ask the DELEKS® team and give the model: if it does not fit, returning it is free.


Fields of application

  • Vegetable plots and smallholdings: light ploughing, furrows, earthing up
  • Potatoes and row crops: ridging at planting, lifting at harvest
  • Weeding between the rows with the cultivator
  • Worked or light ground, where a rotary plough is not needed

FAQ

Trailed or rotary plough?
The trailed plough suits light or worked ground and costs less; in hard ground or when the wheels spin, the PTO-driven rotary plough or steel wheels are the better choice.

Single or reversible?
The reversible always turns to the same side and leaves the field level; the single is lighter (20 kg against 32) and cheaper.

Do I need anything else to fit it?
No: it bolts to the tractor's flange with two bolts, in place of the female quick hitch, which goes back on when you return to driven attachments.

Will it fit my BCS, Ferrari or Pasquali?
It depends on your tractor's flange: ask the DELEKS® team and give make and model. If it does not fit, returning it is free.


DELEKS® spare parts and service

Genuine spare parts ship from the DELEKS® warehouses in Europe: tines, blades, knives, belts, filters, control cables and the other wearing parts are normally in stock, for routine and for unscheduled maintenance. The technical service helps you find the right part from the exploded drawings, service the machine and choose the attachments that suit your work. The product comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty, free delivery within the EU and free returns on attachments that do not fit your two-wheel tractor.

CHARACTERISTICS

Characteristic Units metric Units US
Weight 32.0 kg 70.0 lb
Gross shipping weight 43 kg 95 lb
Package volume 0.18 m3 6.4 cu ft
Packing sizes 850*700*300.0 mm 33.46*27.56*11.81 in
