DETAILS
Heavy-duty professional two-wheel tractor with a 420 cc Loncin petrol engine giving 14 hp, electric key start, 3+2 gearbox with quick reverse, differential lock and twin disc brakes. The 3-tooth BCS-type quick hitch comes as standard: it takes BCS, Ferrari and Pasquali attachments straight on and, with the adapter, fine-spline (millerighe) attachments too. It weighs 110 kg (243 lb) and works all year round with rotavator, cutter bar, flail mower, plough and trailer; free delivery within the EU, delivered ready to use.
Loncin 14 hp engine with electric start
The 420 cc Loncin petrol engine gives 14 hp, the most power in the ZEUS range: you feel the torque in reserve with the 100 cm (39 in) rotavator in hard ground and with the flail mower in tall grass. Electric key start, with a recoil starter as back-up. It is the simplest model to run: petrol is everywhere, maintenance is light and it starts straight away, even from cold.
3+2 gearbox with quick reverse
Three forward gears and two reverse, with speeds from 1.5 to 11.2 km/h (0.9 to 7 mph): first for rotavating and ploughing, third for moving about and towing the trailer. The quick reverse changes direction without changing gear. The gears run in an oil bath and the 990 rpm PTO, turning clockwise, is independent of the drive.
Drive, differential lock and brakes
The differential lock goes in when a wheel loses grip, on rough ground, on a slope or in mud, and comes out again to turn at the end of the row. The twin disc brakes, fitted as standard, hold the machine downhill and in tight turns with a loaded trailer.
Handlebars reversible through 180°
The handlebars swing through 180°: with rear attachments (rotavator, plough, ridger) you work one way, with front attachments (cutter bar, flail mower, sweeper, snow blower) the other. They adjust for height and sideways, so you do not tread on freshly worked soil and the machine suits the operator's height.
3-tooth BCS-type quick hitch, fine-spline with adapter
The female half of the 3-tooth quick hitch comes fitted to the tractor; every DELEKS® attachment already has its male half and changes over in seconds, with no tools. It is the same hitch as BCS, Ferrari and Pasquali, so attachments from those makes fit straight on; for fine-spline (millerighe) attachments there is the adapter. If you already own attachments of another make, you only need to buy the tractor.
Pre-delivery check and shipping

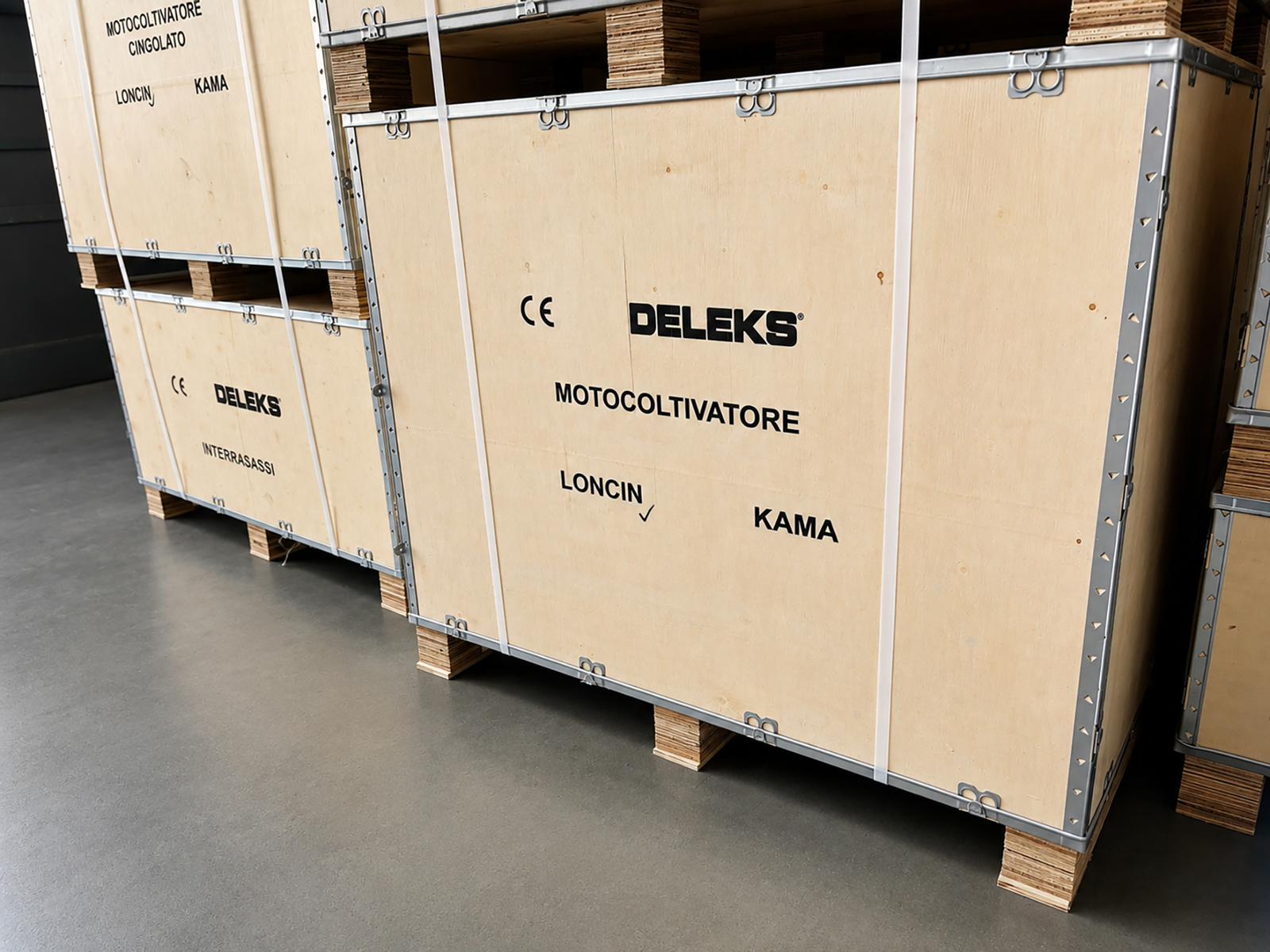

Before shipping, the DELEKS® logistics centre checks the assembly, the engine and gearbox oil levels, the greasing and the controls, then secures the machine in a sealed wooden crate for transport. Delivery is free within the EU and the tractor arrives ready to use.
Fields of application
- Vegetable plots, gardens and smallholdings: rotavating, seedbed preparation, ridging
- Orchards, vineyards and olive groves: mowing with the cutter bar, flail mowing between the rows
- Rough ground and verges: flail mower for tall grass and weeds
- Ploughing and turning in crop residues at the end of the season
- Haulage with trailer and seat, snow with blower or blade
Options and attachments
Rotavator, cutter bar, flail mower, ploughs, ridger, potato digger, cultivator, rotary harrow with seeder, trailer, steel wheels, PTO extension and snow blower can be added to the order or later. Ordered together with the tractor they get 10% off up to €150 and 5% off above.
FAQ
Petrol or diesel?
The 14 hp petrol has more power and is simpler to run; the 9 hp diesel (ZEUSK) uses less fuel, runs cooler on long days and is the most popular. The attachments are the same.
Can I use the BCS, Ferrari or Pasquali attachments I already have?
Yes, they have the same 3-tooth hitch; fine-spline ones need the adapter. If in doubt, ask the DELEKS® team first.
What wheels does it have, and can I use it on a slope?
Agricultural wheels with differential lock and disc brakes; for steep slopes there is the tracked version (ZEUSLTR).
How does it arrive and what do I need to do first?
It arrives in a wooden crate with oil and lubricants already checked: set the handlebars to the working position, fill up with petrol and off you go.
Does any attachment come with it?
No: the tractor comes with the female quick hitch; attachments are chosen from the options.
DELEKS® spare parts and service
Genuine spare parts ship from the DELEKS® warehouses in Europe: tines, blades, knives, belts, filters, control cables and the other wearing parts are normally in stock, for routine and for unscheduled maintenance. The technical service helps you find the right part from the exploded drawings, service the machine and choose the attachments that suit your work. The product comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty, free delivery within the EU and free returns on attachments that do not fit your two-wheel tractor.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 110.0 kg | 242.0 lb |
| Transmission: Rotation of gearbox | Clockwise | Clockwise |
| Engine | Loncin 14Hp 420cc | Loncin 14Hp 420cc |
| Starter | E-start and Pull cord | E-start and Pull cord |
| RPM | 990 | 990 |
| Max speed | 1.5 - 3.0 - 11.2 Km/h | 1.5 - 3.0 - 11.2 Km/h |
| Gross shipping weight | 134 kg | 295 lb |
| Package volume | 0.78 m3 | 27.5 cu ft |
| Packing sizes | 1150*710*950.0 mm | 3.77*2.33*3.12 ft |
