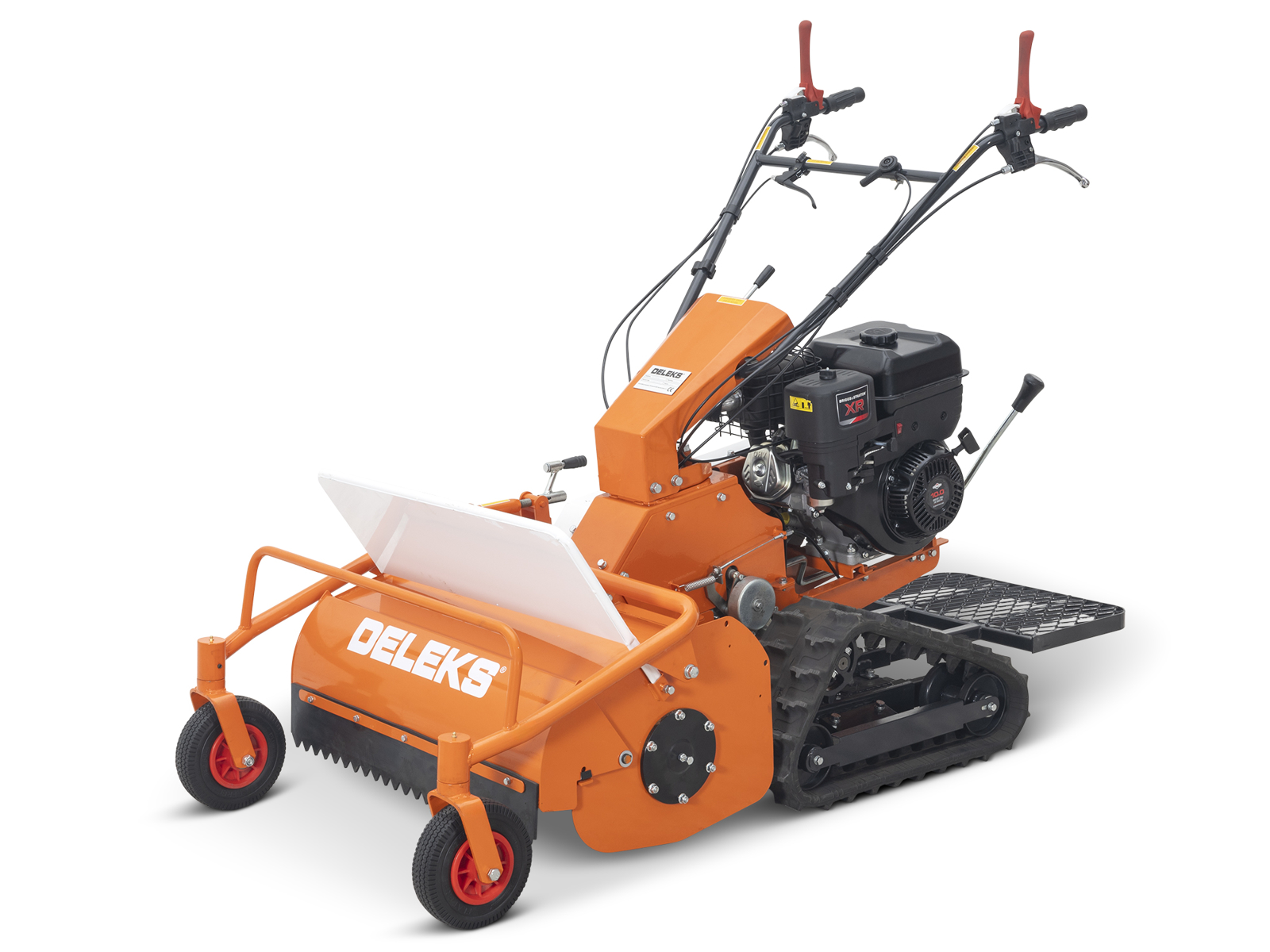

Tracked flail mower 70 cm (27.6 in) SMART-800-TR, self-propelled petrol flail mulcher for slopes, long grass and brambles

Available
Code SMART800TR - EAN 8057724861020
D
H
M
S
-199,00€ 2.490,00€VAT incl.
2.291,00€VAT incl.
Free shipping
Loading...
D
H
M
S
-199,00€ 2.490,00€VAT incl.
2.291,00€VAT incl.
Free shipping
View all details.

4.6

1551 reviews

-199,00€ 2.490,00€VAT incl.
2.291,00€VAT incl.
 REQUEST INFORMATION

VIDEO
Field test
Field test

DETAILS

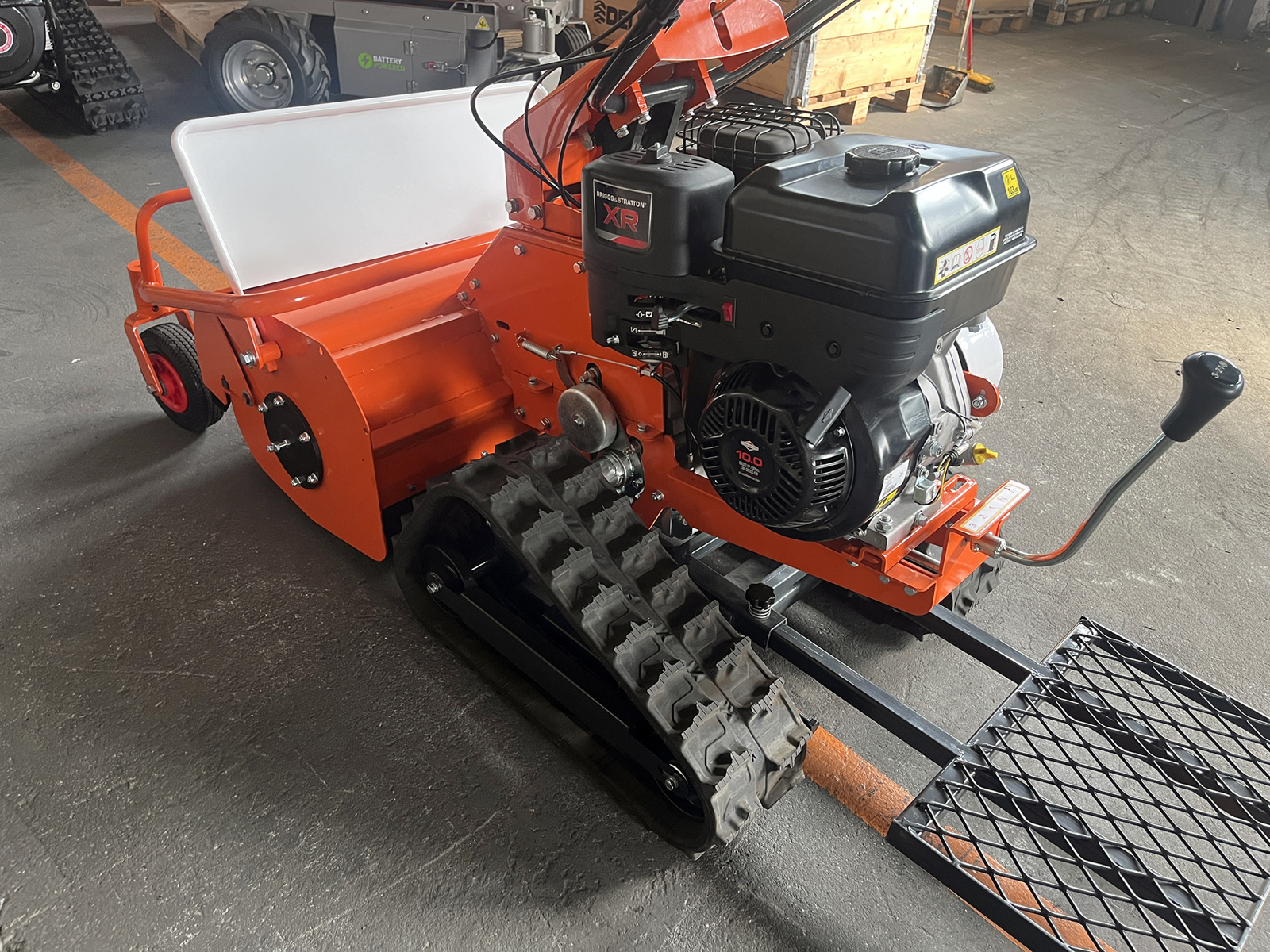

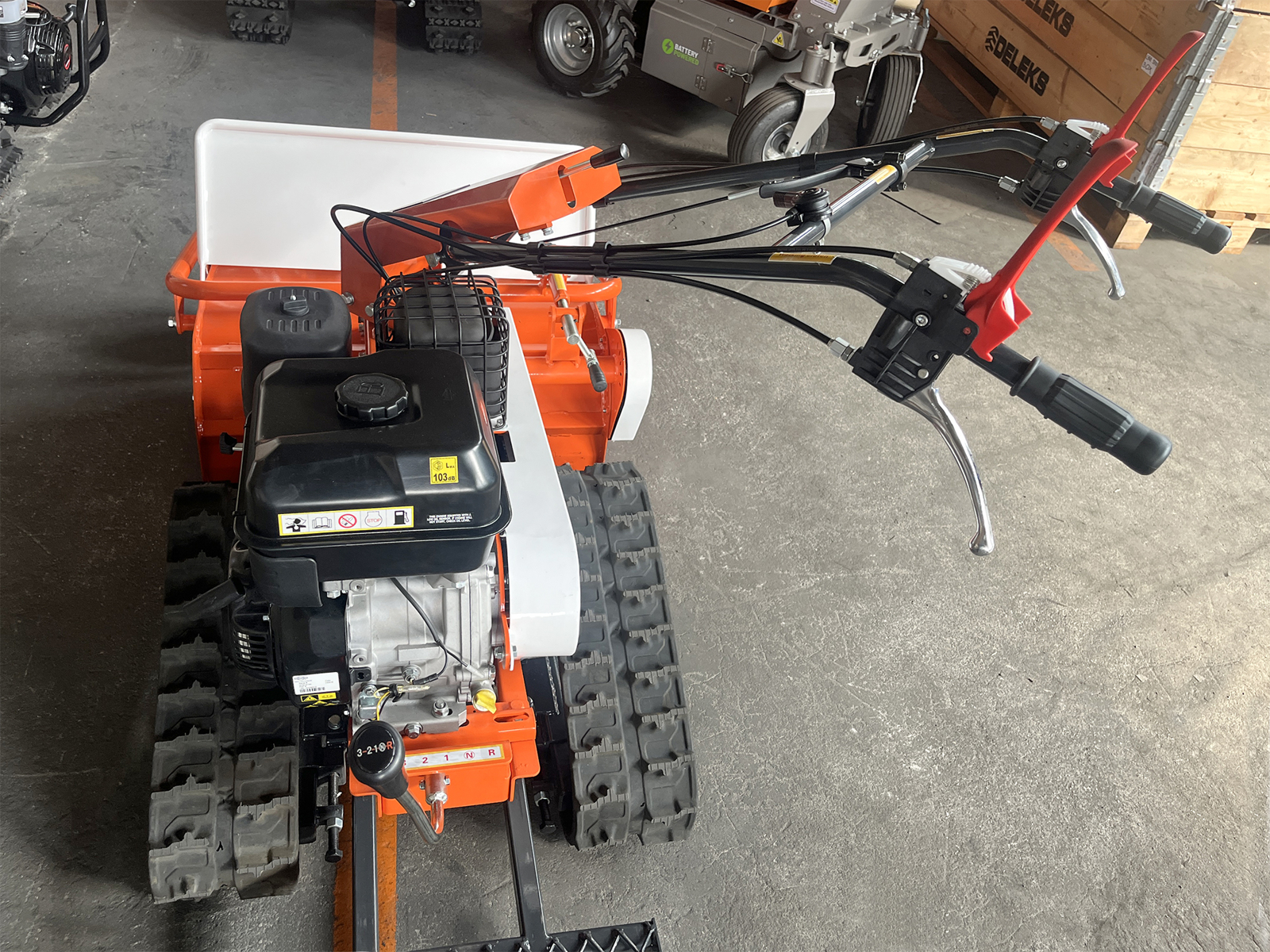

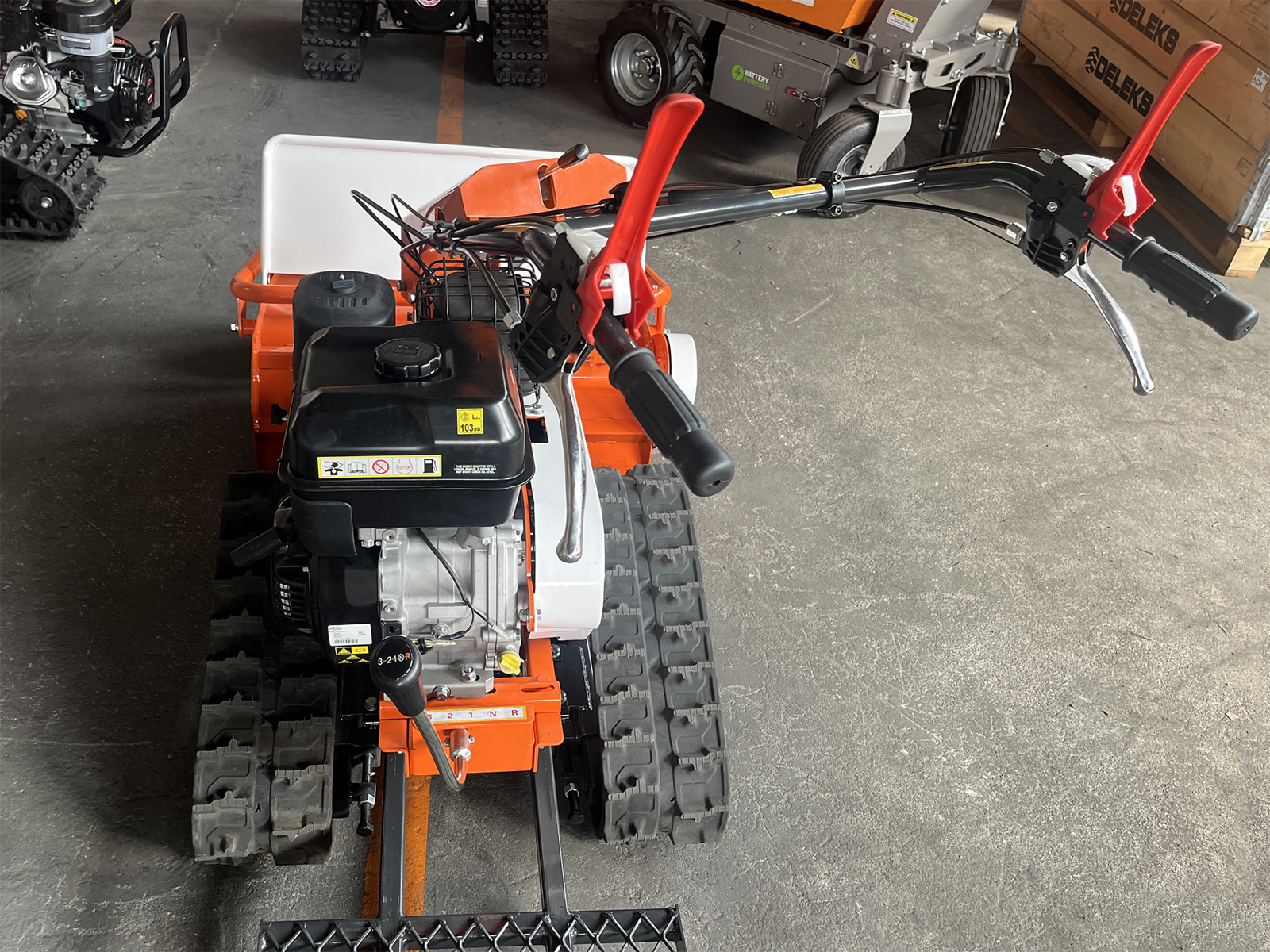

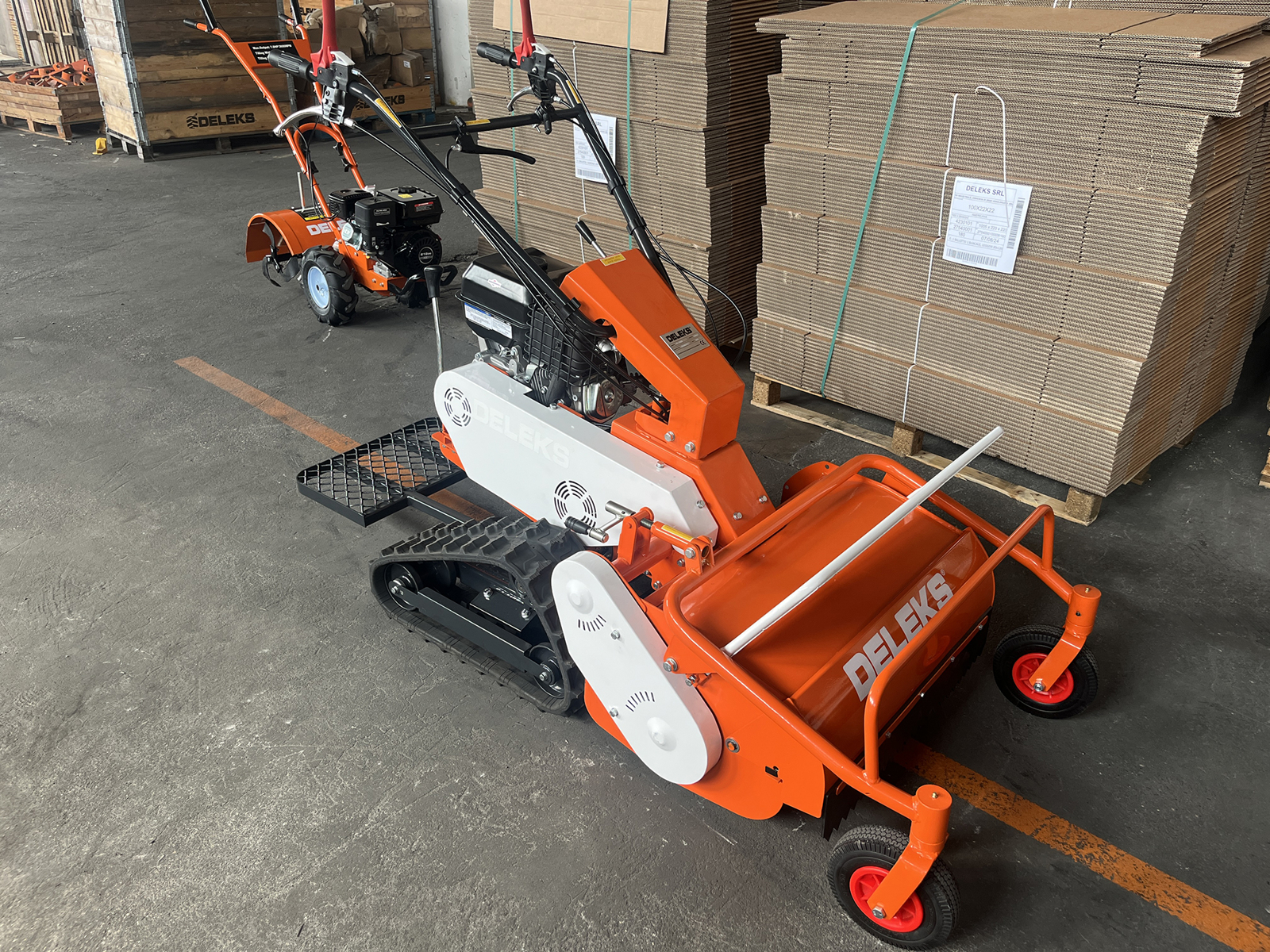

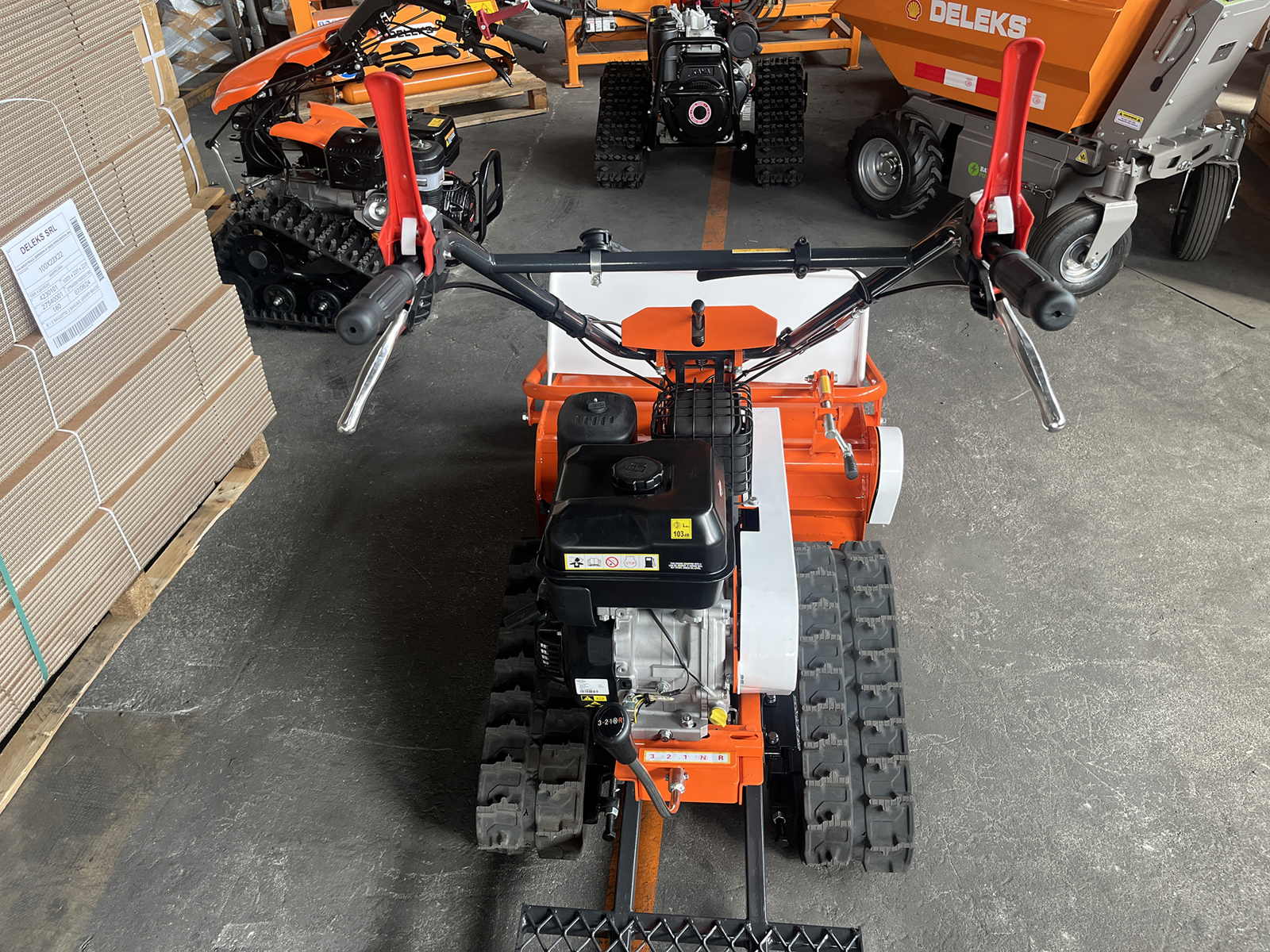

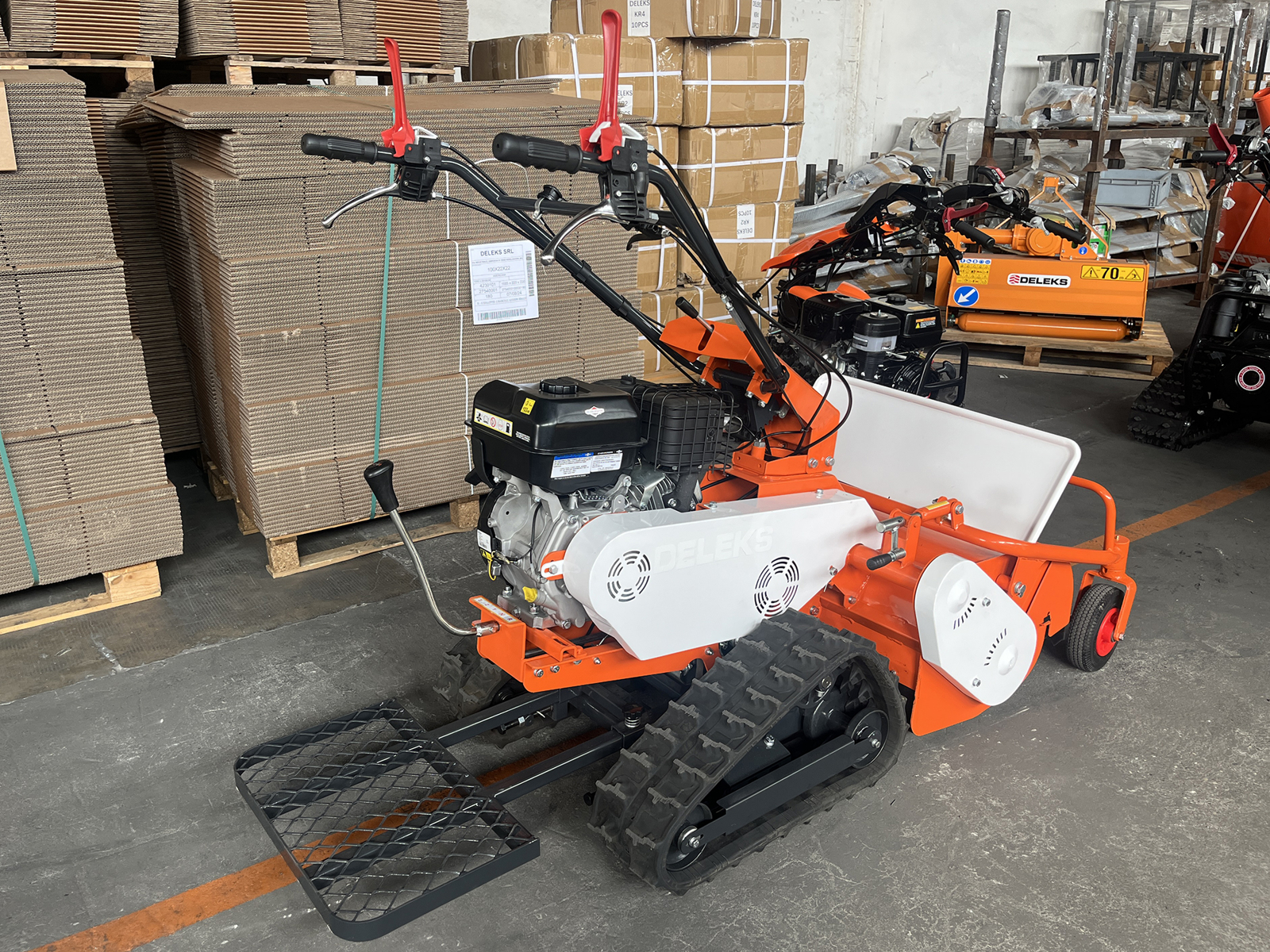

Tracked petrol flail mower with a 70 cm (27.6 in) cut and a 10 hp, 306 cc Briggs & Stratton XR1450 petrol engine with electric key start: the DELEKS® SMART-800-TR is a professional tracked flail mulcher that works on slopes, terraces, banks, hillside vineyards and olive groves, undergrowth and rough ground, up to 30° head-on and 20° across, and mulches long grass, brambles, reeds, vine prunings and branches up to 3 cm (1.2 in) thick. Tracks give more grip, more stability and better weight distribution than wheels; the removable platform lets the operator ride on board when moving between jobs. Mechanical gearbox with 3 forward gears and reverse, top speed 2.8 km/h (1.7 mph), electronically balanced rotor with 38 swinging Y-blades, cutting height from 20 to 80 mm (0.8 to 3.1 in) set with a crank handle, adjustable handlebars and two swivelling front wheels with locks. It weighs 210 kg (463 lb), is TÜV-certified and arrives assembled and tested in a wooden crate, with a 2-year warranty and free delivery within the EU.

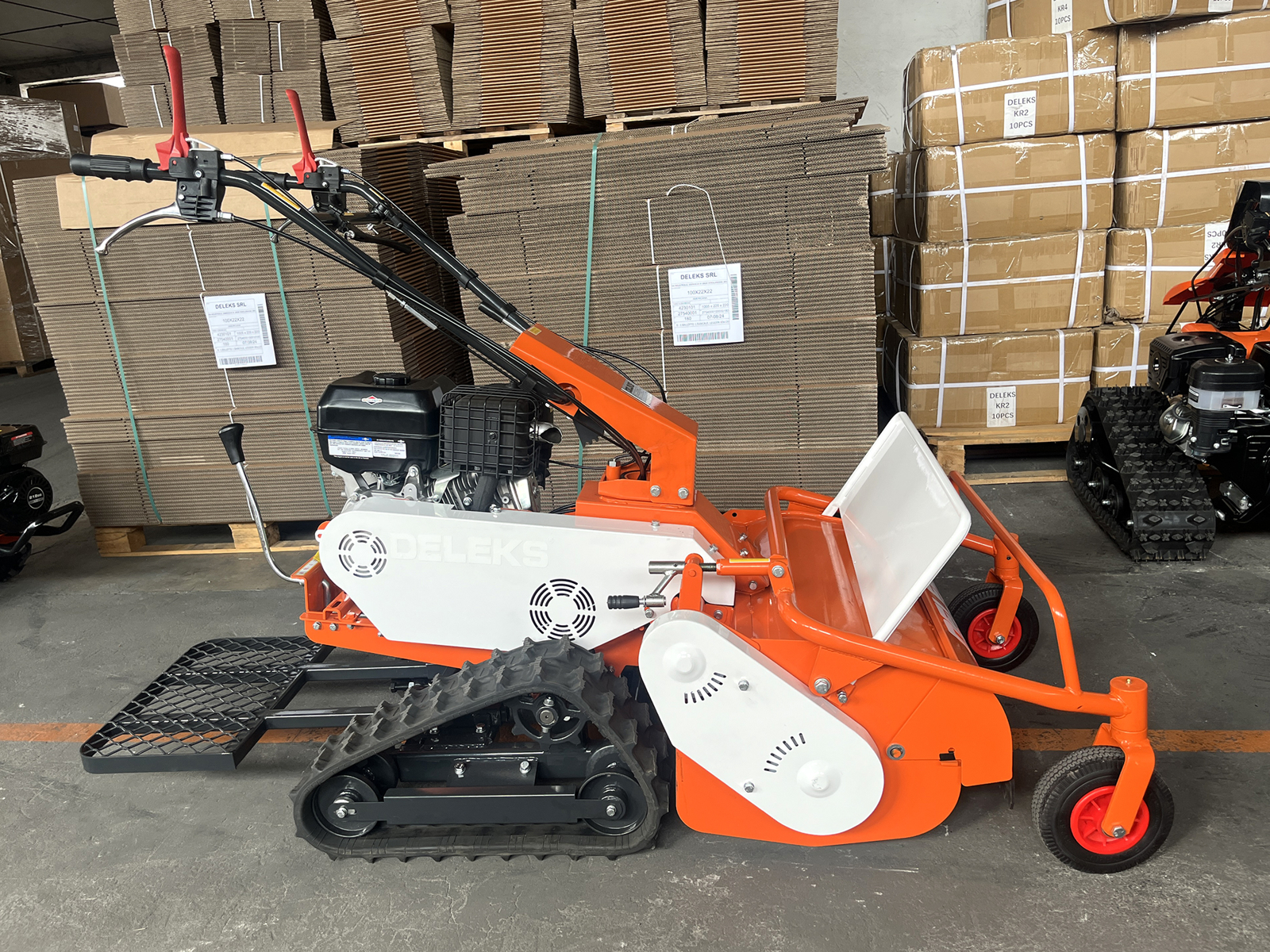

Tracked flail mower for slopes up to 30°, with operator platform

Tracks keep the machine gripping where wheels spin: gradients up to 30° head-on and 20° across, wet ground, uneven going, terraces and the banks of dykes and ditches. The 210 kg (463 lb) is spread over the footprint of the tracks and the low centre of gravity keeps the mower steady even when working across a slope. The two swivelling front wheels with locks help with steering and manoeuvring. You drive it from the handlebars, on foot like a pedestrian flail mower or riding on the operator platform: the platform is for moving from one area to the next and comes off in moments when you don't need it or for transport.

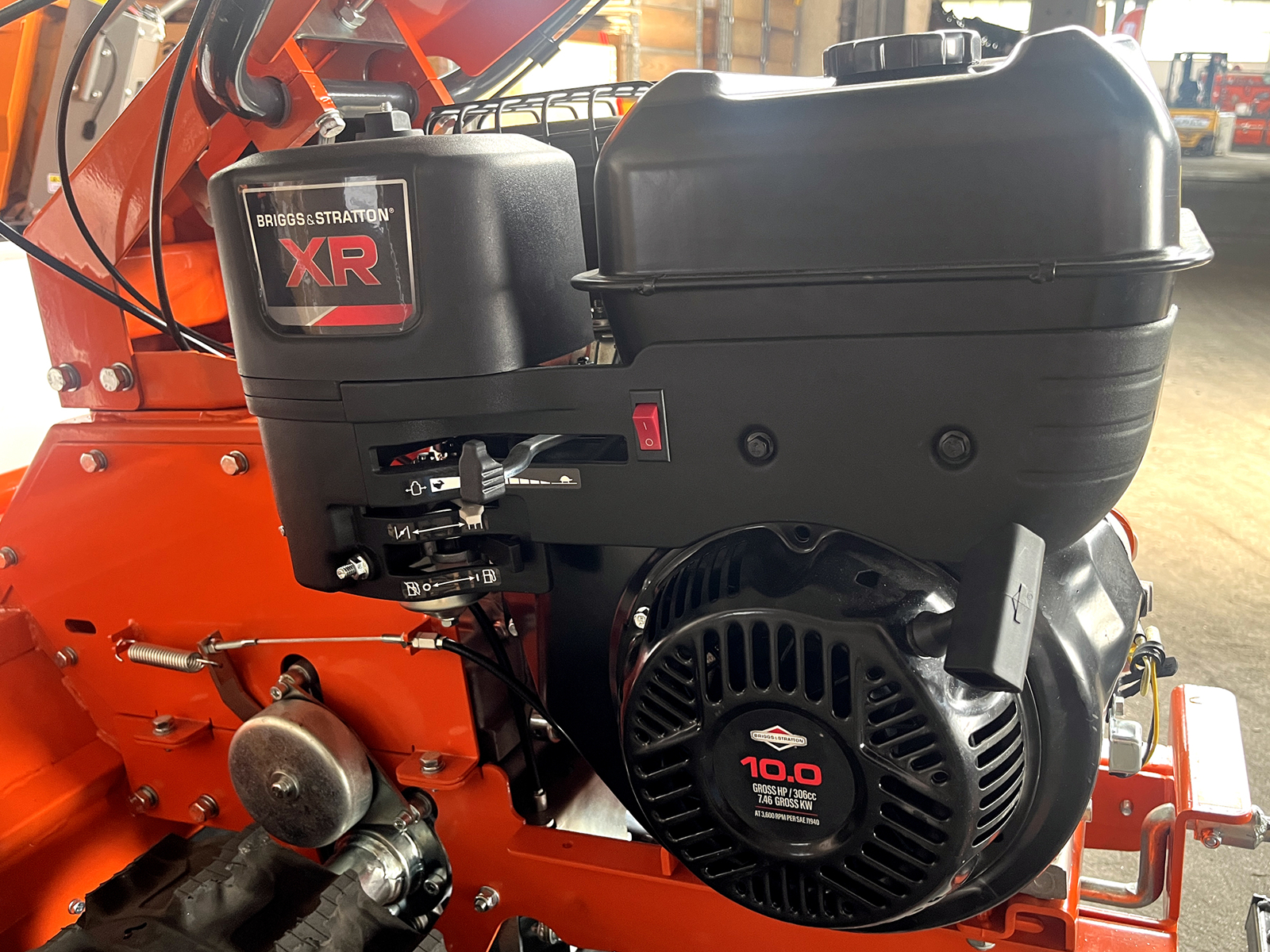

10 hp Briggs & Stratton engine with electric start

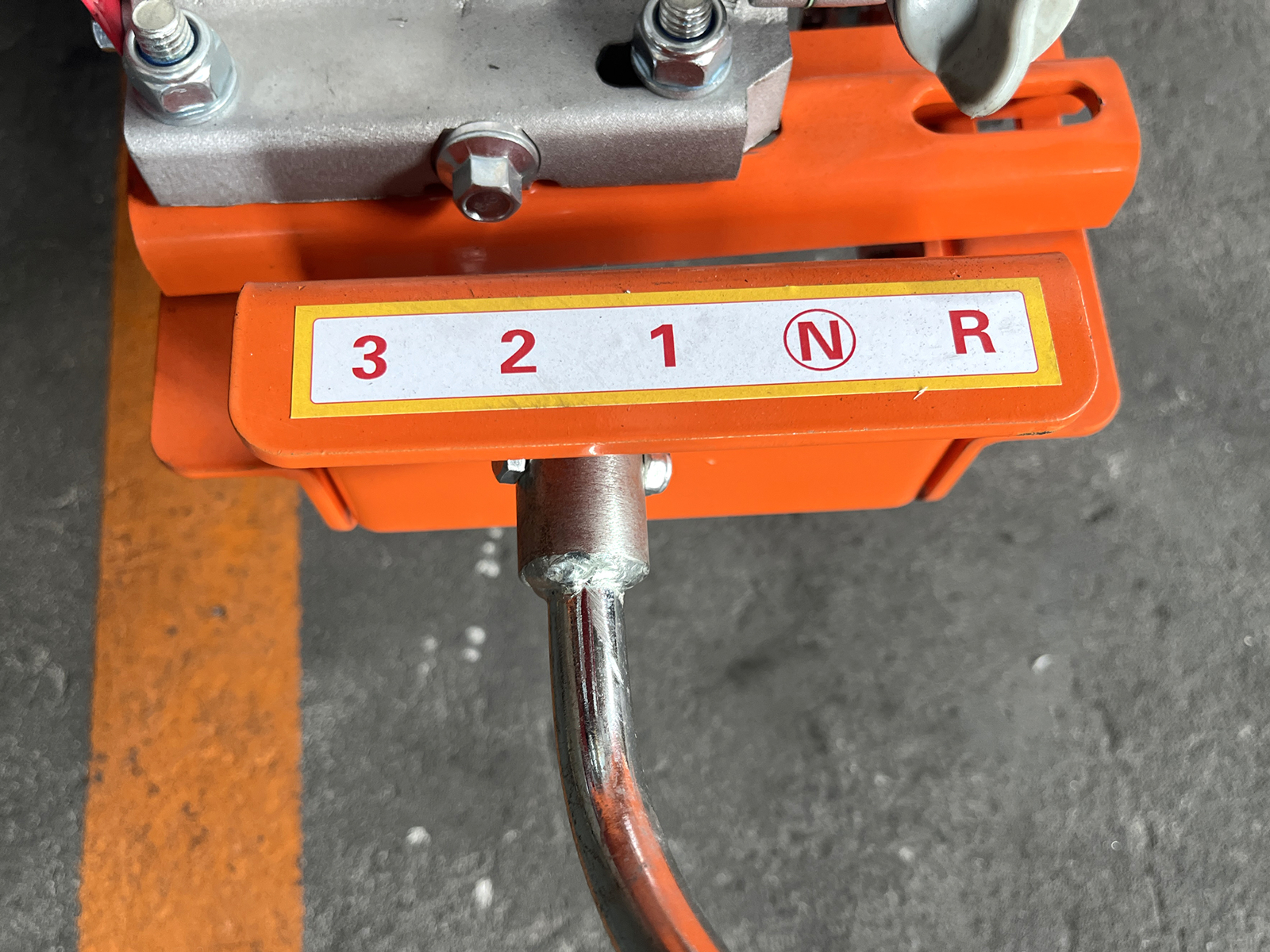

The four-stroke Briggs & Stratton XR1450 petrol engine, 306 cc and 10 hp, has two ways to start: electric key start and a recoil (pull) cord as back-up. The mechanical gearbox has 3 forward gears and one reverse, with a top speed of 2.8 km/h (1.7 mph): pick the gear to suit the gradient and how thick the growth is, and use reverse to turn at the end of a pass and get out of corners. Drive is by 3 V-belts (SB38.5, SB1610 and SB44), available as a spare set.

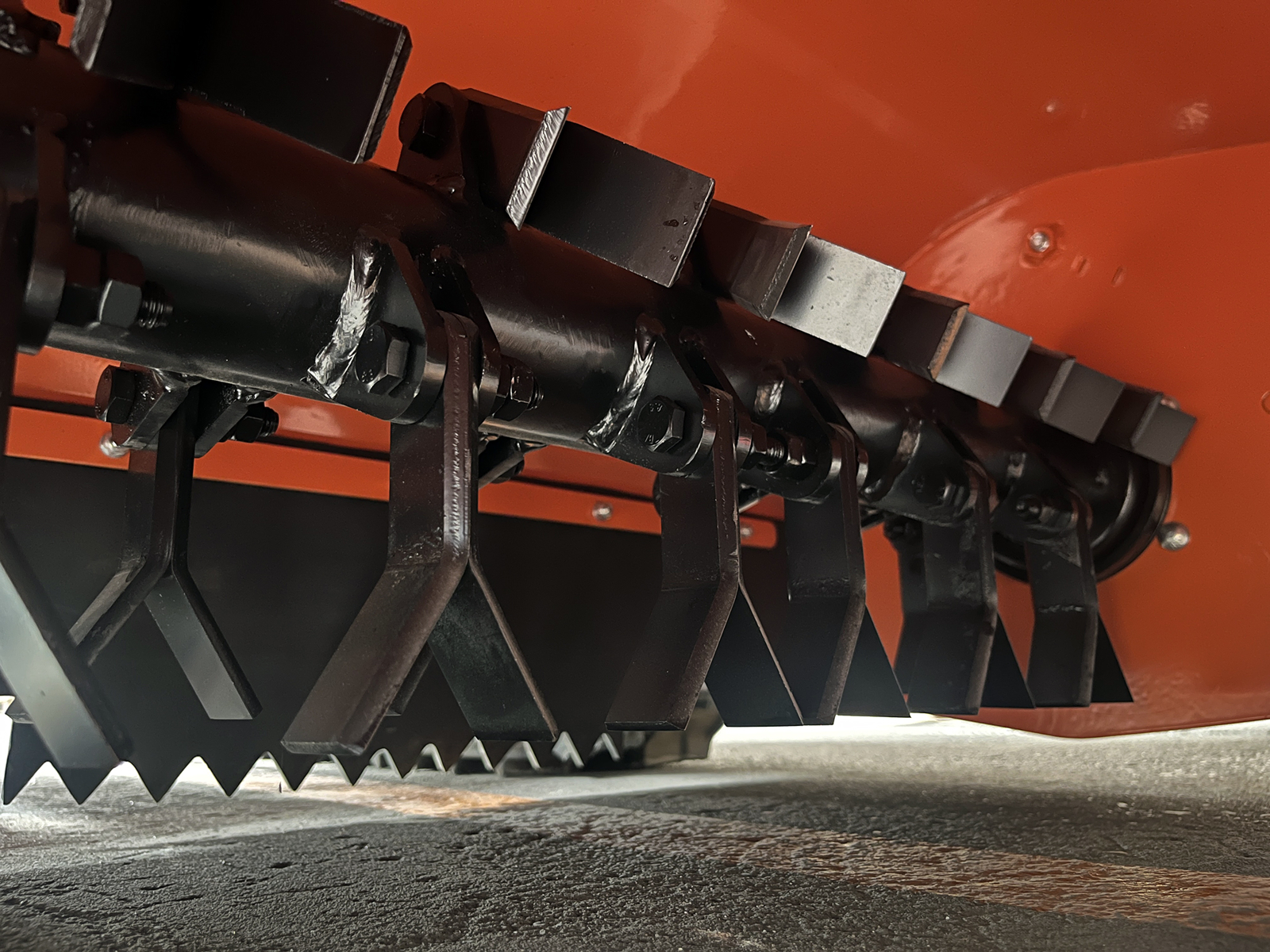

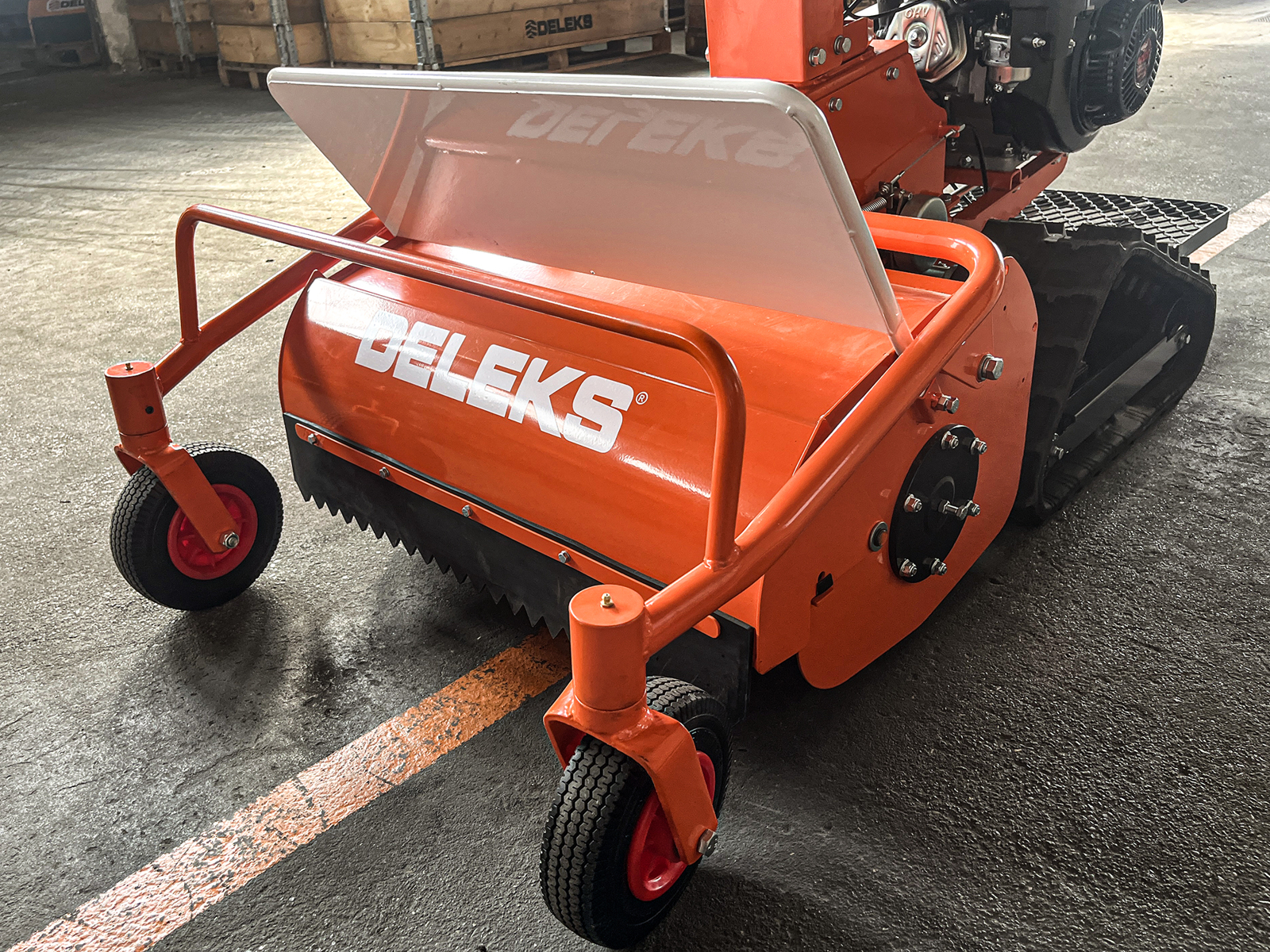

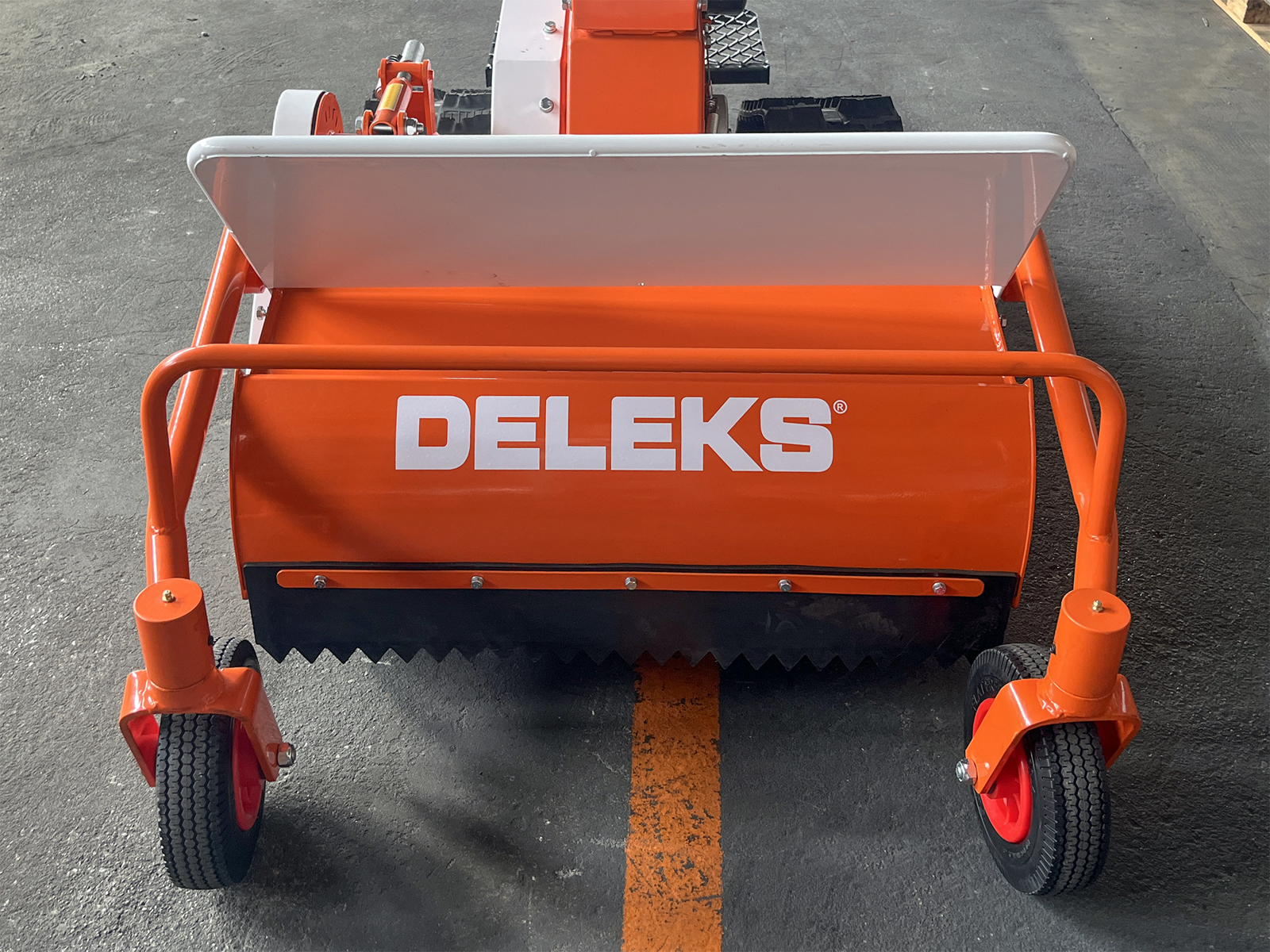

Rotor with 38 Y-blades for long grass, brambles and vine prunings

The electronically balanced rotor is fitted with 38 swinging Y-blades: they mulch long grass, brambles, weeds, vine prunings and light brash up to 3 cm (1.2 in) thick and leave the material on the ground, finely and evenly chopped. When a blade hits a stone or an obstacle it folds back, so the rotor and the drive stay protected. Cutting height runs from 20 to 80 mm (0.8 to 3.1 in) and is set with a crank handle; the handlebars adjust for height and sideways, so you can work along rows, fences and edges without walking in the cut.

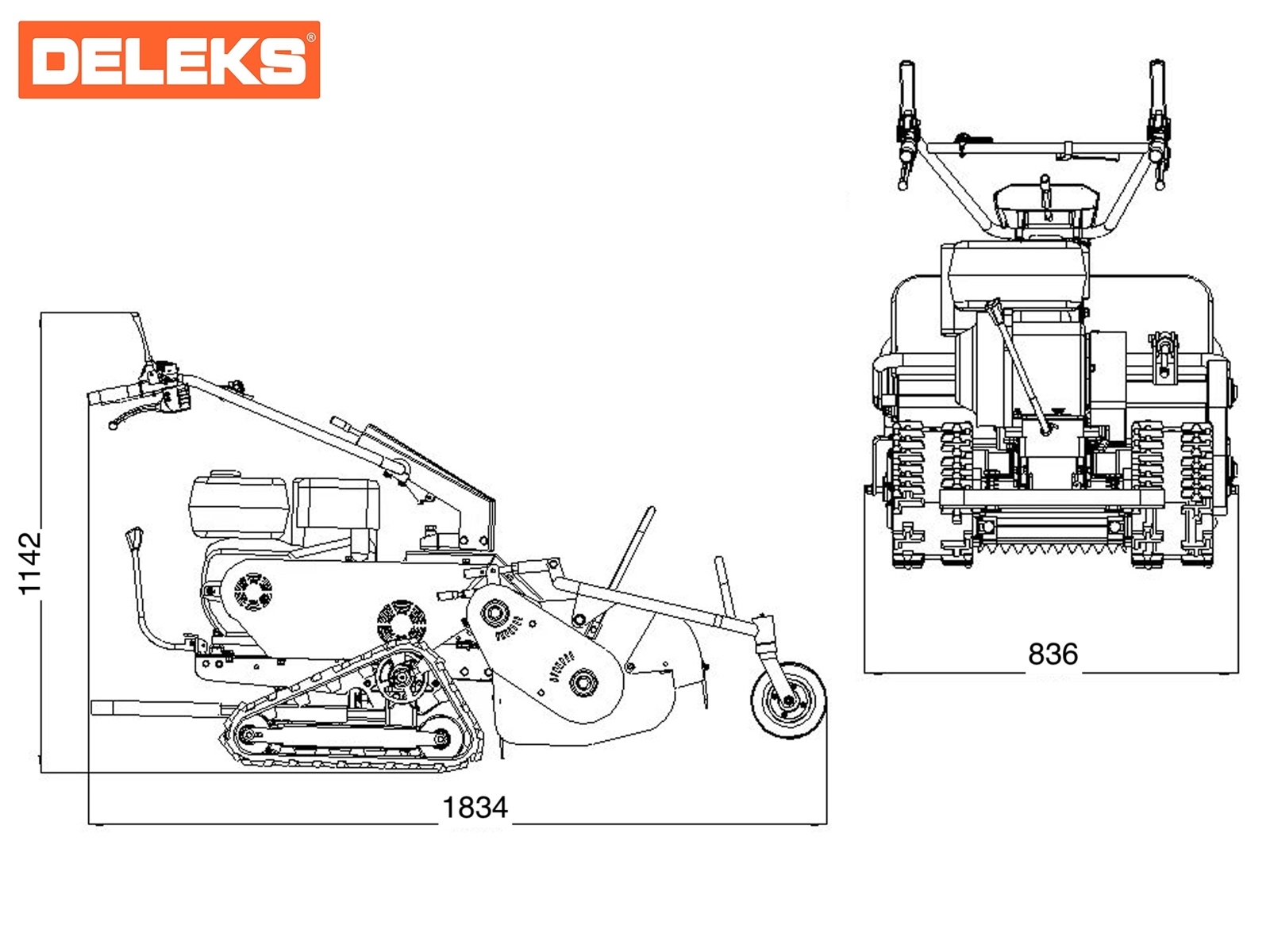

Dimensions, weight and delivery

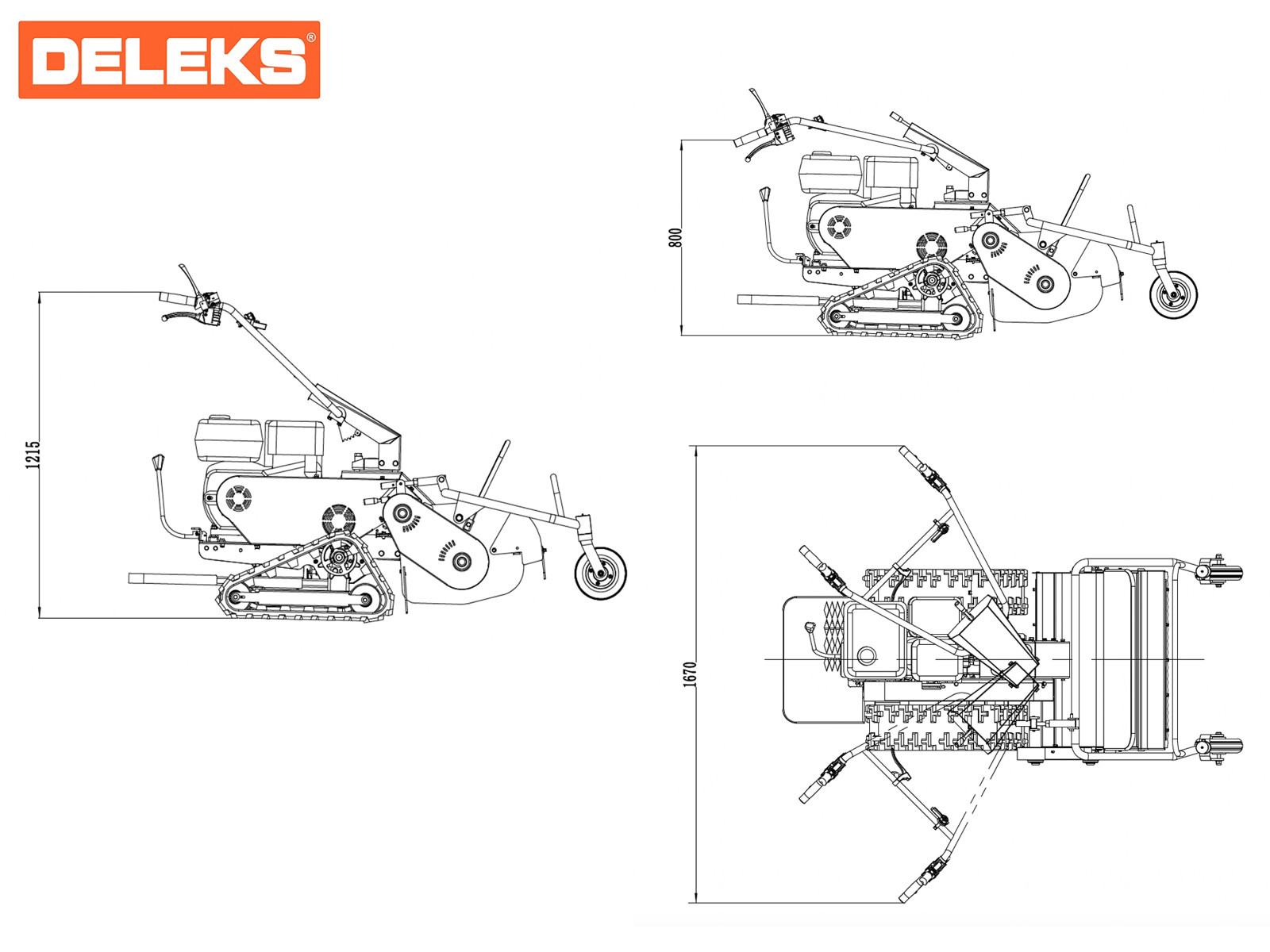

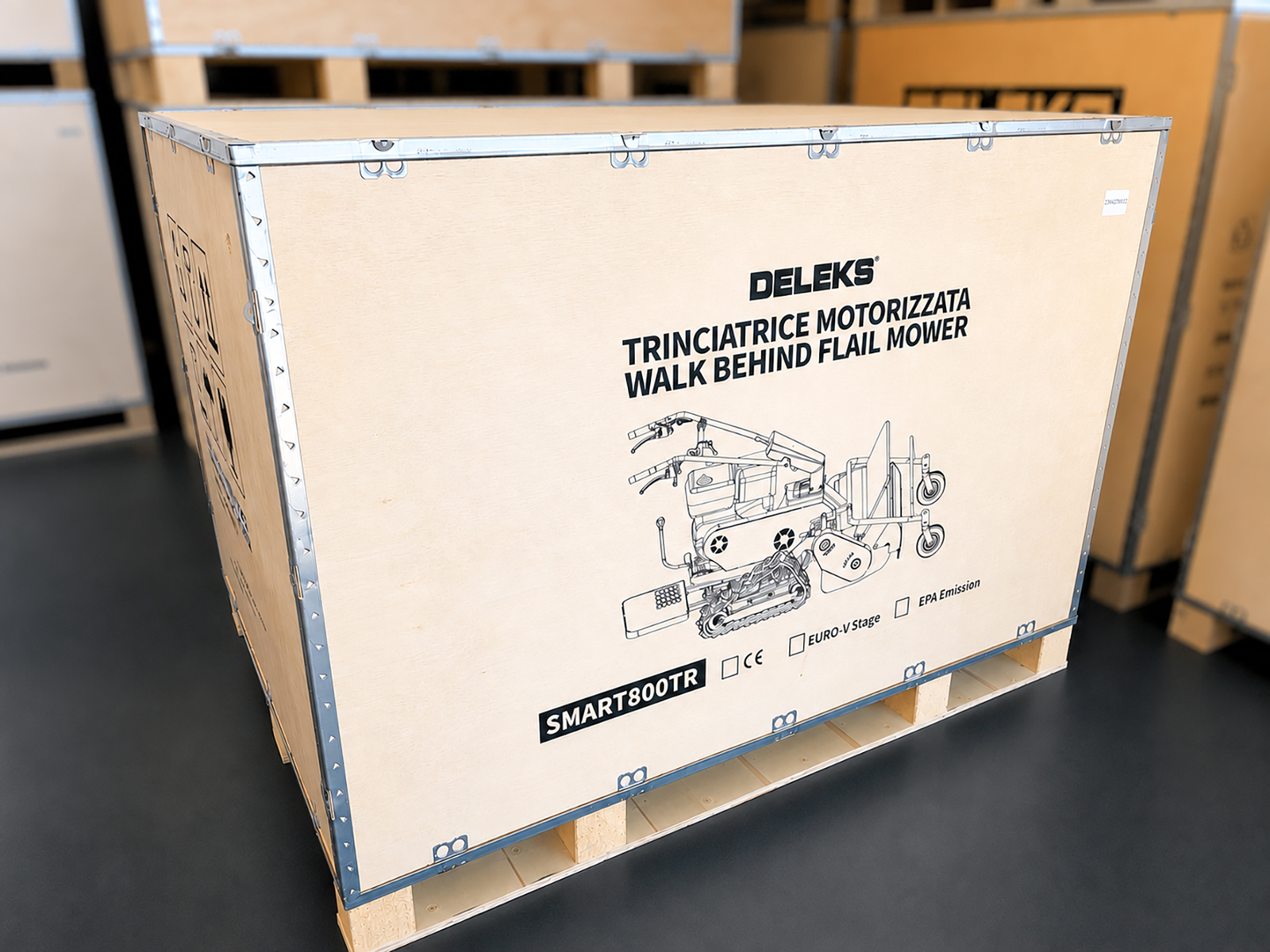

Working width 700 mm (27.6 in), overall width 836 mm (32.9 in), length 1,834 mm (72.2 in), height 1,142 mm (45 in), weight 210 kg (463 lb). It ships by express carrier in a closed, sealed wooden crate measuring 190 × 90 × 90 cm (74.8 × 35.4 × 35.4 in) (252 kg / 556 lb gross, 1.54 m³), with free delivery within the EU; there is a photo of the crate in the gallery. Before dispatch the DELEKS® workshop preps and tests every machine: fasteners, fluid levels and a running test, so it arrives assembled and ready to work. It is TÜV-certified and carries a 2-year warranty.


Where it works

  • Slopes, terraces and banks up to 30° head-on and 20° across
  • Hillside olive groves and vineyards: grass, vine prunings and brash up to 3 cm (1.2 in)
  • Banks, ditch edges and verges
  • Rough ground, scrub, brambles and undergrowth
  • Wet and soft ground where wheels spin

Options and spares

The mower arrives complete, with operator platform and electric start as standard. Available as spares are the set of 38 blades (SETCOLTELLISMART800, the same as on the SMART-800) and the set of 3 drive belts (CINGHIE3SMART800TR), both of which can be added to your order from this page; other spares are identified on the exploded diagrams with our technical team.


FAQ

How steep a slope can it work on?
Up to 30° straight up and down and 20° across: the tracks spread the 210 kg (463 lb) over the ground and the centre of gravity is low.

Tracked or wheeled flail mower: which is better?
Tracks for slopes, terraces, wet ground and rough going; the wheeled SMART-800 for level ground and tight spots, with 54 kg (119 lb) less to move around.

What engine does it have and how does it start?
A four-stroke Briggs & Stratton XR1450 petrol engine, 306 cc and 10 hp, with electric key start and a recoil cord as back-up.

Is it a walk-behind mower or do you ride on it?

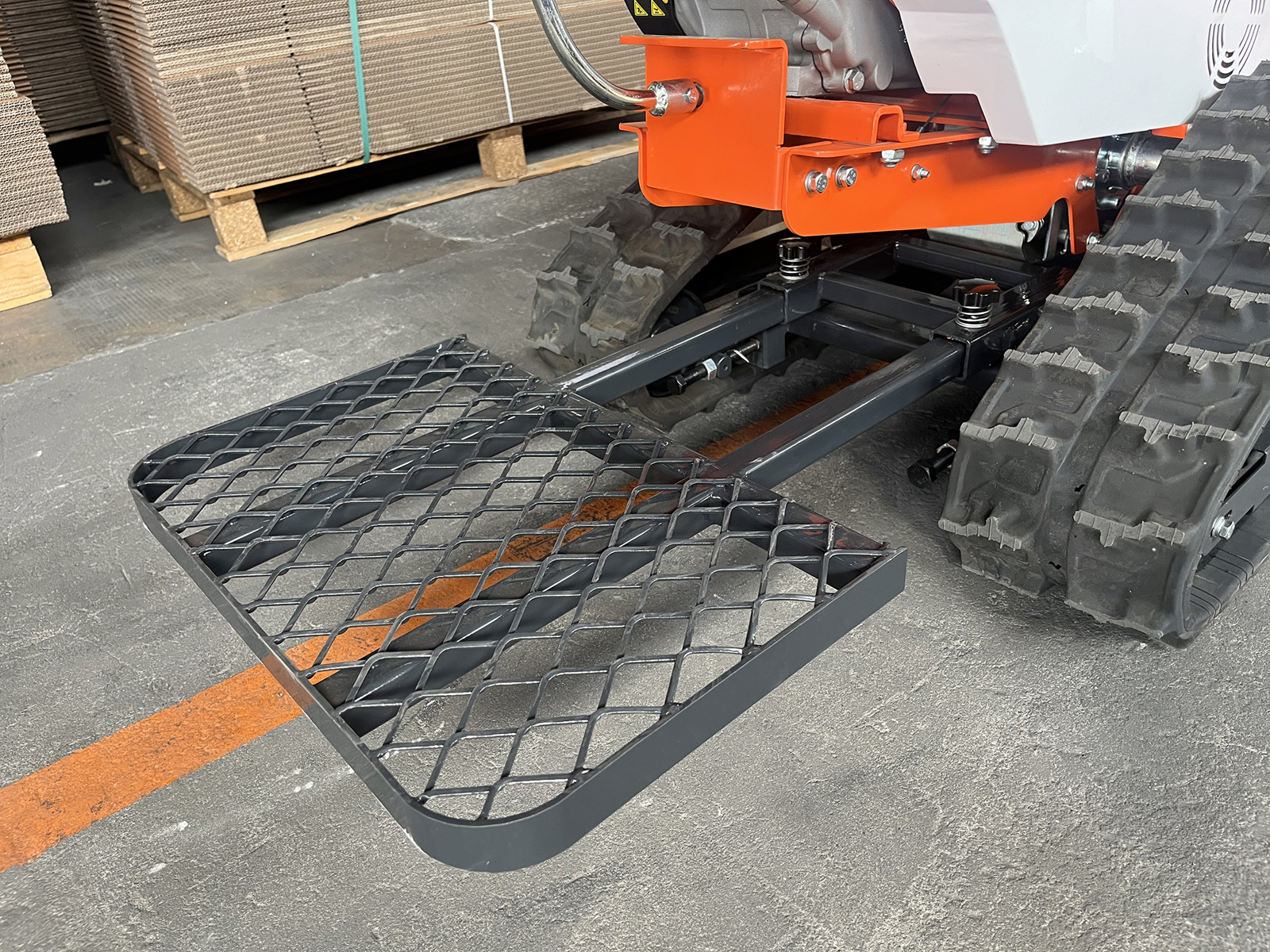

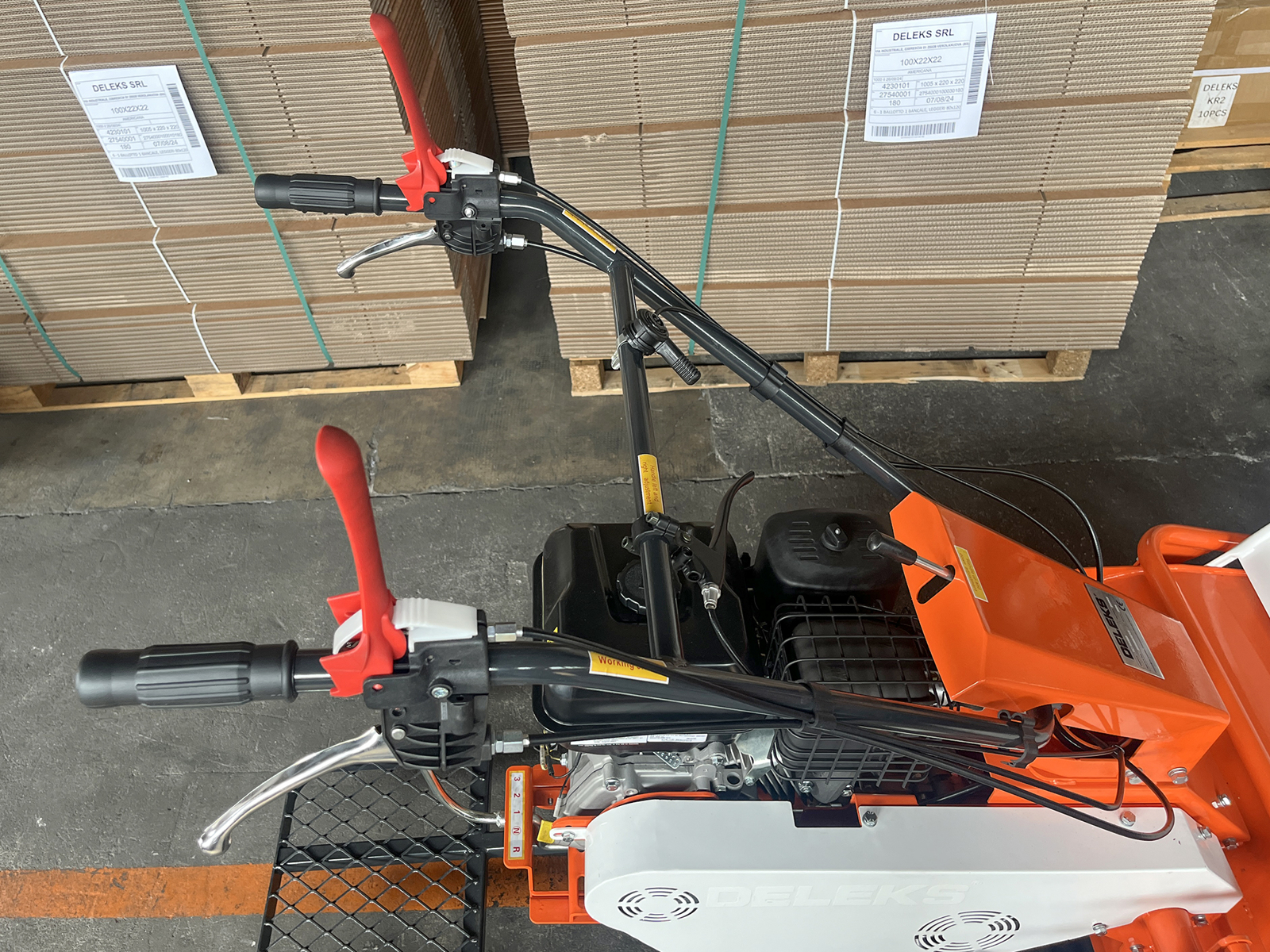

Both: you walk behind it and steer from the handlebars, like a self-propelled pedestrian flail mower, and when moving between jobs you step onto the operator platform, which is removable.

Is it remote-controlled?
No: the SMART-800-TR is driven from the handlebars, on foot or from the platform; it has no remote control.

Will it mulch vine prunings?
Yes: vine prunings and light brash up to 3 cm (1.2 in) thick, as well as long grass, brambles and reeds. For heavier prunings, look at a tractor-mounted flail mower.

How fast does it go?
Up to 2.8 km/h (1.7 mph) forwards, with 3 gears and a reverse to match your pace to the gradient and the growth.

What happens if the blades hit a stone?
The blades swing freely and fold back on impact, protecting the rotor and the drive; the set of 38 blades is available as a spare.

How is it delivered?
In a closed wooden crate by express carrier, fully assembled and tested by the DELEKS® workshop; the CE declaration of conformity, invoice and operator's manual come with the machine.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: blade sets, drive belts, rotor bearings and the other parts of the machine are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help arranging any service work. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric Units US
Working width 700.0 mm 2.30 ft
Overall width 836.0 mm 2.74 ft

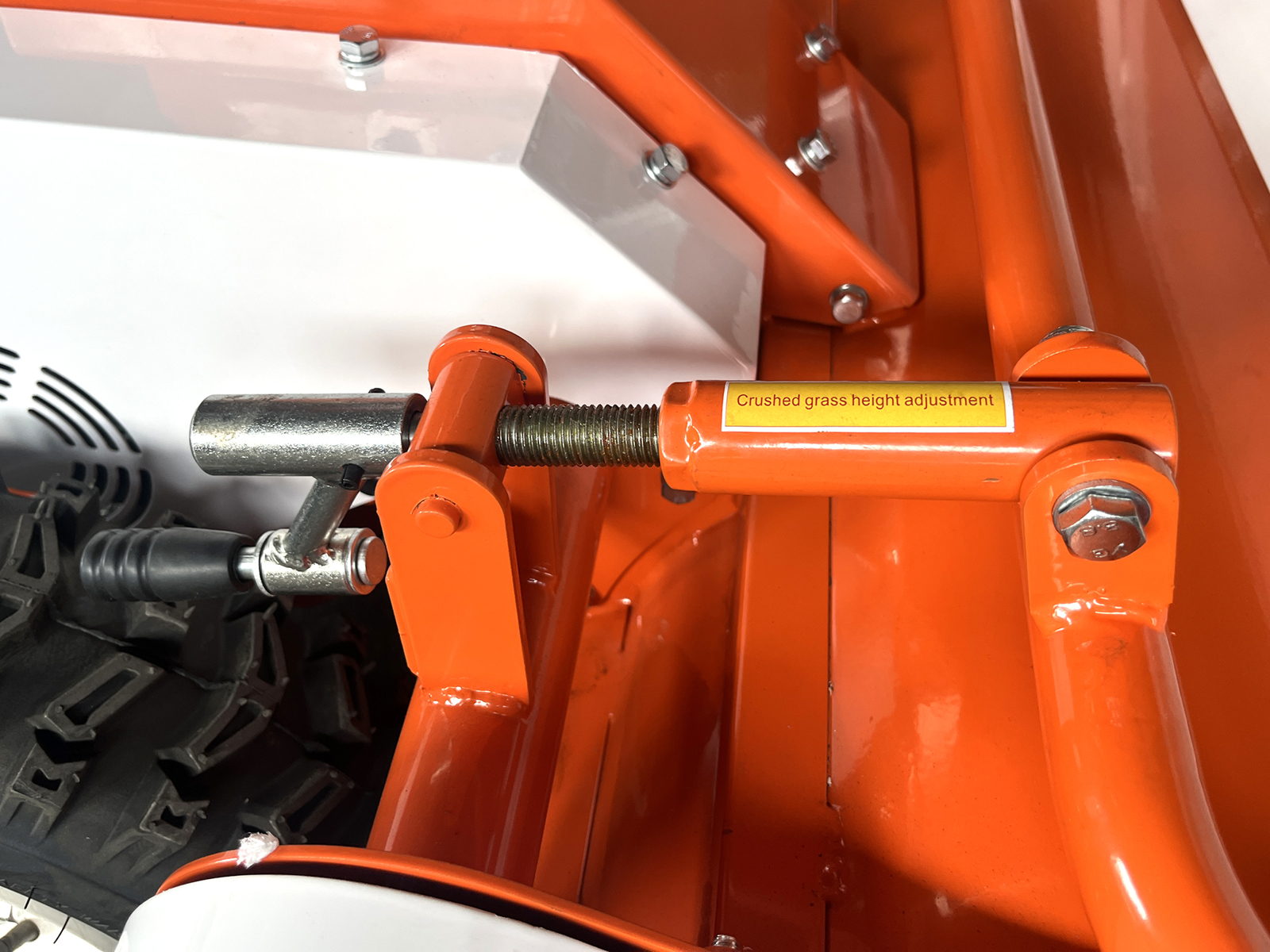

Min / Max cutting height 20.0 - 80.0 mm 0.8 - 3.15 in
Weight 210.0 kg 463.0 lb
Overall height 1142.0 mm 3.75 ft
Maximum cutting diameter 30.0 mm 1.2 in
Overall length 1834.0 mm 6.02 ft
Transmission: Drive method V-Belts V-Belts
Transmission: V-Belts quantity 3 3
Transmission: V-Belts size SB38.5 + SB1610 + SB44 SB38.5 + SB1610 + SB44
Rotor: balancing Electronic Electronic
Engine Briggs&Stratton 10.0Hp, 306cc Briggs&Stratton 10.0Hp, 306cc
Number of Blades 38 38
Gross shipping weight 252 kg 556 lb
Package volume 1.54 m3 54.4 cu ft
Packing sizes 1900*900*900 mm 6.23*2.95*2.95 ft
