Adjustable sideshift Mower for tractors, Shredder, Mulcher
Review by Edd China (Wheeler Dealers)
Field test
DETAILS

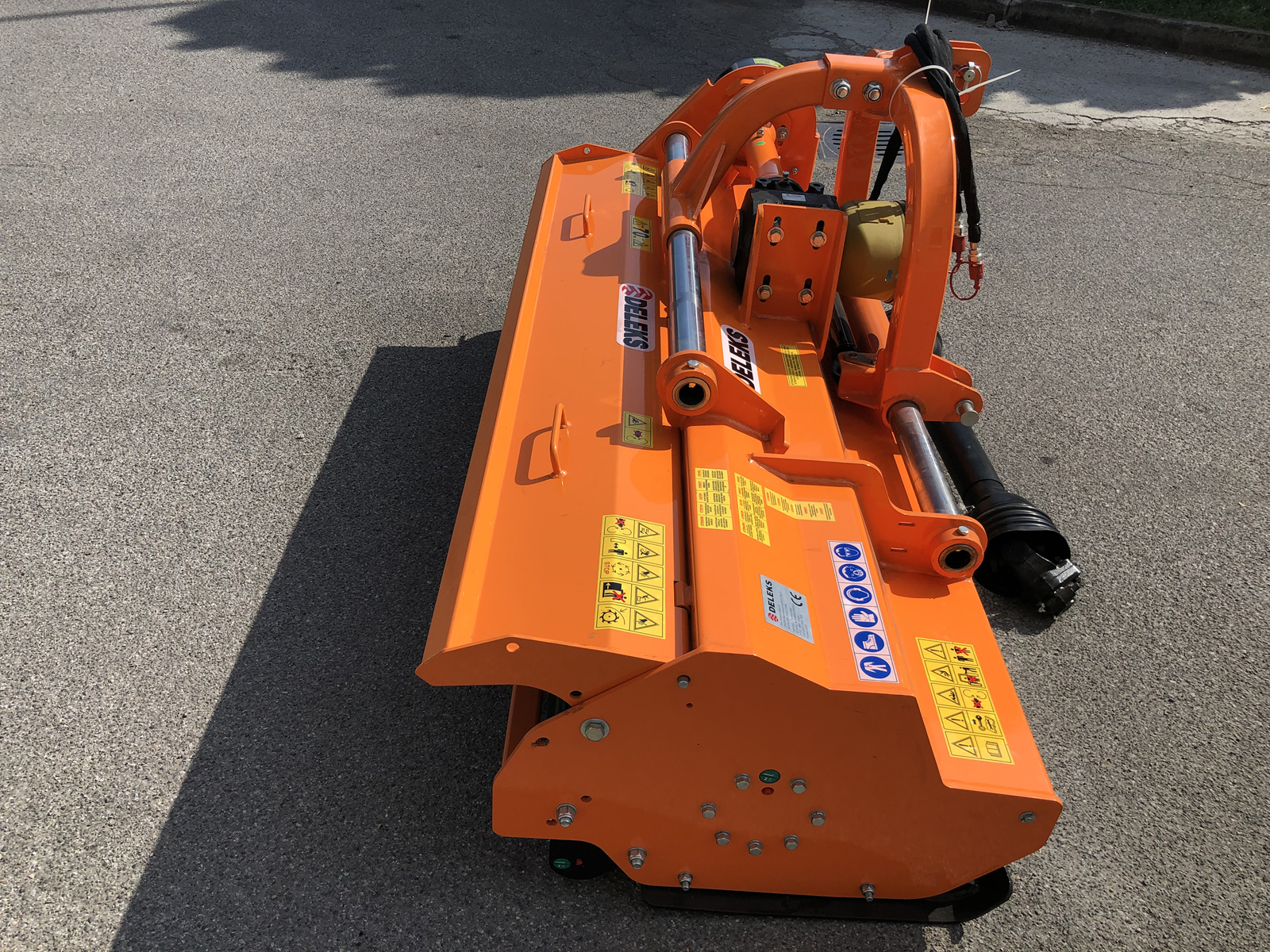

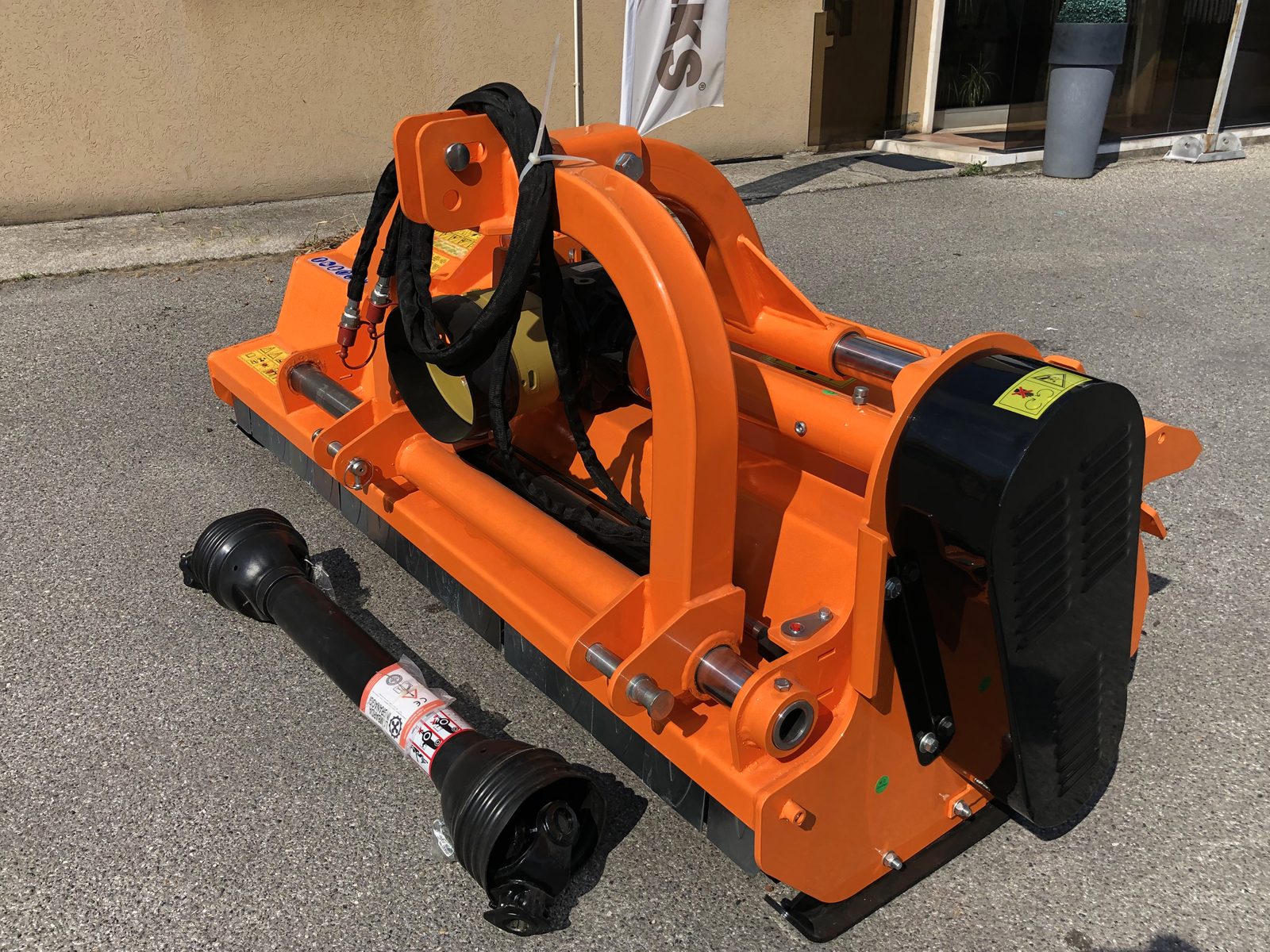

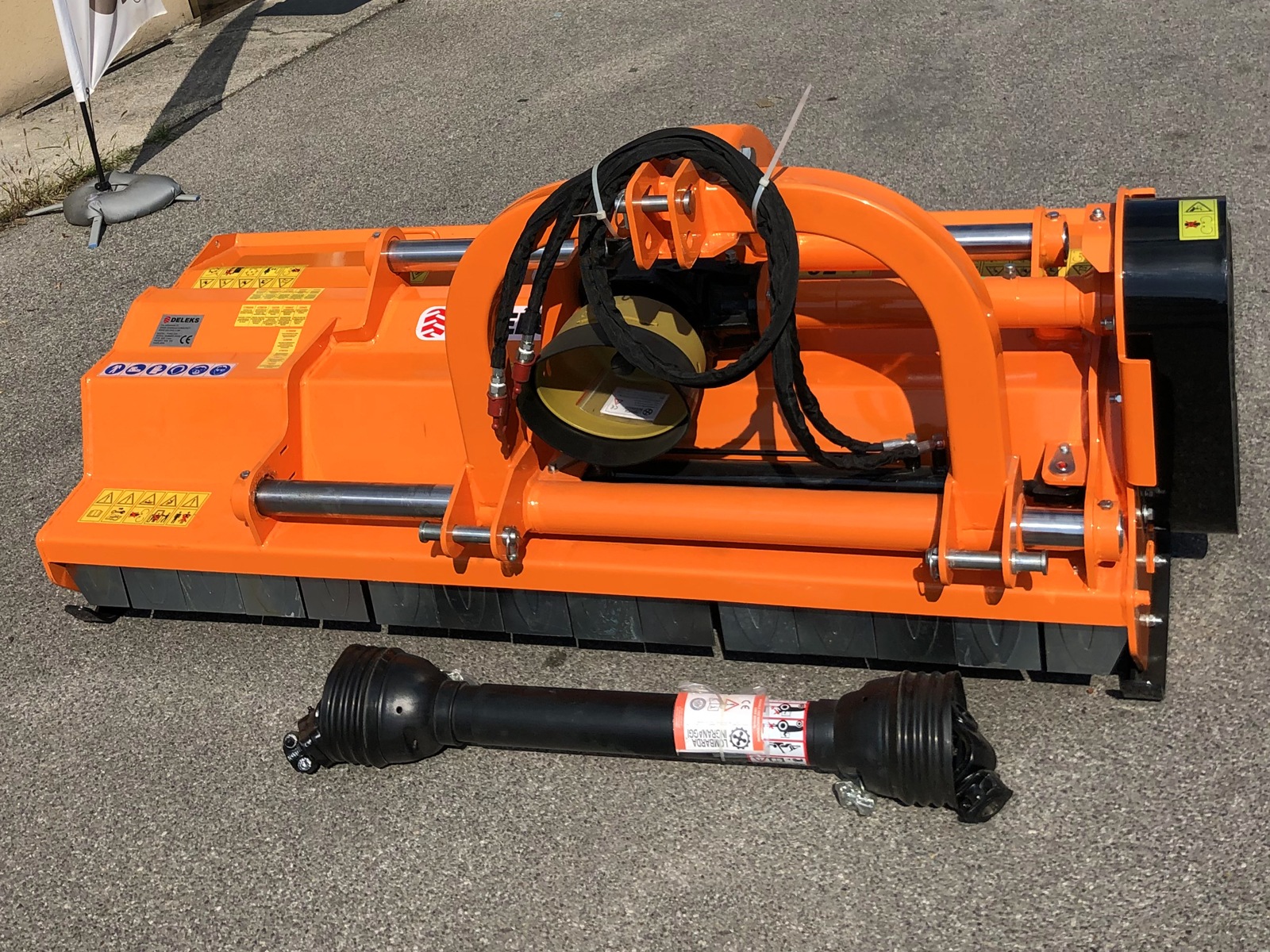

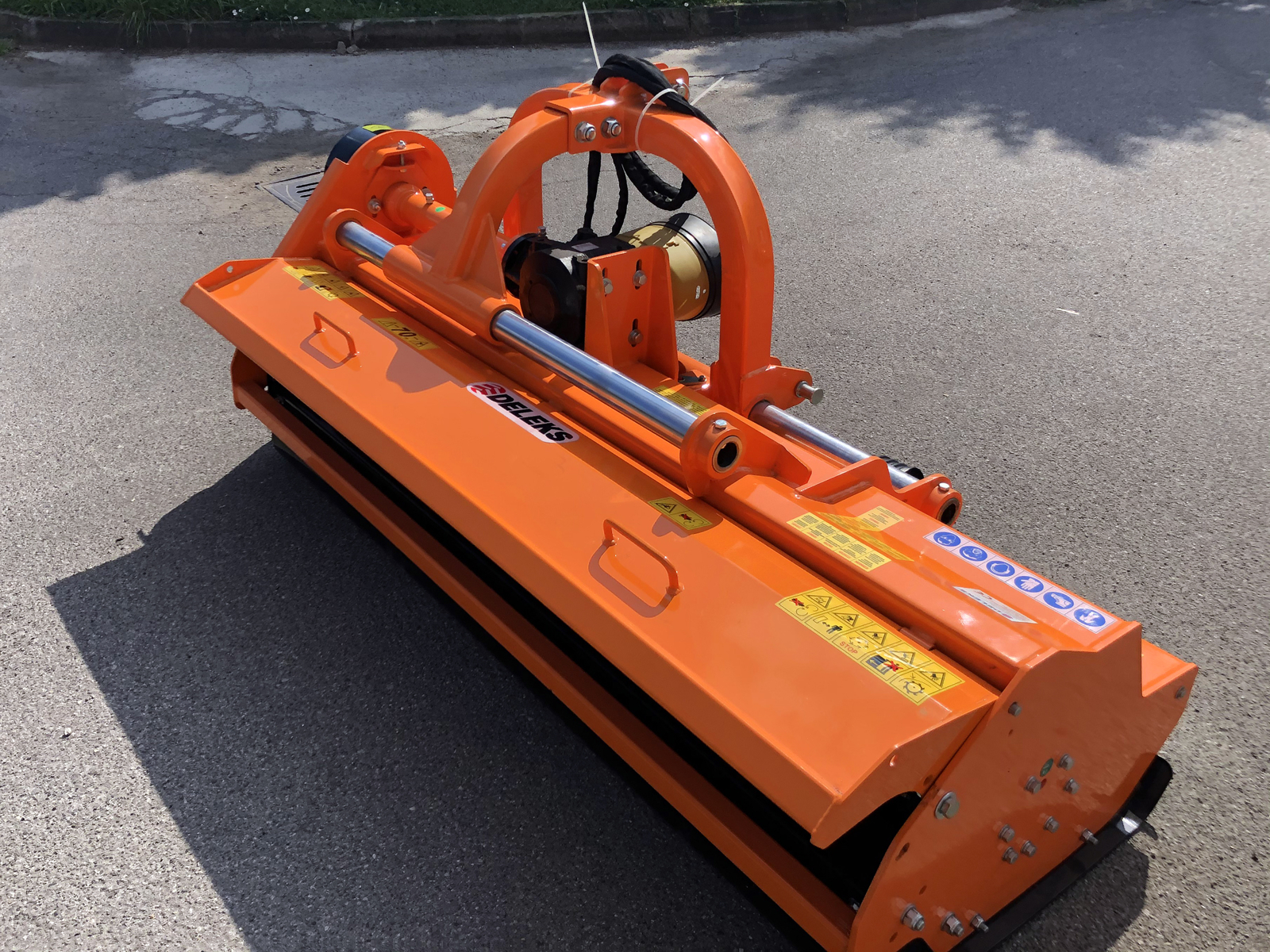

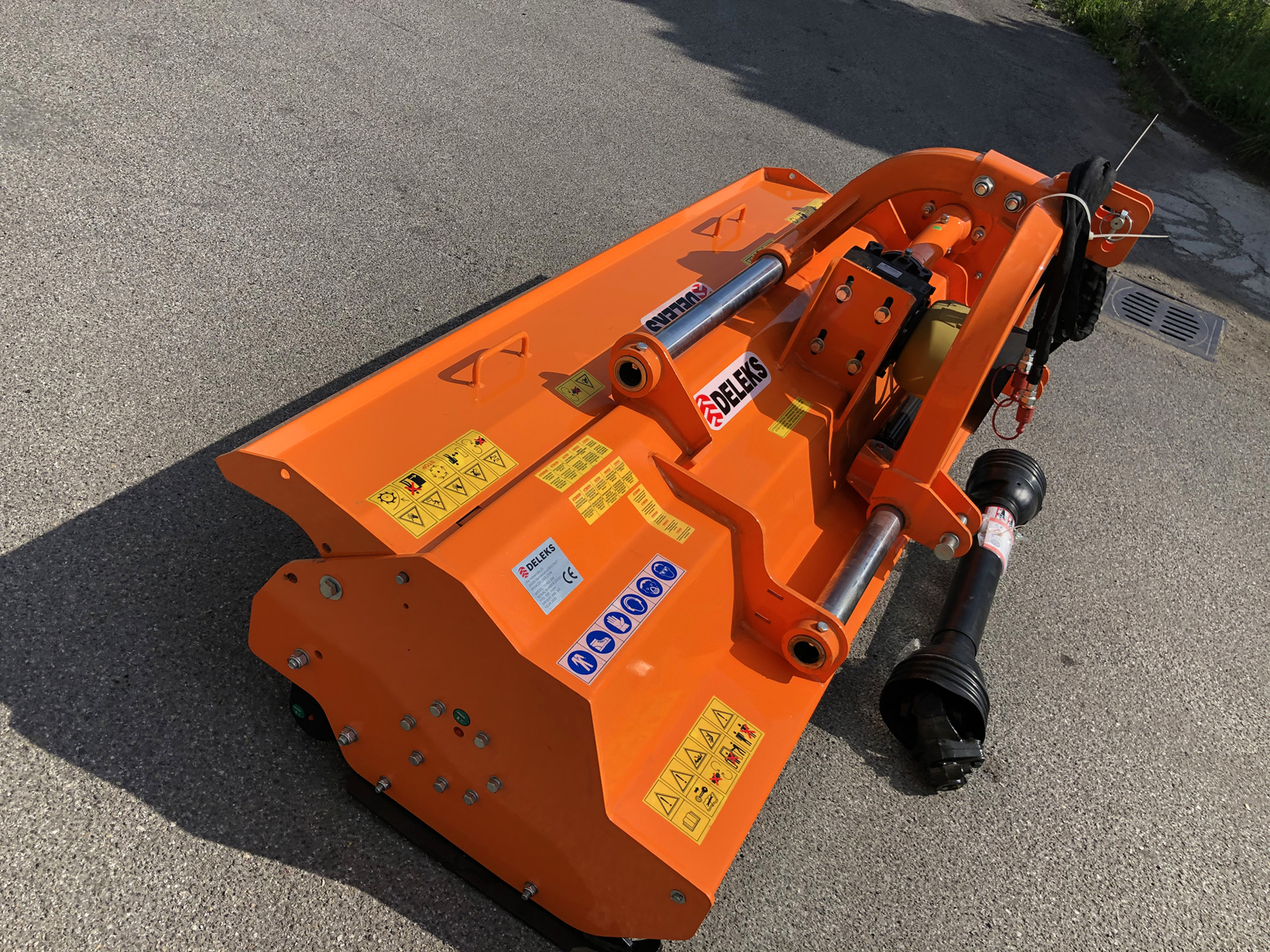

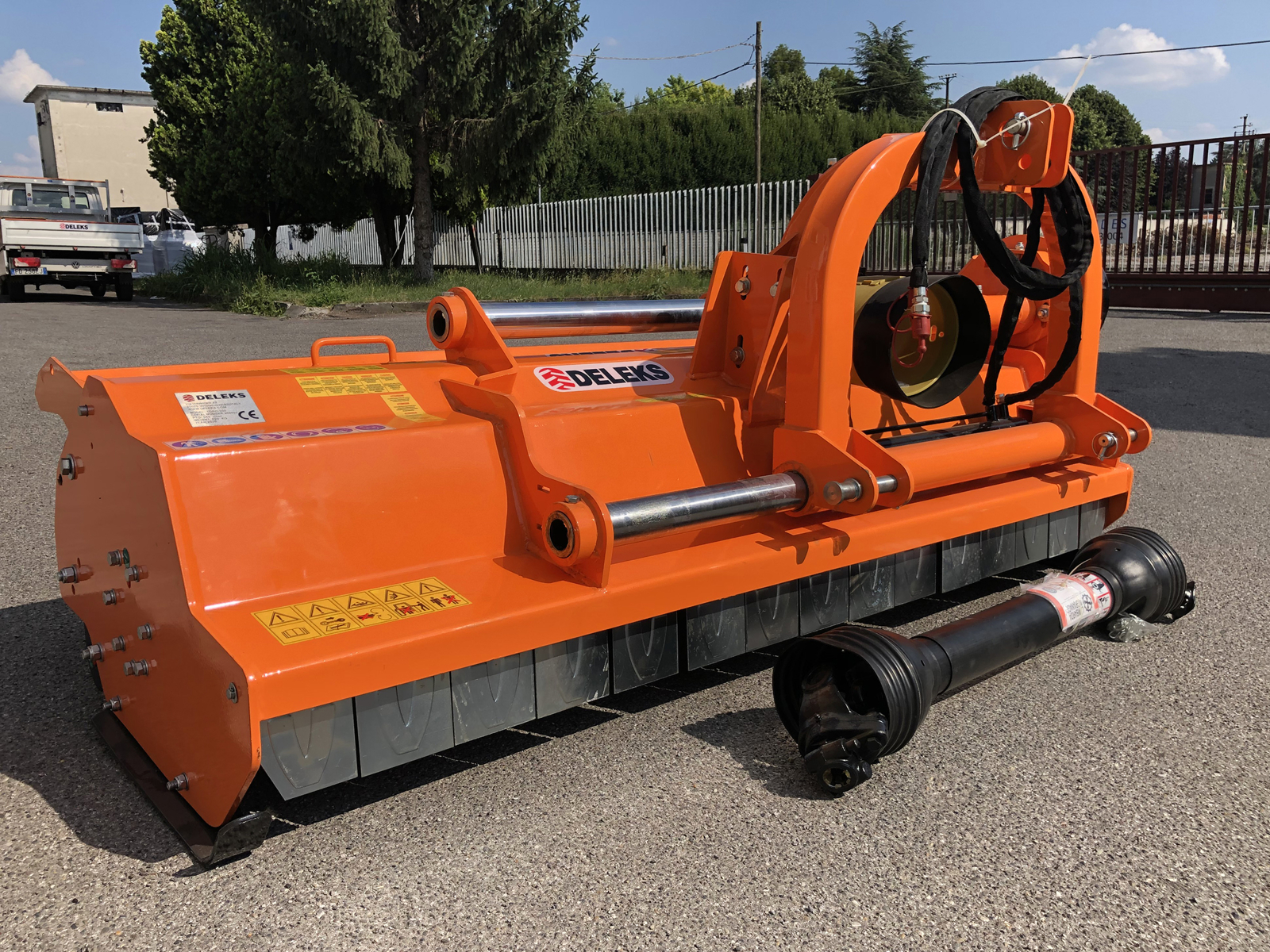

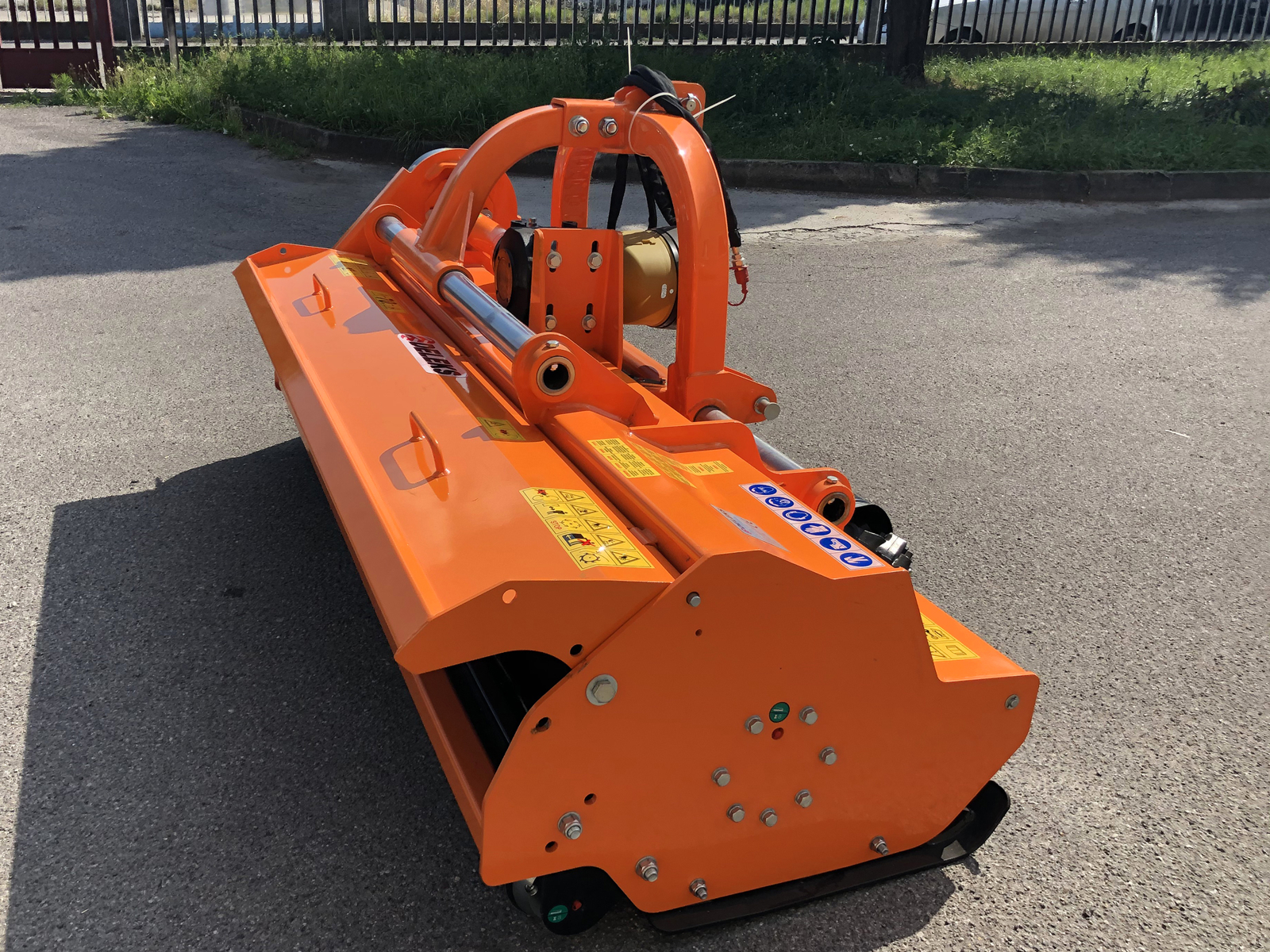

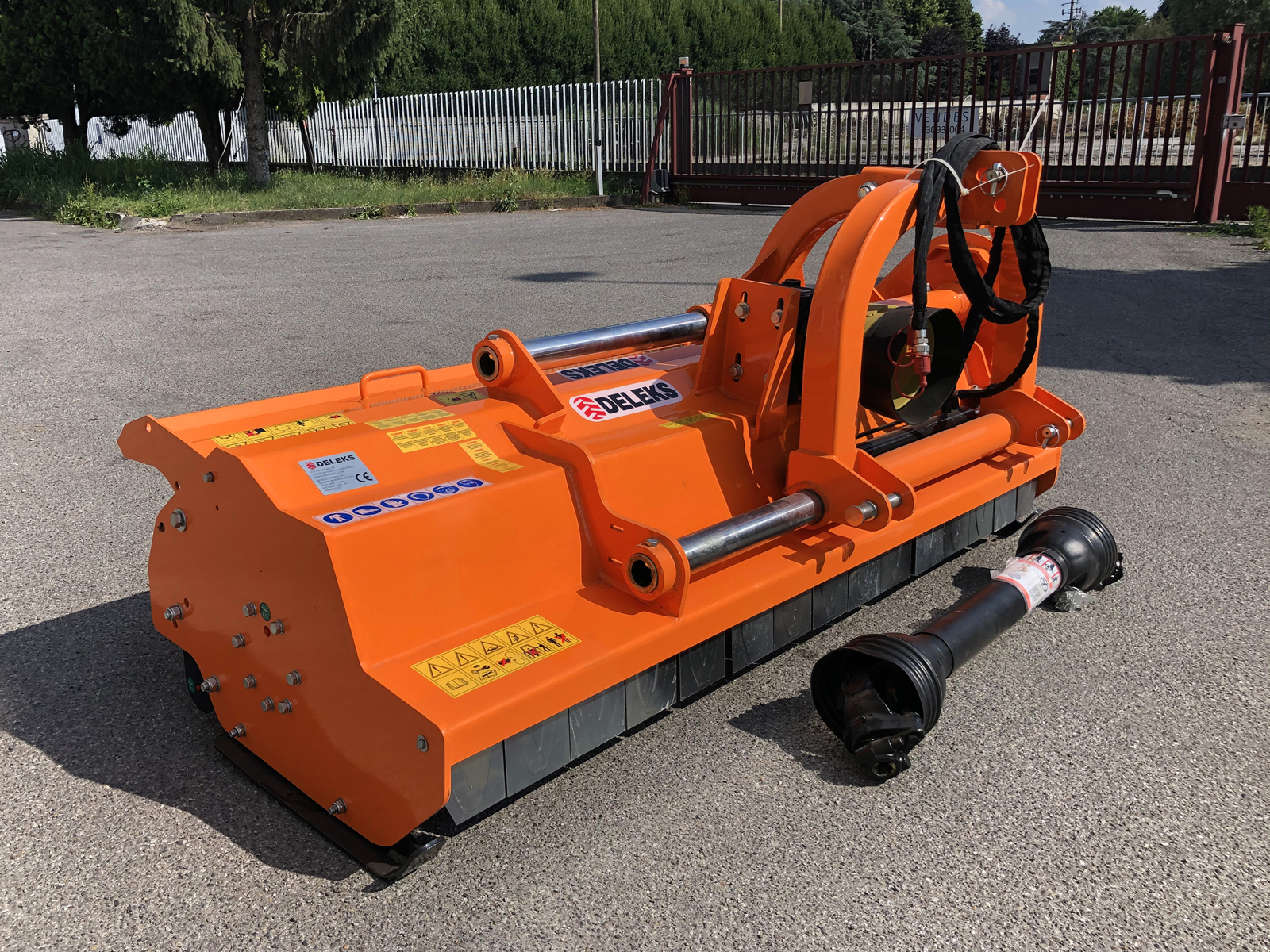

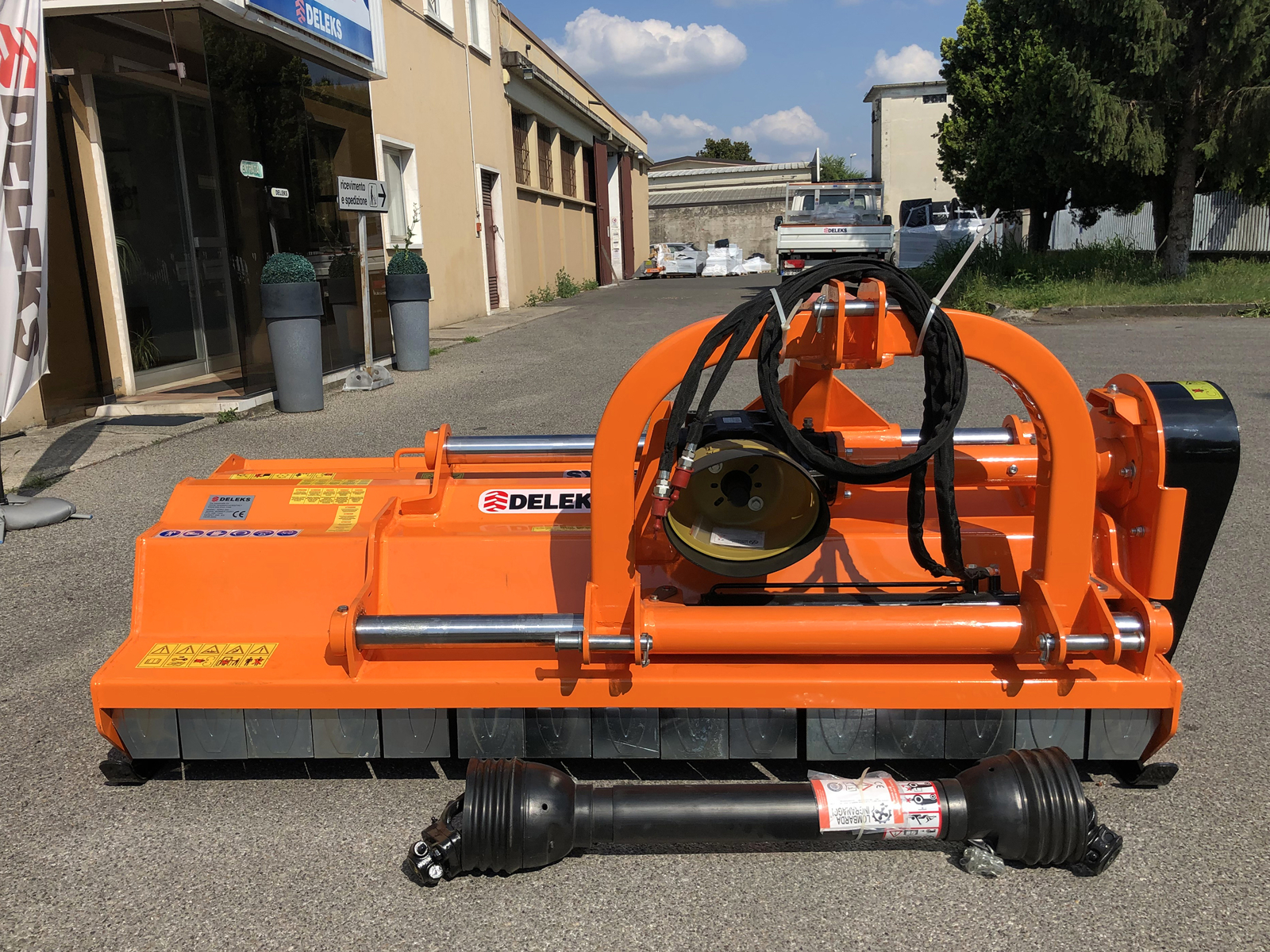

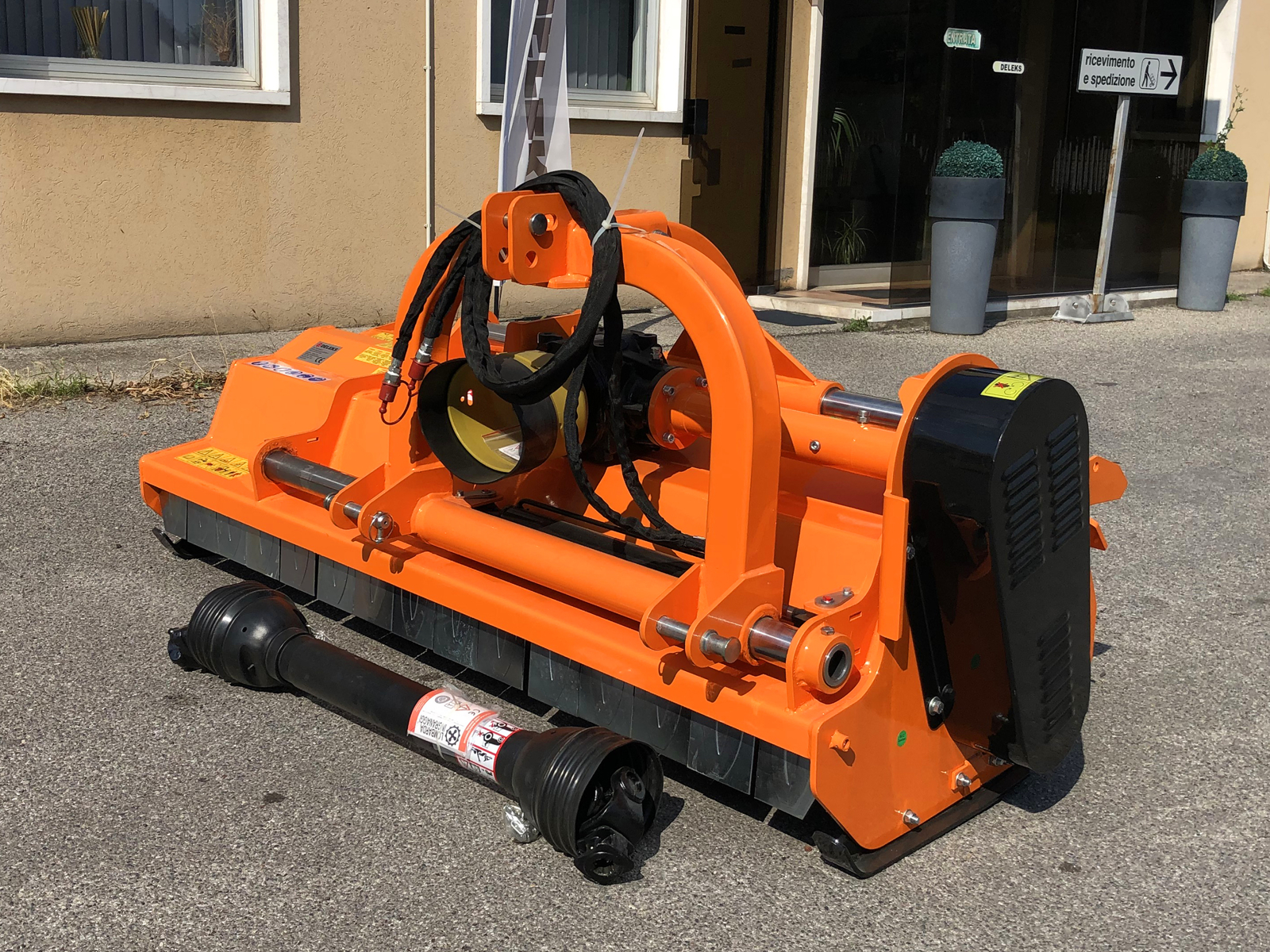

Adjustable sideshift Flail Mower For 70-120HP Tractors Shredder, 240cm / 770kg, Mulcher - DELEKS® TORO-240 - Pto shaft CE included.
OVERVIEW
The TORO-240 heavy duty flail mower is particularly suitable for harvesting corn stalks, wheat, soybean, straw, vegetables in general, for the cleaning of uncultivated land (max 5-6 cm in diameter), it has a power of between 70 and 120 Hp and has a working width of 240 cm.
Thanks to it's solid frame and 170.0 mm rotor it can be used for work on the flat ground and verges. Compatible with all brands of tractors with Cat. 2 three-point linkage e.g Fiat, Ford, New Holland T4, Deutz-Fahr, Landini Rex, John Deere 4, Kubota L-M, Lamborghini, Goldoni, etc.
BENEFITS & FEATURES
Hydraulic offset.

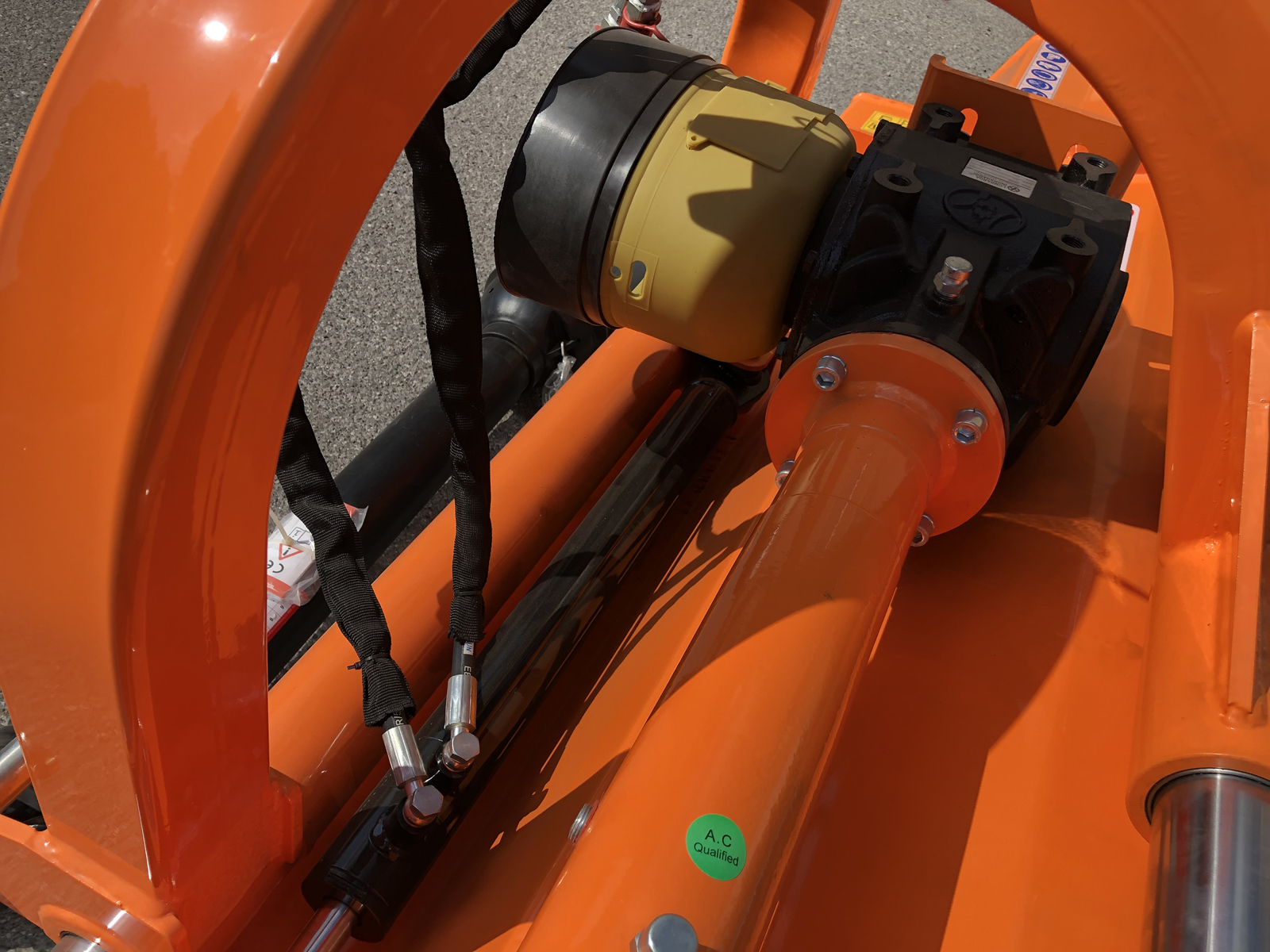

Lombarda Ingranaggi gearbox.

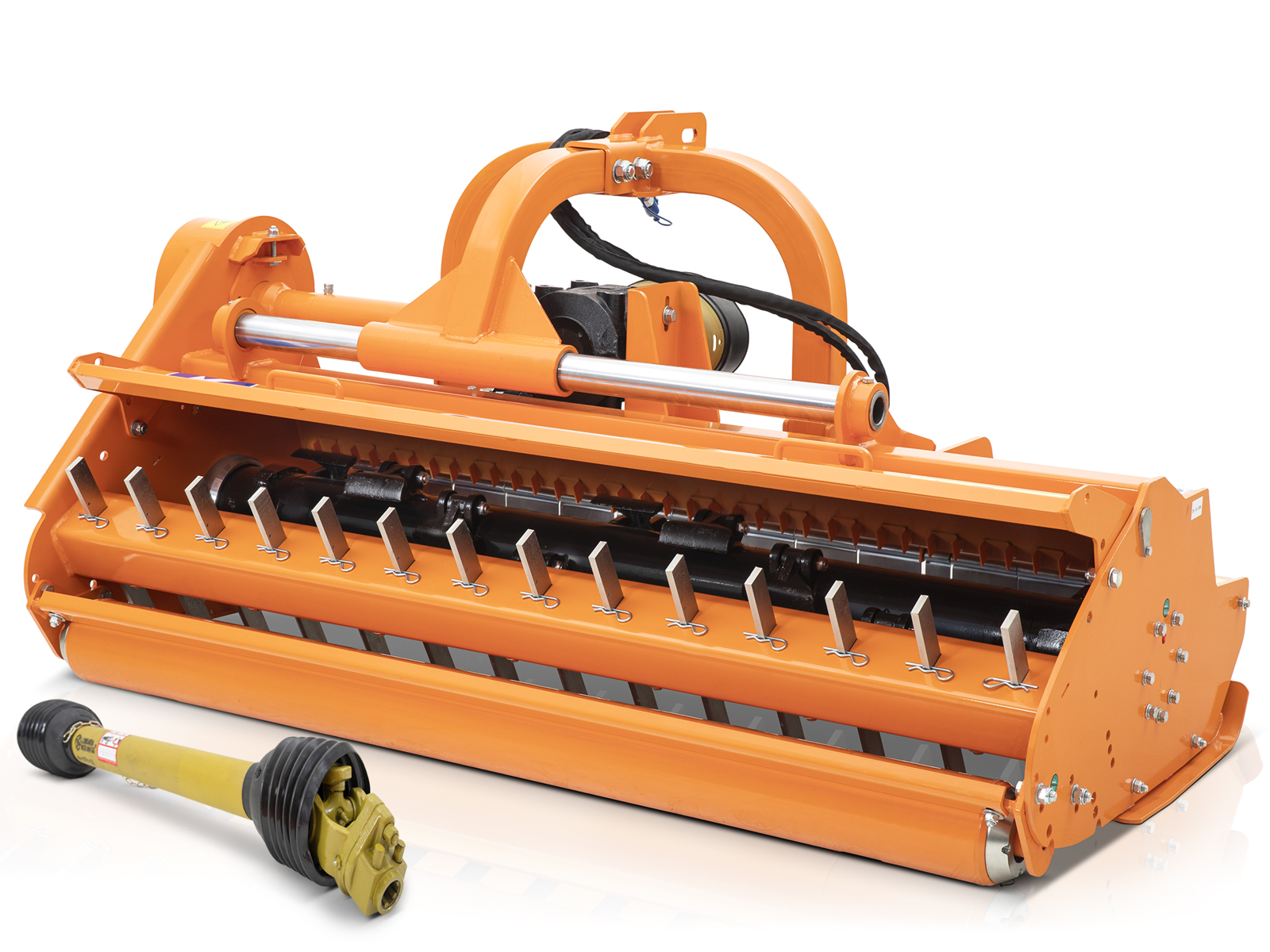

Hammers on the rotator (triple Y-blade set on request).
5 high resistance toothed belts, and external belt tensioner.
170.0 mm electronically balanced rotor.

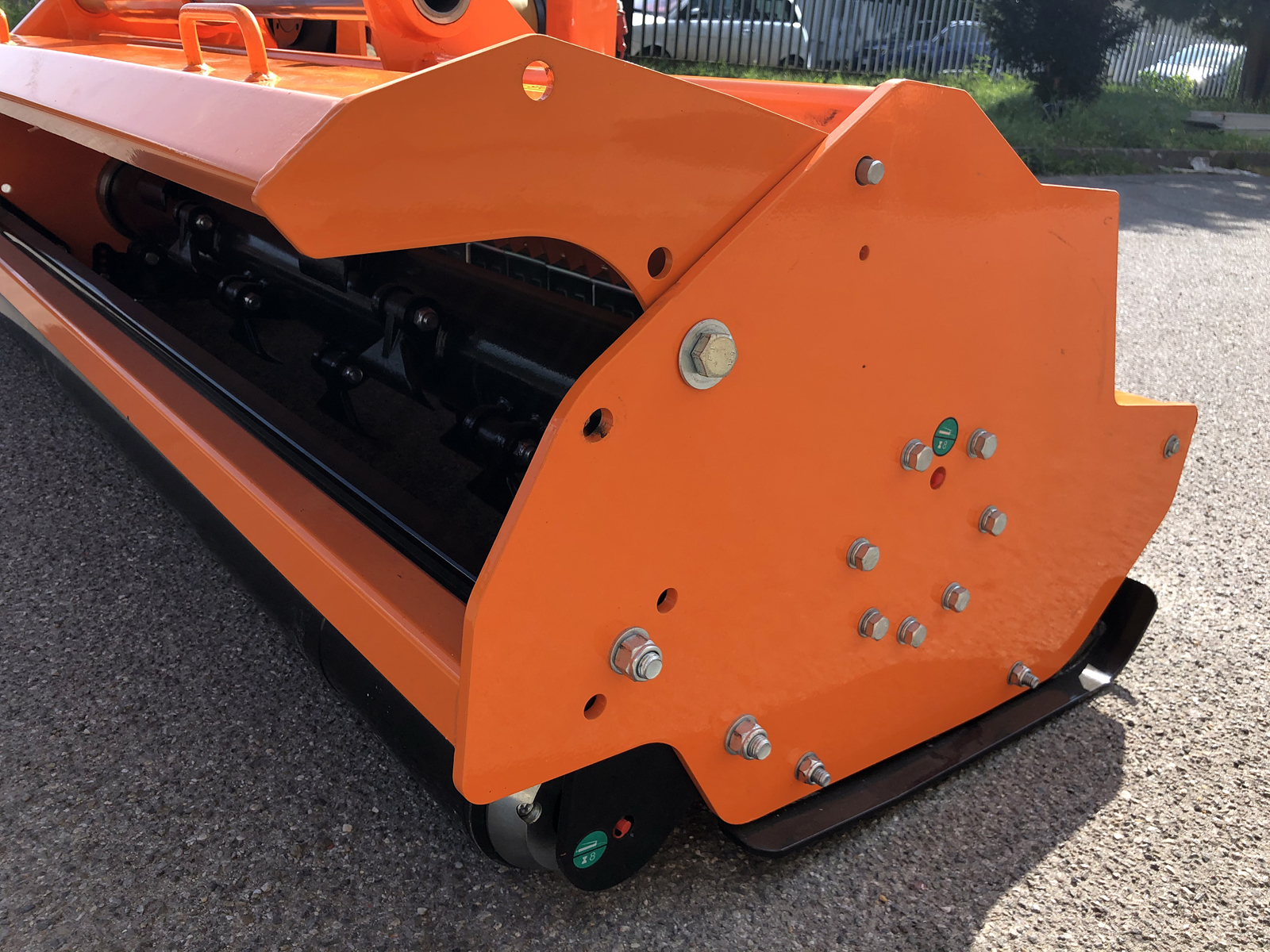

Self-cleaning rear roller and side skids.

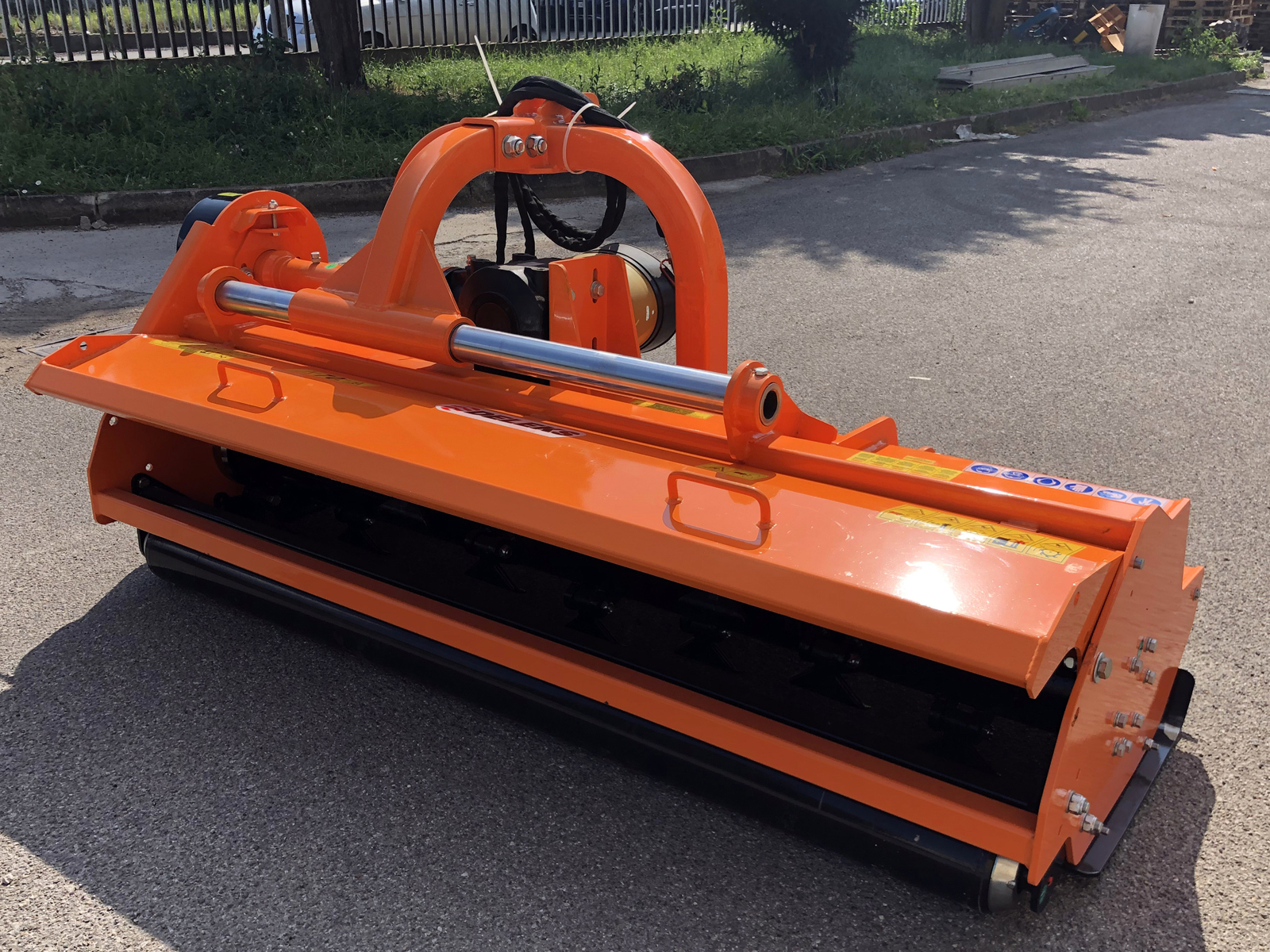

Rear bonnet can be opened for maintenance purposes.
Reinforced rotor support fixed to the frame by 6 strong bolts for additional strength.

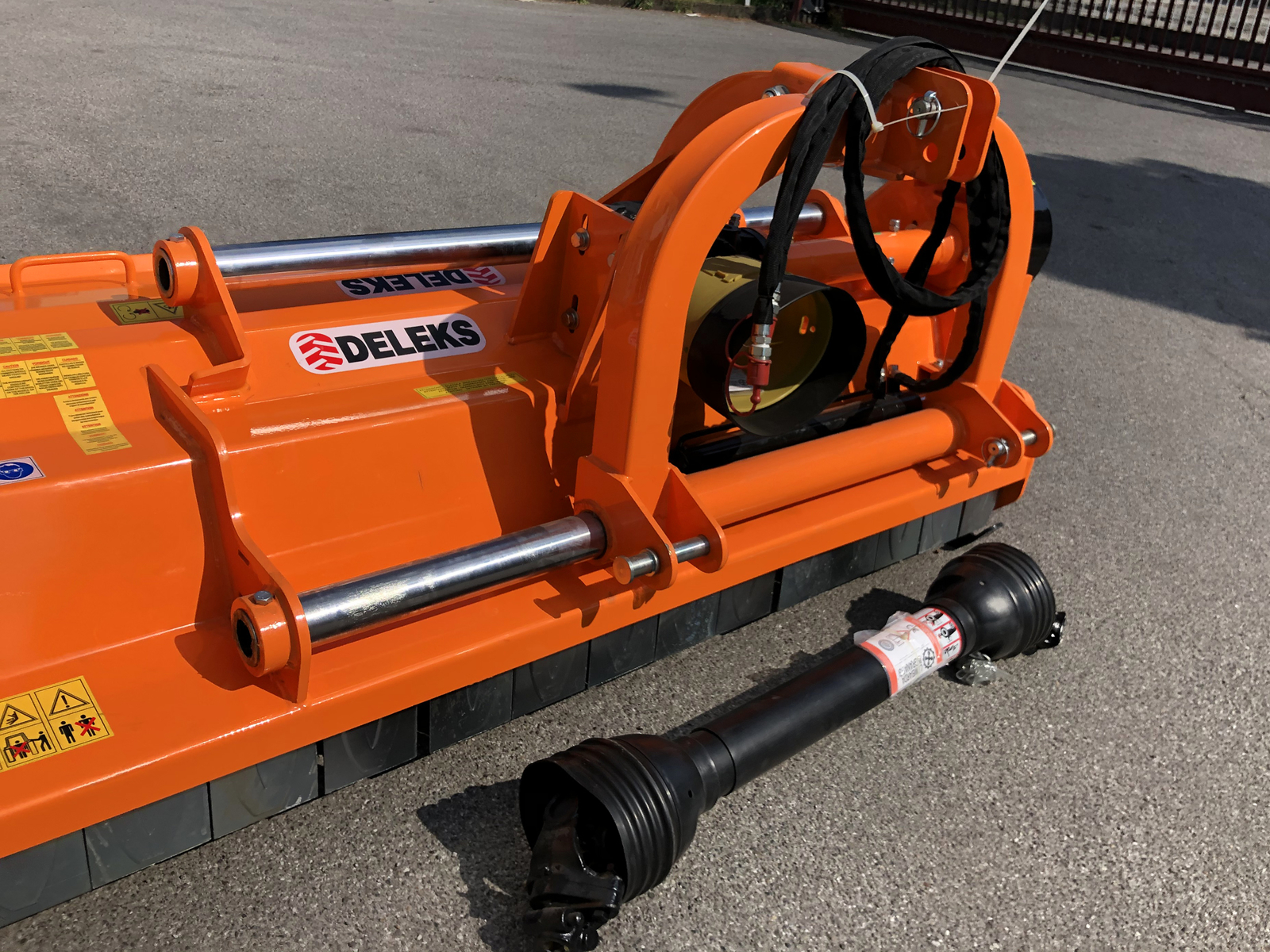

Pto shaft CE included.
Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 2400.0 mm | 7.88 ft |
| Overall width | 2550.0 mm | 8.36 ft |
| Min / Max cutting height | 10.0 - 75.0 mm | 0.4 - 2.95 in |
| Weight | 770.0 kg | 1700 lb |
| Overall height | 990.0 mm | 3.25 ft |
| Tractor Power Range | 70 - 120 Hp | 70 - 120 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0 mm) | Cat. 2 (ø 25.0-28.0 mm) |
| Position of the gearbox | 1000.0 mm from left side / 1400.0 mm from right side | 39.37 in from left side / 55.10 in from right side |
| Hood height | 550.0 mm | 21.65 in |
| Spacing between the 2 lower points | 735.0 - 890.0 mm | 28.95 - 35.00 in |
| Number of Hammers | 22 (or 66 blades) | 22 (or 66 blades) |
| Maximum cutting diameter | 50.0-60.0 mm | 2.00 - 2.40 in |
| Overall length | 1100.0 mm | 3.60 ft |
| Distance between pto attachment and ground | 580.0 mm | 22.83 in |
| Main hood thickness | 5.0 mm | 0.2 in |
| Sides thickness | 10.0 mm | 0.4 in |
| Side plates thickness | 12.0 mm | 0.47 in |
| Transmission: Drive method | V-Belts | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi (3 year warranty) | Lombarda Ingranaggi (3 year warranty) |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Free wheel | √ | √ |
| Transmission: RPM Rotor speed | 2403.0 rpm | 2403.0 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 230.0 mm | 9.05 in |
| Transmission: Lower pulley ø | 155.0 mm | 6.10 in |
| Transmission: V-Belts quantity | 5 | 5 |
| Transmission: V-Belts size | 17x1300 | 17x1300 |
| Rotor: diameter | 170.00 mm | 6.69 in |
| Rotor: bearings type and size | 1309 | 1309 |
| Rotor: balancing | Electronic | Electronic |
| Rotor: sheet thickness | 10.0 mm | 0.4 in |
| Hammers: Weight | 1100.0 g | 38.80 oz |
| Hammer: øhole | 16.0 mm | 0.63 in |
| Hammer: base width | 140.0 mm | 5.51 in |
| Hammer: top width | 40.0 mm | 1.57 in |
| Hammer: Diagonal | 97.0 mm | 3.82 in |
| Rear roller: diameter | 152.0 mm | 5.98 in |
| Rear roller: sheet thickness | 6.0 mm | 0.24 in |
| Rear roller: bearings type and size | 6308 | 6308 |
| Pto shaft | CE 8x1200 mm + shear bolt | CE 8x1200 mm + shear bolt |
| Hood length | 1000.0 mm | 39.37 in |
| Effective Displacement | 500.0 mm (Hydr.) | 19.68 in (Hydr.) |
| Packing sizes | 2650*1150*950.0 mm | 8.70*3.77*3.12 ft |
DETAILS
CLOSEAdjustable sideshift Flail Mower For 70-120HP Tractors Shredder, 240cm / 770kg, Mulcher - DELEKS® TORO-240 - Pto shaft CE included.
OVERVIEW
The TORO-240 heavy duty flail mower is particularly suitable for harvesting corn stalks, wheat, soybean, straw, vegetables in general, for the cleaning of uncultivated land (max 5-6 cm in diameter), it has a power of between 70 and 120 Hp and has a working width of 240 cm.
Thanks to it's solid frame and 170.0 mm rotor it can be used for work on the flat ground and verges. Compatible with all brands of tractors with Cat. 2 three-point linkage e.g Fiat, Ford, New Holland T4, Deutz-Fahr, Landini Rex, John Deere 4, Kubota L-M, Lamborghini, Goldoni, etc.
BENEFITS & FEATURES
Hydraulic offset.
Lombarda Ingranaggi gearbox.
Hammers on the rotator (triple Y-blade set on request).
5 high resistance toothed belts, and external belt tensioner.
170.0 mm electronically balanced rotor.
Self-cleaning rear roller and side skids.
Rear bonnet can be opened for maintenance purposes.
Reinforced rotor support fixed to the frame by 6 strong bolts for additional strength.
Pto shaft CE included.
Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.
