Double-blade hedge cutter bar 180 cm (71 in) HRD-180, hydraulic cutter bar for mini diggers and mini excavators of 1.3 to 1.8 tonnes and hedge cutter arms
DETAILS

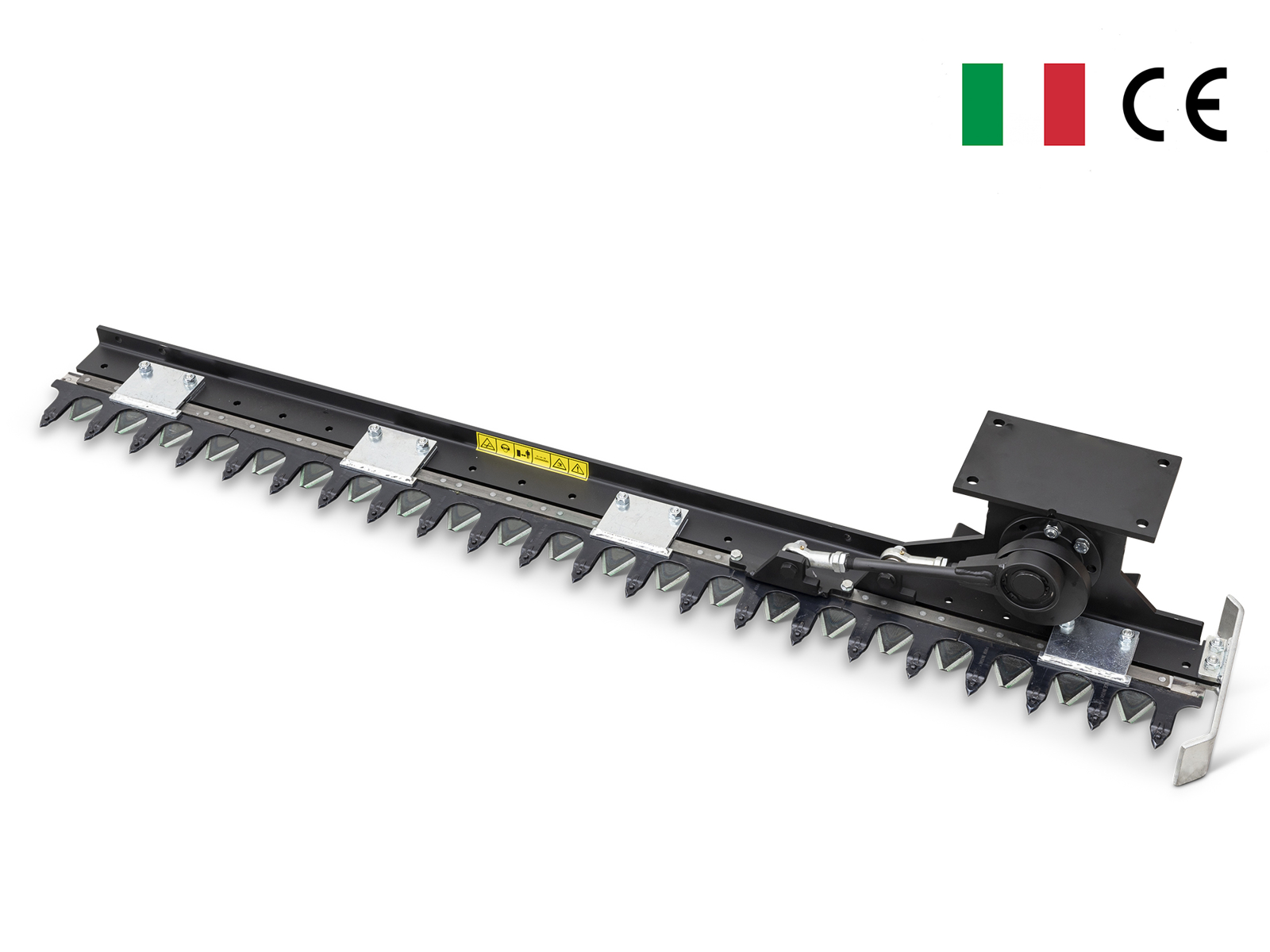

Double-blade hydraulic hedge cutter bar with a 180 cm (71 in) cut, the DELEKS® HRD-180: a double-blade cutter bar for mini diggers, mini excavators and tractor hedge cutter arms, Made in Italy, built by DELEKS. It has two blades moving in opposite directions: it is the bar for hedges and grass, with branches up to 2 cm (0.8 in) thick, on field edges, ditches, ornamental hedges and rows, with a fine, clean cut. The 50 cc Caproni hydraulic motor is the right one for mini diggers and mini excavators of 1.3 to 1.8 tonnes. It bolts on with its 4-hole plate and runs at 140 to 180 bar (2,030 to 2,610 psi). It weighs 70 kg (154 lb) and comes with a 2-year warranty and free delivery within the EU.
Which machines it fits
The HRD-180 fits mini diggers and mini excavators of 1.3 to 1.8 tonnes with an auxiliary hydraulic line and tractor hedge cutter arms: it is one of the bars for the DELEKS® FALCO, FALCO-H, AIRONE and MERLO arms. The weight range is a guide: what counts is the oil flow of the auxiliary line, to be checked before ordering. Among the DELEKS® mini diggers and mini excavators, it fits the S180. On a tractor a hydraulic arm is needed: the bar does not connect directly to the three-point linkage. With a 180 cm (71 in) cut and an overall width of 188 cm (74 in) it weighs 70 kg (154 lb). The same series also includes the HRD-130 (130 cm, 58 kg) and the HRD-160 (160 cm, 62 kg): a shorter bar weighs less and is easier to handle with the arm fully extended, a longer one cuts a wider strip at each pass.
Hydraulic connection: pressure, flow and return line

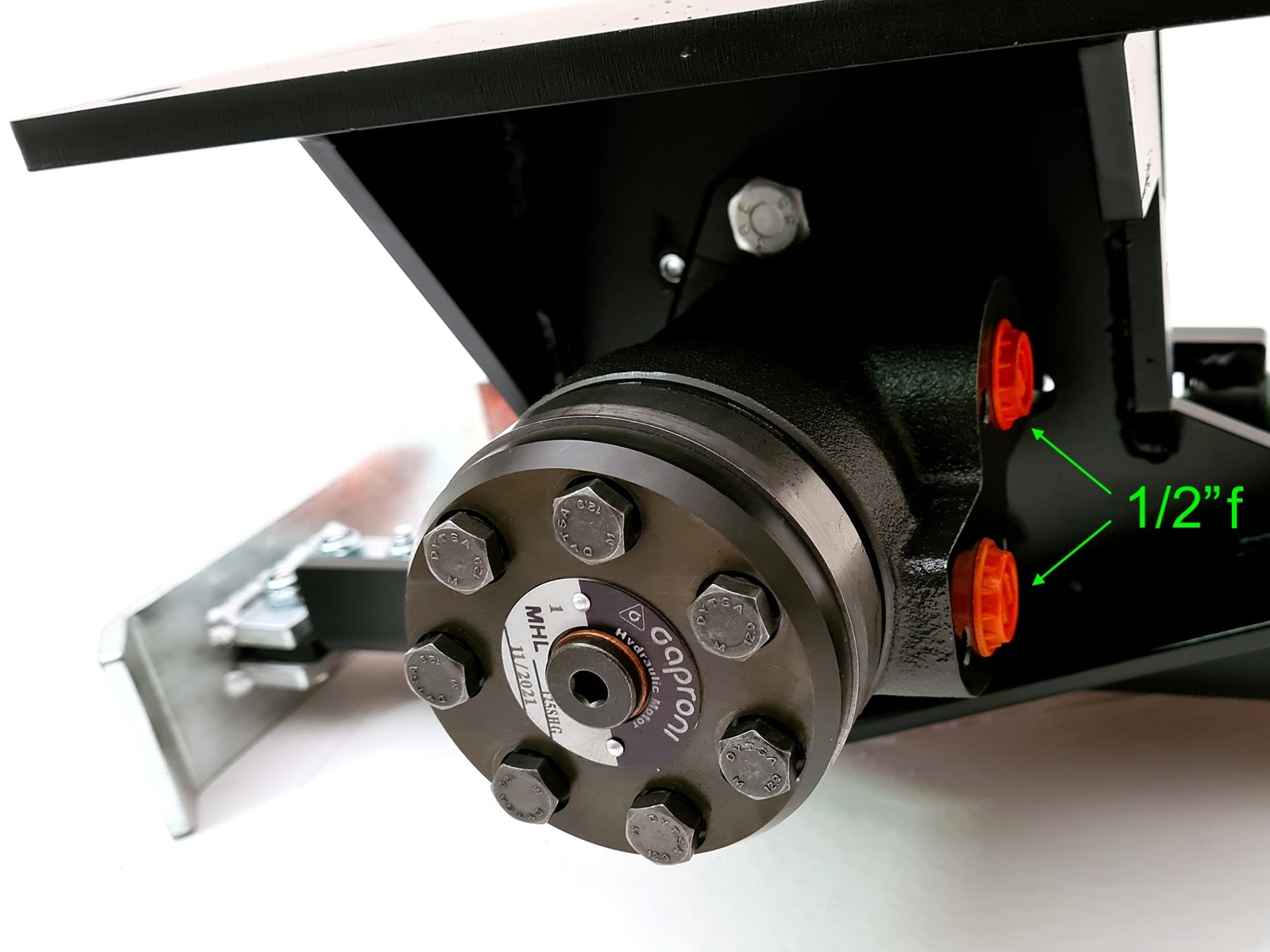

The HRD-180 runs at a working pressure of 140 to 180 bar (2,030 to 2,610 psi) and an oil flow of 20 to 40 l/min (4.4 to 8.8 UK gal/min). The 50 cc Caproni hydraulic motor, with two ½ in female ports, connects to the circuit of the mini digger or the arm, and the bar is worked from the machine's controls. Blade speed depends on the oil flow, which is why the bar has to be matched to a machine of the right size. The machine must have an oil return line: above a certain flow, the excess oil goes straight back to the tank. Before ordering, check the flow and pressure of your hydraulic circuit: if in doubt, just tell us the model of your machine.
Double-blade bar with 23 blades

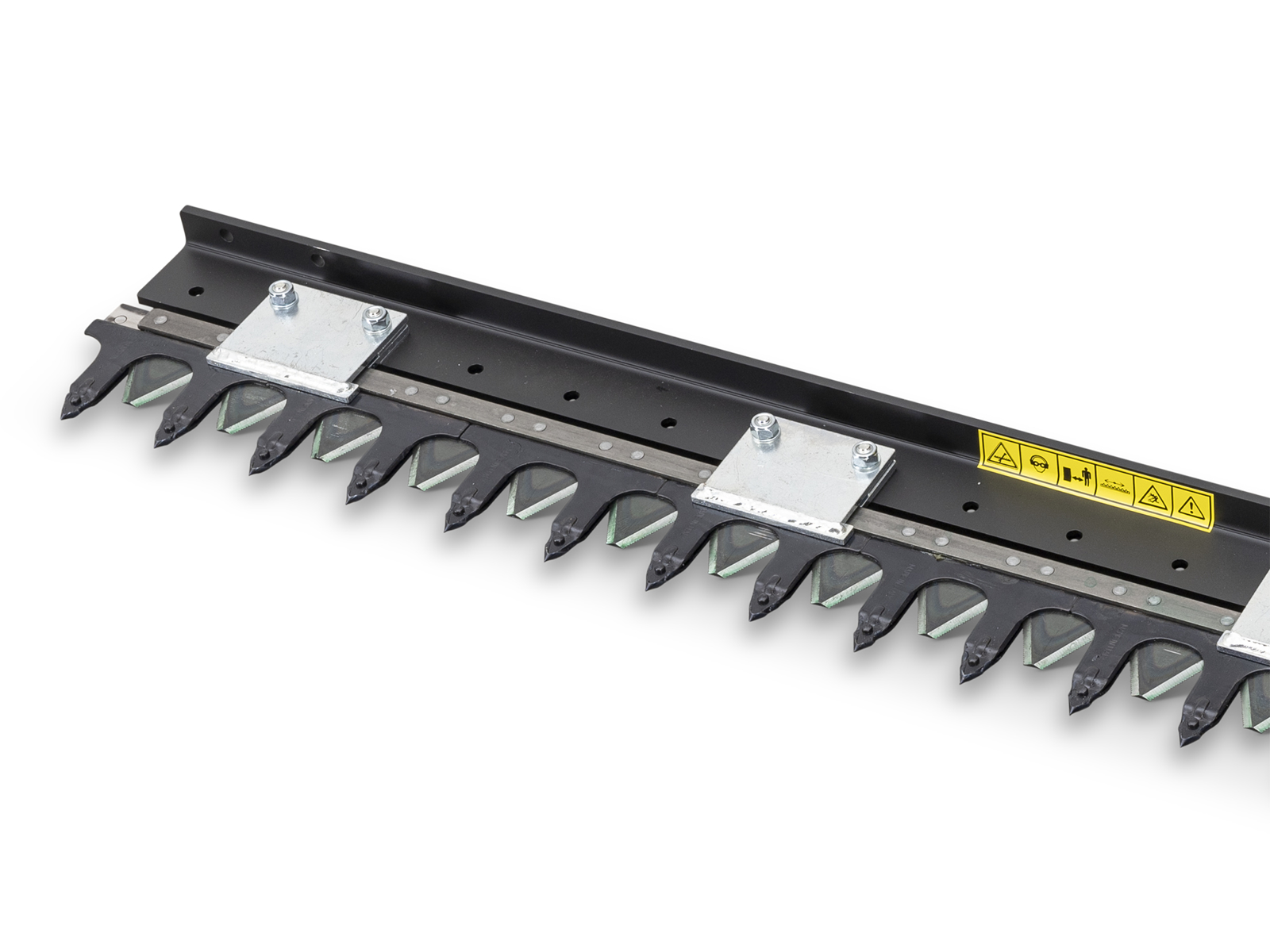

The HRD-180 is the double-blade bar: 23 triangular blades and pointed fingers, moving in opposite directions, for a fine, clean cut. It is made for hedges and grass, with branches up to 2 cm (0.8 in) thick: among the blade bars it is the only one suited to grass. The blades are replaced with the set of 10 blades (COLTELLI10HRD).
Double-blade bar or single blade
The HRD double-blade bar is the only blade bar suited to grass and cuts hedges with branches up to 2 cm (0.8 in), with a fine, clean cut. The single-blade bars with counter-blade, HR-S and HR, in the same sizes and weights, cut hedges and small branches up to 3 cm (1.2 in), but not grass. For branches up to 9 cm (3.5 in) there are the HR-DISC and CUTTER disc saw bars, 100 and 160 cm (39 and 63 in).
Mounting: 4-hole plate
The bar comes with a 4-hole mounting plate, with hole centres of 210 × 120 mm (8.3 × 4.7 in): the dimensions are in the product images, to check against the mounting of your arm or mini digger. For a mini digger or mini excavator you can order one of the optional hitches (MS01, S40, Cangini AR15, Morin-type ACB+ M0 and M1) or a hitch made to measure for your machine, at a surcharge.
Dimensions, weight and delivery
Working width 1,800 mm (70.9 in), overall width 1,880 mm (74 in), weight 70 kg (154 lb). It ships in a package of 188 × 60 × 30 cm (74 × 24 × 12 in), 80 kg (176 lb) gross and 0.34 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.
Where it works
- Field edges, ditches and banks: grass and fine growth
- Ornamental hedges in gardens and parks: a fine, clean cut
- Rows, orchards and vineyards: topping shoots and thin branches
- Boundary hedges and tree lines: branches up to 2 cm (0.8 in) thick
- Mini diggers and mini excavators of 1.3 to 1.8 tonnes and hedge cutter arms
Options and spares
From this page you can add to your order the spare set of 10 blades (COLTELLI10HRD). For mounting on a mini digger or mini excavator you can choose the MS01 hitch (ATTACCOMS01), the S40 hitch (ATTACCOS40), the Cangini AR15 hitch (ATTACCOAR15), the Morin-type ACB+ M0 hitch (ATTACCOMORINM0), the Morin-type ACB+ M1 hitch (ATTACCOMORINM1AR) and the made-to-measure hitch (ATTACCOAR). Other spares are identified on the exploded diagrams with our technical team.
FAQ
Which machines does the HRD-180 fit?
Mini diggers and mini excavators of 1.3 to 1.8 tonnes with an auxiliary hydraulic line, and tractor hedge cutter arms: it is one of the bars for the DELEKS® FALCO, AIRONE and MERLO arms. Among the DELEKS® mini diggers and mini excavators, it fits the S180.
Is 1.3-1.8 tonnes a hard limit?
No, it is a guide: what counts is the oil flow of the mini digger's auxiliary line. Check it before ordering: if in doubt, just tell us the make and model of your machine.
Can I fit it on a bigger mini excavator?
It is not advisable: a bigger machine delivers more oil and with the 50 cc motor the blades run too fast, with a risk of breaking the bar. For mini diggers of 1.8 to 2.5 tonnes there is the HR-180 single-blade bar, with a 100 cc motor, for hedges and small branches.
Does it mount directly on a tractor?
No: on a tractor you need a hydraulic arm, such as a hedge cutter arm. The bar does not connect directly to the three-point linkage.
What pressure and oil flow does it need?
A working pressure of 140 to 180 bar (2,030 to 2,610 psi) and an oil flow of 20 to 40 l/min (4.4 to 8.8 UK gal/min). The machine must have an oil return line. For the flow, go by the size of the machine, a mini digger of 1.3 to 1.8 tonnes: if in doubt, just tell us the make and model of your machine.
What does it cut?
Hedges and grass, with branches up to 2 cm (0.8 in) thick. For small branches up to 3 cm (1.2 in) there are the HR-S and HR single-blade bars; for branches up to 9 cm (3.5 in) the HR-DISC and CUTTER disc saw bars.
Does it cut grass?
Yes: among the blade bars it is the only one suited to grass, because it has two blades moving in opposite directions.
What is the difference between the HRD and the HR-S?
The HRD is the double-blade bar, for hedges and grass, with branches up to 2 cm (0.8 in); the HR-S has a single blade with counter-blade and cuts hedges and small branches up to 3 cm (1.2 in), but not grass. Sizes and weights are the same: 130, 160 and 180 cm, from 58 to 70 kg.
How does it mount on a mini digger?
With the 4-hole plate (210 × 120 mm) and one of the optional hitches: MS01, S40, Cangini AR15, Morin-type ACB+ M0 or M1, or a made-to-measure hitch.
Can the blades be replaced?
Yes: from this page you can order the spare set of 10 blades (COLTELLI10HRD).
Which size should I choose?
The three sizes, 130, 160 and 180 cm, weigh 58, 62 and 70 kg: the shortest is easier to handle with the arm fully extended, the longest cuts a wider strip at each pass.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: blades, fingers, saw discs, belts, bearings, hydraulic motor and hitches are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and a check that the bar, the hydraulic circuit and the machine's mounting match. The bar comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1800.0 mm | 5.90 ft |
| Overall width | 1880.0 mm | 6.15 ft |
| Weight | 70.0 kg | 154.0 lb |
| Maximum cutting diameter | 10.0 mm | 0.40 in |
| Number of Blades | 23 | 23 |
| Working pressure | 140 - 180 bar | 140 - 180 bar |
| Min./Max. Flow | min. 20 l/min | min. 20 l/min |
| Gross shipping weight | 80 kg | 176 lb |
| Package volume | 0.34 m3 | 12.0 cu ft |
| Packing sizes | 1880.0*600.0*300.0 mm | 6.15*1.97*0.98 ft |
