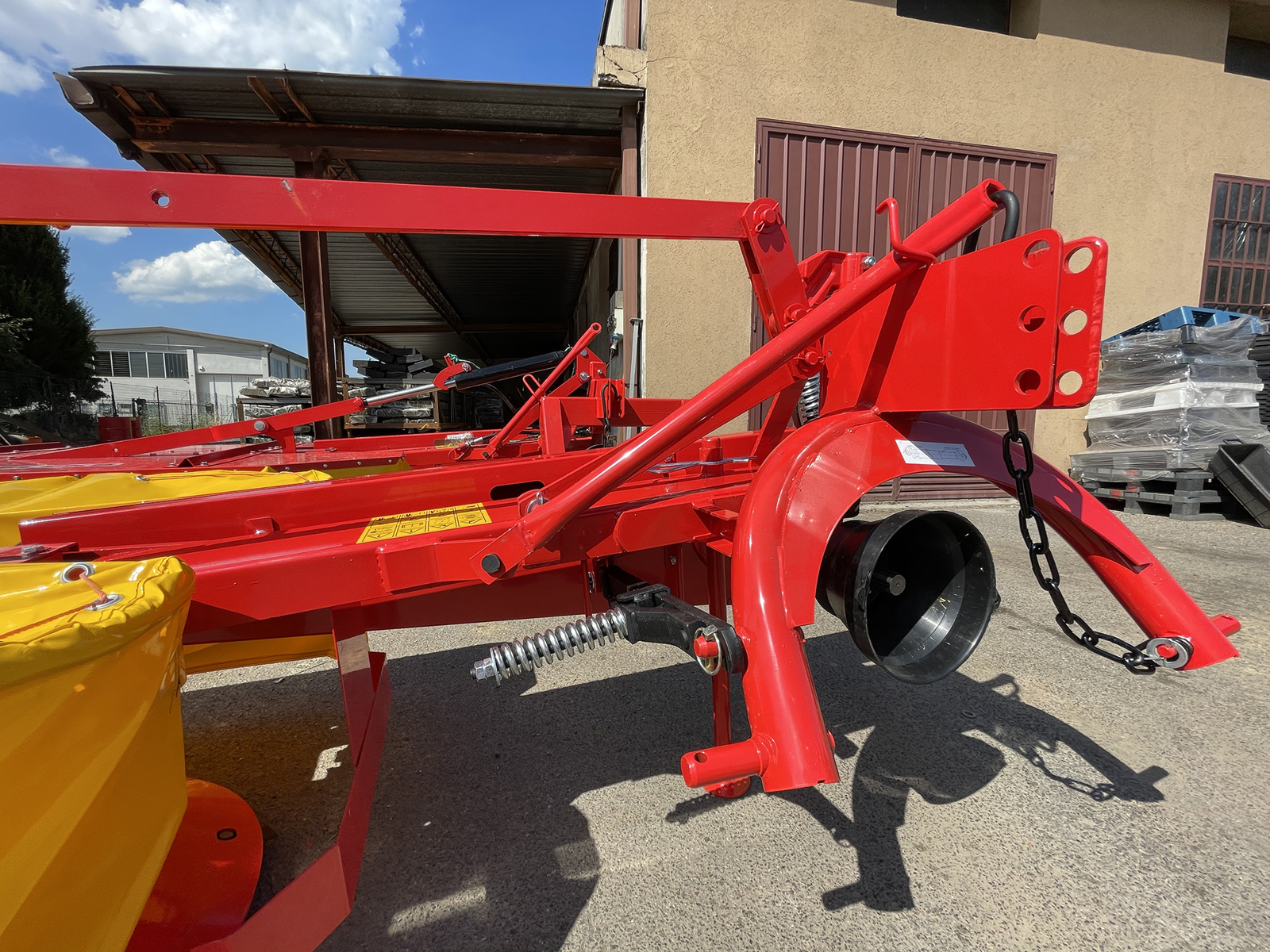

Drum mower for tractor - 165cm / 370kg - DELEKS® - Pto shaft CE included.

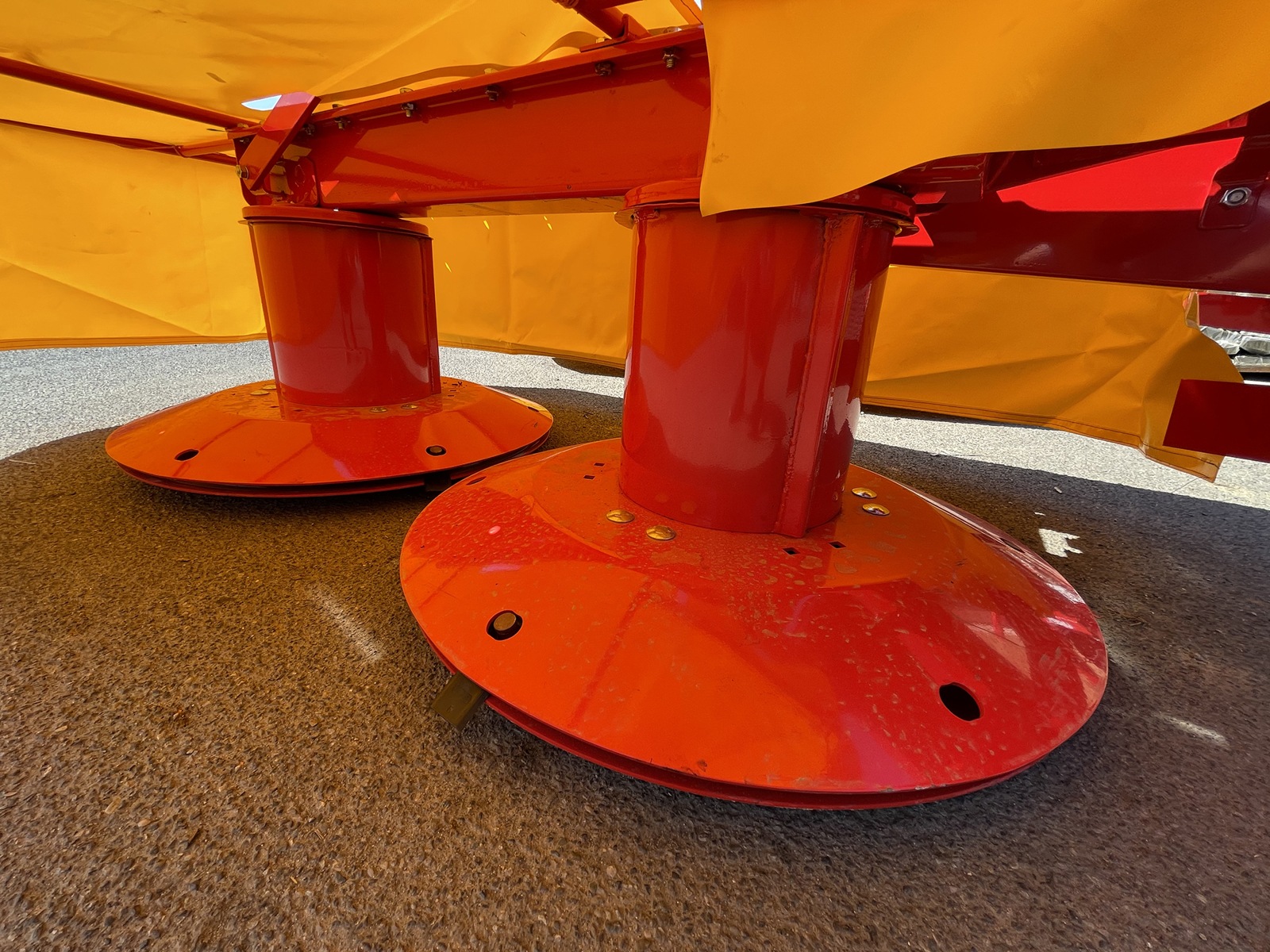

DFR-165 Rotary Drum mower considerably reduces the hay making times with its simple but solid and sturdy construction, the drum has a fixed supporting axle and appropriately sized transmission assemblies. It uses two discs to operate. The lower disc, which rotates freely, prevents the cutting disc from sinking into the soils so can be used on flat ground and uneven terrain. It fits all standard tractors e.g Kubota L, Ford, McCormick, Massey Ferguson, John Deere 4, Fiat.
BENEFITS AND FEATURES
The lightweight design allows its use with low-powered tractors, on flat ground or on verges.
Safety Release to prevent damage
Easily accessible discs for changing blades.
Can be used in any conditions to make hay year round.

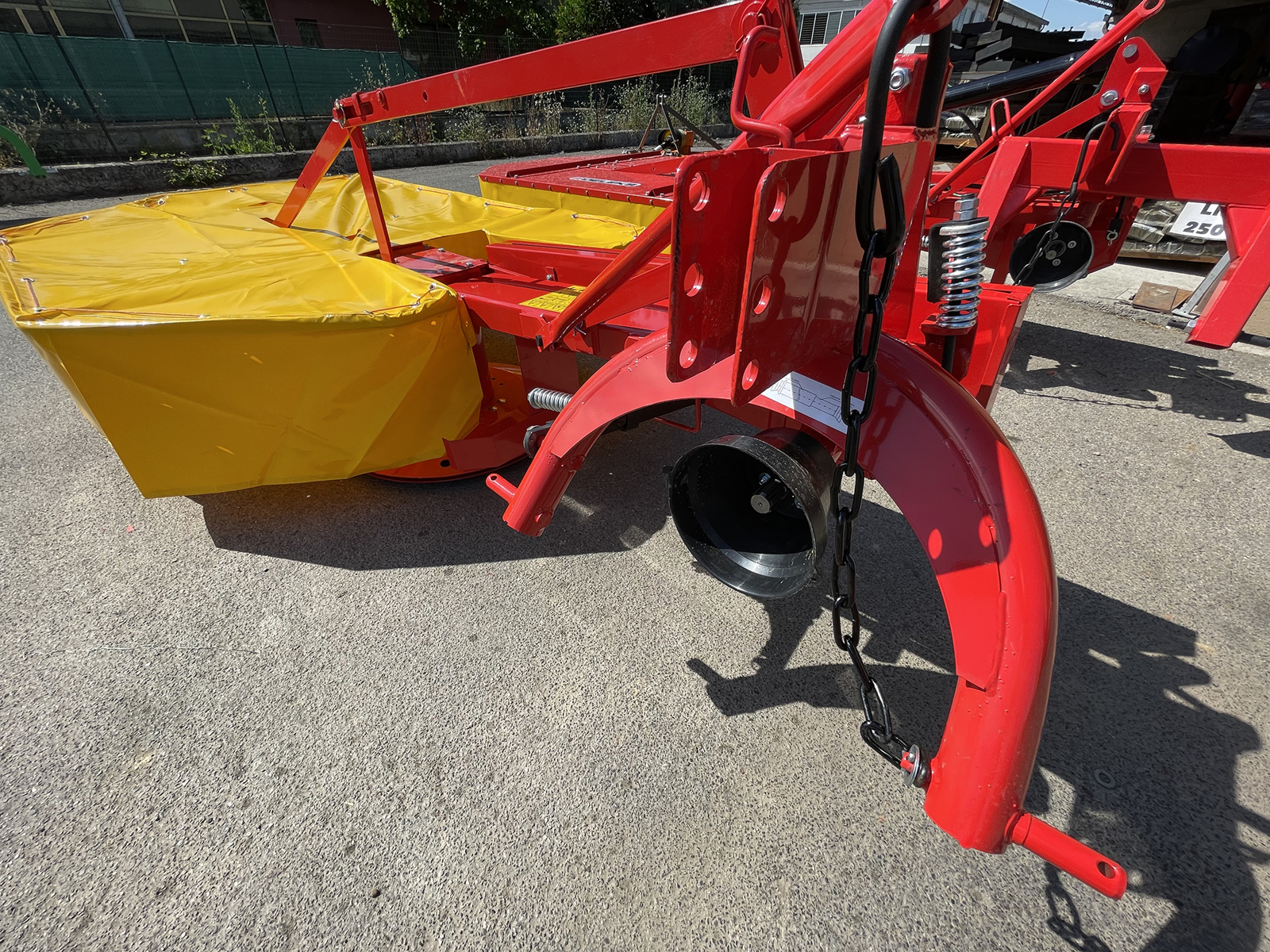

Spring locking system to allow for the mower to overcome obstacles and to keep the machine safe during transit.

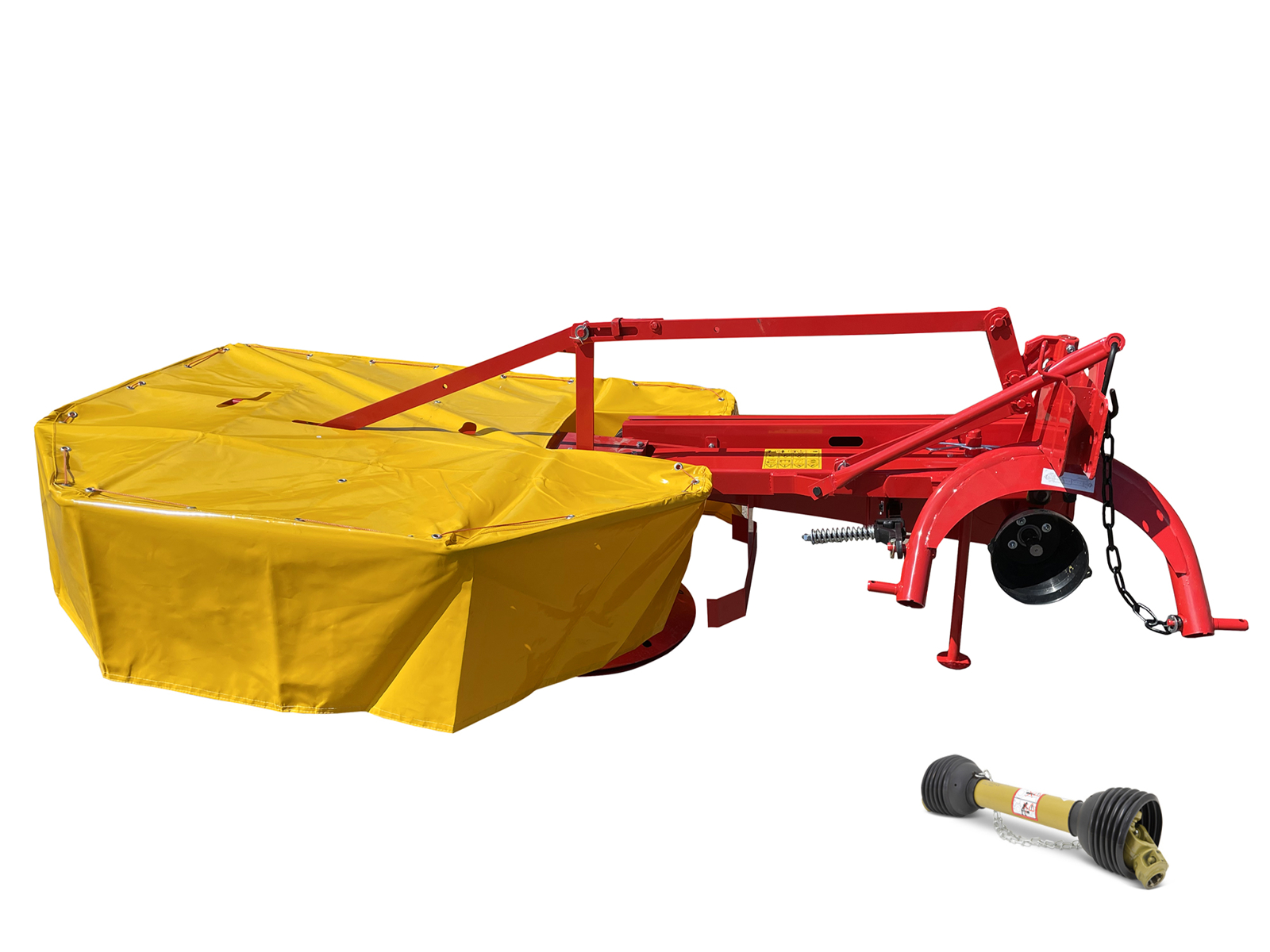

Pto shaft CE included.
|Characteristic||Units metric||Units US|
|Working width||1650.0 mm||5.42 ft|
|Overall width||3000.0 mm||9.84 ft|
|Min / Max cutting height||50.0 mm||1.97 in|
|Weight||370.0 kg||815.0 lb|
|Tractor Power Range||40-90 Hp||40-90 Hp|
|3 point linkage||Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)||Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)|
|Spacing between the 2 lower points||670.0-790.0 mm||2.20-2.60 in|
|Overall length||1400.0 mm||4.59 ft|
|Distance between pto attachment and ground||530.0 mm||20.87 in|

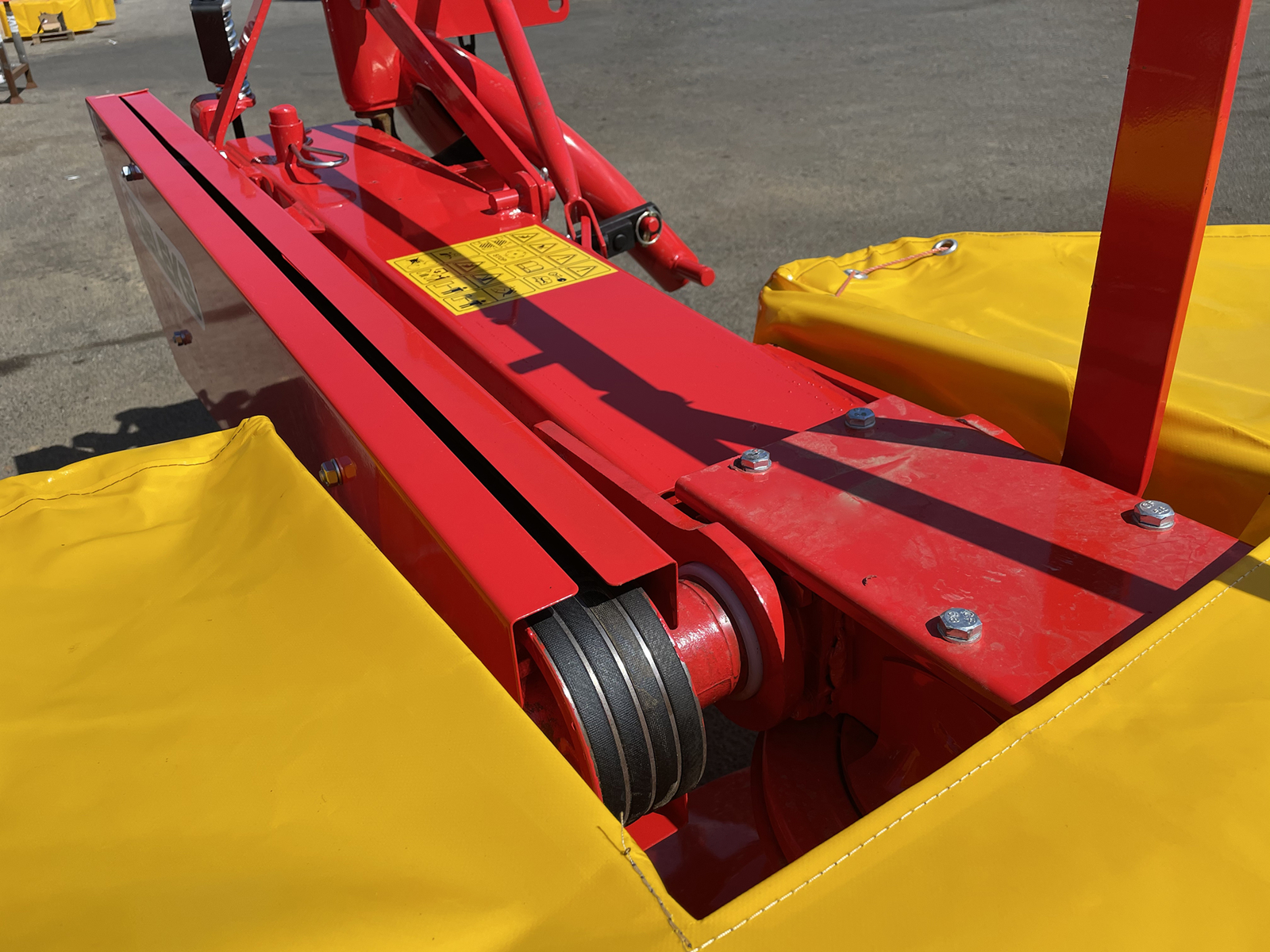

|Transmission: Drive method||V-Belts||V-Belts|
|Transmission: PTO||540 r/min||540 r/min|
|Transmission: Rotation of gearbox||Right side||Right side|
|Transmission: Free wheel||√||√|
|Transmission: Oil in the gearbox||Yes / SAE 120 - ISO 72925||Yes / SAE 120 - ISO 72925|
|Transmission: V-Belts quantity||4||4|
|Arm length||1150.0 mm||3.77 ft|
|Height of the drums||600.0 mm||23.62 in|
|Transmission||Bevel gears||Bevel gears|
|Pto shaft||CE 6x1000 mm||CE 6x1000 mm|
|Number of Blades||6||6|
|Blades: Weight||150.0 g||5.30 oz|
|Blades: Length/Width||95.0 / 48.0 mm||3.74 / 1.89 in|
|Blades: Diameter of the hole||18.0 mm||0.70 in|
|Packing sizes||1650.0*800.0*2200.0 mm||5.41*2.62*7.22 ft|
