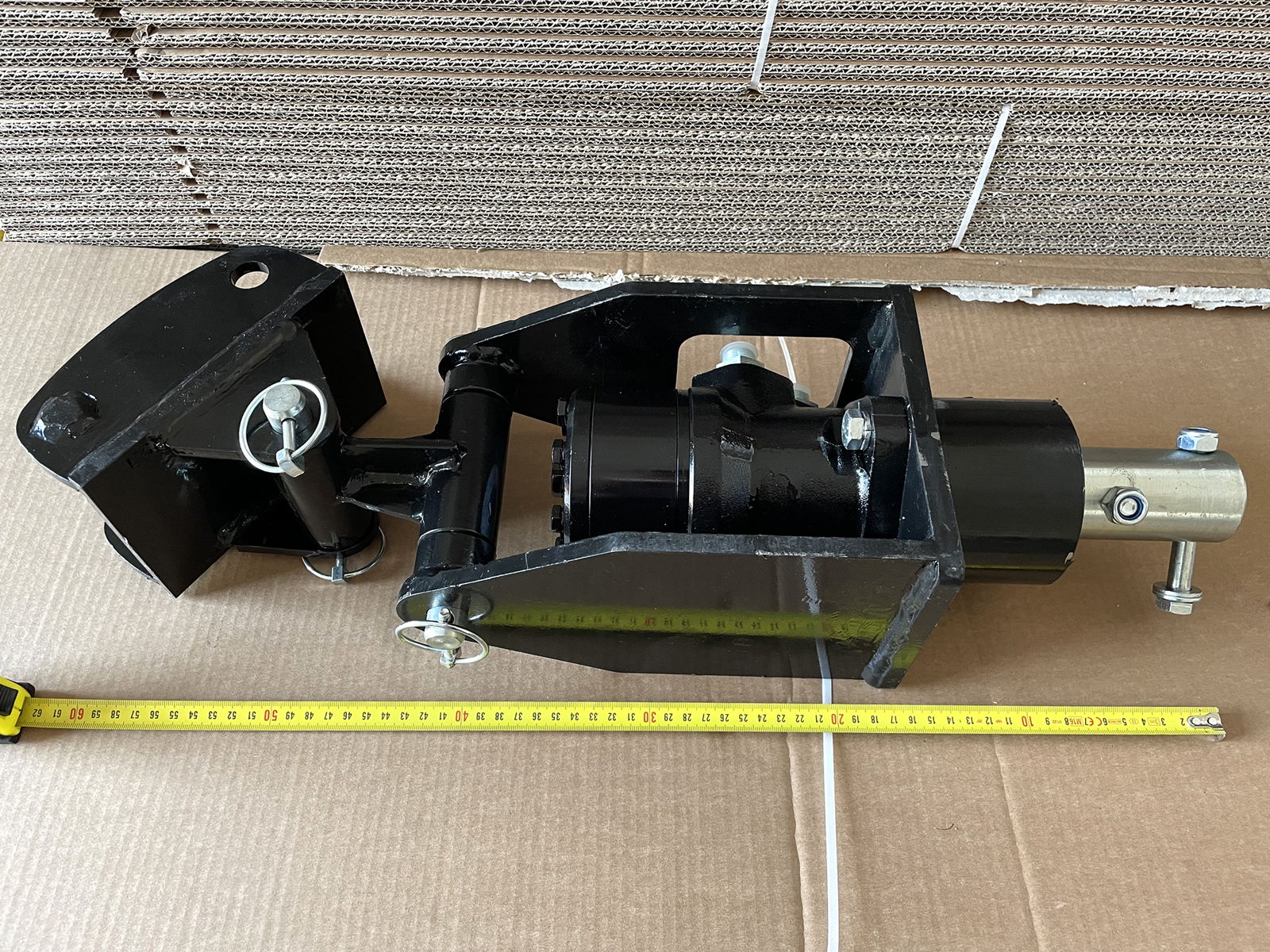

Hydraulic Earth Drill for mini excavator, GRHD

DETAILS

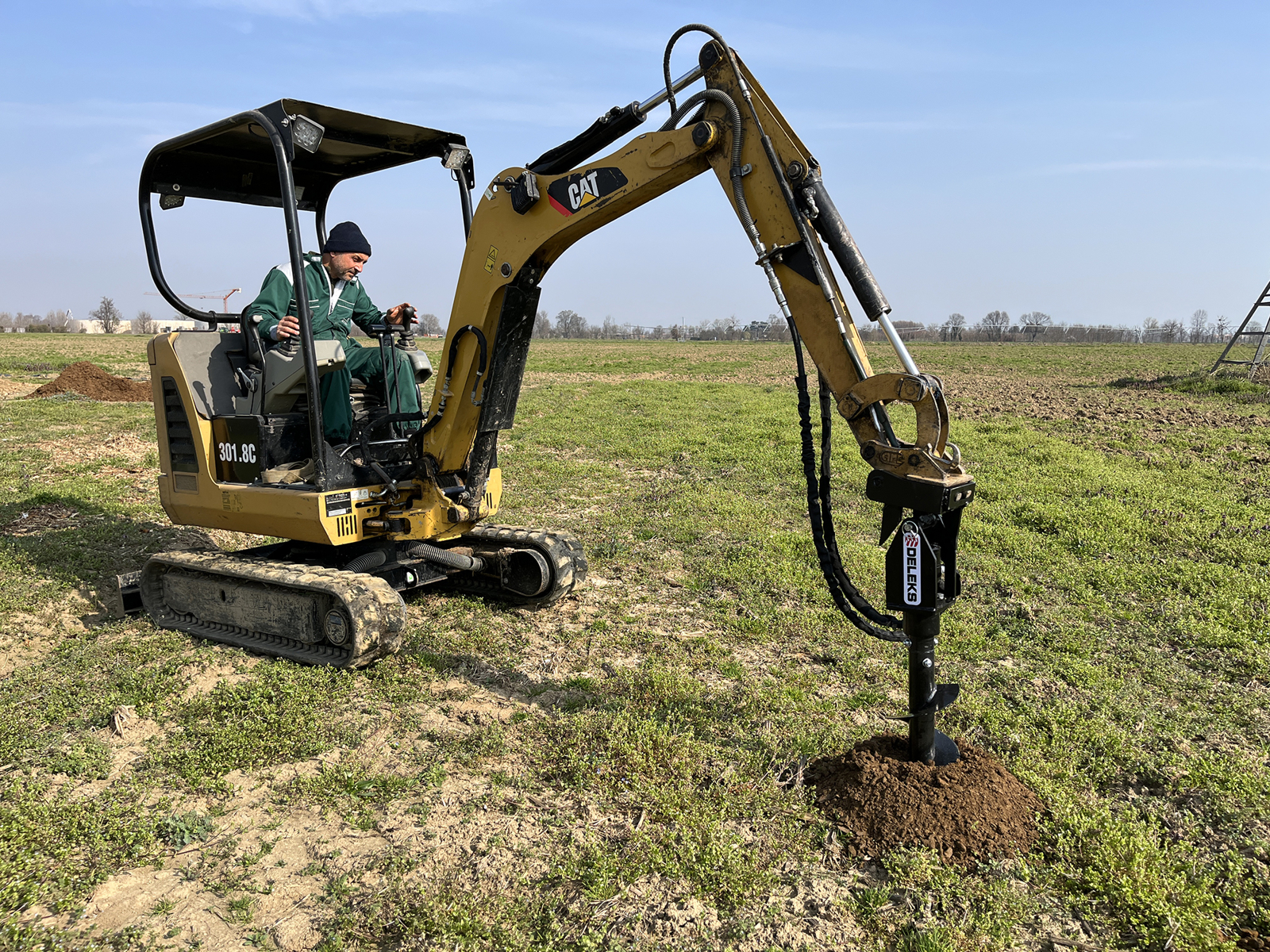

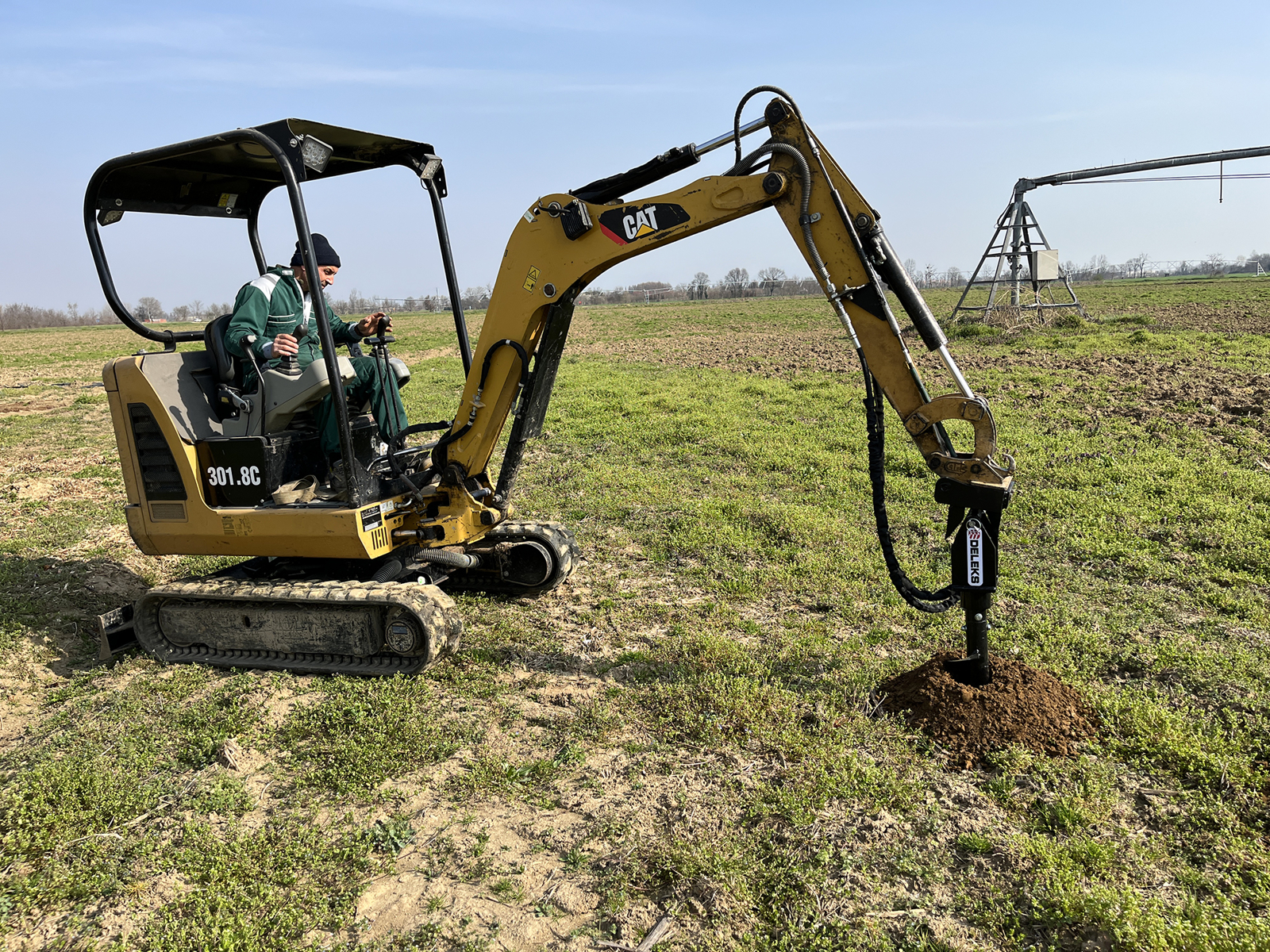

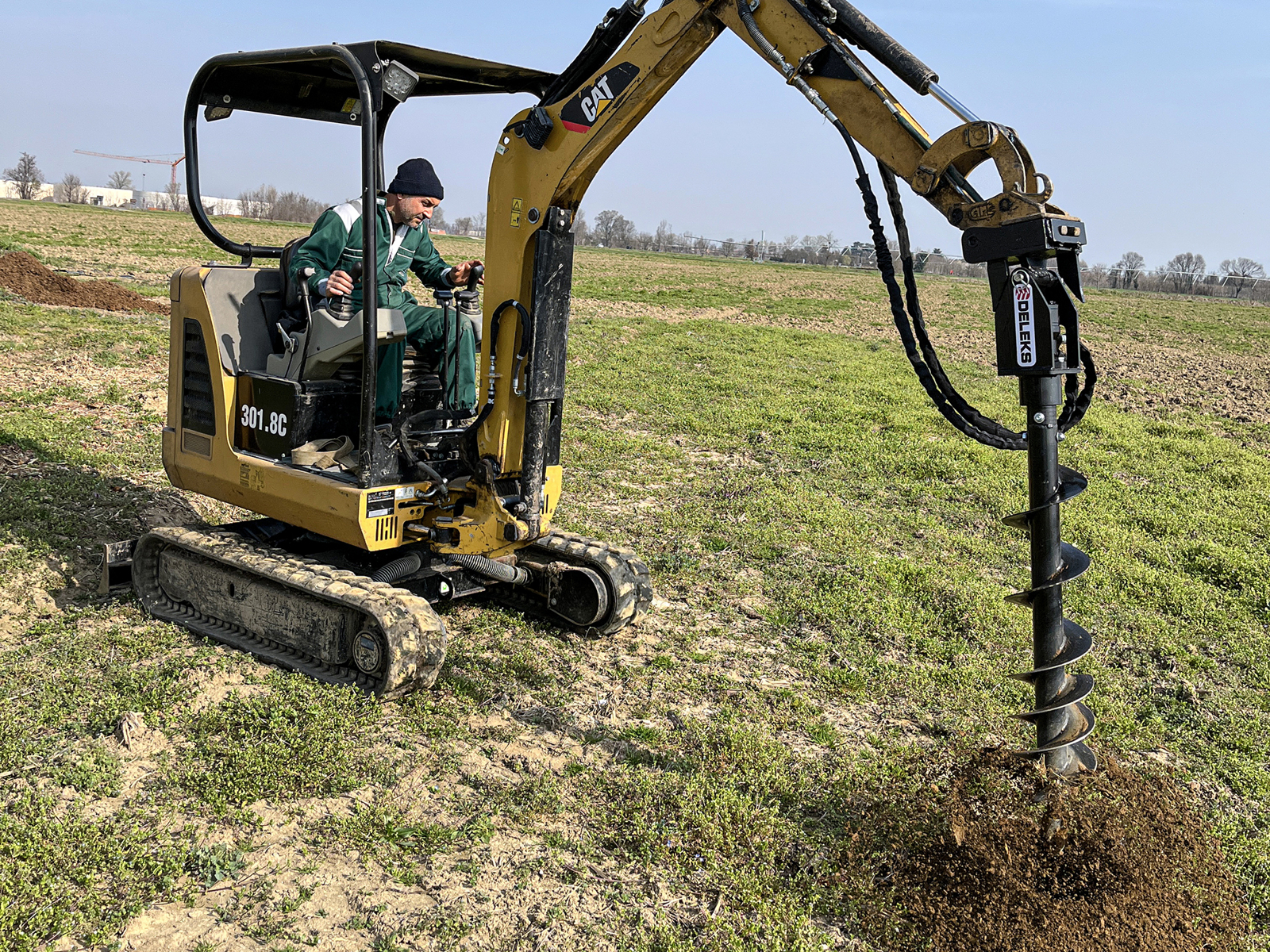

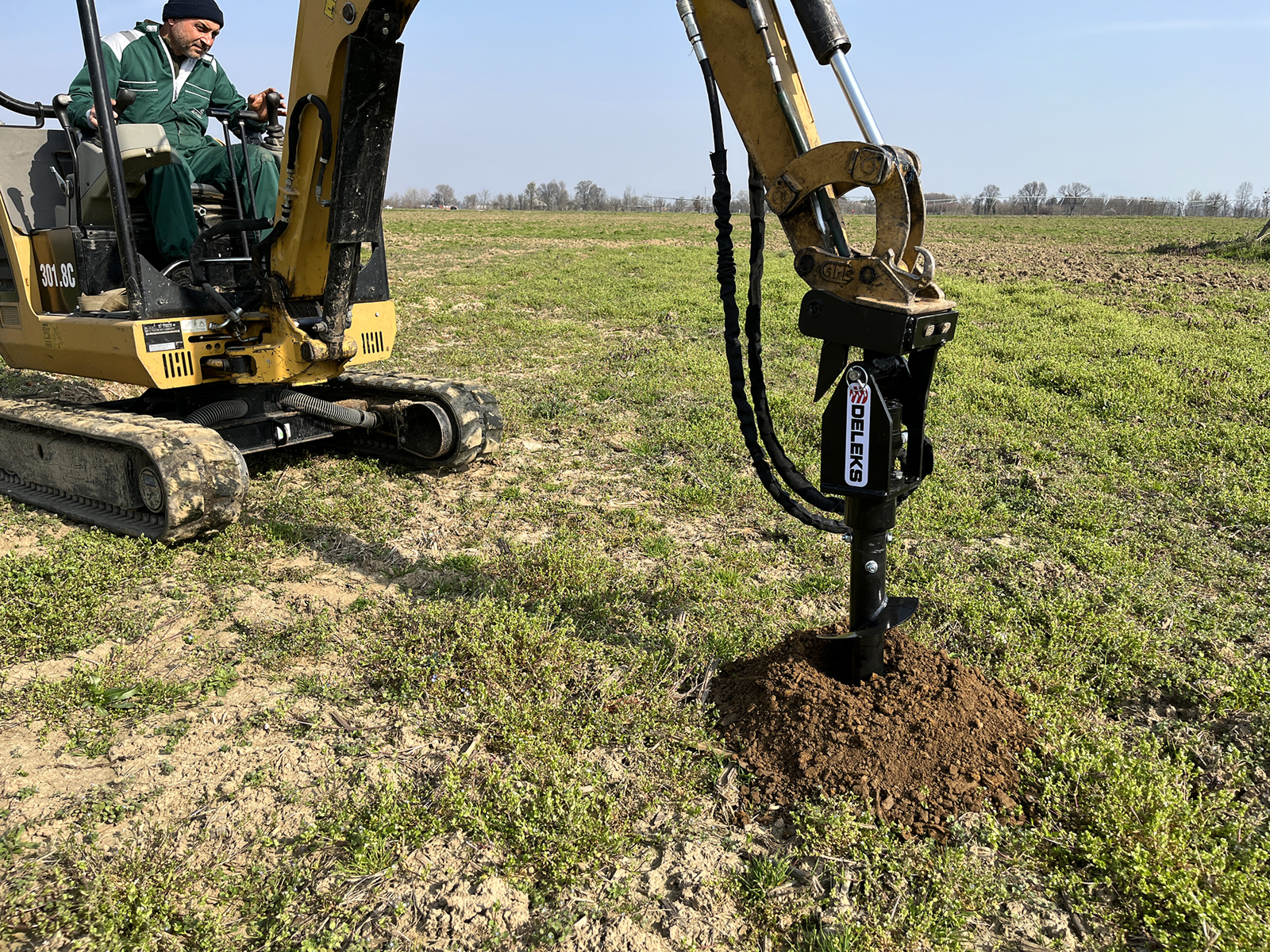

The DELEKS^® GRHD hydraulic earth drill / rotator is suitable on small excavators, wheel loaders, farm loaders or tractors with front loaders.

MAIN APPLICATIONS

• Gardening and landscaping
• Digging plant hole
• Installing posts and masts
• Fence construction
• Road signs
• Building industry
• Forestry, etc…

The earth drill can be connected up quickly to various carrier devices. This makes it suitable for a wide range of applications in the fields of gardening and landscaping, forestry, public works and the construction industry.

Optional augers:

• A3”: Ø 75 mm
• A6”: Ø 150 mm
• A9”: Ø 230 mm
• A12”: Ø 300 mm

TECHNICAL SPECIFICATIONS

• Drill drive: hydraulic via mini excavator, wheel loader, tractor etc. (Compatible with our mini excavator M-6000.
• Available augers: Ø 75, 150, 230, 300 mm

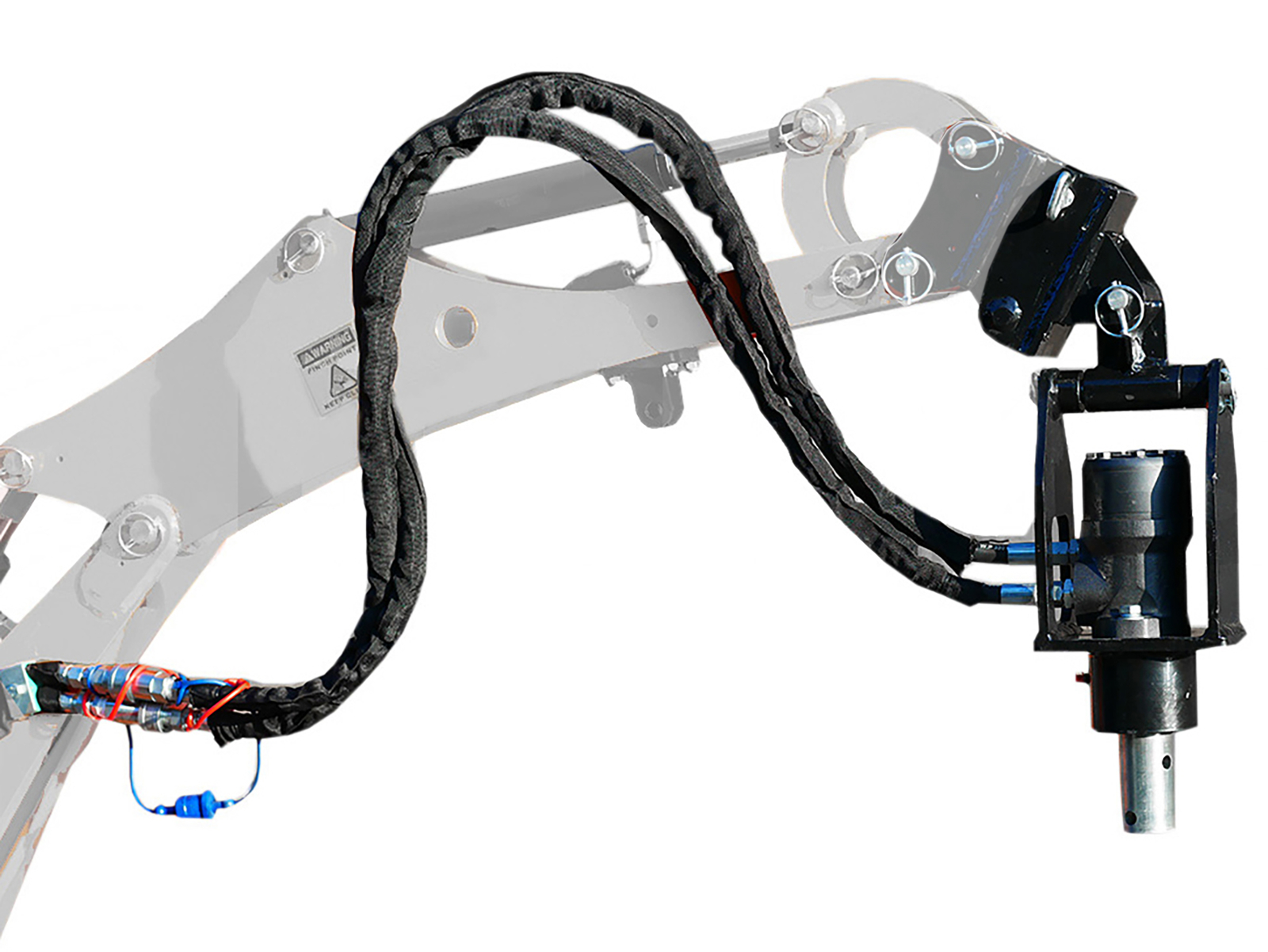

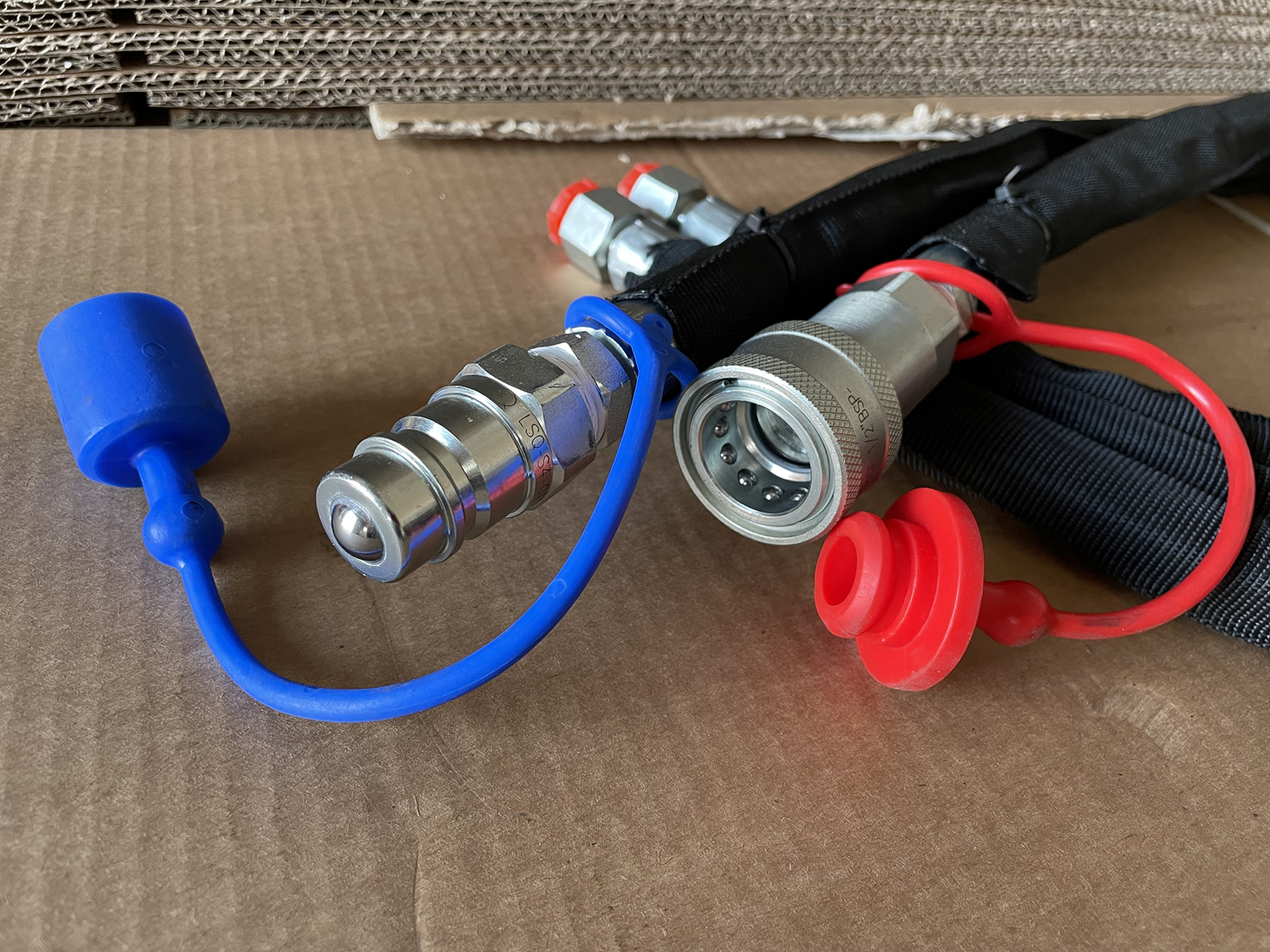

• Incl. 2 hydraulic pipes with fast connections (1/2” male + female)
• Drilling depth: approx. 1.25 m
• Rotation speed: 5-300 rpm
• Torque: 370 Nm
• Output: max. of 10 kW
• Operating pressure: 180 bar
• Oil flow rate: approx. 15-60 l/min
• Weight: 30 kg
