Hydraulic breaker for miniexcavator

Available
Code HAMMER530 - EAN 8057724862362
D
H
M
S
-315,00€ 2.100,00€VAT incl.
1.785,00€VAT incl.
or 3 installments of 595,00 €
Free shipping
Loading...
D
H
M
S
-315,00€ 2.100,00€VAT incl.
1.785,00€VAT incl.
or 3 installments of 595,00 €
Free shipping
View all details.

4.6

1551 reviews

-315,00€ 2.100,00€VAT incl.
1.785,00€VAT incl.
 REQUEST INFORMATION

DETAILS

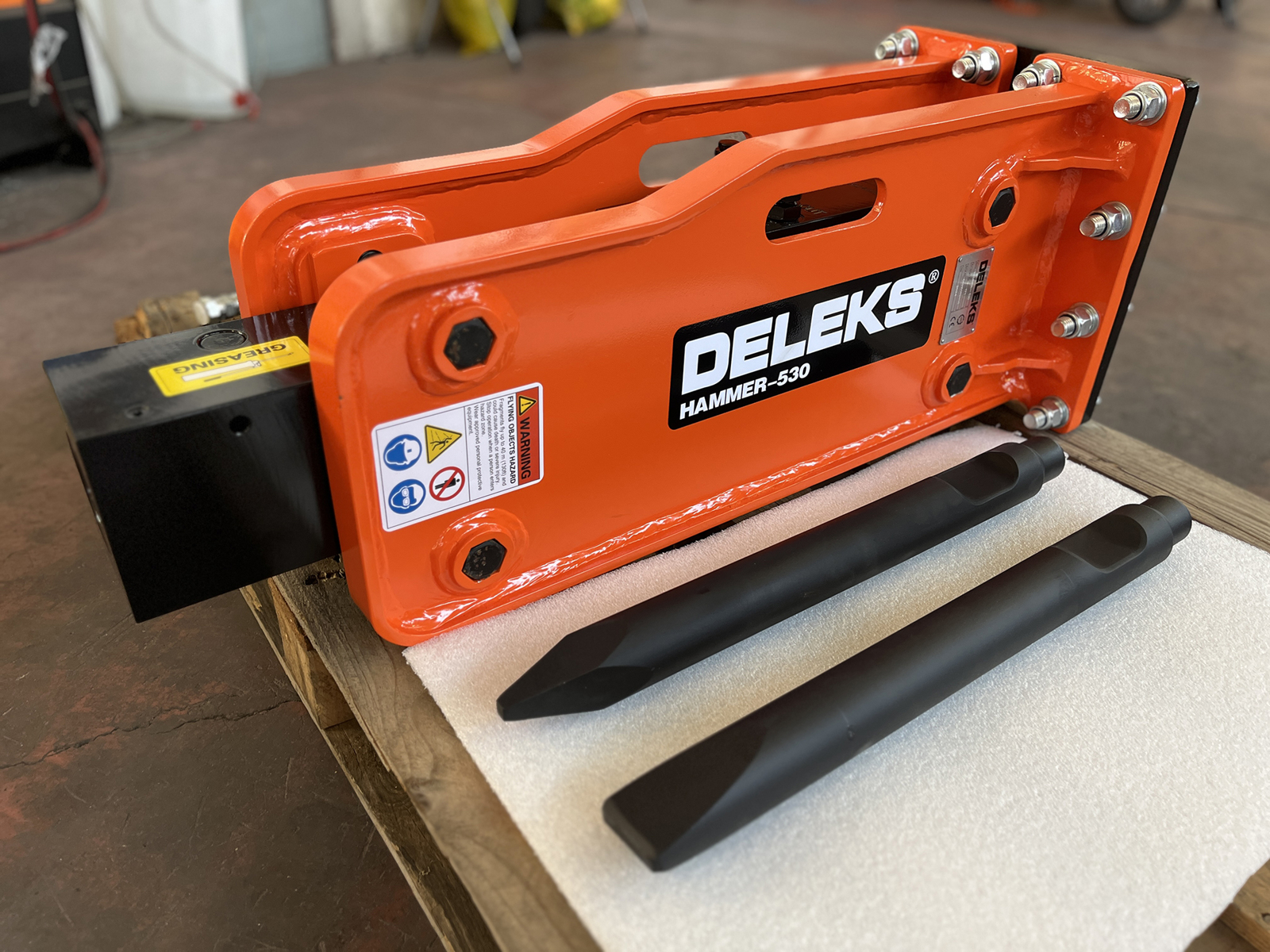

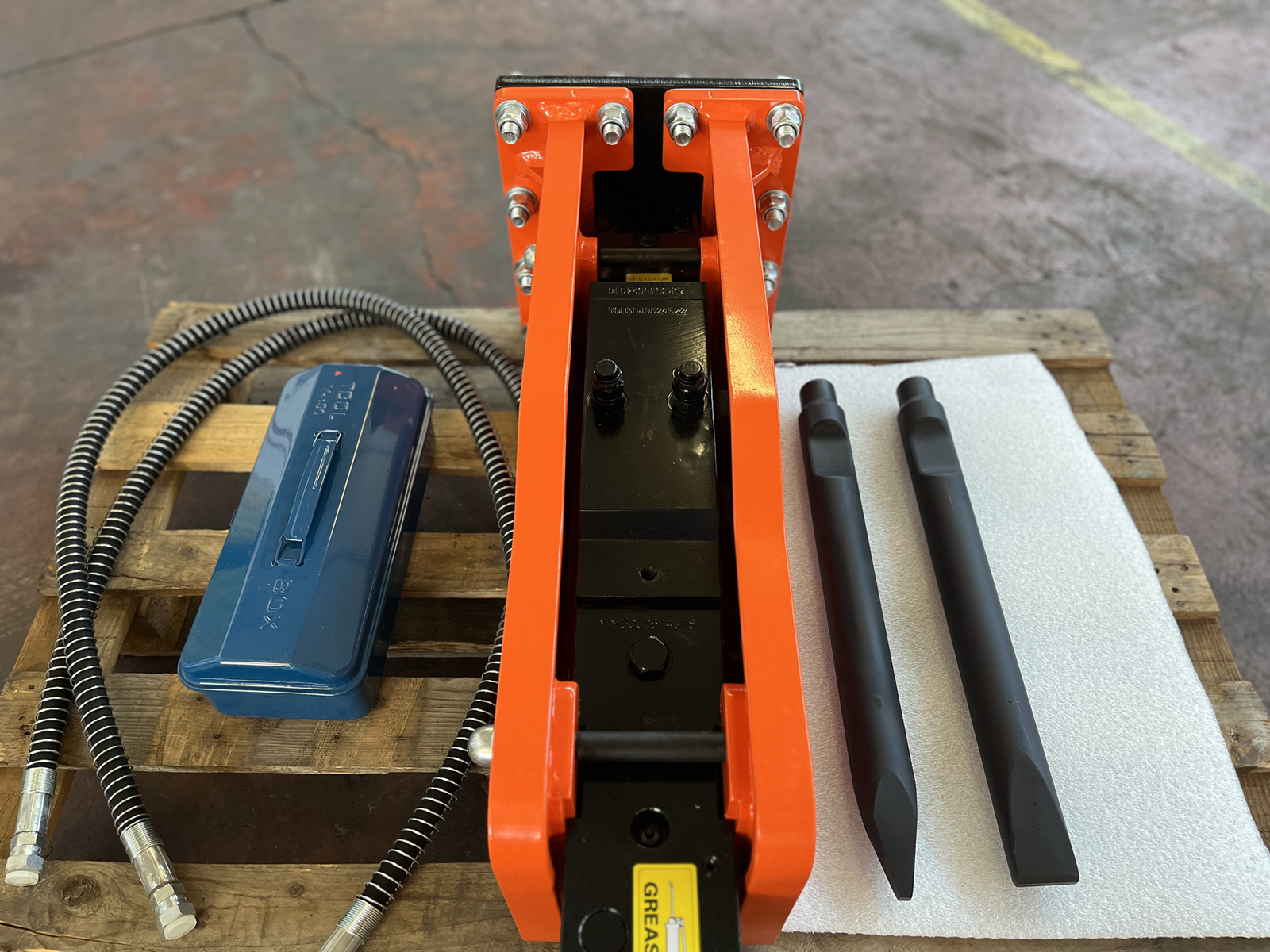

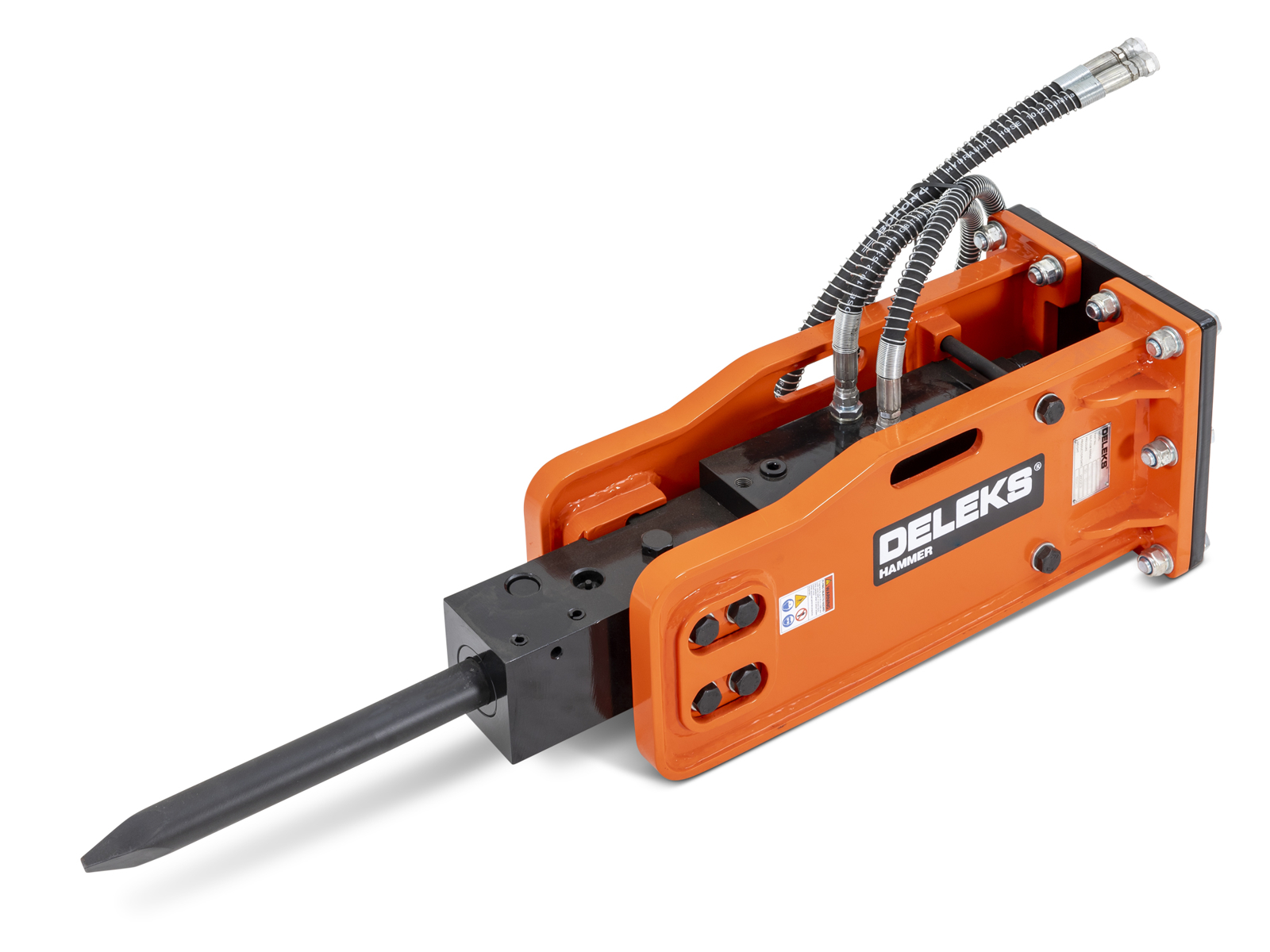

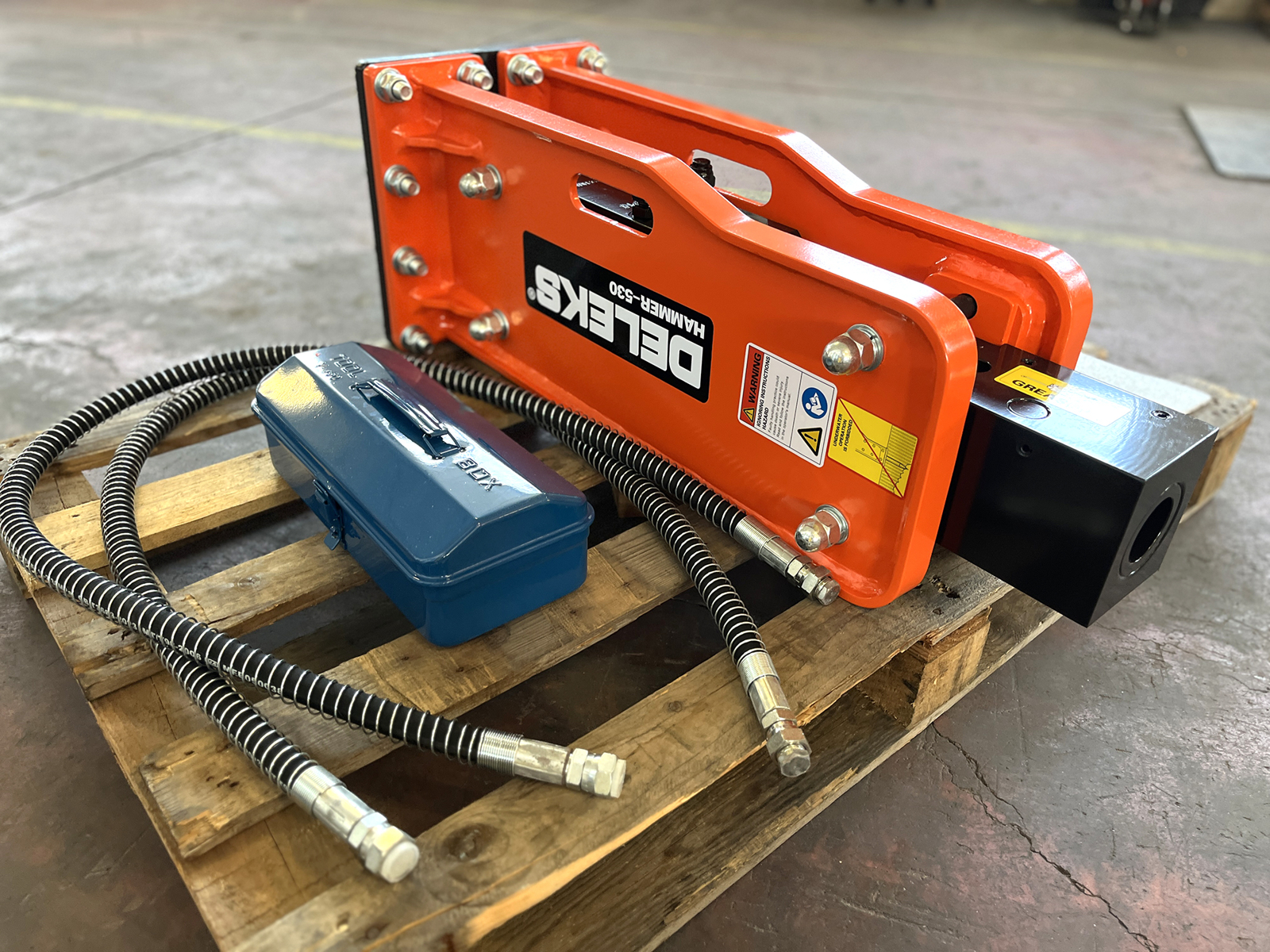

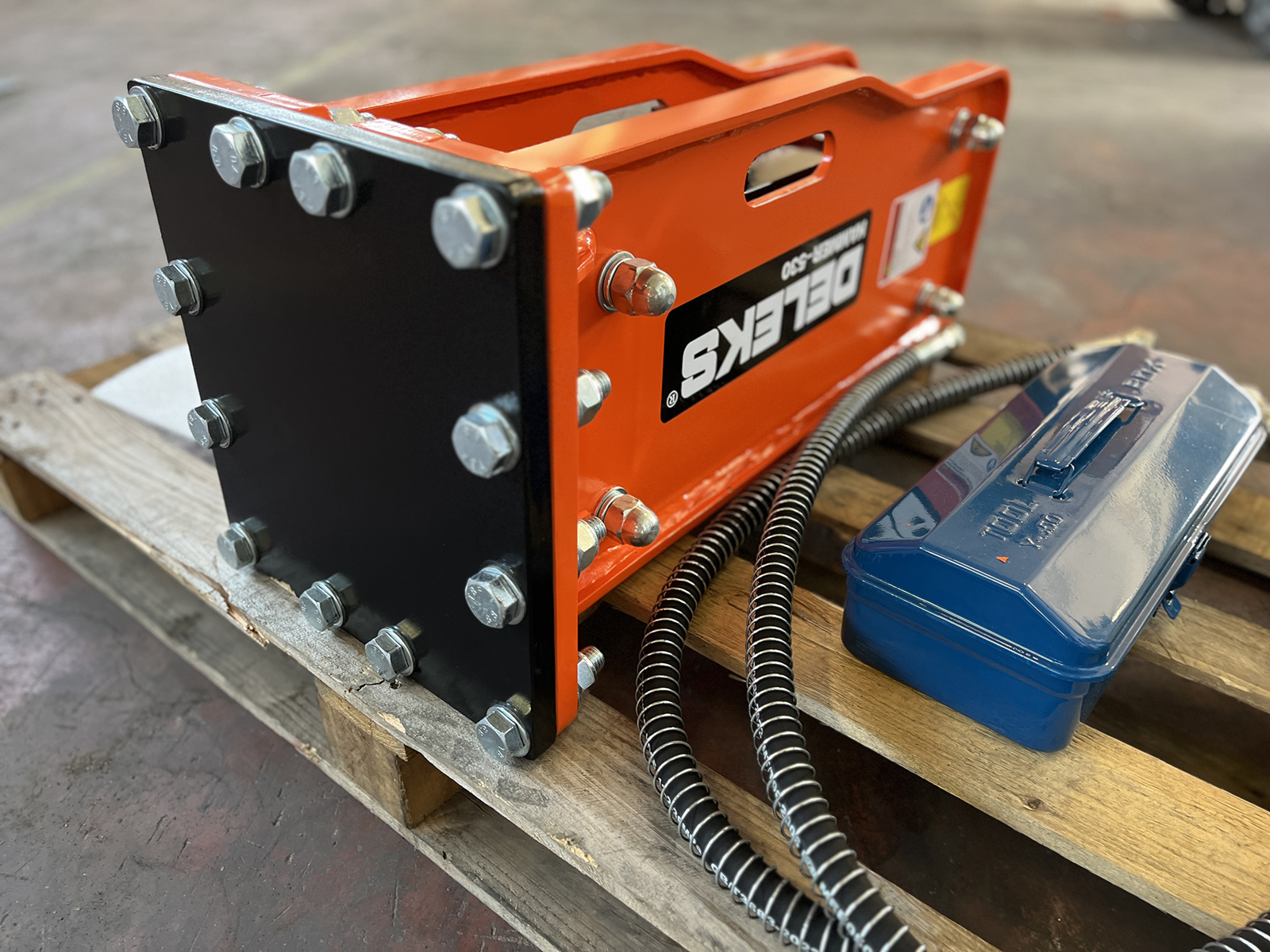

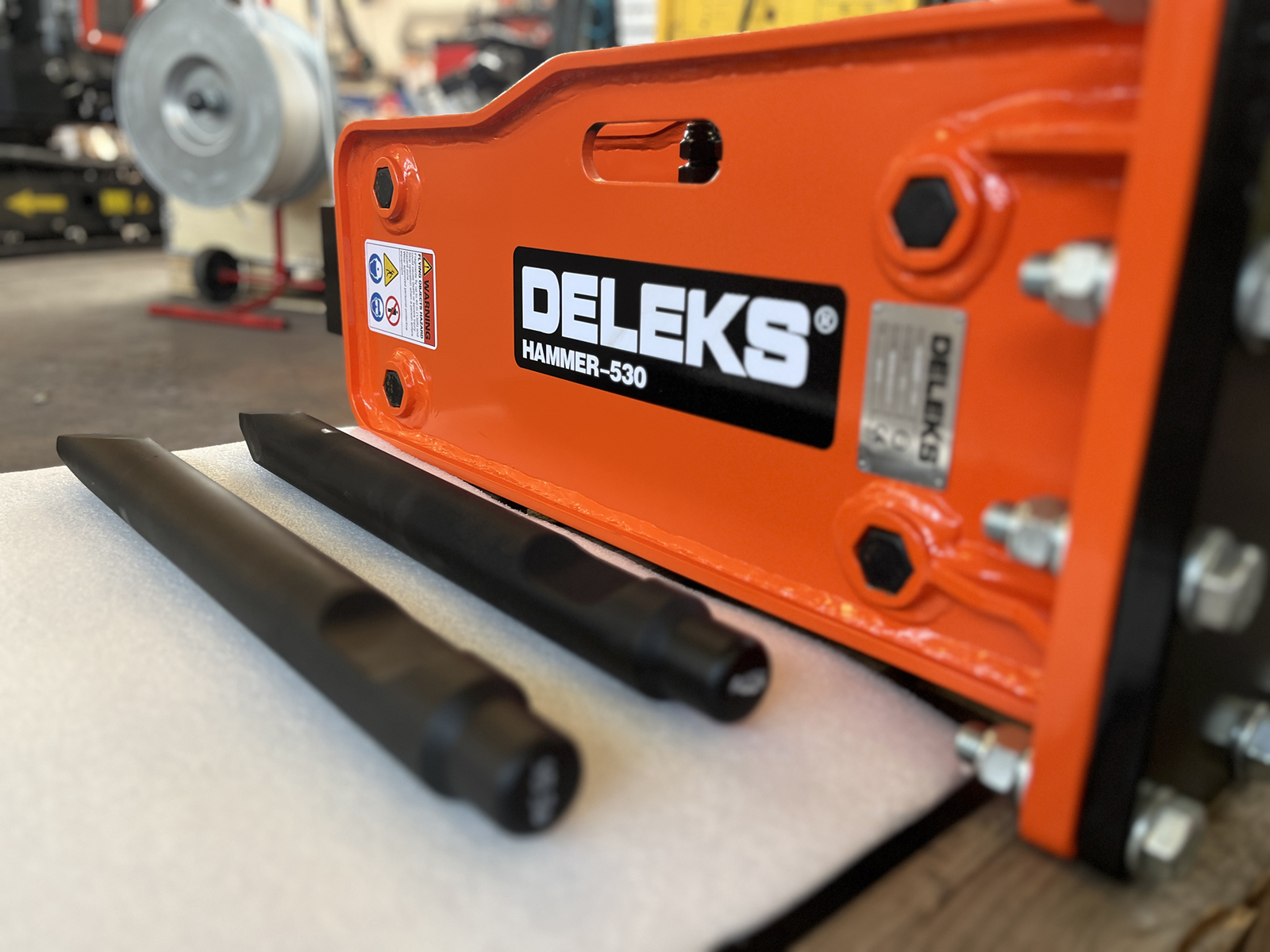

DELEKS® HAMMER-530 hydraulic hammer for miniexcavator.

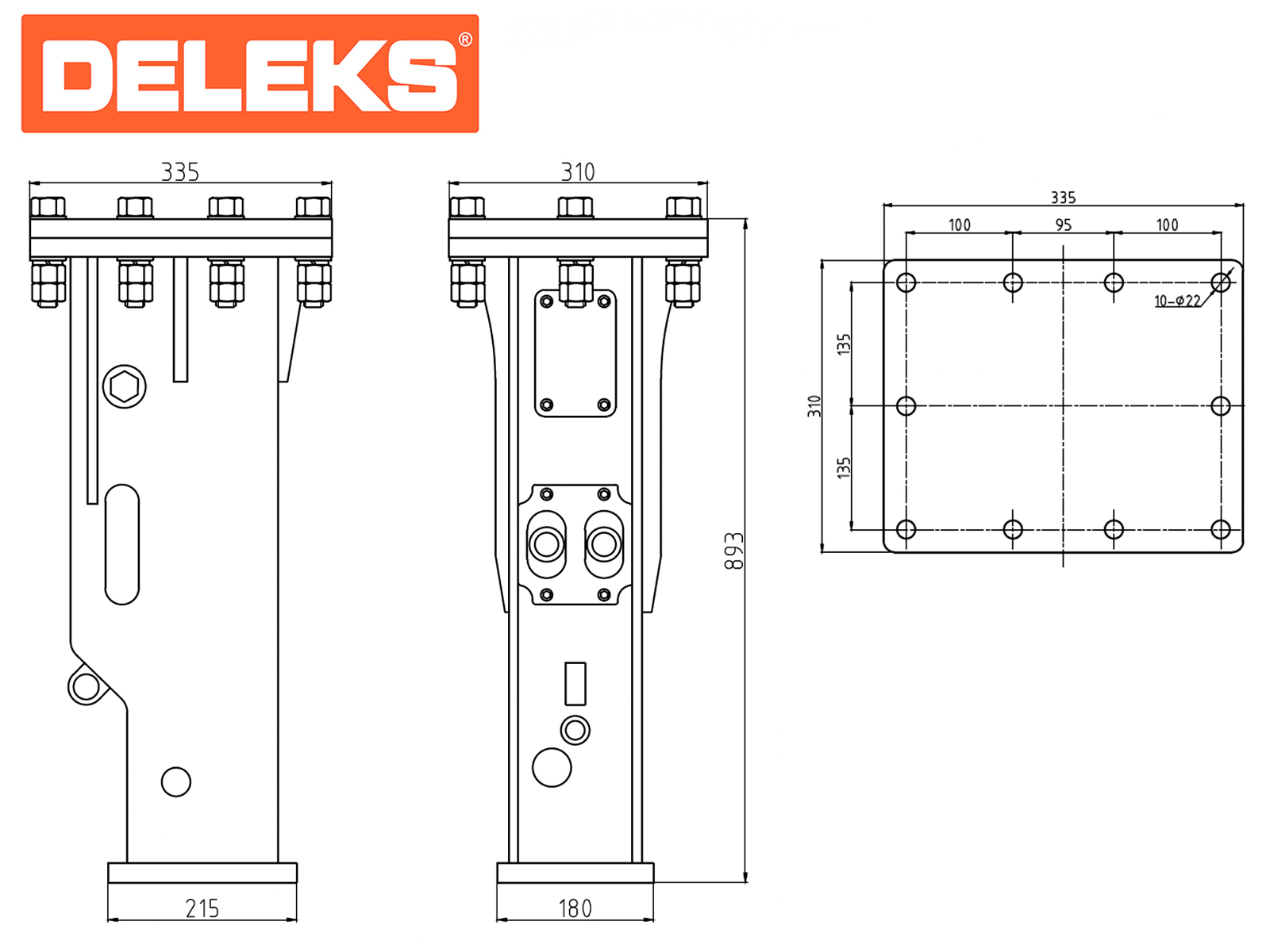

Measures: see pictures.

CHARACTERISTICS

Characteristic Units metric Units US
Weight 180 kg 400 lb
Working pressure 90 - 120 bar 90 - 120 bar
Min./Max. Flow 25~45 l/min 25~45 l/min
Compact Excavators Range 2.5 - 5.0 ton 2.5 - 5.0 ton
Impact rate 500 - 1000 bpm 500 - 1000 bpm
Impact energy class 320 Joule 320 Joule
Chisel diameter 53.0 mm 2.10 in
Hoses diameter 1/2" 1/2"
Noise level 117 dB 117 dB
Gross shipping weight 196 kg 432 lb
Package volume 0.17 m3 6.0 cu ft
Packing sizes 800*350*600 mm 2.62*1.15*1.97 ft
DETAILS
CHARACTERISTICS

DETAILS

CLOSE

DELEKS® HAMMER-530 hydraulic hammer for miniexcavator.

Measures: see pictures.

CHARACTERISTICS

CLOSE
Characteristic Units metric Units US
Weight 180 kg 400 lb
Working pressure 90 - 120 bar 90 - 120 bar
Min./Max. Flow 25~45 l/min 25~45 l/min
Compact Excavators Range 2.5 - 5.0 ton 2.5 - 5.0 ton
Impact rate 500 - 1000 bpm 500 - 1000 bpm
Impact energy class 320 Joule 320 Joule
Chisel diameter 53.0 mm 2.10 in
Hoses diameter 1/2" 1/2"
Noise level 117 dB 117 dB
Gross shipping weight 196 kg 432 lb
Package volume 0.17 m3 6.0 cu ft
Packing sizes 800*350*600 mm 2.62*1.15*1.97 ft

Optional

Post Driver cup chisel for Hydraulic breaker 530
Optional special price -28,90€ 289,00€VAT incl. 260,10€VAT incl.
Available

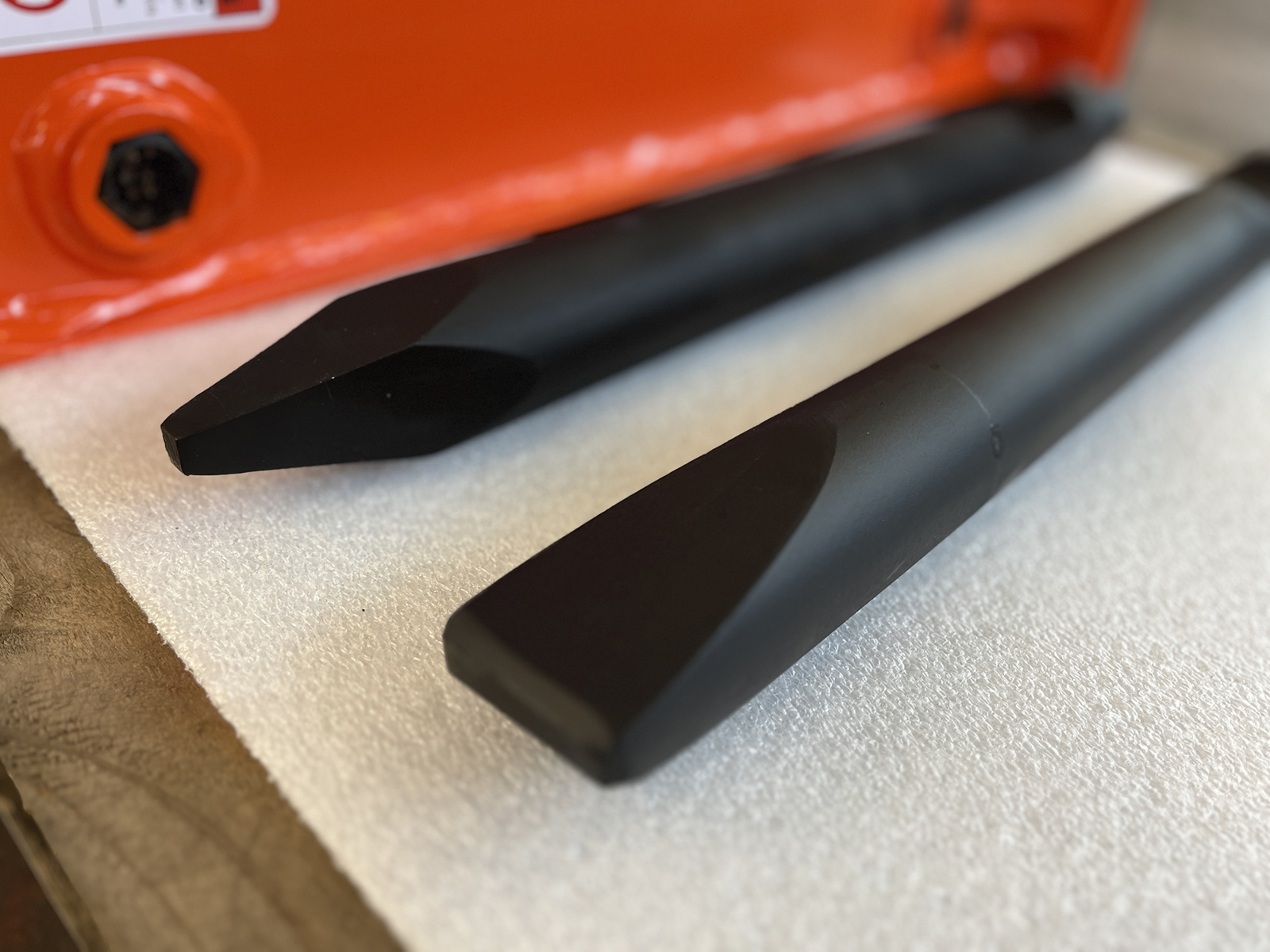

Blunt chisel for Hydraulic breaker 530
item on offer -46,00€ 154,00€VAT incl. 108,00€VAT incl.
Available


Moil chisel for Hydraulic breaker 530
Optional special price -15,40€ 154,00€VAT incl. 138,60€VAT incl.
Available


Conical chisel for Hydraulic breaker 530
Optional special price -15,40€ 154,00€VAT incl. 138,60€VAT incl.
Not available  Notify me


Vertical wedge for Hydraulic breaker 530
item on offer -23,00€ 154,00€VAT incl. 131,00€VAT incl.
Available


Horizontal wedge for Hydraulic breaker 530
item on offer -46,00€ 154,00€VAT incl. 108,00€VAT incl.
Available


Post Driver cup chisel for Hydraulic breaker 530
Optional special price -28,90€ 289,00€VAT incl. 260,10€VAT incl.
Available


Blunt chisel for Hydraulic breaker 530
item on offer -46,00€ 154,00€VAT incl. 108,00€VAT incl.
Available


Moil chisel for Hydraulic breaker 530
Optional special price -15,40€ 154,00€VAT incl. 138,60€VAT incl.
Available


Conical chisel for Hydraulic breaker 530
Optional special price -15,40€ 154,00€VAT incl. 138,60€VAT incl.
Not available  Notify me


Vertical wedge for Hydraulic breaker 530
item on offer -23,00€ 154,00€VAT incl. 131,00€VAT incl.
Available


Horizontal wedge for Hydraulic breaker 530
item on offer -46,00€ 154,00€VAT incl. 108,00€VAT incl.
Available
