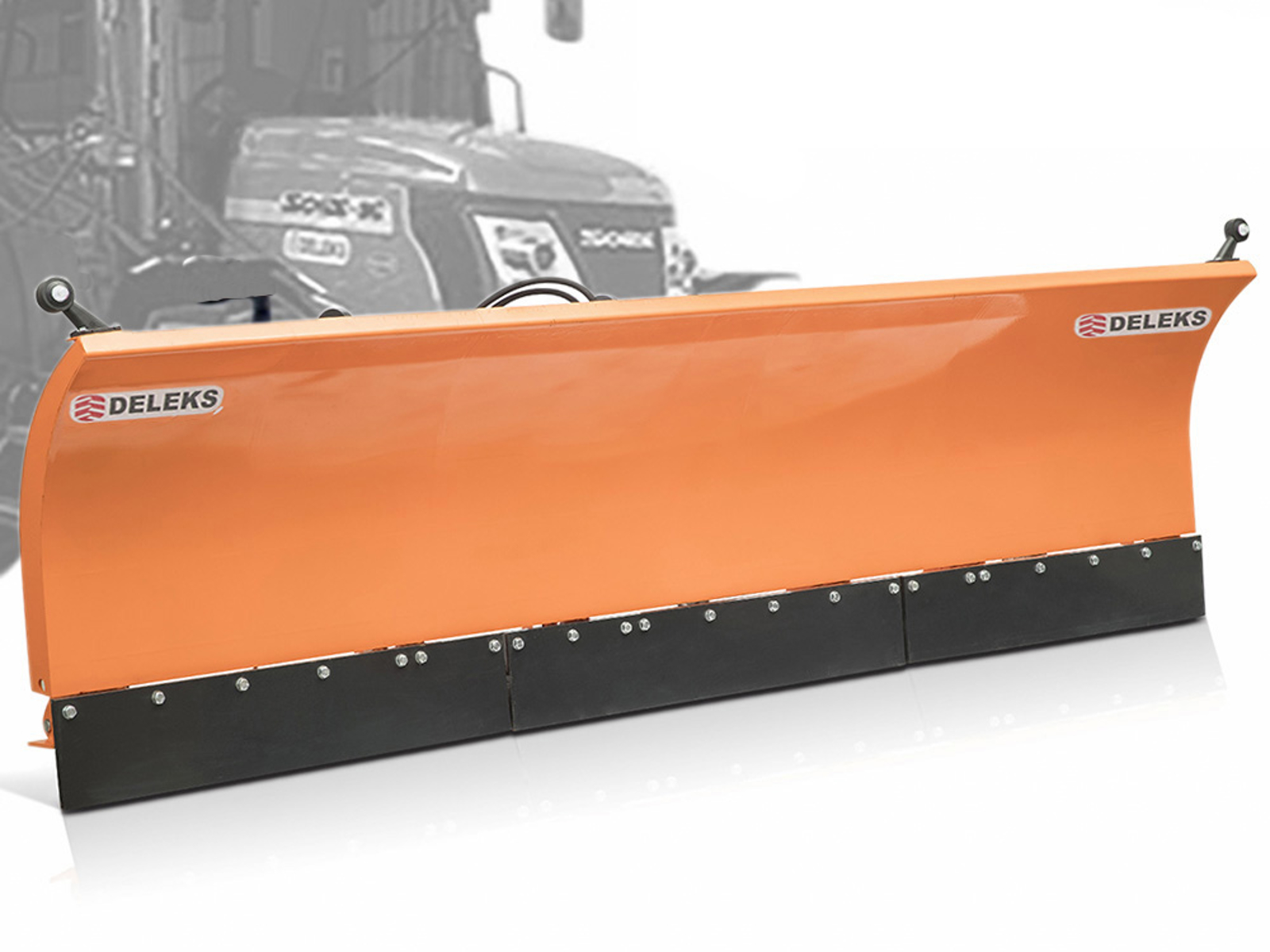

Frontal snow plow with mounting plate - DELEKS®- 260cm / 490kg - Snowblade for tractors John Deere, New Holland, Case...
SSH-04-2.6-A Heavy-duty snowplow with universal plate, with hydraulic lifting and angling. It attaches to the tractor via a quick coupling robust plate. 4 front hydraulic pipes from 1.5m. On request we supply four hydraulic pipes to add an additional 4,0m of length. Our quick attachment system means pipes can be connected to the four hydraulic outlets of the tractor in seconds. The blade itself is sharp, replaceable steel (on request we customize the blade with Rubber), Couple marker lights.
Compatible with all tractors from 90hp to 130hp, e.g. John Deere, Ford, New Holland, Massey Ferguson, Lamborghini ... or 4x4's e.g. Bremach etc. Conforms to the EC Machinery Directive. 2 Year Warranty.
BENEFITS AND FEATURES
Shockproof system with 6 shock absorbing springs to operate in maximum safety.
3 Hydraulic cylinders: left / right / up / down, Made in Italy.
3 independent steel or rubber scraping elements.
Support legs with crank, make it extremely easy to assemble and disassemble at the end of the season.
Support wheels allow the blade height to be adjusted to maintain a constant plowing depth.
The plate fitting is removable and replaceable with a 3-point hitch.
The SSH-04-2.6-A doubles as a grader blade and can be used for dirt work, road maintenance, ditching, landscaping, snow removal, cleaning livestock pens, gravel, sand year round.
Perfect adherence to the road surface and homologated for road use.
|Caracteristic||Units metric||Units US|
|Weight||490.0 kg||1080.0 lb|
|Overall height||880.0 mm||2.90 ft|
|Tractor Power Range||90 - 130 Hp||90 - 130 Hp|
|Overall Length||900.0 mm||2.95 ft|
|Min./Max. Relief Pressure||110 - 150 bar||110 - 150 bar|
|Min./Max. Flow||18 - 22 l/min||18 - 22 l/min|
|Interface||Universal Plate||Universal Plate|
|Universal plate sizes||880.0*540.0mm||34.65*21.26 in|
|Float||+/- 4°||+/- 4°|
|Blade Height||880.0 mm||2.90 ft|
|Side edge thickness||7.0 mm||0.28 in|
|Distance between plate and base||450.0 mm||17.72 in|
|Cutting Edge||Steel or Rubber||Steel or Rubber|
|Cutting Edge Height||200.0mm / 250.0mm||7.87 in / 9.85 in|
|Cutting Edge Thickness||20.0mm / 55.0mm||0.79 in / 2.16 in|
|Trip Edge Quantity||3||3|
|Distance betweens the bolts of the Trip Edge||175.0 mm||6.90 in|
|Removable Skid Shoes||Wheels||Wheels|
|Working width (angled)||2400.0 mm||7.87 ft|
|Hydraulic Hoses||4 x 1500.0 mm / connections 1.2" AGRI, WP 400 bar||4 x 4.92 ft / connections 1.2" AGRI, WP 400 bar|
|Overall width||2600.0 mm||8.53 ft|
|Main frame thickness||4.0 mm||0.15 in|
|Hydraulic cylinder/s ø||60.0 / 35.0 + 75.0 / 40.0 mm||2.36 / 1.38 + 2.95 / 1.57 in|
|Packing sizes||2200*1000*1000mm||7.22*3.28*3.28 ft|
