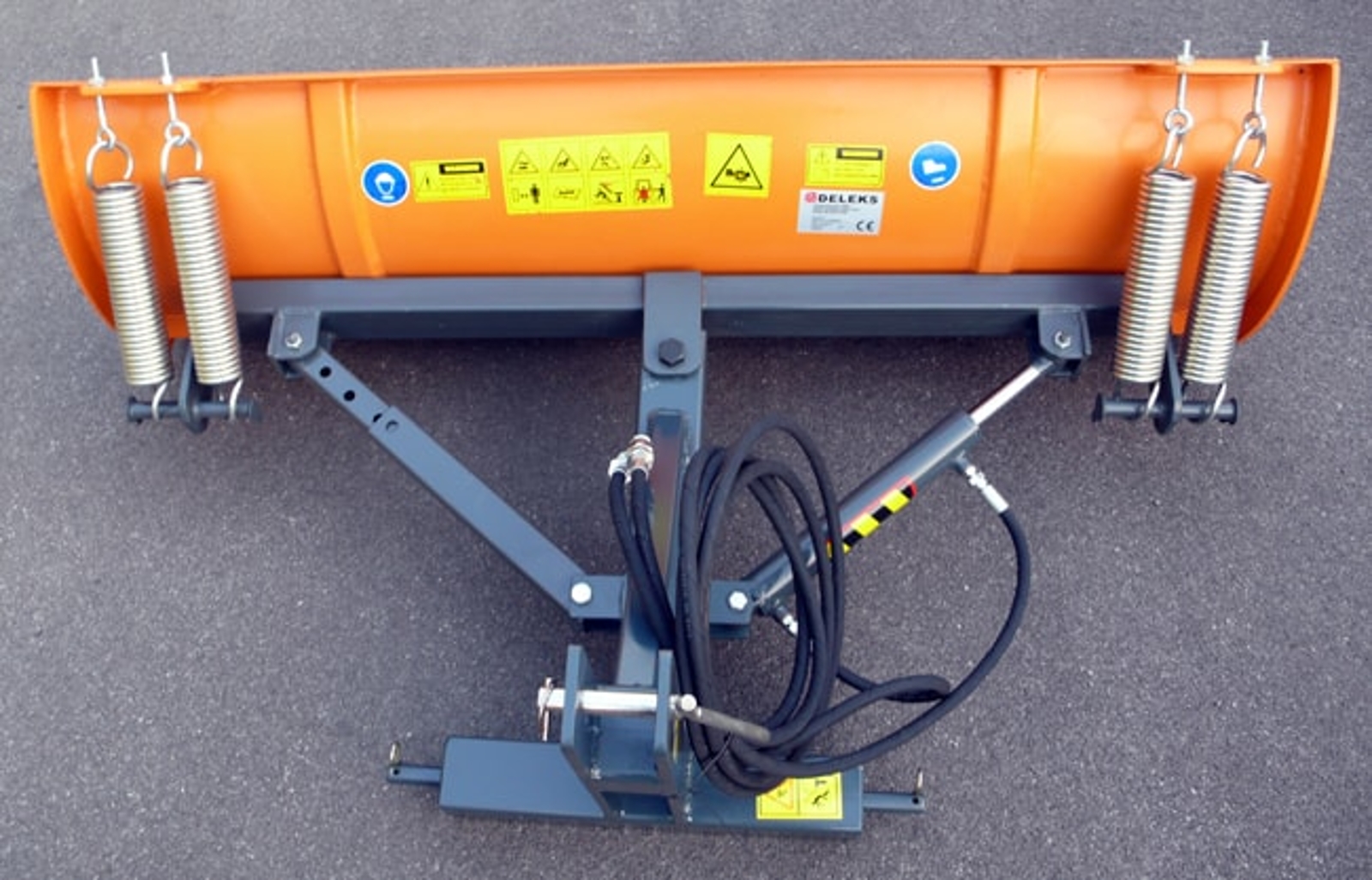

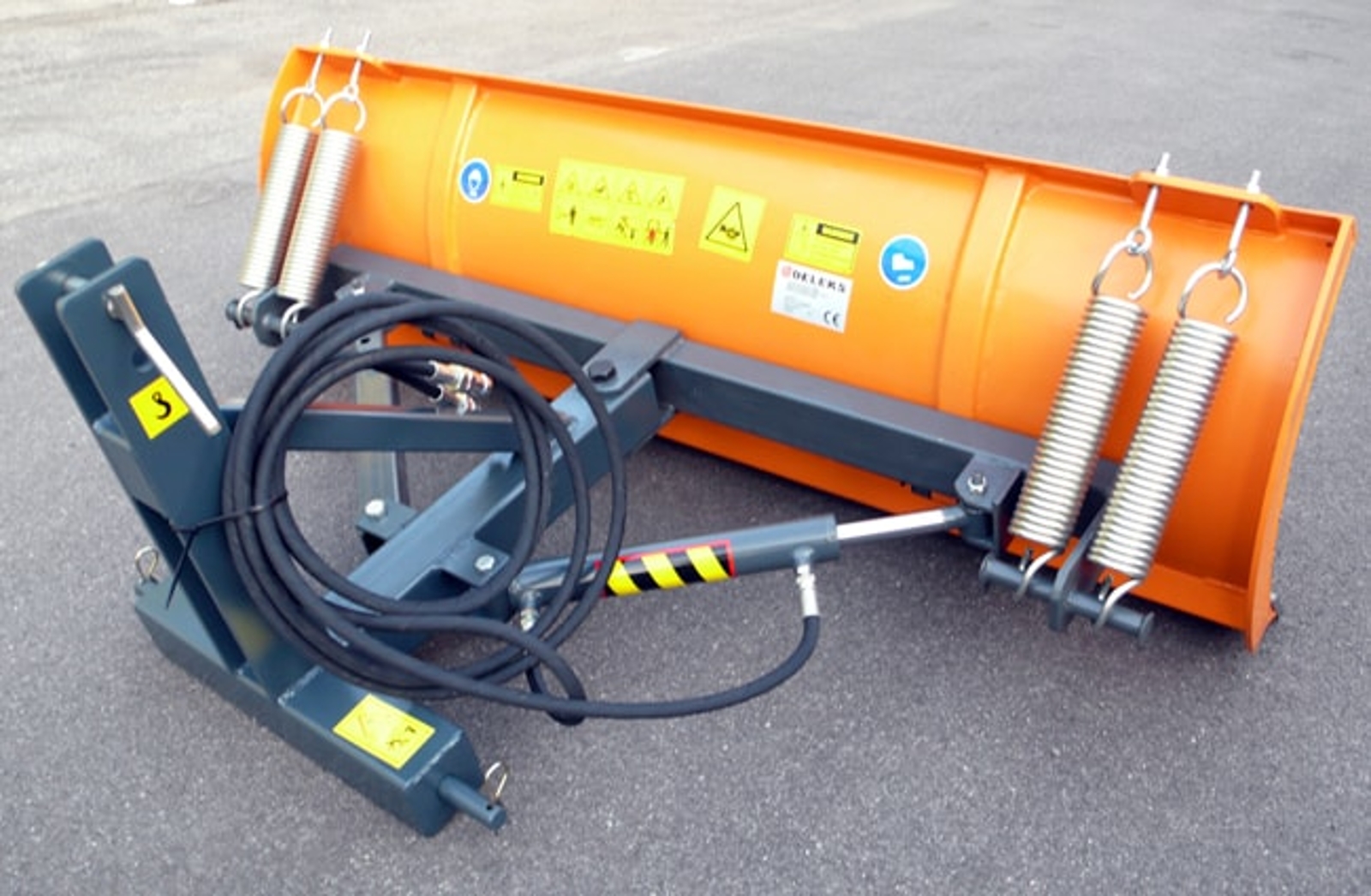

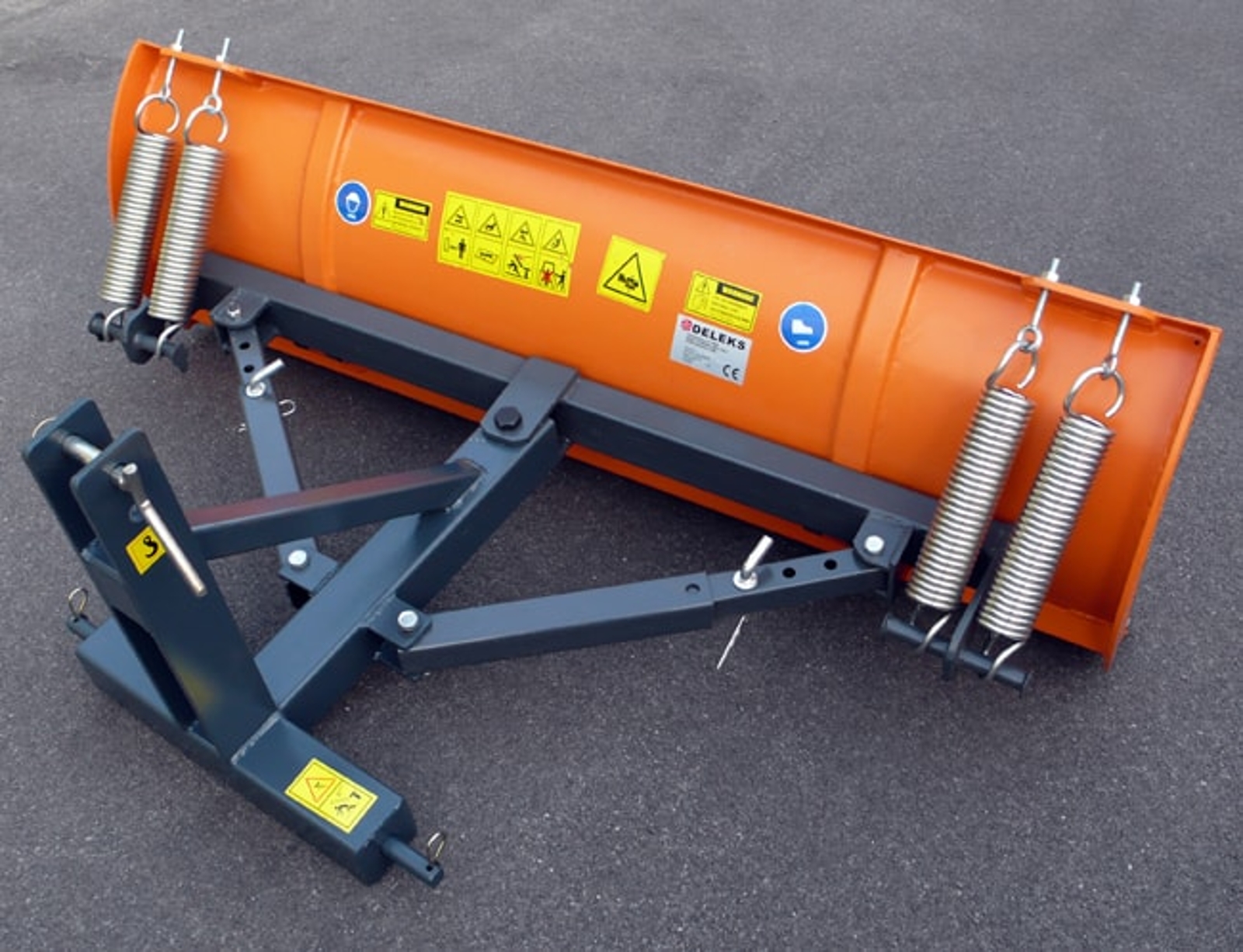

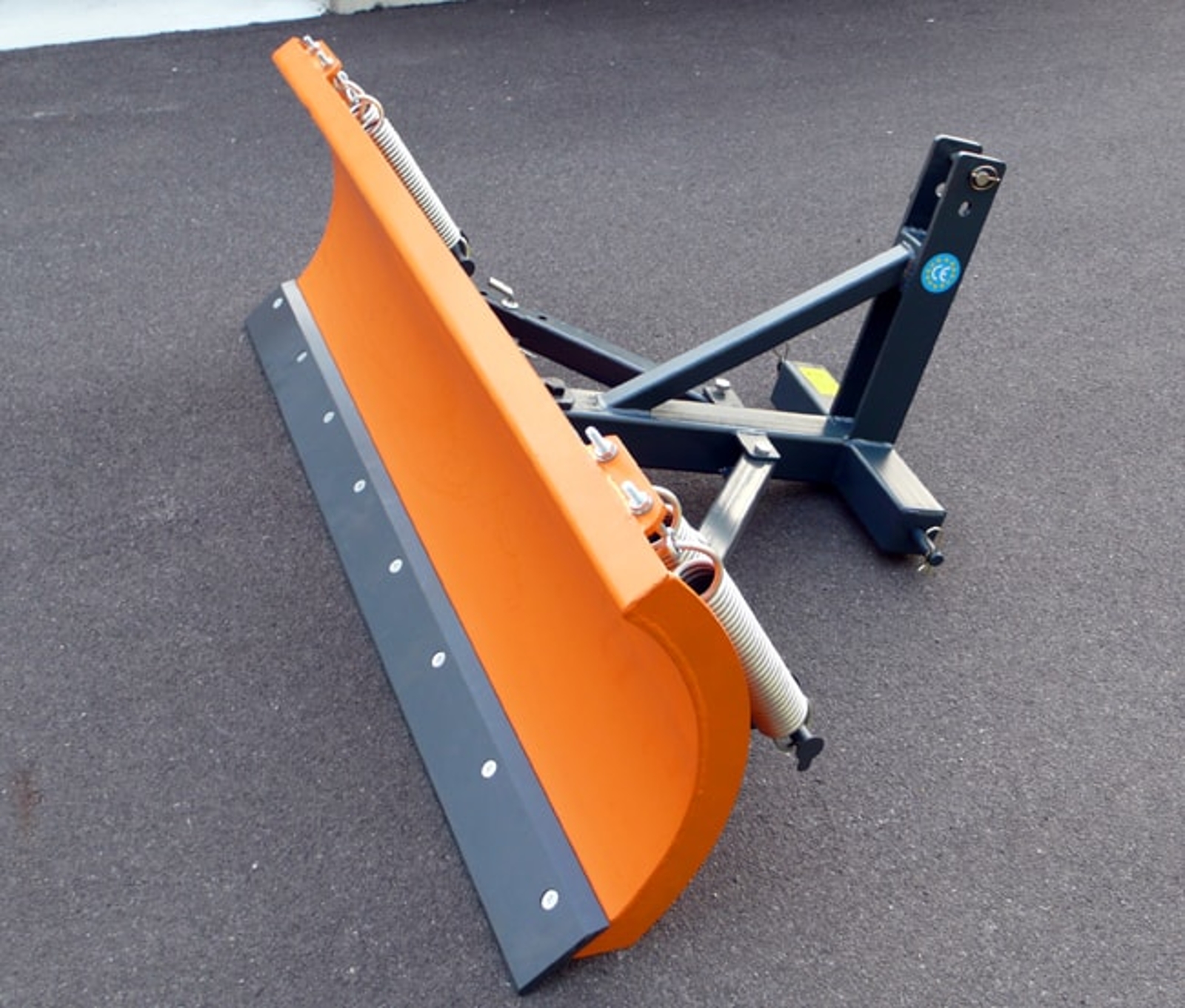

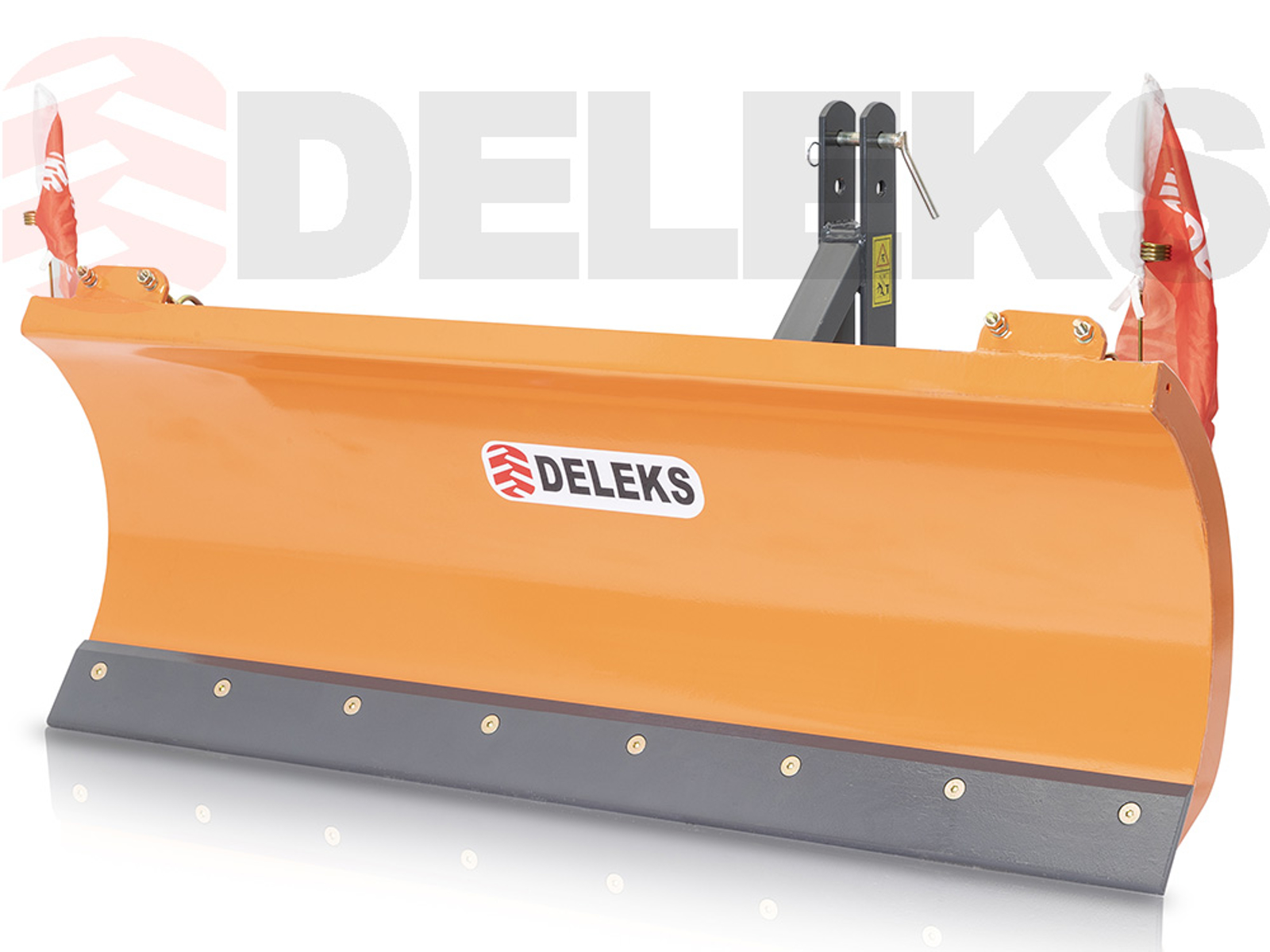

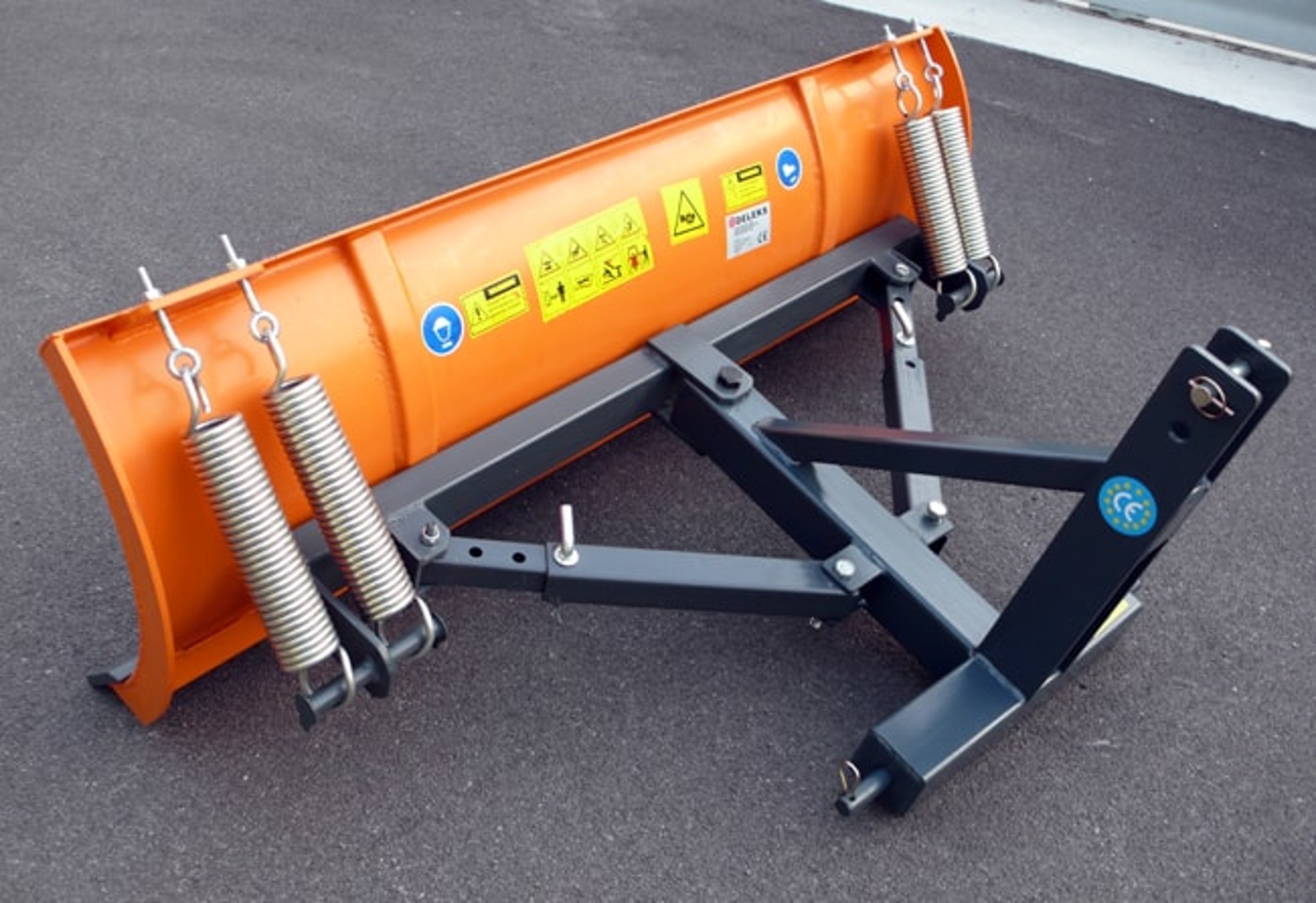

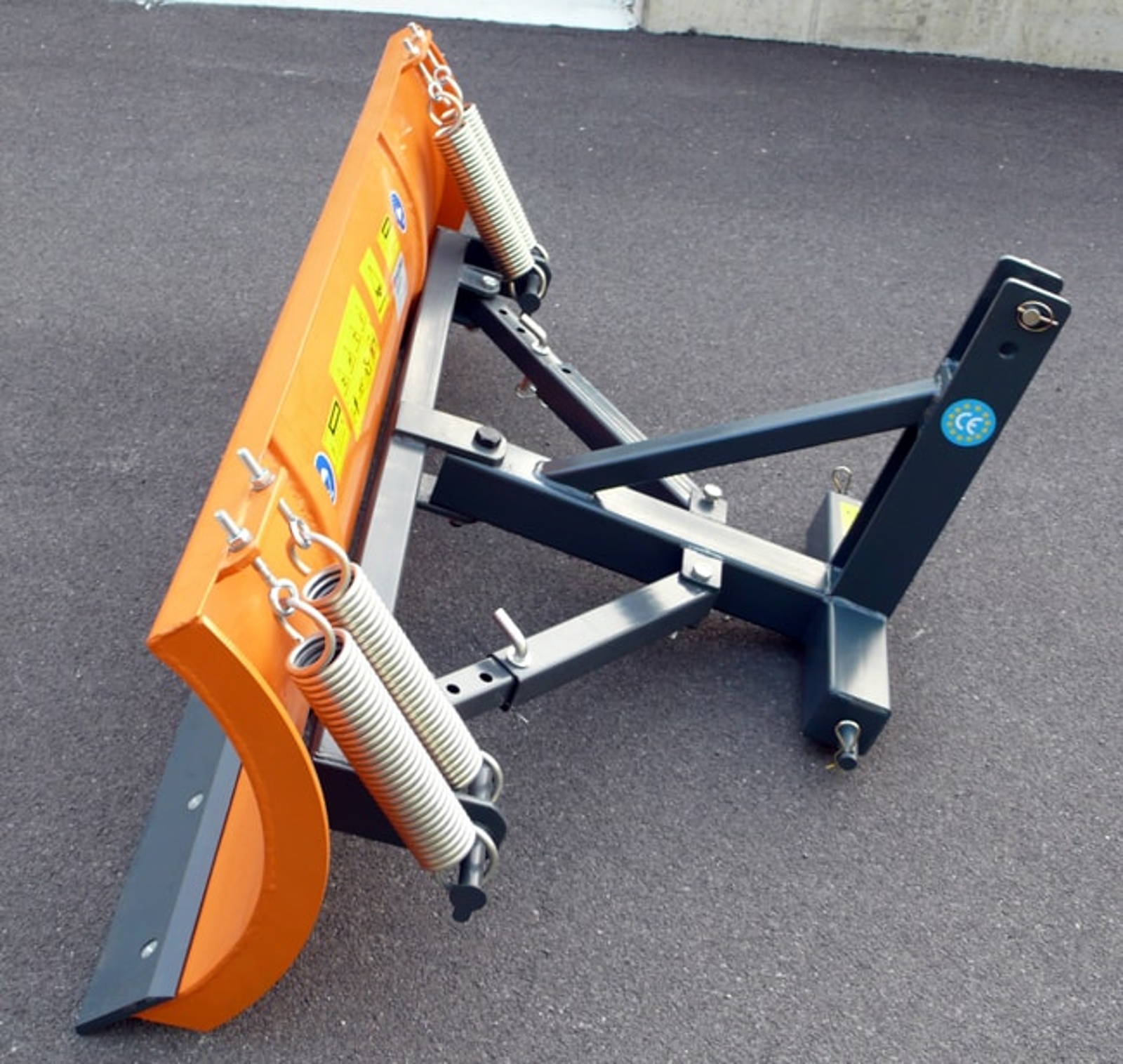

Three point linkage snowplow, DELEKS® snowblade 210cm for front and rear use on tractors Kubota, Iseki, Yanmar.
LNS-C snowplows have been designed for remove snow on roads, pavements, driveways, carparks, fields etc. Their sturdy structure means that they can not only handle heavy snow, but also they can be used as a grader blade during the warmer months.
They attach to tractors using Cat 1, three point linkage and have been designed to be used with 30 to 50hp tractors e.g. Kubota BX-B, Iseki, Yanmar, Ford, McCormick etc.
The tractor does not require a hydraulic system. Instead, it uses two hydraulic jacks for hydraulic piston angling (optional). Conforms to the EC Machinery Directive. 2 years guarantee.
BENEFITS AND FEATURES

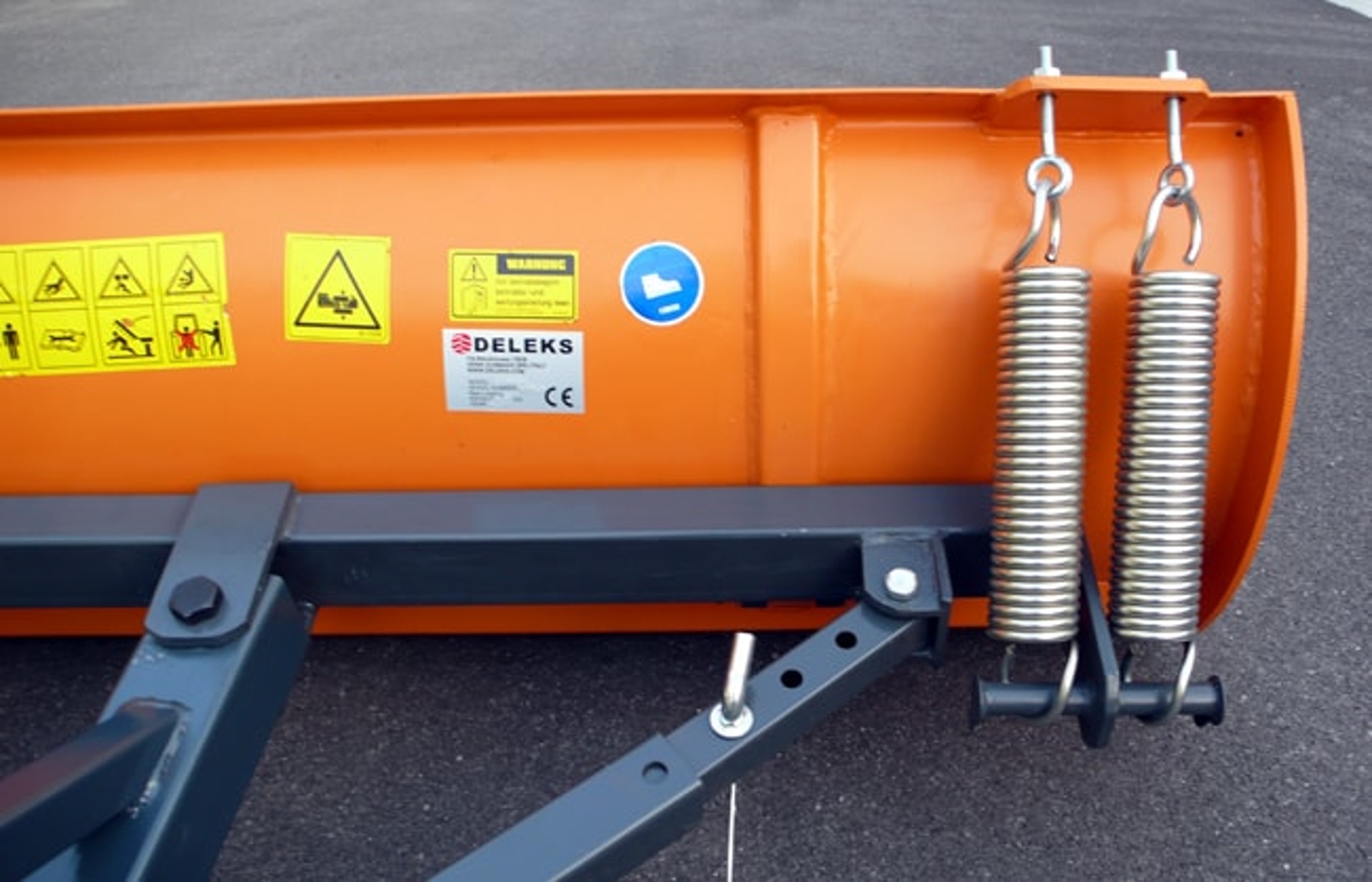

Anti-shock system with 6 shock absorbing springs to operate in maximum safety.
Extreme ease of assembly and use.
Sharp replaceable steel. On request also available with Rubber blade.
The 3-point hitch is removable and replaceable with plate fitting or Mini skid steer loaders.
Homologated for road use.
|Characteristic||Units metric||Units US|
|Weight||150.0 kg||330.0 lb|
|Overall height||880.0 mm||2.88 ft|
|Tractor Power Range||30 - 50 Hp||30 - 50 Hp|
|Overall Length||620.0 mm||2.03 ft|
|Spacing between the 2 lower points||710.0-740.0 mm||2.33 - 2.42 in|
|Distance between the 2 lower points and ground||11.81 in||300.0 mm|
|Min./Max. Relief Pressure||110 - 150 bar||110 - 150 bar|
|Min./Max. Flow||18 - 22 l/min||18 - 22 l/min|
|Interface||3 Point linkage cat. 1 (19.0 - 22.0 mm)||3 Point linkage cat. 1 (19.0 - 22.0 mm)|
|Float||+/- 2°||+/- 2°|
|Blade Height||525.0 mm||1.72 ft|
|Side edge thickness||8.0 mm||0.31 in|
|Cutting Edge||Steel or Rubber||Steel or Rubber|
|Cutting Edge Height||120.0 mm||4.72 in|
|Cutting Edge Thickness||14.0 mm||0.55 in|
|Trip Edge Quantity||1||1|
|Distance betweens the bolts of the Trip Edge||200.0 mm||7.87 in|
|Removable Skid Shoes||x||x|
|Working width (angled)||1890.0 mm||6.20 ft|
|Hydraulic Hoses||(Optional) 2 x 1500.0 mm / connections 1.2"||(Optional) 2 x 1500.0 mm / connections 1.2"|
|Overall width||2116.0 mm||6.95 ft|
|Main frame thickness||4.0 mm||0.15 in|
|Hydraulic cylinder/s ø||(Optional) 50.0 / 25.0 mm||(optional) 1.96 / 1.0 in|
|Packing sizes||2116.0*800.0*800.0 mm||6.95*2.62*2.62 ft|
