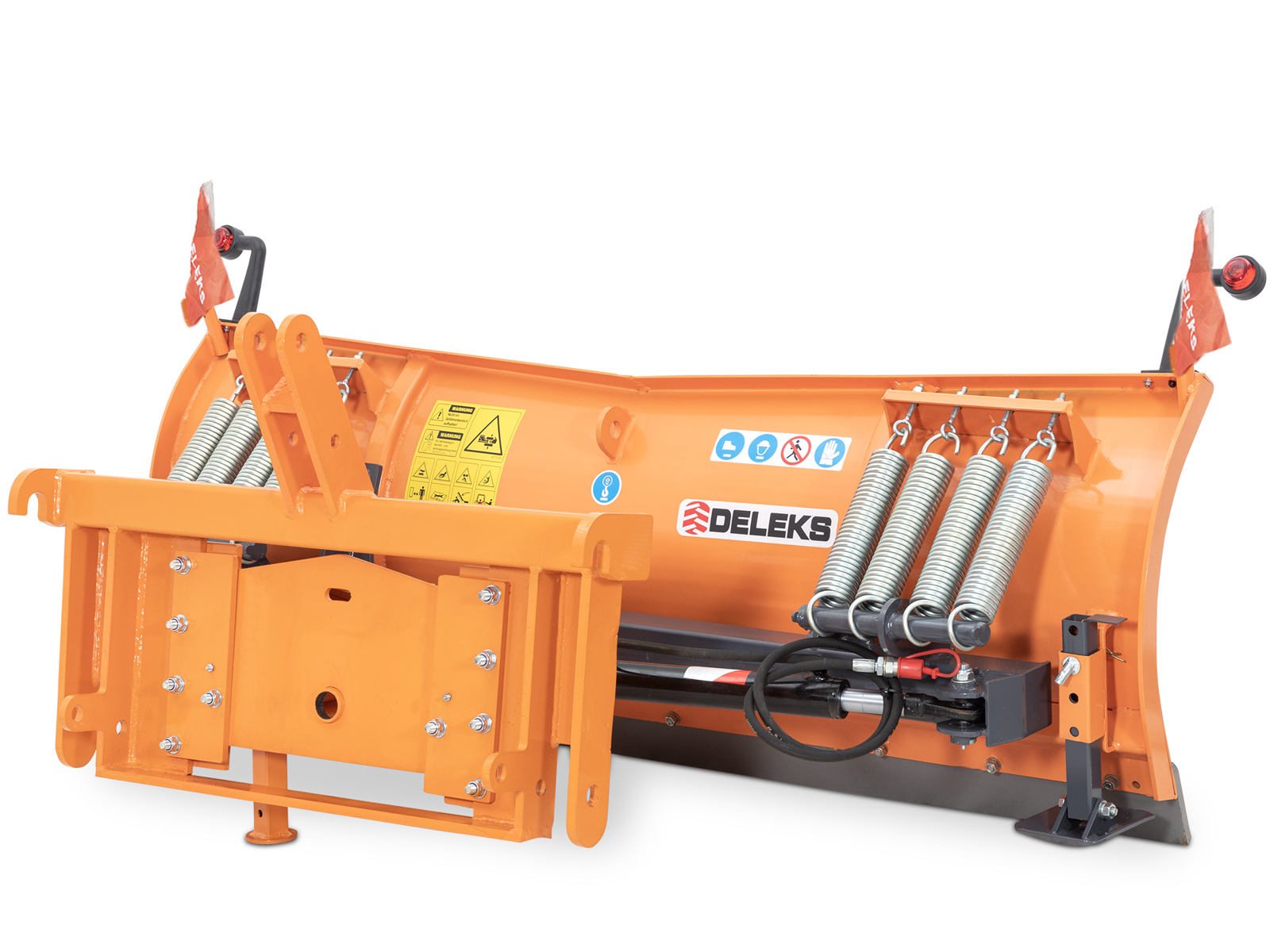

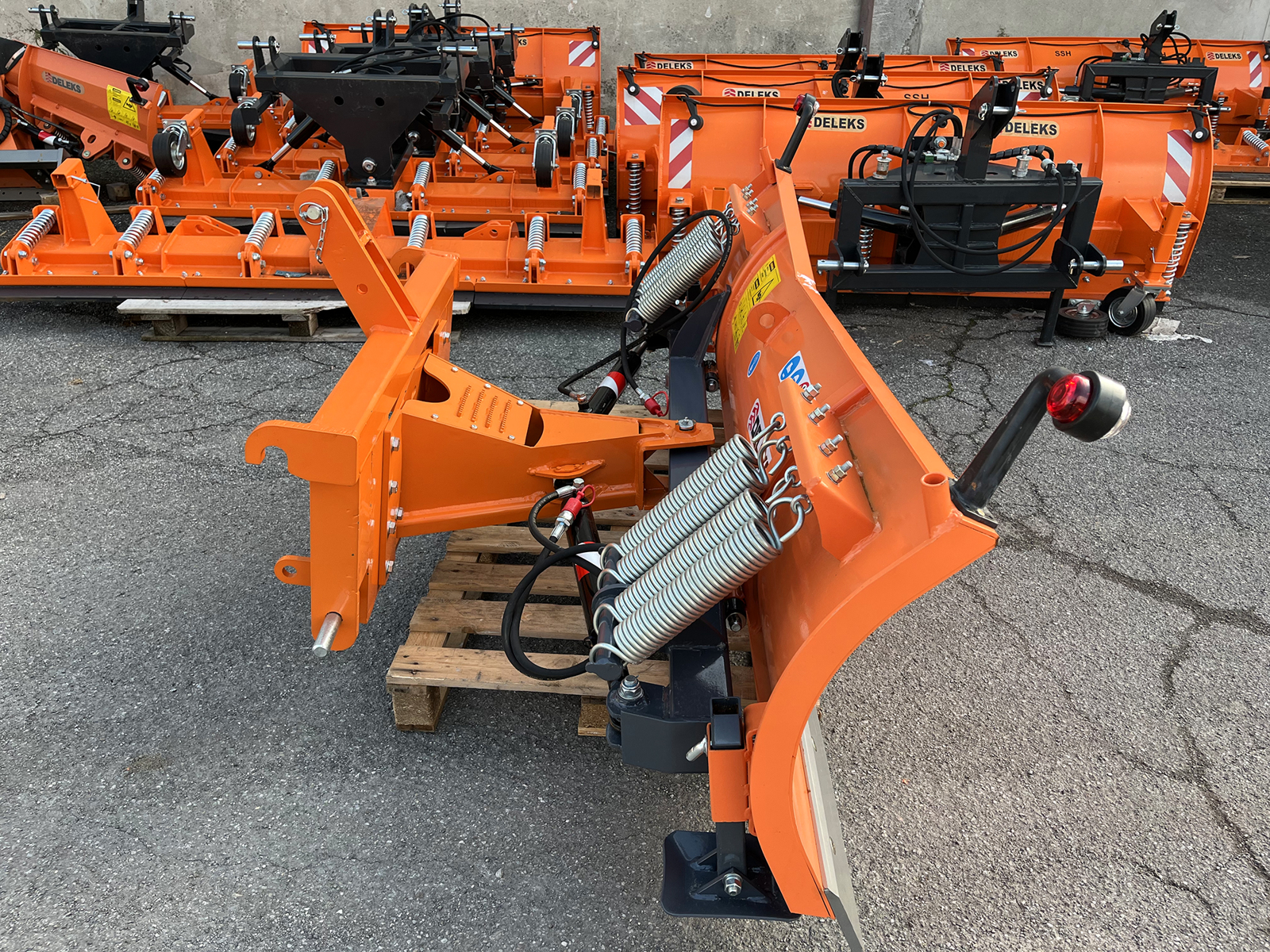

Snowblade with 3 point linkage for tractor, LN-175-C

Available
CodeLN175C
EAN 8053470231407
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

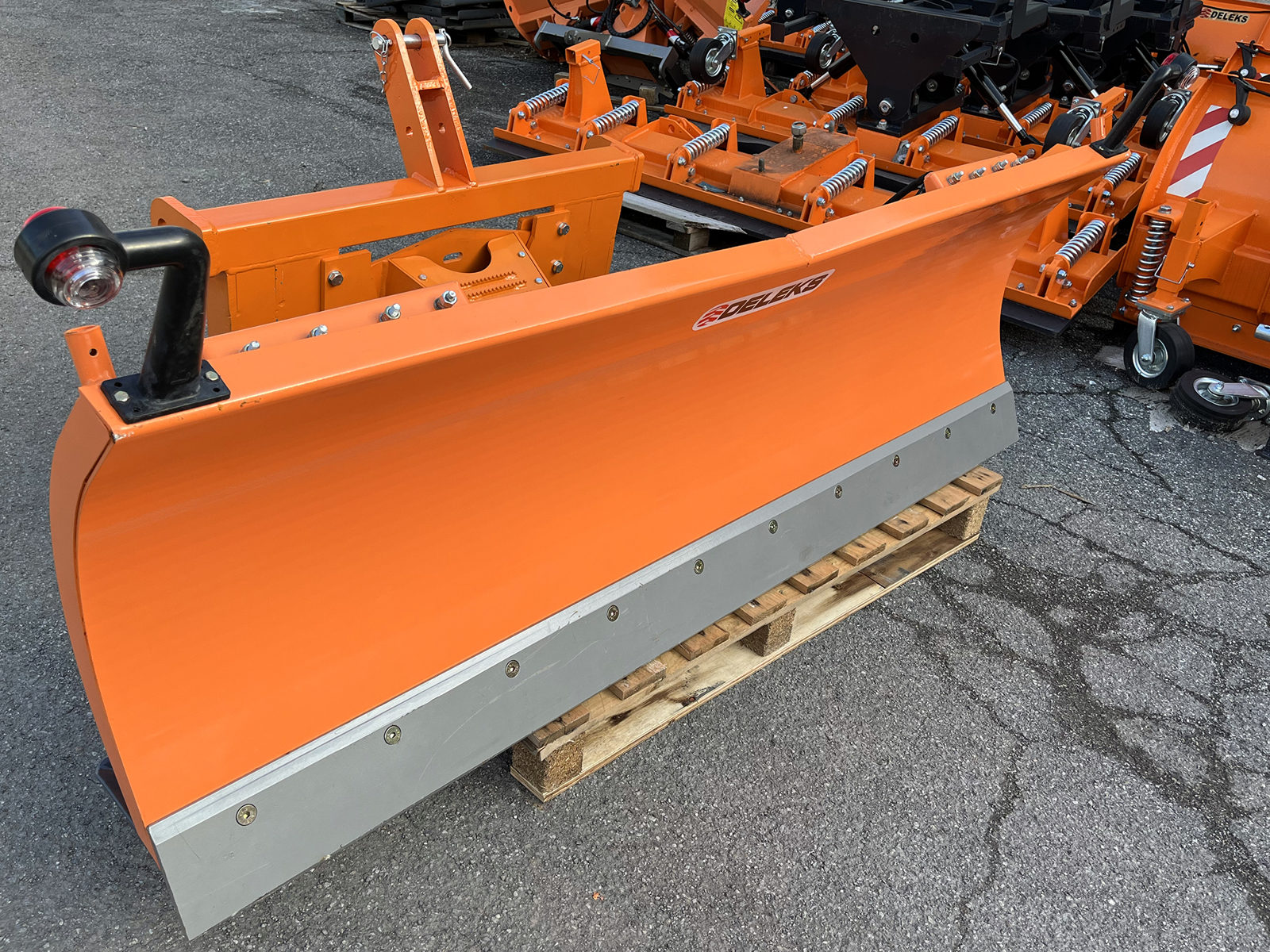

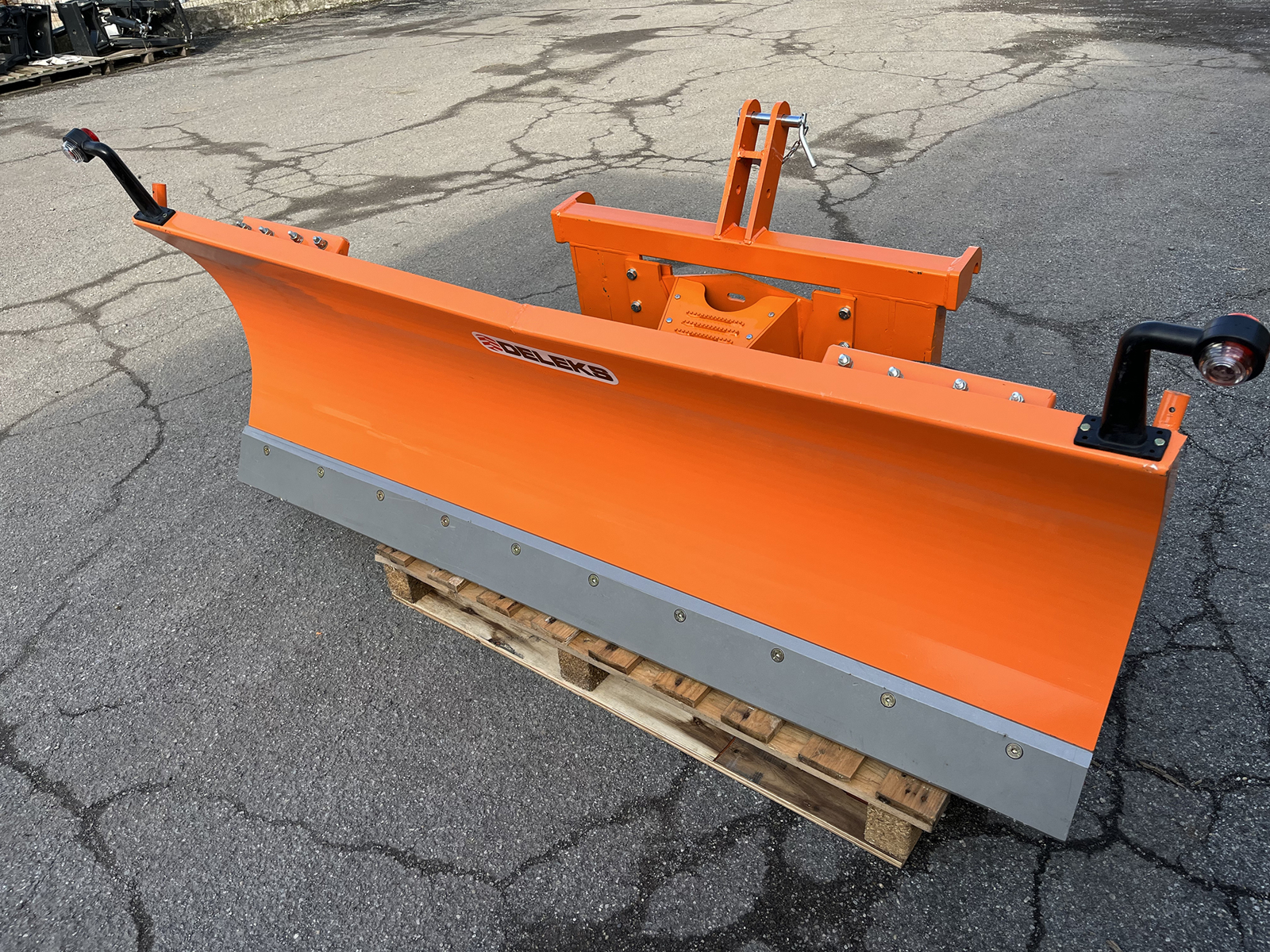

Three point linkage snowplow, 175cm - DELEKS® - for frontal use or reversible tractors - Homologated for road use.


OVERVIEW

LN-175-C Snowplow has been designed with a Cat. 1-2, 3-point hitch for tractors from 30 to 70hp e.g. Lamborghini, Ford, Massey Ferguson, John Deere T3030 or reversible tractors like Antonio Carraro TTR 4400, Pasquali Siena, Valpadana etc. Angling of the plow is done hydraulically by pipes from 1.5 m (on request we supply 2 hydraulic pipes for an additional 4,0m, with Easy-on coupling system). Supplied with skid shoes and marker lights. Conforms to the EC Machinery Directive. 2 years warranty.



BENEFITS AND FEATURES

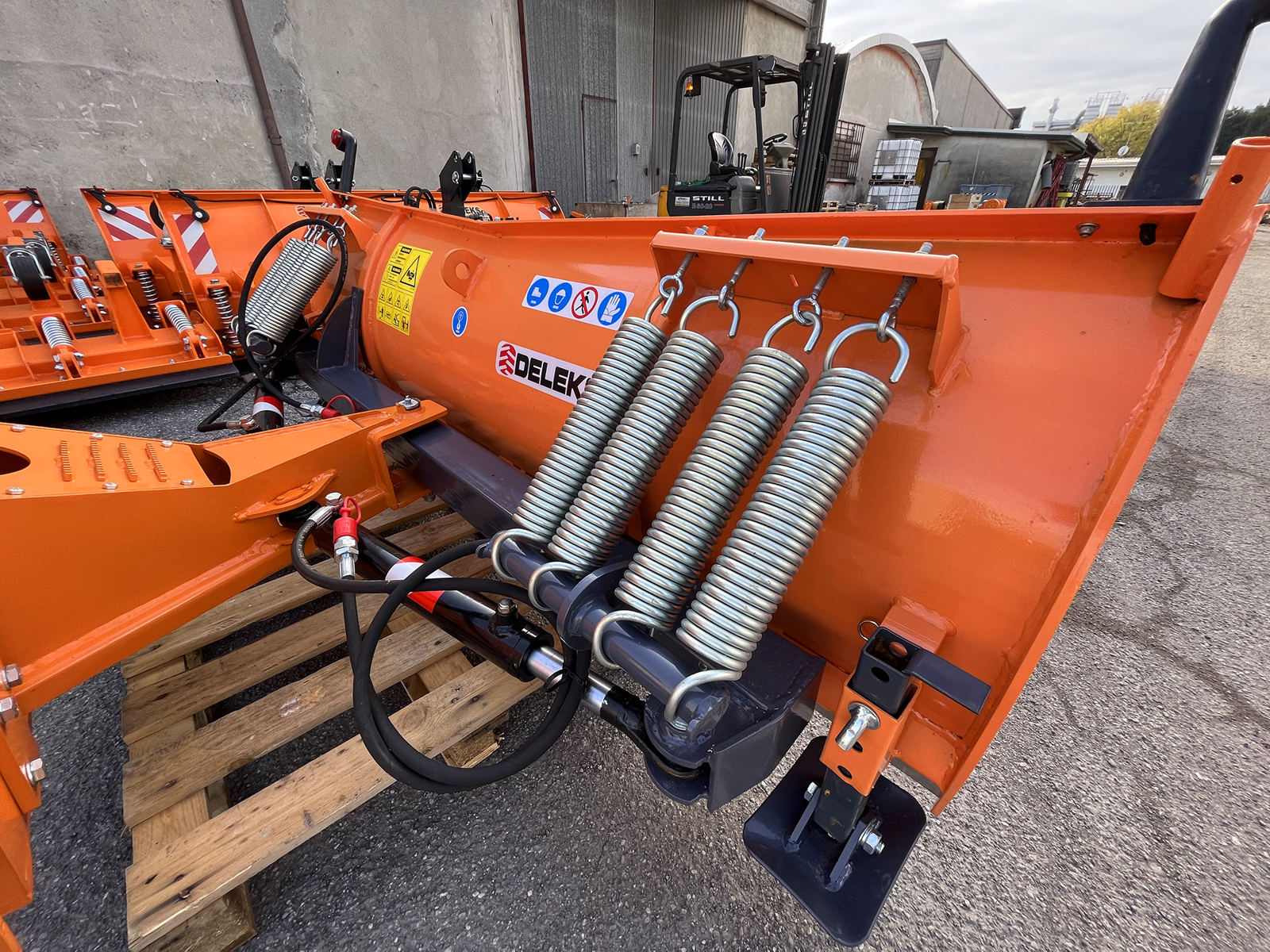

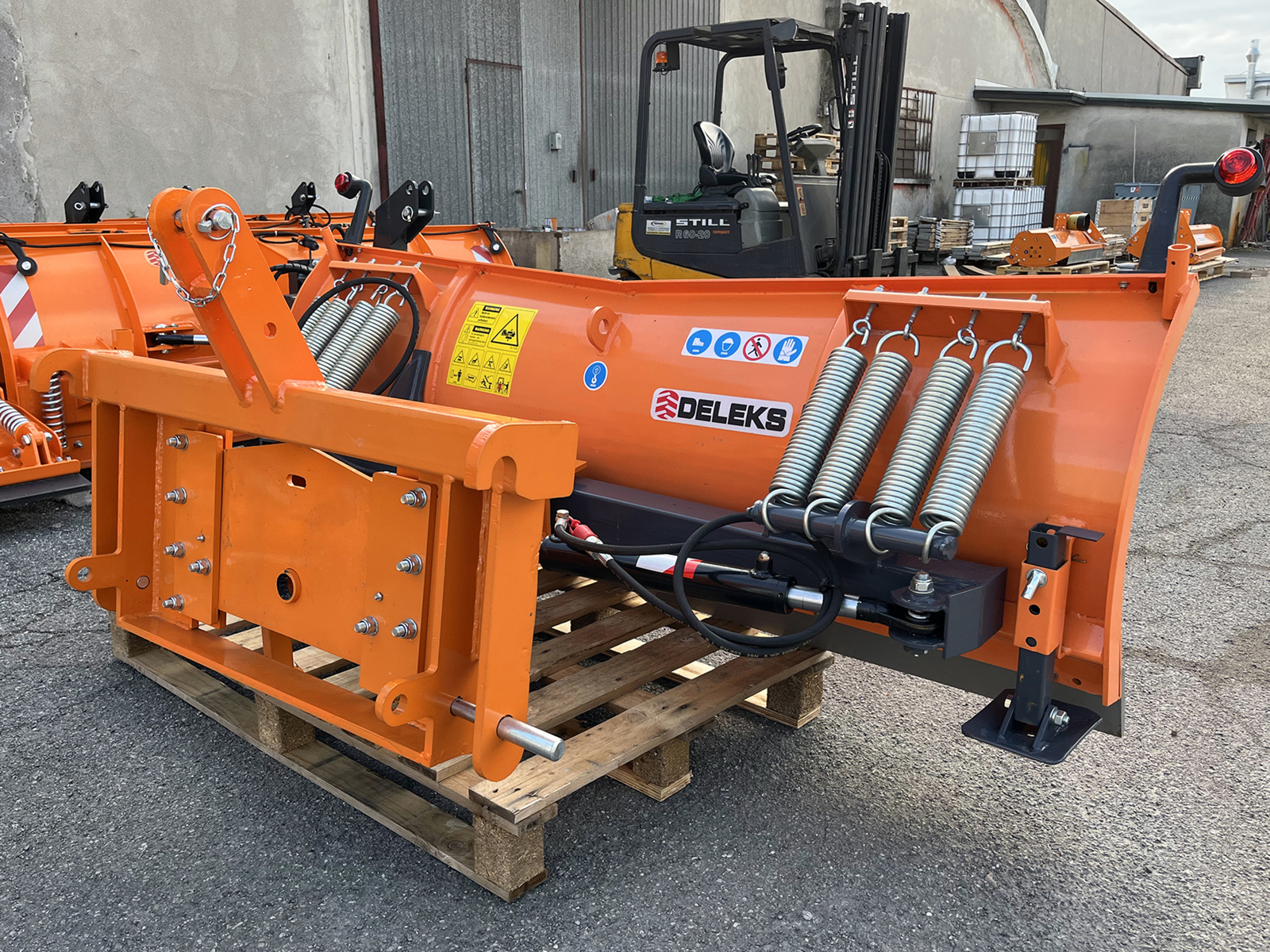

Shockproof system with 8 shock absorbing springs to operate in maximum safety.

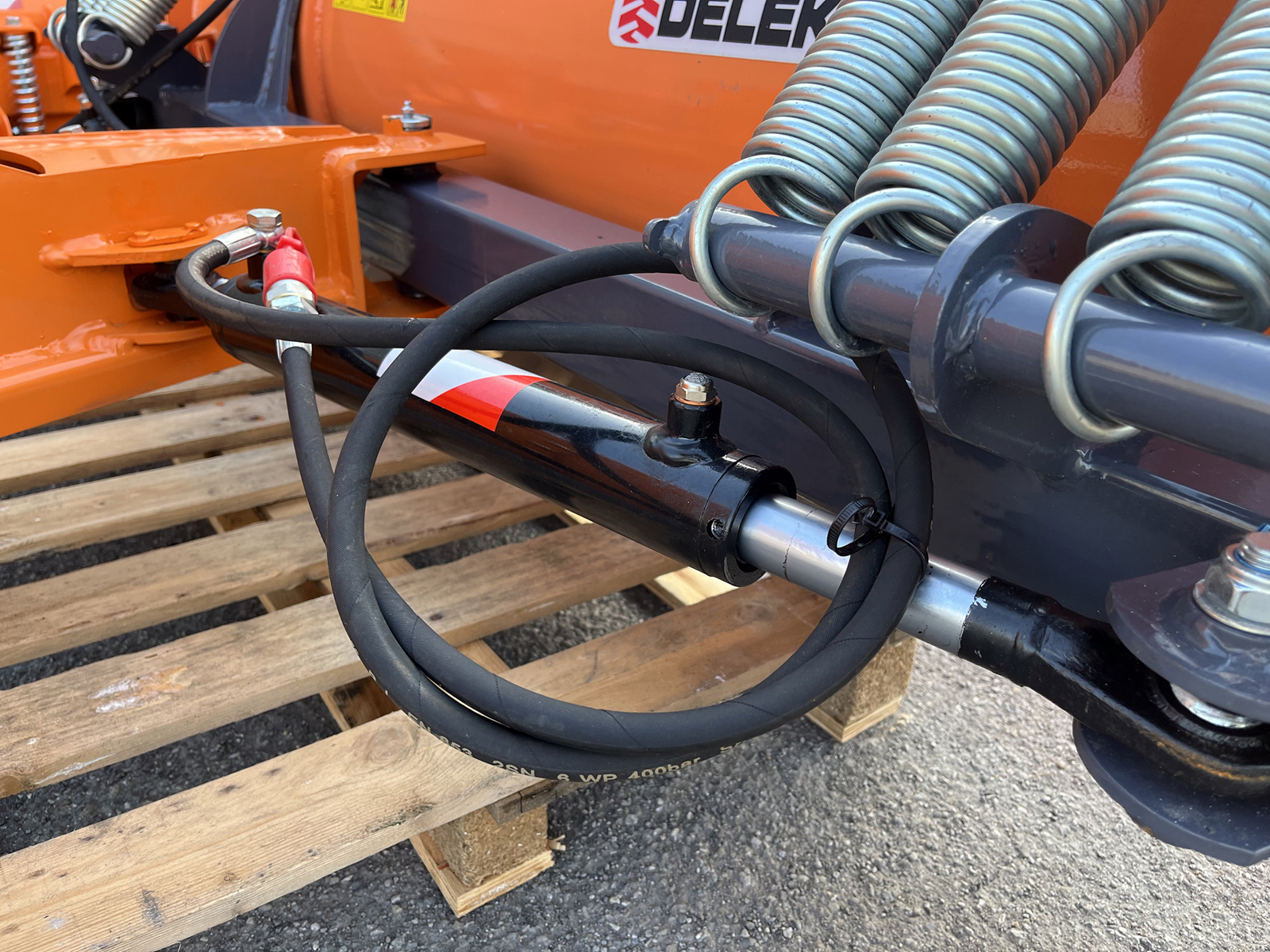

Hydraulic system consists of two pistons Made in Italy for the left/right orientation.

Perfect adherence to the road surface and homologated for road use.

Extreme easy to assemble and operate.

Adjustable torque slides, make work easier, reducing the pressure on the cutting edge, especially on rough surfaces such as gravel parking lots.

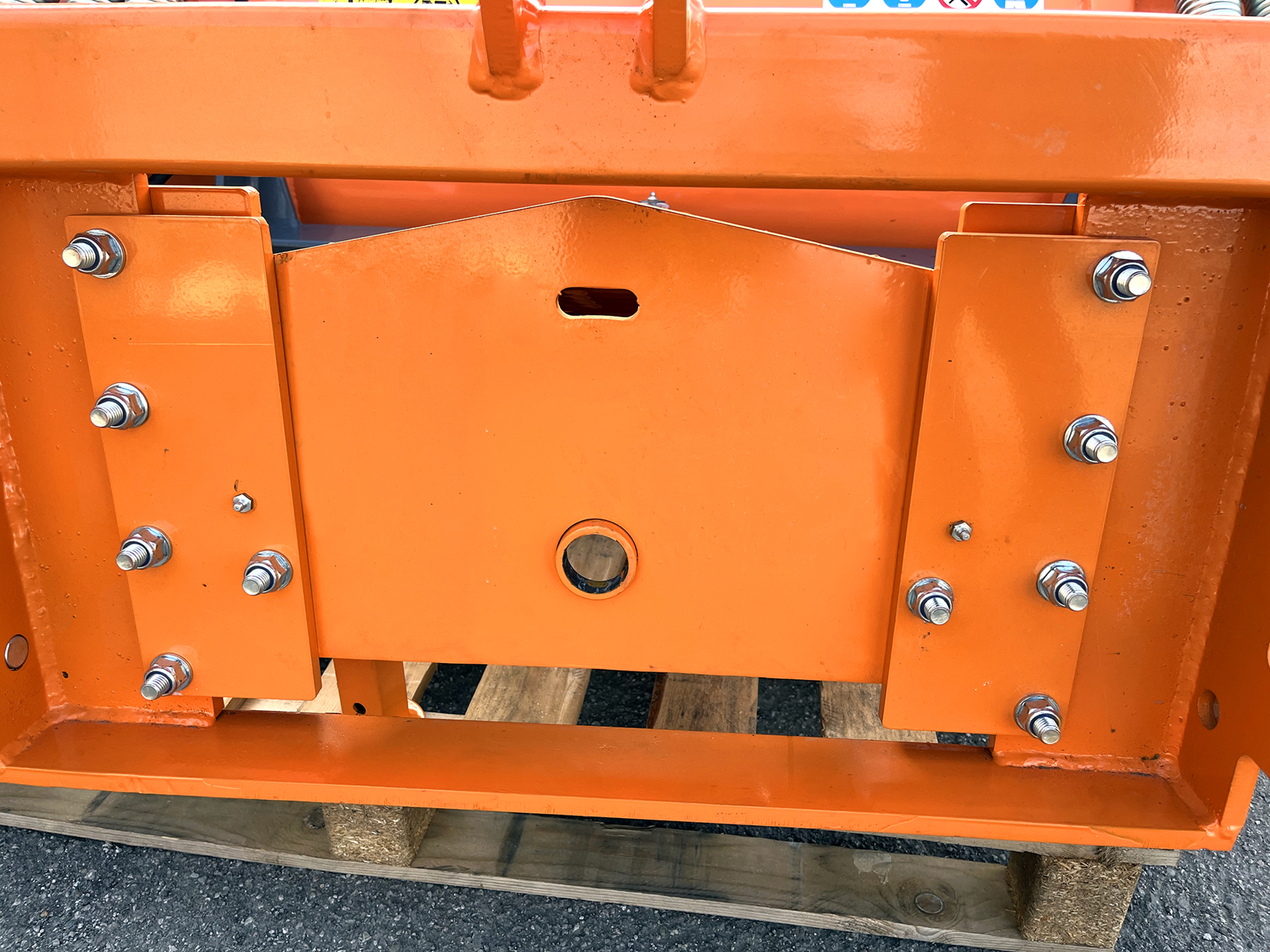

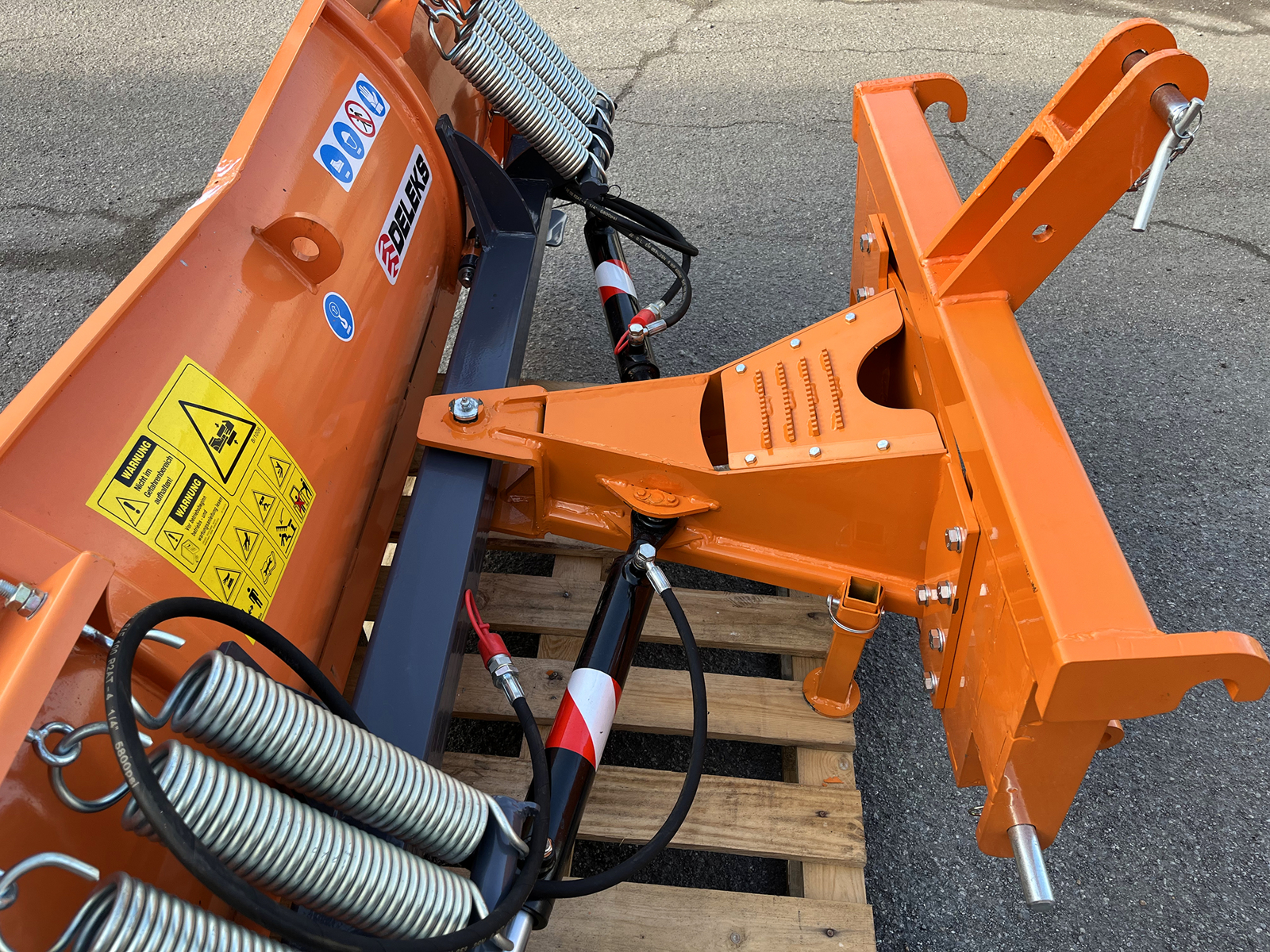

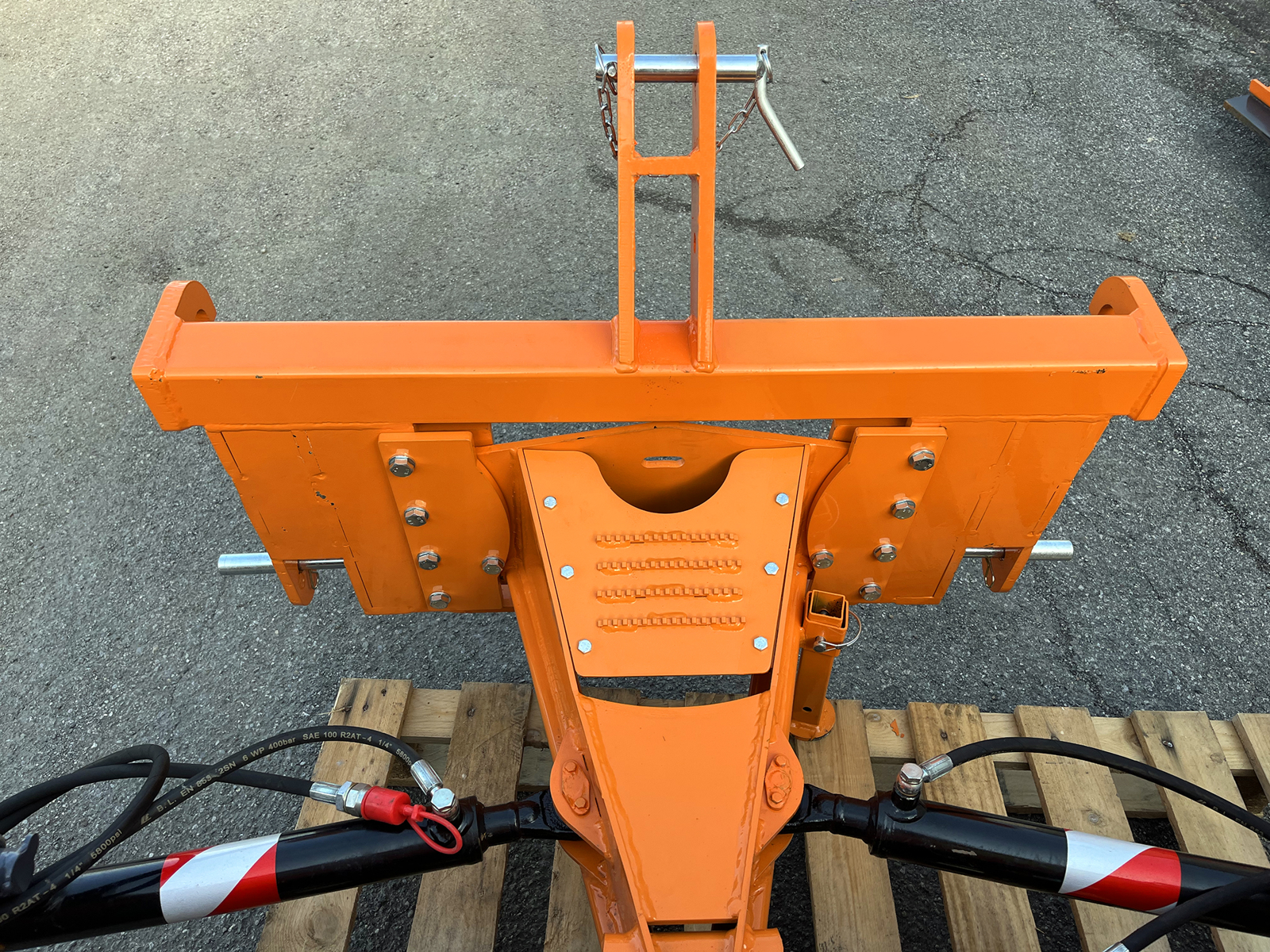

The 3-point hitch is removable and replaceable with fitting plate, EURO linkage, or Skid steer loaders.



Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual




CARACTERISTICS

Caracteristic Units metric Units US
Weight 265.0 kg 585.0 lb
Overall height 700.0 mm 2.30 ft
Tractor Power Range 30 - 70 Hp 30 - 70 Hp
Overall Length 950.0 mm 3.11 ft

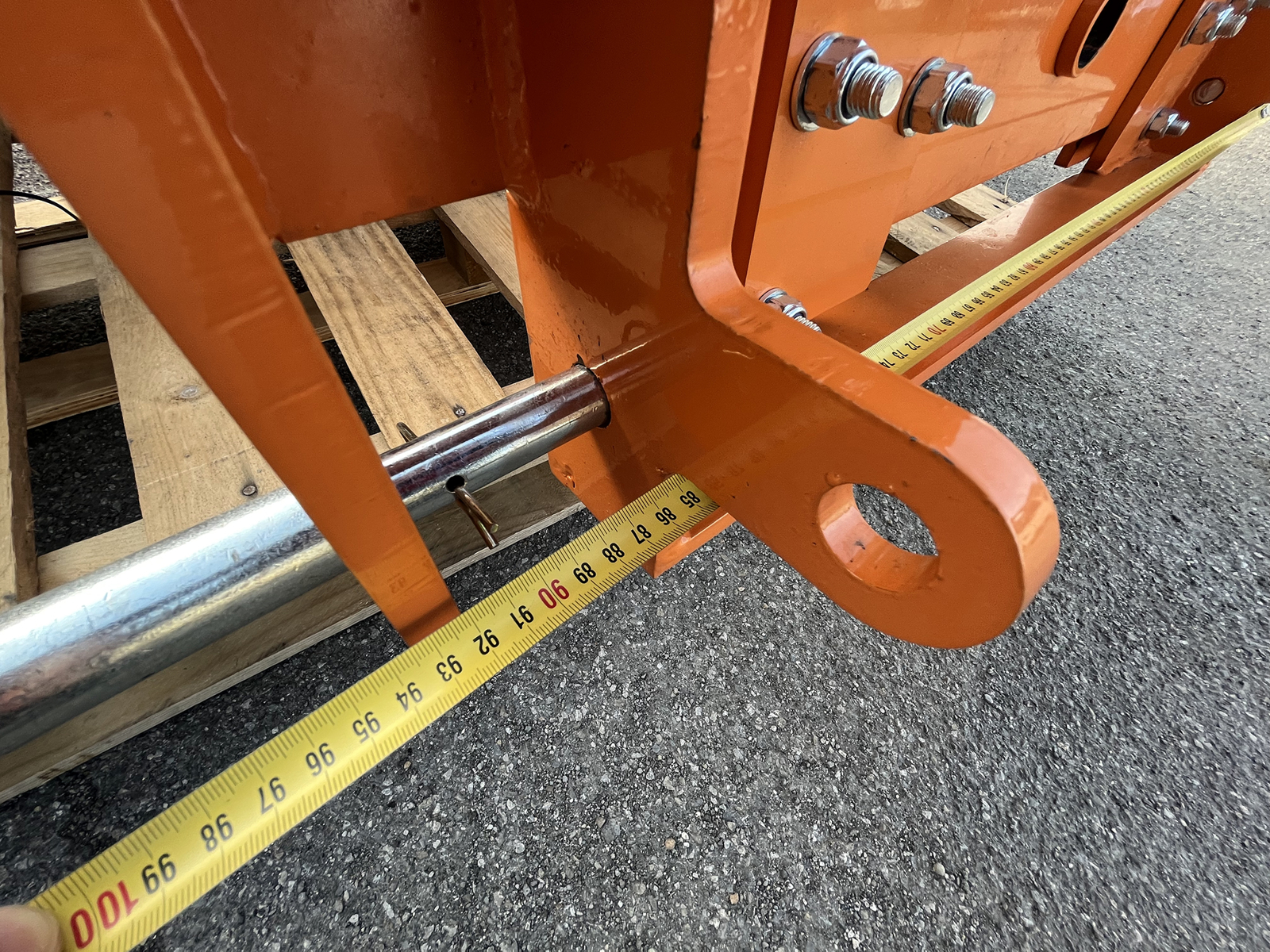

Spacing between the 2 lower points 660.0 - 900.0 mm 26.0 - 35.43 in
Distance between the 2 lower points and ground 250.0 mm 9.84 in
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min

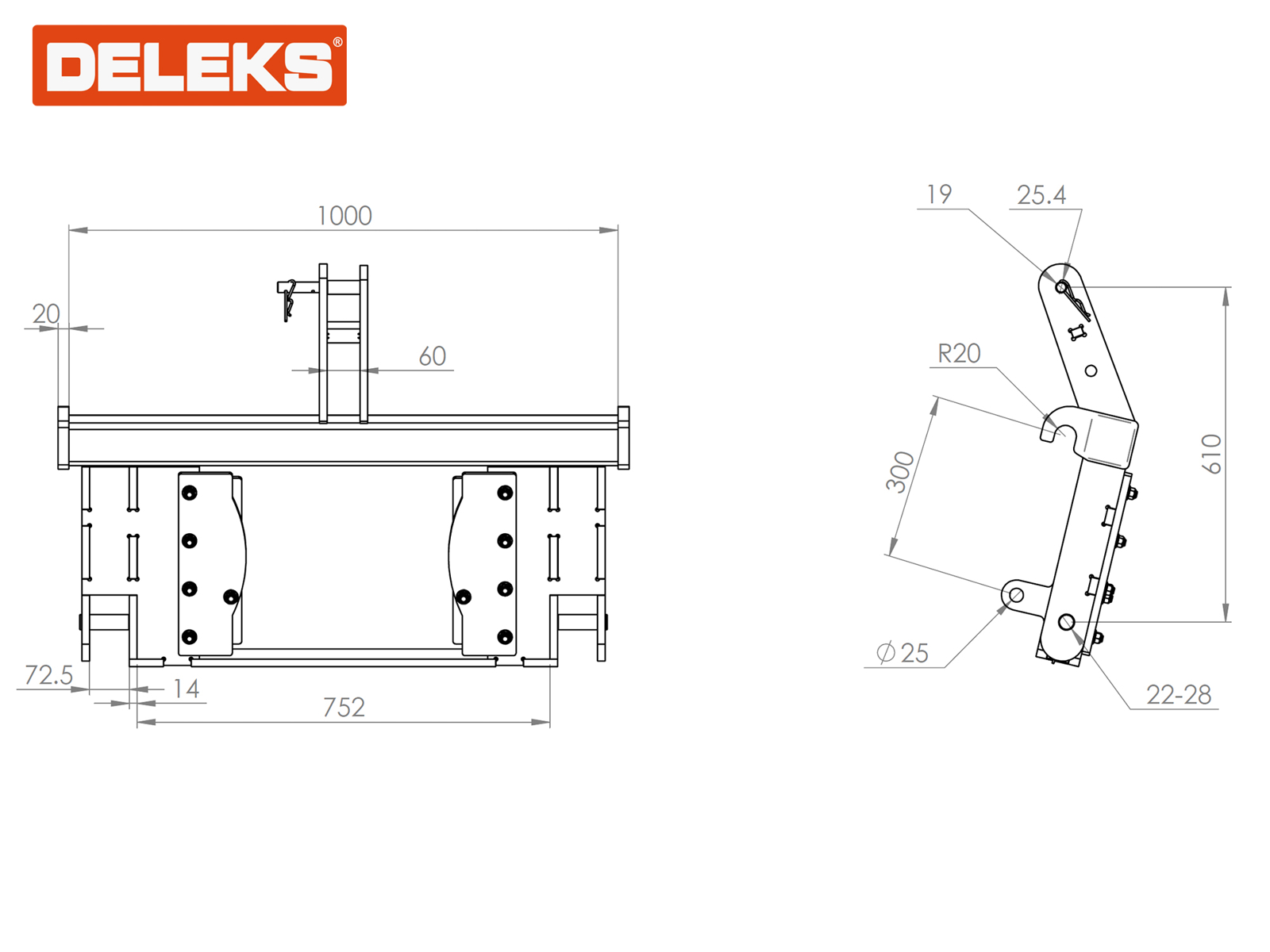

Interface 3 point linkage cat. 1-2 (19.0-22.0 / 25.0-28.0 mm) 3 point linkage cat. 1-2 (19.0-22.0 / 25.0-28.0 mm)
Angling (left/right) 27° 27°
Float +/- 6° +/- 6°
Blade Height 700.0 mm 2.30 ft
Side edge thickness 8.0 mm 0.32 in
Shock absorbers 8 8

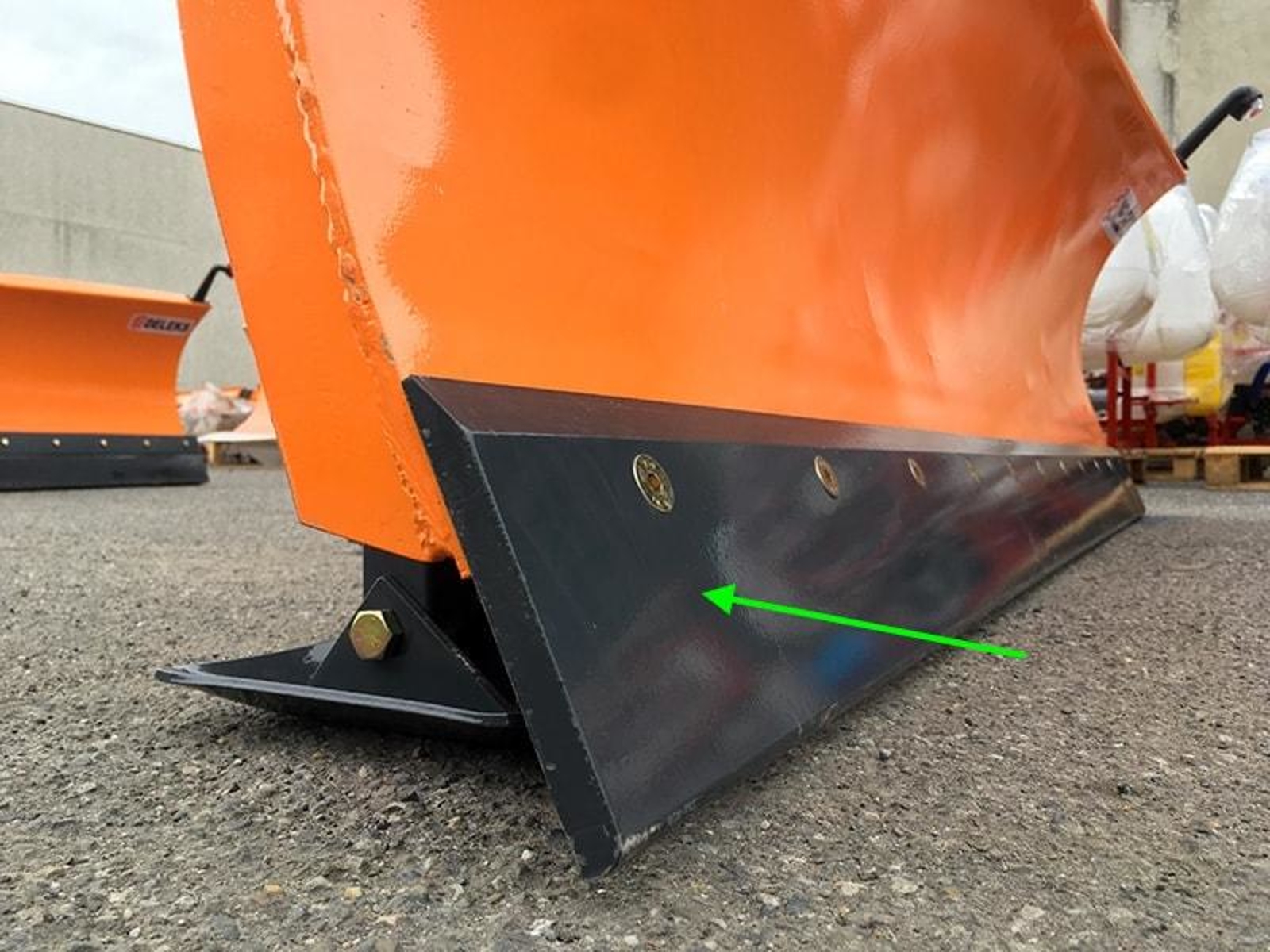

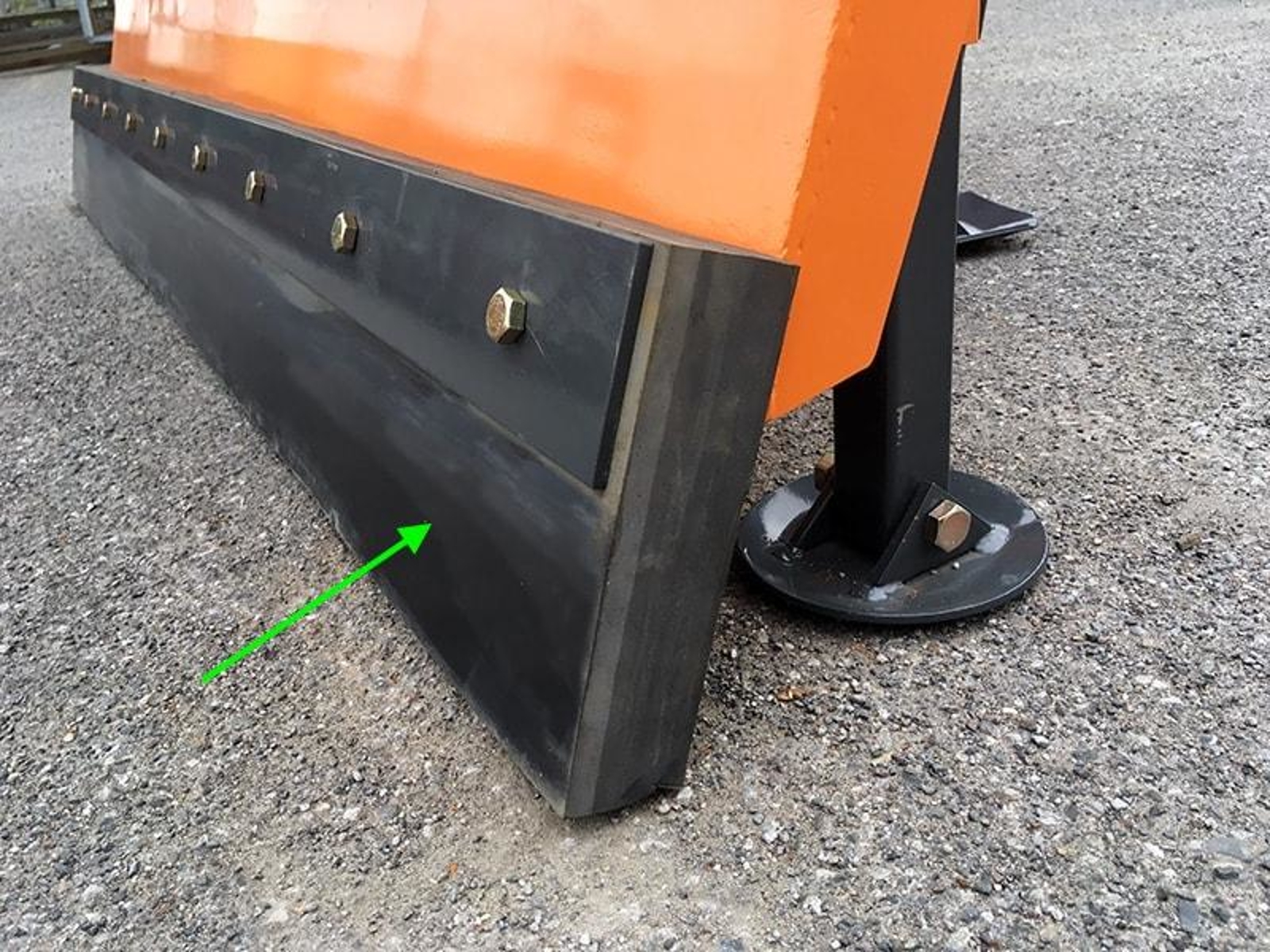

Cutting Edge Steel or Rubber Steel or Rubber
Cutting Edge Height 150.0 mm 5.90 in
Cutting Edge Thickness 16.0 mm 0.63 in
Trip Edge Quantity 1 1
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights √ √
Removable Skid Shoes √ √
Working width (angled) 1563.0 mm 5.13 ft
Hydraulic Hoses 2 x 4.92 ft/ connections 1.2", WP 400 bar 2 x 4.92 ft/ connections 1.2", WP 400 bar
Overall width 1755.0 mm 5.76 ft
Main frame thickness 5.0 mm 0.2 in
Hydraulic cylinder/s ø 60.0/30.0 mm 2.36/1.18 in
Packing sizes 1755.0*800.0*830.0 mm 5.75*2.62*2.95 ft
