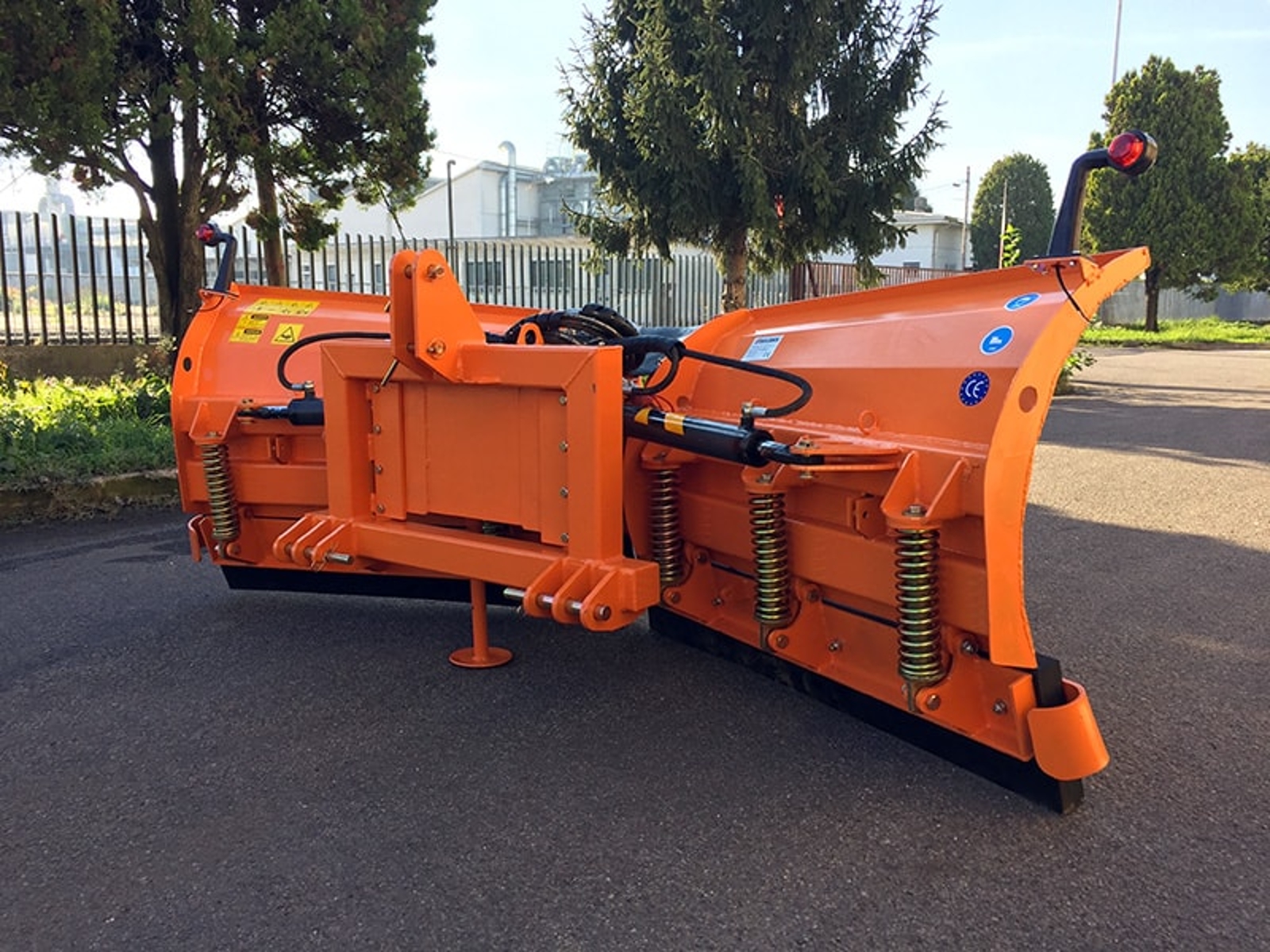

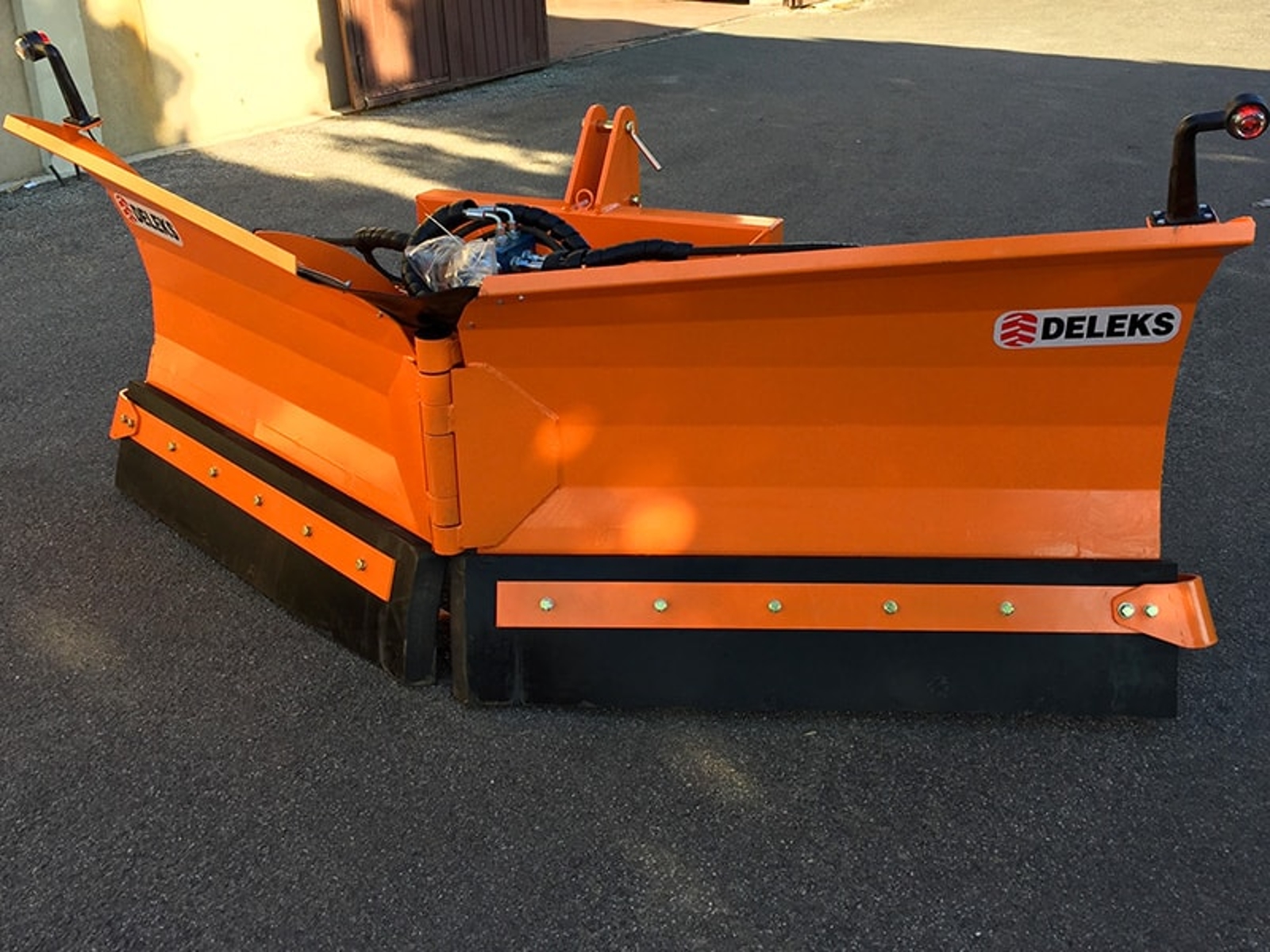

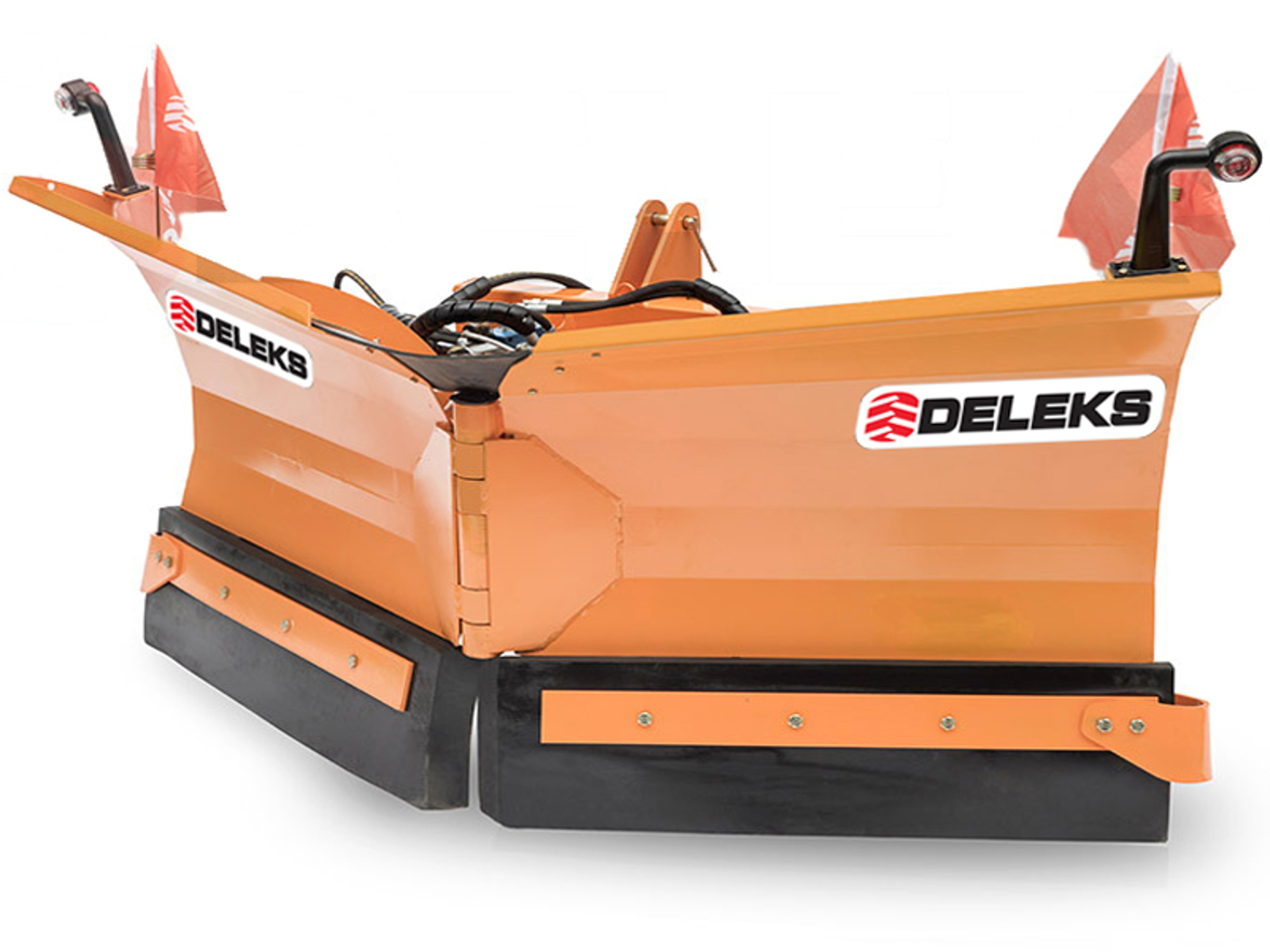

Snowplough 300cm - DELEKS® - Snowblade for tractor - 3 point linkage - Rubber blades - Homologated for road use.

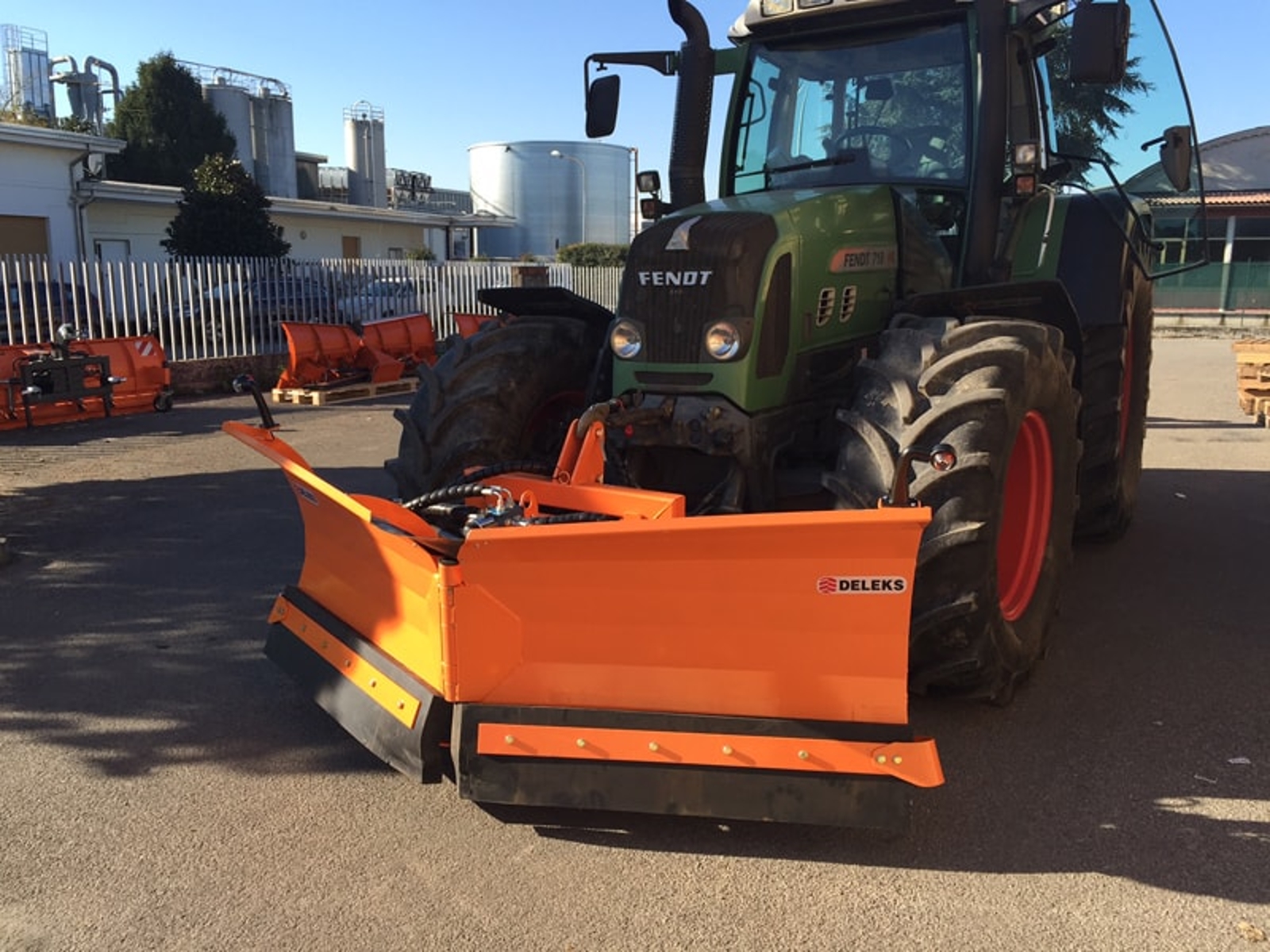

The LNV-300-C has been designed for 60-90 hp tractors, e.g. Mistral Landini, Kubota L, Goldoni, John Deere, or reversible tractors like Ferrari, Antonio Carraro, BCS, Pasquali, Valpadana.

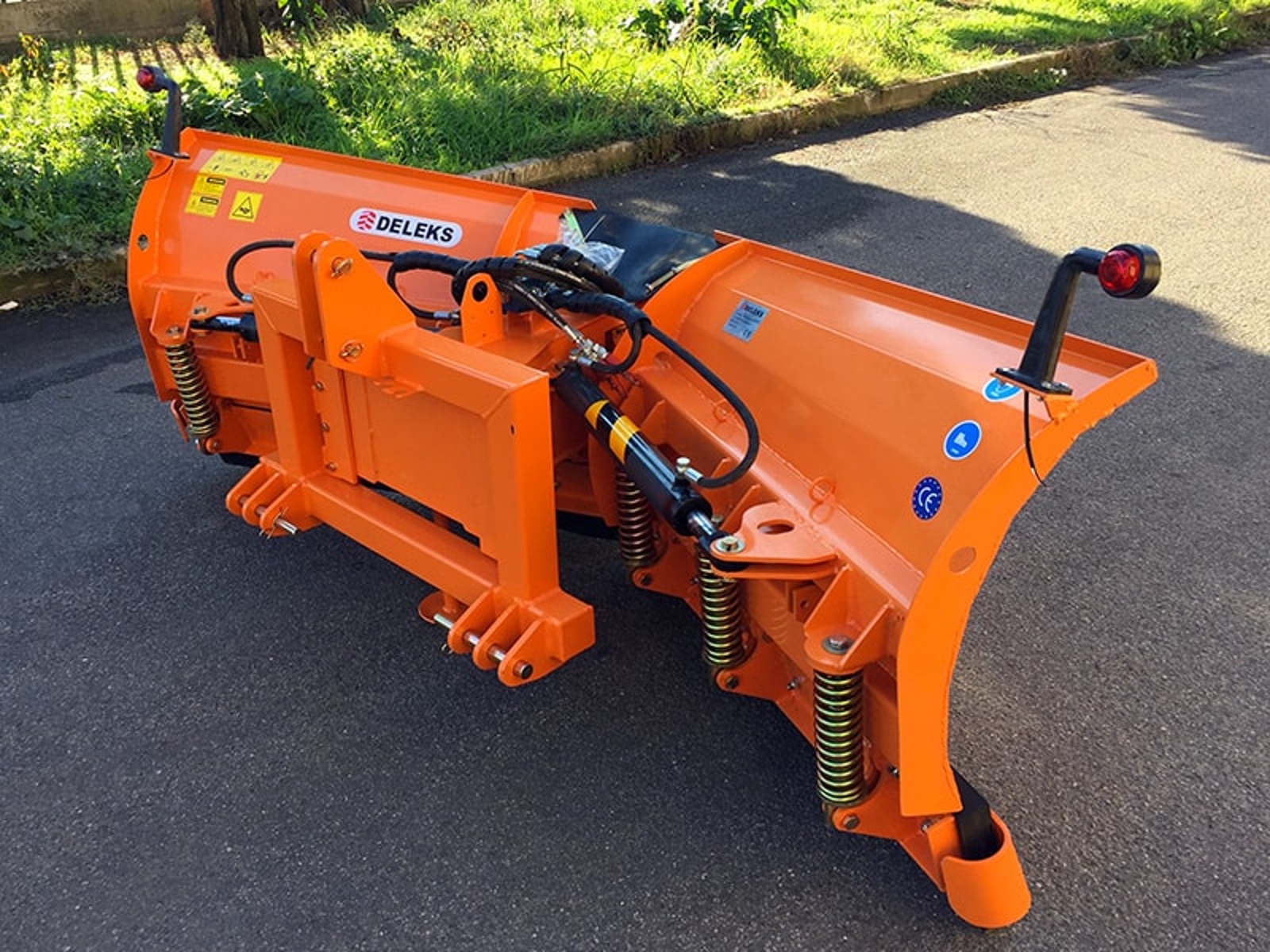

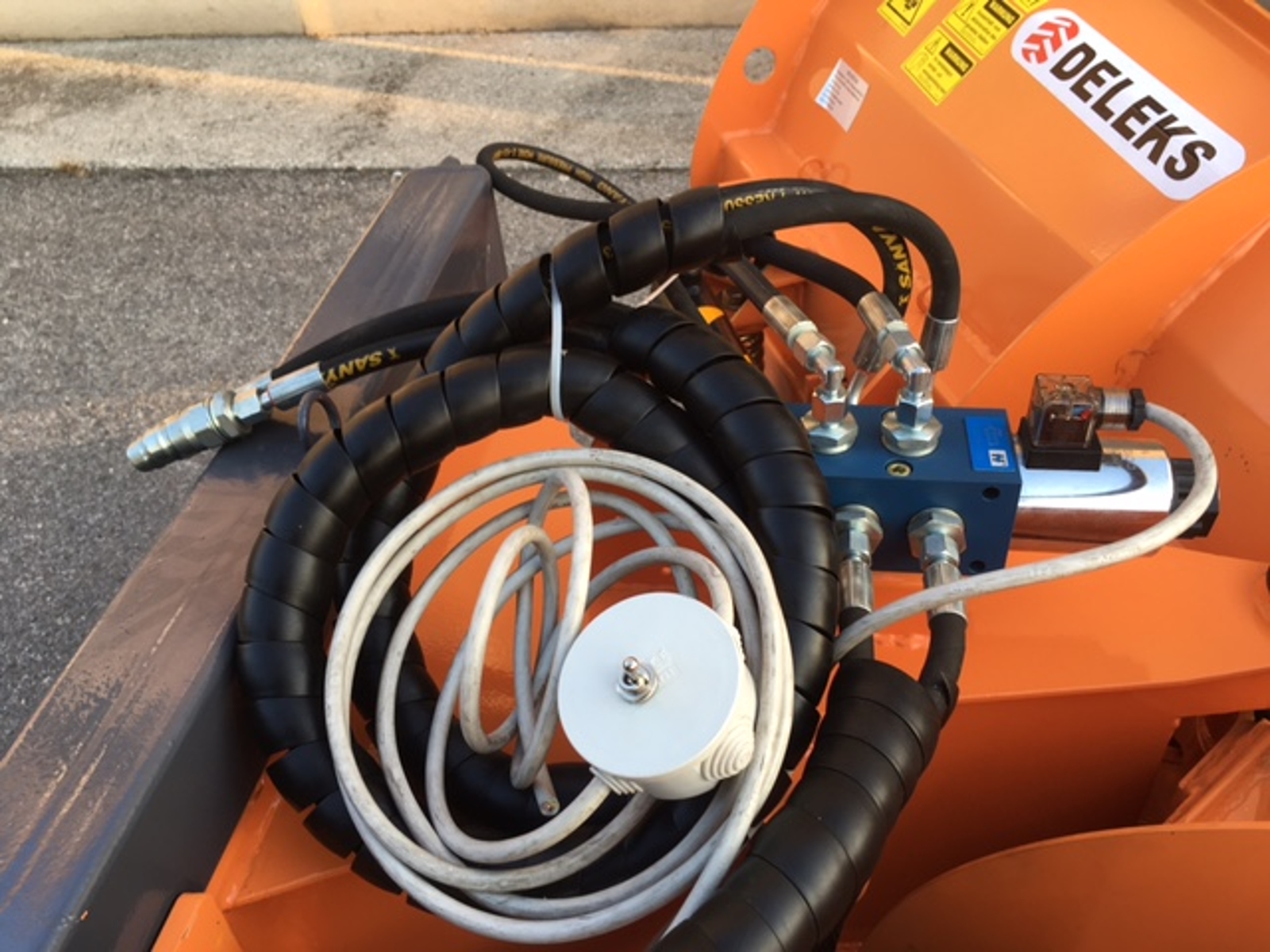

Angling of the plow is done hydraulically using two pistons, a 6-way solenoid valve and two hydraulic pipes (2.0m).

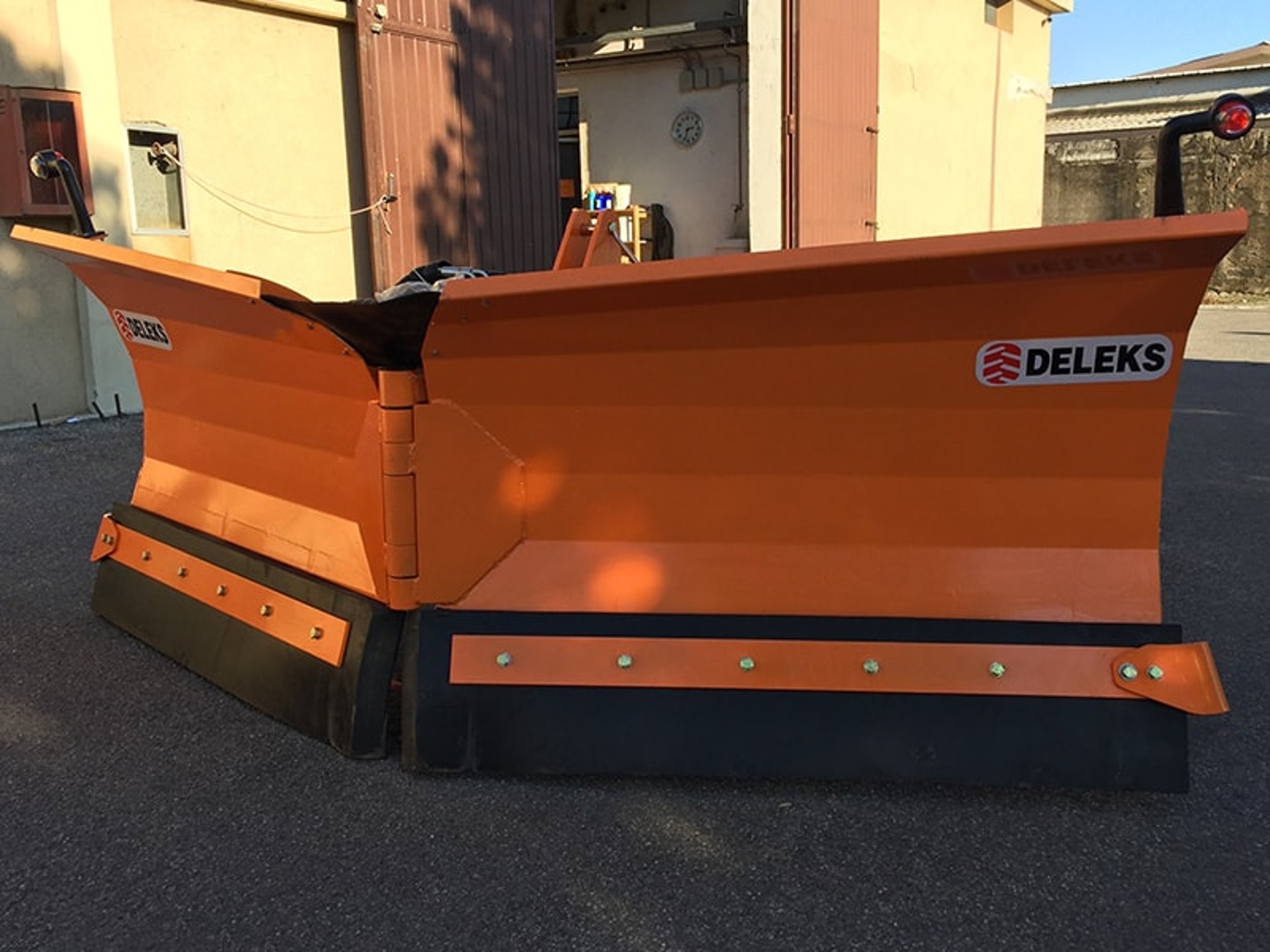

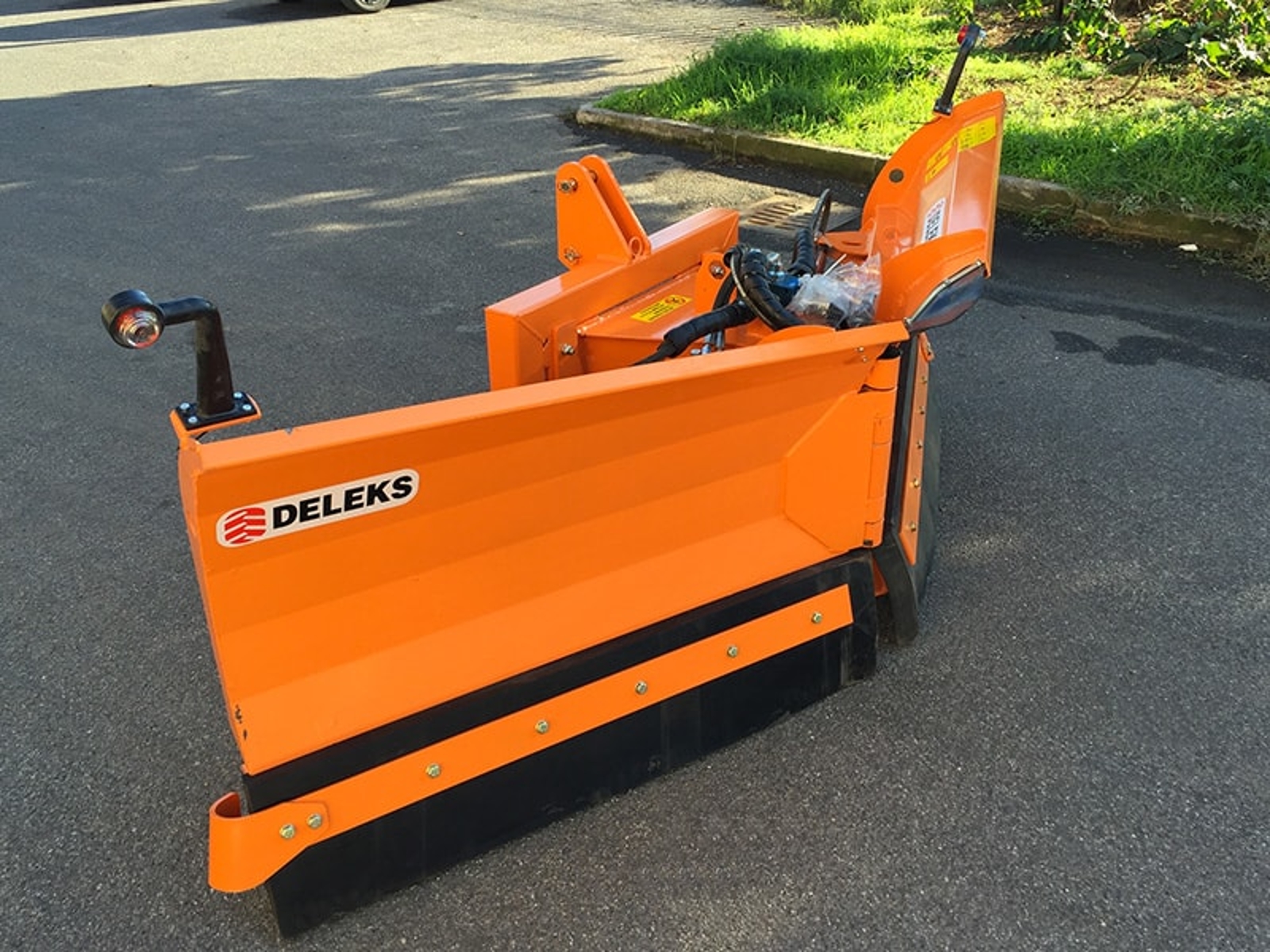

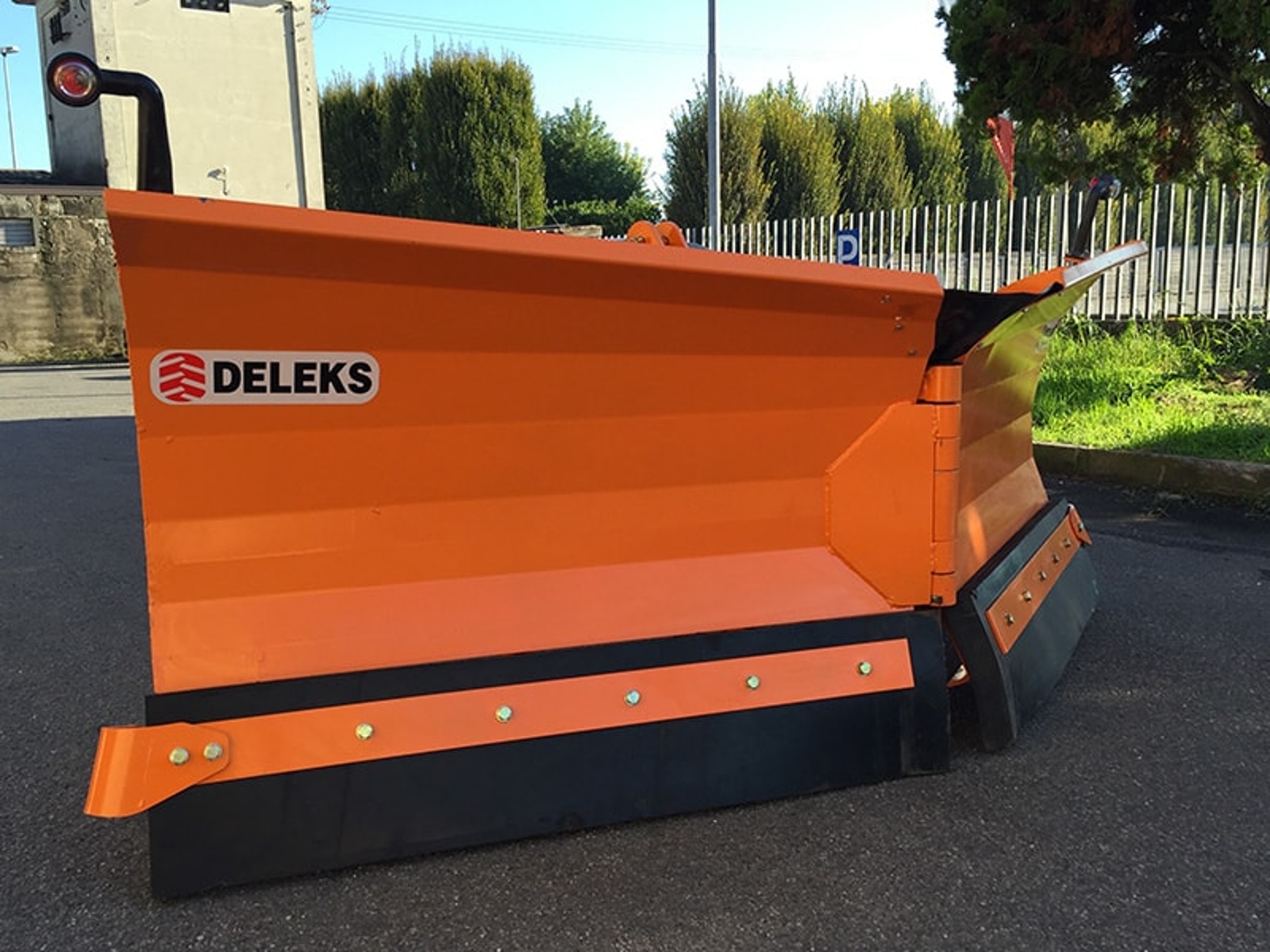

The plow has a replaceable rubber blade, spring swivel mount which makes the plow resistant to impact of obstacles. Supplied with marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.
BENEFITS AND FEATURES

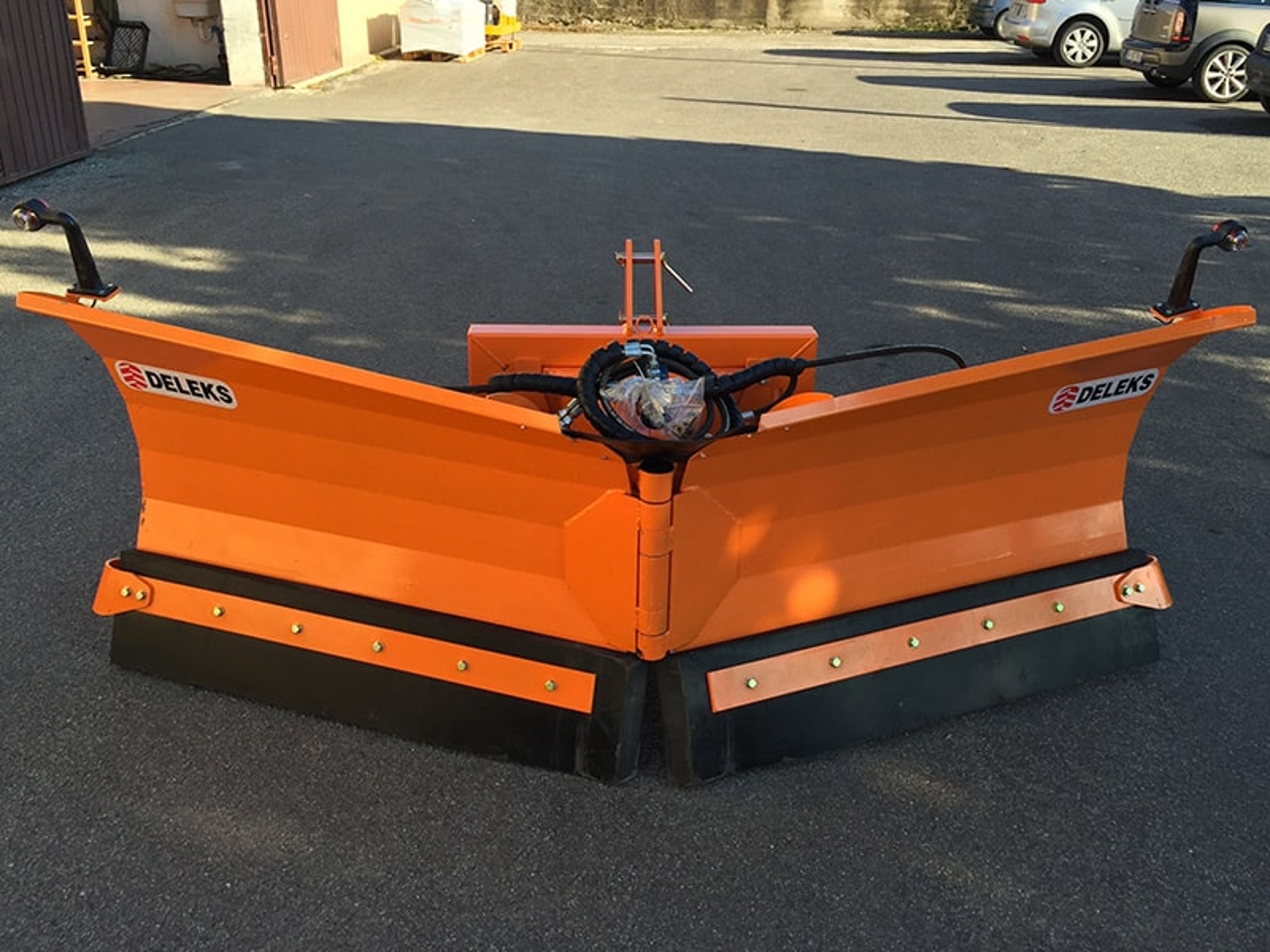

Hydraulically controlled plowshares allow for four different working positions (open, closed, left and right).

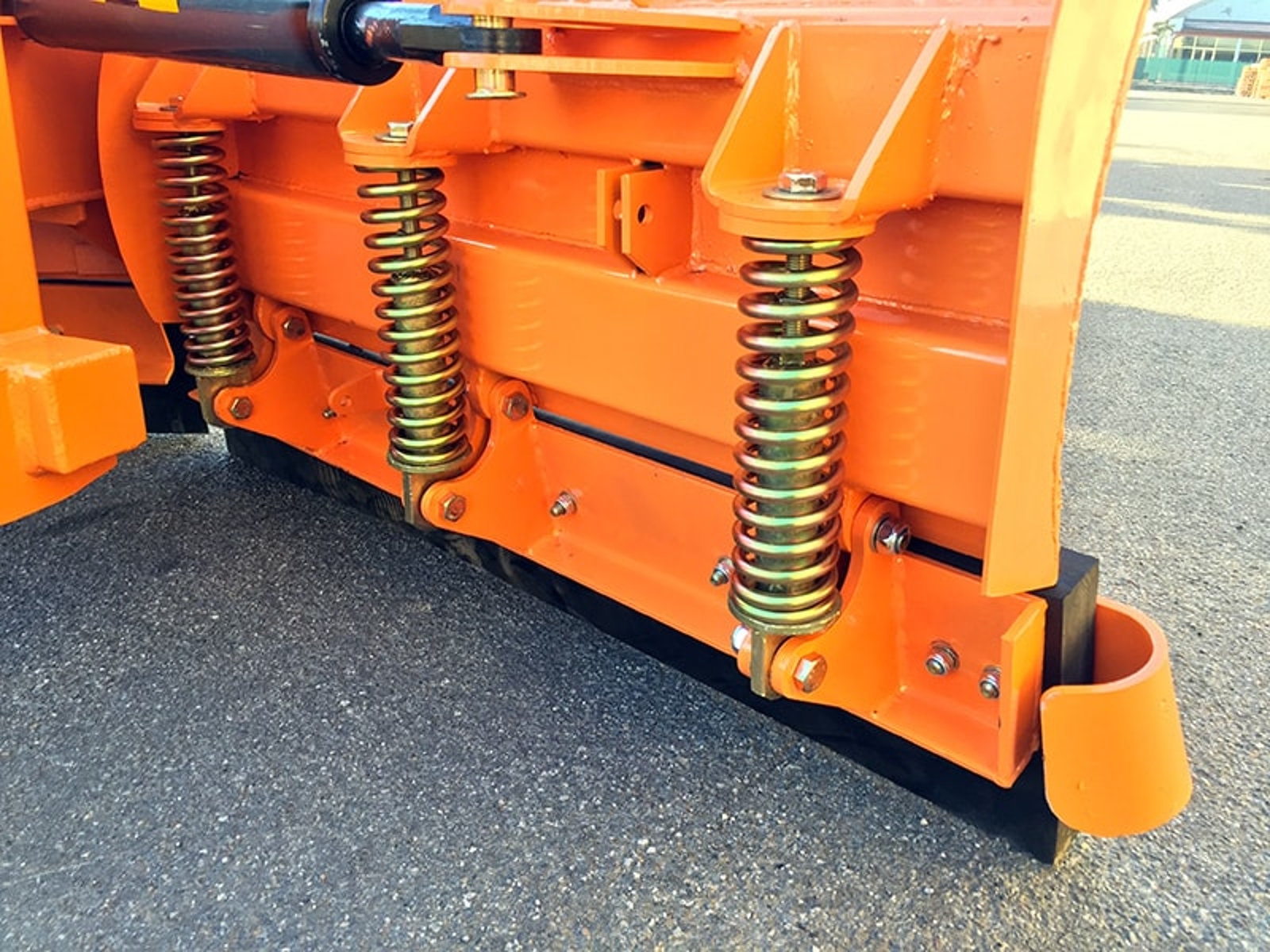

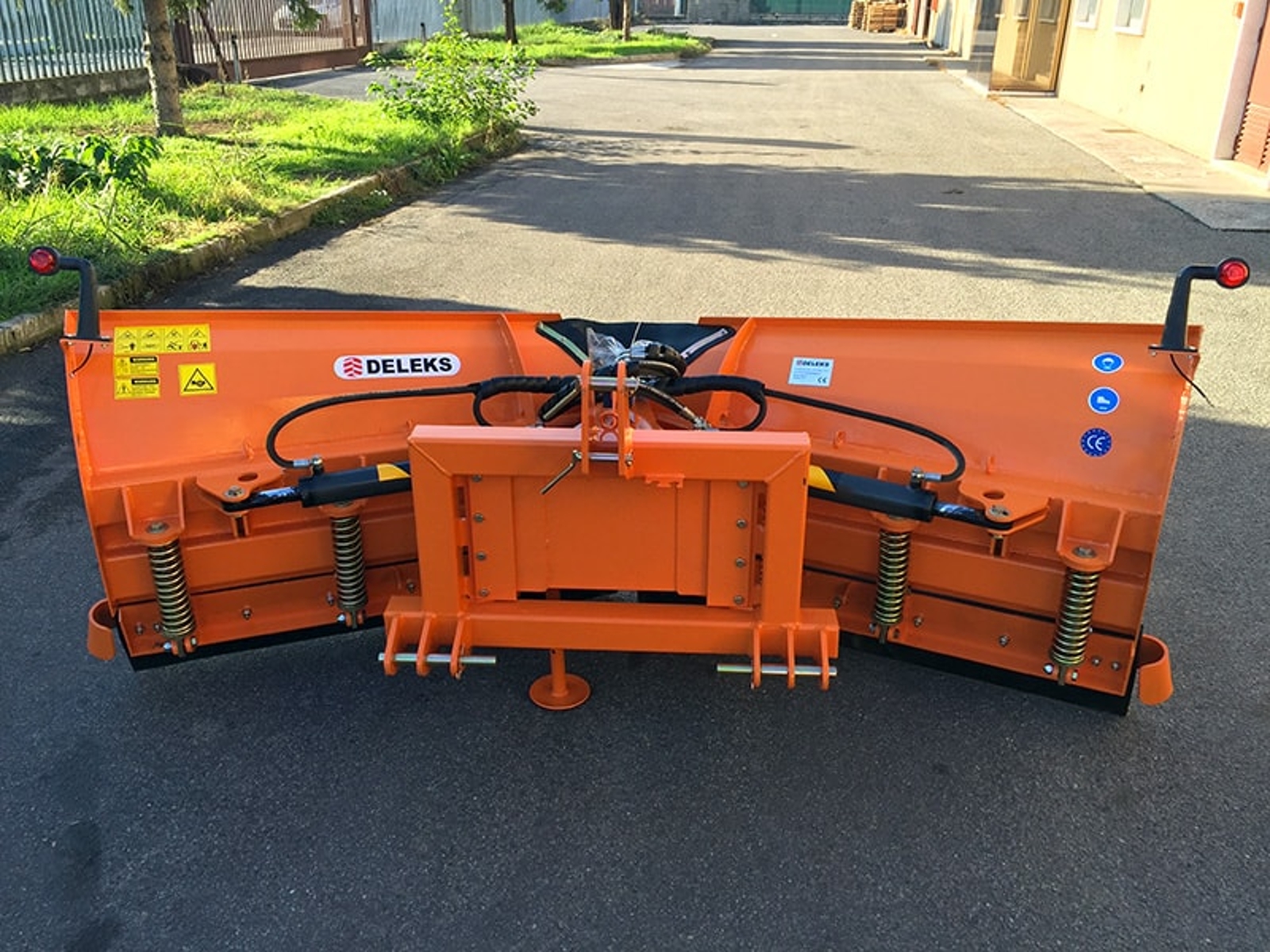

Anti-shock system with 4 shock absorbing springs to overcome obstacles safety.
2 independent plowing elements.
Lateral oscillation system which allows a perfect adherence to the road surface.
Extremely easy installation and usage.

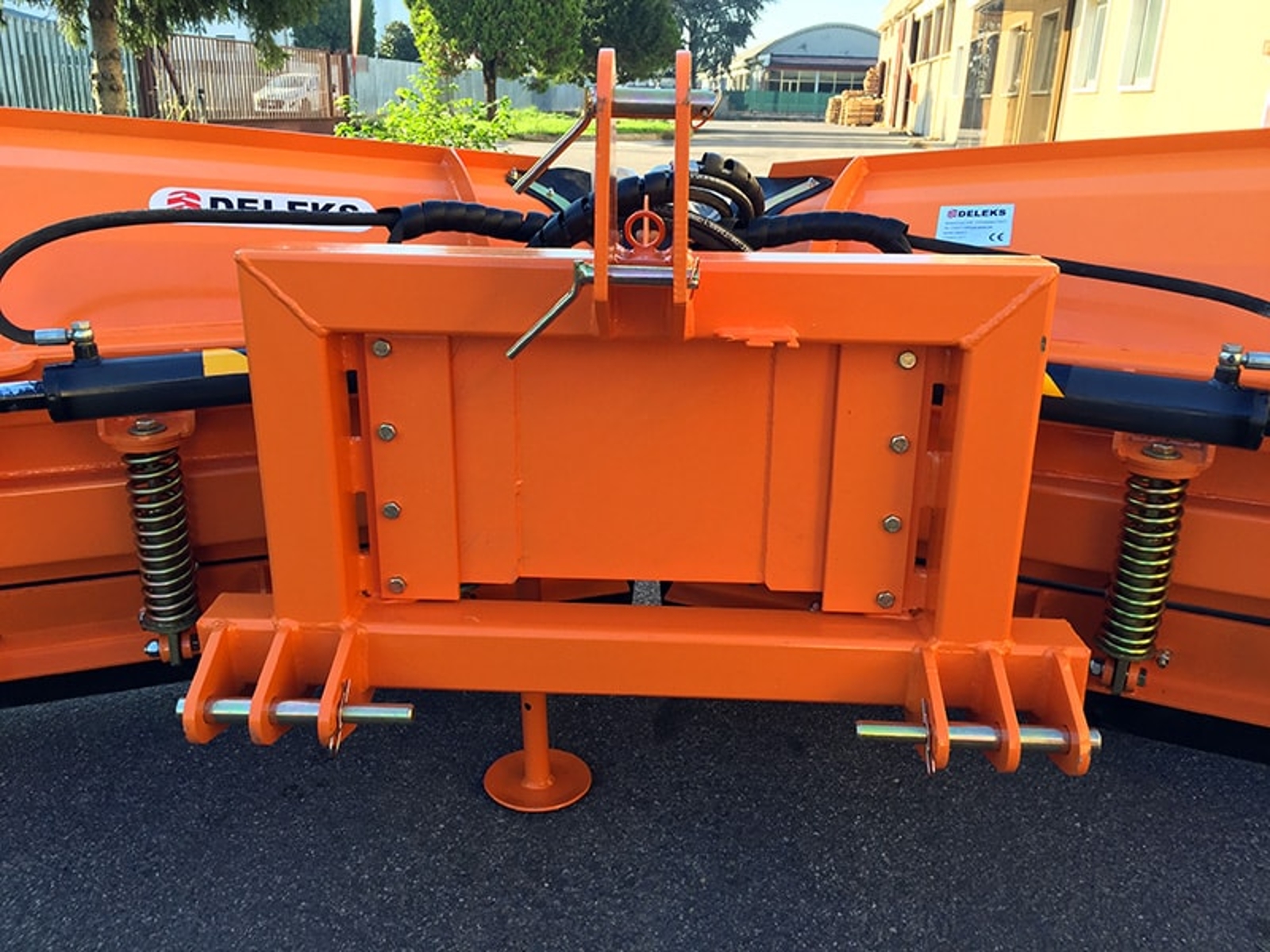

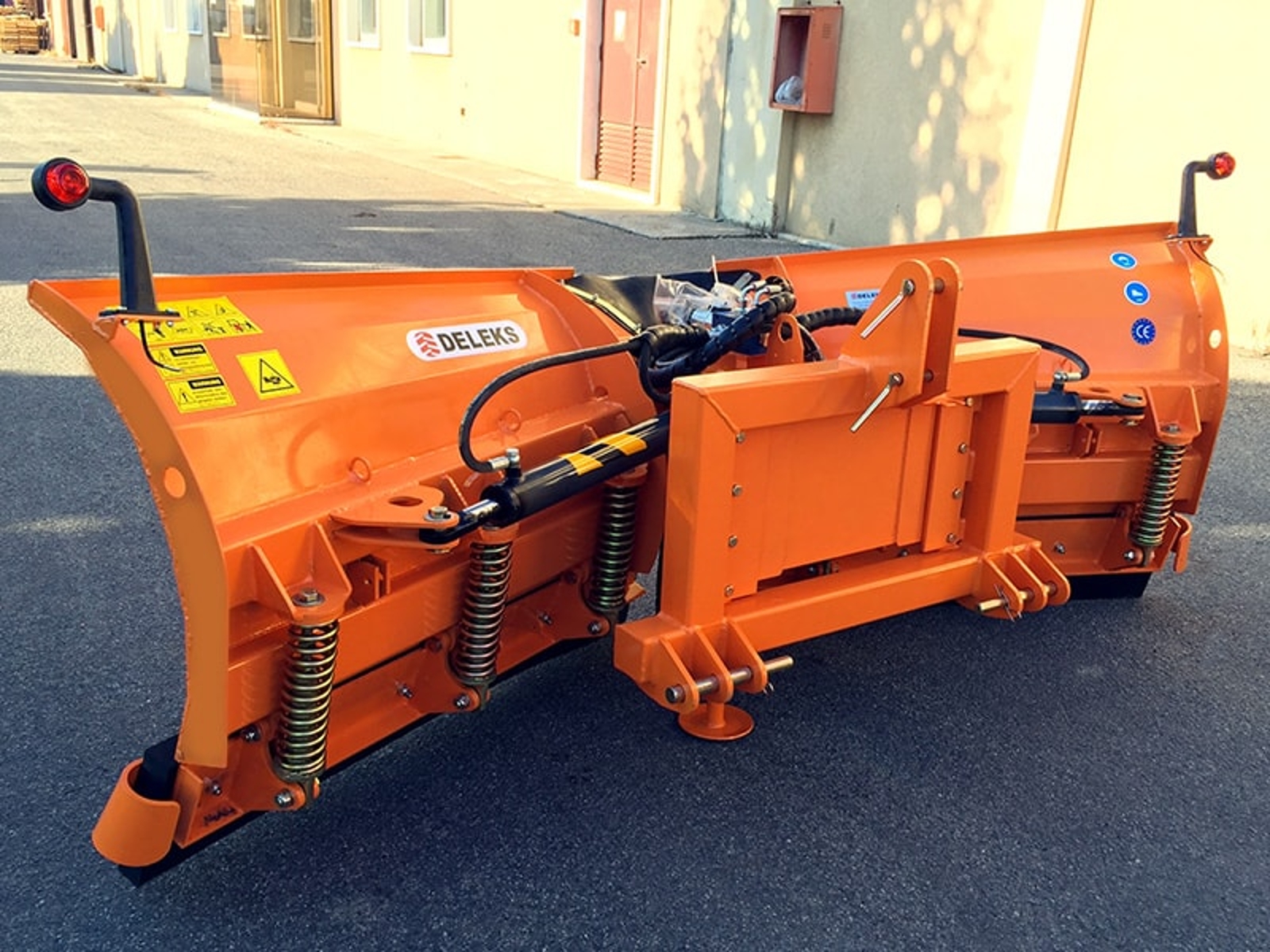

The 3-point hitch is removable and replaceable with EURO or Skid steer attachment.
Perfect adherence to the road surface and homologated for road use.

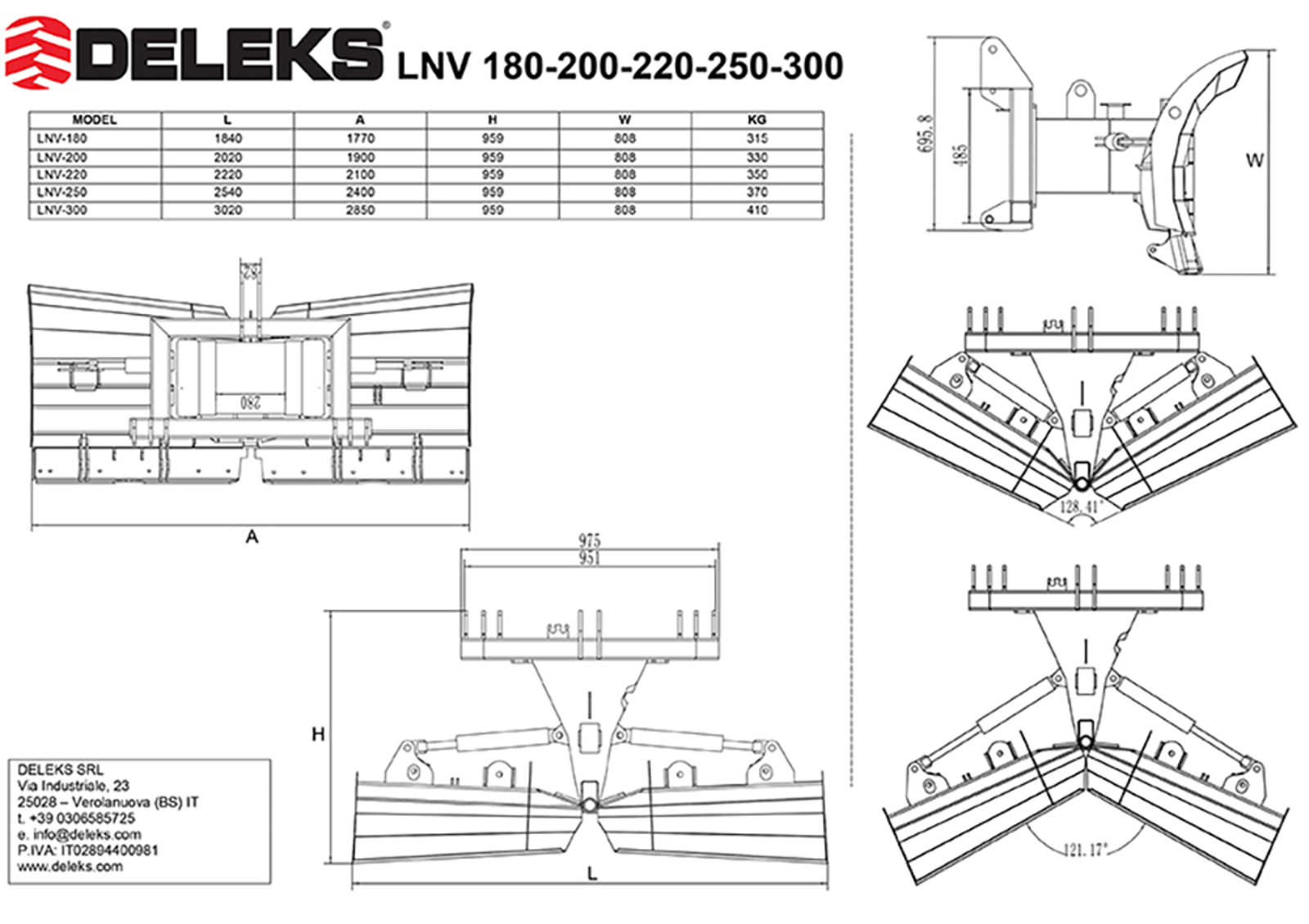

|Caracteristic||Units metric||Units US|
|Weight||410.0 kg||900.0 lb|
|Overall height||1020.0 mm||3.35 ft|
|Tractor Power Range||60 - 90 Hp||60 - 90 Hp|
|Overall Length||870.0 mm||2.85 ft|
|Spacing between the 2 lower points||635.0 - 970.0 mm||25.0 - 38.20 in|
|Distance between the 2 lower points and ground||180.0 mm||7.08 in|
|Min./Max. Relief Pressure||110 - 150 bar||110 - 150 bar|
|Min./Max. Flow||18 - 22 l/min||18 - 22 l/min|
|Interface||3 Point linkage cat. 1-2 (19.0-22.0 / 25.0-28.0 mm)||3 Point linkage cat. 1-2 (19.0-22.0 / 25.0-28.0 mm)|
|Float||+/- 6°||+/- 6°|
|Blade Height||920.0 mm||3.00 ft|
|Side edge thickness||5.0 mm||0.20 in|
|Cutting Edge Height||265.0 mm||10.43 in|
|Cutting Edge Thickness||50.0 mm||1.97 in|
|Trip Edge Quantity||2||2|
|Distance betweens the bolts of the Trip Edge||200.0 mm||7.87 in|
|Removable Skid Shoes||x||x|
|Working width (angled)||2850.0 mm||9.35 ft|
|Hydraulic Hoses||2 x 2000.0 mm / connections 1.2" AGRI, WP 400 bar||2 x 6.56 ft / connections 1.2" AGRI, WP 400 bar|
|Overall width||3020.0 mm||9.90 ft|
|Main frame thickness||4.0 mm + reinforces||0.15 in + reinforces|
|Hydraulic cylinder/s ø||60.0/30.0 mm||2.36/1.18 in|
|Packing sizes||3050.0*1000.0*800.0 mm||10.00*3.28*2.62 ft|
